Source Parameter Estimation of the 2009 Ms6.0 Yao’an Earthquake, Southern China, Using InSAR Observations

by
Wei Qu
1,2,
Bing Zhang
1,
Zhong Lu
2,*,
Jin Woo Kim
2,
Qin Zhang
1,
Yuan Gao
1,
Ming Hao
3,
Wu Zhu
1 and
Feifei Qu
1
1
College of Geology Engineering and Geomatics, Chang’an University, Xi’an 710054, China
2
Department of Earth Sciences, Southern Methodist University, Dallas, TX 75275, USA
3
Second Monitoring Center, China Earthquake Administration, Xi’an 710054, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(4), 462; https://doi.org/10.3390/rs11040462
Submission received: 23 January 2019 / Revised: 17 February 2019 / Accepted: 20 February 2019 / Published: 23 February 2019
(This article belongs to the Special Issue Remote Sensing of Tectonic Deformation)
Browse Figures
Versions Notes

Abstract

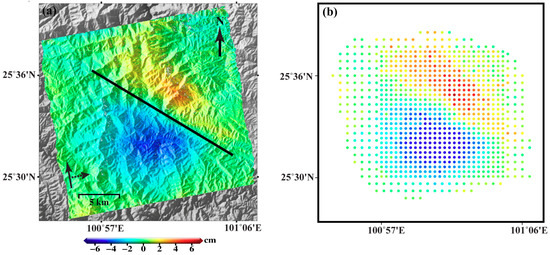

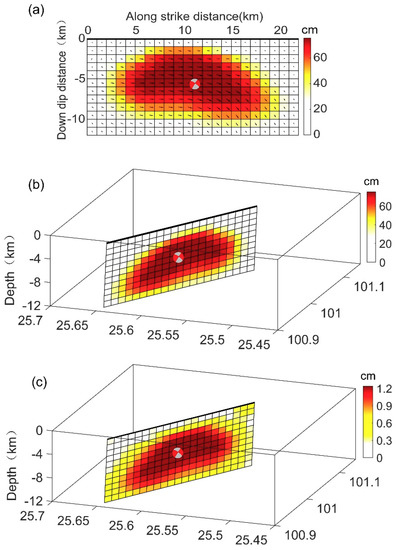

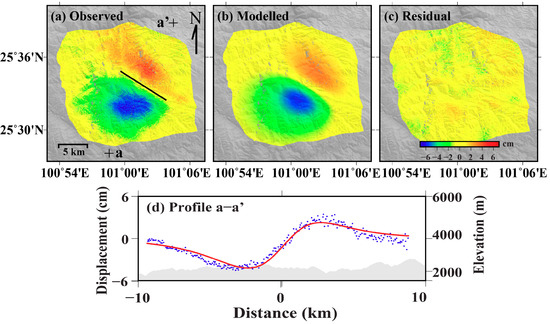

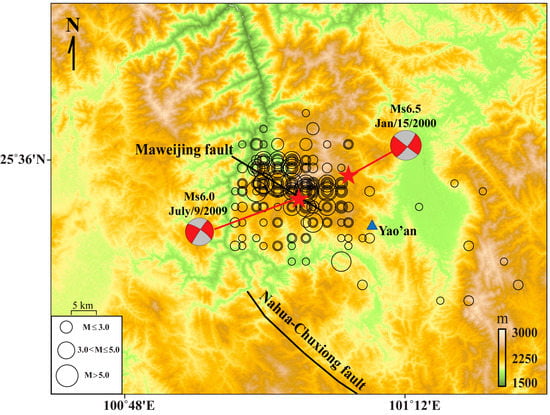

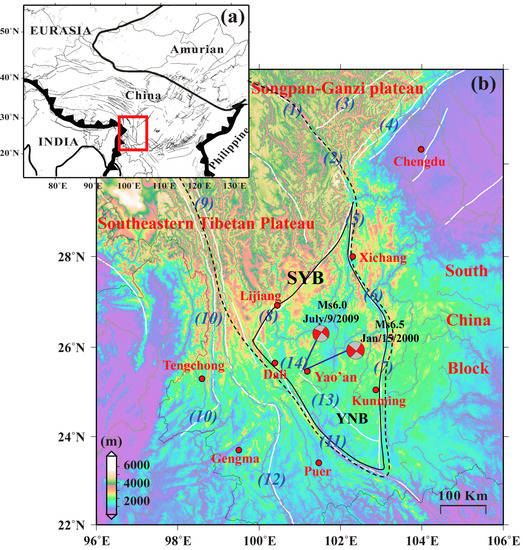

On 9 July 2009, an Ms6.0 earthquake occurred in mountainous area of Yao’an in Yunnan province of Southern China. Although the magnitude of the earthquake was moderate, it attracted the attention of many Earth scientists because of its threat to the safety of the population and its harm to the local economy. However, the source parameters remain poorly understood due to the sparse distribution of seismic and GNSS (Global Navigation Satellite System) stations in this mountainous region. Therefore, in this study, the two L-band ALOS (Advanced Land Observing Satellite-1) PALSAR (Phased Array type L-band Synthetic Aperture Radar) images from an ascending track is used to investigate the coseismic deformation field, and further determine the location, fault geometry and slip distribution of the earthquake. The results show that the Yao’an earthquake was a strike-slip event with a down-dip slip component. The slip mainly occurred at depths of 3–8 km, with a maximum slip of approximately 70 cm at a depth of 6 km, which is shallower than the reported focal depth of ~10 km. An analysis of the seismic activity and tectonics of the Yao’an area reveals that the 9 July 2009 Yao’an earthquake was the result of regional stress accumulation, which eventually led to the rupture of the northwestern most part of the Maweijing fault.
Keywords: Yao’an earthquake; InSAR; coseismic deformation; source parameters; slip distribution; tectonics Yao’an earthquake; InSAR; coseismic deformation; source parameters; slip distribution; tectonics
Graphical Abstract

Share and Cite

MDPI and ACS Style

Qu, W.; Zhang, B.; Lu, Z.; Kim, J.W.; Zhang, Q.; Gao, Y.; Hao, M.; Zhu, W.; Qu, F. Source Parameter Estimation of the 2009 Ms6.0 Yao’an Earthquake, Southern China, Using InSAR Observations. Remote Sens. 2019, 11, 462. https://doi.org/10.3390/rs11040462

AMA Style

Qu W, Zhang B, Lu Z, Kim JW, Zhang Q, Gao Y, Hao M, Zhu W, Qu F. Source Parameter Estimation of the 2009 Ms6.0 Yao’an Earthquake, Southern China, Using InSAR Observations. Remote Sensing. 2019; 11(4):462. https://doi.org/10.3390/rs11040462

Chicago/Turabian Style

Qu, Wei, Bing Zhang, Zhong Lu, Jin Woo Kim, Qin Zhang, Yuan Gao, Ming Hao, Wu Zhu, and Feifei Qu. 2019. "Source Parameter Estimation of the 2009 Ms6.0 Yao’an Earthquake, Southern China, Using InSAR Observations" Remote Sensing 11, no. 4: 462. https://doi.org/10.3390/rs11040462

APA Style

Qu, W., Zhang, B., Lu, Z., Kim, J. W., Zhang, Q., Gao, Y., Hao, M., Zhu, W., & Qu, F. (2019). Source Parameter Estimation of the 2009 Ms6.0 Yao’an Earthquake, Southern China, Using InSAR Observations. Remote Sensing, 11(4), 462. https://doi.org/10.3390/rs11040462
