Open AccessArticle
Remote Sens. 2019, 11(4), 380; https://doi.org/10.3390/rs11040380

DRE-SLAM: Dynamic RGB-D Encoder SLAM for a Differential-Drive Robot

Robotics Institute, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Received: 16 January 2019 / Revised: 7 February 2019 / Accepted: 9 February 2019 / Published: 13 February 2019
(This article belongs to the Special Issue Mobile Mapping Technologies)
Full-Text   |   PDF [20745 KB, uploaded 13 February 2019]   |

Abstract

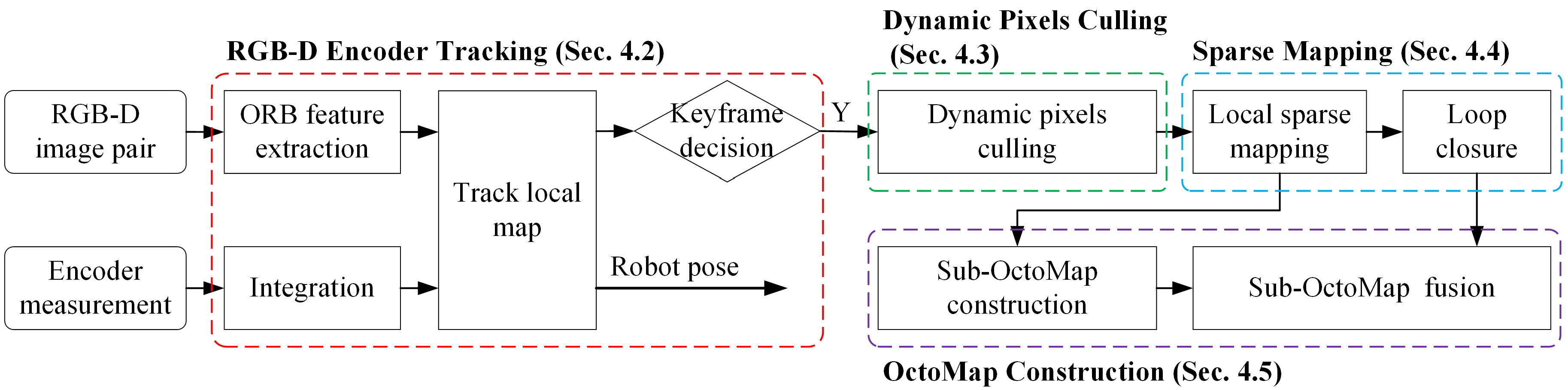

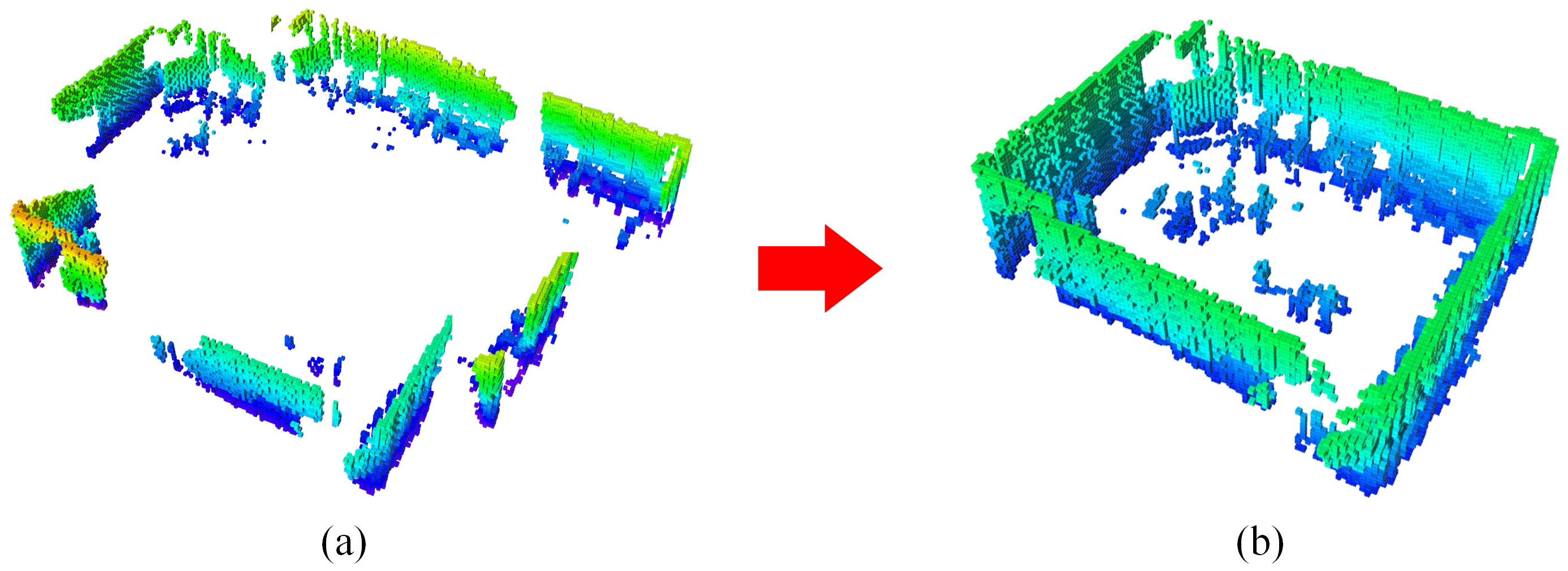

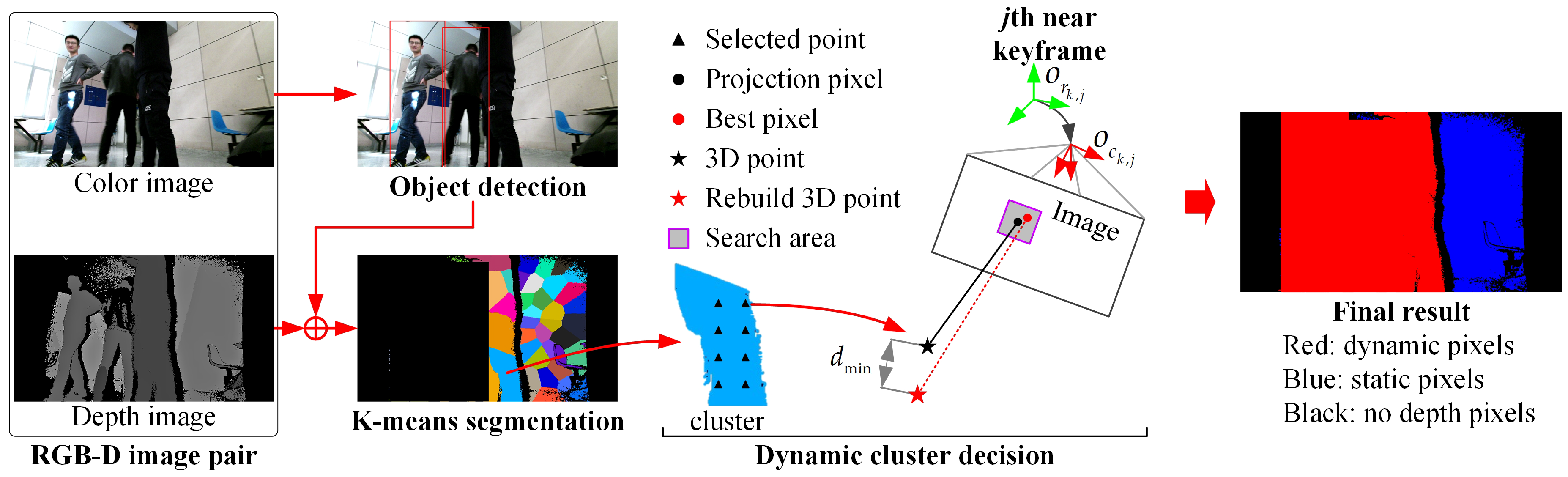

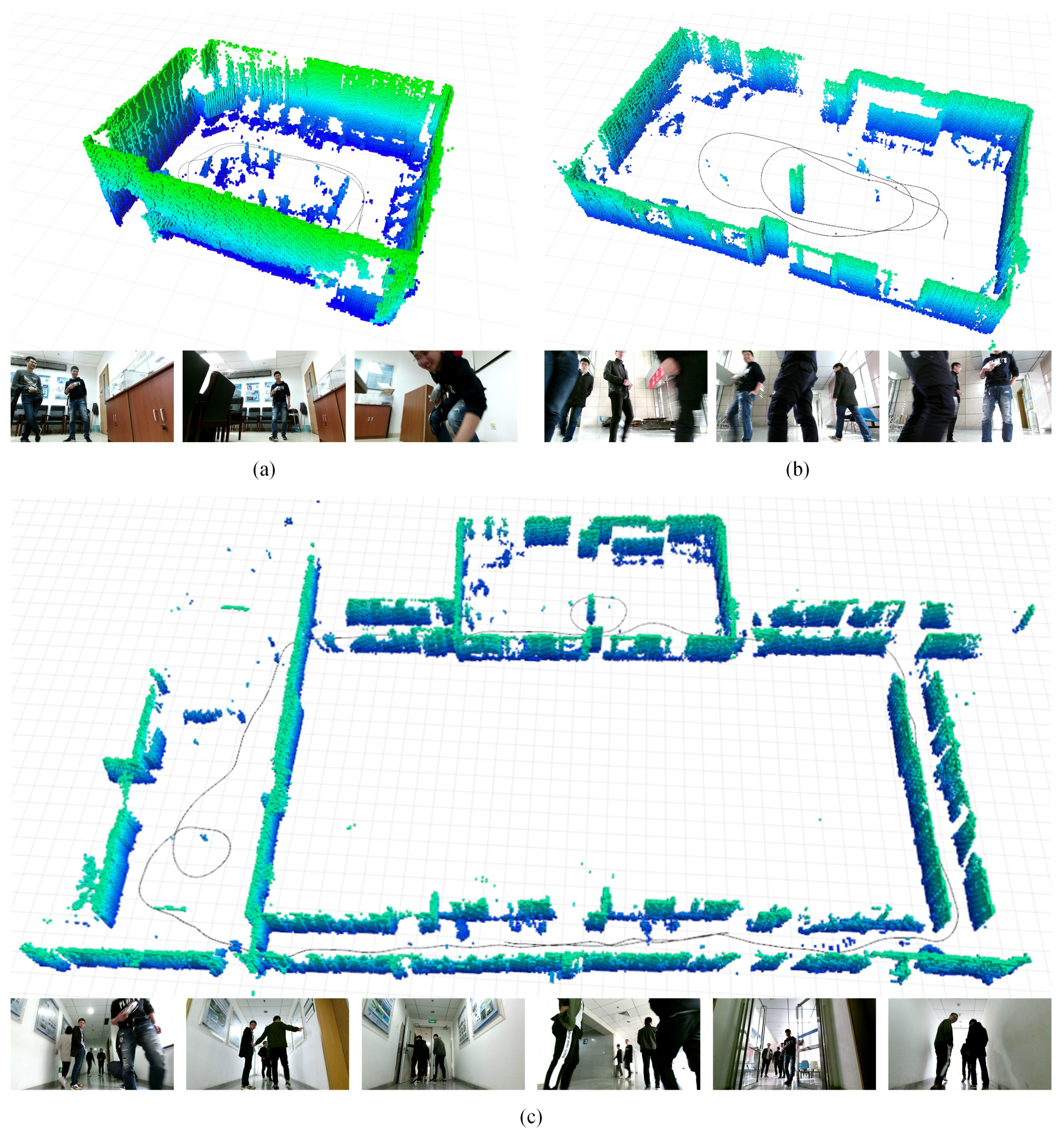

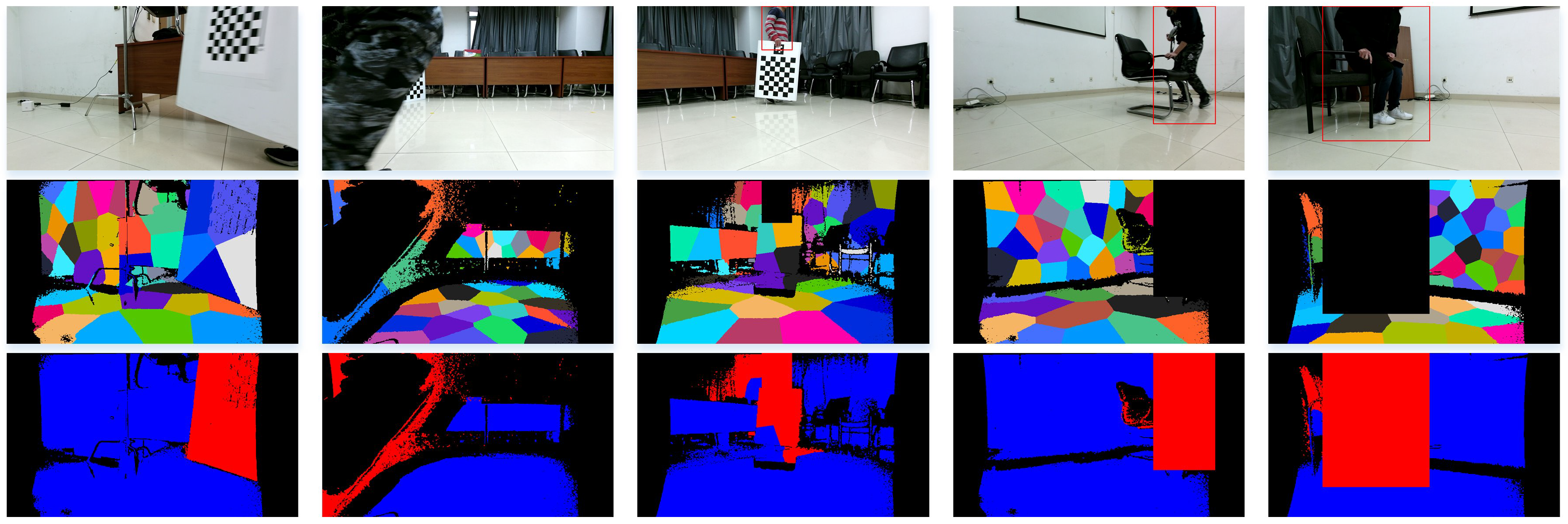

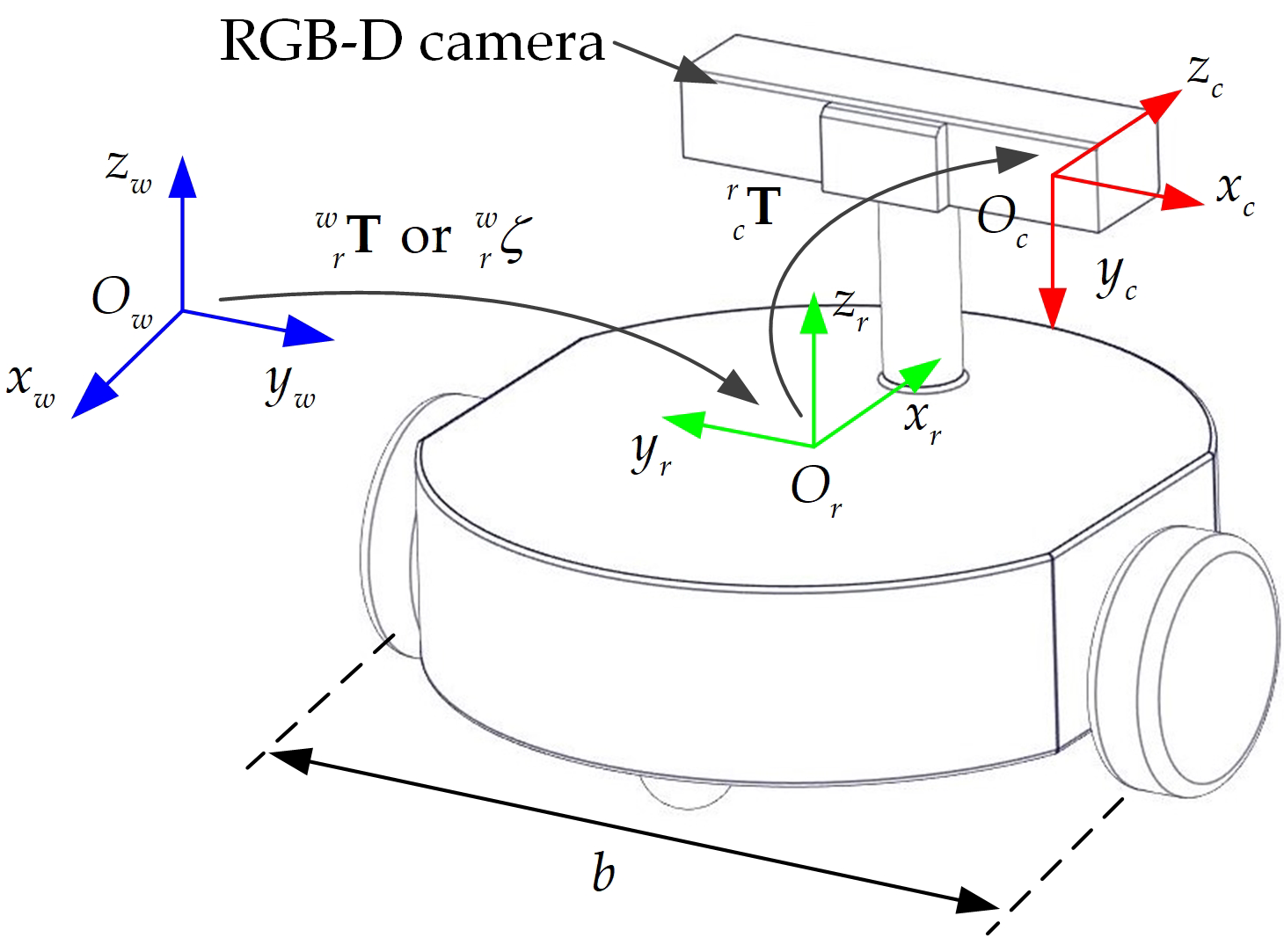

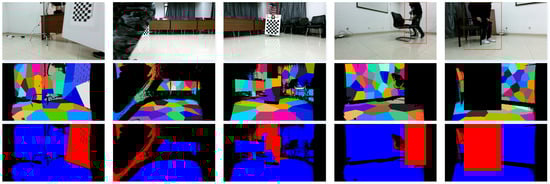

The state-of-the-art visual simultaneous localization and mapping (V-SLAM) systems have high accuracy localization capabilities and impressive mapping effects. However, most of these systems assume that the operating environment is static, thereby limiting their application in the real dynamic world. In this paper, by fusing the information of an RGB-D camera and two encoders that are mounted on a differential-drive robot, we aim to estimate the motion of the robot and construct a static background OctoMap in both dynamic and static environments. A tightly coupled feature-based method is proposed to fuse the two types of information based on the optimization. Dynamic pixels occupied by dynamic objects are detected and culled to cope with dynamic environments. The ability to identify the dynamic pixels on both predefined and undefined dynamic objects is available, which is attributed to the combination of the CPU-based object detection method and a multiview constraint-based approach. We first construct local sub-OctoMaps by using the keyframes and then fuse the sub-OctoMaps into a full OctoMap. This submap-based approach gives the OctoMap the ability to deform, and significantly reduces the map updating time and memory costs. We evaluated the proposed system in various dynamic and static scenes. The results show that our system possesses competitive pose accuracy and high robustness, as well as the ability to construct a clean static OctoMap in dynamic scenes. View Full-Text
Keywords: visual simultaneous localization and mapping; dynamic environment; RGB-D camera; encoder; OctoMap visual simultaneous localization and mapping; dynamic environment; RGB-D camera; encoder; OctoMap
Figures

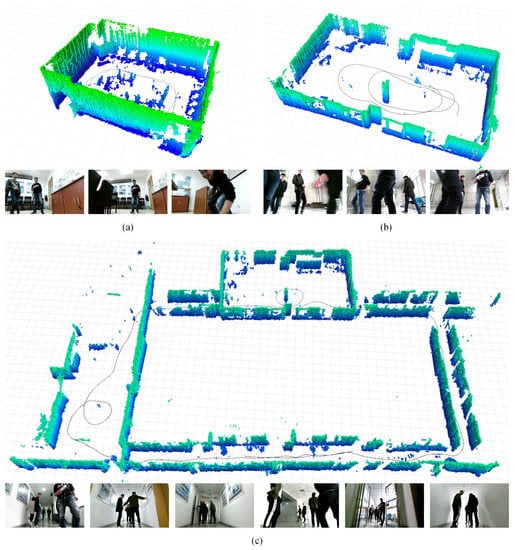

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yang, D.; Bi, S.; Wang, W.; Yuan, C.; Wang, W.; Qi, X.; Cai, Y. DRE-SLAM: Dynamic RGB-D Encoder SLAM for a Differential-Drive Robot. Remote Sens. 2019, 11, 380.
