Evaluating Resilience-Centered Development Interventions with Remote Sensing

Faculty of Geo-Information Science and Earth Observation (ITC), University of Twente, 7500 AE Enschede, The Netherlands
German Institute for Development Evaluation (DEval), Competence Center for Evaluation Methodologies, 53113 Bonn, Germany
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(21), 2511;
Received: 14 September 2019 / Revised: 23 October 2019 / Accepted: 24 October 2019 / Published: 26 October 2019

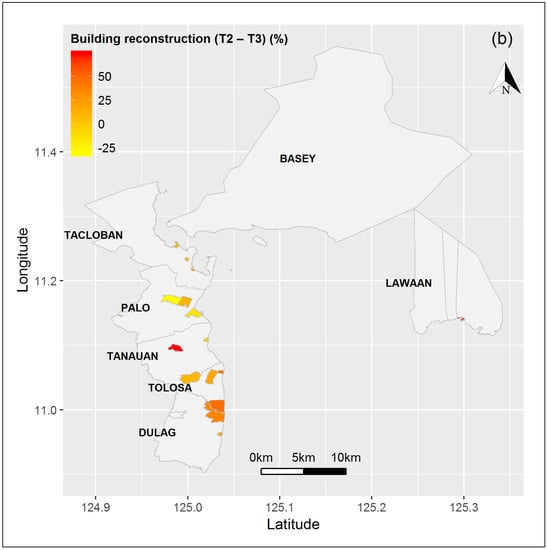

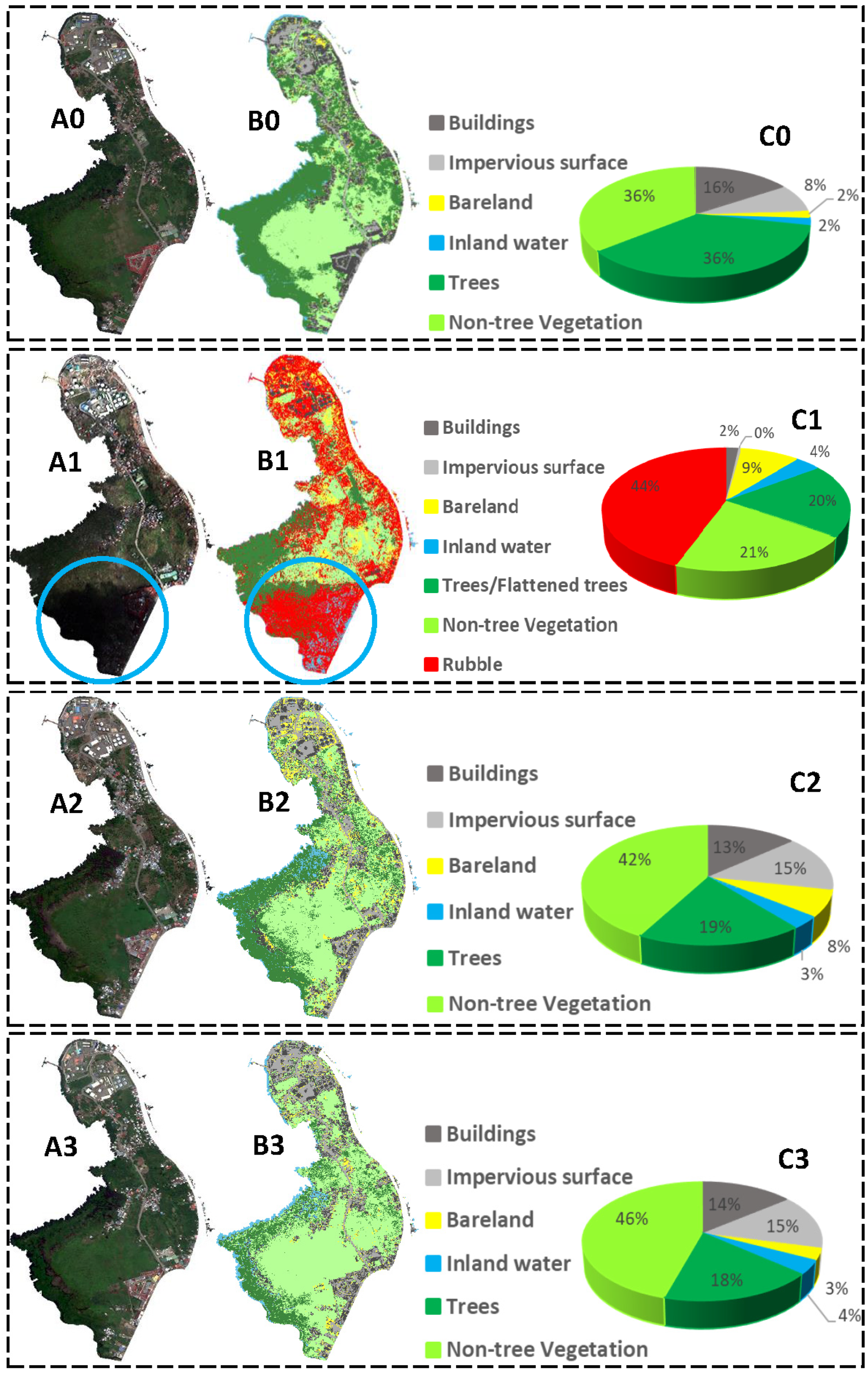

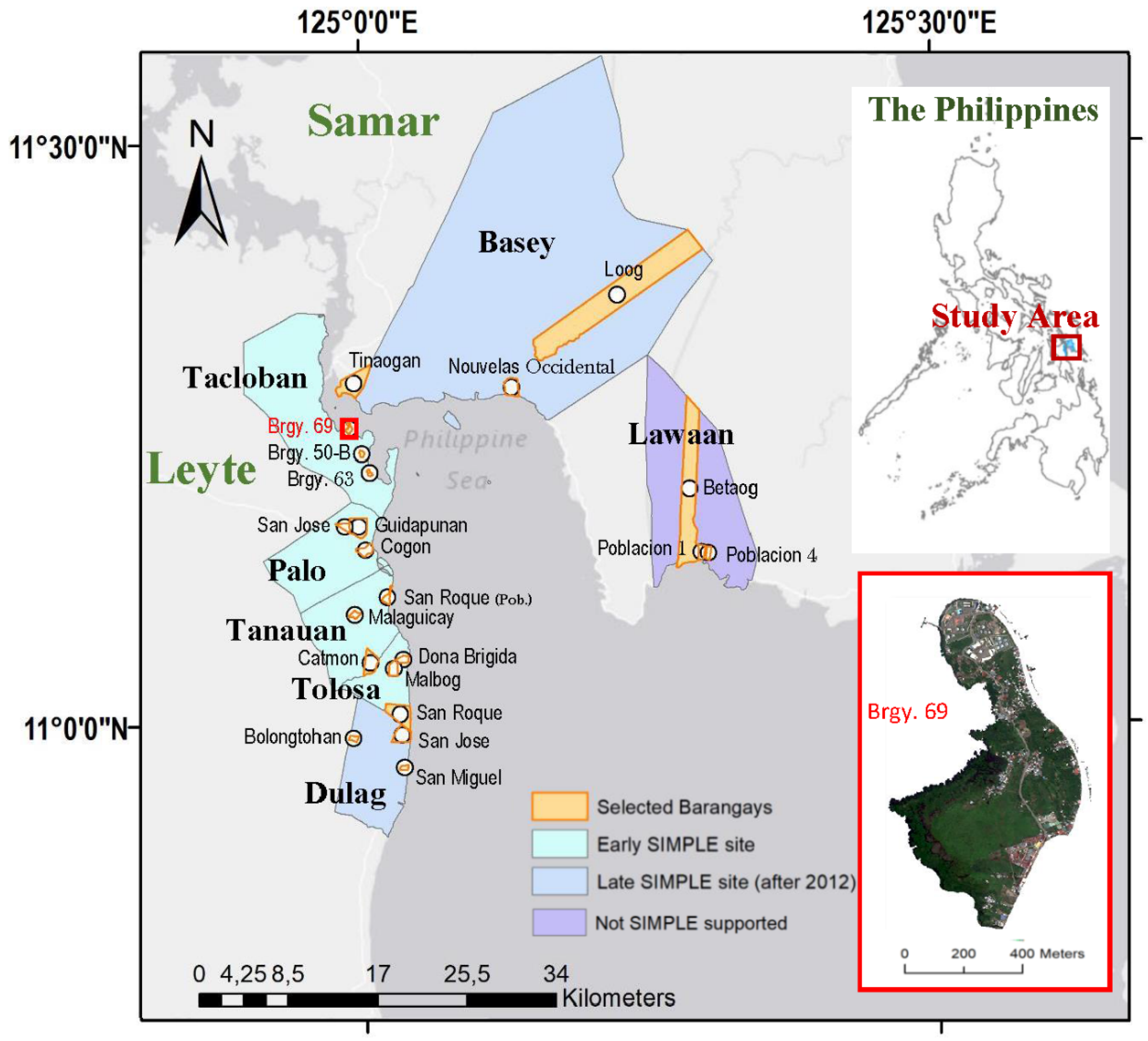

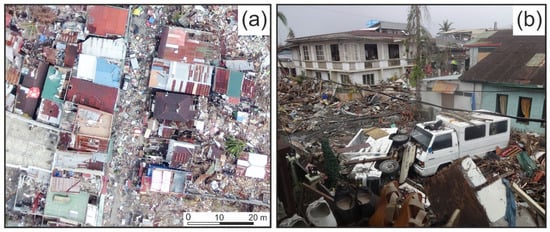

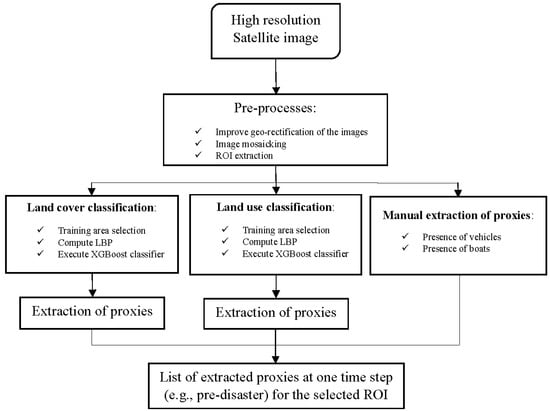

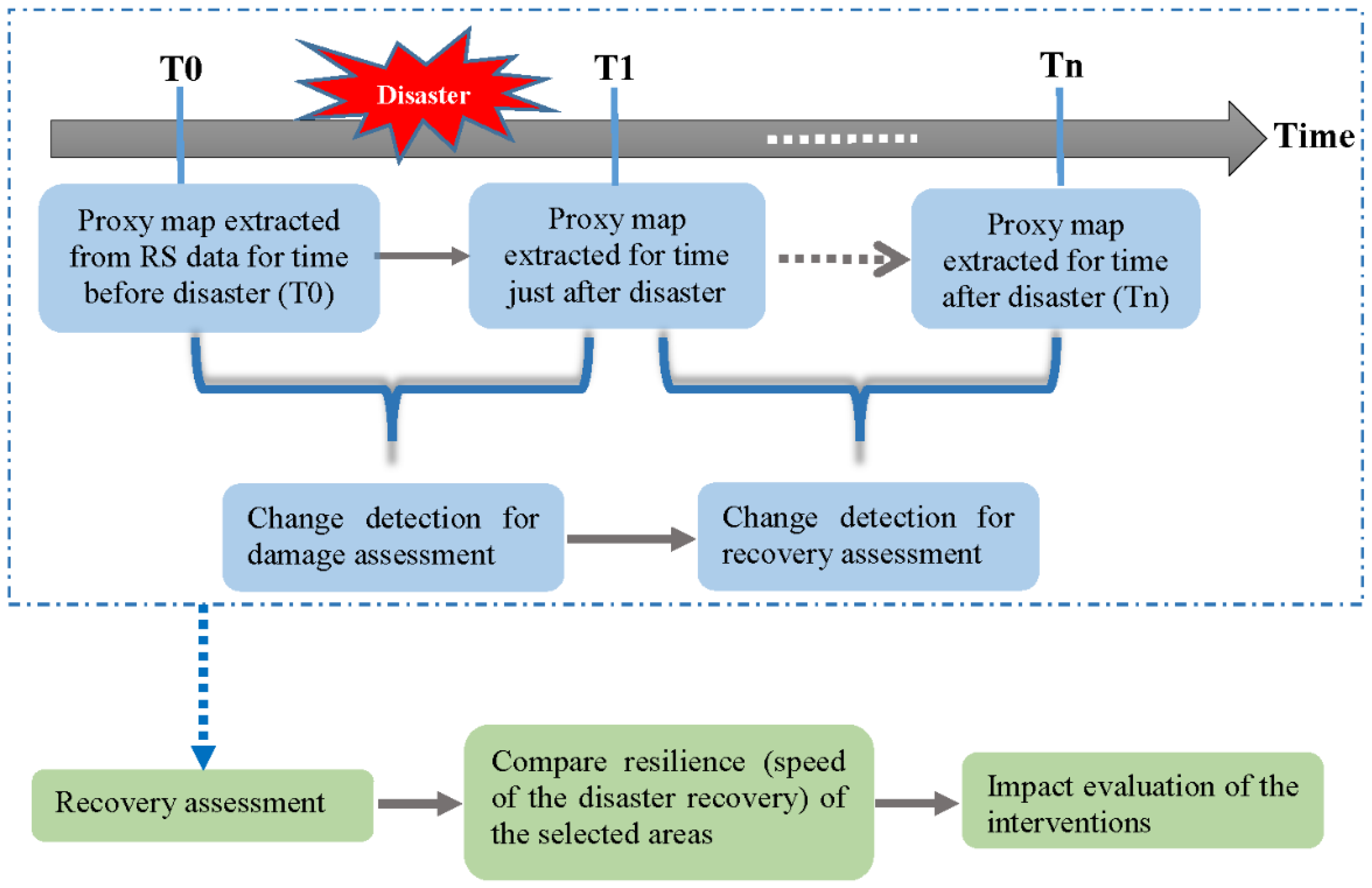

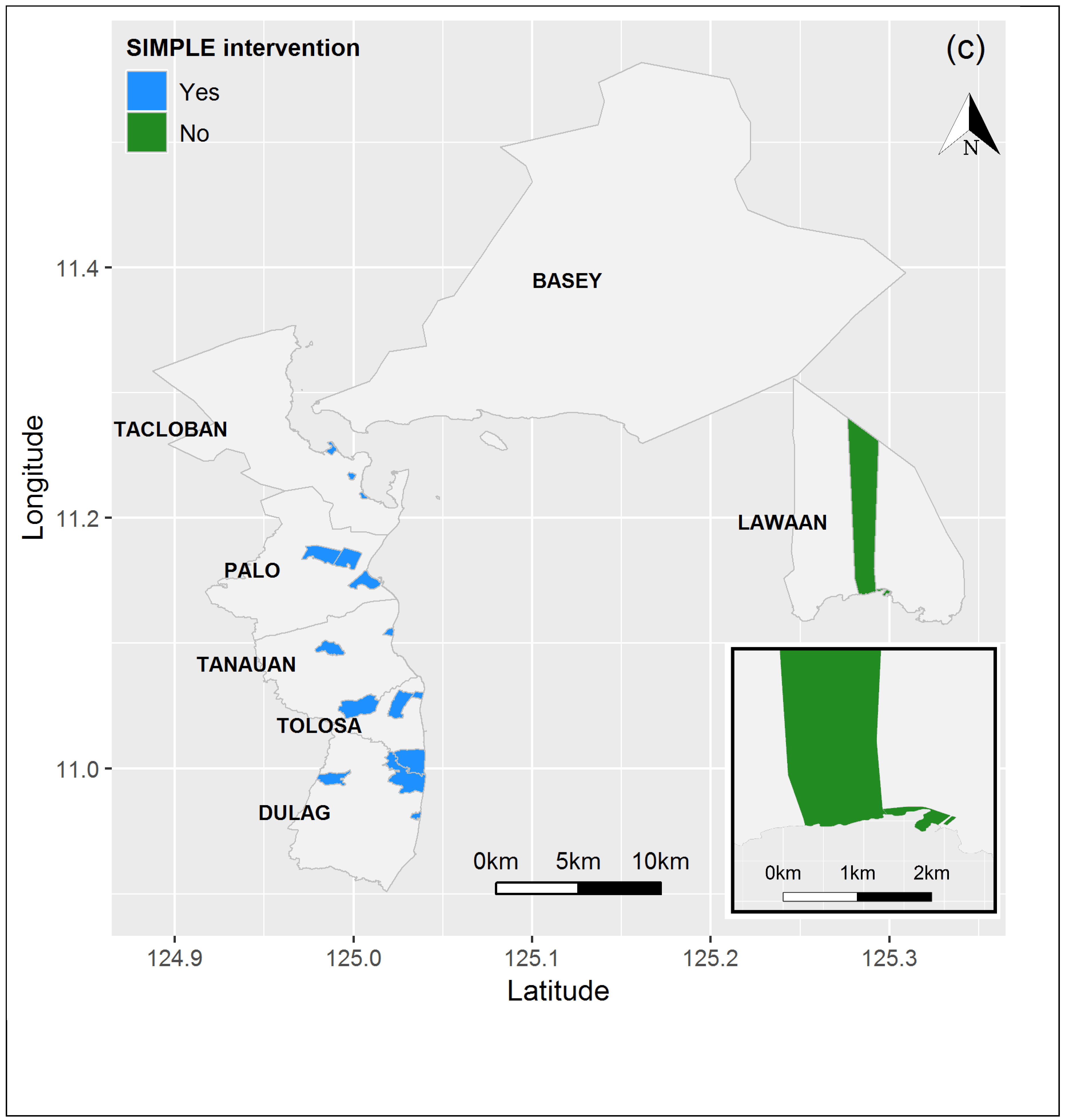

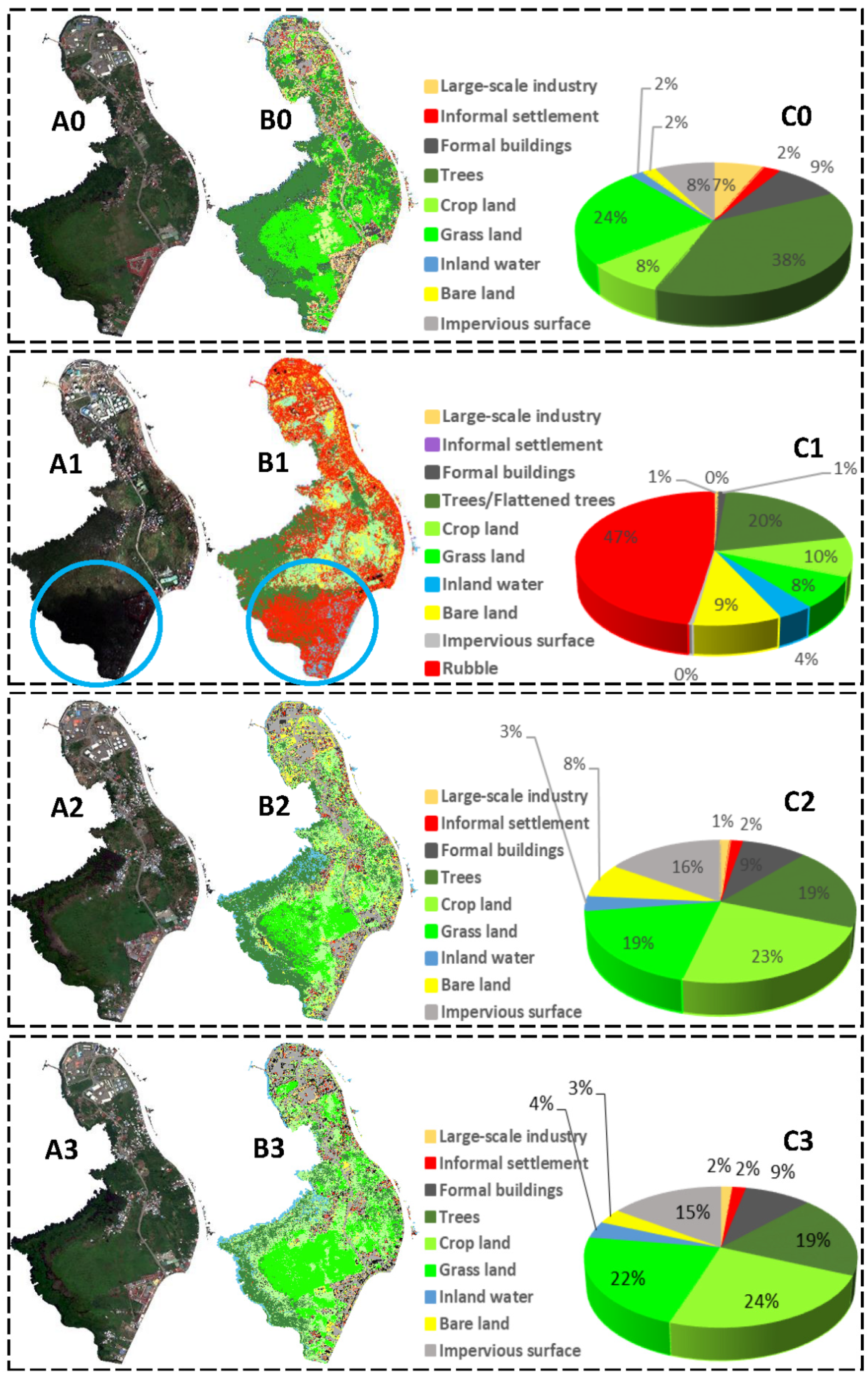

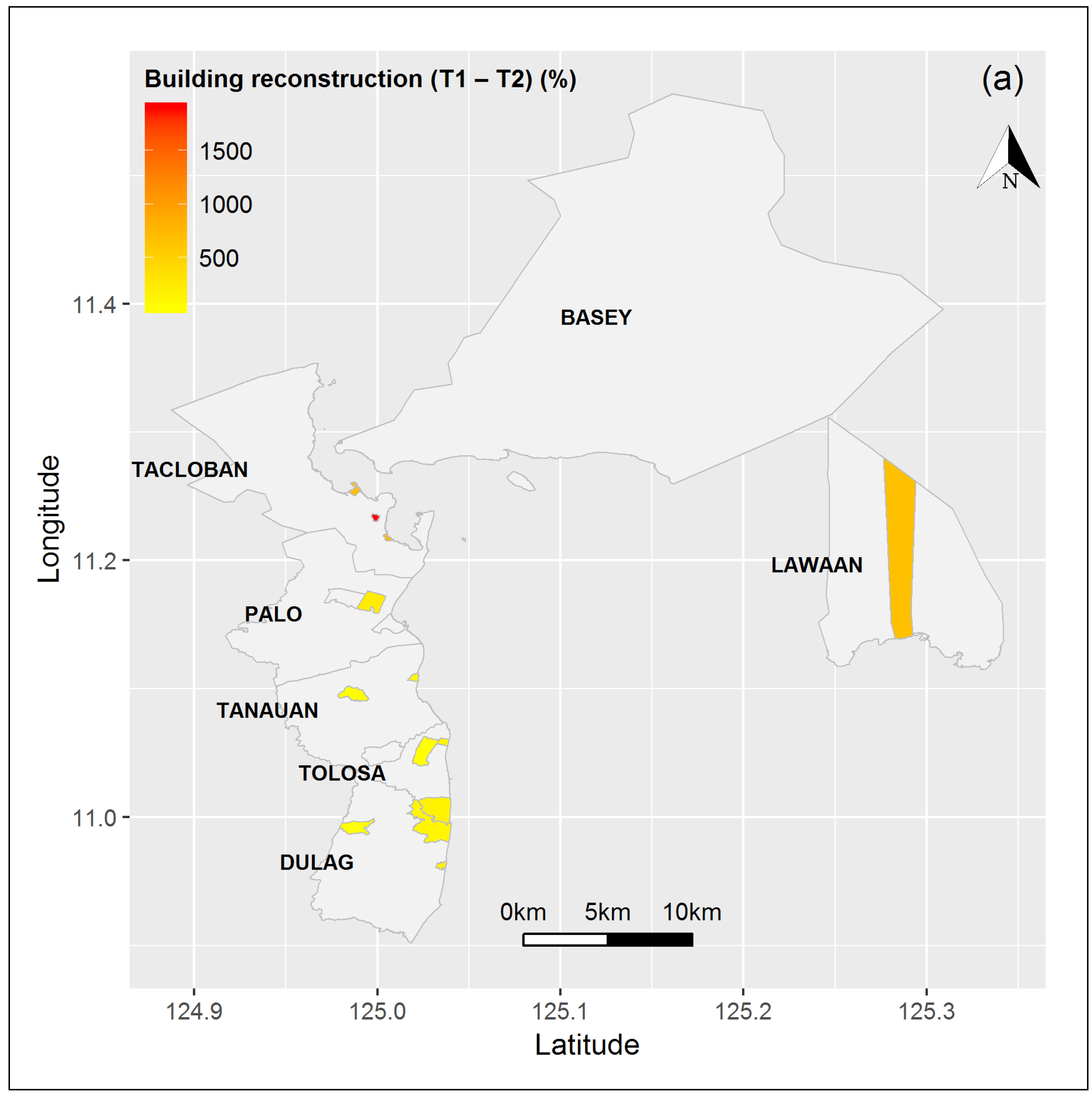

Natural disasters are projected to increase in number and severity, in part due to climate change. At the same time a growing number of disaster risk reduction (DRR) and climate change adaptation measures are being implemented by governmental and non-governmental organizations, and substantial post-disaster donations are frequently pledged. At the same time there has been increasing demand for transparency and accountability, and thus evidence of those measures having a positive effect. We hypothesized that resilience-enhancing interventions should result in less damage during a hazard event, or at least quicker recovery. In this study we assessed recovery over a 3 year period of seven municipalities in the central Philippines devastated by Typhoon Haiyan in 2013. We used very high resolution optical images (<1 m), and created detailed land cover and land use maps for four epochs before and after the event, using a machine learning approach with extreme gradient boosting. The spatially and temporally highly variable recovery maps were then statistically related to detailed questionnaire data acquired by DEval in 2012 and 2016, whose principal aim was to assess the impact of a 10 year land-planning intervention program by the German agency for technical cooperation (GIZ). The survey data allowed very detailed insights into DRR-related perspectives, motivations and drivers of the affected population. To some extent they also helped to overcome the principal limitation of remote sensing, which can effectively describe but not explain the reasons for differential recovery. However, while a number of causal links between intervention parameters and reconstruction was found, the common notion that a resilient community should recover better and more quickly could not be confirmed. The study also revealed a number of methodological limitations, such as the high cost for commercial image data not matching the spatially extensive but also detailed scale of field evaluations, the remote sensing analysis likely overestimating damage and thus providing incorrect recovery metrics, and image data catalogues especially for more remote communities often being incomplete. Nevertheless, the study provides a valuable proof of concept for the synergies resulting from an integration of socio-economic survey data and remote sensing imagery for recovery assessment. View Full-Text
Keywords: disaster; resilience; impact; evaluation; Philippines; Haiyan; machine learning; gradient boosting; land use planning; German development cooperation disaster; resilience; impact; evaluation; Philippines; Haiyan; machine learning; gradient boosting; land use planning; German development cooperation
Show Figures

Graphical abstract

MDPI and ACS Style

Kerle, N.; Ghaffarian, S.; Nawrotzki, R.; Leppert, G.; Lech, M. Evaluating Resilience-Centered Development Interventions with Remote Sensing. Remote Sens. 2019, 11, 2511.
