Article

Assessment of IMERG Precipitation Estimates over Europe

1
Atmospheric Physics Group (GFA), Department of Applied Physics, Universidad de León, 24071 León, Spain
2
Department of Atmospheric Science, Colorado State University, Fort Collins, CO 80523, USA
3
Earth and Space Sciences Group (ESS), Institute of Environmental Sciences (ICAM), University of Castilla-La Mancha, 45071 Toledo, Spain
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(21), 2470; https://doi.org/10.3390/rs11212470
Received: 8 October 2019 / Revised: 21 October 2019 / Accepted: 22 October 2019 / Published: 23 October 2019
(This article belongs to the Section Remote Sensing in Geology, Geomorphology and Hydrology)

Abstract

:
This paper evaluates Integrated Multi-Satellite Retrievals from GPM (IMERG-F) over Europe for the period 2014–2018 in order to evaluate application of the retrievals to hydrology. IMERG-F is compared with a large pan-European precipitation dataset built on rain gauge stations, i.e., the ENSEMBLES OBServation (E-OBS) gridded dataset. Although there is overall agreement in the spatial distribution of mean precipitation (R2 = 0.8), important discrepancies are revealed in mountainous regions, specifically the Alps, Pyrenees, west coast of the British Isles, Scandinavia, the Iberian and Italian peninsulas, and the Adriatic coastline. The results show that the strongest contributors to poor performance are pixels where IMERG-F has no gauges available for adjustment. If rain gauges are available, IMERG-F yields results similar to those of the surface observations, although the performance varies by region. However, even accounting for gauge adjustment, IMERG-F systematically underestimates precipitation in the Alps and Scandinavian mountains. Conversely, IMERG-F overestimates precipitation in the British Isles, Italian Peninsula, Adriatic coastline, and eastern European plains. Additionally, the research shows that gauge adjustment worsens the spatial gradient of precipitation because of the coarse resolution of Global Precipitation Climatology Centre data.

Graphical Abstract

1. Introduction

Accurate estimation of precipitation is essential in weather prediction, climate change research, and hydrologic applications [1,2,3]. However, unlike pressure and temperature, precipitation fields can be spatially patchy and consequently extremely difficult to measure and predict [4]. Many efforts have been made to measure precipitation since the 18th century, but building a global, consistent, and continuous database of rainfall is still challenging [5].
Currently, there are three main methods to measure precipitation, rain gauges, weather radars and satellite sensors. Rain gauges provide in situ, high time-resolution precipitation measurements at a given site. In spite of being considered the standard of precipitation measurement, rain gauges are subject to many uncertainties. For example, they provide point estimates that may be not fully representative of an area, especially large and complex ones with few stations [6]. Given the rapid spatial decorrelation of precipitation, network density is a key issue for rain gauge networks [7]. From the point of view of both precision and accuracy, rain gauges also have multiple errors due to wind, precipitation type, and poor maintenance of secondary stations [8,9].
Weather radars are also widely used to measure precipitation over land. Ground radars provide good quality observations at high spatial and temporal resolution [10]. Nevertheless, they are still inadequate for quantitative global precipitation monitoring because of reduced spatial coverage and uncertainties related to the Z–R relationship, range effects, beam-blocking, clutter, and calibration errors [11,12]. Where integrated gauge-radar products exist, they tend to provide the best spatially averaged precipitation estimates. An example is the European network, but this does not cover the entire continent.
Satellite-derived rainfall products emerged 40 years ago as a promising alternative to measure precipitation at global scale [13,14]. By providing a homogeneous view of most of the planet, satellite data are not as prone to uncertainties because of sometimes very diverse instrumentation. The first visible/IR (Infrared Radiation) sensors were soon complemented with passive microwave (PMW) instruments, because electromagnetic radiation at microwave frequencies is affected by precipitation-sized particles but not by cloud droplets [15]. However, these instruments are also prone to problems such as limited temporal sampling (which can be alleviated using a constellation) and inherent limitations over land (because soil emissivity masks the rainfall signal) [16]. Spaceborne radars such as the precipitation radar onboard TRMM (Tropical Rainfall Measurement Mission) and the dual-frequency precipitation radar (DPR) in the Global Precipitation Measurement Core Observatory (GPM-CO) offer more direct observations of precipitation, but there is no constellation of orbital radars. In its absence, a combination of multiple satellite sensors is the natural, transient solution to providing accurate rainfall measurements for applications. The TRMM Multi-satellite Precipitation Analysis (TMPA) [17], Global Satellite Map Product (GSMaP) [18], and Integrated Multi SatellitE Retrievals from GPM (IMERG) [19,20] are examples of such an approach.
The GPM-IMERG can be considered the successor of the TMPA. Since its first release in 2014, several studies have been devoted to evaluation of the product and its comparison with alternatives. Recent work by Prakash et al. [21] suggested that IMERG exhibits major improvements relative to TMPA in terms of capturing monsoonal precipitation. Omranian et al. [22] focused on the ability of IMERG to reproduce hurricanes, and Khan and Maggioni [23] evaluated the performance of IMERG over oceans. At country scale, validation exercises have published for mainland China [24], Saudi Arabia [25], Brazil [26], Cyprus [27], the Netherlands [28], Germany [29], Austria [30] and Spain [31], among others. There has, however, been no full validation for Europe.
This paper evaluates how IMERG compares with gauge-derived, high-resolution precipitation products used in climatological research. The datasets and methods used are presented in Section 2. Section 3 evaluates the performance of IMERG, highlights the main areas of discrepancy, and examines the underlying reasons for disagreements. Section 4 summarizes the main conclusions.

2. Data and Methodology

2.1. Study Area

The study area spans within the latitudes of 25°00’N–71°00’N and longitudes of 25°00’W–45°00’E, covering most of European continent (Figure 1). The geography of Europe is variable, with substantive differences between regions. The combination of plains, uplands, and mountain ranges provides a good representation of diverse topographical and climatological conditions to test the performance of IMERG.
Europe has five large climate regions according to the Köppen climate classification [33]. Southern Europe, Portugal, Spain, southeastern France, southwestern Italy, Greece, and Turkey are dominated by Mediterranean and semiarid climates (Csa, Csb, Bsh, and Bsk). These climates are characterized by dry-hot summers with precipitation totals less than 900 mm/year. The North Atlantic (northern Spain, France, northeastern Italy, the British Isles, Benelux, and western Germany) has a maritime climate (Cfb). It typically lacks a dry season and precipitation comes in the form of rain during most of the year. Southern Scandinavia and Central and Eastern Europe have a humid continental climate (Dfa and Dfb) that is typified by large seasonal temperature differences and year-round precipitation. Winter precipitation is frequently in the form of snow. Subpolar climates (Dfc) are mostly found in eastern Norway, Sweden, and Finland. They are defined by cold winters and short cool-to-mild summers, with annual precipitation usually less than 600 mm. Alpine climates (ET) are restricted to the Alps, Iceland, and Scandinavian mountains.

2.2. Datasets

2.2.1. Surface Reference Dataset: E-OBS

E-OBS (ENSEMBLES OBServation) is a daily gridded observational dataset of precipitation, temperature and surface pressure in Europe [34,35]. Data are available on a 0.1° regular grid and 0.22° and 0.44° rotated polar grids. The full version 19.0e dataset covers the period 1950–2018 and is freely available from https://copernicus.eu.
The station data are supplied by national meteorological services and other providers across Europe and the Middle East [36]. The data are quality-controlled by the national agencies and quality-checked by the ECA&D (European Climate Assessment & Dataset). The number of stations per pixel are irregularly distributed across the continent (Figure 2A), with relatively numerous stations across central Europe, Scandinavia, and the British Isles, and fewer toward the south and east of the domain shown in Figure 2. This issue is also seen in the Global Precipitation Climatology Centre (GPCC) data (Figure 2B). In fact, E-OBS is not fully independent of GPCC because both products share data from SYNOP (surface synoptic observations) stations. The added value of E-OBS is the inclusion of second-order stations such as those of subnational weather services. Thus, E-OBS has nearly 9000 stations, whereas GPCC only has ~2770 for the same domain and period.
E-OBS has been widely used in peer review papers [37,38,39] and the validation of rainfall estimates from satellite data [40,41,42].

2.2.2. GPCC

The Global Precipitation Climatology Centre (GPCC) provides global (land-only) precipitation analyses at various temporal and spatial resolutions [43]. The database contains precipitation data from more than ~80,000 rain gauges around the globe. One of the gridded products released by GPCC is the GPCC-MP (GPCC Monitoring product v6; Figure 1B). It provides monthly precipitation data at 1.0° × 1.0° in near real-time, and these data serve as bias correction for IMERG-F.

2.2.3. IMERG

IMERG Version 6B-Final (Integrated MultisatellitE Retrievals from GPM) is a precipitation dataset with 0.1° spatial resolution and 30 min temporal resolution [44]. IMERG-F combines retrievals from PMW and microwave-calibrated IR to produce a quasi-global (60°S–60°N) precipitation product based only on satellite data. Raw data are processed by the GPROF2017 algorithm [45] and then gridded and merged with IR data to provide global, homogeneous precipitation measurements. IMERG has three types of products, early (IMERG-E), late (IMERG-L), and final (IMERG-F). Although “early” and “late” products are available in quasi-near-real-time, the “final” version was released 2.5 months later. An advantage of IMERG-F is that it includes additional satellite data that may be delayed for any reason. The gridded data are available from mid-March 2014 to the present.
In the present study, two versions of the final precipitation estimate were used, IMERG-Cal and IMERG-Uncal. The former, in contrast to the latter, includes a monthly gauge dataset from GPCC in the bias correction algorithm. Unless otherwise indicated in the following sections, IMERG-F refers to the calibrated product of IMERG “final” for simplicity. Comparisons are therefore between the high-density rain gauge dataset from E-OBS and a satellite product that has been bias-adjusted to the lower-density gauge dataset from GPCC.

2.3. Metrics

We assessed the performance of IMERG-F using both statistical and graphical methods. Standard metrics included descriptive analysis, the determination coefficient R2, and probability density functions (PDFs). Two more metrics were used, Cook’s distance D and the variogram γ .
Cook’s distance is used in bivariate data analysis to find influential outliers [46]. In this paper, this method is used to identify pixels with greater discrepancies. It is defined as
D i = j = 1 j = n ( y ^ j y ^ j ( i ) ) 2 p   M S E ,
where y ^ j is the prediction from the full regression model for observation j, and y ^ j ( i ) is the prediction for observation j from a refitted regression model in which observation i has been omitted. M S E is the mean squared error and p the number of fitted parameters. The larger D is, the more influential the point (D = 0 means a perfect score). We used the conventional threshold value 4/n to identify outliers.
The variogram γ is a geospatial analysis tool that measures the spatial variability of a field. Here, γ is used as a metric to evaluate the similarity between the spatial structure of precipitation from E-OBS and IMERG-F. γ is calculated from
γ ( h ) = 1 2 n i j ( p i j p i j + h ) 2
where n is the number of pairs of grid points, p i j is precipitation at an individual grid point, and p i j + h is the precipitation distance h from the point i,j, with the sum over all grid points.

3. Results and Discussion

3.1. Comparisons

3.1.1. Annual and Seasonal Validation

Annual and seasonal climatologies were compared against E-OBS data as the reference. Figure 3 shows overall agreement of the annual mean. IMERG correctly reproduces the rainiest western British Isles, western Scandinavia, northwestern Iberian Peninsula, the Alps, and east coast of the Adriatic sea, plus the driest areas in Europe (southeastern Iberian Peninsula, the Maghreb, and Syrian desert). The agreement is also shown by a scatter plot (R2 = 0.8). However, some discrepancies are worth pointing out. Firstly, IMERG-F overestimated annual mean precipitation in areas with precipitation rates ~1.6 mm/day, especially on the Pontic–Caspian steppe, Oder River depression, and Pannonian Plain. Second, precipitation gradients in complex areas were poorly represented, e.g., the Italian Peninsula and British Isles.
Seasonal plots (Figure 4) show many of the features discussed for the annual mean. Generally, IMERG-F overestimated precipitation in most plain areas but underestimated in the Alps (all seasons). Indeed, this issue is clearer in humid continental climate regions (Dfb), especially in the cold season. A closer look at the Alps reveals greater underestimation during winter, but in summer when convective rain is more intense, there does not appear to be any major issue. Conversely, seasonal variability was well captured across the Iberian Peninsula, Greece, and countries of the Levantine Sea.
The scatter plots (Figure 4B) show the poorest correlation in the cold season (DJF). (R2 = 0.67) and the best in JJA (R2 = 0.89). Figure 5 compares the distribution of PDFs between E-OBS and IMERG-F. In terms of the annual mean, the precipitation distribution is similar to that of gauge observation. However, an underestimation of precipitation maxima and systematic overestimation of mean precipitation were common to all cases.
Seasonal variability was also well captured by IMERG-F except in the cold season (DJF). Here, IMERG-F had problems in correctly reproducing the distribution of precipitation, mainly caused by an excess of precipitation on the European plain (Figure 4A, first column). Conversely, IMERG-F gave the best result in summer, not only for the distribution of precipitation but also its mean (2.0–2.4 mm/day; Figure 4A, third column).

3.1.2. Monthly Time Series

A further step in evaluating the performance of IMERG-F was the analysis of monthly data for 12 cities in Europe. Cities were selected to represent most climate regions of the continent.
Figure 6 shows that IMERG-F correctly reproduced the time series of observations for 12 European cities. Indeed, it was able to capture severe events such as that reported in northern Italy during November 2014 [47]. Porto (POR), Amsterdam (AMS), and Paris (PAR) are examples of this good performance, but there are important discrepancies for Bergen (BER), Dublin (DUB), and Barcelona (BCN). The discrepancies for Bergen were in autumn–winter, but for Dublin they were over the entire period. Even with gauge calibration, PMW/IR sensors could not capture the actual precipitation signatures in those areas. Biases related to orographic lift and light rain detection might explain these problems. Barcelona is a very different case. It was affected by small number of events with high rainfall rates, which means that misrepresenting a single event could result in a poor monthly score [31].

3.2. IMERG Calibration

The IMERG-F product incorporates actual rain gauge estimates from the GPCC based on the relative uncertainty of satellite data. Climatological calibration is important because satellite estimates are frequently biased because of indirect measurement. Thus, for instance, Guo et al. [48] found that the bias-correction procedure in IMERG-Cal greatly improved the quality relative to IMERG-Uncal regarding the spatial distribution of precipitation.
Figure 7 shows the normalized difference (left) and relative difference (right) between IMERG-Cal and IMERG-Uncal. It is clear from the figure that GPCC’s calibration had an impact on IMERG-F. First, it reduced precipitation in central and northwestern France, on the Italian peninsula and Pannonian plain. Second, IMERG-Cal increased precipitation over mountainous areas, i.e., the Scandinavian Mountains, northwestern Scottish Highlands, Alps, and Cantabrian system of the northwestern Iberian Peninsula. After gauge calibration, IMERG-F showed favorable performance in those areas, but issues persisted when compared with E-OBS (cf. Figure 3).

3.3. Discrepancies between E-OBS and IMERG

3.3.1. Overview of Areas of Discrepancy

The next test evaluated IMERG-F according to the number of rain gauges. Figure 8A quantifies correlation between E-OBS and IMERG-F as a function of the number of rain gauges per pixel in the E-OBS dataset. The mean R2 correlation was nearly constant for all cases (0.70), but correlation of the maxima substantially increased at pixels with more than three stations (0.90 with four gauges), and was nearly 0.99 at pixels with five or more gauges. This is not surprising because of two reasons, the minimizing effect of spatial interpolation and the increased number of shared stations between E-OBS and GPCC in those areas.
The analysis of outlier pixels as defined by Cook’s distance method is a means to identify areas where surface and satellite observations disagree. Figure 8B shows which pixels were the largest contributors to poor performance according to the number of rain gauges available in E-OBS. As expected, most outliers were in areas where no gauges were available (pink pixels). Those were mountainous areas (Alps, the Dinarides, Pyrenees, and Scandinavian mountains) and coastal fringes (Adriatic coast and Atlantic coast of Portugal). Outlier pixels with one to two rain gauges were mostly in valleys surrounded by mountains and near coastlines (blue and light violet pixels). Pixels covered by three or more stations (dark violet, red, and green) were restricted to the central Alps, Slovenia, the Rhine, elevated areas in Germany such as the Harz and Thuringian forests, and the Calabria region of Italy. The next section provides a closer look at some of these regions.
Table 1 shows the correlation of monthly estimates according to five precipitation ranges. In general, the correlation increased when at least one rain gauge was available. The strongest correlation was in the range 0.1 to <2.5 mm/day and ≥10.0 mm/day. Conversely, IMERG-F gave poor correlation in the driest areas (<0.1 mm/day) and in high elevations with precipitation between 5.0 and <10.0 mm/day. A likely reason of the poor performance is the low number of quality gauges over these regions. That limits the calibration, and results in a suboptimal use of GPM data.

3.3.2. Alps and Adriatic Sea

Precipitation in complex terrain is a well-known issue in satellite-based products such as IMERG [49,50,51]. In mountainous regions, precipitation is extremely variable and there are changes in rainfall distribution over short distances. Additionally, higher altitudes mean that a large proportion of precipitation is in the solid phase, which is a challenge not only for satellites but also for rain gauges and weather radars [52]. A way to evaluate the performance of IMERG-F is by comparing it with the uncalibrated version of the product. Figure 9A compares annual mean precipitation over the Alps for E-OBS (second column) and the two versions of IMERG (IMERG-Cal and IMERG-Uncal). The uncalibrated version (fourth column) underestimated precipitation in that region, but IMERG-Cal partially reduced this problem (also seen in Figure 3 and Figure 7). However, precipitation in the western Alps was still poorly represented. An explanation of this systematic bias is the difficulties of satellite sensors in identifying heavy orographic precipitation and problems in detecting light rain at high elevations [50,53,54].
Another important region is the eastern coastline of the Adriatic Sea. Precipitation over this area is mainly caused by the advection of wet maritime air masses that interact with the Dinaric Alps, which precipitate windward of that mountain system. Figure 9B shows that IMERG-Cal yielded better results than the uncalibrated version. IMERG-Uncal produced heavier precipitation near the coastline with higher precipitation rates (>4.5 mm/day) beyond the Dinarides. Conversely, the calibrated product reduced this bias but still overestimated precipitation in the east (≈2.2 mm/day). Measuring precipitation over coastal locations is an ongoing challenge reported by several authors [31,55], and deserves further research.

3.3.3. British Isles and Rhine

Climatological calibration has important benefits for IMERG because it reduces biases in precipitation estimates. However, there are several areas where GPCC’s gauge adjustment artificially smoothes spatial gradients of precipitation. Figure 10 shows two particular cases, namely, the High and Upper Rhine and the British Isles. The spatial gradient between the Vosges Mountains and Black Forest (Figure 10A) was better captured by IMERG-Uncal, although the calibrated version gave better precipitation estimates. The smoothing effect of gauge adjustment is clearer in Figure 10B, in which IMERG-Cal extended precipitation eastward on both islands.
To better understand the spatial variation of precipitation, it is necessary to use spatial statistics such as the variogram. This metric was first used by German and Joss (2000) to evaluate the spatial variation of Alpine precipitation. Figure 11 shows that the spatial pattern of fields of annual mean precipitation are very different. The E-OBS estimate quickly decorrelates and has sharper gradients (Figure 11 left). Interestingly, the uncalibrated version is closer to that pattern than IMERG-Cal. The main cause for this counterintuitive behavior is the smoothing effect of gauge adjustment. The poor spatial resolution of GPCC negatively affects IMERG-Cal, removing sharp gradients (also seen in Figure 10B). This problem is clearer in the British Isles (Figure 11 right) and is also present in other areas such as the Thuringian Forest and the Harz in Germany.

3.3.4. Corsica

Network density and location are also key elements for accurate rainfall estimates, especially in gridded products. Thus, as the resolution of a gridded dataset increases, the effects of rain gauge density also increase. This is critical in complex terrain areas where the number of rain gauges per pixel and their locations might produce different rainfall estimates [56].
Corsica is a French island in the Mediterranean Sea. Its typical Mediterranean landscape is modified by a longitudinal mountain range with the highest elevation above 2700 m. Although most of the island has a Mediterranean climate (Csa and Csb), its center is dominated by a cold-summer Mediterranean climate (Csc) and temperate montane zones (Dfc and Dsc).
Figure 12A shows the spatial distribution of rain gauges over Corsica in the E-OBS dataset. The map illustrates that most gauges are at coastal locations (10 of 12 stations). Annual mean precipitation is greater than 1.7–1.8 mm/day in the coastal zones but fluctuates from 3.2 to 3.9 mm/day in the high-elevation center of the island. A careful comparison between maps (Figure 12B) and precipitation records from Météo-France second-order rain gauges reveals that E-OBS underestimated precipitation in the center, which is a consequence of interpolation. For instance, Evisa, Bastelica, and Sampolo had 3.9, 3.5, and 3.2 mm/day, respectively. In those areas, IMERG-Uncal gave more realistic results than E-OBS.
If the E-OBS dataset is biased toward lighter precipitation consistent with rain gauge density and location, a pertinent question regards the role of surface observations in complex terrain and/or gauge-poor areas. In such cases, IMERG-Uncal might produce a more reasonable representation of rainfall and gauge adjustment should be taken with caution. Indeed, considering the larger number of cases in which the satellite data compared well with an adequate number of gauges, it seems reasonable to use IMERG to fill the gaps in sparse rain gauge networks.

4. Conclusions

The IMERG “final run” (IMERG-F) accurately represented the precipitation climatology of Europe. It identified the rainiest areas and reproduced seasonal cycles correctly. However, there are several issues that should be addressed. First, IMERG-F underestimated precipitation in mountainous regions such as the Alps and Pyrenees. Even accounting for GPCC calibration, IMERG was unable to generate sufficient precipitation over these areas, which was caused by problems in the measurement of orographic precipitation from PMW. Second, the gauge adjustment negatively affected IMERG products in the High and Upper Rhine and British Isles because of the smoothing effect of the coarse resolution of GPCC. Third, the product had major problems in coastal areas with complex orography such as the coastline of the Adriatic Sea and northwestern Iberian Peninsula. This problem has been reported by several authors and the main cause might be algorithm limitations. Finally, there are some regions, e.g., Corsica, where discrepancies between IMERG and E-OBS were attributable to a scarcity of rain gauge stations, which produced large interpolation errors in gridded data [57]. In such cases, IMERG-Uncal offered a more realistic representation of the precipitation field.
E-OBS and IMERG-F are gridded precipitation datasets offering high-quality observational data over Europe at high spatial resolution (10 km), but neither are perfect. E-OBS interpolates over substantial distances and sometimes over complex areas. On the other hand, IMERG-F is an indirect measure that requires ground-based data to calibrate its outputs. Although the standard IMERG-F uses GPCC, a customized version of the product adjusted with the E-OBS dataset might provide a more realistic reproduction of the precipitation field over Europe. Future work should focus on exploiting the benefits of a dense rain gauge network such as E-OBS to improve IMERG products.

Author Contributions

A.N. led the research and drafted the manuscript. E.G.-O., A.M., J.L.S., C.K. and F.J.T. contributed to analysis and manuscript writing. F.J.T. led the project.

Funding

Funding came from projects LE240P18 (Consejería de Educación, Junta de Castilla y León) and CGL2013-48367-P, CGL2016-78702-C2-1-R and CGL2016-80609-R (Ministerio de Economía y Competitividad). Development of Numerical Weather Prediction and Data Application Technique 1365002970/KMA2018-00721 (Korean Meteorological Agency) is gratefully acknowledged.

Acknowledgments

We are in debt to Jean Dessens and Claude Berthet for data of Corsica.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tapiador, F.J.; Navarro, A.; Levizzani, V.; García-Ortega, E.; Huffman, G.J.; Kidd, C.; Kucera, P.A.; Kummerow, C.D.; Masunaga, H.; Petersen, W.A.; et al. Global precipitation measurements for validating climate models. Atmos. Res. 2017, 197, 1–20. [Google Scholar] [CrossRef]
  2. Ricciardelli, E.; Di Paola, F.; Gentile, S.; Cersosimo, A.; Cimini, D.; Gallucci, D.; Geraldi, E.; Larosa, S.; Nilo, S.T.; Ripepi, E.; et al. Analysis of Livorno Heavy Rainfall Event: Examples of Satellite-Based Observation Techniques in Support of Numerical Weather Prediction. Remote Sens. 2018, 10, 1549. [Google Scholar] [CrossRef]
  3. Lu, D.; Yong, B. Evaluation and Hydrological Utility of the Latest GPM IMERG V5 and GSMaP V7 Precipitation Products over the Tibetan Plateau. Remote Sens. 2018, 10, 2022. [Google Scholar] [CrossRef]
  4. Tapiador, F.J.; Roca, R.; Del Genio, A.; Dewitte, B.; Petersen, W.; Zhang, F. Is Precipitation a Good Metric for Model Performance? Bull. Amer. Meteor. Soc. 2019, 100, 223–233. [Google Scholar] [CrossRef]
  5. Michaelides, S.; Levizzani, V.; Anagnostou, E.; Bauer, P.; Kasparis, T.; Lane, J.E. Precipitation: Measurement, remote sensing, climatology and modeling. Atmos. Res. 2009, 94, 512–533. [Google Scholar] [CrossRef]
  6. Michaelides, S. Editorial for Special Issue “Remote Sensing of Precipitation”. Remote Sens. 2019, 11, 389. [Google Scholar] [CrossRef]
  7. Kidd, C.; Becker, A.; Huffman, G.J.; Muller, C.L.; Joe, P.; Skofronick-Jackson, G.; Kirschbaum, D.B. So, how much of the Earth’s surface is covered by rain gauges? Bull. Am. Meteorol. Soc. 2017, 98, 69–78. [Google Scholar] [CrossRef]
  8. Michelson, D.B. Systematic correction of precipitation gauge observations using analyzed meteorological variables. J. Hydrol. 2004, 290, 161–177. [Google Scholar] [CrossRef]
  9. Peterson, T.C.; Easterling, D.R.; Karl, T.R.; Groisman, P.; Nicholls, N.; Plummer, N.; Torok, S.; Auer, I.; Boehm, R.; Gullett, D.; et al. Homogeneity adjustments of in situ atmospheric climate data: A review. Int. J. Climatol. 1998, 18, 1493–1517. [Google Scholar] [CrossRef]
  10. Kidd, C. Satellite rainfall climatology: A review. Int. J. Climatol. 2001, 21, 1041–1066. [Google Scholar] [CrossRef]
  11. Sanò, P.; Panegrossi, G.; Casella, D.; Marra, A.C.; D’Adderio, L.P.; Rysman, J.F.; Dietrich, S. The Passive Microwave Neural Network Precipitation Retrieval (PNPR) Algorithm for the CONICAL Scanning Global Microwave Imager (GMI) Radiometer. Remote Sens. 2018, 10, 1122. [Google Scholar] [CrossRef]
  12. Stampoulis, D.; Anagnostou, E.N. Evaluation of Global Satellite Rainfall Products over Continental Europe. J. Hydrometeorol. 2012, 13, 588–603. [Google Scholar] [CrossRef]
  13. Kucera, P.A.; Ebert, E.E.; Turk, F.J.; Levizzani, V.; Kirschbaum, D.; Tapiador, F.J.; Loew, A.; Borsche, M. Precipitation from space: Advancing earth system science. Bull. Am. Meteorol. Soc. 2013, 94, 365–375. [Google Scholar] [CrossRef]
  14. Hou, A.Y.; Kakar, R.K.; Neeck, S.; Azarbarzin, A.A.; Kummerow, C.D.; Kojima, M.; Oki, R.; Nakamura, K.; Iguchi, T. The global precipitation measurement mission. Bull. Am. Meteorol. Soc. 2014, 95, 701–722. [Google Scholar] [CrossRef]
  15. Levizzani, V.; Bauer, P.; Turk, F.J. Measuring Precipitation from Space: EURAINSAT and the Future; Advances in Global Change Research; Springer: Dordrecht, The Netherlands, 2007; ISBN 978-1-4020-5834-9. [Google Scholar]
  16. Sun, Q.; Miao, C.; Duan, Q.; Ashouri, H.; Sorooshian, S.; Hsu, K.-L. A Review of Global Precipitation Data Sets: Data Sources, Estimation, and Intercomparisons. Rev. Geophys. 2018, 56, 79–107. [Google Scholar] [CrossRef][Green Version]
  17. Huffman, G.J.; Bolvin, D.T.; Nelkin, E.J.; Wolff, D.B.; Adler, R.F.; Gu, G.; Hong, Y.; Bowman, K.P.; Stocker, E.F. The TRMM Multisatellite Precipitation Analysis (TMPA): Quasi-Global, Multiyear, Combined-Sensor Precipitation Estimates at Fine Scales. J. Hydrometeorol. 2007, 8, 38–55. [Google Scholar] [CrossRef]
  18. Kubota, T.; Shige, S.; Hashizume, H.; Aonashi, K.; Takahashi, N.; Seto, S.; Hirose, M.; Takayabu, Y.N.; Ushio, T.; Nakagawa, K.; et al. Global Precipitation Map Using Satellite-Borne Microwave Radiometers by the GSMaP Project: Production and Validation. IEEE Trans. Geosci. Remote Sens. 2007, 45, 2259–2275. [Google Scholar] [CrossRef]
  19. Huffman, G.J.; Bolvin, D.T.; Nelkin, E.J. Day 1 IMERG Final Run Release Notes; NASA: Washington, DC, USA, 2015; p. 9. [Google Scholar]
  20. Skofronick-Jackson, G.; Kirschbaum, D.; Petersen, W.; Huffman, G.; Kidd, C.; Stocker, E.; Kakar, R. The Global Precipitation Measurement (GPM) mission’s scientific achievements and societal contributions: Reviewing four years of advanced rain and snow observations. Q. J. R. Meteorol. Soc. 2018, 144, 27–48. [Google Scholar] [CrossRef]
  21. Prakash, S.; Mitra, A.K.; Pai, D.S.; AghaKouchak, A. From TRMM to GPM: How well can heavy rainfall be detected from space? Adv. Water Resour. 2016, 88, 1–7. [Google Scholar] [CrossRef]
  22. Omranian, E.; Sharif, H.O.; Tavakoly, A.A. How well can Global Precipitation Measurement (GPM) capture hurricanes? Case study: Hurricane harvey. Remote Sens. 2018, 10, 1150. [Google Scholar] [CrossRef]
  23. Khan, S.; Maggioni, V. Assessment of Level-3 Gridded Global Precipitation Mission (GPM) Products Over Oceans. Remote Sens. 2019, 11, 255. [Google Scholar] [CrossRef]
  24. Wu, L.; Xu, Y.; Wang, S. Comparison of TMPA-3B42RT Legacy Product and the Equivalent IMERG Products over Mainland China. Remote Sens. 2018, 10, 1778. [Google Scholar] [CrossRef]
  25. Mahmoud, M.T.; Al-Zahrani, M.A.; Sharif, H.O. Assessment of global precipitation measurement satellite products over Saudi Arabia. J. Hydrol. 2018, 559, 1–12. [Google Scholar] [CrossRef]
  26. Rozante, J.R.; Vila, D.A.; Barboza Chiquetto, J.; Fernandes, A.D.A.; Souza Alvim, D. Evaluation of TRMM/GPM Blended Daily Products over Brazil. Remote Sens. 2018, 10, 882. [Google Scholar] [CrossRef]
  27. Retalis, A.; Katsanos, D.; Tymvios, F.; Michaelides, S. Validation of the first years of GPM operation over Cyprus. Remote Sens. 2018, 10, 1520. [Google Scholar] [CrossRef]
  28. Gaona, M.F.R.; Overeem, A.; Leijnse, H.; Uijlenhoet, R. First-Year Evaluation of GPM Rainfall over the Netherlands: IMERG Day 1 Final Run (V03D). J. Hydrometeorol. 2016, 17, 2799–2814. [Google Scholar] [CrossRef]
  29. Ramsauer, T.; Weiß, T.; Marzahn, P. Comparison of the GPM IMERG Final Precipitation Product to RADOLAN Weather Radar Data over the Topographically and Climatically Diverse Germany. Remote Sens. 2018, 10, 2029. [Google Scholar] [CrossRef]
  30. Sungmin, O.S.; Foelsche, U.; Kirchengast, G.; Fuchsberger, J.; Tan, J.; Petersen, W.A. Evaluation of GPM IMERG Early, Late, and Final rainfall estimates using WegenerNet gauge data in Southeastern Austria. Hydrol. Earth Syst. Sci. 2017, 21, 6559–6572. [Google Scholar]
  31. Tapiador, F.J.; Navarro, A.; García-Ortega, E.; Merino, A.; Sánchez, J.L.; Kummerow, C.D. The Contribution of Rain Gauges in the Calibration of the GPM-IMERG Product. Results from the First Validation over Spain. J. Hydrometeorol. 2019. under review. [Google Scholar]
  32. Tapiador, F.J.; Moreno, R.; Navarro, A.; Sánchez, J.L.; García-Ortega, E. Climate classifications from regional and global climate models: Performaces for present climate estimates and expected changes in the future at high spatial resolution. Atmos. Res. 2019, 228, 107–121. [Google Scholar] [CrossRef]
  33. Köppen, W. Versuch einer Klassifikation der Klimate, vorzugsweise nach ihren Beziehungen zur Pflanzenwelt. Geogr. Zeitschrift 1900, 6, 657–679. [Google Scholar]
  34. Cornes, R.C.; van der Schrier, G.; van den Besselaar, E.J.M.; Jones, P.D. An Ensemble Version of the E-OBS Temperature and Precipitation Data Sets. J. Geophys. Res. Atmos. 2018, 123, 9391–9409. [Google Scholar] [CrossRef][Green Version]
  35. Haylock, M.R.; Hofstra, N.; Tank, A.M.G.K.; Klok, E.J.; Jones, P.D.; New, M. A European daily high-resolution gridded data set of surface temperature and precipitation for 1950–2006. J. Geophys. Res. Atmos. 2008, 113. [Google Scholar] [CrossRef]
  36. Klok, E.J.; Tank, A.M.G.K. Updated and extended European dataset of daily climate observations. Int. J. Climatol. 2009, 29, 1182–1191. [Google Scholar] [CrossRef]
  37. Hofstra, N.; Haylock, M.; New, M.; Jones, P.D. Testing E-OBS European high-resolution gridded data set of daily precipitation and surface temperature. J. Geophys. Res. Atmos. 2009, 114. [Google Scholar] [CrossRef]
  38. Kotlarski, S.; Keuler, K.; Christensen, O.B.; Colette, A.; Déqué, M.; Gobiet, A.; Goergen, K.; Jacob, D.; Lüthi, D.; Van Meijgaard, E.; et al. Regional climate modeling on European scales: A joint standard evaluation of the EURO-CORDEX RCM ensemble. Geosci. Model Dev. 2014, 7, 1297–1333. [Google Scholar] [CrossRef]
  39. Spinoni, J.; Naumann, G.; Vogt, J.V.; Barbosa, P. The biggest drought events in Europe from 1950 to 2012. J. Hydrol. Reg. Stud. 2015, 3, 509–524. [Google Scholar] [CrossRef]
  40. Caroletti, G.N.; Coscarelli, R.; Caloiero, T. Validation of Satellite, Reanalysis and RCM Data of Monthly Rainfall in Calabria (Southern Italy). Remote Sens. 2019, 11, 1625. [Google Scholar] [CrossRef]
  41. Nastos, P.T.; Kapsomenakis, J.; Douvis, K.C. Analysis of precipitation extremes based on satellite and high-resolution gridded data set over Mediterranean basin. Atmos. Res. 2013, 131, 46–59. [Google Scholar] [CrossRef]
  42. Retalis, A.; Katsanos, D.; Michaelides, S. Precipitation climatology over the Mediterranean Basin—Validation over Cyprus. Atmos. Res. 2016, 169, 449–458. [Google Scholar] [CrossRef]
  43. Schneider, U.; Finger, P.; Meyer-Christoffer, A.; Rustemeier, E.; Ziese, M.; Becker, A. Evaluating the Hydrological Cycle over Land Using the Newly-Corrected Precipitation Climatology from the Global Precipitation Climatology Centre (GPCC). Atmosphere 2017, 8, 52. [Google Scholar] [CrossRef]
  44. Huffman, G.J.; Bolvin, D.; Braithwaite, D.; Hsu, K.-L.; Joyce, R.; Kidd, C.; Nelkin, E.; Sorooshian, S.; Tan, J.; Xie, P. Integrated Multi-Satellite Retrievals for GPM (IMERG) Technical Documentation; NASA/GSFC: Greenbelt, MD, USA, 2018. [Google Scholar]
  45. Kummerow, C.D. GPROF2017 Version 1; NASA/GSFC: Greenbelt, MD, USA, 2017. [Google Scholar]
  46. Cook, R.D.; Weisberg, S. Residuals and Influence in Regression; Chapman and Hall: New York, NY, USA, 1982. [Google Scholar]
  47. Copernicus Emergency Management Service. EMSR108: Landslides and Floods in Northern Italy; European Commission Joint Research Centre: Brussels, Belgium, 2014. [Google Scholar]
  48. Guo, H.; Chen, S.; Bao, A.; Behrangi, A.; Hong, Y.; Ndayisaba, F.; Hu, J.; Stepanian, P.M. Early assessment of Integrated Multi-satellite Retrievals for Global Precipitation Measurement over China. Atmos. Res. 2016, 176, 121–133. [Google Scholar] [CrossRef]
  49. Houze, R.A. Orographic effects on precipitating clouds. Rev. Geophys. 2012, 50. [Google Scholar] [CrossRef]
  50. Maggioni, V.; Nikolopoulos, E.I.; Anagnostou, E.N.; Borga, M. Modeling Satellite Precipitation Errors Over Mountainous Terrain: The Influence of Gauge Density, Seasonality, and Temporal Resolution. IEEE Trans. Geosci. Remote Sens. 2017, 55, 4130–4140. [Google Scholar] [CrossRef]
  51. Krakauer, N.Y.; Pradhanang, S.M.; Lakhankar, T.; Jha, A.K. Evaluating Satellite Products for Precipitation Estimation in Mountain Regions: A Case Study for Nepal. Remote Sens. 2013, 5, 4107–4123. [Google Scholar] [CrossRef][Green Version]
  52. Wen, Y.; Behrangi, A.; Lambrigtsen, B.; Kirstetter, P.-E. Evaluation and uncertainty estimation of the latest radar and satellite snowfall products using SNOTEL measurements over mountainous regions in western United States. Remote Sens. 2016, 8, 904. [Google Scholar] [CrossRef]
  53. Hirpa, F.A.; Gebremichael, M.; Hopson, T. Evaluation of High-Resolution Satellite Precipitation Products over Very Complex Terrain in Ethiopia. J. Appl. Meteor. Climatol. 2009, 49, 1044–1051. [Google Scholar] [CrossRef]
  54. Gabella, M.; Speirs, P.; Hamann, U.; Germann, U.; Berne, A. Measurement of precipitation in the Alps using dual-polarization C-Band ground-based radars, the GPMSpaceborne Ku-Band Radar, and rain gauges. Remote Sens. 2017, 9, 1147. [Google Scholar] [CrossRef]
  55. Asong, Z.E.; Razavi, S.; Wheater, H.S.; Wong, J.S. Evaluation of Integrated Multisatellite Retrievals for GPM (IMERG) over Southern Canada against Ground Precipitation Observations: A Preliminary Assessment. J. Hydrometeorol. 2017, 18, 1033–1050. [Google Scholar] [CrossRef]
  56. Herrera, S.; Kotlarski, S.; Soares, P.M.M.; Cardoso, R.M.; Jaczewski, A.; Gutiérrez, J.M.; Maraun, D. Uncertainty in gridded precipitation products: Influence of station density, interpolation method and grid resolution. Int. J. Climatol. 2019, 39, 3717–3729. [Google Scholar] [CrossRef]
  57. Hofstra, N.; New, M.; McSweeney, C. The influence of interpolation and station network density on the distributions and trends of climate variables in gridded daily data. Climate Dyn. 2010, 35, 841–858. [Google Scholar] [CrossRef]

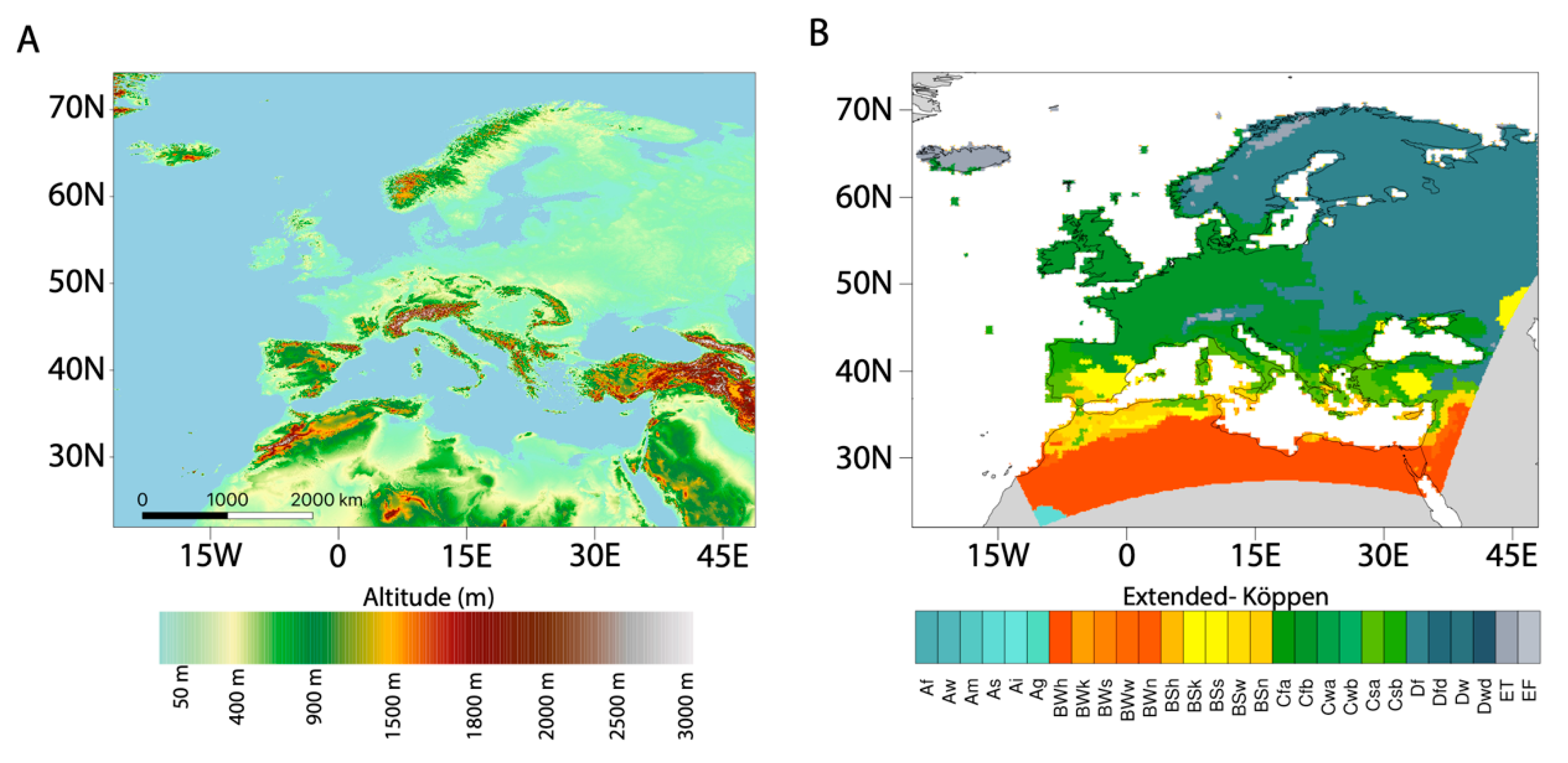

Figure 1. (A) Topographic map of Europe. (B) Extended Köppen climate classification map for the study area (cf. Tapiador et al. 2019 [32]).
Figure 1. (A) Topographic map of Europe. (B) Extended Köppen climate classification map for the study area (cf. Tapiador et al. 2019 [32]).
Remotesensing 11 02470 g001

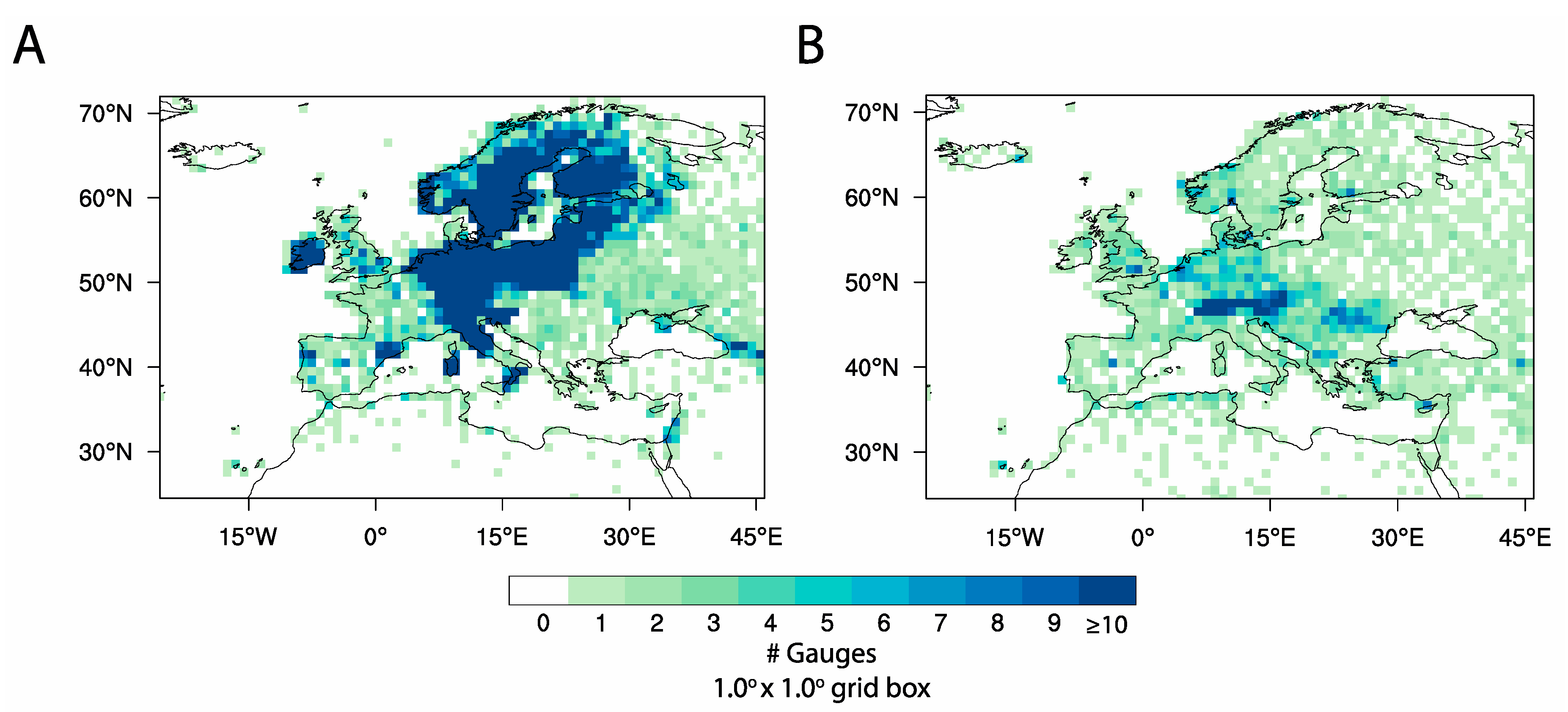

Figure 2. (A) Number of stations per grid box in ENSEMBLES OBServation (E-OBS) dataset v19. (B) Global Precipitation Climatology Centre (GPCC) meteorological stations per grid box. Integrated Multi-Satellite Retrievals from GPM (IMERG-F) uses GPCC for gauge adjustment. Results were set to a common grid (1° × 1°) for better comparison.
Figure 2. (A) Number of stations per grid box in ENSEMBLES OBServation (E-OBS) dataset v19. (B) Global Precipitation Climatology Centre (GPCC) meteorological stations per grid box. Integrated Multi-Satellite Retrievals from GPM (IMERG-F) uses GPCC for gauge adjustment. Results were set to a common grid (1° × 1°) for better comparison.
Remotesensing 11 02470 g002

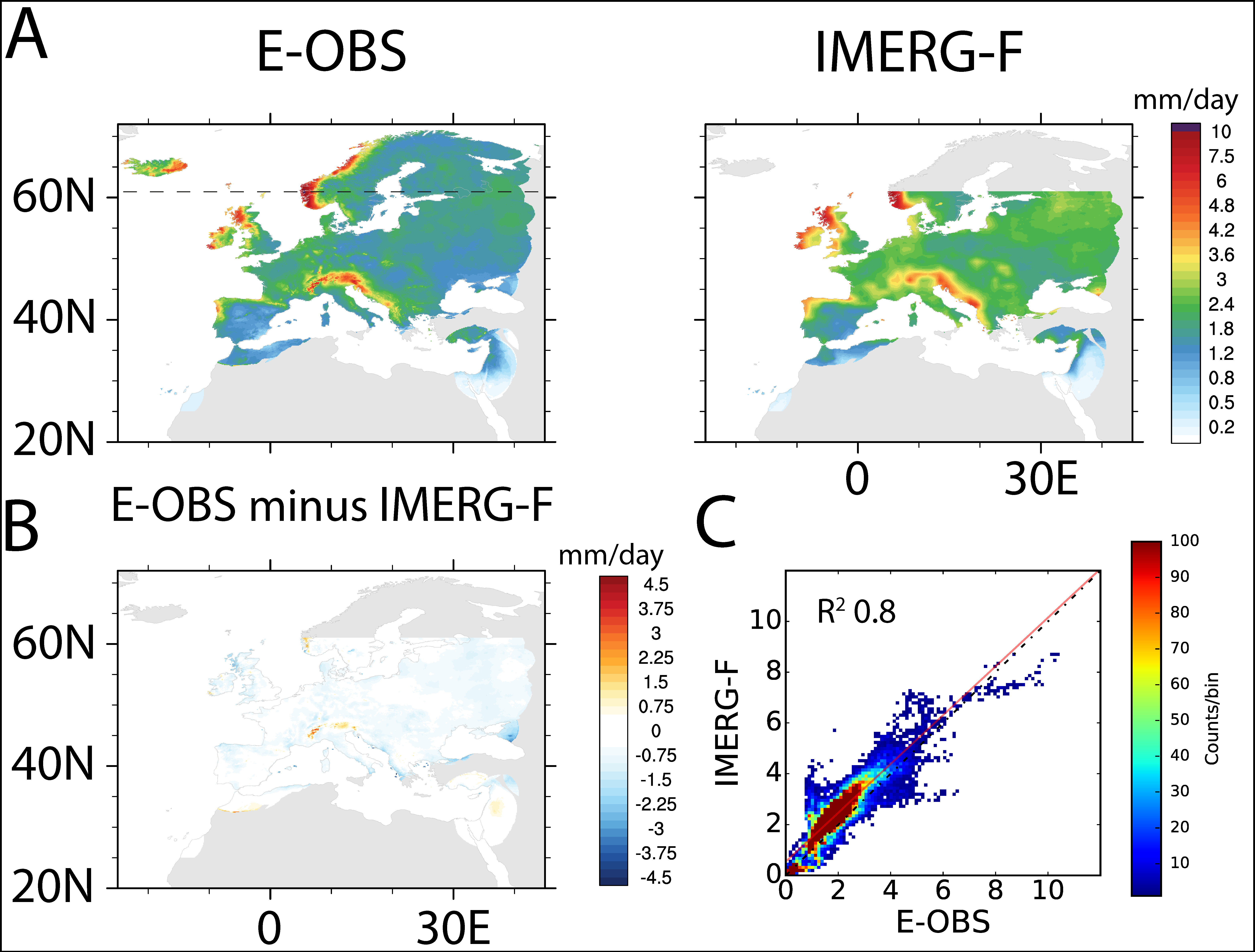

Figure 3. (A) Comparison of annual mean precipitation in the period June 2014–December 2018 from E-OBS (top left) and IMERG-F (top right). (B) Difference map between E-OBS and IMERG-F. (C) Scatter plot comparing annual mean precipitation at every grid point. The black dashed line is a 1:1 line and the red solid line represents linear fit.
Figure 3. (A) Comparison of annual mean precipitation in the period June 2014–December 2018 from E-OBS (top left) and IMERG-F (top right). (B) Difference map between E-OBS and IMERG-F. (C) Scatter plot comparing annual mean precipitation at every grid point. The black dashed line is a 1:1 line and the red solid line represents linear fit.
Remotesensing 11 02470 g003

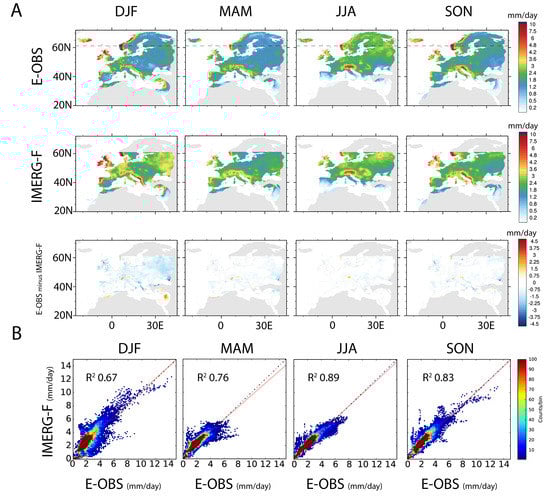

Figure 4. (A) Seasonal precipitation for E-OBS (first row) and IMERG-F (second row). Difference map between E-OBS and IMERG-F (third row). (B) Scatter plot comparing seasonal precipitation at every grid point. The black dashed line is a 1:1 line and the red solid line represents linear fit. DJF, the cold season.
Figure 4. (A) Seasonal precipitation for E-OBS (first row) and IMERG-F (second row). Difference map between E-OBS and IMERG-F (third row). (B) Scatter plot comparing seasonal precipitation at every grid point. The black dashed line is a 1:1 line and the red solid line represents linear fit. DJF, the cold season.
Remotesensing 11 02470 g004

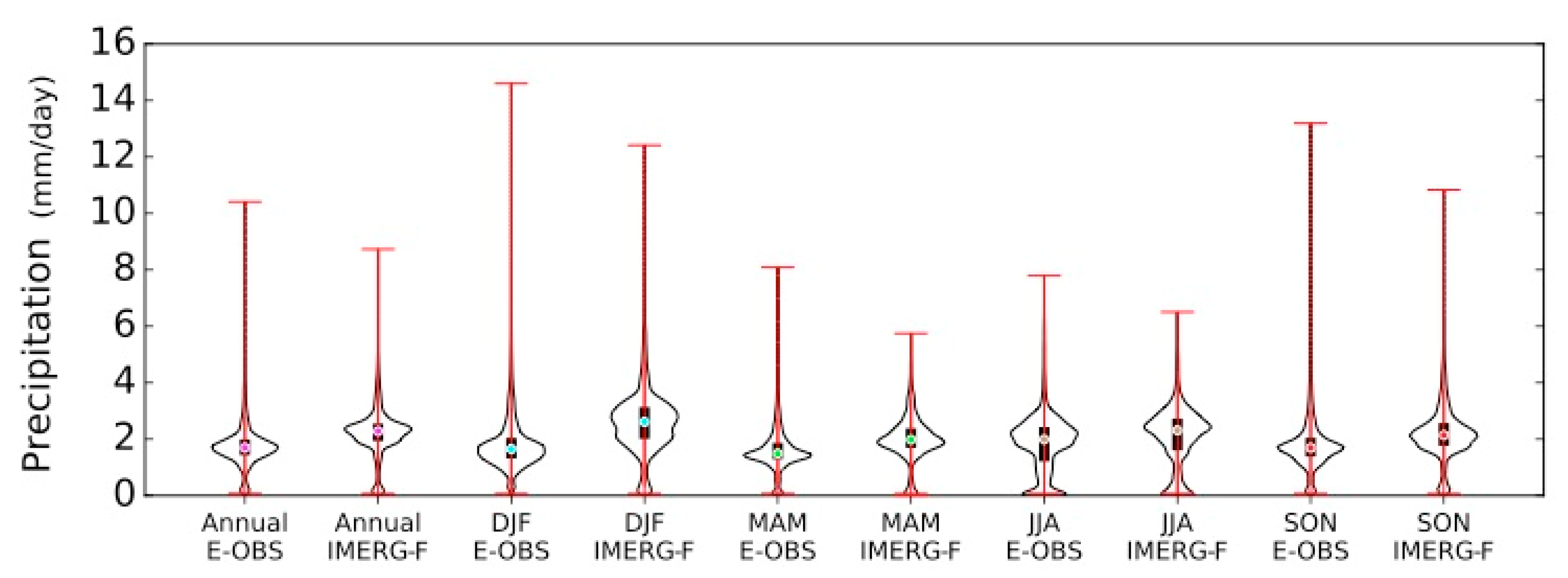

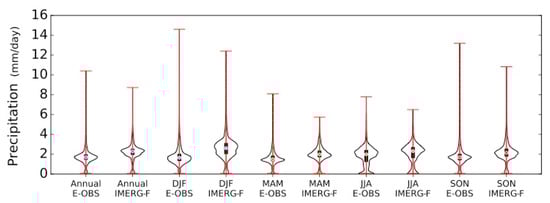

Figure 5. Probability density functions (PDFs) of annual and seasonal precipitation for E-OBS and IMERG-F.
Figure 5. Probability density functions (PDFs) of annual and seasonal precipitation for E-OBS and IMERG-F.
Remotesensing 11 02470 g005

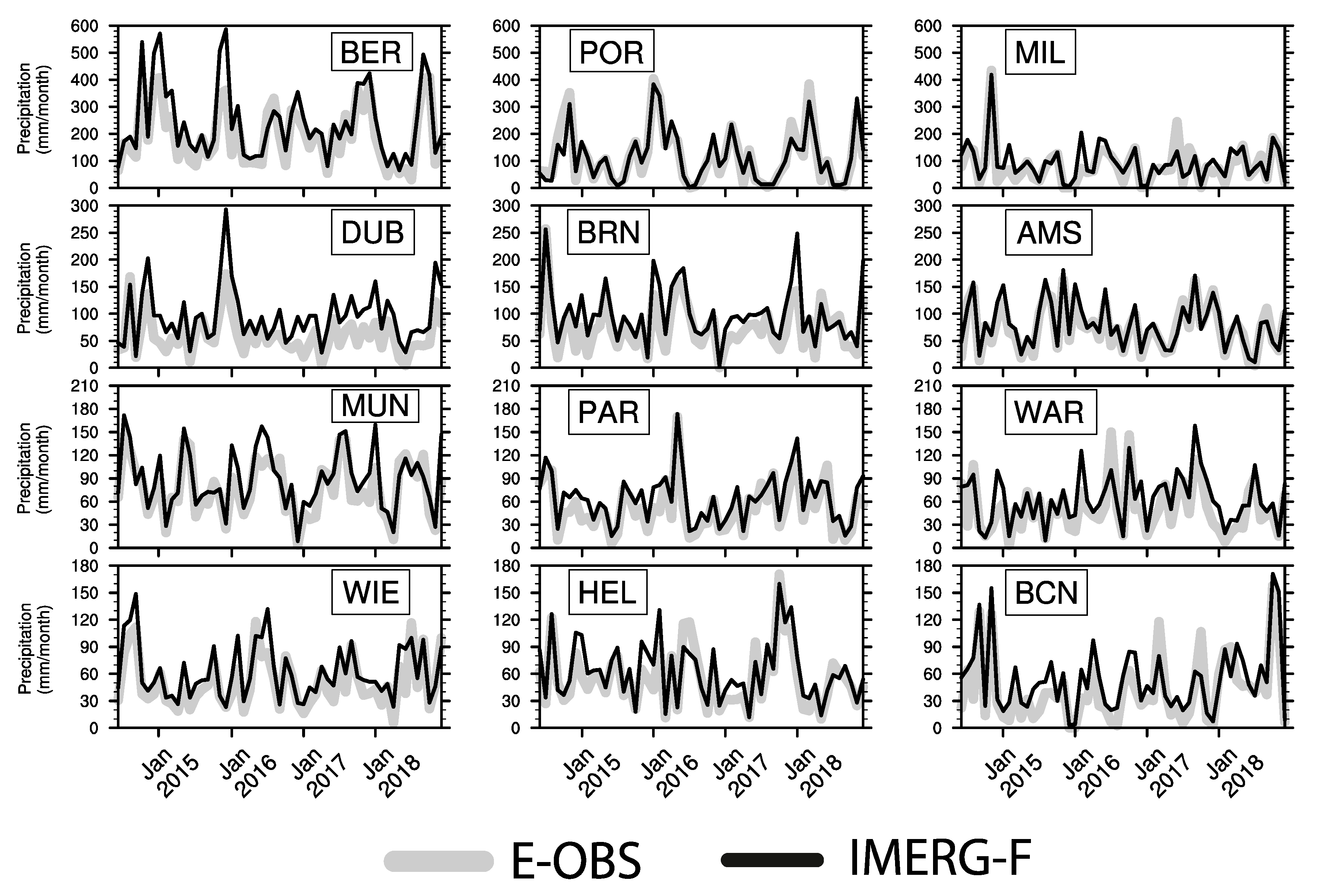

Figure 6. Time series of monthly precipitation for 12 European cities: Bergen (BER); Porto (POR); Milan (MIL); Dublin (DUB); Bern (BRN); Amsterdam (AMS); Munich (MUN); Paris (PAR); Warsaw (WAR); Vienna (WIE); Helsinki (HEL); Barcelona (BCN).
Figure 6. Time series of monthly precipitation for 12 European cities: Bergen (BER); Porto (POR); Milan (MIL); Dublin (DUB); Bern (BRN); Amsterdam (AMS); Munich (MUN); Paris (PAR); Warsaw (WAR); Vienna (WIE); Helsinki (HEL); Barcelona (BCN).
Remotesensing 11 02470 g006

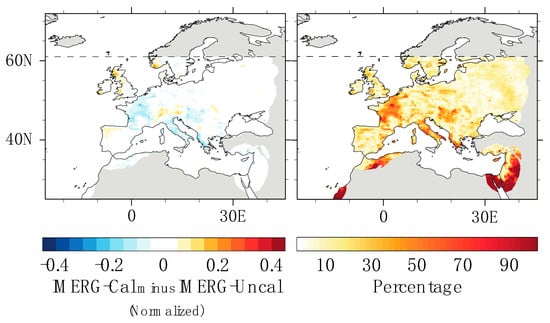

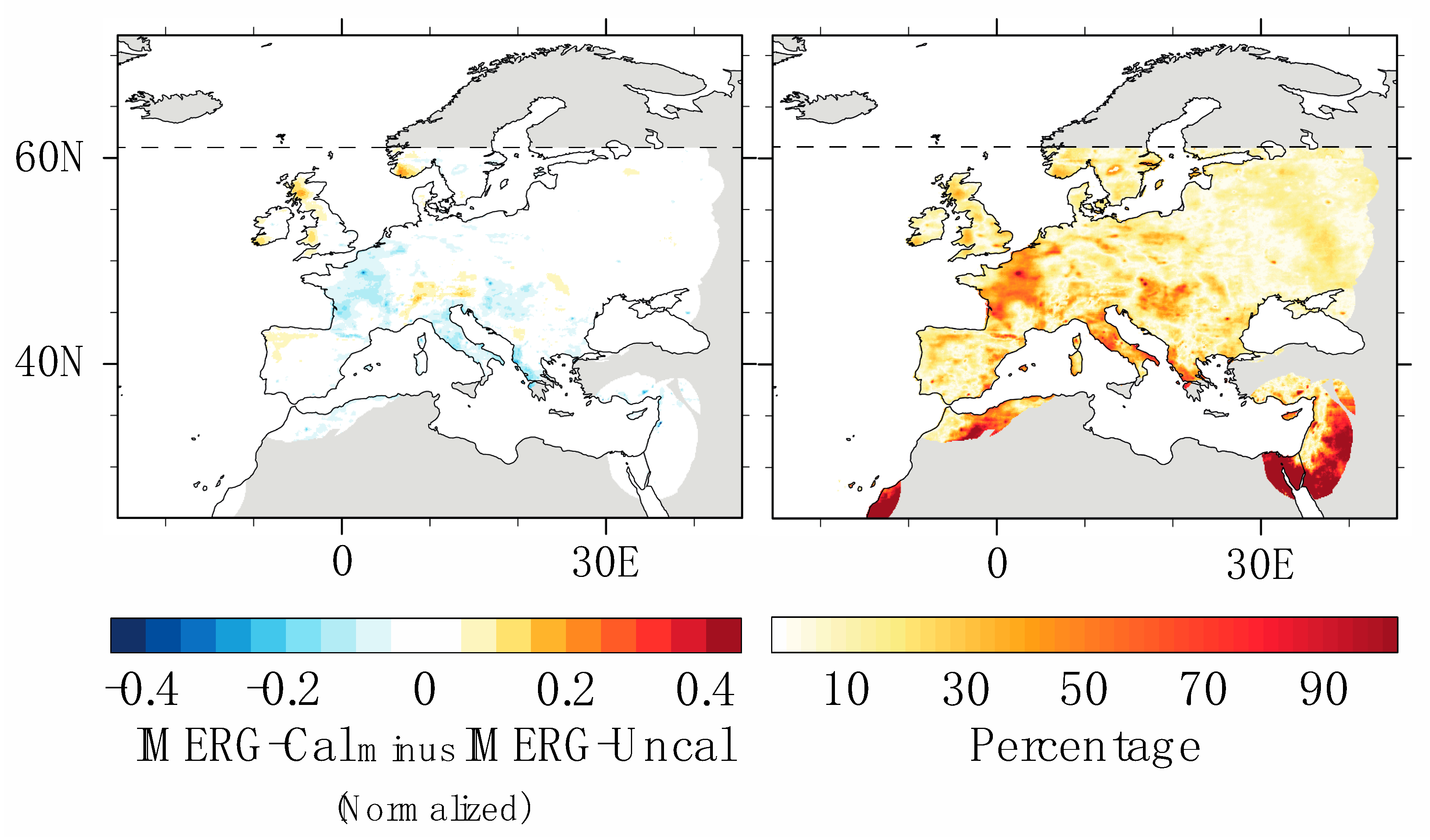

Figure 7. Normalized difference (left) and relative difference (right) between IMERG-Cal and IMERG-Uncal.
Figure 7. Normalized difference (left) and relative difference (right) between IMERG-Cal and IMERG-Uncal.
Remotesensing 11 02470 g007
Figure 8. (A) Boxplots of correlation between E-OBS and IMERG-F monthly (June 2014–December 2018) estimates in each grid box, ordered according to the number of rain gauges in each box. (B) Map depicting the location of outlier pixels for which IMERG-F gave poor correlation according to the number of gauges.
Figure 8. (A) Boxplots of correlation between E-OBS and IMERG-F monthly (June 2014–December 2018) estimates in each grid box, ordered according to the number of rain gauges in each box. (B) Map depicting the location of outlier pixels for which IMERG-F gave poor correlation according to the number of gauges.
Remotesensing 11 02470 g008

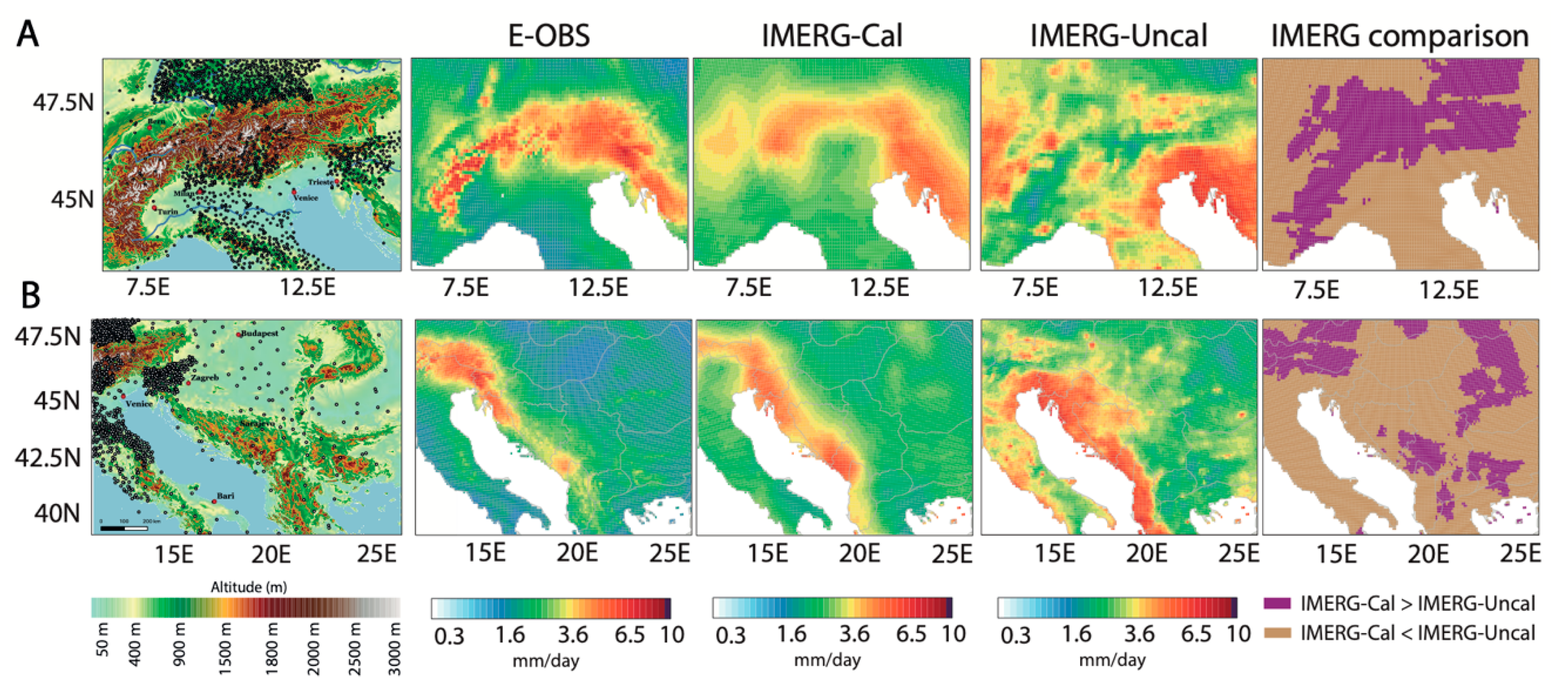

Figure 9. Annual mean precipitation comparison for the Alps (A) and Adriatic Sea (B) for June 2014–December 2018. First column shows topographic map of the area and rain gauge distribution. Second column shows annual mean precipitation for E-OBS, and the second (third) column IMERG calibrated (uncalibrated). The fourth column is a comparison of pixels where IMERG-Cal had more (less) precipitation than IMERG-Uncal. Units are mm/day.
Figure 9. Annual mean precipitation comparison for the Alps (A) and Adriatic Sea (B) for June 2014–December 2018. First column shows topographic map of the area and rain gauge distribution. Second column shows annual mean precipitation for E-OBS, and the second (third) column IMERG calibrated (uncalibrated). The fourth column is a comparison of pixels where IMERG-Cal had more (less) precipitation than IMERG-Uncal. Units are mm/day.
Remotesensing 11 02470 g009

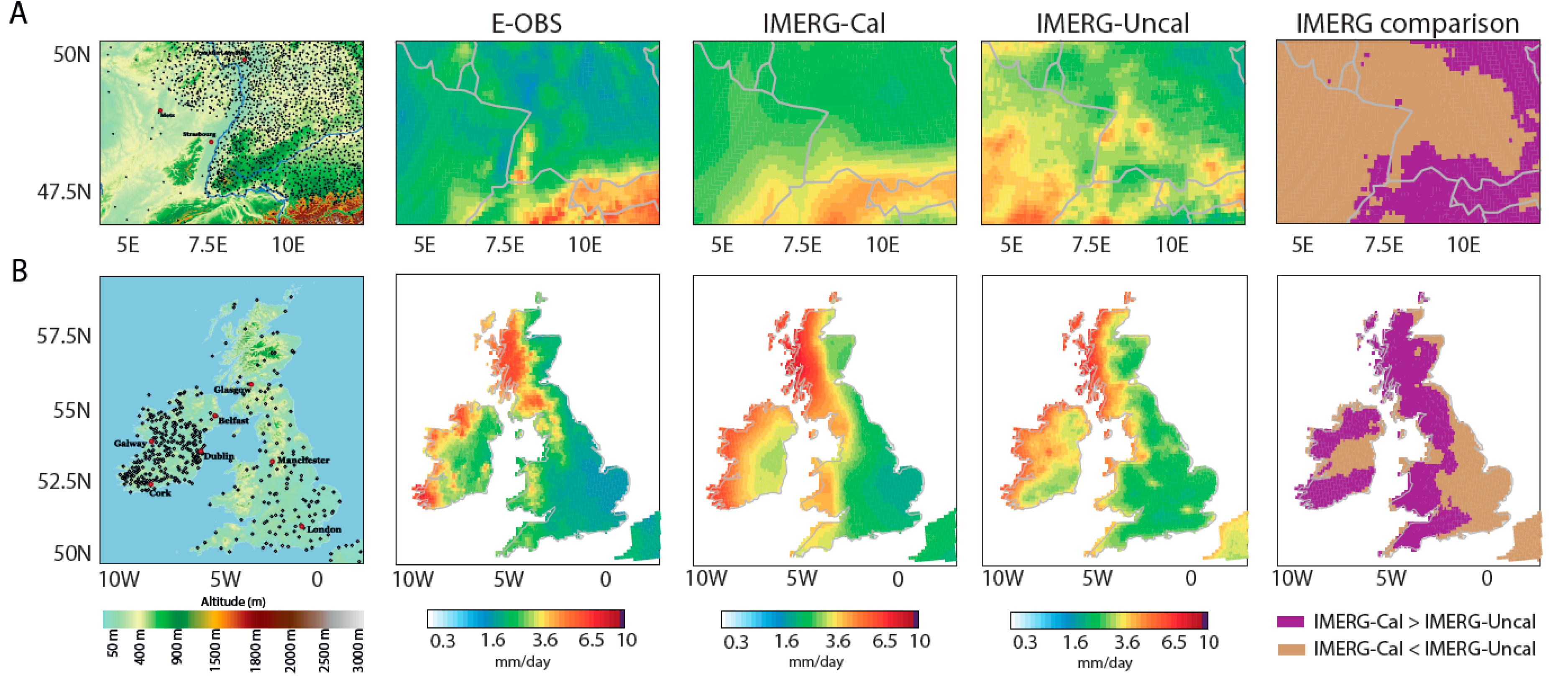

Figure 10. Annual mean precipitation comparison for High and Upper Rhine (A) and British Isles (B) for June 2014–December 2018. First column shows topographic map of the area and rain gauge distribution. Second column shows annual mean precipitation for E-OBS, and the second (third) column IMERG calibrated (uncalibrated). The fourth column is a comparison of pixels where IMERG-Cal had more (less) precipitation than IMERG-Uncal. Units are mm/day.
Figure 10. Annual mean precipitation comparison for High and Upper Rhine (A) and British Isles (B) for June 2014–December 2018. First column shows topographic map of the area and rain gauge distribution. Second column shows annual mean precipitation for E-OBS, and the second (third) column IMERG calibrated (uncalibrated). The fourth column is a comparison of pixels where IMERG-Cal had more (less) precipitation than IMERG-Uncal. Units are mm/day.
Remotesensing 11 02470 g010

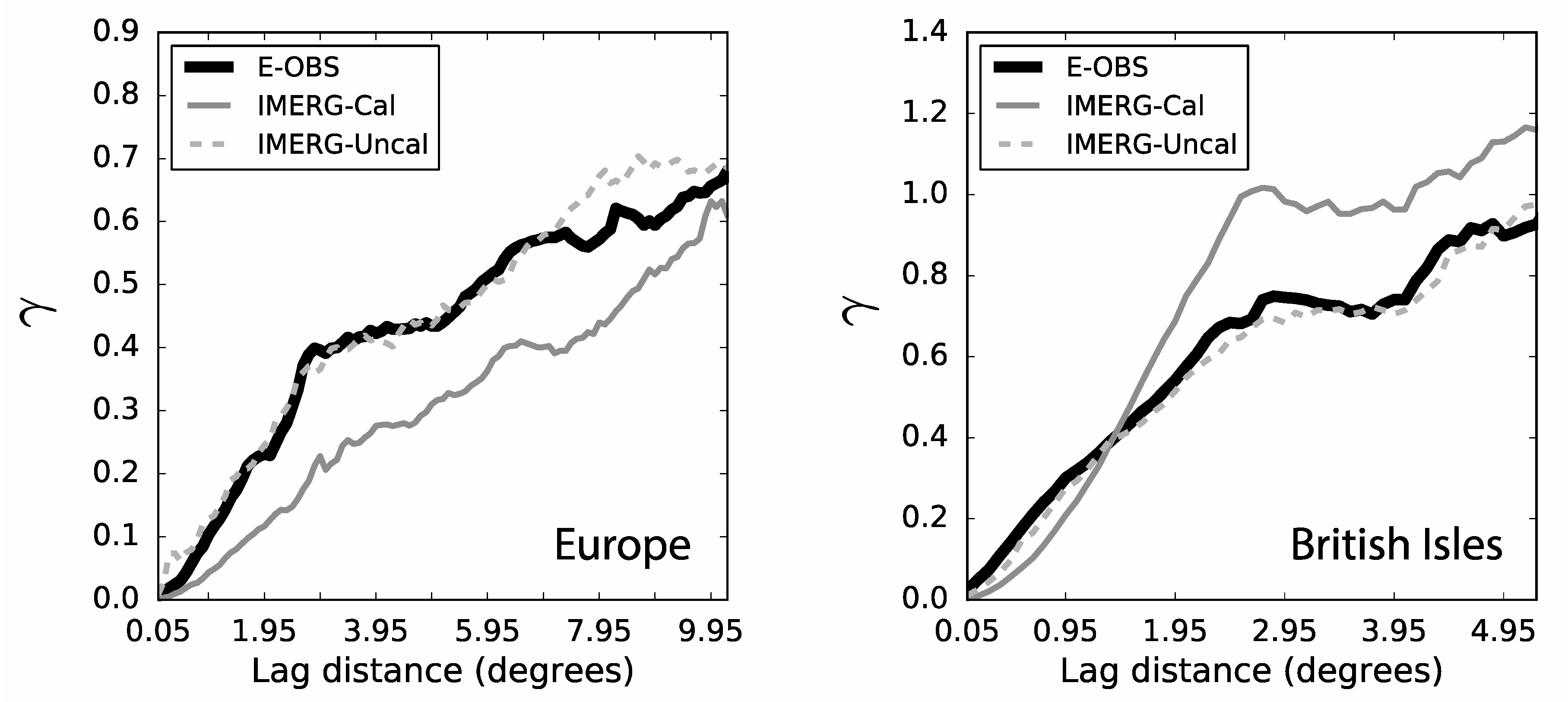

Figure 11. Variograms of annual mean precipitation (land-only) for Europe (Left) and British Isles (right), showing E-OBS (black line), IMERG-Cal (gray line), and IMERG-Uncal (gray dotted line).
Figure 11. Variograms of annual mean precipitation (land-only) for Europe (Left) and British Isles (right), showing E-OBS (black line), IMERG-Cal (gray line), and IMERG-Uncal (gray dotted line).
Remotesensing 11 02470 g011

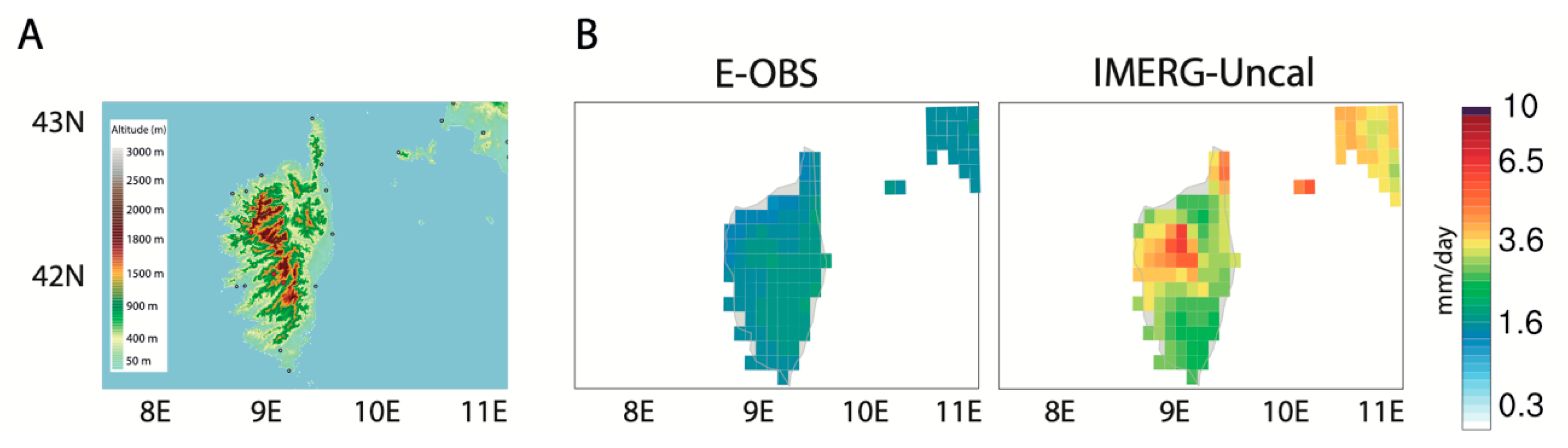

Figure 12. (A,B) Comparison of annual mean precipitation for E-OBS and IMERG-Uncal. First column shows topographic map of Corsica and the rain gauge distribution. White dots are E-OBS stations and red dots Météo-France stations. Second column shows annual mean precipitation for E-OBS and the third column that of IMERG-Uncal. Data from second-order stations are courtesy of Météo-France.
Figure 12. (A,B) Comparison of annual mean precipitation for E-OBS and IMERG-Uncal. First column shows topographic map of Corsica and the rain gauge distribution. White dots are E-OBS stations and red dots Météo-France stations. Second column shows annual mean precipitation for E-OBS and the third column that of IMERG-Uncal. Data from second-order stations are courtesy of Météo-France.
Remotesensing 11 02470 g012
Table 1. Correlation (R2) between EOBS and IMERG-F monthly estimates according to the rain gauges in each box and five rainfall categories (mm/day).
Table 1. Correlation (R2) between EOBS and IMERG-F monthly estimates according to the rain gauges in each box and five rainfall categories (mm/day).
Precipitation (mm/day)Number of Gauges Per Pixel
012345
0 to < 0.10.050.040.030.10.050.35
0.1 to < 2.50.520.580.580.540.530.59
2.5 to < 5.00.200.240.220.220.190.27
5.0 to < 10.00.250.310.200.220.320.28
≥10.00.430.440.320.550.67*
* Not available.

Share and Cite

MDPI and ACS Style

Navarro, A.; García-Ortega, E.; Merino, A.; Sánchez, J.L.; Kummerow, C.; Tapiador, F.J. Assessment of IMERG Precipitation Estimates over Europe. Remote Sens. 2019, 11, 2470. https://doi.org/10.3390/rs11212470

AMA Style

Navarro A, García-Ortega E, Merino A, Sánchez JL, Kummerow C, Tapiador FJ. Assessment of IMERG Precipitation Estimates over Europe. Remote Sensing. 2019; 11(21):2470. https://doi.org/10.3390/rs11212470

Chicago/Turabian Style

Navarro, Andrés, Eduardo García-Ortega, Andrés Merino, José Luis Sánchez, Christian Kummerow, and Francisco J. Tapiador. 2019. "Assessment of IMERG Precipitation Estimates over Europe" Remote Sensing 11, no. 21: 2470. https://doi.org/10.3390/rs11212470

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
