# A Multi-Scale Wavelet 3D-CNN for Hyperspectral Image Super-Resolution

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- In the predicting subnet, different branches corresponding to different wavelet sub-bands are trained jointly in a unified network, and the inter sub-band correlation can be utilized.
- The network is built based on 3D convolutional layers, which could exploit the correlation in both spectral and spatial domains of HSI.
- Instead of the conventional L2 norm, we propose to train the network with the L1 norm loss, which is fit for both low- and high- frequency wavelet sub-bands.

## 2. Related Works

#### 2.1. CNN Based Single Image SR

#### 2.2. Application of Wavelet in SR

## 3. Multi-Scale Wavelet 3D CNN For HSI SR

#### 3.1. Wavelet Package Analysis

#### 3.2. 3D CNN

#### 3.3. Network Architecture of MW-3D-CNN

#### 3.3.1. Embedding Subnet

#### 3.3.2. Predicting Subnet

#### 3.4. Training of MW-3D-CNN

## 4. Experimental Results

#### 4.1. Experiment Setting

#### 4.2. Comparison with State-of-the-Art SR Methods

#### 4.3. Application on Real Spaceborne HSI

## 5. Analysis and Discussions

#### 5.1. Sensitivity Analysis on Network Parameters

#### 5.2. The Rationality Analysis of L1 Norm Loss

#### 5.3. The Rationality Analysis of 3D Convolution

#### 5.4. Robustness over Wavelet Functions

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Nasrabadi, N.M. Hyperspectral target detection: An overview of current and future challenges. IEEE Signal Process. Mag.
**2014**, 31, 34–44. [Google Scholar] [CrossRef] - Clark, M.L.; Buck-Diaz, J.; Evens, J. Mapping of forest alliances with simulated multi-seasonal hyperspectral satellite imagery. Remote Sens. Environ.
**2018**, 210, 490–507. [Google Scholar] [CrossRef] - Yang, J.; Zhao, Y.Q.; Chan, J.C.W. Learning and transferring deep joint spectral–spatial features for hyperspectral classification. IEEE Trans. Geosci. Remote Sens.
**2017**, 55, 4729–4742. [Google Scholar] [CrossRef] - Chen, F.; Wang, K.; Van de Voorde, T.; Tang, T.F. Mapping urban land cover from high spatial resolution hyperspectral data: An approach based on simultaneously unmixing similar pixels with jointly sparse spectral mixture analysis. Remote Sens. Environ.
**2017**, 196, 324–342. [Google Scholar] [CrossRef] - Yokoya, N.; Chan, J.C.W.; Segl, K. Potential of resolution-enhanced hyperspectral data for mineral mapping using simulated EnMAP and Sentinel-2 images. Remote Sens.
**2016**, 8, 172. [Google Scholar] [CrossRef] - Loncan, L.; de Almeida, L.B.; Bioucas-Dias, J.M.; Briottet, X.; Chanussot, J.; Dobigeon, N.; Fabre, S.; Liao, W.; Licciardi, G.A.; Simoes, M.; et al. Hyperspectral pansharpening: A review. IEEE Geosci. Remote Sens. Mag.
**2015**, 3, 27–46. [Google Scholar] [CrossRef] - Dalla Mura, M.; Vivone, G.; Restaino, R.; Addesso, P.; Chanussot, J. Global and local Gram-Schmidt methods for hyperspectral pansharpening. In Proceedings of the IEEE International Geoscience and Remote Sensing Symposium, Milan, Italy, 26–31 July 2015; pp. 37–40. [Google Scholar]
- Shahdoosti, H.R.; Ghassemian, H. Combining the spectral PCA and spatial PCA fusion methods by an optimal filter. Inf. Fusion
**2016**, 27, 150–160. [Google Scholar] [CrossRef] - Yang, S.; Zhang, K.; Wang, M. Learning low-rank decomposition for pan-sharpening with spatial- spectral offsets. IEEE Trans. Neural Netw. Learn. Syst.
**2017**, 20, 3647–3657. [Google Scholar] - Zhang, L.; Zhang, L.; Du, B. Deep learning for remote sensing data: A technical tutorial on the state of the art. IEEE Geosci. Remote Sens. Mag.
**2016**, 4, 22–40. [Google Scholar] [CrossRef] - Zhu, X.X.; Tuia, D.; Mou, L.; Xia, G.S.; Zhang, L.; Xu, F.; Fraundorfer, F. Deep learning in remote sensing: A comprehensive review and list of resources. IEEE Geosci. Remote Sens. Mag.
**2017**, 5, 8–36. [Google Scholar] [CrossRef] - Masi, G.; Cozzolino, D.; Verdoliva, L.; Scarpa, G. Pansharpening by convolutional neural networks. Remote Sens.
**2016**, 8, 594. [Google Scholar] [CrossRef] - Wei, Y.; Yuan, Q.; Shen, H.; Zhang, L. Boosting the Accuracy of multispectral image pansharpening by learning a deep residual network. IEEE Geosci. Remote Sens. Lett.
**2017**, 14, 1795–1799. [Google Scholar] [CrossRef] - Yang, J.; Fu, X.; Hu, Y.; Huang, Y.; Ding, X.; Paisley, J. PanNet: A deep network architecture for pan-sharpening. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 5449–5457. [Google Scholar]
- Yuan, Q.; Wei, Y.; Meng, X.; Shen, H.; Zhang, L. A multiscale and multidepth convolutional neural network for remote sensing imagery pan-sharpening. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2018**, 11, 978–989. [Google Scholar] [CrossRef] - Yokoya, N.; Grohnfeldt, C.; Chanussot, J. Hyperspectral and multispectral data fusion: A comparative review of the recent literature. IEEE Geosci. Remote Sens. Mag.
**2017**, 5, 29–56. [Google Scholar] [CrossRef] - Yokoya, N.; Yairi, T.; Iwasaki, A. Coupled nonnegative matrix factorization unmixing for hyperspectral and multispectral data fusion. IEEE Trans. Geosci. Remote Sens.
**2012**, 50, 528–537. [Google Scholar] [CrossRef] - Zhu, X.X.; Grohnfeldt, C.; Bamler, R. Exploiting joint sparsity for pansharpening: The J-SparseFI algorithm. IEEE Trans. Geosci. Remote Sens.
**2016**, 54, 2664–2681. [Google Scholar] [CrossRef] - Akhtar, N.; Shafait, F.; Mian, A. Sparse spatio-spectral representation for hyperspectral image super-resolution. In European Conference on Computer Vision; Springer: Cham, Switzerland, 2014; pp. 63–78. [Google Scholar]
- Wei, Q.; Bioucas-Dias, J.; Dobigeon, N.; Tourneret, J.Y. Hyperspectral and multispectral image fusion based on a sparse representation. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 3658–3668. [Google Scholar] [CrossRef] - Simões, M.; Bioucas-Dias, J.; Almeida, L.B.; Chanussot, J. A convex formulation for hyperspectral image superresolution via subspace-based regularization. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 3373–3388. [Google Scholar] [CrossRef] - Zhang, L.; Wei, W.; Bai, C.; Gao, Y.; Zhang, Y. Exploiting clustering manifold structure for hyperspectral imagery super-resolution. IEEE Trans. Image Process.
**2018**, 27, 5969–5982. [Google Scholar] [CrossRef] - Yang, J.; Zhao, Y.Q.; Chan, J.C.W. Hyperspectral and Multispectral Image Fusion via Deep Two-Branches Convolutional Neural Network. Remote Sens.
**2018**, 10, 800. [Google Scholar] [CrossRef] - Xie, Q.; Zhou, M.; Zhao, Q.; Meng, D.; Zuo, W.; Xu, Z. Multispectral and Hyperspectral Image Fusion by MS/HS Fusion Net. arXiv
**2019**, arXiv:1901.03281. [Google Scholar] - Ghamisi, P.; Yokoya, N.; Li, J.; Liao, W.; Liu, S.; Plaza, J.; Rasti, B.; Plaza, A. Advances in hyperspectral image and signal processing: A comprehensive overview of the state of the art. IEEE Geosci. Remote Sens. Mag.
**2017**, 5, 37–78. [Google Scholar] [CrossRef] - Zhao, Y.Q.; Yang, J.; Chan, J.C.-W. Hyperspectral imagery super-resolution by spatial–spectral joint nonlocal similarity. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2014**, 7, 2671–2679. [Google Scholar] [CrossRef] - Li, J.; Yuan, Q.; Shen, H.; Meng, X.; Zhang, L. Hyperspectral Image Super-Resolution by Spectral Mixture Analysis and Spatial-Spectral Group Sparsity. IEEE Geosci. Remote Sens. Lett.
**2016**, 13, 1250–1254. [Google Scholar] [CrossRef] - Wang, Y.; Chen, X.A.; Han, Z.; He, S. Hyperspectral image super-resolution via nonlocal low-rank tensor approximation and total variation regularization. Remote Sens.
**2017**, 9, 1286. [Google Scholar] [CrossRef] - Yuan, Y.; Zheng, X.; Lu, X. Hyperspectral image super-resolution by transfer learning. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2017**, 10, 1963–1974. [Google Scholar] [CrossRef] - Li, Y.; Hu, J.; Zhao, X.; Xie, W.; Li, J.J. Hyperspectral image super-resolution using deep convolutional neural network. Neurocomputing
**2017**, 266, 29–41. [Google Scholar] [CrossRef] - Hu, J.; Li, Y.; Xie, W. Hyperspectral image super-resolution by spectral difference learning and spatial error correction. IEEE Geosci. Remote Sens. Lett.
**2017**, 14, 1825–1829. [Google Scholar] [CrossRef] - Mei, S.; Yuan, X.; Ji, J.; Zhang, Y.; Wan, S.; Du, Q. Hyperspectral image spatial super-resolution via 3D full convolutional neural network. Remote Sens.
**2017**, 9, 1139. [Google Scholar] [CrossRef] - Liu, P.; Zhang, H.; Zhang, K.; Lin, L.; Zuo, W. Multi-level wavelet-CNN for image restoration. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) Workshops, Salt Lake City, UT, USA, 18–22 June 2018; pp. 773–782. [Google Scholar]
- Guo, T.; Mousavi, H.S.; Vu, T.H.; Monga, V. Deep wavelet prediction for image super-resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) Workshops, Honolulu, HI, USA, 21–26 July 2017; pp. 104–113. [Google Scholar]
- Bae, W.; Yoo, J.J.; Ye, J.C. Beyond deep residual learning for image restoration: Persistent homology-guided manifold simplification. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) Workshops, Honolulu, HI, USA, 21–26 July 2017; pp. 1141–1149. [Google Scholar]
- Huang, H.; He, R.; Sun, Z.; Tan, T. Wavelet-SRNet: A wavelet-based CNN for multi-scale face super resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 1689–1697. [Google Scholar]
- Zhao, H.; Gallo, O.; Frosio, I.; Kautz, J. Loss functions for image restoration with neural networks. IEEE Trans. Comput. Imaging
**2017**, 3, 47–57. [Google Scholar] [CrossRef] - Cai, J.; Gu, S.; Zhang, L. Learning a deep single image contrast enhancer from multi-exposure images. IEEE Trans. Image Process.
**2018**, 27, 2049–2062. [Google Scholar] [CrossRef] [PubMed] - Scarpa, G.; Vitale, S.; Cozzolino, D. Target-adaptive CNN-based pansharpening. IEEE Trans. Geosci. Remote Sens.
**2018**, 56, 5443–5457. [Google Scholar] [CrossRef] - Dong, C.; Loy, C.C.; He, K.; Tang, X. Image super-resolution using deep convolutional networks. IEEE Trans. Pattern Anal. Mach. Intell.
**2016**, 38, 295–307. [Google Scholar] [CrossRef] [PubMed] - Kim, J.; Lee, J.K.; Lee, K.M. Accurate image super-resolution using very deep convolutional networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 26 June–1 July 2016; pp. 1646–1654. [Google Scholar]
- Kim, J.; Lee, J.K.; Lee, K.M. Deeply-recursive convolutional network for image super-resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 26 June–1 July 2016; pp. 1637–1645. [Google Scholar]
- Tai, Y.; Yang, J.; Liu, X.; Xu, C. Memnet: A persistent memory network for image restoration. In Proceedings of the IEEE Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 4539–4547. [Google Scholar]
- Zhang, Y.; Tian, Y.; Kong, Y.; Zhong, B.; Fu, Y. Residual dense network for image super-resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018. [Google Scholar]
- Wang, Y.; Perazzi, F.; McWilliams, B. A Fully Progressive Approach to Single-Image Super-Resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshop, Salt Lake City, UT, USA, 18–22 June 2018. [Google Scholar]
- Lai, W.S.; Huang, J.B.; Ahuja, N.; Yang, M.H. Deep Laplacian pyramid networks for fast and accurate super-resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 624–632. [Google Scholar]
- Anbarjafari, G.; Demirel, H. Image super resolution based on interpolation of wavelet domain high frequency subbands and the spatial domain input image. ETRI J.
**2010**, 32, 390–394. [Google Scholar] [CrossRef] - Demirel, H.; Anbarjafari, G. Image resolution enhancement by using discrete and stationary wavelet decomposition. IEEE Trans. Image Process.
**2011**, 20, 1458–1460. [Google Scholar] [CrossRef] - Chavez-Roman, H.; Ponomaryov, V. Super resolution image generation using wavelet domain interpolation with edge extraction via a sparse representation. IEEE Geosci. Remote Sens. Lett.
**2014**, 11, 1777–1781. [Google Scholar] [CrossRef] - Demirel, H.; Anbarjafari, G. Discrete wavelet transform-based satellite image resolution enhancement. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 1997–2004. [Google Scholar] [CrossRef] - Ji, S.; Xu, W.; Yang, M.; Yu, K. 3D convolutional neural networks for human action recognition. IEEE Trans. Pattern Anal. Mach. Intell.
**2013**, 35, 221–231. [Google Scholar] [CrossRef] - Li, Y.; Zhang, H.; Shen, Q. Spectral–spatial classification of hyperspectral imagery with 3D convolutional neural network. Remote Sens.
**2017**, 9, 67. [Google Scholar] [CrossRef] - Chen, Y.; Jiang, H.; Li, C.; Jia, X.; Ghamisi, P. Deep feature extraction and classification of hyperspectral images based on convolutional neural networks. IEEE Trans. Geosci. Remote Sens.
**2016**, 54, 6232–6251. [Google Scholar] [CrossRef] - Kingma, D.; Ba, J. Adam: A method for stochastic optimization. In Proceedings of the International Conference for Learning Representations, San Diego, CA, USA, 7–9 May 2015. [Google Scholar]
- Yang, J.; Zhao, Y.; Yi, C.; Chan, J.C.W. No-reference hyperspectral image quality assessment via quality-sensitive features learning. Remote Sens.
**2017**, 9, 305. [Google Scholar] [CrossRef] - Yokoya, N.; Iwasaki, A. Airborne Hyperspectral Data over Chikusei; Technical Report; SAL-2016-05-27; Space Appl. Lab., University of Tokyo: Tokyo, Japan, 2016. [Google Scholar]
- 2018 IEEE GRSS Data Fusion Contest. Available online: http://www.grss-ieee.org/community/technical-committees/data-fusion (accessed on 10 June 2018).
- Wang, Z.; Bovik, A.C.; Sheikh, H.R.; Simoncelli, E.P. Image quality assessment: From error visibility to structural similarity. IEEE Trans. Image Process.
**2004**, 13, 600–612. [Google Scholar] [CrossRef] [PubMed] - Zhang, L.; Zhang, L.; Mou, X.; Zhang, D. FSIM: A feature similarity index for image quality assessment. IEEE Trans. Image Process.
**2011**, 20, 2378–2386. [Google Scholar] [CrossRef] [PubMed] - Abadi, M.; Barham, P.; Chen, J.; Chen, Z.; Davis, A.; Dean, J.; Devin, M.; Ghemawat, S.; Irving, G.; Isard, M.; et al. TensorFlow: A system for large-scale machine learning. In Proceedings of the 12th USENIX Conference on Operating Systems Design and Implementation, Savannah, GA, USA, 2–4 November 2016; pp. 265–283. [Google Scholar]
- Xue, J.; Zhao, Y.; Liao, W.; Chan, J.C.W. Nonlocal Low-Rank Regularized Tensor Decomposition for Hyperspectral Image Denoising. IEEE Trans. Geosci. Remote Sens.
**2019**, 57, 5174–5189. [Google Scholar] [CrossRef] - Yi, C.; Zhao, Y.Q.; Chan, J.C.-W. Spectral super-resolution for multispectral image based on spectral improvement strategy and spatial preservation strategy. IEEE Trans. Geosci. Remote Sens.
**2019**. [Google Scholar] - Pan, L.; Hartley, R.; Liu, M.; Dai, Y. Phase-only Image Based Kernel Estimation for Single-image Blind Deblurring. arXiv
**2018**, arXiv:1811.10185. [Google Scholar] - Ledig, C.; Theis, L.; Huszár, F.; Caballero, J.; Cunningham, A.; Acosta, A.; Aitken, A.; Tejani, A.; Totz, J.; Wang, Z.; et al. Photo-realistic single image super-resolution using a generative adversarial network. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 4681–4690. [Google Scholar]

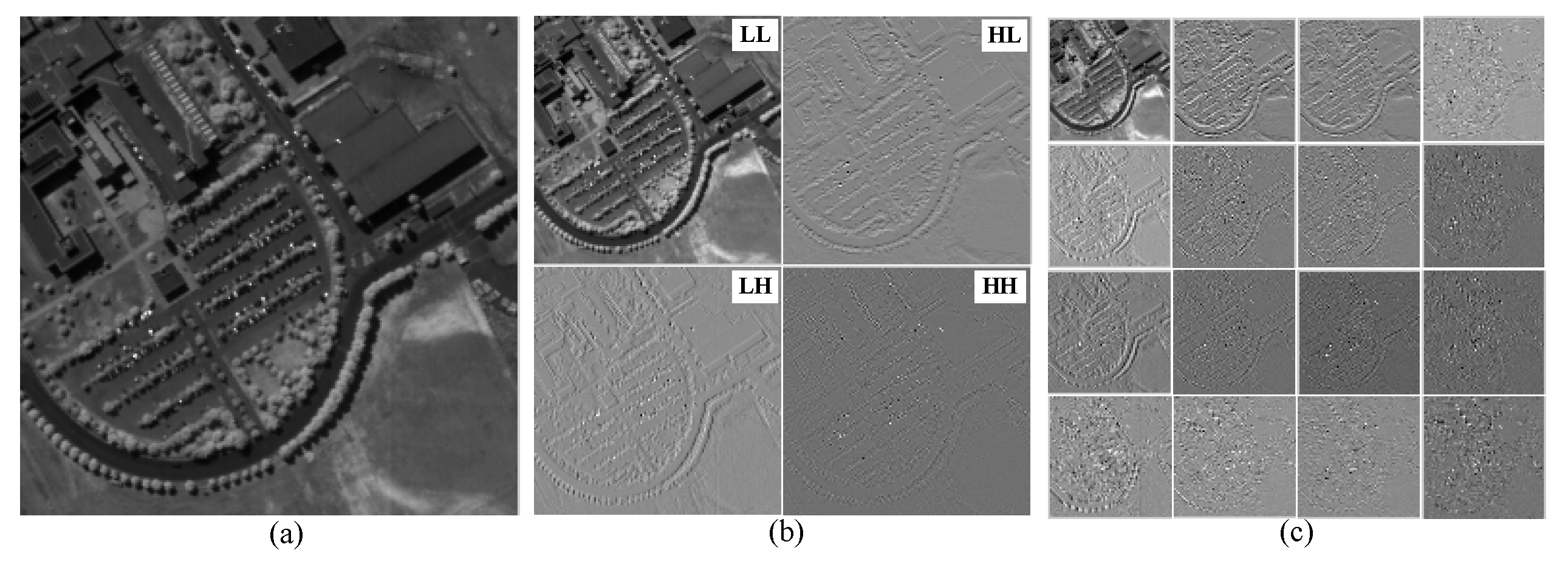

**Figure 1.**An example of wavelet package transformation (WPT) of different levels: (

**a**) the original image, cropped from the 100th band of Pavia University data, (

**b**) one-level decomposition, (

**c**) two-level decomposition.

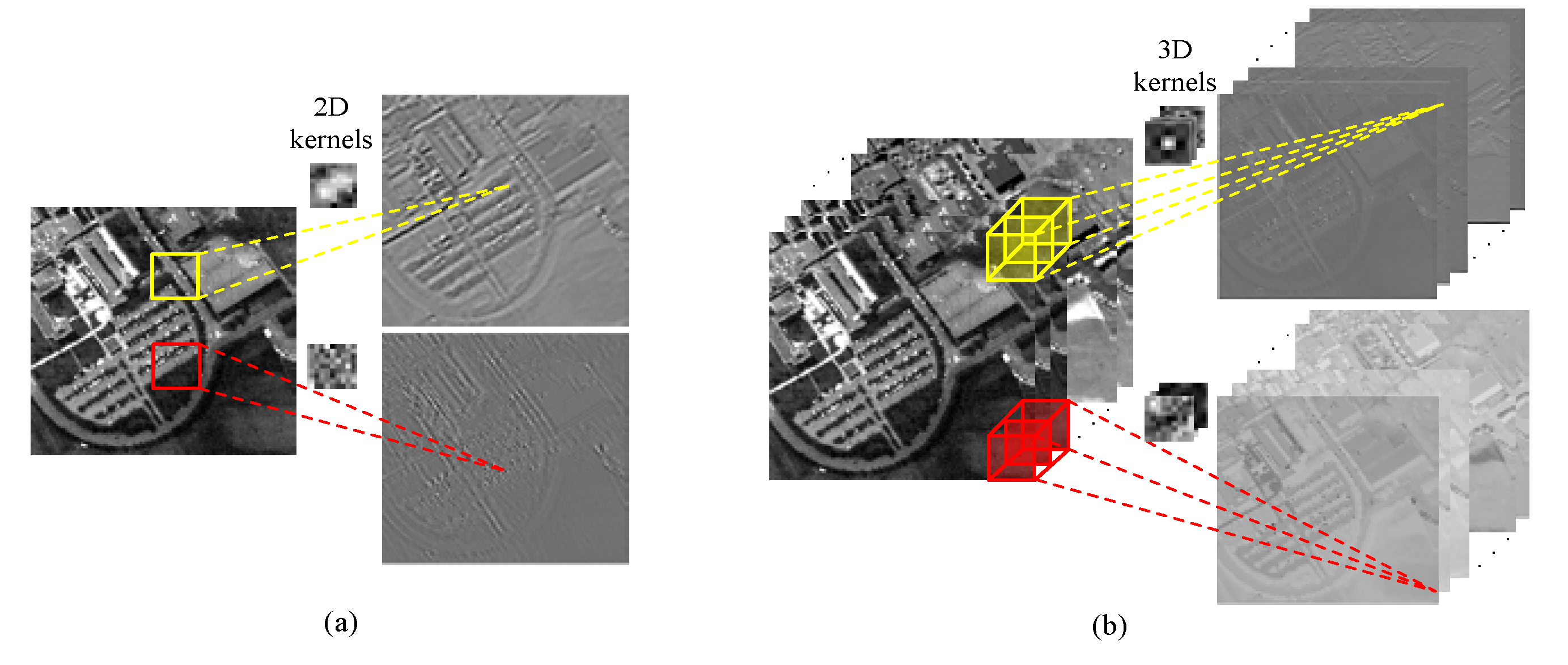

**Figure 2.**The illustration of (

**a**) 2D and (

**b**) 3D convolutional operations, feature maps and feature cubes are generated in each layer of 2D convolutional neural network (CNN) and 3D CNN respectively.

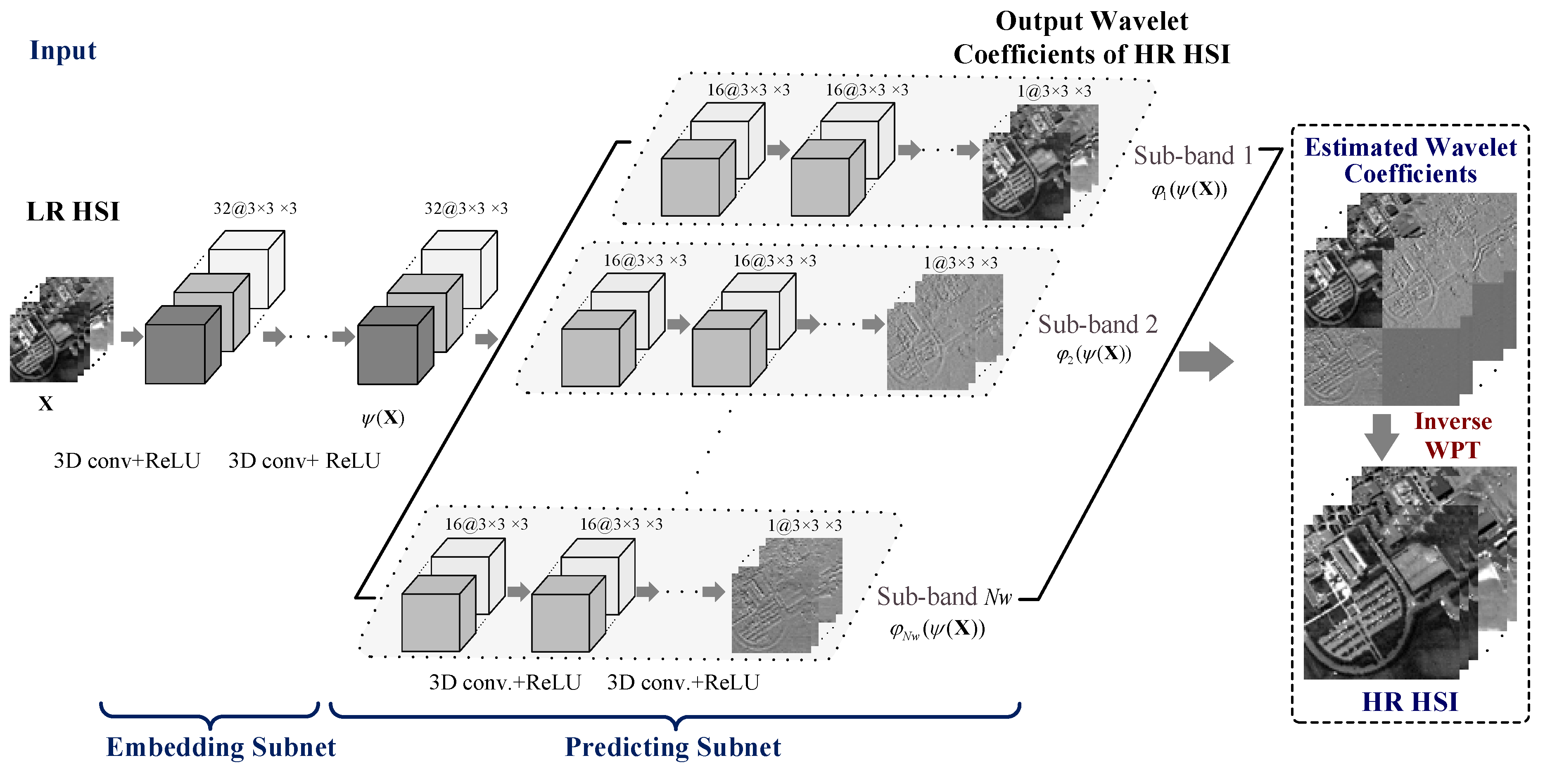

**Figure 3.**The architecture of the proposed multi-scale wavelet (MW)-3D-CNN, the number and the size of convolutional kernels are denoted at each layer, and the embedding subnet and predicting subnet have three and four layers respectively.

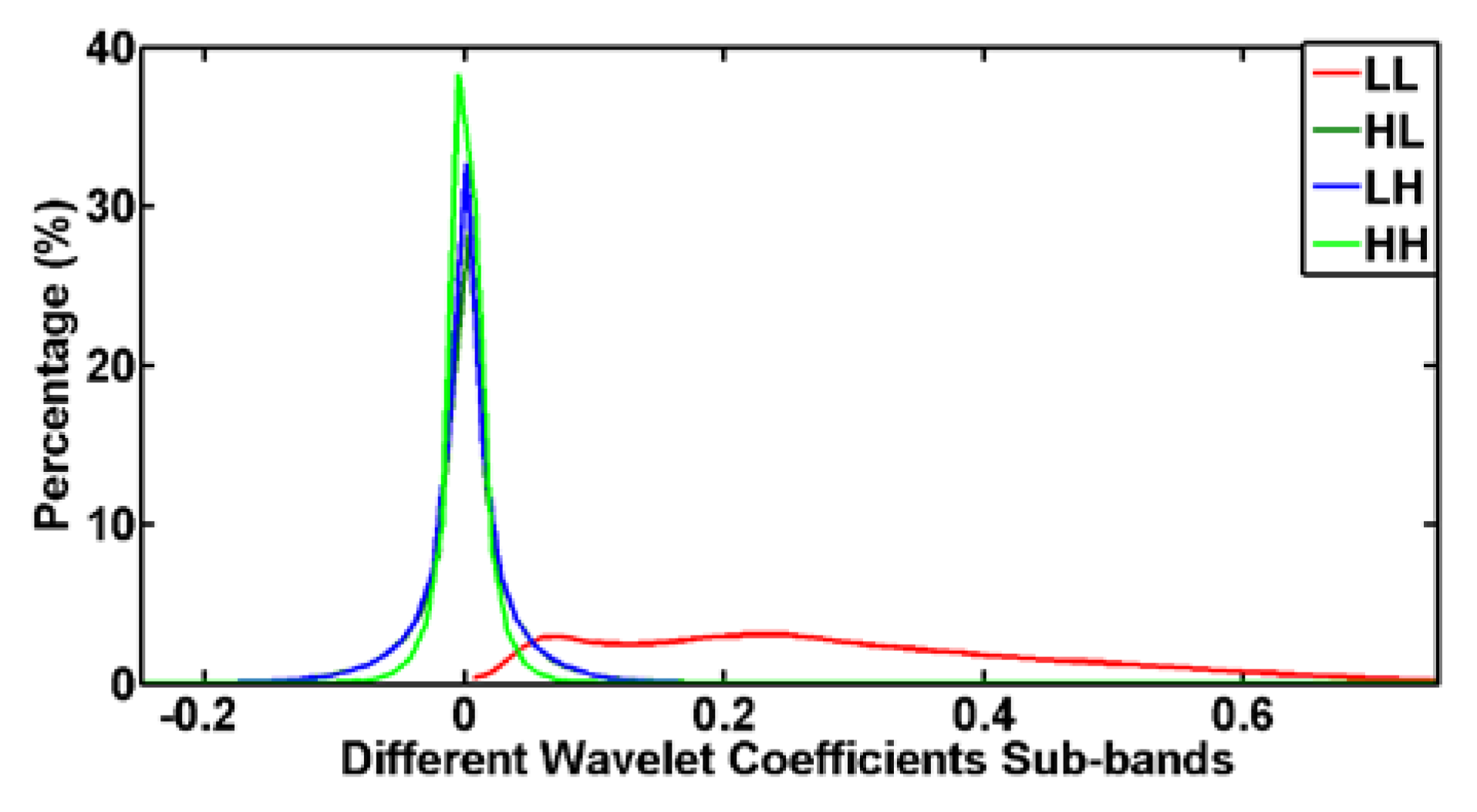

**Figure 4.**The histograms of different wavelet sub-bands of one-level WPT applied to each band of Pavia University, LL is the low-frequency sub-band, HL, LH, and HH are high-frequency sub-bands.

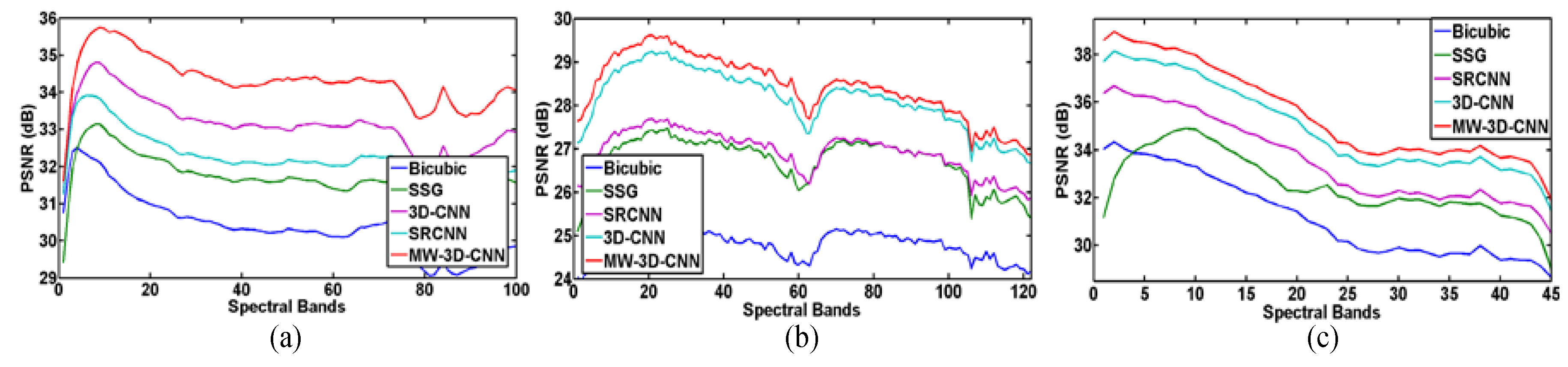

**Figure 5.**Peak-signal-noise-ratio (PSNR) indices of each bands of different hyperspectral image super-resolution (HSI SR) methods by an upscaling factor of two, (

**a**) on Pavia University, (

**b**) on Chikusei (

**c**) on Houston University (grss_dfc_2018).

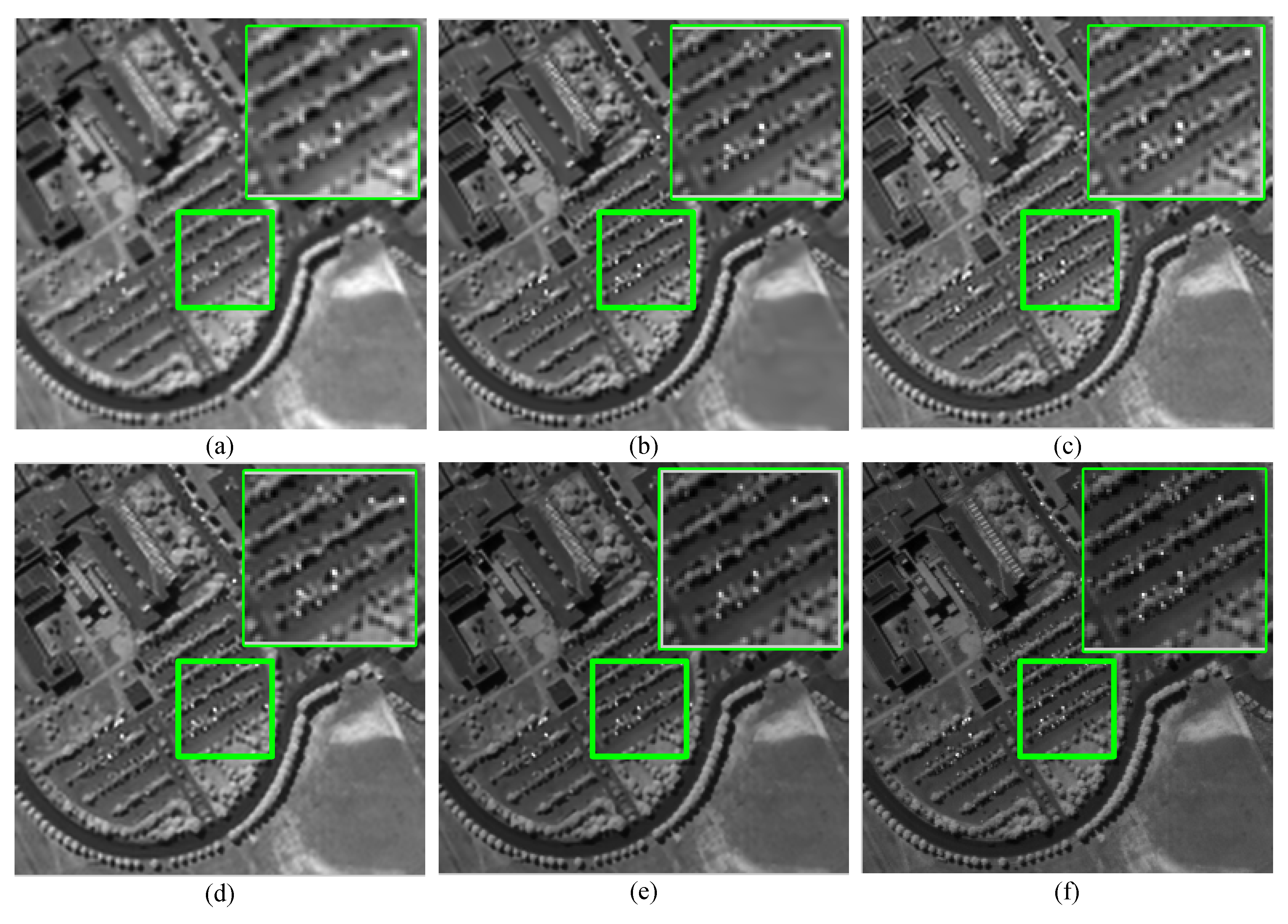

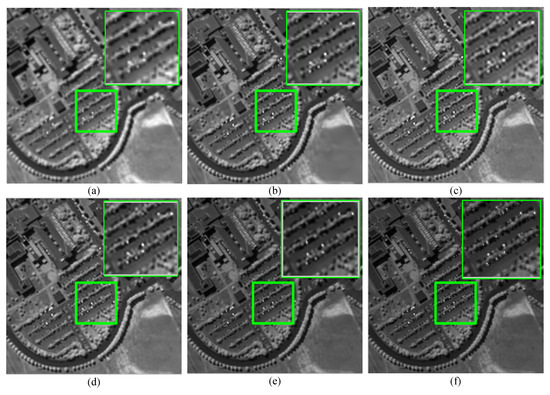

**Figure 6.**The SR results (band 85) of different methods by an upscaling factor of two, the testing data is cropped from Pavia University with size 256 × 256. (

**a**) Result of Bicubic, (

**b**) result of spectral-spatial group sparse representation HSI SR method (SSG) [27], (

**c**) result of super resolution CNN (SRCNN) [40], (

**d**) result of 3D-CNN [32], (

**e**) result of the proposed MW-3D-CNN, and (

**f**) original HR image.

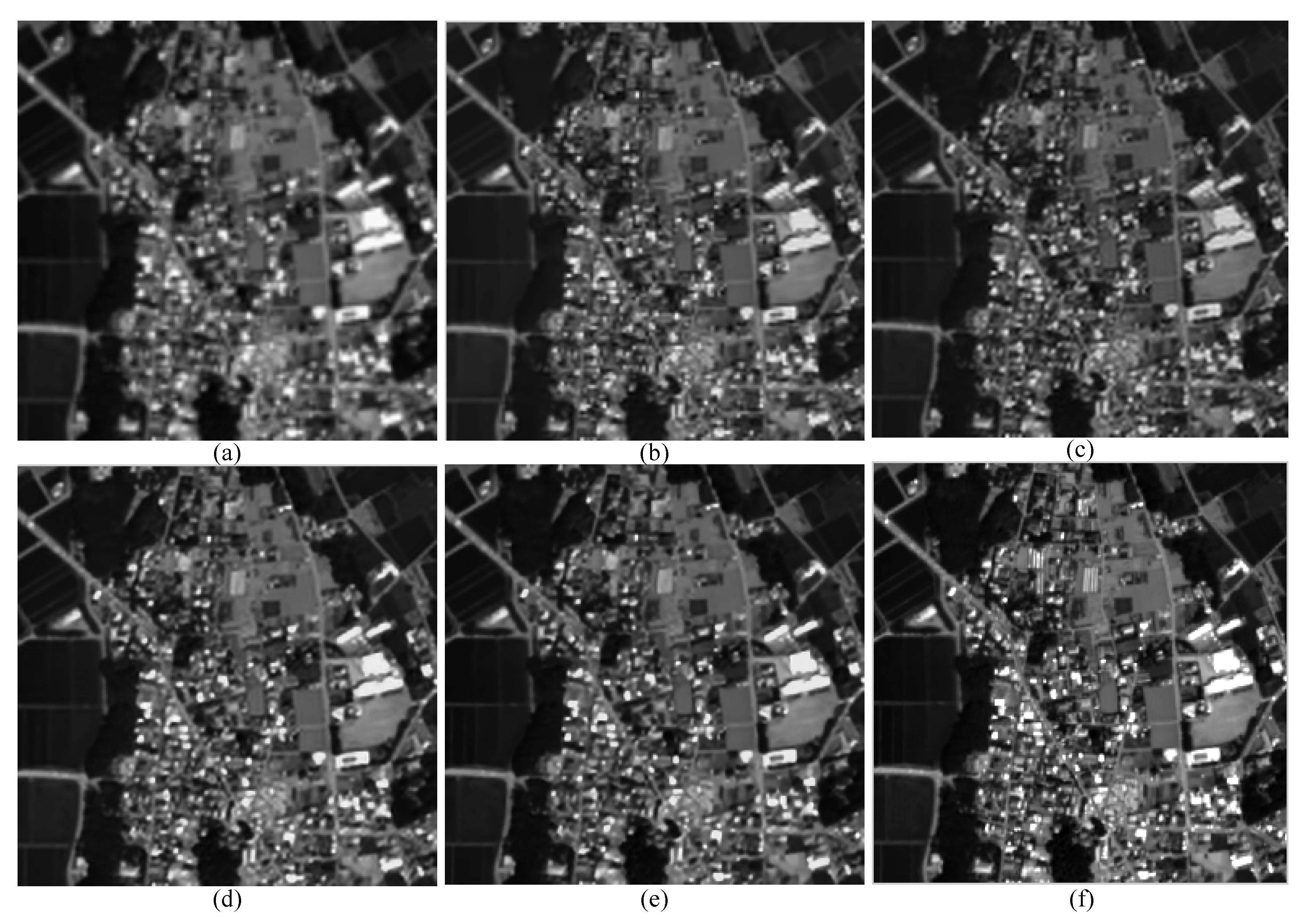

**Figure 8.**The SR results (band 20) of different methods by an upscaling factor of two, the testing data is cropped from Chikusei with size 256 × 256. (

**a**) Result of Bicubic, (

**b**) result of SSG [27], (

**c**) result of SRCNN [40], (

**d**) result of 3D-CNN [32], (

**e**) result of the proposed MW-3D-CNN, and (

**f**) original HR image.

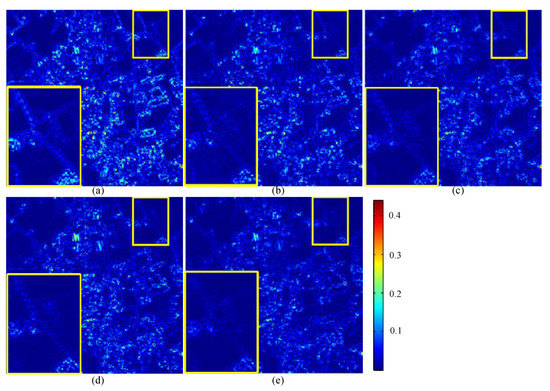

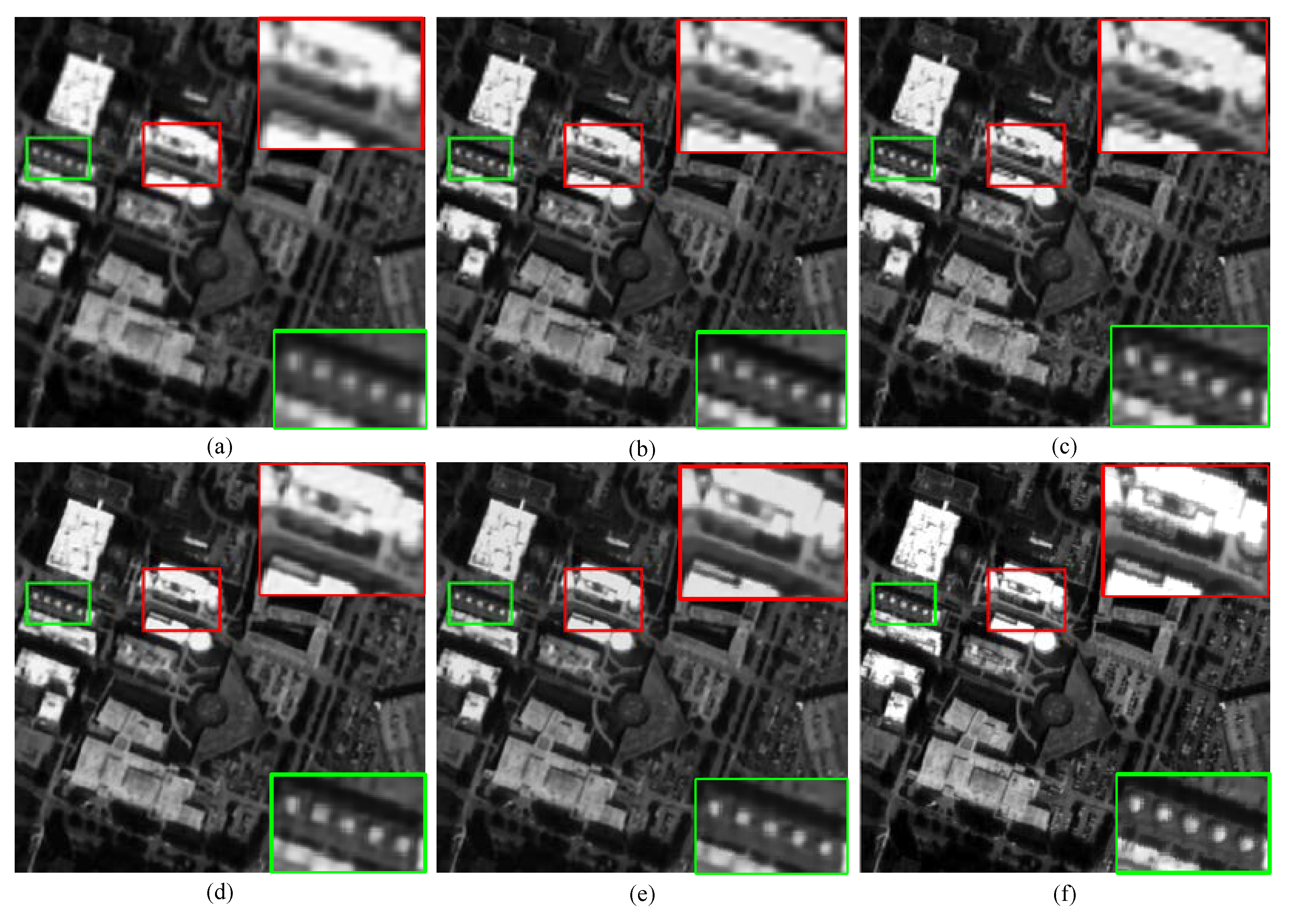

**Figure 10.**The SR results (band 5) of different methods by an upscaling factor of four, the testing data is cropped from Houston University (grss_dfc_2018) with size 512 × 512. (

**a**) Result of Bicubic, (

**b**) result of SSG [27], (

**c**) result of SRCNN [40], (

**d**) result of 3D-CNN [32], (

**e**) result of the proposed MW-3D-CNN, and (

**f**) original HR image.

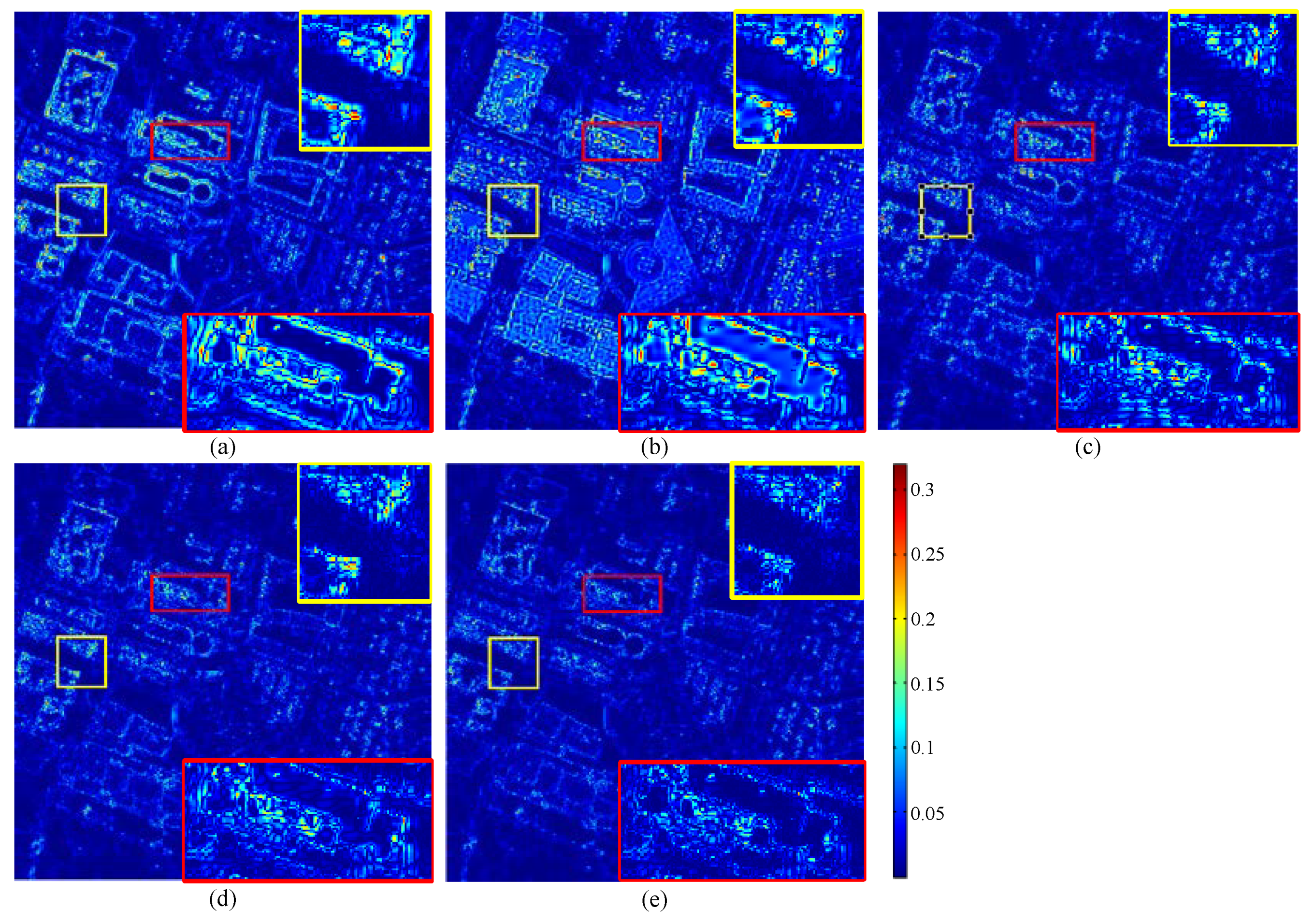

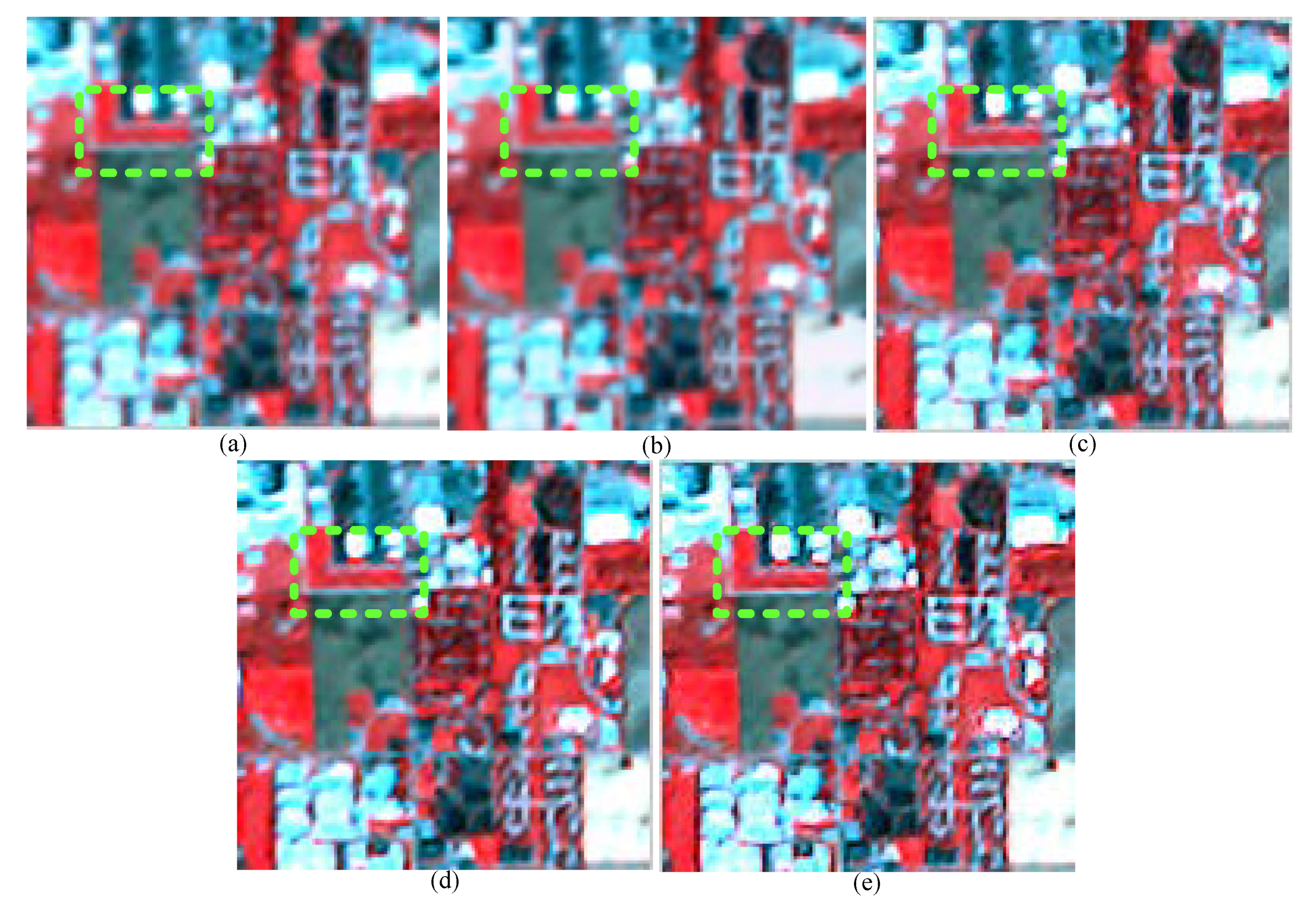

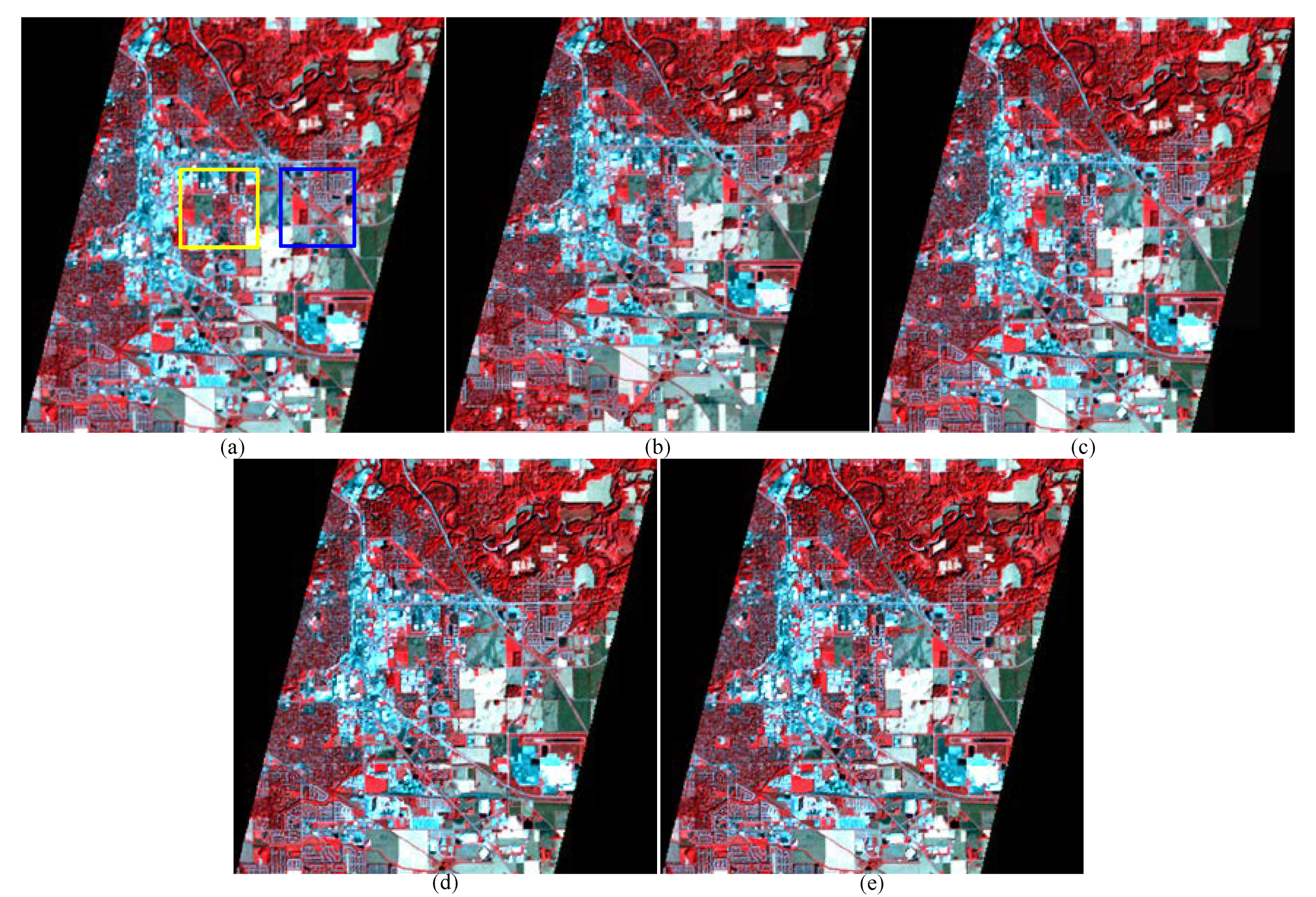

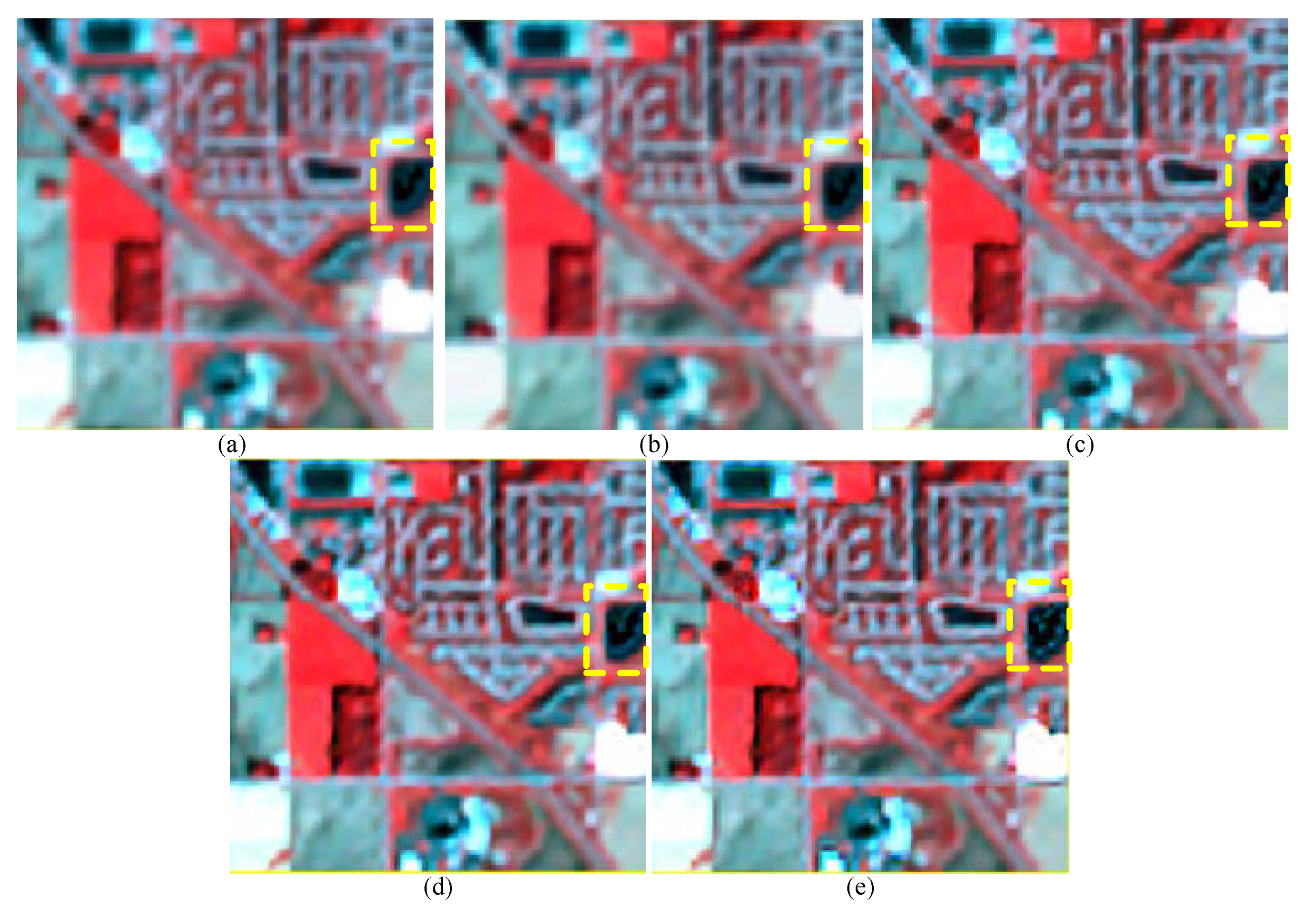

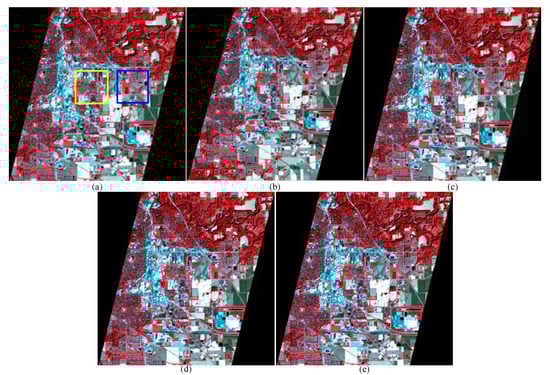

**Figure 12.**False color composite (band 45, 21, 14) of different Hyperion SR results. The upscaling factor is two, the size of the enhanced image is 682 × 780 with 15 m resolution. (

**a**) result of Bicubic, (

**b**) result of SSGS [27], (

**c**) result of SRCNN [40], (

**d**) result of 3D-CNN [32], and (

**e**) result of MW-3D-CNN.

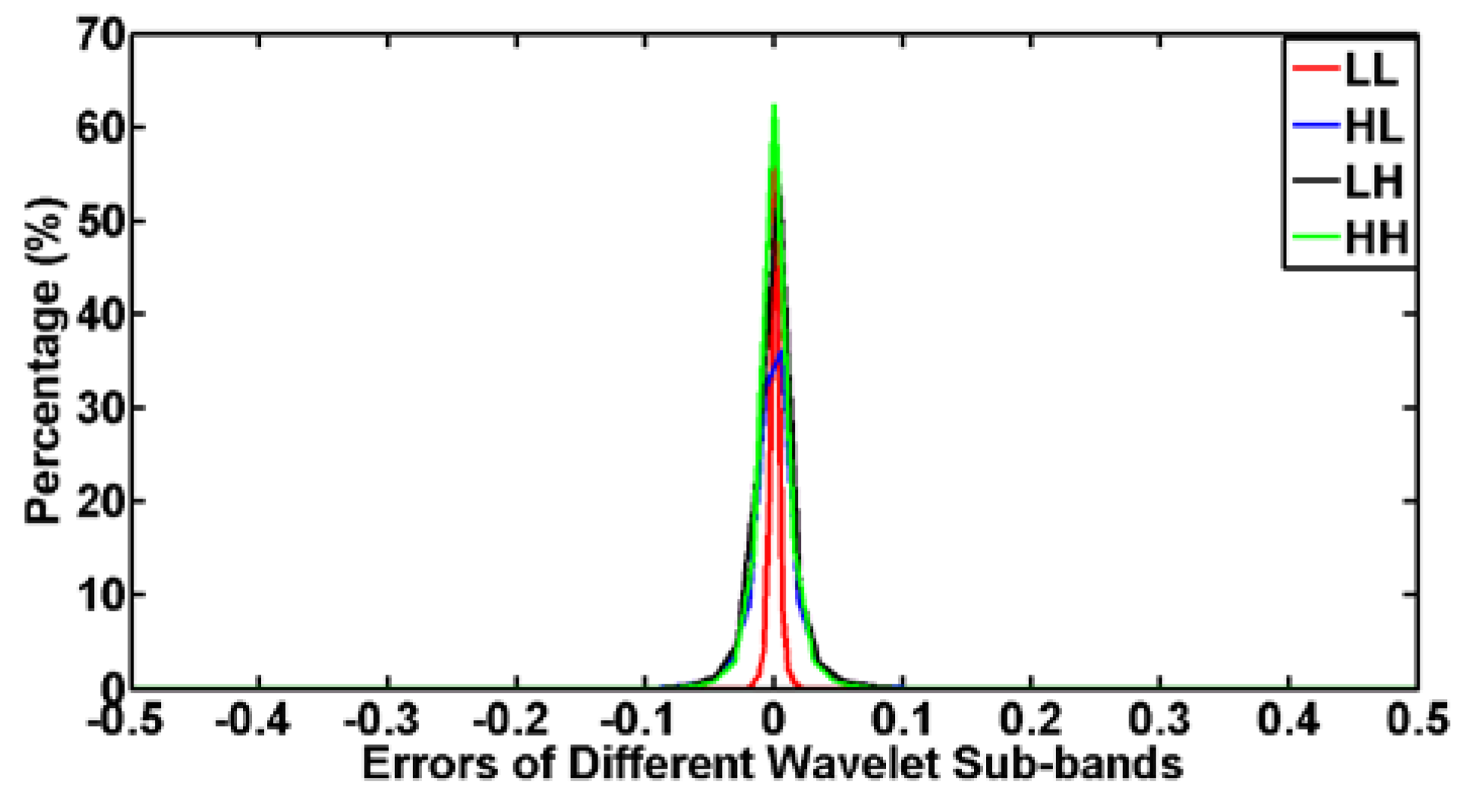

**Figure 15.**The histograms of errors in different wavelet sub-bands after 200 training epochs. The training data is extracted from Pavia University, the MW-3D-CNN is trained with the L1 norm loss, and the upscaling factor is two.

Data | Indices | Bicubic | SSG [27] | SRCNN [40] | 3D-CNN [32] | MW-3D-CNN |
---|---|---|---|---|---|---|

Pavia University | PSNR (dB) | 30.4032 | 31.7092 | 32.1961 | 33.1397 | 34.9394 |

SSIM | 0.8867 | 0.9132 | 0.9234 | 0.9398 | 0.9537 | |

FSIM | 0.9191 | 0.9460 | 0.9517 | 0.9643 | 0.9754 | |

SAM | 4.0979° | 4.6845° | 3.7519° | 3.5470° | 3.3302° | |

Chikusei | PSNR (dB) | 24.7892 | 26.7419 | 26.9271 | 28.0397 | 28.4288 |

SSIM | 0.8596 | 0.9148 | 0.9301 | 0.9344 | 0.9396 | |

FSIM | 0.8889 | 0.9313 | 0.9408 | 0.9483 | 0.9544 | |

SAM | 4.2283° | 3.7700° | 3.0919° | 2.9650° | 2.9248° | |

Houston University (grss_dfc_2018) | PSNR (dB) | 31.2005 | 32.5020 | 33.5990 | 34.9816 | 35.5552 |

SSIM | 0.9280 | 0.9480 | 0.9596 | 0.9669 | 0.9710 | |

FSIM | 0.9878 | 0.9953 | 0.9991 | 0.9993 | 0.9997 | |

SAM | 2.5757° | 3.4858° | 2.4268° | 2.1029° | 1.9252° |

Data | Indices | Bicubic | SSG [27] | SRCNN [40] | 3D-CNN [32] | MW-3D-CNN |
---|---|---|---|---|---|---|

Pavia University | PSNR (dB) | 27.5136 | 27.6828 | 27.8132 | 28.7122 | 29.1069 |

SSIM | 0.7187 | 0.7328 | 0.7327 | 0.7745 | 0.7928 | |

FSIM | 0.7905 | 0.8186 | 0.8058 | 0.8450 | 0.8620 | |

SAM | 6.1537° | 7.7461° | 5.9707° | 5.6644° | 5.8828° | |

Chikusei | PSNR (dB) | 19.8308 | 20.3108 | 21.0739 | 21.1284 | 20.6069 |

SSIM | 0.5623 | 0.6280 | 0.6723 | 0.6741 | 0.6853 | |

FSIM | 0.7039 | 0.7646 | 0.7985 | 0.7979 | 0.7934 | |

SAM | 7.8073° | 7.9160° | 6.5647° | 6.5458° | 7.2638° | |

Houston University (grss_dfc_2018) | PSNR (dB) | 25.3139 | 26.0628 | 26.7927 | 27.8006 | 28.4968 |

SSIM | 0.7410 | 0.7703 | 0.7971 | 0.8259 | 0.8514 | |

FSIM | 0.8988 | 0.9233 | 0.9372 | 0.9528 | 0.9653 | |

SAM | 4.6611° | 6.9780° | 4.2034° | 4.0398° | 3.6881° |

Data | Bicubic | SSG [27] | SRCNN [40] | 3D-CNN [32] | MW-3D-CNN |
---|---|---|---|---|---|

Pavia University | 0.42 s | 2.37 h | 233.45 s | 0.96 s | 1.18 s |

Chikusei | 0.44 s | 2.86 h | 241.84 s | 1.14 s | 1.30 s |

Houston University | 0.97 s | 4.33 h | 402.71 s | 1.76 s | 1.92 s |

Data | Bicubic | SSG [27] | SRCNN [40] | 3D-CNN [32] | MW-3D-CNN |
---|---|---|---|---|---|

Pavia University | 0.24 s | 2.28 h | 237.58 s | 1.12 s | 1.16 s |

Chikusei | 0.28 s | 2.77 h | 247.75 s | 1.20 s | 1.42 s |

Houston University | 0.49 s | 4.21 h | 409.54 s | 1.76 s | 1.87 s |

**Table 6.**PNSR (dB) indices of the sensitivity analysis of MW-3D-CNN over the size of 3D convolutional kernels. The upscaling factor is two.

Size of 3D Conv. Kernel | Pavia University | Chikusei | Houston University |
---|---|---|---|

1 × 1 × 1 | 30.3859 | 23.3061 | 31.0492 |

3 × 3 × 3 | 34.9394 | 28.4288 | 35.5552 |

5 × 5 × 5 | 34.5399 | 27.9122 | 35.4294 |

**Table 7.**PSNR (dB) indices of the sensitivity analysis of MW-3D-CNN over the number of 3D convolutional kernels in embedding and predicting subnets. The upscaling factor is two.

Number of 3D Conv. Kernels | Pavia University | Chikusei | Houston University |
---|---|---|---|

16 (embedding subnet), 8 (predicting subnet) | 34.8725 | 28.3497 | 35.6839 |

32 (embedding subnet), 16 (predicting subnet) | 34.9394 | 28.4288 | 35.5552 |

64 (embedding subnet), 32 (predicting subnet) | 34.8568 | 28.2704 | 35.3547 |

**Table 8.**PSNR (dB) indices of the sensitivity analysis of MW-3D-CNN over the number of 3D convolutional layers in embedding and predicting subnets. The upscaling factor is two.

Number of 3D Conv. Layers | Pavia University | Chikusei | Houston University |
---|---|---|---|

2 (embedding subnet), 3 (predicting subnet) | 34.9282 | 28.3663 | 35.4573 |

3 (embedding subnet), 4 (predicting subnet) | 34.9394 | 28.4288 | 35.5552 |

4 (embedding subnet), 5 (predicting subnet) | 35.1095 | 28.3744 | 35.4720 |

Loss Functions | Pavia University | Chikusei | Houston University |
---|---|---|---|

L1 Norm Loss | 34.9394 | 28.4288 | 35.5552 |

L2 Norm Loss | 34.6417 | 28.3176 | 35.2615 |

Methods | Pavia University | Chikusei | Houston University |
---|---|---|---|

MW-3D-CNN | 34.9394 | 28.4288 | 35.5552 |

Wavelet-SRNet-L2 | 32.2569 | 27.0149 | 34.1717 |

Wavelet-SRNet-L1 | 32.3658 | 27.0903 | 34.1537 |

**Table 11.**PSNR (dB) indices of MW-3D-CNN with different wavelet functions in WPT. The upscaling factor is two.

Wavelets | Pavia University | Chikusei | Houston University |
---|---|---|---|

Haar wavelet | 34.9394 | 28.4288 | 35.5552 |

Daubechies-2 wavelet | 35.0468 | 28.6751 | 35.5202 |

Biorthogonal wavelet | 34.9695 | 28.4213 | 35.5594 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Yang, J.; Zhao, Y.-Q.; Chan, J.C.-W.; Xiao, L.
A Multi-Scale Wavelet 3D-CNN for Hyperspectral Image Super-Resolution. *Remote Sens.* **2019**, *11*, 1557.
https://doi.org/10.3390/rs11131557

**AMA Style**

Yang J, Zhao Y-Q, Chan JC-W, Xiao L.
A Multi-Scale Wavelet 3D-CNN for Hyperspectral Image Super-Resolution. *Remote Sensing*. 2019; 11(13):1557.
https://doi.org/10.3390/rs11131557

**Chicago/Turabian Style**

Yang, Jingxiang, Yong-Qiang Zhao, Jonathan Cheung-Wai Chan, and Liang Xiao.
2019. "A Multi-Scale Wavelet 3D-CNN for Hyperspectral Image Super-Resolution" *Remote Sensing* 11, no. 13: 1557.
https://doi.org/10.3390/rs11131557
