# Establishment of a Real-Time Local Tropospheric Fusion Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Multisource Tropospheric Data

#### 2.1.1. Zenith Tropospheric Delay Obtained by GNSS Processing

#### 2.1.2. Zenith Tropospheric Delay Obtained by the Saastamoinen Model

#### 2.1.3. Zenith Tropospheric Delay Obtained by the GPT2w Model

_{0}is the mean value, A

_{1}and B

_{1}are the annual cycle amplitudes, A

_{2}and B

_{2}are the semi-annual cycle amplitudes, doy is the day of the year. In Equation (5), ${k}_{2}^{\prime}$ and k

_{3}are the atmospheric refractive index constants provided by Thayer [29], where ${k}_{2}^{\prime}$= 16.529 k·mb

^{−1}and k

_{3}= 3.776 × 10

^{5}k·mb

^{−1}. Furthermore, T

_{m}is the atmospheric weighted average temperature, g

_{m}is the gravity acceleration, R

_{d}is the gas ratio of dry air constant values 287.058 J·kg

^{−1}·K

^{−1}, e

_{s}is the vapor pressure, β is calculated by Equation (6). The β parameter is one of the weather parameters provided by GPT2w, whose solution requires the fitting of meteorological profile data at the station.

#### 2.2. Methods for Establishing the Local Tropospheric Fusion Model

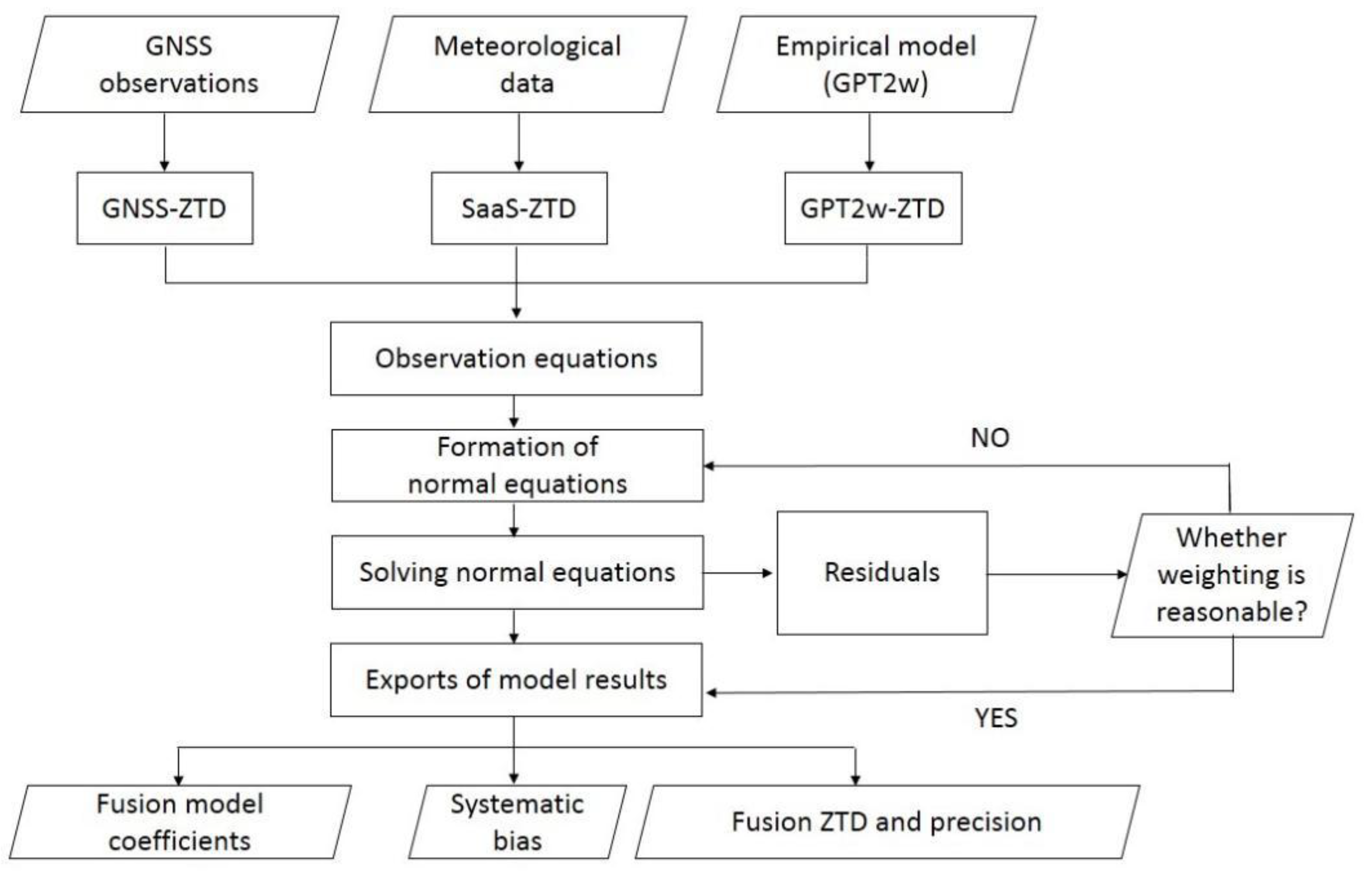

#### 2.2.1. Tropospheric Fusion Modeling

_{i,j,k}are the ZTD observations at the station. The parameters to be solved are the ten fitting model coefficients, the Saastamoinen systematic bias, and the GPT2w systematic bias. The usual practice is to consider the systematic biases as model unknowns, and to estimate them together with the tropospheric fusion model coefficients using a least squares approach.

_{0}, a

_{1},……a

_{9}; δ

_{S}is the systematic bias between the Saastamoinen model and the fusion model, and δ

_{G}is the systematic bias between the GPT2w model and the fusion model. We assume that there is no systematic bias between the GNSS-based model and the fusion model.

#### 2.2.2. Precise Weights Determination

- The prior weights of the different observed values, i.e., the initial values of the weight of each type of observation (P
_{1}, P_{2}, …), are assigned. - A first adjustment is made, to obtain the values of ${V}_{i}^{T}{P}_{i}{V}_{i}$.
- In accordance with Equations (10) or (11) for the first-time variance component estimation, the first value of the unit weight variance ${\hat{\sigma}}_{{0}_{i}}^{2}$ of various observations is obtained, and then the weights are determined according to the following formula:$${\hat{P}}_{i}=\frac{c}{{\hat{\sigma}}_{{0}_{i}}^{2}{P}_{i}^{-1}}$$

#### 2.3. Data Description and Processing Strategy

## 3. Results and Discussion

#### 3.1. Verification of the Systematic Bias Estimation

#### 3.2. Verification of the Zenith Tropospheric Delay

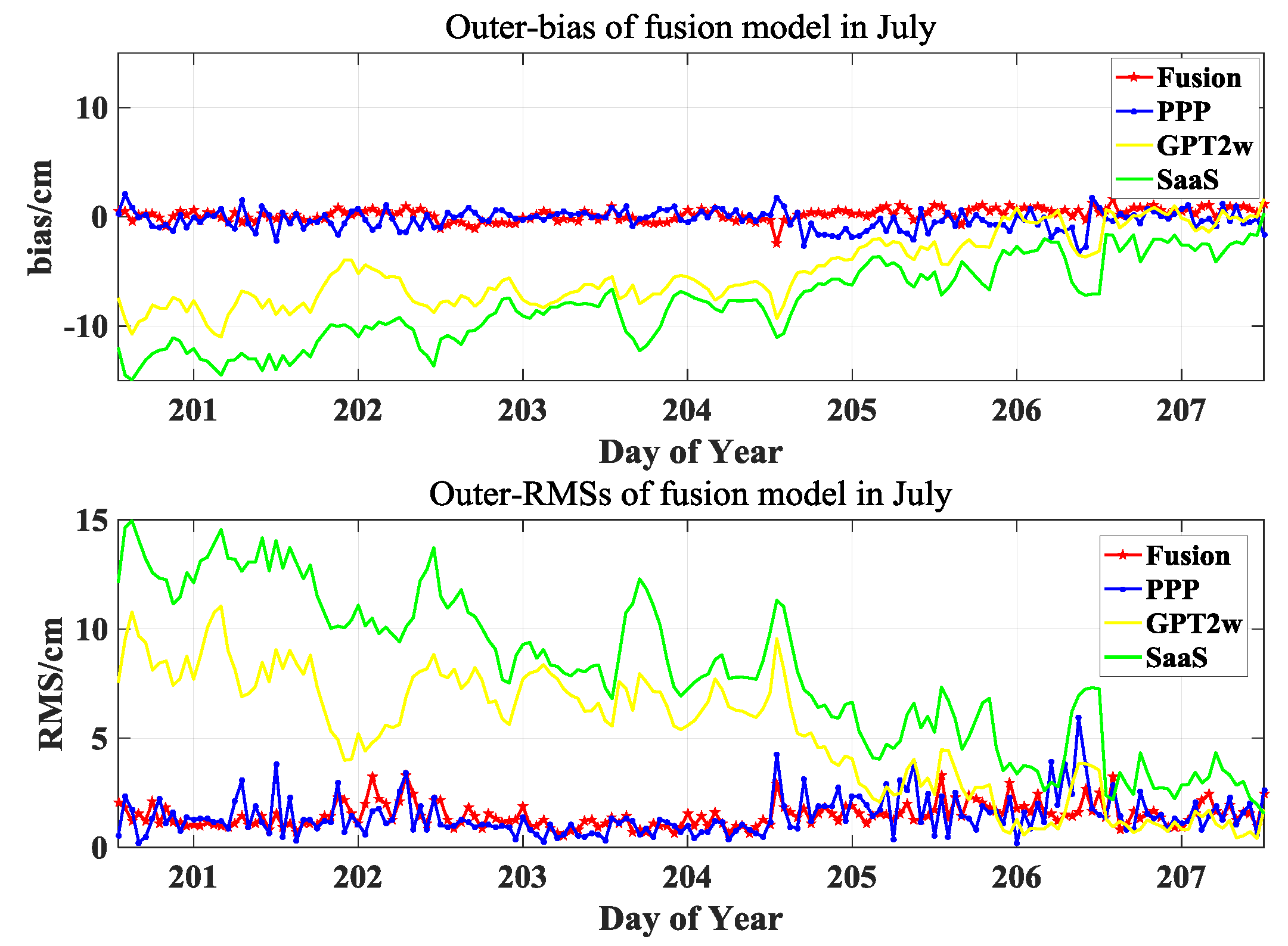

#### 3.2.1. Active Troposphere Condition

#### 3.2.2. Quiet Troposphere Condition

#### 3.3. Impact of the dDstribution of Modeling Station Elevations on Model Precision

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Yao, Y.; Xu, X.; Xu, C.; Peng, W.; Wan, Y. GGOS tropospheric delay forecast product performance evaluation and its application in real-time PPP. J. Atmos. Sol.-Terr. Phys.
**2018**, 175, 1–17. [Google Scholar] [CrossRef] - Kim, J.; Song, J.; No, H.; Han, D.; Kim, D.; Park, B.; Kee, C. Accuracy Improvement of DGPS for Low-Cost Single-Frequency Receiver Using Modified Flächen Korrektur Parameter Correction. ISPRS Int. J. Geo-Inf.
**2017**, 6, 222. [Google Scholar] [CrossRef] - Ahn, Y.W.; Kim, D.; Dare, P. Local tropospheric anomaly effects on GPS RTK performance. Proc. ION GNSS
**2006**, 2006, 1925–1935. [Google Scholar] - Song, J.; Park, B.; Kee, C. Comparative Analysis of Height-Related Multiple Correction Interpolation Methods with Constraints for Network RTK in Mountainous Areas. J. Navig.
**2016**, 69, 991–1010. [Google Scholar] [CrossRef] [Green Version] - Collins, J.P.; Langley, R. The residual tropospheric propagation delay: How bad can it get? In Proceedings of Ion gps. Inst. Navig.
**1998**, 11, 729–738. [Google Scholar] - Collins, J.P.; Langley, R.B. A Tropospheric Delay Model for the User of the Wide Area Augmentation System; Department of Geodesy and Geomatics Engineering, University of New Brunswick: Fredericton, NB, USA, 1997. [Google Scholar]
- MOPS, W. Minimum Operational Performance Standards for Global Positioning System/Wide Area Augmentation System Airborne Equipment; RTCA Inc.: Washington, DC, USA, 1999; Documentation No. RTCA/DO-229B, 6. [Google Scholar]
- Penna, N.; Dodson, A.; Chen, W. Assessment of EGNOS Tropospheric Correction Model. J. Navig.
**2001**, 54, 37–55. [Google Scholar] [CrossRef] [Green Version] - Ueno, M.; Hoshinoo, K.; Matsunaga, K.; Kawai, M.; Nakao, H.; Langley, R.B.; Bisnath, S.B. Assessment of atmospheric delay correction models for the Japanese MSAS. In Proceedings of the 14th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS 2001), Salt Lake City, UT, USA, 11–14 September 2001; pp. 2341–2350. [Google Scholar]
- Boehm, J.; Heinkelmann, R.; Schuh, H.; Böhm, J. Short Note: A global model of pressure and temperature for geodetic applications. J. Geod.
**2007**, 81, 679–683. [Google Scholar] [CrossRef] - Kouba, J. Testing of global pressure/temperature (GPT) model and global mapping function (GMF) in GPS analyses. J. Geod.
**2009**, 83, 199–208. [Google Scholar] [CrossRef] - Petit, G.; Luzum, B. IERS conventions 2010, IERS Technical Note; IERS Conventions Centre: Paris, France, 2010. [Google Scholar]
- Lu, C.; Zus, F.; Ge, M.; Heinkelmann, R.; Dick, G.; Wickert, J.; Schuh, H. Tropospheric delay parameters from numerical weather models for multi-GNSS precise positioning. Atmos. Meas. Techn.
**2016**, 9, 5965–5973. [Google Scholar] [CrossRef] [Green Version] - Lagler, K.; Schindelegger, M.; Böhm, J.; Krásná, H.; Nilsson, T. GPT2: Empirical slant delay model for radio space geodetic techniques. Geophys. Lett.
**2013**, 40, 1069–1073. [Google Scholar] [CrossRef] [Green Version] - Böhm, J.; Möller, G.; Schindelegger, M.; Pain, G.; Weber, R. Development of an improved empirical model for slant delays in the troposphere (GPT2w). GPS Solut.
**2014**, 19, 433–441. [Google Scholar] [CrossRef] [Green Version] - Hopfield, H.S. Two-quartic Tropospheric Refractivity Profile for Correcting Satellite Data. J. Geophys. Res.
**1969**, 74, 4487–4499. [Google Scholar] [CrossRef] - Saastamoinen, J. Atmospheric Correction for Troposphere and Stratosphere in Radio Ranging of Satellites. Use Artif. Satell. Geod.
**1972**, 15, 247–251. [Google Scholar] - Black, H.D. An easily implemented algorithm for the tropospheric range correction. J. Geophy. Res. Solid Earth
**1978**, 83, 1825–1828. [Google Scholar] [CrossRef] - Qu, W.; Zhu, W.; Song, S.; Ping, J. Three kinds of tropospheric delay correction model accuracy evaluation. J. Astron.
**2008**, 49, 113–122. [Google Scholar] - Tao, W. Near real-time GPS PPP-inferred water vapor system development and evaluation. Master’s Thesis, Department of Geomatics Engineering, University of Calgary, Calgary, AB, Canada, 2008. [Google Scholar]
- Ye, S.; Zhang, S.; Liu, J. Precision single point positioning method is used to estimate the accuracy of tropospheric delay. J. Wuhan Univ. (Inf. Sci. Ed.)
**2008**, 33, 788–791. [Google Scholar] - Wang, M.; Chai, H.; Xie, K.; Chen, Y. PWV inversion based on CNES realtime orbits and clocks. J. Geod. Geodyn.
**2013**, 33, 137–140. [Google Scholar] - Shi, J.; Xu, C.; Guo, J.; Gao, Y. Local troposphere augmentation for real-time precise point positioning. Earth Planets Space
**2014**, 66, 1–13. [Google Scholar] [CrossRef] - Douša, J.; Václavovic, P.; Zhao, L.; Kačmařík, M. New adaptable all-in-one strategy for estimating advanced tropospheric parameters and using real-time orbits and clocks. Remote Sens.
**2018**, 10, 232. [Google Scholar] [CrossRef] - Douša, J.; Eliaš, M.; Václavovic, P.; Eben, K.; Krč, P. A two-stage tropospheric correction model combining data from GNSS and numerical weather model. GPS Solut.
**2018**, 22, 77. [Google Scholar] [CrossRef] - Rocken, C.; Ware, R.; Hove, T.V.; Solheim, F.; Alber, C.; Johnson, J.; Bevis, M.; Businger, S. Sensing atmospheric water vapor with the global positioning system. Geophys. Res. Lett.
**2013**, 20, 2631–2634. [Google Scholar] [CrossRef] - Ifadis, I.I. The Atmospheric Delay of Radio Waves: Modeling the Elevation Dependence on a Global Scale; Technical Report No. 38L; Chalmers, U. of Technology: Goteburg, Sweden, 1986. [Google Scholar]
- Askne, J.; Nordius, H. Estimation of Tropospheric Delay for Mircowaves from Surface Weather Data. Radio Sci.
**1987**, 22, 379–386. [Google Scholar] [CrossRef] - Thayer, G.D. An improved equation for the radio refractive index of air. Radio Sci.
**1974**, 9, 803–807. [Google Scholar] [CrossRef] - Teunissen, P.J.G.; Amiri-Simkooei, A.R. Least-squares variance component estimation. J. Geod.
**2008**, 82, 65–82. [Google Scholar] [CrossRef] - Grafarend, E.; Kleusberg, A.; Schaffrin, B. An introduction to the variance-covariance component estimation of Helmert type. Zeitschrift für Vermessungswesen
**1980**, 105, 161–180. [Google Scholar] - Cui, X.Z.; Yu, Z.C.; Tao, B.Z.; Liu, D.J. Generalized Surveying Adjustment (New Edition); Wuhan University Press: Wuhan, China, 2005. [Google Scholar]
- Chen, Q.; Song, S.; Heise, S.; Liou, Y.; Zhu, W.; Zhao, J. Assessment of ZTD derived from ECMWF/NCEP data with GPS ZTD over China. GPS Solut.
**2011**, 15, 415–425. [Google Scholar] [CrossRef] - Hua, Z.; Liu, L.; Liang, X. An Assessment of GPT2w Model and Fusion of a Troposphere Model with in Situ Data; Geomatics & Information Science of Wuhan University: Wuhan, China, 2017. [Google Scholar]
- Kouba, J.; Héroux, P. Precise Point Positioning Using IGS Orbit and Clock Products. GPS Solut.
**2001**, 5, 12–28. [Google Scholar] [CrossRef]

**Figure 3.**Time series of daily average ZTD in Hong Kong and Systematic bias of Saastamoinen and GPT2w model in two cases.

**Figure 8.**(

**a**–

**c**) Differences (cm) between ZTDs provided by the fusion model and GNSS processing on the day 202/203/204 UTC 12:00.

Data source | Period | CORS Station | Weather Station | GPT2w |
---|---|---|---|---|

Grid Points | ||||

Hong Kong | 20 July 2015~26 July 2015 1 August 2015~7 August 2015 | 15 | 14 | 4 (1°×1°) 21.5°~22.5° 113.5°~114.5° |

DOY | Helmert | Comprehensive | ||
---|---|---|---|---|

Bias (cm) | RMS (cm) | Bias (cm) | RMS (cm) | |

201.00 | 0.00 | 1.33 | 0.04 | 1.28 |

202.00 | 0.35 | 1.84 | 0.22 | 1.73 |

203.00 | −0.40 | 1.10 | −0.28 | 1.13 |

204.00 | −0.23 | 1.05 | −0.06 | 1.05 |

205.00 | −0.06 | 1.58 | 0.22 | 1.59 |

206.00 | 0.58 | 1.98 | 0.53 | 1.93 |

207.00 | 0.82 | 2.02 | 0.70 | 1.55 |

213.00 | 0.97 | 2.86 | 0.60 | 2.19 |

214.00 | 0.55 | 1.82 | 0.50 | 1.53 |

215.00 | −0.11 | 1.31 | 0.13 | 1.21 |

216.00 | −0.28 | 1.30 | 0.15 | 1.30 |

217.00 | -0.62 | 1.97 | -0.16 | 1.41 |

218.00 | -0.23 | 1.40 | -0.06 | 1.10 |

219.00 | -0.12 | 2.71 | -0.18 | 1.38 |

Mean | 0.0871 | 1.7336 | 0.1679 | 1.4557 |

DOY | Fusion-Model | PPP-Model | GPT2w | SAAS | ||||
---|---|---|---|---|---|---|---|---|

bias | RMS | bias | RMS | bias | RMS | bias | RMS | |

201 | 0.04 | 1.28 | −0.19 | 1.43 | −8.59 | 8.66 | −13.02 | 13.10 |

202 | 0.27 | 1.82 | −0.44 | 1.43 | −6.55 | 6.59 | −11.08 | 11.22 |

203 | −0.29 | 1.15 | 0.14 | 0.81 | −7.12 | 7.17 | −8.90 | 9.04 |

204 | −0.06 | 1.04 | 0.20 | 0.89 | −6.52 | 6.57 | −8.67 | 8.78 |

205 | 0.22 | 1.60 | −0.93 | 2.03 | −3.99 | 4.11 | −6.10 | 6.41 |

206 | 0.52 | 1.91 | −0.55 | 2.01 | −1.83 | 2.27 | −4.75 | 5.11 |

207 | 0.70 | 1.56 | −0.05 | 1.51 | −0.01 | 1.03 | −2.37 | 2.90 |

mean | 0.20 | 1.48 | −0.26 | 1.44 | −4.94 | 5.20 | −7.84 | 8.08 |

DOY | Fusion-Model | PPP-Model | GPT2w | SAAS | ||||
---|---|---|---|---|---|---|---|---|

bias | RMS | bias | RMS | bias | RMS | bias | RMS | |

213 | 0.61 | 2.20 | −0.26 | 2.01 | 7.37 | 7.47 | 2.79 | 4.44 |

214 | 0.49 | 1.49 | −0.56 | 1.49 | 9.72 | 9.75 | 5.68 | 5.88 |

215 | 0.14 | 1.20 | −0.15 | 1.03 | 10.15 | 10.18 | 6.34 | 6.57 |

216 | 0.16 | 1.32 | 0.15 | 1.15 | 8.07 | 8.11 | 2.64 | 3.27 |

217 | −0.16 | 1.41 | 0.24 | 1.12 | 7.75 | 7.87 | 2.98 | 3.87 |

218 | −0.04 | 1.08 | −0.09 | 0.90 | 7.09 | 7.16 | 2.04 | 3.49 |

219 | −0.24 | 1.42 | −0.16 | 0.86 | 6.34 | 6.40 | 0.08 | 4.87 |

mean | 0.14 | 1.45 | −0.12 | 1.22 | 8.07 | 8.13 | 3.22 | 4.63 |

DOY | Site Involved in Modeling | HKNP | HKST | ||||||
---|---|---|---|---|---|---|---|---|---|

bias | RMS | bias | RMS | ||||||

201 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.90 m) | HKMW(194.94 m) | 2.10 | 2.75 | 1.29 | 1.64 |

202 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKMW(194.94 m) | 3.91 | 4.68 | 2.34 | 2.75 |

203 | HKKS(44.69 m) | HKKT(34.54 m) | HKLT(125.89 m) | HKMW(194.94 m) | HKNP(350.67 m) | 0.27 | 0.37 | 0.85 | 1.43 |

204 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKNP(350.67 m) | 0.41 | 0.44 | 1.44 | 2.11 |

205 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKMW(194.94 m) | 2.83 | 3.04 | 2.17 | 2.40 |

206 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKMW(194.94 m) | 3.91 | 4.71 | 2.60 | 2.90 |

207 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKMW(194.94 m) | 1.89 | 3.44 | 2.60 | 2.82 |

213 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKMW(194.94 m) | 3.74 | 5.61 | 3.26 | 3.49 |

214 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKMW(194.94 m) | 3.36 | 3.94 | 2.44 | 2.73 |

215 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKNP(350.67 m) | 0.03 | 0.04 | 2.20 | 2.73 |

216 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKNP(350.67 m) | 0.04 | 0.06 | 2.09 | 2.69 |

217 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKNP(350.67 m) | 0.01 | 0.04 | 1.23 | 2.47 |

218 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKNP(350.67 m) | 0.00 | 0.03 | 1.21 | 1.96 |

219 | HKKS(44.69 m) | HKKT(34.54 m) | HKLM(8.53 m) | HKLT(125.89 m) | HKNP(350.67 m) | 0.01 | 0.02 | -1.43 | 2.95 |

Station | Height (m) | DOY203 | |
---|---|---|---|

bias | RMS | ||

HKKS | 44.692 | 0.13 | 0.40 |

HKKT | 34.538 | −0.59 | 0.73 |

HKLT | 125.89 | 0.02 | 0.42 |

HKMW | 194.936 | 0.17 | 0.29 |

HKNP | 350.666 | 0.27 | 0.37 |

HKOH | 166.375 | 0.69 | 1.48 |

HKPC | 18.083 | −1.03 | 1.50 |

HKSC | 20.204 | −0.56 | 1.17 |

HKSL | 95.266 | 0.42 | 0.56 |

HKSS | 38.684 | −0.66 | 0.89 |

HKST | 258.687 | 0.85 | 1.43 |

HKTK | 22.497 | −1.09 | 1.35 |

HKWS | 63.762 | −0.08 | 0.52 |

T430 | 41.29 | -1.10 | 1.20 |
