Remote Sens. 2018, 10(9), 1480; https://doi.org/10.3390/rs10091480

Wind Direction Inversion from Narrow-Beam HF Radar Backscatter Signals in Low and High Wind Conditions at Different Radar Frequencies

1
Key Laboratory of Intelligent Perception and Systems for High-Dimensional Information of Ministry of Education, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China
2
School of Computer Science and Engineering, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China
3
Institute of Oceanography, Faculty of Mathematics, Informatics and Natural Science, University of Hamburg, D-20146 Hamburg, Germany
*
Author to whom correspondence should be addressed.
Received: 31 July 2018 / Revised: 11 September 2018 / Accepted: 12 September 2018 / Published: 16 September 2018
(This article belongs to the Special Issue Ocean Radar)
Full-Text   |   PDF [5901 KB, uploaded 17 September 2018]   |

Abstract

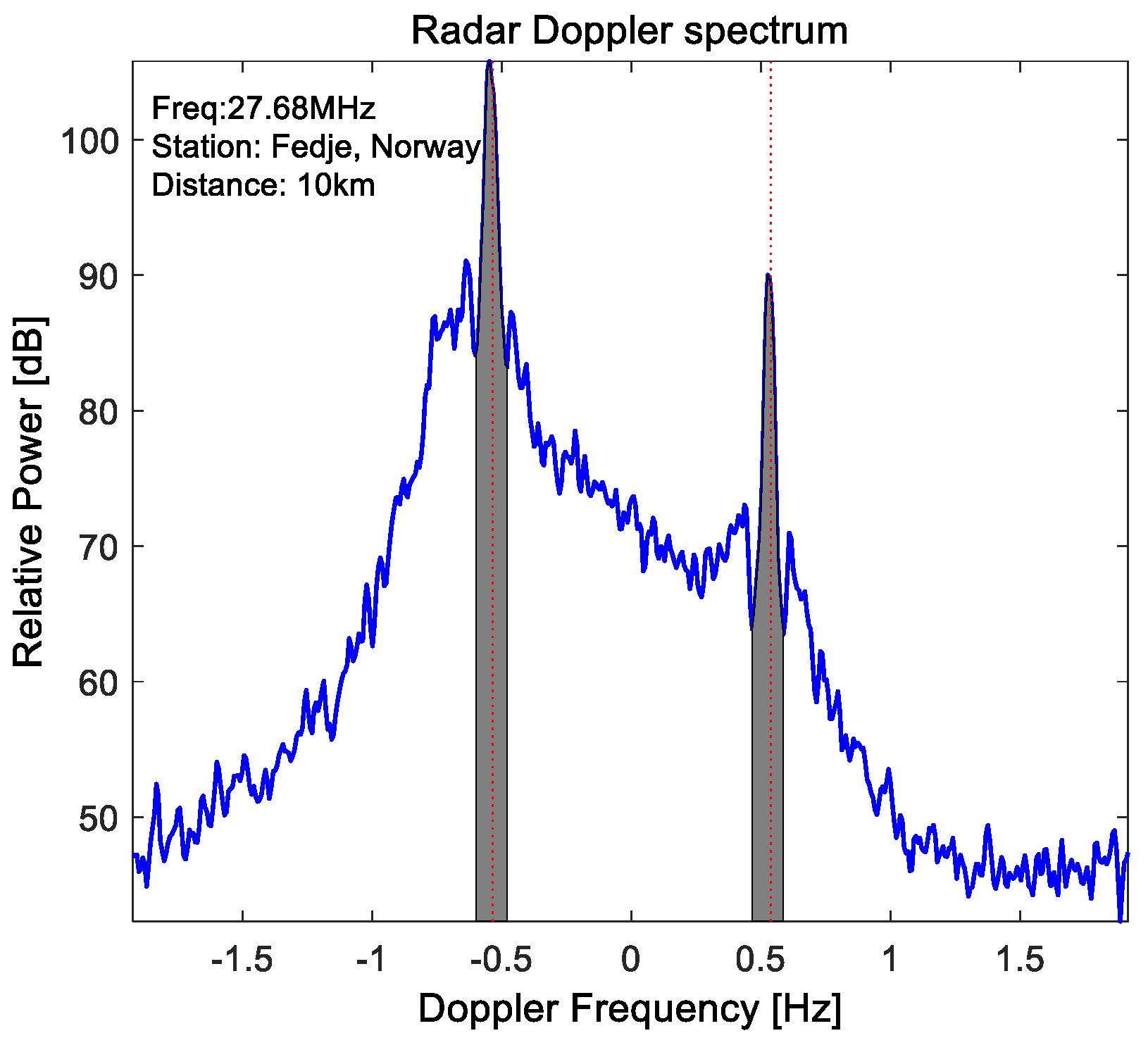

Land-based, high-frequency (HF) surface wave radar has the unique capability of monitoring coastal surface parameters, such as current, waves, and wind, up to 200 km off the coast. The Doppler spectrum of the backscattered radar signal is characterized by two strong peaks that are caused by the Bragg-resonant scattering from the ocean surface. The wavelength of Bragg resonant waves is exactly half the radio wavelength (grazing incidence), and these waves are located at the higher frequency part of the wave spectral distribution. When HF radar operates at higher frequencies, the resonant waves are relatively shorter waves, which are more sensitive to a change in wind direction, and they rapidly respond to local wind excitation and a change in wind direction. When the radar operates at lower frequencies, the corresponding resonant waves are relatively longer and take longer time to respond to a change in wind direction due to the progress of wave growth from short waves to long waves. For the wind inversion from HF radar backscatter signals, the accuracy of wind measurement is also relevant to radar frequency. In this paper, a pattern-fitting method for extracting wind direction by estimating the wave spreading parameter is presented, and a comparison of the pattern-fitting method and a conventional method is given as well, which concludes that the pattern-fitting method presents better results than the conventional method. In order to analyze the wind direction inversion from radar backscatter signals under different wind conditions and at different radar frequencies, two radar experiments accomplished in Norway and Italy are introduced, and the results of wind direction inversion are presented. In the two experiments, the radar worked at 27.68 MHz and 12 MHz, respectively, and the wind conditions at the sea surface were quite different. In the experiment in Norway, 67.4% of the wind records were higher than 5 m/s, while, in the experiment in Italy, only 18.9% of the wind records were higher than 5 m/s. All these factors affect the accuracy of wind direction inversion. The paper analyzes the radar data and draws a conclusion on the influencing factor of wind direction inversion. View Full-Text
Keywords: wind direction; Bragg scattering; wave directional spreading pattern; HF radar wind direction; Bragg scattering; wave directional spreading pattern; HF radar
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Shen, W.; Gurgel, K.-W. Wind Direction Inversion from Narrow-Beam HF Radar Backscatter Signals in Low and High Wind Conditions at Different Radar Frequencies. Remote Sens. 2018, 10, 1480.
