Article

A WFS-SVM Model for Soil Salinity Mapping in Keriya Oasis, Northwestern China Using Polarimetric Decomposition and Fully PolSAR Data

1
College of Resources and Environmental Science, Ministry of Education Key Laboratory of Oasis Ecology, Xinjiang University, Urumqi 830046, China
2
Department of Earth and Atmospheric Sciences, Saint Louis University, St. Louis, MO 63108, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2018, 10(4), 598; https://doi.org/10.3390/rs10040598
Received: 16 March 2018 / Revised: 6 April 2018 / Accepted: 9 April 2018 / Published: 12 April 2018

Abstract

:
Timely monitoring and mapping of salt-affected areas are essential for the prevention of land degradation and sustainable soil management in arid and semi-arid regions. The main objective of this study was to develop Synthetic Aperture Radar (SAR) polarimetry techniques for improved soil salinity mapping in the Keriya Oasis in the Xinjiang Uyghur Autonomous Region (Xinjiang), China, where salinized soil appears to be a major threat to local agricultural productivity. Multiple polarimetric target decomposition, optimal feature subset selection (wrapper feature selector, WFS), and support vector machine (SVM) algorithms were used for optimal soil salinization classification using quad-polarized PALSAR-2 data. A threefold exercise was conducted. First, 16 polarimetric decomposition methods were implemented and a wide range of polarimetric parameters and SAR discriminators were derived in order to mine hidden information in PolSAR data. Second, the optimal polarimetric feature subset that constitutes 19 polarimetric elements was selected adopting the WFS approach; optimum classification parameters were identified, and the optimal SVM classification model was obtained by employing a cross-validation method. Third, the WFS-SVM classification model was constructed, optimized, and implemented based on the optimal match of polarimetric features and optimum classification parameters. Soils with different salinization degrees (i.e., highly, moderately and slightly salinized soils) were extracted. Finally, classification results were compared with the Wishart supervised classification and conventional SVM classification to examine the performance of the proposed method for salinity mapping. Detailed field investigations and ground data were used for the validation of the adopted methods. The overall accuracy and kappa coefficient of the proposed WFS-SVM model were 87.57% and 0.85, respectively that were much higher than those obtained by the Wishart supervised classification with values of 73.87% and 0.68, as well as those of the commonly applied SVM classification of 83.61% and 0.80. Accuracy of different salinized soil mapping was also enhanced with the proposed methodology. The results showed that the proposed method outperformed the Wishart and SVM classification, and demonstrated the advantages offered by the WFS-SVM classification and potentials of PolSAR data in the monitoring soil salinization.

Graphical Abstract

1. Introduction

Soil salinization is one of the prevalent land degradation processes and a major global environmental hazard, particularly in arid and semi-arid areas around the world [1,2,3,4]. The worldwide extent of primary salinized soils is about 955 M ha, which indicates that approximately 7% of the earth’s continental extent is affected, while secondary soil salinization as a result of unreasonable human activities affects some 77 M ha, with 58% of these being situated in irrigated areas [1,5]. Therefore, spatio-temporal mapping, detecting, predicting, and monitoring of soil salinization dynamics must thus be urgently implemented in order to halt land degradation [6], such as soil erosion and desertification, and to secure sustainable land use and management in developing countries like China where a rapidly increasing population poses a significant threat to the ecology and environment [7,8].
Mapping soil salinity is relatively difficult owing to its large spatial and temporal variability, thus remote sensing is widely adopted to lower survey costs and time [8,9]. For real-time detecting and eventually taking effective control of salinity problems, remote sensing and geographic information system (GIS) techniques are very applicable, especially for the study of salt-affected soils in arid and semi-arid environments due to the sparse vegetation cover [5,10].
A number of techniques, which heavily rely on remote sensing data, such as multispectral and hyper-spectral, are used for monitoring and evaluating the evolution of soil salinity [11,12,13]. However, the Synthetic Aperture Radar (SAR) imagery is likely to be the most promising technique and has much potential for the detection of soil salinity due to the sensitivity of radar systems to the electrical conductivity (EC) [14,15,16,17] and roughness of the soil surface [7].
Furthermore, traditional optical remote sensing is hampered by weather conditions for timely mapping of soil salinity information in most regions of the world where cloud cover and overcast cloud shadows are frequent [18,19]. SAR remote sensing is able to operate day and night through cloud cover and is capable of penetrating the near-surface soil profile, providing an effective tool for land observation and extracting timely saline soil information in such regions [18,19,20,21,22]. Roughness and dielectric properties of the soil surface captured by SAR data [23,24] provide a unique advantage for detecting and mapping salinized soils in arid and semi-arid areas [7,25].
Polarimetric Synthetic Aperture Radar (PolSAR) images provide a rich set of information about ground objects and offer a significant improvement in the quality of data analysis compared to conventional single-channel SAR [26,27,28]. Classification of PolSAR data and effective extraction of ground information is arguably one of the most important applications in remote sensing. The polarimetric parameters extracted using different polarimetric target decomposition methods are of great importance due to their connection to the physical properties of ground objects [18], and may therefore be applied to classify and map soil salinization.
The overall goal of this study is to assess the potentials of fully PolSAR data for soil salinity monitoring in arid and semi-arid zones, within the environmental context of the Keriya Oasis, Northwestern China, where soil salinization appears to be one of the biggest threats to the eco-environment, to local agricultural production, and to people’s daily life [29].

2. Study Site and Data

2.1. Study Site

The study area Keriya Oasis is located at the northern foot of the Kunlun Mountains along the southern edge of the Taklimakan Desert in Xinjiang Uyghur Autonomous Region (Xinjiang), situated in the northwest of China (Figure 1). The oasis is situated on a fluvial plain with relatively low-lying flat terrain, loose soil, poor permeability, and high salt concentrations, and is a fragile eco-environment, suffering from heavy soil salinization and desertification [30,31]. The total area of salinized cultivated land in Xinjiang is about 1.47 M ha, which accounts for 31.1% of the total cultivated land that suffered from wide spread salt-affected soil [7,32,33].
The region has a warm continental arid climate with an average temperature of 11.6 °С, with a minimum average temperature of −5.8 °С in January, and maximum average temperature of 25 °С in July. The total annual radiation is 6.117 × 105 J/cm2 and the annual sunshine duration is 2.7346 × 103 h. Multi-year average evaporation is 2498 mm, which much exceeds the average annual precipitation of 44.7 mm; the evaporation rainfall ratio is approximately 55:1, and the frost-free period is about 200 days [7].
The Keriya River is a seasonal river that originates from the Kunlun piedmont and flows through the Keriya Oasis that entirely depends on the water resources from the Keriya River, and vanishes in the sand dunes of the Taklimakan desert [34]. The River is mainly supplied by meltwater from glaciers and snow on the Kunlun Mountains, and it feeds the oasis town Keriya with around 250,000 residents (more than 90% farmers) [30]. Oasis agriculture is the main land-use type of the Keriya county, providing the major source of economic income [31]. Major crop types include cotton, wheat, corn, rice, and grapes [30]. The total irrigation area of Keriya County is approximately 448 km2, consuming about 6.38 × 108 m3 water per year. The annual groundwater extraction amounts up to about 5.04 × 106 m3, and most of the irrigation system employs the flood irrigation method, which is very water consuming [29,30]. Since the 1950s, the Keriya River basin has been intensively exploited [35]. The area is now suffering from severe water scarcity owing to excessive pressure from overpopulation, agricultural expansion, and most importantly, from the steady expansion of salinization and desertification [35,36]. Depending on the availability of water, vegetation type varies and includes spare brush vegetation and halophytic plants [37,38]. The main soil types in the study area are the meadow soil and the brown desert soil that are characterized by fine grains, coarse in texture, acidic, low in nutrients, have a low permeability, and exhibit a high water table and mineralization [7,38]. Types of saline soil in the study area are mainly sulfate and sulfite saline soil [39]. The natural and human factors jointly resulted in the salinization of soil and its severity in the oasis [29,30]. The local agricultural productivity is restricted by the highly salinized soil and poor land and water management plus the expansion of the agricultural frontier into marginal ecotones gave rise to salt concentration in the soil, which as a result, generated a strong negative impact on crop yields and agricultural production in the Keriya Oasis [29]. The improvement of soil qualities, where salinization is prevalent, is the approach required to achieve sustainable food production in this area, which calls for the monitoring and mapping of soil salinization at an early stage for an effective soil reclamation program.

2.2. Data

2.2.1. Remote Sensing Data

Advanced Land Observing Satellite-2 (ALOS-2) is a Japanese earth observation satellite that was launched on 24 of May in 2014; it has featured with two optical cameras, in addition to a Phased Array L-band Synthetic Aperture Radar 2 (PALSAR-2) sensor that is mainly used for cartography, regional observation, disaster monitoring, and environmental monitoring [40,41]. It has a number of advantages such as both right and left direction observation, a wide bandwidth and wide swath observation, high quality imaging with different spatial resolutions, and so on [42]. The PALSAR-2 data used in this study were collected over the study area on 23 April 2015; they were acquired in a high sensitive mode with quad polarization including HH, HV, VH, and VV, in an ascending orbit and with the incident angle of 30.4° (specific parameters can be seen from Table 1). The Landsat 8 OLI (Operational Land Imager) image (Figure 1C) acquired on 30 September 2014 was also selected as reference optical data, for the reason that it is useful for the selection of training and validation plots and for better visual interpretation.
PALSAR-2 data of the study area in CEOS mode in Level 1.1 were processed using SARscape5.2.1® modules of ENVI 5.3® image processing and analysis software from Harris Geospatial Solutions. SAR data processing steps include: (1) generating of single look complex (SLC) image; (2) multi looking (using 4 × 2 looks in range and azimuth respectively, suppressing speckle noise. and generating power image); (3) speckle filtering using the Adaptive Lee filter (3 × 3 window size) and noise reduction [43]; (4) geocoding and radiometric calibration [44,45], using a Shuttle Radar Topography Mission (SRTM) digital elevation model (DEM) and radiometric normalization (i.e., modified cosine model) [46]; and (5) image resizing for optimal resolution of 15 m × 15 m. These preprocessing steps generated an orthorectified, geocoded, and radiometrically calibrated backscattering coefficient (σ°) image in dB, and the statistical characteristics of backscattering coefficient of each polarization band are given in Table 2. Meanwhile, Pauli decomposition was applied to the fully polarimetric PALSAR-2 data, and the Pauli standard RGB composition image was generated (Figure 1D,E) for visual interpretation.

2.2.2. Field Data

Field campaigns were conducted from 22 April to 7 May 2015. A total of 95 field survey sites were selected for soil sampling and investigation (Figure 1C), covering different ranges of land-cover and land-use (LCLU) and soil characteristics. Among them, 65 sampling points were within the PALSAR-2 image of our study area. At every site of a regular grid of 15 m × 15 m plots, five samples were taken from the topsoil (0~20 cm). The field investigation focused on collecting ground reference data (GRD) for training and validation samples plus different LCLU classes where the field samples were collected and a corresponding photo library of different LCLU classes was established over the study area (Figure 2). The GRD were recorded for the patches of salinized soils, along with their environmental contexts, e.g., co-existing vegetation, LCLU, vegetation type, fraction of vegetation, and average ground water depth in each spot. The soil samples were air-dried and sieved through two mm sieves, and soil salt concentration (i.e., total soluble salt) was measured in a laboratory and subsequently, corresponding analysis was carried out. Different degrees of salinization (i.e., highly, moderately, and slightly salinized soil) and corresponding land cover types were defined according to top soil salt concentration along with other features such as vegetation coverage, type, and ground water table (Table 3).
Based on the field investigated and collected data, a total of 550 sample plots were collected including 285 training sample plots and 265 validation plots for image classification and accuracy assessment. It was ensured that these sampling plots were distributed evenly across the study area, and that each land cover class contained at least 33 samples, and each sample contained 55 to 671 pixels (Table 3).
Finally, the digital datasets, including PolSAR imagery and field GPS collections, were geo-referenced to the Universal Transverse Mercator (UTM) coordinate system, Zone 44 North with the World Geodetic System Datum of 1984 (WGS84).

3. Methodology

This study proposes the WFS-SVM classification model through integrating a wide range of polarimetric features derived from several polarimetric decomposition methods and SAR discriminators with optimal subset selection obtained by the WFS algorithm and image classification by the SVM classifier. The framework of the classification workflow is given in Figure 3. The main steps are described below. Part of the procedure can also be found in detail in our previous study [47].

3.1. Polarimetric Decomposition

It is a practical approach to decompose the PolSAR data and mine hidden information for the purpose of analyzing and understanding the scattering mechanism of ground objects [48,49]. Polarimetric target decomposition theorems were initially formalized by Huynen [50]. Since the late 1980s, many other decomposition methods have been developed by other researchers, and gained improvement over decades [51,52]. An essential objective of PolSAR data decomposition is to extract physical information from the observed microwave scattering by both surface and volume structures. Moreover, it is of great importance to comprehend the average, dominant, or scattering mechanism and to understand the combination of scattering responses of each simple object associated with a corresponding physical interpretation in order to improve the quality of classification [18,53].
The Pauli decomposition is a common decomposition method widely used for PolSAR imagery [53]. Pauli decomposition expresses the scattering matrix S as the complex sum of the Pauli matrices.
S = [ S h h S h v S v h S v v ] = a 2 [ 1 0 0 1 ] + b 2 [ 1 0 0 1 ] + c 2 [ 1 0 0 1 ] + d 2 [ 1 j j 1 ]
where S h h , S v v denote the co-polarized complex scattering amplitudes; S h v , S v h denote the cross-polarization components respectively; and a, b, c, and d are all complexes given by:
α = S h h + S v v 2 ,   b = S h h S v v 2 ,   c = S h v + S v h 2 ,   d = j S h v S v h 2
In the monostatic case, transmit and receive antennas coincide, the backscattering matrix may be symmetric, with S h v = S v h , and the Pauli matrix basis can be reduced to the first three matrices, which leads to d = 0 [54]. It follows that the Span value is given by:
S p a n = [ s h h ] 2 + 2 [ s h v ] 2 + [ s v v ] 2 = [ a ] 2 + [ b ] 2 + [ c ] 2
Therefore, the Pauli decomposition of the backscattering matrix is frequently adopted to symbolize all the polarimetric information in PolSAR data. As shown in Figure 1E, a Pauli RGB composite image consists of intensities |HH + VV| (blue), |HH − VV| (red), and |HV + VH| (green), which correspond to clear physical scattering mechanisms. The Pauli RGB composition image, thus, has become the standard for PolSAR image display and has often been implemented for visual interpretation [18].
The scattering matrix can also be vectorized on the basis of Pauli decomposition, thereby the scattering vector is obtained as:
K T = 1 2 [ S h h + S v v , S h h S v v , 2 S h v ] 2
The 3 × 3 coherency matrix T3 is defined as the expected value of KK*T [54]:
T 3 = K T × K T H = [ T 11      T 12      T 13 T 12 *      T 22      T 23 T 13 *      T 23 *      T 33 ] = 1 2 [ | S h h + S v v | 2 ( S h h + S v v ) ( S h h S v v ) * 2 ( S h h + S v v ) S h v * ( S h h S v v ) ( S h h + S v v ) * | S h h S v v | 2 2 ( S h h S v v ) S h v * 2 S h v ( S h h + S v v ) * 2 S h v ( S h h S v v ) * 4 | S h v | 2 ]
where, symbol H stands for the conjugate transpose, * denotes the conjugate, and | | denotes the module. Coherency matrix T3 is a close relative of covariance matrix C3, and they consist of the same information; however, it comes in different forms [54]. The Coherency matrix T3 can better explain the physical and geometric characteristics of the target, and thus leads to broader application in Radar polarimetry.
In this study, scattering matrix S, coherency matrix T3, and covariance matrix C3 of PolSAR data were calculated. In addition to the Pauli decomposition, a variety of polarimetric decomposition methods have been proposed and corresponding polarimetric information was extracted in order to take full advantage of the PolSAR data. Those decomposition methods explored in this study are Barnes [55], Huynen [50], Cloude [56], Holm [57], H/A/Alpha [58], Freeman Two Components [59], Freeman Three Components [60], Van Zyl [61], Neumann [62], Krogager [63], Yamaguchi [64], and Touzi [49] etc, and detailed calculations and physical interpretations of these polarimetric parameters can be found in [54].

3.2. Wrapper Feature Selector (WFS)

PolSAR data contains a great variety of SAR features that can be extracted and used for image classification. It is very important to make the most of the discriminative power offered by these features [65]. However, the wide-range of PolSAR parameters and discriminators cannot all be used simultaneously in most classification problems due to the redundancy of information and the inherent speckle noise in some of the extracted parameters [65]. In order to fully utilize the PolSAR parameters, a vital step is to find the most discriminative and informative features and suppress speckle noise inherent in SAR data. Optimal feature subset selection often improves classification accuracy, enhances the efficiency of the classifier, and saves the time spent on the training and classification process [20].
In recent decades, Feature Subset Selection (FSS) has been a hot topic in machine learning. FSS is defined as a process of selecting and returning the best and minimally sized subset of relevant features from a larger set of original features, while retaining the physical meanings of the original features without transformation [66]. The main objective of feature selection is to find a subset of highly discriminant features related to the classification problem. Feature selection methods can further be broadly categorized into embedded approaches, filter approaches, and wrapper approaches [67,68]. In general, the wrapper model embodies a better efficiency and the results depend on the classification algorithm improved by the feature selection process. This model performs better with good applicability under the circumstances of a smaller data size and predetermined classifier [69,70]. For that reason, we adopted the Wrapper Feature Selector (WFS) for the optimal subset selection in our study. Feature selection in the WFS model is mainly composed of two key elements, namely the search algorithm and evaluation function. For the search engine, the Genetic Algorithm [71] was adopted, and for evaluation function, we used the cross-validation approach as our accuracy assessment tool [72].

3.3. Support Vector Machine (SVM) Classification

The SVM approach is a non-parametric machine learning methodology based on the statistical theory [73] that can be adopted for classification practice and is particularly promising in the remote sensing field owing to its capability of generalizing well even with a limited number of training samples [74]. For given training samples of two different classes, the SVM training algorithm aims to derive a hyperplane that optimizes the separation of closest points that belong to both classes and minimizes misclassifications. Regarding a two-class pattern recognition problem in which the classes are linearly separable, the SVM selects the one that minimizes the generalization error from among the infinite number of linear decision boundaries. Therefore, the selected decision boundary will be the one that leaves the greatest margin between the two classes, where a margin is defined as the sum of the distances to the hyperplane from the closest points of the two classes [73].
Typically, a multi-class SVM is implemented by combining several two-class SVMs. In our study, the “one-against-one” (OAO) approach and the Gaussian Radial Basis Function (RBF) kernel were applied for multi-class SVM. Employing the RBF kernel for SVM and obtaining the optimal SVM classification model is important to obtain the best set of penalty parameters C and kernel parameters γ for specific training datasets. In this instance, the cross-validation (CV) search algorithm was adopted [75], which uses a multiclass SVM OAO method [76]. The predicted set of optimal penalty parameters C and kernel parameters γ achieved with the highest CV accuracy was used to classify different land cover types and salinized soils. Final results were sieved and clumped to eliminate spurious pixels from the classification results.

4. Results

4.1. Polarimetric Decomposition of Fully PolSAR Data

Firstly, the scattering matrix S, coherency matrix T3, and covariance matrix C3 were calculated and the corresponding original scattering matrix elements were extracted. Subsequently, polarimetric parameters of the fully polarized PALSAR-2 image of the study area were extracted through different polarimetric decomposition methods to promote an optimal classification by using PolSARpro-v5.0.4® software [77], and all the descriptors used in PolSARPro-v5.0.4® for these polarimetric parameters were adopted [18,78]. Apart from these features derived using decomposition methods, several SAR polarimetric discriminators [79] including SPAN, polarization fraction, pedestal height, Radar vegetation index (RVI), single bounce eigenvalue relative difference (SERD), and double bounce eigenvalue relative difference (DERD) [80,81], were also retrieved and taken into account in our study in order to make full use of the discriminative power offered by all these features. Finally, a total of 81 polarimetric features were acquired from the PolSAR image. The features are given in Table 4 and the standard RGB composition images that demonstrate some of these polarimetric decompositions and SAR discriminators are displayed in Figure 4.

4.2. Construction of WFS-SVM Classification Model

It is imperative to select the most discriminative and informative polarimetric futures and to construct the optimal classification scheme in order to acquire a better classification accuracy and extract ground object information more precisely. Besides, classification results obtained by using a single feature may not be sufficient. In our study, multiple polarimetric parameters and discriminators were extracted for optimal classification purpose. However, it is not reasonable to adopt all the polarimetric features for classification and monitoring soil salinization due to some of the redundant features and noise. Though the PolSAR data were denoised through multi-looking and filtering, the image was still pertaining a certain amount of speckle noise information that is visible; some of the decomposed elements that contain much noise might hamper and even reduce the classification accuracy. It is worth noting that employing all these polarimetric parameters and elements is time-consuming. Especially, the SVM classifier requires significant computing resources to run [20]. For these reasons, a WFS-SVM model was constructed and implemented in order to make the full use of the discriminative power offered by all these polarimetric features of PALSAR-2 data, to reduce redundant information, increase classification accuracy, and minimize classification time.
These polarimetric decomposed elements and derived parameters need to be normalized to a range due to their wide dissimilarity. These data were normalized to a scale of [−1, 1], since the minus values contained in the data and the corresponding data format transformation were implemented. Then, in this work, the wrapper feature selection method based on a genetic algorithm (the accuracy was tested by 10 runs of 10-fold cross-validation algorithm) was employed by adopting the Weka 3.6.9® software [82] to select the best subset of polarimetric features, and the optimal subset fitted for SVM classification was obtained. This optimal feature subset consisted of 19 polarimetric feature elements including T33, C11, Pauli_a, Cloude_T11, Pauli_c, Free3_Vol, Free3_Dbl, Yam3_Odd, Yam4_Vol, Huy_T11, VZ3_Odd, Touzi_alpha_s, Krog_Kd, Neu2_delta_mod, H/A/a_T22, H/A/a_SE, PH, RVI, and SPAN, and accordingly, the optimal subset of SVM classification was generated so as to provide an effective data source for the construction of the WFS-SVM classification model.
In order to obtain the optimal SVM and WFS-SVM classifier, the cross-validation (CV) search model provided by LIBSVM-3.20® software [76] was adopted to search for the optimum set of penalty factors C and kernel parameters γ. The CV search results are CSVM = 2048 and γSVM = 0.5 for the optimal SVM classifier, and CWFS-SVM = 256 and γWFS-SVM = 0.25 for the WFS-SVM classification model (with both CV accuracy of higher than 90%), respectively. Consequently, the WFS-SVM classification model that was proposed in this study was constructed.

4.3. Soil Salinity Mapping

On the basis of multiple polarimetric decomposition and optimal feature subset, the whole training sample plots were used to train the classifier, and the PALSAR-2 image was classified by adopting the WFS-SVM classification model with optimum parameters. A comparison between the proposed WFS-SVM classification method, traditional SVM method with optimum parameters, and the Wishart supervised classification (which is based on the coherency matrix) was made to test the performance of the proposed method. The three classification methods were implemented and the classification results are shown in Figure 5.
From the proposed WFS-SVM classification results (Figure 5C), it can be seen that highly salinized soils are mainly distributed in the lower reaches of the Keriya River and the northeastern part of the study area and in the southwest part of the Oasis periphery. Moderately salinized soils are mainly distributed in the periphery of the Oasis and in the ecotone between the Oasis and the Taklimakan Desert. Slightly salinized areas are mainly distributed in the transition zone between vegetation and moderately salinized soil.

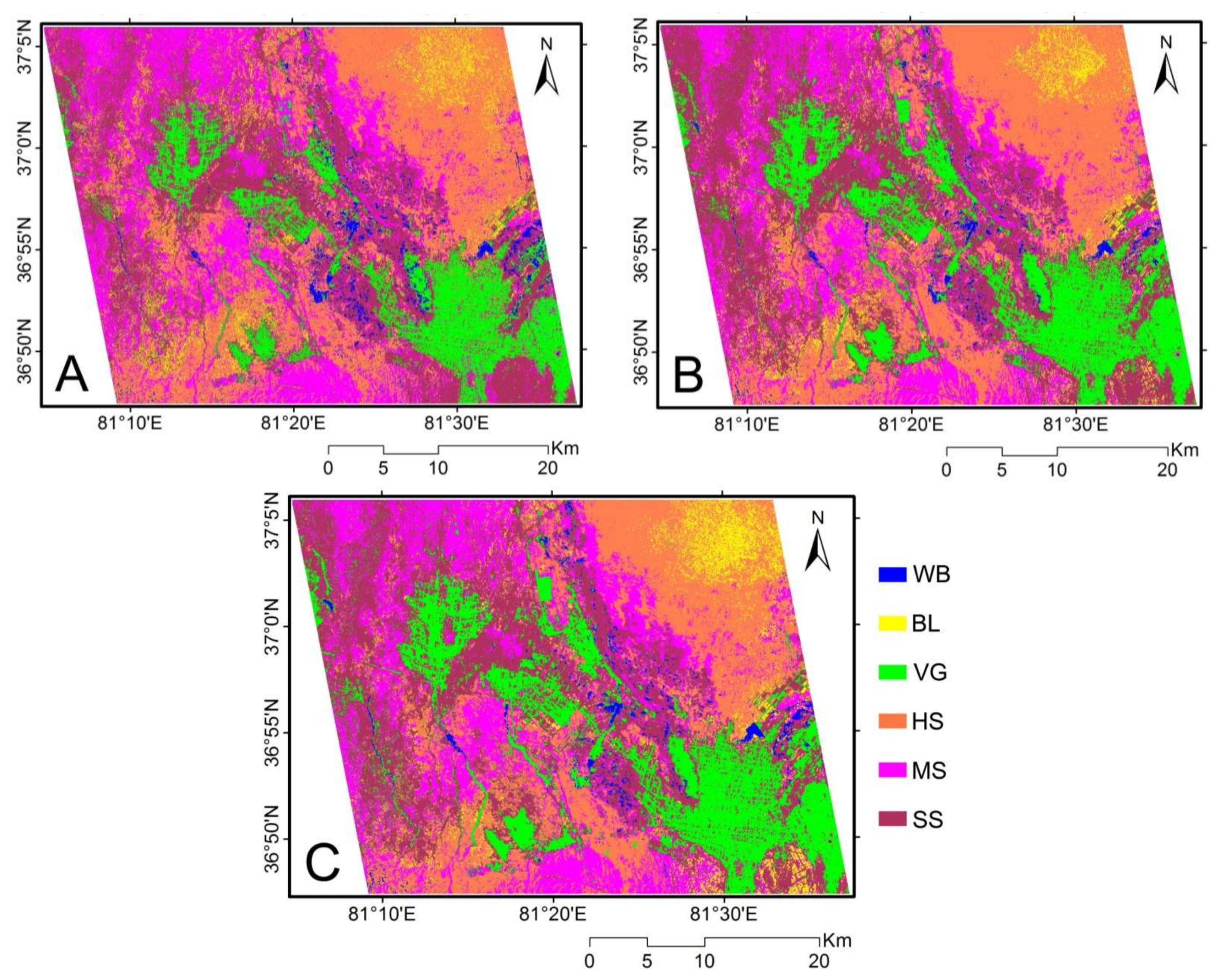

Figure 5A–C show a comparison among three different classification results. The results showed that the WFS-SVM model produced the most accurate classification outcome, while the result of Wishart supervised classification was the worst, with significant confusion between different degrees of salinized soil and barren land. The SVM classifier produced a relatively similar classification outcome in contrast to that of WFS-SVM. However, the salt-and-pepper noise was relatively reduced in WFS-SVM classification. Compared with other classification methods, the WFS-SVM classification was superior, especially in extracting different degrees of soil salinization information.

4.4. Accuracy Assessment

In order to quantitatively evaluate the effectiveness of the proposed WFS-SVM model with respect to monitoring accuracy for salinized soil, the classification accuracy of the above three classifiers was produced with a statistical summary and corresponding confusion matrix. The confusion matrix was generated according to the ground truthing obtained in the field investigation (see Table 5, Table 6 and Table 7, respectively).
It is evident from the confusion matrices that the proposed WFS-SVM model yielded the highest overall accuracy of 87.57% with a Kappa Coefficient of 0.85; on the other hand, the overall classification accuracies of Wishart and conventional SVM were 73.87% and 83.61%, and their corresponding Kappa Coefficients were 0.68 and 0.80, respectively. Compared with the Wishart supervised and SVM classification, the overall classification accuracy of WFS-SVM was 13.7% and 3.97% higher, respectively, than the other two methods. In the WFS-SVM classification, there was an obvious increase in the extraction accuracy (producer’s accuracy) of different (i.e., highly, moderate and slightly) salinized soil information in contrast with the Wishart and SVM, the extraction accuracy of highly salinized soil rose from 85.8% and 85.73% to 87.79%, moderately salinized soil from 84.82% and 81.53% to 90.43%, and the increase was even more significant in slightly salinized soil, rising from 75.51% and 86.89% to 93.96%. Additionally, the confusion between barren lands with salinized soil types was remarkably reduced in the WFS-SVM classification model.

5. Discussion

In this study, soil salinization information was extracted by Wishart classification, conventional SVM classification, and WFS-SVM classification. A comparison among these classification methods showed that Wishart supervised classification of the PALSAR-2 coherency matrix, which was not subject to polarization decomposition, produced a low accuracy for the extraction of salinized soil information. The reason for this might be that the polarimetric characteristics of the PolSAR data were not fully exploited, as well as being partly due to the deficiency in generalizing and optimizing ability of the Wishart classification that is based on the maximum likelihood criterion compared with the SVM classification.
With regard to the extraction accuracy of soil salinization and overall classification accuracy, the proposed WFS-SVM model was obviously superior to the SVM classification method for the reason that the optimal polarimetric feature subset of WFS-SVM was obtained with the WFS method, allowing for the classifier trained with the optimal subset. In this way, the redundancy of polarization information was reduced and the rich polarization information of PolSAR data was comprehensively integrated. In addition, the inherent speckle noise in the SAR data was suppressed further. As can be observed from Figure 4, noise in RGB composite images of some polarization decomposition including Krogager, Cloude, H/A/Alpha, Holm2, and Huynen is more evident than that of other decomposition methods due to the retained speckle noise in some of the polarized feature elements of those images.
Through constructing and implementing the WFS-SVM classification model, the polarized feature elements with severe speckle noise were eliminated (e.g., Krog_Kh, Cloude_T33, H/A/a_T33, Neu2_delta_pha, Bar2_T11, Huy_T33, Hol2_T33, Touzi_tau_m3, Touzi_alpha_s3, Touzi_phi_s3, etc.). Figure 6 shows that the noise was very obvious in part of the polarized features. As a result, the inherent speckle noise problem in SAR data was overcame to some extent. Furthermore, some of the feature elements of the optimal feature subset (Krog_Kd, Pauli_a, Pauli_c, Free3_Vol, Free3_Dbl, Yam3_Odd, Yam4_Vol, VZ3_Odd, H/A/a_SE, etc.) were selected through the WFS process, which have a certain physical meaning and directly or indirectly reflects the differences of the scattering mechanism among different land objects. It is quite helpful to distinguish different ground objects, particularly useful for discriminating the difference between high, moderate, and slight salinization. Additionally, SAR discriminators included in classification like RVI and pedestal heights are beneficial to improve the extraction accuracy of vegetation. As can be seen from confusion matrices (Table 5, Table 6 and Table 7), the extraction accuracy of vegetation was improved significantly in SVM and WFS-SVM classifications, leading to the reduction of confusions between vegetation and slightly salinized soil. Finally, the mixing between highly salinized soil with barren land due to the similar characteristics of land surface (similar soil roughness, soil moisture with almost no vegetation coverage) was greatly reduced with the WFS-SVM approach, which contributed to improvement of the overall classification accuracy. The WFS-SVM classification model based on polarization decomposition improved the mapping and monitoring accuracy of soil salinization in arid areas.
Although the WFS-SVM methodology proposed in this study demonstrated great potential, it only preserved part of the polarimetric features of the PolSAR data at the cost of unavoidably losing some other useful polarization information in terms of WFS feature subset selection. Therefore, care should be taken for selecting the most suitable feature subset for different study sites. Besides, the physical mechanism of the polarimetric feature parameters obtained by different polarization decompositions of PALSAR-2 data and its quantitative relationship with the degree of soil salinity requires further study. Lastly, the potentials of this methodology need further investigation and validation in other areas, despite the advantages demonstrated in this specific arid environmental condition.

6. Conclusions

This study developed a method that fully utilizes the intrinsic merit of polarimetric decomposition, optimal feature subset selection (wrapper feature selector, WFS), and support vector machine (SVM) algorithms for the classification and extraction of salinized soils using quad-polarized PALSAR-2 images. Multiple polarimetric decomposition methods (Pauli, Freeman, Barnes, Holm, Cloude, Huynen, Yamaguchi, VanZyl, Krogager, Touzi, Neumann, H/A/Alpha) were integrated to extract polarimetric parameters and SAR discriminators related to the physically scattering mechanisms of soil salinity. The WFS that uses genetic algorithms was adopted to select and provide the best feature subset to implement SVM classification; a cross-validation method was employed to identify the optimum classification parameters and obtain an optimal SVM classification model. A WFS-SVM classification model was developed and further optimized based on the optimal match of polarimetric features and optimum classification parameters.
The major conclusions of our work include the followings: (1) the optimal feature subset of the PALSAR-2 data over the study area by using the WFS algorithm consisted of 19 polarimetric feature elements including T33, C11, Pauli_a, Cloude_T11, Pauli_c, Free3_Vol, Free3_Dbl, Yam3_Odd, Yam4_Vol, Huy_T11, VZ3_Odd, Touzi_alpha_s, Krog_Kd, Neu2_delta_mod, H/A/a_T22, H/A/a_SE, SPAN, Pedestal Height (PH), and Radar Vegetation Index (RVI); (2) compared with the Wishart supervised and conventional SVM classification, a significant improvement was achieved by the proposed WFS-SVM classification approach, with the best overall accuracy of 87.57% and Kappa Coefficient of 0.85, while those by Wishart and the SVM were 73.87% (Kappa: 0.68) and 83.61% (Kappa: 0.80), respectively; (3) more importantly, the extraction accuracy of different soil salinization values was also increased with the proposed methodology; the extraction accuracy of highly salinized soil was increased to 87.79%, while that of Wishart and SVM classification was 85.8% and 85.73%, respectively, and the extraction accuracy of moderately salinized soils was enhanced from 84.82% and 81.53% to 90.43%, respectively; the improvement in accuracy was even more evident in slightly salinized soil, which increased from 75.51% and 86.89% to 93.96%, respectively. Additionally, the confusion of barren land with salinized soil types was decreased with the WFS-SVM classification approach.
The WFS-SVM approach developed in this work not only made good use of the set of rich polarization information of PolSAR data, but also minimized its redundancy, suppressing the speckle noise in SAR data. Particularly, this method significantly improved the accuracy of mapping the extent and degrees of soil salinization. The classification results demonstrated the potentials of the proposed WFS-SVM approach for the monitoring and mapping of soil salinization using PolSAR data in arid and semi-arid areas.

Acknowledgments

This work was jointly supported by multiple grants from the National Natural Science Foundation of China (No. 41561089, U1703237, 41671348, 41661079 and 41761077), Doctoral Research Foundation of Xinjiang University (No. BS160236), and Sino-German interdisciplinary joint program for innovative talents training funded by China Scholarship Council (CSC, No. 201505990312). Finally, we also extend our hearty gratitude to the anonymous reviewers of this manuscript for their constructive comments and helpful suggestions provided during the preparation.

Author Contributions

All authors contributed in a substantial way to the manuscript. Ilyas Nurmemet conceived and performed the research; Vasit Sagan contributed to the design of the research, provided theoretical and technical guidance, and revised the paper; Jian-Li Ding provided assistance to coordinate the research projects and served as scientific advisor; Ümüt Halik provided vital support for this work and offered valuable suggestions; Abdulla Abliz and Zaytungul Yakup conducted the field investigations and collected the data. The data were processed and analyzed and the final paper was written by Ilyas Nurmemet and sent to all authors for comments and edits.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Metternicht, G.I.; Zinck, J.A. Remote sensing of soil salinity: Potentials and constraints. Remote Sens. Environ. 2003, 85, 1–20. [Google Scholar] [CrossRef]
  2. Farifteh, J.; Farshad, A.; George, R.J. Assessing salt-affected soils using remote sensing, solute modelling, and geophysics. Geoderma 2006, 130, 191–206. [Google Scholar] [CrossRef]
  3. Sidike, A.; Zhao, S.; Wen, Y. Estimating soil salinity in Pingluo County of China using QuickBird data and soil reflectance spectra. Int. J. Appl. Earth Obs. Geoinf. 2014, 26, 156–175. [Google Scholar] [CrossRef]
  4. Odeh, I.O.A.; Onus, A. Spatial Analysis of Soil Salinity and Soil Structural Stability in a Semiarid Region of New South Wales, Australia. Environ. Manag. 2008, 42, 265. [Google Scholar] [CrossRef] [PubMed]
  5. Abdelfattah, A.M.; Shahid, A.S.; Othman, R.Y. Soil Salinity Mapping Model Developed Using RS and GIS—A Case Study from Abu Dhabi, United Arab Emirates. Eur. J. Sci. Res. 2009, 26, 342–351. [Google Scholar]
  6. Allbed, A.; Kumar, L. Soil Salinity Mapping and Monitoring in Arid and Semi-Arid Regions Using Remote Sensing Technology: A Review. Adv. Remote Sens. 2013, 2, 373–385. [Google Scholar] [CrossRef]
  7. Nurmemet, I.; Ghulam, A.; Tiyip, T.; Elkadiri, R.; Ding, J.L.; Maimaitiyiming, M.; Abliz, A.; Sawut, M.; Zhang, F.; Abliz, A.; et al. Monitoring soil salinization in Keriya River Basin, Northwestern China using passive reflective and active microwave remote sensing data. Remote Sens. 2015, 7, 8803–8829. [Google Scholar] [CrossRef]
  8. Douaoui, A.E.K.; Nicolas, H.; Walter, C. Detecting salinity hazards within a semiarid context by means of combining soil and remote-sensing data. Geoderma 2006, 134, 217–230. [Google Scholar] [CrossRef]
  9. Fernández-Buces, N.; Siebe, C.; Cram, S.; Palacio, J.L. Mapping soil salinity using a combined spectral response index for bare soil and vegetation: A case study in the former lake Texcoco, Mexico. J. Arid Environ. 2006, 65, 644–667. [Google Scholar] [CrossRef]
  10. Allbed, A.; Kumar, L.; Sinha, P. Mapping and Modelling Spatial Variation in Soil Salinity in the Al Hassa Oasis Based on Remote Sensing Indicators and Regression Techniques. Remote Sens. 2014, 6, 1137–1157. [Google Scholar] [CrossRef]
  11. Metternicht, G.; Zinck, A. Remote Sensing of Soil Salinization: Impact on Land Management; CRC Press: Boca Raton, FL, USA, 2008; ISBN 1420065033. [Google Scholar]
  12. Mulder, V.L.; De Bruin, S.; Schaepman, M.E.; Mayr, T.R. The use of remote sensing in soil and terrain mapping—A review. Geoderma 2011, 162, 1–19. [Google Scholar] [CrossRef]
  13. Corwin, D.L.; Plant, R.E. Applications of apparent soil electrical conductivity in precision agriculture. Comput. Electron. Agric. 2005, 46, 1–10. [Google Scholar] [CrossRef]
  14. Rhoades, J.D.; Chanduvi, F. Soil Salinity Assessment: Methods and Interpretation of Electrical Conductivity Measurements; Food & Agriculture Organazition: Rome, Italy, 1999; Volume 57, ISBN 9251042810. [Google Scholar]
  15. Bell, D.; Menges, C.; Ahmad, W.; Van Zyl, J.J. The application of dielectric retrieval algorithms for mapping soil salinity in a tropical coastal environment using airborne polarimetric SAR. Remote Sens. Environ. 2001, 75, 375–384. [Google Scholar] [CrossRef]
  16. Lasne, Y.; Paillou, P.; Freeman, A.; Farr, T.; McDonald, K.C.; Ruffie, G.; Malezieux, J.-M.; Chapman, B.; Demontoux, F. Effect of salinity on the dielectric properties of geological materials: Implication for soil moisture detection by means of radar remote sensing. IEEE Trans. Geosci. Remote Sens. 2008, 46, 1674–1688. [Google Scholar] [CrossRef]
  17. Grissa, M.; Abdelfattah, R.; Mercier, G.; Zribi, M.; Chahbi, A.; Lili-Chabaane, Z. Empirical model for soil salinity mapping from SAR data. In Proceedings of the IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Vancouver, BC, Canada, 24–29 July 2011; pp. 1099–1102. [Google Scholar]
  18. Qi, Z.; Yeh, A.G.-O.; Li, X.; Lin, Z. A novel algorithm for land use and land cover classification using RADARSAT-2 polarimetric SAR data. Remote Sens. Environ. 2012, 118, 21–39. [Google Scholar] [CrossRef]
  19. Bindlish, R.; Barros, A.P. Parameterization of vegetation backscatter in radar-based, soil moisture estimation. Remote Sens. Environ. 2001, 76, 130–137. [Google Scholar] [CrossRef]
  20. Maghsoudi, Y.; Collins, M.J.; Leckie, D.G. Radarsat-2 polarimetric SAR data for boreal forest classification using SVM and a wrapper feature selector. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2013, 6, 1531–1538. [Google Scholar] [CrossRef]
  21. Del Frate, F.; Ferrazzoli, P.; Schiavon, G. Retrieving soil moisture and agricultural variables by microwave radiometry using neural networks. Remote Sens. Environ. 2003, 84, 174–183. [Google Scholar] [CrossRef]
  22. Serbin, G.; Or, D. Ground-penetrating radar measurement of soil water content dynamics using a suspended horn antenna. IEEE Trans. Geosci. Remote Sens. 2004, 42, 1695–1705. [Google Scholar] [CrossRef]
  23. Zhu, Z.; Woodcock, C.E.; Rogan, J.; Kellndorfer, J. Assessment of spectral, polarimetric, temporal, and spatial dimensions for urban and peri-urban land cover classification using Landsat and SAR data. Remote Sens. Environ. 2012, 117, 72–82. [Google Scholar] [CrossRef]
  24. Amarsaikhan, D.; Douglas, T. Data fusion and multisource image classification. Int. J. Remote Sens. 2004, 25, 3529–3539. [Google Scholar] [CrossRef]
  25. Shao, Y.; Hu, Q.; Guo, H.; Lu, Y.; Dong, Q.; Han, C. Effect of dielectric properties of moist salinized soils on backscattering coefficients extracted from RADARSAT image. IEEE Trans. Geosci. Remote Sens. 2003, 41, 1879–1888. [Google Scholar] [CrossRef]
  26. Shimoni, M.; Borghys, D.; Heremans, R.; Perneel, C.; Acheroy, M. Fusion of PolSAR and PolInSAR data for land cover classification. Int. J. Appl. Earth Obs. Geoinf. 2009, 11, 169–180. [Google Scholar] [CrossRef]
  27. Huang, L.; Li, Z.; Tian, B.-S.; Chen, Q.; Liu, J.-L.; Zhang, R. Classification and snow line detection for glacial areas using the polarimetric SAR image. Remote Sens. Environ. 2011, 115, 1721–1732. [Google Scholar] [CrossRef]
  28. Chen, S.W.; Li, Y.Z.; Wang, X.S.; Xiao, S.P. Modeling and Interpretation of Scattering Mechanisms in Polarimetric Synthetic Aperture Radar: Advances and perspectives. Signal Process. Mag. IEEE 2014, 31, 79–89. [Google Scholar] [CrossRef]
  29. Tiyip, T.; Ding, J. Oasis Remote Sensing; Xinjiang People’s Publishing House: Xinjiang, China, 2009. [Google Scholar]
  30. Abliz, A.; Tiyip, T.; Ghulam, A.; Halik, Ü.; Ding, J.-L.; Sawut, M.; Zhang, F.; Nurmemet, I.; Abliz, A. Effects of shallow groundwater table and salinity on soil salt dynamics in the Keriya Oasis, Northwestern China. Environ. Earth Sci. 2016, 75, 260. [Google Scholar] [CrossRef]
  31. Gong, L.; Ran, Q.; He, G.; Tiyip, T. A soil quality assessment under different land use types in Keriya river basin, Southern Xinjiang, China. Soil Tillage Res. 2015, 146, 223–229. [Google Scholar] [CrossRef]
  32. Mu, Q.; Zi-an, Z.; Hong, M. Survey on the Arable Land Resource of Xinjiang Based on Remote Sensing; Science and Technology Publishing House of Xinjiang: Xinjiang, China, 2005. [Google Scholar]
  33. Tiyip, T.; Fei, Z.; Jianli, D. Study on the spatial information on salinized soil of typical oases in arid areas. Arid L. Geogr. 2007, 544–551. [Google Scholar]
  34. Yang, X. The oases along the Keriya River in the Taklamakan Desert, China, and their evolution since the end of the last glaciation. Environ. Geol. 2001, 41, 314–320. [Google Scholar] [CrossRef]
  35. Yang, X. The relationship between oases evolution and natural as well as human factors-evidences from the lower reaches of the Keriya River, southern Xinjiang, China. Earth Sci. Front. 2001, 8, 83–90. [Google Scholar]
  36. Ling, H.; Xu, H.; Zhang, Q. Nonlinear analysis of runoff change and climate factors in the headstream of Keriya River, Xinjiang. Geogr. Res. 2012, 31, 792–802. [Google Scholar]
  37. Yuquan, L. The Climatic Characteristics and Its Changing Tendency in the Taklimakan Desert. J. Desert Res. 1990, 2, 9–19. [Google Scholar]
  38. Sawut, M.; Ghulam, A.; Tiyip, T.; Zhang, Y.; Ding, J.; Zhang, F.; Maimaitiyiming, M. Estimating soil sand content using thermal infrared spectra in arid lands. Int. J. Appl. Earth Obs. Geoinf. 2014, 33, 203–210. [Google Scholar] [CrossRef]
  39. Hu, X. Study of Relationship between the Soil-Salinization and the Change of Groundwater Environment in Yutian Oasis; Xinjiang University: Xinjiang, China, 2008. [Google Scholar]
  40. Suzuki, S.; Kankaku, Y.; Osawa, Y. Development Status of PALSAR-2 onboard ALOS-2. In SPIE Remote Sensing; International Society for Optics and Photonics: Bellingham, WA, USA, 2011; p. 81760Q. [Google Scholar]
  41. Arikawa, Y.; Saruwatari, H.; Hatooka, Y.; Suzuki, S. ALOS-2 launch and early orbit operation result. Int. Geosci. Remote Sens. Symp. 2014, 2, 3406–3409. [Google Scholar] [CrossRef]
  42. Kankaku, Y.; Sagisaka, M.; Suzuki, S. PALSAR-2 launch and early orbit status. Int. Geosci. Remote Sens. Symp. 2014, 2, 3410–3412. [Google Scholar] [CrossRef]
  43. Lopes, A.; Touzi, R.; Nezry, E. Adaptive speckle filters and scene heterogeneity. IEEE Trans. Geosci. Remote Sens. 1990, 28, 992–1000. [Google Scholar] [CrossRef]
  44. Holecz, F.; Meier, E.; Piesbergen, J.; Nisch, D.; Moreira, J. Rigorous Derivation of Backscattering Coefficient. IEEE Geosc. Remote Sens. Soc. Newsl. 1994, 92, 6–14. [Google Scholar]
  45. Sarmap SA. Synthetic Aperture Radar and SARscape: SAR Guidebook; Sarmap SA: Purasca, Switzerland, 2009. [Google Scholar]
  46. Ulaby, F.T.; Dobson, M.C. Handbook of Radar Scattering Statistics for Terrain; Artech House: Norwood, MA, USA, 1989; Volume 1, ISBN 0890063362. [Google Scholar]
  47. Ilyas, N.; Tashpolat, T.; Ding, J.; Mamat, S.; Zhang, F.; Sun, Q. Monitoring soil salinization in arid area using PolSAR data and polarimetric decomposition method. Trans. Chin. Soc. Agric. Eng. 2015, 49, 698–707. [Google Scholar]
  48. Trudel, M.; Magagi, R.; Granberg, H.B. Application of target decomposition theorems over snow-covered forested areas. IEEE Trans. Geosci. Remote Sens. 2009, 47, 508–512. [Google Scholar] [CrossRef]
  49. Touzi, R. Target scattering decomposition in terms of roll-invariant target parameters. IEEE Trans. Geosci. Remote Sens. 2007, 45, 73–84. [Google Scholar] [CrossRef]
  50. Huynen, J.R. Phenomenological Theory of Radar Targets; Delft University of Technology: Delft, The Netherlands, 1970. [Google Scholar]
  51. Mishra, P.; Singh, D.; Yamaguchi, Y.; Singh, D. Land Cover Classification of Palsar Images By Knowledge Based Decision Tree Classi-Fier and Supervised Classifiers Based on Sar Observables. Prog. Electromagn. Res. B 2011, 30, 47–70. [Google Scholar] [CrossRef]
  52. An, W.; Cui, Y.; Yang, J. Three-component model-based decomposition for polarimetric sar data. IEEE Trans. Geosci. Remote Sens. 2010, 48, 2732–2739. [Google Scholar] [CrossRef]
  53. Cloude, S.R.; Pottier, E. A review of target decomposition theorems in radar polarimetry. IEEE Trans. Geosci. Remote Sens. 1996, 34, 498–518. [Google Scholar] [CrossRef]
  54. Lee, J.-S.; Pottier, E. Polarimetric Radar Imaging: From Basics to Applications; CRC press: Raton, FL, USA, 2009; ISBN 1420054988. [Google Scholar]
  55. Barnes, R.M. Roll invariant decompositions for the polarization covariance matrix. In Proceedings of the Polarimetry Technology Workshop, Redstone Arsenal, AL, USA, 16–18 August 1988. [Google Scholar]
  56. Cloude, S.R. Target decomposition theorems in radar scattering. Electron. Lett. 1985, 21, 22–24. [Google Scholar] [CrossRef]
  57. Holm, W.A.; Barnes, R.M. On Radar Polarization Mixed Target State Decomposition Techniques. In Proceedings of the 1988 IEEE National Radar Conference, New York, NY, USA, 20–21 April 1988; pp. 249–254. [Google Scholar]
  58. Cloude, S.R.; Pottier, E. An entropy based classification scheme for land applications of polarimetric SAR. IEEE Trans. Geosci. Remote Sens. 1997, 35, 68–78. [Google Scholar] [CrossRef]
  59. Freeman, A. Fitting a two-component scattering model to polarimetric SAR data from forests. IEEE Trans. Geosci. Remote Sens. 2007, 45, 2583–2592. [Google Scholar] [CrossRef]
  60. Freeman, A.; Durden, S.L. A three-component scattering model for polarimetric SAR data. IEEE Trans. Geosci. Remote Sens. 1998, 36, 963–973. [Google Scholar] [CrossRef]
  61. Van Zyl, J.J. Application of Cloude’s target decomposition theorem to polarimetric imaging radar data. In Radar Polarimetry; International Society for Optics and Photonics: Bellingham, WA, USA, 1993; pp. 184–191. [Google Scholar]
  62. Neumann, M.; Ferro-Famil, L.; Pottier, E. A general model-based polarimetric decomposition scheme for vegetated areas. In Proceedings of the PolInSAR 2009, Frascati, Italy, 26–30 January 2009. [Google Scholar]
  63. Krogager, E. New decomposition of the radar target scattering matrix. Electron. Lett. 1990, 26, 1525–1527. [Google Scholar] [CrossRef]
  64. Yamaguchi, Y.; Moriyama, T.; Ishido, M.; Yamada, H. Four-component scattering model for polarimetric SAR image decomposition. IEEE Trans. Geosci. Remote Sens. 2005, 43, 1699–1706. [Google Scholar] [CrossRef]
  65. Maghsoudi, Y.; Collins, M.; Leckie, D.G. Polarimetric classification of Boreal forest using nonparametric feature selection and multiple classifiers. Int. J. Appl. Earth Obs. Geoinf. 2012, 19, 139–150. [Google Scholar] [CrossRef]
  66. Tang, J.; Alelyani, S.; Liu, H. Feature Selection for Classification: A Review. In Data Classification: Algorithms and Applications; CRC Press: Boca Raton, FL, USA, 2014; pp. 37–64. [Google Scholar]
  67. Kohavi, R.; John, G.H. Wrappers for feature subset selection. Artif. Intell. 1997, 97, 273–324. [Google Scholar] [CrossRef]
  68. Liu, H.; Yu, L. Toward integrating feature selection algorithms for classification and clustering. IEEE Trans. Knowl. Data Eng. 2005, 17, 491–502. [Google Scholar] [CrossRef]
  69. Blum, A.L.; Langley, P. Selection of relevant features and examples in machine learning. Artif. Intell. 1997, 97, 245–271. [Google Scholar] [CrossRef]
  70. Hsu, C.-N.; Huang, H.-J.; Dietrich, S. The ANNIGMA-wrapper approach to fast feature selection for neural nets. IEEE Trans. Syst. Man Cybern. Part B 2002, 32, 207–212. [Google Scholar]
  71. Yang, J.; Honavar, V. Feature subset selection using a genetic algorithm. In Feature Extraction, Construction and Selection; Springer: New York, NY, USA, 1998; pp. 117–136. [Google Scholar]
  72. Kohavi, R. A study of cross-validation and bootstrap for accuracy estimation and model selection. In Ijcai; Stanford University: Stanford, CA, USA, 1995; Volume 14, pp. 1137–1145. [Google Scholar]
  73. Vapnik, V.N. The Nature of Statistical Learning Theory; Springer-Verlag: Berlin/Heidelberg, Germany, 1995; Volume 8, ISBN 0387945598. [Google Scholar]
  74. Mountrakis, G.; Im, J.; Ogole, C. Support vector machines in remote sensing: A review. ISPRS J. Photogramm. Remote Sens. 2011, 66, 247–259. [Google Scholar] [CrossRef]
  75. Keerthi, S.S.; Lin, C.-J. Asymptotic behaviors of support vector machines with Gaussian kernel. Neural Comput. 2003, 15, 1667–1689. [Google Scholar] [CrossRef] [PubMed]
  76. Chang, C.-C.; Lin, C.-J. LIBSVM: a library for support vector machines. ACM Trans. Intell. Syst. Technol. 2011, 2, 1–27. [Google Scholar] [CrossRef]
  77. Pottier, E.; Ferro-Famil, L.; Allain, S.; Cloude, S.; Hajnsek, I.; Papathanassiou, K.; Moreira, A.; Williams, M.; Minchella, A.; Lavalle, M. Overview of the PolSARpro V4.0 software. The open source toolbox for polarimetric and interferometric polarimetric SAR data processing. In Proceedings of the 2009 IEEE International Geoscience and Remote Sensing Symposium, Cape Town, South Africa, 12–17 July 2009; Volume 4, pp. IV-936–IV-939. [Google Scholar]
  78. Deng, L.; Yan, Y.N.; Wang, C. Improved POLSAR image classification by the use of Multi-Feature combination. Remote Sens. 2015, 7, 4157–4177. [Google Scholar] [CrossRef]
  79. Touzi, R.; Goze, S.; Le Toan, T.; Lopes, A.; Mougin, E. Polarimetric discriminators for SAR images. IEEE Trans. Geosci. Remote Sens. 1992, 30, 973–980. [Google Scholar] [CrossRef]
  80. Allain, S.; Lopez-Martinez, C.; Ferro-Famil, L.; Pottier, E. New eigenvalue-based parameters for natural media characterization. In Proceedings of the POLinSAR 2005 Workshop, ESRIN, Frascati, Italy, 17–21 January 2005; Volume ESA SP-586, pp. 177–180. [Google Scholar]
  81. Allain, S.; Ferro-Famil, L.; Pottier, E. A polarimetric classification from PolSAR data using SERD/DERD parameters. In Proceedings of the 6th European Conference on Synthetic Aperture Radar, EUSAR, Dresden, Germany, 16–18 May 2006. [Google Scholar]
  82. Witten, I.H.; Frank, E. Data Mining: Practical Machine Learning Tools and Techniques; Machine Learning: Morgan, Kaufmann, 2005; ISBN 008047702X. [Google Scholar]

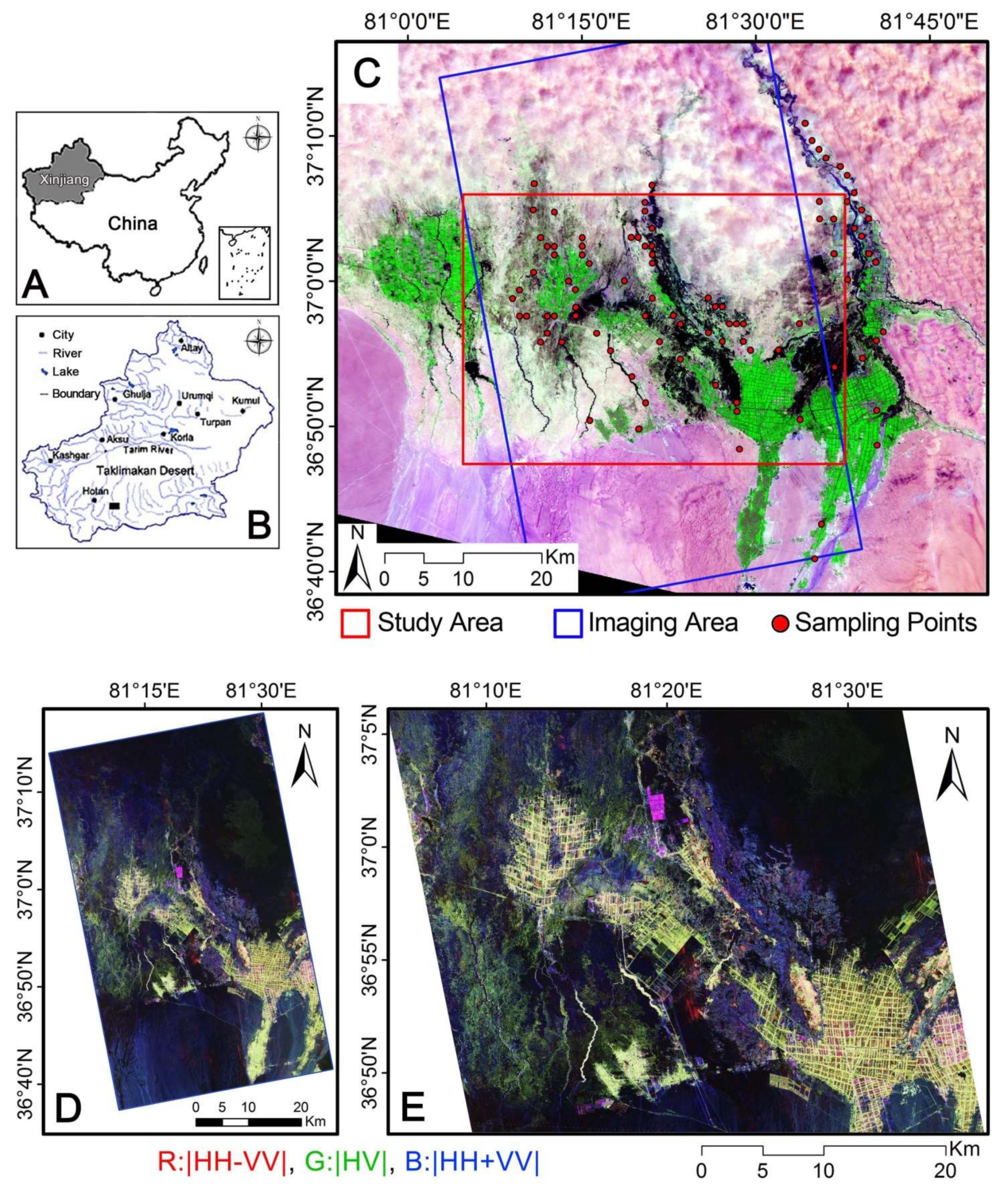

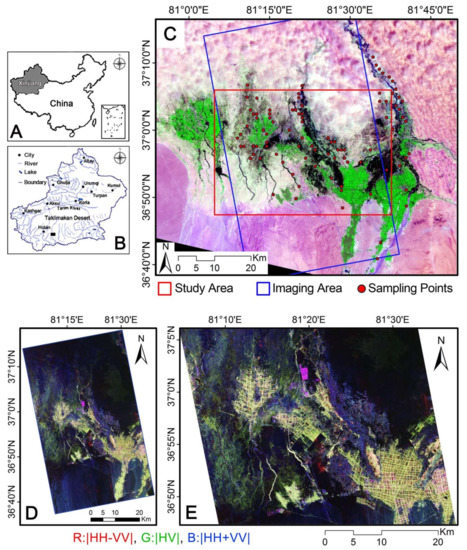

Figure 1. Keriya Oasis in Xinjiang (B); Northwestern China (A): (C) Location map of study area of Landsat 8 OLI image, where the red rectangular indicates the study area and the blue the PALSAR-2 full imaging area, and the red solid points represent field sampling sites; (D) the full PALSAR-2 image and (E) the subset image covering the study area in Pauli decomposition with standard color-coding (Red: |HH − VV|, Green: |HV|, Blue: |HH + VV|).
Figure 1. Keriya Oasis in Xinjiang (B); Northwestern China (A): (C) Location map of study area of Landsat 8 OLI image, where the red rectangular indicates the study area and the blue the PALSAR-2 full imaging area, and the red solid points represent field sampling sites; (D) the full PALSAR-2 image and (E) the subset image covering the study area in Pauli decomposition with standard color-coding (Red: |HH − VV|, Green: |HV|, Blue: |HH + VV|).
Remotesensing 10 00598 g001

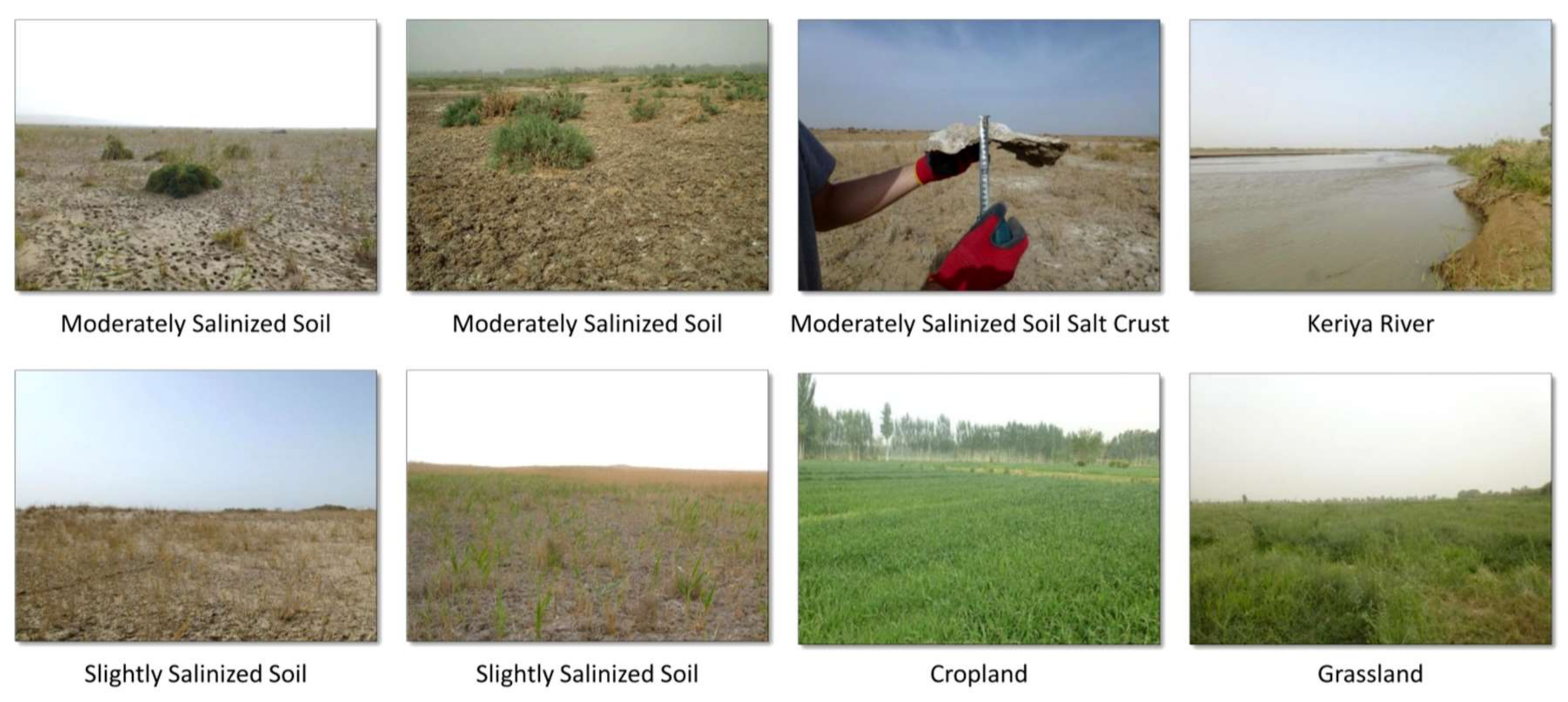

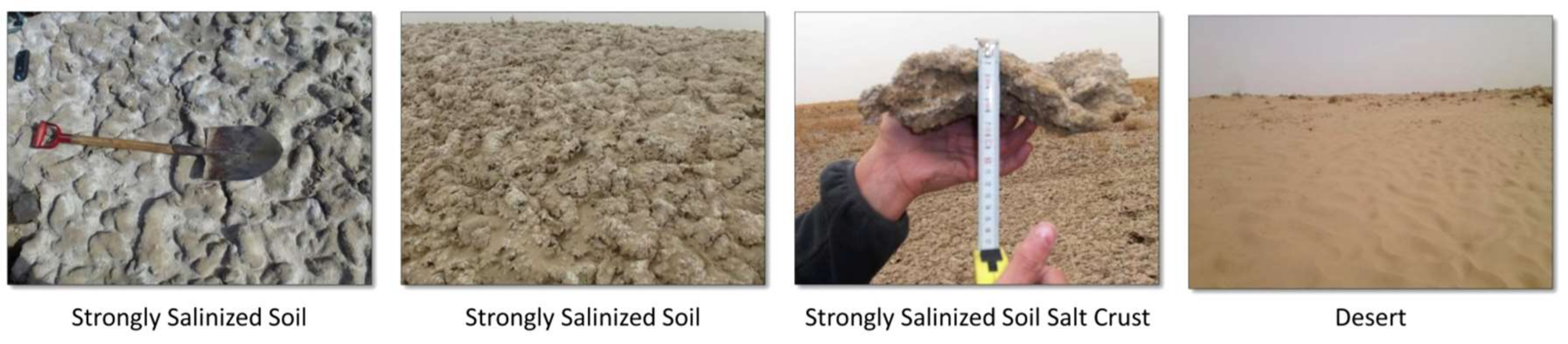

Figure 2. Different degrees of salinized soil and land cover types of Keriya Oasis of the study area.
Figure 2. Different degrees of salinized soil and land cover types of Keriya Oasis of the study area.
Remotesensing 10 00598 g002aRemotesensing 10 00598 g002b

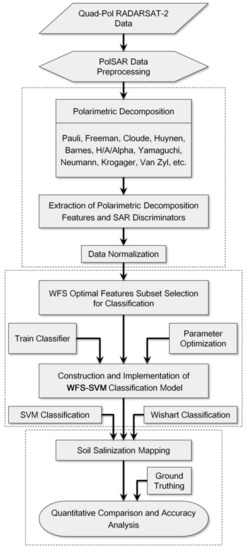

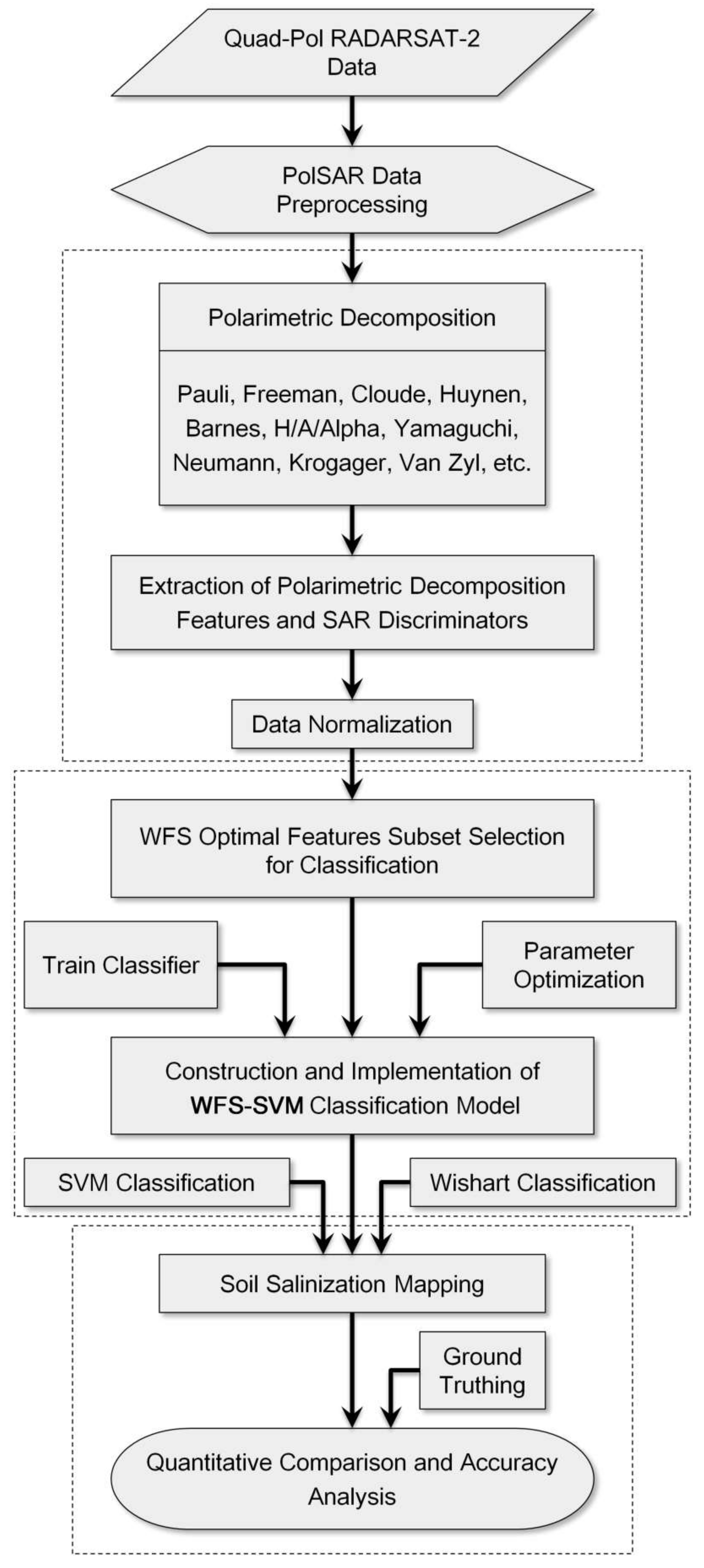

Figure 3. Overall workflow of the study.
Figure 3. Overall workflow of the study.
Remotesensing 10 00598 g003

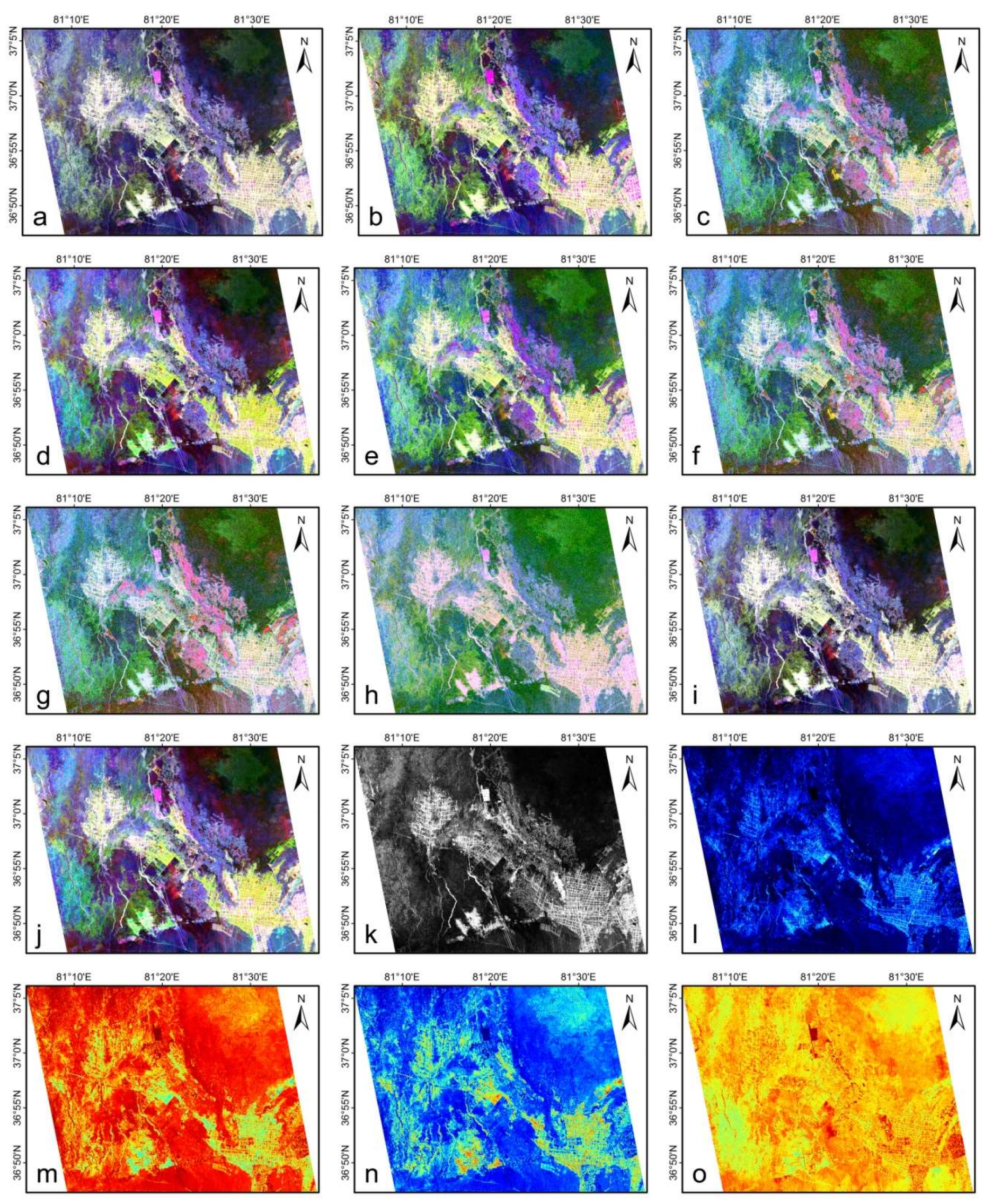

Figure 4. RGB composition images of different polarimetric decompositions and SAR discriminators including Pauli decomposition (a); Barnes2 decomposition (b); Cloude decomposition (c); Freeman3 decomposition (d); H/A/Alpha decomposition (e); Holm2 decomposition (f); Huynen decomposition (g); Krogager decomposition (h); VanZyl3 decomposition (i); Yamaguchi4 decomposition (j); Span (k); Pedestal height (l); Polarization fraction (m); Radar vegetation index (n); and DERD (o).
Figure 4. RGB composition images of different polarimetric decompositions and SAR discriminators including Pauli decomposition (a); Barnes2 decomposition (b); Cloude decomposition (c); Freeman3 decomposition (d); H/A/Alpha decomposition (e); Holm2 decomposition (f); Huynen decomposition (g); Krogager decomposition (h); VanZyl3 decomposition (i); Yamaguchi4 decomposition (j); Span (k); Pedestal height (l); Polarization fraction (m); Radar vegetation index (n); and DERD (o).
Remotesensing 10 00598 g004
Figure 5. Comparison of different classification results. (A) Wishart supervised classification; (B) SVM classification; and (C) Proposed WFS-SVM classification. WB, BL, VG, HS, MS, and SS represent the water body, barren land, vegetation, highly salinized soil, moderately salinized soil, and slightly salinized soil, respectively.
Figure 5. Comparison of different classification results. (A) Wishart supervised classification; (B) SVM classification; and (C) Proposed WFS-SVM classification. WB, BL, VG, HS, MS, and SS represent the water body, barren land, vegetation, highly salinized soil, moderately salinized soil, and slightly salinized soil, respectively.
Remotesensing 10 00598 g005

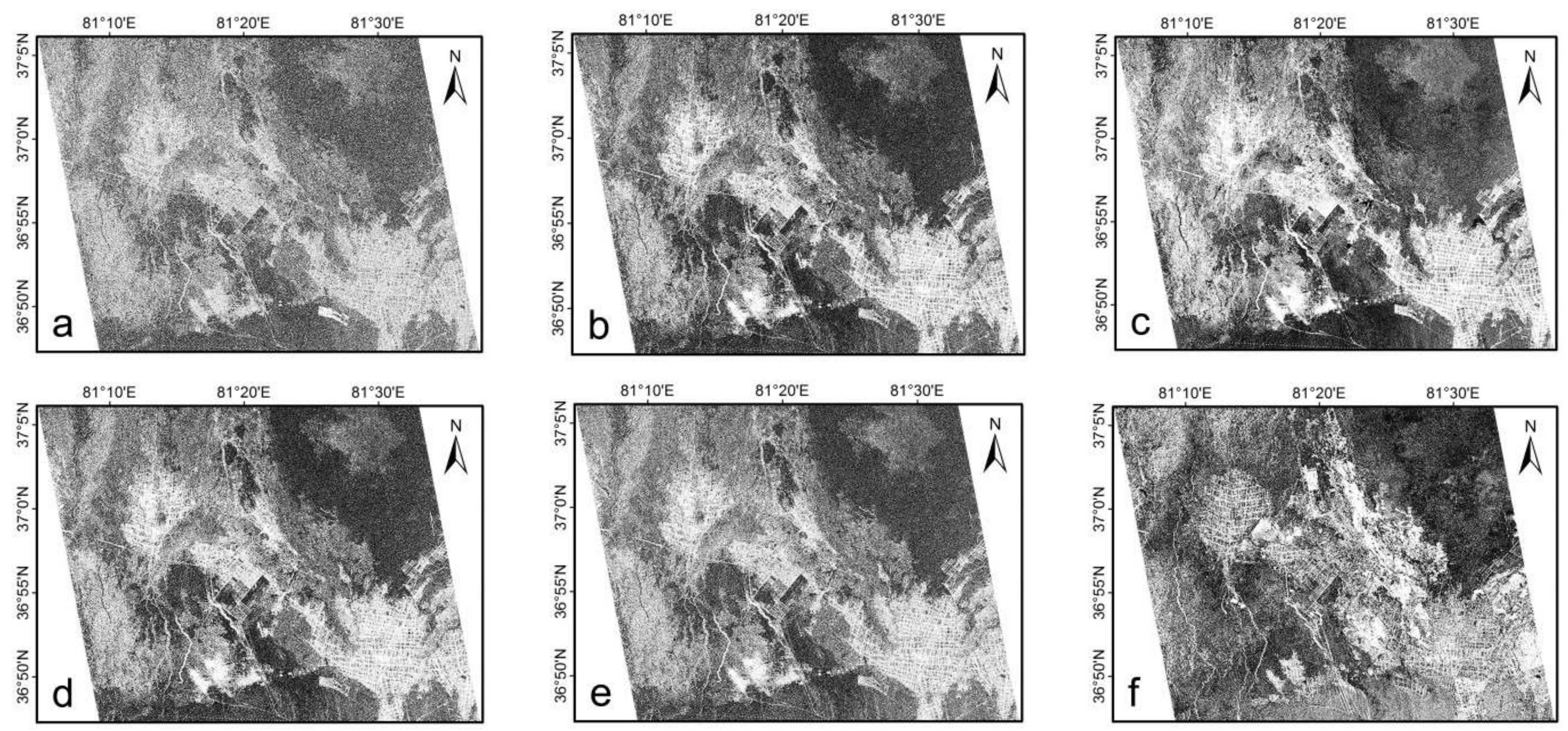

Figure 6. Polarized feature elements showing speckle noise. (a) Krog_Kh; (b) Cloude_T33; (c) H/A/a_T33; (d) Hol2_T33; (e) Huy_T33, (f) Bar2_T11.
Figure 6. Polarized feature elements showing speckle noise. (a) Krog_Kh; (b) Cloude_T33; (c) H/A/a_T33; (d) Hol2_T33; (e) Huy_T33, (f) Bar2_T11.
Remotesensing 10 00598 g006
Table 1. Main parameters of PALSAR-2 data.
Table 1. Main parameters of PALSAR-2 data.
Parameter TypeData
Data observation date23 April 2015
PolarizationHH, HV, VH, VV
Orbit path, frame158, 730
Observation modeStripmap (High-sensitive Quad.)
Operation modeSM2
File formatCEOS SAR
Processing LevelLevel 1.1
FrequencyL band (1.2 GHz)
Pixel spacing2.86 m
Line spacing3.21 m
Nominal resolution5.1 × 4.3 m (Range × Azimuth)
Incident angle33.87°
Nominal Off-Nadir Angle30.84°
Beam No.FP6-5
Swath40~50 km × 70 km (Range × Azimuth)
Observation and orbit directionRight, Ascending
Table 2. Backscattering statistical characteristics of PALSAR-2 data.
Table 2. Backscattering statistical characteristics of PALSAR-2 data.
Channel No.PolarizationStatistical Value of Backscattering Coefficient (dB)
MinimumMaximumAverageStandard Deviation
1HH−47.3906.989−16.1064.634
2HV−51.939−1.275−25.2914.249
3VH−50.588−1.464−25.2454.246
4VV−45.2056.989−15.6434.179
Table 3. LCLU classes with varying severity of soil salinization, their characteristics, and their training and validation groups in the Keriya Oasis.
Table 3. LCLU classes with varying severity of soil salinization, their characteristics, and their training and validation groups in the Keriya Oasis.
SymbolClassCharacteristicsTrainingValidation
PlotsPixelsPlotsPixels
HSHighly Salinized soilland surface covered with salt crust (2~10 cm), almost bald land with vegetation coverage less than 5%, top soil soluble salt ≥20 g·kg−1, ground water table ranges 0.5~1.5 m548570447290
MSModerately Salinized soilmain vegetation types are Tamarix chinensis Lour, Halocnemum strobilaceum, Halostachys caspica, Phragmites communis, with vegetation coverage of around 5~15%, with salt crust of 1~4 cm, top soil soluble salt is about 10~20 g·kg−1, ground water table is 1~2 m486858487134
SSSlightly Salinized soilmain vegetation types are Tamarix chinensis Lour, Phragmites communis, Haloxylon ammodendron, Karelinia caspica, Alhagi pseudalhagi with vegetation coverage of around 30%, with thin salt crust (around 0~2 cm), top soil soluble salt is about 5~10 g·kg−1, ground water table is 1.4~3 m569209548040
WBWater Bodyriver, lake, reservoir, pond and swamp364180334008
VGVegetationgrassland, cropland, Euphrates Poplar forests, dense shrubland579822519470
BLBarren Landgobi, desert345618356022
Table 4. Polarimetric features extracted from PolSAR data.
Table 4. Polarimetric features extracted from PolSAR data.
FeatureDescriptionSymbolNumber of ParametersPolarimetric Parameter
Original featuresScattering matrix elementsS4S11, S12, S21, S22
Coherency matrix elementsT33T11, T22, T33
Covariance matrix elementsC33C11, C22, C33
Decomposition featuresPauliPauli3Pauli_a, Pauli_b, Pauli_c
Freeman2Free22Freeman2_Vol, Freeman2_Ground
Freeman3Free33Freeman_Vol, Freeman_Odd, Freeman_Dbl
Barnes1Bar13Barnes1_T11, Barnes1_T22, Barnes1_T33
Barnes2Bar23Barnes2_T11, Barnes2_T22, Barnes2_T33
Holm1Hol13Holm1_T11, Holm1_T22, Holm1_T33
Holm2Hol23Holm2_T11, Holm2_T22, Holm2_T33
CloudeCloude3Cloude_T11, Cloude_T22, Cloude_T33
HuynenHuy3Huynen_T11, Huynen_T22, Huynen_T33
Yamaguchi3Yam33Yamaguchi3_Vol, Yamaguchi3_Odd, Yamaguchi3_Dbl
Yamaguchi4Yam44Yamaguchi4_Vol, Yamaguchi4_Odd, Yamaguchi4_Dbl, Yamaguchi4_Hlx
VanZyl3VZ33VanZyl3_Vol, VanZyl3_Odd, VanZyl3_Dbl
KrogagerKrog3Krogager_Ks, Krogager_Kd, Krogager_Kh
TouziTouzi12TSVM_alpha_s, TSVM_alpha_s1, TSVM_alpha_s2, TSVM_alpha_s3, TSVM_tau_m, TSVM_tau_m1, TSVM_tau_m2, TSVM_tau_m3, TSVM_phi_s, TSVM_phi_s1, TSVM_phi_s2, TSVM_phi_s3
Neumann2Neu22Neumann_delta_mod, Neumann_delta_pha
H/A/AlphaH/A/a12H/A/a _T11, H/A/a _T22, H/A/a _T33, Entropy(H), Anisotropy(A), alpha, alpha1, alpha2, alpha3, Shannon Entropy (SE), Polarization Asymmetry (PA), Target Randomness (PR)
SAR discriminatorsSPANSPAN1span
Pedestal heightPH1pedestal_height
Polarization fractionPF1polarisation_fraction
Radar vegetation indexRVI1rvi
S.E.R.DSERD1serd
D.E.R.DDERD1derd
Table 5. The confusion matrix (%) of Wishart supervised classification using PALSAR-2 image.
Table 5. The confusion matrix (%) of Wishart supervised classification using PALSAR-2 image.
ClassWBBLVGHSMSSSProd Acc.User Acc.
WB80.5100.60.210.030.4180.5196.79
BL1.129.010.066.21.37.3329.0159.52
VG0080.77003.5180.7796.41
HS16.3247.841.2685.818.528.2685.855.92
MS1.153.793.587.5384.884.9784.8279.47
SS0.9219.3613.710.255.2775.5175.5167.87
Overall Accuracy = 73.869%
Kappa Coefficient = 0.682
Table 6. The confusion matrix (%) of conventional SVM classification using polarimetric features of PolSAR data.
Table 6. The confusion matrix (%) of conventional SVM classification using polarimetric features of PolSAR data.
ClassWBBLVGHSMSSSProd Acc.User Acc.
WB92.741.230.682.090.320.2892.7491.71
BL2.358.920.198.423.922.758.9274.38
VG0.12092.600.315.2392.695.1
HS2.7427.60.5585.739.060.5785.7371.3
MS1.423.820.543.2181.534.3381.5386.32
SS0.678.445.440.554.8686.8986.8983.04
Overall Accuracy = 83.605%
Kappa Coefficient = 0.8008
Table 7. The confusion matrix (%) of WFS-SVM classification using polarimetric features of PolSAR data.
Table 7. The confusion matrix (%) of WFS-SVM classification using polarimetric features of PolSAR data.
ClassWBBLVGHSMSSSProd Acc.User Acc.
WB94.9400.070.180.210.0194.9499.06
BL0.4763.620.073.091.090.2463.6291.67
VG1.250.1791.930.180.042.7591.9396.68
HS1.2524.160.5787.82.640.4287.7978.23
MS1.055.280.387.6190.492.6290.4384.73
SS1.056.786.971.145.5493.9693.9682.74
Overall Accuracy = 87.572%
Kappa Coefficient = 0.8488
Note: WB, BL, VG, HS, MS, and SS stand for the water body, barren land, vegetation, highly salinized soil, moderately salinized soil, and slightly salinized soil. Prod Acc. is for a producer’s accuracy and User Acc. is for a user’s accuracy.

Share and Cite

MDPI and ACS Style

Nurmemet, I.; Sagan, V.; Ding, J.-L.; Halik, Ü.; Abliz, A.; Yakup, Z. A WFS-SVM Model for Soil Salinity Mapping in Keriya Oasis, Northwestern China Using Polarimetric Decomposition and Fully PolSAR Data. Remote Sens. 2018, 10, 598. https://doi.org/10.3390/rs10040598

AMA Style

Nurmemet I, Sagan V, Ding J-L, Halik Ü, Abliz A, Yakup Z. A WFS-SVM Model for Soil Salinity Mapping in Keriya Oasis, Northwestern China Using Polarimetric Decomposition and Fully PolSAR Data. Remote Sensing. 2018; 10(4):598. https://doi.org/10.3390/rs10040598

Chicago/Turabian Style

Nurmemet, Ilyas, Vasit Sagan, Jian-Li Ding, Ümüt Halik, Abdulla Abliz, and Zaytungul Yakup. 2018. "A WFS-SVM Model for Soil Salinity Mapping in Keriya Oasis, Northwestern China Using Polarimetric Decomposition and Fully PolSAR Data" Remote Sensing 10, no. 4: 598. https://doi.org/10.3390/rs10040598

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
