Sustainability 2017, 9(8), 1430; doi:10.3390/su9081430

Article
Exhaust Pollutants Characteristic of In-Use Vehicles under Acceleration Simulation Mode and Emission Standard Revision for Hei Longjiang Province, China
1
School of Traffic and Transportation, Northeast Forestry University, Harbin 150040, China
2
Department of Environmental Protection of Hei Longjiang Province, Harbin 150090, China
*
Author to whom correspondence should be addressed.
Received: 9 June 2017 / Accepted: 10 August 2017 / Published: 12 August 2017

Abstract

:
The large sample data classification statistics of exhaust pollutants test data from 57,997 in-use vehicles were conducted under acceleration simulation mode conditions, two-speed idle conditions and free acceleration conditions. Aiming at the test data obtained from acceleration simulation mode, the implementation date of different stages national standards for vehicle emissions was regarded as the service life interval classification rules. Emission limits provided by the Ministry of Environmental Protection of the People’s Republic of China are referred to analyze the unqualified rate, the changing trends and group deterioration trends systematically. The determining principles and requirements on exhaust pollutants limits when formulating a new local standard in China are described. Standard revision process through determining the revision object of exhaust pollutants limits and predicting unqualified rate based on the pre-revised limits and post-revised limits is proposed. The research can not only extract valuable information from large data for accurately determining the characteristics of high-emission vehicles, but help environmental management department to formulate relevant vehicles exhaust pollutants limits standard and management decisions.
Keywords:
in-use vehicles; exhaust pollutants; emission standard revision; acceleration simulation mode; environmental governance

1. Introduction

In the past five years, the number of vehicles in China increases rapidly with an average annual growth rate of 16%, vehicle emissions has become one of the main sources of the urban air pollution [1,2]. Relevant research shows that vehicle exhaust emissions have accounted for about 85% of the air pollution sources [3,4]. In order to keep in-use vehicles in the best estate during their service life, and effectively control the deterioration of the fuel economy and emission in time, many researchers at home and abroad have carried out intensive studies and systematic practice on in-use automotive exhaust pollution control policies, emission status testing techniques, maintenance methods, and quality control [5,6,7,8,9,10,11]. Rhys-Tyler et al. [12] used remote sensing technology to detect instantaneous exhaust emissions of light vehicles. The results show that nitrogen and oxygen (NOx) emissions can be reduced by 30% under Euro V emission standards. With the development of GIS technology, more and more high spatial resolution vehicle emission inventory for provinces and cities in China were established, and the share rate among them was also systematically studied [13,14,15,16]. Based on scenario analysis, Guo et al. [17] predicted that the emission reductions of carbon monoxide (CO), NOx and hydrocarbon (HC) will reach 46.4%, 42.1% and 8.6%, respectively, in 2020 in Beijing. Ji et al. [18] pointed out that since the implementation of the China I emission standard, the emission of new cars per vehicle has been reduced by 57–96%. Huo et al. [19,20,21] point that NOx emission concentration plays a leading role in the emission test results under simple operating conditions. Giechaskiel et al. [22] have studied the feasibility of the current Euro VI emission standard based on the portable emission detection system and proposed an improved emission detection program. Liu et al. [23] showed that, during the implementation of the Foshan City restriction policy, the annual emissions of pollutants (CO, NOx, VOC, PM) in the unit sections decreased by 48.1%, 39.2%, 43.6% and 49.2%, respectively. Li et al. [24] put forward a new vehicle management improvement program, which can reduce the NOx emissions of 7460 tons in Hangzhou during the “12th Five-Year Plan” period with a reduction rate of 16.84%.
However, the above does not carry out relevant research on management decisions for data information on in-use vehicle detection results, which will become the inevitable trend of exhaust pollutions control as the accumulation of in-use vehicles exhaust pollutants detection data and the upgrades of management level [25,26,27,28,29], according to the relevant regulations provided by HJ/T 240-2005 of Principles and Methods for Determining the Emission Limits of Exhaust Emissions for Simple Ignition Engines under Simple Operating Condition released by the Ministry of Environmental Protection of the People’s Republic of China (MEPOPRC) [30]. Exhaust pollutants group state and trends were analyzed through large sample detection data of exhaust pollutants of in-use vehicles. The results can not only extract valuable information from large data for accurately determining the characteristics of high emission vehicles, but help environmental management department to formulate relevant vehicles exhaust pollutants limits’ standards and management decisions.
In addition, the environmental protection requirements of NOx compounds emission reduction proposed by the China’s “12th Five-Year Plan” are considered [31,32,33,34], and combining with the actual situation of motor vehicle exhaust pollutions detection and control in Hei Longjiang Province, according to the requirements about formulating local emission standard proposed by GB 18285-2005 of Limits and Measurement Methods for Exhaust Pollutants from Vehicles Equipped Ignition Engine under Two-Speed Idle Conditions and Simple Driving Mode Conditions released by MEPOPRC [35]. The revised method of the original execution standard DB 23/1061-2006 of Limits for Exhaust Pollutants from In-Use Vehicles Equipped Ignition Engine under Steady-State Loaded Mode Conditions in Hei Longjiang province is put forward [36]. Fortunately, the standard revision process proposed has been adopted by Department of Environmental Protection of Hei Longjiang Province, and as one of standard drafting units, our team has helped policymakers of local environmental department to revise the DB 23/1061-2006. The new and stringent emission standard of DB 23/1061-2013 is currently under implementation in Hei Longjiang province.
This paper is organized as follows, Section 2 introduces detection data source and presents the classification rule based on service life interval and explains the median values of Class I and Class II emission limits recommended by HJ/T 240-2005. The determining principles and requirements on exhaust pollutants limit (EPL) when formulating a new local standard in China are also described. In Section 3, we conduct the comparative analysis of unqualified rate (UR) of exhaust pollutants under the same test conditions and different test conditions, respectively. The average and variation of detection results along with the service life are discussed in this section. Finally, in this section, we present the standard revision process through determining the revision object of EPL and predicting UR based on the pre-revised limits and post-revised limits. Finally, conclusions and future work are summarized in Section 4.

2. Materials and Methods

2.1. Data Acquisition

On the basis of extensive investigation on the current situation of vehicle exhaust pollutants detection in Heilongjiang Province, 96,453 test data of exhaust pollutants for in-used vehicles were derived from the different vehicle environmental protection testing station in the province. Various types of vehicles were covered with service life over 12 years and different emission levels. The test methods classification and proportion of samples as shown in Figure 1. The number of vehicles tested by acceleration simulation mode (ASM) is 57,997, which meets the requirement that the sample should be more than 100 under different test methods regulated by HJ/T 240-2005 when determining the new EPL.

2.2. ASM Test Conditions

Vehicles are accelerated to the specified speed and maintained within a certain range on a chassis dynamometer, and the engine’s output power is multiplied by the specified ration as the dynamometer setting power under specified vehicle speed and acceleration, performing the detection of exhaust pollutants. The test sequence shall consist of either a single ASM mode or both ASM modes.
(1). ASM5025 test conditions
The vehicle is preheated to normal operating temperature and then accelerated to 25 km/h on the dynamometer, the dynamometer power is set as 50 percent of engine output power when the vehicle speed is 25 km/h and the acceleration is 1.475 m/s2, and the speed is maintained within 25 ± 1.5 km/h during testing. ASM5025 belongs to the first test procedure of ASM.
(2). ASM2540 test conditions
When the ASM5025 has been performed, the vehicle is further accelerated to 40 km/h on the dynamometer, the dynamometer power is newly set as 25 percent of engine output power when the vehicle speed is 25 km/h and the acceleration is 1.475 m/s2, and the speed is maintained within 40 ± 1.5 km/h during testing. ASM5025 belongs to the second test procedure of ASM.

2.3. Classification Method Based on Service Life Interval

Correlation analysis of exhaust pollutions’ detection data of in-use vehicles includes classification statistics and group state statistics of test data, and group situation analysis under ASM conditions [14,23,37]. Among them, group situation analysis of detection data under ASM conditions uses the limits classification, service life, baseline quality, mileages and use properties as the classification rule to analyze the detection data by group characteristics. Our research only focuses on the service life as the classification rule to analyze the relevant test data. To facilitate the average service life of statistical test data, referring to the four stages of the national motor vehicle emission standards in China (China I, II, III and IV), the service life data are calculated according to the registration date of new vehicles, and all test samples are divided into 5 categories according to the service life. The classification rules are shown in Table 1, in which the GB is the Chinese phonetic abbreviation of Guojia Biaozhun.
As from 16 April 2001 and 1 July 2004, China began to implement the first national vehicle emission standard limits (GB 18352.1-2001, China I standard for short), which is equivalent to the Euro I standard, and the second national vehicle emission standard limits (GB 18352.2-2001, China II standard for short), which is equivalent to the Euro II standard [17,38]. Therefore, the registration date between 16 April 2001 and 30 June 2004 by the vehicles are divided into second intervals, and other classification rules of the rest intervals are the same as the above.

2.4. Determining Principles and Requirements of Emission Standard

2.4.1. Determining Principles

According to the requirements of HJ/T 240-2005, the following principles should be considered when determining the emission limits.
(1). Follow the principle of new vehicles meeting new standards and old vehicles meeting old standards—according to the level of emission standards achieved during a new vehicle type approval, at the same time, considering the normal deterioration for the emission control system under the regular service and maintenance conditions, then determining the EPL for in-use vehicles.
(2). EPL determined should be able to detect high-emission vehicles effectively, and the recommended regulation proportion of the high-emission vehicles at 10–25% [34].
(3). Local realistic conditions ought to be taken into consideration when determining EPL, in addition, following the strategy of implementation of strict vehicle emission standards in continual phases after initial ease.

2.4.2. Basic Requirements

(1). Investigating the distribution of local in-use vehicles according to the different grades of national motor vehicle emission standards for newly produced vehicles, and then conducting emission tests for vehicles with different emission levels. In principle, for each type of emission level, the number of tested vehicles shall be no less than 100; meanwhile, the proportion of vehicles with different emission levels should be considered.
(2). Determine the local EPL after the statistical analysis of the detection results according to local regulation proportion of high-emission vehicles.

3. Results and Discussion

The maximum limits and minimum limits for three major exhaust pollutants, HC, CO and NOx, are specified in HJ/T 240-2005 released by MEPOPRC, where the NOx emission limit is calculated at Nitric Oxide (NO). For the first type of light vehicles produced before 1 July 2000 and the second type of light vehicles produced before 1 October 2001, the recommended steady-state emission limits is called Class I emission limits, and for the first type of light vehicles produced from 1 July 2000 and the second types of light vehicles produced from 1 October 2001, the recommended steady-state emission limits is called Class II emission limits. The median values of Class I and Class II emission limits recommended by HJ/T 240-2005 are shown in Table 2, and the median values is equal to half the sum of maximum limits and minimum limits provided by HJ/T 240-2005 according to reference mass (RM) of vehicles.

3.1. Overall UR

Under the test conditions of ASM5025 and ASM2540, according to the emission limits determined in Table 2, the unqualified amount (UA) and UR of HC, CO and NO are shown in Table 3.
Under the ASM5025 test conditions, the UA is 4649, which is the difference of test samples between ASM5025 and ASM5025, and corresponding UR is 8.36%. Under the condition of ASM2540 test conditions, the UR is at least 6.19% (the highest UR of HC, CO and NO). Therefore, the overall UR is at least 14.55% and the maximum is 26.1% under the ASM test conditions.

3.2. Comparative Analysis of UR

3.2.1. Under Different Test Conditions

According to the statistical results in Table 3, the UR of HC, CO and NO is shown in Figure 2 under different test conditions.
Figure 2 shows the UR of exhaust pollutants of the in-use vehicles increases with the service life, for example, the UR of vehicles in the 1st interval class is far higher than that of the 5th interval class. The UR under ASM5025 conditions is larger than that of ASM2540 in each service life interval, which is equivalent to the exhaust pollution level when the vehicle is operating at a medium load of 50% and a low speed of 25 km/h is greater than at a small load of 25% and a high speed of 40 km/h. Compared with other two exhaust pollutions, the UR of NO is larger under ASM5025 conditions and HC is larger under ASM2540 conditions. The result is consistent with the large amount of NOx produced under a heavy load and HC produced under a high engine speed.

3.2.2. Under Same Test Conditions

Based on the UR of 5th interval class, statistics on the increase multiples of UR in different service life intervals are shown in Table 4, and the comparison results are demonstrated in Figure 3.
According to the statistical results, under the ASM5025 test conditions, the UR of vehicles caused by HC emission exceeding limit plays a small part in overall UR, and it is less than that of CO and NO with the increase of service life. On the contrary, the UR of vehicle detection caused by HC emission exceeding standard increases more greatly with the increase of service life compared with the UR of CO and NO under the ASM2540 test conditions. Generally, increase of service life promotes the deterioration of vehicle emission control system, which directly leads to the increase of exhaust pollution intensity. As a result, the UR of vehicle exhaust pollutions increases with service life.
In addition, the UR increment caused by HC and NO exceeding limit under ASM2540 test conditions is higher than ASM5025. In the two test conditions, the UR increment caused by CO exceeding limit is similar; however, in the 2nd interval class and 4th interval class, the UR increment caused by CO exceeding limits under ASM2540 test conditions is lower than that of ASM5025.

3.3. Average and Variation

Under the conditions of ASM5025 and ASM2540, the average of HC, CO and NO detection results is shown in Table 5.
Therefore, under different test conditions, according to the classification of service life interval, the variation tendencies of the average of detection results of exhaust pollutants HC, CO and NO are shown in Figure 4.
The minimum limit and maximum limit of HC, CO and NO shown in Figure 4 are, respectively, averaged under the two test conditions of ASM5025 and ASM2540; meanwhile, the minimum and maximum limits recommended by HJ/T 240-2005 are taken into consideration. As shown in Table 6, the average value of limits is determined through taking an average of all emission limits of vehicles in which RM is less than 2500, i.e., the average value of Class I and Class II. In fact, the minimum limit line (▼) and maximum limit line (▲) showed in Figure 4 are plotted by the average limit of Class II.
From the variation tendencies in Figure 4, the average of detection results of HC and CO is generally between the minimum limit line and the maximum limit line in the whole service life. However, the average of test results of NO is higher than the minimum limit line for vehicles with a service life of more than nine years; that is to say, the UR of NO increases significantly.

3.4. Emission Standard Revision

Aimed at the test data collected from in-use vehicles, the UR statistics of exhaust pollutants was conducted under the ASM test procedure based on the emission limits provided by DB 23/1061-2006, which is the local emission standard of Hei Longjiang Province in China [36]. The analysis result is shown in Table 7.
As shown in Table 7, the total UR of exhaust pollutants of in-use vehicle under ASM test procedure is 8.55%, which is lower than the recommended regulation proportion of 10–25% provided in HJ/T 240-2005 for the high-emission vehicles [30]; therefore, it is necessary to tightened emission limits of DB 23/1061-2006.
According to the statistical analysis in Section 2 and Section 3, the overall deterioration rate of CO and HC was both lower than NO, and the average emission value is also lower than the minimum limit recommended by HJ/T 240-2005. Moreover, the degradation rate of NO is higher, and the average emission value with service life over 8–10 years is higher than the minimum recommended by HJ/T 240-2005. Therefore, the standard revision object is emission limits of NO by tightening relatively for exhaust pollutants of in-use vehicles in Hei Longjiang province. In addition, considering the environmental protection requirements of nitrogen and oxygen compounds emission reduction proposed by the National “12th Five-Year Plan”, the emission limits of CO and HC are not revised.

3.4.1. Pre-Revised Limits Comparison of NO

The pre-revised limits, original limits provided by DB 23/1061-2006 and the maximum limits recommended by HJ/T 240-2005 of NO for Class I and Class II vehicles are shown in Table 8 and Table 9. The value in the NO column is pre-revised limits/original standard limits/the maximum limits recommended by HJ/T 240-2005, and the limits of CO and HC are the same as the original standard DB 23/1061-2006, respectively.
From the Table 8 and Table 9, the pre-revised average limit of 16.50%, which is lower than the average limit provided by the original standard; however, it is higher than the average limit recommended by HJ/T 240-2005 by 11.09%.

3.4.2. UR Prediction Based on the Pre-Revised Limits

(1). The prediction and analysis processes for total UA of in-use vehicles after pre-revising the emission limits are demonstrated in Figure 5.
Firstly, aimed at testing the total qualified in-use vehicles under ASM5025 test conditions with the pre-revised limits, and finding the newly added unqualified vehicles, then the remaining qualified vehicles tested in the previous stage are continued to be tested to determine the total UA under ASM2540 test conditions. At last, the overall UA consists of ASM5025 and ASM2540 test conditions with the pre-revised standard.
(2). The increment of unqualified vehicles based on the pre-revised Class I and Class II standard limits is shown in Table 10 and Table 11.
(3). According to the proposed pre-revised limits, the newly increased UR is 13.94% under ASM test conditions, where the synchronous new unqualified increment both ASM5025 and ASM2540 test conditions is 2806. Therefore, the overall UR is predicted to be 22.04% with the implementation of the re-revised limits, and the 22.04% is the sum of the original UR 8.55% and the newly increased UR 13.94%.
(4). As shown in Table 10, we can find that the new unqualified increment of vehicles of Class I standard limits is low significantly, which has little effect on the overall UR with the total unqualified increment of 270 and the increase proportion of 0.47%. On the contrary, it is clear that the UR of vehicles required by Class II standard limits changes remarkably, caused generally by the vehicles whose reference mass is less than 1700. As shown in Table 11, the total UA of vehicles increases by 10,361, and the proportion increases by 17.86%.
The predicted UR of exhaust pollutants under ASM test conditions increases by 22.04%, which is 2.6 times than the previous UR of 8.55% if the pre-revised standard are adopted. Obviously, the bigger tightened proportion directly results in a great increment of UR for in-use vehicles.

3.4.3. UR Prediction Based on the Revised Standard

Table 11 shows that the UR increases significantly for vehicles required by Class II limits when the RM is less than 1700, and thus the emission limits of NO according to the corresponding reference mass should be further loosened up properly. The increment of unqualified vehicles is shown in Table 12 after revising emission limits once more.
As shown in Table 12, the loosened up emission limits of NO is tightened by 11.88% compared with the original limits required by DB 23/1061-2006, and it is relaxed by 6.34% compared with the pre-revised limits. Therefore, the increment of unqualified vehicles has been reduced by 2886, and the overall UR decreases accordingly.
The newly increased UR is predicted to 9.49% under ASM test conditions if the revised standard can be performed, where the synchronous new increment of unqualified vehicles both ASM5025 conditions and ASM2540 conditions is 2242. It is clear that the overall UR is 18.04%, which is reduced by 4.00% more than the pre-revised limits and meets the recommended UR of 10–25% required by MEPOPRC. In fact, the realistic UR of exhaust pollutants of in-use vehicles will be lower than the above prediction value along with the development of advanced emission control technology, and more and more new vehicles emerge on the road.

4. Conclusions

Statistical analysis of the UR and change regulation of the in-use vehicles exhaust pollutants is carried out under ASM test conditions according to the service life interval. Results show that the determination of emission limits has a direct effect on the UR of in-use vehicles, and the UR is at least 14.55%, the maximum reaches 26.1%, which basically meets the requirement that the UR is controlled by 10–25%. The increase of service life promotes the deterioration of vehicle emission control systems, which directly leads to the increase of exhaust pollution intensity. The UR of exhaust pollutants HC, CO and NO under ASM5025 test conditions is larger than ASM2540 test conditions, and there is an overall growth trend of UR with the addition of service life. When the service life is more than nine years, the average annual change value increases significantly, which shows that the technical performance of vehicle emission pollution control system has a remarkable influence on pollutant emissions; therefore, these heavy pollution vehicles should be supervised emphatically.
Revisions of emission standards in Hei Longjiang province follow the principle of new vehicles meeting new standards and old vehicles meeting old standards and the strategy of implementation of strict vehicle emission standards in continual phases after loosening up initially. The standard revision process is presented through determining the revision object of EPL and predicting UR based on the pre-revised limits and post-revised limits. Compared with the original standard, the overall tightened proportion is 12.34%, and the UR is expected to 18.04% under revised emission standards, so there is enough space to be further tightened. The management level of exhaust pollutants of in-use vehicles will be improved through supervising and adjusting of emission level and UR continuously in Hei Longjiang Province.
Further work is needed to make this work more comprehensive. First, the test data of exhaust pollutants is currently only focused on local vehicle detection stations, which is hardly representative. Using a different city’s test data may produce different results, and finding an optimum analysis method would be an important aspect in our future work. Furthermore, when a great development of hybrid vehicles is occurred, it is also important to re-revise the emission standard.

Acknowledgments

This work was financially supported by the Fundamental Research Funds for the Central Universities Grant No. 02572015AB17 and the National Natural Science Foundation of China under Grant No. 51405075. The authors would like to thank the two anonymous reviewers whose comments and suggestions greatly improved the manuscript.

Author Contributions

Hongliang Li and Jiangwei Chu conceived and designed the standard revision process; Shengjun Wang performed the test data resource; Jialu Li and Haosong Wang analyzed the data; Hongliang Li wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
MEPOPRCMinistry of the Environmental Protection of the People’s Republic of China
CO2carbon dioxide
COcarbon monoxide
NOxnitrogen oxide
ASMacceleration simulation mode
EPLexhaust pollutants limits
HChydrocarbon
NOnitric oxide
RMreference mass
URunqualified rate
UAunqualified amount

References

  1. Liu, H.; Wang, Y.; Chen, X.; Han, S. Vehicle emission and near-road air quality modeling in Shanghai, China, based on taxi GPS data and MOVES revised emission inventory. Transp. Res. Rec. 2013, 2340, 38–48. [Google Scholar] [CrossRef]
  2. Li, H.L.; Chu, J.W.; Li, J.L.; Cui, P.F.; Wang, Z.Z. Energy recovery data characteristics extraction of flywheel energy storage control system for vehicular applications. Adv. Mech. Eng. 2017, 4. [Google Scholar] [CrossRef]
  3. Zhang, S.; Wu, Y.; Wu, X.; Li, M.; Ge, Y.; Liang, B.; Xu, Y.; Zhou, Y.; Liu, H.; Fu, L.; et al. Historic and future trends of vehicle emissions in Beijing, 1998–2020: A policy assessment for the most stringent vehicle emission control program in China. Atmos. Environ. 2014, 89, 216–229. [Google Scholar] [CrossRef]
  4. Cai, B.; Cao, D.; Liu, L.; Zhang, Z.; Zhou, Y. Study on Road Transportation CO2 Emission in China. China Energy 2011, 33, 26–30. [Google Scholar]
  5. Sadri, A.; Ardehali, M.M.; Amirnekooei, K. General Procedure for Long-term Energy-Environmental Planning for Transportation Sector of Developing Countries with Limited Data based on LEAP (long-range energy alternative planning and Energy PLAN. Energy 2014, 77, 831–843. [Google Scholar] [CrossRef]
  6. Franco, V.; Kousoulidou, M.; Muntean, M.; Ntziachristos, L.; Hausberger, S.; Dilara, P. Road vehicle emission factors development: A review. Atmos. Environ. 2013, 70, 84–97. [Google Scholar] [CrossRef]
  7. Bing, X.; Jiang, Y.; Zhang, C.; Zhang, Y.; Lu, J. Effects of intersection lane configuration on traffic emissions. Adv. Transp. Stud. 2014, 32, 23–36. [Google Scholar]
  8. Boroujeni, B.Y.; Frey, H.C. Road grade quantification based on global positioning system data obtained from real-world vehicle fuel use and emissions measurements. Atmos. Environ. 2014, 85, 179–186. [Google Scholar] [CrossRef]
  9. Chan, L.Y.; Chu, K.W.; Zou, S.C.; Chan, C.Y.; Wang, X.M.; Barletta, B.; Donald, R.B.; Guo, H.; Tsai, W.Y. Characteristics of nonmethane hydrocarbons (NMHCs) in industrial, industrial-urban, and industrial-suburban atmospheres of the Pearl River Delta (PRD) region of south China. J. Geophys. Res. 2006, 111, 1937–1952. [Google Scholar] [CrossRef]
  10. Wang, C.; Wang, B.G.; Zhong, L.J.; Feng, Z.C.; Feng, A.M. Motor vehicle emission control measures in Pearl River Delta. Environ. Sci. Technol. 2009, 6, 195–199. [Google Scholar]
  11. Javid, R.J.; Nejat, A.; Hayhoe, K. Selection of CO2 mitigation strategies for road transportation in the United States using a multi-criteria approach. Renew. Sustain. Energy Rev. 2014, 38, 960–972. [Google Scholar] [CrossRef]
  12. Rhys-Tyler, G.A.; Bell, M.C. Toward reconciling instantaneous roadside measurements of light duty vehicle exhaust emissions with type approval driving cycles. Environ. Sci. Technol. 2012, 19, 10532–10538. [Google Scholar] [CrossRef] [PubMed]
  13. Song, X.Y.; Xie, S.D. Development of Vehicular Emission Inventory in China. Environ. Sci. 2006, 6, 1041–1045. [Google Scholar]
  14. Liu, H.; He, K.B.; Wang, Q.D. Vehicular emissions inventory and influencing factors in Tianjin. J. Tsinghua Univ. Sci. Technol. 2008, 3, 370–373. [Google Scholar]
  15. Wang, H.K.; Chen, C.H.; Huang, C.; Fu, L.X. On-road vehicle emission inventory and its uncertainty analysis for Shanghai, China. Sci. Total. Environ. 2008, 1, 60–67. [Google Scholar] [CrossRef] [PubMed]
  16. Mao, X.Q.; Ma, G.H.; Liu, Q.; Xing, Y.K. An environmental effect analysis for the application of European emission standards of motor vehicle in Beijing. Environ. Sci. Technol. 2011, 5, 193–198. [Google Scholar]
  17. Guo, X.R.; Ji, M.S.; Lang, J.L.; Chen, D.S.; Cheng, S.Y. Based on the scenario analysis of Beijing motor vehicle emission control research. China Environ. Sci. 2013, 9, 1690–1696. [Google Scholar]
  18. Ji, L.; Yuan, Y.; Li, G.; Wu, X.F. Study on Emission reduction effect of motor vehicle emission standards in China. Environ. Eng. 2011, 2, 237–242. [Google Scholar]
  19. Huo, H.; Zhang, Q.; He, K.B.; Yao, Z.L.; Wang, X.T.; Zheng, B.; David, G.S.; Wang, Q.D.; Ding, Y. Modeling vehicle emissions in different types of Chinese cities: Importance of vehicle fleet and local features. Environ. Pollut. 2011, 10, 2954–2960. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, C.; Cai, W.; Lu, X.; Chen, J. CO2 mitigation scenarios in China’s road transport sector. Energy Convers. Manag. 2007, 48, 2110–2118. [Google Scholar] [CrossRef]
  21. Hong, S.; Chung, Y.; Kim, J.; Chun, D. Analysis on the level of contribution to the national greenhouse gas reduction target in Korean transportation sector using LEAP model. Renew. Sustain. Energy Rev. 2016, 60, 549–559. [Google Scholar] [CrossRef]
  22. Giechaskiel, B.; Mamakos, A.; Andersson, J.; Dilara, P.; Martini, G.; Schindler, W.; Bergmann, A. Measurement of automotive nonvolatile particle number emissions within the European legislative framework: A review. Aerosol Sci. Technol. 2012, 7, 719–749. [Google Scholar] [CrossRef]
  23. Liu, Y.H.; Bi, S.Y.; Zhou, B.; Wang, C.; Liao, H.B.; Li, L.; Cai, M. Study on vehicular emission reduction effect of traffic control in Foshan central district. China Environ. Sci. 2010, 11, 1563–1567. [Google Scholar]
  24. Li, X.X.; Sun, G.J.; Tian, W.L.; Zhang, Q.Y. Study on abatement policy of NOx emission from vehicles in Hangzhou during 12th Five-Year Plan. China Environ. Sci. 2012, 8, 1416–1421. [Google Scholar]
  25. Park, S.; Lee, J.B.; Lee, C. State-of-the-art automobile emissions models and applications in North America and Europe for sustainable transportation. KSCE J. Civ. Eng. 2016, 3, 1053–1065. [Google Scholar] [CrossRef]
  26. Cai, H.; Xie, S.D. Estimation of vehicular emission inventories in China from 1980 to 2005. Atmos. Environ. 2007, 39, 8963–8979. [Google Scholar] [CrossRef]
  27. Li, L.; Du, L.L.; Zhang, J. Analysis and control of excessive vehicle exhaust emission in Xi’an. Environ. Eng. 2014, 1, 478–481. [Google Scholar]
  28. Cai, H.; Xie, S.D. Determination of emission factors from motor vehicles under different emission standards in China. Acta Sci. Nat. Univ. Peking. 2010, 3, 319–326. [Google Scholar]
  29. Wyatt, D.W.; Li, H.; Tate, J.E. The impact of road grade on carbon dioxide (CO2) emission of a passenger vehicle in real-world driving. Transp. Res. Part D 2014, 32, 160–170. [Google Scholar] [CrossRef]
  30. Ministry of Environmental Protection of the People’s Republic of China. Principle and Method of Confirm Limits for Exhaust Pollutants from In-Use Vehicle Equipped Ignition Engine under Simple Driving Mode Conditions; China Environmental Publishing: Beijing, China, 2005.
  31. Li, Y.; Bao, L.; Li, W.X.; Deng, H.P. Inventory and Policy Reduction Potential of Greenhouse Gas and Pollutant Emissions of Road Transportation Industry in China. Sustainability 2016, 12, 1218. [Google Scholar] [CrossRef]
  32. Zhang, Y.; Wu, W.; Li, Y.; Liu, Q.; Li, C. Does the Built Environment Make a Difference? An Investigation of Household Vehicle Use in Zhongshan Metropolitan Area, China. Sustainability 2014, 6, 4910–4930. [Google Scholar] [CrossRef]
  33. Zhang, Q.Y.; Wei, Y.M.; Tian, W.L. Impact of national vehicle emission standards on vehicle pollution emission factors. Res. Environ. Sci. 2015, 5, 606–612. [Google Scholar]
  34. Wang, H.; Yu, L.; Hao, H.; Song, G.; Guo, Y. Calculation of vehicle specification power for heavy-duty vehicles. SAFE Environ. Eng. 2011, 18, 124–128. [Google Scholar]
  35. Ministry of Environmental Protection of the People’s Republic of China; General Administration of Quality Supervision Inspection and Quarantine of the People’s Republic of China. Limits and Measurement Method for Exhaust Pollutants from Compression Ignition and Gas Fuelled Positive Ignition Engines of Vehicles (III, IV, V); China Environmental Publishing: Beijing, China, 2005.
  36. Department of Environmental Protection of Hei Longjiang Province; Hei Longjiang Bureau of Quality and Technical Supervision. Limits for Exhaust Pollutants from In-Use Vehicles Equipped Ignition Engine under Steady-State Loaded Mode Conditions; Hei Longjiang Environmental Publishing: Harbin, China, 2006.
  37. Xu, Y.; Yu, L.; Song, G. VSP-Bin division for light-duty vehicles oriented to carbon dioxide. Acta Sci. Circumst. 2010, 30, 1358–1365. [Google Scholar]
  38. Prati, M.V.; Costagliola, M.A.; Tommasino, C.; Della Ragione, L.; Meccariello, G. Road Grade Influence on the Exhaust Emissions of a Scooter Fuelled with Bioethanol/Gasoline Blends. Transp. Res. Procedia 2014, 3, 790–799. [Google Scholar] [CrossRef]

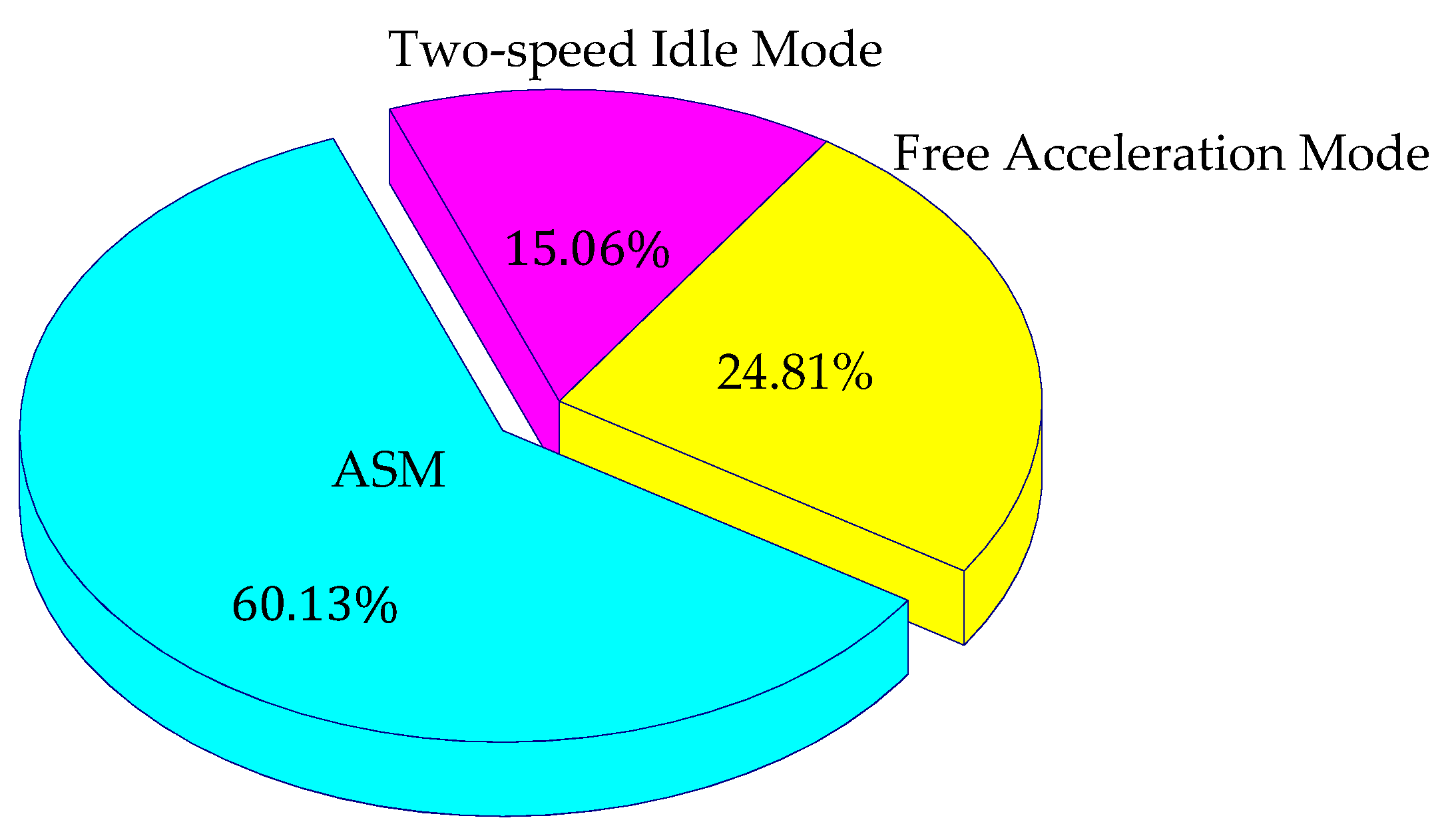

Figure 1. Proportion of test data samples.
Figure 1. Proportion of test data samples.
Sustainability 09 01430 g001

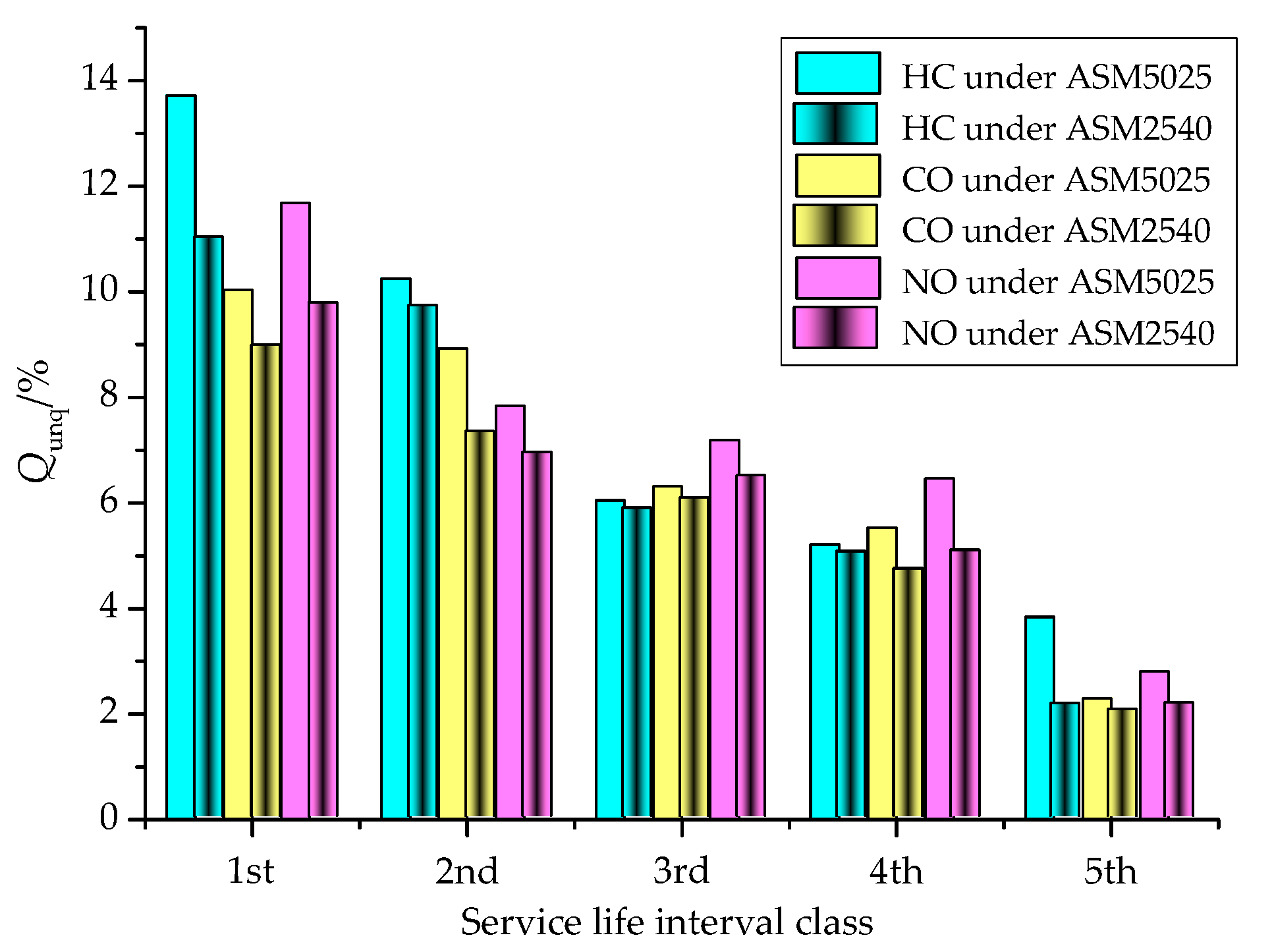

Figure 2. Unqualified rate comparison.
Figure 2. Unqualified rate comparison.
Sustainability 09 01430 g002

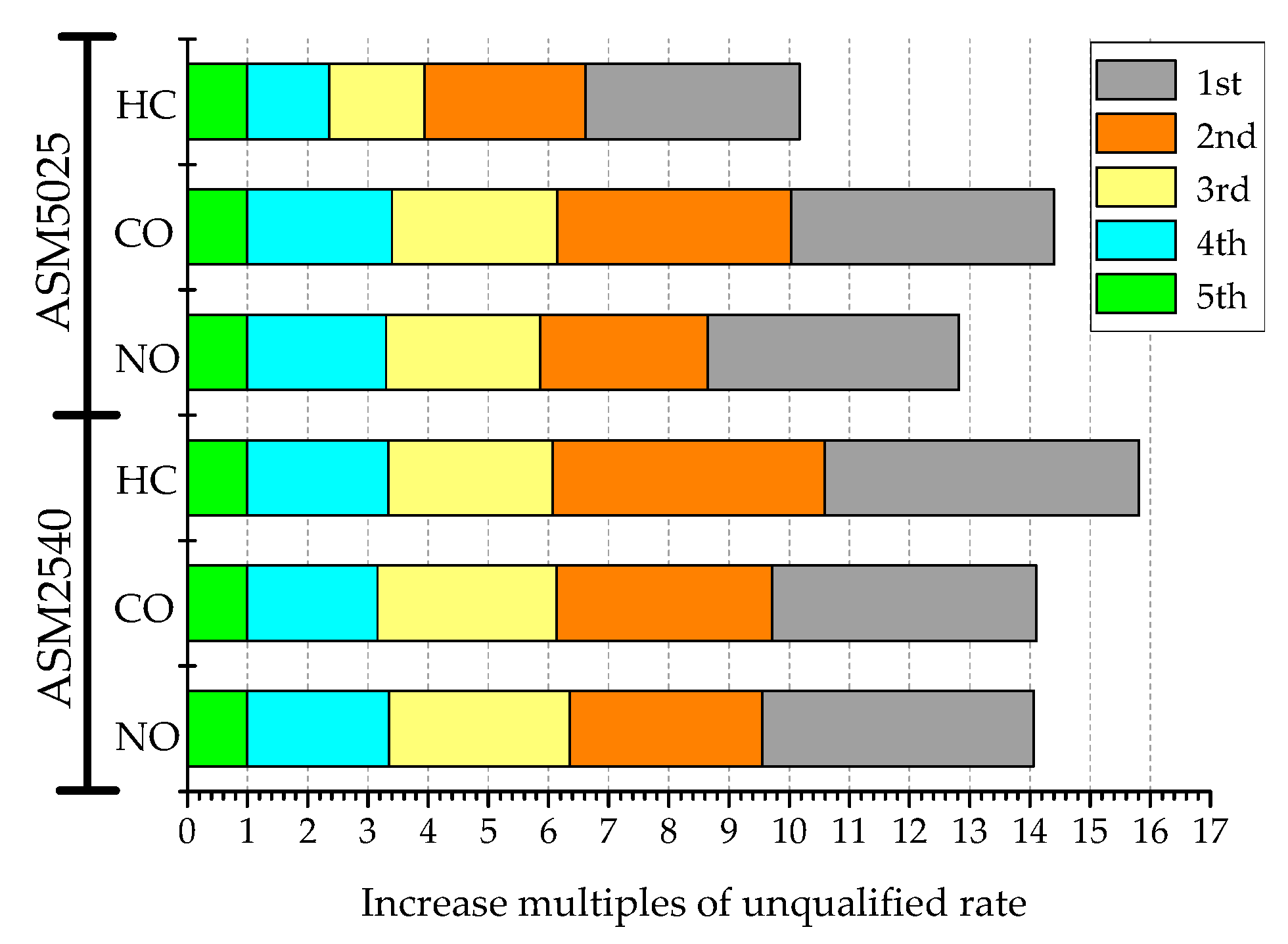

Figure 3. Increase multiples comparison of unqualified rate.
Figure 3. Increase multiples comparison of unqualified rate.
Sustainability 09 01430 g003

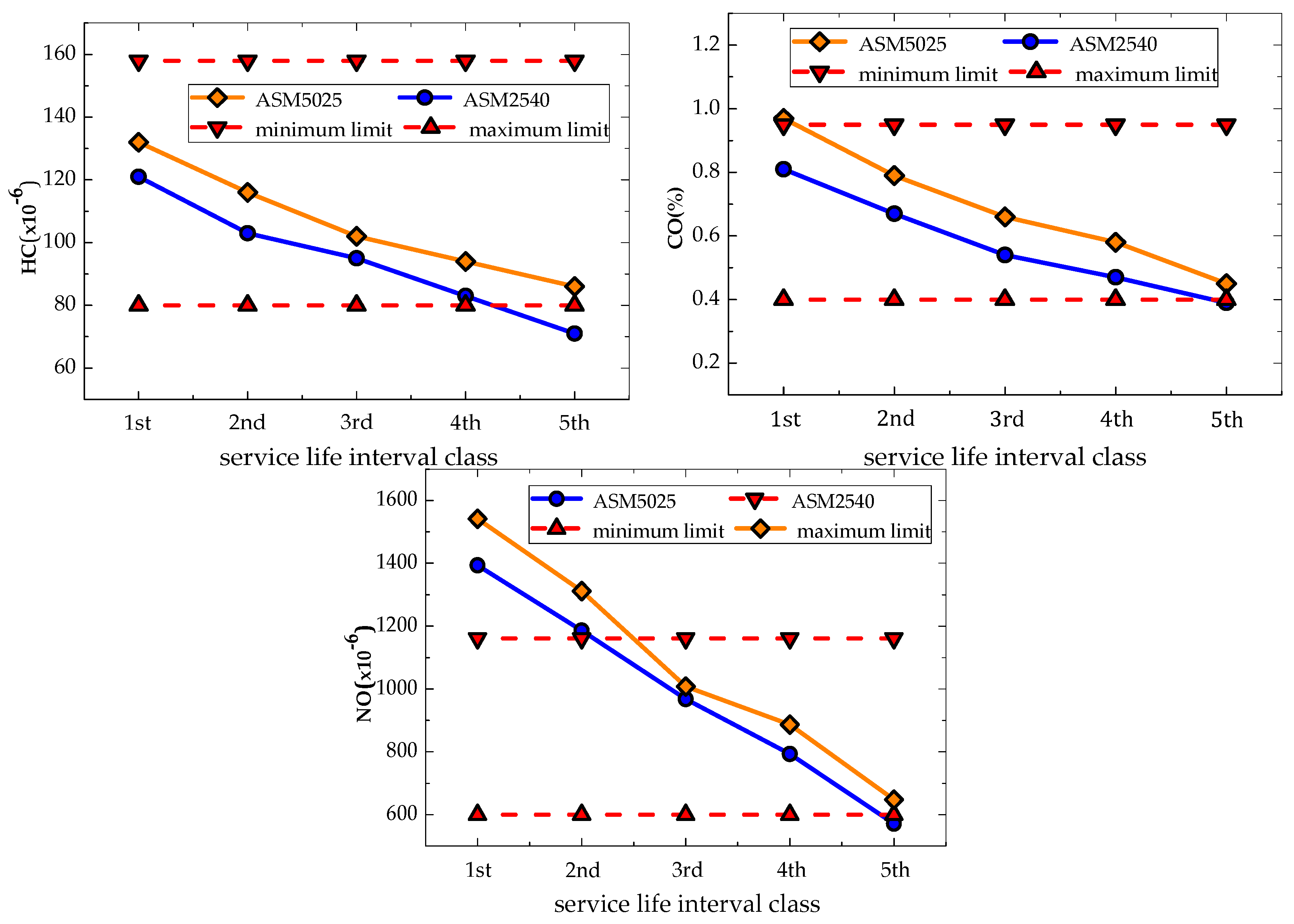

Figure 4. Variation tendencies of average of detection results.
Figure 4. Variation tendencies of average of detection results.
Sustainability 09 01430 g004

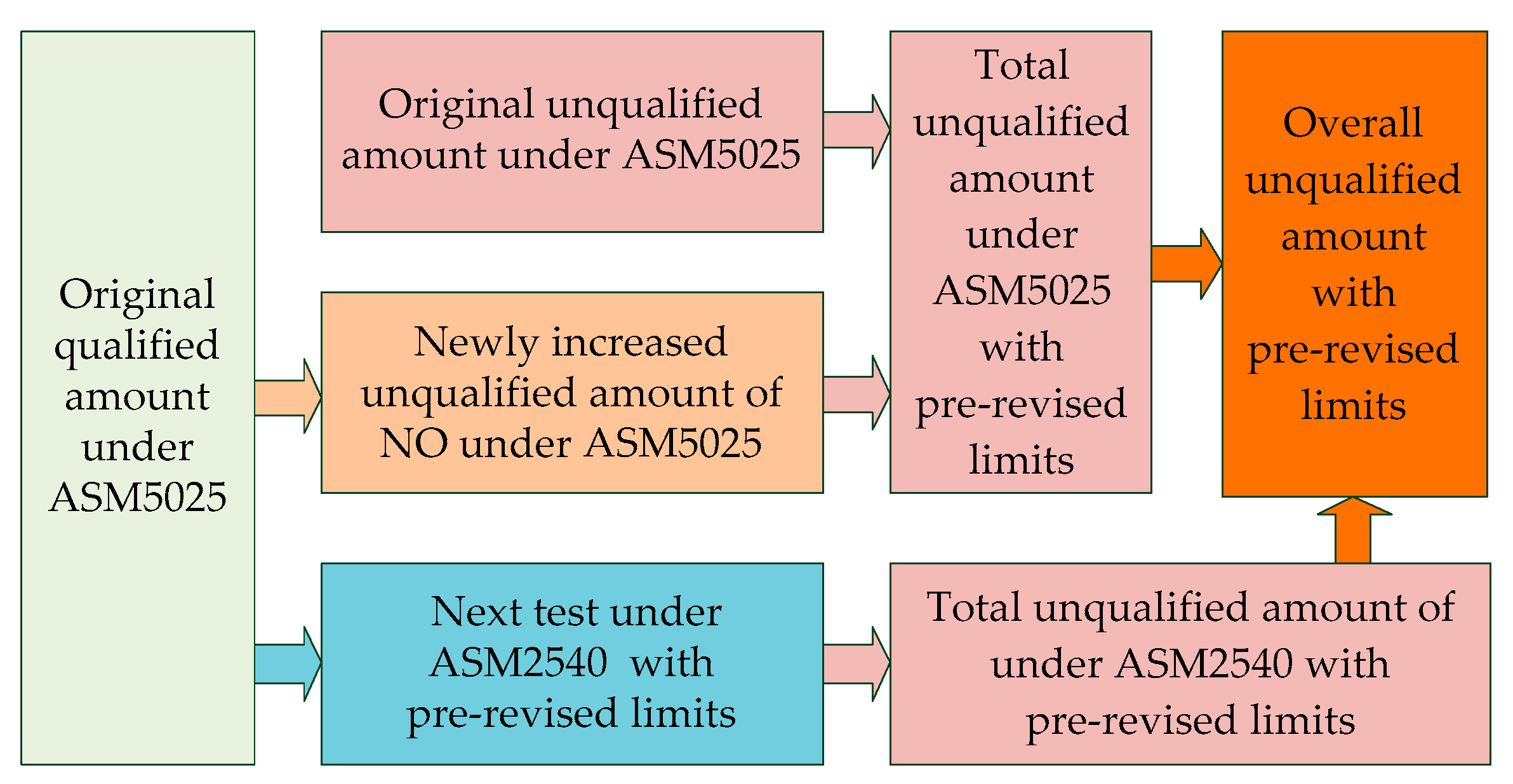

Figure 5. Prediction and analysis processes for total unqualified amount.
Figure 5. Prediction and analysis processes for total unqualified amount.
Sustainability 09 01430 g005
Table 1. Classification rule of service life interval for in-use vehicles.
Table 1. Classification rule of service life interval for in-use vehicles.
Interval ClassClassification Conditions of Service Life IntervalService LifeNational StandardAnalog Standard
1stRegistration date before 15 April 2001>12------
2ndRegistration date between 16 April 2001and 30 June 20049–12GB 18352.1-2001 China IEuro I
3rdRegistration date between 1 July 2004 and 30 June 20076–8GB 18352.2-2001 China IIEuro II
4thRegistration date between 1 July 2007 and 30 June 20111.5–5GB 18352.3-2005 China III, IVEuro III
5thRegistration date between 1 July 2011 and 31 December 2012<1.5Euro IV
Table 2. Median values of Class I and Class II emissions recommended by HJ/T 240-2005.
Table 2. Median values of Class I and Class II emissions recommended by HJ/T 240-2005.
RM (kg)Class IClass II
ASM5025ASM2540ASM5025ASM2540
HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)
RM ≤ 10201751.7534001702.1531501750.9514001701.051275
1020 < RM ≤ 12501451.4527501401.8027001450.8011501400.851025
1250 < RM ≤ 14701301.3024501251.6522751300.7510001250.80925
1470 < RM ≤ 17001201.2021751151.4520251200.659001150.75825
1700 < RM ≤ 19301001.0018001001.2016751000.607501000.60675
1930 < RM ≤ 2150900.901650901.151500900.50675900.55625
2150 < RM ≤ 2500850.851400801.001300850.45575800.50525
Note: ASM5025: ASM5025 test conditions; ASM2540: ASM2540 test conditions.
Table 3. Unqualified rate (UR) based on service life interval class under ASM conditions.
Table 3. Unqualified rate (UR) based on service life interval class under ASM conditions.
Interval ClassASM5025ASM2540
Test SamplesHCCONOTest SamplesHCCONO
UAUR (%)UAUR (%)UAUR (%)UAUR (%)UAUR (%)UAUR (%)
1st473865013.7244010.0455311.68330536511.032968.963239.77
2nd767578710.256858.936027.8462146049.724557.324316.93
3rd13,8478386.058756.329967.1912,7317475.877716.068256.48
4th28,96415095.2116025.5318716.4628,34714295.0413354.7114375.07
5th391153.8492.30112.8136982.1582.0482.16
Total55,61537996.8336116.4940337.2550,96631536.1928655.6230245.93
Table 4. Increase multiples comparison of unqualified rate in different service life intervals.
Table 4. Increase multiples comparison of unqualified rate in different service life intervals.
Interval Class1st2nd3rd4th5th
ASM5025HC3.572.671.581.361.00 (3.84%)
CO4.373.882.752.401.00 (2.30%)
NO4.172.792.562.301.00 (2.81%)
ASM2540HC5.224.522.732.341.00 (2.15%)
CO4.393.592.972.161.00 (2.04%)
NO4.523.203.002.351.00 (2.16%)
Table 5. Average of detection results.
Table 5. Average of detection results.
Interval ClassASM5025ASM2540
HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)
1st1320. 9715421210.811394
2nd1160.7913121030.671186
3rd1020.661008950.54968
4th940.58887830.47793
5th860.45648710.39571
Table 6. Average values of the limits of vehicle emission pollutants.
Table 6. Average values of the limits of vehicle emission pollutants.
Average Value of Limit (RM ≤ 2500 kg)Minimum Limit (▼)Maximum Limit (▲)
ASM5025ASM2540ASM5025ASM2540
HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)
Class I1591.4827351571.962557830.91729771.01593
Class II1590.912141571.01107830.4629770.4570
Average LimitHC (×10−6)CO (%)NO (×10−6)HC (×10−6)CO (%)NO (×10−6)
Class I1581.722646800.951665
Class II1580.951160.5800.4600
Table 7. Unqualified rate under ASM test conditions based on DB 23/1061-2006.
Table 7. Unqualified rate under ASM test conditions based on DB 23/1061-2006.
Testing MethodVehicles AmountRatio (%)Individual Unqualified Rate (%)Total Unqualified Rate (%)
ASM57,99757.00ASM5025ASM25408.55
HCCONOHCCONO
3.832.043.281.020.361.70
6.412.14
Table 8. Pre-revised Class I emission limits in a new standard.
Table 8. Pre-revised Class I emission limits in a new standard.
RM (kg)ASM5025ASM2540
HC (10−6)CO (%)NO (10−6)HC (10−6)CO (%)NO (10−6)
RM ≤ 10201801.52800/3200/26001701.62500/3000/2400
1020 < RM ≤ 12501701.32300/2800/21001601.42100/2600/2000
1250 < RM ≤ 14701501.12100/2400/19001501.22000/2300/1750
1470 < RM ≤ 17001301.01800/2100/17001301.11600/2000/1550
1700 < RM ≤ 19301200.91600/1800/14001201.01500/1600/1300
1930 < RM ≤ 21501100.81400/1600/13001100.91300/1400/1150
2150 < RM ≤ 25001000.71200/1300/11001000.81100/1200/1000
Average Limit1886/2171/1726Average Limit1729/2014/1600
Table 9. Pre-revised Class II emission limits in a new standard.
Table 9. Pre-revised Class II emission limits in a new standard.
RM (kg)ASM5025ASM2540
HC (10−6)CO (%)NO (10−6)HC (10−6)CO (%)NO (10−6)
RM ≤ 10201500.91000/1300/9501401.0900/1200/850
1020 < RM ≤ 12501300.8900/1100/8001200.9800/1000/700
1250 < RM ≤ 14701200.7800/1000/7001100.8700/900/650
1470 < RM ≤ 17001100.6700/900/6001000.7650/800/550
1700 < RM ≤ 19301000.5600/700/500900.6550/650/450
1930 < RM ≤ 2150900.4500/600/450800.5450/550/450
2150 < RM ≤ 2500900.4450/500/400800.5400/450/350
Average Limit707/871/629Average Limit636/793/571
Table 10. Unqualified increment under the pre-revised Class I standard limits.
Table 10. Unqualified increment under the pre-revised Class I standard limits.
RM (kg)ASM5025ASM2540
Original LimitsPre-Revised LimitsTightened Proportion (%)Unqualified IncrementOriginal LimitsPre-Revised LimitsTightened Proportion (%)Unqualified Increment
RM ≤ 10203200280012.513000250016.6716
1020 < RM ≤ 12502800230017.9102600210019.2331
1250 < RM ≤ 14702400210012.582300200013.0430
1470 < RM ≤ 17002100180014.3202000160020.0085
1700 < RM ≤ 19301800160011.114160015006.2514
1930 < RM ≤ 21501600140012.57140013007.145
2150 < RM ≤ 2500130012007.696120011008.3313
Average tightened proportion (%)12.6466Average tightened proportion (%)12.95194
Total tightened proportion: 12.80%
Total unqualified increment: 270
Table 11. Unqualified increment under the pre-revised Class II standard limits.
Table 11. Unqualified increment under the pre-revised Class II standard limits.
RM (kg)ASM5025ASM2540
Original LimitsPre-Revised LimitsTightened Proportion (%)Unqualified IncrementOriginal LimitsPre-Revised LimitsTightened Proportion (%)Unqualified Increment
RM ≤ 10201300100023.08421120090025.00813
1020 < RM ≤ 1250110090018.18599100080020.00913
1250 < RM ≤ 1470100080020.00141090070022.221501
1470 < RM ≤ 170090070022.2071680065018.75537
1700 < RM ≤ 193070060014.2933665055015.38212
1930 < RM ≤ 215060050016.6728355045018.18171
2150 < RM ≤ 250050045010.0013245040011.1190
Average tightened proportion (%)17.784927Average tightened proportion (%)18.665434
Total tightened proportion: 18.22%
Total unqualified increment: 10,361
Table 12. Increment prediction of unqualified vehicles after revising the Class II emission limits once more.
Table 12. Increment prediction of unqualified vehicles after revising the Class II emission limits once more.
RM (kg)ASM5025ASM2540
Original LimitsLoosened up LimitsTightened Proportion (%)Unqualified IncrementOriginal LimitsLoosened up LimitsTightened Proportion (%)Unqualified Increment
RM ≤ 10201300110015.43231200100016.7586
1020 < RM ≤ 1250110010009.10599100090010.0913
1250 < RM ≤ 1470100090010.0141090080011.11501
1470 < RM ≤ 170090080011.147980070012.5440
1700 < RM ≤ 19307006507.1433665055015.4212
1930 < RM ≤ 21506005508.3328355045018.2171
2150 < RM ≤ 25005005000.0013245040011.190
Average tightened proportion (%)10.183562Average tightened proportion (%)13.573913
Total tightened proportion: 11.88%
Total unqualified increment: 7475
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
