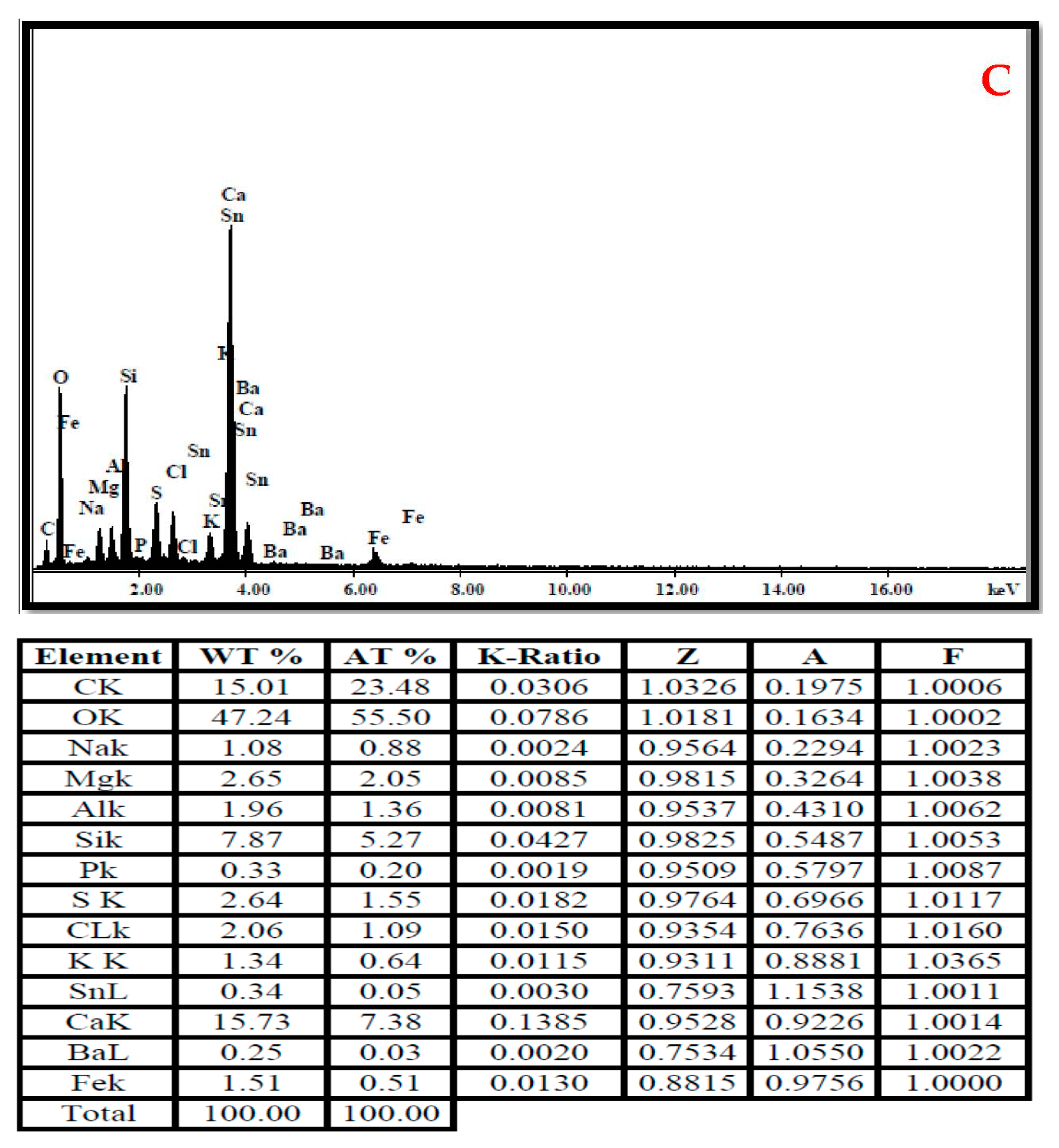

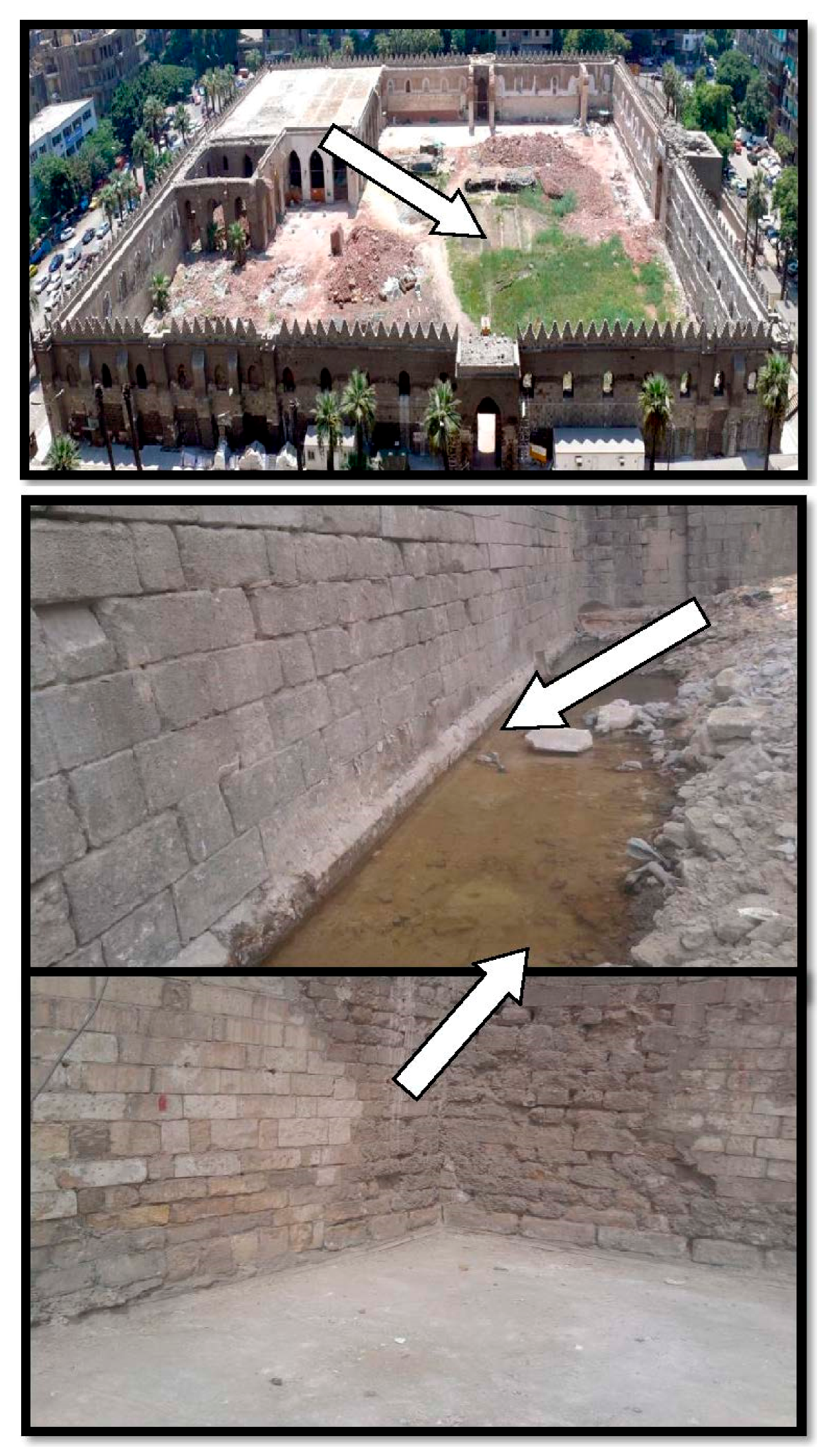

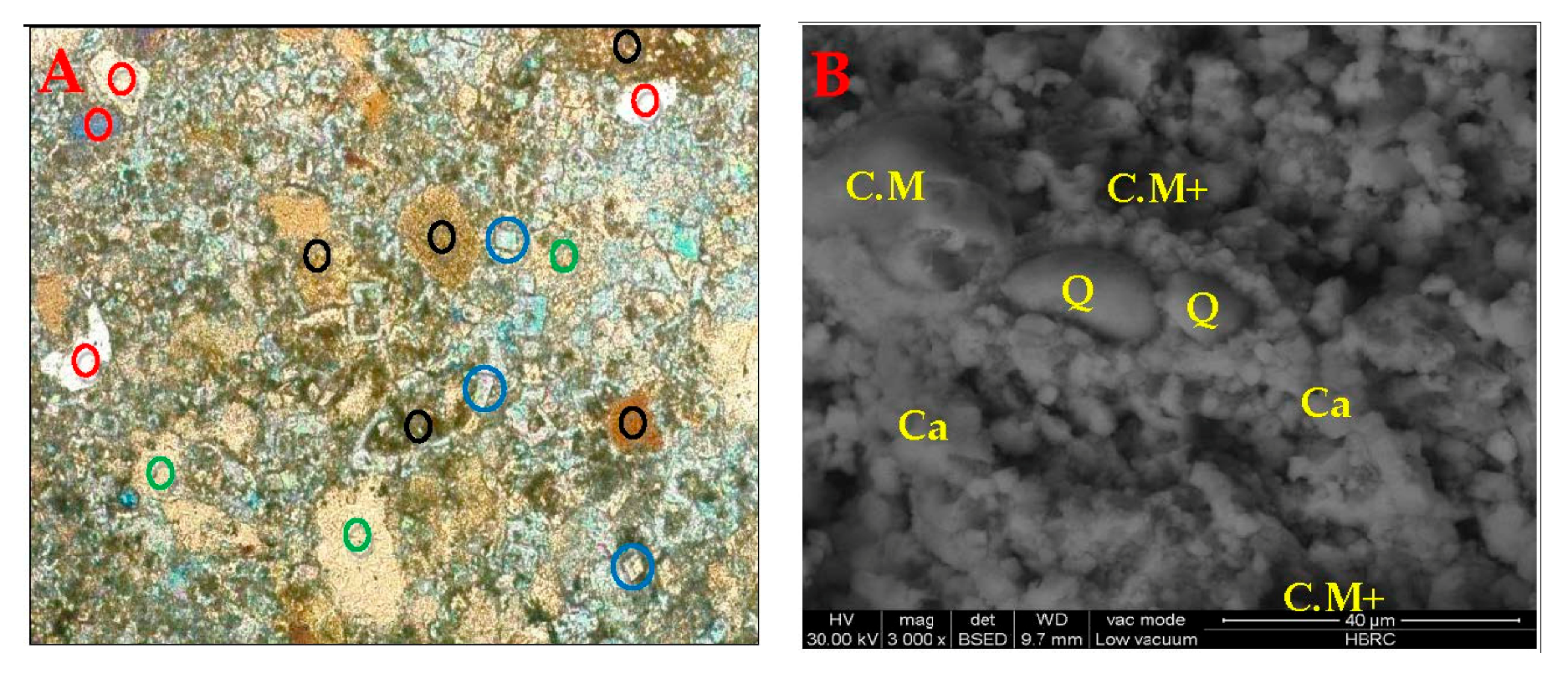

The unwanted changes in valuable historic calcareous stone monuments due to exposure to many physical and chemical effects may lead to its deterioration. The growing interest in the field of conservation of stone monuments encourages the development of consolidation and water-repellent materials. The aim of this study is to evaluate the effectiveness of CaCO3
nanoparticles as a consolidation and protection material for calcareous stone monuments, when those nanoparticles used are dispersed in acrylic copolymer; polyethylmethacrylate (EMA)/methylacrylate (MA) (70/30), respectively. Samples were subjected to artificial aging by relative humidity/temperature to show the optimum conditions of durability and the effectiveness of the nano-mixture in improving the physical and mechanical properties of the stone material. The synthesis process of CaCO3
nanoparticles/polymer nanocomposite has been prepared by in situ emulsion polymerization system. The prepared nanocomposites with 0.15 g CaCO3

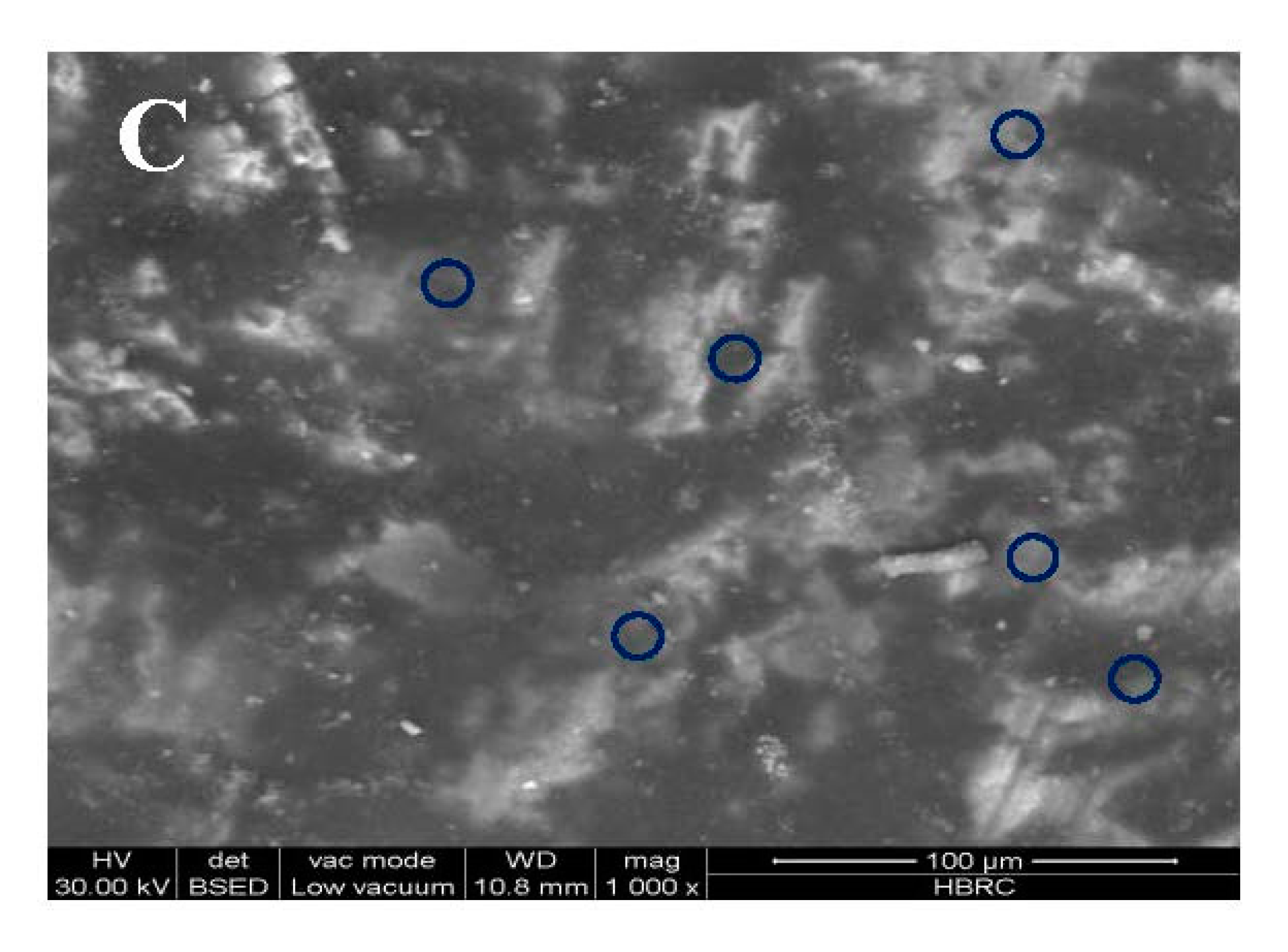

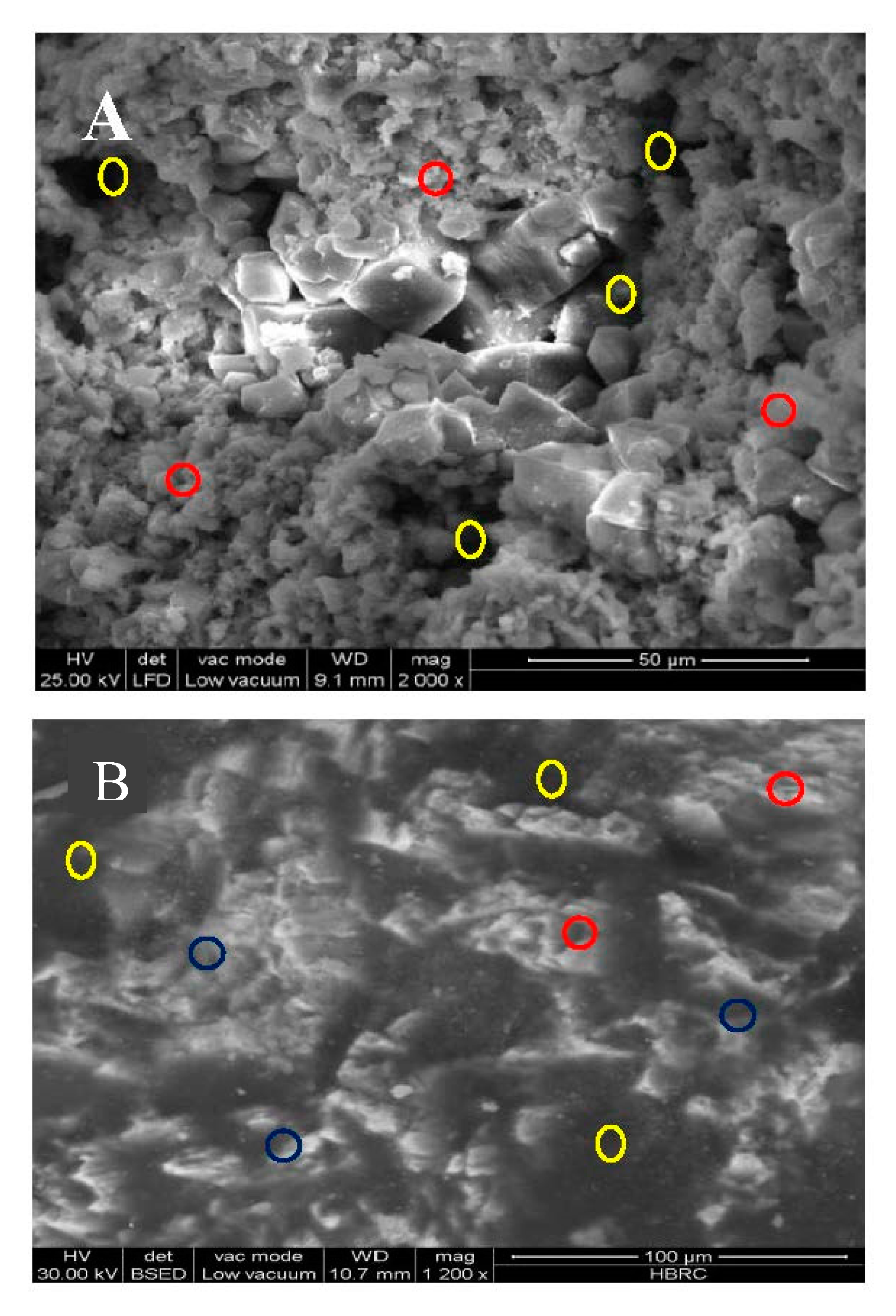

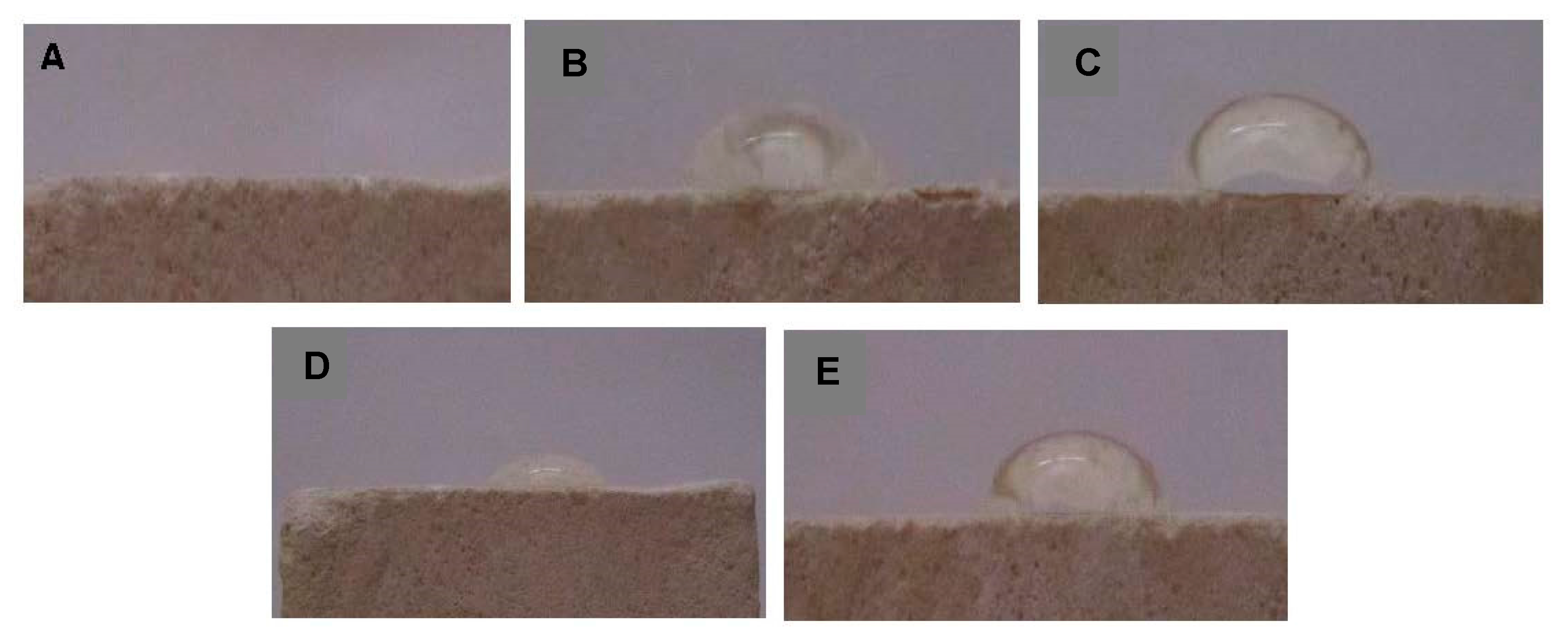

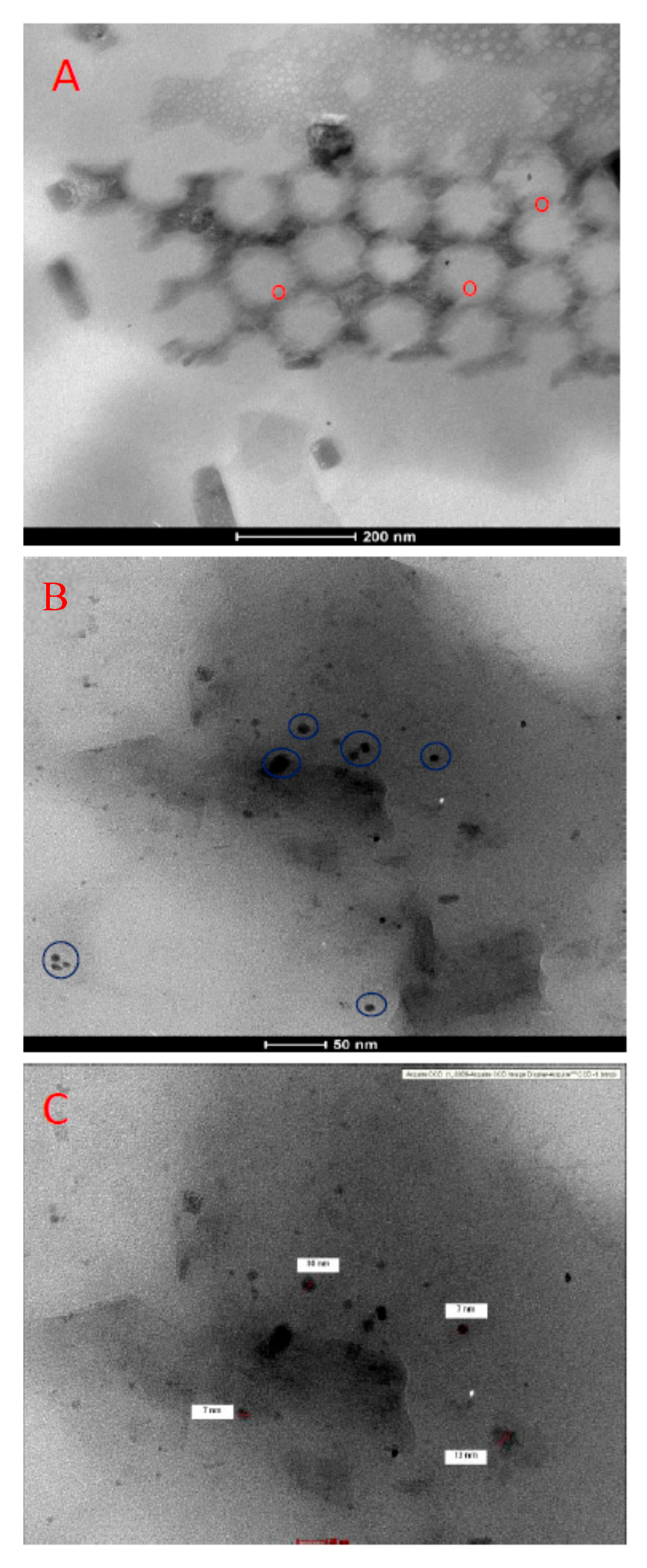

nanoparticles showed obvious transparency features and represent nanocomposites coating technology with hydrophobic, consolidating and good protection properties. Some tests were performed in order to estimate the superficial consolidating and protective effect of the treatment. The obtained nanocomposites have been characterized by TEM, while the surface morphology before and after treatment and homogeneous distribution of used consolidation materials on stone surface were examined by SEM. Improvement of stone mechanical properties was evaluated by compressive strength tests. Change in water-interaction properties was evaluated by water absorption capillarity measurements, and colorimetric measurements were used to evaluate the optical appearance. Taken together, the results indicate that CaCO3
/polymer nanocomposite is a completely compatible, efficient material for the consolidation of artistic and architectural limestone monuments capable of enhancing the durability of limestone toward artificial aging and improving the stone mechanical properties compared to the samples treated with pure acrylic copolymer without Calcium carbonate nanoparticles.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
