Sustainability 2017, 9(12), 2288; doi:10.3390/su9122288

Article
Passive Optimization Design Based on Particle Swarm Optimization in Rural Buildings of the Hot Summer and Warm Winter Zone of China
School of Environment Science and Engineering, Tianjin University, 92 Weijin Road, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Received: 14 November 2017 / Accepted: 6 December 2017 / Published: 13 December 2017

Abstract

:
The development of green building is an important way to solve the environmental problems of China’s construction industry. Energy conservation and energy utilization are important for the green building evaluation criteria (GBEC). The objective of this study is to evaluate the quantitative relationship between building shape parameter, envelope parameters, shading system, courtyard and the energy consumption (EC) as well as the impact on indoor thermal comfort of rural residential buildings in the hot summer and warm winter zone (HWWZ). Taking Quanzhou (Fujian Province of China) as an example, based on the field investigation, EnergyPlus is used to build the building performance model. In addition, the classical particle swarm optimization algorithm in GenOpt software is used to optimize the various factors affecting the EC. Single-objective optimization has provided guidance to the multi-dimensional optimization and regression analysis is used to find the effects of a single input variable on an output variable. Results shows that the energy saving rate of an optimized rural residence is about 26–30% corresponding to the existing rural residence. Moreover, the payback period is about 20 years. A simple case study is used to demonstrate the accuracy of the proposed optimization analysis. The optimization can be used to guide the design of new rural construction in the area and the energy saving transformation of the existing rural houses, which can help to achieve the purpose of energy saving and comfort.
Keywords:
rural residence; green building; energy consumption; multidimensional optimization; particle swarm optimization; regression analysis

1. Introduction

Owing to the significant increase in global temperatures, climate change has become more apparent over recent decades [1]. In turn, many countries and governments have taken measures to reduce the adverse effects of climate warming [2]. Globally, construction industries consumes 40% of the the total energy production, produces 30–40% of all solid wastes, and emits 35–40% of CO2 [3,4]. The green building (GB) has gained substantial support as a solution for minimizing the environmental impacts of buildings to achieve sustainable development [5].

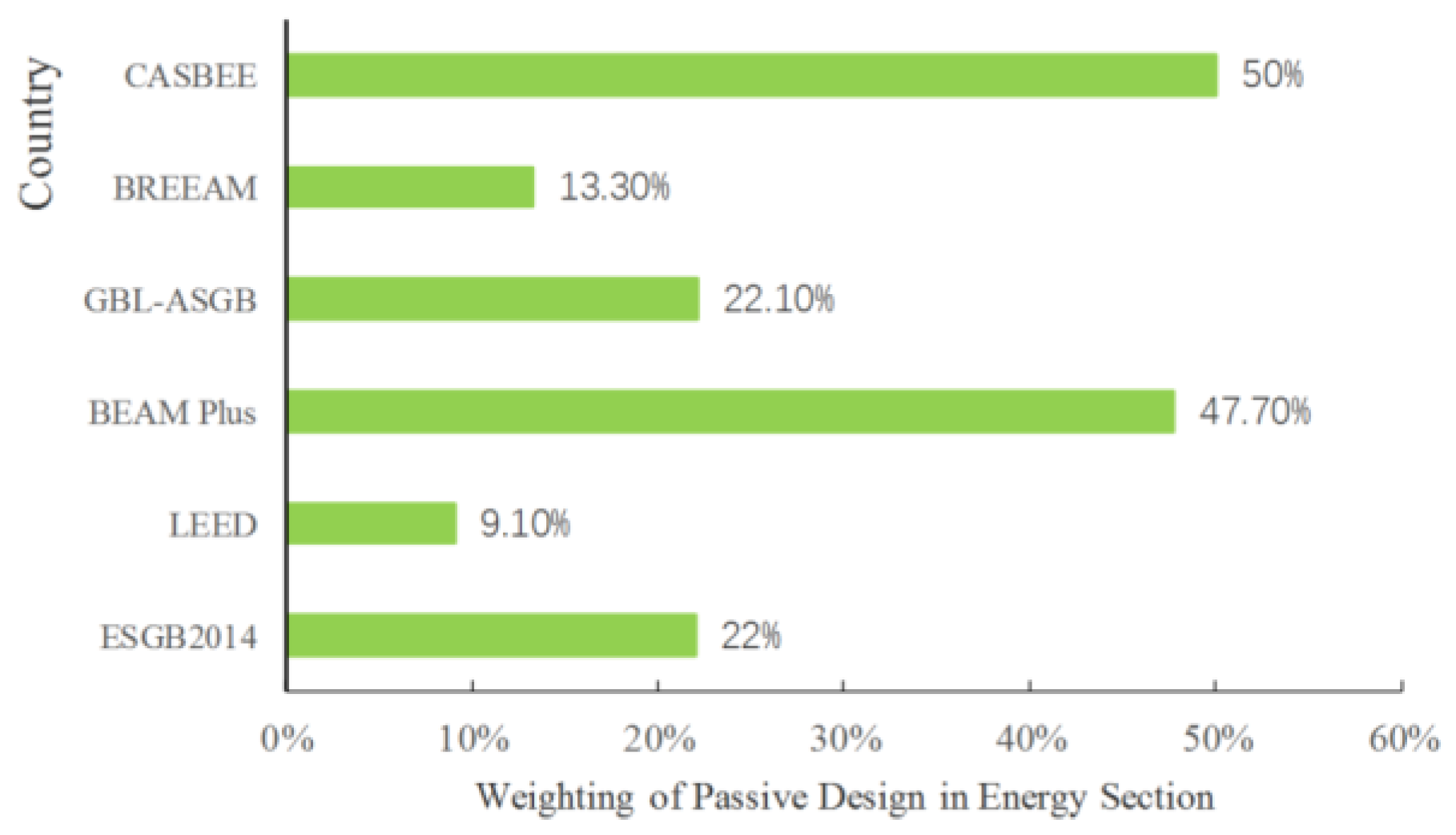

Developing green buildings is an important way to solve the environmental problems of China’s construction industry. With the popularization of the green building, the construction industry began to transform from a high resource consumption industry to one with low and environmental impact [6]. China’s 12th “Five-Year plan” focused on popularizing the concept of green development, improving energy saving technology standards and realizing the scientific transformation of urban and rural construction mode [7]. The 13th “Five-Year plan” will still have energy-efficient building and green building development as focus point. In addition, according to the regulations that the new urban civil construction meet all the energy conservation standard requirements will, by 2020, have the urban green buildings account for 50% of the new buildings [8]. China’s green buildings are all distributed in cities and towns, but at present, China is still a big agricultural country. The rural population accounts for about 43.9% of the total population [9]. A total housing construction area of about 27.8 billion square meters and accounting for about 65% in the rural area of China [10], the energy-saving work of rural buildings is also particularly important. In addition, because the majority of researchers concentrated in universities and the lack of appropriate technical guidance and policy support, the energy-saving technical guidance or standards for China’s rural areas are still very scarce. Almost all of China’s existing energy-saving standards are aimed at the urban buildings [11]. With the development of economy, people’s demand for indoor thermal environment is increasing, correspondingly. The proportion of building energy consumption is also increasing [12]. So, the rural buildings should also take measures to move closer to green buildings gradually. But at present, the energy saving design and renovation of rural areas is still blindly copying the urban living standards, the construction of rural residential buildings has always been the individual behavior of farmers, who rarely consider the energy-saving design [10]. Within comparison to the developed countries, China’s building energy-saving work started late, especially in the small cities and rural areas. This paper based on the investigation of some rural areas, sums up that the rural residential building mainly presents the following characters: only 7% of the farmers take the roof insulation measures, about 60% buildings are without the shading devices, the orientation of the building is cluttered. See Section 2.1 for details.
The energy saving research should combine with the local natural climatic conditions and resource conditions [13]. Building energy efficiency is mainly embodied in two aspects: active energy-saving design and passive energy-saving design. The former exists in the late period of building construction, mainly for improving energy efficiency; which includes the equipment installed, lighting systems, heating ventilating & air conditioning system (HVAC) [14]. The latter exists in the early stage of building’s construction and mainly for reducing the building energy demand [15]. Among them, the influence of the building envelope and shape coefficient cannot be ignored [16,17,18,19,20]. Passive design occupies a large proportion in different green building evaluation standards. (As show in Figure 1). The process of green building design requires the project team to constantly hold in mind the building’s performance in respect of the energy efficiency, material use, indoor environment quality and so forth. It takes much less resources to have a major impact on these aspects if the initiatives are taken from the earliest design stage. Main passive design parameters can be classified to four categories as mentioned in the introduction: the building layout, envelope thermophysics, building geometry and infiltration, and air-tightness [21,22,23,24]. In addition, these strategies can be further refined, as shown in Figure 2. Their variation ranges are determined in compliance with the local building practices and engineering experiences [25,26,27]. For instance, the maximum possible window U-value is determined by the effective upper limit of the glazing generated by EnergyPlus, while the maximum external obstruction angle (defined as the angle between the horizontal line at the window sill level and the line connected with the highest point of obstruction faced by the building [24,25,26]) is derived by assuming a typical building height of 100 m and a minimum road width of 5 m according to the Building Ordinance in Hong Kong [28]. Different studies use different energy consumption evaluation indicators. Most of the heat load, cold load, or annual air conditioning load [29,30,31]. Additionally, there are some typical indicators such as EC, peak design load, and load distribution [32,33].
For solving the EC, the simulation software is simple and easy to operate, which provides the research foundation for the passive energy-saving optimization design. The reliability of these simulation tools has been tested and proved by various studies [34,35,36,37,38,39,40,41,42,43]. For example, a study developed by Yaşa [44] analyzed the effects of 7 different courtyard shapes on indoor thermal comfort and EC, as well as the influence of solar absorption on building surface under different courtyard shapes and solar movement on buildings thermal performance in the hot-wet, hot-dry and cold climate zone by using the CFD software (ANSYS, USA). N Sadafi et al. [9] tested the influence of the courtyard on the thermal performance of the bungalow in tropical climate zone, by using the Ecotect software (Square One, Britain).

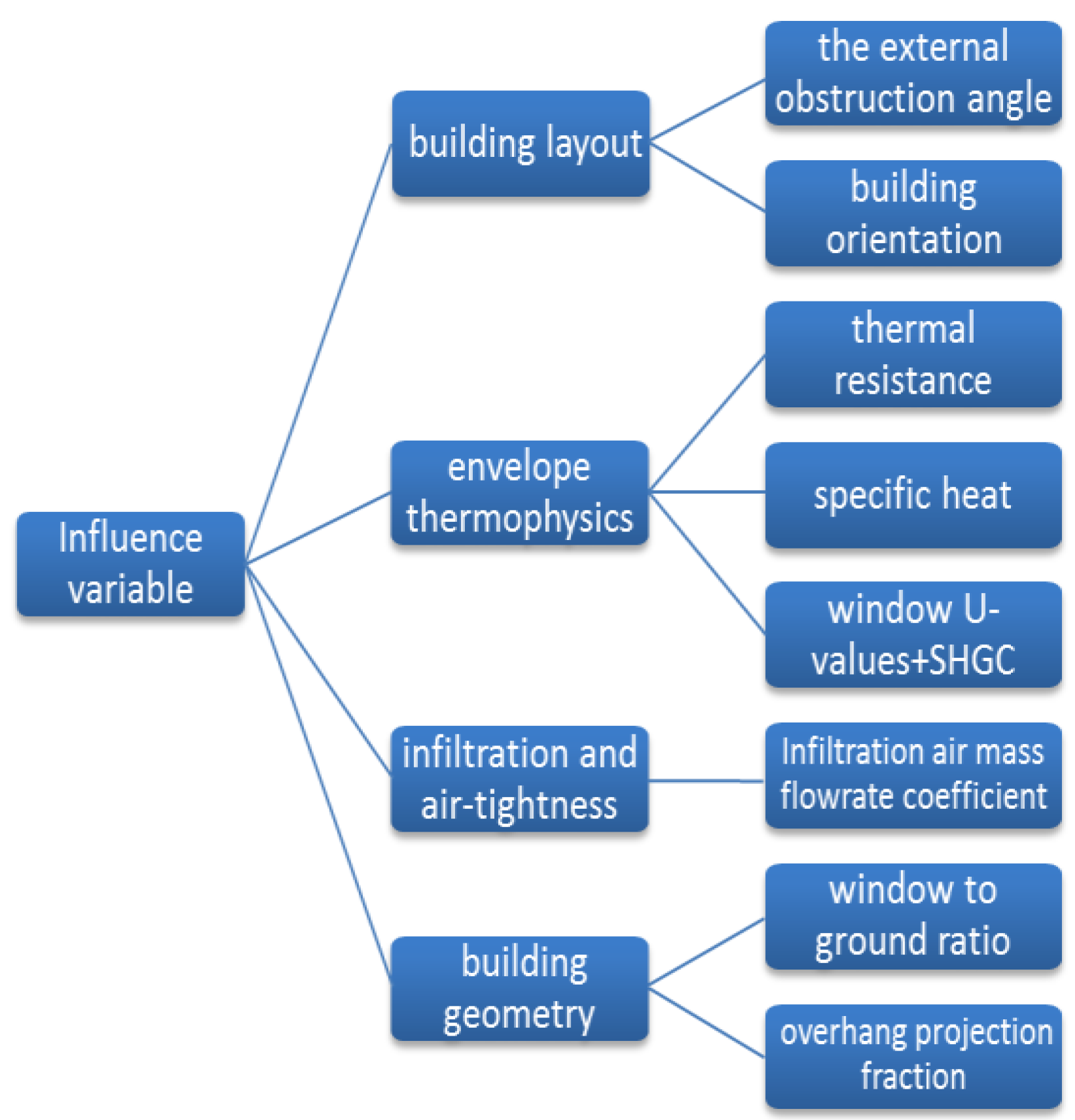

The existing research on residence shows that a large number of scholars have conducted a series of targeted and in-depth studies on the existing residential buildings in different climatic zones from different perspectives, but only a few involve the rural residential buildings in the HWWZ. Moreover, most studies have only analyzed the impact of a single factor on EC. A study developed by Seyedehzahra Mirrahimi et al. [19] has shown that a strong relationship exists between various building components such as shading devices, external wall, roof and external glazing’ insulation and reducying EC. Based on the example of typical rural houses in Quanzhou City, Fujian, China, this study aims to comprehensively analyze the quantitative relationship between passive design parameters (which include building shape coefficient, thermal performance parameters of enclosure structure, shading measures, and natural ventilation) and EC. It help to achieve energy saving and comfort, and can be used to guide the construction of new countryside and the energy saving reform of the existing rural buildings.
This paper is divided into 5 sections. Section 2 describes the methodology used in the simulations, the result of field investigation and the different influencing factors. The results are presented in Section 3, followed by the discussion in Section 4. The conclusions are presented in Section 5.
(This drawing comes from the author’s hand drawing referring to the green construction standards).

2. Research Methodology

2.1. Field Investigation

Through field investigation, we can know the characteristics of the typical rural housing and the current situation of the energy use, to provide the basis for the study. Therefore, the author investigates 30 rural households, located in three villages in Quanzhou City, Fujian, China.
Because of the limit of economic level and bad weather such as typhoon, coupled with the lack of professional guidance, supervision and management of relevant departments, there are many places to be improved in the building construction.
The main features of the local farmhouses are the following:
(1)
Most of buildings are built along the street. 66% of the building’s direction is roughly south and north, the rest for the east and west.
(2)
The thermal insulation of building envelope is poor. Most of the walls are made of 240 mm thick solid clay brick, which has large heat transfer coefficient (K). Most of the houses with rigid cement flat roofs that lack the necessary insulation that leads the top floor’s temperature to be much higher. A majority of the external windows (Ew) are single layer glass window with poor shading.
(3)
Ew are rarely configured with the necessary external shading components. The vast majority of shade forms are curtains. Accordingly, solar heat gain is great.
(4)

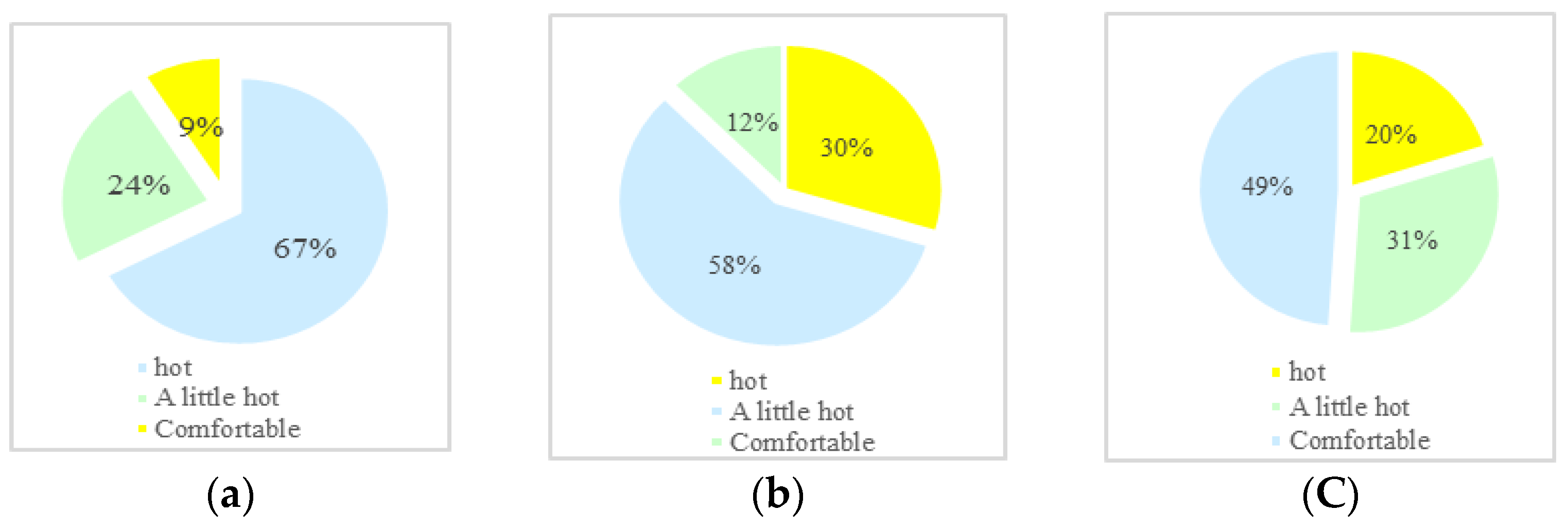

The survey on thermal comfort are shown in Figure 3. Nearly 90% of occupants feel hot in summer; More than half occupants feel more comfortable in the transition season, while nearly 30% occupants feel hot; nearly half occupants in winter feel more comfortable, and nearly 30% cold.
(5)
Most of the houses here are equipped with courtyard to enhance natural ventilation.
(6)

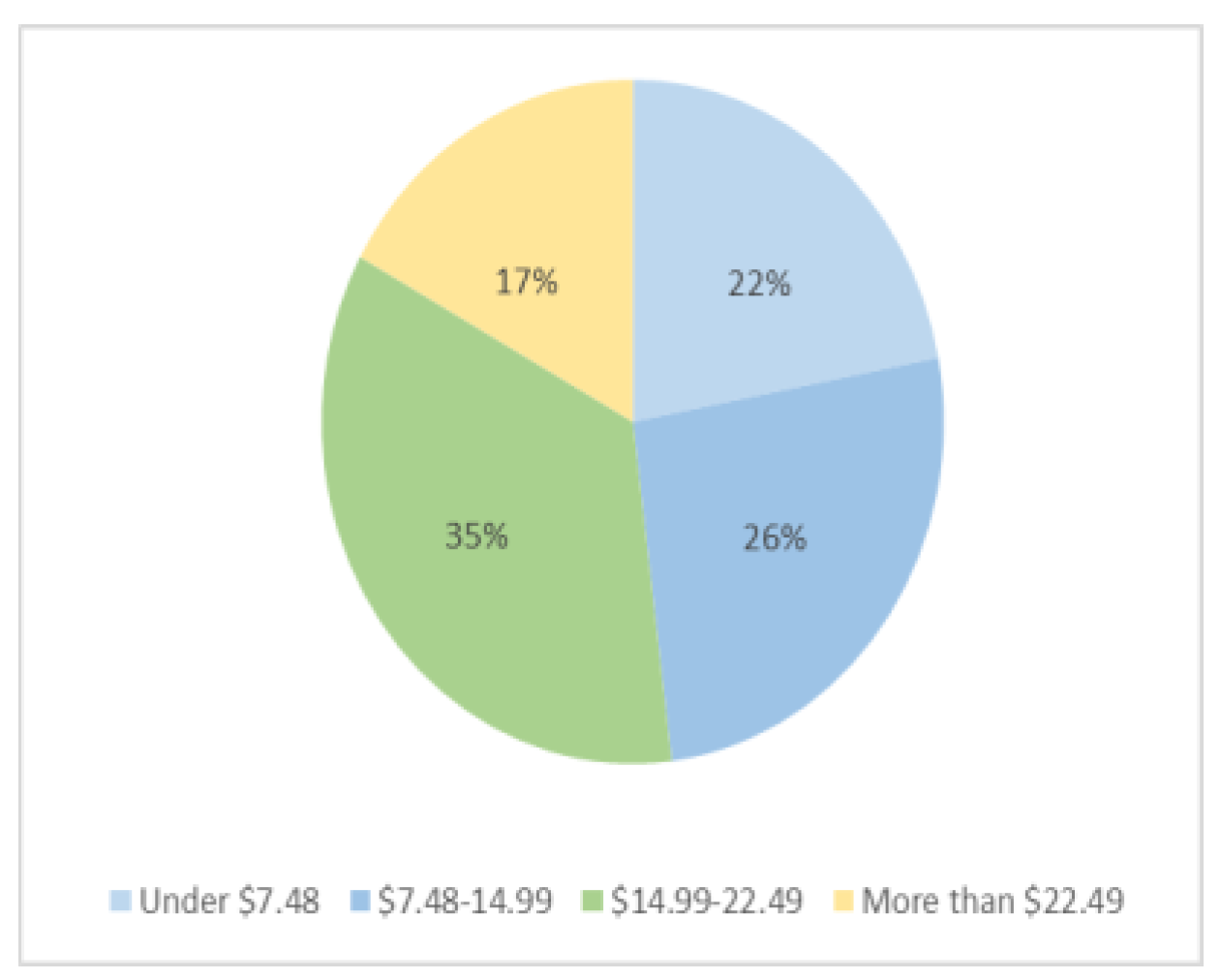

Electric is the main form, in which cooling energy consumption account for the largest. Appliance usage is shown in Table 1. Cooling equipment mainly consists of air conditioners and fans.
(7)
The energy using in the region was electricity, natural gas and coal, among them, electricity consumption approximately accounted for 90.9%. According to the market statistics, the electricity cost distribution of the non-air conditioning season is shown in Figure 4. The average electricity consumption in the air conditioning season is 2–3 times that of the non-air conditioning season. Although the energy used high, but the thermal comfort is relatively poor. How to reduce energy consumption under ensuring indoor thermal comfort is the focus.

2.2. Simulation Model

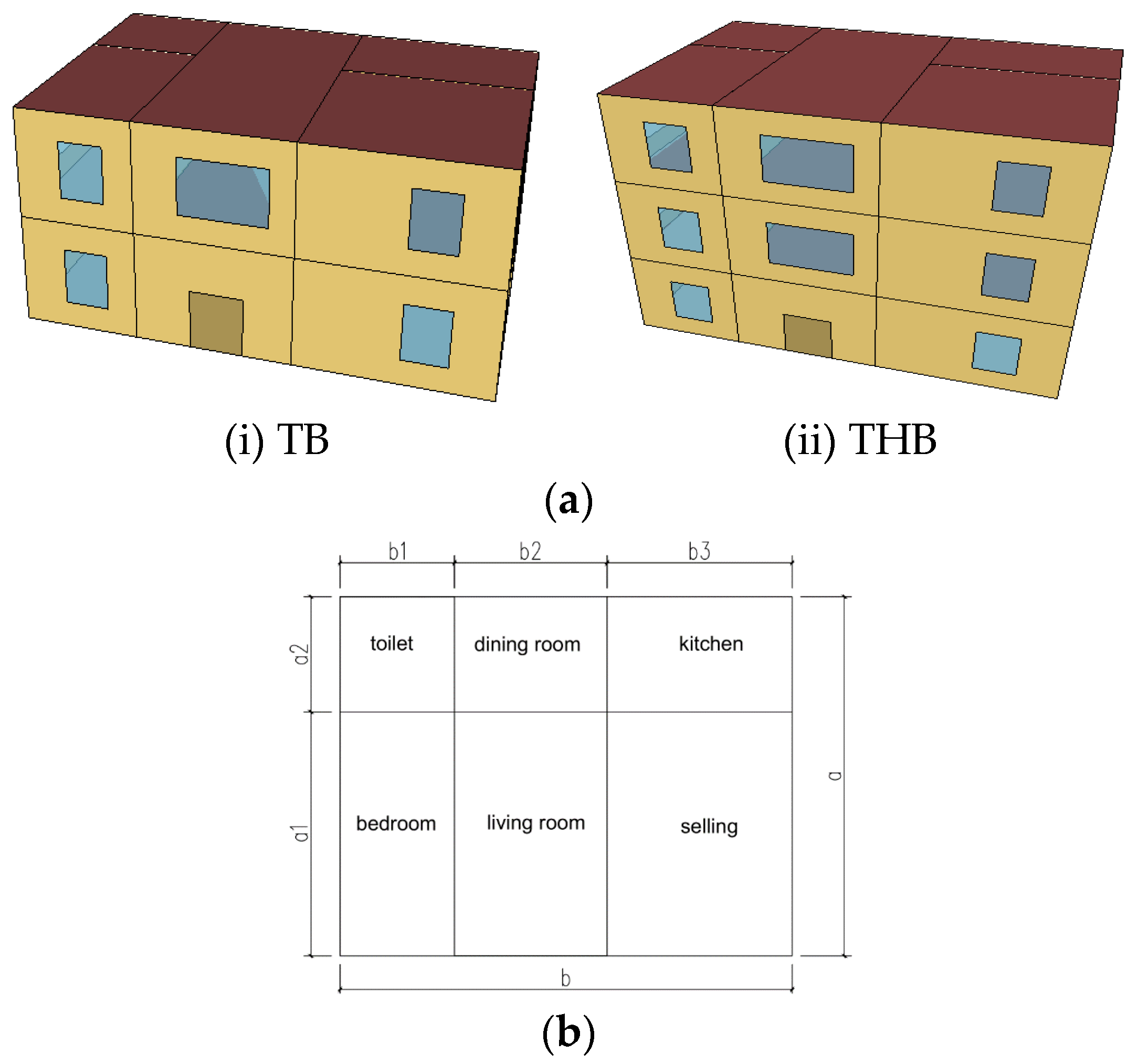

According to the above research results, with the improvement of the economic level, one-storey residence in rural areas has been gradually eliminated, and the two-storey residence (TB) and the three-storey residence (THB) gradually increased. Therefore, the study is based on these two building types. The layout and dimensions of TB and THB has the same layout and size. Their basic information is: the total height is 7.8 m and 11.7 m; the building area is 331.8 m2 and 497.7 m2; the air conditioning area is 136.08 m2 and 204.13 m2, respectively. The volumetric 3D model and the floor plan can be observed in Figure 5. The building was modeled by EnergyPlus software (Department of Energy and Lawrence Berkeley National Laboratory, USA), version 8.1.
Based on the principle of unsteady heat transfer, the dynamic load of the building is calculated by the response coefficient method. This method takes into account the attenuation and the delay effect of the enclosure structure with the outdoor temperature. Therefore, it can accurately simulate the dynamic load and energy consumption of the building. The core of EnergyPlus is the calculation area of air heat balance equation. The specific form is as follows [45]:
i = 1 N q i , c A i + Q o t h e r + G a c p ( T a - o u t T i n ) + Q h e a t - e x t r a = p V C p d T in dt
qi,c—Convective heat transfer, W/m2;
N—Surface number of retaining structures;
Ai—The actual heat transfer area on the envelope surface, m2;
Qother—The latent heat Caused by solar radiation, equipment, lighting and personnel heat convection section and water evaporation, W;
Qheat-extra—the heat need to be discharged, W;
Ga—The sum of the fresh air and the wind, kg;
Cp—Air specific heat capacity at constant pressure, W/(kg·K);
Ta-out—Outdoor air temperature, K;

2.2.1. Meteorological Data

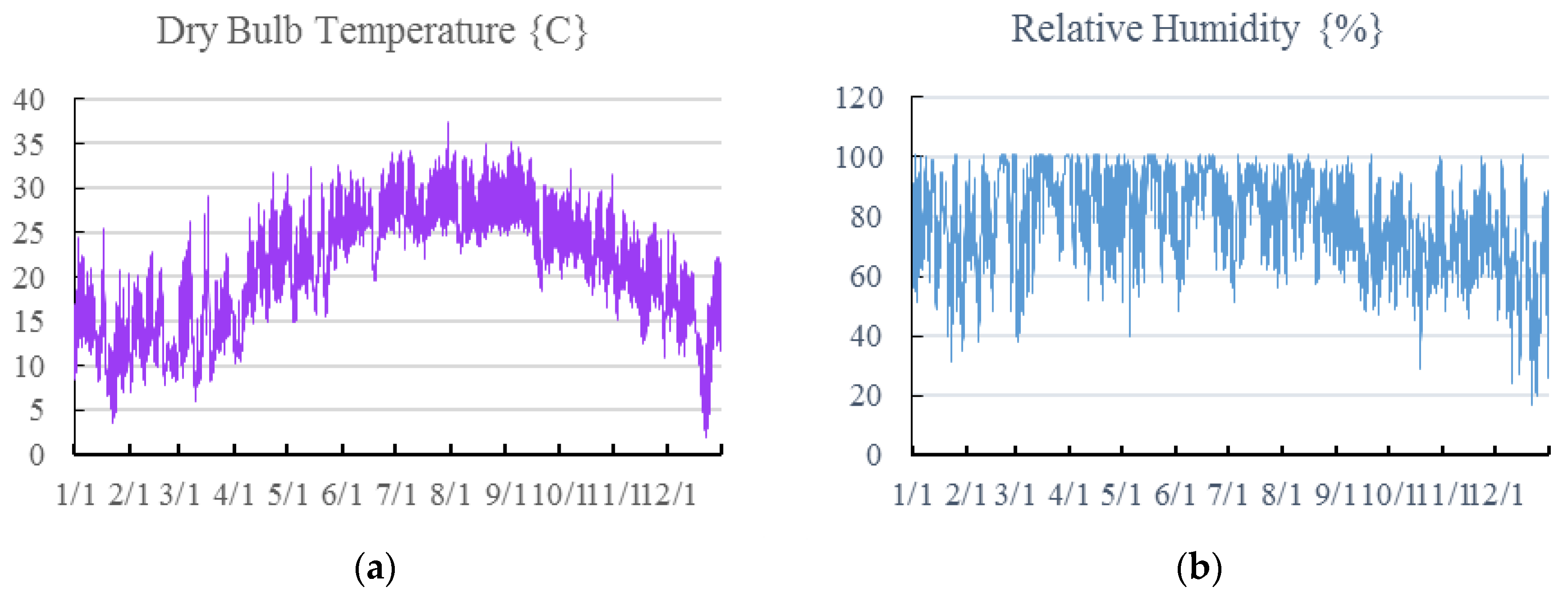

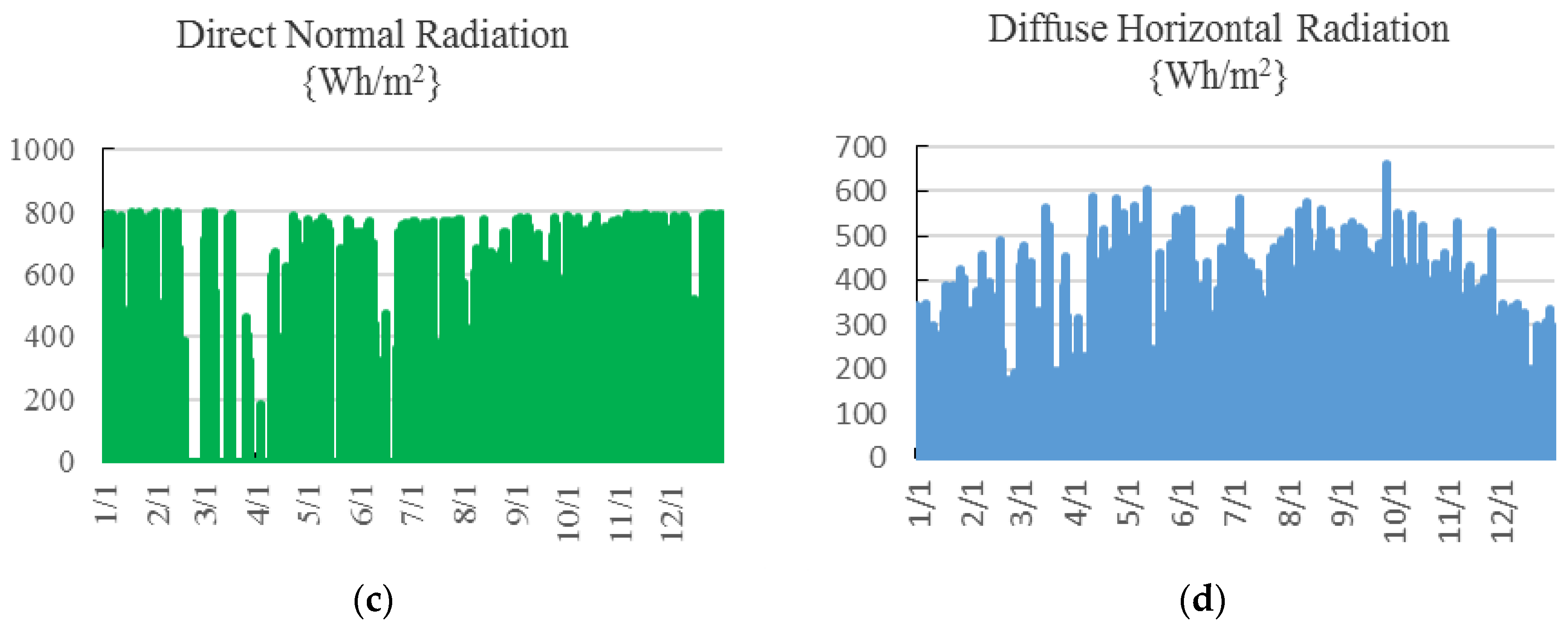

The SWWZ, located in southern China, is a new focus of energy conservation work in China. The region has a population of about 150 million and a relatively high standard of living, with GDP accounting for 17.4% of the country. According to the monthly average temperature in January (11.5 °C), the zone is divided into two sub regions. The buildings in the north area not only need to consider the summer air conditioning, but also need to consider winter heating. The buildings in the southern district only need to consider the summer air conditioning. Quanzhou is located in the southeast coast of Fujian Province, belonging to the subtropical marine monsoon climate, and the type of building thermal partition in this area is hot summer and warm winter. Due to the lack of meteorological data in the typical meteorological year in Quanzhou, use the meteorological data of the Xiamen area similar to Quanzhou in climate instead. Information on the TRY (Test Reference Year) weather data for the city of Xiamen is given in Figure 6.

2.2.2. Parameters of Retaining Structure

According to the design standard of “Fujian residential building energy efficiency design standard” [46], combined with the local resource conditions, the initial parameters of the model envelope are shown in Table 2.

2.2.3. Occupation, Equipment and Lighting System

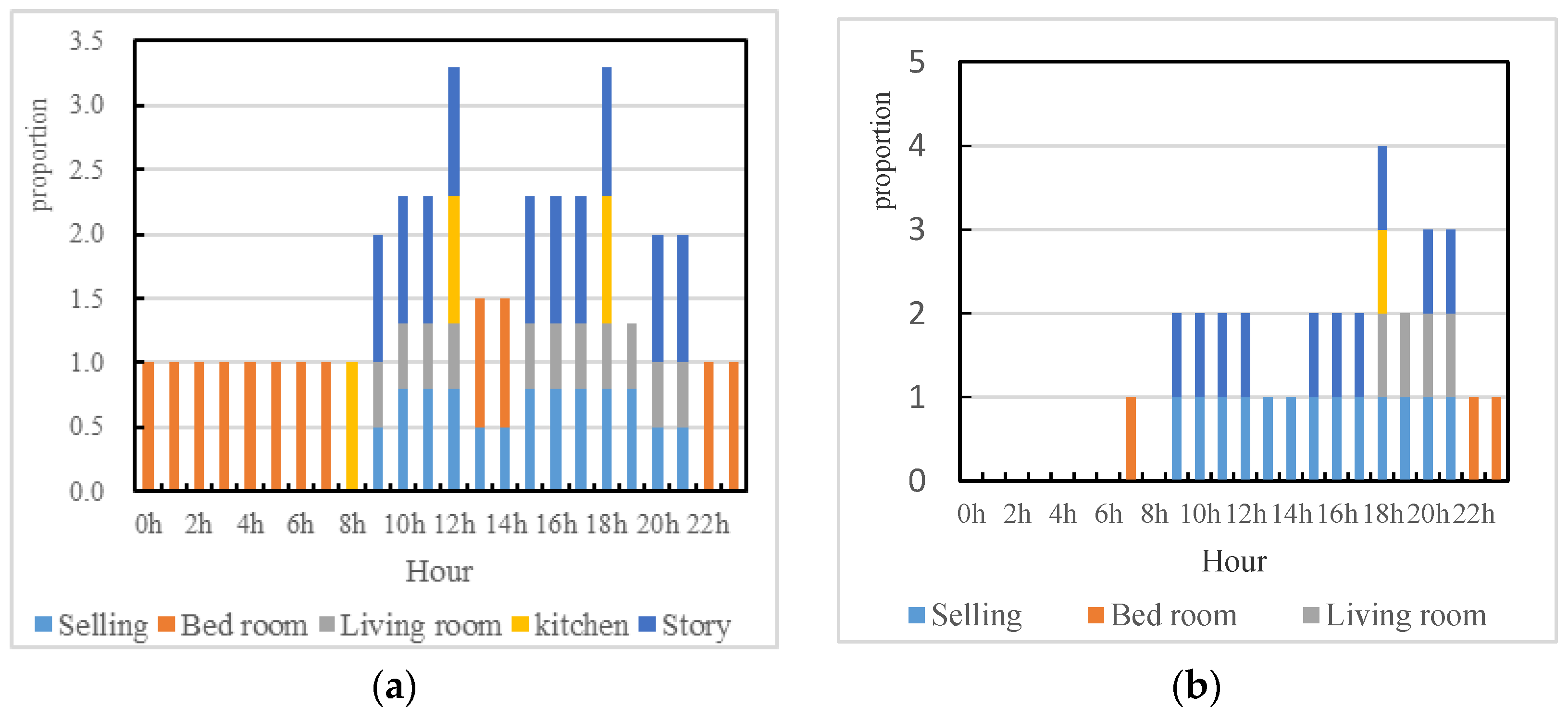

Table 3 presents the internal loads related to occupation, equipment, and lighting system. All the values assumed are based on the China Regulation for Residential Buildings [47] and the survey results. According to local farmers’ living habits and local development, personnel occupancy and light utilization are shown in Figure 7. Through the research results, the local people generally only use natural daylight during the day. In addition, the automatic control system is relatively backward in this area. Therefore, the use of lighting system has only two modes 0 and 1 (Where 0 represents the whole off, 1 represents the full open). The Utilization ratio are same for weekdays and weekends. The metabolic rates were determined based on the activity performance in each environment. The values for the metabolic rates were based on the ASHRAE Standard 55 [48]. Considering an average skin area of 1.80 m2, the metabolic rates were defined as follows: for each bedroom 81 W; for the living room 108 W; and for the kitchen 171 W. When more than one person occupies the kitchen, the metabolic rate for one will be set at 171 W while for the other people it will be set at 108 W.

2.2.4. Air Conditioning System Setting

According to the standard [46,49], the energy-saving design of residential buildings in the HSWW only considers summer air conditioning. In accordance with the needs of inhabitants, room function and energy use habits, the canteen and the bedroom are set to the refrigeration room.
Split air conditioners are the most commonly type used in Chinese rural. In this study, air conditioners were modeled as a Packaged Terminal Heat Pump (PTHP) system. According to the standard [50], the cooling thermostat were set to 26 °C. The coefficient of performance (COP) is 3.0 W/W for cooling according to the standard. The air infiltration rate of air conditioning room is 1 times/h. Ventilation frequency of room without air conditioning facilities was 5 times/h. Air conditioning schedule is presented in Table 4. Combined with the local climate conditions, the cooling time is set for each year from 15 May to 15 October.

2.3. Particle Swarm Optimization Algorithm

The PSO algorithm, proposed by Dr. Kennedy and Dr. Eberhart [51,52], is a kind of evolutionary algorithm. It starts from a random solution and then finds the optimal solution using an iterative method, at last evaluates the quality of solution using fitness. The algorithm can solve the optimization problem of the independent variable as a continuous variable, a discrete variable or both continuous variables and discrete variables. It has the advantages of easy realization, fast convergence and high precision. The PSO originated from the study of bird prey behavior, simulating the foraging behavior of birds. Suppose there is only one piece of food in the search area, and no birds know the exact location of the food, but they can search for the current position from the food. The PSO algorithm takes advantage of such “bionics” principle, gets inspiration from this model, and is used to solve the optimization problem in practical engineering. Particle swarm algorithm in detail, see the literature [51,52].
Assuming that the population has a particle number of N, the Q dimension (that is the dimension of each particle) is searched. Each particle is represented as Xi = (Xi1, Xi2, Xi3 ... XiQ), and the velocity corresponding to each particle can be expressed as Vi = (Vi1, Vi2, Vi3 ... ViQ). In addition, each particle has to consider two factors in its search:
  • Search for the best historical values Pi;
    Pi = (Pi1, Pi2 ... PiQ), i = 1, 2, 3 ... N
  • The best values that all particles search for, PG, PG = (PG1, PG2 … PGQ), note that there is only one PG here.
The position and velocity update formula of particle swarm algorithm is given below:
v i k+1 =ω v i k + c 1 ×rand()×(pbest x i k )+ c 2 ×rand()×(gbest x i k )
x i k+1 = x i k +a v i k+1
The “ω” is the coefficient that maintains the original speed, so it is called the inertia weight. The “c1” is the weight coefficient of particle tracking its own historical best value. It represents the particle’s own knowledge, so it is called “cognition”. Normally, it is set to 2. The “c2” is the weight coefficient of the particle swarm optimum, which represents the particle’s knowledge of the whole population, so it is called social knowledge, which is often called “society”. It is usually set to 2. The “Rank ()”is a uniformly distributed random number within the [0, 1] interval. The “a” is a factor added to the velocity at the time of updating the position. This factor is called the constraint factor and it is usually set to 1.

2.4. EnergyPlus and GenOpt Coupling

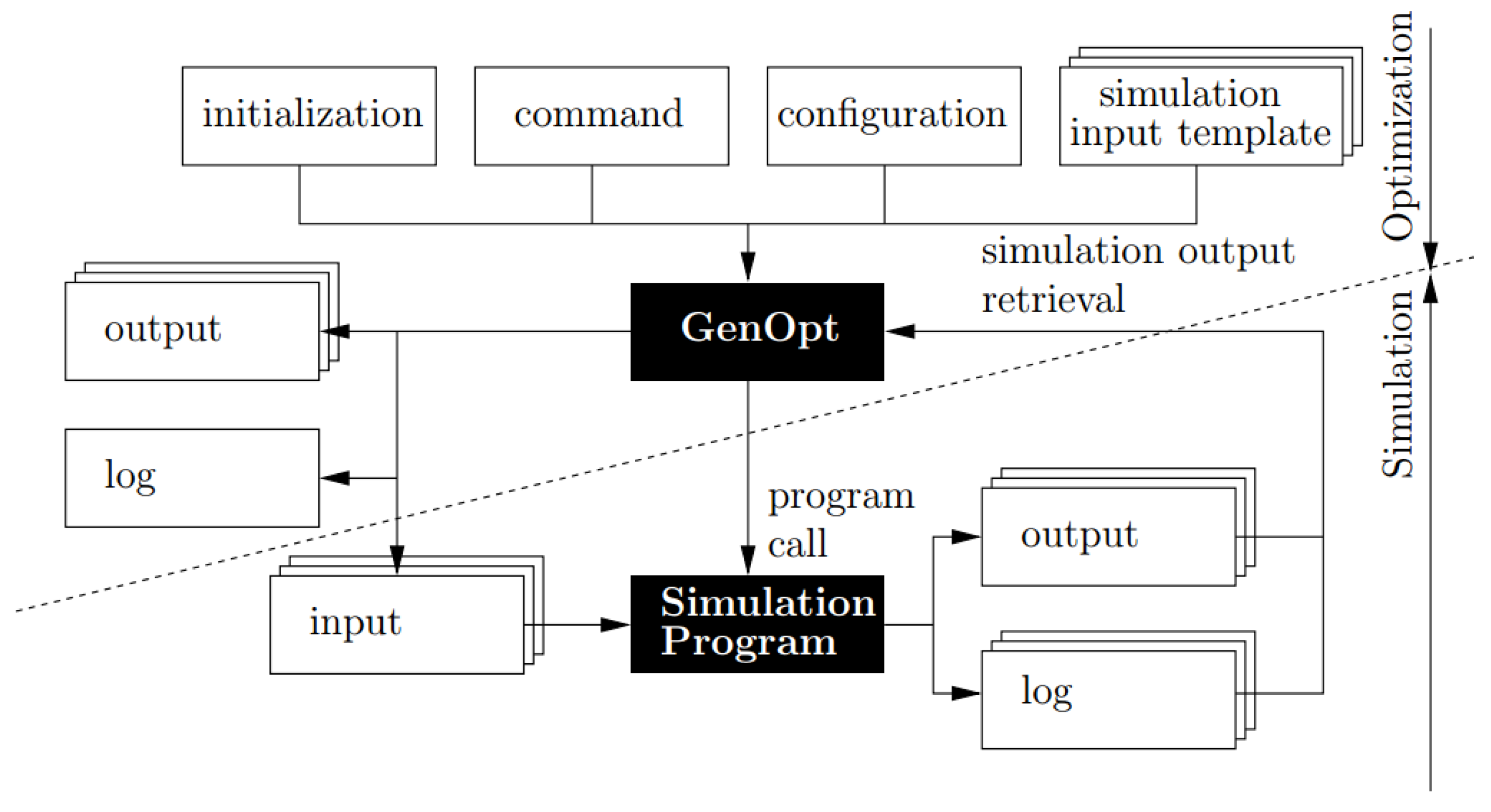

The GenOpt optimization software is coupled with the Energy Plus simulation software to reduce the workload of simulation. With this type of research variables (both discrete variables and continuous variables) and application scope of optimization algorithm, this research use PSO in the GenOpt software to optimize the factors affecting the EC. The logical relationship between the GenOpt software and the EnergyPlus software is shown in Figure 8.

2.5. Passive Design

2.5.1. Shape Parameter

In the initial stage of building design, building shape parameters including the length, the width and length-width ratio (LWR) need to be considered. In fact, the area occupied by rural housing is often fixed, so the paper only analyses the LWR when the building area is constant.
The window area directly affects the solar radiation heat gain, which is the main factor affecting cooling load in HSWW. LWR and WFR are set as variables. The range of parameters and the optimal steps size are shown in Table 5.

2.5.2. Envelope Parameters

In Quanzhou, residential buildings pay attention to insulation, shading and ventilation, and most of them show the architectural features of lightweight, transparent, the architecture pattern of external seal and internal open.
1. Thermal characteristics of exterior walls and roofs
The type and thickness of the insulating material will affect the heat transfer coefficient (K). The widely used insulation materials and their main properties in Fujian province are shown in Table 6. The thickness range, the dispersion and the optimal step size are shown in Table 7.
2. Thermal characteristics of external windows
The heat gain from the Ew accounts for 40–50% of it from the enclosure. There are two main parameters to evaluate the thermal performance of the Ew: K, (W/m2·K) and the solar heat gain coefficient (SHGC). In the thermal design standard of building envelope [54], the focus of the Ew is the K while in the north area and the SHGC while in the south area. Keep the parameters of the EW and roofs in Table 1. There are 11 types of Ew were selected. The SHGC of No. 1–5 is similar, but the K is different; for the No. 5–9, the K is the same but the SHGC is different; No. 10 is the most widely used form of Ew; No. 11 is a new energy-saving windows more respected at present in the hot summer and warm winter climate zone. Table 8 presents the main parameters of the different types of Ew.

2.5.3. External Shading System

From the practical and economic aspects, external shading system is more likely to be used in residential buildings, especially in the rural areas. The use of external shading measures can improve the WFR, which meets the design trend of large windows in the zone.
The variables that affect the EC are the overhangs length (OL) in different directions, the distance between the sun visor and the window (H), and the extended length of the sun visor (EL). The default overhangs’ length is 0.6 m. In order to simplify calculation, it is assumed that the EL and the Ew is same. The reasonable ranges of different variables, the dispersion and the optimal step size are shown in Table 9. When studying the horizontal sun shading board (HSSB), the ELv is fixed to 0.20 m; the OLv is divided into 0.2 m, 0.6 m, 1.0 m, 1.4 m and 1.8 m. When studying the vertical sun shading board (VSSB), the Hh is fixed to 0.10 m, the OLh is divided into 0.2 m, 0.4 m, 0.6 m, 0.8 m and 1.0 m.

2.5.4. Natural Ventilation

Affected by the monsoon climate, the ventilation potential of Quanzhou is superior. However, there are still 30% of the summer weather static wind. So, hot ventilation play a supplementary role in residential ventilation. Therefore, the rural residential buildings pay more attention to the organization of hot pressing ventilation in architectural design. “Courtyard buildings” came into being. Combining field survey and CFD simulation, Wajishani Gamage provides evidence for the potential of cross ventilation of intermediate spaces through the air-well in the Chinse Shophouse [55]. This paper studies the effect of different courtyard conditions on EC and indoor environment. Table 10 shows the four conditions’ set and Table 11 shows the corresponding model.

3. Results

3.1. Single-Objective Optimization

3.1.1. Building Shape Parameter

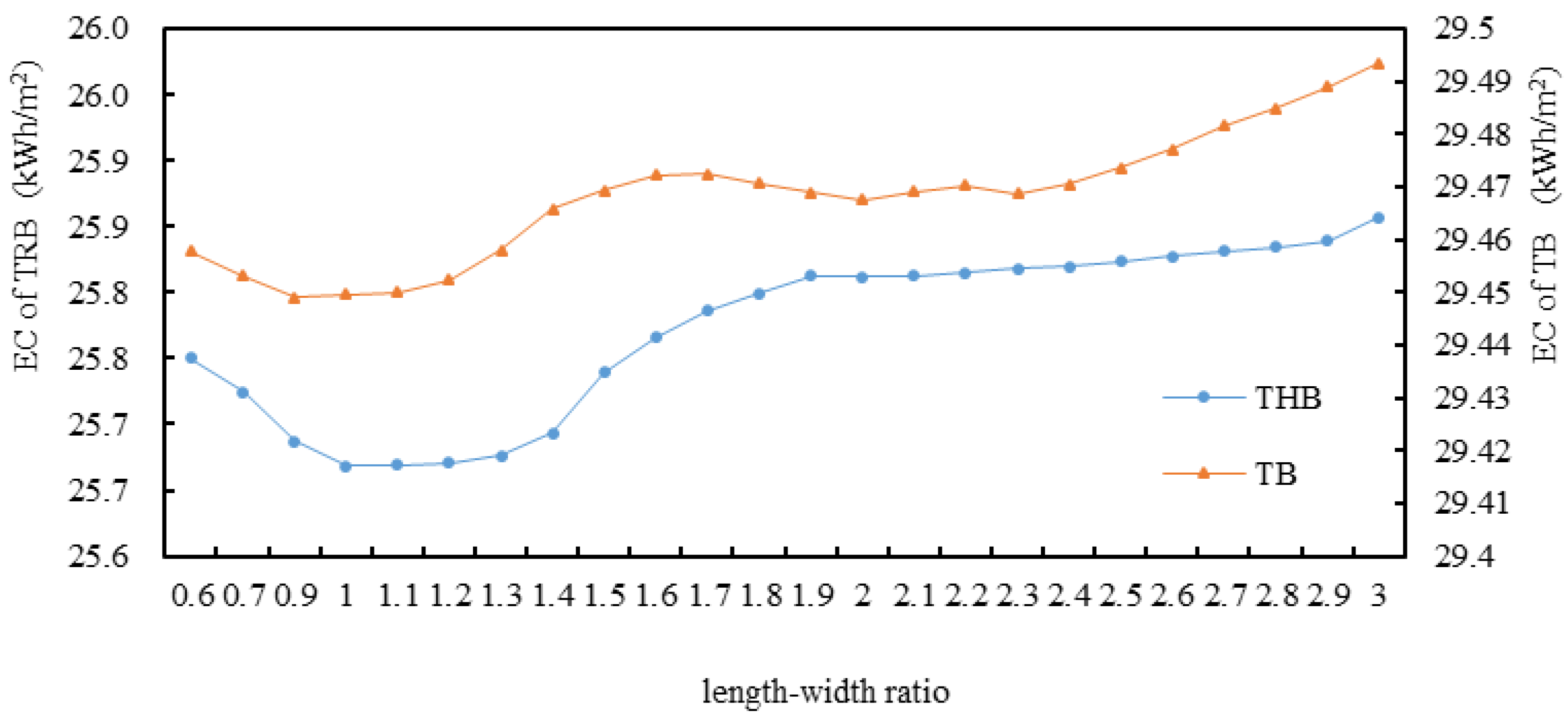

It can be seen from Figure 9 that with an increase of the LWR, the EC decreases firstly and then increases gradually. For TB and THB, EC reach the smallest when LWR is 0.9 and 1, respectively. When the LWR changes, the EC changes 0.05 kWh/m2 and 0.20 kWh/m2 for TB and THB, respectively, which may be related to the building function and building volume. Therefore, it not have a big effect in reducing EC by setting the LWR of the rural housing.

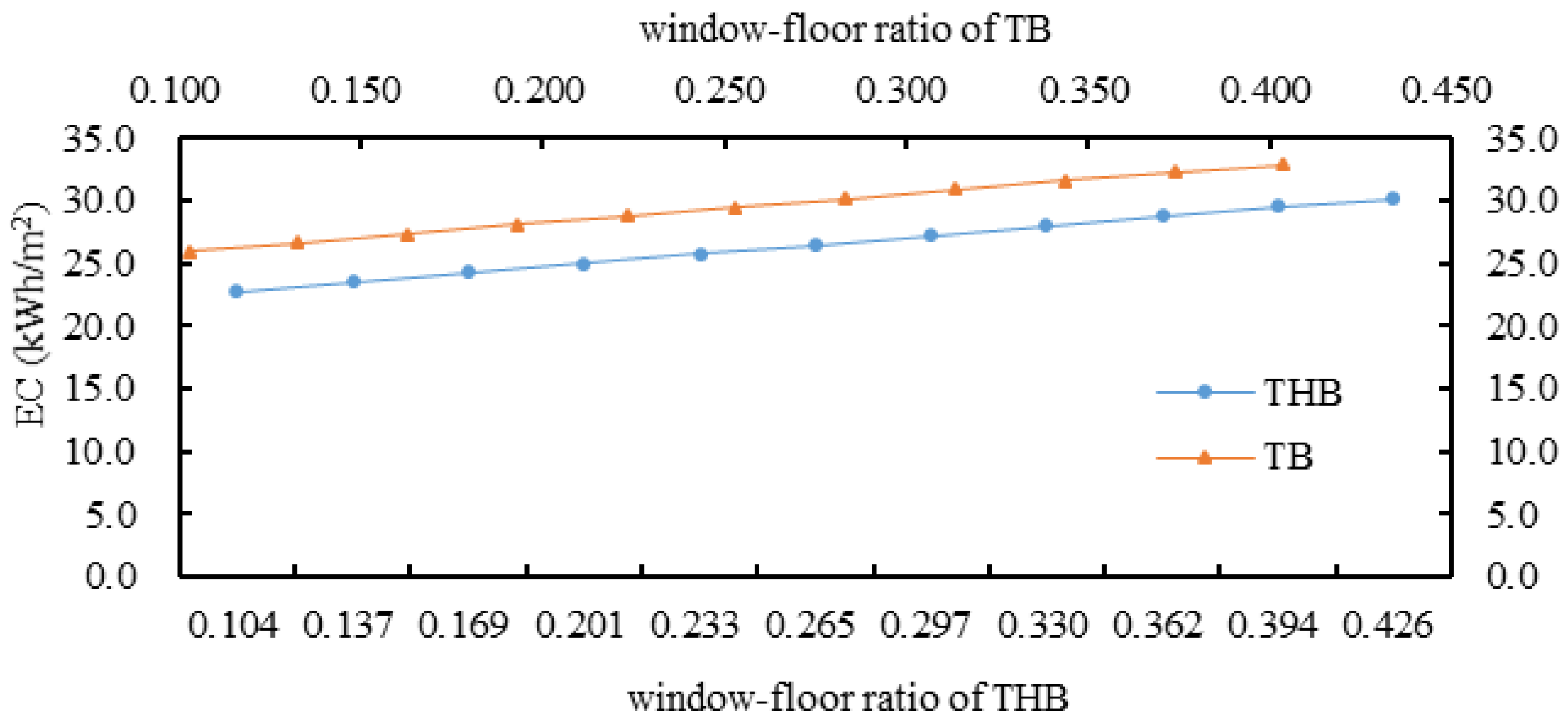

As can be seen from Figure 10, the EC is proportional to the WFR. The growth trend of EC of the TB and the THB all are linear.
SPSS20.0 is a statistical software used to analyses the correlation. Table 12 shows that the EC and the LWR have a significant positive correlation at the 0.01 level; The Pearson correlation coefficient of the THR is larger than that of the TR, the LWR of THR has a greater impact on EC. The regression analysis between the WFR and the EC are shown in Table 13. The linear fitting degree of the two curves is very good, and the difference is significant.

3.1.2. Envelope Parameters

1. Heat insulating material

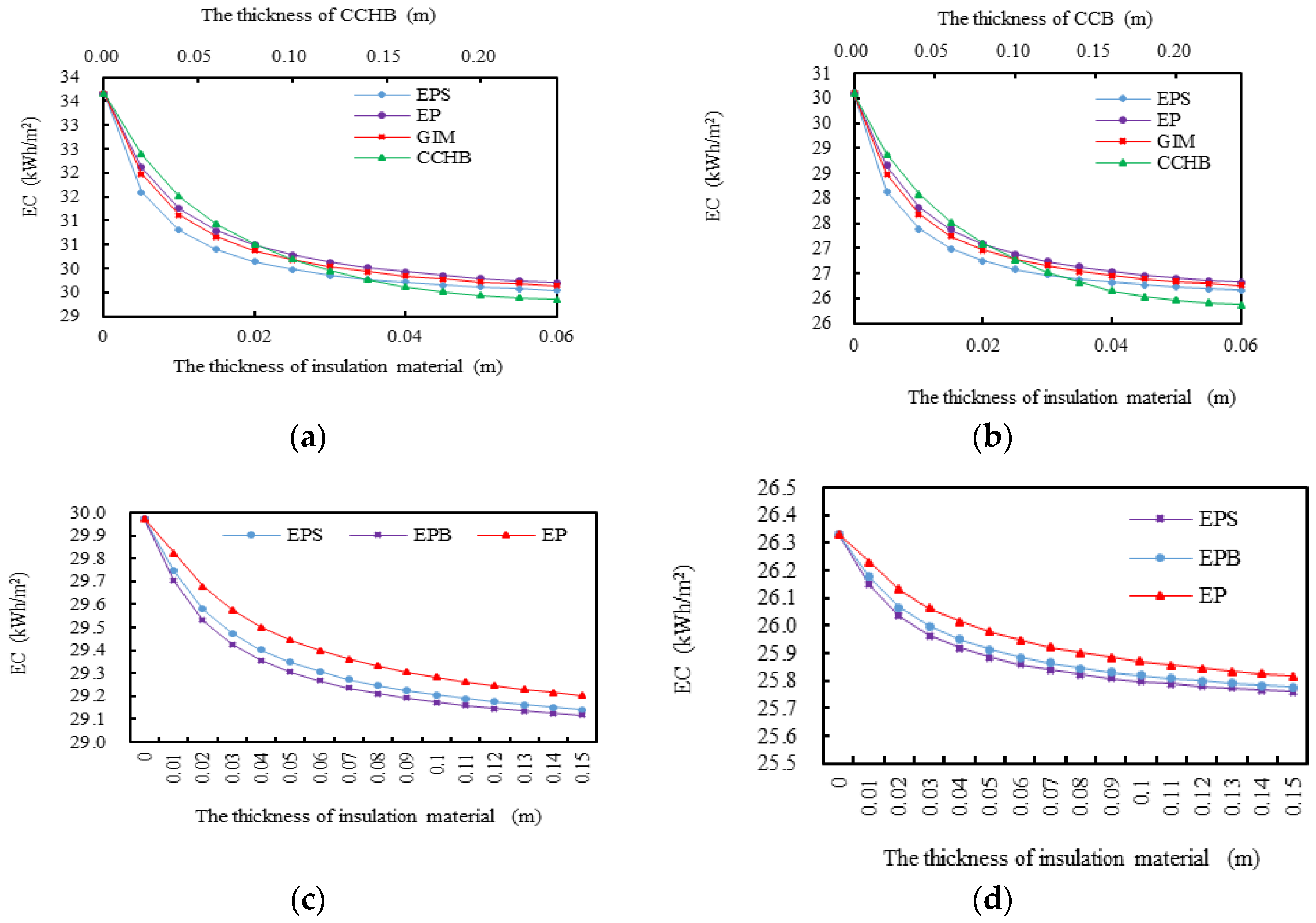

The relationship between the thickness of insulation material and EC is hyperbolic, and the trend is gradually slowing down, as shown in Figure 11. The insulation performance from good to bad is followed by the Polystyrene board (EPS), the glass beads of inorganic dry powder insulation mortar (DIM), the expanded perlite (EP), but little difference. When the insulation thickness is less than 120 mm, the insulation performance of ceramsite concrete hollow block (CCHB), which belong to the self-insulation structure, is worse than the three kinds mentioned. When the thickness is more than 120 mm, the heat insulation effect is significantly increased. According to the heat insulation effect in three kinds of roofing insulation materials, extruded polystyrene board (EPB) is best, followed by the EPS, the worst is the EP.

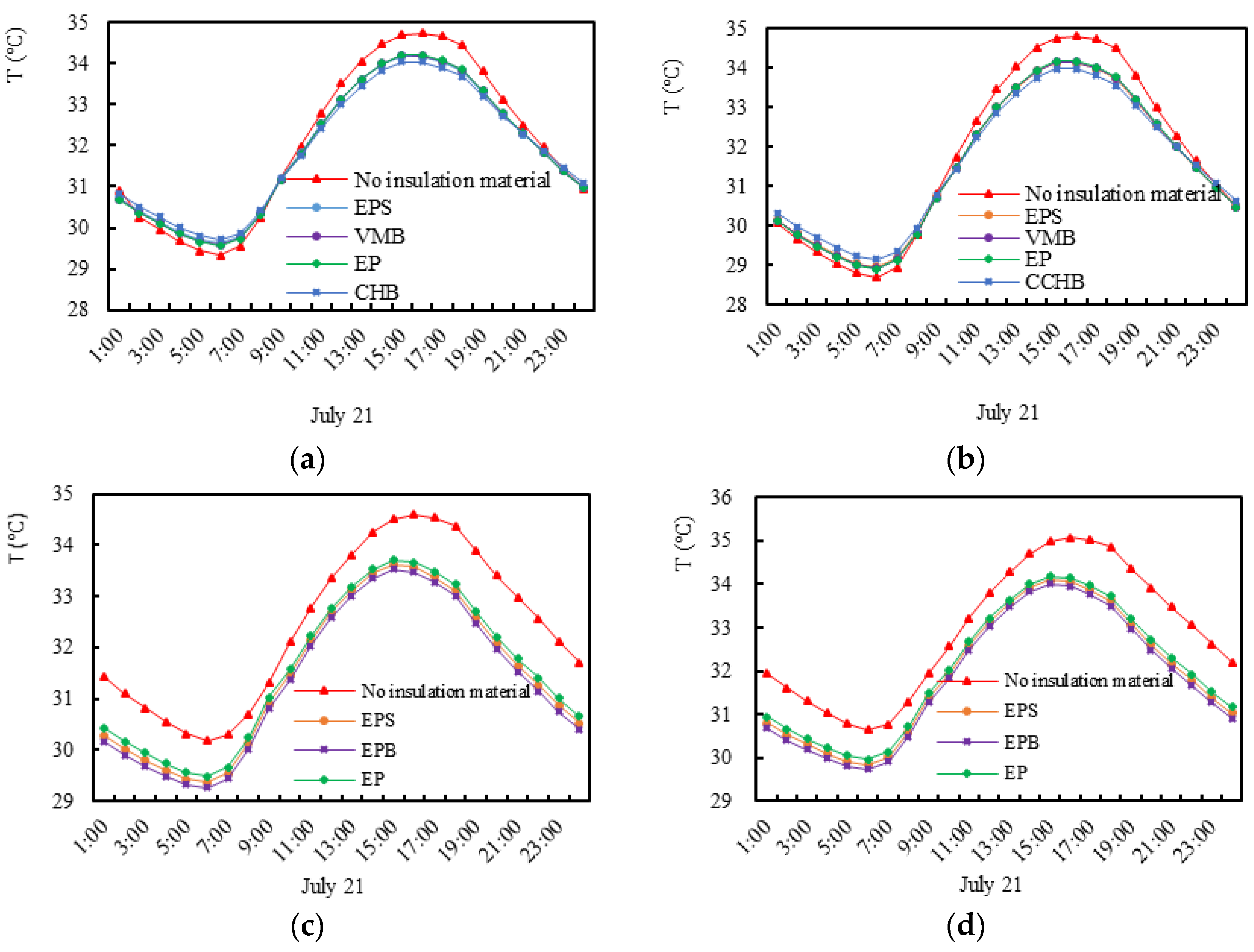

The average indoor temperature of the living room on the top floor without the need for cooling was simulated to reveal the influence of different thermal insulation materials, as shown in Figure 12. In order to guarantee the comparison of simulation results, the thickness of thermal insulation layer of EW was set to 30 mm (Due to the special nature of self-insulation structure, the thickness of CCHB is 110 mm.), and the thickness of thermal insulation material of the roof is set to 60 mm.
Figure 12a,b show that: the influence of EW’s insulation measures on the indoor average temperature is not too large, and the effect of both four kinds of materials is very small. In addition, the EW’s insulation can effectively reduce the temperature during the day; however, it is not conducive to the external heat dissipation at night.
Figure 12c,d show that: roof insulation has a more obvious effect on reducing the indoor average temperature, and the effect of three kinds of materials is similar. Because of the delayed effect, the temperature reduction reaches the peak value at 19:00. Combined with room properties and the local habits, this moment is the intensive time for the room staff activities. Therefore, roof insulation can improve the thermal comfort of the top floor room.
2. Thermal performance of exterior window

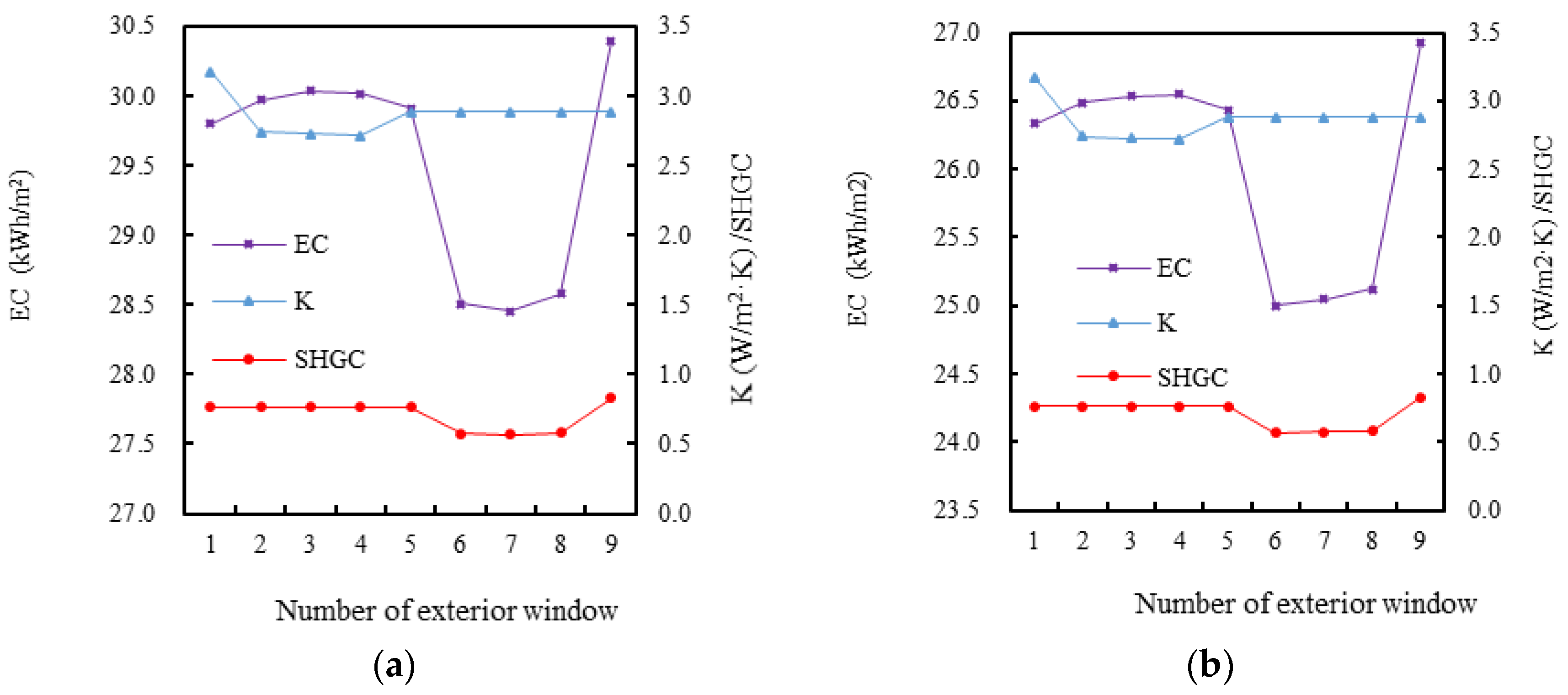

The correlation between the EC and the Ew’s K and SHGC can be observed in Figure 13. When the SHGC remained the same, EC increases with the decreasing of K; when the K is consistent, EC decreases with SHGC. In addition, when the TR using the No. 7 form (Green coated hollow heat absorbing glass with thickness of 3 mm) and the THR using the No. 6 form (Gray coated hollow heat absorbing glass with thickness of 3 mm), their EC reached the lowest level.
Correlation analysis is shown in Table 14. There is no significant correlation between the EC and the K of Ew in the two types of buildings. However, there is a significant positive correlation between the SHGC and the EC at the 0.01 level. This result is consistent with the local standards of Fujian province [56]. The influence of the K of Ew can be ignored, compared to the SHGC.

3.1.3. External Shading System

1. The overhangs length of sun visor

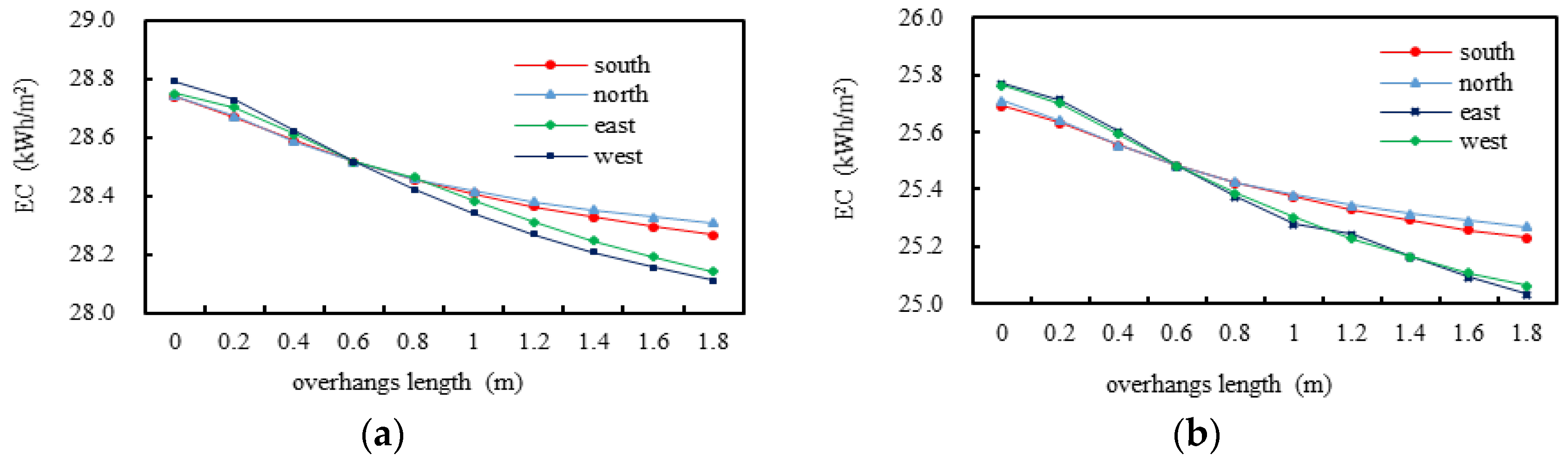

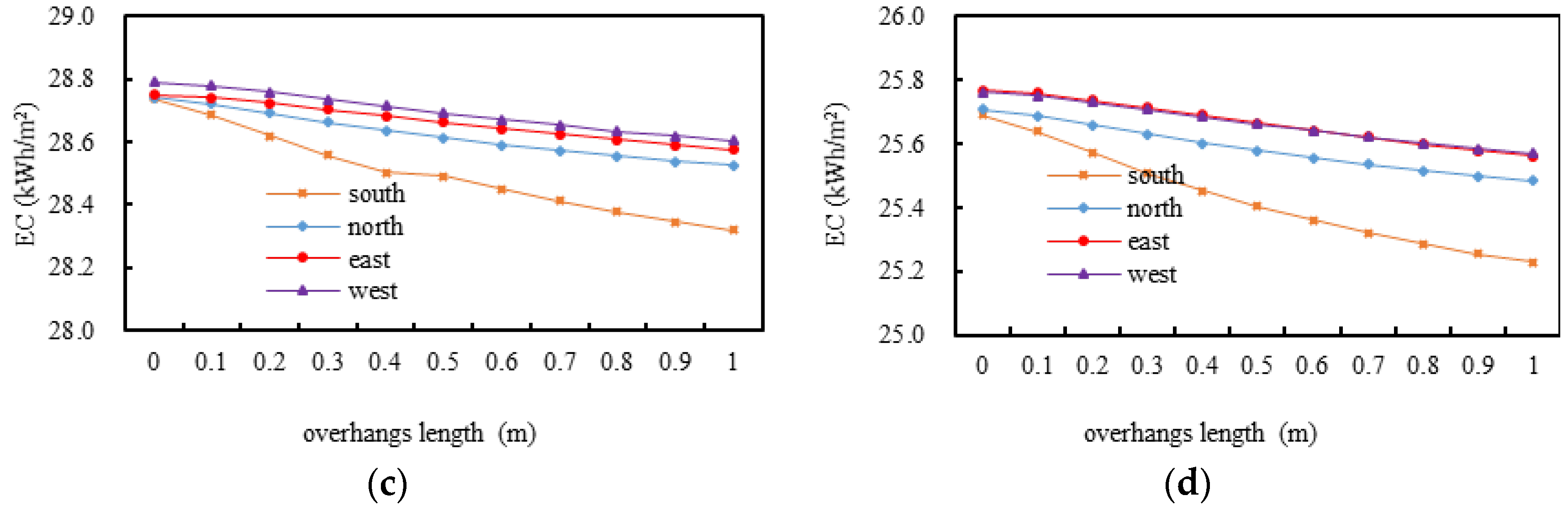

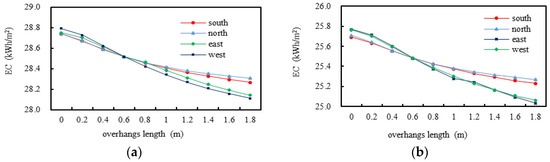

The influence of the OL on the EC are presented in Figure 14. As can be seen from Figure 14a,b, horizontal visor decreases the EC significantly. With the increasing of OL in different directions, the EC decreases faster in west and east than in south and north. As can be seen from the Figure 14c,d, the Ew is more suitable for the vertical visor in south and north, especially in the south; Energy-saving effect is slightly worse by setting the vertical visor in the east and west. Comparison of Figure 14a,d found that the energy-saving effect of both the horizontal visor and the vertical visor in the northern is not significant.
2. Distance between sun visor and window

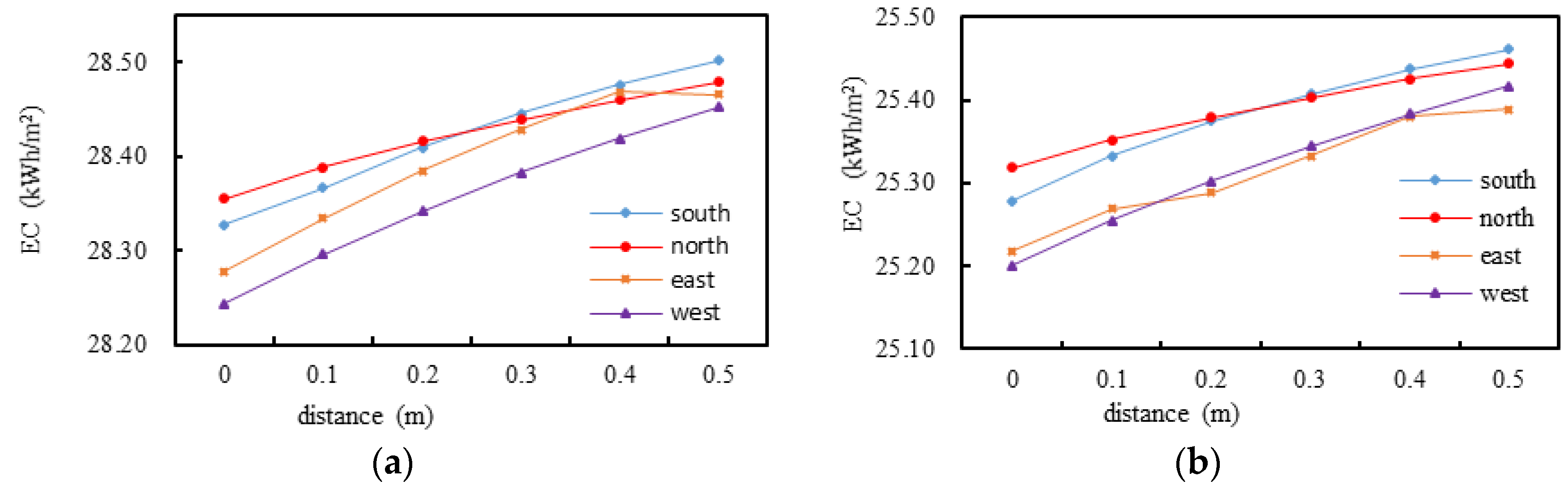

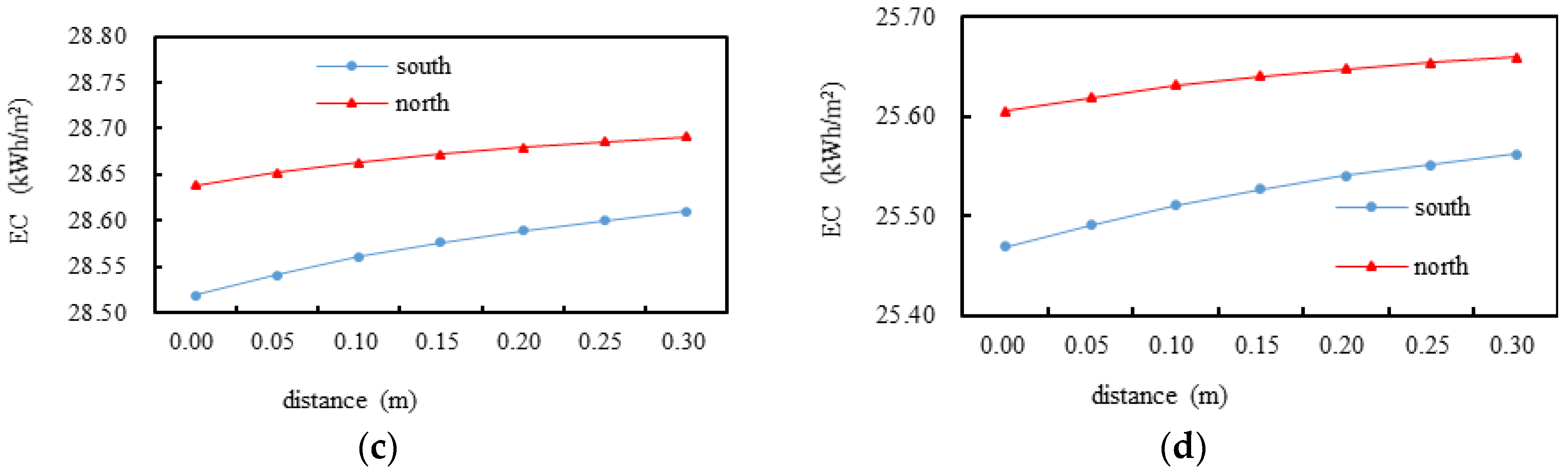

Figure 15a,b show the relationship between the EC and the Hh. With the Hh increasing from 0 to 0.5 m, the EC increases gradually. The growth rate in south and west is the fastest. In addition, in north and east, the effect is relatively small. In east, when the Hh increases to 0.4 m, EC reduction is very small. In general, from the energy point of view, the smaller the distance, the more energy-efficiency under the premise of the conditions allow. Energy saving effect of vertical shading is very poor in the east to the west; therefore, this section analyzes the influence of Hv and Ew in the south and north on the EC, as show in Figure 15c,d. The EC with an increase in the Hh in south and north. If the Ew with a vertical visor in north and south, under the conditions permit, the distance between vertical visor and Ew should be chosen as small as possible.
3. Extension length of sun visor

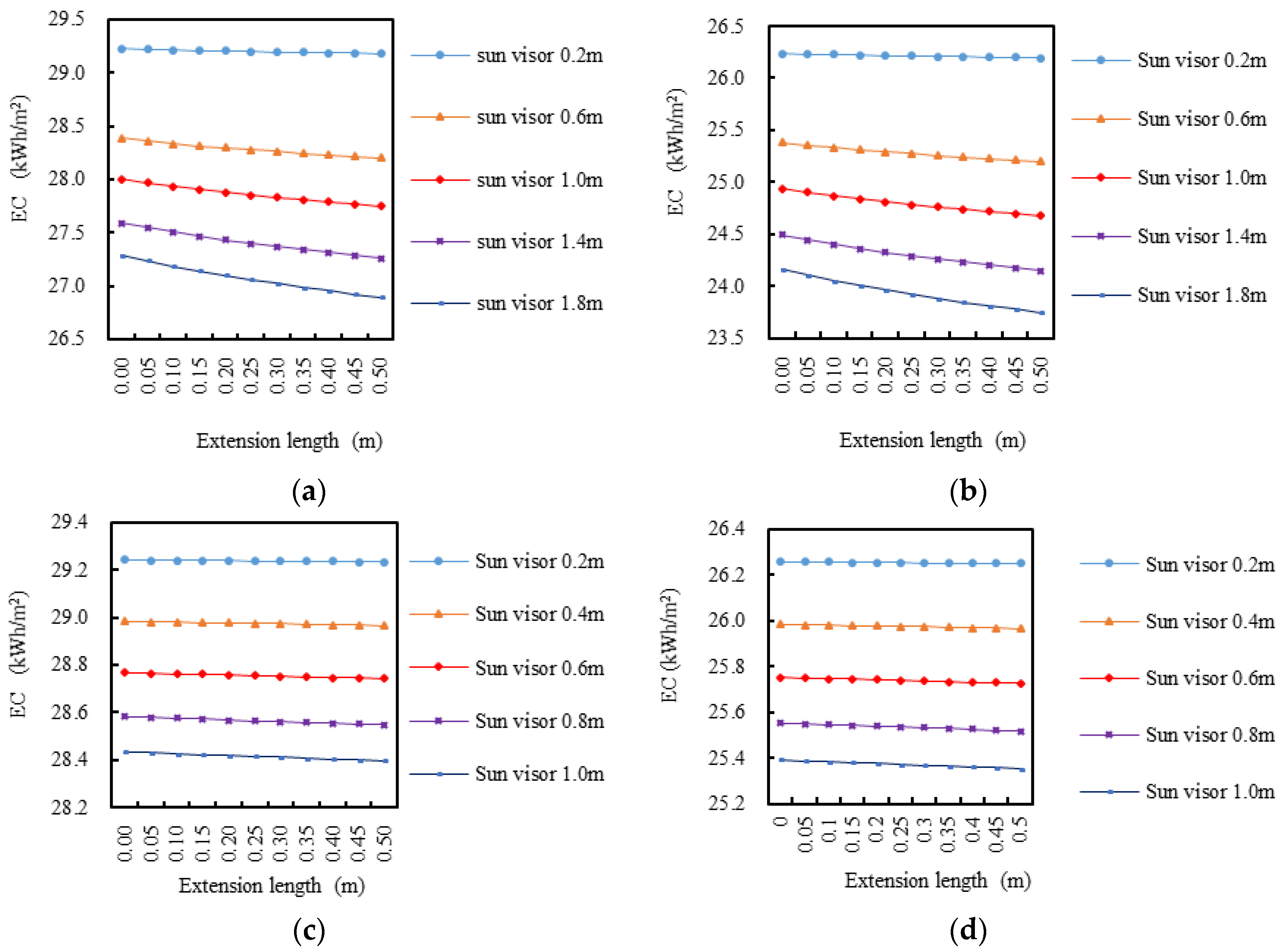

Figure 16a,b show the relationship between the EC and the ELh. Both the ELh (increases from 0 to 0.5 m) and the OLh (varies among 0.2 m, 0.6 m, 1.0 m, 1.4 m, and 1.8 m) affect the energy saving performance. When OLh is 0.2 m, increasing ELh has little energy-saving effect; with the increasing of OLh, energy-saving effect of ELh is more obvious. Therefore, when the OLh reaches a certain value, it is possible to reduce the solar heat gain by increasing the ELh; and when smaller ELh, the energy-saving effect is not ideal.
Figure 16c,d show the relationship between EC and ELv. When ELv increases from 0 to 0.5 m, if OLv is different (0.2 m, 0.4 m, 0.6 m, 0.8 m, and 1.0 m), the energy saving effect are also different and the amplitude is small. Energy-saving effect of the ELv increases with the increase of the OLv. However, compared with the horizontal visor, the energy-saving effect of ELv is very small.

3.1.4. Natural Ventilation

1. Influence of natural vitiation on energy consumption

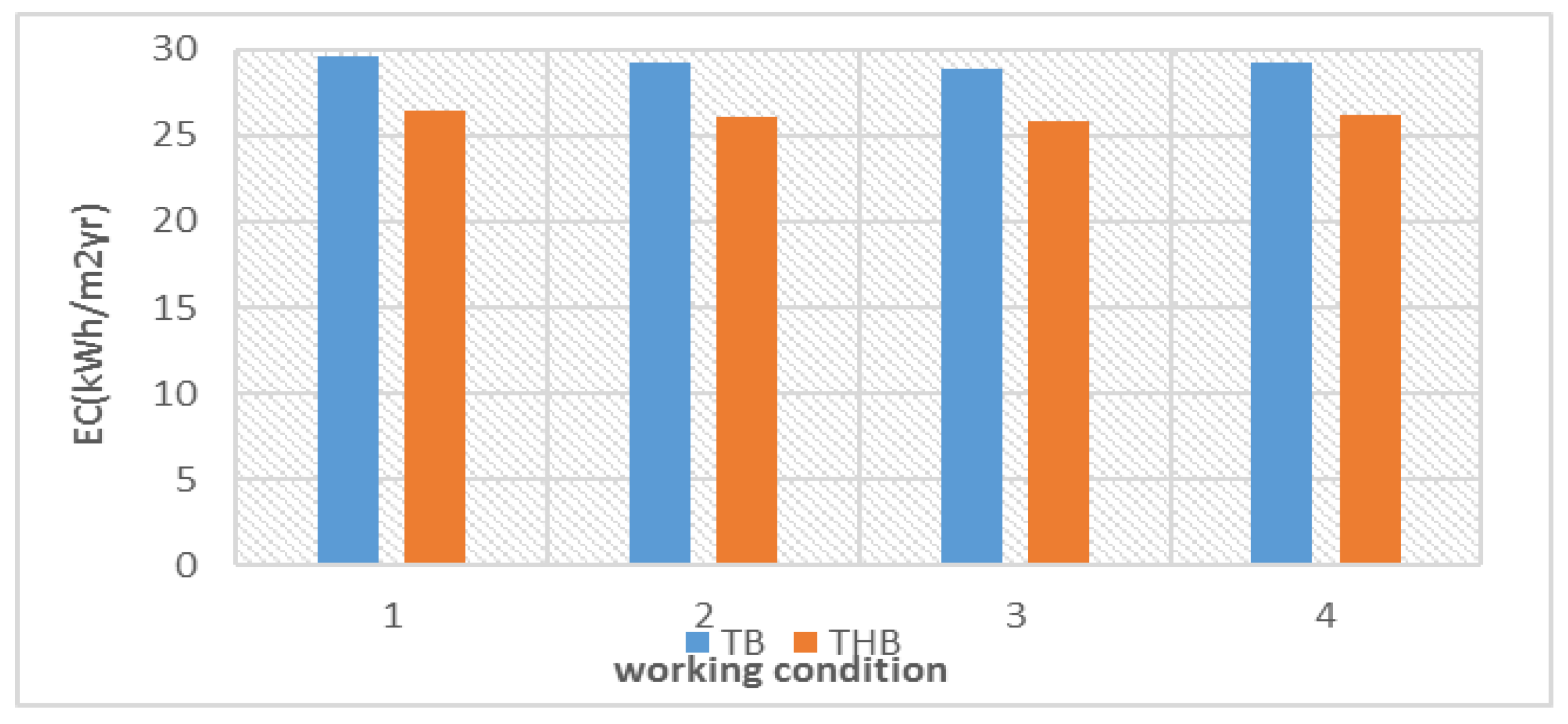

Annual energy consumption is shown in Figure 17. There is little difference under four conditions. The main reason is that household air conditioning equipment is only installed in the bedroom, but not in the area (living room, kitchen, and dining room) connected with the outside. Additionally, compared with the relatively closed space, the design of the courtyard has a greater impact on the connected space on EC.
2. Influence of a courtyard on an indoor environment
Previous studies show that the courtyard enhances ventilation of residential buildings in hot climate regions, which can effectively improve the indoor thermal environment [57,58]. The indoor temperature change of the top floor and the first floor living room under different working conditions is shown in Figure 18, Figure 19 and Figure 20.

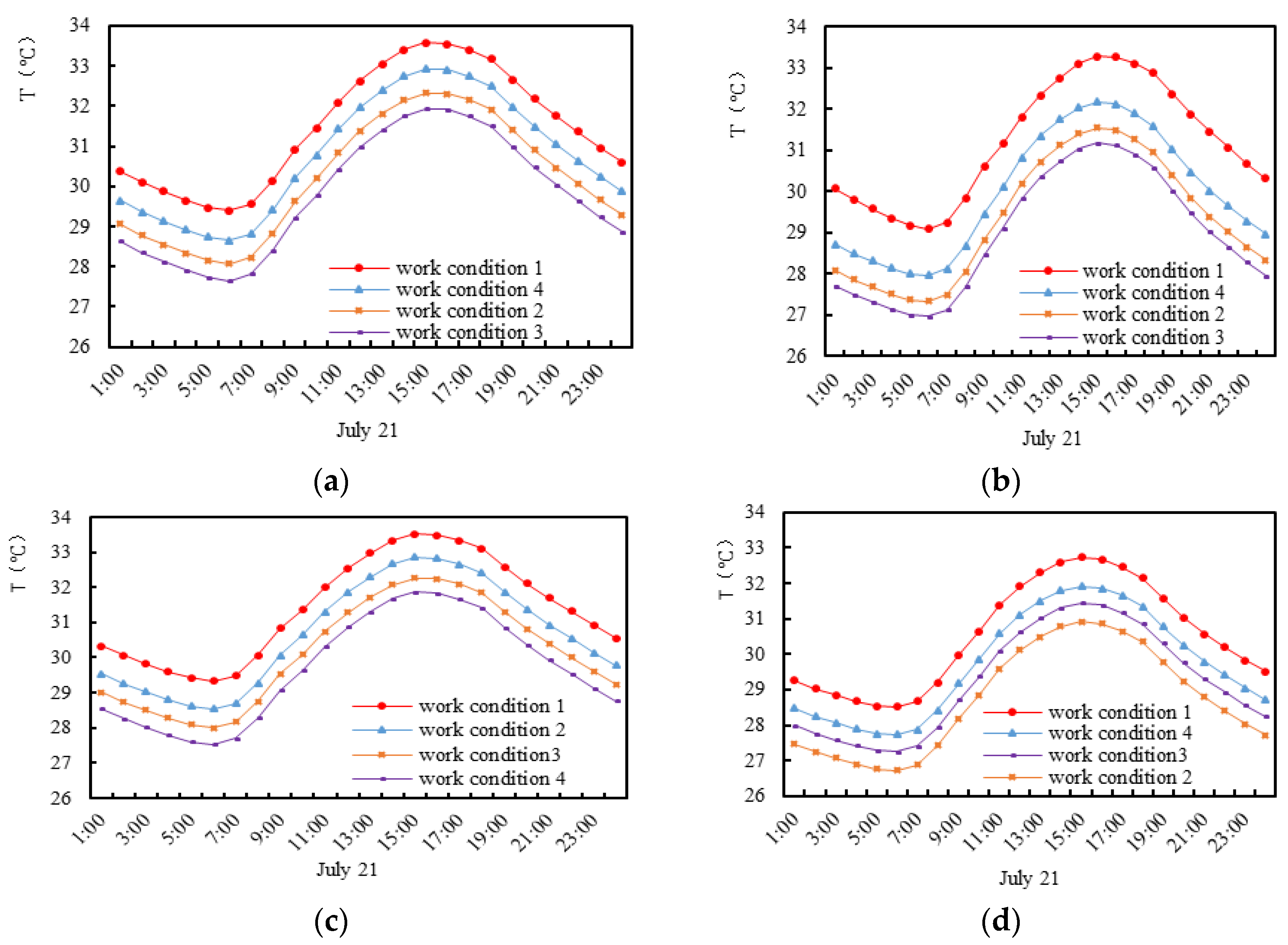

Combined with Figure 18a,b, for both TB and THB, a courtyard can effectively reduce the indoor temperature in summer. The maximum temperature that can be reduced is by about 1.81 °C. The indoor temperature under different working conditions is as follows: condition 3 < condition 2 < condition 4. The main reason is that although the open state can enhance natural ventilation, the strong direct solar radiation makes the top living room receive more heat in the summer. Moreover, the closed state is not conducive to airflow. Therefore, it is best to reduce the temperature in a semi-open condition. Compared with Figure 18a,b, courtyard’s influence on the first floor’s living room is more obvious than the top floor’s living room. The comparison of Figure 18a,d shows that the first floor living room’s indoor temperature is the lowest compared to other conditions when the courtyard of TB and THB are under semi-open and open states, respectively. The main reason is that the effect of solar radiation on the first floor of the living room is reduced with the increase in floor height. For THR, the air circulation effect is better in a fully open state than in a half-closed state.

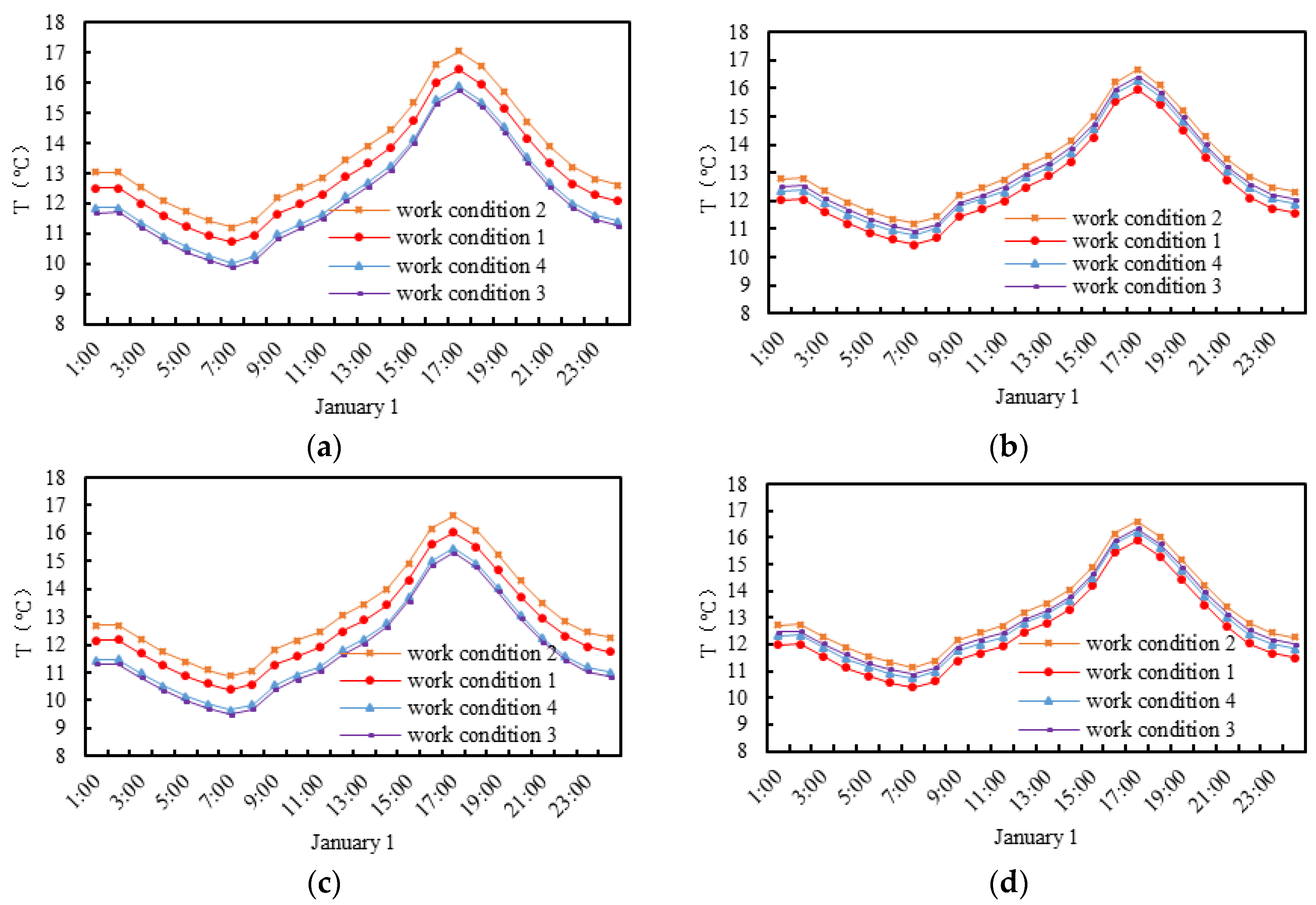

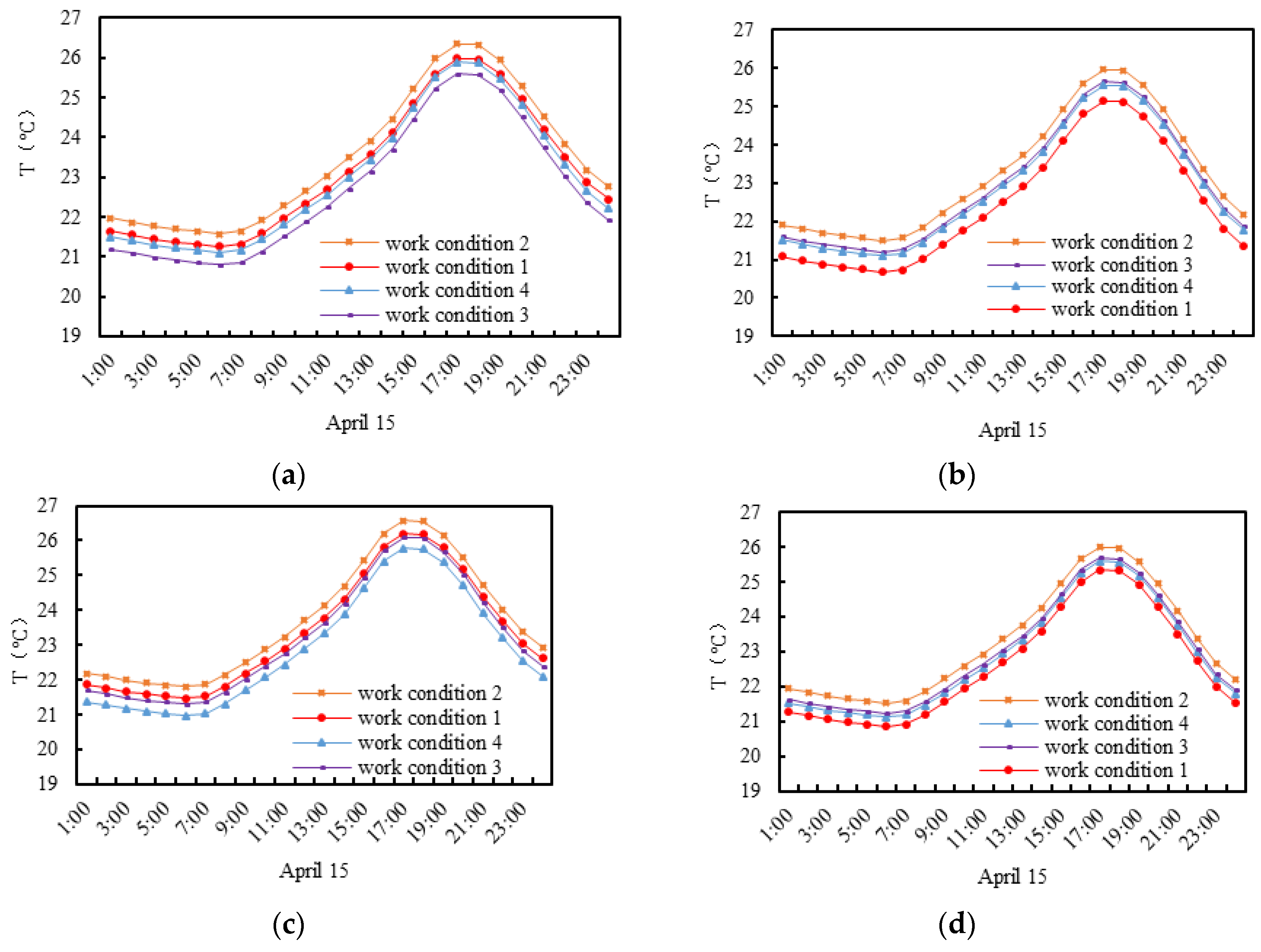

Compared with summer, courtyards have no obvious effect on the indoor temperature in the transitional season and winter, as shown in Figure 19 and Figure 20. Setting up courtyards can raise the indoor temperature of the first floor living room. Its influence on the top floor is related to the work condition. The indoor temperature in four conditions is TB: condition 2 > condition 1 ≈ condtion 4 > condition 3; THB: condition 2 > condition 1 ≈ condition 3 > condition 4. The average temperature of the top living room is the same under four conditions.
The ASHRAE Standard 55 adaptive model of the 90% acceptability is selected to assess the indoor operative temperature under naturally ventilated conditions for hot and humid climates according to previous research conducted by the authors. The 90% acceptability limits of the operative temperature are defined by Equations (5) and (6) [48].
T o,up90 = 0.31 T ao +20.3
T o,low90 =0.31 T ao +15.3
where To,up90 is the upper limit of acceptable operative temperature; To,low90 is the lower limit of acceptable operative temperature; and Tao is the prevailing mean outdoor air temperature.
Under the adaptive model, the indoor comfort conditions of a typical day under different natural ventilation conditions are shown in Table 15. For the THB, four working conditions can only be able to fully meet the ventilation comfort conditions in the transition season typical daily, but the winter and summer meet rate is low. Ventilation and air conditioning can be used to maintain indoor thermal comfort. For the TB, four working conditions cannot meet the comfort conditions in three typical design days. From the thermal comfort conditions, the THB is more appropriate. In addition, the working condition 2 is more favorable.

3.2. Multidimensional Optimization

The influence factors may affect each other, so the univariate analysis may be one-sided. Therefore, it is necessary to simultaneously consider all kinds of factors. Therefore, considering the simulation results of Section 3.1.3 and Section 3.1.4, the east and west external windows are configured with horizontal shades, and the north and south external windows are configured with vertical shades. The open courtyard model is chosen as research foundation.
The range of optimization variable, initial value and variable type are shown in Table 16. The parameter setting is shown in Table 17. Multi-optimization results are shown in Table 18. When the building type is TB, EC of the optimized farmhouse is 8.2% lower than that of the existing farmhouse. When the building type is THB, it is about 10.4%. This shows that the optimization of design parameters can significantly reduce energy consumption.

3.3. Economic Analysis

The Ew’s thermal performance in the optimization model is relatively improved, and the insulation thickness is increased correspondingly. This will inevitably lead to the increase of the initial investment. Therefore, this section will make an economic analysis. The farmhouse-designed accordance with the “Standard for energy efficiency of residential buildings in the hot summer and warm winter zone” [59] is defined as the “standard farmhouse” (SF). In order to simplify the calculation, take the electricity price of $0.082/kWh for the region’s electricity price. The annual energy consumption and cost of the three types of farmhouses are shown in Table 19.
According to the investigation of the local building materials market, the price of PB, EPB, CCHB, aluminum alloy single frame single layer glass windows, plastic steel single frame hollow glass window, and plastic steel single frame plating green film hollow glass window are $74.96/m3, $112.44/m3, $20.99/m3, $25.49/m2, $44.98/m2 and $74.96/m2, respectively. The increase in the initial investment of the three farmhouses is shown in Table 20.
The Table 21 shows that considering energy consumption, the energy-saving ratio of the optimized farmhouse (OF) is 26–30% corresponding to the existing farmhouse (EF), and that of the SF is 20–22%. Therefore, the OF’s energy-saving effect is better. From the economic point of view, the payback period of the OF is about 20 years corresponding to the EF, and that of SF is about 15 years. Therefore, the economic efficiency of SF is better than OF. Considering energy and economy, when the housing service life is more than 21 years, the OF can achieve economic requirements. When the housing service life is less than 21 years, the SF is better. In order to reduce EC, the country can introduce relevant policies to give farmers some subsidies. Additionally, to promote the development of rural energy conservation work, the initial investment can be controlled and be brought within the acceptable range of the farmers’ salaries.

3.4. Modelling Verification

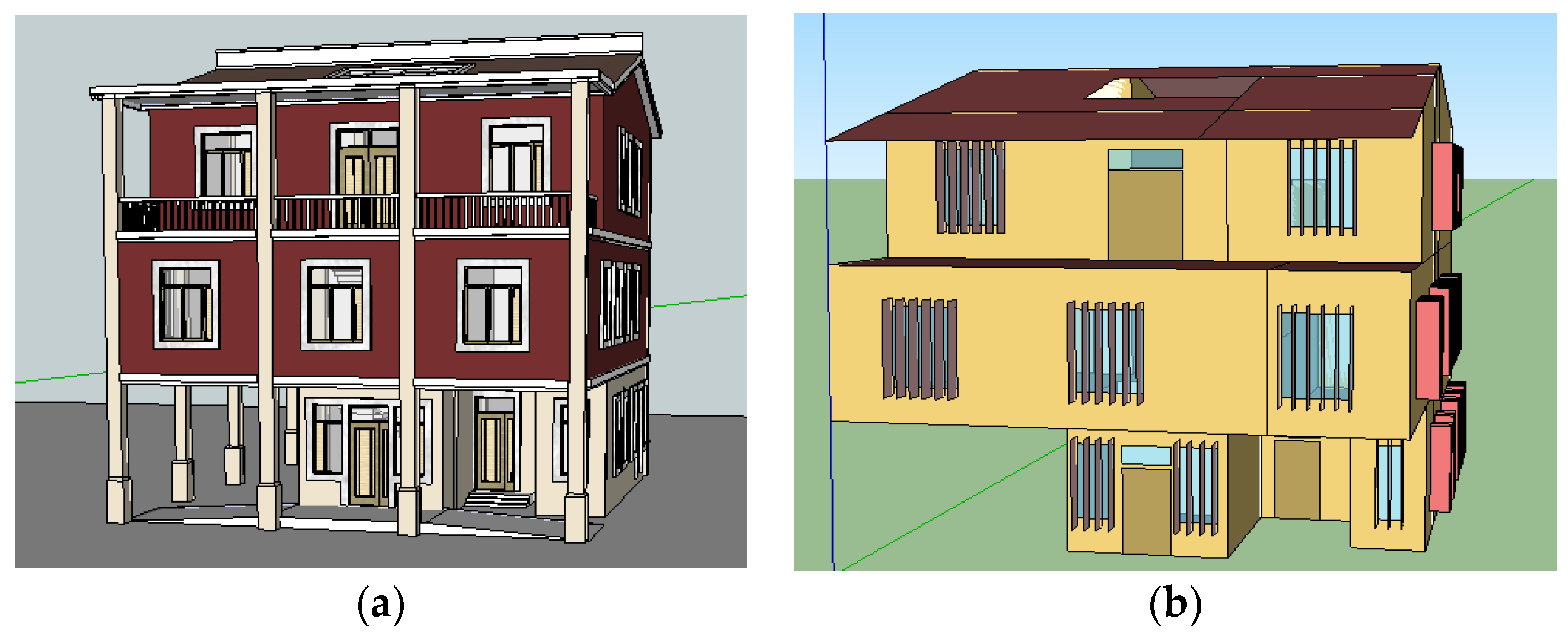

In order to verify the accuracy of the simulation method, a case study will be performed. The selected model is a typical rural house in the Quanzhou area. The stereoscopic model and the simulation model of the building are shown in Figure 21.
According to the survey, combined with the local timber companies’ information, the installation of the enclosure structure is shown in Table 22.
According to the survey, the average electricity fee is about $37.48–44.98 in summer and $14.99–22.49 in other seasons. In this study, the summer electricity charge is set at $41.23, and other seasons electricity charge are set at $18.74. In order to simplify the calculation, the price of electricity in this area is set at $0.082/kWh (the average price), and the power consumption in summer is about 274 kWh each month, compared with other seasons. The air-conditioning energy consumption is about 502 kWh/month, and the total consumption is 2510 kWh in the air-conditioning season (15 May–15 October). Additionally, the total electricity consumption in the non-refrigeration season is 1596 kWh. According to the above results, the annual total electricity consumption is about 4106 kWh.
It is worth mentioning that the object in the study is the operating house with a canteen, so the EC of air-conditioning is definitely larger than the ordinary farmers’ consumption. Therefore, using the local average energy consumption level to verify the model, will lead to lower accuracy rate. According to the sum of the EC of all the operating residential areas in the investigated area, it can be found that the electricity fee in the refrigeration season was about $104.95, and the electricity fee in other seasons was about $44.98. After calculation, the annual total electricity consumption is about 10,214 kWh. By building the simulation model, the annual energy consumption of the building is about 10,584 kWh, which is lower than the actual consumption of 370 kWh. The deviation in the air conditioning season, non-air conditioning seasons are 7.1% and 5.7% respectively. And it is within the acceptable range. Therefore, the model established by this research is feasible.

4. Discussion

According to GBES, the weight of energy utilization accounts for 24% and 28% for residential buildings and public buildings, respectively. The weight of energy and atmosphere assessment is about 30% in LEED-NC4.0. Therefore, reducing the building energy consumption is an important part of promoting the development of green buildings. From the angle of economic and social development, it is a great impetus to the sustainable development of an economic environment. According to GBES, passive design occupies a large proportion. Therefore, the effect of passive design parameters on BEC and indoor thermal comfort was investigated through building simulation and Particle swarm optimization.
A reasonable setting of LWR helps reduce EC, but its energy saving potential is small. Additionally, the EC per unit area increases linearly with WFR increase. However, this does not mean that the smaller the WFR, the better. According to the standard provisions [59], in order to ensure the effect of natural ventilation, the open area of the residential window shall not be less than 8% of the floor area. Therefore, when determining the value of WFR, the necessary indoor ventilation should be ensured.
The insulation thickness and the EC are hyperbolic. The effect of different insulation materials is less different. The heat insulation of EW has little influence on the indoor average temperature. However, the roof’s thermal insulation material can not only reduce theEC, but also improve the indoor comfort. There is no significant correlation between EC and K of Ew, but it has a significant positive correlation with SHGC at 0.01 level. This result aligns with the local standards [23] on not specifying the K of external windows of residential buildings, which are south of HSWW.
Horizontal shading has a significant effect on reducing EC. East and west window can set the horizontal shading device with long overhangs; the south and north windows are more suitable for vertical shading, especially the south Ew. The greater the distance between the sun visor and the outer window, the greater the EC.
Rural residential building generally only install air conditioning equipment in the bedroom, study and other closed areas. Moreover, intermediate spaces next to the air-wells had significantly lower air temperature and heat index [55], the courtyard has a relatively small impact on the closed space, so the impact of courtyards on building energy consumption is not significant. Nevertheless, it can improve the indoor thermal environment of the open space. Its impact on the first floor is significantly greater than its effect on the top floor. Compared with summer, it has less of an influence in the transition season and winter. Combined with the climate characteristics in different seasons of courtyards, it is recommended to add courtyards to improve the indoor thermal environment of the open space and set the open condition of the courtyards according to the outdoor climatic conditions.
An energy-saving optimization analysis for rural residential areas in HSWW was established, which had a practical significance on the design decision-making for such typology of houses. At present, China’s energy-saving design and project design are often out of touch, which means that architects often rely on experience and related energy-saving standards or energy-saving design standards. In contrast with the previous results, it can be seen that the optimization results of this study can help designers deal with multidisciplinary and contrasting objectives in the early design stage. It can be used to guide the design of new rural constructions in the area and the energy-saving transformation of the existing rural houses, which can help achieve both energy saving and comfort.
Moreover, it is important to mention that the results are obtained from building energy simulation. Building energy simulation helps understand the impact of different strategies on the building’s performance. However, the predicted energy consumption may have some deviation from the actual energy consumption. Additionally, in this study, the home air conditioner was chosen as the refrigeration equipment without any energy-saving measures. This paper takes the annual energy consumption as the objective function to carry out the single objective of multi-optimization. The influence of parameter variation on indoor comfort is not considered in the optimization. For the basic parameters of the PSO, this paper mostly used empirical values that are based on the relevant literature.

5. Conclusions

In order to adapt to the development of green building in response to the 13th “Five-Year plan” of China, improving building performance is one of the top priorities. In this paper, the basic information of the existing rural residential buildings in Quanzhou area is obtained by field research. Using the specifications of the climate zone and the local architecture development trend, to expand based on the existing building model, the influence of building-type parameters, the parameters of building envelopes, the shading system, and natural ventilation measures on EC and thermal comfort were studied. Based on the results presented in this paper the following conclusions can be drawn:
  • The EC increases linearly with the increase of LWR, and first decreases and subsequently increases with the increase of WFR.
  • The relationship between EC and the thickness of EW and roof’ insulation material is hyperbolic. The additional insulation layer on the EW has little effect on the indoor temperature of the top floor room. In contrast, roof insulation measure has an obvious impact on indoor temperature. There is a significant positive correlation between the EC of residential buildings and SHGC at the 0.01 level, which is not significantly correlated with K.
  • For the east and the west windows, this is effective by increasing OLh, reducing Hh and increasing ELh. For the south windows, increasing OLv and reducing Hv can reduce EC. The best sunshade measures for the southern windows should be combined with the local farmers living habits.
  • A courtyard has little effect on EC, but it has an obvious effect on improving thermal comfort. In summer, the courtyard can effectively reduce the indoor temperature, and the effect of lowering the indoor temperature is varies with the different states of the courtyard. Compared with the summer conditions, the courtyard has little effect on the indoor temperature in the transition season and winter. Additionally, the courtyard can raise the indoor temperature of the first-floor living room, and its influence on the top-floor living room is related to the state of it.
  • The results of the multi-dimensional optimization show that the optimal value of building orientation, LWR, WFR in the south, insulation thickness of EW, and roof in the south are 0.9–1.0, 0.193–0.200, 0.24 m and 0.06 m, respectively. The results also indicate that the optimal thermal insulation material of Ew, EW, and roof is steel frame plating green film hollow glass window, CCHB, and eEPB, respectively. For both east windows and west windows, horizontal shading is optimal. The optimal value of OLh, Hh and ELh is 1.4 m, 0.1 m and 0.5 m, respectively. For north windows, vertical shading is optimal; the optimal value of OLh, Hh and ELh is 0.8 m, 0.05 m and 0 m, respectively.
  • The optimization results of this study can help designers deal with multidisciplinary and contrasting objectives in the early design stage. It can be used to guide the construction of new countryside and the energy saving reform of the existing rural buildings. It is beneficial to the construction of sustainable buildings.

Acknowledgments

This research has been supported by ‘National Key R&D Program of China’ (Grant No. 2016YFC0700100).

Author Contributions

Shilei Lu conceived the research and designed the research methods; Ran Wang analyzed the data, wrote and improved the paper; Shaoqun Zheng performed the simulation.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
ECEnergy consumption (kWh/m2)
HWWZhot summer and warm winter zone
TBTwo-storey residence
THBThree-storey residence
SFStandard farmhouse
EFExisting farmhouse
OFOptimization farmhouse
EWExterior wall
EwExterior window
KHeat transfer coefficient (W/m2·K)
CMCement mortar
ACHBAggregate concrete hollow block
CCHBCceramsite concrete hollow block
MRTMetal roofing tile
FACFine aggregate concrete
EPSPolystyrene board
RCReinforced concrete
BPBottom plate plastering
AWAluminum alloy single frame hollow glass window
EPBExtruded polystyrene board
EPExpanded perlite
GIMGlazed hollow bead inorganic dry powder insulation mortar
VMBGlass beads
CHBConcrete hollow block
SCBSolid clay brick
SSpecific heat
WFRWindow-floor ratio
LWRlength-width ratio
SHGCsolar heat gain coefficient
HSSBHorizontal sun shading board
VSSBVertical sun shading board
OBuilding orientation
IMInsulation material
RITRoof insulation thickness (m)
RIMTypes of roofing insulation materials
EWITExternal wall insulation thickness (m)
EWTExterior window type
EWITypes of external wall insulation
OLhOverhangs length of the horizontal shading
OLvOverhangs length of the vertical shading
ELhExtension length of horizontal shading
ELvExtension length of the vertical shading
HhDistance between horizontal visor and window
HVDistance between vertical visor and window

References

  1. Nelson, A.J.; Rakau, O.; Dörrenberg, P. Green Buildings—A Niche Becomes Mainstream; Deutsche Bank Research: Frankfurt am Main, Germany, 2010. [Google Scholar]
  2. Low, S.P.; Gao, S.; Tay, W.L. Comparative study of project management and critical success factors of greening new and existing buildings in Singapore. Struct. Surv. 2014, 32, 413–433. [Google Scholar]
  3. Berardi, U. Clarifying the new interpretations of the concept of sustainable building. Sustain. Cities Soc. 2013, 8, 72–78. [Google Scholar] [CrossRef]
  4. Son, H.; Kim, C.; Chong, W.K.; Chou, J.S. Implementing sustainable development in the construction industry: Constructors’ perspectives in the us and korea. Sustain. Dev. 2011, 19, 337–347. [Google Scholar] [CrossRef]
  5. Kibert, C.J. Sustainable Construction: Green Building Design and Delivery, 3rd ed.; John Wiley & Sons: Hoboken, NJ, USA, 2012. [Google Scholar]
  6. Li, T. Research on Performance Evaluation System of Green Building in China; Tianjin University: Tianjin, China, 2012. [Google Scholar]
  7. National Energy Science and Technology 12th Five-Year plan. 2011. Available online: https://policy.asiapacificenergy.org/node/39 (accessed on 7 December 2017).
  8. National Energy Science and Technology Planning 13th Five-Year. 2016. Available online: https://policy.asiapacificenergy.org/node/3049 (accessed on 7 December 2017).
  9. Sadafi, N.; Salleh, E.; Haw, L.C.; Jaafar, Z. Evaluating thermal effects of internal courtyard in a tropical terrace house by computational simulation. Energy Build. 2011, 43, 887–893. [Google Scholar] [CrossRef]
  10. Zou, Y.; Song, B.; Liu, J. An interpretation of the national standards for energy efficiency design of rural residential buildings. Heat. Vent. Air Cond. 2013, 43, 77–81. [Google Scholar]
  11. Fengshun, L. Study on optimized construction methods of energy saving for building HVAC. Industry 2015, 26, 135. [Google Scholar]
  12. Wu, S.R. Rural Residential Building Energy Efficiency Design Standards; China Architecture and Building Press: Beijing, China, 2013. [Google Scholar]
  13. Ma, C.; Liu, Y.; Wang, D. Analysis of thermal performance and energy saving strategy of rural residential buildings in Northwest China. J. Xi'an Univ. Arch. Technol. 2015, 47, 427–432. [Google Scholar]
  14. Cho, J.; Shin, S.; Kim, J.; Hong, H. Development of an energy evaluation methodology to make multiple predictions of the HVAC&R system energy demand for office buildings. Energy Build. 2014, 80, 169–183. [Google Scholar]
  15. Chen, X.; Yang, H.; Lu, L. A comprehensive review on passive design approaches in green building rating tools. Renew. Sustain. Energy Rev. 2015, 50, 1425–1436. [Google Scholar] [CrossRef]
  16. Huberman, N.; Pearlmutter, D.; Gal, E.; Meir, I.A. Optimizing structural roof form for life-cycle energy efficiency. Energy Build. 2015, 104, 336–349. [Google Scholar] [CrossRef]
  17. Setiawan, A.F.; Huang, T.L.; Tzeng, C.T.; Lai, C.M. The Effects of Envelope Design Alternatives on the Energy Consumption of Residential Houses in Indonesia. Energies 2015, 8, 2788–2802. [Google Scholar] [CrossRef]
  18. Pisello, A.L.; Cotana, F.; Nicolini, A.; Buratti, C. Effect of dynamic characteristics of building envelope on thermal-energy performance in winter conditions: In field experiment. Energy Build. 2014, 80, 218–230. [Google Scholar] [CrossRef]
  19. Mirrahimi, S.; Mohamed, M.F.; Haw, L.C.; Ibrahim, N.L.N.; Yusoff, W.F.M.; Aflaki, A. The effect of building envelope on the thermal comfort and energy saving for high-rise buildings in hot–humid climate. Renew. Sustain. Energy Rev. 2016, 53, 1508–1519. [Google Scholar] [CrossRef]
  20. Maestre, I.R.; Cubillas, P. Influence of selected solar positions for shading device calculations in building energy performance simulations. Energy Build. 2015, 101, 144–152. [Google Scholar] [CrossRef]
  21. Badescu, V.; Laaser, N.; Crutescu, R. Warm season cooling requirements for passive buildings in Southeastern Europe (Romania). Energy 2010, 35, 3284–3300. [Google Scholar] [CrossRef]
  22. Badescu, V.; Laaser, N.; Crutescu, R.; Crutescu, M.; Dobrovicescu, A.; Tsatsaronis, G. Modeling, validation and time-dependent simulation of the first large passive building in Romania. Renew. Energy 2011, 36, 142–157. [Google Scholar] [CrossRef]
  23. Mechri, H.E.; Capozzoli, A.; Corrado, V. USE of the ANOVA approach for sensitive building energy design. Appl. Energy 2010, 87, 3073–3083. [Google Scholar] [CrossRef]
  24. Chen, X.; Yang, H.; Wang, Y. Parametric study of passive design strategies for high-rise residential buildings in hot and humid climates: Miscellaneous impact factors. Renew. Sustain. Energy Rev. 2017, 69, 442–460. [Google Scholar] [CrossRef]
  25. Mavromatidis, L.E.; Marsault, X.; Lequay, H. Daylight factor estimation at an early design stage to reduce buildings’ energy consumption due to artificial lighting: A numerical approach based on Doehlert and Box–Behnken designs. Energy 2014, 65, 488–502. [Google Scholar] [CrossRef]
  26. Li, D.H.W.; Wong, S.L.; Tsang, C.L.; Cheung, G.H. A study of the daylighting performance and energy use in heavily obstructed residential buildings via computer simulation techniques. Energy Build. 2006, 38, 1343–1348. [Google Scholar] [CrossRef]
  27. Chen, X.; Yang, H. Combined thermal and daylight analysis of a typical public rental housing development to fulfil green building guidance in Hong Kong. Energy Build. 2015, 108, 420–432. [Google Scholar] [CrossRef]
  28. Planning Department, Chapter 8: Internal Transport Facilities, the Government of the Hong Kong Special Administrative Region. Available online: http://www.pland.gov.hk/pland_en/tech_doc/hkpsg/full/ch8/ch8_text.htm (accessed on 1 May 2016).
  29. Park, B.; Srubar Iii, W.V.; Krarti, M. Energy performance analysis of variable thermal resistance envelopes in residential buildings. Energy Build. 2015, 103, 317–325. [Google Scholar] [CrossRef]
  30. Premrov, M.; Žegarac Leskovar, V.; Mihalič, K. Influence of the building shape on the energy performance of timber-glass buildings in different climatic conditions. Energy 2015, 108, 201–211. [Google Scholar] [CrossRef]
  31. Blight, T.S.; Coley, D. Sensitivity analysis of the effect of occupant behaviour on the energy consumption of passive house dwellings. Energy Build. 2013, 66, 183–192. [Google Scholar] [CrossRef]
  32. Tian, W.; Song, J.; Li, Z.; de Wilde, P. Bootstrap techniques for sensitivity analysis and model selection in building thermal performance analysis. Appl. Energy 2014, 135, 320–328. [Google Scholar] [CrossRef]
  33. Rodríguez, G.C.; Andrés, A.C.; Muñoz, F.D.; López, J.M.C.; Zhang, Y. Uncertainties and sensitivity analysis in building energy simulation using macroparameters. Energy Build. 2013, 67, 79–87. [Google Scholar] [CrossRef]
  34. Toja-Silva, F.; Lopez-Garcia, O.; Peralta, C.; Navarro, J.; Cruz, I. An empirical—Heuristic optimization of the building-roof geometry for urban wind energy exploitation on high-rise buildings. Appl. Energy 2016, 164, 769–794. [Google Scholar] [CrossRef]
  35. Negendahl, K.; Nielsen, T.R. Building energy optimization in the early design stages: A simplified method. Energy Build. 2015, 105, 88–99. [Google Scholar] [CrossRef]
  36. Cacabelos, A.; Eguía, P.; Míguez, J.L.; Granada, E.; Arce, M.E. Calibrated simulation of a public library HVAC system with a ground-source heat pump and a radiant floor using TRNSYS and GenOpt. Energy Build. 2015, 108, 114–126. [Google Scholar] [CrossRef]
  37. Li, X.; Wen, J.; Bai, E. Developing a whole building cooling energy forecasting model for on-line operation optimization using proactive system identification. Appl. Energy 2016, 164, 69–88. [Google Scholar] [CrossRef]
  38. Velik, R.; Nicolay, P. Energy management in storage-augmented, grid-connected prosumer buildings and neighborhoods using a modified simulated annealing optimization. Comput. Oper. Res. 2016, 66, 248–257. [Google Scholar] [CrossRef]
  39. Magnier, L.; Haghighat, F. Multiobjective optimization of building design using TRNSYS simulations, genetic algorithm, and Artificial Neural Network. Build. Environ. 2010, 45, 739–746. [Google Scholar] [CrossRef]
  40. Ascione, F.; Bianco, N.; De Masi, R.F.; De Stasio, C.; Mauro, G.M.; Vanoli, G.P. Multi-objective optimization of the renewable energy mix for a building. Appl. Therm. Eng. 2015, 101, 612–621. [Google Scholar] [CrossRef]
  41. Tan, B.; Yavuz, Y.; Otay, E.N.; Çamlıbel, E. Optimal selection of energy efficiency measures for energy sustainability of existing buildings. Comput. Oper. Res. 2016, 66, 258–271. [Google Scholar] [CrossRef]
  42. Valdiserri, P.; Biserni, C.; Tosi, G.; Garai, M. Retrofit Strategies Applied to a Tertiary Building Assisted by Trnsys Energy Simulation Tool. Energy Procedia 2015, 78, 765–770. [Google Scholar] [CrossRef]
  43. Ascione, F.; Bianco, N.; De Stasio, C.; Mauro, G.M.; Vanoli, G.P. Simulation-based model predictive control by the multi-objective optimization of building energy performance and thermal comfort. Energy Build. 2016, 111, 131–144. [Google Scholar] [CrossRef]
  44. Yaşa, E.; Ok, V. Evaluation of the effects of courtyard building shapes on solar heat gains and energy efficiency according to different climatic regions. Energy Build. 2014, 73, 192–199. [Google Scholar] [CrossRef]
  45. Liu, B. Energy Plus Energy Consumption Analysis Theory: Architectural Engineering Technology and Design. Available online: http://d.wanfangdata.com.cn/Periodical/jzgcjsysj2015051241 (accessed on 4 December 2017).
  46. Fujian Institute of Building Science. Fujian Province Residential Building Energy Efficiency Design Standard; Engineering Construction Science and Technology Standardization Association: Fujian, China, 2014. [Google Scholar]
  47. Ministry of Housing and Urban Rural Development of People’s Republic of China. Residential Design Code; Ministry of Housing and Urban Rural Development of People’s Republic of China: Beijing, China, 2014.
  48. American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE). Standard 55-2013: Thermal Environmental Conditions for Human Occupancy; American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE): Atlanta, GA, USA, 2013. [Google Scholar]
  49. China Academy of Building Research. JGJ 75-2012 Design Standard for Energy Efficiency of Residential Buildings in Hot Summer and Warm Winter Zone; China Architecture and Building Press: Beijing, China, 2012. [Google Scholar]
  50. Ministry of Housing and Urban Rural Development. Civil Heating Ventilation and Air Conditioning Design Code: GB50736-2012; China Architecture & Building Press: Beijing, China, 2012.
  51. Eberhart, R.; Kennedy, J. A new optimizer-using particle swarm theory. In Proceedings of the Sixth International Symposium on Micro Machine and Human Science, Nagoya, Japan, 4–6 October 1995. [Google Scholar]
  52. Kennedy, J.; Eberhart, R. Particle swarm optimization. In Encyclopedia of Machine Learning; Springer: New York, NY, USA, 1995. [Google Scholar]
  53. Wetter, M. Generic Optimization Program, User Manual, Version 3.1.0; Technical Report LBNL-54199; Lawrence Berkeley National Laboratory: Berkeley, CA, USA, 2011.
  54. Ministry of Construction of People’s Republic of China. Code for Thermal Design of Civil Buildings; China Planning Press: Beijing, China, 1993; p. 12.
  55. Gamage, W.; Lau, S.; Qin, H.; Gou, Z. Effectiveness of air-well type courtyards on moderating thermal environments in tropical Chinese Shophouse. Arch. Sci. Rev. 2017, 60, 493–506. [Google Scholar] [CrossRef]
  56. Fujian Provincial Department of Construaction. Fujian Residential Building Energy Efficiency Design Standards Implementation Rule; Engineering Construction Science and Technology Standardization Association: Fujian, China, 2004. [Google Scholar]
  57. Xu, L.; Ma, M. The Application of Natural Ventilation in Xinxiang [A]; National Academic Conference on building environment and energy conservation in 2007 [C]. Available online: http://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZADX200710001013.htm (accessed on 4 December 2017).
  58. Chen, X.; Xue, J.; Zheng, B. Analysis of Quanzhou “Shoujinliao” residential thermal environment in summer. J. Arch. 2010, S1, 84–87. [Google Scholar]
  59. China Academy of Building Research. JGJ75-2003 Design Standard for Energy Efficiency of Residential Buildings in Hot Summer and Warm Winter Zone; China Architecture & Building Press: Beijing, China, 2003. [Google Scholar]
Figure 1. Passive design weighting in energy section.
Figure 1. Passive design weighting in energy section.
Sustainability 09 02288 g001
Figure 2. Passive design variable.
Figure 2. Passive design variable.
Sustainability 09 02288 g002
Figure 3. Thermal comfort research. (a) Summer; (b) Transition season; (c) Winter.
Figure 3. Thermal comfort research. (a) Summer; (b) Transition season; (c) Winter.
Sustainability 09 02288 g003
Figure 4. Cost distribution map of non-air conditioning season electricity.
Figure 4. Cost distribution map of non-air conditioning season electricity.
Sustainability 09 02288 g004
Figure 5. Building model and floor plan. (a) Volumetric model in 3D; (b) Floor plan.
Figure 5. Building model and floor plan. (a) Volumetric model in 3D; (b) Floor plan.
Sustainability 09 02288 g005
Figure 6. Weather data. (a) Dry bulb temperature; (b) Relative humidity; (c) Direct normal radiation; (d) Diffuse horizontal radiation.
Figure 6. Weather data. (a) Dry bulb temperature; (b) Relative humidity; (c) Direct normal radiation; (d) Diffuse horizontal radiation.
Sustainability 09 02288 g006aSustainability 09 02288 g006b
Figure 7. Utilization ratio. (a) Occupation; (b) lighting system.
Figure 7. Utilization ratio. (a) Occupation; (b) lighting system.
Sustainability 09 02288 g007
Figure 8. Interface between GenOpt and the simulation program that evaluates the cost function [53].
Figure 8. Interface between GenOpt and the simulation program that evaluates the cost function [53].
Sustainability 09 02288 g008
Figure 9. Relationship between length-width ratio and energy consumption.
Figure 9. Relationship between length-width ratio and energy consumption.
Sustainability 09 02288 g009
Figure 10. Relationship between window-floor ratio and energy consumption.
Figure 10. Relationship between window-floor ratio and energy consumption.
Sustainability 09 02288 g010
Figure 11. Relationship between thermal insulation material and energy consumption. (a) Two-storey residence (exterior wall); (b) Three-storey residence (exterior wall); (c) Two-storey residence (roof); (d) Three-storey residence (roof).
Figure 11. Relationship between thermal insulation material and energy consumption. (a) Two-storey residence (exterior wall); (b) Three-storey residence (exterior wall); (c) Two-storey residence (roof); (d) Three-storey residence (roof).
Sustainability 09 02288 g011
Figure 12. Temperature variation of living room under different insulation materials. (a) Two-storey residence (exterior wall); (b) Three-storey residence (exterior wall); (c) Two-storey residence (roof); (d) Three-storey residence (roof).
Figure 12. Temperature variation of living room under different insulation materials. (a) Two-storey residence (exterior wall); (b) Three-storey residence (exterior wall); (c) Two-storey residence (roof); (d) Three-storey residence (roof).
Sustainability 09 02288 g012
Figure 13. Relationship between thermal performance of exterior windows and energy consumption. (a) Two-storey residence; (b) Three-storey residence. Note: SHGC of the working condition 1–5 is the same, the K of the working condition 5–9 is the same, and the working conditions 10 and 11 are not drawn into the picture.
Figure 13. Relationship between thermal performance of exterior windows and energy consumption. (a) Two-storey residence; (b) Three-storey residence. Note: SHGC of the working condition 1–5 is the same, the K of the working condition 5–9 is the same, and the working conditions 10 and 11 are not drawn into the picture.
Sustainability 09 02288 g013
Figure 14. The relationship between energy consumption and the overhangs length of visor. (a) Two-storey residence (Horizontal visor); (b) Three-storey residence (Horizontal visor); (c) Two-storey residence (Vertical visor); (d) Three-storey residence (Vertical visor).
Figure 14. The relationship between energy consumption and the overhangs length of visor. (a) Two-storey residence (Horizontal visor); (b) Three-storey residence (Horizontal visor); (c) Two-storey residence (Vertical visor); (d) Three-storey residence (Vertical visor).
Sustainability 09 02288 g014aSustainability 09 02288 g014b
Figure 15. Relationship between energy consumption and the distance from the windows to visor. (a) Two-storey residence (Horizontal visor); (b) Three-storey residence (Horizontal visor); (c) Two-storey residence (Vertical visor); (d) Three-storey residence (Vertical visor).
Figure 15. Relationship between energy consumption and the distance from the windows to visor. (a) Two-storey residence (Horizontal visor); (b) Three-storey residence (Horizontal visor); (c) Two-storey residence (Vertical visor); (d) Three-storey residence (Vertical visor).
Sustainability 09 02288 g015aSustainability 09 02288 g015b
Figure 16. The relationship between the extension length of sun visor and energy consumption. (a) Two-storey residence (Horizontal visor); (b) Three-storey residence (Horizontal visor); (c) Two-storey residence (Vertical visor); (d) Three-storey residence (Vertical visor).
Figure 16. The relationship between the extension length of sun visor and energy consumption. (a) Two-storey residence (Horizontal visor); (b) Three-storey residence (Horizontal visor); (c) Two-storey residence (Vertical visor); (d) Three-storey residence (Vertical visor).
Sustainability 09 02288 g016
Figure 17. Comparison of EC under different working conditions of courtyard.
Figure 17. Comparison of EC under different working conditions of courtyard.
Sustainability 09 02288 g017
Figure 18. Hourly average indoor temperature in transition summer; (a) The living room on the top floor of TB; (b) The living room on the first floor of TB; (c) The living room on the top floor of THB; (d) The living room on the first floor of THB.
Figure 18. Hourly average indoor temperature in transition summer; (a) The living room on the top floor of TB; (b) The living room on the first floor of TB; (c) The living room on the top floor of THB; (d) The living room on the first floor of THB.
Sustainability 09 02288 g018
Figure 19. Hourly average indoor temperature in transition season. (a) The living room on the top floor of TB; (b) The living room on the first floor of TB; (c) The living room on the top floor of THB; (d) The living room on the first floor of THB.
Figure 19. Hourly average indoor temperature in transition season. (a) The living room on the top floor of TB; (b) The living room on the first floor of TB; (c) The living room on the top floor of THB; (d) The living room on the first floor of THB.
Sustainability 09 02288 g019
Figure 20. Hourly average indoor temperature in winter. (a) The living room on the top floor of TB; (b) The living room on the first floor of TB; (c) The living room on the top floor of THB; (d) The living room on the first floor of THB.
Figure 20. Hourly average indoor temperature in winter. (a) The living room on the top floor of TB; (b) The living room on the first floor of TB; (c) The living room on the top floor of THB; (d) The living room on the first floor of THB.
Sustainability 09 02288 g020
Figure 21. Building model. (a) Stereo model; (b) simulation model.
Figure 21. Building model. (a) Stereo model; (b) simulation model.
Sustainability 09 02288 g021
Table 1. The average use of household electrical appliances.
Table 1. The average use of household electrical appliances.
Domestic ApplianceComputerAir ConditionerFanTVWashing Machine
Numbers/household0.701.522.781.570.61
domestic applianceRefrigeratorelectromagnetic ovenelectric cookerelectric water heater
Numbers/household1.431.301.171.00
Table 2. Parameters of retaining structure.
Table 2. Parameters of retaining structure.
NameStructureTT/mK/W/(m2·K)
EWCM (20 mm) ACHB (190 mm) CM (20 mm)0.2301.655
RoofMRT (30 mm) FAC (40 mm) EPS (30 mm) RC (110 mm) BP (25 mm) EPB (35 mm) CM (20 mm)0.2400.695
EwAW-2.822
Table 3. Data of Occupation, equipment and lighting system.
Table 3. Data of Occupation, equipment and lighting system.
NameSellingToiletBed RoomLiving RoomkitchenStory
People (p)822421
Lights (W/m2)623442
Electric Equipment (W)170080703500
Table 4. Air conditioning schedule.
Table 4. Air conditioning schedule.
Room NameCooling Time
Canteen9:00–21:00
Bedroom12:00–14:00; 20:00–24:00
Table 5. Parameter setting of length-width ratio and window—area ratio.
Table 5. Parameter setting of length-width ratio and window—area ratio.
VariableInitial ValueMinimum ValueMaximum ValueStepAlgorithm
LWR1.50.33.00.1Parametric Runs
WFR (TB)0.2530.1030.4040.030Parametric Runs
WFR (THB)0.2650.1040.4260.032Parametric Runs
Table 6. Main physical properties of thermal insulation materials.
Table 6. Main physical properties of thermal insulation materials.
TypeIMDensityKS
(kg/m3)(W/(m·K))(J/(kg·K))
EWEPS240.0351210
EP160.0521260
GIM640.046960
ACHB650–7500.53--
RoofEPB290.0291210
EP160.0521260
EPS240.0351210
EPB290.0291210
Table 7. Thickness range and difference of thermal insulation material.
Table 7. Thickness range and difference of thermal insulation material.
NameIMThickness Range (m)Dispersion (m)Step
EWPB0–0.060.00512
EP0–0.060.00512
ACHB0–0.240.0212
GIM0–0.060.00512
roof——0–0.150.0114
Table 8. Main parameters of different types of external windows.
Table 8. Main parameters of different types of external windows.
NumberFormK(W/(m·K))SHGC
1Glass (3 mm) Air (6 mm) Glass (3 mm clear)3.1720.762
2Glass (3 mm) Air (12 mm) Glass (3 mm clear)2.7410.763
3Glass (3 mm) Air (15 mm) Glass (3 mm clear)2.7250.764
4Glass (3 mm) Air (16 mm) Glass (3 mm clear)2.7170.764
5Glass (3 mm) Air (9 mm) Glass (3 mm clear)2.8830.763
6Glass (3 mm) Air (9 mm) Glass (3 mm grey)2.8830.572
7Glass (3 mm) Air (9 mm) Glass (3 mm green)2.8830.565
8Glass (3 mm) Air (9 mm) Glass (3 mm bronze)2.8830.582
9Glass (3 mm) Air (9 mm) Glass (3 mm low iron)2.8830.828
10Single layer glass window (6 mm clear glass)5.7780.819
11Single layer glass window (6 mm Low-E glass)3.4370.637
Note: clear represents colorless transparent ordinary glass, grey represents the grey endothermic coating glass, green represents the green glass coating absorbs heat, bronze represents the bronze endothermic coating glass, and low iron represents the low iron glass.
Table 9. Parameter setting in different shading forms.
Table 9. Parameter setting in different shading forms.
VariablesFormVariable Range (m)Dispersion (m)Step
OLHSSB0–1.80.29
VSSB0–1.00.110
HHSSB0–0.50.15
VSSB0–0.30.056
ELHSSB0–0.50.0510
VSSB0–0.50.0510
Table 10. Setting the working condition of courtyard.
Table 10. Setting the working condition of courtyard.
Working ConditionCourtyardOpen State
1NoTop closure
2YesOpen top
3YesTop half closed
4YesTop closure
Table 11. The volumetric 3D model under different working conditions (Courtyard size: 2 m × 3 m).
Table 11. The volumetric 3D model under different working conditions (Courtyard size: 2 m × 3 m).
Working ConditionTBTHB
1 Sustainability 09 02288 i001 Sustainability 09 02288 i002
2 Sustainability 09 02288 i003 Sustainability 09 02288 i004
3 Sustainability 09 02288 i005 Sustainability 09 02288 i006
4 Sustainability 09 02288 i007 Sustainability 09 02288 i008
Note: for “open courtyard” condition, the wall of the living room in top floor, which connected to the courtyard, is considered EW. The first and the middle floor is considered inner wall.
Table 12. Correlation between energy consumption and length-width ratio.
Table 12. Correlation between energy consumption and length-width ratio.
EC (kWh/m2) r
TBPearson correlation0.623 **
Significant (bilateral)0.001
TRBPearson correlation0.775 **
Significant (bilateral)0.000
Notes: ** Significant correlation at 0.01 level (bilateral).
Table 13. Fitting relationship between window-floor ratio and energy consumption.
Table 13. Fitting relationship between window-floor ratio and energy consumption.
Building TypeRegression EquationRegression Coefficient (R2)Significance Test (sig.)
TBY = 23.150X + 23.6081.0000.000
THBY = 23.400X + 20.2961.0000.000
Table 14. Correlation between energy consumption and thermal performance of exterior windows.
Table 14. Correlation between energy consumption and thermal performance of exterior windows.
Building Types K (W/m2·K)SHGC
TBPearson correlation0.1550.969 **
Significant (bilateral)0.6500.000
THBPearson correlation0.1720.968 **
Significant (bilateral)0.6120.000
Note: ** At the 0.01 level (bilateral) significant correlation.
Table 15. Adaptive model evaluation results.
Table 15. Adaptive model evaluation results.
Building TypeFloor Working ConditionIn 1 JanuaryIn 15 AprilIn 21 July
TBTop10.0%58.3%0.0%
20.0%62.5%20.8%
30.0%50.0%33.3%
40.0%54.2%0.0%
First 137.5%58.3%0.0%
262.5%62.5%45.8%
354.2%50.0%54.2%
454.2%54.2%29.2%
THBTop10.0%100.0%0.0%
20.0%100.0%0.0%
30.0%100.0%0.0%
40.0%100.0%0.0%
First 10.0%100.0%4.2%
20.0%100.0%4.2%
30.0%100.0%4.2%
40.0%100.0%4.2%
Table 16. Setting optimization variables.
Table 16. Setting optimization variables.
Parameter NameValue RangeInitial ValueVariable TypeOptimal Step
O0–180°0continuous variable10
LWR0.3–31.5continuous variable0.1
WARTB0.103–0.4040.253continuous variable0.03
WARTHB0.104–0.4260.265continuous variable0.032
EWI1–43discrete variable1
EWIT1,2,4 (m)0–0.060.03continuous variable0.005
EWIT3 (m)0–0.240.19continuous variable0.02
RIM1–33discrete variable1
RIT(m)0–0.150.030continuous variable0.01
EWT1–98discrete variable1
OLh0–1.80.8continuous variable0.2
Hh0–0.50.1continuous variable0.1
ELh0–0.50continuous variable0.05
OLv0–1.00.5continuous variable0.1
HV0–0.30.1continuous variable0.05
ELv0–0.50continuous variable0.05
Note: 1–4 types of external wall thermal insulation materials respectively are the EPS, EP, CCHB, and GIM.
Table 17. Parameter setting of PSO.
Table 17. Parameter setting of PSO.
Parameter NameParameter Value
Domain topologyVon Neumann
Particle number (nP)10
Subalgebra (nG)10
Cognitive acceleration (c1)2.8
Social acceleration (c2)1.3
Velocity contraction coefficient (λ)0.5
Maximum velocity dispersion coefficient (νmax)4
Initial iteration weight (w0)1.2
Final iteration weight (w1)0
Note: the meaning and value of each parameter in the table refer to reference [54].
Table 18. Optimization results of particle swarm optimization.
Table 18. Optimization results of particle swarm optimization.
Parameter NameTBTHBTB (Not Optimized)THB (Not Optimized)
OSE10°southsouthsouth
LWR0.91.01.51.5
WFR0.1930.2000.2530.265
IM of EW3333
EWIT (m)0.240.240.190.19
IM of roof1133
RIT (m)0.060.060.030.03
EWT771111
OLh1.41.40.80.8
Hh0.10.10.10.1
ELh0.50.500
OLv0.80.80.50.5
HV0.050.050.10.1
ELv0000
EC (kWh/m2)28.2424.4130.7527.23
Iterations340340----
Note: the third type of EW insulation material is CCHB; the first and the third types of roof insulation material are EPB and PB, respectively; the seventh and eleventh types of windows refers to green film plated hollow glass windows and the single ordinary glass windows.
Table 19. Energy consumption and cost of three farmhouses.
Table 19. Energy consumption and cost of three farmhouses.
Building TypeAnnual Energy Consumption (kWh/m2)Annual Fee ($)
TBTHBTBTHB
EF38.5735.04410.19558.92
SF30.7527.23326.99434.33
OF28.2424.41300.30389.36
Table 20. Increase in initial investment.
Table 20. Increase in initial investment.
Building LayersEnergy Saving MeasuresIncrease in Initial Investment ($)
SFOF
TBEW insulation1286.061704.80
Roof insulation373.161119.64
Ew1637.183169.12
total3296.405993.55
THBEW insulation1948.732454.87
Roof insulation373.161119.19
Ew1627.183169.12
total3296.405993.55
Table 21. Economic comparative analysis.
Table 21. Economic comparative analysis.
Building LayersContrast Term (A/B)ECR (%)Initial Investment Increase ($)AECR ($)Payback Period (year)
TBSF/EF20.273296.403213.3415.4
OF/EF26.785993.55281.8621.3
THBSF/EF22.294719.04319.4914.7
OF/EF30.348498.65434.9319.5
Note: ECR = (the EC of B—the EC of A)/the EC of B; AECR = the AEC of B—the AEC of A; Investment payback period = initial investment increase/AECR.
Table 22. Parameter setting of enclosure structure.
Table 22. Parameter setting of enclosure structure.
NameStructureAggregate Thickness (m)K (W/(m2·K))
EWCM (20 mm) + SCB (240 mm) + CM (20 mm) 0.281.892
roofroofing tile + Fine stone concrete (40 mm) + RC (110 mm)0.151.830
floorCM (20 mm) + RC (100 mm) + CM (20 mm)0.143.703
EwSingle glazing aluminum alloy window--5.778
Note: The meteorological data of this model is the same as that of the Section 2.2.1; occupation, equipment, and lighting is the same as that of the Section 2.2.3. The air-conditioning system setting is the same as that of the Section 2.2.4.

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
