The Search for Sustainable Subsurface Habitats on Mars, and the Sampling of Impact Ejecta

Department of Palaeozoology, Swedish Museum of Natural History, Svante Arrheniusväg 9, P.O. Box 50007, SE-104 05 Stockholm, Sweden
Department of Geographical and Earth Sciences, University of Glasgow, Gregory Building, Lilybank Gardens, Glasgow, G12 8QQ, UK
Author to whom correspondence should be addressed.
Sustainability 2010, 2(7), 1969-1990;
Submission received: 20 May 2010 / Accepted: 22 June 2010 / Published: 5 July 2010
(This article belongs to the Special Issue Astrobiology and Sustainability)


On Earth, the deep subsurface biosphere of both the oceanic and the continental crust is well known for surviving harsh conditions and environments characterized by high temperatures, high pressures, extreme pHs, and the absence of sunlight. The microorganisms of the terrestrial deep biosphere have an excellent capacity for adapting to changing geochemistry, as the alteration of the crust proceeds and the conditions of their habitats slowly change. Despite an almost complete isolation from surface conditions and the surface biosphere, the deep biosphere of the crustal rocks has endured over geologic time. This indicates that the deep biosphere is a self-sufficient system, independent of the global events that occur at the surface, such as impacts, glaciations, sea level fluctuations, and climate changes. With our sustainable terrestrial subsurface biosphere in mind, the subsurface on Mars has often been suggested as the most plausible place to search for fossil Martian life, or even present Martian life. Since the Martian surface is more or less sterile, subsurface settings are the only place on Mars where life could have been sustained over geologic time. To detect a deep biosphere in the Martian basement, drilling is a requirement. However, near future Mars sample return missions are limited by the mission’s payload, which excludes heavy drilling equipment and restrict the missions to only dig the topmost meter of the Martian soil. Therefore, the sampling and analysis of Martian impact ejecta has been suggested as a way of accessing the deeper Martian subsurface without using heavy drilling equipment. Impact cratering is a natural geological process capable of excavating and exposing large amounts of rock material from great depths up to the surface. Several studies of terrestrial impact deposits show the preservation of pre-impact biosignatures, such as fossilized organisms and chemical biological markers. Therefore, if the Martian subsurface contains a record of life, it is reasonable to assume that biosignatures derived from the Martian subsurface could also be preserved in the Martian impact ejecta.

1. Introduction

Life is a strong force on our planet, and it has endured for billions of years despite global catastrophies, such as meteorite impacts, global glaciations, mass extinctions, and climate changes. From the fossil record, we know that microbial life has been present on Earth since at least 3.5 Giga annum (Ga) [1,2,3] and perhaps as early as 3.8 Ga [4]. Eukaryotes have been present since ~1.8 Ga [5,6], and the atmosphere has been oxygenated due to photosynthesis since ~2.4 Ga [7]. Life is intimately involved with most of the processes that shape the surface of our planet, like weathering and the distribution of vegetation on the continents, as well as the influence on the chemical composition of the atmosphere. Earth’s appearance from space is highly characterized by the presence of life, and from an alien perspective, it would not be difficult to detect life on our planet. Spectral signatures that indicate habitability, and that would be detectable from the other side of our galaxy, are, for example, atmospheric spectra of O2, O3, CH4, and N2O gases, and spectra from surface reflections indicating absorptions by pigments [8]. From such a remote perspective, Earth is the only planetary body in our solar system that harbors life. Nevertheless, it is possible that other planets harbored life earlier in their history, but that this life later went extinct. It could also be a possibility that life still exists on other planets, but that it has been forced to abandon the surface, or never inhabited the surface due to environmental reasons, and now only exists in isolated subsurface havens, where it is not detectable from Earth [9].
The last two decades have involved a change of view regarding the distribution of life on Earth, which may have consequences for our understanding of habitability on other terrestrial bodies. The knowledge of a deep subsurface biosphere that thrives at depths of as much as ~5 km in continental settings [10], as well as in the sub-seafloor crust [11], is constantly growing. This biosphere is not directly exposed to sun radiation and exists at conditions that previously were thought of as hostile for life. The subsurface communities are composed of extremophiles that can survive at high and low temperatures, high pressures, and extreme pHs. This life is more or less independent of the sun’s radiation as an energy source (even though some oxidants used by the microorganisms may be due to photosynthesis at the surface). Instead, the microorganisms gain energy from inorganic sources, like minerals or volcanic gases, and extract carbon from inorganic carbon sources, like carbon dioxide.
The fossil record tells us that microbial life has existed in deep oceanic crust that is associated with hydrothermal activity throughout life’s history on Earth. Some of the earliest fossils on Earth are found in pillow lavas [12] and hydrothermal deposits [13]. In fact, deep subsurface settings probably served as protected havens for life on a young Earth, which was constantly subject to heavy bombardment [14].
The knowledge of life’s capability to inhabit the terrestrial subsurface also displays new niches of where to search for life on other terrestrial planets, like Mars [15]. Hopefully, a world does not necessarily need to be lifeless just because its surface appears to be sterile and inhospitable. Life can survive at depths for long periods of time, and thus be out of reach for our detection. The current conditions on the Martian surface are extremely hostile to life. The subsurface, on the other hand, provides a more hospitable environment and stimulates speculation on possible life on Mars. Future Mars Sample Return (MSR) missions will be targeted to areas with great potential to detect present, or perhaps, more likely, fossil life. Potential subsurface settings, where water can be liquid and life can survive would be at depths of several km and out of reach for future MSRs. However, the current goal of the MSR missions is to reach areas unaffected by radiation and oxidation, and where organic molecules indicative of life or fossilized microorganisms might have been preserved. To reach areas unaffected by the radiation and oxidation at the Martian surface, the missions need to drill between 2 and 5 metres [16,17,18]. This need exceeds their capabilities. The payload of European Space Agency (ESA)’s planned 2018 Exomars rover is restricted to a drill with the capacity of 2 m [19]; that is why alternative ways to reach the subsurface are discussed. Areas with recent hydrothermal outflow due to impacts or volcanic activity have been suggested for sampling [20]. Another way to reach the Martian subsurface without drilling is by sampling from impact ejecta [9]. Examination of impact ejecta might be the best alternative way of reaching the fossil record of the subsurface. Impact ejecta are composed of material excavated from great depths below the surface. Impact cratering is a high energy event, but several studies show that fossil biomarkers can survive a hypervelocity impact [21,22]. Therefore, the study of impact ejecta on the Martian surface in future missions would enable a search for a fossil record of a sustainable Martian deep biosphere without using heavy drilling equipment.
In this paper, we review the current knowledge of sustainable subsurface ecosystems on Earth and their analogous nature to possible Martian counterparts. We also give suggestions of how to search for a putative Martian subsurface biosphere, and how to access the subsurface in future missions, through the sampling of Martian impact ejecta.

The Subsurface as a Protected Haven for Life

Subsurface settings, usually associated with hydrothermal activity, have been suggested by several authors to serve as protected havens for life on planetary bodies with less favorable surface conditions for life [9,14,15,23]. There are mainly two reasons for this. The first reason is that subsurface environments can supply a deep biosphere with the important prerequisites for sustaining life: water and accessible nutrients. This has led several authors to suggest subsurface or subseafloor hydrothermal settings as the most plausible environment where life originated on the early Earth [24,25]. However, we will not go into detail regarding biogeochemical conditions for the origin of life.
The second reason is that the subsurface environments can protect life against hostile surface conditions like damaging UV-radiation or hypervelocity impacts. The early Earth, for example, at the time when life is thought to have originated and evolved (~3.9–3.8 Ga), was experiencing heavy meteorite bombardments that probably sterilized the surface of the planet at several occasions [26]. Life could have existed on the surface between the devastating impacts, but it was the subsurface that could protect communities during the harsh periods, and hence made life sustainable on Earth. It is not only on the early Earth that subsurface environments could have acted as protected havens for life. The evolution of life has been punctuated by mass extinction events throughout Earth’s history due to impacts or global glaciations like the Snowball Earth [26,27,28,29,30,31]. During such catastrophic events, deep subsurface settings could have acted as refuges for microscopic life on Earth. Even if the impacts wiped out substantial portions of the surficial fauna and flora, fossil signatures of life could still be preserved in impact ejecta derived from the subsurface. These ejecta will be discussed later on in this article.
Mars is substantially different from Earth, and the conditions for a possible Martian subsurface biosphere would be markedly different. Even though oceans may have existed on Mars early in its history, the Martian surface has been dry for the majority of the planet’s history. The current conditions on the Martian surface are extremely hostile to life. The low atmospheric pressure (~6 hPa), low surface temperature (average of ~240 K), lack of liquid water, UV radiation fluxes three orders of magnitude more damaging to DNA than those on Earth, and the oxidized soil chemistry, make the Martian surface uninhabitable for life as we know it. The subsurface is, on the other hand, much more hospitable for biota, and, in fact, the Martian subsurface might be more hospitable and protective than the Earth’s subsurface. First of all, Mars’ lower background heat flow and lower gravity allow deeper colonies [14]. Secondly, the thermal heat pulse from a major impact is briefer. On Earth, much of the thermal radiation from minor impacts is absorbed by boiling the oceans: Global thermal excursions are buffered by the heat capacity of the oceans, but at impacts large enough to vaporize the oceans, the thermal buffering serves only to prolong the disaster for thousands of years, while the oceans rain out. Without oceans, thermal buffering does not occur on Mars, but on the other hand, the low Martian escape velocity results in the fact that most of the energetic ejecta escape more easily into space, while massive quantities of less energetic ejecta are globally distributed.

2. Earth

2.1. The Deep Subsurface Biosphere on Earth

The concept of the deep subsurface biosphere of the lithosphere has been known for several decades, but in the last twenty years, there has been an explosion in the exploration of this biosphere. Much of this is due to the drilling of deep holes, both in terrestrial and marine settings. As early as the 1920s, sulfate reducing bacteria were found in oil well brines at depths greater than 300 m [32,33], and in coal deposits at a depth of 1,089 m [34]. Sediments, as well as sedimentary rock, have also been known, for a long time, to contain microorganisms (e.g., [35,36,37]). Microorganisms have also been found in crystalline hard rock [38,39], and during the 1990s, the knowledge about subsurface microbes in hard rock greatly increased [40]. The depth at which life is being found is constantly increasing, and today, microorganisms have been found at depths that exceeds 5 km [10,41]. Putative fossilized filamentous microorganisms have been found in a variety of subsurface environments, such as hydrous alteration products in volcanic rocks, in oxidation zones of ore deposits, cavities in sediments, in Mississippi-Valley Type ore deposits, and in vein-type hydrothermal mineral deposits in crystalline rocks. In general, fossilized microorganisms are found in rocks that contain low-temperature aqueous alteration assemblages and the microfossils occur in veins and vesicles filled with secondary quartz, carbonates, zeolites, or clays. The fossilized microorganisms usually occur as Fe/Mn-hydroxide filaments upon which later oxides are precipitated [42,43,44].
The sub-seafloor biosphere is much less well-known than its continental counterpart due to obstacles involved in the sampling. It is only during the last two decades that this biosphere has been explored extensively. Sub-seafloor sediments [45,46], as well as hydrothermal vent areas [11,47,48], are known to harbor a vast biosphere of bacteria and archaea, and microorganisms have been found in sediments from depths of 10,897 meters below sea level in the Mariana Trench [49]. Our knowledge of the sub-seafloor biosphere of the basaltic crust, on the other hand, is still today more or less based on a fossil record. Drilled samples of basalt have been shown to contain two types of microfossils: ichnofossils (tracefossils) in volcanic glass [12,50] (Figure 1) and body fossils (fossilized microorganisms) in carbonate filled veins and vesicles [51,52,53] (Figure 2). Fossilized microorganisms have been found at depths of as much as ~950 meters below the seafloor (mbsf). Both ichnofossils in volcanic glass and fossilized microorganisms in the carbonate-filled vugs of basalts are interesting within an astrobiological context. This is because, in the future, they present potential features to search for in rock samples returned from Mars [51,54].

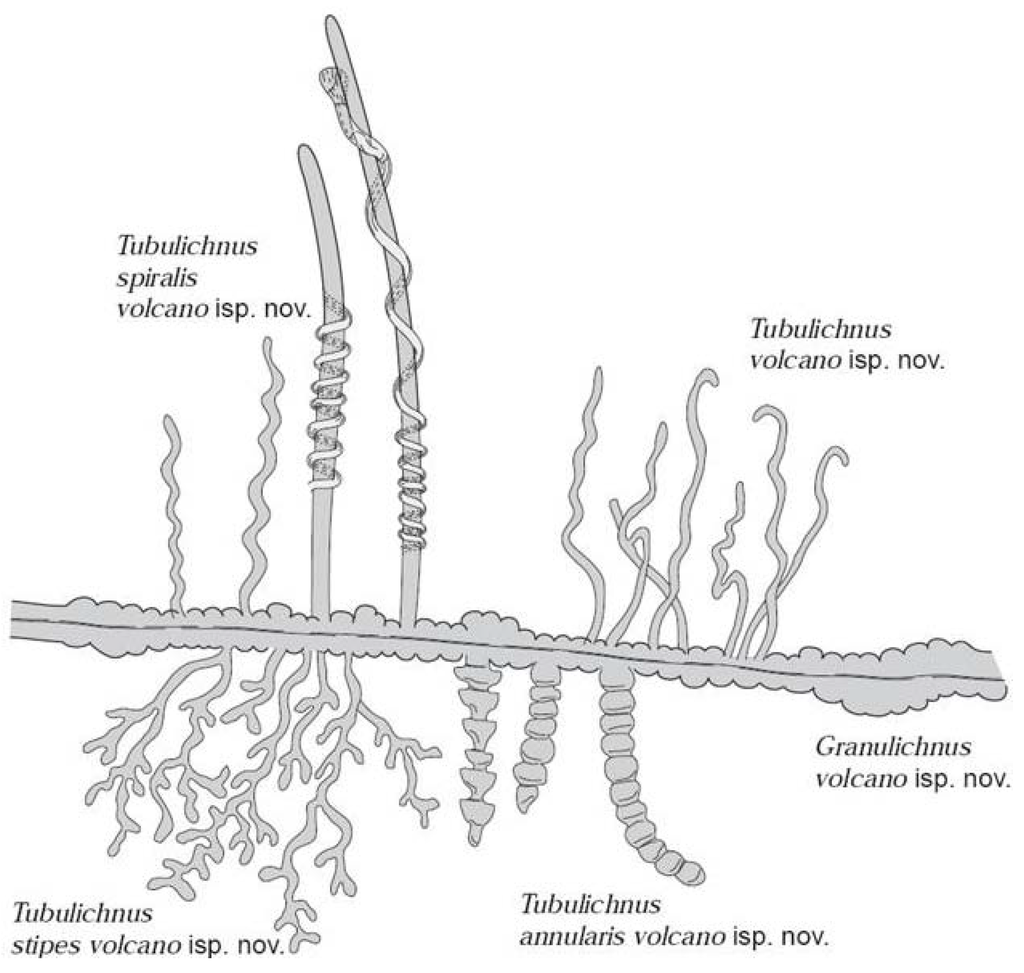

Figure 1. Line drawing showing the various ichnotaxa of tubular and granular ichnofossils found in oceanic volcanic glass worldwide. From left to right: helical shaped or coiled Tubulohyalichnus spiralis isp. nov.; simple unornamented and unbranched Tubulohyalichnus simplus isp. nov.; on the lower side of the fracture, branched Tubulohyalichnus stipes isp. nov.; annulated Tubulohyalichnus annularis isp. nov.; on both sides of the fracture, Granulohyalichnus vulgaris isp. nov. (Note: this is a schematic juxtaposition of the ichnotaxa; all five have not been observed alongside one another in natural samples; approximate relative scales are illustrated). Modified from McLoughlin et al. (2009) [55].
Figure 1. Line drawing showing the various ichnotaxa of tubular and granular ichnofossils found in oceanic volcanic glass worldwide. From left to right: helical shaped or coiled Tubulohyalichnus spiralis isp. nov.; simple unornamented and unbranched Tubulohyalichnus simplus isp. nov.; on the lower side of the fracture, branched Tubulohyalichnus stipes isp. nov.; annulated Tubulohyalichnus annularis isp. nov.; on both sides of the fracture, Granulohyalichnus vulgaris isp. nov. (Note: this is a schematic juxtaposition of the ichnotaxa; all five have not been observed alongside one another in natural samples; approximate relative scales are illustrated). Modified from McLoughlin et al. (2009) [55].
Sustainability 02 01969 g001
Figure 2. Microphotographs of microfossils in carbonate-filled veins and vesicles in basalts. (A) Microfossils at the interface between zeolites and carbonates in the Ocean Drilling Program (ODP) sample, 1206A-37R-3,72. Scale bar: 100 µm. From [52]. (B) microfossils in carbonate filled veins in basalts from the ODP sample, 1206A-18R-1,104. Scale bar: 10 µm. From [51]. See references [51,52] for more information and discussion regarding the biogenicity of the microfossils.
Figure 2. Microphotographs of microfossils in carbonate-filled veins and vesicles in basalts. (A) Microfossils at the interface between zeolites and carbonates in the Ocean Drilling Program (ODP) sample, 1206A-37R-3,72. Scale bar: 100 µm. From [52]. (B) microfossils in carbonate filled veins in basalts from the ODP sample, 1206A-18R-1,104. Scale bar: 10 µm. From [51]. See references [51,52] for more information and discussion regarding the biogenicity of the microfossils.
Sustainability 02 01969 g002
The concept of the deep subsurface biosphere can be problematic when it comes to distinguishing between the ground-surface biosphere, and the subsurface or subterranean biosphere, and there is no general consensus. In our opinion, there is no obvious boundary between the ground-surface biosphere and the subsurface biosphere. Instead, there is merely a gradual transition from the surface biosphere to the subsurface biosphere, such that the influence of the surface decreases with depth. Due to the main focus of this paper on the potential microbial life in deep Martian rocks, we will mainly refer to the subsurface biosphere as microbial life that occurs in the crystal basement or oceanic crust, and not in the overlying sediments. On Earth, subsurface microbial life occurs in most rock types from sedimentary rock to volcanic rock and crystalline granitic rock. On Mars, however, the basement consists of basalt, and we will focus mostly on terrestrial subsurface environments that can be used, more or less, as analogous environments to Martian conditions.
The main prerequisite of the subsurface and sub-seafloor biosphere is the presence of migrating fluids. Microorganisms exist in cracks and fissures in the rock, where fluids migrate and the microorganisms are dependent on the fluids for their transport through the system (Figure 3). Usually, they progress through the system in a passive and non-motile way. Thin films of water are probably enough for the passive transportation of microorganisms by capillary forces. The fluids also contain dissolved elements and compounds that are used by the microorganisms for their metabolism. Since the microorganisms are out of reach from the sun, the base of these ecosystems consists of chemolithoautotrophic microorganisms. Chemolithoautotrophs obtain their energy from the oxidation of inorganic compounds, rather than from sunlight, and use inorganic carbon as a carbon source. Usually, chemolithoautotrophs occupy habitats at the interface between two environments with divergent redox chemistry [56]. In sub-seafloor settings, for example, microbes have been found mostly associated with highly reduced volcanic glass (e.g., [57,58,59]). In contact with oxidized seawater, volcanic glass is out of equilibrium, and redox reactions favorable for microorganisms may occur. The reactions are relatively slow at low temperatures, and the microorganisms take this opportunity to catalyze the reactions and gain metabolic energy in the process. The most accessible compounds for chemolithoautotrophs in subsurface settings would be Fe2+, H2, H2S, S, CO, CH4, and Mn2+, and electron acceptors could be O2, NO3, Mn4+, Fe3+, SO42–, S, and CO2. Heterotrophs do occur as well, and use organic C in various constellations, like CH4, as an energy source.

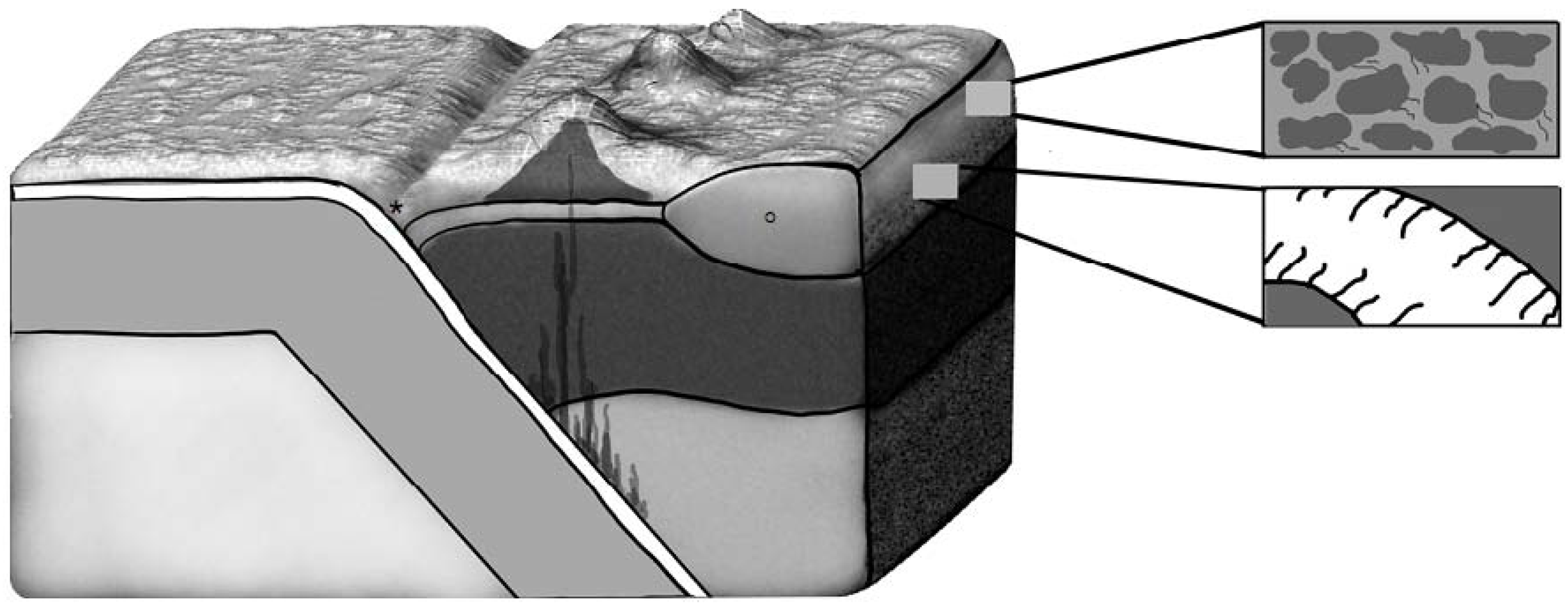

Figure 3. Schematic drawing of the occurrence of microorganisms in the pore spaces of sediments or sedimentary (upper box) rocks, as well as fractures and veins in crystalline rock (lower box). The drawing also indicates the greatest depths at which microorganisms have been observed in the oceanic and continental lithospheres, respectively. * indicates the maximum depth where microorganisms have been found in marine settings: the Mariana Trench at 10,897 meters below sea level. ◦ indicates the maximum depth where microorganisms have been found in continental settings at ~5 km depths.
Figure 3. Schematic drawing of the occurrence of microorganisms in the pore spaces of sediments or sedimentary (upper box) rocks, as well as fractures and veins in crystalline rock (lower box). The drawing also indicates the greatest depths at which microorganisms have been observed in the oceanic and continental lithospheres, respectively. * indicates the maximum depth where microorganisms have been found in marine settings: the Mariana Trench at 10,897 meters below sea level. ◦ indicates the maximum depth where microorganisms have been found in continental settings at ~5 km depths.
Sustainability 02 01969 g003
The Äspö Hard Rock Laboratory (HRL), Sweden, is an underground laboratory focused on the geological and biological issues associated with nuclear waste storage. This underground laboratory is situated 450 m underground, and is a unique location to study the subsurface biosphere, and is probably one of the places on Earth where the subsurface biosphere has been explored most extensively. At Äspö HRL, iron-, sulfide-, manganese-, and methane-oxidizing bacteria have been found in large numbers, as well as nitrate-, iron-, manganese- and sulfate-reducing bacteria, acetogens, and methanogens [41,60].
Usually, the subsurface biosphere is associated with prokaryotes exclusively, but eukaryotes have been found as well. Fungi have been isolated from a wide variety of subsurface environments like soils, deep subseafloor sediments, sedimentary rocks, ground waters, and igneous rock [61]. In soils, fungi are abundant in symbiosis with roots as mycorrhizae, but further down in subsurface settings, fungi are considered to occur more sparsely. Ground water aquifers in sedimentary rocks have been shown to contain a diversity of yeasts and fungi [62,63], as well as ground water from crystalline granite bedrock at Äspö, Sweden [64]. Ekendahl et al. [65] isolated five yeasts, three yeast-like fungi, and 17 filamentous fungal strains at depths between 201 and 448 m below sea level at Äspö HRL (Hard Rock Laboratory). Phylogenetic analysis of the 18S rDNA of the five yeasts’ isolates revealed their relationships to Rhodotorula minuta and Cryptococcus spp.

2.2. Sustainability of the Deep Biosphere

The metabolic pathways of chemolithoautotrophs show how well adapted the microorganisms of the subsurface biosphere are to their environment. It is the geochemical conditions of the habitats that define the environmental limitations that the microorganisms have to adapt to. The conditions, at which the subsurface biosphere exists, are normally thought of as extreme, and the microorganisms are often referred to as extremophiles. This is a term that includes a wide array of different microorganisms adapted to certain extreme conditions. Thermophiles are microorganisms with an optimum growth temperature of ~50 °C or above, but with a maximum of 80 °C. Hyperthermophiles are microorganisms with optimum growth temperatures above 80 °C, with a maximum of ~120 °C. Psychrophiles are the opposite, and represent microorganisms that thrive at low temperatures, preferably below 15 °C. Barophilic microorganisms thrive at high pressures, acidophiles at low pHs (preferably below pH 3), and alkaliphiles thrive at high pHs (above pH 9). Combinations of different extremophilic abilities occur. For instance, thermoacidophiles prefer temperatures of up to 80 °C and pH levels below 3.
Adaptation is crucial for the survival and sustainability of the subsurface biosphere, since these organisms are restricted to the subsurface conditions, and are more or less isolated from the surface biosphere. Environmental stress forces the microorganisms to adapt as geochemical conditions change over time in the subsurface settings due to, for example, rock weathering, alterations in fluid flow, or increases in temperature. Microorganisms cope with environmental stress in different ways. Some microorganisms are mixotrophic, which means that they can use a mix of different energy and carbon sources. Shewanella spp, for example, a marine bacterium commonly occurring in seafloor basalts, is capable of iron-, manganese- and sulfate reduction [48]. There are also mixotrophs that can alternate between photo- and chemotrophy, litho- and organotrophy, or auto- and heterotrophy. In subsurface settings, microbial communities are forced to adapt to microenvironments with varying redox potentials within a limited spatial scale. The establishment of local niches with varying metabolic pathways increases the enrichment of taxa from diverse metabolic groups, but also the capability of mixotrophy [11].
Environmental changes can sometimes occur instantaneously and many microorganisms are equipped with specific mechanisms to cope with such changes. Various heat shock response mechanisms, such as the thermally stable design of proteins and efficient DNA repair are examples of protective microbial responses to shifts in temperature. Similar response mechanisms have been developed among microorganisms to cope with changes in pressure, acidity, radiation, etc. Most of the processes are far from being understood. The organisms have been studied as single isolates, or as part of a limited suite of organisms removed from their natural environments. However, by coupling gene expression studies with analysis of geochemical variations, one may elucidate some of the driving forces of evolution in subsurface ecosystems.
If the microorganisms are subject to unfavorable conditions for a long period of time, they can go into dormancy, which is an inactive period when growth and metabolic activity slows down or completely ceases. This helps an organism to conserve energy. When the environmental conditions are favorable again, the organism can resume from its dormant state and increase its growth rate and metabolic activity. The dormant state can last for very long periods of time. Microorganisms as old as eight million years have been retrieved and grown in a laboratory from ice core samples from Antarctica [66]. However, the sustainability of a biosphere is not maintained by frequent dormant periods. Even if the conditions are considered extreme and the nutrient supply is low in subsurface environments, a stable ecosystem is needed to achieve a steady growth rate. Microorganisms in subsurface environments are known to adapt their growth rate to the supply of nutrients, and thus their metabolic activity is relatively low [67].
Microbial communities can also adapt to dynamic physical and chemical conditions in other ways, such as biofilm formation or motility [68]. Biofilm formation ensures robust stable communities to resist environmental stress. In fact, the production of exopolysaccharides is increased under conditions of stress. Motility, on the other hand, provides a mechanism for microorganisms under environmental stress to find new habitable environments.

2.3. Endoliths

Microorganisms living in the interior of rocks are referred to as endoliths. The microorganisms attached to the external surfaces of rocks are termed epiliths. Endoliths are divided into euendoliths, cryptoendoliths, and chasmoendoliths, depending on their occurrence and interaction with the host rock [69]. Euendoliths are organisms that actively bore in the rock and create etched pits or microtubular cavities. Cryptoendoliths are organisms that inhabit pre-existent cracks and fractures in the rock, and interact with the host rock in the area that they inhabit. Chasmoendoliths are organisms that inhabit pre-existent cracks and fractures without interacting with the host rock.
On Mars, the dominating rock type is basalt, just like the ocean crust on Earth. Future missions that will search for fossilized endolithic life on Mars will thus be facing basalt as the main substrate. It is therefore interesting that remnants of all types of endolithic life have been found in basalts from Earth. Euendolithic boring is a common feature in volcanic glass from the ocean crust. McLoughlin et al. [54] pointed out that this type of ichnofossils will be an important textural biomarker in future astrobiological exploration, and Fisk et al. [70] reported microtubular structures in a Martian meteorite similar to biologically formed microtubular ichnofossils from Earth. Putative fossilized cryptoendoliths in carbonate filled vesicles in pillow basalts have been reported by Peckmann et al. [53] and Eickmann et al. [71] and chasmoendoliths in carbonate and zeolite filled veins and vesicles in deep drilled basalts from the ocean floor have been reported by Ivarsson et al. [51,52]. Ivarsson and Holm [72] performed a study on fossilized microorganisms in basalts from the oceanic crust that have implications for the sustainability and the search for a putative Martian subsurface biosphere. They pointed out that fossilized microorganisms and ichnofossils in sub-seafloor basalt are associated with minerals and materials (volcanic glass) that represent different stages of the alteration of the ocean crust. This indicates that the microorganisms have been able to colonize various micro-niches in the sub-seafloor environments as the alteration of the crust proceeded and as the geochemical conditions changed. Palagonitization is the process in which volcanic glass is altered to palagonite (a gel-like, amorphous, yellowish material that replaces glass) and secondary phases like zeolites and smectites. Palagonitization has been described differently by various authors, but according to Honnorez [73], palagonitization takes place in three stages that are distinguished by the presence or absence of glass or secondary minerals. Ichnofossils or fossilized microorganisms are observed in each of the three stages of the palagonitization process [72]. Microbially etched ichnofossils are found in the fresh, unaltered volcanic glass, which represents the first stage. As the alteration proceeds, and the glass, as well as the rest of the basalt, is subject to fluid circulation and related hydrothermal alteration, fossilized filaments are found attached to both altered basalt and altered volcanic glass in the second stage. In samples that represent the third and final stage of palagonitization, and in which the veins are characterized by palagonite, smectite and phillipsite materials, fossilized filamentous microorganisms, as well as globular fossilized microbial cells and fossilized biofilms are found. Considering the microbial interaction with the host rock, the first stage is thus dominated by euendoliths, compared to the second and third stages. These latter stages are dominated by crypto- and chasmoendolithic microorganisms. It appears as if the alteration of the oceanic crust creates micro-habitats for the microorganisms to dwell in, and it is apparent that the microorganisms, by adapting to these new niches, can survive in the systems while their living conditions change with time [72].

3. Mars

3.1. The Martian Subsurface

Theoretically, subsurface life is as plausible on Mars as it is on Earth. The Martian lithosphere consists of basalts, with a high amount of reduced minerals that, when in contact with oxidized fluids, offer conditions with high redox potentials that microorganisms can take advantage of to gain energy. As we have seen in previous sections of this article, basalt systems on Earth harbor extensive microbial ecosystems. Carbon accessible for microorganisms is also present on Mars; the most common form of carbon is probably CO2 or CH4 [74,75]. The most plausible source of carbon are volcanic gases from the planet’s interior.
The habitability of Martian rocks for endolithic communities is probably comparable to the habitability of rocks on Earth. In fact, Martian rocks may be better suited to host endolithic communities than terrestrial rocks. On Earth, fracturing and the production of micropores where endolithic communities may thrive are a result of cooling and, above all, processes related to plate tectonics. The Martian lithosphere has not been subject to plate tectonics as the terrestrial lithosphere has. However, the present Martian lithosphere has been subject to more impacts than the present terrestrial basement. The terrestrial basement has been recycled many times through plate-tectonics. Fracturing caused by impacts can create new habitats for crypto- and chasmoendoliths and can substantially increase the possibilities for fluid flow and microbial growth in subsurface environments [76,77,78].
Thus, energy, carbon, and habitats do most likely exist on Mars. The major difference between Earth and Mars is the distribution of water. Liquid water is a prerequisite for the existence of sustainable life. Several observations suggest a wetter past on Mars that might even include oceans, but the current situation on Mars is the opposite. At the moment, Mars is a dry planet and water mostly occurs as ice. However, liquid water can occur at great depths, and recent observations indicate that occasional outflows occur on the Martian surface.

3.2. Hydrothermal Activity on Mars

Hydrothermal systems develop wherever a fluid phase coexists with a heat source to drive convective energy. On Earth today, the heat that drives hydrothermal processes originates from internal radioactive decay and core crystallization. Such heat dissipates by mantle convection from the interior of Earth and is finally released by surficial volcanism. Most volcanism on Earth is concentrated in the plate margins, and this is also where the most abundant hydrothermal activity is found. Mars differs fundamentally in this respect, since it never developed plate tectonics [79]. However, crustal volcanism has played an important role in the thermal evolution of the planet. Abundances of radiogenic isotopes (K, U, Th) in Martian meteorites are similar to terrestrial igneous rocks, and it is most likely that radioactive decay provided a long-term heat source to sustain magmatism [80]. Furthermore, morphological evidence of shallow magmatism and volcanism is widespread over the red planet.
Water on Mars in the form of ice is known to exist at the polar caps, in the ground, locally on the surface, and in the atmosphere [74,81,82,83,84]. We also know that liquid water has been abundant both on the surface and as groundwater earlier in Mars’ past [85,86]. Thus the conditions, heat and water, that are required for hydrothermal activity exist on Mars.
A number of observations on Mars and of Martian meteorites have been suggested to be the result of hydrothermal processes. Martian meteorites indicate that there has been an active and ongoing process of crustal atmosphere exchange on Mars [87], and hydrothermal convection provides the most compelling mechanism for such exchanges [88]. Martian meteorites also contain trace quantities of minerals like clays, sulfates, carbonates, halides, and ferric oxides that have formed through interactions with aqueous solutions [89]. Another feature that has been assigned to hydrothermal activity is the loss of the early atmosphere. Thermodynamic models indicate that hydrothermal mineralization could have sequestered atmospheric CO2 in the Martian crust [90]. Furthermore, several authors have suggested that the occurrence of iron and sulfur rich minerals, like hematite and jarosite, indicates aqueous and hydrothermal processes (e.g., [20,91,92,93,94,95]). The origin of some of these minerals is still debated, and alternative interpretations have been presented that involve more surficial processes, such as deposition in stagnant water [96].
Numerous geomorphic observations of channel systems have also served as evidence for hydrothermal activity [20]. The most convincing geomorphic evidence is that of channel systems along the margins of impact craters, and on the slopes of Martian volcanoes. Accumulation of water ice in non-polar regions has also been interpreted as representing hydrothermal activity. The fluid was probably released through melting of the cryosphere or snow caps by volcanically induced heating from underground [97]. In general, hydrothermal activity on Mars is characterized by cryospheric or magmatic systems, compared to hydrothermal processes on Earth that are characterized by meteoric or magmatic systems [20]. Mars contains an extensive subsurface cryosphere that can provide, when heated, a source of water for hydrothermal systems [81]. Hydrothermal systems generated by impacts are widespread in terrestrial impact craters [98,99,100], and an alternative heat source that could have given rise to hydrothermal activity on ancient Mars is the heat generated by impact cratering [15,101,102].
Recent observations by Mars missions are even more compelling and support the idea of past hydrothermal activity on Mars. The rover, Spirit, discovered silica-rich deposits in the Gusev crater. These have been interpreted to be of hydrothermal origin [103]. The silica-rich deposits were found in close association with volcanic materials and ferric sulfates, which are probably also of hydrothermal origin. The deposits resemble the silica deposits sometimes found in the vicinity of fumaroles or hot springs on Earth. No evidence of standing or flowing surface water were observed at the site. This further supports the idea of hydrothermal origin.
Observations of phyllosilicates by the Mars Express spacecraft and the Mars Reconnaissance Orbiter at several sites on Mars have also been used to argue for past hydrothermal activity on the planet [104,105,106]. The presence of minerals, such as nontronite, chamosite, montmorillonite, saponite, kaolinite, chlorite, and illite are indicative of the long-term presence of liquid water and of the alteration of mafic rocks like basalts. These minerals could have been formed on a surface with a warm and humid climate similar to the climate on Earth. However, the most probable explanation is that the minerals originate from hydrothermal processes in the shallow crust.
While hydrothermal systems appear to have existed on the ancient Mars, it is difficult to determine whether hydrothermal activity still exists on the planet or if it has ceased. Liquid water is presently unstable at the surface of Mars today, but extensive groundwater environments may exist at a depth of several km [107]. As a result of overburden pressure and the geothermal gradient, subsurface ice can melt at a given depth, and water can occupy rock pore spaces, forming aquifers. Subsurface zones of liquid water may also exist at more shallow depths in the vicinity of young volcanic centers that have recently erupted through the cryosphere on the high northern plains of Mars. Recent observations of repeated volcanic activation with phases of activity as young as two million years suggest that volcanoes are potentially still active today [97]. The contemporary accumulation and resurfacing of ice caps show that liquid water, possibly a hydrothermal fluid, has been involved. However, no major aquifers have been found at shallow depths by orbiters.
Active hydrothermal systems can be detected by localized anomalies in surface temperature or atmospheric composition [20]. Recently, seasonal concentrations as high as tens of ppb of methane have been detected by Earth-based observations of some localized regions on Mars [75]. The origin of the methane is unclear since the residence time of methane in the Martian atmosphere is expected to be hundreds of years, and appears to be seasonal. This suggests mechanisms of actively releasing, capturing, or breaking-down methane. This can be explained by biological processes. However, further studies of the distribution of methane and the environment of release on Mars are necessary in order to assess the scenarios for methane’s formation.

3.3. Sustainability of a Potential Subsurface Biosphere on Mars

With the knowledge of sustainable microbial ecosystems in subsurface basalt systems on Earth, as well as the potential for deep hydrothermal settings on Mars, it is possible to speculate on a subsurface biosphere on Mars. Subsurface hydrothermal systems on Mars can provide protection against extreme daily temperature variations, UV-radiation, oxidized soil chemistry, low atmospheric pressure (~6 hPa) and impacts. Additionally, the systems can offer heat, liquid water, and nutrients. The redox conditions of basalts with high amounts of reduced elements, like iron and manganese, in combination with the presence of oxidized liquid water, can provide energy to the base of the ecosystems and carbon can be scavenged from volcanic gases. Basalt is known from Earth to support microbial ecosystems for long periods of time and it has been shown that microorganisms can adapt to changing geochemical conditions as the basalt is subject to alteration [72,108,109]. The lower background heat flow and lower gravity on Mars allows for deeper colonies. Thus, the spatial distribution of a subsurface biosphere may be more extended on Mars than on Earth [14].
Another factor that is of interest, concerning a potential Martian subsurface biosphere, is the lack of active plate tectonics. On Earth, volcanic and hydrothermal active areas constantly move and the plate tectonics recycle the crust. It is a dynamic system that constantly causes non-equilibrium conditions in the crust and on the surface. Mars, on the other hand, is characterized by the opposite. No plate tectonics are present to recycle the crust and the volcanic centers are fixed, much like intra-plate volcanism on Earth (except where the plate moves above the active center). This means that a volcanic area on Mars associated with a potential hydrothermal system, as well as a potential subsurface biosphere, would be fixed and spatially isolated. Hydrothermal circulation would be concentrated around the volcanic active area, and probably would not be in contact with another active hydrothermal system. It could have been different on the young Mars, with its warmer climate and liquid water, both on the surface and in the ground. However, today, there is a risk that sporadic hydrothermal systems are isolated. This would have an effect on a potential biosphere: despite the subsurface’s capacity to sustain life for long periods of time, eventually, the biosphere would suffer from lack of external contact. Survival of a closed system over billions of years is hard to imagine. However, the present state of Mars may not be a permanent state. The occurrence of water is strongly obliquity-driven and the stability of water has changed periodically [110]. Near-equatorial regions are especially sensitive to obliquity-driven periodicities of water stability, and it has been shown that much of the equatorial regions of Mars had periglacial landscapes indicating surface ice with melt water within the past few million years [111]. Such periods of water stability probably influence the subsurface as well and isolated regions of hydrothermal activity might experience contact with other hydrothermal environments by subsurface throughflow.
Even though the spatial fixation of volcanic active areas and associated hydrothermal systems might result in limited contact with other active hydrothermal systems and limit the input of necessary nutrients and microorganisms, these areas and systems may be able to support a deep biosphere for long periods of time. The volcanic areas, including potential hydrothermal systems, will be extended in both time and space compared to volcanism on Earth. The volcanic areas are larger than on Earth, and thus can support a more extensive hydrothermal system. The largest volcano in the solar system, Olympus Mons, is present on Mars. The volcano is 27 km higher than the mean surface level of Mars, and is 550 km in width. The Martian volcanoes are also active for longer periods of time. Olympus Mons, for example, was active between 3,800 and 100 million years ago. This is equal to 80% of the lifetime of the planet [97] and coincides with a wetter past for the planet. A potential subsurface biosphere that thrives in a hydrothermal system associated with a fixed heat source would have an extensive period of time to evolve in an extensive area of habitat.

4. Impact Deposits: A Window to the Subsurface

As previously discussed, on Mars, the subsurface is a suitable target to search for life in. However, the sampling and analysis of the Martian subsurface is a tricky business for future planetary missions, due to the heavy drilling equipment needed in order to reach down into the subsurface. Therefore, it has been suggested that sampling and analysis of impact ejecta is one alternative way of studying the subsurface [9]. Impact ejecta are available for sampling at the Martian surface, but they represent geological units from the subsurface (Figure 4). Obviously, the extent and nature of the ejecta depend on the size of impact, but impact cratering is able to excavate large amounts of material from the deep subsurface. For example, in the Haughton impact crater of Canada, material from the crystalline basement, which is located more than 1,880 m below the surface sedimentary rocks, is exposed as crystalline clasts in impact deposits are available today at the surface [112]. It is only through the Haughton impact event that material from the crystalline basement is exposed at the surface. Outside the crater, the basement is buried by almost 2 km of sedimentary rocks.

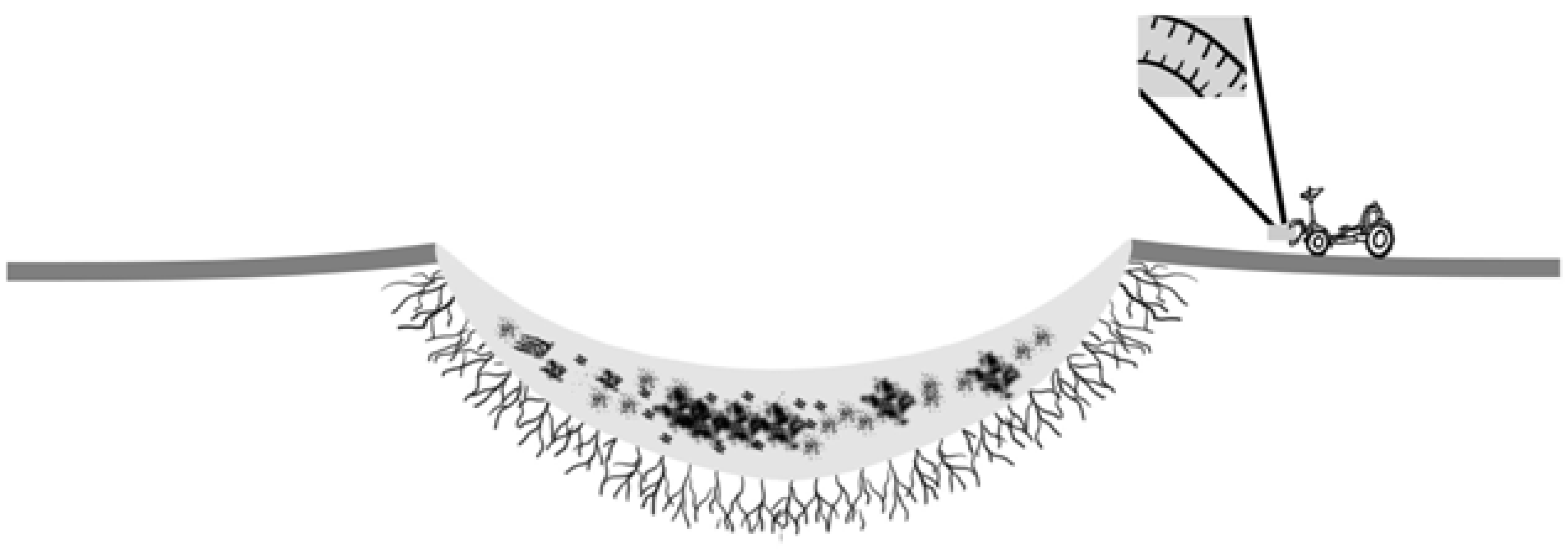

Figure 4. Schematic drawing illustrating a rover at an impact site sampling ejecta that have been excavated from great depths.
Figure 4. Schematic drawing illustrating a rover at an impact site sampling ejecta that have been excavated from great depths.
Sustainability 02 01969 g004
Estimates of terrestrial impact frequencies are compiled by French [113]. Based on these impact frequency calculations (references within French [113]), about 1–5 craters of a size >20 km should be produced every million years. These impact frequencies are based on data from the terrestrial record (in stable and well-preserved regions), but also from the cratering record on the moon and on asteroids. It is very hard to estimate impact frequencies, but it is evident that cratering is widespread in our solar system, through, for example, looking at the scarred surface of our moon. The Earth has been reworked by plate tectonics, and many craters are now wiped out. The impact frequency was much higher in the early history of our solar system, but large impacts still happen today, as is evident from, for example, the comet Shoemaker-Levy colliding with Jupiter in 1994. On planetary bodies with little or no crustal-reworking, such as Mars, impact-processed rocks can cover a significant proportion of the surface. This means that impact deposits would be readily available for sampling on the Martian surface.
The Martian surface still is subject to impact cratering and it would be possible to sample relatively fresh excavation material. Mars orbiters observed that between May 1999 and March 2006, 20 impacts created craters 2–150 meters in diameter on Mars [114]. These craters are accompanied by vast ejecta blankets and recent observations further show that the ejecta not only include excavation of rock debris, bui also of ice [115]. The sampling of excavated ice would be highly interesting in an astrobiological context.
Impact cratering is a high-energy event, and involves extremely high pressures and temperatures which could wipe out any pre-impact signatures of life, but the physical and chemical reactions during an impact are far from equilibrium, and the extreme conditions will not apply to all the materials involved in the impact. This gives rise to disordered material next to highly crystalline and shock metamorphosed material [113]. There are several examples of fossil biological signatures which are preserved in impact deposits after an impact event. Organic matter does not necessarily oxidize or change in to highly crystalline forms during an impact event, but substantial amounts can be preserved in a disordered form. For example, Blank et al. [116] showed that significant concentrations of organic compounds survived in the shock experiments of amino acids. Fossil biological markers are preserved within lithic clasts of the Haughton impact melt breccia [22], as well as in the carbonate bedrock of the Haughton impact crater [117]. Pre-impact biological markers are also preserved in shale fragments of impact breccias from the Ries impact crater in Germany [118]. Also, experimental impacts show the preservation of fossil biological markers [21].
The examples of the preservation of life from terrestrial impacts all concern a fossil record of life. But since the conditions on Mars today are rather harsh, with an unstable climate, a thin atmosphere, strong irradiation at the surface, and possibly no liquid water, it is more likely that any evidence of life on Mars would occur in the subsurface, and is more likely to be a fossil, which nevertheless would be of a great significance. Therefore, a strong emphasis in Mars exploration is on the search for a fossil record of life [15].


We acknowledge Javier Herbozo at the Swedish Museum of Natural History for the illustrations in Figure 3 and Figure 4. Nicola McLoughlin at the Bergen University is acknowledged for permission to use Figure 1. Anna Neubeck at the Stockholm University is acknowledged for extensive discussions of the manuscript and three anonymous reviewers are acknowledged for constructive comments that greatly improved this paper. Part of this work was funded by the Swedish National Space Board.
