A Context-Adapted Living Wall Model for South Africa: A Quantity Surveying Perspective

Abstract

Living Wall Systems (LWS) are vertical vegetated building façade systems that offer environmental and social benefits; however, their adoption in South Africa, particularly within the Western Cape (WC), remains limited due to high capital and maintenance costs and the absence of regionally adapted design and cost models. This study investigates the viability and design development of LWS in the WC from a Quantity Surveying (QS) perspective, with the aim of developing a context-specific system utilising indigenous plant species and assessing its economic feasibility over the building life cycle. This study employed a mixed method research approach comprising a literature review, semi-structured interviews with industry professionals, thematic analysis, cost modelling, and the preparation of a detailed Bill of Quantities (BOQ). Life cycle costing (LCC) techniques were applied to evaluate long-term cost implications. The study resulted in the development of a criteria-led, context-adapted LWS model, termed Viridis 5045, which satisfies environmental, technical, and contextual requirements for the WC. The BOQ and LCC analyses provide projected capital and operational cost benchmarks for the proposed system. This study demonstrates that the Viridis 5045 model is technically feasible and contextually appropriate for application within the WC, supporting its consideration in sustainable construction practice when evaluated beyond conventional life cycle financial indicators. Future research should focus on the monetisation of long-term benefits, greywater integration, and Whole Life Costing.

1. Introduction

Urban areas within the Western Cape (WC), South Africa, are under increasing pressure from rapid urban densification, rising environmental stresses, and limited availability of open space. These challenges have increased the need for innovative and space-efficient sustainability interventions within the built environment. One such intervention is the application of Living Wall Systems (LWS), defined as vertical vegetated systems integrated into building façades [1]. Internationally, LWS have been promoted as a means of enhancing urban environmental performance while responding to spatial constraints associated with continued urban expansion [2].

The relevance of LWS is particularly noticeable in regions experiencing sustained urban growth. In the WC, ongoing urbanisation and housing pressures [3], consistent with trends observed in comparable regions [4], have resulted in increased population densification and reduced access to natural environments [5]. This has contributed to declining urban ecological health, worsened urban heat island effects, deteriorating air quality, and reduced environmental wellbeing [6,7]. Within this context, LWS have been identified as a potential mechanism for incorporating organic, eco-friendly architecture into dense urban settings, thereby supporting environmental enhancement and reconnecting urban populations with natural elements [8].

A growing body of literature documents the environmental and social benefits associated with LWS, including carbon reduction, biodiversity enhancement, stress reduction, and improved psychological wellbeing [9,10]. However, despite these documented benefits, mainstream adoption of LWS remains limited, particularly within developing economies. High upfront capital costs, ongoing maintenance requirements, and financial uncertainty continue to present significant barriers to implementation [9,10]. These constraints are especially severe in contexts where environmental prioritisation may be secondary to immediate economic pressures.

From a Quantity Surveying (QS) perspective, these challenges are compounded by the absence of regionally adapted system designs, reliable cost benchmarks, and standardised Bills of Quantities (BOQs). LWS are typically treated as specialist façade systems, requiring detailed feasibility evaluation, cost modelling, and life cycle consideration during design and procurement stages [11]. While Quantity Surveying techniques enable systematic cost management, technical evaluation, and life cycle value assessment [12], limited attention has been given to their application to LWS. Furthermore, the lack of LWS models incorporating indigenous vegetation adapted to the WC’s climatic and environmental conditions further constrains practical implementation.

Against this backdrop, this study investigates the viability and context-adapted design of LWS in the WC and ultimately South Africa from a Quantity Surveying perspective. The purpose of the research is to identify the environmental, technical, and contextual criteria required for a regionally adapted and context-appropriate LWS, to develop a model system utilising indigenous plant species, and to support its implementation through the preparation of a detailed Bill of Quantities (BOQ) and life cycle-based cost evaluation [13,14]. To address the stated aim and objectives, the study is guided by the following research questions: (i) What environmental, technical, and contextual criteria influence the feasibility and design of LWS in the WC from a Quantity Surveying perspective? (ii) How can qualitative expert insights be translated into a criteria-led, context-adapted LWS model suitable for the WC? (iii) What are the Life Cycle Cost (LCC) implications of the developed LWS model when assessed using conventional Quantity Surveying evaluation methods? The study concludes that a context-specific LWS model, informed by QS-led cost planning and regional design considerations, can support the integration of LWS into sustainable construction practices within the WC.

The novelty of this study lies in its integration of Quantity Surveying-led life cycle costing (LCC), expert-informed qualitative evidence, and regionally adapted system design to develop a context-responsive LWS model for the WC. Rather than treating LWS as generic ecological or architectural interventions, the study advances a sustainability evaluation framework grounded in professional decision-making, constructability, and long-term cost transparency within a developing-economy context.

2. Materials and Methods

2.1. Research Design and Approach

This study adopted a mixed methods research design to investigate the viability and context-adapted design of LWS in the WC from a Quantity Surveying (QS) perspective. This mixed methods design integrates qualitative and quantitative approaches, allowing professional insights and objective cost data to jointly inform the research outcomes [15]. This approach is particularly appropriate for sustainability-focused built-environment research, where technical performance, contextual conditions, and economic considerations intersect.

The research followed an explanatory sequential design, whereby qualitative findings informed the development of a regionally adapted LWS model, which was subsequently evaluated through quantitative cost modelling [16]. The WC served as the case study context for the investigation, enabling the examination of region-specific climatic, environmental, and economic conditions.

2.2. Qualitative Data Collection

Qualitative data were collected through semi-structured interviews with industry professionals possessing expertise relevant to LWS design, implementation, and cost management. Participants included Quantity Surveyors, Landscape Architects, Botanists, Horticulturalists, Architects, and representatives from green infrastructure companies. Semi-structured interviews were selected to allow flexibility while ensuring consistency across key thematic areas, including indigenous vegetation selection, system design considerations, maintenance requirements, and cost drivers.

Participants were recruited through professional bodies and industry networks based on their expertise and experience. Interviews were conducted either in person or via Microsoft Teams, recorded with participant consent, and transcribed verbatim for analysis.

2.3. Sampling Strategy

This study employed purposive sampling to identify professionals with specialist knowledge of LWS, green infrastructure, and indigenous vegetation [17]. Data source triangulation was achieved by engaging participants from multiple disciplines, enhancing the credibility and balance of the findings [18].

The purposive sample of thirteen participants is considered adequate for the exploratory qualitative aims of the study. Participants were selected based on their specialist knowledge of LWS, green infrastructure, Quantity Surveying, and related built-environment practices, ensuring information-rich cases rather than numerical representativeness. Thematic saturation was reached after ten interviews, with no new themes emerging thereafter, and three additional interviews were conducted to confirm thematic stability and enhance the robustness of the findings. This sample size is consistent with established qualitative research practice for expert-driven, exploratory studies. This aligns with findings by [19], who suggest that saturation often occurs within the first twelve interviews in relatively homogenous expert groups. Consistency across responses further indicated shared understanding, supporting data adequacy in line with consensus theory [20].

2.4. Qualitative Data Analysis

Qualitative data were analysed using thematic analysis, a method suited to identifying and interpreting patterns within qualitative datasets [21]. Interview transcripts were coded systematically to identify recurring themes and relationships relevant to LWS design development, cost planning, and contextual suitability [22]. The resulting themes directly informed the development of the context-adapted LWS model and the associated cost modelling.

2.5. Development of the Context-Adapted Living Wall System Model

Findings from the thematic analysis, supported by existing literature, informed the development of a criteria-led, context-adapted LWS model suitable for external application in the WC. Design decisions were guided by environmental, technical, and contextual criteria identified through expert input, including system typology, material selection, indigenous vegetation characteristics, and anticipated maintenance requirements. The model served as the basis for subsequent quantitative analysis.

2.6. Quantitative Data Collection and Cost Modelling

Quantitative data collection focused on empirical cost and system performance data relevant to the developed LWS model. Data included capital costs of system components, maintenance costs, life cycle considerations, system design parameters, and BOQ information.

The developed LWS model was quantified, and a BOQ was prepared using WinQS software (2025 student version) for bill production, with quantity take-offs undertaken using Dimension X (2025 student version) and Microsoft Excel. Extensive rate build-ups were conducted using current market rates obtained from two Cape Town-based Quantity Surveying firms. These rates were applied to the BOQ to establish capital cost benchmarks.

The study undertook a LCC analysis using Microsoft Excel, following standard QS principles and the ASAQS Guide to Life Cycle Costing (2018). These analyses accounted for initial capital expenditure, routine and cyclical maintenance, and long-term operational considerations over defined analysis periods.

2.7. Reliability and Validity

Reliability and validity were central considerations throughout the study. Reliability, understood as the consistency and stability of the research process, was strengthened using standardised interview guides, systematic thematic coding, and established QS procedures [23]. Quantitative analysis used recognised software tools, verified industry data, and published literature to ensure consistency.

Validity was enhanced through purposive sampling of multidisciplinary experts, methodological triangulation, and the integration of qualitative insights with empirical cost data [23]. The combination of qualitative and quantitative methods strengthened construct validity by aligning expert perspectives with measurable cost outputs and system characteristics.

2.8. Ethical Considerations

Ethical approval for the study was obtained from the University of Cape Town Faculty of Engineering and the Built Environment (EBE) Ethics Committee prior to data collection. All participants received an information sheet outlining the study objectives, voluntary nature of participation, and their right to withdraw at any stage without consequence. Written informed consent was obtained from all participants before interviews commenced.

Participant confidentiality and anonymity were maintained through coded identifiers (e.g., INT01, INT02), with all personal and organisational identifiers removed from transcripts and reporting [24]. Data were stored securely on password-protected devices accessible only to the researchers. Commercially sensitive information was aggregated and reported in non-identifiable form to protect professional confidentiality [25].

2.9. Use of Generative Artificial Intelligence

During the preparation of this manuscript, generative artificial intelligence tools were used for language refinement. No generative artificial intelligence was used in the study design, data collection, data analysis, interpretation of results, or generation of numerical outputs. All content was reviewed and approved by the authors, who take full responsibility for the integrity of the work.

3. Results

3.1. Qualitative Results: Thematic Findings

This section presents the qualitative findings derived from the thematic analysis of thirteen semi-structured interviews conducted with six Quantity Surveyors, three Living Wall System (LWS) industry stakeholders, and four botanists and horticultural specialists. The analysis identified seven recurring themes related to cost, maintenance, technical risk, plant suitability, and value perception in LWS implementation in the WC. These themes informed both the development of the context-adapted LWS model and the associated cost-planning framework.

3.1.1. High Capital and Maintenance Costs as Barriers to Adoption

A dominant theme across Quantity Surveyors was the perception of LWS as high-cost façade elements associated with significant capital expenditure and ongoing maintenance obligations. Respondents consistently emphasised that LWS represent an additional cost layered onto conventional façade systems rather than a direct substitute. As one respondent noted, “The pure living wall is always going to be an additional cost to your existing façade anyway” (Interview 1—QS). This view was reinforced by concerns regarding long-term cost exposure, with another participant stating that “a living wall requires consistent, ongoing maintenance, making it more expensive in the long term” (Interview 5—QS). These perceptions contribute to reluctance among clients and project teams to adopt LWS in cost-sensitive developments.

The perception of LWS as high-cost façade interventions identified through the qualitative analysis is strongly supported by existing literature. Refs. [1,26] consistently report that LWS incur substantial upfront capital costs due to specialist structural support, irrigation systems, planting media, and professional installation requirements. These costs are compounded by ongoing maintenance obligations, which further limit adoption, particularly in cost-sensitive projects. Ref. [27] notes that such financial barriers often result in LWS being excluded during value engineering stages, reinforcing industry perceptions of LWS as discretionary rather than essential sustainability features.

3.1.2. Absence of Cost Benchmarks and Reliance on Specialist Input

Closely linked to cost concerns was the absence of reliable cost benchmarks and historical data. Quantity Surveyors indicated that LWS are typically treated as specialist items, requiring reliance on supplier quotations and provisional sums during cost planning. One respondent explained that “with such a specialist item there is no benchmarks or historical data to use” (Interview 1—QS), while another noted that “we rely heavily on suppliers and design input, as there are no historical data or benchmarks” (Interview 2—QS). This lack of standardisation increases cost uncertainty and complicates early-stage feasibility assessments.

The lack of reliable cost benchmarks highlighted by Quantity Surveyors aligns with literature where it is evident that installation and maintenance costs vary significantly depending on system type and design configuration, complicating economic assessment [1]. The absence of regionally specific lifecycle cost data within South Africa significantly worsens uncertainty during feasibility assessments. This reinforces the qualitative finding that LWS are frequently treated as provisional or specialist items within BOQs.

3.1.3. Maintenance Intensity and Risk of System Failure

Maintenance intensity emerged as a critical constraint across all participant groups. Botanists and horticultural specialists emphasised the biological sensitivity of vertical planting systems and the heightened risk of failure where maintenance regimes are inadequate. One senior botanist described LWS as “extremely high-maintenance plantings” (Interview 10—Botanist), while another respondent observed that “anything planted in a tiny pot is going to require a lot of maintenance” (Interview 12—Botanist). These findings highlight maintenance as both a technical and financial risk influencing long-term system performance.

The dominance of maintenance as a constraint is well established in the literature. Refs. [28,29] highlight that LWS require continuous irrigation management, plant replacement, pruning, and system monitoring to remain functional. Refs. [26,30] further demonstrate that inadequate maintenance regimes significantly increase the likelihood of plant failure and system degradation, supporting interviewee concerns that maintenance represents both a technical risk and a long-term financial burden.

3.1.4. Structural and Technical Risk Considerations

Structural and technical risks associated with LWS were also frequently mentioned. Respondents highlighted issues relating to structural loading, waterproofing, drainage, and long-term façade integrity. A Quantity Surveyor noted that “if the external façade is not able to carry the system, you would need a separate steel system” (Interview 1—QS), while another emphasised that “the structural base to hold the weight is a major cost factor” (Interview 3—QS). These considerations underscore the importance of early multidisciplinary coordination and detailed design development.

Structural and technical risks associated with LWS implementation are extensively documented. Ref. [11] identifies structural loading, waterproofing failure, and moisture ingress as critical design challenges, particularly in retrofit applications. Ref. [26] further emphasises the importance of integrated detailing to mitigate façade damage and long-term maintenance costs. These findings directly support the qualitative emphasis on early-stage coordination, structural assessment, and system integration as prerequisites for successful LWS deployment.

3.1.5. Indigenous Plant Suitability and Microclimatic Sensitivity

Plant selection and climatic suitability formed another key theme. Botanists and horticultural specialists stressed that the success of LWS is highly dependent on microclimatic conditions, irrigation design, and rooting volume, particularly within the WC’s diverse climatic zones. One respondent cautioned that “because the WC has many microclimates, what works well in one spot might not work 500 m away” (Interview 10—Botanist). Another highlighted that system failures are often linked to inappropriate species selection, stating that “failures are linked to species being chosen for appearance rather than suitability” (Interview 11—Botanist).

The importance of plant selection and climatic suitability identified through the interviews is strongly corroborated by literature. Refs. [31,32] emphasise that plant survival and system longevity are dependent on climatic compatibility, rooting depth, and water requirements. Ref. [33] further highlights the WC’s diverse microclimates, reinforcing concerns that plant species suitable in one location may fail in another. The literature consistently supports the need for indigenous, climate-adapted species to reduce maintenance intensity and improve system resilience.

3.1.6. Limited Biodiversity Contribution of Living Wall Systems

Several botanists and horticultural specialists expressed scepticism regarding the biodiversity contribution of LWS, particularly when compared to ground-based greening interventions. One respondent stated that “I don’t believe they contribute much to biodiversity” (Interview 10—Botanist), while another noted that “they can contribute modestly… but the scale is usually too small” (Interview 11—Botanist). This perspective contrasts with more optimistic claims often found in promotional sustainability narratives.

Literature addressing the long-term financial justification of LWS presents mixed conclusions, aligning with the scepticism expressed by Quantity Surveyors. Refs. [34,35] identify potential long-term benefits such as energy savings, improved thermal performance, and extended façade lifespan; however, these benefits are often context-specific and rarely monetised comprehensively. Ref. [36] further notes that most lifecycle assessments are conducted in developed economies, limiting transferability to developing contexts such as South Africa. This supports the study’s focus on region-specific LCC.

3.1.7. Divergence Between Economic and Social Value

Finally, respondents expressed divergent views regarding the overall value proposition of LWS. While social, environmental, and aesthetic benefits were widely acknowledged, Quantity Surveyors consistently distinguished these from economic viability. One respondent stated that “I do not think they offer long-term cost benefits, but they definitely offer environmental or social benefits” (Interview 1—QS), while another described LWS as “more of an aesthetic or prestige choice” (Interview 5—QS). This divergence reinforces the need for QS-led evaluation frameworks that clearly differentiate between financial performance and broader sustainability outcomes.

The distinction between economic viability and social or aesthetic value identified in the qualitative findings is well supported by existing literature. Refs. [9,37] document positive impacts of green infrastructure on psychological wellbeing, stress reduction, and urban liveability, while [38] highlight the difficulty of monetising such benefits within traditional financial appraisal frameworks. This reinforces the interview-based observation that LWS are often perceived as prestige or aesthetic interventions, necessitating QS-led frameworks that distinguish between financial performance and broader sustainability outcomes.

3.1.8. Linking Qualitative Themes to Model Development and Cost Planning

The qualitative themes identified through the interview analysis directly informed the development of the context-adapted LWS model and the associated Quantity Surveying cost-planning framework. Concerns regarding high capital and maintenance costs motivated the adoption of a modular system configuration, allowing for standardisation of components, phased implementation, and improved cost transparency. This approach also enabled clearer separation between capital expenditure and ongoing maintenance allowances within the BOQ.

The absence of cost benchmarks highlighted by Quantity Surveyors informed the development of a bespoke model BOQ for the proposed system. By itemising system components, installation requirements, and maintenance activities, the BOQ provides a structured basis for future cost estimation and reduces reliance on provisional sums and supplier-led pricing.

Maintenance-related risks identified by all participant groups informed design decisions prioritising accessibility, modular replacement, and reduced biological stress on plant species. These considerations were reflected in both system detailing and the explicit inclusion of maintenance items within the cost model, supporting more realistic LCC assessments.

Structural and technical concerns guided the inclusion of independent support frameworks, drainage provisions, and waterproofing measures within the model. These elements were explicitly accounted for within the BOQ to address long-term performance risks and mitigate potential façade damage.

Insights regarding indigenous plant suitability and microclimatic sensitivity informed the selection of regionally adapted plant species and system configurations. This approach aimed to reduce plant failure rates, limit replacement frequency, and enhance long-term system resilience under WC climatic conditions.

Finally, the divergence between economic and social value identified in the qualitative findings reinforced the need to frame LWS viability through LCC rather than capital cost comparison alone. This QS-led framing acknowledges the broader sustainability benefits of LWS while maintaining analytical rigour and financial transparency.

Table 1. Alignment of Qualitative Themes with Model Design Decisions and QS Cost Considerations.

Qualitative Theme	Key Insight from Interviews	Design/Model Response	QS & BOQ Implication
High capital and maintenance costs	LWS perceived as premium, additional façade elements	Modular system with standardised components	Transparent separation of capital vs. maintenance items
Lack of cost benchmarks	Reliance on suppliers and provisional sums	Development of a model BOQ	Reduction of early-stage cost uncertainty
Maintenance intensity	High failure risk without sustained upkeep	Design for access, modular replacement	Explicit maintenance allowances in BOQ
Structural and technical risk	Load, drainage, waterproofing concerns	Independent support framework and detailing	Inclusion of structural support and waterproofing items
Indigenous plant suitability	Microclimate-sensitive plant performance	Selection of WC-adapted indigenous species	Reduced replacement frequency assumptions
Limited biodiversity contribution	Ecological impact often overstated	Focus on wellbeing and microclimatic benefits	Avoidance of unsubstantiated biodiversity claims
Economic vs. social value divergence	Social benefits acknowledged; cost savings questioned	QS-led viability framing	Justification through LCC rather than capital cost

depicts the alignment of the themes with the model design.

3.2. Model Design and Specification of the Developed Living Wall System (Viridis 5045)

This section presents the criteria-led, context-adapted LWS model, Viridis 5045 (see Figure 1), produced through synthesis of the literature review and the thematic analysis of interviews with Quantity Surveyors, botanists, horticultural specialists, landscape architects, and living wall industry stakeholders. The literature indicated that LWS adoption is constrained by high capital and maintenance costs, limited regional cost transparency, and practical challenges relating to irrigation, drainage, and long-term operational performance [1,26,28]. A review of available literature revealed limited evidence of LWS models that explicitly incorporate South African indigenous plant species, reinforcing the need for a regionally adapted and practically constructible model. Consistent with established classifications of LWS typologies and modular system advantages, the developed model adopts a modular configuration intended to improve constructability, maintenance access, and replacement capability [27,31,39].

The following figures illustrate the detailed configuration of the system. This level of system integration detail is critical because mounting configuration, modularity, and component arrangement directly influence constructability, longevity, and maintenance, all of which are primary drivers of LCC behaviour and system feasibility from a Quantity Surveying perspective.

3.2.1. Design Criteria Informing Model Development

The design criteria for the context-adapted model were defined by integrating interview insights with literature on LWS requirements, barriers to implementation, and plant suitability considerations. The resulting design criteria were as follows: (i) the model must support indigenous plant species appropriate for WC climatic conditions; (ii) the system must be modular and versatile to reduce installation time and improve maintenance practicality; (iii) the system must be suitable for outdoor application, aligned with façade greening objectives; (iv) substrate volume must be maximised while avoiding excessive façade protrusion; (v) drainage must be designed to prevent uneven saturation and reduce plant stress; (vi) irrigation must be water-efficient and provide consistent distribution across planting modules; (vii) maintenance access must be incorporated to mitigate long-term operational risk; (viii) components must be durable and weather-resistant for outdoor conditions; (ix) the system should be lightweight and compatible with standard building façades; (x) the design should be scalable and adaptable; and (xi) the model should balance capital and long-term maintenance costs to improve life cycle value [1,11,28,29,33].

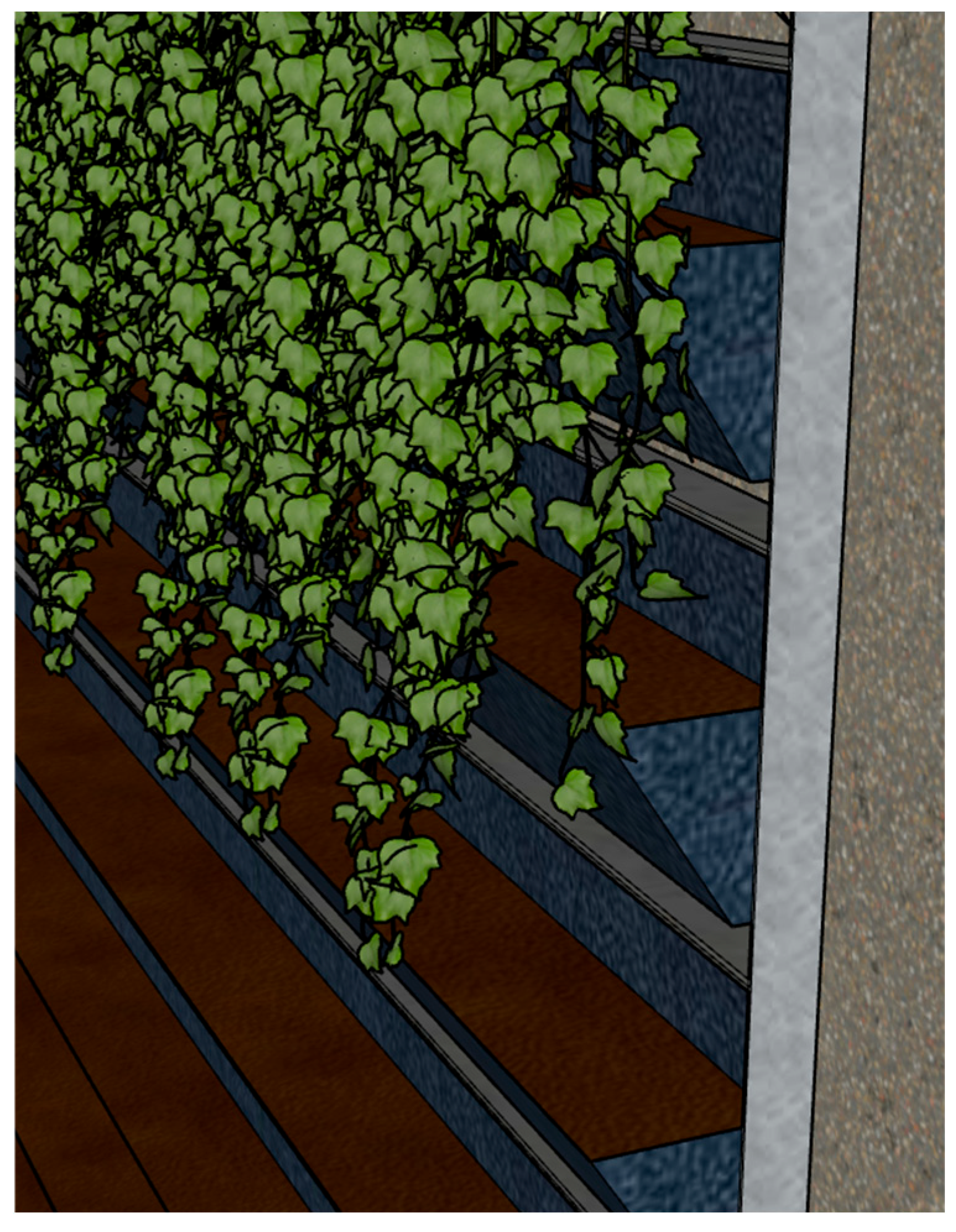

3.2.2. System Overview and Modularity

Viridis 5045 is a modular, façade-mounted LWS designed for external application within the WC. The model consists of a mounting structure, fibreglass planting troughs, a drip irrigation system, a distributed drainage system, layered growing substrate, and indigenous vegetation. The system functions as a repeatable modular unit that can be installed in various arrangements to form a continuous green façade. The modular approach aligns with literature indicating that modular systems facilitate ease of installation, enable targeted replacement, and improve maintainability relative to more continuous systems [27,31,39]. The model is scalable, with alternative modular unit sizes intended for different façade conditions; however, for reporting and costing purposes, the largest modular configuration was developed and specified as Viridis 5045.

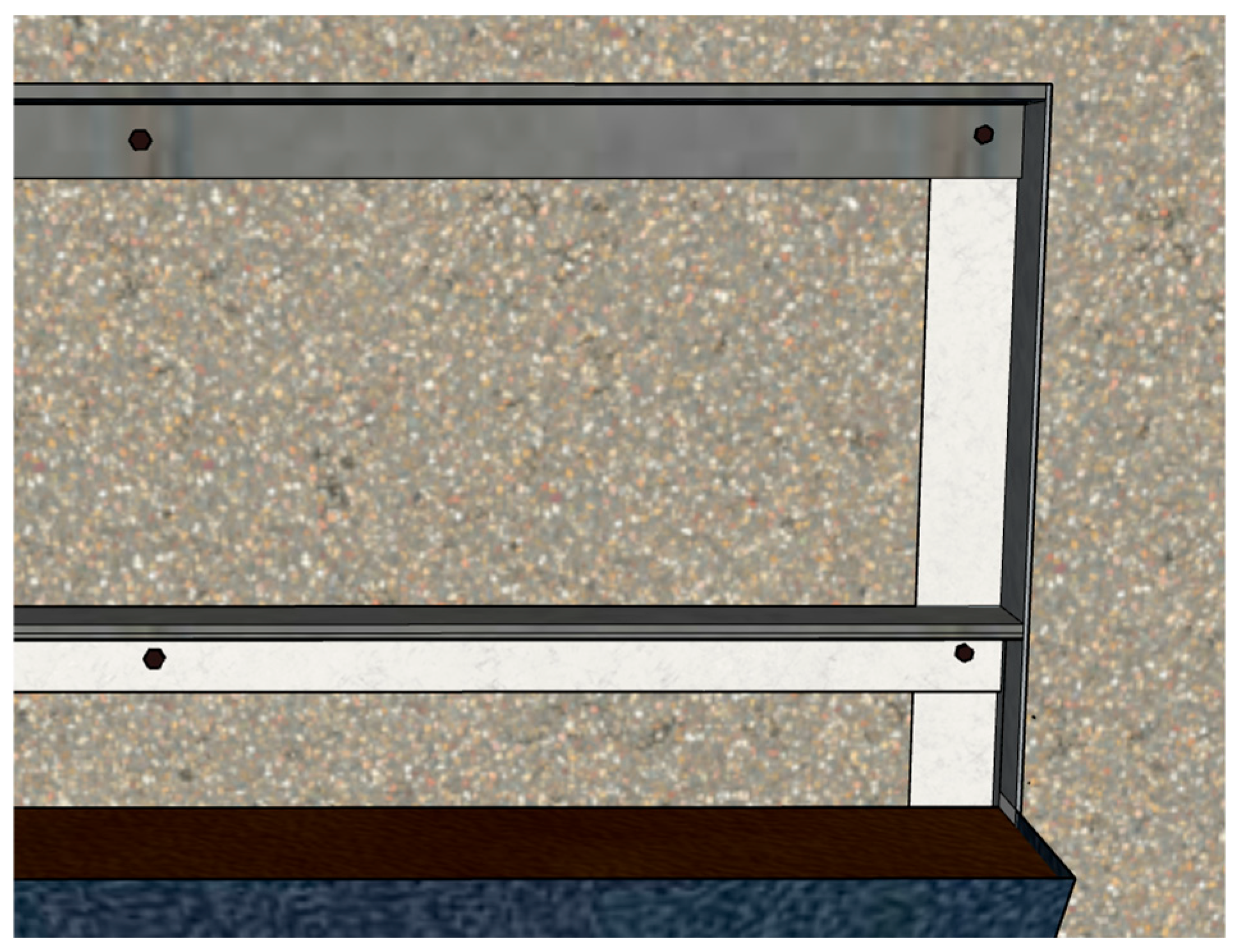

3.2.3. Mounting Structure

The mounting structure (illustrated in Figure 2) comprises a perimeter frame and horizontal mounting rungs designed to provide robust support, simplified installation, and long-term durability in external environments. The perimeter mounting frame is formed using 50 × 50 × 5 mm L-section channels (3.77 kg/m), welded to create a rectangular frame of 5000 mm (length) by 4500 mm (height). The frame is holed and fixed to the external façade using M12 expansion bolts, with priming and painting applied to reduce corrosion exposure. Fourteen horizontal mounting rungs, formed from 50 × 50 × 3 mm L-section channels (2.34 kg/m), are installed at 300 mm vertical centres and fixed using M12 expansion bolts. This structure reflects the need for adequate structural support and façade integration identified as a key technical consideration in LWS feasibility [11,26,30].

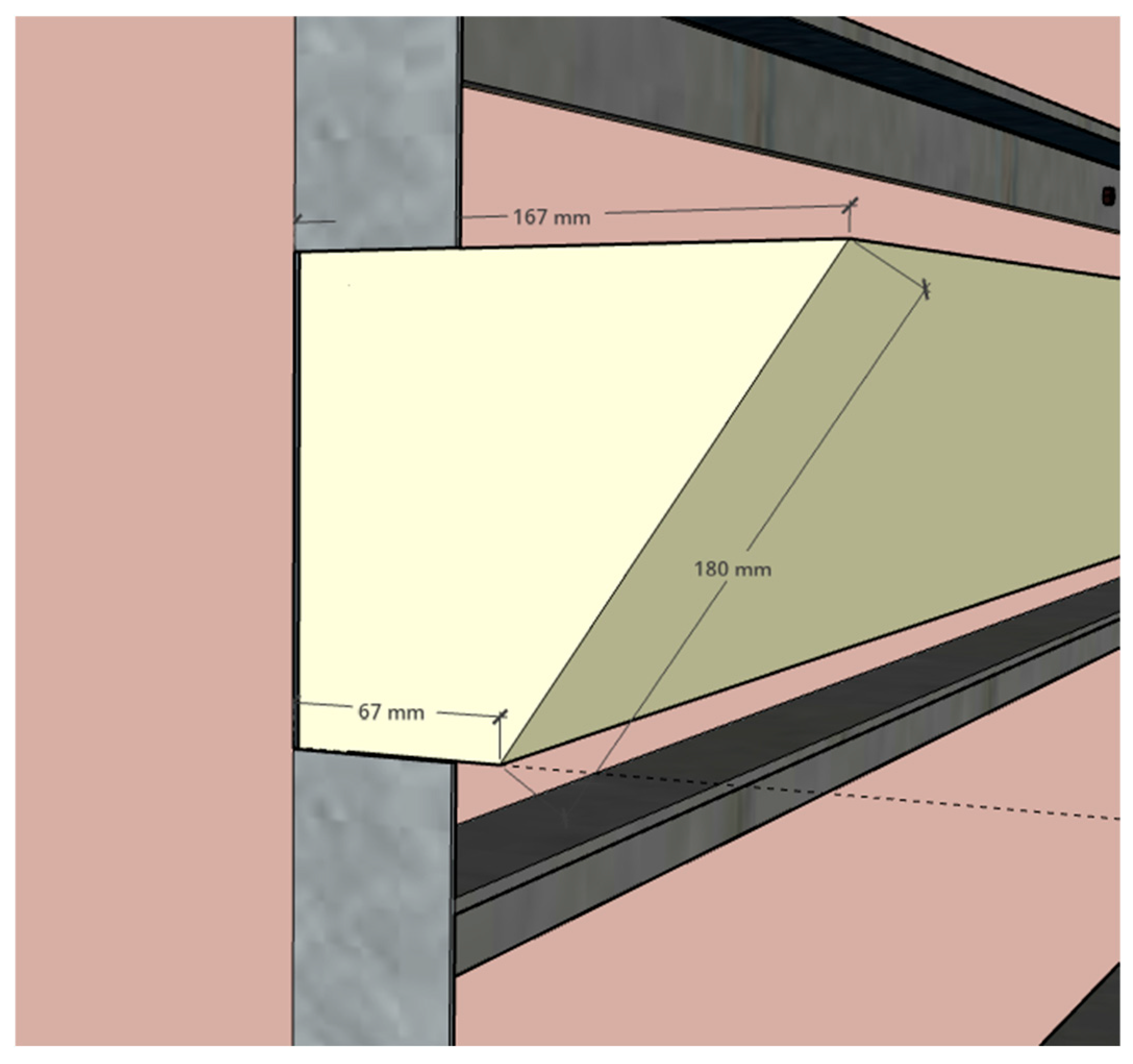

3.2.4. Planting Trough Geometry and Substrate Volume Strategy

The model utilises fifteen horizontal fibreglass planting troughs designed to maximise substrate volume while maintaining a non-obtrusive façade profile. Each trough is 4985 mm long with a total height of 250 mm. The soil-bearing front face is angled forward at 56°, creating planting space while reducing excessive protrusion from the façade. The trough base width is 67 mm, and the open top width is 167 mm (see Figure 3), resulting in a calculated volume of approximately 87.49 L per trough. Each trough is moulded, sealed, and waterproofed to support outdoor exposure. The emphasis on substrate volume responds to documented plant stress and failure risks in systems with insufficient rooting volume, a concern also reflected in wider LWS performance literature [26,28].

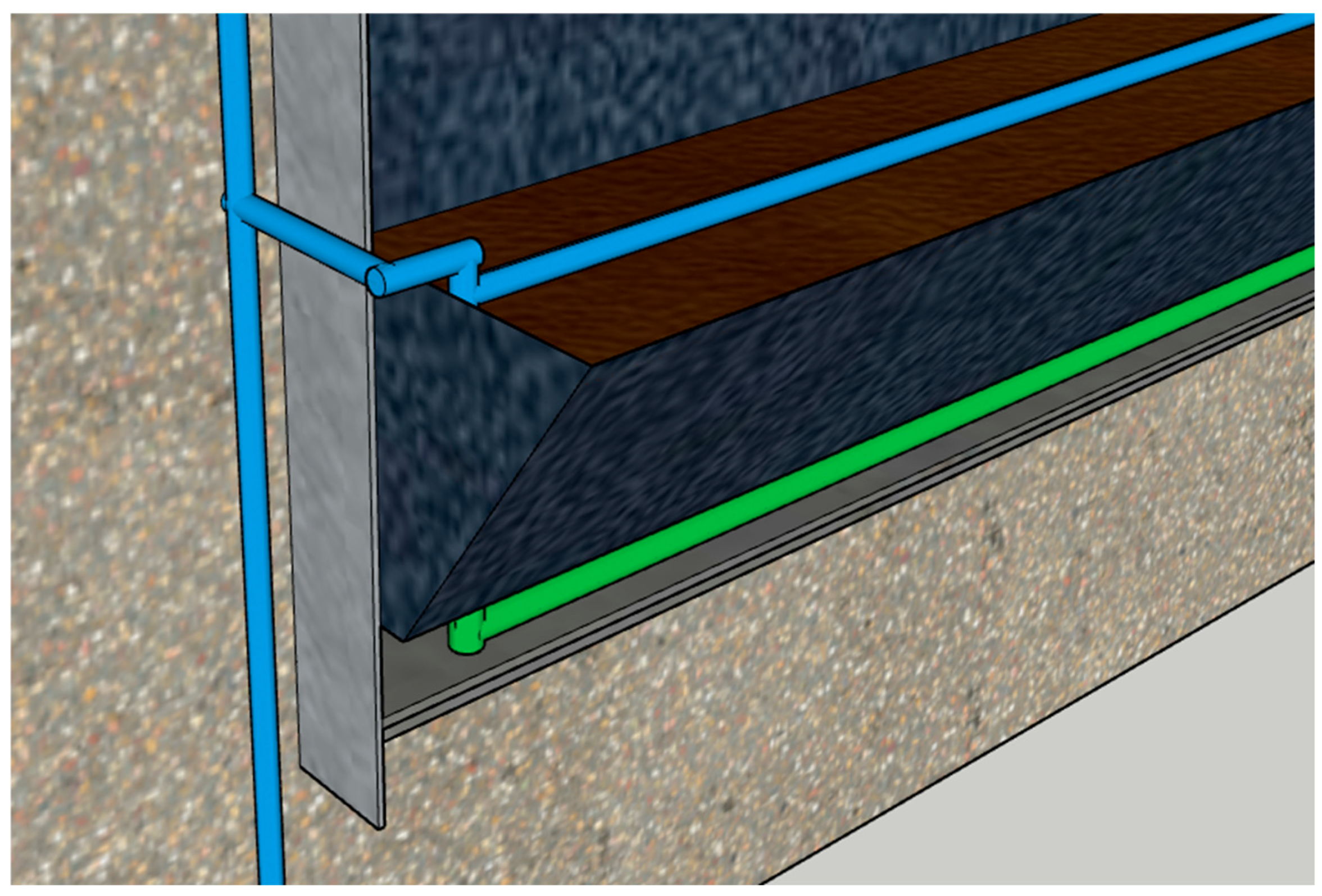

3.2.5. Irrigation System

To support plant health and reduce uneven watering, Viridis 5045 employs a drip irrigation system. A 16 mm OD HDPE feeder pipe supplies each modular unit from a controlled water source, incorporating a programmable irrigation timer with a solenoid for scheduled irrigation. At each planting trough, a tee connection branches into an elbow, and a 16 mm OD drip irrigation pipe runs the trough length, terminating with a stopper. Drip-based approaches align with water-efficiency and controlled delivery needs identified for LWS performance, particularly in water-scarce environments [36,40].

3.2.6. Drainage System and Equalised Outflow Strategy

To reduce waterlogging and prevent uneven saturation across planting levels, Viridis 5045 incorporates a distributed drainage system designed to provide consistent drainage per trough (Figure 4). Each trough includes four drainage holes fitted with nylon compression couplers to ensure waterproof integrity and controlled outflow. A 25 mm HDPE PE100 drainage pipe connects to couplers via compression elbows and tees, forming a continuous drainage run beneath each trough. Individual trough drainage runs consolidate into a stack drainage pipe, routed to a designated discharge location. Within each trough, HDPE rigid drainage mesh squares (2 mm square apertures) are installed at drainage openings to prevent substrate loss while allowing water and fine particles to pass through. This strategy responds to concerns in practice and literature that inadequate drainage and uneven water distribution can accelerate plant stress, increase maintenance requirements, and contribute to system failure [26,28,29].

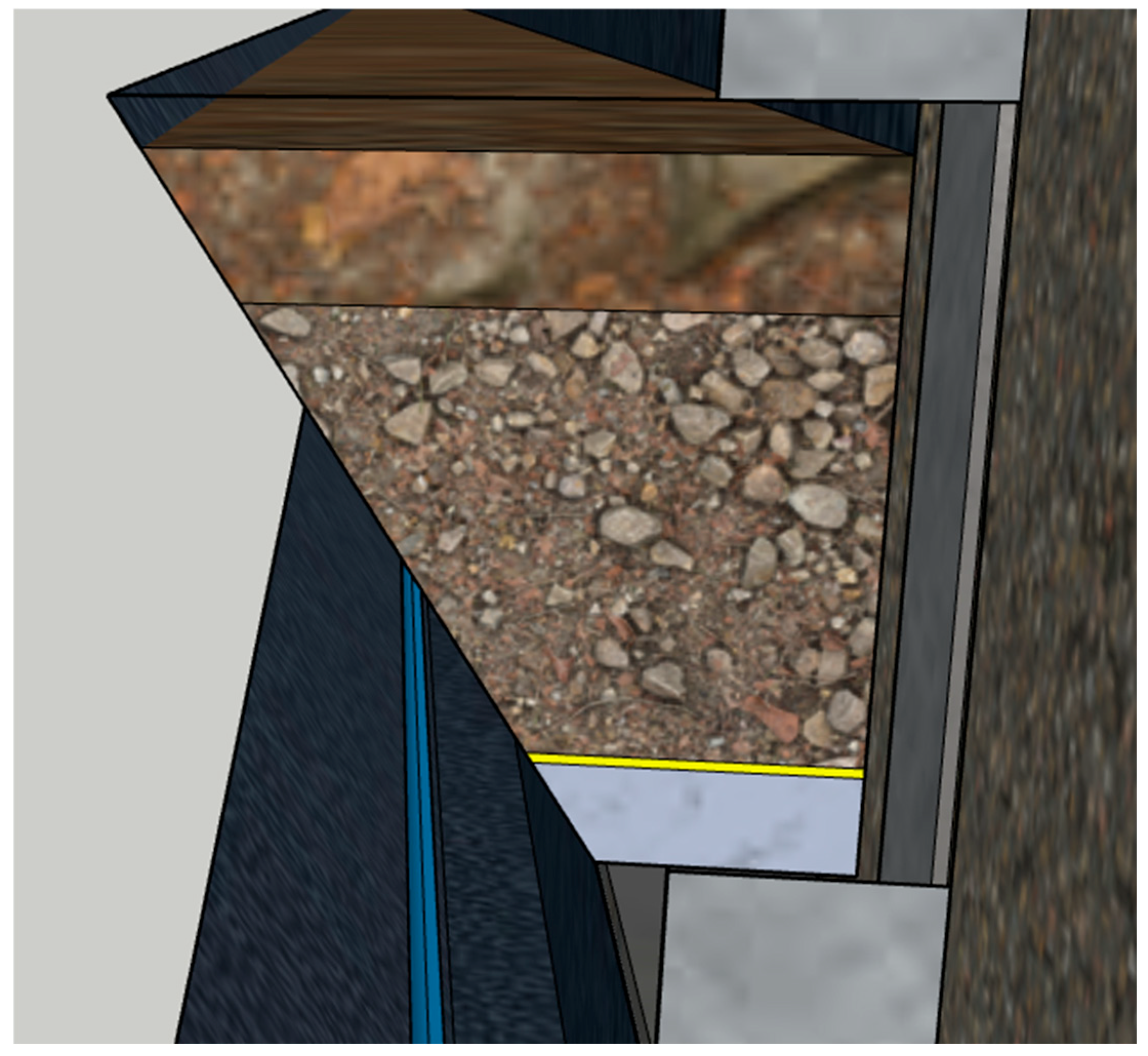

3.2.7. Layered Substrate Composition

Each planting trough incorporates a multi-layered substrate designed to balance drainage, moisture retention, and nutrient availability (Figure 5). The base layer comprises a 20 mm drainage layer of lightweight expanded clay aggregate (LECA), overlaid by a non-woven geotextile to prevent substrate migration into the drainage system. The primary growing medium consists of a 120 mm layer of engineered lightweight soil incorporating controlled release fertiliser granules. A 10 mm coconut husk mulch layer caps the system to support moisture retention, temperature moderation, and nutrient contribution. Layered substrate strategies align with literature highlighting the importance of balancing water retention and drainage to support LWS plant performance and reduce maintenance risk [26,41].

3.2.8. Indigenous Plant Selection Strategy and Candidate Species

The model is designed to support low-growing, creeping, and drought-tolerant indigenous species that align with the WC’s climatic variability and the constraints of containerised vertical planting systems [32,33]. Interview-informed candidate species included multiple genera and species identified by botanists and horticulturalists (e.g., Crassulas, Lampranthus, and Aptenia cordifolia), alongside species identified through the literature review as suitable for the proposed criteria (e.g., Carpobrotus edulis and Bulbine frutescens) [32]. The use of drought-tolerant, low-maintenance species aligns with the need to reduce irrigation demand, minimise replacement frequency, and manage long-term operational burden in LWS applications [28,40].

3.3. Bill of Quantities and Cost Structure for Viridis 5045

Viridis 5045 was quantified using the ASAQS Standard System of Measuring Building Works (7th edition). Rates were built up using current cost data applicable to the WC as of August 2025. The Viridis 5045 BOQ is provided in File S1. The BOQ format differs from that of a conventional trade-based bill. In line with the views expressed by the Quantity Surveyors consulted, LWS are typically priced as specialist allowances within an elemental estimate and treated as provisional sum items within a BOQ, commonly supported by specialist subcontractor quotations rather than fully measured trade rates. Accordingly, the Viridis 5045 BOQ adopts a tailored approach that applies the ASAQS measurement framework while consolidating multiple trades and scope items into one specialist bill structure. Quantity splits are retained for clarity and auditability, and the built-up rates include manufacturing, labour, installation, and delivery. Applicable ASAQS General Preambles for Trades (2017) were included to support contractual integrity.

The Viridis 5045 BOQ is structured into the following overarching sections: galvanised steel mounting structure; bolts and fasteners; paintwork; fibreglass works; irrigation system; drainage system; substrate; vegetation; and value added tax (VAT). The galvanised steel mounting structure was quantified in tonnes and contributed R3783.70 to the bill total. Bolts and fasteners were quantified in number and contributed R4745.00. Paintwork was quantified in square metres and contributed R11,703.05. Fibreglass works were quantified in number and contributed R76,481.55. The fibreglass trough rate build-up was calculated at R5098.77 per trough. The irrigation system was quantified in metres and number and contributed R10,351.30, while the drainage system was quantified in metres and number and contributed R7779.90. Substrate was quantified in square metres, cubic metres, and kilograms and contributed R7326.50. Vegetation was quantified in number and contributed R34,255.10.

The BOQ subtotal before VAT was R156,426.10. VAT amounted to R23,463.92, resulting in a final BOQ total of R179,890.02. No escalation or contingency provisions were included. Rates include profit and are specific to Cape Town; locations outside Cape Town within the WC require a rate adjustment in accordance with the bill preambles. The Viridis 5045 BOQ total therefore represents the present-value cost of manufacturing, delivering, and installing the developed Viridis 5045 model within Cape Town under the stated pricing assumptions.

3.4. Life Cycle Cost Analysis

A Life Cycle Cost (LCC) analysis was undertaken for the Viridis 5045 LWS using the developed BOQ (File S1). The analysis was conducted in accordance with the ASAQS Guide to Life Cycle Costing (2018) and is presented in full in File S2. The LCC framework incorporated initial capital costs, operating and maintenance costs, replacement costs, removal costs, and residual values. Key variables applied in the modelling included discount rates, escalation rates for maintenance, replacement, removal, and residual values. To account for uncertainty and market variability, three variable scenarios were modelled: pessimistic, neutral, and optimistic.

Service lives assigned to the Viridis 5045 system components were informed by Quantity Surveying life-cycle costing practice, durability and service-life prediction literature, South African infrastructure guidance, and expert input from the qualitative interviews. Structural steel components were assigned a service life of 75 years, consistent with durability research emphasising the role of exposure conditions, corrosion protection, and planned maintenance in achieving long-term structural performance [42]. Glass-fibre reinforced polymer (GFRP) components were assigned a 50-year service life, aligned with design-life assumptions and long-term performance studies commonly applied to GFRP infrastructure systems [43]. Irrigation and drainage components were assigned a service life of 45 years, reflecting normative expected operational lives applied to water-carrying infrastructure in South African asset-management practice [44]. Protective paint coatings were assigned a 15-year service life based on typical repainting intervals for painted steel structures under moderate environmental exposure conditions used in life-cycle cost analyses [45]. Vegetation and growing substrate were assigned a five-year replacement cycle, consistent with LWS life-cycle studies that treat biological components as short-life elements requiring periodic replacement to maintain system performance [46]. Operating and maintenance costs were calculated monthly and included pruning, irrigation system inspections, drainage inspections, irrigation water consumption, and pest control. Based on current cost data, the present value of operating and maintenance costs was calculated at R2,025.00 per month, equating to R24,642.28 for the first year of operation.

Replacement and removal costs were scheduled in accordance with the service lives assigned to each system component. A residual value was calculated for the mounting structure at the end of the analysis period. The LCC analysis produced a first-year LCC of R204,532.30, inclusive of initial capital expenditure and first-year maintenance costs, consistent across all three variable scenarios.

Net present value (NPV) calculations were undertaken for system life spans of five, twenty-five, fifty, and one hundred years under pessimistic, neutral, and optimistic assumptions. Across all scenarios and life spans, NPVs remained negative, indicating that the Viridis 5045 system does not generate a positive financial return when assessed solely on direct monetary flows. As expected, the optimistic scenario resulted in the lowest magnitude of loss, followed by the neutral and pessimistic scenarios respectively. Shorter life spans exhibited lower absolute losses due to reduced cumulative operating, maintenance, and replacement costs.

These results indicate that Viridis 5045 cannot be justified on financial performance indicators alone. However, the persistence of negative NPVs across all scenarios reinforces the conclusion that the primary value of LWS lies outside direct financial return, particularly in social, environmental, and urban wellbeing benefits that are not readily monetised within conventional LCC frameworks. Graphical representations of LCC trajectories for selected life spans are provided in File S2.

4. Discussion

While the study presents detailed technical specification and cost outputs, these are used analytically to evaluate the suitability of conventional financial evaluation tools for sustainability-oriented façade systems as discussed below.

4.1. Reinterpreting Living Wall System Viability Beyond Capital Cost Indicators

The LCC analysis indicates that the Viridis 5045 LWS is not financially viable when assessed solely through conventional indicators such as net present value (NPV). However, this outcome should not be interpreted as a failure of the system but rather as confirmation that LWS operate as non-revenue-generating sustainability interventions rather than income-producing assets. Like other green infrastructure measures, their primary value lies outside direct financial return.

Qualitative findings support this interpretation, with Quantity Surveyors consistently describing LWS as additive façade elements that introduce additional capital and long-term maintenance costs. The LCC results substantiate this perception by demonstrating persistent negative NPVs across all variable scenarios. These findings highlight the limitations of applying narrow financial appraisal tools to sustainability-driven systems whose benefits are largely environmental and social in nature.

Accordingly, LWS viability should be understood as a multidimensional concept that extends beyond capital cost efficiency to include long-term urban, environmental, and social performance.

4.2. Translating Qualitative Insights into Evidence-Informed Model Design

The development of the Viridis 5045 model demonstrates how qualitative insights from industry professionals can be translated into concrete design decisions. The seven themes identified through thematic analysis directly informed system configuration, ensuring that the model responds to empirically grounded concerns rather than theoretical assumptions.

Key interview findings relating to cost uncertainty and lack of benchmarks informed the adoption of a modular, standardised system supported by a tailored BOQ. Maintenance intensity, identified as a dominant risk factor, guided design-for-maintenance strategies, including modular replacement, accessible fixing systems, and explicit maintenance allowances. Structural and technical concerns influenced the inclusion of an independent mounting framework, robust drainage detailing, and waterproofing considerations.

This direct traceability between stakeholder insights and design responses strengthens the methodological rigour of the study and positions Viridis 5045 as a context-responsive and practice-informed LWS.

4.3. Maintenance Intensity as the Primary Driver of Long-Term Performance

Maintenance intensity emerged as the most influential determinant of long-term system performance across both qualitative and quantitative findings. While initial capital costs represent a significant barrier to adoption, the LCC analysis shows that cumulative maintenance and replacement costs have a greater influence on total LCC.

Botanists and horticultural specialists emphasised that many LWS failures are linked to insufficient substrate volumes, uneven irrigation, and inadequate maintenance access. These risks are amplified in external applications exposed to the WC’s variable microclimates. The LCC results reinforce these concerns by illustrating cost increases associated with vegetation and substrate replacement cycles.

These findings suggest that design priorities should emphasise durability, plant survivability, and maintenance efficiency rather than focusing solely on reducing upfront capital expenditure.

4.4. Indigenous Plant Selection and Regional System Adaptation

A key contribution of this study is the integration of indigenous plant species into a LWS designed specifically for the WC and suitable for broader application in South Africa. Existing LWS models are largely based on non-indigenous species, often resulting in increased irrigation demand and higher plant mortality when applied in climatically mismatched contexts.

Interview findings and literature synthesis informed the selection of drought-tolerant, shallow-rooted indigenous species suited to vertical applications. These species improve system resilience, reduce replacement frequency, and mitigate some of the dominant cost drivers identified in the LCC analysis. While financial viability remains constrained, indigenous plant selection functions as a risk-reduction strategy that enhances long-term system performance.

The Viridis 5045 model therefore represents a shift towards context-specific, ecologically appropriate LWS design. While LWS are often associated with limited biodiversity contribution relative to natural or ground-level green infrastructure, the use of indigenous plant species in the Viridis 5045 model was intended to enhance ecological compatibility and habitat relevance within the WC context. Existing studies on LWS primarily document environmental, thermal, and social benefits, with limited empirical comparison of biodiversity performance between indigenous and non-indigenous planting schemes. As such, this study does not claim quantified biodiversity enhancement but rather positions indigenous plant selection as a contextually appropriate design strategy that may better support local ecological interactions than generic, non-native systems.

This study does not present a direct empirical comparison between the Viridis 5045 model and existing LWS deployed in South Africa or comparable climatic contexts. However, existing studies and documented local implementations primarily focus on ecological performance, typological classification, or community-led applications, with limited attention to life-cycle cost transparency, constructability, and professional sustainability appraisal [8,47,48,49,50,51,52]. In contrast, the Viridis 5045 model was explicitly developed to address these gaps by integrating regional climatic considerations, indigenous plant selection, constructability constraints, and Quantity Surveying-led life-cycle costing. Accordingly, the model’s contribution lies not in outperforming existing systems on isolated performance indicators, but in addressing unmet decision-making needs related to feasibility assessment and sustainability appraisal within the WC context.

4.5. Reframing Value: Economic Cost Versus Social and Environmental Returns

The findings highlight a clear divergence between economic cost assessment and the broader social and environmental value of LWS. While social, aesthetic, and environmental benefits were widely acknowledged by interviewees, these were rarely viewed as sufficient justification for adoption within cost-driven decision-making processes.

The persistent negative NPVs underscore the difficulty of monetising benefits such as improved wellbeing, urban greening, and microclimatic moderation. However, the absence of quantifiable financial returns does not diminish the relevance of these benefits; rather, it exposes the limitations of conventional financial appraisal tools when applied to sustainability interventions.

LCC provides transparency regarding long-term financial implications but should be complemented by qualitative and performance-based assessments when evaluating the value of LWS.

The findings also highlight a broader limitation of conventional financial appraisal tools when applied to sustainability-oriented interventions. Although the LCC analysis indicates negative net present values under standard discounting assumptions, this outcome reflects the narrow scope of traditional financial appraisal rather than an absence of broader value. LWS generate environmental, social, and long-term urban benefits that are not readily captured by conventional cost-benefit information, yet these benefits are increasingly central to sustainability decision-making. In this respect, the Viridis 5045 case illustrates how reliance on financial indicators alone may systematically undervalue sustainability interventions, reinforcing the need for appraisal approaches that integrate life cycle, environmental, and qualitative performance considerations alongside financial outcomes. This supports growing calls within sustainability scholarship for decision-making frameworks that move beyond purely financial optimisation towards multi-criteria and life-cycle-based evaluation.

4.6. Implications for Quantity Surveying Practice and Sustainable Construction

The results of this study reinforce the evolving role of the Quantity Surveyor in sustainability-led projects. Beyond cost control, Quantity Surveyors are positioned to interpret long-term cost behaviour, communicate maintenance risk, and support informed decision-making for specialist systems such as LWS.

The BOQ developed for Viridis 5045 demonstrates how separating capital, maintenance, and replacement components improves cost transparency compared to reliance on provisional sums. Incorporating LCC into early-stage evaluation enables more realistic expectations of system performance and discourages superficial sustainability adoption.

More broadly, the findings suggest that successful implementation of LWS requires early QS involvement, interdisciplinary collaboration, and context-specific design. The Viridis 5045 model provides a structured framework for integrating ecological knowledge, technical design, and cost planning within sustainable construction practice.

Although the Viridis 5045 model was informed by existing literature, its development was not purely theoretical. The model was iteratively shaped and refined using empirical data derived from semi-structured interviews with industry professionals, allowing expert knowledge, contextual constraints, and practical considerations to directly inform system configuration, component selection, and cost structure. In this sense, the model underwent qualitative and expert-based validation rather than experimental or post-implementation performance validation. While further empirical testing under operational conditions would strengthen future refinement, the present study provides a robust, context-responsive model grounded in both literature and practitioner evidence.

From a Quantity Surveying perspective, the findings demonstrate the importance of expanding sustainability costing beyond conventional financial return indicators to include LCC, maintenance and replacement costs, as well as a structured cost breakdown of sustainability elements. By developing a quantified BOQ and LCC model for a context-adapted LWS, this study provides a practical decision-support framework that enables Quantity Surveyors to evaluate specialist façade systems using evidence-based cost planning rather than relying on provisional sums or qualitative assumptions. This shifts the Quantity Surveyor’s role from passive cost reporting to active involvement in sustainability-related decision-making, enabling more informed evaluation of long-term costs, maintenance risk, and feasibility of sustainability options within real-world project constraints.

5. Conclusions

This study investigates the viability and context-adapted design of LWS in the WC from a Quantity Surveying perspective. In doing so, it addresses a gap in regionally adapted vertical greening models by incorporating indigenous plant species. By evaluating qualitative insights from industry professionals with quantitative cost analysis, the research developed the Viridis 5045 model as a context-specific LWS designed for external application under the climatic conditions of the WC.

The findings indicate that, when assessed using conventional financial indicators such as net present value, the Viridis 5045 system is not financially viable as a standalone investment. This outcome reflects the inherent nature of LWS as non-revenue-generating sustainability interventions rather than income-producing assets. LCC analysis demonstrated that long-term performance is primarily influenced by maintenance intensity and replacement cycles, reinforcing the importance of durability, plant survivability, and design-for-maintenance strategies.

Qualitative findings revealed consistent concerns relating to high capital costs, maintenance demands, technical risk, and the absence of reliable cost benchmarks. These insights were directly translated into evidence-informed design decisions, resulting in a modular system configuration, improved drainage and irrigation strategies, accessible maintenance detailing, and the use of indigenous, drought-tolerant plant species. The integration of indigenous vegetation was shown to function as a risk-mitigation strategy by reducing plant stress, irrigation demand, and replacement frequency.

Importantly, while the Viridis 5045 model was developed specifically for the WC, its applicability is not limited to this region. The WC contains the driest major metropolitan area in South Africa, characterised by low and seasonal rainfall, increasing water scarcity, and significant local climate variation. Designing the system to perform under these constraints suggests that the model has potential applicability across other South African regions with equal or less demanding climatic conditions, subject to appropriate contextual adjustments. Its potential applicability to other South African regions is contingent on careful contextual adaptation. Climatic variations (including rainfall patterns, temperature extremes, and wind exposure), regional economic conditions (such as construction costs and maintenance affordability), and differences in local construction practices and supply chains would necessitate recalibration of plant selection, system detailing, and cost assumptions to avoid inappropriate generalisation.

From a professional practice perspective, the study highlights the critical role of Quantity Surveyors in sustainability-led construction. Transparent cost structuring, life cycle-based evaluation, and early-stage advisory input are essential for informed decision-making regarding LWS. The BOQ developed in this study demonstrates how specialist façade systems can be appraised more rigorously than through conventional provisional sum approaches. This study’s contribution lies not in proposing LWS as a novel concept, but in the contextual adaptation and financial interrogation of such systems within the WC built-environment context. Existing South African and international studies primarily emphasise biological performance, social outcomes, typological classification, or community-based implementation of living walls, with limited attention to life-cycle cost implications and professional sustainability appraisal. By contrast, the Viridis 5045 model integrates regional climatic conditions, locally appropriate plant selection, constructability considerations, and Quantity Surveying-led life cycle costing to assess feasibility under real-world economic constraints. This distinction positions the model as a context-responsive sustainability appraisal framework rather than a generic or biologically optimised living wall solution. In this respect, the study responds to a recognised gap between ecological design research and professional decision-making tools used in sustainability-led construction practice.

This study is subject to limitations. Whole Life Costing and full monetisation of social and environmental benefits were intentionally excluded to maintain methodological focus. The Viridis 5045 model should therefore be understood as an empirically informed, expert-validated framework rather than a fully performance-tested system. Future research should explore long-term post-occupancy performance, integration with alternative water sources such as greywater, comparative performance of indigenous and non-indigenous species, and broader national-scale application of regionally adapted LWS. Additionally, comparative biodiversity performance between indigenous and non-indigenous LWS represents an important area for future empirical research.

Overall, the research contributes a structured, context-responsive framework for evaluating LWS in South Africa, positioning Viridis 5045 as a practical reference model for sustainable façade greening in water-scarce urban environments.
