Author Contributions
R.A.-S.: Conceptualisation, Methodology, Validation, Formal analysis, Investigation, Data Curation, Writing—Original Draft, S.C.: Writing—review and editing, Supervision, Methodology, Investigation, Conceptualisation, A.A.: Writing—review and editing, Formal analysis, Resources, Conceptualisation, I.B.: Writing—review and editing, Resources, Conceptualisation, K.A.: Writing—review and editing, Resources, F.K.S.: Writing—review and editing, Resources, D.M.: Writing—review and editing, Supervision, Project administration, Resources, Funding acquisition, Conceptualisation, E.B.: Writing—review and editing, Resources, Funding acquisition, Conceptualisation. All authors have read and agreed to the published version of the manuscript.

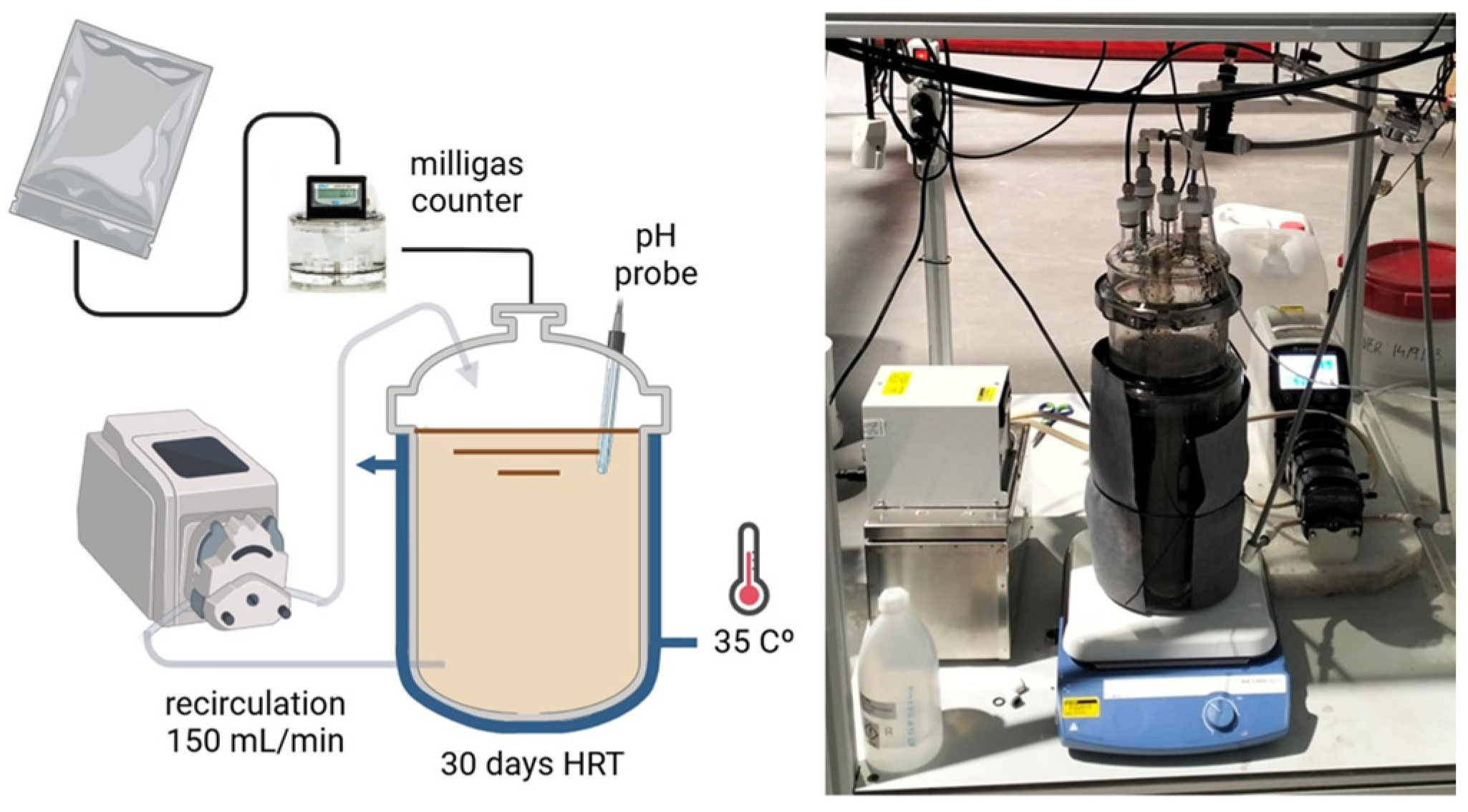

Figure 1.
Left, the scheme of the CSTR set-up. Right, a photo of the CSTR in the laboratory.
Figure 1.
Left, the scheme of the CSTR set-up. Right, a photo of the CSTR in the laboratory.

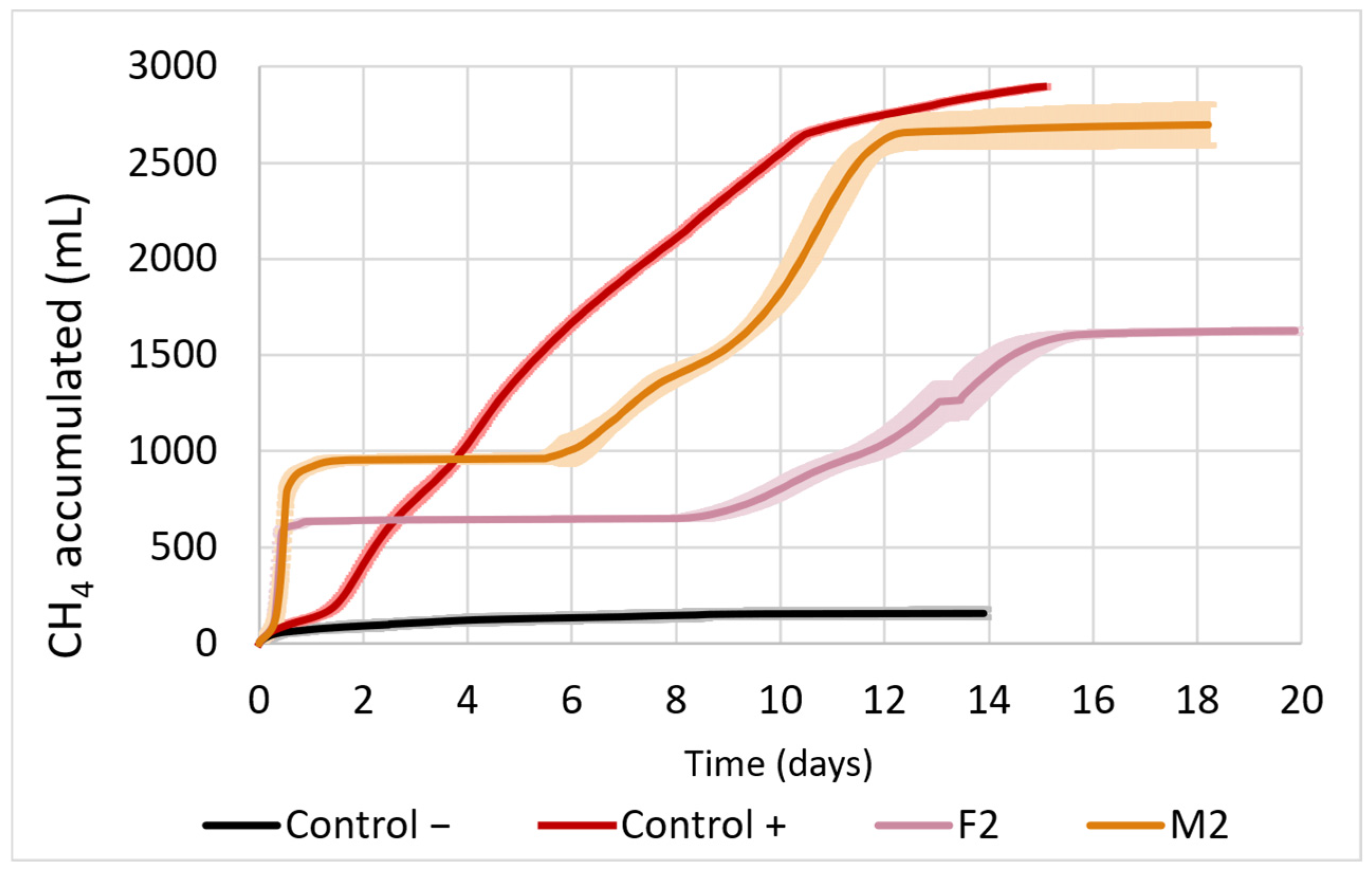

Figure 2.
Accumulated CH4 production for BMPs employing ratio I/S 2. Comparison between control (−) (only inoculum in black), control (+) (inoculum and cellulose macrocrystalline in red), molasses (M2 in orange), and fruits (F2 in pink).
Figure 2.
Accumulated CH4 production for BMPs employing ratio I/S 2. Comparison between control (−) (only inoculum in black), control (+) (inoculum and cellulose macrocrystalline in red), molasses (M2 in orange), and fruits (F2 in pink).

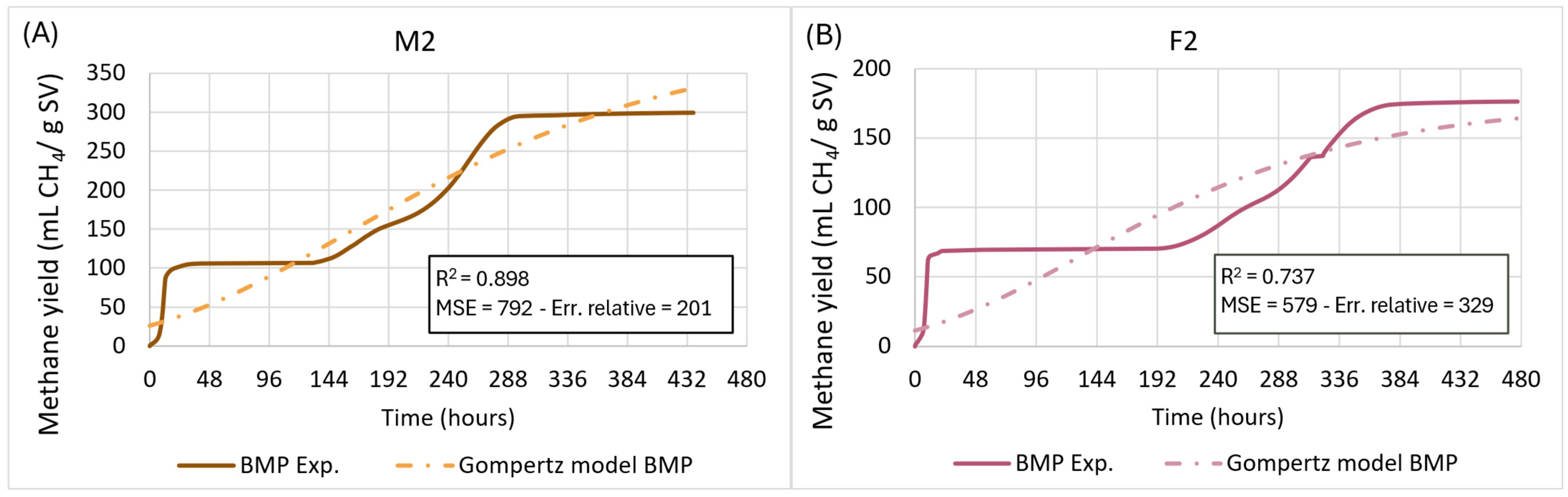

Figure 3.
A comparison between the experimental BMPs at an I/S ratio of 2 with the Gompertz model. (A) Molasses: in dark orange, the experimental BMP; in light orange, the model. (B) Fruit mix: in dark pink, the experimental BMP, in light pink, the model.
Figure 3.
A comparison between the experimental BMPs at an I/S ratio of 2 with the Gompertz model. (A) Molasses: in dark orange, the experimental BMP; in light orange, the model. (B) Fruit mix: in dark pink, the experimental BMP, in light pink, the model.

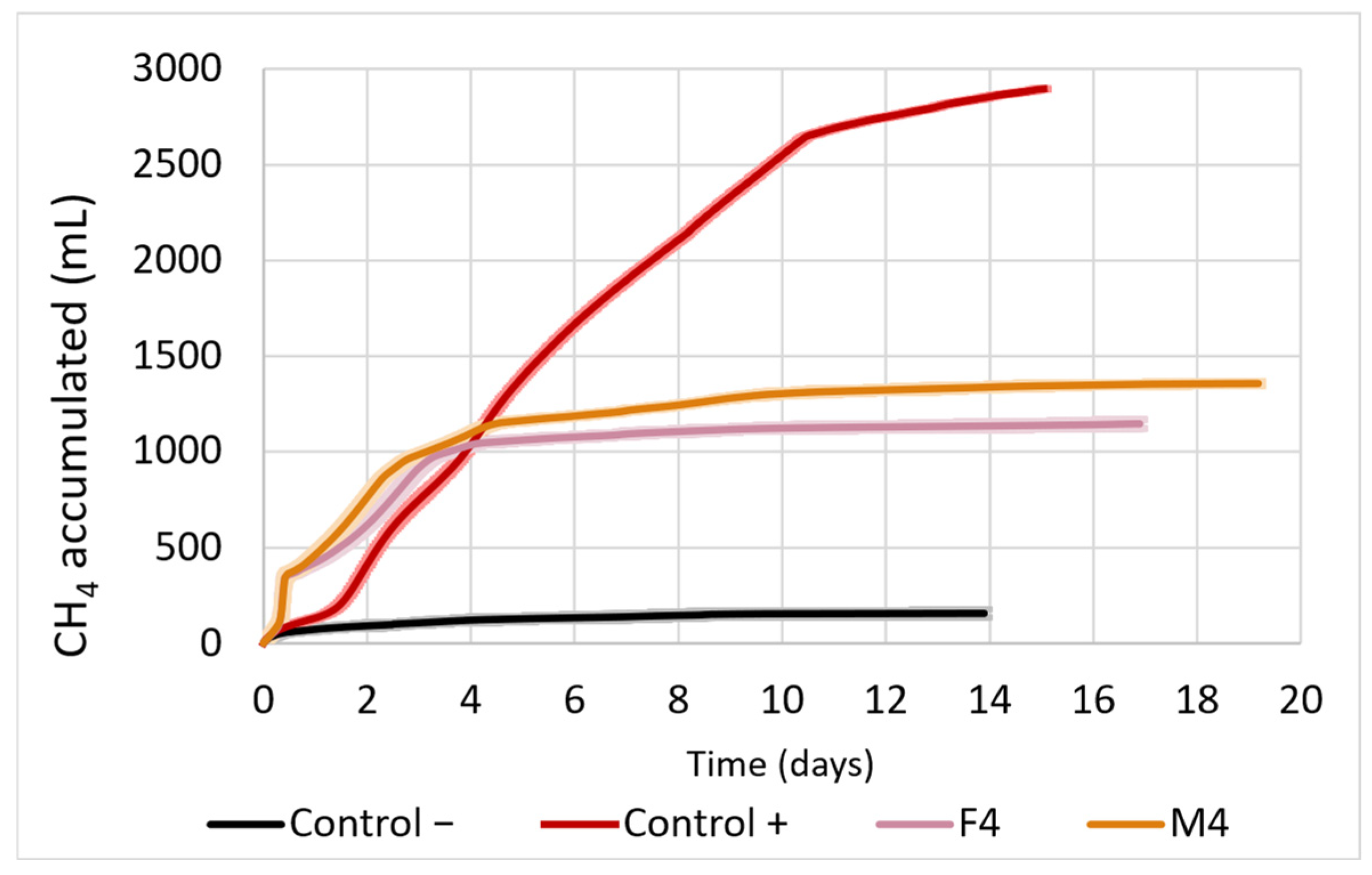

Figure 4.
Accumulated CH4 production for BMP tests employing I/S ratio of 4. Comparison between control (−) (only inoculum in black), control (+) (inoculum and cellulose microcrystalline in red), molasses (M4 in orange), and fruits (F4 in pink).
Figure 4.
Accumulated CH4 production for BMP tests employing I/S ratio of 4. Comparison between control (−) (only inoculum in black), control (+) (inoculum and cellulose microcrystalline in red), molasses (M4 in orange), and fruits (F4 in pink).

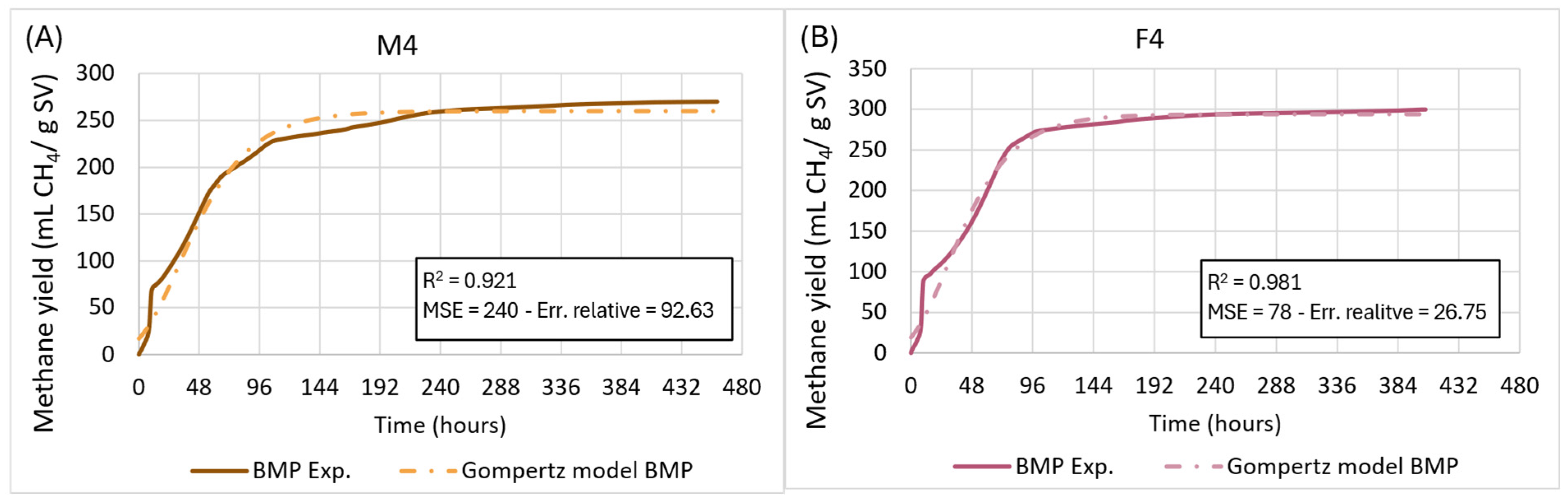

Figure 5.
A comparison between the experimental BMP at an I/S ratio of 4 with the Gompertz model. (A) Molasses: in dark orange, the experimental BMP; in light orange, the model. (B) Fruit mix: in dark pink, the experimental BMP; in light pink, the model.
Figure 5.
A comparison between the experimental BMP at an I/S ratio of 4 with the Gompertz model. (A) Molasses: in dark orange, the experimental BMP; in light orange, the model. (B) Fruit mix: in dark pink, the experimental BMP; in light pink, the model.

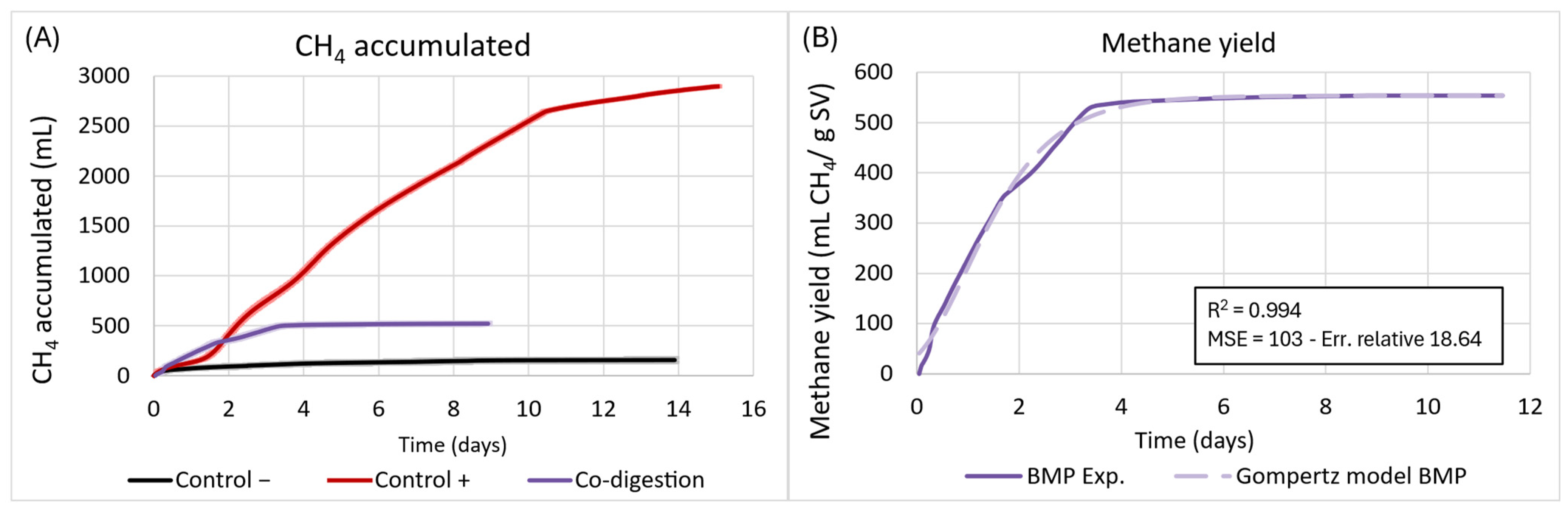

Figure 6.
Co-digestion results. (A) Accumulated CH4 for an I/S ratio of 4. A comparison of the control (−) (only inoculum in black), the control (+) (inoculum and cellulose microcrystalline in red), and the co-digestion I/S of 4 (in purple). (B) A comparison between the experimental BMP (dark purple) with its Gompertz model (light purple).
Figure 6.
Co-digestion results. (A) Accumulated CH4 for an I/S ratio of 4. A comparison of the control (−) (only inoculum in black), the control (+) (inoculum and cellulose microcrystalline in red), and the co-digestion I/S of 4 (in purple). (B) A comparison between the experimental BMP (dark purple) with its Gompertz model (light purple).

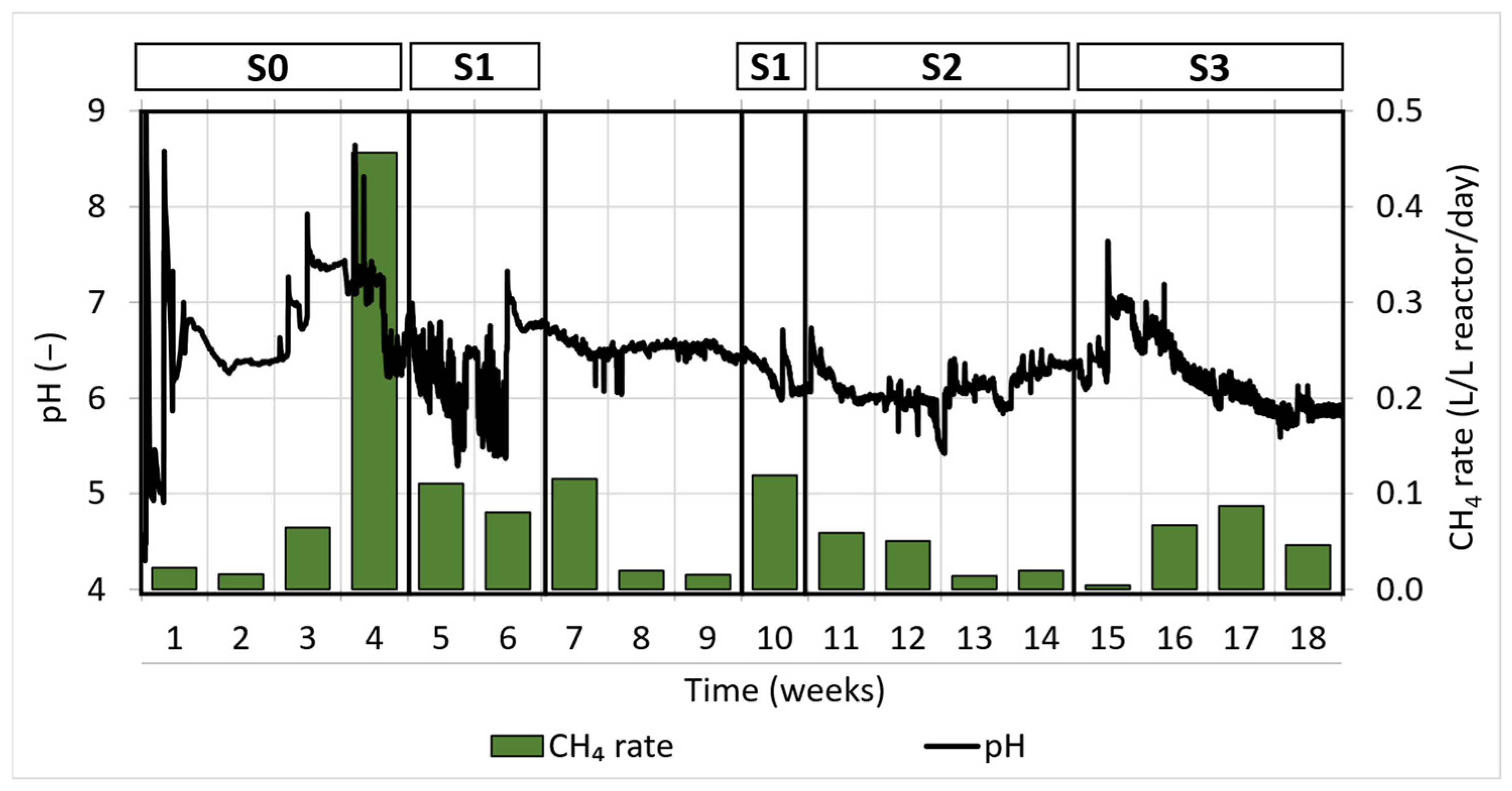

Figure 7.
Biogas production vs. pH. In the left axis, the pH monitored continuously every 15 min; in the right axis, the average CH4 production per week (L/L reactor/day). S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.
Figure 7.
Biogas production vs. pH. In the left axis, the pH monitored continuously every 15 min; in the right axis, the average CH4 production per week (L/L reactor/day). S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.

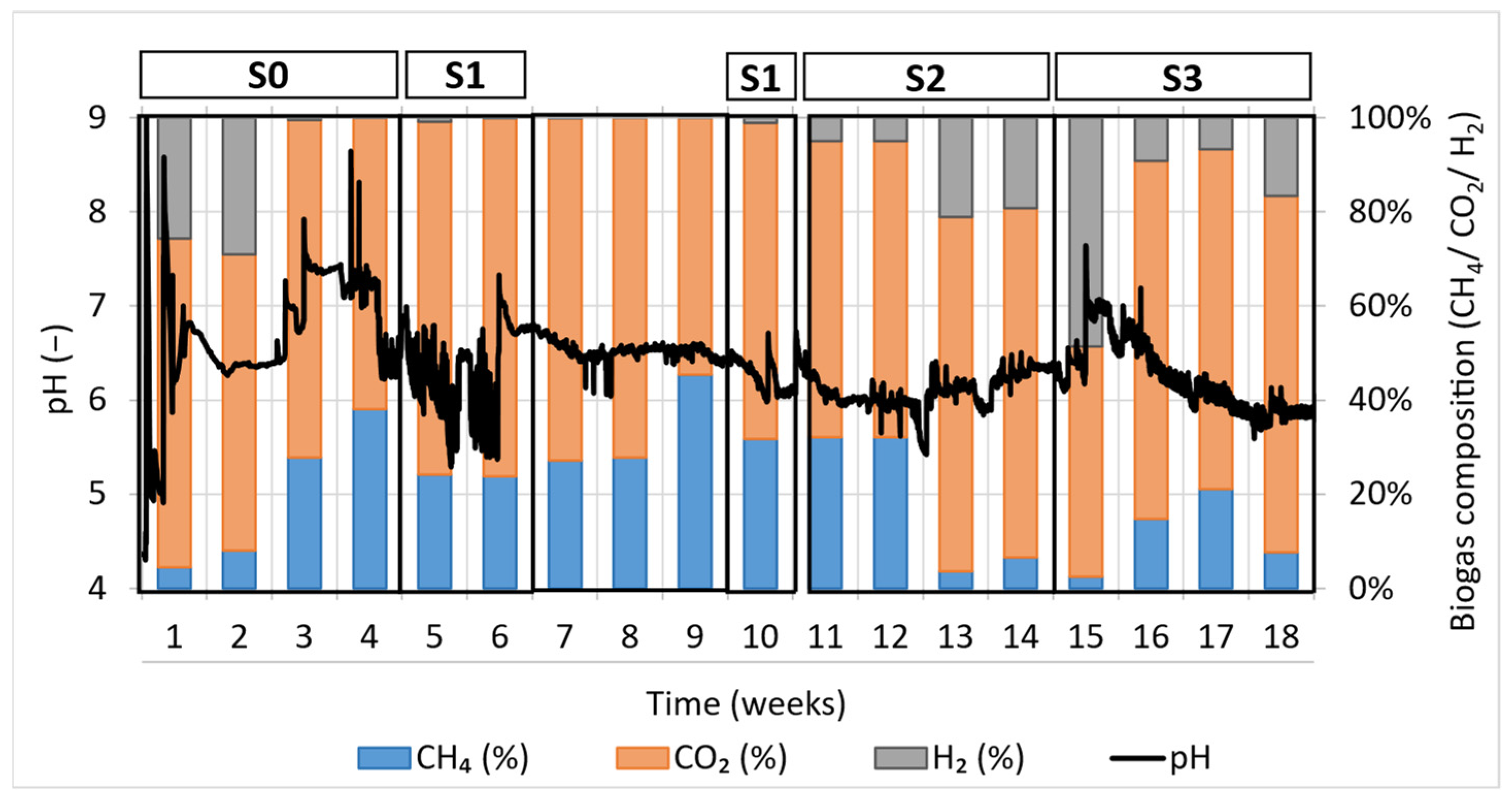

Figure 8.
Biogas composition. In the left axis, the pH monitored continuously each 15 min; in the right axis, the average biogas composition per week. S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.
Figure 8.
Biogas composition. In the left axis, the pH monitored continuously each 15 min; in the right axis, the average biogas composition per week. S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.

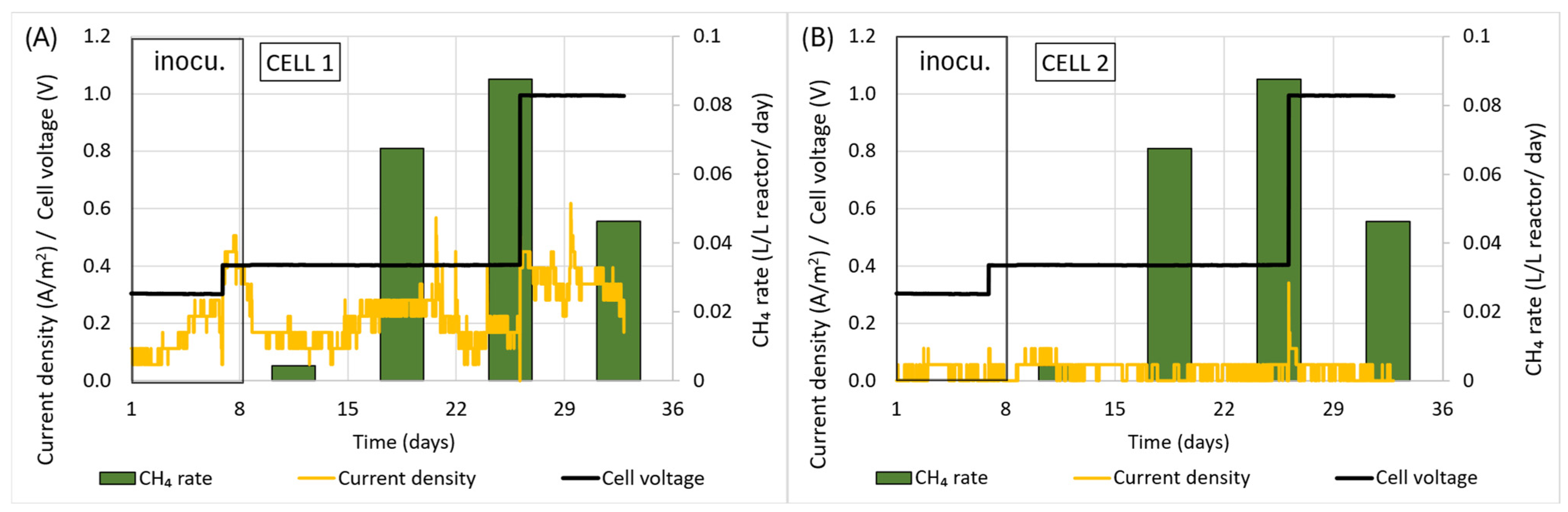

Figure 9.
Current production and CH4 production during S3. In the left axis, the current density (A/m2) and the cell voltage (V); in the right axis, the average CH4 production per week (L/L reactor/day). The left graph (A) corresponds to Cell 1, and the right graph (B) corresponds to the Cell 2.
Figure 9.
Current production and CH4 production during S3. In the left axis, the current density (A/m2) and the cell voltage (V); in the right axis, the average CH4 production per week (L/L reactor/day). The left graph (A) corresponds to Cell 1, and the right graph (B) corresponds to the Cell 2.

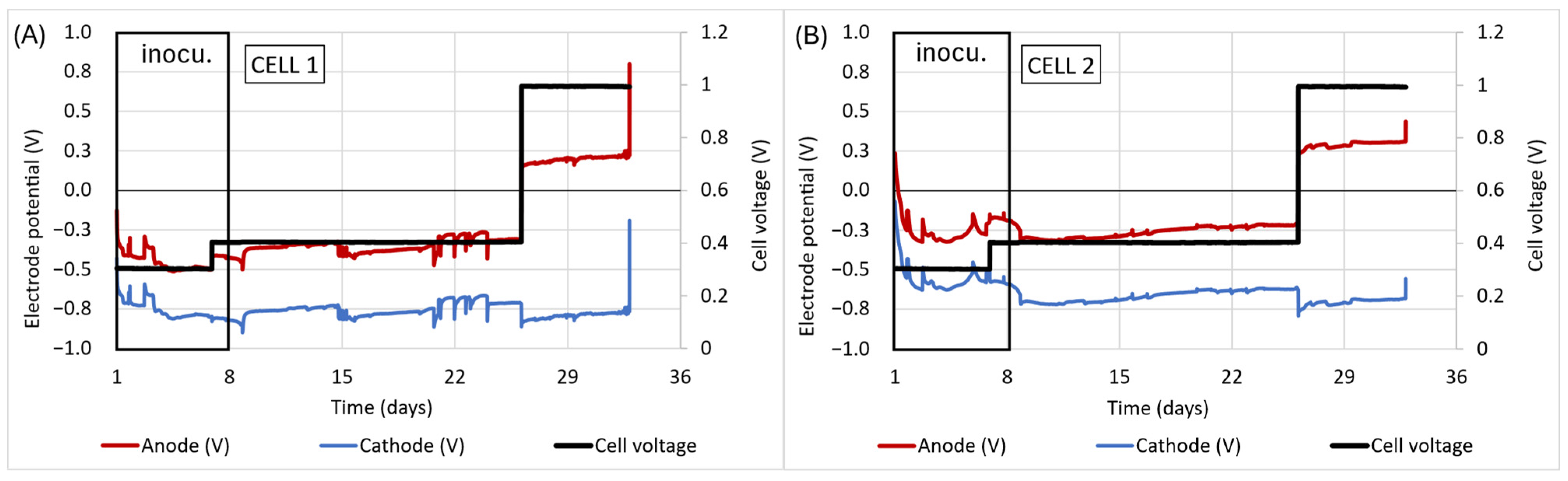

Figure 10.
Cell potentials during S3 operation. In the left axis, the electrode potentials (V); in the right axis, the cell voltage (V). The left graph (A) corresponds to Cell 1, and the right graph (B) corresponds to Cell 2.
Figure 10.
Cell potentials during S3 operation. In the left axis, the electrode potentials (V); in the right axis, the cell voltage (V). The left graph (A) corresponds to Cell 1, and the right graph (B) corresponds to Cell 2.

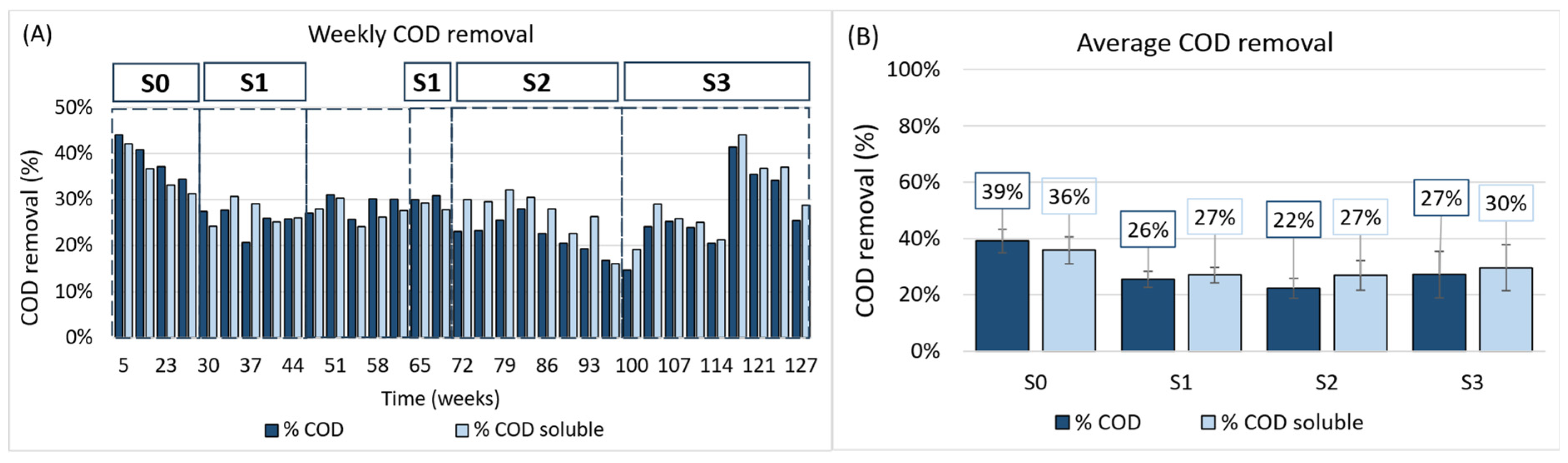

Figure 11.
COD treatment. Left (A), the evolution of the COD removal during the 18 weeks of operation. Right (B), the average removal rates of each phase. S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.
Figure 11.
COD treatment. Left (A), the evolution of the COD removal during the 18 weeks of operation. Right (B), the average removal rates of each phase. S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.

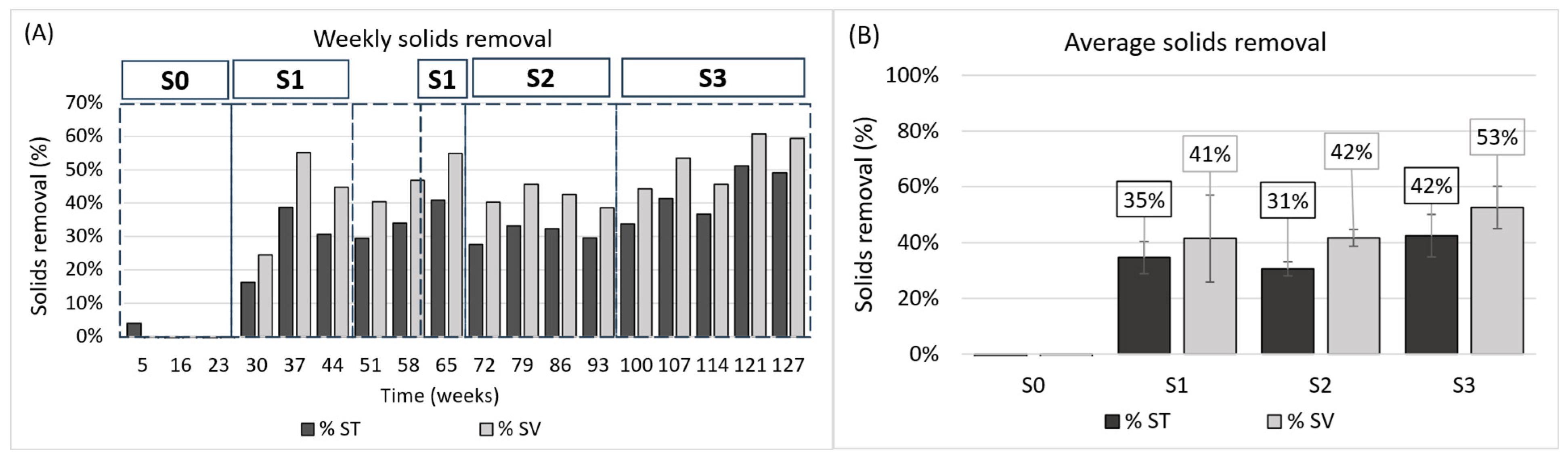

Figure 12.
Total and volatile solid removal. Left (A), the evolution of the removal during the 18 weeks of operation. Right (B), the average removal of each phase. S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.
Figure 12.
Total and volatile solid removal. Left (A), the evolution of the removal during the 18 weeks of operation. Right (B), the average removal of each phase. S0 is the operation with manual pH adjustments with NaOH, S1 is feeding amended with Na2CO3 10 g/L, S2 is S1 amended also with biochar 10 g/L, and S3 is the operation with S2 and the BES reactor in the recirculation loop.
Table 1.
BMP assays performed for the three substrates, with two different I/S ratios. Experiments were performed in triplicate. The inoculum was the same for I/S 2 and 4, so the control (+) was not repeated for the I/S 4 trials.
Table 1.
BMP assays performed for the three substrates, with two different I/S ratios. Experiments were performed in triplicate. The inoculum was the same for I/S 2 and 4, so the control (+) was not repeated for the I/S 4 trials.
| | I/S 2 | I/S 4 |
|---|
| Control (−) | C(−) | C(−) |
| Control (+) | C(+) | - |
| Molasses | M2 | M4 |
| Fruits | F2 | F4 |
| Molasses/Fruits (25:75) | - | MF4 |
Table 2.
The operational schedule of the scaled-up AD reactor.
Table 2.
The operational schedule of the scaled-up AD reactor.
| | S0 | S1 | S2 | S3 |
|---|
| Week | 1–4 | 5–10 | 11–14 | 15–18 |
Table 3.
Characterisation results and optimal range of parameters for BMP experiments.
Table 3.
Characterisation results and optimal range of parameters for BMP experiments.
| | Molasses | Fruit Mix | Inoculum | Optimal Range [30] |
|---|
| pH | 7.19 ± 0.06 | 4.23 ± 0.57 | 7.2 ± 0.01 | 6.5–8 |
| Conductivity (mS/cm) | 20.41 ± 0.01 | 4.52 ± 0.22 | 6.7 ± 0.2 | - |
| NH4-N (mg/L) | 24.60 ± 1.69 | 62.5 ± 7.7 | 1165 ± 0.02 | <2500 |
| COD (g/L) | 341.65 ± 12.69 | 123.9 ± 2.9 | 49.7 ± 0.42 | - |
| Total nitrogen (g/L) | 0.69 ± 0.02 | 1.2 ± 0.77 | 3.54 ± 0.08 | - |
| C/N | 495 ± 38 | 131 ± 87 | 14 ± 0.21 | 10–90 |
| VFA/Alkalinity | 4.50 ± 0.04 | 2.42 ± 0.01 | 0.5 ± 0.02 | 0.3–0.4 |
| Alkalinity (g CaCO3/L) | 16.20 ± 0.17 | 2.91 ± 0.05 | 2.7 ± 0.05 | >3 [45] |
| VFA (g/L) | 73.5 ± 1.45 | 7.71 ± 0.95 | 1.4 ± 0.08 | <1 |
| Total solids TS (g/L) | 340.26 ± 2.48 | 99.83 ± 1.19 | 46.6 ± 0.57 | - |
| Volatile solids VS (g/L) | 283.96 ± 4.91 | 92.90 ± 11.9 | 32.4 ± 0.18 | 20–60 |
Table 4.
Characterisation before and after the BMP experiment for an I/S ratio of 2.
Table 4.
Characterisation before and after the BMP experiment for an I/S ratio of 2.
| | Molasses Initial | Molasses Final | Fruit Initial | Fruit Final |
|---|
| pH | 6.36 ± 0.05 | 8.17 ± 0.1 | 5.63 ± 0.16 | 7.71 ± 0.03 |
| NH4-N (mg/L) | 1167 ± 33 | 1520 ± 58 | 1130 ± 29 | 1155 ± 32 |
| COD (g/L) | 36.43 ± 3.33 | 18.65 ± 0.9 | 29.3 ± 0.58 | 16.03 ± 0.2 |
| C/N | 16.83 ± 0.24 | 8.12 ± 0.08 | 17.06 ± 0.35 | 9.07 ± 0.24 |
| TS (g/L) | 34.53 ± 0.17 | 20.55 ± 0.07 | 24.29 ± 0.31 | 14.49 ± 0.16 |
| VS (g/L) | 27.05 ± 0.16 | 12.89 ± 0.04 | 19.93 ± 0.27 | 10.01 ± 0.13 |
| VFA/Alkalinity | 0.8 ± 0.03 | 0.51 ± 0.01 | 0.74 ± 0.04 | 0.68 ± 0.03 |
| VFA (g/L) | 5.53 ± 1.56 | 4.40 ± 0.1 | 3.95 ± 0.1 | 3.66 ± 0.18 |
| Alkalinity (g CaCO3/L) | 6.91 ± 1.7 | 8.68 ± 0.2 | 5.33 ± 0.22 | 5.4 ± 0.4 |
Table 5.
Characterisation before and after the BMP experiment for an I/S ratio of 4.
Table 5.
Characterisation before and after the BMP experiment for an I/S ratio of 4.
| | Molasses Initial | Molasses Final | Fruit Initial | Fruit Final |
|---|
| pH | 6.63 ± 0.05 | 7.93 ± 0.01 | 6.46 ± 0.05 | 7.8 ± 0.04 |
| NH4-N (mg/L) | 1457 ± 25 | 1606 ± 39 | 1363 ± 45 | 2027 ± 9 |
| COD (g/L) | 34.86 ± 1.96 | 26.09 ± 0.29 | 33.17 ± 4.6 | 19.16 ± 01.04 |
| C/N | 17.26 ± 0.79 | 10.45 ± 0.4 | 16.96 ± 2.05 | 9.45 ± 0.16 |
| TS (g/L) | 33.97 ± 0.18 | 26.38 ± 0.27 | 25.06 ± 0.03 | 19.01 ± 0.28 |
| VS (g/L) | 25.16 ± 0.16 | 17.63 ± 0.08 | 19.14 ± 0.1 | 13.29 ± 0.19 |
| VFA/Alkalinity | 0.77 ± 0.04 | 0.51 ± 0.01 | 0.85 ± 0.29 | 0.53 ± 0.05 |
| VFA (g/L) | 5.73 ± 0.24 | 5.04 ± 0.3 | 4.53 ± 0.02 | 3.5 ± 0.02 |
| Alkalinity (g CaCO3/L) | 7.53 ± 0.72 | 9.381 ± 0.4 | 5.93 ± 1.7 | 6.65 ± 0.6 |
Table 6.
Characterisation of the reactors before and after the BMP experiment for the co-digestion of molasses and the fruit mix.
Table 6.
Characterisation of the reactors before and after the BMP experiment for the co-digestion of molasses and the fruit mix.
| | Initial | Final |
|---|
| pH | 6.99 ± 0.02 | 7.49 ± 0.02 |
| NH4-N (mg/L) | 525 ± 10 | 1537 ± 12.5 |
| COD (g/L) | 20.15 ± 0.86 | 37.33 ± 0.28 |
| C/N | 10.78 ± 2.76 | 23.75 ± 1.15 |
| TS (g/L) | 17.72 ± 0.97 | 15.18 ± 0.22 |
| VS (g/L) | 11.79 ± 0.66 | 10.08 ± 0.07 |
| VFA/Alkalinity | 0.83 ± 0.01 | 0.28 ± 0.01 |
| VFA (g/L) | 2.6 ± 0.8 | 0.22 ± 0.01 |
| Alkalinity (g CaCO3/L) | 2.14 ± 0.65 | 0.78 ± 0.03 |
Table 7.
Characterisation of the different feeds of the scale-up reactor.
Table 7.
Characterisation of the different feeds of the scale-up reactor.
| | S0 | S1 | S2 and S3 |
|---|
| pH | 5.07 ± 0.4 | 6.30 ± 1.4 | 7.45 ± 1.37 |
| Conductivity (mS/cm) | 13.12 ± 3 | 17.53 ± 1.9 | 19.93 ± 1.1 |
| COD total (g/L) | 89.86 ± 4.5 | 77.97 ± 3.1 | 92.01 ± 8.1 |
| COD soluble (g/L) | 89.44 ± 4.2 | 76.67 ± 1.9 | 86.43 ± 7.7 |
| NH4-N (mg N/L) | 41.5 | 41.28 ± 11 | 57 ± 23 |
| TN (mg N/L) | 1943 ± 769 | 1106 ± 93 | 1163 ± 288 |
| TS (g/L) | 134.4 ± 38 | 70.33 ± 6.1 | 84.39 ± 10 |
| VS (g/L) | 117.9 ± 43 | 46.69 ± 4.6 | 59.09 ± 8.3 |
| Alkalinity (mg CaCO3/L) | 658 * | 3393 ± 1376 | 6431 ± 2467 |
| VFA/Alkalinity | 7.24 * | 3.96 ± 2.75 | 0.84 ± 0.3 |
| VFA (mg/L) | 8057 * | 9190 ± 2847 | 6485 ± 871 |
| Ratio C/N | 51.11 ± 18 | 71.01 ± 8.1 | 83.45 ± 21 |
Table 8.
The analysis of the AD digestate before and after applying the different solutions.
Table 8.
The analysis of the AD digestate before and after applying the different solutions.
| | Solution S1 | Solution S2 | Solution S3 |
|---|
| | Before | After | Before | After | Before | After |
|---|
| pH | 6.74 ± 1.1 | 6.46 ± 0.3 | 6.67 ±0.3 | 6.20 ± 0.2 | 7.2 | 6.29 ± 0.5 |
| Conductivity (mS/cm) | 27.24 ± 5.2 | 28.70 ± 1.3 | 29.14 ± 0.9 | 27.90 ± 1.6 | 27.90 ± 1.6 | 23.06 ± 3 |
| COD total (g/L) | 56.02 ± 3.81 | 68.52 ± 2.6 | 65.09 ± 1.8 | 71.40 ± 3.2 | 71.40 ± 3.2 | 66.97 ± 7.6 |
| COD soluble (g/L) | 55.48 ± 4.1 | 63.05 ± 2.3 | 62.56 ± 1.7 | 63.19 ± 4.5 | 63.19 ± 4.5 | 60.79 ± 7 |
| NH4-N (mg N/L) | 834 ± 492 | 677 ± 115 | 55 ± 16 | 84 ± 10 | 84 ± 10 | 56 ± 23 |
| TN (mg N/L) | 1293 ± 405 | 1230 ± 90 | 1170 ± 239 | 1332 ± 163 | 1332 ± 163 | 1212 ± 55 |
| TS (g/L) | 101.5 ± 12 | 65.27 ± 10 | 59.57 ± 5.2 | 63.36 ± 2.3 | 63.36 ± 2.3 | 52.58 ± 6.9 |
| VS (g/L) | 77.53 ± 10 | 37.60 ± 10 | 33.80 ± 4.6 | 37.42 ± 1.6 | 37.42 ± 1.6 | 30.04 ± 4.8 |
| Alkalinity (g CaCO3/L) | 9.43 ± 0.4 | 8.13 ± 1.3 | 8.60 ± 0.9 | 6.08 ± 1.2 | 6.08 ± 1.2 | 5.90 ± 1.4 |
| VFA/Alkalinity | 2.14 ± 0.7 | 3.42 ± 0.5 | 2.91 ± 0.3 | 3.57 ± 0.5 | 3.57 ± 0.5 | 3.18 ± 0.4 |
| VFA (g/L) | 23.65 ± 2.1 | 27.26 ± 1.83 | 24.90 ± 1.9 | 21.93 ± 5.6 | 21.93 ± 5.6 | 18.35 ± 3 |
| Ratio C/N | 46.23 ± 19 | 56.08 ± 5.6 | 56.46 ± 12 | 66.37 ± 26 | 66.37 ± 26 | 55.5 ± 8.5 |
