Article

The NYMPHA Algae Extract as a New Consolidant for the Restoration of Cultural Heritage: Studies and Considerations on Its Effectiveness on Painted Marble

by
Melania Di Fazio
1,*,
Chiara Fratello
2,3,
Giulia Paglialunga
4,
Silvano Mignardi
1,
Lisa Vergelli
1,
Francesca Frasca
5,
Carolina Rigon
6,
Marcella Ioele
6,
Eleonora Gioventù
6,
Amina Antonacci
7,
Gabriele Favero
8 and
Laura Medeghini
1
1
Department of Earth Sciences, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
2
Institute for the Study of Nanostructured Materials (ISMN), National Research Council (CNR), SP35d 9, Montelibretti, 00010 Rome, Italy
3
Department of Chemical Engineering Materials Environment, Sapienza University of Rome, Via Eudossiana, 18, 00184 Rome, Italy
4
Science and Technology for the Conservation of Cultural Heritage, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
5
Department of Physics, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
6
Central Institute for Restoration, Via di San Michele 25, 00153 Rome, Italy
7
Institute of Crystallography, Department of Chemical Sciences and Materials Technologies, National Research Council of Italy, Strada Provinciale 35d 9, Montelibretti, 00010 Rome, Italy
8
Department of Environmental Biology, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
*
Author to whom correspondence should be addressed.
Sustainability 2024, 16(16), 6868; https://doi.org/10.3390/su16166868
Submission received: 14 May 2024 / Revised: 1 August 2024 / Accepted: 6 August 2024 / Published: 10 August 2024
Browse Figures
Versions Notes

Abstract

:
This work aimed to assess the potential efficacy of a novel polysaccharides-based extract as a green consolidant for the pictorial layer on marble substrates. Understanding its properties could lead to determining whether it can ensure the correct conservation and transmission of the cultural heritage. Four different types of marble specimens were prepared with paint based on malachite (egg, tempera grassa, rabbit glue, and linseed oil as binders). Colorimetric analyses, peeling tests, SEM-EDS, and FTIR spectroscopy were used to test the properties of the consolidant. Results reveal that no aesthetic changes occur when using the extract on painted surfaces and that the cohesive properties of most pictorial films increase after its application, confirming the consolidating effect. In conclusion, the use of an innovative green product for the restoration of marble-painted surfaces can be considered a possible good solution for consolidating treatment. Through this initial explorative research, we suggest an innovative approach to the protection of cultural heritage that doesn’t cause harm to both the restorer’s health and the environment.

1. Introduction

Cultural heritage has always been regarded as an essential means of transmitting to future generations the rich cultural legacy of ancient populations and cultures.
However, considering that artefacts are subject to the inevitable course of time that can cause their degradation [1,2,3], conservation and restoration practices are necessary in order to fulfill this purpose.
As far as pictorial films are concerned, damage triggers can have both anthropogenic and natural origins. Among the latter, the most common are seasonal climatic changes and weathering, catastrophes, or biological agents, while other factors such as pollution, wars, and errors in handling or restoring the artifact arise from human influence [4,5,6]. The selection of the optimal product for the preservation and protection of the pictorial film depends upon the substrate under examination and the extent of the damage found. After careful consideration, conservation scientists and restorers can select the most suitable option from a range of organic and inorganic substances [7,8,9,10]. Those are usually divided into three main categories, namely protectants, adhesives, and consolidants [11,12,13,14,15,16].
Specifically, consolidants are defined as substances whose aim is to re-establish the physical and mechanical conditions of an artefact, thereby restoring a sufficient degree of cohesion between the pictorial film and the substrate to which it was applied [17,18,19].
To consolidate the pictorial layer, organic consolidants such as animal glue, animal waxes, and vegetable gums have historically been widely used [20,21,22,23], while in more recent times, thermoplastic, vinyl, or acrylic resins such as polyvinyl acetate, have also been employed [14,24,25].
In addition to some commercially available consolidants, there are ongoing studies to continuously test new alternatives that are more effective and safer for both the environment and the operators [26,27,28,29]. Most researches are, however, often focused on the area of consolidation of panel paintings or frescoes [24,30,31], while products to consolidate the paint layer on stone substrates such as marble are, generally, less investigated. Although very rare examples have come down to the present day on which the color is visible, historically speaking, many marble works, both statuary and buildings, were actually painted [32,33]. Unfortunately, in most cases, the original pictorial film has not survived, making it challenging to determine the materials used. Some techniques, such as XRF [34], allow the analysis of trace elements, which are useful in identifying and characterizing the inorganic part, which comprises most of the pigments. The organic material originally present as certain pigments and the binders, however, deteriorate almost completely over time, and even in the very rare cases when the scarce remains are present on the artwork, they can’t be detected. Recently, there has been an increase in the use of sophisticated alternatives such as gas chromatography coupled with mass spectrometry and pyrolysis [35], which have made it possible to identify, for example, proteinaceous substances, such as egg and glue, and lipidic substances, such as vegetable oils [36], whose use as binders is also confirmed by historical literary sources [37]. However, due to difficulties mainly related to the interference of other species and conservation conditions [36], their unambiguous identification still represents a challenge, in particular as it concerns the composition of the pictorial films on the statues, which to a greater extent present the problem of the scarcity of available and collectable samples.
Heritage objects of this kind can be considered complex systems because of the different nature and, therefore, the different characteristics of the two parts involved that must be taken into account. The marble substrate is inorganic, crystalline, and not breathable, whereas the surface paint layer may contain organic fractions represented by binders or any dyes, in addition to inorganic pigments [14,38,39].
A suitable consolidating agent for this type of artifact should eliminate the discontinuity between substrate and pictorial film. In addition to ensuring good adhesion, it should not cause any aesthetic changes to the item to preserve its original appearance [40,41,42,43]. Furthermore, the long-lasting effects of a consolidant and, above all, its stability over time are essential to ensure that the restoration does not cause more long-term problems than immediate benefits.
Previous treatments of marble surfaces have been demonstrated to result in the formation of certain degradation products subsequently identified, such in the case of silica compounds, which are by-products arising from the decomposition of fluorosilicate used as consolidant [44], or orange-brown patinas originated from an artificial coating improperly applied for aesthetic reasons [45].
In this early stage study, the authors wanted to specifically test the effects of applying on marble with pictorial films a natural algae extract called NYMPHA, which was created to facilitate the restoration of polymateric works and, therefore, might be potentially effective on different types of substrates [46]. NYMPHA is a new product based on polysaccharides extracted from the Chlamydomonas reinhardtii, a unicellular algae with a very fast rate of reproduction and ease of cultivation [47,48,49]. Following extraction with hot water, precipitation in ethanol, and a freeze-drying step (carried out by the spectroscopy and microalgae-based biosensors laboratory of the Institute of Crystallography—CNR), this extract was turned into a dusty, easily usable solid.
The use of polysaccharide extracts from natural sources in the field of cultural heritage is not a complete novelty, as some South American populations already applied the mucilage obtained from Opuntia ficus-indica, consisting of complex carbohydrates and commonly called Nopal, since ancient times as a consolidating agent for mortar mixtures [50,51,52]; some products such as agar-agar, a polysaccharide extracted from several species of red seaweeds [53] and funori, a polysaccharide derived from the red algae genus Gloiopeltis [54], are beginning to catch on as protective or adhesive agents [28,55]. The latter is used for the conservation of several artefacts, generally employed as a mild consolidant for paper, painting layers, and gold or silver leaves, where a weak binding is required [54]. Their versatility in terms of both properties and substrates they are compatible with, combined with their green, natural, and environmentally safe characteristics, as well as their non-toxicity, make polysaccharide extracts a class of substances worthy of testing and further investigation.

2. Materials and Methods

2.1. Sample Preparation

A series of marble bricks were cut from a white marble block from the Gioia basin (Colonnata, Province of Massa-Carrara, central Italy), in the Apuan Alps. It is a white meta-limestone widely used as an ornamental stone since the Etruscan time [56,57,58,59,60].
Four different types of tempera were manually prepared according to Cennini [37] and Hebborn [61] to test the behavior of the extract on different binders: egg yolk, tempera grassa, rabbit glue, and linseed oil. Copper (II) carbonate, basic from Merk (product number 207896), was used as a pigment for all binders, and the final mixture was applied to the marble samples using a synthetic brush.
Within the four sets of samples, each prepared with one of the chosen binders, two subgroups were formed: half of the specimens were painted with a mix consisting of pigment and binder in a 1:1 ratio, as in common practice, whereas the remaining half of the specimens were painted using a tempera mixed with a 2:1 ratio, in which the amount of binder was therefore halved compared to conventional practice; the aim was simulating the loss of binder over time.
Once prepared and set, all the specimens underwent cycles of temperature (T) and relative humidity (RH) for the artificial aging. The samples were exposed in the climatic chamber ACS Challenge CH250 (distributed by Angelantoni Industrie S.p.A, Massa Martana, Italy) for 38 days, following this regimen:
  • 12 h at T = 10 °C and RH = 95%
  • 12 h at T = 50 °C and RH = 40%
Subsequently, the samples were treated with UVA radiation (λ = 340 nm) in the QUV/se UV test Chamber (distributed by Q-LAB for 7 days) at T = 50 °C and RH = 20%.
Once completed, one sample of each kind of tempera was kept for comparison analysis while NYMPHA was applied to the remaining samples, forming three more sets containing the extract dissolved at 0.5%, 1%, and 2% (w/w) in water.
Application of the NYMPHA solution was done by synthetic brush by laying an equal number of brush strokes on all samples until the entire surface was wet.

2.2. Methods

2.2.1. Fourier Transform Infrared Spectroscopy

FTIR spectroscopy was chosen to characterize the paint film, consisting of the pigment mixed with different binders, as well as to identify the presence of NYMPHA extract on the surface. An FTIR Nicolet iS50 instrument (Thermo Scientific, Waltham, Massachusetts, USA) coupled with the IR microscope Continuum and equipped with a liquid nitrogen-cooled MCT-A (mercury cadmium telluride) detector was used to acquire the spectra.
Spectra were acquired in µ-transmission mode in the 4000–650 cm−1 range, with a spectral resolution of 8 cm−1. Fourier transform was applied to the sum of 40 scans. Finally, the spectra were processed using the Omnic Spectra software ver. 9.12.993.

2.2.2. Peeling Test

The peeling test, also known as Scotch test, was performed to test the effective consolidating power provided by the NYMPHA solution, which is one of the most important parameter that had to be evaluated in this experimental phase [62,63].
The aim was to determine the capacity of the paint layer applied on the marble to resist interaction with external agents and, therefore, to maintain a good level of adhesion to the substrate. For each sample, whether consolidated by NYMPHA or not, the test was carried out by applying ten strips of double-sided adhesive tape, 3.5 cm long and 2 cm wide. During the test, light pressure was applied to the double-sided tape for approximately 10 s, after which the adhesive was removed by seizing the free end and pulling it off steadily (without jerking and at an angle of 90°) with the force applied in a direction perpendicular to the surface under examination. This procedure was repeated ten times on each sample, placing each new piece of tape on the same spot every time. To verify the degree of adhesion of the film to the substrate, it was necessary to determine the amount in weight of material removed: each adhesive strip was therefore weighed before and after the process.

2.2.3. Colorimetry

Colorimetric analysis was carried out to assess the presence of any chromatic change between the samples on which NYMPHA was applied and the unconsolidated ones, using the portable spectrophotometer CM-2600d (distributed by Konica Minolta, Tokyo, Japan). The measurements were performed in the color space CIE L*a*b* with the following features: illuminant D65, 10° observer, 100% UV included, 3 mm spot, in both SCE (Specular Component Excluded) and SCI (Specular Component Included) mode. The software Spectra Magic (NX version) was used for data processing. In this research, the color difference (ΔE*) between untreated and treated samples was used to assess the visual impact of NYMPHA.

2.2.4. Scanning Electron Microscopy

SEM-EDS investigation was conducted to observe the morphologies and structures of the analyzed surface in detail. A FEI-Quanta 400 instrument (FEI company, Hillsboro, Oregon), operating at 20 kV, equipped with X-ray energy-dispersive spectroscopy (EDAX Genesis Microanalysis system by FEI company) was used.

3. Results and Discussion

3.1. Fourier Transform Infrared Spectroscopy

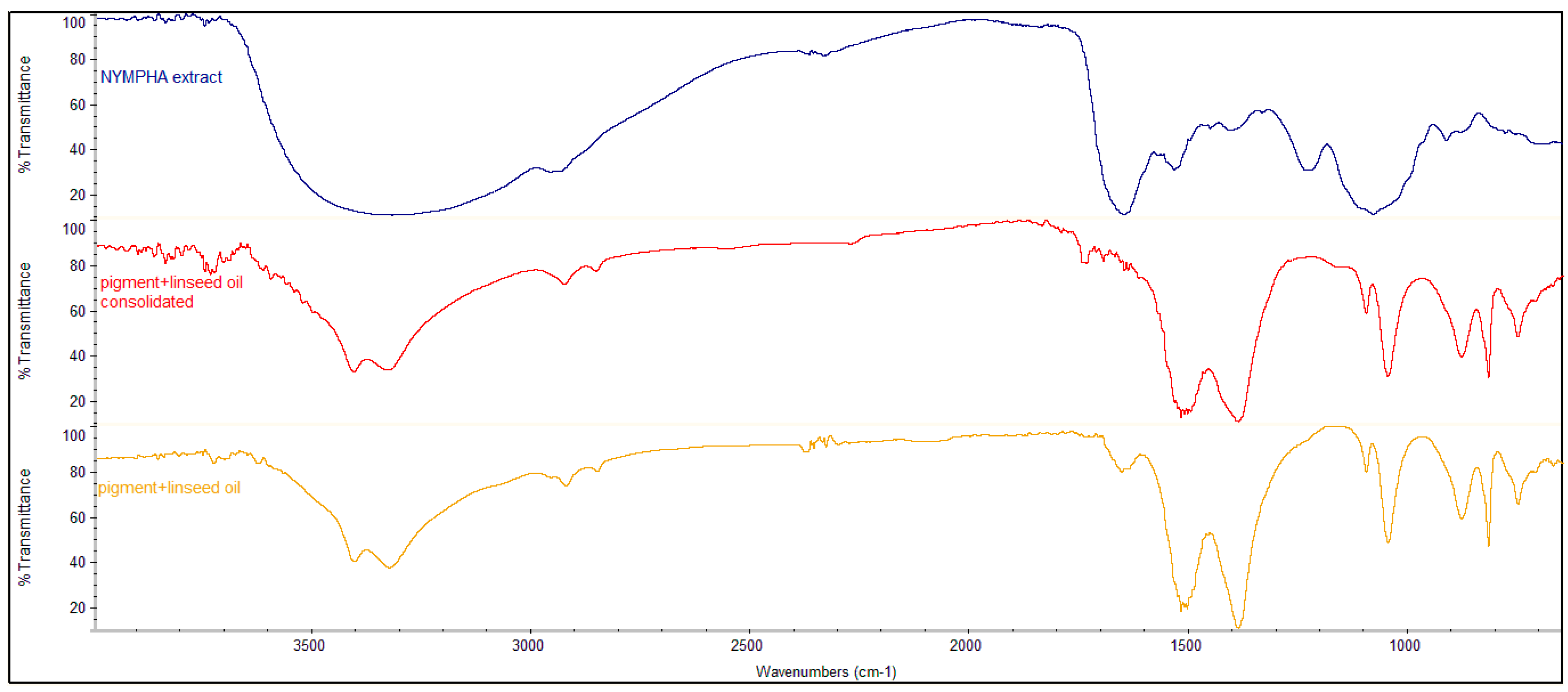

µ-FTIR analysis confirmed the nature of the pigment used for the pictorial layer, which is a basic copper carbonate corresponding to the pigment malachite [64]. The bands at 873 cm−1 and around 1434 cm−1 could be attributed to the out-of-plane bending vibration of the carbonate groups [65], while the one at 710 cm−1 to the in-plane bending vibration. The antisymmetric stretching bands of CO32− are visible at 1506 cm−1 and 1395 cm−1 [66]. The peak at 815 cm−1 could be caused by the C-O deformation vibrations, and the O-H stretching vibrations in the crystalline water are visible at 3310 cm−1 and 3400 cm−1 [64] (Figure S1). The four raw binders underwent µ-FTIR analysis to serve as a benchmark for both unconsolidated and consolidated specimens (Figure S2).
Next, the µ-FTIR spectra of the samples were compared with those of samples with the same binder consolidated with NYMPHA.
No differences emerged between the two samples, from which it can be claimed that under the experimental conditions in which the NYMPHA product was used, in terms of the amount and type of substrate, the NYMPHA product is not detectable with the FTIR technique (Figure 1).
No differences could be observed between spectra, except a slight variation in the intensity of peaks. The same difference was notable when comparing the samples with different pigment binder ratios (Figure S3). In both cases, the differences were attributed to the heterogeneity of the sample, given their manual preparation.

3.2. Peeling Test

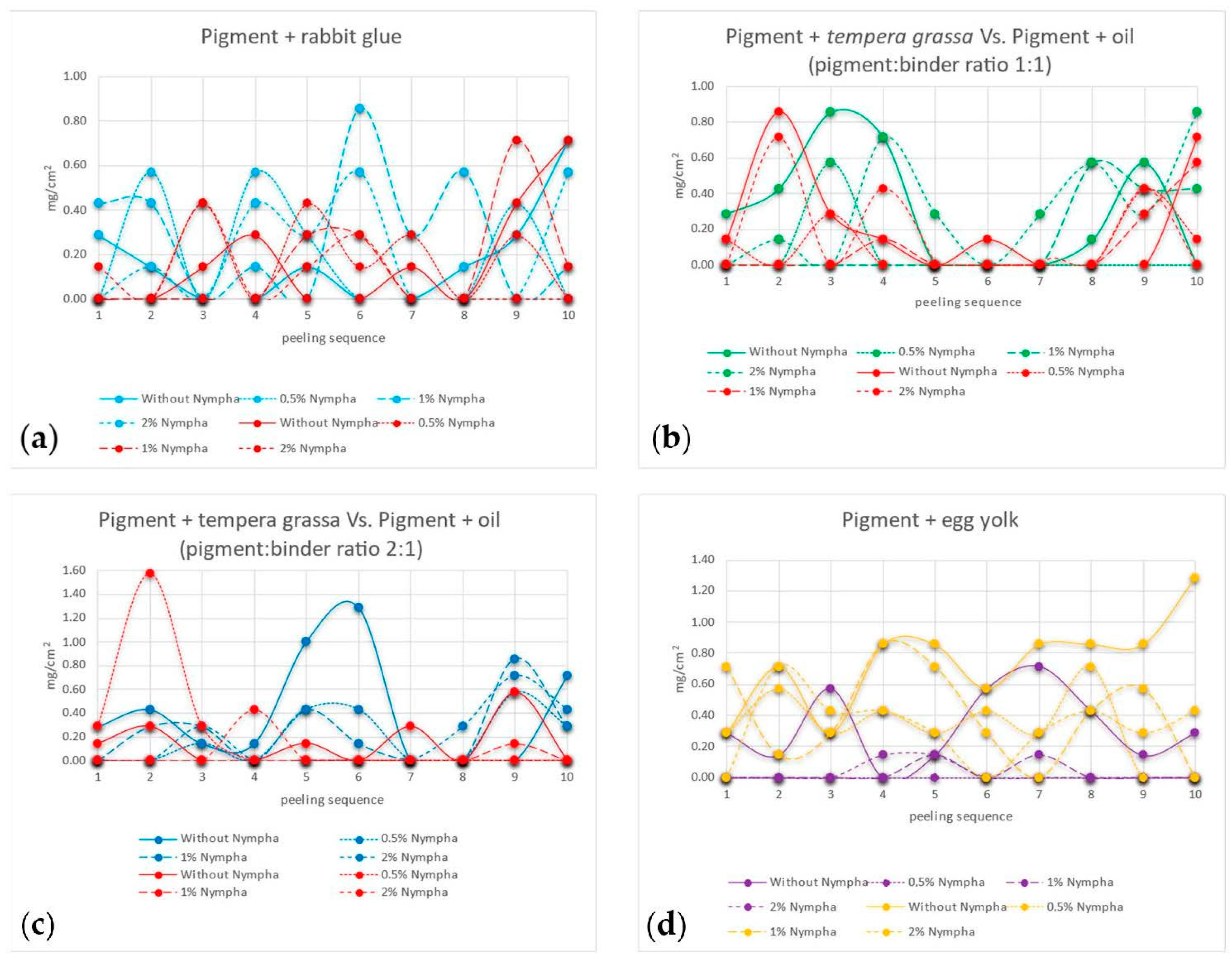

The peeling test showed overall interesting results.
In all sets of samples, the amount of material removed by tearing from NYMPHA-treated samples was lower on average than that removed from untreated samples. The only exception was observed in samples in which the binder used was rabbit glue (Figure 2a).
Both on samples containing tempera grassa and oil as a binder in a 1:1 ratio with pigment, good efficacy of the product was recorded, specifically when the concentration of the applied solution was 0.5% and 1% (Figure 2b).
Sets with the same two binders, applied in a 1:2 ratio with the pigment, maintain fairly good efficacy, which is higher in cases of 0.5% NYMPHA application (Figure 2c).
Lastly, from all samples in which the binder was egg yolk, the amount of material removed was very low, particularly close to zero for samples with a 1:1 ratio pigment:binder to which NYMPHA was applied at 0.5% (Figure 2d).
Overall, despite the invalid efficacy recorded on samples containing rabbit glue as binder, the results could be considered satisfactory as a low amount of material removed with the tape is indicative of good adhesion. In most cases, this amount was much less than the material removed from the untreated specimens, indicating a good consolidation ability of the NYMPHA product when applied on egg, oil, and tempera grassa binders, especially in 0.5% concentration.

3.3. Colorimetry

In the interpretation of the data presented here, it should be kept in mind that this is a punctual analysis, and the surface small under investigation is, in most cases, potentially unrepresentative of the entire statuary cultural heritage.
The results are shown in Table 1, in which one can note that most of the values lie below 3, which can be considered to be the threshold value below which, in most cases, human eyes do not detect a color change [67,68].
The ΔE* value obtained from the sample “tempera grassa (1:1)” treated with the NYMPHA solution at 1% and 2% is higher than 7.
This type of test could also be influenced by the thickness of the pictorial layer, which is not uniform due to the application method.
In addition, it’s worth mentioning that on the NYMPHA-treated samples, for technical and control reasons, a small, marked area on which the product was not applied was always left on the margin. This area has no clear demarcation given by the color variation compared to the area on which the product was applied.
Keeping in mind all the variables related to sample preparation, it may not be excluded that unexpected values of ΔE* could be due to the points on which the analyses were carried out and, rather than to a real optical difference, probably because of different punctual composition in terms of the amount of binder, pigment, and thickness of the pictorial layer.
Therefore, it might be concluded that the application of NYMPHA could result in no significant color alterations in the short term.

3.4. Scanning Electron Microscopy

SEM analyses were performed to detect any changes in the morphology of the pictorial layer following the application of NYMPHA. To investigate the appearance that the extract would have on the marble substrate, images of a specimen to which NYMPHA was directly applied without the pigment layer were acquired (Figure 3). As shown in Figure 3, the application of the extract resulted in an irregular and fractured surface. The collected EDS spectrum showed high contents of magnesium and calcium, depending on calcite and dolomite as the main components of marble, and phosphorus. The presence of the latter was expected such as algae like C. reinhardtii can absorb it from the outside environment while growing [69].

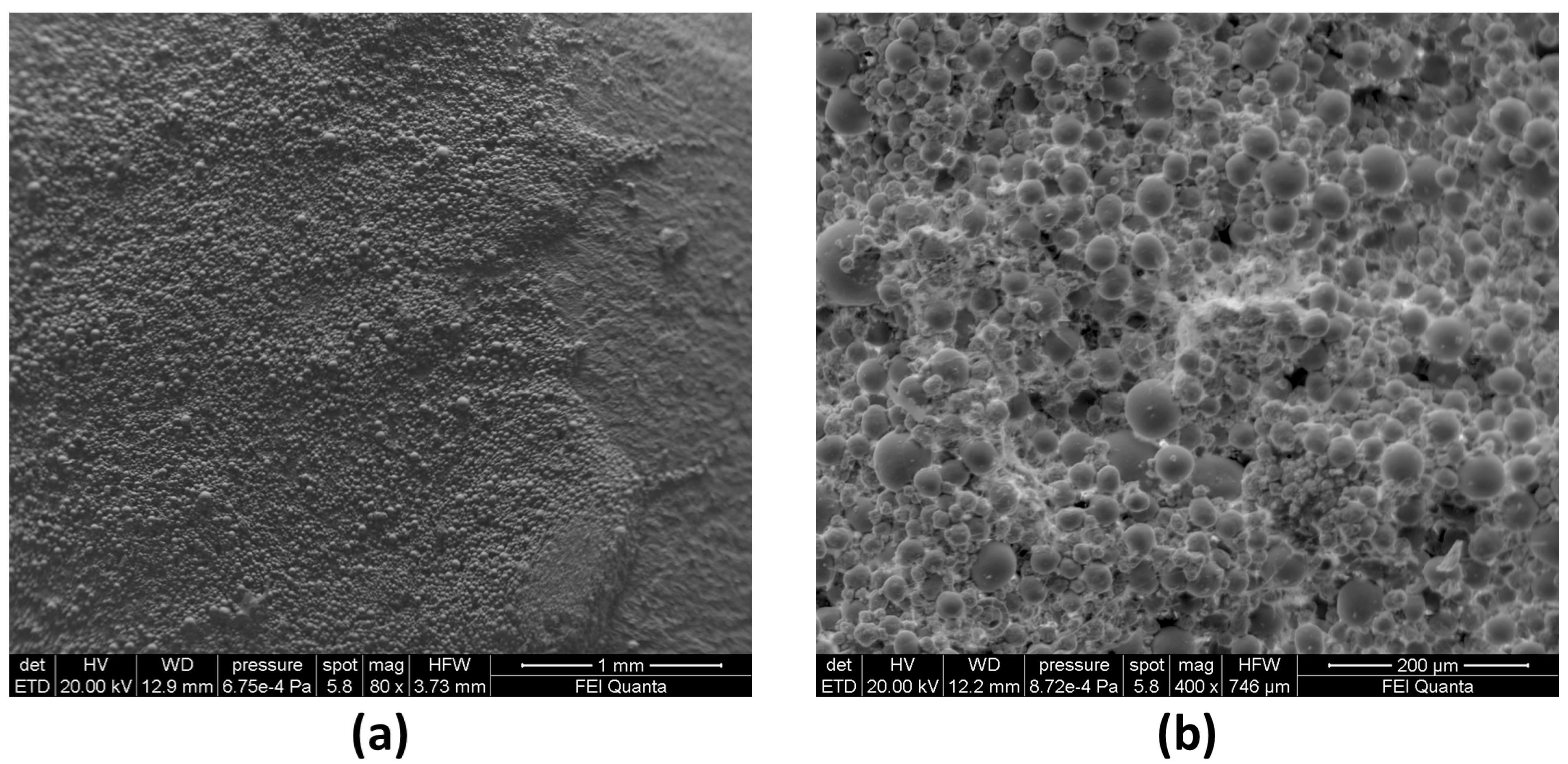

On the SEM images collected on the tempera grassa samples, the pigment and binder structures that make up the paint film were visible (Figure 4); moreover, this layer was clearly distinguishable from the part of the pure marble sample, on which no brush strokes were applied (Figure 4a).

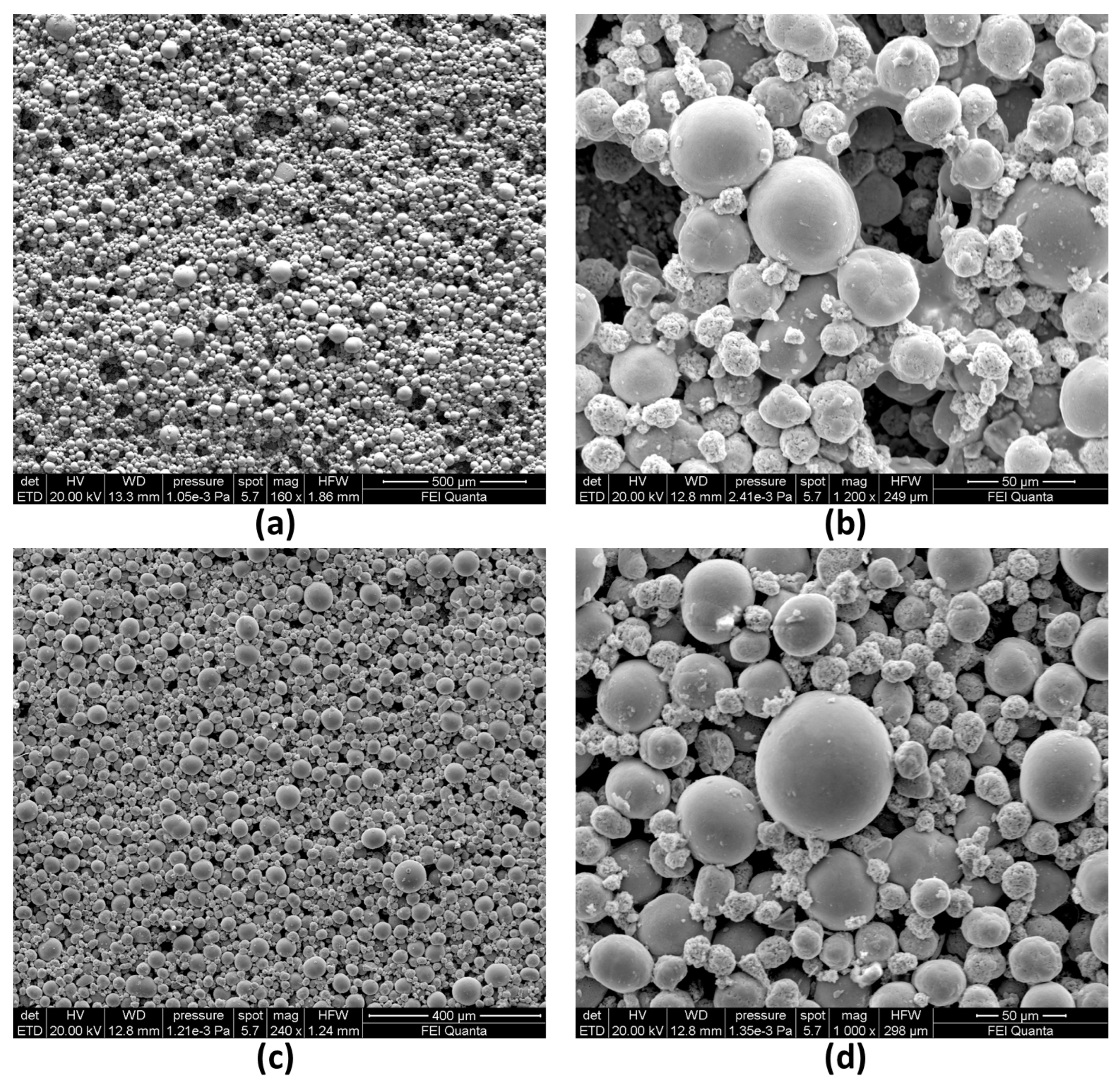

In the samples containing rabbit glue as binder (Figure 5), the latter appeared as a series of irregular, spongy-looking particles, at times distinguishable from the spherical malachite particles. It was also possible, at large magnifications, to notice the action of the glue, which incorporates the pigment (Figure 5b).
A comparison of the samples containing different ratios of binder and pigment revealed, as shown in Figure 5, that in the case of the pictorial film with higher binder concentration, the structure appears more porous. This phenomenon could be attributed to the fact that air bubbles are formed during the glue preparation or after it is applied to the substrate, which, upon bursting, then cause the presence of voids between the film particles themselves.
The lower amount of glue in the samples with the halved binder ratio may explain the less porous appearance (Figure 5c,d). Also, in those, the liquid glue layer is much less than the solid pigment’s particles.

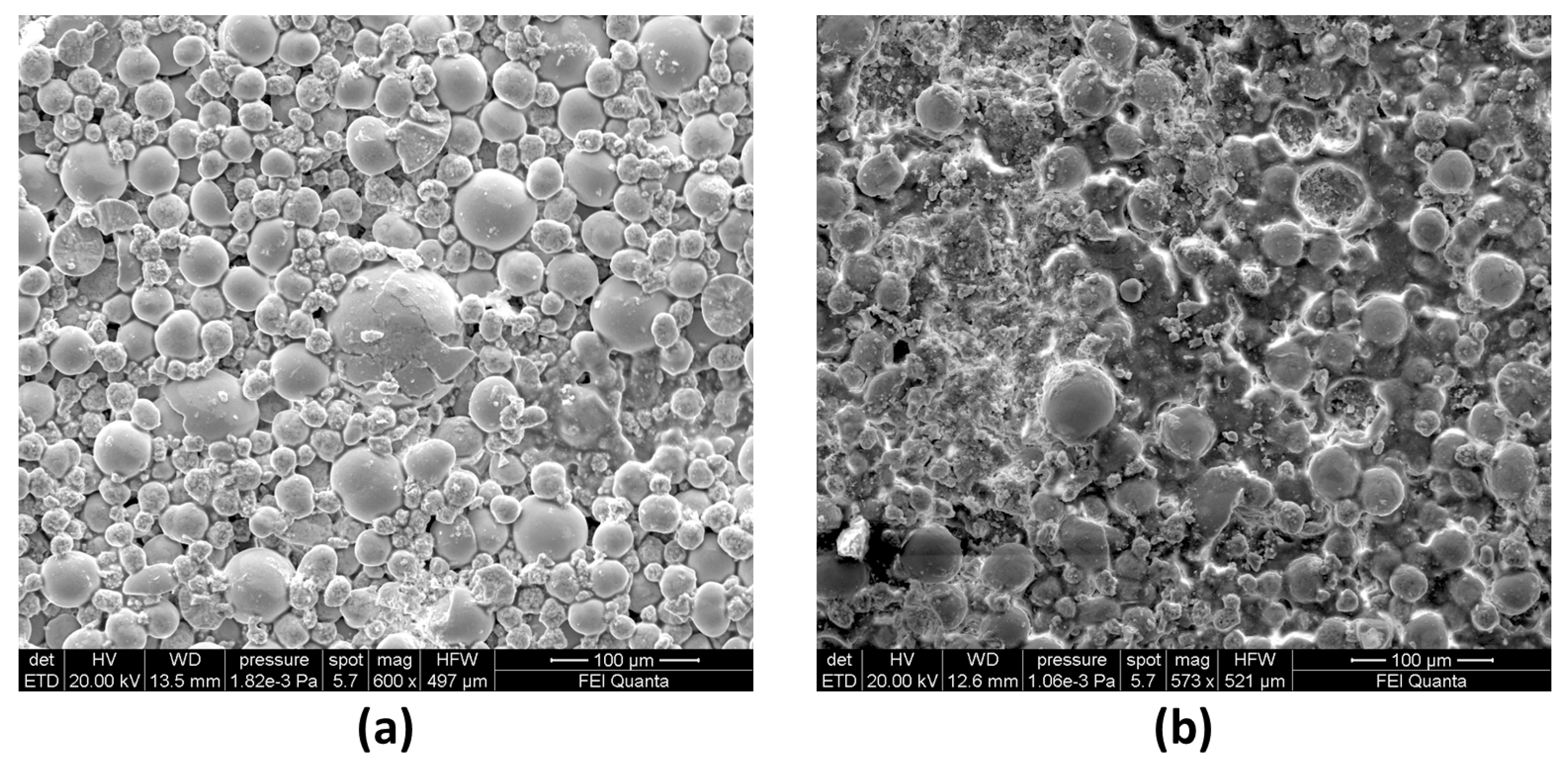

Likewise, for the samples in which linseed oil and egg yolk were used, SEM analysis exhibit the pigment particles distinguishable by morphology from those of the respective binders (Figure 6a,b). Indeed, also in these samples, the spherical malachite particles were clearly visible, and the binders showed different characteristics: linseed oil (Figure 6a) appears in the form of lumpy and small particles, separated from the pigment, whereas the egg yolk forms a more compact film that surrounds the malachite spheres.
However, comparing the SEM image of the dried NYMPHA solution (Figure 3) with the SEM images of the painted treated surfaces, in none of the specimens there were visible structures that could be traced back to the presence of NYMPHA. No differences can be noted between surfaces treated with NYMPHA and the untreated ones (Figure S4).
The main hypothesis that might explain this kind of behavior is related to the possibility that the solution, once spread on the films, does not remain on the surface of the painting film but penetrates deeper into the layers, probably reaching the interface with the marble.

4. Conclusions

The results presented and discussed here lead to several key conclusions:
  • The interpretation of FTIR spectra might suggest that the application of the NYMPHA product, independently from the concentration of the applied solution, does not alter the composition of the pictorial layers. The absence of characteristic peaks identifying the polysaccharides of NYMPHA in all collected spectra may be attributed to the low concentrations at which the solution was diluted; the absorption bands of NYMPHA may have been overshadowed by the pigment and binder bands.
  • The results from the peeling test indicate a good consolidation treatment for most painted layers, except for those with rabbit glue as binder. Particularly, the observed increase in cohesive properties appears to be most pronounced for the 0.5% NYMPHA solution, suggesting that the extract might be more effective at lower concentrations.
  • According to the colorimetric results, the application of the NYMPHA solution on the pictorial film would not induce any distinguishable changes in color, preserving the aesthetics of the specimens.
  • SEM imaging does not detect the presence of the NYMPHA solution, at least on the surface. These results suggest the idea that the product may have penetrated under the external layer of the samples at the pictorial-marble interface.
From the above-mentioned considerations, the NYMPHA extract could be considered a potential efficient green product for the consolidation of paint films on marble substrates. Indeed, the results here may be regarded as an encouraging preliminary indication of the potential for a satisfactory product to be deployed in the context of cultural heritage. However, the inability to detect the solution on the surface through FTIR and SEM analyses, alongside the proposed hypothesis of its penetration, currently hinders a comprehensive understanding of the consolidation mechanisms of NYMPHA.
Further studies involving different analytical techniques are planned to investigate how the product interacts with the paint layer and the stone substrate and to elucidate these mechanisms. In addition, analyses will be carried out to investigate the performance of NYMPHA after aging, to confirm that the extract does not cause long-term chemical and visual changes to the substrate to which it is applied and to confidently assess the viability of NYMPHA as a green restoration product for cultural heritage artefacts.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su16166868/s1, Figure S1: µ-FTIR spectrum of Copper (II) carbonate; Figure S2: µ-FTIR spectra of the four raw binders; Figure S3: Comparison between µ-FTIR spectra of the pictorial film realized with different pigment-binder ratio); Figure S4: Comparison of SEM images of untreated sample.

Author Contributions

Conceptualization, L.M. and S.M.; methodology, L.M. and S.M.; validation, L.M., S.M., C.F. and M.D.F.; formal analysis, C.F. and M.D.F.; investigation, C.F., G.P., C.R., L.V., F.F. and M.D.F.; resources, L.M., S.M. and G.F.; data curation, C.F. and M.D.F.; writing—original draft preparation, C.F., M.D.F., L.M. and S.M.; writing—review and editing, S.M., L.M., A.A., F.F., L.V., E.G. and C.R.; visualization, C.F. and M.D.F.; supervision, L.M., S.M., M.I. and G.F.; project administration, L.M., S.M., M.I. and G.F.; funding acquisition, L.M., A.A. and G.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by POR FESR Progetti Gruppi di Ricerca Lazio Innova NYMPHA, project A0375-2020-36489.

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Acknowledgments

The authors are grateful to the researchers of the spectroscopy and microalgae-based biosensors laboratory of the Institute of Crystallography—CNR for the production of NYMPHA extract and the collaboration in the project. The authors acknowledge Prof. Anna Maria Siani for the availability of the instrument for colorimetry analysis.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
