Experimental Study on the Physical Properties of Autoclaved Bricks Made from Desert Sand and Their Resistance to Sulfate Attacks

1
College of Water Conservancy & Architectural Engineering, Shihezi University, Shihezi 832000, China
2
Department of Architectural Engineering, Shihezi Engineering Technical College, Shihezi 832000, China
3
Xinjiang Hongyuan Construction Group Co., Ltd., Cocodala 835219, China
*
Authors to whom correspondence should be addressed.
Sustainability 2024, 16(16), 6855; https://doi.org/10.3390/su16166855
Submission received: 3 July 2024 / Revised: 27 July 2024 / Accepted: 30 July 2024 / Published: 9 August 2024

Abstract

:
In order to optimize the application of desert sand autoclaved bricks in rural construction in Xinjiang, this study focuses on the research and development of MU15-grade desert sand autoclaved bricks. Experimental investigations were conducted to examine the relationship between the water absorption rate of desert sand autoclaved bricks and the duration of water absorption while analyzing the impact of the water absorption rate on the compressive strength of these bricks. Additionally, experimental research was carried out to evaluate the appearance, compressive strength, and pore structure of autoclaved bricks after sulfate erosion. The results indicate the following. (1) With an increasing immersion time, the water absorption rate of desert sand-based autoclaved bricks initially rises and then declines, reaching approximately 14.74% when immersed for 4 h, which is close to the saturation water absorption rate. (2) The compressive strength of desert sand-based autoclaved bricks gradually decreases with an increasing water absorption rate, reaching its lowest point when saturation is attained, with a strength loss rate of approximately 33.18%. (3) Finally, after sulfate erosion, cracks and detachment appear on the surface of desert sand-based autoclaved bricks, and these cracks extend and propagate with the continuous accumulation of eroded products. Simultaneously, this process leads to an increase in the proportion of harmful pores by 0.96%, thereby causing a deterioration in strength. Through data analysis, a decay curve of the compressive strength erosion coefficient of desert sand-based autoclaved bricks with the number of sulfate erosion cycles was established, with good accuracy. This study provides theoretical references and technical support for the performance characteristics of desert sand-based autoclaved bricks and their application in rural construction in Xinjiang.

1. Introduction

In recent years, the scale of infrastructure construction in China has expanded continuously, leading to increased consumption of building materials. However, excessive exploitation of river sand and mineral resources has severely damaged the ecological environment, necessitating the urgent need to find alternative sources of sand to alleviate the supply-demand imbalance [1]. Xinjiang, located in northwest China, has a desert area exceeding 400,000 square kilometers. Following the principle of adapting to local conditions, accelerating the industrial application of desert sand can not only effectively alleviate the sand supply-demand conflict but also has significant environmental benefits. As a key node of the “Belt and Road Initiative” [2], the construction in rural and town areas of Xinjiang predominantly consists of masonry structures. Therefore, rational use of desert sand in the preparation of building materials to serve local engineering projects in Xinjiang is an initiative with notable economic benefits and social value. Moreover, the efficient utilization of desert sand in concrete and mortar indicates that focusing on autoclaved desert sand bricks is an essential area of research [3,4,5].
Autoclaved bricks, a multifunctional and environmentally friendly wall building material, are typically produced by using various industrial waste materials as raw ingredients. Over the years, scholars both domestic and abroad have extensively researched different types of autoclaved bricks. Among them, Chindaprasirt et al. [6] obtained autoclaved fly ash bricks using fly ash and lime and investigated the strength formation mechanism of these bricks. Tayfu et al. [7] utilized lime as a binding material and primarily employed fly ash as a raw material, successfully manufacturing lightweight autoclaved fly ash bricks. Yonghao et al. [8] produced autoclaved ash-sand bricks using copper tailings and river sand, meeting the requirements of Grade MU15 national standards. The strength of these bricks mainly derives from the formation of tobermorite during the autoclaving process. Zhou et al. [9] manufactured autoclaved bricks using electrolytic manganese slag and cement, ensuring compliance with specified heavy metal content regulations and rendering them suitable for the construction industry.
The applicability of autoclaved bricks made from desert sand in the masonry structures of rural villages in Xinjiang is closely related to their durability. Northwestern China, which is rich in desert resources, contains thousands of inland salt lakes and vast saline-alkali lands [10], with high concentrations of sulfates present in the soil and groundwater (Figure 1). Physical and chemical processes result in cracks, spalling, and subsequent degradation of the substrate strength [11,12,13]. For instance, certain hydraulic structures in Xinjiang are exposed to environments with high concentrations of sulfate ions, resulting in corrosive damage shortly after concrete casting [14,15]. The mechanisms of sulfate erosion and matrix degradation vary depending on the ecological environment. Santhanam et al.’s research [16] indicates that the rate of sulfate erosion is influenced by factors such as the types of hydration products, the salt content within the pores, temperature fluctuations, the immersion depth of the specimens, and the wet-dry cycles. While scholars continue to study and explore the erosion process, they also adopt corresponding measures to enhance the matrix’s resistance to sulfate erosion [17,18].
Autoclaved bricks made from desert sand, the subject of this study, are processed from lime, coarse aggregate, desert sand, and water through procedures including mixing, stirring, digestion, shaping, and autoclaving [19]. Previous studies have established that the primary hydration products of autoclaved desert sand bricks are platy tobermorite, needle-like gismondine, and flocculent calcium silicate hydrate (C-S-H) gel. These hydration products, along with unreacted desert sand and coarse aggregates, form a dense network structure, enhancing the strength of the autoclaved bricks. To better apply autoclaved desert sand bricks under the unique climatic conditions of the Xinjiang region, this study focuses on key performance indicators such as water absorption, the compressive erosion resistance coefficient, and the pore structure. By thoroughly investigating these indicators, this research aims to provide technical support for the engineering applications of these bricks in the sulfate-rich areas of Xinjiang.

2. Experimentation

2.1. Material Properties

The desert sand used in this experiment was sourced from the Gurbantünggüt Desert located in Shashanzi Town under the 83rd Regiment of the Xinjiang Production and Construction Corps. It had an average particle size ranging from 100 to 300 μm (Figure 2). The chemical composition of this desert sand is presented in Table 1.
The lime used in this experiment was obtained from a lime factory in the 83rd Regiment of the Xinjiang Production and Construction Corps. All properties of the lime met the requirements of the “Hydrated lime for silicate building products” standard JC/T621-2021 [20]. The composition of the lime is detailed in Table 2.
The coarse aggregate used in this experiment consisted of a mixture of sand and stone or leftover materials from the conveyor belts beneath mining sites. It had an average particle size ranging from 1 to 3 mm, with the primary chemical component being CaCO3.
Ordinary tap water was used.

2.2. Preparation of Desert Sand Autoclaved Bricks

The mix proportion of MU15-grade desert sand autoclaved bricks used in this experiment was as follows (wt%): desert sand accounted for 70.8%, aggregate accounted for 14.2%, and lime accounted for 15%, with a water-to-material ratio of 15% [21]. The preparation method for desert sand-based autoclaved bricks involves batching, mixing, pressing, curing, and autoclaving. Initially, the raw materials are precisely weighed according to the formulation, followed by a 2 min mixing process. Subsequently, the mixed materials are pressed into molds for shaping and allowed to cure for an initial 10 h period to achieve preliminary hardening. Finally, the cured bricks are subjected to high-temperature and high-pressure steam treatment in an autoclave to ensure final hardening and strength enhancement. Upon completion of the autoclaving process, desert sand-based autoclaved bricks are obtained as depicted in Figure 3, with the standard dimensions for MU15 bricks being 53 mm × 115 mm × 240 mm.

2.3. Experimental Methods

Following the specifications outlined in “Test Methods for Masonry Units” GB/T 2542-2012 [22], absorption rate and compressive strength tests were conducted on the developed MU15-grade desert sand-based autoclaved bricks. The relationship between the absorption rate and absorption time, as well as the compressive strength, was studied in accordance with Equation (1) for the compressive strength and Equation (2) for the absorption rate. Simultaneously, the dried autoclaved bricks were subjected to sulfate erosion testing using a sulfuric acid dry-wet test chamber (HDGS-54). The erosion medium consisted of a 5 wt% sodium sulfate solution. The soaking time was set to 15 h, followed by air drying for 1 h, drying at a temperature of (80 ± 5) °C for 6 h, and air cooling for 1 h, cooling at a temperature of (25 ± 5) °C for 1 h, with each cycle totaling 24 h. Dry-wet sulfate erosion cycles were conducted for 10, 20, 30, 40, 50, and 60 cycles. Upon completing the designated cycle period, in accordance with the standard “Autoclaved Fly Ash Sand Solid Bricks and Solid Blocks” GB/T 11945-2019 [23], visual changes were recorded, the compressive strengths of the specimens were measured, and the compressive erosion resistance coefficient was calculated as per Equation (3):
R p = P L × B
Here, Rp stands for the compressive strength of the sand-compacted bricks from desert sands, measured in MPa, while p stands for the maximum failure load. The dimensions (L and B) of the compressed surface were assessed in millimeters (mm):
W = m m 0 m 0 × 100 %
In this equation, m0 and m represent the dry mass and wet mass of the specimens, respectively, with units in kilograms (kg):
K = f i f 0
In this equation, K represents the relative coefficient of compressive erosion resistance, fi denotes the compressive strength (MPa) of the specimen after i days of erosion, and f0 signifies the initial compressive strength (MPa) of the specimen:
S E 2 = s 2 n
In this equation, SE2 represents the error variance, s2 denotes the sample variance, and n is the sample size.

2.4. Instrumentation for Testing

After vacuum drying the crushed samples of DSAB, the microstructure of the hydrated products within the samples was observed using a scanning electron microscope (SEM) (Regulus 8100, made by HITACHI, Tokyo, Japan). The SEM was operated at a scanning voltage of 20 kV for imaging the micromorphology of the samples after gold sputtering.
The mineral composition of the specimen surface was measured using a Rigaku Ultima IV fully automated multifunctional X-ray diffractometer from Japan. The diffraction angles ranged from 10° to 80°, with a scanning speed of 2° per minute.
The internal structure of the DSABs was observed and studied using a high-performance automated mercury intrusion porosimeter (AutoPore LV9510, Micromeritics, Communications Drive, Norcross, GA, USA). Samples were taken from within the bricks, with the dimensions not exceeding 1 cm × 1 cm × 1 cm and a mass ranging from 2 to 3 g. Mercury intrusion porosimetry (MIP) experiments were conducted to investigate the pore structure inside the samples.

3. Experimental Result Analysis

3.1. Experimental Analysis of Water Absorption Rate in Desert Sand-Based Autoclaved Bricks

3.1.1. Analysis of Water Absorption Rate Experiment

The test results for the water absorption rate of desert sand-based autoclaved bricks are presented in Table 3. The relationship curve between the water absorption rate and absorption time is depicted in Figure 4. It can be observed from Figure 4 that the water absorption rate of the desert sand-based autoclaved bricks initially increased rapidly with an increasing absorption time before stabilizing. The saturation water absorption rate was recorded to be 14.74%, indicating a relatively strong water absorption capacity. During the early stage of water absorption (from 0 s to 6 min), the average water absorption rate of the samples was 1.2674 kg/h, accounting for 32.56% of the total water absorption. In the intermediate stage (6–40 min), the average water absorption rate decreased to 0.1840 kg/h, representing 26.87% of the total absorption. In the late stage (240 min), the average water absorption rate further decreased to 0.0013 kg/h, contributing to 4.34% of the total absorption, indicating that the samples were nearly saturated. These results suggest that during the initial stage of water absorption, capillary action dominated, resulting in a rapid increase in water uptake primarily through large pores. Conversely, in the later stage, diffusion became predominant, leading to a gradual reduction in the absorption rate as water ingress occurred mainly through medium and small pores, leading to increased saturation and slowed absorption rates for the autoclaved bricks [24].

3.1.2. Analysis of the Impact of the Water Absorption Rate on the Compressive Strength

In this study, four sets of autoclaved bricks made from desert sand of the same age were established, denoted as groups A, B, C, and D. These groups were subjected to compression strength tests after water absorption periods of 0 min, 10 min, 60 min, and 240 min, respectively. Group A served as the control group and consisted of autoclaved bricks dried prior to testing. The results of the compression strength tests are presented in Table 4. It is evident from Table 4 that there exists a significant relationship between the compression strength of autoclaved bricks made from desert sand and their water absorption rate. Additionally, the autoclaved bricks exhibited the highest compression strength when completely dry, measuring 17.60 MPa.
The relationship between the water absorption rate and compressive strength of the autoclaved bricks made from desert sand is illustrated in Figure 4. From the graph, it can be observed that the compressive strength of these bricks decreased with an increasing water absorption rate. Notably, the rate of strength degradation was highest during the initial 10–60 min of water absorption, while it slowed down between 1 h and 4 h of absorption. At 10 min of water absorption, the compressive strength of the autoclaved bricks was approximately 90% of the dry state, while after 1 h of absorption, it ranged between 70% and 75% of the dry state. After 4 h of water absorption, when the bricks reached near saturation, the compressive strength measured 11.76 MPa, with a corresponding strength loss rate of 33.18%. Within the scope of this experimental study, there exists a quadratic relationship between the water absorption rate and compressive strength of the autoclaved bricks made from desert sand, with a correlation coefficient of 0.984 indicating a strong fit.

3.1.3. Microscopic Analysis of Water Absorption Rate

Figure 5 and Figure 6 present the SEM and XRD images of the desert sand autoclaved bricks, respectively. The strength of these bricks primarily arises from the dense network structure formed by the interweaving and aggregation of hydration products such as calcium silicate hydrate (C-S-H), tobermorite, and gismondine with desert sand and aggregates, along with the physical interlocking and close contact between aggregate particles [25]. However, during water absorption, prolonged immersion in water causes some smaller soluble substances to dissolve and migrate from the interior of the specimens to the surface. As the water evaporates from the bricks, only large flaky calcium silicate hydrate remains, hindering the development of strength. As depicted in Figure 6a, the crystalline and non-crystalline phases of the hydration products intertwine, filling the voids left after the dehydration of desert sand-based autoclaved bricks and ensuring the stability of the microstructure [26]. Figure 6b illustrates the internal structural changes in the desert sand-based autoclaved bricks. As the water absorption time increased, the calcium compounds reacted with the water, altering the chemical properties within the bricks and promoting the dissolution of other minerals and compounds, resulting in an increase in the total porosity and coarsening of the pore size while simultaneously allowing free water to enter the autoclaved bricks, weakening the bond between aggregates [27]. Consequently, the compressive strength of the desert sand-based autoclaved bricks gradually decreased with an increasing water absorption rate.

3.2. Investigation on Sulfate Erosion Resistance of Desert Sand-Based Autoclaved Bricks

3.2.1. Alterations in Appearance

The process and apparent damage patterns of sulfate erosion for the desert sand-based autoclaved bricks are illustrated in Figure 7. As depicted, the specimens exhibited a smooth and undamaged appearance prior to erosion. After 30 cycles of erosion, there was slight powdering and minor flaking at the edges and corners, as shown in Figure 7c. This phenomenon primarily arose due to the elevated concentration of sulfate ions at the edges and corners caused by three-dimensional diffusion, resulting in a relatively faster generation rate of erosion products. Additionally, subsequent drying caused moisture evaporation, which led to supersaturation of Na2SO4 solution at the edges and corners, manifesting as salt efflorescence on the specimen’s outer surface, as depicted in Figure 7d. Internally, crystalline expansion forces led to crack formation, facilitated by the cumulative effects of sulfate salt wet-dry cycles, resulting in continuous crack propagation and eventual detachment of solidified products and fillers from the specimen’s smooth surface. Upon 60 cycles of erosion, ettringite (AFt), gypsum, and other erosion products progressively accumulated within the confined space of the mortar, generating expansion stresses. When the internal stress differences reached a critical threshold, expansion cracks developed. Simultaneously, a loss of moisture from within the autoclaved brick led to coarsening of the pore diameters, increased porosity, and diminished bonding strength. The stability of the internal structures, particularly the interface transition zones, underwent a drastic decline, leading to macroscopic cracking and spalling, as illustrated in Figure 7e,f.

3.2.2. Impact of Sulfate Erosion on Compressive Strength

The compressive resistance coefficient of desert sand autoclaved bricks under sulfate erosion is shown in Figure 8. As indicated by Figure 8, within the range of 10–60 erosion cycles, the compressive resistance coefficient of the desert sand autoclaved bricks initially increased and then decreased, peaking at 30 cycles. This behavior can be attributed to the high porosity of the desert sand autoclaved bricks. In the early stages of sulfate erosion, sulfate ions readily penetrated, leading to structural changes within the bricks, a decrease in density, and a slight reduction in compressive strength. As the erosion test progressed, expansive erosion products such as AFt and gypsum partially filled the pores and cracks, improving the density. This was reflected macroscopically as a slight increase in compressive strength after 30 erosion cycles. These findings contrast with those of Nie Dan [28], whose study indicated a regular decline in the compressive strength of clay bricks with an increasing sulfate erosion time. Notably, the compressive strength of the desert sand autoclaved bricks was slightly higher than that of clay bricks after 30 cycles of erosion.
The error variances for autoclaved bricks subjected to 0–60 cycles of erosion were 0.00086, 0.00067, 0.0018, 0.0030, 0.0031, 0.00056, and 0.00068, respectively. The small error variances suggest a high level of precision and consistency in the data.
When AFt and gypsum absorb water and expand to fill the pores, the resulting expansive stress can cause structural damage. Additionally, during the wet-dry cycles, the evaporation of the sulfate solution created a supersaturated solution, leading to the precipitation of sodium sulfate crystals. This process induced the conversion between sodium sulfate decahydrate and anhydrous sodium sulfate. When the crystallization pressure exceeded the pore wall strength, large internal cracks formed within the bricks, gradually developing into through-cracks. This phenomenon manifested macroscopically as a reduction in the compressive strength of the autoclaved bricks.
The reaction processes of autoclaved bricks made with desert sand subjected to sulfate erosion are shown in Equations (5) and (6). Additionally, gypsum further reacts with C3A to form ettringite (AFt), as illustrated in Equation (7):
Ca ( OH ) 2 + SO 4 2 CaSO 4 + 2 OH
Na 2 SO 4 + CH + 2 H 2 O C S ¯ H 2 + 2 NaOH
C 3 A + 3 CaSO 4 · 2 H 2 O + 26 H 2 O AFt
The relationship between the compressive durability coefficient K of the desert sand-based autoclaved bricks and the number of cycles n of sulfate wet-dry cycles is shown in Equation (8), with the corresponding curve depicted in Figure 9. The coefficient of determination for the fitted curve was 0.96, indicating a high level of accuracy in the fitting results:
K = 0.0370 n + 1 0 n < 10 5.5 × 10 4 n 2 0.0075 n + 0.65 10 n < 30 ,   R 2 = 0.96 2.0793 e ( n 22.0482 ) + 0.3914 30 n

3.2.3. Microstructure of Sulfate Erosion

Calcium hydroxide (CH) was primarily concentrated at the interface junction, weakening the bond between the solidified product and the filler and making it susceptible to erosion in sulfate-rich environments, leading to crack formation. As depicted in Figure 10a, with the progression of the erosion test, a significant portion of the preexisting calcium hydroxide (CH) crystals were the first to be eroded, while the residual crystal edges exhibited serrated features [29]. After 30 cycles of erosion, distinct gypsum formations were not observed within the specimens. However, around the pores, numerous needle-like and rod-like crystals of AFt precipitated in a hedgehog-like manner on the original solid phase surface, as illustrated in Figure 10b. This phenomenon arose from the initial involvement of potassium SO42− in the chemical reactions during early-stage erosion, leading to decreased concentrations. Consequently, gypsum, with relatively higher reaction activation energies, continued to react with compounds such as C3A, forming AFt with lower reaction activation energies and resulting in a higher abundance of AFt crystals.
Observation of Figure 10c,d reveals that after 60 cycles of erosion, a considerable amount of erosion products, including AFt, gypsum, and sodium sulfate crystals, adhered to the surface of the autoclaved bricks. The bonding among hydration products, curing products, and fillers weakened, while pores and cracks continued to propagate, resulting in a looser structure and decreased density.
Figure 11 presents the XRD patterns and component proportions of the autoclaved bricks made with desert sand subjected to varying cycles of sulfate erosion. It can be observed in Figure 11 that after 30 cycles of sulfate erosion, the diffraction peaks corresponding to calcium hydroxide (CH) and calcium silicate hydrate (C-S-H) within the autoclaved bricks were reduced compared with those of the non-eroded bricks, while the diffraction peak of AFt was slightly elevated, and the variation in the gypsum diffraction peak was negligible. However, after 60 cycles of erosion, there was a noticeable increase in the intensity of the gypsum diffraction peak, indicating the consumption of Ca (OH)2 within the autoclaved bricks and the formation of gypsum and AFt erosion products. With an increase in erosion cycles, the potassium SO42− concentration within the autoclaved bricks rose, leading to a decrease in the internal pH environment. A portion of the AFt decomposed to form gypsum under these conditions, favoring the stable presence of gypsum. Hence, the intensity of the gypsum diffraction peak was significantly enhanced.

3.3. Pore Structure of Desert Sand Autoclaved Bricks after Sulfate Erosion

Figure 12, Figure 13 and Figure 14 present the pore structure results of the desert sand-based autoclaved bricks before and after sulfate erosion, and Table 5 illustrates the proportional changes in pore size distribution of the bricks following exposure to sulfate erosion.
As depicted in Figure 12, the initial mercury intrusion primarily filled the larger pores, with a continuous increase in the mercury intrusion volume. Subsequently, as the finer pores and micropores gradually became filled with mercury, there was a minimal additional increase in the intrusion volume. Due to the significant energy absorption during the mercury intrusion process, the autoclaved bricks experienced volumetric expansion upon mercury withdrawal as stress was released, leading to the filling of cracks or deformed pores with mercury. Consequently, the mercury withdrawal curve in Figure 12 lies above the intrusion curve.
Figure 13 illustrates the volume of pores with different diameters within the desert sand-based autoclaved bricks. Following Mehta’s classification method, the pores were categorized into micropores (2R < 4.5 nm), mesopores (4.5 nm ≤ 2R ≤ 50.0 nm), macropores (50 nm ≤ 2R ≤ 100 nm), and macropores (2R > 100 nm) [30]. It can be observed from Figure 13 that the distribution of pore sizes within the desert sand-based autoclaved bricks was relatively broad, and the regularity was poor, with the presence of well-developed macropores throughout the bricks.
The differential pore size distribution curve of desert sand-based autoclaved bricks is depicted in Figure 14, reflecting the variation in the rate of mercury intrusion volume with the pore size. The differential curve represents the total pore volume, as indicated by the area encompassed by the horizontal axis. A higher mercury intrusion volume indicates a greater proportion of pores corresponding to that particular pore size. From Figure 14, it can be observed that the diameters of the internal pores in the specimens were primarily distributed around 50 nm, 500 nm, and 10 μm. After 30 cycles of wet-dry exposure, the most probable pore diameter was 23.41 nm, corresponding to a mercury intrusion volume of 0.082 mL/g. Following 60 cycles of wet-dry exposure, the most probable pore diameter reduced to 21.08 nm, with a corresponding mercury intrusion volume of 0.068 mL/g.
Based on Table 5, it can be observed that after 60 cycles of sulfate erosion, the porosity of the desert sand-based autoclaved bricks was 19.26%, representing a reduction of 18.93% compared with the uneroded specimens. According to the classification of pore sizes proposed by Zhongwei Wu [31], following 60 cycles of erosion, the porosity corresponding to harmless pores, few harmful pores, harmful pores, and multiple harmful pores within the desert sand-based autoclaved bricks were 22.46%, 12.93%, 11.45%, and 53.16%, respectively. Notably, the proportion of multiple harmful pores increased by 0.96% post erosion. This phenomenon arose due to the formation of erosion products such as gypsum and AFt, as well as the precipitation of sulfate salt crystals within the autoclaved bricks during sulfate wet-dry cycles. Accumulation of these erosion products led to macroscopic cracking, spalling, and a deterioration in strength.

4. Conclusions

  • The water absorption rate of the desert sand-based autoclaved bricks exhibited a trend of an initial rapid increase followed by gradual slowing with an increasing soaking time. In the early stages of the water absorption test, there was a strong diffusion capacity for moisture, leading to a rapid rise in the water absorption rate of the autoclaved bricks. However, as the soaking time continued to increase, the rate of increase in water absorption slowed down. After 4 h of soaking, the water absorption rate of the autoclaved bricks reached 14.10%, approaching the saturation absorption rate of 14.74%.
  • The compressive strength of desert sand-based autoclaved bricks exhibited a quadratic relationship with the water absorption rate. At a completely dry state, the compressive strength of the autoclaved bricks measured 17.60 MPa. With an increase in the water absorption rate, alterations occurred in the hydration products of the bricks, leading to an enlargement of the pore volume and coarsening of the pore size, resulting in a significant decrease in compressive strength. When the water absorption rate of the desert sand-based autoclaved bricks reached 14.10%, the compressive strength measured 11.76 MPa, representing a strength loss rate of 33.18%.
  • As the number of sulfate erosion incidents for the desert sand-based autoclaved bricks increased, gypsum and AFt corrosion products were generated within the bricks, along with the precipitation of sulfate salt crystals, facilitating the generation of new pores, which were subsequently fractured by expansion stress. Simultaneously, this process resulted in a 0.96% increase in the proportion of harmful pores, leading to a degradation in strength. Through data analysis, a degradation curve of the compressive strength durability coefficient of the desert sand-based autoclaved bricks with respect to the number of sulfate erosion incidents was established.
  • This study provides a theoretical basis and technical guidance for the application of desert sand autoclaved bricks in village and town buildings in Xinjiang, as well as in sulfate-rich areas. Future research will focus on improving the erosion resistance of desert sand autoclaved bricks in sulfate environments.

Author Contributions

Conceptualization, C.Y. and Z.Z.; Methodology, C.Y. and L.W.; Validation, L.W. and W.L.; Formal analysis, D.W.; Investigation, L.L.; Resources, Z.Z. and W.L.; Data curation, C.Y.; Writing—original draft, C.Y.; Writing—review and editing, C.Y.; Supervision, H.W., D.W., Y.W. and L.L.; Project administration, H.W.; Funding acquisition, Y.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded in part by Corps Key Area Technology Research and Development projects (2023AB016-01); a Xinjiang Production and Construction Corps Fourth Division Science and Technology Plan project (2024GG026); a College Student Innovation and Entrepreneurship Training Program project (SRP2024326); and a Xinjiang Production and Construction Corps Fifth Division Science and Technology Plan project (2023GY02).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available on request.

Conflicts of Interest

Author Mr. Dongge Wu was employed by the company Xinjiang Hongyuan Construction Group Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Feng, L.; Liu, W.; Jiang, W.; Wang, W. Mechanics and road performance of mudstone modified stabilized gravel subgrade in arid desert areas. Case Stud. Constr. Mater. 2024, 20, e02799. [Google Scholar] [CrossRef]
  2. Jin, J. Research on the Development Path of Green Building Industry under the “Dual Carbon” Goal. Int. J. Manag. Sci. Res. 2023, 6, 49–52. [Google Scholar] [CrossRef]
  3. Seif, E.-S.S.A. Assessing the engineering properties of concrete made with fine dune sands: An experimental study. Arab. J. Geosci. 2013, 6, 857–863. [Google Scholar] [CrossRef]
  4. Niu, J.; Wang, Z.; Zhao, H.; Ming, S.; Deng, X.; Cheng, J. Experimental research on mechanical properties of desert sand recycled concrete. J. Shihezi Univ. Nat. Sci. 2022, 40, 583–590. (In Chinese) [Google Scholar]
  5. Kai, L.; Liu, X.; Xie, X.; Liu, R.; Li, T.; Shah, S. The feasibility of utilizing sifted desert sand (<75 μm) as sustainable supplementary cementitious materials (SCM). Constr. Build. Mater. 2023, 406, 133375. [Google Scholar]
  6. Chindaprasirt, P.; Pimraksa, K. A study of fly ash–lime granule unfired brick. Powder Technol. 2008, 182, 33–41. [Google Scholar] [CrossRef]
  7. Çiçek, T.; Çinçin, Y. Use of fly ash in production of light-weight building bricks. Constr. Build. Mater. 2015, 94, 521–527. [Google Scholar] [CrossRef]
  8. Fang, Y.; Gu, Y.; Kang, Q.; Wen, Q.; Dai, P. Utilization of copper tailing for autoclaved sand–lime brick. Constr. Build. Mater. 2011, 25, 867–872. [Google Scholar] [CrossRef]
  9. Zhou, C.; Du, B.; Wang, N.; Chen, Z. Preparation and strength property of autoclaved bricks from electrolytic manganese residue. J. Clean. Prod. 2014, 84, 707–714. [Google Scholar] [CrossRef]
  10. Ma, K.; Rao, L. Research lineage and hot spot analysis of soil salinization in China. J. China Agric. Univ. 2023, 28, 90–102. (In Chinese) [Google Scholar]
  11. Chen, F.; Gao, J.; Qi, B.; Shen, D. Deterioration mechanism of plain and blended cement mortars partially exposed to sulfate attack. Constr. Build. Mater. 2017, 154, 849–856. [Google Scholar] [CrossRef]
  12. Silva, D.; Fajardo-San-Miguel, G.; Escadeillas, G.; Cruz-Moreno, D. Surface treatment with silicon-based nanoparticles in Portland cement specimens subjected to physical sulfate attack. Case Stud. Constr. Mater. 2023, 18, e01795. [Google Scholar] [CrossRef]
  13. Huang, Q.; Zhu, X.; Zhao, L.; Zhao, M.; Liu, Y.; Zeng, X. Effect of nanosilica on sulfate resistance of cement mortar under partial immersion. Constr. Build. Mater. 2019, 231, 117180. [Google Scholar] [CrossRef]
  14. Thomas, M.; Rogers, C.; Bleszynski, R. Occurrences of thaumasite in laboratory and field concrete. Cem. Concr. Compos. 2003, 25, 1045–1050. [Google Scholar] [CrossRef]
  15. Qiu, X.; Ma, X.; Sun, X. Study on Corrosion Rules of Reinforced Concrete Buried in Seaside Salt Soil. Build. Sci. 2001, 41–43. (In Chinese) [Google Scholar] [CrossRef]
  16. Santhanam, M.; Cohen, M.D.; Olek, J. Sulfate attack research—Whither now? Cem. Concr. Res. 2001, 31, 845–851. (In Chinese) [Google Scholar] [CrossRef]
  17. Zhou, Y.; Li, M.; Sui, L.; Xing, F. Effect of sulfate attack on the stress–strain relationship of FRP–confined concrete. Constr. Build. Mater. 2016, 110, 235–250. [Google Scholar] [CrossRef]
  18. Zhang, J.; Sun, M.; Hou, D.; Li, Z. External sulfate attack to reinforced concrete under drying-wetting cycles and loading condition: Numerical simulation and experimental validation by ultrasonic array method. Constr. Build. Mater. 2017, 139, 365–373. [Google Scholar] [CrossRef]
  19. Shihezi University. A Kind of Autoclaved Brick Based on Desert Sand and Its Preparation Method. CN113248220A, 13 August 2021. [Google Scholar]
  20. JC/T 621-2021; Lime for Silicate Building Products. National Standards of People’s Republic of China: Beijing, China, 2021.
  21. Wang, S.; Wu, N.; Tu, X. Study on the preparation technology and strength mechanism of desert sand autoclaved brick. Chin. J. Appl. Mech. 2023, 1–8. (In Chinese) [Google Scholar]
  22. GB/T 2542–2012; Test Methods for Wall Bricks. National Standards of People’s Republic of China: Beijing, China, 2012.
  23. GB/T 11945–2019; Autoclaved Sand-Lime Solid Brick and Solid Block. National Standards of People’s Republic of China: Beijing, China, 2019.
  24. Sun, D.; Wang, S.; Liu, K. Effect of fly ash on performance of mortars partially exposed to sulfate solution under low humidity. Mater. Rep. 2020, 34, 14079–14086. (In Chinese) [Google Scholar]
  25. Li, L.; Jiao, X.; Peng, R. Preparation and strength performance of rare earth tailing based autoclaved bricks. Non-Met. Mines 2019, 42, 28–31. (In Chinese) [Google Scholar]
  26. Zhang, G.; Ge, J.; Zhang, C.; Yang, J.; Liu, K.; Wang, A.; Sun, D. Review on the microstructure formation mechanism in concrete material under different curing regimes. Mater. Rep. 2021, 35, 15125–15133. (In Chinese) [Google Scholar]
  27. Bai, M.; Long, G.; Xie, Y.; Wang, F.; Shi, Y.; Zhou, T. Properties and application of non-fired bricks prepared from manganese slag and recycled brick aggregates. Bull. Chin. Ceram. Soc. 2022, 41, 3533–3541, 3555. (In Chinese) [Google Scholar]
  28. Nie, D.; Jin, W.; Dong, L.; Zhao, K.; Zhang, J. Effect of sulfate erosion on the bonding performance of CFRP-clay brick interface. Acta Mater. Compos. Sin. 2023, 40, 5276–5287. (In Chinese) [Google Scholar]
  29. Jiang, L. Study on Deterioration of Concrete under Sulfate Attack. Ph.D. Thesis, College of Civil Engineering Xi’an University of Architecture & Technology, Xi’an, China, 2016. (In Chinese). [Google Scholar]
  30. Yang, Z.; Zhou, C. Pore structure of water-saturated cement mortars by low-field nuclear magnetic resonance. J. Chin. Ceram. Soc. 2022, 50, 1391–1400. (In Chinese) [Google Scholar]
  31. Wu, Z. An approach to the recent trends of concrete science and technology. J. Chin. Ceram. Soc. 1979, 262–270. (In Chinese) [Google Scholar] [CrossRef]

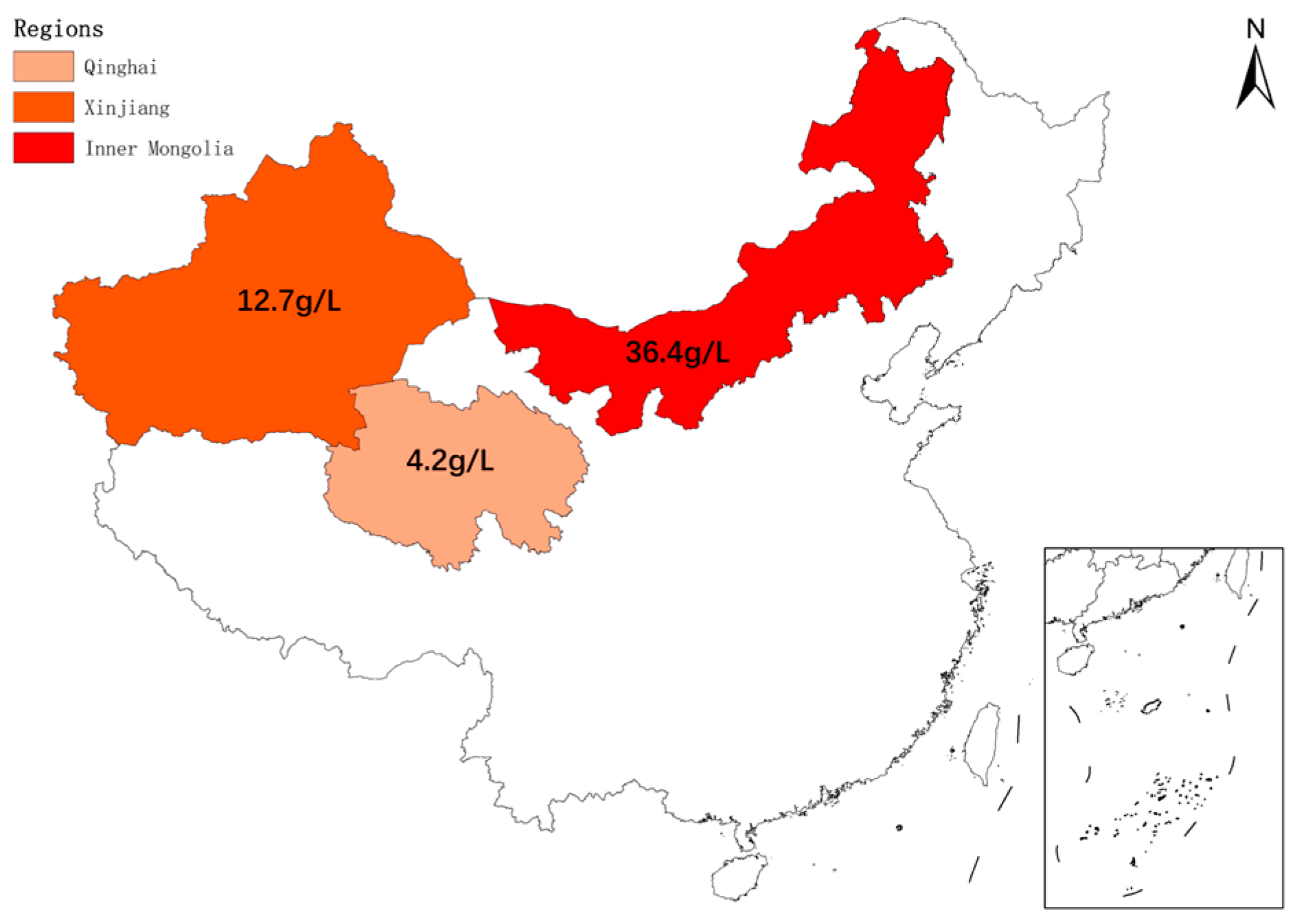

Figure 1. SO42− concentrations in parts of Northwest China.
Figure 1. SO42− concentrations in parts of Northwest China.
Sustainability 16 06855 g001

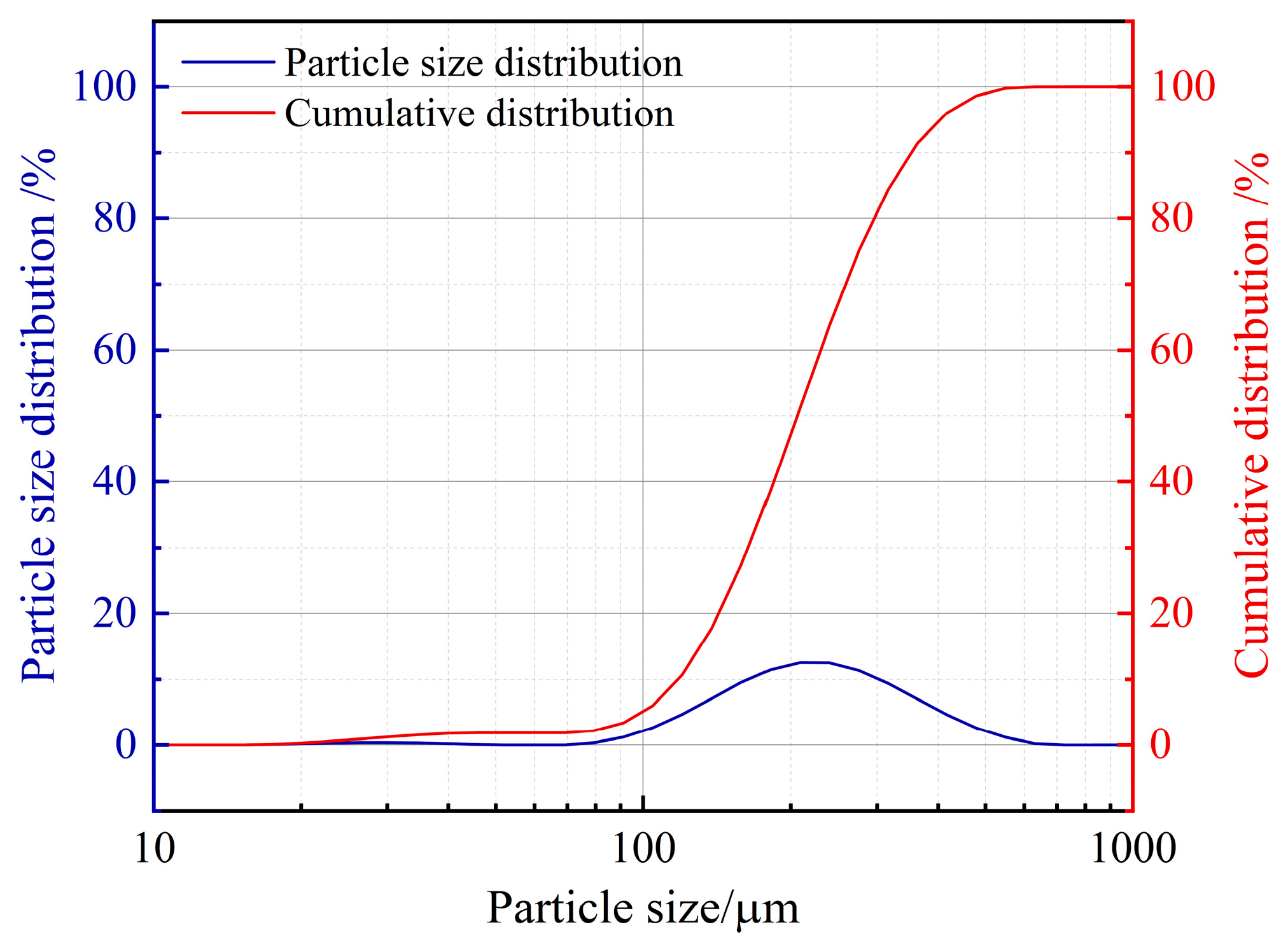

Figure 2. Desert sand grain size distribution curve.
Figure 2. Desert sand grain size distribution curve.
Sustainability 16 06855 g002

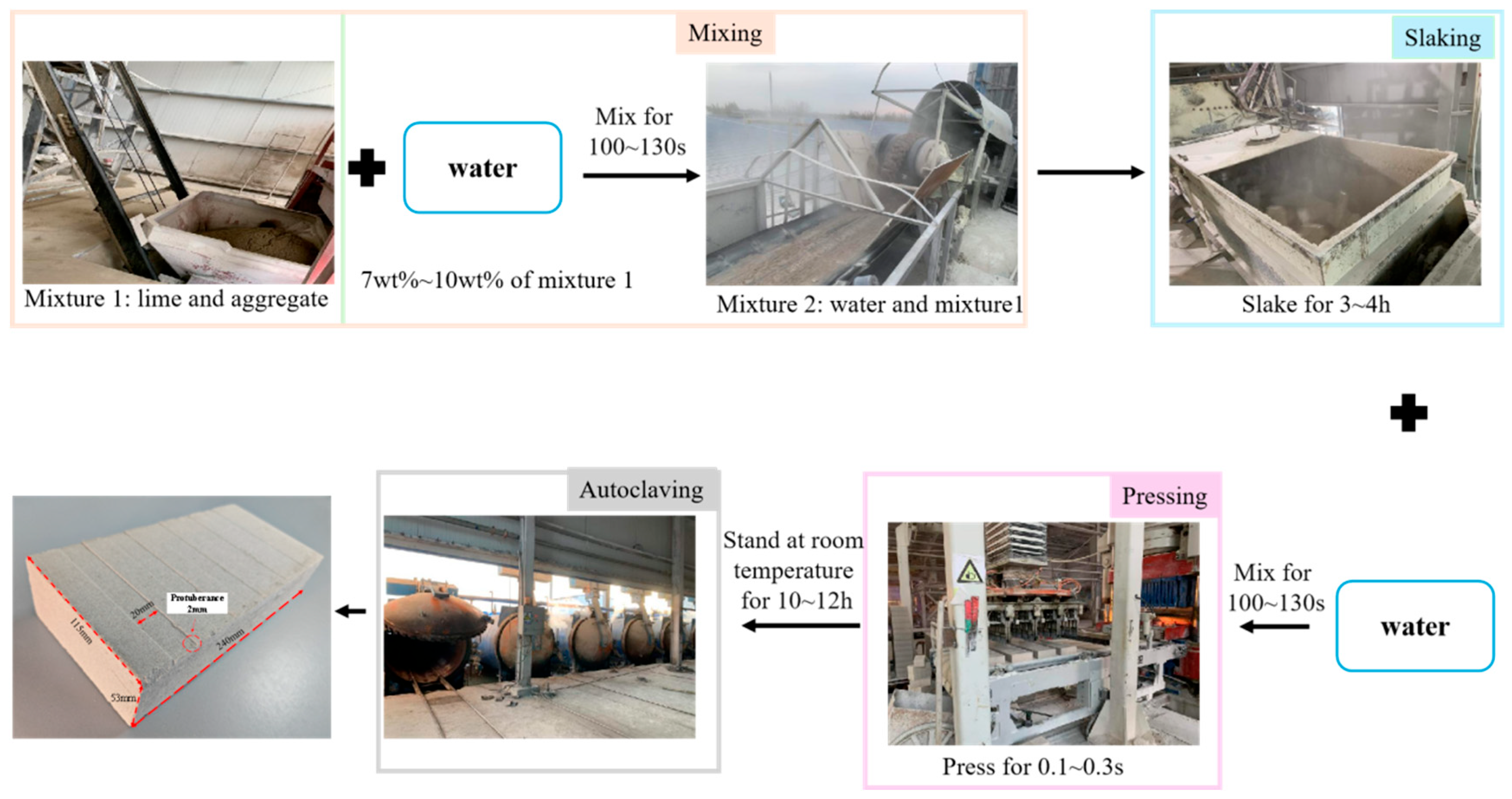

Figure 3. Preparation process flowchart of autoclaved bricks.
Figure 3. Preparation process flowchart of autoclaved bricks.
Sustainability 16 06855 g003

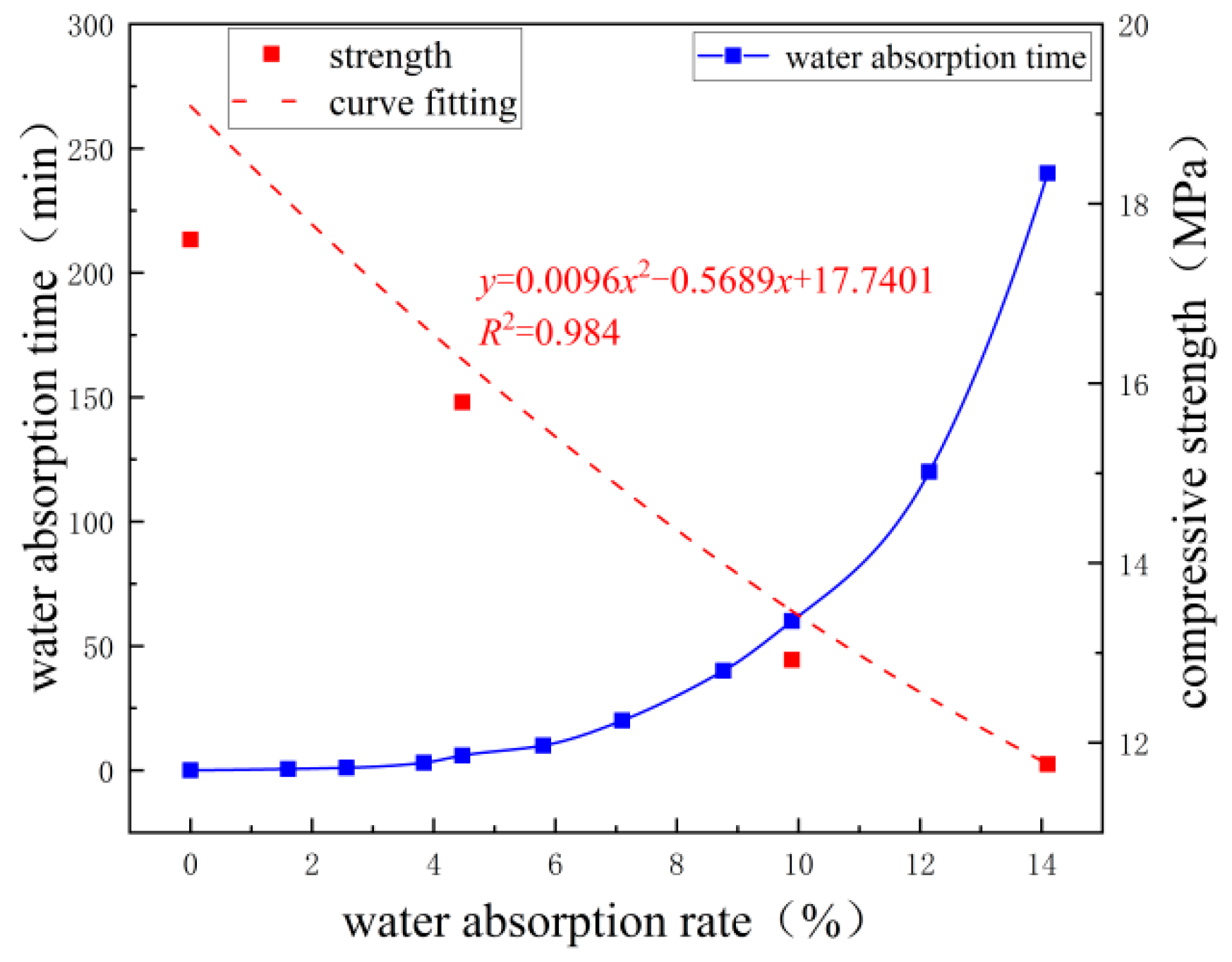

Figure 4. Relationship curve of water absorption and compressive strength.
Figure 4. Relationship curve of water absorption and compressive strength.
Sustainability 16 06855 g004

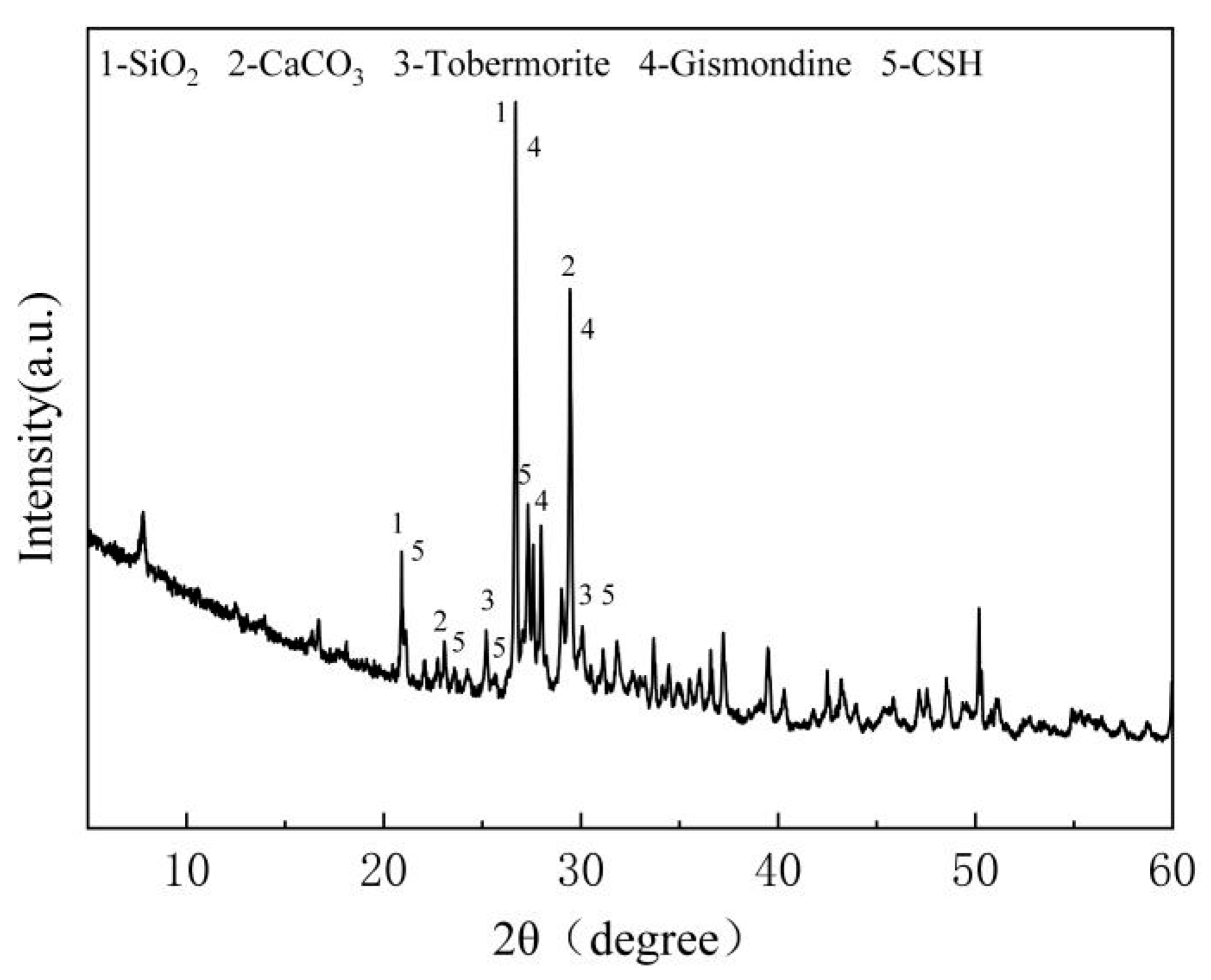

Figure 5. XRD patterns of mineral composition product.
Figure 5. XRD patterns of mineral composition product.
Sustainability 16 06855 g005
Figure 6. SEM photos of desert sand autoclaved bricks before and after water absorption. (a) Non-absorbent. (b) After water absorption.
Figure 6. SEM photos of desert sand autoclaved bricks before and after water absorption. (a) Non-absorbent. (b) After water absorption.
Sustainability 16 06855 g006

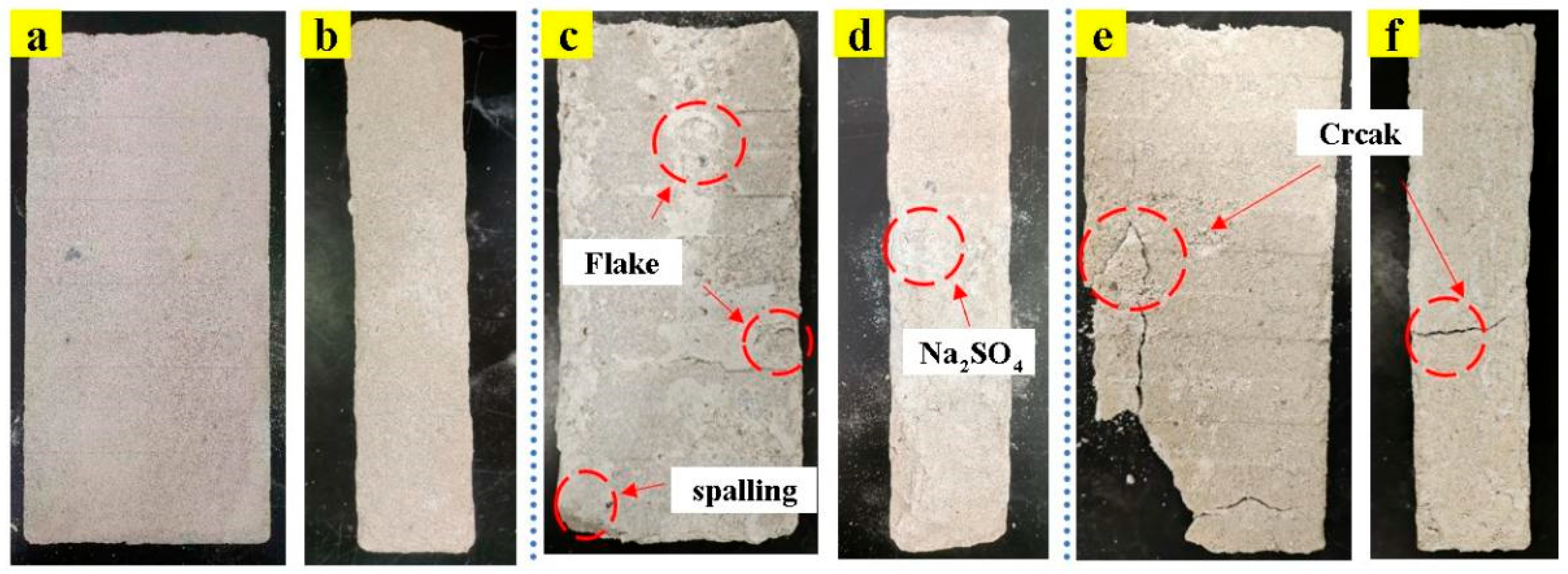

Figure 7. Apparent morphology of desert sand-based autoclaved bricks before and after erosion: (a,b) before erosion; (c,d) after 30 erosion cycles; and (e,f) after 60 erosion cycles.
Figure 7. Apparent morphology of desert sand-based autoclaved bricks before and after erosion: (a,b) before erosion; (c,d) after 30 erosion cycles; and (e,f) after 60 erosion cycles.
Sustainability 16 06855 g007

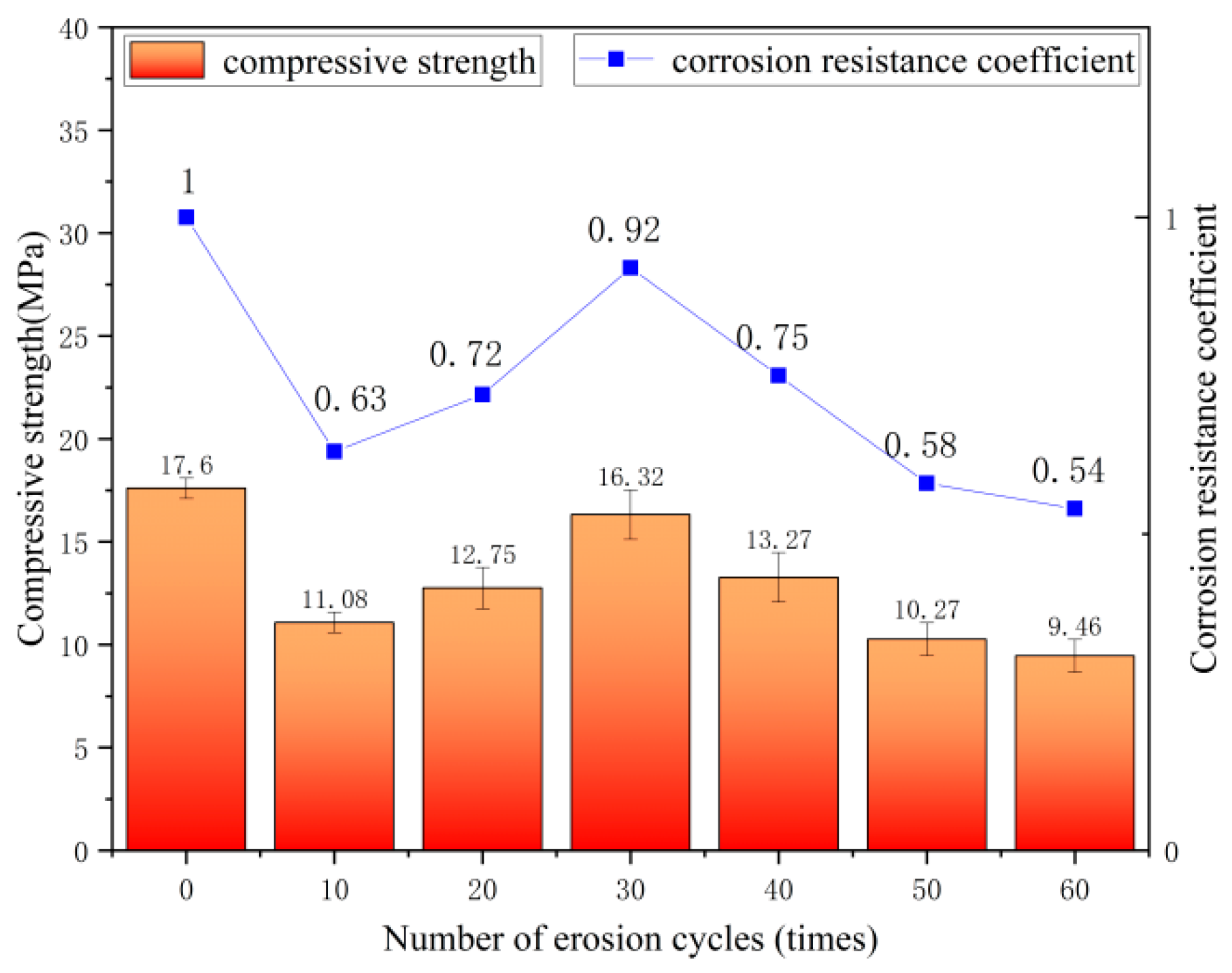

Figure 8. Compressive strength durability coefficient of desert sand-based autoclaved bricks under sulfate erosion.
Figure 8. Compressive strength durability coefficient of desert sand-based autoclaved bricks under sulfate erosion.
Sustainability 16 06855 g008

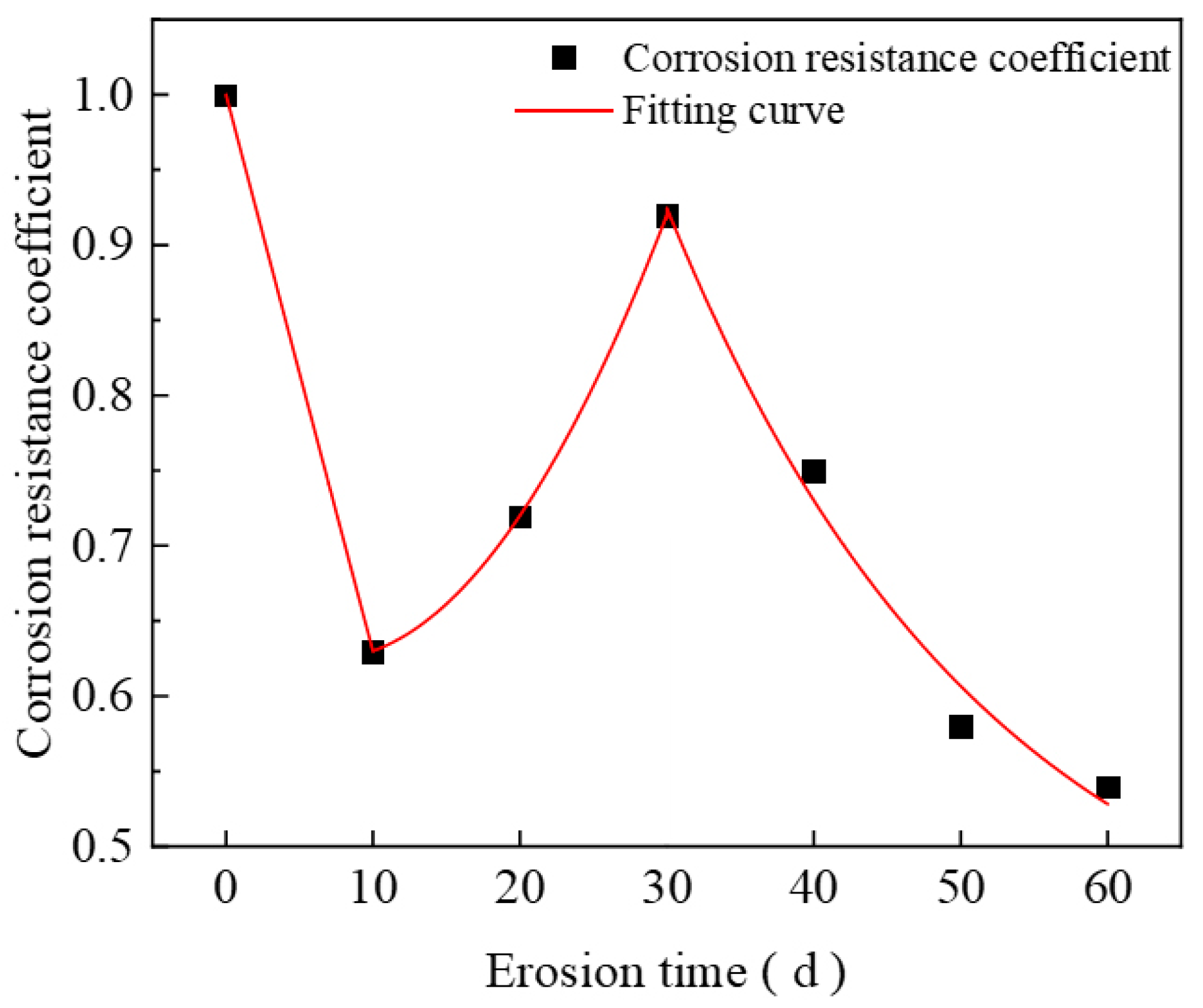

Figure 9. Degradation curve of compressive strength durability coefficient of desert sand-based autoclaved bricks under sulfate erosion.
Figure 9. Degradation curve of compressive strength durability coefficient of desert sand-based autoclaved bricks under sulfate erosion.
Sustainability 16 06855 g009
Figure 10. SEM images of desert sand-based autoclaved bricks after sulfate erosion (a,b) after 30 cycles of sulfate erosion and (c,d) after 60 cycles of sulfate erosion.
Figure 10. SEM images of desert sand-based autoclaved bricks after sulfate erosion (a,b) after 30 cycles of sulfate erosion and (c,d) after 60 cycles of sulfate erosion.
Sustainability 16 06855 g010

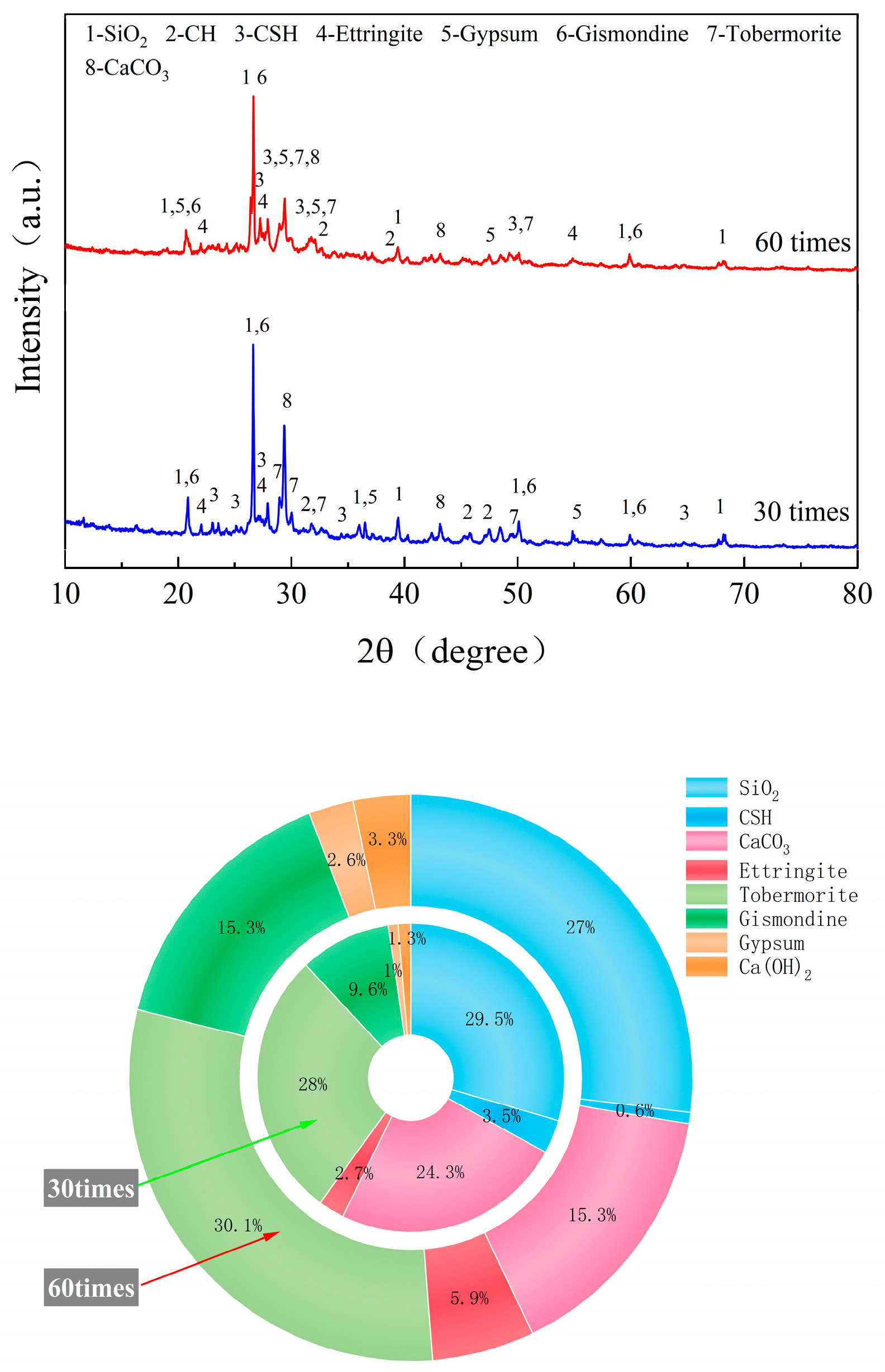

Figure 11. X-ray diffraction (XRD) pattern and component proportions of desert sand-based autoclaved bricks after sulfate erosion.
Figure 11. X-ray diffraction (XRD) pattern and component proportions of desert sand-based autoclaved bricks after sulfate erosion.
Sustainability 16 06855 g011

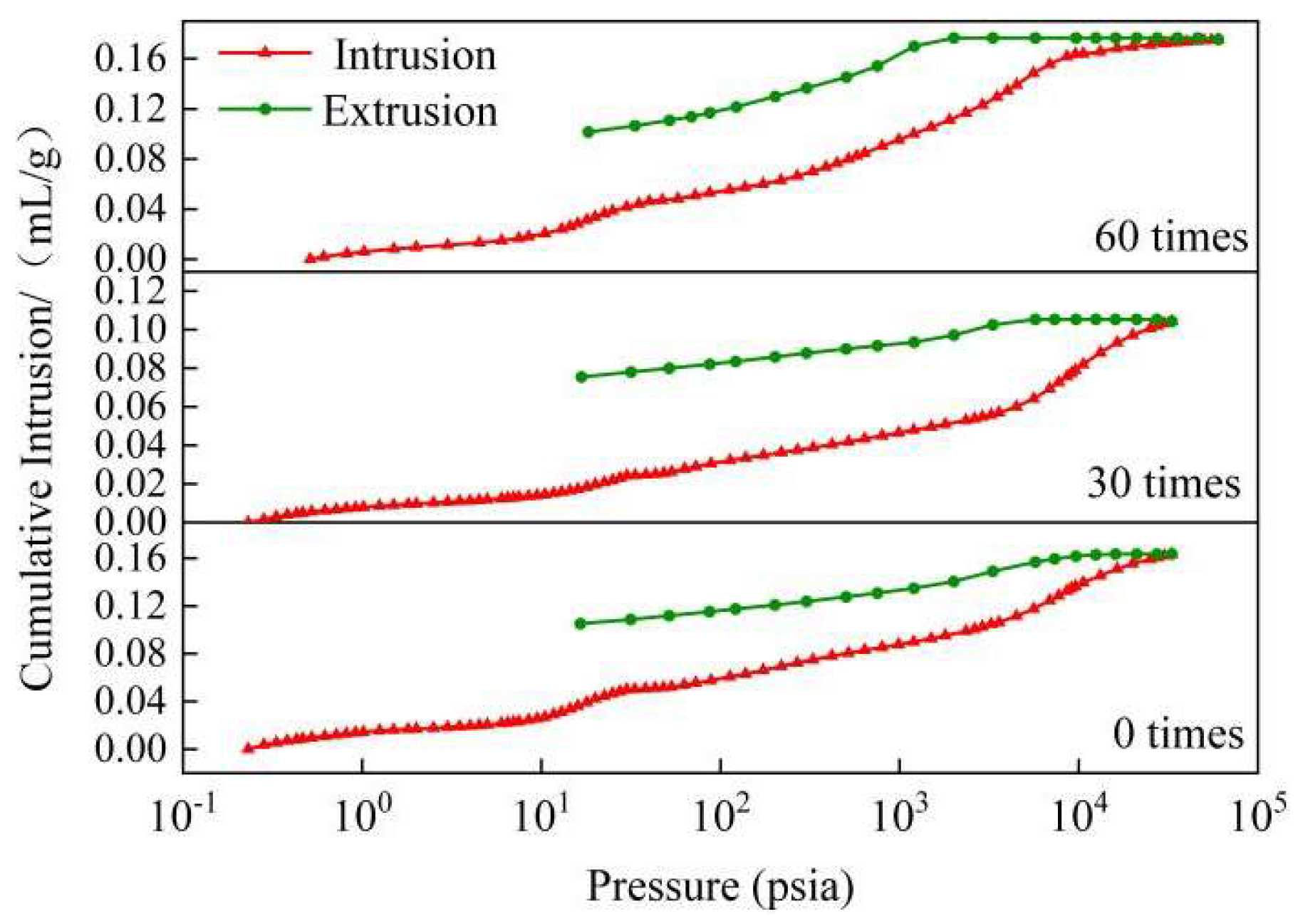

Figure 12. Relation between cumulative intrusion and pressure.
Figure 12. Relation between cumulative intrusion and pressure.
Sustainability 16 06855 g012

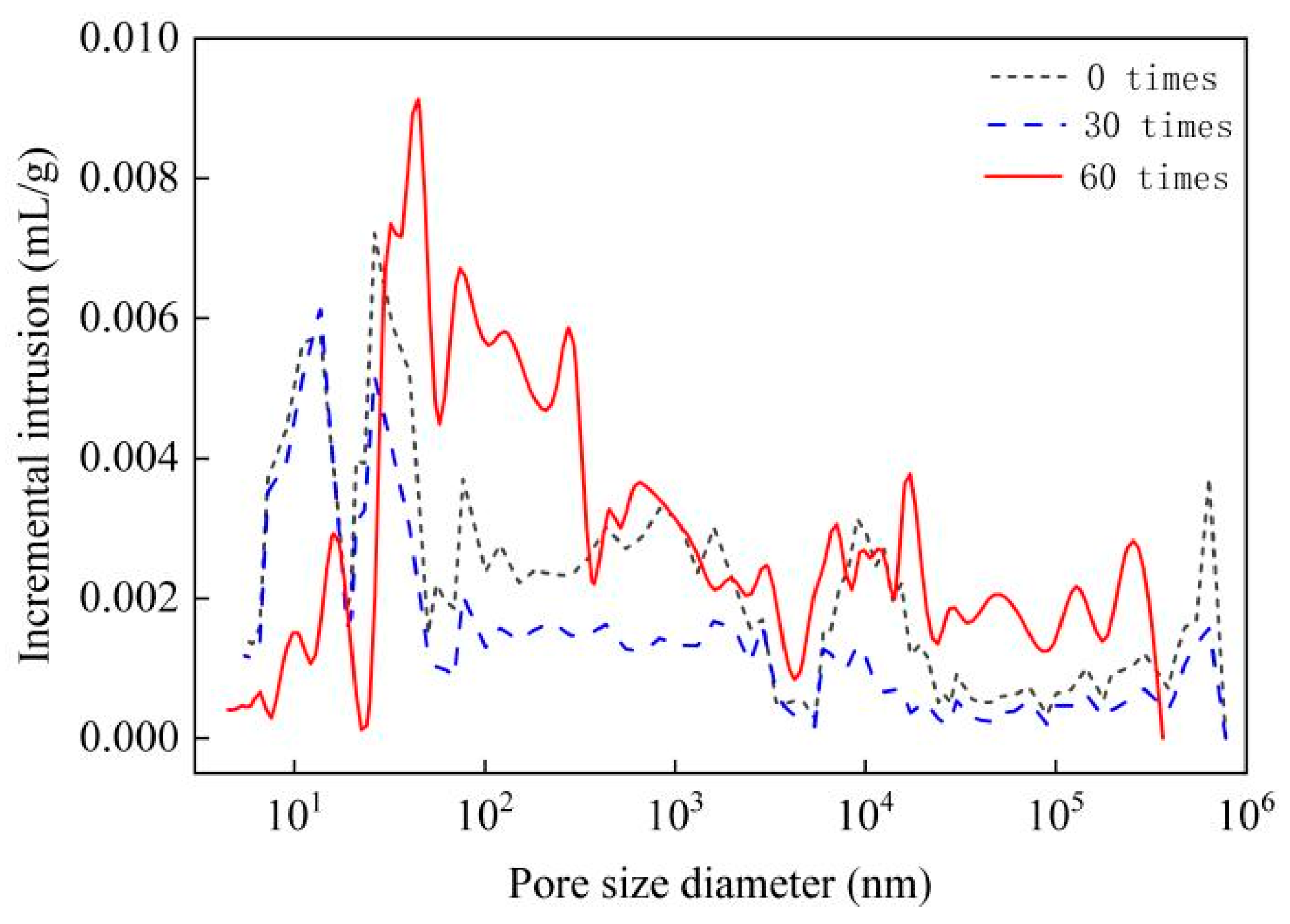

Figure 13. Pore volume increment.
Figure 13. Pore volume increment.
Sustainability 16 06855 g013

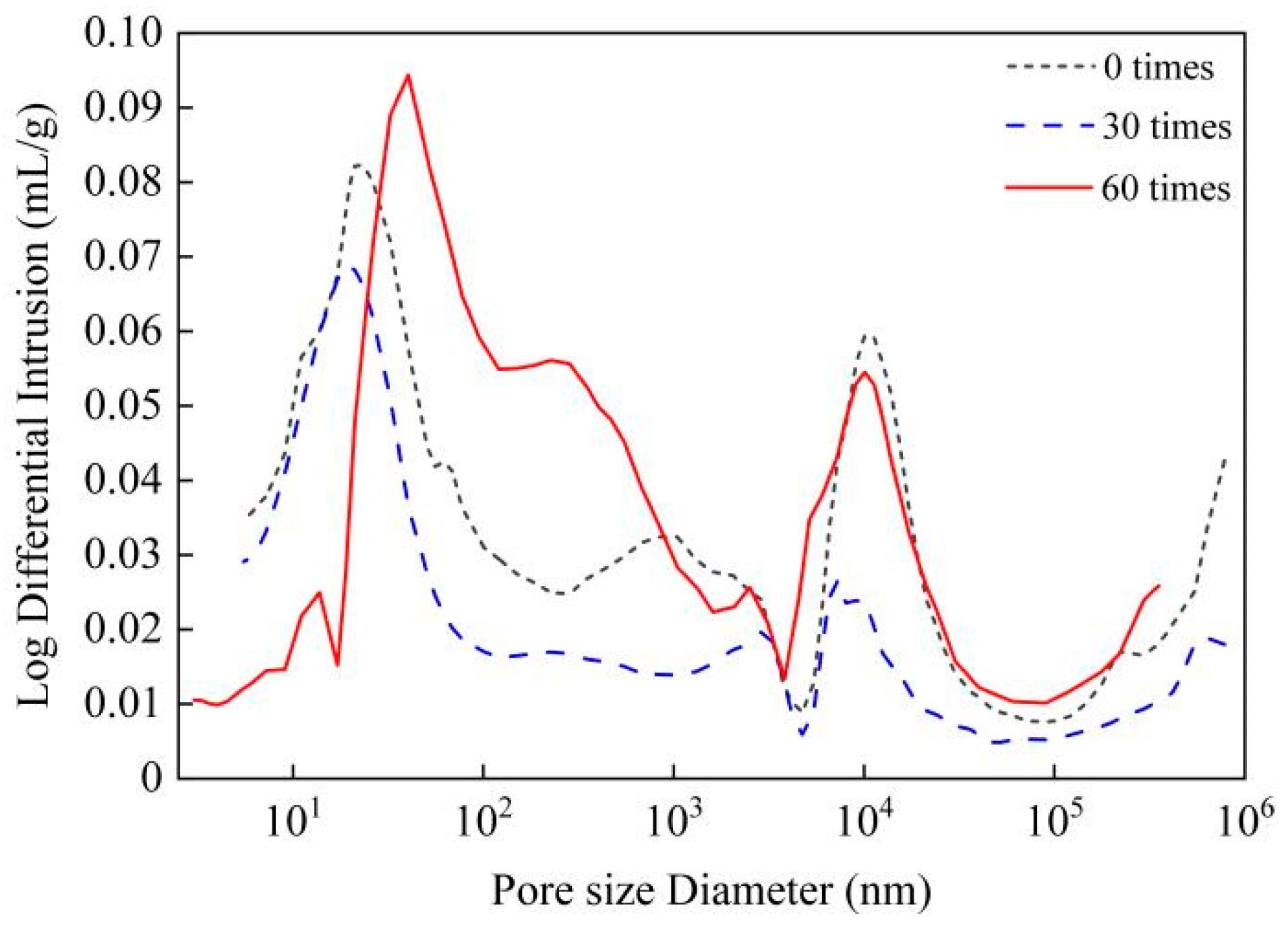

Figure 14. Pore size distribution differential curve.
Figure 14. Pore size distribution differential curve.
Sustainability 16 06855 g014
Table 1. Chemical composition of desert sand.
Table 1. Chemical composition of desert sand.
CompositionSiO2Al2O3Na2OCaOK2OFe2O3MgOOther
Content (%)67.1017.904.944.223.481.350.830.18
Table 2. Chemical composition of lime.
Table 2. Chemical composition of lime.
CompositionSiO2Al2O3Na2OCaOK2OFe2O3MgOSO3
Content (%)7.225.670.3676.790.070.422.600.21
Table 3. Water absorption test result table.
Table 3. Water absorption test result table.
Water Absorption Duration0 s30 s60 s3 min6 min10 min20 min40 min1 h2 h4 h8 h12 h24 h
Average water absorption rate (%)01.632.573.844.805.797.108.769.8912.1514.1014.3814.4214.74
Table 4. Results for water absorption and compressive strength.
Table 4. Results for water absorption and compressive strength.
GroupAverage Water Absorption (%)Average Compressive Strength (MPa)
A (Non-absorbent)017.60
B (Water absorption for 10 min)5.7915.79
C (Water absorption for 1 h)9.8912.92
D (Water absorption for 4 h)14.1011.76
Table 5. Pore structure of desert sand autoclaved bricks measured using the mercury injection method.
Table 5. Pore structure of desert sand autoclaved bricks measured using the mercury injection method.
Porosity (%)Average Pore Size (nm)Total Pore Volume (mL/g)Total Pore Area (m2/g)Pore Volume per Unit Mass of Each Pore Size (nm/(mL/g))Fraction of Each Pore Volume in the Total Pore Volume (%)
<2020~5050~200>200<2020~5050~200>200
Untreated38.1955.860.17512.560.0140.0320.0390.0907.7918.3522.3651.50
Subjected to 30 cycles of erosion27.6941.640.164 15.700.0310.0260.0210.08518.9016.0612.8452.20
Subjected to 60 cycles of erosion19.2631.320.14 13.320.0230.0130.0120.05522.4612.9311.4553.16
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, C.; Wang, L.; Zhang, Z.; Wang, H.; Wu, D.; Wang, Y.; Liang, L.; Liu, W. Experimental Study on the Physical Properties of Autoclaved Bricks Made from Desert Sand and Their Resistance to Sulfate Attacks. Sustainability 2024, 16, 6855. https://doi.org/10.3390/su16166855

AMA Style

Yang C, Wang L, Zhang Z, Wang H, Wu D, Wang Y, Liang L, Liu W. Experimental Study on the Physical Properties of Autoclaved Bricks Made from Desert Sand and Their Resistance to Sulfate Attacks. Sustainability. 2024; 16(16):6855. https://doi.org/10.3390/su16166855

Chicago/Turabian Style

Yang, Cheng, Luping Wang, Ziyang Zhang, Haifeng Wang, Dongge Wu, Yushan Wang, Lu Liang, and Wenlong Liu. 2024. "Experimental Study on the Physical Properties of Autoclaved Bricks Made from Desert Sand and Their Resistance to Sulfate Attacks" Sustainability 16, no. 16: 6855. https://doi.org/10.3390/su16166855

APA Style

Yang, C., Wang, L., Zhang, Z., Wang, H., Wu, D., Wang, Y., Liang, L., & Liu, W. (2024). Experimental Study on the Physical Properties of Autoclaved Bricks Made from Desert Sand and Their Resistance to Sulfate Attacks. Sustainability, 16(16), 6855. https://doi.org/10.3390/su16166855

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
