A Review of Propagation and Restoration Techniques for American Beech and Their Current and Future Application in Mitigation of Beech Bark Disease

College of Forest Resources and Environmental Science, Michigan Technological University, 1400 Townsend Dr, Houghton, MI 49931, USA
Scion Research, Titokorangi Drive, Private Bag 3020, Rotorua 3046, New Zealand
Author to whom correspondence should be addressed.
Sustainability 2023, 15(9), 7490;
Submission received: 1 March 2023 / Revised: 22 April 2023 / Accepted: 28 April 2023 / Published: 3 May 2023
(This article belongs to the Section Sustainability, Biodiversity and Conservation)


The American beech (Fagus grandifolia Ehrh.) has been impacted by the beech bark disease (BBD) complex throughout the northeastern United States for over 100 years, but the disease has been present in the Great Lakes region only for around 20 years, requiring acknowledgement of the evolving context surrounding F. grandifolia. This disease threatens to remove a foundational tree species which is especially important ecologically for wildlife habitat and mast, and as a climax successional species. We review advances in propagation techniques of F. grandifolia with the goal of addressing their use in the rehabilitative restoration of forests affected by BBD. Natural regeneration and artificial methods of propagation are addressed, along with how they may be applied for mitigation. Silvicultural interventions are discussed that may be necessary to protect and release resistant seedlings to promote persistence. An existing framework is used to explore context necessary for decision making in restoration. Nucleated seed orchards of resistant trees may currently be the most effective and practical method for introduction of BBD-resistant F. grandifolia into affected northern hardwood forests.

1. Introduction

Emergent diseases present challenges to modern forests and are becoming increasingly common and severe in response to global change, with land managers relying on a constantly evolving suite of forest health management tools [1,2]. Forest management techniques are used in an effort to protect forests that are faced with health challenges, but these efforts are often costly, difficult to implement, and sometimes ineffective or unsustainable. Sustainable forest management practices help support sustainable forests. These in turn provide important ecosystem services in many forms, from water quality protection to wildlife refuge and biodiversity havens.
One ecologically important tree which is threatened by an invasive disease complex is the American beech (Fagus grandifolia Ehrh.), which has been impacted by beech bark disease (BBD) in the northeastern United States for over a century. F. grandifolia is an ecologically important species in the northern hardwood forests of the United States and throughout its range in the eastern United States. It serves as a major source of forage as the nuts are consumed by a diverse suite of wildlife. F. grandifolia is also ecologically important as a late successional, shade-tolerant “climax” species in the northern Great Lakes region of the United States [3]. In this area, sugar maple (Acer saccharum Marsh.) and Eastern hemlock (Tsuga canadensis L.) fill similar successional roles, but neither creates hard mast that can compete with F. grandifolia for quantity and quality [4]. Beechnuts serve as forage for mammals at many trophic levels, and increased beechnut crops are associated with increased predatory animal populations (e.g., [5,6]).
There are seven genera in the family Fagaceae (Castanea, Castanopsis, Chrysolepsis, Fagus, Lithocarpus, Quercus, and Trigonobalanus). There are 11 species within Fagus, with only F. grandifolia occurring naturally in North America [7]. The range of F. grandifolia extends from Cape Breton Island, Nova Scotia, Canada, to the gulf coast of the United States, and from the coast of the Atlantic to parts of Wisconsin, Illinois, Missouri, Alabama, and into Texas [8]. Within this range, the tree can occur on a variety of soils, primarily on gray-brown podzolic or laterite soils, although it can be found on other soils including limestone in some areas [8]. The wide range of F. grandifolia is possible as it can withstand variable environmental conditions, occurring in areas with precipitation ranges from 580 mm to 1270 mm, temperature ranges from −42 °C to +38 °C, and areas with growing seasons from 92 to 280 days [8]. It is wind-pollinated, and thus no pollinators are necessary. The hard wood of F. grandifolia can be utilized as fuel wood, lumber or veneer logs, railroad ties, and pulpwood, among other uses [9].
Technological and methodological advances have increased the success rates of propagation of F. grandifolia over traditional methods, increasing the suite of tools available for the mitigation of BBD, which often occurs through the creation and breeding of young trees resistant to the disease complex. Renewed attention is being placed on BBD mitigation (where the impacts and spread of a disease are reduced as much as possible with the understanding that total elimination of a disease or disease agent is impossible) as the scale insect expands its range into the western and southern range extents of F. grandifolia [10,11]. In order to present the state of techniques available at this time, we have performed a literature search for the propagation, micropropagation, restoration, and silviculture of F. grandifolia in North America. We placed emphasis on finding peer-reviewed studies with reproducible methods for the propagation or restoration of F. grandifolia, silviculture in BBD affected stands, and control of BBD and the individual biotic components. When peer-reviewed literature was not available, we include grey literature, such as handouts from extension offices or websites from reputable sources, such as arboretums or state agencies. Our goal is to present a comprehensive picture of the state of current propagation methods for practitioners interested in the sustainable conservation of this species.
Retaining genetically diverse, healthy F. grandifolia in the landscape is important as BBD is not the only forest health issue exerting pressure on the species. Beech leaf disease (BLD) is an emergent disease first described in the United States in Ohio [12,13,14,15,16]. Because it is very novel (first described in 2020), we are still understanding the ecology of BLD, a leaf disease of F. grandifolia which causes interveinal thickening and chlorosis of leaves after trees are infested by the nematode Litylenchus crenatae mccannii (Anguinata) [13]. The beech leaf mining weevil (Orchestes fagi Linnaeus) is an introduced pest that has been present in Nova Scotia, Canada for at least 15 years [14]. The impacts of this invasive defoliating pest can at times compound the effects of BBD to increase mortality from the disease, but generally are associated with increased canopy decline and mortality of F. grandifolia [14]. Climate change is also expected to reduce the southern range extent of F. grandifolia [15]. Other unknown challenges are likely to emerge for F. grandifolia and other northern hardwood species in the future, so retaining resilient, healthy populations will be critical for ecosystem health.
Beech bark disease has been present in the northeastern region of the United States for over a century but was only described in Michigan (the western edge of the disease front) in 2001 [16]. Because of the longer history in the northeast, much of the fundamental literature about BBD has originated east of the Appalachian Mountains [17,18], and thus there is a need to carefully evaluate management decisions made for BBD mitigation as it enters new regions or forest types. Fundamental knowledge concerning the conservation of F. grandifolia has been identified as an area of concern [19] because fundamental knowledge of Fagus sylvatica L., the European beech, is often substituted, or information for the genus Fagus is used. One example is the Woody Plant Seed Manual [20], an extensive manual for the proper storage and planting of woody plant seeds published by the United States Forest Service. This manual provides more extensive information for the seed treatments of F. sylvatica due to availability of data, despite F. grandifolia being the only Fagus species native to North America.
The objective of this review is to summarize current efforts to propagate and restore F. grandifolia as an ecologically important species and evaluate the relative benefits and drawbacks of different methods in their applications for restoration, particularly in the interest of long-term, sustainable restoration. Reviews have been completed detailing the ecology and impacts of BBD [18,21] and habitat information about F. grandifolia is available [8,20]. Therefore, we focus on information relevant to propagating F. grandifolia and restoration techniques which may be used to conserve and propagate BBD-resistant trees. This information presented together provides a foundation which can be used to develop management recommendations to sustain F. grandifolia as a forest component. We will not go into the current valuable work being done in tree improvement, though propagation techniques are often necessary for the creation of effective tree breeding and improvement programs. This work is invaluable for the future quality of the species in question, but it is outside the scope of pure vegetative propagation. Here, we explore management for the mitigation of BBD and restoration of F. grandifolia and discuss (1) the impacts of BBD on regeneration, (2) methods of management utilizing natural F. grandifolia regeneration and identification of naturally BBD-resistant trees in the landscape, (3) techniques currently being utilized to propagate BBD-resistant F. grandifolia, and (4) how these techniques can be applied towards F. grandifolia restoration.

1.1. F. grandifolia Ecology and Natural Reproduction

F. grandifolia reproduces prodigiously through seed and vegetatively via root suckering [8,22]. Suckers are produced from reparative root buds formed in response to senescence or injury [23]. Dense thickets of regeneration can establish around injured or dying F. grandifolia trees [24]. It is even possible for sucker-originated young trees to outcompete seed-originated young trees to comprise the majority of regeneration in patches [25]. Wagner et al. [26] further describes the mechanics of regeneration characteristics within the genus Fagus.
When considering the value of F. grandifolia in eastern North American forests, its use in wood products is sometimes overlooked or discounted. In the northeast, F. grandifolia regeneration was historically undesirable, and considered a nuisance preventing the establishment of other species [27]. However, the wood of F. grandifolia is being explored as an option for flooring timber in Canada [28] and trees felled in salvage cuttings in response to BBD are utilized for pulp, rail ties, or fuel wood where possible. BBD can cause sunken lesions, a type of timber defect, thereby reducing the economic value of timber forests affected by BBD [29]. F. grandifolia is good-quality firewood, ranking below hickory (Carya spp) and white oak (Quercus alba) in heating value [9].
Economic value aside, F. grandifolia also holds great importance throughout its range as a foundation species. Many birds prefer large F. grandifolia stems as a foraging substrate, including the pileated woodpecker (Dryocopus pileatus), Acadian flycatcher (Empidonax virescens), and scarlet tanager (Piranga olivacea) [30]. F. grandifolia trees and snags offer cavities in abundance across a range of forest types, creating appropriate nesting sites for yellow-bellied sapsuckers (Sphyrapicus varius), southern flying squirrels (Glaucomys volans), and wood ducks (Aix sponsa) [31,32]. F. grandifolia mast is a critical component in many forest food webs. It serves as forage for mammals at many trophic levels [5,33]. These specific roles cannot be filled by other species with similar life histories, so F. grandifolia is a foundational forest species.

1.2. Beech Bark Disease Pathosystem and Ecology

In BBD, a scale insect infests F. grandifolia trees and creates feeding damage sites on the bark, which are subsequently infected by a fungus from the genus Neonectria, causing decline and eventual death [16]. The insect component of the disease is usually the non-native Cryprococcus fagisuga Lind. (Hemiptera: Eriococcidae), the felted beech scale or beech scale, a wingless, parthenogenetic insect with piercing–sucking mouthparts which it uses to feed on the phloem of trees, creating the infection courts necessary for the fungal pathogen to enter the tree [34,35]. One single healthy adult scale insect arriving on a tree may be enough to fully infest that tree because it can reproduce clonally until the tree is fully infested [35]. The two commonly identified fungal species associated with the disease complex are Neonectria faginata Castlebury and Neonectria ditissima Samuels and Rossman [36]. Both species of fungi apparently cause mortality through the same mechanism: slow annual accumulation of necrotic cankers on the above-ground portion of the tree as the tree is slowly girdled to death.
As this disease progresses, a number of symptoms occur. Necrotic cankers appear with the fungal infections, which increase in size annually through reinfection. Trees exhibit reduced growth which declines with increasing severity of symptoms and internal defects [37]. Occasionally sunken lesions occur. Tarry spots may occur on trees, where dark exudate appears on the bole. The canopy declines as the infection increases around the tree. Eventually the infection girdles and kills the tree [10,16], or the tree may succumb to additional stressors such as wind snap or other fungal diseases.
Some facets of BBD have become better understood over time. One example of our change in understanding is the discovery that over time, the dominant fungal component of the disease complex shifts from high levels of N. ditissima to N. faginata [36,38]. While the mortality associated with BBD was first described as only rapid mortality, it is now understood that BBD may be a rapid or a slow decline of overstory trees via girdling, up to 30 years to kill individual trees [38]. Generally, a strong suckering response is expected to occur in the understory [39], but recent literature from the expanded range of the disease has described differing regeneration reactions, indicating that suckering is not a direct response to BBD stress alone, but to the stress from the disease coupled with other environmental factors such as damage associated with harvest activities [40]. Continued research on BBD is still necessary both to fill gaps in fundamental knowledge, and to describe novel dynamics as the range of the disease increases.

1.3. Direct Control of BBD

Few direct controls are recommended for BBD, and the methods that are described are primarily only for retention of individuals, such as landscape trees. This is partially due to the fact that, although control of the scale insect is possible (but difficult and expensive), Neonectria fungi are ubiquitous in North American forests, and so cannot be removed entirely from the system where F. grandifolia occurs. In addition, shortly after it has arrived in an area, scale infestations become ubiquitous due to the mobile and wind-dispersed first instars that readily disperse [41,42]. The facts that Neonectria cannot functionally be removed, and that scale insects disperse widely after arrival and reproduce clonally, makes individual tree control costly and time- and labor-intensive due to the need for repeated, specialized control.
Biological control has been explored for BBD, with a number of predators identified as feeding on beech scale, though none have been described as effective in the broader control of BBD [43,44]. The twice-stabbed lady beetle (Chilochorus stigma Say) dispersed ineffectively and did not feed on all stages of the scale insect [44]. A velvet mite (Allothrombium mitchelli Davis) has also been noted, but little is known about the species [43].
Chemical controls have been used for the scale. Though insecticidal soap, horticultural oils, and bark spray insecticides can be used, treatments must be repeated. Scale insects are minute enough to escape into bark crevices, making bark sprays ineffective. Chemical controls are only recommended for individual ornamental trees [45]. Neonectria fungus has been controlled in apple species (Rosaceae) with copper oxychloride and copper oxide, and apple-specific fungal control compounds, but no reports of the fungicide efficacy on Fagus species are available [46,47]. Prophylactic control of Neonectria (where the control is enacted to prevent the fungus from physically reaching the tree prior to infection occurring) is also difficult due to the widespread, rain- and wind-dispersed nature of the fungus.
Physical controls do work well to eliminate scale in individual trees, such as ornamental landscape trees. Horticultural oils can be applied during the dormant season; however, the mobile nymphs (the ideal target) emerge in August or September, reducing efficacy unless oils are applied with precise timing [48]. Scales may be physically washed or brushed from the boles of trees [10]; however, a single adult scale remaining is enough to re-infest the tree. A combination of physical and biological control, consisting of field paint containing a strain of Bacillus subtilis Ehrenberg coated over active cankers, reduced spore release from apple trees (Malus spp Mill), but the entire canker must be painted shortly before spore release [49]. In forests where Neonectria is endemic on other species, such as in beech–maple forests, this method is impractical.
Few cultural controls exist, and the few that do exist are focused on removal of BBD-susceptible F. grandifolia [50]. Cutting of both susceptible overstory trees and susceptible regeneration followed by herbicide application removes and prevents further establishment of disease-susceptible tree regeneration [51]. This method can be coupled with retention of disease-resistant overstory trees to remove advanced regeneration which is disease-susceptible and allow new, potentially resistant regeneration [52]. There is evidence that removal of diseased F. grandifolia and the retention of disease-free trees can improve the genetic quality of F. grandifolia stands over long periods of time [53]. Because direct control methods to affect the scale insects or fungus have not been adequately developed for long-term use, cultural controls are the typical recommended control action for BBD in forests.

2. Natural Vegetative Propagation of BBD-Resistant F. grandifolia

Some F. grandifolia are resistant to BBD, and this small portion of trees are the focus of most propagation efforts. About 1 to 3% of F. grandifolia trees are truly resistant to the insect portion of the disease complex [48,54]. Even when challenged in the field with scale egg inoculations, these trees display resistance to establishment of the scale insect [48,55]. Research is ongoing to determine the cause of the resistance, but bark protein profiles are different in susceptible and resistant trees [56]. One of the earliest studies exploring the mechanism of scale resistance proposed a gene which encodes a metallothionein-like protein as a candidate for conferring resistance, but no quantitative studies have yet been performed to support this hypothesis [34]. Currently, a multi-agency project is exploring the genetic basis for resistance in-depth [57].
A potential cultural control is enhancing the proportion of seed being released by resistant trees that are not susceptible to the scale insect, in conjunction with other control measures such as the silvicultural treatments. Resistant F. grandifolia trees can be retained in the landscape as potential seed trees, allowing propagules from these resistant trees to reenter areas where F. grandifolia is being removed by BBD. In Wisconsin and Michigan, for example, agencies have made information available to the public describing how to identify resistant F. grandifolia and encouraging their retention as seed trees [58,59]. Landowners are advised to watch for trees which are not infested by scale, and if such trees are found, to retain them and if possible, implement a sanitation cut around them. Over time, these long-lived trees should survive longer than trees which are susceptible to disease and become the most dominant F. grandifolia trees in areas affected by BBD, and thereby the most successful reproducers as susceptible trees succumb to the disease before reaching the dominant position in the canopy.
Resistant trees may be identified in the landscape by the lack of white-washed appearance due to scale. Scale infestation can be identified by the presence of white waxy chaff on the bole of the tree. If no disease signs (scale signs, cankers) are visible on the tree after careful visual inspection of the entire bole with the naked eye and binoculars, the tree is considered potentially resistant. Potentially resistant trees should be retained and re-inspected over successive years. Other visible symptoms of BBD include the presence of annually increasing necrotic cankers, or less commonly tarry spots or sunken lesions [16,17]. These symptoms only develop after the tree has been infected by the fungal component of the disease. The absence of scale infestation indicates potential resistance of the tree, as some lesions and other signs of decay can occur on F. grandifolia trees that do not develop BBD and can be difficult to distinguish from BBD symptoms without experience. Potentially resistant trees identified in the field can be confirmed through field challenge tests [48,55]. Field challenge tests should only be performed in areas where scale has already arrived and established to prevent introduction of the disease to new areas.
A potential source of resistant young trees may be transplanting of known-parentage, resistant seedlings or suckers, though F. grandifolia has a reputation as difficult to transplant [60,61]. The transplanting of root suckers for restoration has been successfully applied in the reforestation of other landscapes, notably in tropical hardwood species and arid landscapes (e.g., [62,63]). Propagation of F. grandifolia by transplanted root suckers is not widely reported in scientific literature but is a known route for many trees. As the application of root sucker propagation for restoration of other species can be successful, it should be explored for F. grandifolia, which so readily root suckers.

3. Artificial Vegetative Propagation of BBD-Resistant F. grandifolia

3.1. Micropropagation

Where micropropagation methods have been properly refined, they can be used to produce a large number of clonal plantlets in vitro in a short amount of time. Micropropagation techniques can be broadly classified into two methods: organogenesis, where many shoots are cultivated from tissue of an existing tree which then form roots, and somatic embryogenesis, where many fully formed embryos are cultivated from tissue of an existing tree, which contain root and shoot embryonic structures. Micropropagation allows for short timelines for creation of a large number of clonal plantlets, but not all produced clones will recruit into soil media [64]. Still, because of the volume of clones which can be produced at the same time, it would be ideal to define methods for micropropagation, because they would allow for the largest volume of clones to be produced in short rotations.
Methods exist to create plantlets through various micropropagation methods, but methods for successful transfer to soil are not well defined. Beech (Fagus spp.) plantlets can be produced through organogenesis [65,66] but no methods have been published to reliably transfer them to soil. Beech embryos can be created through embryogenesis, but again no process has been developed for successful transfer [67]. Micropropagation methods for F. grandifolia have been explored [65,68], though no method of propagating and growing plants through micropropagation has proven reliably successful. Continued research is warranted in these methods, as development of procedures to transplant these plants to soil would allow for production of a large number of clones of resistant trees.

3.2. Grafting

Grafting can create clonal plants which are already established in soil. Handling time for individual plants is generally longer compared to micropropagation, but overall success rates are higher. Grafting is currently the leading method for clonal propagation of F. grandifolia. Scions may be harvested from the outer canopy of a vigorous, BBD-resistant F. grandifolia in the spring before flush occurs (usually February to March). F. grandifolia grafting uses freshly cut scions stored for no more than two weeks before grafting [69,70]. Large scions (up to 2 m in length) may be collected and trimmed to size immediately before grafting.
Bench grafting methods produce F. grandifolia with published success rates as high as 30% [69]. In bench grafting, a scion from a resistant tree is joined with a containerized rootstock from the same species and allowed to heal fully in a greenhouse before planting. Generally, top cleft grafts are used because tools are available to standardize the cut, minimizing technician error. Top cleft grafts require a very precise diameter match of the scion and rootstock. If an exact diameter match is not possible, an apical veneer graft or two staggered veneer grafts may be used, or a modified side graft in the case of small diameter rootstock [69,70]. Apical veneer grafts closely resemble side veneer grafts, but all rootstock above the graft union is removed.
The application of hot callus grafting has achieved average success rates as high as 57% when applied by experienced grafters [70]. In hot callus grafting, top cleft or apical veneer grafts are used to join scions to dormant rootstocks (stored at 4–6 °C and lightly watered). After trees are grafted, they are moved to a cold chamber where ambient air temperatures remain cool (4–6 °C) and only the graft union area is kept inside an insulated heated space (24 °C). Trees are carefully checked for new callus formation at the graft union site starting at about three to four weeks after grafting. When callus tissue has formed, the trees are moved out of the hot callus apparatus to a standard greenhouse or shadehouse [70].
In all grafting, tools, scions, and rootstocks should be disinfected with a 70–80% ethanol solution to prevent contamination. After cutting, the cambium of the rootstock and scion should be laid fully flush together, matched exactly on at least one side of the cut surface. If an exact match is not possible, a larger scion should be selected and matched on one side [69]. Grafts should be gently, yet firmly secured with flexible materials such as grafting rubbers. Rubbers should be wrapped with space sufficient for callus expansion (Figure 1). The entire tree should be dipped in warm (55 °C) paraffin wax past the graft union to prevent drying.
Grafting is the currently accepted method for propagation of BBD-resistant F. grandifolia because methods exist for successful propagation resulting in trees suitable for planting, but there are some drawbacks to the method. Unlike micropropagation, which creates a whole clonal plantlet, grafting produces a tree which is resistant to BBD above the graft union but is still likely susceptible to BBD below the graft union. Graft unions can fail spontaneously years after healing. While success rates are high and methods have been refined for hot callus grafting, space and monetary investments reduce the accessibility of the method. Hot callus grafting requires cold storage and the construction of special hot chambers, limiting space for plants, resulting in low numbers produced at one time. Traditional grafting techniques (those without the aid of a specialized tool) require practice to optimize yield. The relative difficulty to propagate F. grandifolia may lead to a shortage of rootstock availability in private nurseries.
Grafted trees are usually placed in seed orchards to allow long-term maintenance of grafted trees. The graft union will remain fragile for an extended period of time, so the trees should be monitored until they are robust enough to resist damage at the union site. Seed orchards allow production of high volumes of seed of known parentage by limiting pollen sources to the individuals within the orchard (locations are typically in areas with few to no external pollen sources). While this limited breeding stock is desirable for creating crosses of two known resistant parents, it comes at the cost of an inherent genetic bottleneck if sufficient genetically diverse parent trees are unavailable.
A well-designed seed orchard can effectively capture all or a very large proportion of the genetic diversity in a population, but in situations where genetic diversity is limited in the wild, such as in the case of BBD, where only 1–3% of the population will serve as suitable parent trees, populations may be inherently genetically narrow. A well-designed orchard can artificially increase available genetic diversity by design through the intentional crossing of two resistant trees that would not have the ability to cross in the wild due to distance between the individuals.

4. Applications in Restoration

Generally, the technology of a restoration project will be dictated by constraints on time, facilities, and money. In the case of F. grandifolia, there is still fundamental knowledge missing about the species in regards to seed propagation and artificial regeneration [19], so restoration activities should be planned understanding that emerging knowledge could change the context surrounding planned restoration activities.
In complex problem solving, conceptual frameworks can help guide the creation of a focused plan of action. We have applied the conceptual framework that was developed by Jacobs et al. [71] for the restoration of American chestnut (Castanea dentata (Marsh.) Borkh). The authors suggest that to create an effective restoration plan, definition of goals, available inputs and limitations should be considered within the context of ecology, society, and technology spheres [71].
Societal context describes public perception of the species and program, governmental policies and regulations in the area for restoration, and relationships between agencies working on the disease. Ecological context should include background information on the species, as well as an accurate snapshot of the ecology of the area targeted for restoration. The level of degradation should be assessed individually for the target area for each restoration project. Accurate, timely information about the targeted area can identify ecological barriers to restoration if they exist. Technological context describes the techniques necessary for reintroduction of a species. Generally, the technology of a restoration project will be dictated by constraints on time, facilities, and money. In the case of F. grandifolia, there is still much fundamental propagation knowledge missing, so restoration should be planned with the understanding that emerging knowledge could change the context surrounding activities.
Propagation can be used to develop resistant trees, but sustainable, effective restoration requires the planting and continued survival of these trees in the field. When identifying goals for restoration of BBD-affected forests, it is important to preserve any desirable overstory that should not be disturbed (both a small number of resistant F. grandifolia and the remaining co-occurring species), so transformative restoration techniques are likely appropriate in these areas. Rehabilitative restoration, in which forests are restored to a state similar to preexisting conditions, but possibly to a different or degraded state still, is appropriate where forests have been degraded but not eliminated. Forests can be converted or transformed as part of rehabilitative restoration. In conversion, the forest overstory is removed entirely or partially, and a new forest is grown on the site. Transformative restoration involves gradual removals and replacement of portions of the overstory (Figure 2) [72].
In transformation, partial removal of competing vegetation creates availability of growing resources, such as light, water, and soil nutrients for the newly planted individuals of the target species. In BBD-affected forests, a combination of techniques can be used to accomplish the goals of transformative restoration. Cutting and removal of existing vegetation may be necessary to remove both diseased and dying overstory F. grandifolia trees and non-resistant F. grandifolia regeneration, as well as other competing understory vegetation (e.g., invasive grasses, shrub species [26]) before restoration plantings can occur in BBD-affected forests. The silvics for F. grandifolia are known, so thorough surveying enables site selection that is likely to provide the growing space and resources necessary for success of young plants. Information on the severity of BBD and scale infestations can inform decisions for where to focus restoration efforts. Selecting a site with high mortality and low regeneration, if possible, could eliminate the need for site preparation. If these sites are not available, removal of overstory diseased F. grandifolia, coarse woody debris, or regeneration may be necessary. Mechanical and chemical control of competing vegetation as described by Ostrofsky and McCormack [50] would be appropriate site preparation.

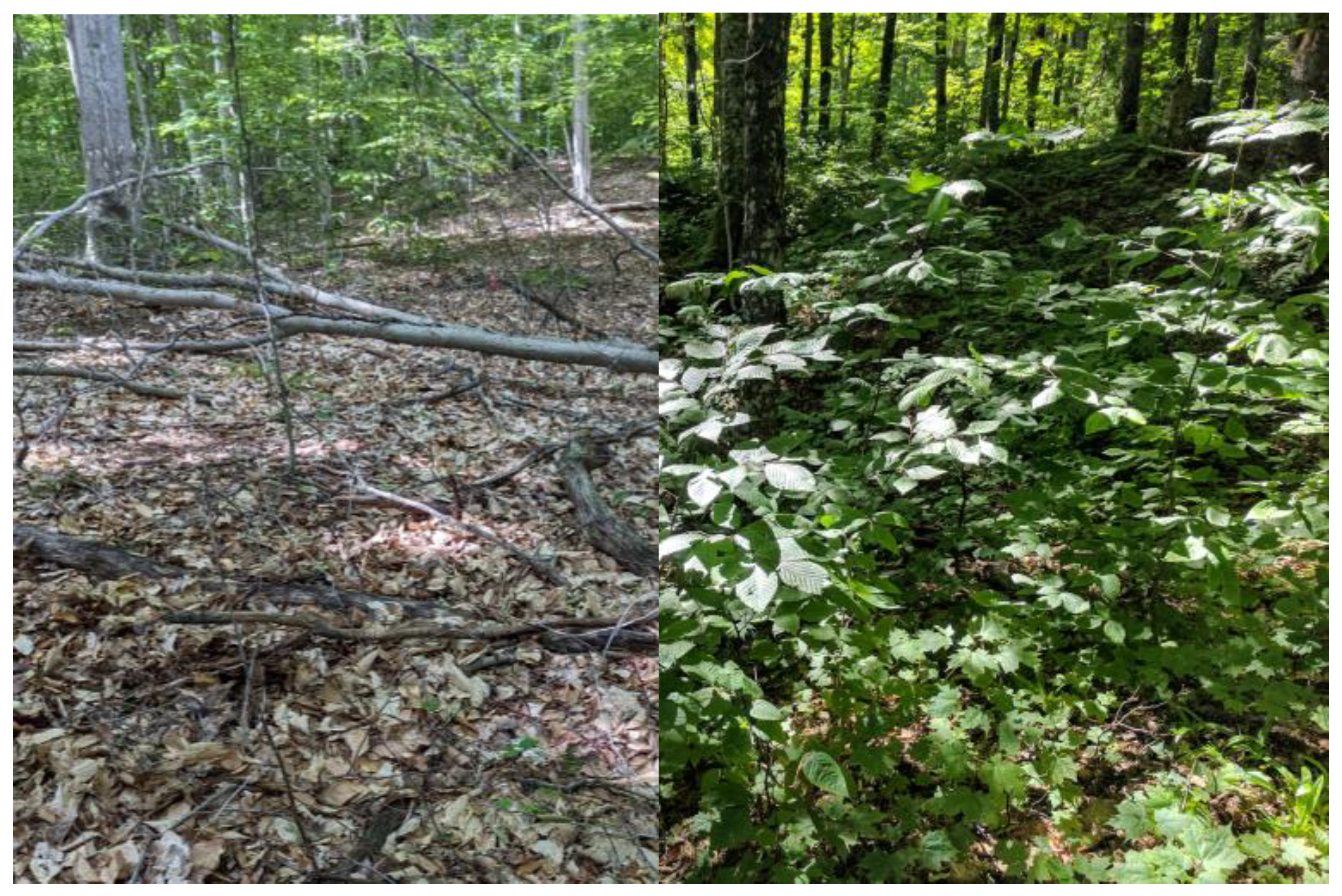

Removing existing vegetation may be necessary before plantings can occur but is only necessary in cases where robust regeneration is occurring (Figure 3). Sites without the strong “thicketing response” do exist in the western extent of the species, but this may be related to time since arrival of the disease [40] or other environmental or physical factors, such as aspects of the ground on which sprouts occur [22]. Ground surveying enables site selection that is likely to provide optimum growing space and resources necessary for the success of young plants. Knowing the severity of BBD and scale infestations can inform decisions regarding where to focus efforts. Selecting a site with high mortality and low regeneration could eliminate the need for intense site preparation.
F. grandifolia seedlings would likely be well suited to interplanting because of their tolerance of moderate to high shade in their early regeneration niche [8]. Interplanting, or planting seedlings among existing forest vegetation, has been utilized to enhance regeneration of other challenged species in the Fagaceae family, but careful site preparation is necessary to meet the light demands of these seedlings [73,74]. The same site preparations may not be necessary if natural gaps due to BBD mortality can be utilized as planting sites. Research is necessary to quantify the amount of cover that would best support Fagus seedling growth in interplantings, and methods for the planting of larger seedlings or sowing of seeds in natural, degraded systems.
With careful selection of parent trees, the highest proportion of genetic diversity can be retained [75]. Within the western range of F. grandifolia, if local provenance and genetics are preserved, the limited number of resistant parent trees occurring in the landscape will inherently limit the genetic diversity of seed orchards. When combined with a desire to retain yet-unknown genetic traits that may hold the key to combating future health challenges, the importance of propagating a genetically diverse population of parent trees increases. Careful consideration should be paid to selection of genetically diverse scion donor trees in the creation of local provenance orchards [76,77]. In traditional orchards, thorough selection of all available BBD-resistant parent trees will enable a large number of controlled genetic crosses. We recognize that the concept of locality can be dependent on artificial boundaries, so “local” may mean the extent of a park, a county, a state, etc., so locality must be defined by the agency pursuing the propagation, which will determine the number of parent trees needed for “sufficient” genetic diversity and complete representation of genetic profiles.
Robust young trees could be interplanted in areas where mortality has occurred, opening the canopy and freeing up both above and below ground resources and suitable microsites, to serve as nucleation centers for restoration (Figure 4). In nucleation, the species of interest is cluster planted, with the goal of drawing natural seed vectors toward the cluster, accelerating the pace at which the desired species spreads from the planting into the surrounding ecosystem [78]. While nucleation allows for immediate release of propagules in target forests, there is not the control over parentage found in traditional seed orchards. By interplanting resistant young trees within affected forests, uncontrolled pollination could occur between undiscovered resistant trees and known resistant crosses, allowing for persistence of resistant trees undiscovered by humans [79]. In F. sylvatica, inter-relatedness is high up to 40 m away from parent trees [80], and that distance is slightly lower in F. grandifolia at 20–30 m [81], but this is likely dictated by low seed dispersal distances. It is suggested that since Fagus is wind-pollinated, the pollen could travel long distances to introduce rare genotypes occasionally, with average ranges of pollen dispersal estimated from 40 to 180 m [81,82]. A potential solution then could be to move a potential resistant seed source closer to resistant pollen sources. Open-pollinated F. grandifolia seedlings with only one resistant parent are about as susceptible to scale as seedlings with no resistant parents [83]; however, in planting resistant F. grandifolia in a patch near multiple known resistant overstory trees, it would increase the likelihood of resistant crosses occurring over time as large susceptible trees die and large resistant trees survive.

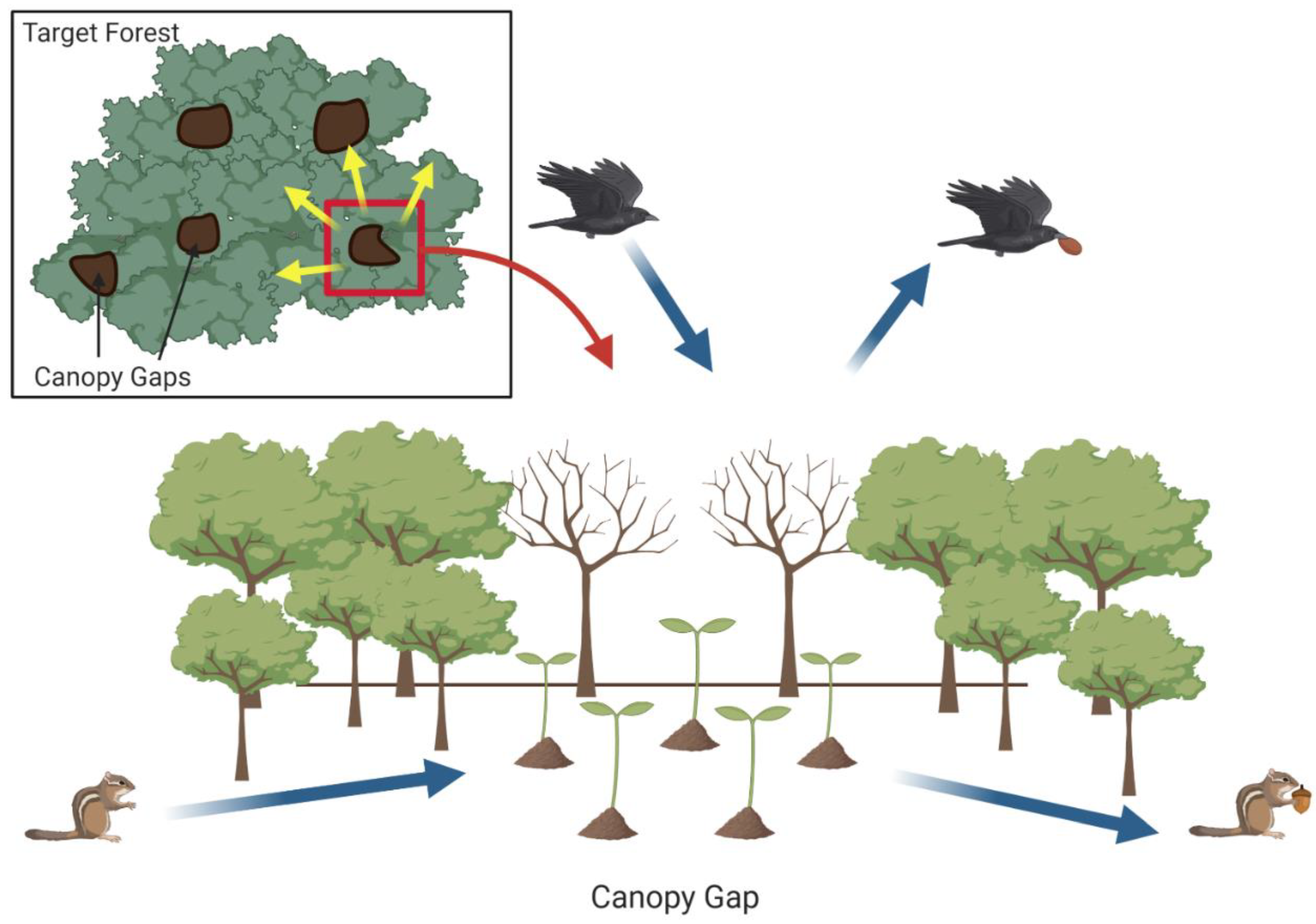

Nucleation has largely been used in tropical forest restoration, and little literature exists examining efficacy in temperate forests [84]. Overall, it is more difficult to maintain the health of individual seedlings in nucleated plantings than in an orchard; however, each seed produced is released into an ecosystem in which it has a predefined niche, by the nature of planting the tree in disturbed areas which previously contained the species, making this a technique worth exploring as a sustainable restoration strategy for temperate forests. If grafted trees are planted directly into nucleation sites, they may be used to provide a relatively short-term pulse of propagules in affected forests as they will likely perish from stress before becoming dominant, but personal observation has revealed that grafted trees are reproductively mature as soon as they have healed from grafting when held in a greenhouse. A cluster planting of seedlings produced from bred resistant tree seed would provide a long-term injection of propagules but would take many years for the planted trees to reach reproductive maturity. The underplanting of resistant trees in nucleated seed orchards may serve as a restoration method that requires little active work in the form of sowing. Since it can be difficult to sustain long-term funding in forest restoration, this short-term pulse of propagules may serve as a sustainable alternative to the expense of creating and maintaining a traditional orchard. Much research would be necessary to support this method, including quantifying life expectancy of interplanted F. grandifolia and grafted F. grandifolia, best methods for interplanting in degraded forests, and dynamics of reproduction in the western extent of F. grandifolia. This could serve as a stopgap measure in tandem with other efforts to propagate F. grandifolia, but the efficacy of these methods for F. grandifolia has yet to be studied in the field.
In Koch et al. [83] open-pollinated resistant seedlings (planted at a site where all susceptible trees were removed) were not significantly differently susceptible from a full-resistant cross improved planting. This suggests that planting resistant seedlings into an area with little competing Fagus regeneration could lead to improved levels of resistance if there is a source of resistant pollen nearby. When considering very diverse forest systems, nucleation is frequently much cheaper for restoring forest systems to an appropriate level of complexity compared to high-diversity plantation methods achieving similar restoration results, despite the high upfront costs of creating nucleated plantings [85]. Still, rate of spread and success vary across instances of application, with some evidence that small-seeded species gain the most benefit from nucleation plantings [86]. F. grandifolia may respond better to nucleation, since we have evidence that blue jays (Cynocitta cristata L.) are an important dispersal vector for the species [87]. Because birds are such an important dispersal vector for F. grandifolia, future research into nucleation plantings is warranted where natural dispersal of resistant trees is desired.

5. Management Recommendations

Restoration project decisions must be made on a contextualized, individual basis. In typical BBD-degraded forests, transformative restoration (where ecosystems are returned to a functioning ecosystem that is different from the historic ecosystem over an extended period of time through gradual replacement) with an emphasis on enrichment plantings (where the percentage of desirable species or genotypes is enhanced through interplanting in the target forest) and gradual removal of undesirable, susceptible trees (by cutting susceptible regeneration where it is interfering with desirable regeneration) to enhance the proportion of resistant genotypes in the landscape would be recommended. If cost and technology are limiting factors, simple preservation of resistant trees will retain a source of potentially resistant seed. If possible, hot callus grafting trees to create clones of resistant F. grandifolia allows for the most efficient creation of resistant trees currently. Tree breeding and improvement of the trees propagated through this method will increase resistance over time through improvement breeding. Programs are in operation currently in the Great Lakes region of the United States that will produce resistant-cross seed in the near future [88].
Agencies which desire resistant seed produced from a traditional orchard should prepare now, for the commonly practiced methods, while successful, will begin bearing seed at minimum 10 years in the future or more. Passive restoration techniques such as retention of seed trees are unlikely to restore F. grandifolia to its previous functional state, but have immediate benefits and can function as a reservoir of the species in the landscape. Because of the low relative effort and large potential reward, retention of seed trees should be strongly encouraged. Additional research to create new techniques between the demands of tree breeding and seed tree retention is needed to expand the suite of techniques for propagation of F. grandifolia, particularly as this species faces emergent challenges which threaten the sustainability of the species in natural areas.
Many gaps exist in our knowledge of propagating F. grandifolia, thus continued research on the methods described here could improve management techniques. Reliable transplanting measures should be determined to increase the success of restoration activities. While grafting rates have been improved with hot callus grafting, continued research could allow for a greater volume of plant material production, ideally through the successful transfer of micropropagated plantlets. Better understanding of the propagation of F. grandifolia would benefit not only the mitigation of BBD, but improve the outlook for the species in the face of other emerging challenges.

Author Contributions

Conceptualization, A.J.S. and Y.L.D.; methodology, A.J.S. and Y.L.D. and A.L.M.; investigation, A.L.M.; resources, A.L.M.; writing—original draft preparation, A.L.M.; writing—review and editing, A.J.S., Y.L.D. and T.L.B.; visualization, A.L.M.; supervision, Y.L.D. and T.L.B.; project administration, Y.L.D. and T.L.B.; funding acquisition, A.J.S. and Y.L.D. All authors have read and agreed to the published version of the manuscript.


This research was funded by a Great Lakes-Northern Forest Cooperative Ecosystem Studies Unit (GLNF CESU) grant, Task Agreement Number P16AC01398, Beech Reintroduction at Pictured Rocks National Lakeshore and Sleeping Bear Dunes National Lakeshore, a cooperative agreement with the National Park Service.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created in the writing of this manuscript. Data sharing is not applicable.


Bruce Leutscher was instrumental in creation of the initial funding proposal and F. grandifolia restoration project creation with the Department of Interior, National Park Service. The authors thank Scott Rogers at the Oconto River Seed Orchard, United States Forest Service for personal communications and training leading to increased understanding of the grafting and care of F. grandifolia seedlings. The images featured in Figure 2 were created by Andrea L. Myers in Adobe photoshop.

Conflicts of Interest

The authors declare no conflict of interest. Yvette L. Dickinson works for Scion research, registered as Forest Research Institute Limited administered by the New Zealand Crown Research Institute, a corporatized Crown entity. Funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the review.


  1. Flachowsky, H.; Hanke, M.V.; Peil, A.; Strauss, S.H.; Fladung, M. A review on transgenic approaches to accelerate breeding of woody plants: Review. Plant Breed 2009, 128, 217–226. [Google Scholar] [CrossRef]
  2. Sniezko, R.A.; Koch, J. Breeding trees resistant to insects and diseases: Putting theory into application. Biol. Invasions 2017, 19, 3377–3400. [Google Scholar] [CrossRef]
  3. Burger, T.L.; Kotar, J. A Guide to Forest Communities and Habitat Types of Michigan; University of Wisconsin-Madison: Madison, WI, USA, 2003. [Google Scholar]
  4. Rosemier, J.N.; Storer, A.J. Assessing the responses of native small mammals to an incipient invasion of beech bark disease through changes in seed production of American beech (Fagus grandifolia). Am. Midl. Nat. 2010, 164, 238–259. [Google Scholar] [CrossRef]
  5. Jensen, P.G.; Demers, C.L.; McNulty, S.A.; Jakubas, W.J.; Humphries, M.M. Marten and fisher responses to fluctuations in prey populations and mast crops in the northern hardwood forest: Marten and fisher harvest dynamics. J. Wildl. Manag. 2012, 76, 489–502. [Google Scholar] [CrossRef]
  6. Conrod, C.A.; Reitsma, L. Demographic responses of myomorph rodents to mast production in a beech- and birch-dominated Northern hardwood forest. Northeast Nat. 2015, 22, 746–761. [Google Scholar] [CrossRef]
  7. Kremer, A.; Casasoli, M.; Barreneche, T.; Bodénès, C.; Sisco, P.; Kubisiak, T.; Scalfi, M.; Leonardi, S.; Bakker, E.; Buiteveld, J.; et al. Fagaceae Trees. In Forest Trees; Springer: Berlin/Heidelberg, Germany, 2007; pp. 161–187. [Google Scholar]
  8. Tubbs, C.H.; Houston, D.R. Fagus grandifolia Ehrh. American beech. In Silvics of North America; Burns, R.M., Honkala, B.H., Eds.; Agriculture Handbook; U.S. Department of Agriculture Forest Service: Washington, DC, USA, 1990; Volume 2: Hardwoods, pp. 325–332. [Google Scholar]
  9. Carpenter, R.D. American Beech. In American Woods; U.S. Department of Agriculture, Forest Service: Washington DC, USA, 1974; p. 8. [Google Scholar]
  10. McCullough, D.G.; Heyd, R.L.; O’Brien, J.G. Biology and Management of Beech Bark Disease; Michigan State University, East Lansing, MI, USA, 2001.
  11. U.S. Department of Agriculture Forest Service, Northern Research Station Forest Health Protection. Alien Forest Pest Explorer—Species Map. Available online: (accessed on 16 August 2021).
  12. Ewing, C.J.; Hausman, C.E.; Pogacnik, J.; Slot, J.; Bonello, P.; Sieber, T. Beech leaf disease: An emerging forest epidemic. For. Pathol. 2019, 49, e12488. [Google Scholar] [CrossRef]
  13. Carta, L.K.; Handoo, Z.A.; Li, S.; Kantor, M.; Bauchan, G.; McCann, D.; Gabriel, C.K.; Yu, Q.; Reed, S.; Koch, J. Beech leaf disease symptoms caused by newly recognized nematode subspecies Litylenchus crenatae mccannii (Anguinata) described from Fagus grandifolia in North America. For. Pathol. 2020, 50, e12580. [Google Scholar] [CrossRef]
  14. Sweeney, J.D.; Hughes, C.; Zhang, H.; Hillier, N.K.; Morrison, A.; Johns, R. Impact of the invasive beech leaf-mining weevil, Orchestes fagi, on American beech in Nova Scotia, Canada. Front. For. Glob. Chang. 2020, 3, 1–11. [Google Scholar] [CrossRef]
  15. Iverson, L.R.; Prasad, A.M.; Matthews, S.N.; Peters, M. Estimating potential habitat for 134 eastern US tree species under six climate scenarios. For. Ecol. Manag. 2008, 254, 390–406. [Google Scholar] [CrossRef]
  16. Ehrlich, J. The beech bark disease, a Nectria disease of Fagus following Cryptococcus fagi (Baer.). Can. J. For. Res. 1934, 10, 593–692. [Google Scholar] [CrossRef]
  17. Houston, D.R. Major new tree disease epidemics: Beech bark disease. Annu. Rev. Phytopathol. 1994, 32, 75–87. [Google Scholar] [CrossRef]
  18. Cale, J.A.; Garrison-Johnston, M.T.; Teale, S.A.; Castello, J.D. Beech bark disease in North America: Over a century of research revisited. For. Ecol. Manag. 2017, 394, 86–103. [Google Scholar] [CrossRef]
  19. Beckman, E.; Meyer, A.; Pivorunas, D.; Hoban, S.; Westwood, M. Conservation Gap Analysis of American Beech; The Morton Arboretum: Lisle, IL, USA, 2021. [Google Scholar]
  20. Bonner, F.T.; Leak, W.B. Fagus L. In The Woody Plant Seed Manual; Bonner, F.T., Karrfalt, R.P., Eds.; Forest Service Agricultural Handbook; U.S. Department of Agriculture: Washington, DC, USA, 2008; Volume 727, pp. 520–524. [Google Scholar]
  21. Stephanson, C.A.; Coe, N.R. Impacts of beech bark disease and climate change on American beech. Forests 2017, 8, 155. [Google Scholar] [CrossRef]
  22. Held, M.E. Pattern of beech regeneration in the east-central United States [Fagus grandifolia, environmental variables, relationship of reproductive mechanisms to geographic distribution in deciduous forests]. J. Torrey Bot. Soc. 1983, 110, 55–62. [Google Scholar] [CrossRef]
  23. Del Tredici, P. Sprouting in Temperate Trees: A Morphological and Ecological Review. Bot. Rev. 2001, 67, 121–140. [Google Scholar] [CrossRef]
  24. Giencke, L.M.; Martin, D.I.; Giorgos, M.; Jonathan, A.C.; Myron, J.M. Beech bark disease: Spatial patterns of thicket formation and disease spread in an aftermath forest in the northeastern United States. Can. J. For. Res. 2014, 44, 1042–1050. [Google Scholar] [CrossRef]
  25. Nyland, R.D. Origin of small understory beech in New York northern hardwood stands. North. J. Appl. For. 2008, 25, 161–163. [Google Scholar] [CrossRef]
  26. Wagner, S.; Collet, C.; Madsen, P.; Nakashizuka, T.; Nyland, R.D.; Sagheb-Talebi, K. Beech regeneration research: From ecological to silvicultural aspects. For. Ecol. Manag. 2010, 259, 2172–2182. [Google Scholar] [CrossRef]
  27. Nyland, R.D.; Bashant, A.L.; Bohn, K.K.; Verostek, J.M. Interference to hardwood regeneration in northeastern North America: Controlling effects of American beech, striped maple, and hobblebush. North. J. Appl. For. 2006, 23, 122–132. [Google Scholar] [CrossRef]
  28. Bernard, A.; Gélinas, N.; Duchateau, E.; Durocher, C.; Achim, A. American beech in value-added hardwood products: Assessing consumer preferences. Bioresources 2019, 13, 6893–6910. [Google Scholar] [CrossRef]
  29. Burns, B.S.; Houston, D.R. Managing beech bark disease: Evaluating defects and reducing losses. North. J. Appl. For. 1987, 4, 28–33. [Google Scholar] [CrossRef]
  30. Lemaitre, J.; Villard, M.A. Foraging patterns of pileated woodpeckers in a managed Acadian forest: A resource selection function. Can. J. For. Res. 2005, 35, 2387–2393. [Google Scholar] [CrossRef]
  31. Tozer, D.C.; Burke, D.M.; Nol, E.; Elliott, K.A. Managing ecological traps: Logging and sapsucker nest predation by bears. J. Wildl. Manag. 2012, 76, 887–898. [Google Scholar] [CrossRef]
  32. Kahler, H.A.; Anderson, J.T. Tree cavity resources for dependent cavity-using wildlife in West Virginia forests. North. J. Appl. For. 2006, 23, 114–121. [Google Scholar] [CrossRef]
  33. Faison, E.K.; Houston, D.R. Black bear foraging in response to beech bark disease in northern Vermont. Northeast Nat. 2004, 11, 387–394. [Google Scholar] [CrossRef]
  34. Čalić, I.; Koch, J.; Carey, D.; Addo-Quaye, C.; Carlson, J.E.; Neale, D.B. Genome-wide association study identifies a major gene for beech bark disease resistance in American beech (Fagus grandifolia Ehrh.). BMC Genom. 2017, 18, 547. [Google Scholar] [CrossRef] [PubMed]
  35. Wainhouse, D. Dispersal of first instar larvae of the felted beech scale, Cryptococcus fagisuga. J. Appl. Ecol. 1980, 17, 523–532. [Google Scholar] [CrossRef]
  36. Kasson, M.T.; Livingston, W.H. Spatial distribution of Neonectria species associated with beech bark disease in northern Maine. Mycologia 2009, 101, 190–195. [Google Scholar] [CrossRef]
  37. Gavin, D.G.; Peart, D.R. Effects of beech bark disease on the growth of American beech (Fagus grandifolia). Can. J. For. Res. 1993, 23, 1566–1575. [Google Scholar] [CrossRef]
  38. Cale, J.A.; Teale, S.A.; Johnston, M.T.; Boyer, G.L.; Perri, K.A.; Castello, J.D. New ecological and physiological dimensions of beech bark disease development in aftermath forests. For. Ecol. Manag. 2015, 336, 99–108. [Google Scholar] [CrossRef]
  39. Garnas, J.R.; Ayres, M.P.; Liebhold, A.M.; Evans, C. Subcontinental impacts of an invasive tree disease on forest structure and dynamics. J. Ecol. 2011, 99, 532–541. [Google Scholar] [CrossRef]
  40. Roy, M.È.; Nolet, P. Early-stage of invasion by beech bark disease does not necessarily trigger American beech root sucker establishment in hardwood stands. Biol. Invasions 2018, 20, 3245–3254. [Google Scholar] [CrossRef]
  41. Wainhouse, D.; Gate, I.M. The Beech Scale. In Dynamics of Forest Insect Populations: Patterns, Causes, Implications; Berryman, A.A., Ed.; Population Ecology; Springer: Boston, MA, USA, 1988; pp. 67–85. [Google Scholar] [CrossRef]
  42. Garnas, J.R.; Houston, D.R.; Twery, M.J.; Ayres, M.P.; Evans, C.A.; Lucas, J.A.; Twery, M.J. Inferring controls on the epidemiology of beech bark disease from spatial patterning of disease organisms. Agric. For. Entomol. 2013, 15, 146–156. [Google Scholar] [CrossRef]
  43. Wiggins, G.J.; Grant, J.F.; Eelbourn, W.C. Allothrombium mitchelli (Acari: Trombidiidae) in the Great Smoky Mountains National Park: Incidence, seasonality, and predation on beech scale (Homoptera: Eriococcidae). Ann. Entomol. Soc. Am. 2001, 94, 896–901. [Google Scholar] [CrossRef]
  44. Mayer, M.; Allen, D.C. Chilocorus stigma (Coleoptera: Coccinellidae) and other predators of beech scale in central New York. In Proceedings of the IUFRO Beech Bark Disease Working Party Conference, Hamden, CT, USA, 27 September–7 October 1982; GTR-WO-37. U.S. Department of Agriculture Forest Service: Washington, DC, USA, 1983; pp. 89–98. [Google Scholar]
  45. Houston, D.; O’Brien, J. Beech Bark Disease: Forest Insect and Disease Leaflet 75; U.S. Department of Agriculture Forest Service, Northeastern Forest Experiment Station: Hamden, CT, USA, 1983. [Google Scholar]
  46. Weber, R.W.S. Biology and control of the apple canker fungus Neonectria ditissima (syn. N. galligena) from a Northwestern European perspective. Erwerbs-Obstbau 2014, 56, 95–107. [Google Scholar] [CrossRef]
  47. Walter, M.; Stevenson, O.D.; Amponsah, N.T.; Scheper, R.W.A.; Rainham, D.G.; Hornblow, C.G.; Kerer, U.; Dryden, G.H.; Latter, I.; Butler, R.C. Control of Neonectria ditissima with copper based products in New Zealand. N. Z. Plant Prot. 2015, 68, 241–249. [Google Scholar] [CrossRef]
  48. Houston, D.R. A Technique to Artificially Infest Beech Bark with the Beech Scale Cryptococcus Fagisuga (Lindinger); Reasearch Paper NE-507; U.S. Department of Agriculture Forest Service, Northeastern Forest Experiment Station: Broomall, PA, USA, 1982.
  49. Walter, M.; Campbell, R.E.; Amponsah, N.T.; Scheper, R.W.A.; Butler, R.C. Evaluation of biological and agrichemical products for control of Neonectria ditissima conidia production. N. Z. Plant. Prot. 2017, 70, 87–96. [Google Scholar] [CrossRef]
  50. Ostrofsky, W.D.; McCormack, M.L. Silvicultural management of beech and the beech bark disease. North. J. Appl. For. 1986, 3, 89–91. [Google Scholar] [CrossRef]
  51. Bohn, K.K.; Nyland, R.D. Forecasting development of understory American beech after partial cutting in uneven-aged northern hardwood stands. For. Ecol. Manag. 2003, 180, 453–461. [Google Scholar] [CrossRef]
  52. Fajvan, M.A.; Hille, A.; Turcotte, R.M. Managing understory Fagus grandifolia for promoting beech bark disease resistance in Northern Hardwood Stands. For. Sci. 2019, 65, 644–651. [Google Scholar] [CrossRef]
  53. Leak, W.B. Fifty-year impacts of the beech bark disease in the Bartlett Experimental Forest, New Hampshire. North. J. Appl. For. 2006, 23, 141–143. [Google Scholar] [CrossRef]
  54. Taylor, A.R.; McPhee, D.A.; Loo, J.A. Incidence of beech bark disease resistance in the eastern Acadian forest of North America. For. Chron. 2013, 89, 690–695. [Google Scholar] [CrossRef]
  55. Koch, J.L.; Carey, D.W. A technique to screen American beech for resistance to the beech scale insect (Cryptococcus fagisuga Lind.). J. Vis. Exp. 2014, 87, e51515. [Google Scholar] [CrossRef]
  56. Mason, M.E.; Koch, J.L.; Krasowski, M.; Loo, J. Comparisons of protein profiles of beech bark disease resistant and susceptible American beech (Fagus grandifolia). Proteome Sci. 2013, 11, 2. [Google Scholar] [CrossRef]
  57. Carlson, J.E.; Ćalić, I.; Koch, J.; Carey, D.; Addo-Quaye, C.; Shim, D.; Neale, D.B. Candidate genes from GWAS and RNASeq for beech bark disease resistance in American beech. In Proceedings of the Sixth International Workshop on the Genetics of Host-Parasite Interactions in Forestry—Tree Resistance to Insects and Diseases: Putting Promise into Practice, Asheville, NC, USA, 5–10 August 2018; Nelson, C.D., Koch, J., Sniezko, R.A., Eds.; e-GTR-SRS-252. U.S. Department of Agriculture Forest Service, Southern Research Station: Washington, DC, USA, 2020; pp. 42–51. [Google Scholar]
  58. Heyd, R.L. Managing beech bark disease in Michigan. In Beech Bark Disease, Proceedings of the Beech Bark Disease Symposium, Saranac Lake, New York, NY, USA, 16–18 June 2004; Evans, C.A., Lucas, J.A., Twery, M.J., Eds.; PNW-GTR-352; U.S. Department of Agriculture Forest Service: Newtown Square, PA, USA, 2005; pp. 128–137. [Google Scholar]
  59. Wisconsin Department of Natural Resources. Management of Beech Bark Disease in Wisconsin. Madison, WI, USA. Available online: (accessed on 6 June 2022).
  60. Missouri Botanical Garden. Fagus Grandifolia. Available online: (accessed on 6 June 2022).
  61. Morton Arboretum. American Beech. Available online: (accessed on 6 June 2022).
  62. Gough, R.E. Juneberries for Montana Gardens; eresource MT198806AG; Montana Extension Service: Montana State University, Bozeman, MT, USA, 2010. [Google Scholar]
  63. Sapkota, S.; Sapkota, S.; Wang, S.; Liu, Z. Height and diameter affect survival rate of jujube suckers transplanted in a semi-arid farmland of New Mexico. J. Appl. Hort. 2019, 21, 249–251. [Google Scholar] [CrossRef]
  64. Diner, A.M. Somatic embryogenesis in forestry: A practical approach to cloning the best trees. In Under the Canopy—Forestry and Forest Products Newsletter of the Alaska Cooperative Extension; Wheeler, R., Ed.; University of Alaska Fairbanks Copperative Extension Service: Fairbanks, AK, USA, 1999; pp. 7–8. [Google Scholar]
  65. Barker, M.J.; Pijut, P.M.; Ostry, M.E.; Houston, D.R. Micropropagation of juvenile and mature American beech. Plant Cell Tissue Organ. Cult. 1997, 51, 209–213. [Google Scholar] [CrossRef]
  66. Pijut, P.M.; Woeste, K.E.; Michler, C.H. Promotion of adventitious root formation of difficult-to-root hardwood tree species. Horticult. Rev. 2011, 38, 213–251. [Google Scholar]
  67. Hazubska-Przybył, T.; Chmielarz, P.; Bojarczuk, K. In vitro responses of various explants of Fagus sylvatica. Dendrobiology 2015, 73, 135–144. [Google Scholar] [CrossRef]
  68. Loo, J.; Ramirez, M.; Krasowski, M. American beech vegetative propagation and genetic diversity. In Beech Bark Disease, Proceedings of the Beech Bark Disease Symposium, Saranak Lake, NY, USA, 16–18 June 2004; Evans, C.A., Lucas, J.A., Twery, M.J., Eds.; PNW-GTR-352; U.S. Department of Agriculture Forest Service: Newtown Square, PA, USA, 2005; pp. 106–112. [Google Scholar]
  69. Ramirez, M.; Krasowski, M.J.; Loo, J.A. Vegetative propagation of American beech resistant to beech bark disease. HortScience 2007, 42, 320–324. [Google Scholar] [CrossRef]
  70. Carey, D.W.; Mason, M.E.; Bloese, P.; Koch, J.L. Hot callusing for propagation of American beech by grafting. HortScience 2013, 48, 620–624. [Google Scholar] [CrossRef]
  71. Jacobs, D.F.; Dalgleish, H.J.; Nelson, C.D. A conceptual framework for restoration of threatened plants: The effective model of American chestnut (Castanea dentata) reintroduction. New Phytol. 2013, 197, 378–393. [Google Scholar] [CrossRef] [PubMed]
  72. Stanturf, J.A.; Palik, B.J.; Dumroese, R.K. Contemporary forest restoration: A review emphasizing function. For. Ecol. Manag. 2014, 331, 292–323. [Google Scholar] [CrossRef]
  73. Löf, M.; Dey, D.C.; Navarro, R.M.; Jacobs, D.F. Mechanical site preparation for forest restoration. New For. 2012, 43, 825–848. [Google Scholar] [CrossRef]
  74. Truax, B.; Gagnon, D.; Fortier, J.; Lambert, F.; Pétrin, M.-A. Ecological factors affecting white pine, red oak, bitternut hickory and black walnut underplanting success in a Northern Temperate post-agricultural forest. Forests 2018, 9, 499. [Google Scholar] [CrossRef]
  75. Johnson, R.; Lipow, S. Compatibility of breeding for increased wood production and long-term sustainability: The genetic variation of seed orchard seed and associated risks. In Congruent Management of Multiple Resources, Proceedings from the Wood Compatibility Initiative Workshop, Stevenson, Washington, USA, 4–7 December 2001; Johnson, A.C., Haynes, R.W., Monserud, R.A., Eds.; PNW-GTR-563; U.S. Department of Agriculture Forest Service, Pacific Northwest Research Station: Portland, OR, USA, 2002; pp. 169–182. [Google Scholar]
  76. Houston, D.; Houston, D. Variation in American beech (Fagus grandifolia Ehrh.): Isozyme analysis of genetic structure in selected stands. Silvae Genet. 1994, 43, 277–284. [Google Scholar]
  77. Houston, D.B.; Houston, D.R. Allozyme genetic diversity among Fagus grandifolia trees resistant or susceptible to beech bark disease in natural populations. Can. J. For. Res. 2000, 30, 778–789. [Google Scholar] [CrossRef]
  78. Corbin, J.D.; Holl, K.D. Applied nucleation as a forest restoration strategy. For. Ecol. Manag. 2012, 265, 37–46. [Google Scholar] [CrossRef]
  79. Wright, S. The genetics of quantitative variability. In Quantitative Inheritance; Edinburgh University: Edinburgh, UK, 1950; Her Majesty’s Stationery Office: Norwich, UK, 1952; pp. 5–41. [Google Scholar]
  80. Chybicki, I.J.; Trojankiewicz, M.; Oleksa, A.; Dzialuk, A.; Burczyk, J. Isolation-by-distance within naturally established populations of European beech (Fagus sylvatica). Botany 2009, 87, 791–798. [Google Scholar] [CrossRef]
  81. Kitamura, K.; Morita, T.; Kudo, H.; O’Neill, J.; Utech, F.H.; Whigham, D.F.; Kawano, S. Demographic genetics of the American beech (Fagus grandifolia Ehrh.) III. Genetic substructuring of coastal plain population in Maryland. Plant Species Biol. 2003, 18, 13–33. [Google Scholar] [CrossRef]
  82. Westergren, M.; Bozic, G.; Ferreira, A.; Kraigher, H. Insignificant effect of management using irregular shelterwood system on the genetic diversity of European beech (Fagus sylvatica L.): A case study of managed stand and old growth forest in Slovenia. For. Ecol. Manag. 2015, 335, 51–59. [Google Scholar] [CrossRef]
  83. Koch, J.L.; Carey, D.W.; Mason, M.E.; Nelson, C.D. Assessment of beech scale resistance in full- and half-sibling American beech families. Can. J. For. Res. 2010, 40, 265–272. [Google Scholar] [CrossRef]
  84. Boanares, D.; Azevedo, C.S.d. The use of nucleation techniques to restore the environment: A bibliometric analysis. Nat. Conserv. 2014, 12, 93–98. [Google Scholar] [CrossRef]
  85. Campanhã Bechara, F.; Trentin, B.E.; Lex Engel, V.; Estevan, D.A.; Ticktin, T. Performance and cost of applied nucleation versus high-diversity plantations for tropical forest restoration. For. Ecol. Manag. 2021, 491, 119088. [Google Scholar] [CrossRef]
  86. Holl, K.D.; Reid, J.L.; Chaves-Fallas, J.M.; Oviedo-Brenes, F.; Zahawi, R.A. Local tropical forest restoration strategies affect tree recruitment more strongly than does landscape forest cover. J. Appl. Ecol. 2017, 54, 1091–1099. [Google Scholar] [CrossRef]
  87. Johnson, W.C.; Adkisson, C.S. Dispersal of beech nuts by blue jays in fragmented landscapes. Am. Midl. Nat. 1985, 113, 319–324. [Google Scholar] [CrossRef]
  88. Koch, J.; Allmaras, S.; Barnes, P.; Berrang, T.; Hall, A.; Iskra, J.; Kochenderfer, W.; MacDonald, W.; Rogers, S.; Rose, J. Beech seed orchard development: Identification and propagation of beech bark resistant American beech trees. In Forest Health Monitoring: National Status, Trends and Analysis, 2014; Potter, K.M., Conkling, B.L., Eds.; GTR-SRS-209; U.S. Department of Agriculture Forest Service: Asheville, NC, USA, 2015; pp. 103–108. [Google Scholar]

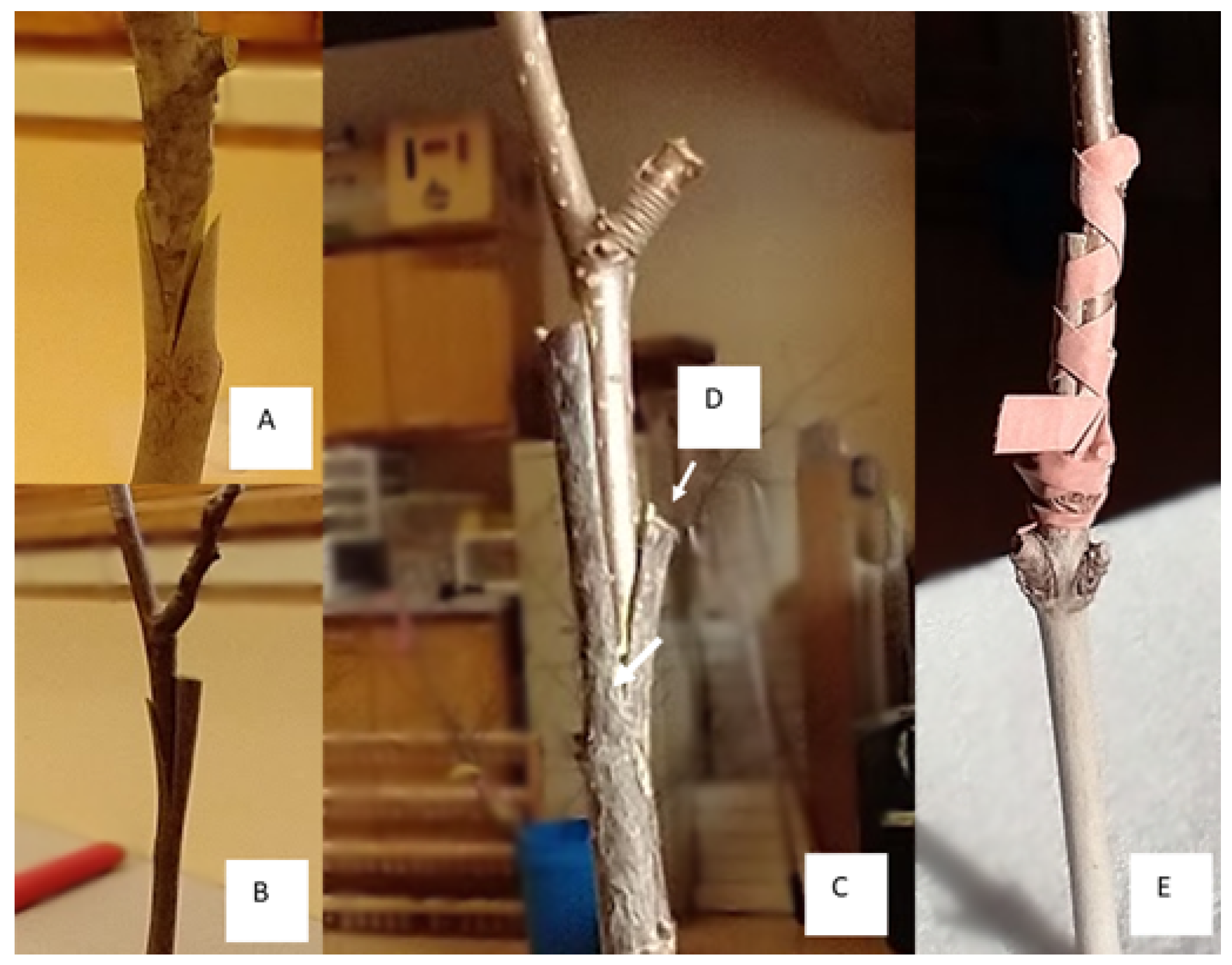

Figure 1. Grafts acceptable for use in F. grandifolia. (A) Top Cleft graft, performed with a FieldCraft Top Grafter. (B) Apical veneer graft. Two veneer grafts may be staggered on opposite sides of the rootstock. (C) Modified side graft with (D) enhanced sap drawer. (E) A graft union wrapped with space sufficient to allow callus formation.
Figure 1. Grafts acceptable for use in F. grandifolia. (A) Top Cleft graft, performed with a FieldCraft Top Grafter. (B) Apical veneer graft. Two veneer grafts may be staggered on opposite sides of the rootstock. (C) Modified side graft with (D) enhanced sap drawer. (E) A graft union wrapped with space sufficient to allow callus formation.
Sustainability 15 07490 g001

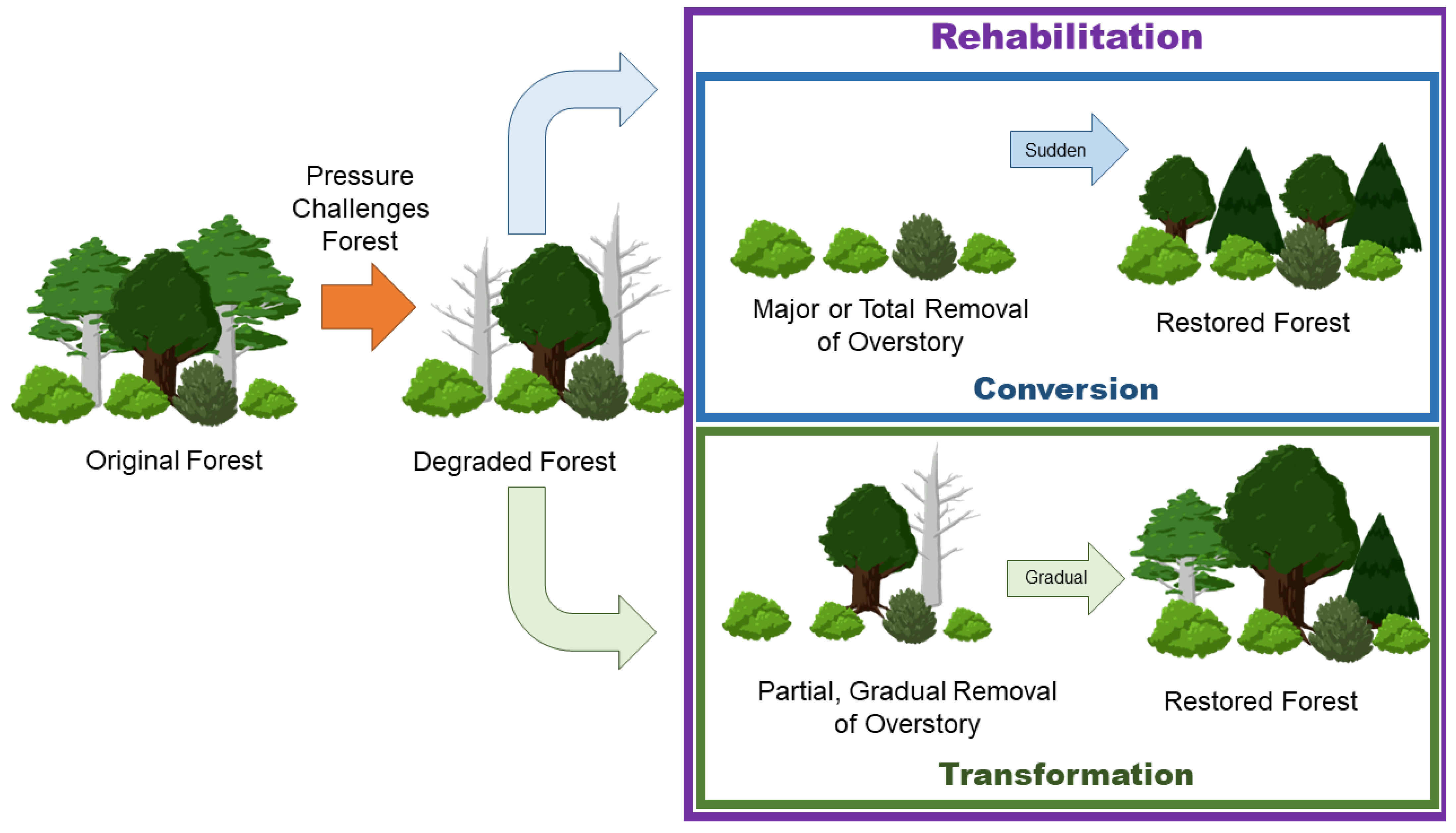

Figure 2. Types of rehabilitative restoration. Conversion focuses on the total or major removal of overstory species and replacement with other appropriate species. Transformation emphasizes the gradual or partial removal of species and replacement with a suite of species. Rehabilitative restoration may restore some preexisting species in the degraded forest, but the goal is not to recreate the pre-disturbance condition. Rather, this technique accepts a degraded or changed forest, and emphasis is placed on restoring function.
Figure 2. Types of rehabilitative restoration. Conversion focuses on the total or major removal of overstory species and replacement with other appropriate species. Transformation emphasizes the gradual or partial removal of species and replacement with a suite of species. Rehabilitative restoration may restore some preexisting species in the degraded forest, but the goal is not to recreate the pre-disturbance condition. Rather, this technique accepts a degraded or changed forest, and emphasis is placed on restoring function.
Sustainability 15 07490 g002
Figure 3. Sites within the same region with differing regeneration responses. Left, a site with above ground F. grandifolia mortality but no suckering response in the understory. Right, a site with above ground F. grandifolia mortality and an early thicketing response. Planting of trees would be possible with little control in the site with no suckering response, but intense silvicultural treatments would be necessary to plant in the site with a F. grandifolia thicket response.
Figure 3. Sites within the same region with differing regeneration responses. Left, a site with above ground F. grandifolia mortality but no suckering response in the understory. Right, a site with above ground F. grandifolia mortality and an early thicketing response. Planting of trees would be possible with little control in the site with no suckering response, but intense silvicultural treatments would be necessary to plant in the site with a F. grandifolia thicket response.
Sustainability 15 07490 g003
Figure 4. Nucleated F. grandifolia seed orchards are an option for restoration in targeted forests. A canopy gap created by beech bark disease is chosen as a nucleation site and resistant young trees are cluster-planted (competing plants in the understory must also be removed by mechanical methods prior to planting). Seed produced by the planted young trees attracts wildlife to the nucleated seed orchard. Wildlife aid in seed dispersal. In this way, nucleated seed orchards serve as a propagule for reintroduction into the entire target forest by natural seed dispersal pathways. Image created with
Figure 4. Nucleated F. grandifolia seed orchards are an option for restoration in targeted forests. A canopy gap created by beech bark disease is chosen as a nucleation site and resistant young trees are cluster-planted (competing plants in the understory must also be removed by mechanical methods prior to planting). Seed produced by the planted young trees attracts wildlife to the nucleated seed orchard. Wildlife aid in seed dispersal. In this way, nucleated seed orchards serve as a propagule for reintroduction into the entire target forest by natural seed dispersal pathways. Image created with
Sustainability 15 07490 g004
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Myers, A.L.; Storer, A.J.; Dickinson, Y.L.; Bal, T.L. A Review of Propagation and Restoration Techniques for American Beech and Their Current and Future Application in Mitigation of Beech Bark Disease. Sustainability 2023, 15, 7490.

AMA Style

Myers AL, Storer AJ, Dickinson YL, Bal TL. A Review of Propagation and Restoration Techniques for American Beech and Their Current and Future Application in Mitigation of Beech Bark Disease. Sustainability. 2023; 15(9):7490.

Chicago/Turabian Style

Myers, Andrea L., Andrew J. Storer, Yvette L. Dickinson, and Tara L. Bal. 2023. "A Review of Propagation and Restoration Techniques for American Beech and Their Current and Future Application in Mitigation of Beech Bark Disease" Sustainability 15, no. 9: 7490.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
