Enhanced Photoelectrochemical Water Oxidation on BiVO4 Photoanodes Functionalized by Bimetallic Dicyanamide Molecular Catalysts

by
Xiaokang Wan
1,*,
Dashun Lu
1,
Xianyun Wang
1,
Gezhong Liu
1,
Yanming Fu
2,
Chao Hu
1,
Nai Rong
1,
Haitao Wang
1 and
Zude Cheng
1
1
Anhui Advanced Technology Research Institute of Green Building, School of Environment and Energy Engineering, Anhui Jianzhu University, Hefei 230601, China
2
Anhui Province Key Laboratory of Advanced Catalytic Materials and Reaction Engineering, School of Chemistry and Chemical Engineering, Hefei University of Technology, Hefei 230009, China
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(4), 3129; https://doi.org/10.3390/su15043129
Submission received: 30 November 2022 / Revised: 25 January 2023 / Accepted: 7 February 2023 / Published: 8 February 2023
(This article belongs to the Special Issue Sustainable Photochemical Systems for Solar-to-Fuel Production)
Browse Figures
Versions Notes

Abstract

:
A novel hybrid structure of bimetallic dicyanamide decorated BiVO4 is developed via a simple method to accelerate interfacial water oxidation kinetics. Two types of bimetallic dicyanamides, CoNi(dca)2 and CoFe(dca)2, are coated on BiVO4 photoanodes and are found to exhibit far more enhanced PEC performance than Co(dca)2 or Ni(dca)2 as cocatalysts. The successful deposition of metal dicyanamides on BiVO4 photoanodes is confirmed by physical characterizations including X-ray photoelectron spectroscopy (XPS). The optimized Co0.9Ni0.1(dca)2/BiVO4 photoanode exhibits the highest photocurrent density of 2.58 mA/cm2 at 1.23 V vs. RHE under 100 mW/cm2 AM 1.5 G irradiation, which is 2.5 times that of bare BiVO4. The substantial enhancement of PEC performance can be ascribed to the advantageous interfacial charge transfer and improved charge injection efficiencies. This work presents a feasible strategy using different types of bimetallic dicyanamides to design a modified BiVO4-based photoanode system for enhanced water oxidation efficiency.

1. Introduction

Photoelectrochemical (PEC) and photocatalytic water splitting for producing hydrogen using semiconductor materials provides a viable route to achieve the conversion and storage of solar energy in an environmentally friendly manner [1,2,3]. Among the promising semiconductor candidates, BiVO4 is seen as a highly efficient photo-active visible-light-driven photocatalyst owing to a band gap of 2.4 eV, which provides sufficient overpotential for photogenerated holes to oxidize water [4] and favorable chemical stability in neutral and weak alkaline electrolyte [5]. However, its efficiency and stability are still not satisfying, and the technology bottleneck lies in slow surface kinetics for water oxidation, which hinder effective transfer and separation for photogenerated charge carriers [6,7]. Thus, it is critical to develop more suitable cost-effective cocatalysts to enhance the water oxidation kinetics and photo-reactivity of BiVO4 [8].
Rapid developments in various modification strategies of surface loading have elevated BiVO4 to its position as one of the most promising metal oxide photoanode materials [9,10,11,12]. Jian et al. used phenolic hydroxyl groups as anchoring groups to graft laser-generated carbon dots on Mo-doped BiVO4 followed by the deposition of FeNiOOH to reach the excellent photocurrent density of 6.08 mA/cm2 at 1.23 VRHE and up to 120 h stability [13]. Zhang et al. developed a modified electron density redistribution and electronic coupling BiVO4 system decorated with P-O-bonded FeNi catalysts to achieve a record-high photocurrent density of 6.73 mA/cm2 at 1.23 VRHE [14]. Metal-organic frameworks (MOFs) have also been newly used as oxygen evolution cocatalysts for BiVO4 photoanode modification in PEC water splitting [15]. Kim et al. prepared Bi-based MOF nanoparticles on the surface of BiVO4 via multi-step immersion to demonstrate a higher photocurrent density of 2.35 mA/cm2 at 1.23 VRHE under AM 1.5G illumination and improved operation stability [16]. Pan et al. utilized caffeic acid as a bridging agent and successfully fabricated the core-shell structure of Ov-BiVO4@NiFe-MOFs to tailor the coordination and electronic structure of active sites for enhanced water oxidation performance [17].
Based on previous studies, the selection and rational connection between cocatalysts and photoanodes is concluded to be one of the crucial factors for efficient PEC water splitting. The molecular catalysts, especially non-noble metal-based molecular catalyst hybrid photoanodes, have thus drawn much attention due to the favorable tunability of anchoring groups and active centers. It is reported that carboxylate [18], phosphate [19,20], and hydroxyl [21,22] can be used as effective surface anchoring groups for the immobilization of molecular catalysts [23] on the surface of BiVO4 semiconductors to effectively accelerate the interface kinetics of water oxidation and thus greatly improve PEC performance [24,25]. Recently, heterogeneous systems based on cyanide [26] and cyanamide bridging groups [27] have been recently reported not only because of their prominent stabilities in both acidic and basic electrolyte but also their high catalytic activities [28,29,30]. Shang et al. reported a hybrid system consisting of M(dca)2 (where M is a non-noble metal ion and dca is dicyanamide) as a water oxidation catalyst and BiVO4 as the photosensitizer for photocatalytic oxygen evolution in aqueous solution [31]. However, systematic and comparative studies remain insufficient for better understanding the effects of metal centers on the catalytic performance and charge transfer kinetics of the composites. It is necessary to expand the types of metal center ions surrounded by N donor atoms. Moreover, the synergetic effect should be clarified on bimetallic molecular catalyst modified BiVO4 photoanodes in electrochemical water oxidation catalysis.
In this study, we demonstrate that non-noble metal-doped bimetallic dicyanamides can be used as cocatalysts on BiVO4 photoanodes for efficient photoelectrochemical water oxidation (Scheme 1). A series of doped and undoped metal dicyanamides are coated with composition tuning on BiVO4 photoanodes and are found to exhibit far more enhanced performance than bare BiVO4. Bimetallic dicyanamides exhibit a far superior co-catalytic effect for PEC water oxidation than that of undoped metal dicyanamides. Among the bimetallic dicyanamide modified hybrid photoanodes, Co0.9Ni0.1(dca)2/BiVO4 displays the lowest electrochemical impedance, the fastest interfacial water oxidation kinetics, and the highest activity. The impact of the bimetallic dicyanamides on water oxidation kinetics is analyzed based on PEC efficiency performance tests and physical property characterization. The obtained photoanode shows favorable stability in a water oxidation reaction under AM 1.5 G light irradiation, achieving a photocurrent density of 2.58 mA/cm2 at 1.23 V vs. RHE. In addition, a mechanism for the excellent efficiency performance of bimetallic dicyanamide hybrid photoanodes is proposed.

2. Materials and Methods

2.1. Chemicals and Materials

Bismuth nitrate pentahydrate (Bi(NO3)3·5H2O), vanadyl acetylacetonate ((VO(acac)2), dimethylsulfoxide (DMSO), sodium sulfate (Na2SO4), sodium sulfite (Na2SO3), potassium iodide (KI), p-benzoquinone, acetone (AR), ethanol (AR), nitric acid (HNO3, 26–28 wt%), cobalt nitrate hexahydrate (Co(NO3)2·6H2O), nickel nitrate hexahydrate (Ni(NO3)2·6H2O), iron sulfate heptahydrate (FeSO4·7H2O), sodium dicyanamide (NaN(CN)2), and dimethylformamide (DMF) were purchased from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. All the chemicals were used as received without further purification and deionized (DI) water (resistance ≈ 18.2 MΩ) was used throughout the experiments. FTO substrates (F:SnO2, 14 Ω per square) were ultrasonically cleaned before use for 30 min each in detergent solution, acetone, and ethanol, successively.

2.2. Fabrication of Bismuth Vanadate Nanoporous Films

The nanoporous BiVO4 films on FTO substrates were synthesized according to the previously reported method [32]. Generally, 20 mmol of KI and 2 mmol of Bi(NO3)3·5H2O were dissolved into 50 mL of DI water, its pH was adjusted to 1.4 by adding 1 M of HNO3, and it was stirred for 30 min. This solution was mixed with 20 mL of ethanol containing 4.6 mmol (0.5 g) of p-benzoquinone and vigorously stirred for a few minutes. Electrodeposition in the prepared solution was carried out potentiostatically in a typical 3-electrode system using an FTO substrate (2 × 2 cm2) as the working electrode (WE), a platinum foil as the counter electrode (CE), and a saturated Ag/AgCl electrode as the reference electrode (RE). As an optimized condition, electrodeposition was conducted at −0.1 V vs. Ag/AgCl for 5 min. Afterwards, the resulting BiOI on FTO substrate was rinsed with deionized water and dried in ambient air.
BiVO4 electrodes were prepared by placing 0.2 mL of DMSO solution containing 0.2 M of VO(acac)2 on the electrodeposited BiOI electrodes followed by heating in a muffle furnace at 450 °C (ramping rate 5 °C/min) for 2 h. After cooling to room temperature, the electrodes were soaked in 1 M NaOH solution for 30 min to remove the excess surface V2O5 present in the BiVO4 films.

2.3. Fabrication of M(dca)2 Catalysts

For a typical synthesis, 5 mmol of Co(NO3)2·6H2O was slowly added into 20 mL DI water under constant stirring conditions. Meanwhile, 10 mmol of NaN(CN)2 was dissolved into 20 mL of DMF and stirred for 30 min at room temperature. The mixed suspension was left under stirring conditions overnight followed by filtration using suction and was washed with ethanol for 10 min. Finally, the collected precipitate was dried overnight in a vacuum oven at 60 °C. The preparation processes of Ni(dca)2(DMF)2, Co0.9Ni0.1(dca)2(DMF)2, and Co0.9Fe0.1(dca)2(DMF)2 are similar to the above steps with different ratios of metal nitrates. The as-prepared samples were defined as M(dca)2 (M represents different metal ions, M = Co, Ni, Co0.9Ni0.1, Co0.9Fe0.1, dca: dicyanamide).

2.4. Deposition of M(dca)2 on BiVO4 and FTO

An M(dca)2 precursor solution was prepared by dissolving 2, 5, and 8 mg of M(dca)2 catalyst in 1 mL DI water followed by sonication for 30 min. The solution was then spin-coated onto the BiVO4 film (2 cm × 1.5 cm) at 1500 rpm for 60 s repeatedly. The optimal quantity of M(dca)2 was found to be 5 mg according to the LSV measurements. The resulting films were dried in an oven at 60 °C for 2 h and left to desiccate until further use for bulk electrolysis studies. The BiVO4/M(dca)2 electrodes were rinsed with DI water prior to use.
A drop-casting technique was used to deposit the M(dca)2 films on FTO. Firstly, a mixture of 5 mg M(dca)2, 500 µL water, 500 µL DMF, and 20 µL Nafion was sonicated for 30 min to form a uniform slurry. Then, 150 µL of M(dca)2 slurry was drop-casted on a piece of clean FTO electrode (2 cm × 1.5 cm). The resulting film was dried in an oven at 80 °C for 10 min and left to desiccate until further use for CV and bulk electrolysis studies. The M(dca)2/FTO electrodes were rinsed with DI water prior to use.

2.5. Material Characterization

The morphology of BiVO4 and M(dca)2/BiVO4 films was observed by a JEOL JSM-7800FE scanning electron microscope. X-ray diffraction (XRD) patterns were recorded to investigate the crystal structures of the samples using a PANalytical X’pert Pro MPD diffractometer operated at 40 kV and 40 mA using Ni-filtered Cu-Kα irradiation (wavelength 1.5406 Å). The chemical compositions and elemental valence states of the samples were obtained via X-ray photoelectron spectroscopy (XPS) (Axis UltraDLD, Kratos, Manchester, UK) with monochromatic aluminum Ka radiation. FTIR spectra were measured using Fourier transform infrared spectrometer with a Nicolet AVATAR 330 instrument in the wave number range of 4000−400 cm−1.

2.6. Photoelectrochemical Measurements

The electrochemical and photoelectrochemical (PEC) measurements were carried out in a conventional three-electrode cell with a Pt wire as the counter electrode and a saturated Ag/AgCl as the reference electrode using a CHI 760E electrochemical workstation. Photocurrents were recorded under 100 mW/cm2 AM 1.5 G irradiation with a 300 W xenon lamp as the white light source illuminated from backside in 0.5 M Na2SO4 (pH = 6.86) aqueous electrolyte at a scan rate of 0.01 V/s, and 0.1 M Na2SO3 electrolyte was used as the hole scavenger for the charge separation efficiency and injection efficiencies measurements. The electrochemical impedance spectroscopy measurements were performed within a frequency range of 1 Hz to 100 kHz with an AC amplitude of 10 mV under illumination at 1.23 V vs. RHE. Mott–Schottky measurements were performed in the dark in 0.5 M Na2SO4 aqueous solution with a frequency of 1 kHz.
The potentials versus Ag/AgCl were converted to reversible hydrogen electrode (RHE) using the following Nernst equation:
ERHE = EAg/AgCl + 0.059pH + E°Ag/AgCl
Incident photon-to-current conversion efficiencies (IPCEs) of the as-prepared film photoanodes were obtained at 1.23 V vs. RHE in 0.5 M Na2SO4 solution using a 300 W xenon light source (Beijing Merry Change Technology Co., Ltd., Beijing, China) coupled with a monochromator from 320 to 600 nm. The IPCE at each wavelength was calculated by the following equation:
IPCE(%) = (1240 × Jph)/(λ × P) × 100%
where Jph (mA/cm2) is the photocurrent density at a specific wavelength, P (mW/cm2) is the measured light power density, and λ (nm) is the wavelength of incident light.
The charge injection efficiency and charge separation efficiency could be determined as follows:
ηinj = JPEC/Jsep
ηsep = Jsep/Jabs
where JPEC and Jsep are the photocurrent densities for PEC water oxidation and sulfite oxidation, respectively. Jsep is measured in a 0.1 M Na2SO3 electrolyte solution. Jabs is the photocurrent density when completely converting the absorbed photons into current (APCE = 100%). Jabs is calculated by integrating the UV–Vis absorbance and divided by the integration of the standard solar spectrum (AM 1.5 G).
The following equation was used to calculate the applied bias photon-to-current efficiency (ABPE) from the LSV curve.
ABPE(%) = JPEC × (1.23 − Vbias)⁄P × 100%
where JPEC (mA/cm2) refers to the photocurrent density obtained from the electrochemical workstation. Vbias represents the applied bias versus RHE (V) used on work electrode, and P is the incident illumination power density (AM 1.5 G, 100 mW/cm2).
Cyclic voltammogram of M(dca)2 catalyst deposited FTO electrodes were recorded in phosphate buffer solution with 1 M KNO3 as electrolyte at pH = 7.0 at 0 -1.5 V vs. Ag/AgCl at a scan rate of 0.05 V/s.

3. Results

3.1. The Physical Characterization of Samples

The morphologies of metal dicyanamide modified BiVO4 (M(dca)2/BiVO4) samples were characterized by SEM photography. As shown in Figure 1, it can be observed that BiVO4 presents a regular worm-like nanoporous structure. Clearly, the nanoporous characteristic of BiVO4 film provides abundant space for M(dca)2 nanoparticles coupling to form M(dca)2/BiVO4 heterojunction films. Due to the nature of the spin-coating method, a minuscule amount of M(dca)2 was successfully deposited on the film surface. The morphology and particle size of BiVO4 were not significantly changed after metal dicyanamides deposition. Moreover, the morphologies of the samples after the PEC tests showed no evident change compared with the fresh samples, indicating that the hybrid catalysts were relatively stable during PEC water oxidation.
Figure 2 presents the FTIR spectra of the M(dca)2, BiVO4, and M(dca)2/BiVO4 composite catalysts. The FTIR spectra of M(dca)2 show several peaks at around 2360, 1380, and 940 cm−1, which can be attributed to the asymmetric and symmetric stretching vibrations of C≡N, asymmetric vibrations of C−N, and symmetric stretching vibrations of the C−N of cyanide groups in dicyanamide fragments. These results agree well with those reported previously [28,31]. No obvious change could be observed after the incorporation of the Fe and Ni component in the FTIR spectra of bimetallic dicyanamides, indicating the relatively high stability of the organic anchoring groups. In comparison with bare BiVO4, the FTIR spectra of M(dca)2/BiVO4 showed negligible difference after hybridization, which can be ascribed to the minimum amount of M(dca)2 attached to the surface of BiVO4 by physical adsorption. The crystal structures of the as-prepared metal dicyanamides before deposition on BiVO4 were detected by X-ray diffraction (XRD) patterns as shown in Figure S1. The patterns match well with those that the literature reports [31], which confirms the successful synthesis of the molecular catalysts. After the incorporation of Fe and Ni into Co(dca)2, the XRD patterns showed no obvious change due to the low doping content.
Since the SEM images and XRD patterns were insufficient to detect the surface attached molecular catalysts clearly, XPS measurements were performed to further confirm the successful deposition and valence states of the hybrid photoanodes. The existence of the elements and detailed information can be inferred from the Co 2p, Ni 2p, Fe 2p, N 1s, and O 1s signals from the XPS spectra (Figure S2, Figure 3). The photoanodes after PEC measurements were also examined by XPS for comparison to verify the existence and possible changes of the molecular catalysts throughout the water oxidation reaction. Firstly, we took Co0.9Ni0.1(dca)2/BiVO4 as an example for XPS analysis. The peaks at around 780.5 eV and 796.5 eV in the Co 2p region were assigned to the Co 2p1/2 and Co 2p3/2 core levels. The intensities of the Co 2p signals after illumination were slightly lower than the peaks before illumination, indicating the possible loss of the molecular catalyst at the surface. The broad peaks at around 399.5 eV were assigned to N 1s configurations, which originated from organic nitrogen in the dicyanamide groups [33]. After PEC tests, the XPS peak intensity of N 1s also showed only a slight decrement, indicating the relatively good stability of M(dca)2 on BiVO4 surface. On the other hand, the XPS peak positions of N 1s shift to higher binding energies, which can be ascribed to the inevitable change during PEC water oxidation reactions [34]. The Fe 2p spectra from Co0.9Fe0.1(dca)2/BiVO4 show peaks at 715.8 eV and 726.4 eV corresponding to Fe 2p3/2 and Fe 2p1/2, respectively [35]. After PEC tests, the peaks also show a decrement of intensity and the peak positions shift to higher binding energies, which can be attributed to the water oxidation reactions. Additionally, similar results can also be found in other types of M(dca)2/BiVO4 photoanodes. For XPS Ni 2p signals of Co0.9Ni0.1(dca)2/BiVO4, no obvious change except a slight decrement in intensity can be found after PEC tests, indicating the good stability of the hybrid photoanode. Notably, the Ni 2p signals in the Ni(dca)2/BiVO4 sample almost disappeared after the PEC tests. This indicates the poor combination of nickel dicyanamide at the BiVO4 surface and might have contributed to adverse effects on PEC efficiency and stability.

3.2. The PEC Measurements

The OER activities of the molecular catalyst attached FTO film photoanodes were measured in a 3-electrode system with a 0.1 M phosphate buffer neutral solution as the electrolyte without illumination. As shown in Figure 4, the cyclic voltammogram curves (CVs) of M(dca)2 showed the distinctive feature of strong increasing tendencies in anodic currents at above 1.4 V vs. RHE, which can be attributed to catalytic oxygen evolution performance. Obviously, Co0.9Ni0.1(dca)2 exhibited a higher current density than those of other catalysts at the same potential, indicating the highest intrinsic electrocatalytic activity. Moreover, Co0.9Ni0.1(dca)2 also shows the lowest onset potential compared with other catalysts, which can be beneficial for further PEC cocatalysis performance.
The molecular catalysts with different compositions were then employed on BiVO4 photoanode surfaces and the PEC water splitting performance of bare BiVO4 and M(dca)2/BiVO4 was measured under AM 1.5 G illumination in a 0.5 M Na2SO4 aqueous solution in a 3-electrode system. First, the deposition amount was optimized, as shown in Figure 5a. The coating concentration of Co0.9Ni0.1 (dca)2/BiVO4 deposition was set as 2, 5, and 8 mg. It can be clearly seen that the PEC efficiencies all increased in the hybrid photoanodes with various deposition levels. Moreover, the photoanode prepared with a 5 mg concentration showed the highest photocurrent density, while the photoanode prepared with a 2 mg concentration only showed a slight increase. For cocatalysis, excess deposition levels (8 mg) might lead to the blocking of light and surface aggregation which could hinder the light harvest and surface charge transfer. These results indicate that bimetallic dicyanamides are excellent candidates as cocatalysts for PEC water splitting and that there is an optimum hybrid photoelectrode loading content of Co0.9Ni0.1(dca)2/BiVO4 (5 mg) for PEC efficiency enhancement. In the following study, all the catalysts with different compositions were prepared with this optimum loading content.
Both metal centers and anchoring ligands play critical roles in the catalytic performance of M(dca)2. Bimetallic dicyanamides with different metal centers and compositions show totally different effects on the PEC performance of hybrid photoanodes. Figure 5b shows the chopped light LSV curves of the hybrid catalysts in comparison with bare BiVO4. The Co0.9Ni0.1(dca)2/BiVO4 photoanode showed the best photocurrent density and onset potential performance, indicating a positive synergistic effect between Co0.9Ni0.1(dca)2 and BiVO4. The photocurrent onset potential was observed at 0.25 V vs. RHE, and a photocurrent density of 2.58 mA/cm2 was obtained at 1.23 V vs. RHE, which was 2.5, 1.8, 1.4, and 1.2 times that of bare BiVO4, Ni(dca)2/BiVO4, Co(dca)2/BiVO4, and Co0.9Fe0.1(dca)2/BiVO4, respectively. Co(dca)2/BiVO4 showed superior efficiency over Ni(dca)2/BiVO4, which is in accordance with the cyclic voltammogram results. The difference in performance between Co and Ni in M(dca)2 originated from the intrinsic water oxidation catalytic characteristics. The improved photocurrent of Co0.9Ni0.1(dca)2 decorated BiVO4 was due to accelerated interface kinetics that brought about effective charge separation and transfer. Both Ni and Fe incorporation resulted in remarkable increases in the photocurrent densities compared with Co(dca)2/BiVO4. However, the photocurrent performance of Co0.9Fe0.1(dca)2/BiVO4 showed no obvious enhancement compared with that of Co(dca)2/BiVO4 at a bias lower than 0.7 V vs. RHE, indicating relatively slow interface water oxidation kinetics. Moreover, the onset potential and photocurrent densities of the low applied potential range of Co0.9Ni0.1(dca)2 were far superior to that of Co0.9Fe0.1(dca)2/BiVO4. Excepting the comparison of its favorable photocurrent density performance, the stability of Co0.9Ni0.1(dca)2/BiVO4 was compared with bare BiVO4, as shown in Figure S3. The bare BiVO4 photoanode suffered from sluggish OER kinetics and severe photo-corrosion, thus exhibiting a relatively lower photocurrent density and a rapid decrease. Surprisingly, Co0.9Ni0.1(dca)2 decorated BiVO4 showed excellent stability during PEC water oxidation under illumination during a 2 h long-term test with only a decrease of less than ~10% after 1.5 h, which demonstrates that bimetallic dicyanamides are effective cocatalysts for both efficiency and stability. These results reveal that the rational incorporation of metal centers in bimetallic dicyanamides can be a feasible and practical strategy for accelerating OER kinetics.
In a typical photoelectrochemical water splitting system, solar light absorption, photoexcited charge separation and surface charge injection are the three crucial processes for high efficiency. Modifications to the photoanodes are usually based on the mentioned processes to which the photocurrent density efficiencies are closely related. To investigate the effect of the surface deposition of M(dca)2 on BiVO4 photoanodes, the charge separation efficiencies and charge injection efficiencies were measured with Na2SO3 as the hole scavenger (Figure S4). As shown in Figure 6a, the curves of the charge separation efficiencies (ηsep) of BiVO4 and M(dca)2/BiVO4 hybrid photoanodes were close, indicating that the deposition of M(dca)2 did not obviously improve bulk charge separation in the photoanodes. On the other hand, the hole injection efficiency (ηinj) value of Co0.9Ni0.1(dca)2/BiVO4 was up to 55.5% at 1.23 V vs RHE (Figure 6b), which was much larger than those of bare BiVO4 (17.6%), Ni(dca)2/BiVO4 (20.8%), Co(dca)2/BiVO4 (33.7%), and Co0.9Fe0.1(dca)2/BiVO4 (47.1%). These results demonstrate that molecular catalysts play a vital role as typical cocatalysts in the surface charge injection process. The single metal molecular catalyst-loaded photoanodes Ni(dca)2/BiVO4 and Co(dca)2/BiVO4 showed only slight increases in their hole injection efficiencies. By contrast, bimetallic catalyst-loaded photoanodes Co0.9Ni0.1(dca)2/BiVO4 and Co0.9Fe0.1(dca)2/BiVO4 showed far higher hole injection efficiencies. Moreover, the hole injection efficiencies of the samples displayed similar tendencies with respect to photocurrent density. These results demonstrate that the introduction of a bimetallic catalyst with optimal loading content can significantly accelerate the surface oxygen evolution reaction and thus suppress the surface charge recombination, resulting in greatly enhanced PEC water splitting activity.
The PEC activities of M(dca)2-deposited BiVO4 photoanodes were further confirmed by their incident photon-to-current conversion efficiencies (IPCE) and applied bias photocurrent efficiencies (ABPE). The UV–Vis light absorption properties of the M(dca)2/BiVO4 hybrid photoanodes were first determined at 300–700 nm (Figure S5). The bare BiVO4 showed an absorbance edge of around 515 nm, while the absorbance edges of M(dca)2/BiVO4 photoanodes showed slight red shifts to around 520–525 nm. The light absorbance intensities of M(dca)2/BiVO4 also increased compared with bare BiVO4. As shown in Figure 7a, in the whole absorption wavelength range, the IPCE values of the M(dca)2-deposited samples showed significant increases. The Co0.9Ni0.1(dca)2/BiVO4 catalyst obviously exhibited the best IPCE value with an efficiency value of about 30% at 450 nm. The IPCE values of the as-prepared photoanodes exhibited the same order as the photocurrent densities: Co0.9Ni0.1(dca)2/BiVO4 > Co0.9Fe0.1(dca)2/BiVO4 > Co(dca)2/BiVO4> Ni(dca)2/BiVO4 > bare BiVO4. The applied bias photocurrent efficiencies (ABPE) of these photoanodes were calculated from the LSV curves. As shown in Figure 7b, the photoconversion efficiencies showed the same trend as the photocurrent densities for the molecular catalyst hybrid photoanodes. The Co0.9Ni0.1(dca)2/BiVO4 photoanode had the most enhanced ABPE value in most regions, indicating that this hybrid photoanode had greatly improved solar energy utilization capacity. Moreover, the photoconversion efficiency of the Co0.9Ni0.1(dca)2/BiVO4 photoanode reached a maximum of 0.65% at 0.82 V vs. RHE, which was about 13 times as high as that of the BiVO4 photoanode (0.05% at 1.02 V vs. RHE). In addition, it can be clearly seen that the applied potentials of the maximum photoconversion efficiencies also decreased dramatically after M(dca)2 deposition. These results indicate that better PEC efficiencies can be reached with lower applied bias after the combination of efficient molecular catalysts on photoanodes.
In order to further analyze the key influence of the molecular catalysts on the interface water oxidation reaction, electrochemical impedance spectroscopy (EIS) measurements were conducted under illumination. Nyquist plots of all the samples were recorded and then fitted with Zsimpwin software based on an equivalent circuit consisting of two RQ components in series as shown in Figure 8a. The Nyquist plots of the BiVO4 and M(dca)2/BiVO4 photoanodes in the dark were also tested for comparison (Figure S6). In the equivalent circuit, RS represents the electrolyte resistance; Q is the constant phase element (CPE); and the two RQ elements account for the semiconductor bulk and surface processes. Although the fitted data from the software were not sufficiently accurate for the practical PEC water oxidation process, the reasonable comparison of the relative values qualitatively was instructive for analysis. The radii of the Nyquist plots under illumination were far smaller than those in the dark, indicating the lower charger transfer resistances. The fitted values of charge transfer resistance (RCT) for Co0.9Ni0.1(dca)2/BiVO4, Co0.9Fe0.1(dca)2/BiVO4, Co(dca)2/BiVO4, Ni(dca)2/BiVO4, and bare BiVO4 were 96.02, 135.7, 180.2, 216.6, and 269.2 Ω/cm2, respectively, while the fitted values of bulk resistance (RSC) for the corresponding hybrid photoanodes were 14.29, 17.55, 19.98, 16.35, and 21.4 Ω/cm2, respectively (Table S1). Moreover, the QH values for charge transfer behavior and QSC for space charge region were also fitted and are shown in Table S1. The deposition of bimetallic dicyanamides generally leads to a slight increase in QH and a significant increase in QSC, which may be the result of interface modification to charge distribution. These results indicate that the Co0.9Ni0.1(dca)2/BiVO4 photoanode had the smallest charge transfer resistance and thus had the highest charge transfer efficiency, which explains its efficiencies in the PEC tests. The decrease in charge transfer resistance was more remarkable when the bulk resistance decreased slowly, elucidating that molecular catalyst deposition mainly accelerates interface charge transfer and the correlated water oxidation reaction. This result agrees well with the charge separation and charge injection efficiency results.
Mott–Schottky measurements were further employed to provide detailed information on the flat-band potentials and charge carrier densities. According to the Mott–Schottky equation [33], flat-band potentials are inferred from the x-intercept of tangent lines and carrier densities are calculated from the slopes of the linear parts of curves. As shown in Figure 8b, the flat-band potentials for Co0.9Ni0.1(dca)2/BiVO4, Co0.9Fe0.1(dca)2/BiVO4, Co(dca)2/BiVO4, Ni(dca)2/BiVO4, and bare BiVO4 were 5.16, 18.8, 39.8, 42.5, and 46.9 mV vs. RHE, respectively. A negative shift of 41.7 mV in flat-band potential could be achieved after Co0.9Ni0.1(dca)2 deposition compared with the bare BiVO4 photoanode, which provided a stronger driving force for favorable interface charge transfer. On the other hand, the charge carrier densities inferred from the slopes of the linear parts also decreased with cocatalyst loading, indicating that the donor densities in the photoanodes increased accordingly. Hence, the metal dicyanamide modified BiVO4 photoanodes enhanced the band bending, increased the donor density, and thus provided the stronger charge transfer driving forces needed for faster water oxidation reaction.
Based on the previous analysis of the hybrid photoanodes, the enhanced PEC water oxidation activities of M(dca)2/BiVO4 were proposed and are illustrated in Scheme 2. The bimetallic dicyanamides acted as efficient cocatalysts at the electrode/electrolyte interface for water oxidation. Photoexcited electron and hole transfer and transportation at the interface were accelerated for enhanced charge separation and injection efficiencies. The improved interfacial energetics inferred from the energy band structure also promoted the interface charge transfer. Among the hybrid photoanodes, Co0.9Ni0.1(dca)2/BiVO4 showed the most favorable intrinsic activity, donor density, and charge transfer properties for PEC water oxidation.

4. Conclusions

In summary, we showed that bimetallic dicyanamides can be utilized as efficient cocatalysts deposited on BiVO4 nanoporous photoanodes for enhanced photoelectrochemical water oxidation. The surface decorated bimetallic dicyanamides suppressed charge recombination and accelerated interface charge transport and transfer, thus improving PEC water oxidation performance. Co0.9Ni0.1(dca)2/BiVO4 showed the most improved PEC efficiency among the investigated molecular catalyst hybrid photoanodes with rational composition tuning. Co0.9Ni0.1(dca)2/BiVO4 achieved a photocurrent density of 2.58 mA/cm2 at 1.23 V vs. RHE with excellent stability. Most notably, the enhanced efficiencies with bimetallic dicyanamide decoration were mainly attributed to improved charge injection efficiencies rather than charge separation efficiencies. Electrochemical impedance spectra analysis confirmed the enhanced surface charge transfer, improved donor densities, and favorable interface energetics. This work demonstrated the advantageous tunability of molecular catalysts via a facile and effective strategy for the improvement of OER kinetics in PEC water oxidation and provided new insights for further studies on heterogeneous molecular catalysts utilized as cocatalysts for renewable energy utilization.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/su15043129/s1, Figure S1: XRD patterns of the as-prepared metal dicyanamides; Figure S2: (a) XPS survey spectra of M(dca)2/BiVO4 photoanodes, (b) XPS N 1s spectra of Co0.9Ni0.1(dca)2/BiVO4, (c) XPS Fe 2p spectra of Co0.9Fe0.1(dca)2/BiVO4, (d) XPS N 1s spectra of Co0.9Fe0.1(dca)2/BiVO4, (e) XPS N 1s spectra of Co(dca)2/BiVO4, (f) XPS N 1s spectra of Ni(dca)2/BiVO4 before and after PEC tests; Figure S3: stability I-t curves of Co0.9Ni0.1(dca)2/BiVO4 and bare BiVO4 photoanodes measured at 1.23 V vs. RHE in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination; Figure S4: photocurrent densities for BiVO4 and M(dca)2/BiVO4 photoanodes in 0.1 M Na2SO3 aqueous solution under AM 1.5 G illumination; Figure S5: UV–Vis spectra of BiVO4 and M(dca)2/BiVO4 photoanodes; Figure S6: comparative EIS of (a) BiVO4 and (b) Co0.9Ni0.1(dca)2/BiVO4 photoanodes in the dark and under illumination.; Table S1: EIS-fitted values and flat-band potentials of BiVO4 and M(dca)2/BiVO4 photoanodes in the equivalent circuit for PEC water oxidation.

Author Contributions

Conceptualization, X.W. (Xiaokang Wan); methodology, X.W. (Xiaokang Wan), X.W. (Xianyun Wang), and Y.F.; investigation, D.L. and X.W. (Xianyun Wang); resources, X.W. (Xiaokang Wan) and C.H.; writing—original draft preparation, X.W. (Xianyun Wang) and D.L.; writing—review and editing, X.W. (Xiaokang Wan), D.L., and G.L.; supervision, H.W.; project administration, N.R. and Z.C.; funding acquisition, X.W. (Xiaokang Wan). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Anhui Province (CN), grant number: 2008085QE206, and the University Natural Science Research Project of Anhui Province, grant number: KJ2019A0760.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Gong, Z.; Liu, B.; Zhang, P.; Wang, S.; Jiang, S.; Wang, T.; Gong, J. Performance Prediction of Multiple Photoanodes Systems for Unbiased Photoelectrochemical Water Splitting. ACS Mater. Lett. 2021, 3, 939–946. [Google Scholar] [CrossRef]
  2. Lai, Y.-H.; Palm, D.W.; Reisner, E. Multifunctional Coatings from Scalable Single Source Precursor Chemistry in Tandem Photoelectrochemical Water Splitting. Adv. Energy Mater. 2015, 5, 201501668. [Google Scholar] [CrossRef]
  3. Liu, Y.; Yu, F.; Wang, F.; Bai, S.; He, G. Construction of Z-Scheme In2S3-TiO2 for CO2 Reduction under Concentrated Natural Sunlight. Chin. J. Struct. Chem. 2022, 41, 2201034–2201039. [Google Scholar] [CrossRef]
  4. Kudo, A.; Miseki, Y. Heterogeneous photocatalyst materials for water splitting. Chem. Soc. Rev. 2009, 38, 253–278. [Google Scholar] [CrossRef]
  5. Tan, H.L.; Amal, R.; Ng, Y.H. Alternative strategies in improving the photocatalytic and photoelectrochemical activities of visible light-driven BiVO4: A review. J. Mater. Chem. A 2017, 5, 16498–16521. [Google Scholar] [CrossRef]
  6. Ye, S.; Ding, C.M.; Liu, M.Y.; Wang, A.Q.; Huang, Q.G.; Li, C. Water Oxidation Catalysts for Artificial Photosynthesis. Adv. Mater. 2019, 31, 1902069. [Google Scholar] [CrossRef]
  7. Li, R.; Zhang, F.; Wang, D.; Yang, J.; Li, M.; Zhu, J.; Zhou, X.; Han, H.; Li, C. Spatial separation of photogenerated electrons and holes among {010} and {110} crystal facets of BiVO4. Nat. Commun. 2013, 4, 1432. [Google Scholar] [CrossRef]
  8. Guang, L.; Fei, W.; Xuejun, Z. Hydrothermal synthesis of m-BiVO4 and m-BiVO4/BiOBr with various facets and morphologies and their photocatalytic performance under visible light. J. Alloys Compd 2017, 697, 417–426. [Google Scholar] [CrossRef]
  9. Kim, J.H.; Lee, J.S. Elaborately Modified BiVO4 Photoanodes for Solar Water Splitting. Adv. Mater. 2019, 31, 1806938. [Google Scholar] [CrossRef]
  10. Fang, G.; Liu, Z.; Han, C. Enhancing the PEC water splitting performance of BiVO4 co-modifying with NiFeOOH and Co-Pi double layer cocatalysts. Appl. Surf. Sci. 2020, 515, 146095. [Google Scholar] [CrossRef]
  11. Nagar, A.; Basu, S. Ternary g-C3N4/Ag/BiVO4 nanocomposite: Fabrication and implementation to remove organic pollutants. Environ. Technol. Inno. 2021, 23, 101646. [Google Scholar] [CrossRef]
  12. Wan, X.; Xu, Y.; Wang, X.; Guan, X.; Fu, Y.; Hu, C.; Hu, H.; Rong, N. Atomic layer deposition assisted surface passivation on bismuth vanadate photoanodes for enhanced solar water oxidation. Appl. Surf. Sci. 2022, 573, 151492. [Google Scholar] [CrossRef]
  13. Jian, J.; Wang, S.; Ye, Q.; Li, F.; Su, G.; Liu, W.; Qu, C.; Liu, F.; Li, C.; Jia, L.; et al. Activating a Semiconductor–Liquid Junction via Laser-Derived Dual Interfacial Layers for Boosted Photoelectrochemical Water Splitting. Adv. Mater. 2022, 34, 2201140. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, Z.; Huang, X.; Zhang, B.; Bi, Y.J.E.; Science, E. High-performance and stable BiVO4 photoanodes for solar water splitting via phosphorus–oxygen bonded FeNi catalysts. Energy Environ. Sci. 2022, 15, 2867–2873. [Google Scholar] [CrossRef]
  15. Dashtian, K.; Shahbazi, S.; Tayebi, M.; Masoumi, Z. A review on metal-organic frameworks photoelectrochemistry: A headlight for future applications. Coordin. Chem. Rev. 2021, 445, 214097. [Google Scholar] [CrossRef]
  16. Kim, S.; Dela Pena, T.A.; Seo, S.; Choi, H.; Park, J.; Lee, J.-H.; Woo, J.; Choi, C.H.; Lee, S. Co-catalytic effects of Bi-based metal-organic framework on BiVO4 photoanodes for photoelectrochemical water oxidation. Appl. Surf. Sci. 2021, 563, 150357. [Google Scholar] [CrossRef]
  17. Pan, J.B.; Wang, B.H.; Wang, J.B.; Ding, H.Z.; Zhou, W.; Liu, X.; Zhang, J.R.; Shen, S.; Guo, J.K.; Chen, L.; et al. Activity and Stability Boosting of an Oxygen-Vacancy-Rich BiVO4 Photoanode by NiFe-MOFs Thin Layer for Water Oxidation. Angew. Chem. Int. Ed. 2021, 60, 1433–1440. [Google Scholar] [CrossRef] [PubMed]
  18. Hernández, S.; Ottone, C.; Proto, S.; Tolod, K.; Díaz de los Bernardos, M.; Solé-Daura, A.; Carbó, J.J.; Godard, C.; Castillón, S.; Russo, N.; et al. Core-substituted naphthalenediimides anchored on BiVO4 for visible light-driven water splitting. Green Chem. 2017, 19, 2448–2462. [Google Scholar] [CrossRef]
  19. Singh, A.; Karmakar, S.; Basu, S. Role of sputtered WO3 underlayer and NiFeCr-LDH co-catalyst in WO3–BiVO4 heterojunction for enhanced photoelectrochemical water oxidation. Int. J. Hydrogen Energy 2021, 46, 39868–39881. [Google Scholar] [CrossRef]
  20. Wang, M.; Yu, H.; Wang, P.; Chi, Z.; Zhang, Z.; Dong, B.; Dong, H.; Yu, K.; Yu, H. Promoted photocatalytic degradation and detoxication performance for norfloxacin on Z-scheme phosphate-doped BiVO4/graphene quantum dots/P-doped g-C3N4. Sep. Purif. Technol. 2021, 274, 118692. [Google Scholar] [CrossRef]
  21. Zhong, M.; Hisatomi, T.; Kuang, Y.; Zhao, J.; Liu, M.; Iwase, A.; Jia, Q.; Nishiyama, H.; Minegishi, T.; Nakabayashi, M.; et al. Surface Modification of CoOx Loaded BiVO4 Photoanodes with Ultrathin p-Type NiO Layers for Improved Solar Water Oxidation. J. Am. Chem. Soc. 2015, 137, 5053–5060. [Google Scholar] [CrossRef]
  22. Guo, Y.H.; Li, Q.G.; Gao, X.M.; Gao, K.L.; Liu, L.B. Facile synthesis of ZnO/BiVO4 photocatalyst with enhanced photocatalytic performance. Optoelectron. Adv. Mat. 2020, 14, 84–91. [Google Scholar]
  23. Wang, D.; Marquard, S.L.; Troian-Gautier, L.; Sheridan, M.V.; Sherman, B.D.; Wang, Y.; Eberhart, M.S.; Farnum, B.H.; Dares, C.J.; Meyer, T.J. Interfacial Deposition of Ru(II) Bipyridine-Dicarboxylate Complexes by Ligand Substitution for Applications in Water Oxidation Catalysis. J. Am. Chem. Soc. 2018, 140, 719–726. [Google Scholar] [CrossRef]
  24. Bae, S.; Jang, J.E.; Lee, H.W.; Ryu, J. Tailored Assembly of Molecular Water Oxidation Catalysts on Photoelectrodes for Artificial Photosynthesis. Eur. J. Inorg. Chem. 2019, 2019, 2040–2057. [Google Scholar] [CrossRef]
  25. Liu, B.; Li, J.; Wu, H.L.; Liu, W.Q.; Jiang, X.; Li, Z.J.; Chen, B.; Tung, C.H.; Wu, L.Z. Improved Photoelectrocatalytic Performance for Water Oxidation by Earth-Abundant Cobalt Molecular Porphyrin Complex-Integrated BiVO4 Photoanode. ACS Appl. Mater. Interfaces 2016, 8, 18577–18583. [Google Scholar] [CrossRef]
  26. Pintado, S.; Goberna-Ferron, S.; Escudero-Adan, E.C.; Galan-Mascaros, J.R. Fast and persistent electrocatalytic water oxidation by Co-Fe Prussian blue coordination polymers. J. Am. Chem. Soc. 2013, 135, 13270–13273. [Google Scholar] [CrossRef]
  27. Ressnig, D.; Shalom, M.; Patscheider, J.; Moré, R.; Evangelisti, F.; Antonietti, M.; Patzke, G.R. Photochemical and electrocatalytic water oxidation activity of cobalt carbodiimide. J. Mater. Chem. A 2015, 3, 5072–5082. [Google Scholar] [CrossRef]
  28. Nune, S.V.K.; Basaran, A.T.; Ülker, E.; Mishra, R.; Karadas, F. Metal Dicyanamides as Efficient and Robust Water-Oxidation Catalysts. ChemCatChem 2017, 9, 300–307. [Google Scholar] [CrossRef]
  29. Ghobadi, T.G.U.; Ghobadi, A.; Soydan, M.C.; Vishlaghi, M.B.; Kaya, S.; Karadas, F.; Ozbay, E. Strong Light-Matter Interactions in Au Plasmonic Nanoantennas Coupled with Prussian Blue Catalyst on BiVO4 for Photoelectrochemical Water Splitting. ChemSusChem 2020, 13, 2577–2588. [Google Scholar] [CrossRef]
  30. Cao, L.-M.; Lu, D.; Zhong, D.-C.; Lu, T.-B. Prussian blue analogues and their derived nanomaterials for electrocatalytic water splitting. Coordin. Chem. Rev. 2020, 407, 213156. [Google Scholar] [CrossRef]
  31. Shang, Y.; Niu, F.; Shen, S. Photocatalytic water oxidation over BiVO4 with interface energetics engineered by Co and Ni-metallated dicyanamides. Chinese J. Catal. 2018, 39, 502–509. [Google Scholar] [CrossRef]
  32. Kim, T.W.; Choi, K.S. Nanoporous BiVO4 photoanodes with dual-layer oxygen evolution catalysts for solar water splitting. Science 2014, 343, 990–994. [Google Scholar] [CrossRef] [PubMed]
  33. Li, X.; Zhang, T.; Chen, Y.; Fu, Y.; Su, J.; Guo, L. Hybrid nanostructured Copper(II) phthalocyanine/TiO2 films with efficient photoelectrochemical performance. Chem. Eng. J. 2020, 382, 122783. [Google Scholar] [CrossRef]
  34. Wen, Z.B.; Xu, S.X.; Zhu, Y.; Liu, G.Q.; Gao, H.; Sun, L.C.; Li, F. Aqueous CO2 Reduction on Si Photocathodes Functionalized by Cobalt Molecular Catalysts/Carbon Nanotubes. Angew. Chem. Int. Edit. 2022, 61, 202201086. [Google Scholar] [CrossRef]
  35. Liu, C.; Luo, H.; Xu, Y.; Zhang, Z.; Liang, Q.; Wang, W.; Chen, Z. Synergistic cocatalytic effect of ultra-thin metal-organic framework and Mo-dopant for efficient photoelectrochemical water oxidation on BiVO4 photoanode. Chem. Eng. J. 2020, 384, 123333. [Google Scholar] [CrossRef]
Sustainability 15 03129 sch001 550

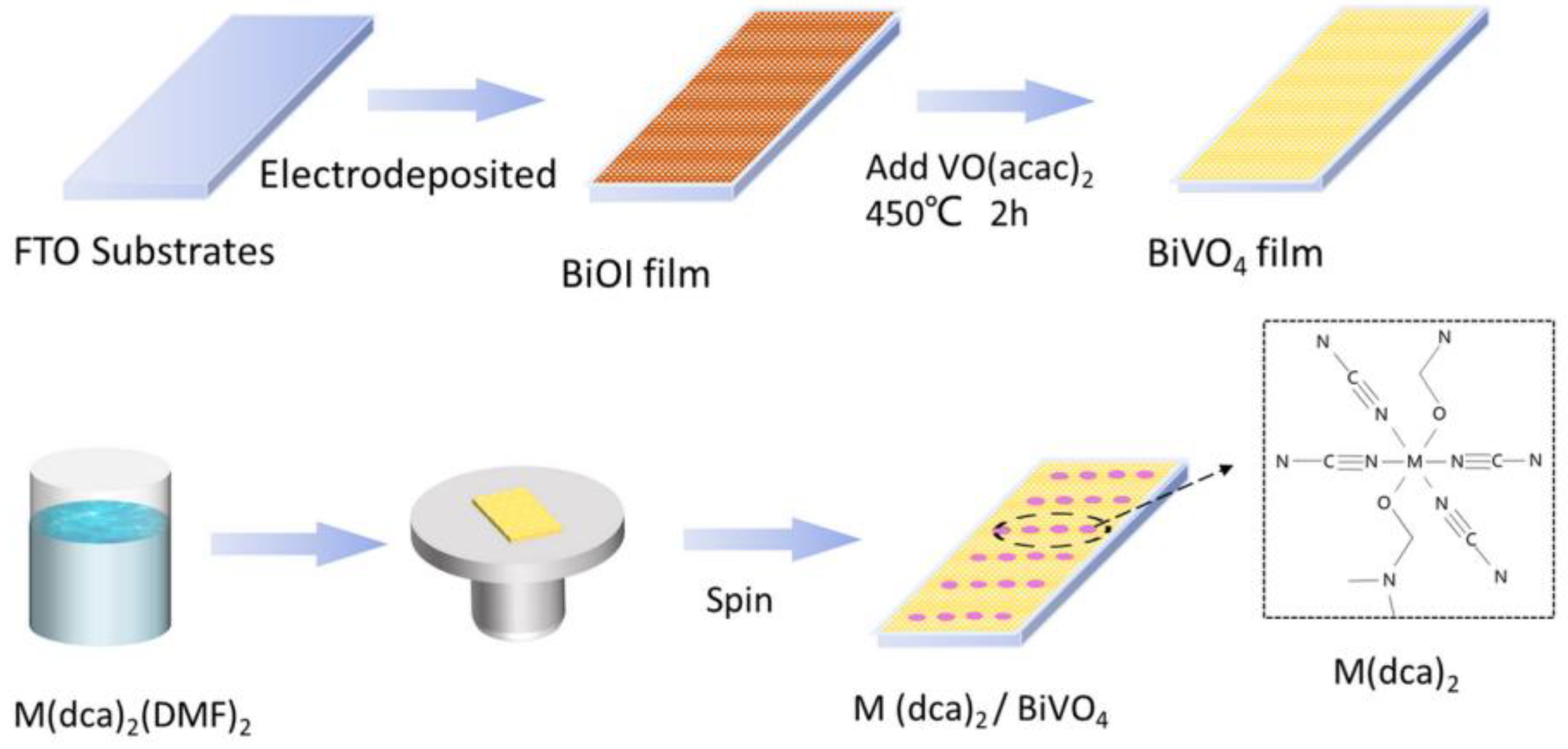

Scheme 1. Schematic illustration of M(dca)2 deposition on BiVO4 photoanodes for PEC water oxidation.
Scheme 1. Schematic illustration of M(dca)2 deposition on BiVO4 photoanodes for PEC water oxidation.
Sustainability 15 03129 sch001
Sustainability 15 03129 g001 550

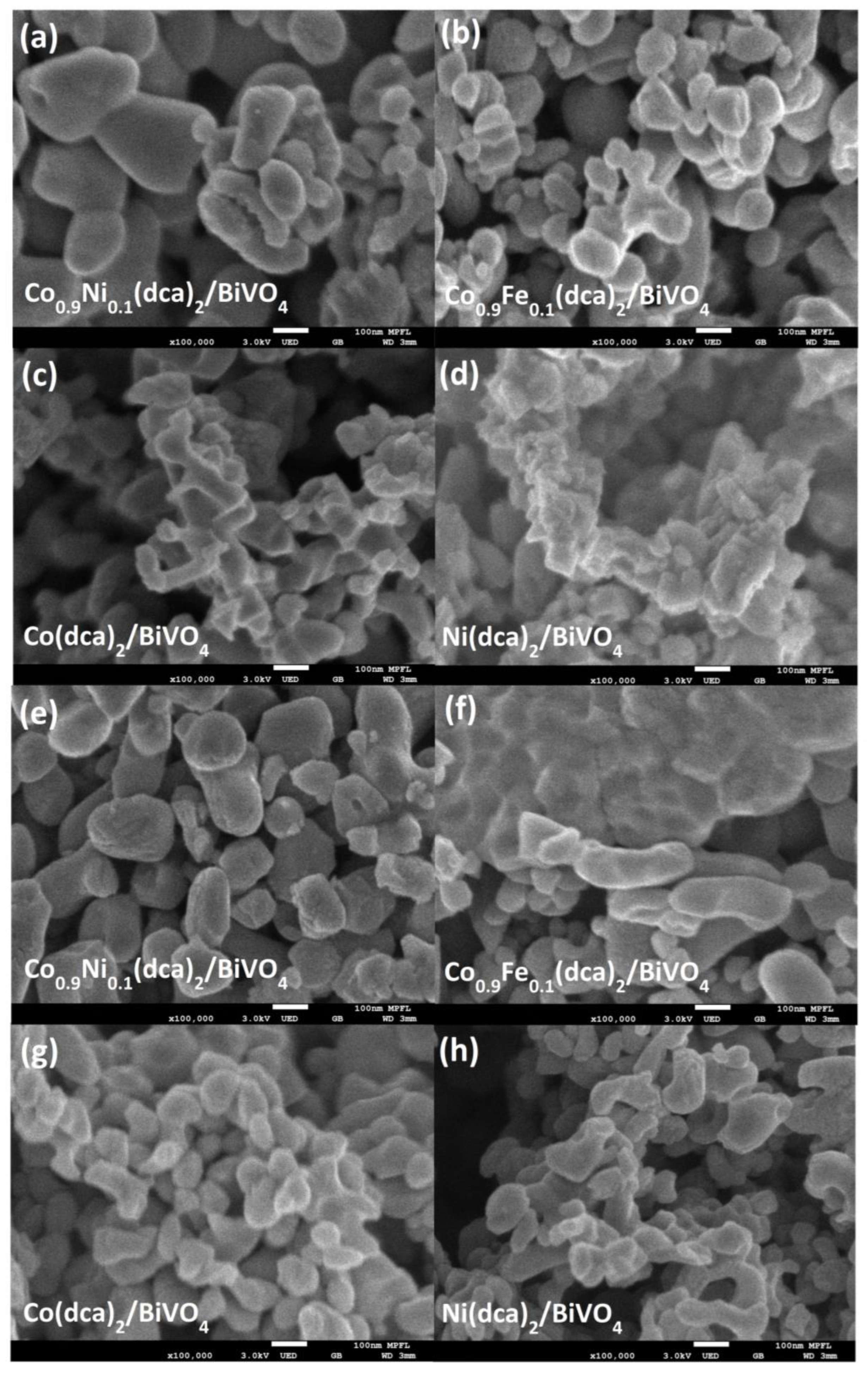

Figure 1. SEM images of Co0.9Ni0.1(dca)2/BiVO4, Co0.9Fe0.1(dca)2/BiVO4, Co(dca)2/BiVO4, and Ni(dca)2/BiVO4 photoanodes before (a–d) and after (e–h) PEC measurements in 0.5 M Na2SO4 solution.
Figure 1. SEM images of Co0.9Ni0.1(dca)2/BiVO4, Co0.9Fe0.1(dca)2/BiVO4, Co(dca)2/BiVO4, and Ni(dca)2/BiVO4 photoanodes before (a–d) and after (e–h) PEC measurements in 0.5 M Na2SO4 solution.
Sustainability 15 03129 g001
Sustainability 15 03129 g002 550
Figure 2. FTIR spectra of (a) the as-prepared molecular catalysts and (b) modified BiVO4 photoanodes (M(dca)2/BiVO4).
Figure 2. FTIR spectra of (a) the as-prepared molecular catalysts and (b) modified BiVO4 photoanodes (M(dca)2/BiVO4).
Sustainability 15 03129 g002
Sustainability 15 03129 g003 550
Figure 3. XPS spectra of the molecular catalyst modified BiVO4 photoanodes (M(dca)2/BiVO4) before and after PEC tests, (a) Co 2p of Co0.9Ni0.1(dca)2/BiVO4, (b) Co 2p of Co0.9Fe0.1(dca)2/BiVO4, (c) Co 2p of Co(dca)2/BiVO4, (d) Ni 2p of Ni(dca)2/BiVO4, (e) Ni 2p of Co0.9Ni0.1(dca)2/BiVO4, and (f) Fe 2p of Co0.9Fe0.1(dca)2/BiVO4.
Figure 3. XPS spectra of the molecular catalyst modified BiVO4 photoanodes (M(dca)2/BiVO4) before and after PEC tests, (a) Co 2p of Co0.9Ni0.1(dca)2/BiVO4, (b) Co 2p of Co0.9Fe0.1(dca)2/BiVO4, (c) Co 2p of Co(dca)2/BiVO4, (d) Ni 2p of Ni(dca)2/BiVO4, (e) Ni 2p of Co0.9Ni0.1(dca)2/BiVO4, and (f) Fe 2p of Co0.9Fe0.1(dca)2/BiVO4.
Sustainability 15 03129 g003
Sustainability 15 03129 g004 550
Figure 4. Cyclic voltammogram curves (CV) of the as-prepared molecular catalysts on FTO.
Figure 4. Cyclic voltammogram curves (CV) of the as-prepared molecular catalysts on FTO.
Sustainability 15 03129 g004
Sustainability 15 03129 g005 550

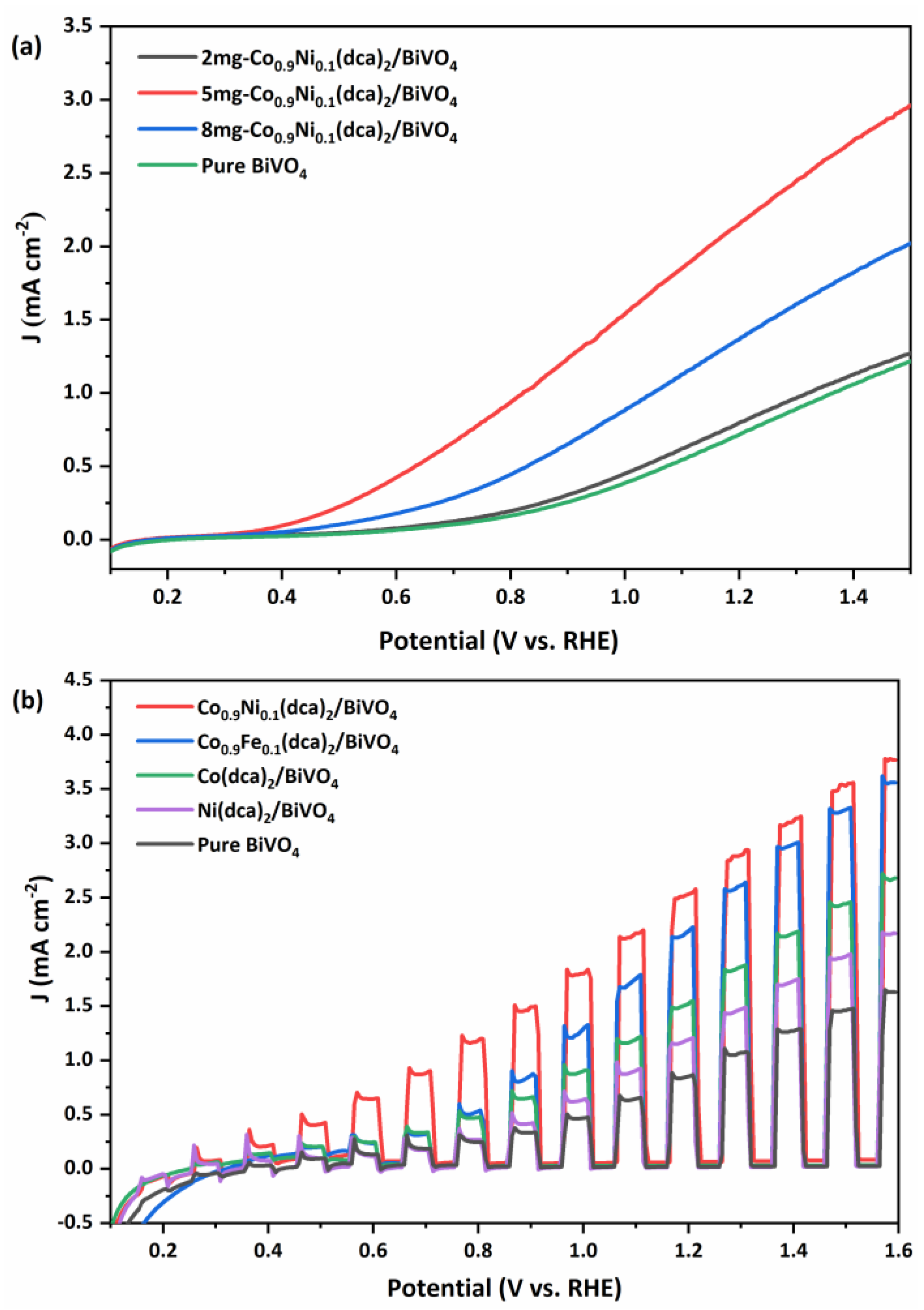

Figure 5. (a) Linear sweep voltammetry curves (LSV) with different deposition ratios and (b) PEC chopped light linear sweep voltammetry curves of metal dicyanamide modified BiVO4 and bare BiVO4 in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination.
Figure 5. (a) Linear sweep voltammetry curves (LSV) with different deposition ratios and (b) PEC chopped light linear sweep voltammetry curves of metal dicyanamide modified BiVO4 and bare BiVO4 in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination.
Sustainability 15 03129 g005
Sustainability 15 03129 g006 550

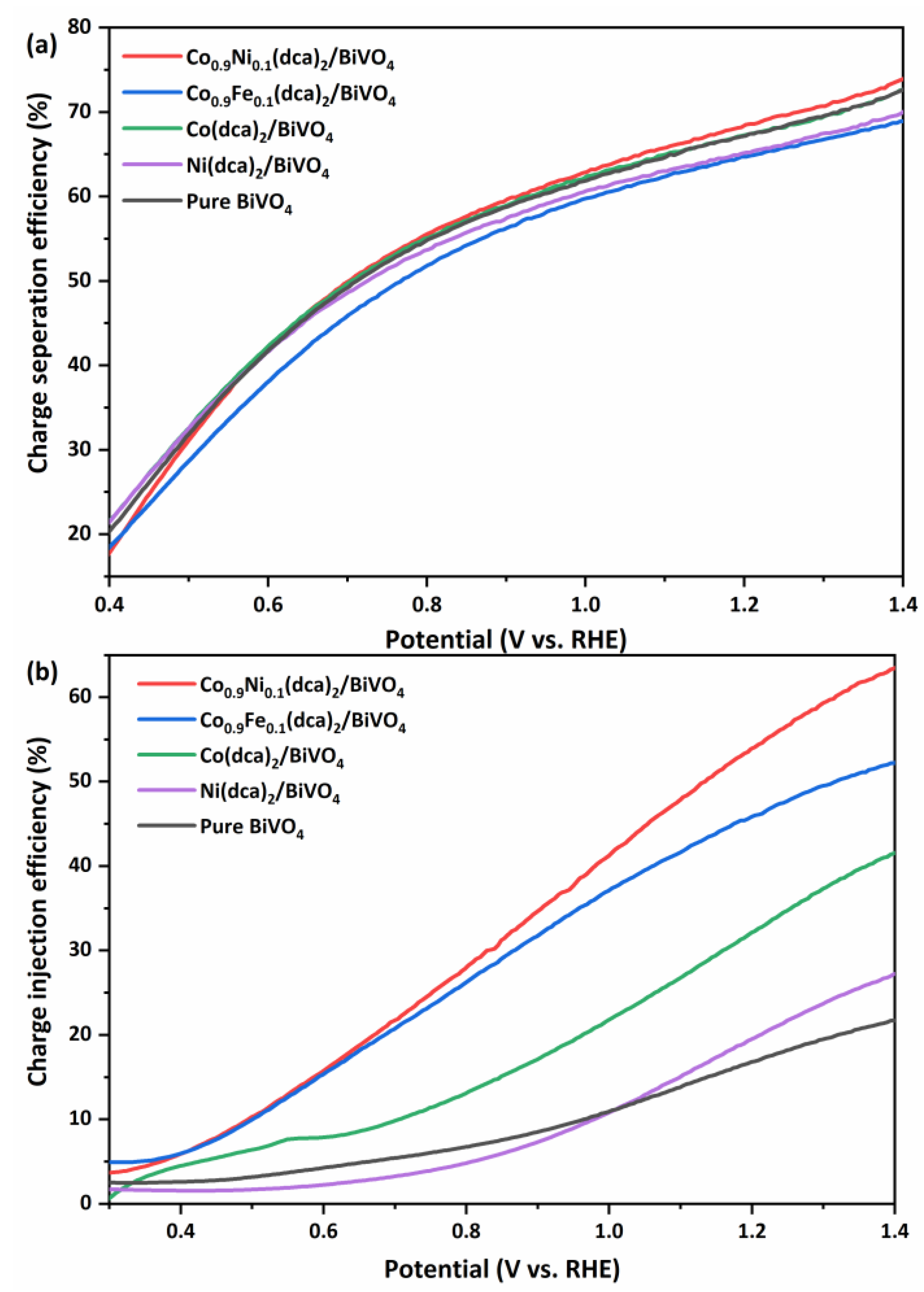

Figure 6. PEC (a) charge separation efficiencies and (b) charge injection efficiencies for BiVO4 and M(dca)2/BiVO4 photoanodes in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination.
Figure 6. PEC (a) charge separation efficiencies and (b) charge injection efficiencies for BiVO4 and M(dca)2/BiVO4 photoanodes in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination.
Sustainability 15 03129 g006
Sustainability 15 03129 g007 550

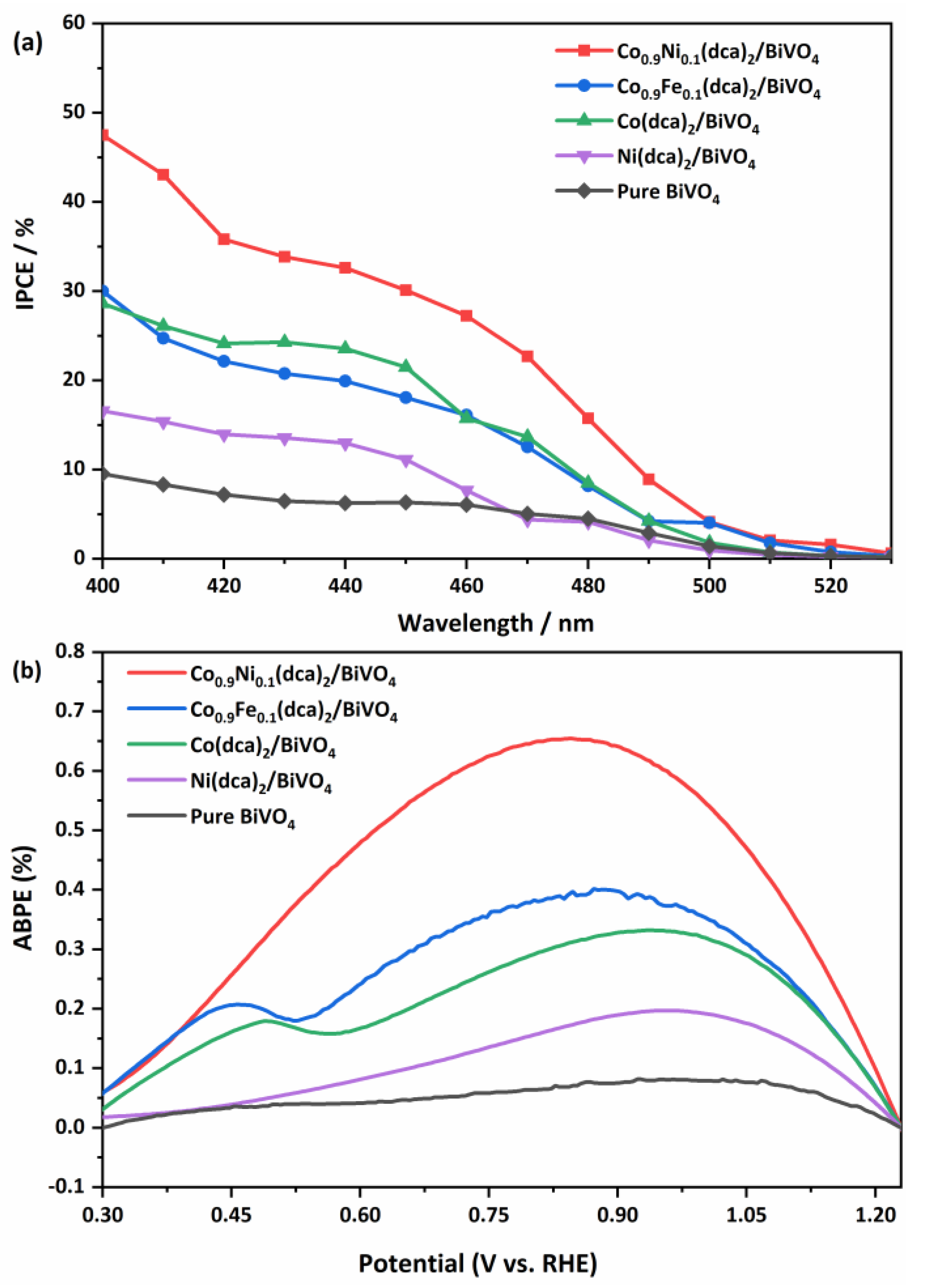

Figure 7. (a) Incident photon-to-current conversion efficiency (IPCE) plots at 1.23 V vs. RHE of BiVO4 and M(dca)2/BiVO4 photoanodes; (b) applied bias photon-to-current efficiencies (ABPEs) of BiVO4 and M(dca)2/BiVO4 photoanodes in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination.
Figure 7. (a) Incident photon-to-current conversion efficiency (IPCE) plots at 1.23 V vs. RHE of BiVO4 and M(dca)2/BiVO4 photoanodes; (b) applied bias photon-to-current efficiencies (ABPEs) of BiVO4 and M(dca)2/BiVO4 photoanodes in 0.5 M Na2SO4 aqueous solution under AM 1.5 G illumination.
Sustainability 15 03129 g007
Sustainability 15 03129 g008 550
Figure 8. (a) Tested (scatter) and simulated (line) results of electrochemical impedance spectroscopy (EIS) of BiVO4 and M(dca)2/BiVO4 photoanodes; (b) Mott–Schottky plots for BiVO4 and M(dca)2/BiVO4 photoanodes in 0.5 M Na2SO4 aqueous solution. Inset: the magnified view of Mott-Schottky plots.
Figure 8. (a) Tested (scatter) and simulated (line) results of electrochemical impedance spectroscopy (EIS) of BiVO4 and M(dca)2/BiVO4 photoanodes; (b) Mott–Schottky plots for BiVO4 and M(dca)2/BiVO4 photoanodes in 0.5 M Na2SO4 aqueous solution. Inset: the magnified view of Mott-Schottky plots.
Sustainability 15 03129 g008
Sustainability 15 03129 sch002 550

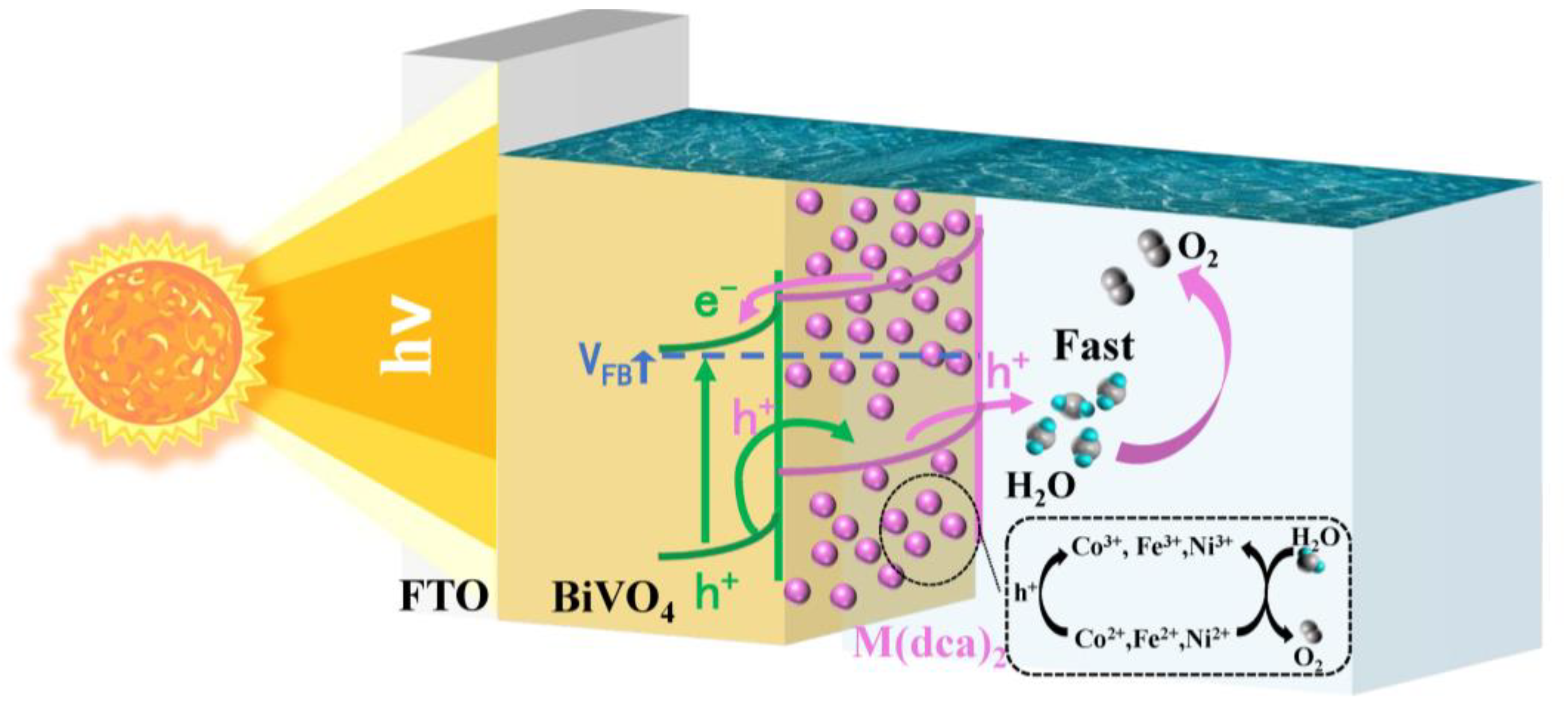

Scheme 2. Schematic of mechanism for photoelectrochemical water oxidation process on M(dca)2/BiVO4.
Scheme 2. Schematic of mechanism for photoelectrochemical water oxidation process on M(dca)2/BiVO4.
Sustainability 15 03129 sch002
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
