Selected Properties of Soil-like Substrates Made from Mine Coal Waste and Their Effect on Plant Yields

Abstract

To reduce the environmental damage caused by coal waste landfills, it is necessary to look for rational methods for their management. One method for their development is the creation of soil-like substrates. This study aimed to assess the properties of soil-like substrates from coal mining waste, combined with a varied sample of sewage sludge and waste mineral wool. The properties of the substrates were evaluated in a pot experiment. The properties of the substrates and their yield potential were determined. Coal mining waste as a substrate, compared to anthropogenic soil, was characterized by a significantly higher sorption capacity; the content of alkaline cations and pH; significantly higher contents of organic carbon, nitrogen, and available forms of K and Mg; and a lower content of available P. The substrates enriched with sewage sludge showed a significant increase in content of organic carbon, nitrogen, and assimilable forms of P and Mg, as well as the optimization of sorption properties. Extending the composition of substrates with mineral wool resulted in further improvement of their properties. The yields of plants grown on coal mining waste were significantly lower than those of those grown on anthropogenic soil. Substrates with sewage sludge and mineral wool had a significantly higher yield potential.

1. Introduction

The industrialization of developing countries and emerging economies, and the continuing high level of demand for materials in developed countries, have influenced the unprecedented increase in demand for raw materials observed in recent decades [1]. Population growth and economic development are placing a heavy strain on the Earth’s natural resources and the environment [2]. This has drawn attention to the need to implement an economic model that reduces consumption of natural resources through the development of technologies that integrate waste back into the production cycle [3,4]. The significant role of the circular economy in reducing natural resource consumption is highlighted by the European Community’s “Circular Economy” action plan [5], which places particular emphasis on actions to reduce waste generation, reuse resources in production processes, and recover energy and materials from waste. This plan has links with other European programs that aim to achieve climate neutrality for the European Union by 2050 [6]. A condition for achieving climate neutrality is protecting soils and achieving land degradation neutrality by 2030 [6]. The main actions for soil conservation are to reduce the use of soils for non-agricultural and non-forest purposes, to increase the production potential of poor-quality soils, and to reclaim degraded and devastated soils [7]. These actions, for poor-quality soils, may include enriching them with organic matter and plant nutrients. On degraded and devastated soils, it is often necessary to restore the soil or cover significant areas with a material that meets the requirements of the soil substrate [7]; research indicates that waste can be used for these activities [8,9,10].

Implementing the concept of sustainability and the circular economy is particularly challenging in economic sectors with high environmental pressures [11], of which the mining industry is a good example. The negative impacts of the extractive industries include the occupation and degradation of large areas of soil [12]; the destruction of vegetation cover and subsequent loss of biodiversity [13]; the degradation of water relations [14] and soil, water, and air pollution; and the generation of large amounts of waste and greenhouse gas emissions [15], and the resulting socio-environmental problems [16]. Among all of the above, soil devastation deserves particular attention.

Soils play a key role in all terrestrial ecosystems, being responsible for supporting crop and livestock production, maintaining biodiversity, providing clean water, and regulating the climate [17]. In addition, soils are a fragile and finite resource, as processes leading to soil formation take thousands of years. Degradation can occur in a short time, and regeneration processes take a very long time [18].

Waste is an equally important issue in mining, as mining activities generate more than 100 billion tons of waste each year, and the generation of this waste is projected to increase significantly (around 70%) over the next 40 years [19]. Both mining waste management strategies and the management of devastated soils in the mining sector require the implementation of innovative solutions. Taking into account previous research results on the assessment of the properties of mining waste, it is economically, ecologically, and socially justifiable to look for rational ways to manage it, which can also be an alternative way to reduce the environmental damage caused by coal waste dumps [20,21]. Coal waste can be used as an input for concrete paving [22], and bricks and fuel for their firing [23] and paving [24]. One option for the recovery of mining waste is using it to produce soil substrates, referred to in the literature as soil-like mixtures, engineered substrates, artificial soil, engineered technosol, and technosol [10,25,26]. Carbon wastes typically contain significant (high) amounts of carbon, macronutrients, and micronutrients [27]. The total carbon content of carbon wastes ranges from 20 to 50% and, therefore, they are used as soil-conditioning materials that can increase organic carbon content, which is directly correlated to soil organic matter [28,29]. Soil organic matter has a significant impact on soil’s physical structure, microbial activity, and nutrient-retention capacity for crop production. The beneficial effects of soil organic matter are indirect and reflected in the long-term improvement of the overall soil properties [30].

Soil substrates constructed from mine waste should provide and process plant and soil biota nutrients and can buffer or filter possible contaminants. The functioning and quality of soil-like substrates depend on interrelated and optimally shaped physical, chemical, and biological properties, which not only allow for plant growth but also enable other ecosystem functions and services [8].To use carbonaceous waste as the main raw material of a substrate capable of sustaining high-quality plant growth, it should be combined with organic additives to facilitate the initiation of the plant growth process [10,31].

Municipal sewage sludge, among other things, can be used for this purpose. The application of sewage sludge is one strategy for rapidly enriching soils with organic matter, nitrogen, and phosphorus [32,33,34,35]. Structural materials can additionally be used to optimize the properties of tailing-based substrates [25]. An example of such material can be rockwool waste from cover crops. Passive, inactive, and chemically inert, mineral wool has a high water-holding capacity and very good capillary properties. As studies show, when used together with sewage sludge in the reclamation of degraded soils, it optimizes physical and water properties and organic matter transformation processes. These create conditions for the initiation of the soil-forming process and proper mineral nutrient management, which is reflected in plant yields [36,37,38].

Considering the environmental considerations related to the disposal of coal waste, as well as the need for its recovery and the further improvement of waste management in the mining industry, a study was conducted, the aim of which was to assess selected extractive properties of coal waste and its mixtures with municipal sewage sludge and waste rockwool from cover crops in terms of their suitability for the production of soil-like substrates. The implementation of the research was aimed at verifying the research hypotheses, which assumed that mined coal waste has properties that provide minimum conditions for plant growth. Soil substrates obtained by combining mined coal waste with sewage sludge and waste rock wool will provide optimal conditions for plant growth.

2. Materials and Methods

2.1. Substrate Composition

Mined coal waste from the enrichment of hard coal as well as municipal sewage sludge and rockwool waste from cover crops were used to create mixtures that met the criteria for a soil-like substrate.

The main material to produce a soil-like substrate, acting as a mineral material (component), was a fine-grained and silty clay fraction, found by mining coal waste from the “Bogdanka” coal mine (Lubelskie Voivodeship, Poland). The properties of the substrates were optimized by enriching the mined coal waste (CW) with organic matter and nutrients, the source of which was sewage sludge (SS) from a municipal sewage treatment plant (Lublin, Poland). Rockwool waste from cover crops (MW) (from the Horticultural Enterprise in Niemce near Lublin, Poland) was introduced into the substrates to optimize water and air properties. Before determining the final composition of the substrates, the basic properties of the waste were determined (Supplementary Materials).

2.2. Vase Vegetation Experiment

The properties of prepared soil-like substrates were evaluated in a rigorous two-year pot experiment, in which the effect of varying proportions of sewage sludge and rockwool on the properties of substrates made from mined coal waste was assessed.

The 12 dm³ vases were filled with the test substrates, with 10 kg in each (air-dry weight) according to the schemes shown in

Table 1. Used variants and the composition of soil-like substrates.

Variant	Substrate Characteristics	Control Soil (CS)		Coal Waste (CW)		Sewage Sludge (SS)		Mineral Wool (MW)
		% w/w s.m.	kg s.m.	% w/w s.m.	kg s.m.	% w/w s.m.	kg s.m.	% w/w s.m.	kg s.m.
CS	Control Soil	100	10	-	-	-	-	-	-
CW_1	Coal Waste − 100%	-	-	100	10	-	-	-	-
CW_2	Coal Waste 97.5% + Sewage Sludge 2.5%	-	-	97.5	9.75	2.5	0.25	-	-
CW_3	Coal Waste 95% + Sewage Sludge 5%	-	-	95	9.50	5	0.50	-	-
CW_4	Coal Waste 96.5% + Sewage Sludge 2.5% + Mineral Wool 1%	-	-	96.5	9.65	2.5	0.25	1	1
CW_5	Coal Waste 94% + Sewage Sludge 5% + Mineral Wool 1%	-	-	94	9.4	5	0.50	1	1

. The results obtained for the test substrates were compared with a control soil (CS) consisting of degraded anthropogenic soil. The soil was taken from an overburden heap located at the foreland of a sand mine in Niemce near Lublin (Lubelskie Voivodeship, Poland).

The experiment was carried out in 3 replications (a total of 18 vases). The vases were filled with the evaluated mixtures, which constituted the growing medium. After the preparation of the vases, samples were taken from the entire depth of the vases for laboratory tests at the beginning of the experiment or on the 1st test date of the study. In the first growing season, white mustard (Sinapis alba), cultivar Borowska C/1, was sewn onto the growing media at a rate of 0.2 g/vase. The mustard was harvested at the flowering stage, the biomass yield was determined, and substrate and soil samples were taken for laboratory tests on the 2nd test date.

In the following year, the contents of the vases were mixed, and 20 seeds/vase of the maize (Zea mays) variety KB 1903 C/1 were sown. Then, when the maize was at the 5th leaf stage, a break was made, leaving 5 plants in each vase. Harvesting was carried out at the setting stage. At the same time, the biomass yield was determined and substrate samples were taken for laboratory tests on the 3rd test date.

2.3. Laboratory Analysis

The potentiometric method was used to determine pH in 1 mol·dm⁻³ KCl (soil: 1:2.5 solution) [39]. Electrical conductivity (EC) was determined using an EC meter HI 2316 from Hanna Instruments (Nusfalau, Romania) in a 1:5 substrate–water suspension. The Kappen method [40] was used to determine the hydrolytic acidity (HA) and exchangeable base cations (BC) were determined by the Kappen method. Soil cation exchange capacity (CEC) was calculated using the formula:

CEC = HA + BC

(1)

The degree of saturation of the sorption complex with basic cations (V) was calculated according to the formula:

V = (BC × 100): CEC

(2)

Total organic carbon (TOC) was determined in dry waste and substrate samples using the TOC-VCSH apparatus with the SSM-5000A module (Shimadzu Corp., Kyoto, Japan) using the combustion method [41]. The modified Kjeldahl method [42] with a Kjeltech TM 8100 distillation apparatus (Foss, Hillerød, Denmark) was used to determine the total nitrogen (TN) content. Calculated C/N is the ratio of total organic carbon to total nitrogen. The content of available phosphorus (P), available potassium (K), and available magnesium (Mg) was determined by the Egner–Riehm method [43]. All determinations were performed in three parallel replicates.

The total content of heavy metals (Pb, Zn, Cu, Cd, Cr, Ni, and Hg) and barium (Ba) was determined by extraction. A total of 0.5 g of waste was flooded with 20 mL of a mixture of concentrated acids (nitric acid and perchloric acid 1:1). After mineralization, the volume was made up to 25 mL. The content of individual elements in the waste was determined by inductively coupled plasma atomic emission spectroscopy (ICP-AES) on the PS 950 ICP-OES optical emission spectrometer (Teledyne Leeman Labs, Mason, OH, USA) [44].

2.4. Statistical Analysis

For each variant and term, indicators were analyzed in three repetitions. The results were statistically analyzed using STATISTICA 13.1. ANOVA for factorial designs was used to assess the influence of controlled factors on the outcome of the experiment.

The influence of two factors: variant (n = 6) and term (n = 3) and the interaction between these factors on selected soil-like properties was assessed. Degrees of freedom, sum of squares of variance (Ss), mean square of variance (MS), and the value of the test statistic (F) were calculated for the assessed factors. In order to check which of the means differ significantly from each other and which do not differ significantly (they form the so-called homogeneous groups), the Tukey post hoc test (HSD) was used at the significance level α = 0.05.

The Ward method and the k-means method were used to determine sets of factors with high probability [45]. In Ward’s agglomeration method, clustering was performed on the basis of Euclidean distance. The significance of cluster variability was determined using the k-means method.

The relationships between the variables and between the variables and the assessed properties of soil-like substrates were interpreted by means of PCA, or principal component analysis. The PCA method is a special case of factor analysis. It is used to transform data in such a way as to obtain the largest differences in correlations between variables. The PCA method uses the properties of eigenvectors and eigenvalues for this purpose. It consists in transforming the original set of variables into a new set of uncorrelated variables called principal components. Principal components are linear combinations of the original variables, with each subsequent principal component explaining as much of the variation in the data as possible. A thorough analysis of the principal components allows for the identification of those primary variables that have a significant impact on the principal components, i.e., those that form a homogeneous group. This makes it possible to limit the number of variables characterizing the phenomena and to indicate the relationship between the variables [46].

3. Results

3.1. pH i EC

The pH_KCl value of the control soil (CS) at the beginning of the experiment (test date I) was 3.9, indicating strong acidity; on the subsequent test dates, the pH_KCl value indicated an acidic and slightly acidic reaction (

Table 2. pH and electrical conductivity (EC).

Variant	Term	pH	Electrical Conductivity (EC)
		1 mol KCl·dm−3	mS·cm−1
CS	I	3.90 ± 0.01 a	0.11 ± 0.02 a
	II	4.29 ± 0.01 b	0.10 ± 0.02 a
	III	4.90 ± 0.02 c	0.09 ± 0.01 a
CW_1	I	7.20 ± 0.01 k	0.65 ± 0.02 bc
	II	7.00 ± 0.01 ij	0.60 ± 0.00 b
	III	6.80 ± 0.01 g	0.57 ± 0,01 b
CW_2	I	6.00 ± 0.02 i	0.79 ± 0.05 fg
	II	6.82 ± 0.02 g	0.77 ± 0.03 def
	III	5.68 ± 0.02 e	0.69 ± 0.07 cd
CW_3	I	6.80 ± 0.02 g	1.14 ± 0.02 i
	II	6.50 ± 0.01 d	0.95 ± 0.02 h
	III	6.50 ± 0.01 d	0.76 ± 0.01 de
CW_4	I	7.07 ± 0.07 j	0.84 ± 0.02 fg
	II	6.90 ± 0.01 h	0.79 ± 0.01 fg
	III	6.71 ± 0.01 f	0.70 ± 0.02 cd
CW_5	I	7.03 ± 0.06 ij	1.12 ± 0.04 i
	II	6.59 ± 0.01 e	0.95 ± 0.03 h
	III	6.60 ± 0.01 e	0.85 ± 0.01 g

Different lowercase letters in the upper index indicate significant differences.

). The substrate CW_1 (100% mined coal waste), on the first test date, was characterized by a neutral reaction (pH_KCl 7.2). Under the influence of the addition of sewage sludge to the substrate at doses of 2.5 and 5.0% (CW_2 and CW_3), a reduction in the pH_KCl of the substrates was observed, down to 7.0 and 6.8, i.e., to a neutral and slightly acidic reaction, respectively (Table 2). On subsequent test dates, a reduction in pH_KCl in the mining waste substrate (CW_1) to 6.8 was noted, while in the sewage sludge mining waste substrate a reduction to 6.6–6.5 was observed. In the mineral wool substrate (CW_4 and CW_5), the pH_KCl was 0.2–0.1 pH higher than in the sewage sludge substrate (Table 2).

The EC of the CW_1 substrate was 0.60 mS·cm⁻¹ and, compared to CS, it was about six times higher (Table 2). The substrates of mining waste with sewage sludge (CW_2 and CW_3) showed a salinity increase of 25% (CW_1) and 57% (CW_2), proportional to the amount of sludge, and the substrates with sewage sludge and rockwool showed a salinity increase of 30% (CW_4) and 62% (CW_5) compared to the CW_1 substrate.

3.2. Sorption Properties

The substrate composition (variant) had a significant effect on hydrolytic acidity (HA) (

Table 3. Sorption properties.

Variant	Term	HA	BC	CEC	V
		cmol(+) kg−1			%
CS	I	2.69 ± 0.18 cd	3.37 ± 0.15 a	6.06 ± 0.31 a	3.37 ± 0.15 a
	II	2 78 ± 0.24 d	3.80 ± 0 10 a	6 58 ± 0.21 a	3.80 ± 0.10 a
	III	2.48 ± 0.10 c	4.67 ± 0.06 b	7.15 ± 0.14 b	4.67 ± 0.06 b
CW_1	I	0.62 ± 0.03 ab	11.48 ± 0.26 c	12.10 ± 0.28 c	11.48 ± 0.26 c
	II	0.59 ± 0.03 ab	12.22 ± 0.12 d	12.81 ± 0.15 d	12.22 ± 0.12 d
	III	0.57 ± 0.03 a	12.56 ± 0.28 de	13.13 ± 0.25 d	12.56 ± 0.28 de
CW_2	I	0.84 ± 0.07 b	13.20 ± 0.09 f	14.04 ± 0.10 ef	13.20 ± 0.09 f
	II	0.78 ± 0.01 ab	13.13 ± 0.16 f	13.91 ± 0.17 e	13.13 ± 0.16 f
	III	0.76 ± 0.07 ab	13.03 ± 0.08 ef	13.79 ± 0.15 e	13.03 ± 0.08 ef
CW_3	I	0.79 ± 0.05 ab	15.10 ± 0.10 kl	15.89 ± 0.15 l	15.10 ± 0.10 jk
	II	0.77 ± 0.04 ab	14.81 ± 0.10 ijk	15.57 ± 0.08 jkl	14.81 ± 0.10 ijk
	III	0.74 ± 0.01 ab	14.37 ± 0.18 hi	15.11 ± 0.17 hij	14.37 ± 0.18 hi
CW_4	I	0.74 ± 0.02 ab	13.91 ± 0.15 gh	14.65 ± 0.13 gh	13.91 ± 0.15 gh
	II	0.71 ± 0.05 ab	14.12 ± 0.19 gh	14.83 ± 0.15 ghi	14.12 ± 0.19 gh
	III	0.63 ± 0.07 ab	13.83 ± 0.16 g	14.46 ± 0.11 fg	13.83 ± 0.16 g
CW_5	I	0.72 ± 0.03 ab	15.21 ± 0.04 l	15.93 ± 0.02 l	15.21 ± 0.04 k
	II	0.69 ± 0.04 ab	15.11 ± 0.16 kl	15.81 ± 0.14 kl	15.11 ± 0.16 jk
	III	0.63 ± 0.07 ab	14.67 ± 0.23 ij	15.29 ± 0.24 ijk	14.67 ± 0.23 ij

Explanation: HA: hydrolytic acidity; BC: exchangeable base cations; CEC: cation exchange capacity; V: the degree of saturation of the sorption complex with basic cations; different lowercase letters in the upper index indicate significant differences. Mean ± standard deviation.

) (Supplementary Materials). The HA of the substrate from mining waste 100% (CW_1) was 4.5 times lower than that of CS. Increasing the proportion of sludge (2.5 and 5.0%) significantly increased, compared to substrate CW_1, the HA of substrates CW_2 and CW_3, by 31 and 27%, respectively, and in the interaction of sludge with mineral wool (substrates CW_4 and CW_5), the increase in HA was 8.6 and 10%. The HA decreased in the subsequent test periods, with the differences not statistically significant between periods I and II. At test date III, HA was statistically significantly lower compared to test dates I and II (Supplementary Materials). The interaction between the factors tested had no significant effect on HA.

Tukey’s HSD test indicates that the total base cations (BC) were significantly affected by the composition of the substrate (Supplementary Materials). On the first test date, CS was low at 3.37 cmol(+)·kg⁻¹ (Table 3) and it then increased on subsequent test dates. In the CW_1 substrate, the average in the BC period assessed, compared to the CS, assumed a significantly higher (increased by 206%) value (Supplementary Materials). Compared to the CW_1 substrate, BC in the substrates with increasing sludge (CW_2 and CW_3) was higher by 8.7% and 22.4%, respectively, and in the CW_4 and CW_5 substrates by 15.4% and 24.2%, respectively. The test period had a significant effect on BC content; BC was lowest during the first test period and higher and similar in subsequent test periods (Supplementary Materials).

The sorptive capacity (CEC) in CS, on the first test date, was low at 6.06 cmol(+)·kg⁻¹ (Table 3). The variants had a significant effect on CEC (Supplementary Materials). The lowest CEC was in the CS variant and was more than twice as high in the others. While the CEC of the CW_3 and CW_4 variants was not statistically significantly different, the other variants were statistically significantly different. The variant and the interaction between the factors tested had a significant effect on the CEC content. The test period had no significant effect on CEC. The interaction between the study factors had a significant effect on CEC content. The lowest CEC values were found in all CS variant test periods, while the highest values were found in CW_3 and CW_5 variants also in all test periods.

The variability factors assessed, i.e., variant and term, and the interactions between these factors had a significant effect on the degree of saturation of the sorption complex with base cations (Table 3) (Supplementary Materials). The lowest values of V were found on all CS variant test dates, while the highest values were found in variants CW_3 and CW_5 also on all test dates. In the CW_2 and CW_4 variants, the amounts of V were not statistically significantly different between the test periods.

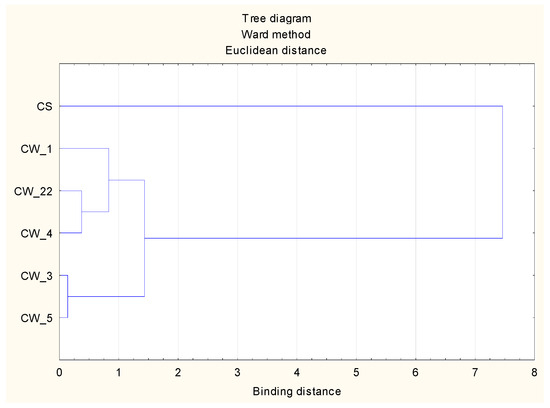

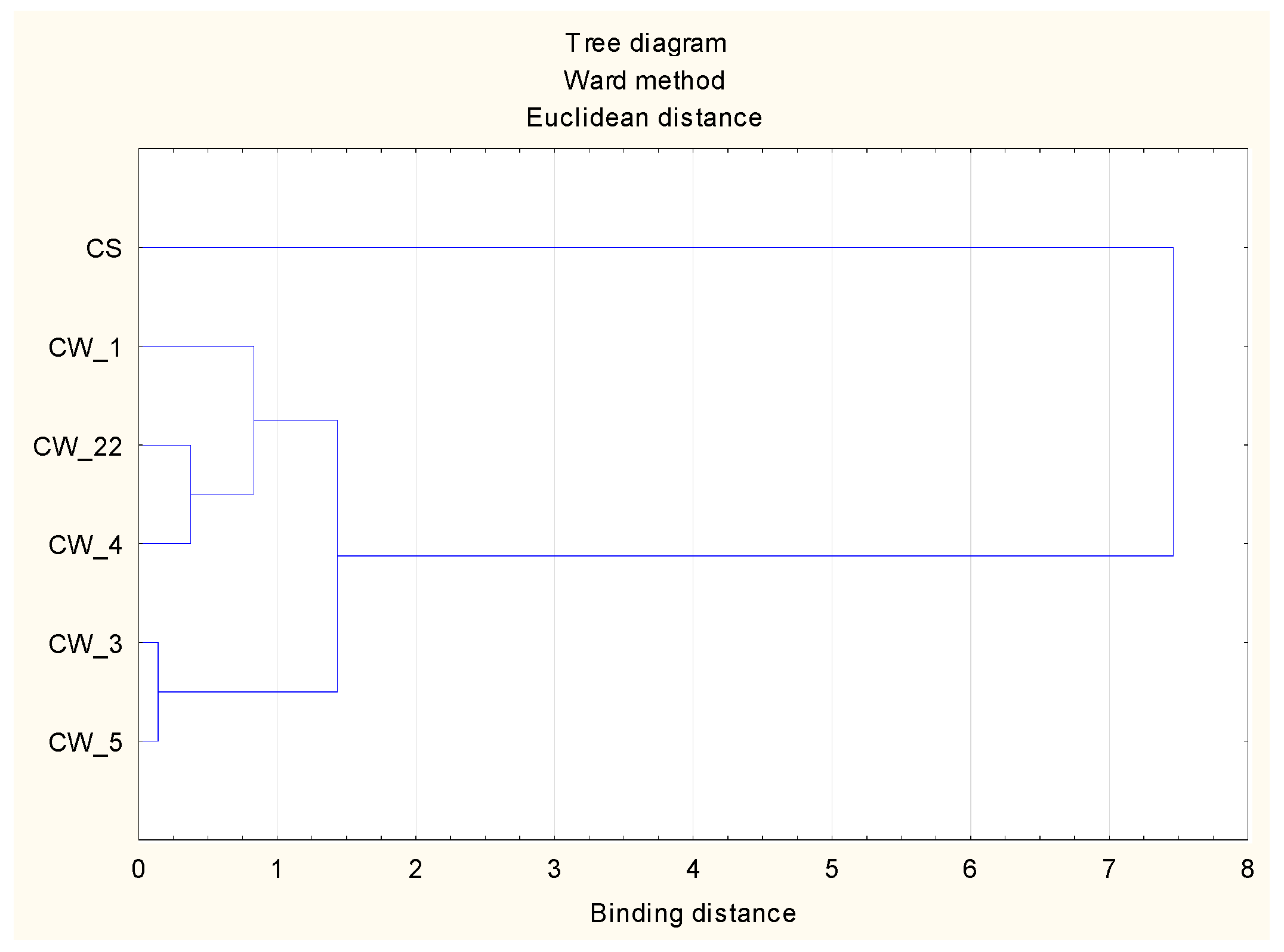

Ward’s cluster analysis based on sorption properties confirmed that the sorption properties were significantly dependent on substrate composition (Figure 1). The dendrogram shows three clusters. The first cluster included the control soil (CS), the second variants CW_1 and CW_2, and the third variants CW_3, CW_4, and CW_5.

High average values of the BC, CEC, and V indicators and a low average value of the HA indicator were found for Cluster 3. Cluster 2 was characterized by the lowest mean value of the HA indicator and high values of the other indicators. Cluster 1 was characterized by the lowest values of the three analyzed indicators—BC, CEC, and V—and the highest value of HA (

Table 4. Mean values of the output variables in the clusters.

Variable	Mean Values of the Output Variables in the Clusters
	Clusters 1 (CS)	Clusters 2 (CW_1, CW_2)	Clusters 3 (CW_3, CW_4, CW_5)
BC	3.94	13.60	14.57
HA	2.65	0.69	0.71
CEC	6.59	13.30	15.28
V	3.94	12.60	14.57

Explanation: HA: hydrolytic acidity; BC: exchangeable base cations; CEC: cation exchange capacity; V: the degree of saturation of the sorption complex with basic cations.

).

3.3. TOC, TN, C/N

Significantly, the control soil (CS) was characterized by the lowest TOC content (

Table 5. Total organic carbon (TOC), total nitrogen (TN) and C/N ratio.

Variant	Term	TOC	TN	C/N
		g·kg−1
CS	I	7.51 ± 0.22 a	0.84 ± 0.02 a	8.94
	II	7.61 ± 0.17 a	0.89 ± 0.03 a	8.55
	III	8.21 ± 0.34 a	0.93 ± 0.03 a	8.23
CW_1	I	68.54 ± 0.79 e	2.36 ± 0.09 bcd	29.04
	II	64.44 ± 0.54 d	2.27 ± 0.13 bc	28.39
	III	51.77 ± 0.25 b	2.15 ± 0.13 b	24.08
CW_2	I	82.40 ± 1.06 g	3.22 ± 0.03 hi	25.60
	II	75.50 ± 0.45 f	3.14 ± 0.04 gh	78.64
	III	52.82 ± 0.64 b	2.63 ± 0.04 de	20.08
CW_3	I	95.49 ± 0.59 j	3.37 ± 0.14 hi	28.34
	II	91.52 ± 0.93 i	3.44 ± 0.12 i	26.60
	III	57.60 ± 0.98 c	3.22 ± 0.02 hi	17.89
CW_4	I	85.30 ± 1.05 h	3.18 ± 0.07 ghi	26.82
	II	62.30 ± 1.15 d	2.77 ± 0.06 ef	22.50
	III	56.49 ± 0.10 c	2.47 ± 0.07 cd	22.87
CW_5	I	95.21 ± 0.93 j	3.33 ± 0.10 hi	28.59
	II	64.58 ± 0.41 d	2.94 ± 0.16 fg	21.97
	III	58.10 ± 1.24 c	2.86 ± 0.10 ef	20.31

Explanation: different lowercase letters in the upper index indicate significant differences. Mean ± standard deviation.

) (Supplementary Materials). At the first test date in CS, the TOC content was 7.50 g·kg⁻¹. The composition of the substrate had a statistically significant effect on the TOC content (Table 5) (Supplementary Materials). In the substrate CW_1 (mining waste 100%), the average organic carbon content was about eight times higher than in the CS during the assessed period. Supplementing the composition of the mining waste substrate with sewage sludge increased the TOC content by 14% (CW_2) and 32% (CW_3), respectively, and in the interaction between sewage sludge and rockwool, by 10% (CW_4) and 18% (CW_5), respectively. The test period had a significant effect on TOC content, which was statistically significantly different between test periods. In the evaluated substrates, TOC content decreased significantly with time. The interaction between the factors studied had a significant effect on TOC content. The lowest TOC values occurred in all CS test periods and were not statistically significantly different from each other. In contrast, they were highest in variants CW_3 and CW_5 in the first test period (Table 5) (Supplementary Materials).

The variant, date, and interaction between the factors studied had a significant effect on total nitrogen content (Table 5) (Supplementary Materials). The mean TN content over the evaluated period in the CW_1 substrate was 2.26 g·kg⁻¹ and was statistically significantly higher than in the CS. The supplementation of the excavation waste substrate with sewage sludge significantly increased the TN content by 32% (CW_2) and 48% (CW_3), respectively, and, in substrates with a composition additionally supplemented with mineral wool, by 24% (CW_4) and 34% (CW_5) (Table 5) (Supplementary Materials). TN content decreased significantly with time. The interaction between the factors studied had a significant effect on TN content. The lowest TN values were found in all CS test periods and were not statistically significantly different from each other.

The C/N ratio in CS was 8.63 on average over the period assessed (Table 5). In the CW_1 substrate (mining waste 100%), the C/N ratio was wide at 27.75 on average over the study period. The addition of sewage sludge had the effect of narrowing this ratio in the mixtures by about 4.5 (CW_2) and 3.5 (CW_3), and in the interaction with mineral wool, by 3.7 (CW_4) and 4 (CW_5).

The significant effect of substrate composition on TOC and NT content was confirmed by Ward’s cluster analysis (Figure 2). The diagram shows three clusters: the first cluster included the CS variant, the second CW_1, and the third CW_2, CW_3, CW_4, and CW_5.

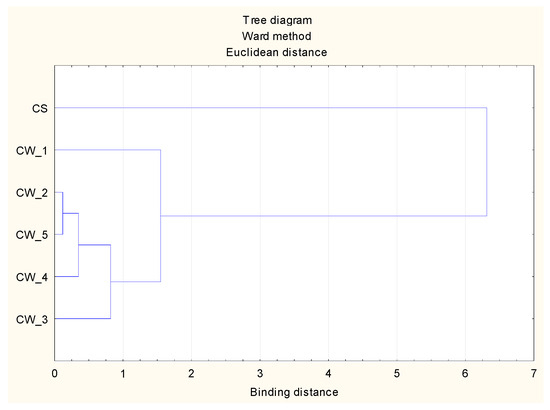

Based on the cluster profiles, Cluster 3 (CW_2, CW_3, CW_4, and CW_5) was characterized by high average values of the two analyzed indicators: TOC and Nt. Cluster 2 was characterized by the highest value of the C/N indicator. In contrast, Cluster 1 was characterized by the lowest values of all analyzed indices (

Table 6. Mean values of the output variables in the clusters.

Variable	Mean Values of the Output Variables in the Clusters
	Cluster 1 (CS)	Cluster 2 (CW_1)	Cluster 3 (CW_2, CW_3, CW_4, CW_5)
TOC	7.77	61.58	73.11
TN	0.89	2.26	3.05
C/N	8.78	27.23	23.80

Explanation: TOC: total organic carbon; TN: total nitrogen; and C/N ratio.

).

3.4. Available Forms of P, K, and Mg

The average content of available P in CS was 16.02 mg∙kg⁻¹, and traces were found in the CW_1 substrate at levels 10.7 times lower than in CS (

Table 7. Contents of available forms of P, K, and Mg.

Variant	Term	P	K	Mg
		mg·kg−1
	I	18.23 ± 0.21 de	33.00 ± 2.00 b	17.10 ± 0.30 a
CS	II	17.37 ± 0.21 d	38.80 ± 1.40 c	20.00 ± 1.20 a
	III	12.47 ± 0.15 bc	25.13 ± 0.50 s	20.20 ± 1.00 a
	I	1.77 ± 0.35 a	208.40 ± 2.00 k	180.00 ± 1.32 c
CW_1	II	1.43 ± 0.15 a	217.20 ± 1.73 l	203.00 ± 1.80 g
	III	1.23 ± 0.25 a	116.60 ± 1.00 f	201.80 ± 0.53 g
	I	14 04 ± 0.44 c	198.50 ± 2.00 j	187.20 ± 1.80 d
CW_2	II	12.50 ± 0.17 bc	132.20 ± 1.00 g	235.00 ± 2.11 j
	III	10.90 ± 1.67 b	83.40 ± 1.00 d	190.77 ± 0.32 e
	I	33.50 ± 1.00 i	242.27 ± 0.70 m	198.13 ± 0.95 f
CW_3	II	27.50 ± 1.10 gh	148.10 ± 2.10 h	241.13 ± 0.68 k
	III	26.37 ± 1.85 g	81.97 ± 1.15 d	179.97 ± 0.45 c
	I	21.00 ± 0.30 f	236.40 ± 0.40 ł	196.80 ± 0.92 f
CW_4	II	13.80 ± 0.10 c	162.67 ± 0.45 i	219.20 ± 1.20 i
	III	10.80 ± 0.20 b	85.80 ± 0.40 d	184.47 ± 0.50 d
	I	29.40 ± 0.30 h	273.10 ± 2.80 n	218.40 ± 0.60 i
CW_5	II	25.50 ± 0.70 g	144.20 ± 2.40 h	209.80 ± 0.60 h
	III	19.87 ± 0.45 ef	95.73 ± 0.50 e	170.87 ± 0.12 b

Explanation: different lowercase letters in the upper index indicate significant differences. Mean ± standard deviation.

) (Supplementary Materials).

Compared to the content in the CW_1 substrate, in the substrates with sewage sludge the P-available content increased significantly, by 8- (CW_2) and 19-fold (CW_3), and in the substrates additionally supplemented with mineral wool, by 10.1- (CW_4) and 16.6-fold (CW_5). Only the substrates with a 5% share of sewage sludge were characterized by a higher available phosphorus content compared to the control soil.

On successive test dates, the available P content decreased significantly (Table 7) (Supplementary Materials). The interaction between the factors studied had a significant effect on the available P content, with its lowest values occurring during all test periods of the CW_1 variant, while it was highest in the CW_3 and CW_5 variants during the first test period.

The composition of the substrate (variant) had a significant effect on the content of available potassium (Table 7) (Supplementary Materials). CS had the lowest content of available K, while the CW_1 substrate had the highest. The average content of available potassium in the 100% mining waste substrate (CW_1) was 180.7 mg∙kg⁻¹, and was more than five times higher than the content in CS. The supplementation of the mining waste substrate with sludge (at 2.5 and 5.0%) showed reductions, but not significantly; the available potassium content was reduced by 24% (CW_2) and 13% (CW_3), and by 10% (CW_4) and 5% (CW_5) in the sludge substrate with mineral wool added. During the period evaluated (two growing seasons), there was a significant reduction in the K-available content of the tested substrates (Supplementary Materials).

In the CW_1 substrate, the Mg-available content of 194.9 mg∙kg⁻¹ was more than 10 times higher on average during the assessed period and compared to CS. Increasing the proportion of sewage sludge (2.5 and 5.0%) increased the Mg-available content in the evaluated substrates by 5.2 (CW_2) and 5.9% (CW_3), and in the interaction of sludge with mineral wool, by 2.6 (CW_4) and 2.5% (CW_5). The test period had a significant effect on the available Mg content. The highest available Mg content was recorded in the second test period and was the lowest in the third (Table 7) (Supplementary Materials).

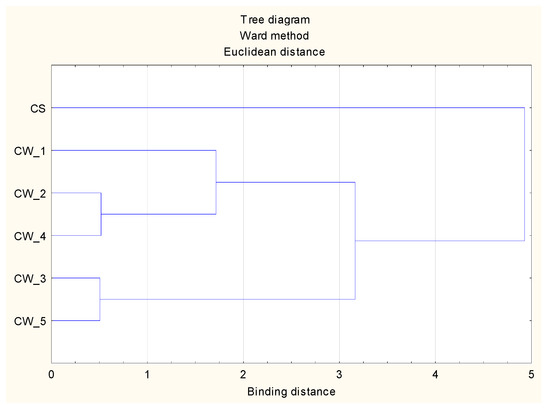

As a result of Ward’s analysis, three clusters are visible in the diagram (Figure 3). Based on the cluster profiles, it can be seen that Cluster 2 (CW_3 and CW_5) was characterized by the highest mean values of the analyzed indices, K and Mg.

Cluster 3 (CW_1, CW_2, and CW_4) was characterized by slightly lower average values of the analyzed indicators, and Cluster 1 (CS) by the lowest values, which was very different from the other two clusters (

Table 8. Mean values of the output variables in the clusters.

Variables	Mean Values of the Output Variables in the Clusters
	Cluster 1 (CS)	Cluster 2 (CW_3, CW_5)	Cluster 3 (CW_1, CW_2, CW_4)
K	32.31	164.23	160.13
Mg	19.10	203.05	199.80

Explanation: K: available potassium; Mg: available magnesium.

).

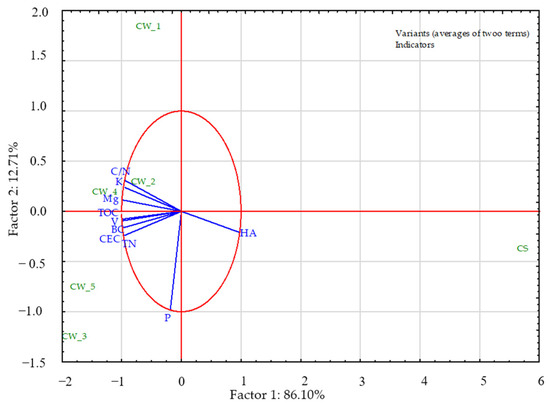

The results of the PCA analysis are presented in Figure 4. The idea of principal component analysis (PCA) is to reduce a large number of variables to a few uncorrelated factors that retain a large part of the information about the phenomenon under study contained in the original variables. The observed input variables are transformed into new, uncorrelated variables, or principal components, which are lines of combinations of the original variables. This makes it possible to limit the number of variables characterizing the phenomena and to indicate the relationships between the variables [46]. Factors 1 and 2, isolated during the analysis, explain 98.81% of the variance in the properties of soil-like substrates, of which Factor 1 explains 86.10% and it is strongly correlated with all properties except phosphorus. The most strongly correlated with phosphorus was Factor 2, which explains 12.71% of the variability of the studied properties. The CEC and BC content were strongly positively correlated with each other, such that if BC content increased, CEC also increased. The content of available phosphorus was not correlated with other properties.

Considering the first dimension (factor), the CS variant had the highest HA content and the lowest content of the other indicators compared to the other variants (except for P content, which was correlated with the second factor). Considering the second dimension, the variant had the lowest P content compared to the other variants.

3.5. Yield of Plants Grown on the Evaluated Substrates

The average fresh weight yield of white mustard grown on CS was 76.17 g/vase (

Table 9. Yield of plants grown.

Variants	White Mustard	Maize
	g/vase
CS	76.17 ± 0.85 b	112.70 ± 1.14 b
CW_1	26.47 ± 0.64 a	52.23 ± 0.35 a
CW_2	212.93 ± 0.91 c	351.53 ± 0.61 d
CW_3	251.43 ± 0.55 e	402.23 ± 0.64 e
CW_4	223.57 ± 0.40 d	328.93 ± 0.38 c
CW_4	350.90 ± 1.15 f	453.60 ± 10.13 f

Explanation: different lowercase letters in the upper index indicate significant differences. Mean ± standard deviation.

). The yield potential of the CW_1 substrate (100% extraction waste), expressed in terms of mustard fresh weight yield per vase (26.47 g/vase), was 189% lower compared to the mustard yield with CS (Table 9).

The fresh weight yield of white mustard grown on mining waste substrates with 2.5 and 5% sewage sludge (substrates CW_2 and CW_3, respectively) was significantly higher than that obtained on CS by 179% and 230%, respectively. Supplementing the composition of the mining waste and sludge substrates with rockwool increased the yield of white mustard. Compared to the yield of white mustard grown on the CW_1 substrate, the substrates with the addition of sludge showed an increase in white mustard fresh matter yield by 709% on the CW_2 substrate and by 855% on the CW_3 substrate, and in the interaction of sludge with mineral wool by 769% (CW_4) and 1233% (CW_5) (Table 9).

The fresh matter yield of maize grown in the second year of the experiment on CS was 112.17 g/vase (Table 9) and, on CW_1 substrate, 52.23 g/vase. On substrates with 2.5 and 5%, maize yields were higher by 214% (CW_2) and 259% (CW_3) compared to the yield obtained on CS. On the substrates supplemented with rockwool, compared to the yield from the CS site the maize yield increased by 194% (CW_4) and 148% (CW_5). Compared to the yield of maize grown on the CW_1 substrate, maize fresh matter yield was higher on substrates supplemented with sewage sludge, increasing by 574% (CW_2) and 670% (CW_3), and substrates with sludge and rockwool increased yield by 530% (CW_4) and 757% (CW_5).

4. Discussion

This paper presents the results of a study on the evaluation of the suitability of coal mining waste as a mineral component of soil-like substrates that could be used in soil remediation as a soil substrate.

The hard coal mining wastes used in this study, produced in the Bogdanka hard coal mine, were characterized by a neutral pH, favorable sorption properties, a low content of available forms of phosphorus, and a high content of magnesium and potassium. The total heavy metal contents were within the range of those typical of unpolluted soils. The properties of the waste were within the ranges typical of post-coal waste [47,48,49,50].

The data indicate that the substrate of coal mining waste meets the minimum requirements for the development of vegetation cover. Both self-increasing vegetation and vegetation introduced as part of biological reclamation develop on coal waste heaps. The initiation of soil-forming processes is recorded in these areas, but the resulting habitats are poor and do not sufficiently satisfy the nutritional requirements of plants [49,51].

The properties of the coal waste used in mining studies and scientific reports [49] indicate the need to enrich mineral materials for soil substrates with organic compounds. In our study, municipal sewage sludge was used for the composed substrates. The composition of the substrates was extended to include waste rockwool from cover crops, guided by research results that indicated its suitability for shaping soil properties, including increasing the fertilizing effects of municipal sewage sludge in the reclamation of degraded soils [52,53,54,55,56,57].

The properties of the evaluated soil-like substrates indicate that the quality of the substrate was closely related to the proportion of sewage sludge and was modified by the addition of rockwool. Compared to the soil of the control soil (CS), which was degraded anthropogenic soil, the evaluated substrates were characterized by a favorable reaction. The substrate CW_1, before the introduction of plants, was characterized by an alkaline reaction. The addition of sewage sludge and rockwool to the substrate composition slightly lowered the pH_KCl. The pH_KCl changes noted are due to a ‘dilution’ effect, as the sewage sludge had a lower pH than the mining waste. A similar range of pH_KCl reduction was recorded for composites of mining waste from shale gas exploration enriched with sewage sludge [37,58]. A slight decrease in the pH_KCl of the assessed substrates was observed during the assessed period. This may be related to the start of the weathering process of the mining waste. Patrzałek and Nowińska [59] indicate that, with time, the mined coal waste becomes acidified as a result of the pyrite weathering process, while the resulting weathering products are poorly buffered.

In the CW_1 substrate, the values of specific electrical conductivity, which is a measure of salinity, ranged from 0.65 mS·cm⁻¹ to 0.55 mS·cm⁻¹ and were more than six times higher than in CS. According to Jackson’s classification [60], these values were within the range of non-saline soils. The substrates into which sewage sludge and sewage sludge together with rockwool were introduced were characterized by higher salinity compared to the CW_1 substrate, but the recorded values also placed these substrates in the non-saline category. This indicates that the salinity of substrates of the tested composition will not cause disturbances in plant growth and development. The observed reduction in salinity on successive test dates is consistent with observed changes in this property in reclaimed waste rock dumps and technosols constructed from coal waste and bio-waste [7,47].

The sorption properties of the evaluated substrates were more favorable than CS, as manifested by the lower hydrolytic acidity (HA), higher base cation content (BC), and increased sorption capacity (CEC). The significantly higher CEC of the substrate from CW_1 compared to CS was due to the high BC content. The observed increase in BC content in the evaluated substrates can be explained by the introduction of alkali cations together with the sewage sludge and the influence of rockwool on the rate and direction of transformation in the substrate. The results of studies on the properties of constructed technosols from mining waste indicate that the addition of materials rich in organic matter increases BC content [16,58,61].

Organic matter is an important component of soil substrates due to its numerous important functions. The TOC content of the CW_1 substrate was significantly (about eight times) higher than that of the CS. The evaluation of the TOC content of the substrates, which were waste mixtures, showed that sewage sludge and rockwool could be used to increase the organic matter content of mining-waste-based substrates. The introduction of sewage sludge into the substrates increased the TOC content by 14% and 32%, respectively, at the 2.5% (CW_2) and 5% (CW_3) sludge contribution. Weiler et al. [50], when evaluating a soil-like substrate obtained from coal waste with the addition of sewage sludge, showed that a significant increase in TOC content is obtained with a 5% addition of sewage sludge. These results are confirmed by the studies of other authors, who indicate that the addition of biowaste to mineral waste substrates has a beneficial effect on TOC content, with an indirect effect of improving physicochemical properties [3,8,35]. Gigliotti et al. [62], in their study on technosol development in a post-mining waste landfill, indicate that the addition of bio-waste to the subsoil is necessary because the organic matter of bio-waste contains a significant proportion of active carbon fractions, which has the effect of accelerating the incorporation of C from the post-coal waste, which is inactive, into the cycle of transformations characteristic of soil-forming processes and the formation of the humus horizon.

In the coal tailings substrates with 2.5 and 5% sewage sludge, and with a 1% addition of waste rock wool, the TOC content was higher than in the CW_1 substrate by 11% (CW_4) and 19% (CW_5), but this was lower than the tailings mixtures with sewage sludge only. Mineral wool was introduced to loosen the substrate and optimize water and air properties and, as a result of the greater access to oxygen, the mineralization processes of the organic matter introduced with the sewage sludge were intensified. A similar relationship was obtained by Firpo et al. [49], who used rice husks as a structural material in the substrates of coal waste and sewage sludge, and the authors of a study on shaping the properties of ‘artificial soil’ from drilling waste, sewage sludge, and waste rock wool [37,58].

Nitrogen is an essential component for plant growth, especially when introduced onto reclaimed land [49]. The TN content in the CW_1 substrate was significantly higher compared to its content in CS. However, the nitrogen present in the tailings is in forms that are not available to plants [50]. Sewage sludge introduced into the post-coal waste significantly increased the TN content of the evaluated substrates. The observed increase in TN content was proportional to the proportion of sludge in the substrate. The extent of the increase in TN content, in the assessed substrates based on coal mining waste under the influence of sewage sludge obtained in our study, was similar to that observed when sewage sludge was introduced into devegetated soils [36,63]. Supplementing the composition of the substrates with rockwool waste did not significantly reduce the TN content compared to its content in the substrates with sludge addition only, but the content was still significantly higher than in CS and CW_1. Similar TN contents were obtained in the studies by Firpo et al. [49] and Filho [64], which showed that in the soil-like substrate from coal waste with the addition of bio-waste the TN content was at levels sufficient for plant growth and development. Furthermore, Firpo et al. [49] also observed a reduction in TN content in these substrates after the addition of rice husks as a structuring material.

The available phosphorus content of the CW_1 substrate was, on average during the period evaluated, 1.50 mg·kg⁻¹. Although coal waste is abundant in phosphorus, it occurs in combinations that are not available to the plants and, as shown by Chen et al. [65], the lack of plant-available phosphorus is a serious limiting factor in the fertility of reclaimed coal waste storage areas. They also report that an effective way to reclaim these sites is to supplement the deficiency of plant-available phosphorus by phosphorus mineral fertilization or the introduction of phosphorus-rich organic materials. The results of our own study showed that the addition of sewage sludge to mining waste effectively increased the available phosphorus content of the evaluated substrates. This is corroborated by the studies of other authors, who indicate that in substrates and technosols constructed from extractive waste, the content of available phosphorus can be effectively increased by the addition of organic materials rich in this component, such as sewage sludge [49], municipal waste compost [64], and biocarbon or poferment [7]. The CW_1 substrate was characterized by a high abundance of available potassium. Its average content in this substrate was 5.6 times higher compared to that in CS. The increasing proportion of sewage sludge in the substrates (2.5 and 5.0%) was reduced, but not significantly, as was the content of available K. Similar trends of reduced contents of the available form of potassium were observed in composites of drilling waste enriched with sewage sludge [58]. Compared to CS, the content of Mg available in CW_1 was more than 10 times higher. In the sludge-enriched mining waste substrates (2.5 and 5.0%), an increase in Mg-available content was found compared to the CW_1 substrate.

An important element in the evaluation of waste-formed substrates is the assessment of plant response to substrate quality. The evaluation of plant development on reclaimed land is a widely accepted indicator for monitoring the effectiveness of reclamation [49,66]. The selection of appropriate vegetation is aimed at the further improvement of the quality of the environment, which is why it was an important issue in this study. A healthy vegetation cover is able to stabilize the surface against erosion and damage and facilitate soil carbon sequestration and nutrient cycling [67,68,69]. In our own research, plants were cultivated on the assessed substrates for two growing seasons. In the first season, white mustard was grown, which meets the requirements for plants used in biological reclamation. It is characterized by uniform emergence, fast land cover, and resistance to changing water and air conditions of the substrate [70]. In the second year, maize was grown, which is characterized by high biomass gains, which are conducive to carbon sequestration. The results obtained confirmed the hypothesis that mined coal waste provides minimal conditions for plant growth. The fresh weight yield of mustard grown on 100% mining waste substrate (CW_1) was reduced by 189% and that of maize by 115%, compared to the yield of the plants tested on CS. The evaluation of the properties of the CW_1 substrate relevant to their productivity showed that most of them had higher values than CS. Only the content of assimilable phosphorus was extremely low, and this could be the reason for the lower yield of plants grown on mining waste. The results obtained are confirmed by the studies of other authors, who have shown that vegetation does not develop, or develops very poorly, on a substrate consisting only of post-mining mineral waste and indicate that it is necessary to supplement such a substrate with waste rich in organic matter [33,50,71,72]. The fresh weight yield of crops grown on CW_2 and CW_3 substrates increased; mustard increased by 703% and 848%, and maize by 571% and 648%, respectively. Such beneficial effects of sewage sludge were direct and indirect. Similar results were obtained by Firpo et al. [49], indicating that, in addition to introducing significant amounts of plant nutrients into the substrate with the sludge, the sludge optimized the physico-chemical, chemical, and biological properties of the substrates. Further increases in yield of the tested plants were found in substrates enriched with rockwool.

5. Conclusions

Mine coal waste as a soil-like substrate was evaluated in a closed-pot growing experiment and compared to degraded anthropogenic soil. It was characterized by very good sorption properties, including a significantly higher sorption capacity and content of base cations and higher pH, significantly higher contents of organic carbon and nitrogen, assimilable forms of potassium and magnesium, and lower assimilable phosphorus.

Substrates in which the mineral matrix of mined coal waste was enriched with sewage sludge at doses of 2.5% and 5.0% w/w d.m. showed a significant increase in the contents of organic carbon, nitrogen, and assimilable forms of phosphorus and magnesium, as well as the optimization of sorption properties.

Extending the composition of sludge mining waste substrates with rockwool (1% w/w d.m.) further improved the sorption properties, slightly reduced the organic carbon and nitrogen content, reduced the C/N ratio, and increased the abundance of available forms of phosphorus and potassium.

The yields of mustard and maize on mine coal waste soil were significantly lower than those of those on anthropogenic soil. Substrates with sewage sludge had a significantly higher yield-forming potential than the anthropogenic soil, and the addition of mineral wool further increased this potential. The highest yields were obtained on a mining waste substrate with a 5% sewage sludge and 1% mineral wool addition.

Mine coal waste can be used for soil reclamation. Given its imbalanced properties, it should not be used alone but instead should be used in mixtures, especially with a 5% share of sewage sludge.

The management of extractive coal waste and optimization of its properties for natural purposes can be an effective strategy within a closed-loop economy, which, at the same time, will increase the efficiency of degraded soil management.
