An Efficient White Shark Optimizer for Enhancing the Performance of Proton Exchange Membrane Fuel Cells
Abstract
:1. Introduction

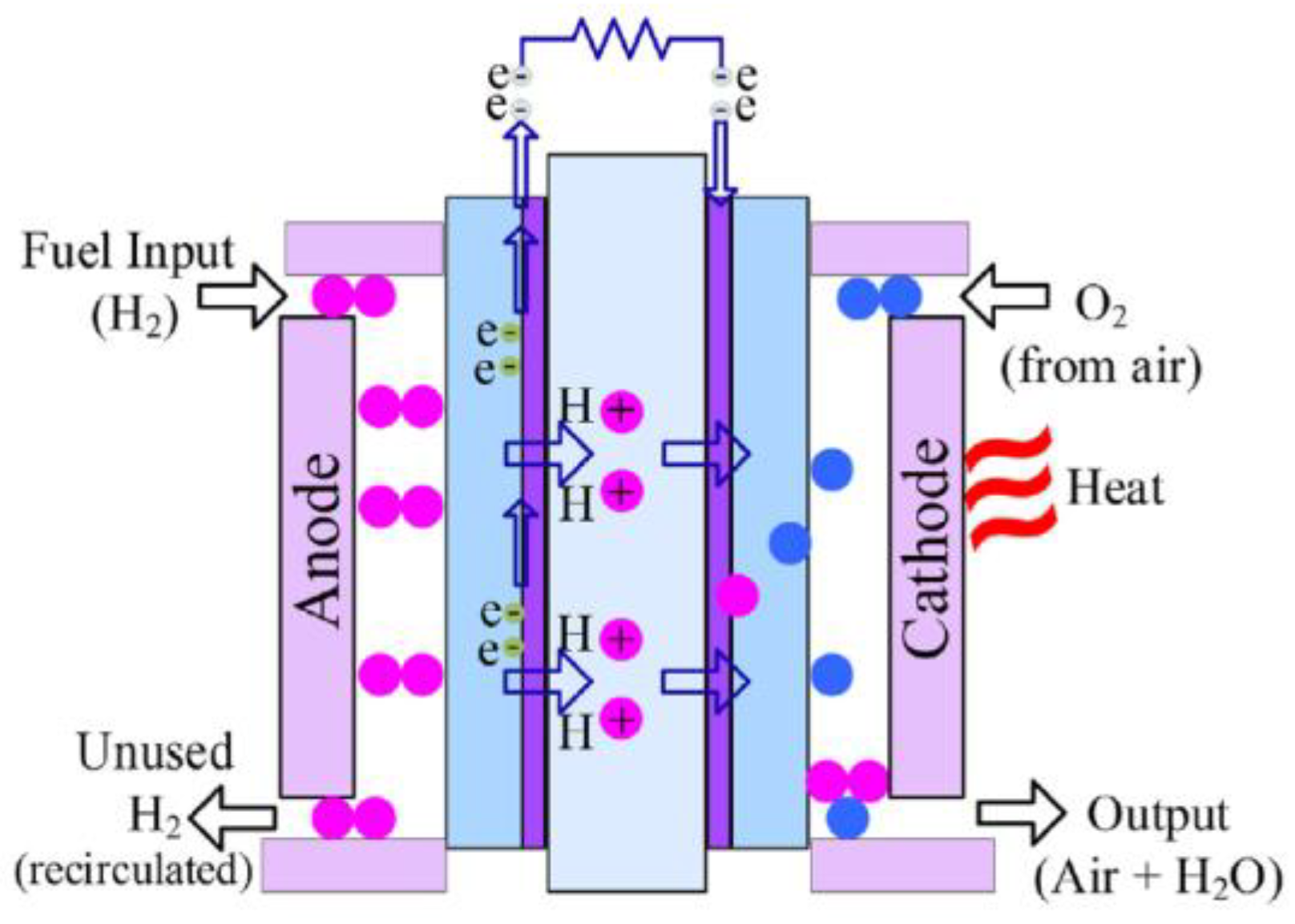

2. Description of PEMFC

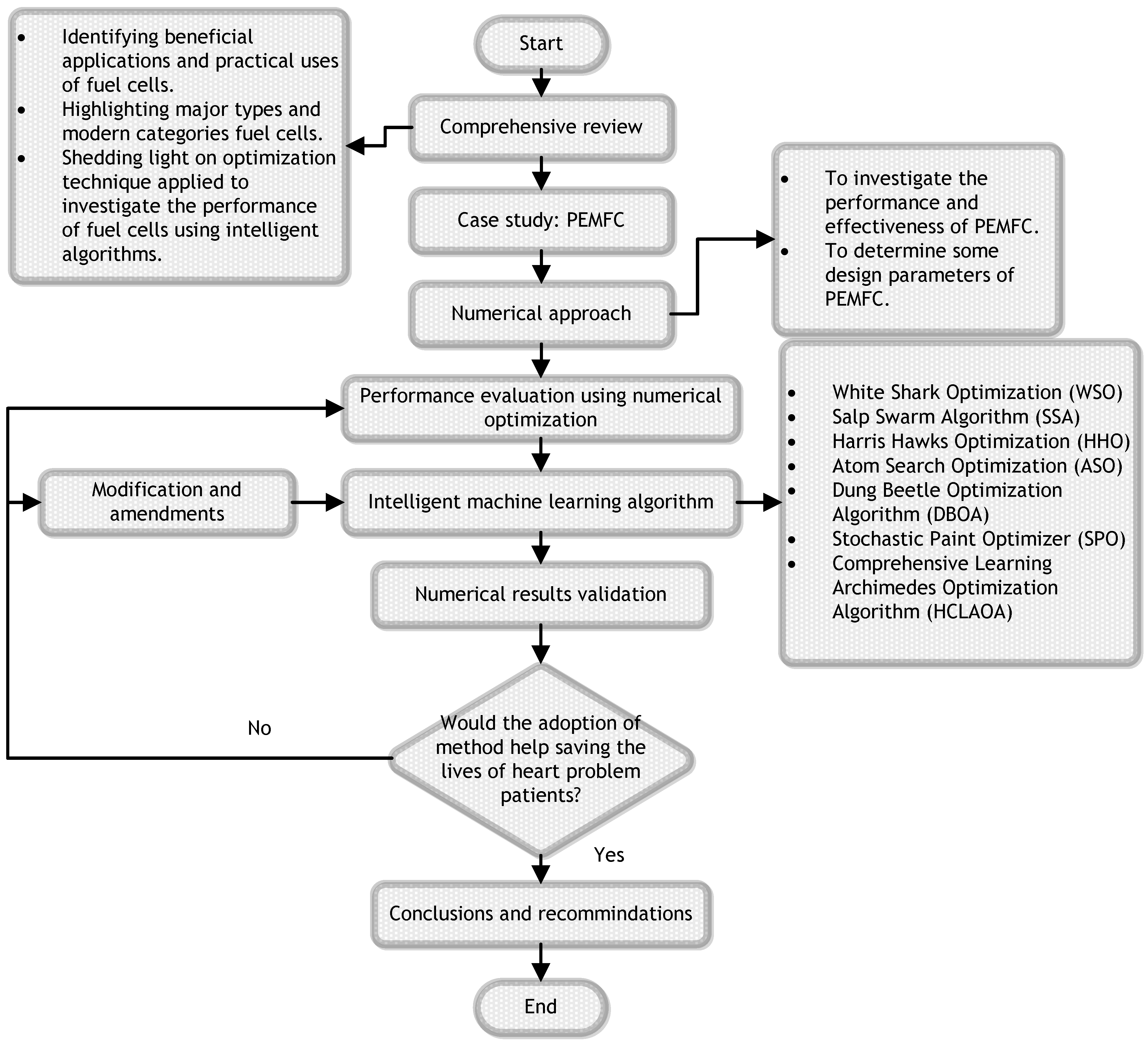

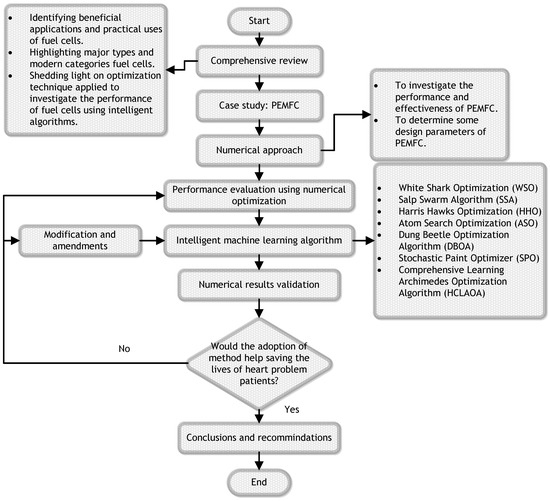

3. Materials and Methods
4. White Shark Optimizer (WSO)
5. The Proposed WSO-Based Approach

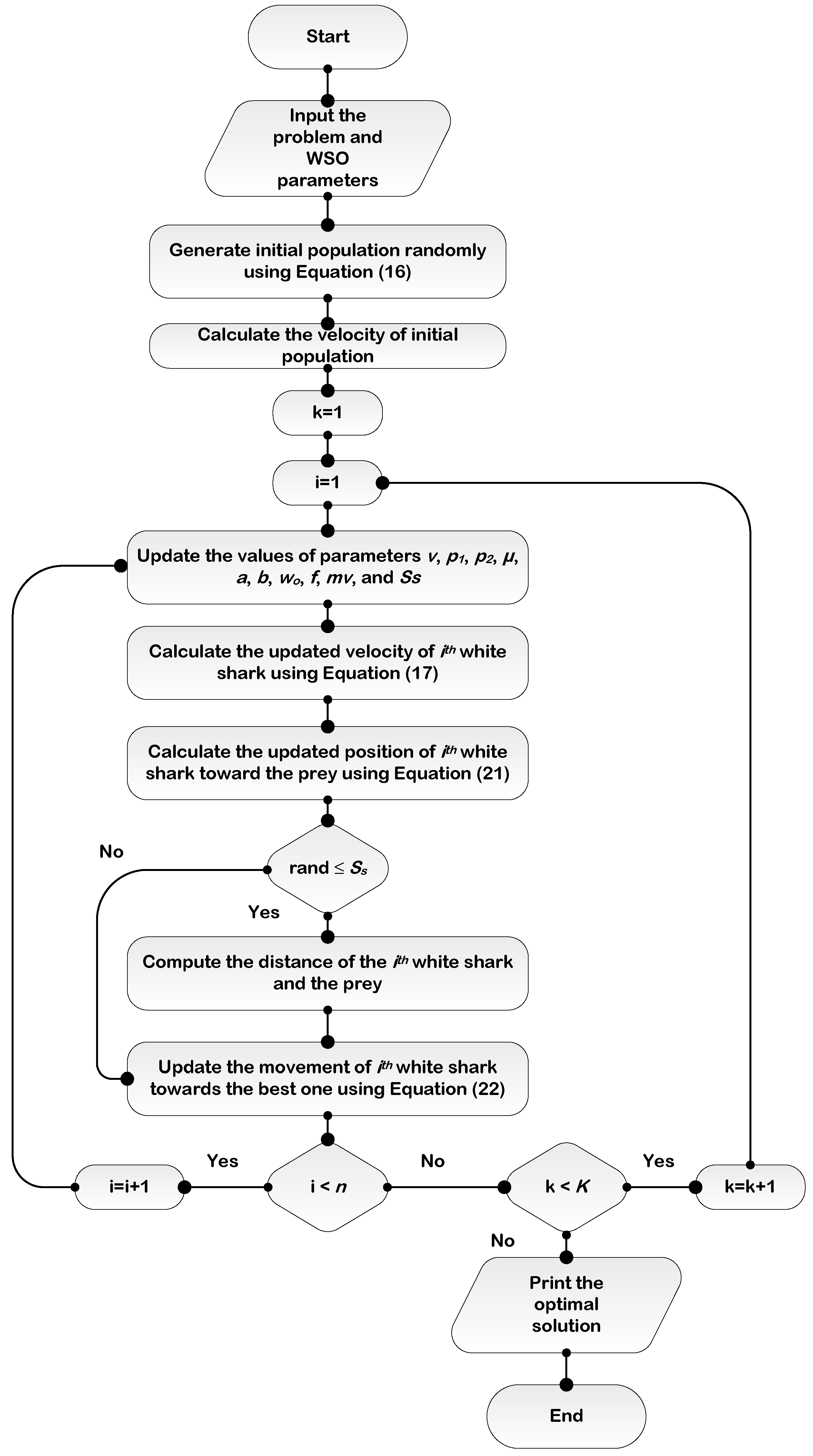

Algorithm 1. Pseudocode of the proposed WSO. |
1: Define the electrical specifications of the FC and operating conditions. 2: Input the measured data for stack voltage and current. 3: Define the parameters of WSO approach (K, n, and nrun) and the search space bounds (ubj, lbj). 4: Initialize the population matrix with probable solutions using Equation (16). 5: Generate the initial estimated voltage of PEMFC and calculate the RMSE using Equation (23) (). 6: While l < nrun do 7: While k < K do 8: While i < n do 9: Calculate the velocity of initial population (. 10: Update the values of parameters v, p1, p2, μ, a, b, wo, f, mv, and Ss. 11: Calculate the updated velocity of ith white shark using Equation (17). 12: Compute the new position of ith white shark toward the prey using Equation (21). 13: if rand < Ss then 14: Calculate the distance between the prey and ith white shark. 15: Update the movement of ith white shark towards the best one using Equation (22). 16: end if 17: Generate the estimated voltage of PEMFC and calculate the new RMSE using Equation (23) (). 18: if < then 19: Update the FC circuit parameters and fitness value. 20: end if 21: i = i + 1 22: end while 23: k = k + 1 24: end while 25: l = l + 1 26: end while 27: Plot the polarization curves of the estimated and measured data 28: Print the optimal parameters of PEMFC |

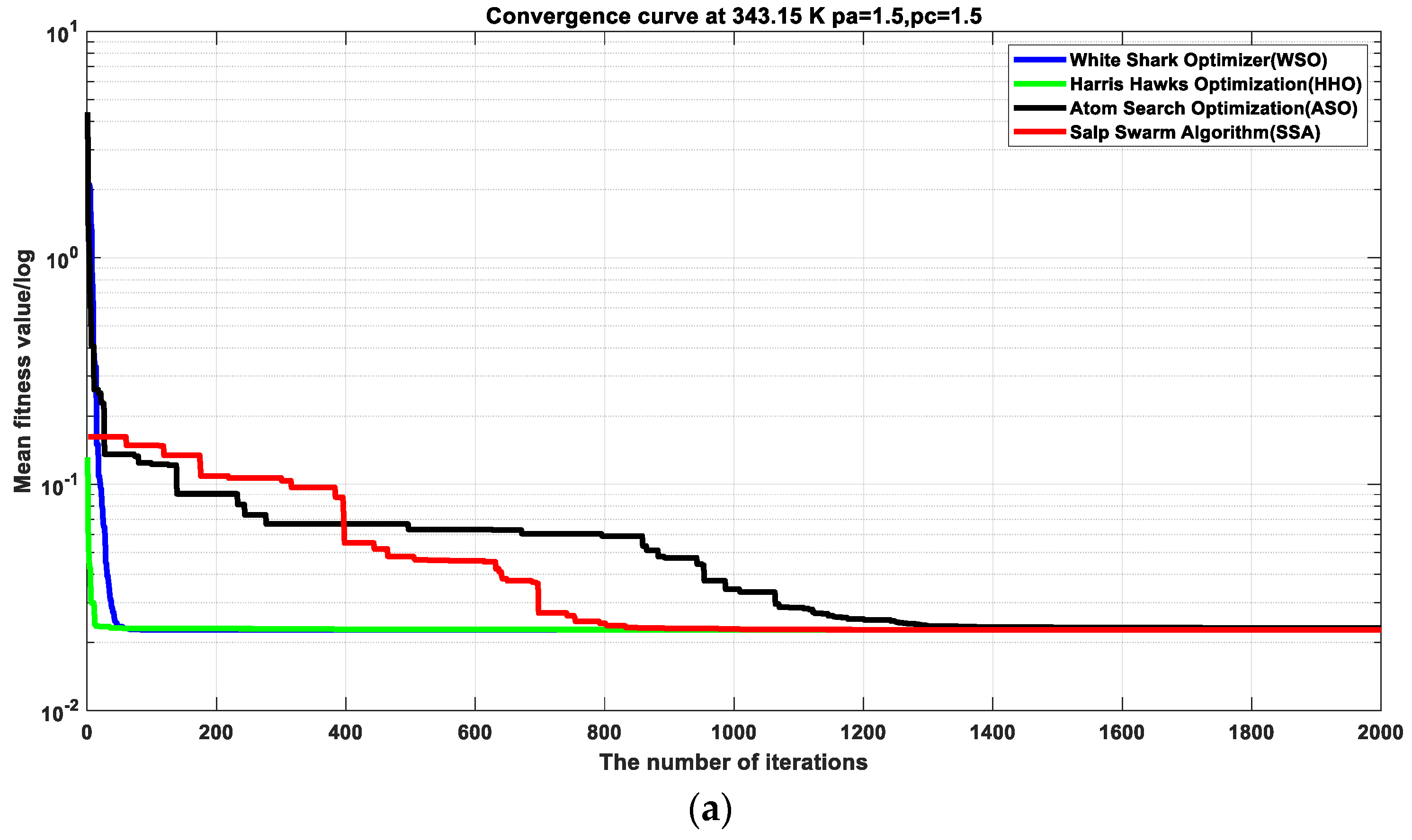

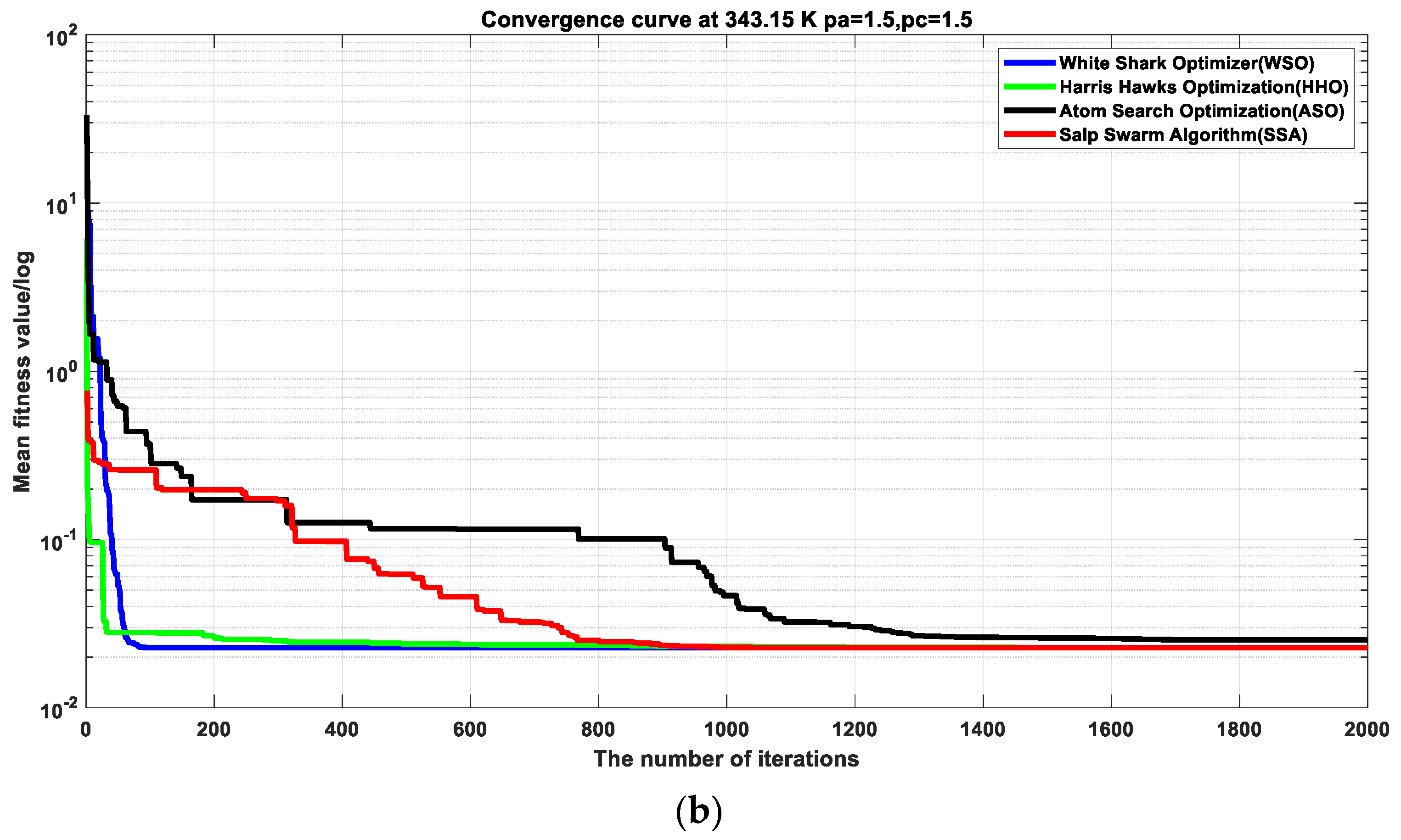

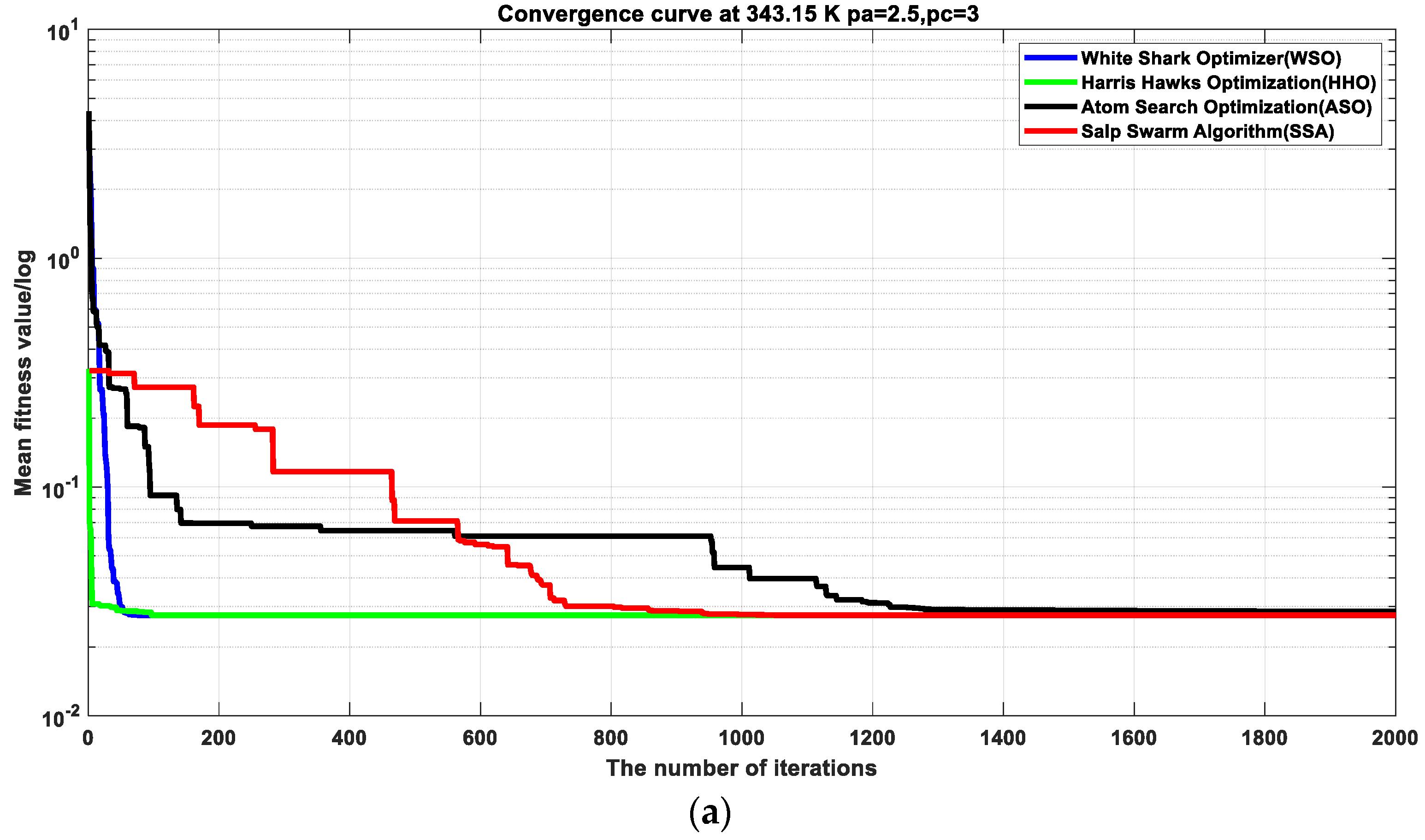

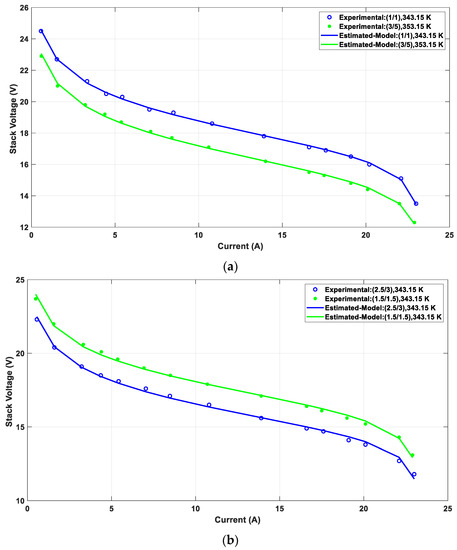

6. Results and Discussion
7. Conclusions and Future Recommendations
- (a)
- The RMSE values varied between minimum and maximum values of 0.009095329 and 0.028663611, respectively.
- (b)
- The mean RMSE value recorded for the PEMFC 250 W stack was 0.020057775.
- (c)
- The minimum RMSE rate was obtained through the WSO in which the operating temperature was 353.15 K, while the working anode and cathode pressures were 3 and 5 bar, respectively.
- (d)
- The proposed WSO attained the best optimization results in terms of absolute error compared to the other considered algorithms.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Sun, C.; Negro, E.; Vezzù, K.; Pagot, G.; Cavinato, G.; Nale, A.; Bang, Y.H.; Noto, V.D. Hybrid inorganic-organic proton-conducting membranes based on SPEEK doped with WO3 nanoparticles for application in vanadium redox flow batteries. Electrochim. Acta 2019, 309, 311–325. [Google Scholar] [CrossRef]
- Martins, J.R.R.A.; Ning, A. Engineering Design Optimization; Cambridge University Press: Cambridge, UK, 2021. [Google Scholar] [CrossRef]
- Kumar, S. Experimental Performance Characteristic of PEM Fuel Cell. Ph.D. Thesis, Delhi Technological University, Delhi, India, 2022. [Google Scholar]
- Zagal, J.H. Electrochemistry, past, present, and future: Energy conversion, sensors, and beyond. J. Solid State Electrochem. 2020, 24, 2195–2197. [Google Scholar] [CrossRef]
- Maradin, D. Advantages and Disadvantages of Renewable Energy Sources Utilization. Int. J. Energy Econ. Policy 2021, 11, 176–183. [Google Scholar] [CrossRef]
- Gabaldón-Estevan, D.; Peñalvo-López, E.; Solar, D.A. The Spanish Turn against Renewable Energy Development. Sustainability 2018, 10, 1208. [Google Scholar] [CrossRef]
- Asiaban, S.; Kayedpour, N.; Samani, A.E.; Bozalakov, D.; De Kooning, J.D.M.; Crevecoeur, G.; Vandevelde, L. Wind and Solar Intermittency and the Associated Integration Challenges: A Comprehensive Review Including the Status in the Belgian Power System. Energies 2021, 14, 2630. [Google Scholar] [CrossRef]
- Jain, K.; Jain, K. Hydrogen Fuel Cell: A Review of different types of fuel Cells with Emphasis on PEM fuel cells and Catalysts used in the PEM fuel cell. Int. J. All Res. Educ. Sci. Methods (IJARESM) 2021, 9, 1012–1025. [Google Scholar]
- Shilaja, C.; Kiran, S.R.; Murali, M.; Moinuddin, S.K.; Navani, K.; Yousuf, S.; Harshith, M. Design and analysis of global optimization methods for proton exchange membrane fuel cell powered electric vehicle system with single switch DC-DC converter. Mater. Today Proc. 2021, 52, 2057–2064. [Google Scholar] [CrossRef]
- Hasanien, H.M.; Shaheen, M.A.; Turky, R.A.; Qais, M.H.; Alghuwainem, S.; Kamel, S.; Tostado-Véliz, M.; Jurado, F. Precise modeling of PEM fuel cell using a novel Enhanced Transient Search Optimization algorithm. Energy 2022, 247, 123530. [Google Scholar] [CrossRef]
- Fahim, S.R.; Hasanien, H.M.; Turky, R.A.; Alkuhayli, A.; Al-Shamma’a, A.A.; Noman, A.M.; Tostado-Véliz, M.; Jurado, F. Parameter Identification of Proton Exchange Membrane Fuel Cell Based on Hunger Games Search Algorithm. Energies 2021, 14, 5022. [Google Scholar] [CrossRef]
- Alsaidan, I.; Shaheen, M.A.M.; Hasanien, H.M.; Alaraj, M.; Alnafisah, A.S. Proton Exchange Membrane Fuel Cells Modeling Using Chaos Game Optimization Technique. Sustainability 2021, 13, 7911. [Google Scholar] [CrossRef]
- Yakout, A.H.; Hasanien, H.M.; Kotb, H. Proton Exchange Membrane Fuel Cell Steady State Modeling Using Marine Predator Algorithm Optimizer. Ain Shams Eng. J. 2021, 12, 3765–3774. [Google Scholar] [CrossRef]
- Hachana, O.; El-Fergany, A.A. Efficient PEM fuel cells parameters identification using hybrid artificial bee colony differential evolution optimizer. Energy 2022, 250, 123830. [Google Scholar] [CrossRef]
- Li, J.; Gao, X.; Cui, Y.; Hu, J.; Xu, G.; Zhang, Z. Accurate, efficient and reliable parameter extraction of PEM fuel cells using shuffled multi-simplexes search algorithm. Energy Convers. Manag. 2020, 206, 112501. [Google Scholar] [CrossRef]
- Sultan, H.M.; Menesy, A.S.; Kamel, S.; Tostado-Veliz, M.; Jurado, F. Parameter Identification of Proton Exchange Membrane Fuel Cell Stacks Using Bonobo Optimizer. In Proceedings of the 2020 IEEE International Conference on Environment and Electrical Engineering and 2020 IEEE Industrial and Commercial Power Systems Europe (EEEIC/I&CPS Europe), Madrid, Spain, 9–12 June 2020; pp. 1–7. [Google Scholar] [CrossRef]
- Menesy, A.S.; Sultan, H.M.; Kamel, S.; Turky, R.A.; Al-Durra, A.; Hasanien, H.M. Optimal Values of Unknown Parameters of Polymer Electrolyte Membrane Fuel Cells Using Improved Chaotic Electromagnetic Field Optimization. In Proceedings of the 2020 IEEE Industry Applications Society Annual Meeting, Detroit, MI, USA, 10–16 October 2020; pp. 1–8. [Google Scholar] [CrossRef]
- Raghavaiah, N.V.; Srinivasulu, G.N.; HariPrasad, I. Review of challenges in direct methanol fuel cell and contemporary status. Res. Appl. Therm. Eng. 2020, 3, 1–8. [Google Scholar]
- Nguyen, H.L.; Han, J.; Nguyen, X.L.; Yu, S.; Goo, Y.-M.; Le, D.D. Review of the Durability of Polymer Electrolyte Membrane Fuel Cell in Long-Term Operation: Main Influencing Parameters and Testing Protocols. Energies 2021, 14, 4048. [Google Scholar] [CrossRef]
- Jawad, N.H.; Yahya, A.A.; Al-Shathr, A.R.; Salih, H.G.; Rashid, K.T.; Al-Saadi, S.; AbdulRazak, A.A.; Salih, I.K.; Zrelli, A.; Alsalhy, Q.F. Fuel Cell Types, Properties of Membrane, and Operating Conditions: A Review. Sustainability 2022, 14, 14653. [Google Scholar] [CrossRef]
- Yagizatli, Y.; Ulas, B.; Sahin, A.; Ar, I. Investigation of sulfonation reaction kinetics and effect of sulfonation degree on membrane characteristics for PEMFC performance. Ionics 2022, 28, 2323–2336. [Google Scholar] [CrossRef]
- Hoeflinger, J.; Hofmann, P. Air mass flow and pressure optimisation of a PEM fuel cell range extender system. Int. J. Hydrogen Energy 2020, 45, 29246–29258. [Google Scholar] [CrossRef]
- Fathy, A.; Babu, T.S.; Abdelkareem, M.A.; Rezk, H.; Yousri, D. Recent approach based heterogeneous comprehensive learning Archimedes optimization algorithm for identifying the optimal parameters of different fuel cells. Energy 2022, 248, 123587. [Google Scholar] [CrossRef]
- Braik, M.; Hammouri, A.; Atwan, J.; Al-Betar, M.A.; Awadallah, M.A. White Shark Optimizer: A novel bio-inspired meta-heuristic algorithm for global optimization problems. Knowl.-Based Syst. 2022, 243, 108457. [Google Scholar] [CrossRef]
- Allawi, M.F.; Jaafar, O.; Hamzah, F.M.; Ehteram, M.; Hossain, S.; El-Shafie, A. Operating a reservoir system based on the shark machine learning algorithm. Environ. Earth Sci. 2018, 77, 366. [Google Scholar] [CrossRef]
Category | Voltage Potential of the PEMFC | |
---|---|---|
250 W | 500 W | |
n | 24 | 32 |
A | 27 cm2 | 64 cm2 |
imax | 0.86 A.cm2 | 0.469 A.cm2 |
l (μm) | 127 | 178 |
Panode | 1.0 to 3.0 | 1 |
Pcathode | 1.0 to 5.0 | 0.209 |
TK | 343.15–353.15 K | 333 K |
RHanode | 1.0 | 1.0 |
RHcathode | 1.0 | 1.0 |
Category | Anode Pressure (Bar) | Cathode Pressure (Bar) | Temperature (°C) |
---|---|---|---|
A | 1.0 | 1.0 | 343.15 |
B | 1.5 | 1.5 | 343.15 |
C | 2.5 | 3.0 | 343.15 |
D | 3.0 | 5.0 | 353.15 |
Pressure | Algorithm | λ | b | RM (Ω) | RMSE | ||||
---|---|---|---|---|---|---|---|---|---|
Range 1 (1.5 bar) | WSO | −0.9474 | 0.0017 | 0.0001 | −0.0001 | 17.2769 | 0.0005 | 0.0381 | 0.0065650106 |
SSA | −0.9491 | 0.0017 | 0.0001 | −0.0001 | 18.9082 | 0.0004 | 0.0381 | 0.0065651050 | |
HHO | −0.9520 | 0.0017 | 0.0001 | −0.0001 | 18.8258 | 0.0003 | 0.0381 | 0.0065651729 | |
ASO | −0.9478 | 0.0017 | 0.0001 | −0.0001 | 17.7105 | 0.0004 | 0.0383 | 0.0066070152 | |
DBO | −0.9488 | 0.0017 | 0.0001 | −0.0001 | 20.3586 | 0.0003 | 0.0381 | 0.0065650549 | |
SPO | −0.9504 | 0.0017 | 0.0001 | −0.0001 | 19.4000 | 0.0007 | 0.0381 | 0.0065650829 | |
HCLAOA [23] | −0.9475 | 0.00302 | 7.42 × 10−5 | −0.0002 | 23.00 | 0.03198 | 0.0001 | 0.097700 | |
Range 2 (1 bar) | WSO | −0.983 | 0.002 | 0.000 | 0.000 | 17.765 | 0.000 | 0.038 | 0.0065635861 |
SSA | −0.960 | 0.002 | 0.000 | 0.000 | 18.685 | 0.000 | 0.038 | 0.0065645703 | |
HHO | −0.783 | 0.001 | 0.000 | 0.000 | 10.411 | 0.000 | 0.038 | 0.0066489707 | |
ASO | −0.943 | 0.002 | 0.000 | 0.000 | 17.075 | 0.000 | 0.036 | 0.0092132971 | |
DBO | −1.150 | 0.002 | 0.000 | 0.000 | 19.432 | 0.000 | 0.033 | 0.0635611941 | |
SPO | −0.890 | 0.001 | 0.000 | 0.000 | 15.698 | 0.000 | 0.038 | 0.0065642882 | |
HCLAOA [23] | −0.55692 | 0.00190 | 7.487 × 10−5 | 0.00018 | 22.9945 | 0.00010 | 0.02913 | 0.000200 |
Pressure | Model | λ | b | RM (Ω) | RMSE | ||||
---|---|---|---|---|---|---|---|---|---|
Scenario #1 T = 353.15 K, Pa = 3.0 bar, and Pc = 5.0 bar Range 1 (3.0 bar) | WSO | −0.9488 | 0.00222 | 0.000078 | −0.00018 | 18.7717 | 0.00062 | 0.0390 | 0.0091000650 |
SSA | −0.9475 | 0.00219 | 0.000076 | −0.00018 | 18.7223 | 0.00055 | 0.0390 | 0.0091005106 | |
HHO | −0.9517 | 0.00217 | 0.000074 | −0.00018 | 14.0023 | 0.00025 | 0.0391 | 0.0091063988 | |
ASO | −0.9468 | 0.00218 | 0.000076 | −0.00017 | 19.7275 | 0.00049 | 0.0397 | 0.0095256586 | |
DBO | −0.9467 | 0.00220 | 0.000077 | −0.00018 | 23.0000 | 0.00062 | 0.0390 | 0.0091002545 | |
SPO | −0.9487 | 0.00221 | 0.000077 | −0.00018 | 21.1909 | 0.00050 | 0.0380 | 0.0128255120 | |
Scenario #1 T = 353.15 K, Pa = 3.0 bar, and Pc = 5.0 bar Range 2 (5.0 bar) | WSO | −0.8280 | 0.00213 | 0.000098 | −0.00018 | 15.4846 | 0.00055 | 0.0390 | 0.0090953285 |
SSA | −0.8528 | 0.00188 | 0.000073 | −0.00018 | 19.2722 | 0.00047 | 0.0390 | 0.0091012427 | |
HHO | −0.9029 | 0.00200 | 0.000071 | −0.00018 | 19.5538 | 0.00021 | 0.0383 | 0.0097840723 | |
ASO | −0.8974 | 0.00196 | 0.000069 | −0.00018 | 16.1847 | 0.00033 | 0.0389 | 0.0091527368 | |
DBO | −1.0955 | 0.00273 | 0.000086 | −0.00018 | 15.6000 | 0.00021 | 0.0390 | 0.0090982661 | |
SPO | −0.8691 | 0.00222 | 0.000096 | −0.00018 | 18.3978 | 0.00014 | 0.0390 | 0.0090958449 | |
Scenario #2 T = 343.15 K, Pa = Pc = 1.5 bar Range 1 (1.5 bar) | WSO | −0.9465 | 0.0015 | 0.0001 | −0.0001 | 17.8703 | 0.0004 | 0.0410 | 0.0227666199 |
SSA | −0.9471 | 0.0015 | 0.0001 | −0.0001 | 19.6157 | 0.0005 | 0.0410 | 0.0227668628 | |
HHO | −0.9520 | 0.0015 | 0.0001 | −0.0001 | 21.8297 | 0.0005 | 0.0410 | 0.0227670591 | |
ASO | −0.9470 | 0.0015 | 0.0001 | −0.0001 | 18.6012 | 0.0005 | 0.0417 | 0.0232013235 | |
DBO | −0.9483 | 0.0016 | 0.0001 | −0.0001 | 19.4000 | 0.0007 | 0.0310 | 0.1257577650 | |
SPO | −0.9511 | 0.0016 | 0.0001 | −0.0001 | 17.6000 | 0.0007 | 0.0410 | 0.0227669952 | |
Scenario #2 T = 343.15 K, Pa = Pc = 1.5 bar Range 2 (1.0 bar) | WSO | −1.0247 | 0.0016 | 0.0000 | −0.0001 | 16.5426 | 0.0005 | 0.0410 | 0.0227613902 |
SSA | −0.9263 | 0.0014 | 0.0000 | −0.0001 | 16.8599 | 0.0004 | 0.0410 | 0.0227632963 | |
HHO | −0.8245 | 0.0010 | 0.0000 | −0.0001 | 10.0002 | 0.0001 | 0.0408 | 0.0228019166 | |
ASO | −1.0575 | 0.0017 | 0.0000 | −0.0001 | 17.4957 | 0.0005 | 0.0396 | 0.0253098813 | |
DBO | −1.0031 | 0.0016 | 0.0001 | −0.0001 | 18.4000 | 0.0004 | 0.0355 | 0.0846345710 | |
SPO | −1.0694 | 0.0018 | 0.0001 | −0.0001 | 21.2000 | 0.0006 | 0.0391 | 0.0368668305 | |
Scenario #2 T = 343.15 K, Pa = 2.5 bar, and Pc = 3.0 bar Range 1 (2.5 bar) | WSO | −0.9485 | 0.00210 | 0.000078 | −0.000186 | 17.3302 | 0.0004 | 0.0355 | 0.0275072010 |
SSA | −0.9464 | 0.00209 | 0.000077 | −0.000186 | 17.7727 | 0.0004 | 0.0355 | 0.0275086017 | |
HHO | −0.9514 | 0.00207 | 0.000074 | −0.000186 | 16.0098 | 0.0001 | 0.0355 | 0.0275140895 | |
ASO | −0.9498 | 0.00209 | 0.000077 | −0.000185 | 17.6659 | 0.0005 | 0.0360 | 0.0286636106 | |
DBO | −0.9483 | 0.00208 | 0.000076 | −0.000186 | 21.2000 | 0.0004 | 0.0355 | 0.0275095344 | |
SPO | −0.9491 | 0.00211 | 0.000078 | −0.000186 | 18.1953 | 0.0007 | 0.0355 | 0.0275072010 | |
Scenario #2 T = 343.15 K, Pa = 2.5 bar, and Pc = 3.0 bar Range 2 (3.0 bar) | WSO | −0.7016 | 0.00162 | 0.000098 | −0.000186 | 18.1117 | 0.0004 | 0.0355 | 0.0274780458 |
SSA | −0.8611 | 0.00158 | 0.000056 | −0.000186 | 15.3901 | 0.0005 | 0.0355 | 0.0275397490 | |
HHO | −1.1997 | 0.00267 | 0.000064 | −0.000186 | 17.8024 | 0.0002 | 0.0355 | 0.0275291018 | |
ASO | −0.9528 | 0.00201 | 0.000069 | −0.000184 | 16.7298 | 0.0005 | 0.0363 | 0.0285418356 | |
DBO | −0.8913 | 0.00203 | 0.000086 | −0.000186 | 15.6000 | 0.0004 | 0.0355 | 0.0274961351 | |
SPO | −1.0980 | 0.00246 | 0.000071 | −0.000186 | 20.0920 | 0.0004 | 0.0355 | 0.0275175448 |
Type of 500-W PEMFC | Number of Cells in the PEMFC | |
---|---|---|
1 | NedStack PS6 | 65 |
2 | BCS 500 W | 32 |
3 | SR-12PEM 500 W | 48 |
Algorithm | λ | b | RM (Ω) | RMSE | ||||
---|---|---|---|---|---|---|---|---|
WSO | −1.1997 | 0.003349 | 0.000046 | −0.000095 | 19.477 | 0.0008 | 0.493 | 0.7105894058 |
SSA | −1.1997 | 0.003349 | 0.000046 | −0.000095 | 19.180 | 0.0005 | 0.493 | 0.7106572465 |
HHO | −1.1881 | 0.003349 | 0.000048 | −0.000095 | 13.063 | 0.0001 | 0.491 | 0.7168685693 |
ASO | −1.0550 | 0.003349 | 0.000070 | −0.000096 | 17.821 | 0.0005 | 0.463 | 0.9128205567 |
DBO | −1.1997 | 0.003349 | 0.000046 | −0.000095 | 15.517 | 0.0007 | 0.493 | 0.7106178878 |
SPO | −1.1888 | 0.003349 | 0.000046 | −0.000095 | 15.487 | 0.0008 | 0.493 | 0.7105993421 |
Algorithm | λ | b | RM (Ω) | RMSE | ||||
---|---|---|---|---|---|---|---|---|
WSO | −1.1997 | 0.003349 | 0.000098 | −0.00026 | 14.817 | 0.0008 | 0.130 | 0.6340822405 |
SSA | −1.1997 | 0.003349 | 0.000098 | −0.00026 | 19.144 | 0.0008 | 0.130 | 0.6340822405 |
HHO | −1.1997 | 0.003349 | 0.000098 | −0.00026 | 21.631 | 0.0004 | 0.130 | 0.6376846297 |
ASO | −1.1899 | 0.003349 | 0.000098 | −0.00026 | 18.104 | 0.0005 | 0.165 | 0.9544281558 |
DBO | −1.1997 | 0.003349 | 0.000098 | −0.00026 | 18.032 | 0.0008 | 0.130 | 0.6361632411 |
SPO | −1.1997 | 0.003349 | 0.000098 | −0.00026 | 22.319 | 0.0008 | 0.130 | 0.6374624567 |
Algorithm | λ | b | RM (Ω) | RMSE | ||||
---|---|---|---|---|---|---|---|---|
WSO | −1.1997 | 0.003349 | 0.000083 | −0.000104 | 19.509 | 0.0008 | 0.500 | 0.2846999039 |
SSA | −1.1647 | 0.003349 | 0.000089 | −0.000104 | 18.872 | 0.0004 | 0.500 | 0.2847029141 |
HHO | −1.1200 | 0.003349 | 0.000098 | −0.000105 | 23.000 | 0.0008 | 0.500 | 0.2847886848 |
ASO | −1.1442 | 0.003349 | 0.000093 | −0.000117 | 19.158 | 0.0005 | 0.489 | 0.3344408484 |
DBO | −1.1997 | 0.003349 | 0.000083 | −0.000104 | 21.000 | 0.0007 | 0.500 | 0.2846999158 |
SPO | −1.1710 | 0.003349 | 0.000088 | −0.000104 | 21.050 | 0.0004 | 0.500 | 0.2847023839 |
