Allotment of Waste and Degraded Land Parcels for PV Based Solar Parks in India: Effects on Power Generation Cost and Influence on Investment Decision-Making

Department of Mechanical Engineering, Cochin University of Science and Technology (CUSAT), Cochin 682022, India
Federal Institute of Science and Technology, Angamaly 683572, India
Department of Mechanical Engineering, Odisha University of Technology and Research (OUTR), Bhubaneswar 751003, India
Department of Civil Engineering, S R Engineering College, Warangal 506371, India
Mechanical Power Engineering Department, Mansoura University, Mansoura 35516, Egypt
Authors to whom correspondence should be addressed.
Sustainability 2022, 14(3), 1786;
Submission received: 31 December 2021 / Revised: 25 January 2022 / Accepted: 27 January 2022 / Published: 4 February 2022


Solar parks are well-defined areas developed in the high solar potential area, with the required infrastructure to minimize the potential threat for the developers. Land occupancy is a major concern for the solar park. The government policy mostly emphasizes the use of waste-degraded land for solar parks. In a competitive energy market, any attempt to use waste-degraded land parcels, without policy regulatory support, can bring large-scale disruptions in the quality and cost of power. The present study investigates the potential of using waste degraded land, with a focus on the impact on the cost of generation and decision making. The study investigates the possibility of including the cost of the externalities in the overall cost economics, through policy and regulatory interventions. Data related to India has been considered in the present analysis. Results show that there are less socio-economic and ecological impacts in using wastelands, compared to land, in urban-semi urban areas with an opportunity cost. Thus, the policy and regulatory interventions could promote wasteland utilization and lure favorable decision-making on investments.

1. Introduction

A solar park is a fast and effective method to integrate clean energy, as a substitute for fossil fuel, into the grid. The type of land, business model, land acquiring method, and proximity to grid infrastructure are key factors that dictate the unit cost of power generation in ground-mounted solar plants. Ground-mounted solar plants need a large amount of land area, with the possibility of socio-economic and ecological impacts, depending on the location of the plant. Land occupancy for long periods, as well as land transformation from its original nature, are key factors that contribute to these environmental impacts. The impact of such externalities is complex to account for, considering the uncertainty, plurality, and lack of a single monetary measure standard.
India is a geographically diverse country, with a vast amount of waste degraded land parcels, spread in different agroeconomic regions. Though large patches of these waste lands have good solar irradiation, their use for solar projects can have additional capital, i.e., operation expenses to overcome challenges posed by land terrain and infrastructural facilities for power evacuation. As one of the largest GHG emitters, India is committed to achieve 175 GW of renewable energy, of which, 100 GW will be solar power [1]. In a competitive energy market, the use of such land parcels can have disruptions in energy mix on volume and price, derailing commitments on global warming.
The development of large-scale solar parks is a fast mechanism to promote ecologically sustainable energy to meet the commitments on climate change initiatives [2] The relation between solar energy and economic development can be understood, in terms of energy security and the accessibility to electricity. As per [3] with annual per capita electricity consumption of 2000 kWh, approximately 3400 TWh per annum would be the energy required for the country by 2070, for which, approximately 38,313 sq. km of land will be required for integrating energy sources. The falling prices of solar PV components, favorable policies, and magnitude of projects have made solar feed-in-tariffs (FiT’s) as low as INR 2.44/kWh [4]. Similarly, the FiT’s for wind power has fallen to INR 2.44/kWh in February 2018 [5]. The cost of the land and its development cost put together will be approximately 40–50% of the total project cost in ultra-mega solar power projects. A one-megawatt (MW) ground-mounted solar PV power plant requires approximately 5 acres of land [6]. According to studies by [1], to fulfill the renewable energy targets kept by India in 2022, approximately 100,000 sq. km land will be required, and with unfocused implementation strategy, there can be a loss of cultivable land with socio-environmental impacts. In Europe, the legislative frameworks allow subsidies and incentives for promoting solar energy. However, the support from these initiatives is not provided to projects that are located in agricultural land. This has stopped land grabbing and selling/renting cultivable land for mere revenue [7]. In India, the use of hot–cold deserts, canal bunds, floating water bodies, and highway sides, etc., for large solar parks, are promoted, while there are no mandatory clauses to use them. There are no existing subsidies or incentives for use of the same, while the use of such land can be mandated on government initiated projects [8]. The solar power plant developer (SPPD) can choose the land, if there are no ambiguities on the land title, while the park should have transmission facilities, internal roads, irradiation, and access. This automatically drives the selection of land to peri-urban and village areas, rather than using waste degrade land banks.
Acquiring big land banks for solar projects is tough, which requires displacement of men and resources, often affecting the livelihood activities of the village. Researchers identified that land occupancy for large solar parks could affect food security, in terms of changes in land-use patterns, loss of natural vegetation, loss of topsoil, and displacement of manpower [9]. Crowdfunding in mega projects shall meet initiatives to tackle climate change, identifying the need of the farmers and incorporating them at the design level [10]. Large land cover, due to solar parks, can affect the properties of photosynthesis, due to lack of reach of sunlight, and could affect the carbon sequestration properties of soil for decades [6]. There is an average temperature rise between 3° C below the solar panels in temperate climatic conditions [9]. High temperatures will affect the efficiency of the PV, since the internal resistance is increased beyond the capacity of the material in cells [11]. Hence, the location of the plant and the suitable cell technology are important. According to [12], land utilization vegetation mix and occupation should go hand-in-hand. In the studies conducted by [13], the groundwater retention is dependent on the type of vegetation and activities that are done on top soil. The geographically fragile environments, intense human activities and climatic variation has influenced the precipitation–evaporation mechanism affecting regional water balances and distribution, leading to water retention and reduction in runoffs [14]. Geographical islands have a challenging environment to test renewable energy integration strategies, as well as cutting-edge technologies, due to the alternation between actual grid-connected and island modes [15].
The restoration of the landscape and vegetation after mega projects will help retain the local population [16]. The top-down and bottom-up approaches to development should consider the justification of land utilization in developmental objectives [17]. Considering the risks involved in mega projects, its wise to invest social capital in eco-environmental projects for ecological improvement [18]. The c-Si and thin-film (TF) PV-based systems have a harmonized median of GHG emissions around the lifecycle around 50 g CO2 eq/kWh, thus further environmental damage during operation should be avoided [19].
The lack of land utilization policy poorly maintained land records, land price ceiling limits, technological impacts, and use of fertile/waste land pattern has delayed many of the solar park projects [4]. Lease of revenue land, lease, and/or purchase of private land are mechanisms to acquire land for renewable energy projects. The biggest challenge in private land lease/purchase is the conversion of fertile land with adverse impacts, due to land occupancy and transformation. While the advantage of using private land is near urban infrastructure facilities, the advantage of using revenue land is low rental costs and utilization of waste-degraded land parcels [20]. Acquiring revenue land for solar projects need approval from various departments; hence, it will be idle to use waste land parcels to minimize the land acquisition hurdles and their impacts [21]. Even though large patches of land in India are classified as waste or degraded land, due to waterlogging, steep slopes, or sandy desert, they could still be used for potential applications, including renewable energy integration, if carefully selected [22]. At least 58% of the total land of India can be considered solar energy-rich, with a solar energy potential of more than 5 kWh/m2/day.
The policy and regulatory guidelines mandate the use of land with good irradiation levels at a clearance ratio of 5 acres/MW, with a priority of waste/non-agricultural land (including hot/cold deserts) to be considered for ground-mounted solar energy projects [20]. However, developers prefer land that is fertile near the urban areas, in order to avoid the cost on excessive networks for transmission lines [21]. Apart from the socio-economic feasibility study, the solar park requires intensive civil infrstructure, which includes drainage, road networks, land conditioning, and power evacuation infrastructure [23].
The factors that have a direct influence on solar PV power generation cost are national policies in line with global commitments to meet climate change, maturity of technology, foreign policies on trade, and the global economy. The type of land, its topography, land acquiring method, the proximity of the land to the grid, infrastructure requirements, solar irradiation level, finance mechanism, and business model are decisive parameters classified under indirect factors [24]. Feed-in-tariff (FiT), feed-in-premium (FiP), and auction are pricing mechanisms used for implementing renewable energy systems as power sources. While FiT and FiP are tariff-based mechanisms, set by price-driven policy instruments, the auction mechanism seeks the best possible price from developers, through a competitive bidding process. India has shifted from feed-in-tariffs to auction mechanisms, as is the case with many nations from the time the prices for solar and wind energy integration have become comparable with fossil fuel integration [20,25].
Accelerated depreciation (AD), generation-based incentives (GBI), and viability gap funding (VGF) were mechanisms used for promoting the large-scale dissemination of solar-based power generation. Renewable purchase obligation (RPO) and renewable energy certificates (REC) were extended for industries for committing to buying/pooling renewable energy power. The renewable energy industry in India is privately led and capital-intensive. The major challenges in investment in renewable energy integration in India are identified as large, geographical divergence, concerning the level of available irradiance, differences in state/federal and central government policies, absence of long term debt financing sources with low-interest rates, anticipated technological leaps in renewable energy, renegotiation of signed power purchase agreements (PPA’s), and the credibility of the utility sector and clear land titles [25].
The literature survey concludes the following findings and limitations.
India has abundant, solar energy-rich wastelands, categorized under different classifications in different states.
The solar park can address many externalities of fossil-based power plants, while there are adverse impacts on society, economy, and ecology, due to land utilization, land transformation, and lifecycle carbon footprints, which remain as negative externalities, not accounted for in the cost economics.
Measures to integrate solar energy were heavily incentivized, with solar power reaching par with fossil-based power generation. Any deviation in incentives/policy measures could bring disruptions, concerning quality and reliability.
While increasing the renewable energy mix in the grid is one key measure to meet global warming, the efficient use of renewable energy hotspots, technology updates with increasing capacity utilization factor, and optimized renewable energy mix in grid remain unanswered.
The policy emphasizes the use of waste-degraded land for solar parks. However, there is no mechanism to measure its use, and there are no incentives to promote the use of wastelands. In a competitive energy market, any attempt to use waste–degraded land parcels, without proper policy interventions, can bring large-scale disruptions in quality and cost of power.
The objective of the current study is to assess the impact on cost economics of solar parks by using different waste degraded land parcels. The study also analyzes policy interventions that can promote the use of wastelands, accounting for the additional expenses in the solar park cost economics.
In Section 2 of the paper, four land parcels, in different land terrains and classified under different wasteland categories, are selected from multiple agro-climatic zones. In Section 3, factors influencing the cost of solar PV-based power generation are discussed, and a sensitivity analysis is done to understand the influence of land characteristics on the unit cost of power generation. Section 4 discusses the factors that influence the decision-making process for investment in grid-integrated, ground-mounted solar energy projects. The last section of the paper discusses the required policy interventions for promoting waste-degraded land for solar parks and options to internalize the additional cost.

2. Selection of Waste Land Parcels for Analysis of the Impact on Power Generation Cost with Land Characteristics

The land cover and annual average global insolation maps of India are shown in Figure 1 and Figure 2, respectively. The land cover map shows that there is unutilized, non-agricultural land, spread over different states and classified as barren, fallow, waste, and shrub. Comparing Figure 1 and Figure 2, it is found that the western plains and the Deccan plateau have good irradiation levels, under different wasteland classifications. According to the agroclimatic zone (ACZ) classification, the solar energy-rich states of Gujarat, Rajasthan, Madhya Pradesh, and Karnataka fall in the Gujarat Plains, western dry region, western plateau, and west coast, respectively [26,27,28]. Table 1 indicates the waste-degraded land classifications for these states, as well as waste land with good solar energy potential.

Selection of Locations

For analysis, four locations with good irradiation levels and different wasteland classifications are selected from the states of Karnataka, Madhya Pradesh, Gujarat, and Rajasthan. Table 2 provides details of the four locations, with respect to agroclimatic region, wasteland classification, land acquiring method, soil type, and climatic conditions.
The state of Karnataka has good solar energy potential in the central and southeastern regions, compared to the southern and northern regions. The state has large patches of wasteland, classified under dense scrub, opens scrub, underutilized degraded forest (scrub domain), and underutilized degraded forest (agriculture). Based on the solar energy potential and waste land pattern, Location 1 is selected in wasteland classification ‘underutilized degraded forest (agriculture)’ in flat terrain [30]. The northern regions of Madhya Pradesh, especially the Shivpuri plateau and Lashkar plain have good solar energy potential. The state has large waste lands classified as underutilized degraded forest (scrub region), land with forest scrub, and land with open scrub. Based on the solar energy potential and waste land classification, Location 2 is selected with wasteland classification ‘open scrub’ in steep slope [28] The state of Gujarat has good solar energy potential in most of its land area, with the maximum centered on the plains and hills of the western region. The waste lands are classified under dense scrub, open scrub, underutilized degraded forest, and land affected by salinity. Comparing the solar energy potential and waste land pattern, Location 3 is selected in the coastal region, with high–low tide region with wasteland, classified as ‘saline soil and waterlogging’ [31].
The state of Rajasthan has good solar energy potential, with solar irradiation levels varying from 5 kWh/m2 to 7 kWh/m2 in the northeastern hills to the plains. The waste lands in the state are largely classified as sands semi-stab region, with heights of 15–40 m. Considering the solar irradiation levels and waste lands, Location 4 was selected, with wasteland classification ‘sands semi-stab region’ [32].
The four locations were selected such that a comparison can be made between the most favorable locations, with respect to the most challenging. For the study purpose, Location 1 is considered a flat terrain, with deep loamy alluvial soil with wasteland classification ‘underutilized—degraded agriculture and categorized ‘agricultural land’ Location 2 is a steep slope, with a deep loamy clayey mix of red and black soil and wasteland, classified as ‘underutilized-degraded forest scrub’ and categorized as ‘waste-degraded’.
Location 3 is waterlogged with high tide-low tide phenomenon, with waste land classified as ‘saline soil’ and categorized as ‘waste-degraded’. Location 4 is a sandy desert with deep loamy desert soil and wasteland, classified as ‘sand semi stab (15 to 40 m) and categorized as ‘waste-degraded’. The diagrammatic representation of the four locations is explained in Figure 3.

3. Parameters Contributing to Solar PV Based Power Generation Cost

The parameters contributing to the cost of solar PV-based power generation can be majorly classified as fixed (direct) and variable (indirect), as indicated in Figure 4.
While the fixed parameters are based on a broader national interest and commitment to climate change, the variable parameters are site-specific and will depend on the business model [24,25]. The hidden cost, Figure 4, is due to the impact of externalities on land occupancy and transformation concerning society, economy, ecology, and microclimate, which is not considered in the cost economics of solar parks. For the analysis, it is considered that the national policies, regulatory mechanisms, trade policies, and world economics will have an equal impact on all four locations.
Analysis on the effect of land pattern on the power generation cost, with respect to changes to fixed, variable, and hidden cost, are analysed. Table 3 shows the colour coding to interpret the magnitude of impacts, while Table 4 gives the policy and regulatory support for each site with respect to subsidies and benefits of tax. Table 5 gives the civil and infrastructural impacts, while Table 6 gives the impact on the operation and maintance cost. Table 7 gives the impact on th socio-economics of the local population with respect to the solar farm.
Location 1 is considered the baseline wasteland situation, with minimal constraints and no additional civil–electrical infrastructural cost to the optimal design. Location 2 requires special module mounting structure (MMS) and civil foundations to meet the characteristics of the steep slope land terrain to withstand wind load and soil erosion. Location 2 would also require custom-designed wire ropes for monkey climbing, in order to reach every location of the power plant. Location 3 would require MMS and a foundation design that can withstand saline waters. Location 3 would require a desalination plant as a freshwater source and custom-designed canoes for movement between the solar arrays during the high tides. The PV panels, cable trays, inverters, and balance of materials should be protected from the saline atmosphere, with proper painting, coatings, conduits, etc. Location 4 would require MMS and a foundation design that can withstand wind erosion and desert sand. The solar panels, inverters, and balance of materials should be suitably enclosed to protect fine sand particles. Location 4 would necessarily require pneumatic air cleaners for cleaning the panels, as obtaining water will be almost impossible. The parameters that add to the capital cost in each location is indicated in Table 3.
While considering the operation maintenance of the solar park for different locations, it is seen that Location 1 will have the optimal cost, since the land is flat terrain, near an urban area, and the source of water is available at reasonable depths from the bore well. Location 2 will require routine maintenance of wire ropes used for monkey climbing, transport of workforce from urban areas, and deeper borewells as a water source. Location 3 will require the routine seaworthy painting of the MMS, inverter box, balance of materials, maintenance of desalination plant, and canoes. Location 4 will require maintenance of pneumatic air cleaners, additional manpower to be stationed at the site, and transportation of potable water for minimal requirements at the site. The analysis concludes that the use of waste land will incur additional costs through operation maintenance during the life of the plant.
The environmental impact assessment on Location 1 shows chances of village displacements, since the land is close to urban-semi urban infrastructure. The land will have an opportunity cost, since it could have been used for alternate purposes. Land use and cover will affect the carbon sequestration efficiency of soil, flora–fauna of the land, and water retention capacity of the soil. The land used for Location 2 is classified as waste degraded in a steep slope, hence does not have an alternate use. The impact on water retention, carbon sequestration efficiency, and flora–fauna can be reduced by incorporating design changes in module mounting structure. Since the land is in a steep slope and away from an urban-semi urban area, there will not be any displacement of villages; the only impact would be a hindrance to cattle herding. Location 3 is waterlogged, due to high–low tide and has saline soil. The foundations for module mounting structures will be a one-time civil work, using the piling process. The impact on flora–fauna, carbon sequestration efficiency of soil, and damage to water retention property of soil is almost nil. However, the effect on microorganisms in the water needs to be analyzed. Since the location is far from urban infrastructure, neither livelihood activities nor villages will be displaced. Location 4 is in the desert sand, away from the urban infrastructure, and does not disturb livelihood activities. The land does not have any alternate purpose. The adverse impacts on topsoil, flora–fauna, water retention property, and local vegetation are nil. The only hindrance will be a movement to camel herds. The impact on socio-economic and ecology for the four locations shows that the maximum damage, due to land occupancy and transformation, would occur for Location 1, while Locations 3 and 4 have minimal impacts.

4. Factors Contributing to Investment Decision-Making in Ground-Mounted Solar PV Projects

The regulatory obligation for carbon reduction to meet global warming has led to large scale incentives/subsidies to promote solar PV-based power generation. State/federal and central government policies were framed to promote solar energy, which prompted national and international developers to invest in solar power generation in India. The factors that contribute to the power generation cost are generally classified as fixed (direct) and variable (indirect). The fixed factors are national policies and regulatory mechanisms to promote clean energy, foreign trade policies, and tax incentives/subsidies. The variable factors are land characteristics, land procurement strategies, and associated operation and maintenance hurdles. The technical viability of the project, low-interest rates on debt/equity, and financial models play a major role in investment decision-making. The inclusion of waste degraded land for the solar park will increase project risk during design, operation, and maintenance, with adverse impacts on the decision-making process. The indicators in the decision-making process for investment in grid-integrated, ground-mounted solar energy projects are listed in Figure 5.

5. Discussion and Policy Recommendations

Studies on wasteland distribution and solar energy potential, show that there are abundant solar-rich wastelands, classified under different categories. Four locations, with different land topographies, soil characteristics, and agroclimatic zones, were selected to understand the effect of land characteristics on the power generation cost. The assessment shows that the intensity of waste-degraded land classification has a direct impact on the capital and operation expenses, in order to meet the challenges raised by the wasteland. The largest additional expense will be for a custom-designed module mounting structure and civil foundation. The environmental impact assessment on the four locations shows that Location 1 would have the maximum impact, since the land is located near the urban area, which was once used for agriculture. The use of such lands for solar parks can have adverse effects through land occupancy and transformation in the lifecycle of the plant, affecting the society, economy, and ecology of the region. The environmental impact assessment of Locations 2, 3, and 4 show that the impacts on society and economy are almost nil, since there is neither village displacement nor loss of livelihood activities. The lands being steep, saline (waterlogged), and sandy, respectively, do not have damage on ecology, concerning plant and animal species. However, specific studies need to be conducted on the effect of microorganisms in water.
The social, economic, and ecological impacts for Locations 2, 3, and 4 is usually not accounted for in the cost economics of solar parks; hence, not reflected in solar energy production cost. These impacts can be quantified, for economic analysis, under the opportunity cost of land, cost due to damage to ecology, and social cost of carbon. The opportunity cost of land can be defined as the second-best alternative use of the land, if the land was not used for the solar park. The ecology cost is defined as the loss in economy, per acre of land, by implementing the new technology put to operation. The social cost of carbon can be defined as carbon footprint during the lifecycle of the project and loss in carbon sequestration efficiency. The carbon footprint cost should be the sum of emission of carbon during the manufacturing of solar panels, its transportation to site, and during the recycling. The carbon sequestration efficiency should be the soil loss efficiency to capture the carbon dioxide, due to land utilization by solar panels during the lifecycle of the plant.
The analysis concludes that the use of wasteland for solar parks will have additional capital and operation expenses, which could be the major reason for solar park developers to consider good land parcels near urban infrastructure as the location for solar parks. In an energy-intensive and competitive market, the promotion of wasteland for solar parks should need policy-regulatory interventions. Considering the socio-economic and ecological impacts of using agricultural land in urban/semi-urban areas for solar parks, it is more important to promote waste-degraded land parcels for solar parks. Table 8 discusses the existing policy and regulatory framework for solar parks, as well as the required interventions that will enhance the use of waste-degraded land for solar parks.
The following policy interventions are suggested for disseminating solar energy through the use of waste-degraded land parcels.
  • Solar park bidding should be site-specific, giving weightage to a selection of sites, including land topography and the associated civil and infrastructural costs. The agreed feed-in-tariffs should be in proportionate to the investments made in using the waste land parcels.
  • The government should rekindle schemes, such as accelerated depreciation and generation-based incentives, to promote the use of waste/degraded land for the solar park.
  • There should be a mechanism to calculate the hidden cost in the cost economics of solar parks, including the opportunity cost of land, the social cost of carbon, and ecology cost. This should be included in the cost economics to be considered as a developmental expense.
  • The developmental expense can be a one-time payment to government machinery by the park developer. Whenever a wasteland is used, the developmental expense can be waived off/incentivized.

6. Conclusions

The solar park is a widely promoted mechanism in India, to integrate clean energy into the grid. In an environment with favorable policies, the location of site, land characteristics, and business model are decisive factors of PV-based power generation costs. Large amounts of land, under waste-degraded classifications, are available in different agroclimatic–agroecological regions across India. The reason for land to be classified as waste-degraded is erosion, soil salinity, underutilization, waterlogging, and desert sand. Many of the waste-degraded lands are in solar hotspot regions, with site-specific challenges for construction work. The falling prices of solar panels, market competitiveness, and energy-intensive industry have helped utilities to buy solar power at a very competitive price. While the government mandates the use of wasteland for the solar park, multiple factors have prompted grid-integrated, ground-mounted solar projects to conceive in either agricultural lands, peri-urban, or near the urban periphery.
The present work has considered the impact of capital-operational expenses, society, economy, and ecology, if waste-degraded lands are used for solar parks. A wasteland, under the classification ‘underutilized -agriculture land’ with minimal constraints, is selected as a datum, which is compared with ‘barren rocky steep slope, saline waterlogged and sandy desert land’. The fixed parameters, related to policies, global agenda, and climate commitments, were kept constant for the analysis, while the effect, due to land characteristics, operation maintenance schedules, and environmental impacts, were studied in detail. The decision-making process matrix was made, critical factors on socio-economics and environmental aspects were discussed, and mitigation measures were suggested. The study concludes that there will be a remarkable increase in capital and operation expenses, while using wasteland for the solar park, mainly due to the requirement of custom-designed module mounting structure and civil foundations, to overcome land terrain challenges. There will be a substantial cost increase in power evacuation requirements, as well. However, the study concludes that there are fewer socio-economic and ecological impacts in using wastelands, compared to land, in an urban-semi urban area, with an opportunity cost. While considering the factors that contribute to the power generation cost in solar PV plants, it is identified that the cost towards impacts on society, economy, ecology, and changes to microclimate are not factored in the cost economics. The study concludes and recommends policy interventions, including the opportunity cost of land, social cost of carbon, and ecology cost, which are externality costs on society, economy, and ecology, into the cost economics.

Author Contributions

Conceptualization, S.J.T. and S.S.S.; methodology, S.S.S. and S.J.T.; software, S.T.; validation, R.G. and M.M.A.; formal analysis, S.T.; investigation, S.J.T. and S.S.S.; resources, S.S.S.; data curation, S.J.T. and R.G.; writing—original draft preparation, S.J.T. and S.T.; writing—S.J.T. and R.G.; visualization, M.M.A.; supervision, M.M.A.; project administration, S.J.T. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Kiesecker, J.; Baruch-Mordo, S.; Heiner, M.; Negandhi, D.; Oakleaf, J.; Kennedy, C.; Chauhan, P. Renewable energy and land use in India: A vision to estimate sustainable development. Sustainability 2020, 12, 281. [Google Scholar] [CrossRef] [Green Version]
  2. Dawn, S.; Tiwari, K.P.; Goswami, K.A.; Mishra, K.M. Recent developments in solar energy in India: Perspectives, strategies and future goal. Renew. Sustain. Energy Rev. 2016, 62, 215–235. [Google Scholar] [CrossRef]
  3. Sukhatme, S.P. Meeting India’s needs of future electricity through renewable energy sources. Curr. Sci. 2011, 101, 5. [Google Scholar]
  4. Bhardwaj, N.; De, A. Renewable Energy and Grid Integration, Enhancing Ease of Doing Business-Solar Park; White Paper; Government of United Kingdom: London, UK, 2018.
  5. Bhushan, C.; Bhati, P.; Sreenivasan, P.; Sing, M.; Jhawar, P.; Koshy, M.S.; Sambyal, S. The State of Renewable Energy in India; Centre for Science and Environment: New Delhi, India, 2019. [Google Scholar]
  6. Van de Ven, D.J.; Capellan-Peréz, I.; Arto, I.; Cazcarro, I.; de Castro, C.; Patel, P.; Gonzalez-Eguino, M. The potential land requirements and related land use change emissions of solar energy. Sci. Rep. 2021, 11, 1–12. [Google Scholar]
  7. Vrînceanu, A.; Grigorescu, I.; Dumitrașcu, M.; Mocanu, I.; Dumitrică, C.; Micu, D.; Kucsicsa, G.; Mitrică, B. Impacts of Photovoltaic Farms on the Environment in the Romanian Plain. Energies 2019, 12, 2533. [Google Scholar] [CrossRef] [Green Version]
  8. Selna, S.; Kuldeep, N.; Tyagi, A. A Second Wind for India’s Wind Energy Sector: Pathways to Achieve 60 GW; Centre for Energy Environment and Water: New Delhi, India, 2019. [Google Scholar]
  9. Roy, S.; Ghosh, B. Land utilization performance of ground mounted photovoltaic power plants: A case study. Renew. Energy 2017, 114, 1238–1246. [Google Scholar] [CrossRef]
  10. Stoknes, P.E.; Soldal, O.B.; Hansen, S.; Kvande, I.; Skjelderup, S.W. Willingness to Pay for Crowdfunding Local Agricultural Climate Solutions. Sustainability 2021, 13, 9227. [Google Scholar] [CrossRef]
  11. Khatibi, A.; Astaraei, F.R.; Ahmadi, M.H. Generation and combination of the solar cells: A current model re-view. Energy Sci. Eng. 2019, 7, 305–322. [Google Scholar] [CrossRef] [Green Version]
  12. Sousa da Silva, V.; Salami, G.; da Silva, M.I.O.; Silva, E.A.; Monteiro, J.J., Jr.; Alba, E. Methodological evaluation of vegetation indexes in land use and land cover (LULC) classification. Geol. Ecol. Landsc. 2020, 4, 2. [Google Scholar] [CrossRef]
  13. Kumar, P.S.; Mohanan, A.A.; Ekanthalu, V.S. Hydrogeochemical analysis of Groundwater in Thanjavur district, Tamil Nadu; Influences of Geological settings and land use pattern. Geol. Ecol. Landsc. 2020, 4, 306–317. [Google Scholar] [CrossRef] [Green Version]
  14. Liu, Y.; Yu, K.; Zhao, Y.; Bao, J. Impacts of Climatic Variation and Human Activity on Runoff in Western China. Sustainability 2022, 14, 942. [Google Scholar] [CrossRef]
  15. Hoseinzadeh, S.; Garcia, D.A. Techno-economic assessment of hybrid energy flexibility systems for islands decarbonization: A case study in Italy. Sustain. Energy Technol. Assess. 2022, 51, 101929. [Google Scholar] [CrossRef]
  16. Zeng, X.; Zhao, Y. The Characteristics of Rural Settlement Landscape in Hilly Area from the Perspective of Ecological Environment. J. Coast. Res. 2020, 103, 506–510. [Google Scholar] [CrossRef]
  17. Tong, D.; Yuan, Y.; Wang, X. The coupled relationships between land development and land ownership at China’s urban fringe: A structural equation modeling approach. Land Use Policy 2021, 100, 104925. [Google Scholar] [CrossRef]
  18. Wang, W.; Tang, D.; Xu, R. Systemic Risk Infection and Control of Water Eco-Environmental Projects under the Mode of Government-Enterprise Cooperation. J. Coast. Res. 2020, 103, 447. [Google Scholar] [CrossRef]
  19. Ahmadi, M.H.; Ghazvini, M.; Sadeghzadeh, M.; Alhuyi Nazari, M.; Kumar, R.; Naeimi, A.; Ming, T. Solar power technology for electricity generation: A critical review. Energy Sci. Eng. 2018, 6, 340–361. [Google Scholar] [CrossRef] [Green Version]
  20. Kumar, A.; Thapar, S. Addressing Land Issues for Utility Scale Renewable Energy Deployment in India; Shakti Sustainable Energy Foundation: Delhi, India, 2017; Available online: (accessed on 15 January 2022).
  21. Rathore, P.; Rathore, S.; Singh, R.P.; Agnihotri, S. Solar power utility sector in india: Challenges and opportunities. Renew. Sustain. Energy Rev. 2018, 81, 2703–2713. [Google Scholar] [CrossRef]
  22. Watve, A.; Vidya, A.; Iravatee, M. The Need to Overhaul Wasteland Classification Systems in India. Econ. Political Wkly. 2021, 56, 36. [Google Scholar]
  23. Sindhu, S.; Nehra, V.; Luthra, S. Investigation of feasibility study of solar farms deployment using hybrid AHP-TOPSIS analysis: Case study of India. Renew. Sustain. Energy Rev. 2017, 73, 496–511. [Google Scholar] [CrossRef]
  24. Rohankar, N.; Jain, K.A.; Nangia, P.O.; Dwivedi, P. A study of existing solar power policy framework in India for viability of the solar projects perspective. Renew. Sustain. Energy Rev. 2016, 56, 510–518. [Google Scholar] [CrossRef]
  25. Sarangi, G.K. Green Energy Finance in India: Challenges and Solutions; ADBI Working Paper 863; Asian Development Bank Institute: Tokyo, Japan, 2018; Available online: (accessed on 15 January 2022).
  26. Balasubramanian, A. Wastelands in India. In Country-Wide Class Room Educational TV Programme-Gyan Darshan; University of Mysore: Karnataka, India, July 2015. [Google Scholar] [CrossRef]
  27. Bardhan, D.; Tewari, S.K. An investigation into land use dynamics in India and land under-utilisation. Ind. J. Agric. Econ. 2010, 65, 658–676. [Google Scholar]
  28. Ramachnadra, V.T.; Jain, R.; Krishnadas, G. Hotspots of solar potential in India. Renew. Sustain. Energy Rev. 2011, 15, 3178–3186. [Google Scholar] [CrossRef]
  29. Edrasi, A.S.; Abhilash, P.C. Exploring marginal and degraded lands for biomass and bioenergy production: An Indian scenario. Renew. Sust. Energ. Rev. 2011, 15, 3178. [Google Scholar] [CrossRef]
  30. Gajjar, J.; Agravat, S.; Harinarayana, T. Solar PV generation map of Karnataka, India. Smart Grid Renew. Energy 2015, 6, 333–343. [Google Scholar]
  31. Harinarayana, T.; Kashyap, J.K. Solar energy generation potential in India and Gujarat, Andhra, Telangana states. Smart Grid Renew. Energy 2014, 5, 275–289. [Google Scholar]
  32. Kumar, H.; Arora, U.; Jain, R.; Sharma, K.A. Rajasthan Solar Park—An Initiative Towards Empowering Nation; Current Trends in Technology and Science: Noida, India, 2012; Volume II, ISSN 2275-0535. [Google Scholar]
Figure 1. Land use and cover of India. Reprinted with permission from [29]. Copyright 2022 Elsevier.
Figure 1. Land use and cover of India. Reprinted with permission from [29]. Copyright 2022 Elsevier.
Sustainability 14 01786 g001

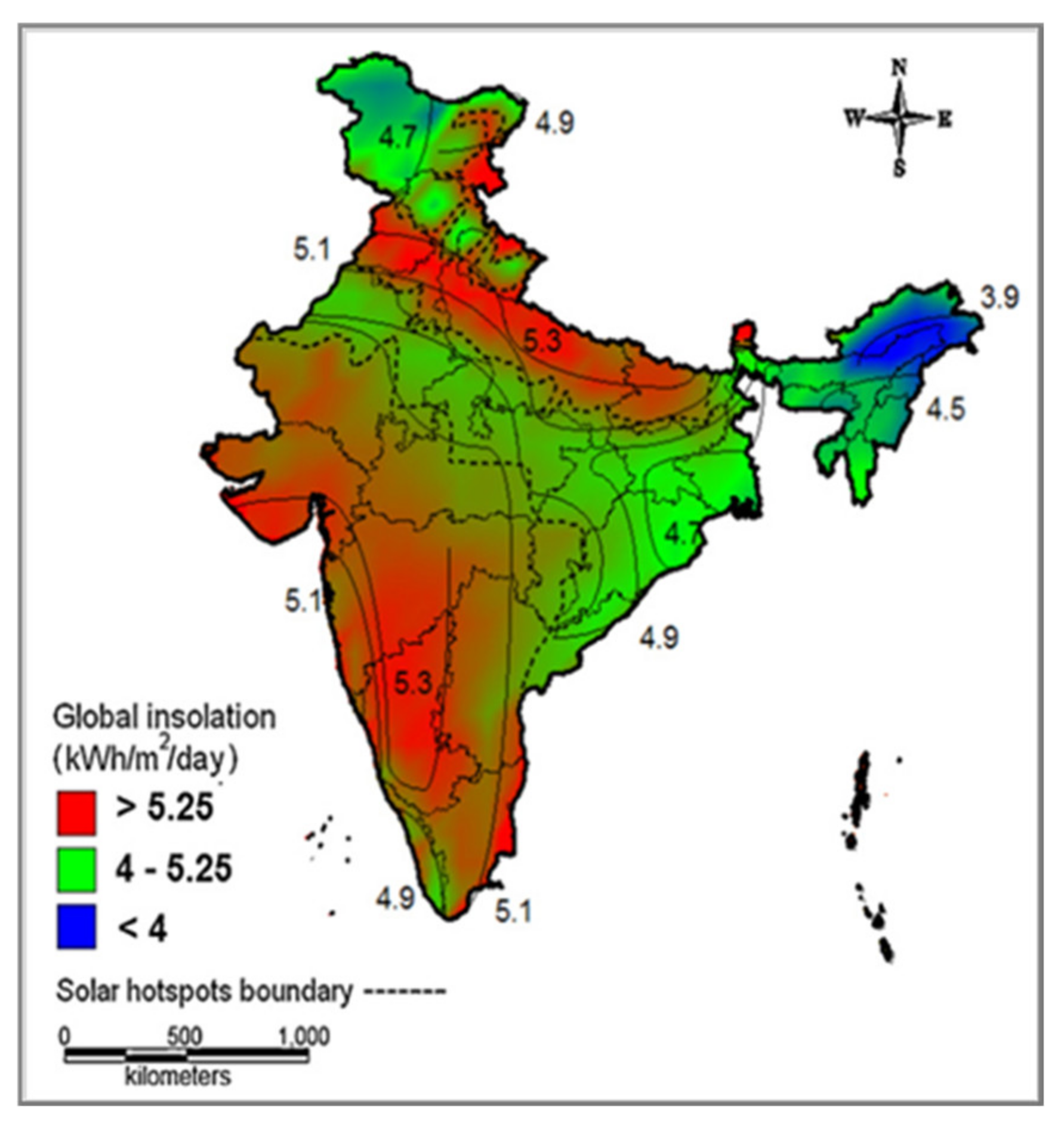

Figure 2. Annual average global insolation map. Reprinted with permission from [28]. Copyright 2022 Elsevier.
Figure 2. Annual average global insolation map. Reprinted with permission from [28]. Copyright 2022 Elsevier.
Sustainability 14 01786 g002

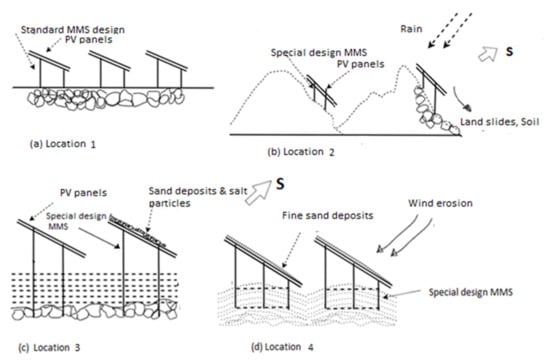

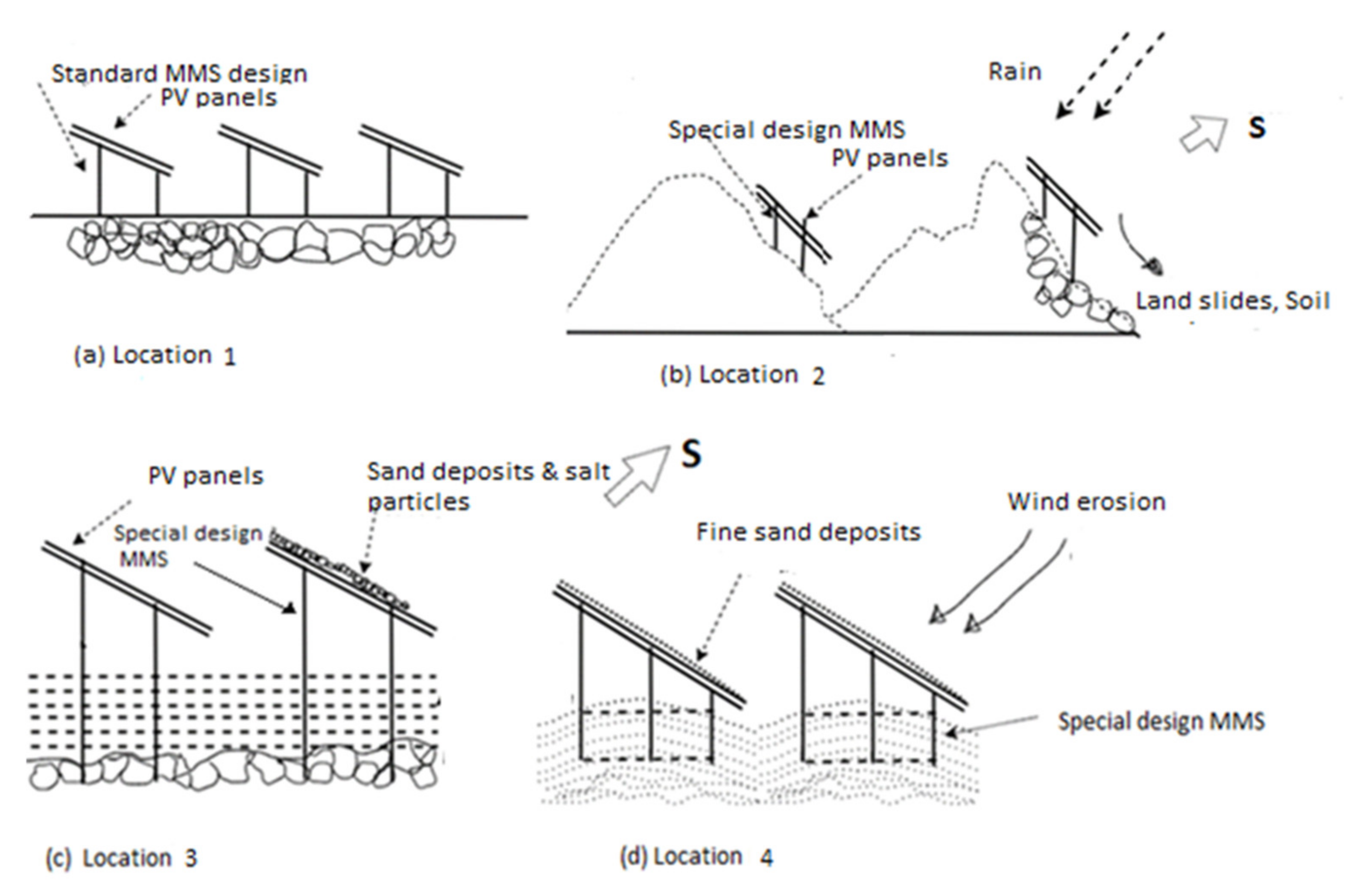

Figure 3. Schematic representation of the four locations.
Figure 3. Schematic representation of the four locations.
Sustainability 14 01786 g003
Figure 4. Direct, variable, and hidden parameters affect the power generation cost in solar PV-based power generation.
Figure 4. Direct, variable, and hidden parameters affect the power generation cost in solar PV-based power generation.
Sustainability 14 01786 g004

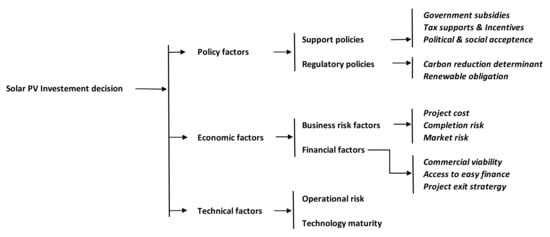

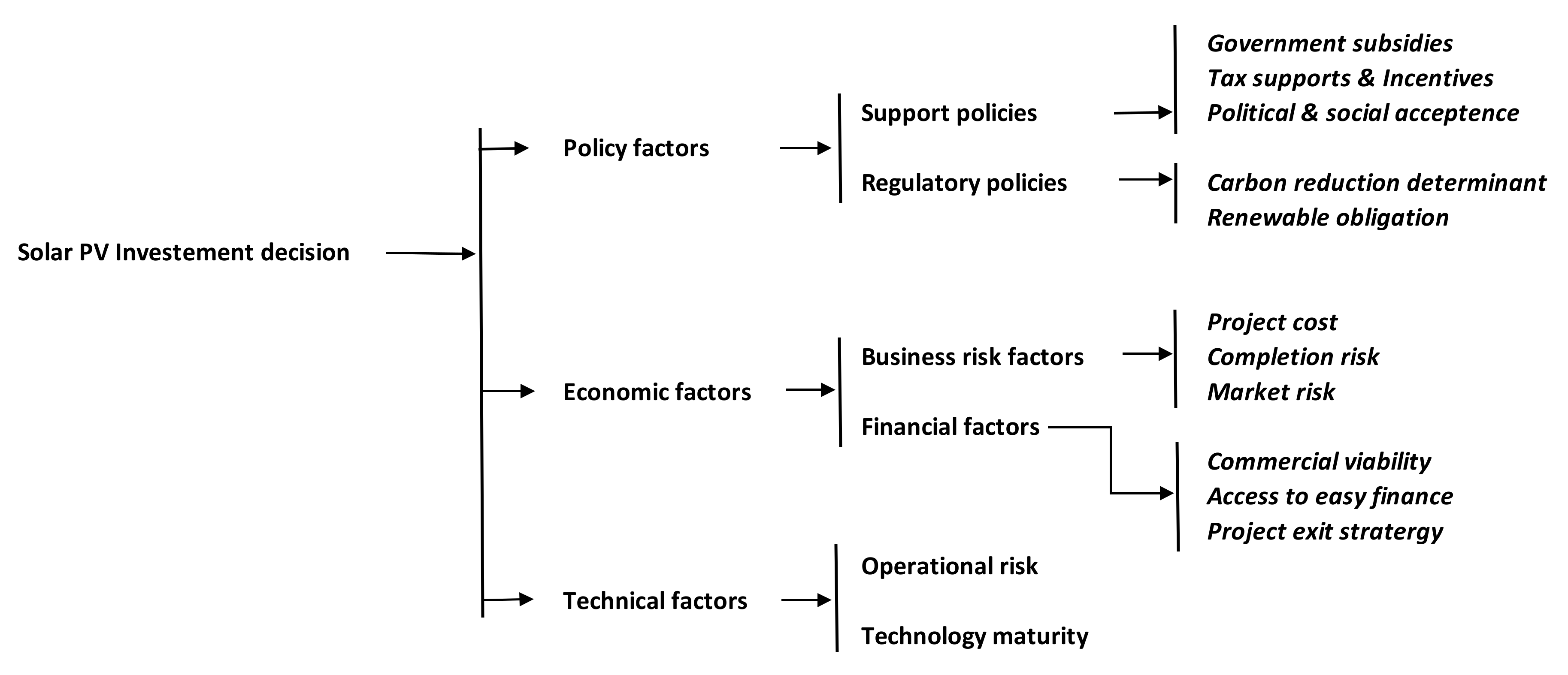

Figure 5. Structural hierarchy diagram of solar PV investment evaluation indicators.
Figure 5. Structural hierarchy diagram of solar PV investment evaluation indicators.
Sustainability 14 01786 g005
Table 1. Wasteland classification and solar energy potential for solar rich states of India. Adapted from [26,27,28,29].
Table 1. Wasteland classification and solar energy potential for solar rich states of India. Adapted from [26,27,28,29].
StateTotal Gross Area (Km2)Type of Waste and Degraded Land Approximate Total Waste Land (‘000 ha)Waste Land with Solar Hot Spots (‘000 ha)
Gujarat 196,024Exclusively water erosion, Saline and Water logged31292595
Karnataka191,791Exclusively water erosion, sodic and eroded sodic8093788
Madhya Pradesh308,641Exclusively water erosion and acid soils14,0951351
Rajasthan342,239Exclusively water ersosion, Exclusively wind erosion20,4242295
Table 2. Geographical, climatic, and topographical details of four locations were selected for the study.
Table 2. Geographical, climatic, and topographical details of four locations were selected for the study.
Governing ParametersLocation 1Location 2Location 3Location 4
Agro climatic region (ACR)Western coast plainsWestern plateau and hillsGujarat PlainsWestern dry region
StateKarnatakaMadhya PradeshGujaratRajasthan
AreaCentral/northern dry regionMadhya Bharat Plateau, BundelkhandCoastalWestern plain
Sub-region (ACR)Hot aridHot, moist semi-aridHot hyper-aridHot hyper-arid
Waste land classificationUnderutilized degraded (agriculture)Barren rocky/steep slopeSaline soil/waterloggedSand semi stab (15 to 40 m)
Soil typeDeep loamy alluvialDeep loamy clayey, black–red mixDeep loamy, saline Deep loamy desert soil
Annual rainfall (mm)6131042.5799.6 mm217 mm
Average (max–min) temperatures (Deg C)40–1842 to 2141–28.442–02
Land classification AgriculturalWaste-degradedWaste—DegradedWaste- Degraded
Type of soilDeep loamy, alluvialDeep loamy clayey mix of red and blackDeep loamy saline and alkaliDeep loamy desert sand
Land topographyFlat terrainRolling patches with steep slope Absolute level terrain, WaterloggedSand dunes, light slope
Land acquiring modelPrivate land, convertedGovernment allottedGovernment allottedGovernment allotted
Distance from urban areaWithin 5 kms Greater than 15 kmsGreater than 25 kmsGreater than 25 kms
Source: [28,29]. Copyright 2022 Elsevier.
Table 3. Matrix on effect on power generation cost concerning the type of land and accounting for the fixed, variable, and hidden costs.
Table 3. Matrix on effect on power generation cost concerning the type of land and accounting for the fixed, variable, and hidden costs.
Magnitude of ImpactsCode
Severe adverse impacts
Noticeable adverse impacts
Slightly beneficial
Significantly beneficial
Table 4. Policy and regulatorary support for the locations considered for the study.
Table 4. Policy and regulatorary support for the locations considered for the study.
Policy and Regulatory SupportLocation 1Location 2Location 3Location 4
Subsidies from governmentFavourable Favourable Favourable Favourable
Finance and tax supportFavourable Favourable Favourable Favourable
Political and social acceptanceFavourable Favourable Favourable Favourable
Carbon reduction determinantFavourable Favourable Favourable Favourable
Renewable obligationFavourable Favourable Favourable Favourable
Table 5. Impact on the civil and electrical infrastructure stratergy with respect to different site locations.
Table 5. Impact on the civil and electrical infrastructure stratergy with respect to different site locations.
Governing ParametersLocation 1Location 2Location 3Location 4
Levelling of landPlain land. Do not need excavation. Use the natural slope of the land to orient the panels to extract maximum solar energy. Land leveling is ruled out since the area is waterlogged due to high–low tide phenomena Land leveling does not require. Design the height of the structures to incorporate the maximum height of the dunes.
Drainage facilitiesNatural drainage Incorporate natural slope in the design to avoid erosion. The tidal drainage should not be disturbed. Incorporate the design layout accordingly. Rainfall is very scarce. Immediate maintenance of solar panels soon after the rains.
Development of internal roadsNatural terrain Conventional road designs will not be possible. Use monkey climbs instead, with wire rope support. Conventional road designs cannot be used. Use waterways with high–low tide water levels. Access to solar panels should be through desert drives/camel tracks
Boundary wallsBrick and mortar, wire rope fencing Conventional boundary wall designs should be avoided. Use wire rope fencing instead. Conventional boundary wall designs are ruled out. Use wire rope fencing designs instead, with the movement of canoes in waterways. Conventional boundary walls/wire rope fencing. Flag the boundaries with high poles.
Power evacuation InfrastructureClose to Urban area Use benefits of altitude for aerial routes. Incorporate wind load in designs. Use special foundation designs, to avoid damage due to saline waters. The cables should necessarily run over specially designed conduits. Special design for the foundation to incorporate the maximum height of the dunes,
Requirement of waterBorewells Borewells require deeper exploration. Use the benefit of high-altitude storage to avoid the cost of pumping. A seawater desalination plant should be incorporated with technology that will take care of brine rejection. Design the plant with non-use of water through the operational life
Requirement of manpowerLocally available Manpower should be locally stationed at the foothills of the slope. Manpower should be locally stationed Manpower should be locally stationed in special shelters
Table 6. Impact on the operation and maintenance stratergy of the plant with respect to different site locaitons.
Table 6. Impact on the operation and maintenance stratergy of the plant with respect to different site locaitons.
Governing ParametersLocation 1Location 2Location 3Location 4
Type of dirt on panelsFine dust (Industrial) from urban areas. Loose sand from the hills throughout the year, depending on wind direction. Dust will be very less. However fine salt particles will be formed, due to the saline atmosphere. Heavy accumulation of fine sand, after each wind/breeze.
Cleaning of panelWater/pneumatics. Conventional design. Water/pneumatics special design. The slope can drain the dust to the bottom of the panels, naturally. Special design using water from the desalination plant Pneumatics (very frequent cleaning).
Inter array movementsWalking, 2/4-wheeler. Patch roads. Steep walkways with wire ropes. Canoe in high tide, walking in low tide. 4 wheels drives, camels.
Table 7. Benefits and impacts on the socio-economic and ecological factors at different sites due to solar plant.
Table 7. Benefits and impacts on the socio-economic and ecological factors at different sites due to solar plant.
Effect Due to Loss of TopsoilLoss of Topsoil Characteristics Chances are Less Since the Land
Terrain is Steep
No Loss to Topsoil No Loss to Topsoil
Effect on local vegetationLoss of natural vegetation. Elevated panels, Natural vegetation can grow under the panels. No loss to vegetation. No loss to vegetation.
Effect on the flow of water channels The flow of water in existing water decreases. New water channels are formed. Design can avoid water channels. New water channels are formed/intensity of flow in existing water channels, increase. Design can include tidal channels. Rainfall is scarce, no water channels.
Effect on groundwater tablesWater retention in the ground is affected. Newer rainwater channels are formed, due to the slope of panels. Comparatively less effect, as existing water channels are avoided. No effect since the site is waterlogged. No effect since desert sand.
Effect on carbon sequestration efficiency of soilCan affect CO2 absorption capacity. High altitude/special mounting design reduces the impact. No effect since the site is waterlogged. Can affect natural evaporation. No effect, since desert sand.
Effect on local Flora and faunaCan have adverse impacts. Can affect surface natural vegetation. Water species can get affected due to temperature. Flora and fauna are not affected.
Displacement of villagesVillage population can get affected. Villages are not displaced. Villages are not displaced. Villages are not displaced.
Alternate use of land (Opportunity cost)Land could have been used for other purposes. The land has no other purposeful use. The land has no other purposeful use. The land has no other purposeful use.
Effect on local livelihood activitiesAgriculture and other livelihood activities can get affected. Can affect cattle herds. Effect on local fishing, shrimp farming. Effect on camel herd movement.
Creation of new jobsSolar PV park-related jobs. Solar PV park-related jobs. Solar PV park-related jobs. Solar PV park-related jobs.
Table 8. Existing policy framework and required interventions to promote wasteland for solar parks.
Table 8. Existing policy framework and required interventions to promote wasteland for solar parks.
Decision ComponentsSupport
Existing Policy Framework and Strategy AdoptedRequired Policy
Policy Factors
Government subsidies
Tax support
Finance schemes
Carbon reduction determinant
Favorable PoliciesCentral and federal systems provide tax supports/incentives/finance schemes for the dissemination of solar energy.
Some incentives (such as benefits of accelerated depreciation, feed-in-tariffs, and generation-based incentives), promoted for dissemination of solar energy, are now curtailed.
Subsidies/tax support should focus to (i) link usage of waste-degraded land; (ii) address the difficulty of operation and maintenance in the waste land.
Feed-in-tariff can be reintroduced for projects in waste-degraded land.
Carbon reduction determinant
Renewable obligations
Regulatory PoliciesCarbon reduction determinants were implemented through renewable purchase obligations (RPO). Buying renewable energy certificates (REC) is an option for industries to meet the criteria.The benefits of RPO and REC should be linked to the utilization of waste/degraded land parcels.
Investors/industries who invest in wasteland-based power generation should be more benefitted.
Economic factors
Project cost
Completion risk
Market risk
Business RiskInvestors look for a site that is close to urban/evacuation infrastructure to keep production costs minimal.
Some projects do not get completed, due to hurdles in land/title clearances.
Many states have reached energy self-sufficient and may not focus on further integration of solar energy.
Utilities should accept site-specific power generation rates.
Provide an easy and fast mechanism to clear wastelands for projects at cheaper rates.
Government should consider solar power generation from wastelands as a separate entity.
Profitability of project
Access to easy finance
Exit strategy after the initial investment
Financial FactorsSolar energy is a mature market in India, with very few margins and overnumbered integrators/contractors.
Debt repayment periods are short-term in India. Investors bring foreign direct investment for debt financing.
Investors look for an early exit, after the repayment period
The use of wasteland will bring additional capital and operation expenses. Site-specific bidding and special feed-in-tariffs to be promoted to lure investors.
Site-specific bidding can revive the market.
Risk remains the same.
Technical factors
Power purchase agreements (PPA)
Climatic variations
Natural calamities
Operational RisksInvestors prefer PPA for the lifecycle period of the plant. There are instances when PPA is renegotiated based on the revised rates on new tenders.
Due to climate change, there are seasonal changes in all climatic zones. This can hinder the generation and cost economics.
Climate change can bring unpronounced wind/hailstorms, which can damage the solar plant.
The use of wasteland brings risk to the project. PPA should include this risk with better breakeven and/or higher feed-in-tariff.
Risk remains the same.
Risk remains the same.
○ Newer technologies
Improvements in capacity utilization factors (CUFs)
Technological MaturityThe PPAs are signed for a period of 25 years. New technologies can have a better capacity utilization factor (CUF), which can generate better power from the same location. Site-specific bidding should keep technology-neutral.
Investors should be allowed to change the system to adapt to the new CUF efficiency.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Thomas, S.J.; Thomas, S.; Sahoo, S.S.; Gobinath, R.; Awad, M.M. Allotment of Waste and Degraded Land Parcels for PV Based Solar Parks in India: Effects on Power Generation Cost and Influence on Investment Decision-Making. Sustainability 2022, 14, 1786.

AMA Style

Thomas SJ, Thomas S, Sahoo SS, Gobinath R, Awad MM. Allotment of Waste and Degraded Land Parcels for PV Based Solar Parks in India: Effects on Power Generation Cost and Influence on Investment Decision-Making. Sustainability. 2022; 14(3):1786.

Chicago/Turabian Style

Thomas, Sanju John, Sheffy Thomas, Sudhansu S. Sahoo, Ravindran Gobinath, and Mohamed M. Awad. 2022. "Allotment of Waste and Degraded Land Parcels for PV Based Solar Parks in India: Effects on Power Generation Cost and Influence on Investment Decision-Making" Sustainability 14, no. 3: 1786.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
