Review

Scrutiny of Hybrid Renewable Energy Systems for Control, Power Management, Optimization and Sizing: Challenges and Future Possibilities

by
Asmita Ajay Rathod
and
Balaji Subramanian
*
School of Electrical Engineering, Vellore Institute of Technology, Vellore 632014, India
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(24), 16814; https://doi.org/10.3390/su142416814
Submission received: 31 October 2022 / Revised: 3 December 2022 / Accepted: 7 December 2022 / Published: 14 December 2022
(This article belongs to the Special Issue Power Quality Improvement Using Power Converters Powered by V2G Vehicles Charging Stations)
Browse Figures
Review Reports Versions Notes

Abstract

:
To fulfill fast-growing energy needs, all energy sources should be utilized. Renewable energy is infinite and clean. However, its main disadvantage is that renewable energy sources are intermittent. A Hybrid Renewable Energy System (HRES) is built by integrating several distinct energy sources to deal with this problem. In regards to energy economy, economics, dependability, and flexibility, these hybrid systems can surpass the limits of individual energy producing technologies. The power capacity of HRESs increased from 700 GW to 3100 GW globally over the period 2000–2021. This study aimed to offer and analyze a comprehensive literature review of recently published works by several researchers in the area of HRESs. The HRES contains different Hybrid Energy Systems (HESs), which are categorized into three parts, namely, PV_Other, Wind_Other and PV_Wind_Other. These systems, based on different optimization techniques/software with techno-economic objective functions and constraints, are reviewed in this paper. The optimal sizing, control, and power management strategies of the HRES are elaborately discussed to harness its potential. It has been determined that Metaheuristic (MH) methods and HOMER software are mostly employed in the fields of HRES sizing, control, power management, and optimization. The review provides a critical analysis of the shortcomings of the existing HRES systems, while choosing optimization parameters, and control and power management schemes. Moreover, the study encapsulates the various challenges/barriers in adopting HRESs. Finally, this review highlights possible future opportunities for PV, Wind, and other HESs in the area of control, power management, optimization, and optimal sizing.

1. Introduction

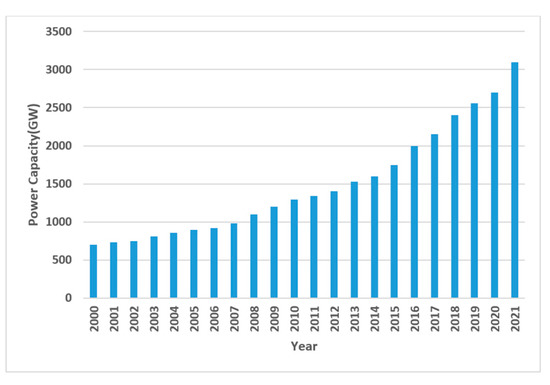

It is well known that fossil fuels, like coal, oils, and natural gases, are the major sources of energy globally. Excessive reliance on fossil fuels in the 20th century severely harmed the natural supply [1,2]. Globally, rising environmental issues and electrical requirements have necessitated the development of alternative sources of energy. Scientists and engineers are constantly working on expanding and using alternate energy sources, which requires researching their finite supply and negative environmental impacts. Solar, biomass, wind, tidal, wave, magneto-hydrodynamic generators, and small hydro technology are some of the alternative energy sources that are now accessible. Among the Renewable Energy Sources (RESs), wind and solar energy appear to be the most encouraging, due to their being limitless, plentiful, and ecological, and having an unrestricted supply in nature. Technological advances in renewable energy systems, enabling them to satisfy the energy needs of remote or off-grid places, where environmental problems are a concern, has resulted in these systems being widely accepted [3]. Photo-Voltaic (PV), wind, and hydropower systems, or a mix of these systems, are examples of important renewable-based energy systems. Along with a renewable-based energy system, backup equipment, such as Diesel Generators (DGs) and Battery Banks might be included to satisfy peak-hour demand. This Renewable Energy Power System (REPS) is the backbone of modern power systems, but their deployment has both benefits and drawbacks. The benefits of REPS include the utilization of free resources, such as solar and wind, for fuel, minimal cost of operation, minimal maintenance, and no waste of natural resources. Furthermore, these systems do not produce environmental pollution, thereby preserving biodiversity. The disadvantages of REPS include the fact that renewable energy generation is based on natural cycles, and the capital cost of such units is greater than comparably sized nonrenewable generating units. More importantly, renewable systems are unable to meet peak demands well enough without power storage [4,5].
Many researchers have suggested efficient methods and effectively constructed stand-alone PV systems. Stand-alone PV systems are sometimes built with backup and storage. A stand-alone PV system is an appealing way to deliver energy to rural areas, off-grid sites, isolated places, street lights, tourist attraction places, offices of remote communication, and commercial buildings, because of its ease of operation and maintenance. However, the energy conversion efficiency of PV generation is poor, and the price of energy per kilowatt-hour is higher than that of wind power [6]. As a result, the wind energy system has gained considerable importance. Recently, a system based on wind–diesel hybrid power was proposed to satisfy the load requirements of a commercial structure. Generic concepts of a system based on wind–diesel hybrid power systems were reported on so as to gain an understanding of its pros and cons. A highly developed renewable energy system may be cost-efficient, dependable, and enhance standard of living [7].
Renewable resources such as solar energy and wind energy are intermittent and unpredictably variable, due to sudden variations in solar radiation and wind velocity. Furthermore, these sources of energy are unable to adjust to increased demand, rendering the reliability of these systems difficult to maintain. They also necessitate a significant capital commitment, as compared to traditional sources [8]. HRESs, which typically incorporate RESs as the primary sources, with BAs and/or DGs as backup, have been used to conquer the varying nature of renewables. HRESs can ensure power accessibility when one of the generation sources encounters intermittency. These solutions may help to reduce expenses, optimize the size of system components, lower operation costs, and assure access to inexpensive and dependable, as well as sustainable, energy sources [9,10]. The global generation capacity of the HRES is shown in Figure 1 for the years 2000–2021. The development of new mechanisms to study the importance of the HRES is necessary [11,12].
The fundamental benefit of HRESs is that the number of generation units may be increased in response to demand, ensuring continuous operation. If there is more generation than demand, the excess energy can be fed into the grid, resulting in income generation. When electricity generation involves several sources, its stability, dependability, and efficiency are greater. The operating costs of thermal, as well as atomic, power plants are substantial. Most renewable energy-based power generation has low operating costs and is abundant in nature [13]. Furthermore, HES benefits include the following: showcasing electrical system integration approaches, increasing the dependability of RE utilization, offering feasible rural electrification options, encouraging the advancement of modern power electronics interface technology for collecting energy, and resolving RE intermittency [14].

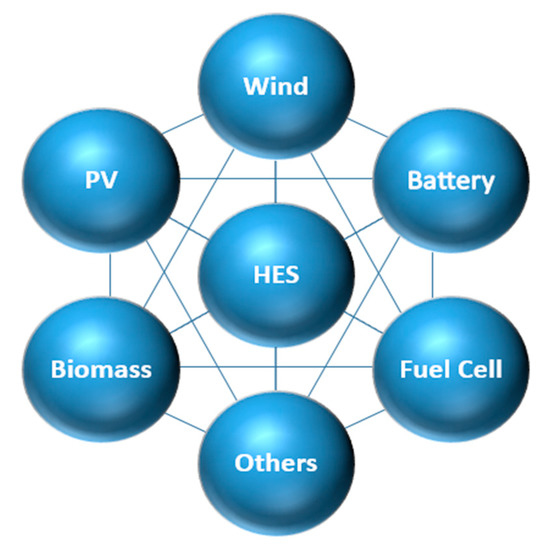

An electric power system classified as a HES comprises HRES and several non-renewable sources of energy, as shown in Figure 2. The scheme can be utilized in the grid, off-grid, or independently, and the sources can be conventional, ecological, or combined [15]. In [5], the first description of a hybrid system based on renewable energy, and quoted as “Typical hybrid systems combine two or more energy technologies”, was proposed. The deployment of such a system was seen as a way to transform the world into “A Renewable World”. The Micro-grid (MG) is an interconnected power system that incorporates sources of energy, consumers, and storage facilities, and is the perfect example of HRES. The necessity for distributed energy resources, incorporating HRESs, like PV with wind generators and battery (BA) storage systems, makes MGs essential in practical applications [16]. MGs can also isolate themselves from the distribution network in the event of upstream disruptions or voltage variations [17,18]. Therefore, hybrid energy sources are becoming more critical, appealing, and cost-efficient choices for electricity in distant or off-grid regions. Gupta, et al. [19] and Patil et al. [20] studied several cases of integrated HRESs in delivering energy to remote regions of Uttrakhand, India. Bhandari et al. installed a novel HES model, combining solar, wind, and hydro power, in rural Nepal. Likewise, several researchers presented various HRES studies in remote locations of the world. The features of an off-grid HRES, with the consequences for the system’s dependability, were investigated by Ahn et al. [21]. Elhadidy and Shaahid advocated for several hybrid renewable energy solutions in energy-saving areas. These hybrid systems were shown to offer consumers reliable and low-cost power, particularly in rural, or off-grid, areas.
A study of several Energy Storage Systems (ESSs) and their abilities to improve dependability with the added stability of wind energy conversion systems was provided in [22]. A survey of current tools and methodologies for determining potential and usable energy in the most significant renewable areas was conducted. Usually, surveys aim to address issues of every renewable resource and tool that aid in analyzing the utilization of a mixture of various sources [23]. Configurations, criterion selection, sizing techniques, control, and energy management are among the key aspects to consider when developing a HES before its deployment [24,25]. A comprehensive review of these methodologies ensures HRESs offer more reliable and promising techniques. Jose et al. discussed some of the design, modeling, and optimization procedures regarding HRES, created in recent years, in [26]. The performance and reliability of HRES rely heavily on the elements of the system, such as a Wind Turbine (WT), a PV system, a BA storage system, a DG, and a local control center. Thus, the precise modeling of each element gives tools for better understanding the system’s performance and dependability. Judging from recent literature, the modeling of the elements is one of the most important tools for optimizing HRESs. Figure 3 shows the percentage of published papers pertaining to deployment of HRES in the recent past.
The main objective of this review was to provide a comprehensive evaluation of modern HRES research in the four key axes of size, optimization, control, and power management. This study also focused on the most recent optimization methodologies employed in HRES, with various combinations of sources, and their objectives and constraints. The main contributions of this review paper are as follows:
  • To provide a detailed study of the various sizing methods and optimization approaches.
  • To provide in-depth knowledge of the input and output data required for sizing software tools in HRES.
  • To provide detailed scrutiny of the optimization techniques/software used in HES, such as PV_Wind_Other, PV_Other, and Wind_Other, especially in the last two years.
  • To present the various control strategies and power management approaches in HRES.
  • To compare different control strategies and to discuss the characteristics of power management approaches.
  • To present open issues, challenges, confidential analysis, and future prospects of HRES in hybridization with different sources.
The rest of the review paper is structured as follows. HRES sizing methods are described in Section 2. HRES optimization techniques are discussed in Section 3. The comparison of optimization techniques is summarized in Section 4. HRES control and power management approaches are presented in Section 5. Challenges, and future possibilities in HRES, are presented in Section 6. Finally, Section 7 summarizes the review’s conclusions.

2. Sizing Methods

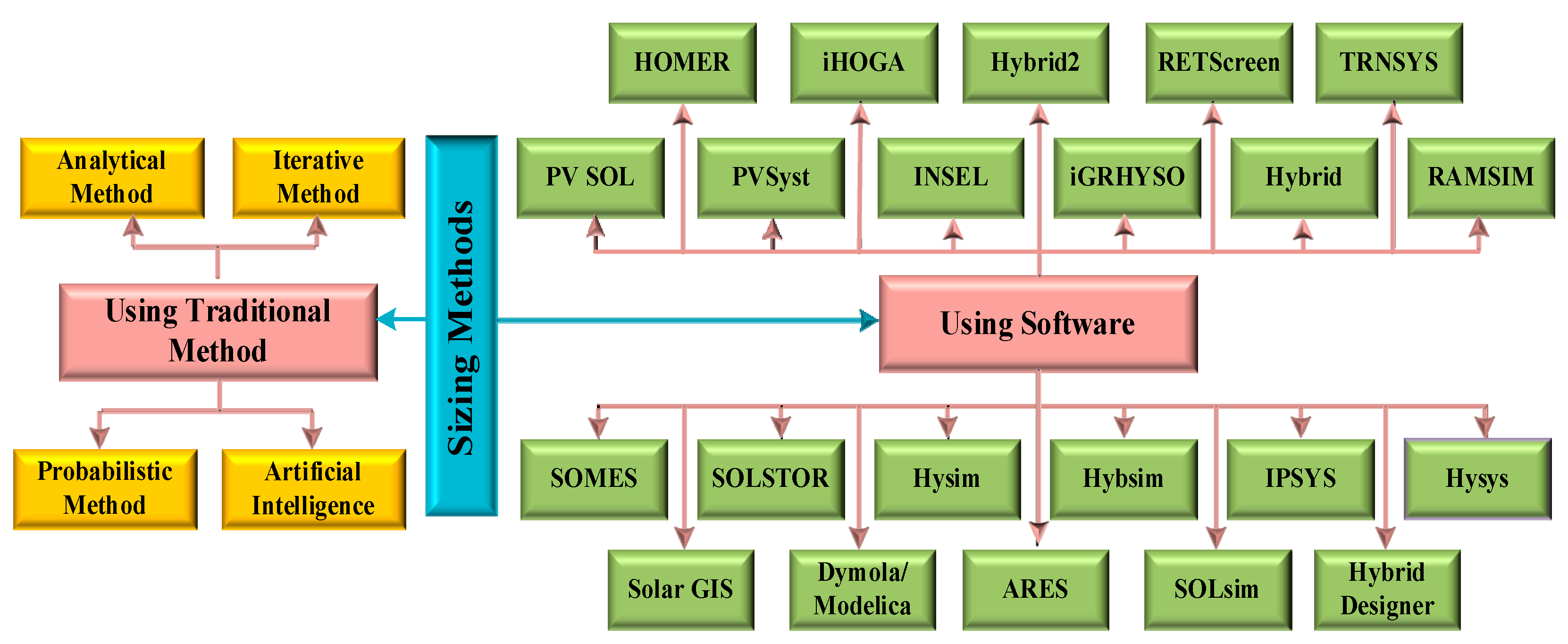

The hybrid system’s size determines the generator’s potential. If the sizing is not done appropriately, the system might be undersized or oversized. The most challenging task is to calculate the actual load and step time to correctly take variations into account. Many researchers use average hours, days, or months as sample data [27]. As shown in Figure 4, there are two sorts of sizing methods: software and traditional methods. Software methods are known to be economical, easy, and less complex in implementation, compared to traditional methods. Let us first describe the software-based method.
Several commercial products to size hybrid systems are available. The majority of such software applications. like RET-Screen, Hybrid Optimization Model for Electric Renewable (HOMER), Integrated Simulation Environment Language (INSEL), Hybrid Optimization by Genetic Algorithm (i-HOGA) and other software, use Windows as a computing platform and Visual C++ as a programming language [28]. For sizing one of a hybrid system, that included a DG, WT, solar generator, and a storage system (BA), in Shiraz, Iran, Baneshi et al., utilized HOMER software. The primary aim of the Baneshi et al. work was to utilize a hybrid scheme that cost the least amount of money and emitted the least amount of carbon dioxide. In one of the examples of modeling, reported for HRES, the optimum economic outcome had a system-levelized cost of 9.3 to 12.6 cents per kWh, with 43.9 percent coming from worldwide output and renewable resources [29]. Rodolfo D Lopez and Jose L Bernal Agustin created iHOGA, a simulation and optimization software, which can build a Multi-Objective (MO) optimization system (Levelized Cost of Energy (LCOE), CO2 emissions, and unmet load). It gives consumers the option of creating a customized hybrid system. Fadaeenejad et al. utilized the iHOGA program to design a hybrid system composed of two renewable generating units (PV generator, wind generator). Two standard generating units (DG unit, BA) for powering a rural hamlet in Kampung Oparin, Malaysia [30] were also reported by the researchers. Table 1 and Table 2 [31] describe the output and input data of every sizing software application.
Mills et al. used this program to size a solar/wind/battery hybrid system in Chicago, USA. The simulation they developed demonstrated that there was enough renewable energy to meet the load profile with the Fuel Cell (FC) [32]. The Canadian Ministry of Natural Resources created RETScreen, a program for assessing and optimizing energy systems, in 1998. It simulates scenarios in various ways, including technological, economic, environmental analysis, power efficiency, and so on [33]. In Shanghai, China, Liqun et al. used the Canadian software to model their solar generator, DG unit, WT, and BA hybrid system. Since the HES was primarily dependent on sustainable energy (over 99 percent), the findings demonstrated a decrease in greenhouse gas (GHG) emissions [34]. The model analysis was implemented in the TRNSYS environment, which is said to be complete and flexible simulation environment for solar and other energy systems. TRNSYS software was created by the University of Wisconsin in Madison, USA, and is mainly used to simulate thermic systems [33].
Kamal Anoune et al., utilized this program to model and simulate PV and thermodynamic hybrid systems. The findings demonstrated that the hybrid system was technologically viable and cost effective for a solar PV system [35]. Scientists utilize two fundamental methods, like commercial software and traditional methods. Recent articles quote these as the sizing methods of HRES. Comparison of the software and traditional methods revealed that commercial software is simple to use, versatile in simulation, and quick in optimizing results. However, the software method requires rigorous mathematical analysis in implementation. Traditional approaches can better optimize the sizing field than commercial software. Traditional approaches produce faster results and address MO problems, but they are complicated and limited in flexibility. Traditional sizing procedures are divided into four categories, as given in Figure 4.
In one of the recent works the hybrid system is viewed as a mathematical model for better development and implementation and the hybrid system size is defined as a function of feasibility [23]. In 2015, Amos Madhlopa et al., presented a work in South Africa utilizing an analytical technique for a hybrid system with solar generators in addition to wind turbines as subsystems. The aim was to examine how to increase the hybrid system’s water efficiency. Based on the findings, the hybrid central produced 1 GWh of power annually with a cost of 83.84 R/kWh. To obtain such power, the system usually required 75,000 m3 of water per year [24]. Priyanka et al., developed technological–socioeconomic criteria to find the best resource combination. The planning of the design was the reliability evaluation which was carried out utilizing an analytical approach. The suggested formulation was evaluated with various resources and mixture of configurations for an independent power system in Jaisalmer, Rajasthan, India.
This technique was a recursive algorithm program that ended when the optimal system design was achieved [20,25]. This approach was used by Camargo et al., to size a self-contained hybrid system, driven by solar PVs and wind energy, as well as FCs, for delivery to a remote hamlet in Brazil. The reported work aimed to develop a scheme that was both low cost and reliable. After modeling, they found that the best hybrid system design comprised a 500 W solar PV, three wind generators (each having 0.6 kW) plus 5 FCs (each having 1200 Wh). The overall price of this system was 25,672.01 R$ (the Brazilian real is the country’s standard currency) along with a levelized cost of 1.044 R$ per kWh [26]. The influence of wind speed isolation, along with modifications in the system design, was considered in probabilistic techniques to size an integrated system in [20]. This is among the most often utilized size approaches, However, the results indicated that it might not be the most excellent option for finding the optimal solution [25]. Wen Hui Liu et al. employed the Probability-Power Pinch Analysis (P-PoPA) approach to size solar PVs, wind turbines, biomass, and batteries. The results revealed that the storage system’s energy storage capacity, in correspondence with its power rating, increased, while outsourced energy reduced [27].
AI is a broad term that refers to the capacity of a machine or artifact to execute functions comparable to those found in human thought. Subho Upadhyay conducted a review on hybrid power system designs, control, and sizing approaches [20]. Researchers used different algorithms to find the best sizing for hybrid systems.

3. Hybrid Renewable Energy System Optimization Techniques

Algorithms for determining the maximum or minimum of mathematical functions are known as optimization algorithms. When it comes to optimizing a system’s design, many objectives might be considered. Two examples of these objectives are improving the efficiency system and lowering the cost of manufacturing. Tuba Tezer et al. [36], E.L.V. Eriksson et al. [37], and Rajanna Siddaiah et al. [38] discussed the different optimization techniques used in HRES. Optimization approaches, and also strategies, can aid in the resolution of complicated issues. When developing an HRES, researchers must examine the performance of its components. The primary objective is to improve performance while lowering expenses. These objectives can be met by optimizing the system’s modeling [39]. The most important optimization techniques used in HRESs are described in the next section.

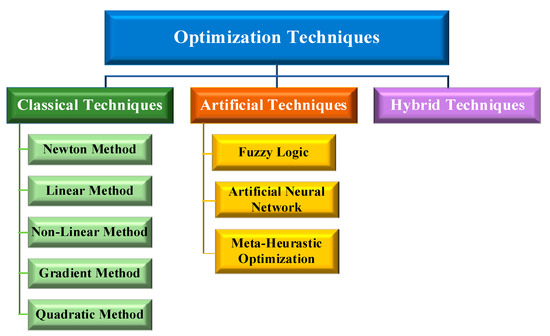

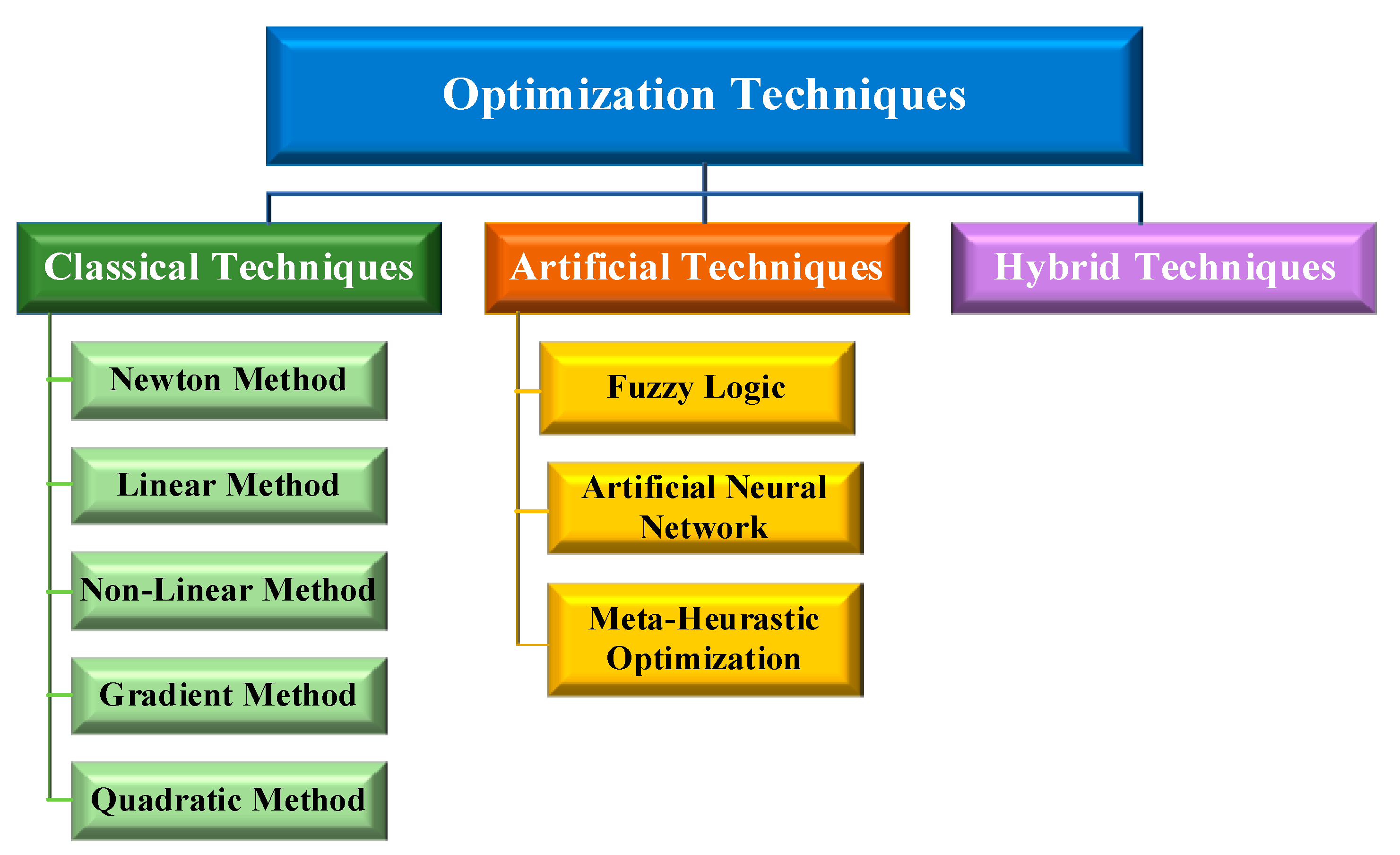

3.1. Types of Optimization Techniques

Optimization in HRESs plays a pivotal role in optimizing the functionality of HRESs. Figure 5 shows the three major types of optimization methods, namely, classical, artificial, and hybrid. In addition, the various types and sub-divisions of these optimization techniques are discussed in the following subsections.

3.1.1. Classical Techniques

The classical approach or technique is defined as a method of obtaining an optimum solution that uses differential calculation [38]. However, traditional approaches have limitations for applications with non-differentiable and/or continuous objective functions. For HESs, a variety of conventional optimization approaches have been utilized. Classical techniques for optimizing HRESs include the Linear Programming Model (LPM), Dynamic Programming (DP), Non-Linear Programming (NLP), Newton Method, Gradient Method, and Quadratic Programming (QP), as shown in Figure 5.
LP resolves mathematical and engineering issues involving both continuous and discrete variables [40]. LPM examines scenarios where the design variable space is defined entirely by linear equalities and inequalities, and the objective function is linear. For HRES optimization, this LPM has been applied in various research works [41,42], making use of the LPM’s probabilistic abilities to perform durability and economic analyses. Fabian Huneke et al. created a comprehensive model of a hybrid off-grid power system utilizing LPM to optimize the system, financially and sustainably [43]. Shebaz A Memon et al., discussed the application of ordinary LP to enhance hybrid ESSs, for better response times and long-term energy storage [44]. A Sequential LPM was used by M. Vaccari et al. to optimize the economic performance of an HRES. An optimization tool for a standard HRES was created in their research. The developed tools created an operating plan for every instrument over a given time horizon to satisfy all electric and thermal load demands, while potentially incurring the lowest operating expenses [45].
The NLP model investigates generalized circumstances where either the objective functions, the constraints, or both have nonlinear components. NLP is created when either the objective function or the restrictions are nonlinear. Similar to the distinction of handling nonlinear and linear equations, the NLP and LP differ from each other. The methodology used in most NLP methods begins with a primary guess and choosing the direction that the objective function descends in the event that a minimization problem exists [46,47]. DP investigates situations where the optimization approach subdivides the main problem into smaller sub-problems [48]. With the stages connected to one another, the DP approach can be used to solve sequential or multistage issues. DP has the benefit of allowing for stage-by-stage optimization. It can, therefore, handle the difficulty of more complicated systems, being centered on the concept of optimality. Moreover a sub-policy of an optimal policy must also be an ideal sub-policy [49] in the implementation of DP. Zhi-Hong Zhao created an enhanced fuzzy logic control-based power management method and fuzzy logic control based on DP. The researchers implemented wavelet analysis for the hybrid FC/PV/BA/SC power system on tourist ships [50].

3.1.2. Artificial Techniques

As indicated in the sizing review, most artificial techniques are utilized for optimization. However, this section mainly focuses on methods that academics have recently applied for HRESs.

Fuzzy Logic

The mathematical theory of fuzzy sets is known as fuzzy logic. Suganthi et al., described fuzzy logic as a form of highly valued thinking that integrates with actuality. According to Michael and Warne, who wrote the Electrical Engineering Reference Book, fuzzy logic is a practical approach to defining humanity’s experience on a microprocessor. In that book, they stated that it is a method of quickly representing human expert knowledge on a digital processor, where mathematical, or rule-based expert systems, have a problem. Derrouazin, et al., utilized fuzzy logic with multiple inputs and outputs to regulate the energy flux of a hybrid system containing solar PV, WT, and FC. The resulting findings demonstrated that the electronic switch signaled the tracking of the hybrid power systems input power states correctly and immediately. There are numerous fuzzy logic algorithms, such as Adaptive Neuro-Fuzzy Inference System (ANFIS), Fuzzy Analytic Network Process (FANP), Fuzzy Analytic Hierarchy Process (AHP), and fuzzy clustering, which are used to find the best size for a HES. Furthermore, to find the best size for HES, fuzzy GA, fuzzy PSO, fuzzy TOPSIS, fuzzy honey bee optimization, and Quantum behaved Particle Swarm Optimization [31] are also used for faster optimization.
Neelamsetti Kirn Kumar presented fuzzy logic-based load frequency control to perform Artificial Bee Colony (ABC) optimization in an island hybrid power system model. The study’s findings demonstrated that the presented Intelligent Fuzzy Control strategy for modeling an independent energy system resulted in minimum variance in frequency and power [51]. A unique approach, dependent on fuzzy logic, was proposed by Sayyed Mostafa Mahmoudi et al. to assess backup and storage systems in evaluating the ideal size of an HRES [52]. Hai-Bo Yuan presented an optimized rule-based EMS, based on GA. The main purpose of the algorithm they developed was to distribute electricity among the FC and the BA systems as efficiently as possible. To maintain BA charge, while taking FC lifespan and performance into account, control variables in real-time rule-based EMS were appropriately adjusted. Hai-Bo Yuan’s work also simulated and experimentally tested the optimized rule-based EMS, using a LabVIEW-based experimental rig along with MATLAB/Simulink. The traditional rule-based EMS, fuzzy logic EMS, and DP EMS were also compared. The comparison findings showed that the optimized rule-based EMS achieved a significant performance gain over the traditional rule-based and fuzzy logic EMSs [53].

Neural Network Algorithm

Although Michael and Warne compared the neural network algorithm to the organization of the human mind (brain), several scientists think that the resemblance is superficial when implemented in engineering applications. What is crucial, according to the authors, in engineering applications like HRESs is the training and convergence of ANNs to execute a specified action [31]. ANN in HRESs can be applied to optimize a vast majority of parameters, like charging, BA, etc., in a variety of ways. Amirtharaj et al., suggested a combination of ANN plus the Adaptive Grasshopper Optimization Algorithm (AGOA), entitled the AGONN approach, to discover optimal use with decreased losses of switching in the system [54]. The findings demonstrated that the suggested approach outperformed the Grasshopper Optimization Algorithm (GOA), the Combined Modified Bat Search Algorithm–Artificial Neural Network (CMBSNN), and the Whale Optimization–Artificial Neural Network (WOANN), while optimizing the current, voltage, and power signals.

Meta-Heuristic Optimization

The study of optimization issues utilizing metaheuristic techniques is known as Metaheuristic (MH) optimization. The MH optimization techniques are classified as Swarm-based Algorithms, Human-based Algorithms, Physics-based Algorithms, and Evolutionary-based Algorithms. Some MH optimization techniques used in HRESs for reducing LCOE are illustrated below. Researchers have used different types of MH optimization techniques to find the best sizing for hybrid systems, such as Genetic Algorithm (GA), Mine Blast Algorithm (MBA), Non-dominated Sorting Genetic Algorithm (NSGA-II), Particle Swarm Optimization (PSO), MO Self-adaptive Differential Evolution Algorithm (MOSaDE), and Multi-objective Line-Up Competition Algorithm (MLUCA). Additionally, Preference Inspired Co-Evolutionary Algorithm (PICEA), Biogeography Based on Optimization (BBO), Ant Colony Optimization (ACO), Cuckoo Search (CS), Tunicate Swarm Algorithm (TSA), Artificial Electric Field Algorithm (AEFA), Improved Grasshopper Optimization Algorithm (IGOA), Improved Coyote Optimization Algorithm (ICOA), Developed Manta-Ray Foraging Optimization (DMRFO) algorithm, Search Space Reduction (SSR) algorithm are used to find the sizing of the hybrid system.
In addition to the above-said algorithms some other optimization algorithms are also used for sizing HESs, which include Wild Horse Optimizer (WHO), Grey Wolf Optimization (GWO), MO-Artificial Cooperative Search Algorithm (MOACS), Mayfly Optimization Algorithm (MOA), Slime Mold Algorithm (SMA), Runge Kutta Algorithm (RKA), Rule-Based Algorithm (RBA), and Water Cycle Algorithm (WCA). Moreover, Discrete Harmony Search (DHS), Simulated Annealing (SA)–chaotic search, Artificial Neural Network (ANN), Equilibrium Optimizer (EO), Artificial Bee Swarm Optimization (ABSO) algorithm, Improved Fruit Fly Algorithm (IFFA), A-Strong, bacterial food algorithm, fuzzy logic and the others can be used to find the sizing of HRES.

3.1.3. Hybrid Techniques

Combining two or more optimization approaches can conquer the constraints of the specific optimization techniques listed above, resulting in the best performance and dependable HRES solutions. A hybrid technique is an approach that combines two or even more algorithms and provides the benefits of these techniques to compensate for the shortcomings of a single algorithm [37]. SA–Tabu Search (TS), Monte Carlo Simulation (MCS)–PSO, MODO (Multi-Objective Design Optimization)/GA, Artificial Neural Fuzzy Interface System (ANFIS), hybrid iterative/GA, ANN/GA/MCS, Hybrid Firefly–PSO (HF–PSO), Multi-Agent Butterfly–PSO (MA–BFPSO), Hybrid Firefly and Harmony Search optimization technique (HFA/HS), Hybrid Chaotic Maps-based Artificial Bee Colony (HCABC) are hybrid techniques utilized to optimize HRESs. Moreover, Hybrid Bacterial Foraging Optimization Algorithm–PSO (hBFOA–PSO), PSO/DE (Differential Evolution), and evolutionary algorithms have been used to optimize HRESs in several studies [55], for faster computation with less complexity.
Although hybrid approaches improve the optimization’s overall performance, they have certain drawbacks in implementation in HRESs. For example, the partially optimistic outcomes of the hybrid MCS–PSO method, and sub-optimal solutions of the hybrid iterative/GA method in [56], and the cost-sizing compromise of the hybrid approaches in [57,58]. The difficulty in the design of the hybrid ANN/GA/MCS method in [59], random adjusting of the inertia weight of the evolutionary algorithm in [60], and complications in the coding of the optimization Modulation and Coding Schemes (MCS) method are also examples of drawbacks.

4. Comparison of Optimization Techniques

Optimization techniques are distinguished by their high performance, capacity to handle complicated problems, and ability to employ many objective functions. However, the most prevalent disadvantage of all optimization techniques is that they take too long and are complicated. Traditional approaches are the most effective in economic optimization but have a finite number of optimization parameters. Due to the complex procedure and the codes that are employed, the artificial technique needs high hardware performance to function. The benefits of this method are its excellent efficiency, speed, and precision. A combination of classical and artificial techniques demonstrates a strategy that is characterized by great speed and resilience but also requires complicated design and complex code generation.
On the subject of optimization, a study of the literature reveals that researchers have concentrated on the three main types of optimization techniques. Classical techniques are characterized by speed and efficiency in techno-economic assessment, with the downside of constrained optimization space. Artificial techniques are the most commonly used methods in optimization due to their better efficiency, high precision, and rapid convergence. Nevertheless, the disadvantage of this approach is the requirement for sophisticated processing software. Hybrid methods utilize the benefits of each approach to optimize performance and decrease optimization processing time by combining the efficiency and speed of classical approaches with the accuracy and speed of artificial approaches. Despite all of these benefits, the most significant disadvantages of hybrid techniques are complexity of design and the problem of providing code. The critical points observed are the following: (1) When technically optimized (connected to a storage unit, DG, or BA) and commercially optimized (reduced investments or levelized cost), utilizing artificial techniques or commercial software, an HRES may efficiently cover energy demand in remote areas. (2) Most HRES optimization is accomplished using artificial methods or commercial software. Artificial methods include fuzzy logic, GA, and also artificial neural networks. The most often used commercial optimization software is HOMER PRO and RET Screen. The basic diagram for HRES with different input sources is shown in Figure 6. Community A, B, C, and community D are the different types of loads, such as residential load, Electric Vehicles, Industries, and BA storage, as shown in Figure 6. Though HRES communities are classified here as communities A, B, C, and D, the HRES sources cannot be separated from the community if there is to be a continuous supply of energy to inhabitants. The structure of HRES could be disassembled into a variety of configurations, such as PV_Wind_Other, PV_Other, and Wind_Other. Other sources include biomass, BA, FC, Wave, DGs, electrolyzers, pumped storage, etc. Furthermore, other configurations could be possible [61].

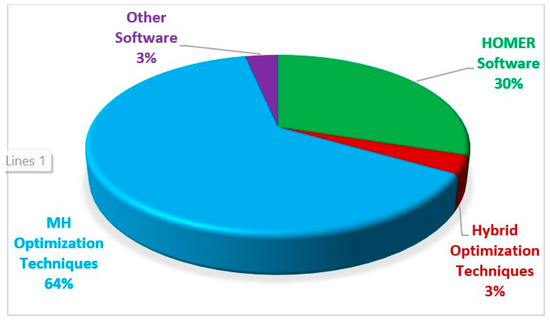

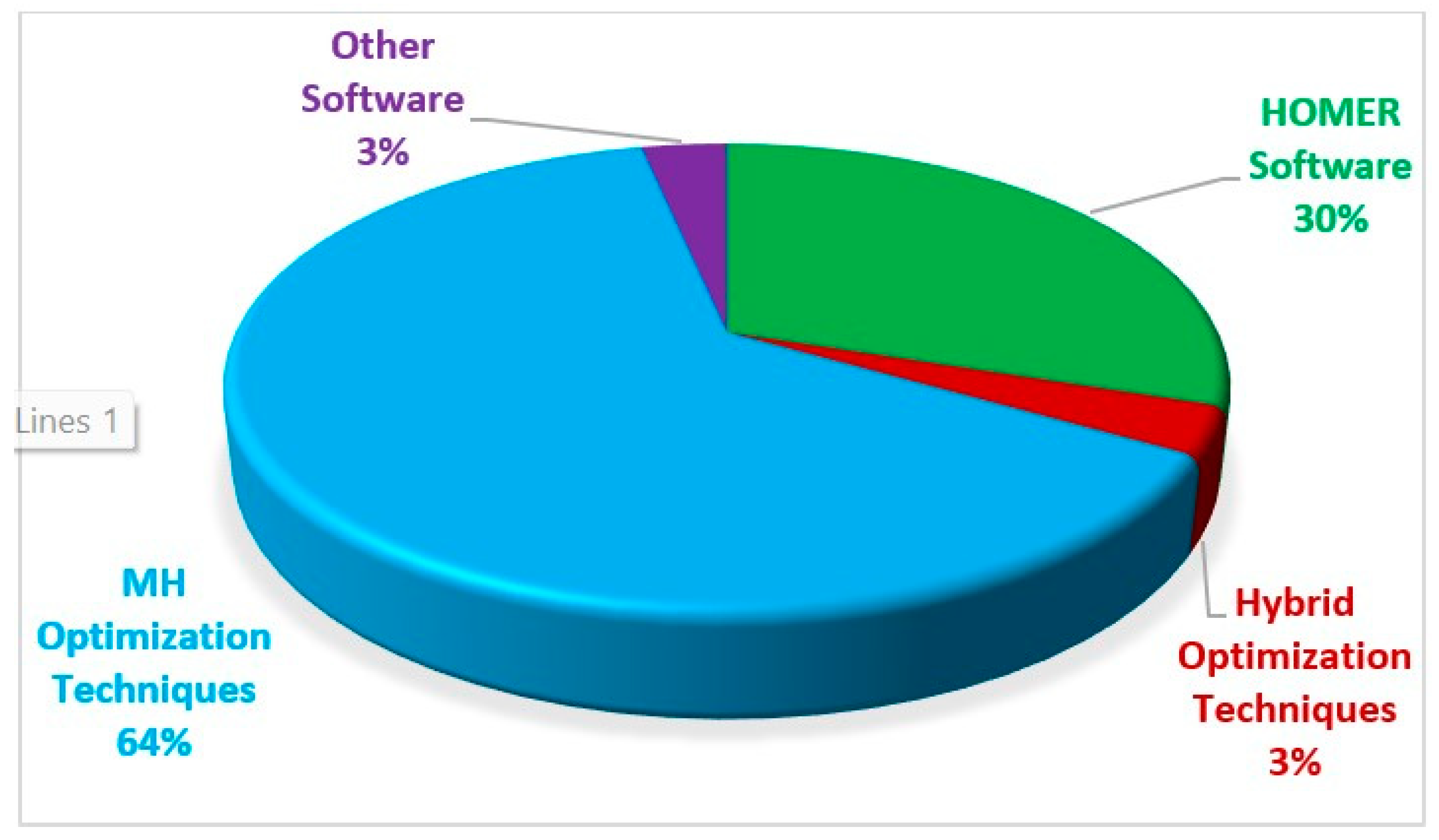

The overview of optimization techniques/software used in HES is given in the following subsections. Compared with other optimization techniques/software, the MH optimization technique is primarily used in HESs. The LCOE, NPC, COE and LPSP are the most commonly used objective functions for optimizing HESs. Along with these objective functions, other objectives, which are associated with MO optimization, are also taken into consideration by some authors, such as Annualized Capital Cost (ACC), Internal Rate of Return (IRR), Cost of System Lifespan (CSLS), Loss of Load Expectation (LOLE), Expected Energy Not Supplied (EENS) and so on. Objectives like Loss of Load Probability (LOLP), Annual Cost of Load Loss (ACLL), Forced Outage Rate (FOR), Return on Investment (ROI), Total Annualized Cost (TAC), and Total Life Cycle Cost (TLCC) are interesting to perform in HRESs for technological economic problems. Moreover, Renewable Fraction (RF), Human Development Index (HDI), and Job Creation (JC) MO objectives are factors determining which to employ in the proliferation of hybrid energy systems. MO objectives using objectives like Emission Curtailment (EMC), Operating Costs (OC), Net Present Value (NPV), Annualized Cost of the System (ACS), Total Energy Transfer (TET), Integral Square Error (ISE), Capital recovery factor (CRF), Salvage Value (SV), Total Net Annual Cost (TNAC), Potential Energy Waste Probability (PEWP), Initial Capital Cost (ICC), Energy Generation (EG), Gross Present Cost (GPC), Annual Energy Production (AEP), and Energy Cost (EC) [62] are really aimed at ensuring the HRES achieves practical implementation in unforeseen circumstances.
These objectives are subject to constraints, such as the Number of PV (NPV), Number of wind turbines (NWT), Number of batteries (NBA), Number of electrolyzers (NEL), Number of fuel cells (NFC), Area of PV (APV), Area of WT (AWT), Energy Not Supplied Probability (ENSP), Loss of Energy Probability (LOEP), Interest Rate (IR), Self-Consumption Renewable Fraction (SCRF), LLSP (Loss of Load Supply Probability), Number of biomass gasifier (NBG), and Number of diesel generator (NDG).

4.1. PV_Wind_Others Energy Sources

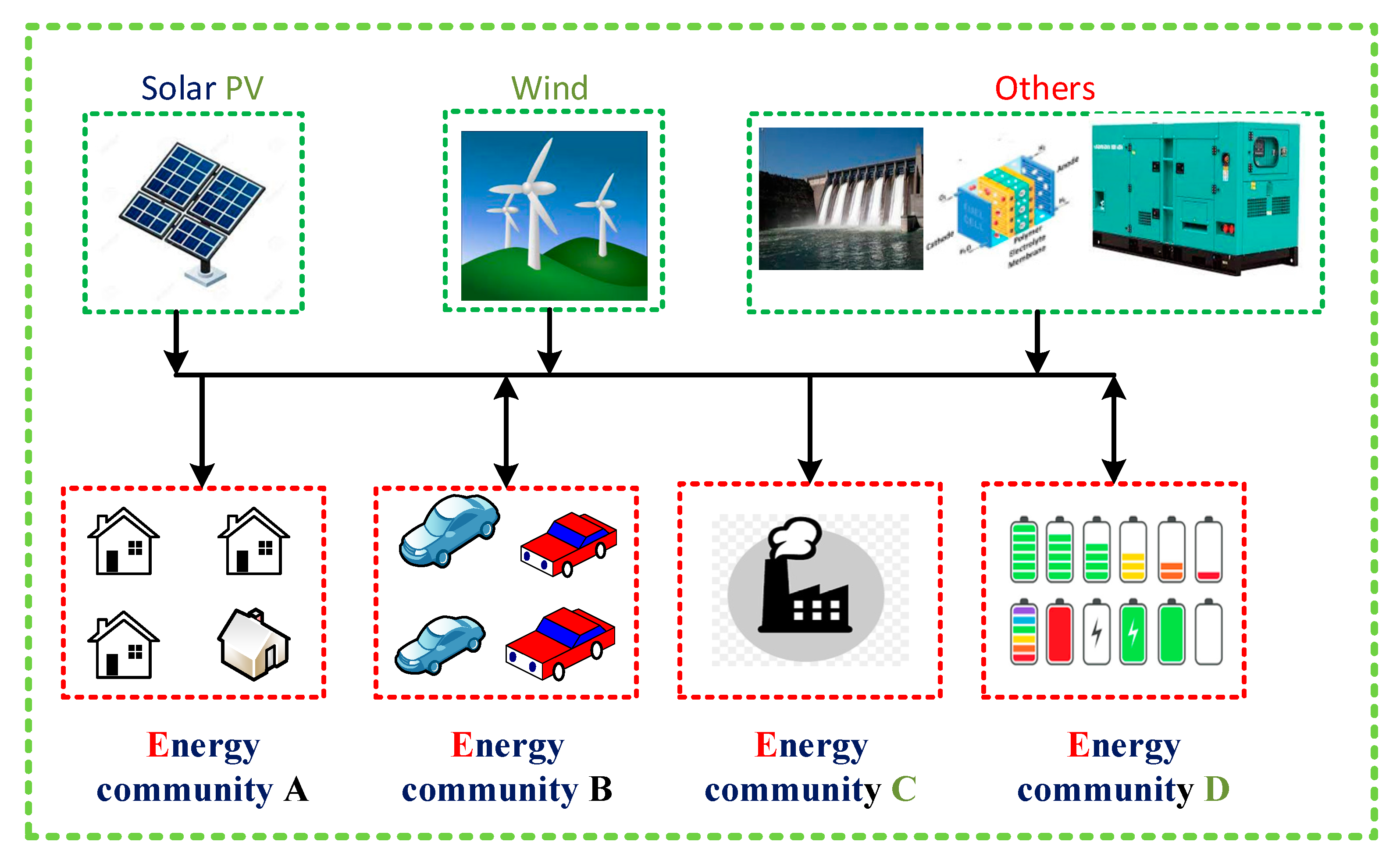

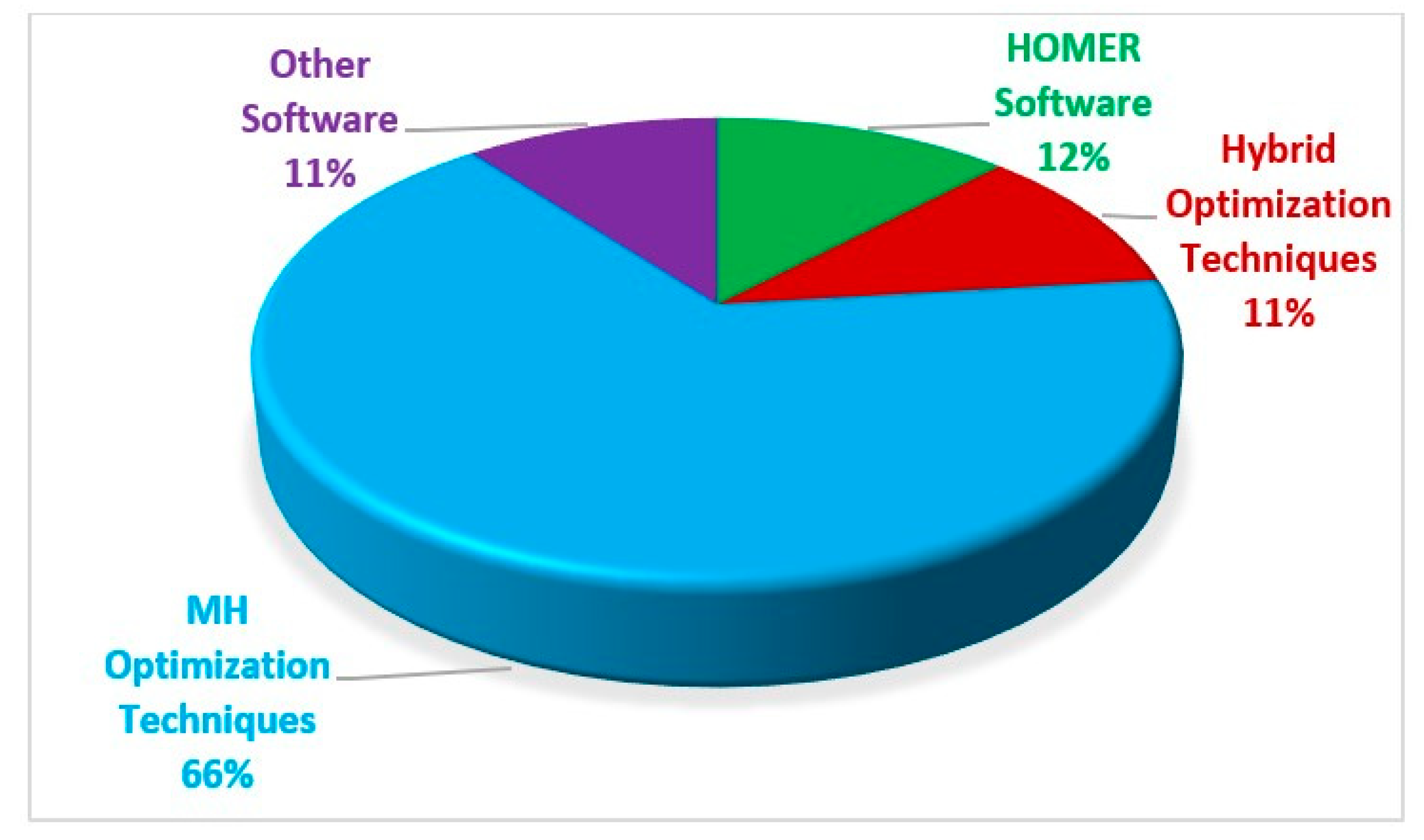

A detailed overview of HRESs containing PV_Wind_Other sources and a detailed study of various optimization techniques and software applicable to HRESs are discussed in this subsection. From the literature, a detailed analysis of the multiple studies proposed in the last two years, 2021 and 2022, including objective functions, constraints, and references, is presented in Table 3. The MH and hybrid MH optimization techniques have been widely used in the last two years for economic and techno-economic objectives, such as ACC, IRR, LCOE, LPSP, COE, Net Present Cost (NPC), OC, LCA, and TAC. In addition, of the various software used for economic and techno-economic objectives of PV_Wind_Others, HOMER software has been the most commonly used software for the last two years. The pie chart given in Figure 7 shows the percentage of the most frequently used optimization techniques/software, such as MH optimization techniques (66%), Hybrid optimization techniques (11%), HOMER software (12%), and other software (11%) in HES (PV_Wind_Other) in the years 2021 and 2022.

4.2. PV_Others Energy Sources

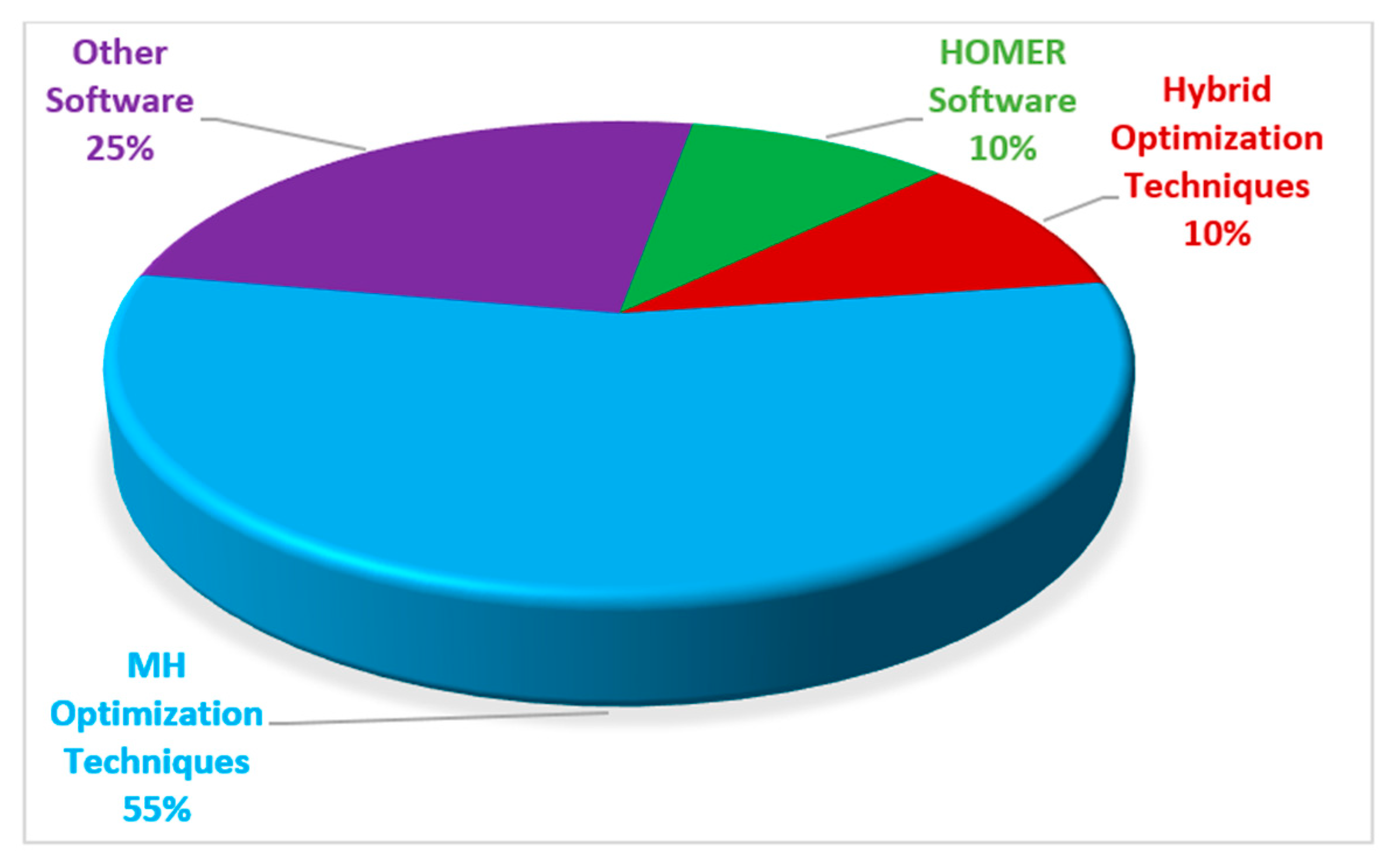

This subsection refers to an extensive analysis of various optimization techniques/software utilized in HRES and a comprehensive overview of HRESs containing PV_Other sources. Table 4 provides a complete evaluation of numerous research works proposed in the past two years, 2021 and 2022, that include objective functions, restrictions, and references. The last two years have seen a significant increase in the usage of MH and hybrid MH optimization approaches for HES economic and techno-economic goals. Additionally, various software is utilized to achieve the economic and techno-economic goals of PV_Others. However, HOMER software has been the most widely used software for the past two years. Therefore, the percentage of most commonly used optimization techniques/software in HES (PV_Other) for the years 2021 and 2022 is shown in the pie chart given in Figure 8. It can be seen from Figure 7 that the overall occupancy of these software and optimization techniques, such as MH optimization techniques (64%), Hybrid techniques (3%), HOMER software (30%) and other software (3%).

4.3. Wind_Others Energy Sources

This subsection covers a broad overview of HRESs pertaining to Wind_Other sources and a thorough analysis of the various optimization techniques and tools applicable to wind_other sources. Table 5 illustrates wind_other sources optimization from a review of the literature pertaining to many studies proposed in the previous two years (2021 and 2022). Factors including objective functions, restrictions, and references are incorporated in the table to emphasize its merits. In the past two years, MH and hybrid MH optimization approaches have been widely employed to achieve economic and techno-economic goals, including ACC, IRR, LCOE, LPSP, COE, NPC, OC, LCA, and TAC in the wind_other sources area. In addition, a variety of software is employed by Wind_Others to achieve economic and techno-economic goals. Still, HOMER software has been the most widely used software for the past two years. Figure 9 shows a breakdown of optimization methods and software in terms of percentage for HES (Wind_Other). The detail of optimization techniques/software in percentage for HES (Wind_Other) is presented in Figure 9 as MH optimization techniques (55%), Hybrid Techniques (10%), HOMER software (10%), and other software (25%) in 2021 and 2022.

5. Control and Power Management Approaches in HRES

5.1. Control Mechanisms of HRES

The most challenging aspects of any HES based on renewable energy are effective management and coordination of control to ensure that consumers are not left without electricity. The intermittent nature of solar and wind resources causes electricity instability, irregularity, and quality problems. Various traditional and intelligent techniques have been used to coordinate, control, and conserve energy in hybrid systems [158]. In general, the parameters that should be managed in any hybrid system are system stability (the system’s voltage and frequency), protection (power flow monitoring), and power balancing (allocating loads in the most efficient way possible). Secondary control of hybrid systems has been categorized by certain writers, such as Vivas et al., in [159], into three groups: centralized, distributed, and decentralized control. Furthermore, Chong L.W et al., classified control schemes into two categories: traditional control and adaptive control. Moudud Ahmed et al., provided a critical assessment of power management, along with control research in AC, DC, hybrid AC, or DC MGs. The authors’ critical assessment mainly focused on primary, secondary, and hierarchical control with control coordination among the Inter-Linking Converter (ILC) and the ESS [160].
There are many control schemes for WTs in the literature, such as employing MPPT (Maximum power point tracking) on the basis of the PSO [161]. Selecting voltage vectors upon the rotor converter side by Direct Power Control (DPC) [162], pitch control through the robust sliding mode method [163], and so on, are the crucial elements in the application of MPPT for WTs. Many control strategies for solar PV have been used to optimize the operation of solar panels, such as MPPT, based on the General Regression Neural Network (GRNN) [164], and a deep learning neural network for PV power forecasting [165], utilizing MPPT in partially shaded conditions [166], and so on. Voltage control [167], frequency control [168], and control of reactive power [169] have all been studied extensively in DGs.

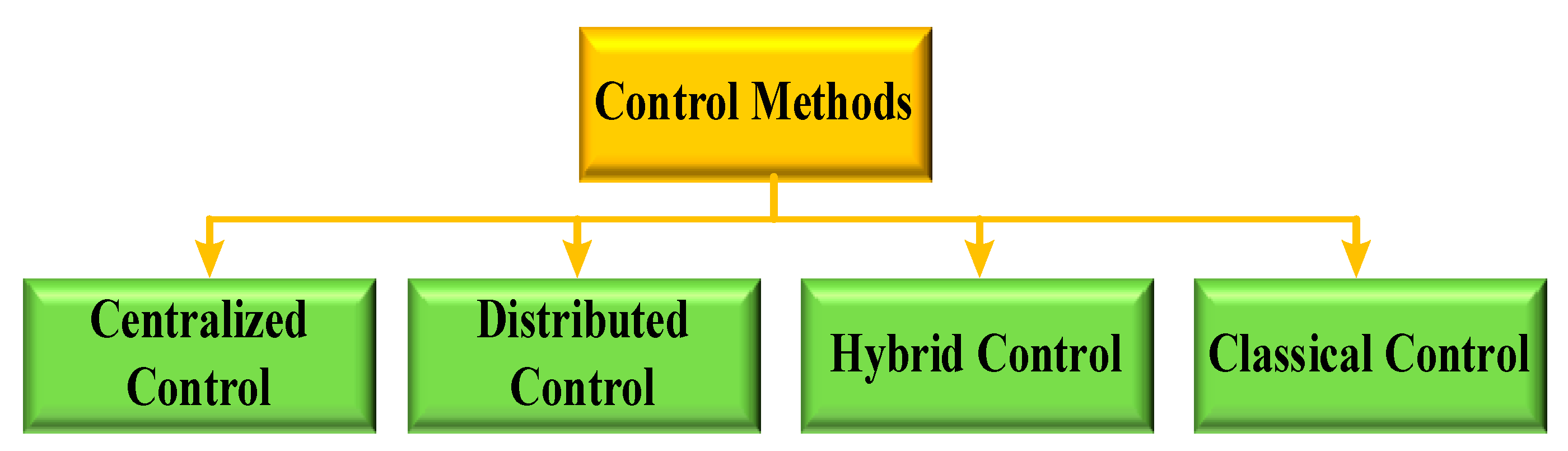

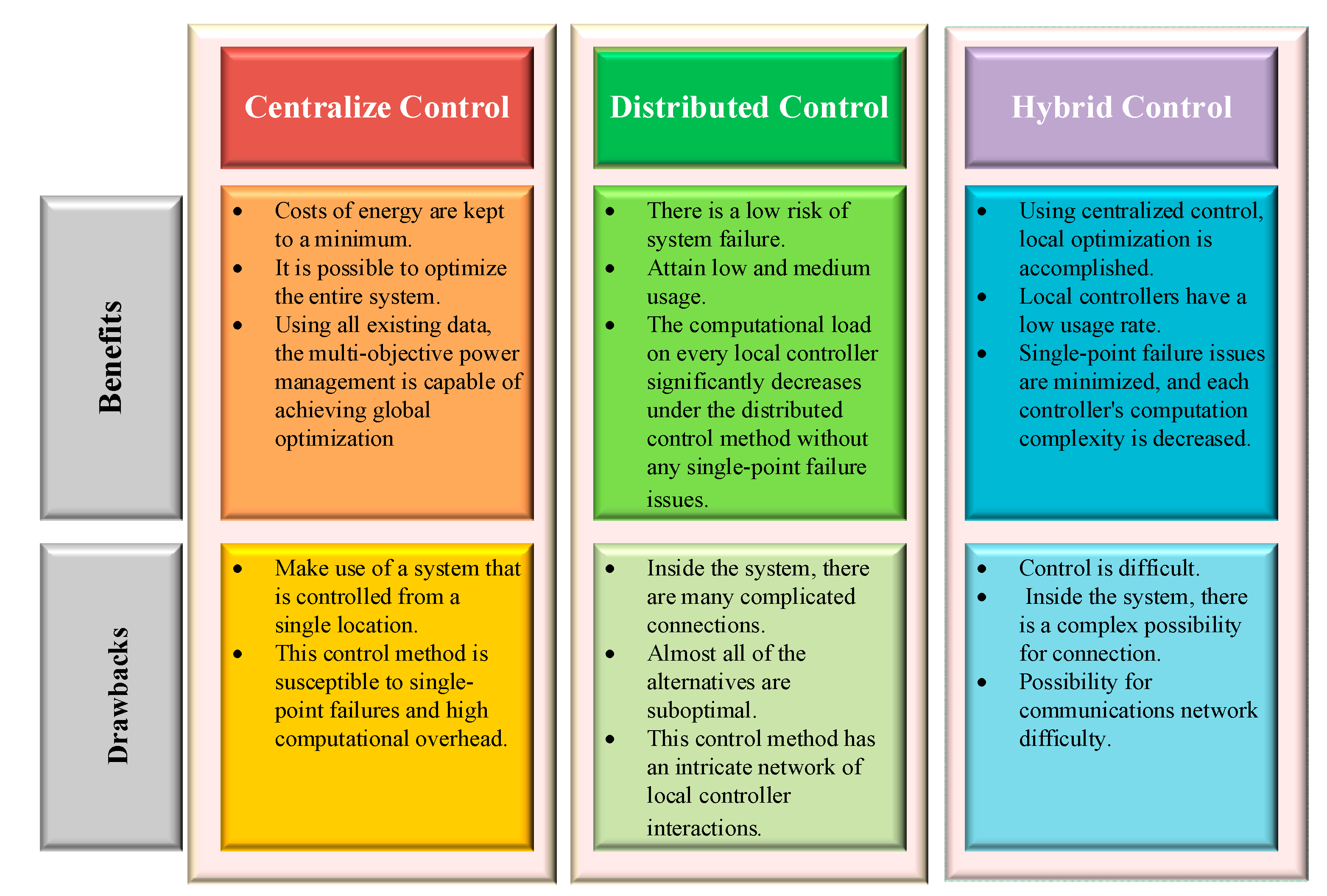

Other techniques for regulating HRESs include centralized control [170], distributed control [171], hybrid control [172], and classical control methods (Figure 10), like proportional–integral control [173] and Rule-Based Control (RBC) [174]. Intelligent methods, such as MO-PSO [175], fuzzy logic controller [176], Adaptive Neuro-Fuzzy Inference System (ANFIS) [177], and neural network algorithm [178] are examples of classical approaches.
Most hybrid systems utilize distributed or hybrid control since these types of control are efficient in decentralizing control, minimizing system error, and allowing for the use of multiple kinds of control in a single hybrid system. The only limitation of these kinds of control is the ambiguity of the connection, along with processing codes. On the other hand, when a centralizing method of control is utilized in a smaller-scale HRES it shows excellent efficiency and improved performance, along with simplicity in construction. In addition, the cost of centralized control is advantageous when compared to distributed control or hybrid control. Figure 11 compares the most significant control types.

5.2. Management Strategy of HRES

Energy Management Strategies (EMSs) must be utilized to ensure the correct operation of renewable energy-based hybrid systems, to meet demand and improve the system’s performance. A robust EMS enables the processes to satisfy demand, extends component lifetimes, and reduces operational costs. In addition, it also maximizes the utilization of RESs, minimizes energy costs output, and protects components from overload damage. As a result of these operations, the power system’s reliability is improved, and the performance of the system is optimized [31].

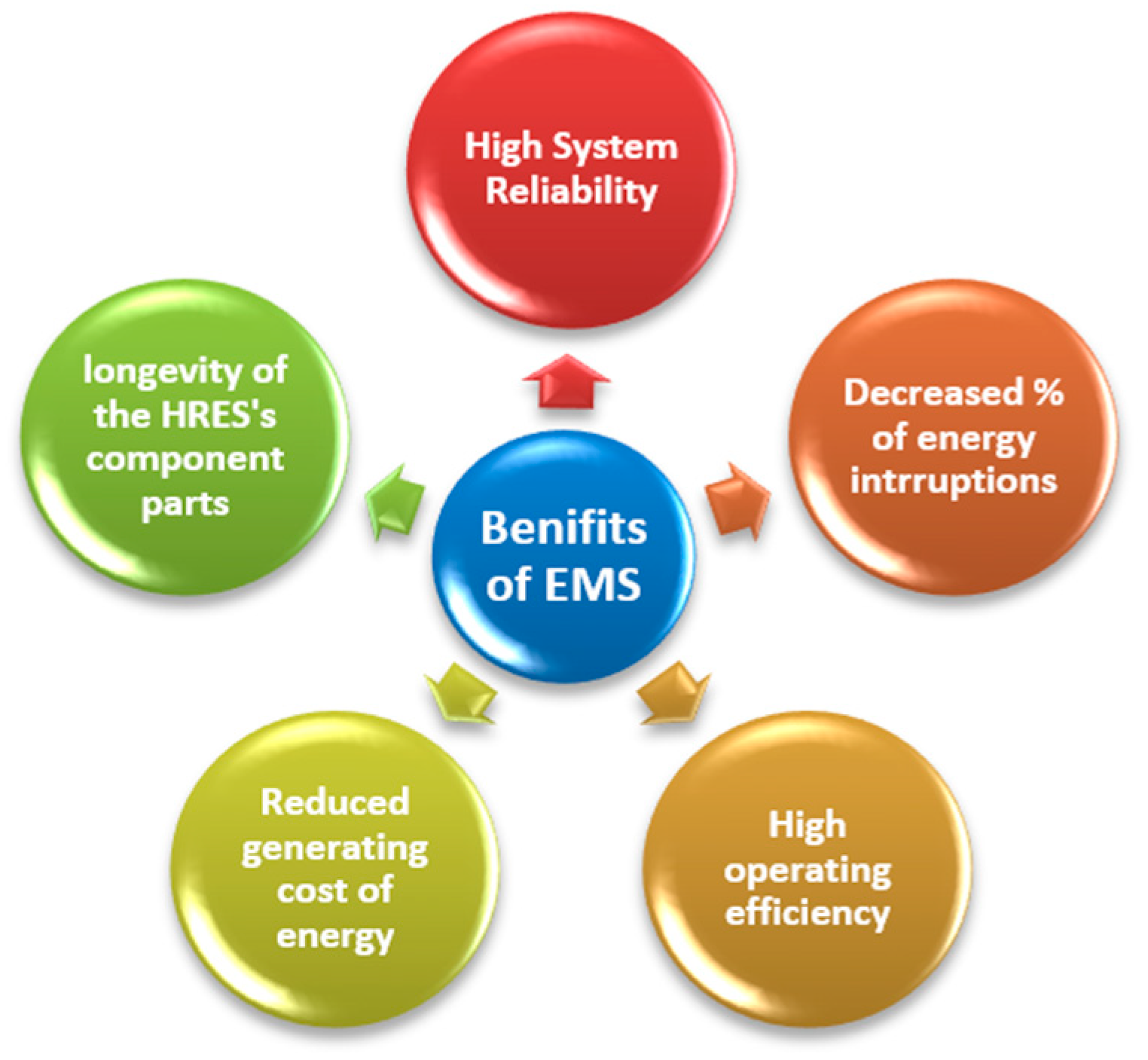

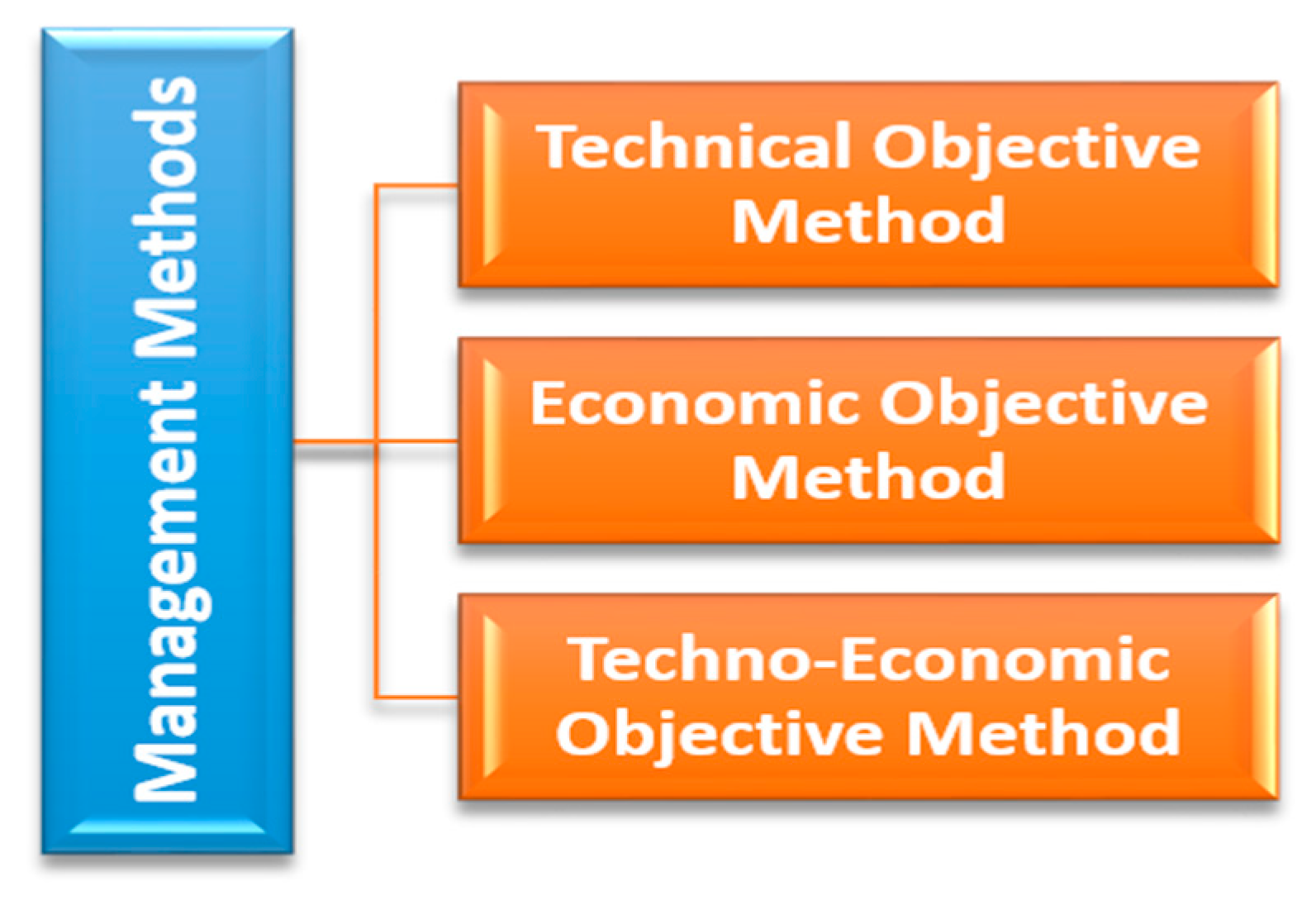

Hybrid system management enables excellent system performance and accuracy at the lowest cost to provide year-round system supply [159]. Hybridization in energy management of HRESs produces a rise in element lifespan, a decrease in economic parameters (global, levelized costs, etc.), and, as a consequence, maximizes system reliability (Figure 12) [179]. The main characteristics of the management techniques of the HRESs are described in Table 6 [180]. Due to objective strategy (Figure 13) [179], management approaches are divided into three types, shown in Figure 13.

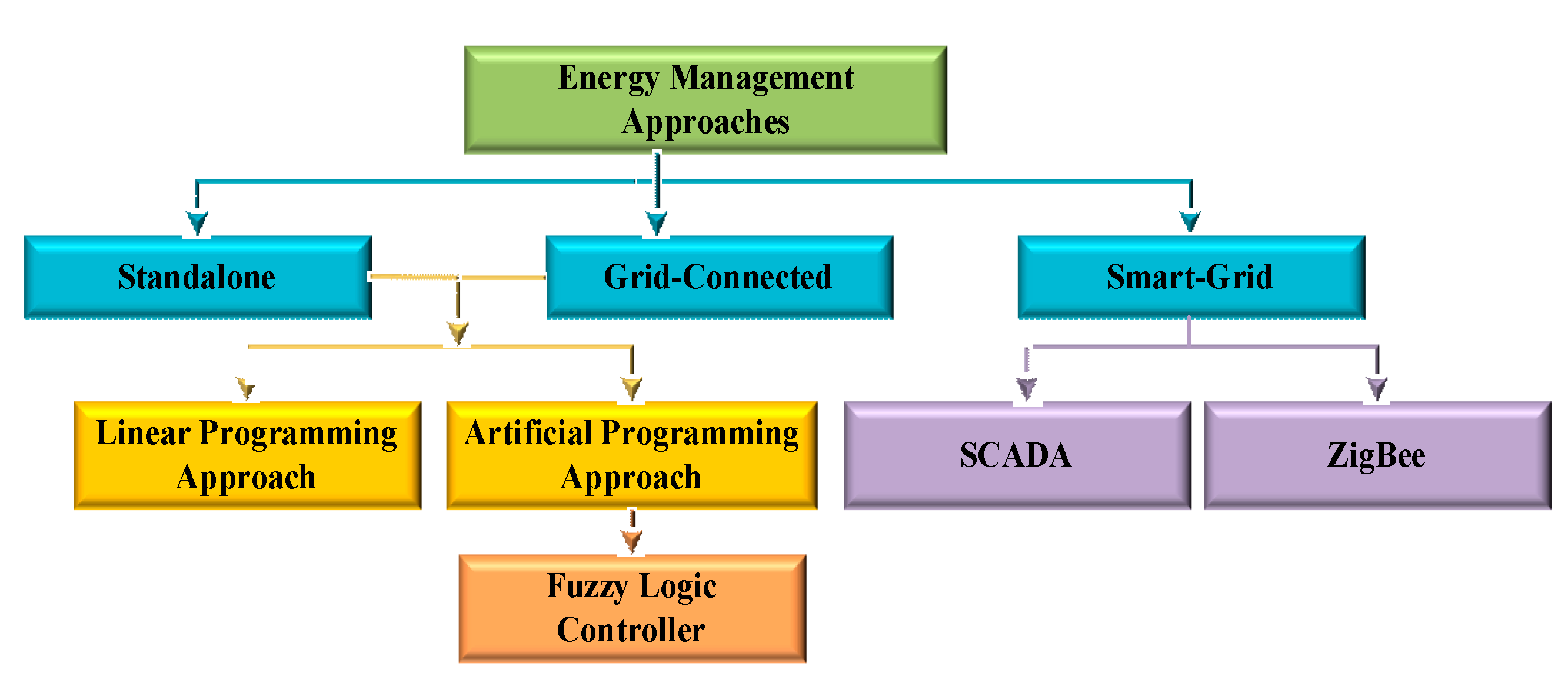

Figure 14 depicts the energy management techniques used in hybrid renewable systems. Energy management is implemented using Linear Programming (LP) in the majority of HRES studies, although other studies made use of intelligent methods for standalone and grid-connected HRESs. Abu Shufiana and Nur Mohammad presented a study on modeling and assessment of economic energy management for integrated MGs. In order to create an MG energy management system, the study employed optimization techniques for LP. The entire cost of electricity usage was minimized via constrained LP optimization. In order to demonstrate the effectiveness of the suggested optimization, it was compared with the heuristic technique, and case studies were discussed. The approach efficiently stored and sold power from a grid-scale battery system while forecasting pricing and loading conditions. In comparison to the heuristic method, the cost of electricity usage in the optimization technique was almost 19% cheaper [181]. Marcin Rabe et al., studied the design of a mathematical model for distributed energy optimization. This study assured energy security in the context of regional energy that was creative, environmentally friendly, and competitively open in employing local energy resources. As a result, it led to the belief that distributed energy could be a successful solution for the issue concerning functioning of traditional energy [182]. Marvin Barivure Sigalo et al. presented an Energy Management System for the Control of Battery Storage in a Grid-Connected MG with Mixed Integer LP. The study’s findings demonstrated that the suggested real-time technique worked better than the offline optimization strategy and lowered operational costs by 3.3% [183].
To regulate the transfer of energy between the many elements (sources of energy, storage systems, loads) that make up the HES, a specific EMS must be used. By adhering to a certain EMS, it is possible to achieve one or more of the purposes, seen in Figure 15.

6. Challenges and Future Possibilities

The challenges and future possibilities in HRESs are discussed in the following subsections.

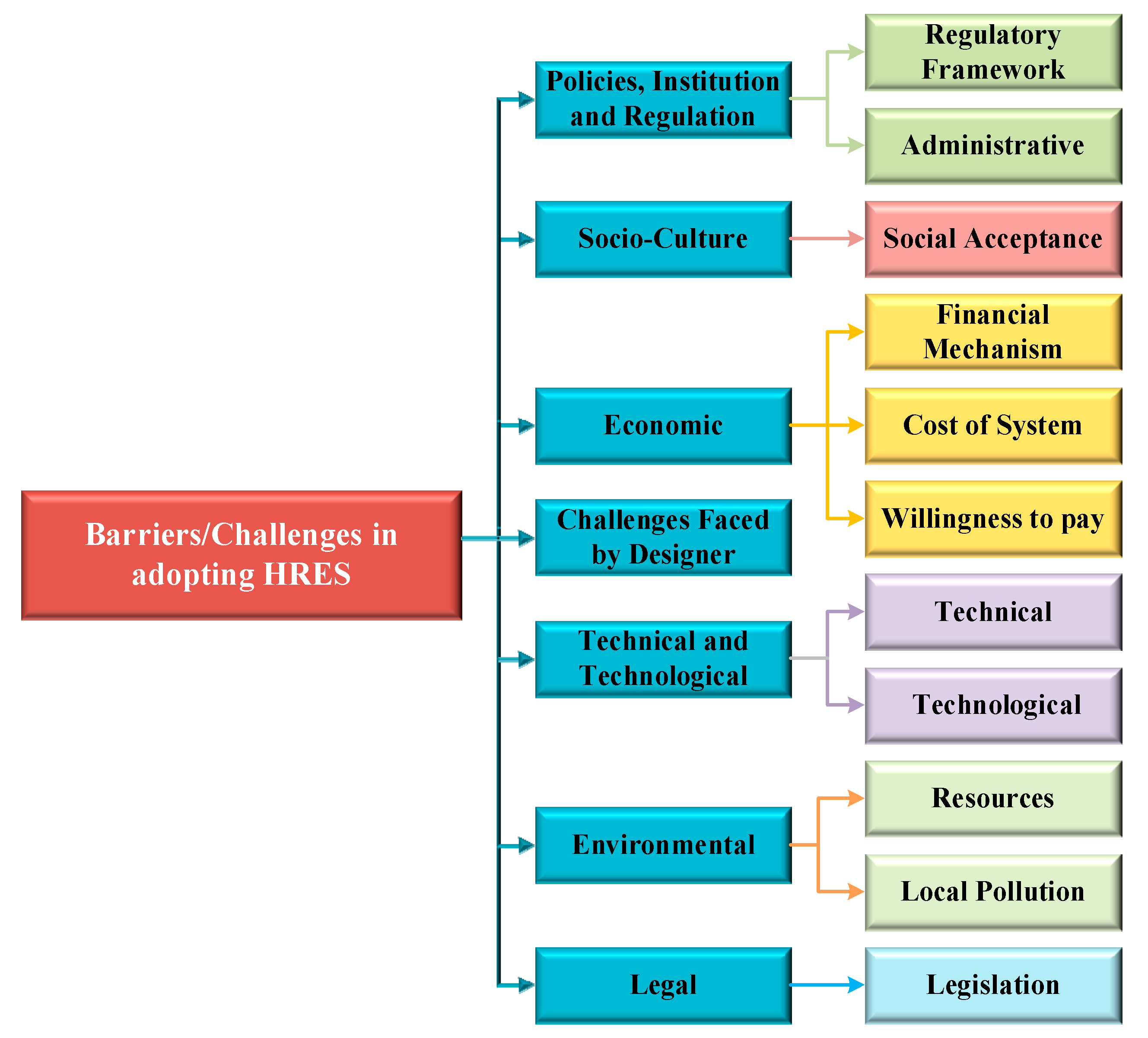

6.1. Barriers/Challenges in Adopting HRES

The implementation of HRES systems faces several challenges as demand for this HRES technology increases. Concerning research and innovation, renewable energy technologies have made significant progress. However, several roadblocks remain in the way of their effectiveness and maximum utilization. This section provides an overview of a few of the most important challenges encountered during the development and implementation of HRESs [184], and also those experienced by the designers [185]. The different types of barriers/challenges in adopting HRESs are given in Figure 16.

6.1.1. Policies, Institutions, and Regulations

The stranglehold that the primary significant firms have in the present energy sector and infrastructure has resulted in a heavily centralized system that is resistant to emerging technologies producing any adverse changes in the market. Countries’ regulations, rules, and policies are still based on these monopolized energy suppliers. These regulations are intended to safeguard the widespread and centralized energy generation, transmission, and distribution systems, preventing any progress by renewable energy technology. Many smaller renewable energy project plans were rejected owing to regulatory size requirements [186]. Present rules and regulations must be amended to enable the widespread use of renewable energy technologies, particularly HRESs, and their incorporation into the energy system. Governmental and executive frameworks are the parameters considered while assessing policy barriers for HRES deployment. The lack of a particular policy and regulatory framework for the growth of mini-grids, and the laws governing interconnection between a mini-grid and the main grid are issues faced in this area (upon grid arrival) [187]. Researchers have also noted administrative aspects as the main barriers to the advancement of mini-grids. The insufficiency of devoted organizations for remote electricity generation, the accessibility of sparse and incorrect information, and bureaucratic licensing procedures, like difficult, drawn-out, or opaque authorizing methods [188,189], are hindering the further progress of HRES implementations.

6.1.2. Economic and Financial Challenges

Due to the obvious high initial capital cost of HRESs, many potential investors are hesitant to participate, particularly in developing countries. Many emerging countries do not contemplate HRESs because of the significant financial risk and the uncertainty surrounding future power costs [190]. These concerns result in expensive research, development, and implementation costs. The capital cost of efficient equipment is frequently much more than the standard option, and the depreciation period or monetary return may be insufficient [191]. Economic barriers in the context of financial assessment involve low expected returns on investments, restricted accessibility to financing sources, limited access to credit facilities, and unsecured sources of income to cover operating expenses. Along with having a high initial capital expense, there are also higher tariffs when compared to the tariffs for the main grid and poor revenue (remote residents often being unable to afford electricity services) [192].

6.1.3. Challenges Faced by the Designers

Sources of renewable energy, like solar PV and FCs, require novel technologies to extract more usable electricity. Soar’s low efficiency is a crucial impediment to their widespread adoption. Since the high initial cost results in a more extended payback period, sources of renewable energy production costs must be significantly reduced. It should be guaranteed that electrical power equipment loses as little power as possible. Innovative technologies must be used to extend the life of storage technology. These stand-alone systems are much less able to respond to changes in load. Significant variations in load might cause the overall approach to fail.

6.1.4. Technical/Technological Barriers

Technical barriers consist of the absence of provision for operation and maintenance, insufficient skill capability, an absence of standards and certification, and a lack of research and advancement transfer. Furthermore, remote places’ demographic distribution patterns have an impact on the technological design requirements. From a technological perspective, people with significant technological knowledge (installers, developers, and maintenance personnel of HRES’s setups) are necessary [187].

6.1.5. Environmental Barriers

Lack of solar radiation data, shortage of natural and sustainable resources, and topographical circumstances are taken into consideration in defining environmental barriers. Geographical position, earth–sun movement, the tilt of the planet’s rotational axis, and air attenuation from dispersed particles all affect how much solar radiation strikes the surface of the earth. Since there is a lack of precise solar radiation information needed to develop solar power installations, adoption of HRESs in significant areas is further hindered.
Countries like India and China, where the human population has grown at an unprecedented rate [193], are fueled by equally enormous natural resource utilization and cause ecological effects in the conversion of enormous areas of the natural world to human use. The occupancy of natural space has repeatedly highlighted challenges as to whether the natural resource base of the globe can support such growth. Solar and wind energy are unpredictable in many countries, due to the country’s topographical and meteorological conditions. Again, taking India as an example, there are varies types of topographical aspects, like sea shores, rivers, deserts, mountains, valleys, tablelands, and flat terrains that demand highly skilled and technologically sound systems to be used for HRESs. Climatic conditions, such as temperature, wind speed, etc., vary according to topographical aspects and this plays a vital role in choosing HRES projects or not. In the context of solar energy, sunlight hours are restricted, and geographically the solar resources are distributed unequally; solar power is intermittent. Likewise, wind energy also varies according to geographic conditions [194].

6.1.6. Legal Barriers

In cases where there are legal obstacles, the legal parameter is evaluated, including the absence of clear and explicit laws for financial and tax incentives (subsidies) for mini-grid development. Furthermore, the legal system is uncertain and also conflicting. It is necessary to evaluate the current tariff structure, which can unattractive or prohibitive.

6.1.7. Challenges in Socio-Culture

Challenges might arise due to a lack of response to cultural and societal issues concerning HRES advances. The traditional mode of power supply in Nigeria, which uses pipelines of oil in the southern area, is an example. Oil spills in riverine regions, contamination of rivers, and harming of marine life are among the pipeline’s negative consequences. This has a severe impact, not just on the ecology but also on the lifestyle of the local people. Furthermore, the exploration and exploitation of this energy and economic assets cause significant environmental deterioration and pollution, negatively impacting local people’s agricultural production and well-being. This, combined with the reality that indigenous people are not monetarily rewarded, has resulted in the development of Niger Delta militants. The delta rebels regularly vandalize and destroy oil pipelines, causing the country to lose a significant amount of income and resources. As a result, factors such as compensations, contracts, and systems for the impacted and dislocated residents must be made for developments in HRES. This may necessitate a large amount of land and other assets, potentially disrupting agricultural production and well-being of residents in certain areas and also reducing potential areas of land for urban growth [195]. The success of the project’s execution. as well as the longevity of such systems, are both greatly influenced by community acceptability. This might be hampered, also, by a lack of available information that contributes to misperception. One barrier to the growth of RESs, for instance, is a lack of public knowledge [196].

6.2. Future Prospects of HRESs

Renewable Energy technologies, particularly HRESs, have a considerable amount of potential. The potential of HRESs is infinite as further research progresses and technological breakthroughs are achieved. An SG is an electric power distribution network that employs digital telecommunications technology to identify and respond to regional operational changes. It is an SG network that uses smart meters, smart devices, renewable energy resources, and energy-efficient assets. Since smart grids employ digital technologies to improve electricity production, transport, and distribution, using HRESs in SG would be the most effective utilization technology. SGs include procedures such as automatic load balancing/adjustments and have a high level of flexibility to accommodate highly variable RESs, like solar and wind power, without the need for an energy storage unit. In SGs, HRESs enable the safe, efficient, and dependable aggregation of dispersed and renewable energy resources. Smart cities rely heavily on smart grids to provide a continuous energy supply for their functions, which is greatly aided by HRES implementation. Additional Research and Development innovations in solar PV and wind systems will minimize the COE of RES. The COE of traditional energy resources escalates year after year. Renewable technology will be economically viable in the future. Apart from the expense, the ecological benefit is likely to enable these systems to be more commonly used and accepted.
HRES has a lot of potential in aviation systems as well and is thought to become the way of the future. The integration of solar–wind-powered resources and jet-fueled aircraft engines to power the aircraft’s electronics are examples. The solar impulse solar-powered exploratory aviation project demonstrated the viability of solar power as an energy source. The solar impulse aircraft completed a round-the-world journey using solely solar energy, which heightened the feasibility of HRESs. Significant development is being achieved in this sector by combining a solar–wind hybrid with jet-fueled engines. and the core idea is to harness solar energy to produce solar fuel to power the machines. The world’s current trajectory requires drastic efforts to decrease carbon emissions in order to prevent climate change. As EVs become more common, they are increasingly displacing gasoline-powered vehicles for the conservation of biodiversity. With electric automobiles the prospect of employing renewable energy technologies like HRESs to power them assumes importance in the context of green power generation. Current EVs feature batteries that necessitate charging at on-grid charging stations within a specific service area. The application of HRESs eliminates these coverage constraints because the cars are fully autonomous and not limited to operating inside a particular zone. Furthermore, because global RESs would fuel cars, they could work effectively on the grid. An EV with energy storage powered by solar PV and wind is an example worth mentioning to attract many researchers to work in the area of HRESs.

7. Conclusions

This study offers a succinct and insightful overview of the strategies that researchers have been utilizing for decades to optimize HRESs, whether grid-tied or not. In this review’s analysis, it was clear that traditional approaches can better optimize the sizing field than commercial software, produce faster results, and address MO problems. Still, they are complicated and limited in flexibility. An overview of optimization techniques/software used in different HESs in the last two years, like PV_Wind_Other, PV_Other, and Wind_Other. was carried out, along with a comparison of the various optimization techniques in each category. The comparison of optimization techniques revealed that hybrid methods utilize the benefits of each approach to optimize performance and decrease processing time. Despite all of these benefits, the most significant challenge to hybrid techniques lies in design and algorithm development complexity. MH techniques and HOMER software are mainly used in the field of sizing, control, power management, and optimization of HRESs.
The different control strategies and power management in HRESs were also critically analyzed in terms of challenges, benefits, and drawbacks of each approach. Finally, the opportunities, barriers and challenges in adopting HRESs, and future directions, were thoroughly reviewed. This review paper inspires researchers to determine the effectiveness of newly proposed optimization techniques in the use of sizing, control strategies, and power management in HRESs.

Author Contributions

Conceptualization, A.A.R.; Data curation, A.A.R.; Investigation, A.A.R.; Methodology, A.A.R.; Software, A.A.R.; Supervision, B.S.; Validation, A.A.R., B.S.; Writing—original draft, A.A.R., B.S.; Writing—review & editing, A.A.R., B.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kartal, M.T. The Role of Consumption of Energy, Fossil Sources, Nuclear Energy, and Renewable Energy on Environmental Degradation in Top-Five Carbon Producing Countries. Renew. Energy 2022, 184, 871–880. [Google Scholar] [CrossRef]
  2. Wang, W.; Fan, L.W.; Zhou, P. Evolution of Global Fossil Fuel Trade Dependencies. Energy 2022, 238, 121924. [Google Scholar] [CrossRef]
  3. Cai, W.; Li, X.; Maleki, A.; Pourfayaz, F.; Rosen, M.A.; Alhuyi Nazari, M.; Bui, D.T. Optimal Sizing and Location Based on Economic Parameters for an Off-Grid Application of a Hybrid System with Photovoltaic, Battery and Diesel Technology. Energy 2020, 201, 117480. [Google Scholar] [CrossRef]
  4. Sharma, P.; Reddy Salkuti, S.; Kim, S.-C. Advancements in Energy Storage Technologies for Smart Grid Development. Int. J. Electr. Comput. Eng. 2022, 12, 3421. [Google Scholar] [CrossRef]
  5. Singh, S.; Singh, M.; Kaushik, S.C. Feasibility Study of an Islanded Microgrid in Rural Area Consisting of PV, Wind, Biomass and Battery Energy Storage System. Energy Convers. Manag. 2016, 128, 178–190. [Google Scholar] [CrossRef]
  6. Senjyu, T.; Hayashi, D.; Yona, A.; Urasaki, N.; Funabashi, T. Optimal Configuration of Power Generating Systems in Isolated Island with Renewable Energy. Renew. Energy 2007, 32, 1917–1933. [Google Scholar] [CrossRef]
  7. Enslin, J.H.R. Renewable Energy as an Economic Energy Source for Remote Areas. Renew. Energy 1991, 1, 243–248. [Google Scholar] [CrossRef]
  8. Krewitt, W. Integration of Renewable Energy into Future Energy Systems. In IPCC Scoping Meeting on Renewable Energy Sources; Cambridge University Press: Cambridge, UK, 2008; Chapter 8. [Google Scholar]
  9. Come Zebra, E.I.; van der Windt, H.J.; Nhumaio, G.; Faaij, A.P.C. A Review of Hybrid Renewable Energy Systems in Mini-Grids for off-Grid Electrification in Developing Countries. Renew. Sustain. Energy Rev. 2021, 144, 111036. [Google Scholar] [CrossRef]
  10. Ismail, M.S.; Moghavvemi, M.; Mahlia, T.M.I.; Muttaqi, K.M.; Moghavvemi, S. Effective Utilization of Excess Energy in Standalone Hybrid Renewable Energy Systems for Improving Comfort Ability and Reducing Cost of Energy: A Review and Analysis. Renew. Sustain. Energy Rev. 2015, 42, 726–734. [Google Scholar] [CrossRef] [Green Version]
  11. Ganguly, P.; Kalam, A.; Zayegh, A. Solar–Wind Hybrid Renewable Energy System: Current Status of Research on Configurations, Control, and Sizing Methodologies. In Hybrid-Renewable Energy Systems in Microgrids; Elsevier: Amsterdam, The Netherlands, 2018; pp. 219–248. [Google Scholar]
  12. International Renewable Energy Agency. Renewable Capacity Highlights; IRENA: Abu Dhabi, United Arab Emirates, 2021. [Google Scholar]
  13. Srivastava, S.D.; Banerjee, R.; Tech, M.; Asce, A.M.; Ie, M.; Professor, A. Hybrid Renewable Energy Systems & Their Suitability in Rural Regions. IOSR J. Mech. Civ. Eng. Ver. I 2015, 12, 117–120. [Google Scholar] [CrossRef]
  14. Mohammed, Y.S.; Mustafa, M.W.; Bashir, N. Hybrid Renewable Energy Systems for Off-Grid Electric Power: Review of Substantial Issues. Renew. Sustain. Energy Rev. 2014, 35, 527–539. [Google Scholar] [CrossRef]
  15. Belatrache, D.; Saifi, N.; Harrouz, A.; Bentouba, S. Modelling and Numerical Investigation of the Thermal Properties Effect on the Soil Temperature in Adrar Region. Alger. J. Renew. Energy Sustain. Dev. 2020, 2, 165–174. [Google Scholar] [CrossRef]
  16. Abdelaal, A.K.; Mohamed, E.F.; El-Fergany, A.A. Optimal Scheduling of Hybrid Sustainable Energy Microgrid: A Case Study for a Resort in Sokhna, Egypt. Sustainability 2022, 14, 12948. [Google Scholar] [CrossRef]
  17. Hatziargyriou, N.; Jenkins, N.; Strbac, G.; Pecas Lopes, J.A.; Ruela, J.; Engler, A.; Oyarzabal, J.; Kariniotakis, G.; Amorim, A. Microgrids–Large Scale Integration of Microgeneration to Low Voltage Grids. In Proceedings of the 41st International Conference on Large High Voltage Electric Systems 2006, CIGRE 2006, Paris, France, 27 August–1 September 2006. [Google Scholar]
  18. Soultanis, N.L.; Papathanasiou, S.A.; Hatziargyriou, N.D. A Stability Algorithm for the Dynamic Analysis of Inverter Dominated Unbalanced LV Microgrids. IEEE Trans. Power Syst. 2007, 22, 294–304. [Google Scholar] [CrossRef]
  19. Gupta, A.; Saini, R.P.; Sharma, M.P. Steady-State Modelling of Hybrid Energy System for off Grid Electrification of Cluster of Villages. Renew. Energy 2010, 35, 520–535. [Google Scholar] [CrossRef]
  20. Kanase-Patil, A.B.; Saini, R.P.; Sharma, M.P. Sizing of Integrated Renewable Energy System Based on Load Profiles and Reliability Index for the State of Uttarakhand in India. Renew. Energy 2011, 36, 2809–2821. [Google Scholar] [CrossRef]
  21. Ahn, S.-H.; Lee, K.-T.; Bhandari, B.; Lee, G.-Y.; Lee, C.S.-Y.; Song, C.-K. Formation Strategy of Renewable Energy Sources for High Mountain Off-Grid System Considering Sustainability. J. Korean Soc. Precis. Eng. 2012, 29, 958–963. [Google Scholar] [CrossRef] [Green Version]
  22. Yekini Suberu, M.; Wazir Mustafa, M.; Bashir, N. Energy Storage Systems for Renewable Energy Power Sector Integration and Mitigation of Intermittency. Renew. Sustain. Energy Rev. 2014, 35, 499–514. [Google Scholar] [CrossRef]
  23. Angelis-Dimakis, A.; Biberacher, M.; Dominguez, J.; Fiorese, G.; Gadocha, S.; Gnansounou, E.; Guariso, G.; Kartalidis, A.; Panichelli, L.; Pinedo, I.; et al. Methods and Tools to Evaluate the Availability of Renewable Energy Sources. Renew. Sustain. Energy Rev. 2011, 15, 1182–1200. [Google Scholar] [CrossRef]
  24. Mishra, S.; Saini, G.; Saha, S.; Chauhan, A.; Kumar, A.; Maity, S. A Survey on Multi-Criterion Decision Parameters, Integration Layout, Storage Technologies, Sizing Methodologies and Control Strategies for Integrated Renewable Energy System. Sustain. Energy Technol. Assess. 2022, 52, 102246. [Google Scholar] [CrossRef]
  25. Gopinathan, N.; Shanmugam, P.K. Energy Anxiety in Decentralized Electricity Markets: A Critical Review on EV Models. Energies 2022, 15, 5230. [Google Scholar] [CrossRef]
  26. Bernal-Agustín, J.L.; Dufo-López, R. Simulation and Optimization of Stand-Alone Hybrid Renewable Energy Systems. Renew. Sustain. Energy Rev. 2009, 13, 2111–2118. [Google Scholar] [CrossRef]
  27. Zhang, W.; Maleki, A.; Rosen, M.A.; Liu, J. Sizing a Stand-Alone Solar-Wind-Hydrogen Energy System Using Weather Forecasting and a Hybrid Search Optimization Algorithm. Energy Convers. Manag. 2019, 180, 609–621. [Google Scholar] [CrossRef]
  28. Ma, W.; Xue, X.; Liu, G. Techno-Economic Evaluation for Hybrid Renewable Energy System: Application and Merits. Energy 2018, 159, 385–409. [Google Scholar] [CrossRef]
  29. Baneshi, M.; Hadianfard, F. Techno-Economic Feasibility of Hybrid Diesel/PV/Wind/Battery Electricity Generation Systems for Non-Residential Large Electricity Consumers under Southern Iran Climate Conditions. Energy Convers. Manag. 2016, 127, 233–244. [Google Scholar] [CrossRef]
  30. Tawfik, T.M.M.; Badr, M.A.A.; El-Kady, E.Y.; Abdellatif, O.E.E. Optimization and Energy Management of Hybrid Standalone Energy System: A Case Study. Renew. Energy Focus 2018, 25, 48–56. [Google Scholar] [CrossRef]
  31. Ammari, C.; Belatrache, D.; Touhami, B.; Makhloufi, S. Sizing, Optimization, Control and Energy Management of Hybrid Renewable Energy System—A Review. Energy Built Environ. 2021, 3, 399–411. [Google Scholar] [CrossRef]
  32. Mills, A.; Al-Hallaj, S. Simulation of Hydrogen-Based Hybrid Systems Using Hybrid2. Int. J. Hydrogen Energy 2004, 29, 991–999. [Google Scholar] [CrossRef]
  33. Khatib, T.; Ibrahim, I.A.; Mohamed, A. A Review on Sizing Methodologies of Photovoltaic Array and Storage Battery in a Standalone Photovoltaic System. Energy Convers. Manag. 2016, 120, 430–448. [Google Scholar] [CrossRef]
  34. Kumar, P.; Deokar, S. Designing and Simulation Tools of Renewable Energy Systems: Review Literature. In Advances in Intelligent Systems and Computing; Springer: Berlin/Heidelberg, Germany, 2018; Volume 563, pp. 315–324. [Google Scholar]
  35. Anoune, K.; Laknizi, A.; Bouya, M.; Astito, A.; Ben Abdellah, A. Sizing a PV-Wind Based Hybrid System Using Deterministic Approach. Energy Convers. Manag. 2018, 169, 137–148. [Google Scholar] [CrossRef]
  36. Tezer, T.; Yaman, R.; Yaman, G. Evaluation of Approaches Used for Optimization of Stand-Alone Hybrid Renewable Energy Systems. Renew. Sustain. Energy Rev. 2017, 73, 840–853. [Google Scholar] [CrossRef]
  37. Eriksson, E.L.V.; Gray, E.M. Optimization and Integration of Hybrid Renewable Energy Hydrogen Fuel Cell Energy Systems–A Critical Review. Appl. Energy 2017, 202, 348–364. [Google Scholar] [CrossRef]
  38. Siddaiah, R.; Saini, R.P. A Review on Planning, Configurations, Modeling and Optimization Techniques of Hybrid Renewable Energy Systems for off Grid Applications. Renew. Sustain. Energy Rev. 2016, 58, 376–396. [Google Scholar] [CrossRef]
  39. Ghofrani, M.; Hosseini, N.N. Optimizing Hybrid Renewable Energy Systems: A Review. In Sustainable Energy–Technological Issues, Applications and Case Studies; IntechOpen: London, UK, 2016. [Google Scholar]
  40. Farag, A.; Al-Baiyat, S.; Cheng, T.C. Economic Load Dispatch Multiobjective Optimization Procedures Using Linear Programming Techniques. IEEE Trans. Power Syst. 1995, 10, 731–738. [Google Scholar] [CrossRef]
  41. Chakir, A.; Abid, M.; Tabaa, M.; Hachimi, H. Demand-Side Management Strategy in a Smart Home Using Electric Vehicle and Hybrid Renewable Energy System. Energy Rep. 2022, 8, 383–393. [Google Scholar] [CrossRef]
  42. Holtwerth, A.; Xhonneux, A.; Muller, D. Data-Driven Generation of Mixed-Integer Linear Programming Formulations for Model Predictive Control of Hybrid Energy Storage Systems Using Detailed Nonlinear Simulation Models. In Proceedings of the 2022 Open Source Modelling and Simulation of Energy Systems (OSMSES), Aachen, Germany, 4–5 April 2022; pp. 1–6. [Google Scholar]
  43. Huneke, F.; Henkel, J.; Benavides González, J.A.; Erdmann, G. Optimisation of Hybrid Off-Grid Energy Systems by Linear Programming. Energy. Sustain. Soc. 2012, 2, 7. [Google Scholar] [CrossRef] [Green Version]
  44. Memon, S.A.; Mehta, D.R.; Patel, V.A.; Upadhyay, D.S.; Patel, R.N. Hybrid Energy Storage System for Improved Response Time and Long-Term Energy Storage. Mater. Today Proc. 2022, 67, 238–244. [Google Scholar] [CrossRef]
  45. Vaccari, M.; Mancuso, G.M.; Riccardi, J.; Cantù, M.; Pannocchia, G. A Sequential Linear Programming Algorithm for Economic Optimization of Hybrid Renewable Energy Systems. J. Process. Control. 2019, 74, 189–201. [Google Scholar] [CrossRef]
  46. Liang, Z.; Liang, Y.; Luo, X.; Chen, J.; Yang, Z.; Wang, C.; Chen, Y. Superstructure-Based Mixed-Integer Nonlinear Programming Framework for Hybrid Heat Sources Driven Organic Rankine Cycle Optimization. Appl. Energy 2022, 307, 118277. [Google Scholar] [CrossRef]
  47. Liu, F.; Mo, Q.; Yang, Y.; Li, P.; Wang, S.; Xu, Y. A Nonlinear Model-Based Dynamic Optimal Scheduling of a Grid-Connected Integrated Energy System. Energy 2022, 243, 123115. [Google Scholar] [CrossRef]
  48. Bahlawan, H.; Morini, M.; Pinelli, M.; Spina, P.R.; Venturini, M. Optimization of Energy and Economic Scheduling of a Hybrid Energy Plant by Using a Dynamic Programming Approach. Appl. Therm. Eng. 2021, 187, 116577. [Google Scholar] [CrossRef]
  49. Zou, B.; Peng, J.; Li, S.; Li, Y.; Yan, J.; Yang, H. Comparative Study of the Dynamic Programming-Based and Rule-Based Operation Strategies for Grid-Connected PV-Battery Systems of Office Buildings. Appl. Energy 2022, 305, 117875. [Google Scholar] [CrossRef]
  50. Zhao, Z.-H. Improved Fuzzy Logic Control-Based Energy Management Strategy for Hybrid Power System of FC/PV/Battery/SC on Tourist Ship. Int. J. Hydrogen Energy 2022, 47, 9719–9734. [Google Scholar] [CrossRef]
  51. Kumar, N.K.; Gopi, R.S.; Kuppusamy, R.; Nikolovski, S.; Teekaraman, Y.; Vairavasundaram, I.; Venkateswarulu, S. Fuzzy Logic-Based Load Frequency Control in an Island Hybrid Power System Model Using Artificial Bee Colony Optimization. Energies 2022, 15, 2199. [Google Scholar] [CrossRef]
  52. Mahmoudi, S.M.; Maleki, A.; Rezaei Ochbelagh, D. A Novel Method Based on Fuzzy Logic to Evaluate the Storage and Backup Systems in Determining the Optimal Size of a Hybrid Renewable Energy System. J. Energy Storage 2022, 49, 104015. [Google Scholar] [CrossRef]
  53. Yuan, H.-B.; Zou, W.-J.; Jung, S.; Kim, Y.-B. Optimized Rule-Based Energy Management for a Polymer Electrolyte Membrane Fuel Cell/Battery Hybrid Power System Using a Genetic Algorithm. Int. J. Hydrogen Energy 2022, 47, 7932–7948. [Google Scholar] [CrossRef]
  54. Amirtharaj, S.; Premalatha, L.; Gopinath, D. Optimal Utilization of Renewable Energy Sources in MG Connected System with Integrated Converters: An AGONN Approach. Analog. Integr. Circuits Signal Process. 2019, 101, 513–532. [Google Scholar] [CrossRef]
  55. Chang, K.-H.; Lin, G. Optimal Design of Hybrid Renewable Energy Systems Using Simulation Optimization. Simul. Model. Pract. Theory 2015, 52, 40–51. [Google Scholar] [CrossRef]
  56. Khatib, T.; Mohamed, A.; Sopian, K. Optimization of a PV/Wind Micro-Grid for Rural Housing Electrification Using a Hybrid Iterative/Genetic Algorithm: Case Study of Kuala Terengganu, Malaysia. Energy Build. 2012, 47, 321–331. [Google Scholar] [CrossRef]
  57. Abbes, D.; Martinez, A.; Champenois, G. Life Cycle Cost, Embodied Energy and Loss of Power Supply Probability for the Optimal Design of Hybrid Power Systems. Math. Comput. Simul. 2014, 98, 46–62. [Google Scholar] [CrossRef]
  58. Rajkumar, R.K.; Ramachandaramurthy, V.K.; Yong, B.L.; Chia, D.B. Techno-Economical Optimization of Hybrid Pv/Wind/Battery System Using Neuro-Fuzzy. Energy 2011, 36, 5148–5153. [Google Scholar] [CrossRef]
  59. Lujano-Rojas, J.M.; Dufo-López, R.; Bernal-Agustín, J.L. Probabilistic Modelling and Analysis of Stand-Alone Hybrid Power Systems. Energy 2013, 63, 19–27. [Google Scholar] [CrossRef]
  60. Maleki, A.; Pourfayaz, F. Optimal Sizing of Autonomous Hybrid Photovoltaic/Wind/Battery Power System with LPSP Technology by Using Evolutionary Algorithms. Sol. Energy 2015, 115, 471–483. [Google Scholar] [CrossRef]
  61. Ukoba, M.O.; Diemuodeke, O.E.; Alghassab, M.; Njoku, H.I.; Imran, M.; Khan, Z.A. Composite Multi-Criteria Decision Analysis for Optimization of Hybrid Renewable Energy Systems for Geopolitical Zones in Nigeria. Sustainability 2020, 12, 5732. [Google Scholar] [CrossRef]
  62. Sharma, P.; Chinnappa Naidu, R. Optimization Techniques for Grid-Connected PV with Retired EV Batteries in Centralized Charging Station with Challenges and Future Possibilities: A Review. Ain Shams Eng. J. 2022, 101985. [Google Scholar] [CrossRef]
  63. Zahedi, R.; Moeini-Aghtaie, M. Operational Strategy Optimization of a Hybrid Green Power System Based on Fuzzy Logic Controller with Considering for Optimal Sizing and Analysis of Different Priorities for Energy Storage. Sustain. Energy, Grids Networks 2022, 32, 100809. [Google Scholar] [CrossRef]
  64. Naderipour, A.; Kamyab, H.; Klemeš, J.J.; Ebrahimi, R.; Chelliapan, S.; Nowdeh, S.A.; Abdullah, A.; Hedayati Marzbali, M. Optimal Design of Hybrid Grid-Connected Photovoltaic/Wind/Battery Sustainable Energy System Improving Reliability, Cost and Emission. Energy 2022, 257, 124679. [Google Scholar] [CrossRef]
  65. Naderipour, A.; Ramtin, A.R.; Abdullah, A.; Marzbali, M.H.; Nowdeh, S.A.; Kamyab, H. Hybrid Energy System Optimization with Battery Storage for Remote Area Application Considering Loss of Energy Probability and Economic Analysis. Energy 2022, 239, 122303. [Google Scholar] [CrossRef]
  66. Faritha Banu, J.; Atul Mahajan, R.; Sakthi, U.; Kumar Nassa, V.; Lakshmi, D.; Nadanakumar, V. Artificial Intelligence with Attention Based BiLSTM for Energy Storage System in Hybrid Renewable Energy Sources. Sustain. Energy Technol. Assess. 2022, 52, 102334. [Google Scholar] [CrossRef]
  67. Chaichan, W.; Waewsak, J.; Nikhom, R.; Kongruang, C.; Chiwamongkhonkarn, S.; Gagnon, Y. Optimization of Stand-Alone and Grid-Connected Hybrid Solar/Wind/Fuel Cell Power Generation for Green Islands: Application to Koh Samui, Southern Thailand. Energy Rep. 2022, 8, 480–493. [Google Scholar] [CrossRef]
  68. Krishnakumar, R.; Ravichandran, C.S. Reliability and Cost Minimization of Renewable Power System with Tunicate Swarm Optimization Approach Based on the Design of PV/Wind/FC System. Renew. Energy Focus 2022, 42, 266–276. [Google Scholar] [CrossRef]
  69. Kumar, K.K.P.; Soren, N.; Latif, A.; Das, D.C.; Hussain, S.M.S.; Al-Durra, A.; Ustun, T.S. Day-Ahead DSM-Integrated Hybrid-Power-Management-Incorporated CEED of Solar Thermal/Wind/Wave/BESS System Using HFPSO. Sustainability 2022, 14, 1169. [Google Scholar] [CrossRef]
  70. Han, Y.; Liao, Y.; Ma, X.; Guo, X.; Li, C.; Liu, X. Modeling and Optimization of a Novel Oxy-Fuel/Solar/Wind/Battery Power Generation System. Appl. Therm. Eng. 2022, 214, 118862. [Google Scholar] [CrossRef]
  71. Liu, T.; Yang, Z.; Duan, Y.; Hu, S. Techno-Economic Assessment of Hydrogen Integrated into Electrical/Thermal Energy Storage in PV+ Wind System Devoting to High Reliability. Energy Convers. Manag. 2022, 268, 116067. [Google Scholar] [CrossRef]
  72. Riayatsyah, T.M.I.; Geumpana, T.A.; Fattah, I.M.R.; Rizal, S.; Mahlia, T.M.I. Techno-Economic Analysis and Optimisation of Campus Grid-Connected Hybrid Renewable Energy System Using HOMER Grid. Sustainability 2022, 14, 7735. [Google Scholar] [CrossRef]
  73. Singh, P.; Pandit, M.; Srivastava, L. Techno-Socio-Economic-Environmental Estimation of Hybrid Renewable Energy System Using Two-Phase Swarm-Evolutionary Algorithm. Sustain. Energy Technol. Assess. 2022, 53, 102483. [Google Scholar] [CrossRef]
  74. Vakili, S.; Schönborn, A.; Ölçer, A.I. Techno-Economic Feasibility of Photovoltaic, Wind and Hybrid Electrification Systems for Stand-Alone and Grid-Connected Shipyard Electrification in Italy. J. Clean. Prod. 2022, 366, 132945. [Google Scholar] [CrossRef]
  75. Bhimaraju, A.; Mahesh, A.; Joshi, S.N. Techno-Economic Optimization of Grid-Connected Solar-Wind-Pumped Storage Hybrid Energy System Using Improved Search Space Reduction Algorithm. J. Energy Storage 2022, 52, 104778. [Google Scholar] [CrossRef]
  76. Udeh, G.T.; Michailos, S.; Ingham, D.; Hughes, K.J.; Ma, L.; Pourkashanian, M. A Modified Rule-Based Energy Management Scheme for Optimal Operation of a Hybrid PV-Wind-Stirling Engine Integrated Multi-Carrier Energy System. Appl. Energy 2022, 312, 118763. [Google Scholar] [CrossRef]
  77. Castro, M.T.; Pascasio, J.D.A.; Ocon, J.D. Data on the Techno-Economic and Financial Analyses of Hybrid Renewable Energy Systems in 634 Philippine off-Grid Islands. Data Brief 2022, 44, 108485. [Google Scholar] [CrossRef]
  78. Dong, Y.; Liu, F.; Lu, X.; Lou, Y.; Ma, Y.; Eghbalian, N. Multi-Objective Economic Environmental Energy Management Microgrid Using Hybrid Energy Storage Implementing and Developed Manta Ray Foraging Optimization Algorithm. Electr. Power Syst. Res. 2022, 211, 108181. [Google Scholar] [CrossRef]
  79. Kazemi, K.; Ebrahimi, M.; Lahonian, M.; Babamiri, A. Micro-Scale Heat and Electricity Generation by a Hybrid Solar Colmoelectric, and Wind Turbinelector-Chimney, Ther. Sustain. Energy Technol. Assess. 2022, 53, 102394. [Google Scholar] [CrossRef]
  80. Badar, M.; Ahmad, I.; Rehman, S.; Nazir, S.; Waqas, A. Hierarchical Control of Hybrid Direct Current Microgrid with Variable Structure Based Sliding Mode Control and Fuzzy Energy Management System. J. Franklin Inst. 2022, 359, 6856–6892. [Google Scholar] [CrossRef]
  81. Chennaif, M.; Maaouane, M.; Zahboune, H.; Elhafyani, M.; Zouggar, S. Tri-Objective Techno-Economic Sizing Optimization of Off-Grid and On-Grid Renewable Energy Systems Using Electric System Cascade Extended Analysis and System Advisor Model. Appl. Energy 2022, 305, 117844. [Google Scholar] [CrossRef]
  82. Rahmani, N.; Mostefai, M. Multi-Objective MPSO/GA Optimization of an Autonomous PV-Wind Hybrid Energy System. Eng. Technol. Appl. Sci. Res. 2022, 12, 8817–8824. [Google Scholar] [CrossRef]
  83. Si, Y.; Wang, R.; Zhang, S.; Zhou, W.; Lin, A.; Zeng, G. Configuration Optimization and Energy Management of Hybrid Energy System for Marine Using Quantum Computing. Energy 2022, 253, 124131. [Google Scholar] [CrossRef]
  84. Yang, J.; Yang, Z.; Duan, Y. Capacity Optimization and Feasibility Assessment of Solar-Wind Hybrid Renewable Energy Systems in China. J. Clean. Prod. 2022, 368, 133139. [Google Scholar] [CrossRef]
  85. Huang, J.; Hou, J.; Wang, Y.; Zheng, H.; Jin, J.; Meng, Q. Energy Management Optimization of Integrated Energy System with Electric Hydrogen Hybrid Energy Storage. J. Phys. Conf. Ser. 2022, 2260, 012036. [Google Scholar] [CrossRef]
  86. El Boujdaini, L.; Mezrhab, A.; Moussaoui, M.A.; Jurado, F.; Vera, D. Sizing of a Stand-Alone PV–Wind–Battery–Diesel Hybrid Energy System and Optimal Combination Using a Particle Swarm Optimization Algorithm. Electr. Eng. 2022, 104, 3339–3359. [Google Scholar] [CrossRef]
  87. Paliwal, P. Securing Reliability Constrained Technology Combination for Isolated Micro-Grid Using Multi-Agent Based Optimization. Iran. J. Electr. Electron. Eng. 2022, 18, 2180. [Google Scholar] [CrossRef]
  88. Rojas, J.P.; García, G.R.; Castillo, D.V. Economic and Environmental Multiobjective Optimization of a Hybrid Power Generation System Using Solar and Wind Energy Source. Int. J. Energy Econ. Policy 2022, 12, 494–499. [Google Scholar] [CrossRef]
  89. Niveditha, N.; Rajan Singaravel, M.M. Optimal Sizing of Hybrid PV–Wind–Battery Storage System for Net Zero Energy Buildings to Reduce Grid Burden. Appl. Energy 2022, 324, 119713. [Google Scholar] [CrossRef]
  90. Ali, M.; Kotb, H.; Kareem AboRas, M.; Nabil Abbasy, H. Frequency Regulation of Hybrid Multi-Area Power System Using Wild Horse Optimizer Based New Combined Fuzzy Fractional-Order PI and TID Controllers. Alex. Eng. J. 2022, 61, 12187–12210. [Google Scholar] [CrossRef]
  91. Rocha, L.C.S.; Rotella Junior, P.; Aquila, G.; Maheri, A. Multiobjective Optimization of Hybrid Wind-Photovoltaic Plants with Battery Energy Storage System: Current Situation and Possible Regulatory Changes. J. Energy Storage 2022, 51, 104467. [Google Scholar] [CrossRef]
  92. Tay, G.; Acakpovi, A.; Adjei, P.; Aggrey, G.K.; Sowah, R.; Kofi, D.; Afonope, M.; Sulley, M. Optimal Sizing and Techno-Economic Analysis of a Hybrid Solar PV/Wind/Diesel Generator System. IOP Conf. Ser. Earth Environ. Sci. 2022, 1042, 012014. [Google Scholar] [CrossRef]
  93. Adetoro, S.A.; Ndubuka Nwohu, M.; Olatomiwa, L. Techno-Economic Analysis of Hybrid Energy System Connected to an Unreliable Grid: A Case Study of a Rural Community in Nigeria. In Proceedings of the 2022 IEEE Nigeria 4th International Conference on Disruptive Technologies for Sustainable Development (NIGERCON), Lagos, Nigeria, 5–7 April 2022; pp. 1–5. [Google Scholar]
  94. Mhandu, S.R.; Mary Longe, O. Techno-Economic Analysis of Hybrid PV-Wind-Diesel-Battery Standalone and Grid-Connected Microgrid for Rural Electrification in Zimbabwe. In Proceedings of the 2022 IEEE Nigeria 4th International Conference on Disruptive Technologies for Sustainable Development (NIGERCON), Lagos, Nigeria, 5–7 April 2022; pp. 1–5. [Google Scholar]
  95. Tabak, A.; Kayabasi, E.; Guneser, M.T.; Ozkaymak, M. Grey Wolf Optimization for Optimum Sizing and Controlling of a PV/WT/BM Hybrid Energy System Considering TNPC, LPSP, and LCOE Concepts. Energy Sources Part A Recover. Util. Environ. Eff. 2022, 44, 1508–1528. [Google Scholar] [CrossRef]
  96. Yimen, N.; Monkam, L.; Tcheukam-Toko, D.; Musa, B.; Abang, R.; Fombe, L.F.; Abbasoglu, S.; Dagbasi, M. Optimal Design and Sensitivity Analysis of Distributed Biomass-based Hybrid Renewable Energy Systems for Rural Electrification: Case Study of Different Photovoltaic/Wind/Battery-integrated Options in Babadam, Northern Cameroon. IET Renew. Power Gener. 2021, 16, 2939–2956. [Google Scholar] [CrossRef]
  97. Ashagire, A.A.; Adjallah, K.H.; Bekele, G. Optimal Sizing of Hybrid Energy Sources by Using Genetic Algorithm and Particle Swarm Optimization Algorithms Considering Life Cycle Cost. In Proceedings of the 2021 International Conference on Electrical, Computer, Communications and Mechatronics Engineering (ICECCME), Mauritius, 7–8 October 2021; pp. 1–6. [Google Scholar]
  98. Nuvvula, R.S.S.; Elangovan, D.; Teegala, K.S.; Madurai Elavarasan, R.; Islam, M.R.; Inapakurthi, R. Optimal Sizing of Battery-Integrated Hybrid Renewable Energy Sources with Ramp Rate Limitations on a Grid Using ALA-QPSO. Energies 2021, 14, 5368. [Google Scholar] [CrossRef]
  99. Ara, S.R.; Paul, S.; Rather, Z.H. Two-Level Planning Approach to Analyze Techno-Economic Feasibility of Hybrid Offshore Wind-Solar Pv Power Plants. Sustain. Energy Technol. Assess. 2021, 47, 101509. [Google Scholar] [CrossRef]
  100. Pavankumar, Y.; Kollu, R.; Debnath, S. Multi-objective Optimization of Photovoltaic/Wind/Biomass/Battery-based Grid-integrated Hybrid Renewable Energy System. IET Renew. Power Gener. 2021, 15, 1528–1541. [Google Scholar] [CrossRef]
  101. Sifakis, N.; Konidakis, S.; Tsoutsos, T. Hybrid Renewable Energy System Optimum Design and Smart Dispatch for Nearly Zero Energy Ports. J. Clean. Prod. 2021, 310, 127397. [Google Scholar] [CrossRef]
  102. Khemissi, L.; Khiari, B.; Sellami, A. A Novel Optimal Planning Methodology of an Autonomous Photovoltaic/Wind/Battery Hybrid Power System by Minimizing Economic, Energetic and Environmental Objectives. Int. J. Green Energy 2021, 18, 1064–1080. [Google Scholar] [CrossRef]
  103. Kharrich, M.; Kamel, S.; Abdeen, M.; Mohammed, O.H.; Akherraz, M.; Khurshaid, T.; Rhee, S.-B. Developed Approach Based on Equilibrium Optimizer for Optimal Design of Hybrid PV/Wind/Diesel/Battery Microgrid in Dakhla, Morocco. IEEE Access 2021, 9, 13655–13670. [Google Scholar] [CrossRef]
  104. Yang, J.; Yang, Z.; Duan, Y. Optimal Capacity and Operation Strategy of a Solar-Wind Hybrid Renewable Energy System. Energy Convers. Manag. 2021, 244, 114519. [Google Scholar] [CrossRef]
  105. Demolli, H.; Dokuz, A.S.; Ecemis, A.; Gokcek, M. Location-based Optimal Sizing of Hybrid Renewable Energy Systems Using Deterministic and Heuristic Algorithms. Int. J. Energy Res. 2021, 45, 16155–16175. [Google Scholar] [CrossRef]
  106. Al-Buraiki, A.S.; Al-Sharafi, A. Technoeconomic Analysis and Optimization of Hybrid Solar/Wind/Battery Systems for a Standalone House Integrated with Electric Vehicle in Saudi Arabia. Energy Convers. Manag. 2021, 250, 114899. [Google Scholar] [CrossRef]
  107. Samy, M.M.; Mosaad, M.I.; Barakat, S. Optimal Economic Study of Hybrid PV-Wind-Fuel Cell System Integrated to Unreliable Electric Utility Using Hybrid Search Optimization Technique. Int. J. Hydrogen Energy 2021, 46, 11217–11231. [Google Scholar] [CrossRef]
  108. Kharrich, M.; Kamel, S.; Ellaia, R.; Akherraz, M.; Alghamdi, A.S.; Abdel-Akher, M.; Eid, A.; Mosaad, M.I. Economic and Ecological Design of Hybrid Renewable Energy Systems Based on a Developed IWO/BSA Algorithm. Electronics 2021, 10, 687. [Google Scholar] [CrossRef]
  109. Singh, S.; Chauhan, P.; Jap Singh, N. Feasibility of Grid-Connected Solar-Wind Hybrid System with Electric Vehicle Charging Station. J. Mod. Power Syst. Clean Energy 2021, 9, 295–306. [Google Scholar] [CrossRef]
  110. Mudgal, V.; Singh, P.; Khanna, S.; Pandey, C.; Becerra, V.; Mallick, T.K.; Reddy, K.S. Optimization of a Novel Hybrid Wind Bio Battery Solar Photovoltaic System Integrated with Phase Change Material. Energies 2021, 14, 6373. [Google Scholar] [CrossRef]
  111. Tariq, R.; Cetina-Quiñones, A.J.; Cardoso-Fernández, V.; Daniela-Abigail, H.-L.; Soberanis, M.A.E.; Bassam, A.; De Lille, M.V. Artificial Intelligence Assisted Technoeconomic Optimization Scenarios of Hybrid Energy Systems for Water Management of an Isolated Community. Sustain. Energy Technol. Assess. 2021, 48, 101561. [Google Scholar] [CrossRef]
  112. Odoi-Yorke, F.; Abaase, S.; Zebilila, M.; Atepor, L. Feasibility Analysis of Solar PV/Biogas Hybrid Energy System for Rural Electrification in Ghana. Cogent Eng. 2022, 9, 2034376. [Google Scholar] [CrossRef]
  113. Adeyemo, A.A.; Amusan, O.T. Modelling and Multi-Objective Optimization of Hybrid Energy Storage Solution for Photovoltaic Powered off-Grid Net Zero Energy Building. J. Energy Storage 2022, 55, 105273. [Google Scholar] [CrossRef]
  114. Liu, H.; Wu, B.; Maleki, A. Effects of Dispatch Strategies on Optimum Sizing of Solar-Diesel-Battery Energy Storage-RO Desalination Hybrid Scheme by Efficient Heuristic Algorithm. J. Energy Storage 2022, 54, 104862. [Google Scholar] [CrossRef]
  115. Kumar, R.; Channi, H.K. A PV-Biomass off-Grid Hybrid Renewable Energy System (HRES) for Rural Electrification: Design, Optimization and Techno-Economic-Environmental Analysis. J. Clean. Prod. 2022, 349, 131347. [Google Scholar] [CrossRef]
  116. El-Sattar, H.A.; Kamel, S.; Sultan, H.M.; Zawbaa, H.M.; Jurado, F. Optimal Design of Photovoltaic, Biomass, Fuel Cell, Hydrogen Tank Units and Electrolyzer Hybrid System for a Remote Area in Egypt. Energy Rep. 2022, 8, 9506–9527. [Google Scholar] [CrossRef]
  117. Kumar, P.; Pal, N.; Sharma, H. Optimization and Techno-Economic Analysis of a Solar Photo-Voltaic/Biomass/Diesel/Battery Hybrid off-Grid Power Generation System for Rural Remote Electri Fi Cation in Eastern India. Energy 2022, 247, 123560. [Google Scholar] [CrossRef]
  118. Gupta, J.; Nijhawan, P.; Ganguli, S. Optimal Sizing of Different Configuration of Photovoltaic, Fuel Cell, and Biomass—Based Hybrid Energy System. Environ. Sci. Pollut. Res. 2022, 29, 17425–17440. [Google Scholar] [CrossRef]
  119. Das, M.; Mandal, R. The Effect of Photovoltaic Energy Penetration on a Photovoltaic-Biomass-Lithium-Ion off-Grid System and System Optimization for the Agro-Climatic Zones of West Bengal. Sustain. Energy Technol. Assess. 2022, 53, 102593. [Google Scholar] [CrossRef]
  120. Giridhar, M.S.; Rani, K.R.; Rani, P.S.; Janamala, V. Mayfly Algorithm for Optimal Integration of Hybrid Photovoltaic/Battery Energy Storage/D-STATCOM System for Islanding Operation. Int. J. Intell. Eng. Syst. 2022, 15, 225–232. [Google Scholar] [CrossRef]
  121. Maleki, A. Optimization Based on Modified Swarm Intelligence Techniques for a Stand-Alone Hybrid Photovoltaic/Diesel/Battery System. Sustain. Energy Technol. Assess. 2022, 51, 101856. [Google Scholar] [CrossRef]
  122. El-Sattar, H.A.; Kamel, S.; Hassan, M.H.; Jurado, F. Optimal Sizing of an Off-Grid Hybrid Photovoltaic/Biomass Gasifier/Battery System Using a Quantum Model of Runge Kutta Algorithm. Energy Convers. Manag. 2022, 258, 115539. [Google Scholar] [CrossRef]
  123. Wang, X.; Hua, Q.; Liu, P.; Sun, L. Stochastic Dynamic Programming Based Optimal Energy Scheduling for a Hybrid Fuel Cell/PV/Battery System under Uncertainty. Process Saf. Environ. Prot. 2022, 165, 380–386. [Google Scholar] [CrossRef]
  124. Maleki, A.; Eskandar Filabi, Z.; Nazari, M.A. Techno-Economic Analysis and Optimization of an Off-Grid Hybrid Photovoltaic–Diesel–Battery System: Effect of Solar Tracker. Sustainability 2022, 14, 7296. [Google Scholar] [CrossRef]
  125. Kim, J.-W.; Ahn, H.; Seo, H.C.; Lee, S.C. Optimization of Solar/Fuel Cell Hybrid Energy System Using the Combinatorial Dynamic Encoding Algorithm for Searches (CDEAS). Energies 2022, 15, 2779. [Google Scholar] [CrossRef]
  126. Yuan, X.; Heikari, L.; Hirvonen, J.; Liang, Y.; Virtanen, M.; Kosonen, R.; Pan, Y. System Modelling and Optimization of a Low Temperature Local Hybrid Energy System Based on Solar Energy for a Residential District. Energy Convers. Manag. 2022, 267, 115918. [Google Scholar] [CrossRef]
  127. Sok, M.; Tao, H. Design Optimization Method and Performance Analysis of 90MW Grid-Connected Solar PV System in Cambodia. J. Phys. Conf. Ser. 2022, 2213, 012027. [Google Scholar] [CrossRef]
  128. Bhayo, B.A.; Al-Kayiem, H.H.; Gilani, S.I.U.; Khan, N.; Kumar, D. Energy Management Strategy of Hybrid Solar-Hydro System with Various Probabilities of Power Supply Loss. Sol. Energy 2022, 233, 230–245. [Google Scholar] [CrossRef]
  129. Aditya, I.A.; Simaremare, A. Techno-Economic Assessment of a Hybrid Solar PV/Syngas/Battery Power System for off-Grid Application: Long Pahangai-Indonesia Case Study. J. Phys. Conf. Ser. 2022, 2193, 012001. [Google Scholar] [CrossRef]
  130. Dash, R.; Bharat, M.; Jena, R.; Swain, S.C. Cost Optimization of Pumped Hydro Storage and PV Plant for Hybrid Mode of Operation Using FPA. In Proceedings of the 2022 3rd International Conference for Emerging Technology (INCET), Belgaum, India, 27–29 May 2022; pp. 1–5. [Google Scholar]
  131. Yu, D.; Wu, J.; Wang, W.; Gu, B. Optimal Performance of Hybrid Energy System in the Presence of Electrical and Heat Storage Systems under Uncertainties Using Stochastic P-Robust Optimization Technique. Sustain. Cities Soc. 2022, 83, 103935. [Google Scholar] [CrossRef]
  132. Mohseni, M.; Moosavian, S.F.; Hajinezhad, A. Feasibility Evaluation of an Off-grid Solar-biomass System for Remote Area Electrification Considering Various Economic Factors. Energy Sci. Eng. 2022, 10, 3091–3107. [Google Scholar] [CrossRef]
  133. Suresh, V.; Jasinski, M.; Leonowicz, Z.; Kaczorowska, D.; Jithendranath, J.; Reddy, K.H. Political-Optimizer-Based Energy-Management System for Microgrids. Electronics 2021, 10, 3119. [Google Scholar] [CrossRef]
  134. Zheng, Y.; Shen, H.; Li, J. A Techno-Economic Sizing Method for PV/Battery/Grid Hybrid Solar Systems for Residential Buildings. J. Mech. Sci. Technol. 2021, 35, 5245–5254. [Google Scholar] [CrossRef]
  135. Xu, Y.-P.; Ouyang, P.; Xing, S.-M.; Qi, L.-Y.; Khayatnezhad, M.; Jafari, H. Optimal Structure Design of a PV/FC HRES Using Amended Water Strider Algorithm. Energy Rep. 2021, 7, 2057–2067. [Google Scholar] [CrossRef]
  136. Thalib, H.; Maarif, S.; Adhi Setiawan, E. Optimization of Solar PV System for Fishery Cold Storage Based on Ownership Model and Regulation Barrier in Indonesia. J. Phys. Conf. Ser. 2021, 2022, 012035. [Google Scholar] [CrossRef]
  137. Dhar, P.; Chakraborty, N. Optimal Techno-Economic Analysis of a Renewable Based Hybrid Microgrid Incorporating Gravity Energy Storage System in Indian Perspective Using Whale Optimization Algorithm. Int. Trans. Electr. Energy Syst. 2021, 31, e13025. [Google Scholar] [CrossRef]
  138. Ramadan, H.S.; Iqbal, M.; Becherif, M.; Haes Alhelou, H. Efficient Control and Multi-criteria Energy Scheduling of Renewable-based Utility Grid via Pareto-metaheuristic Optimizers. IET Renew. Power Gener. 2022, 16, 1246–1266. [Google Scholar] [CrossRef]
  139. Aziz, A.S.; Tajuddin, M.F.N.; Hussain, M.K.; Adzman, M.R.; Ghazali, N.H.; Ramli, M.A.M.; Khalil Zidane, T.E. A New Optimization Strategy for Wind/Diesel/Battery Hybrid Energy System. Energy 2022, 239, 122458. [Google Scholar] [CrossRef]
  140. Okampo, E.J.; Nwulu, N.; Bokoro, P.N. Economic and Reliability Assessment of Hybrid PRO-RO Desalination Systems Using Brine for Salinity Gradient Energy Production. Sustainability 2022, 14, 3328. [Google Scholar] [CrossRef]
  141. Li, H.; Zhang, R.; Mahmud, M.A.; Hredzak, B. A Novel Coordinated Optimization Strategy for High Utilization of Renewable Energy Sources and Reduction of Coal Costs and Emissions in Hybrid Hydro-Thermal-Wind Power Systems. Appl. Energy 2022, 320, 119019. [Google Scholar] [CrossRef]
  142. Yi, T.; Ye, H.; Li, Q.; Zhang, C.; Ren, W.; Tao, Z. Energy Storage Capacity Optimization of Wind-Energy Storage Hybrid Power Plant Based on Dynamic Control Strategy. J. Energy Storage 2022, 55, 105372. [Google Scholar] [CrossRef]
  143. Petracca, E.; Faraggiana, E.; Ghigo, A.; Sirigu, M.; Bracco, G.; Mattiazzo, G. Design and Techno-Economic Analysis of a Novel Hybrid Offshore Wind and Wave Energy System. Energies 2022, 15, 2739. [Google Scholar] [CrossRef]
  144. Alshammari, M.E.; Ramli, M.A.M.; Mehedi, I.M. Hybrid Chaotic Maps-Based Artificial Bee Colony for Solving Wind Energy-Integrated Power Dispatch Problem. Energies 2022, 15, 4578. [Google Scholar] [CrossRef]
  145. Dabar, O.A.; Awaleh, M.O.; Waberi, M.M.; Adan, A.-B.I. Wind Resource Assessment and Techno-Economic Analysis of Wind Energy and Green Hydrogen Production in the Republic of Djibouti. Energy Rep. 2022, 8, 8996–9016. [Google Scholar] [CrossRef]
  146. Bamisile, O.; Dongsheng, C.; Li, J.; Mukhtar, M.; Wang, X.; Duo, J.; Cao, R.; Huang, Q. An Innovative Approach for Geothermal-Wind Hybrid Comprehensive Energy System and Hydrogen Production Modeling/Process Analysis. Int. J. Hydrogen Energy 2022, 47, 13261–13288. [Google Scholar] [CrossRef]
  147. Petrović, A.; Đurišić, Ž. Genetic Algorithm Based Optimized Model for the Selection of Wind Turbine for Any Site-Specific Wind Conditions. Energy 2021, 236, 121476. [Google Scholar] [CrossRef]
  148. Niyomtham, L.; Waewsak, J.; Kongruang, C.; Chiwamongkhonkarn, S.; Chancham, C.; Gagnon, Y. Wind Power Generation and Appropriate Feed-in-Tariff under Limited Wind Resource in Central Thailand. Energy Rep. 2022, 8, 6220–6233. [Google Scholar] [CrossRef]
  149. Liu, Y.; Fu, Y.; Huang, L.; Zhang, K. Reborn and Upgrading: Optimum Repowering Planning for Offshore Wind Farms. Energy Rep. 2022, 8, 5204–5214. [Google Scholar] [CrossRef]
  150. Belaid, S.; Rekioua, D.; Oubelaid, A.; Ziane, D.; Rekioua, T. Proposed Hybrid Power Optimization for Wind Turbine/Battery System. Period. Polytech. Electr. Eng. Comput. Sci. 2022, 66, 60–71. [Google Scholar] [CrossRef]
  151. Hoang, T.-K.; Queval, L.; Vido, L.; Nguyen, D.-Q. Levelized Cost of Energy Comparison Between Permanent Magnet and Superconducting Wind Generators for Various Nominal Power. IEEE Trans. Appl. Supercond. 2022, 32, 7. [Google Scholar] [CrossRef]
  152. Santhakumar, S.; Smart, G.; Noonan, M.; Meerman, H.; Faaij, A. Technological Progress Observed for Fixed-Bottom Offshore Wind in the EU and UK. Technol. Forecast. Soc. Chang. 2022, 182, 121856. [Google Scholar] [CrossRef]
  153. Chen, S.; Arabkoohsar, A.; Chen, G.; Nielsen, M.P. Optimization of a Hybrid Energy System with District Heating and Cooling Considering Off-Design Characteristics of Components, an Effort on Optimal Compressed Air Energy Storage Integration. Energies 2022, 15, 4634. [Google Scholar] [CrossRef]
  154. Paliwal, P. Reliability-Based Optimal Sizing for an Isolated Wind–Battery Hybrid Power System Using Butterfly PSO. In Advances in Energy Technology; Bansal, R.C., Agarwal, A., Jadoun, V.K., Eds.; Springer: Singapore, 2022; pp. 163–172. [Google Scholar]
  155. Liang, Y.; Ma, Y.; Wang, H.; Mesbahi, A.; Jeong, B.; Zhou, P. Levelised Cost of Energy Analysis for Offshore Wind Farms–A Case Study of the New York State Development. Ocean Eng. 2021, 239, 109923. [Google Scholar] [CrossRef]
  156. Li, Z.; Chen, H.; Xu, B.; Ge, H. Hybrid Wind Turbine Towers Optimization with a Parallel Updated Particle Swarm Algorithm. Appl. Sci. 2021, 11, 8683. [Google Scholar] [CrossRef]
  157. Seedahmed, M.M.A.; Ramli, M.A.M.; Bouchekara, H.R.E.H.; Shahriar, M.S.; Milyani, A.H.; Rawa, M. A Techno-Economic Analysis of a Hybrid Energy System for the Electrification of a Remote Cluster in Western Saudi Arabia. Alexandria Eng. J. 2022, 61, 5183–5202. [Google Scholar] [CrossRef]
  158. Singh, S.; Singh, M.; Kaushik, S.C. A Review on Optimization Techniques for Sizing of Solar-Wind Hybrid Energy Systems. Int. J. Green Energy 2016, 13, 1564–1578. [Google Scholar] [CrossRef]
  159. Vivas, F.J.; De las Heras, A.; Segura, F.; Andújar, J.M. A Review of Energy Management Strategies for Renewable Hybrid Energy Systems with Hydrogen Backup. Renew. Sustain. Energy Rev. 2018, 82, 126–155. [Google Scholar] [CrossRef]
  160. Ahmed, M.; Meegahapola, L.; Vahidnia, A.; Datta, M. Stability and Control Aspects of Microgrid Architectures–A Comprehensive Review. IEEE Access 2020, 8, 144730–144766. [Google Scholar] [CrossRef]
  161. Sitharthan, R.; Karthikeyan, M.; Sundar, D.S.; Rajasekaran, S. Adaptive Hybrid Intelligent MPPT Controller to Approximate Effectual Wind Speed and Optimal Rotor Speed of Variable Speed Wind Turbine. ISA Trans. 2020, 96, 479–489. [Google Scholar] [CrossRef]
  162. Gil-González, W.; Montoya, O.D.; Garces, A. Direct Power Control for VSC-HVDC Systems: An Application of the Global Tracking Passivity-Based PI Approach. Int. J. Electr. Power Energy Syst. 2019, 110, 588–597. [Google Scholar] [CrossRef]
  163. Colombo, L.; Corradini, M.L.; Ippoliti, G.; Orlando, G. Pitch Angle Control of a Wind Turbine Operating above the Rated Wind Speed: A Sliding Mode Control Approach. ISA Trans. 2020, 96, 95–102. [Google Scholar] [CrossRef] [PubMed]
  164. Mirza, A.F.; Ling, Q.; Javed, M.Y.; Mansoor, M. Novel MPPT Techniques for Photovoltaic Systems under Uniform Irradiance and Partial Shading. Sol. Energy 2019, 184, 628–648. [Google Scholar] [CrossRef]
  165. Wang, K.; Qi, X.; Liu, H. A Comparison of Day-Ahead Photovoltaic Power Forecasting Models Based on Deep Learning Neural Network. Appl. Energy 2019, 251, 113315. [Google Scholar] [CrossRef]
  166. BADOUD, A.E. MPPT Controller for PV Array under Partially Shaded Condition. Alger. J. Renew. Energy Sustain. Dev. 2019, 1, 99–111. [Google Scholar] [CrossRef]
  167. Haseltalab, A.; Botto, M.A.; Negenborn, R.R. Model Predictive DC Voltage Control for All-Electric Ships. Control. Eng. Pract. 2019, 90, 133–147. [Google Scholar] [CrossRef]
  168. Jeong, Y.-S.; Baek, E.-R.; Jeon, B.-G.; Chang, S.-J.; Park, D.-U. Seismic Performance of Emergency Diesel Generator for High Frequency Motions. Nucl. Eng. Technol. 2019, 51, 1470–1476. [Google Scholar] [CrossRef]
  169. Mehrjerdi, H.; Hemmati, R.; Farrokhi, E. Nonlinear Stochastic Modeling for Optimal Dispatch of Distributed Energy Resources in Active Distribution Grids Including Reactive Power. Simul. Model. Pract. Theory 2019, 94, 1–13. [Google Scholar] [CrossRef]
  170. Panasetsky, D.; Sidorov, D.; Li, Y.; Ouyang, L.; Xiong, J.; He, L. Centralized Emergency Control for Multi-Terminal VSC-Based Shipboard Power Systems. Int. J. Electr. Power Energy Syst. 2019, 104, 205–214. [Google Scholar] [CrossRef]
  171. Hashemi, M.; Zarif, M.H. A Novel Two-Stage Distributed Structure for Reactive Power Control. Eng. Sci. Technol. Int. J. 2020, 23, 168–188. [Google Scholar] [CrossRef]
  172. Jaladi, K.K.; Sandhu, K.S. Real-Time Simulator Based Hybrid Control of DFIG-WES. ISA Trans. 2019, 93, 325–340. [Google Scholar] [CrossRef]
  173. Rashid, K.; Safdarnejad, S.M.; Powell, K.M. Dynamic Simulation, Control, and Performance Evaluation of a Synergistic Solar and Natural Gas Hybrid Power Plant. Energy Convers. Manag. 2019, 179, 270–285. [Google Scholar] [CrossRef]
  174. Wakui, T.; Sawada, K.; Yokoyama, R.; Aki, H. Predictive Management for Energy Supply Networks Using Photovoltaics, Heat Pumps, and Battery by Two-Stage Stochastic Programming and Rule-Based Control. Energy 2019, 179, 1302–1319. [Google Scholar] [CrossRef]
  175. Ghiasi, M. Detailed Study, Multi-Objective Optimization, and Design of an AC-DC Smart Microgrid with Hybrid Renewable Energy Resources. Energy 2019, 169, 496–507. [Google Scholar] [CrossRef]
  176. Abedini, M.; Mahmodi, E.; Mousavi, M.; Chaharmahali, I. A Novel Fuzzy PI Controller for Improving Autonomous Network by Considering Uncertainty. Sustain. Energy, Grids Networks 2019, 18, 100200. [Google Scholar] [CrossRef]
  177. Fathy, A.; Kassem, A.M. Antlion Optimizer-ANFIS Load Frequency Control for Multi-Interconnected Plants Comprising Photovoltaic and Wind Turbine. ISA Trans. 2019, 87, 282–296. [Google Scholar] [CrossRef] [PubMed]
  178. Lingamuthu, R.; Mariappan, R. Power Flow Control of Grid Connected Hybrid Renewable Energy System Using Hybrid Controller with Pumped Storage. Int. J. Hydrogen Energy 2019, 44, 3790–3802. [Google Scholar] [CrossRef]
  179. Mahesh, A.; Sandhu, K.S. Hybrid Wind/Photovoltaic Energy System Developments: Critical Review and Findings. Renew. Sustain. Energy Rev. 2015, 52, 1135–1147. [Google Scholar] [CrossRef]
  180. Al Busaidi, A.S.; Kazem, H.A.; Al-Badi, A.H.; Farooq Khan, M. A Review of Optimum Sizing of Hybrid PV–Wind Renewable Energy Systems in Oman. Renew. Sustain. Energy Rev. 2016, 53, 185–193. [Google Scholar] [CrossRef]
  181. Shufian, A.; Mohammad, N. Modeling and Analysis of Cost-Effective Energy Management for Integrated Microgrids. Clean. Eng. Technol. 2022, 8, 100508. [Google Scholar] [CrossRef]
  182. Rabe, M.; Bilan, Y.; Widera, K.; Vasa, L. Application of the Linear Programming Method in the Construction of a Mathematical Model of Optimization Distributed Energy. Energies 2022, 15, 1872. [Google Scholar] [CrossRef]
  183. Sigalo, M.B.; Pillai, A.C.; Das, S.; Abusara, M. An Energy Management System for the Control of Battery Storage in a Grid-Connected Microgrid Using Mixed Integer Linear Programming. Energies 2021, 14, 6212. [Google Scholar] [CrossRef]
  184. Ajiboye, A.A.; Popoola, S.I.; Atayero, A.A. Hybrid Renewable Energy Systems: Opportunities and Challenges in Sub-Saharan Africa. Proc. Int. Conf. Ind. Eng. Oper. Manag. 2018, 2018, 1110–1116. [Google Scholar]
  185. Negi, S.; Mathew, L. Hybrid Renewable Energy System: A Review. Int. J. Electron. Electr. Eng. 2014, 7, 535–542. [Google Scholar]
  186. Markard, J.; Truffer, B. Innovation Processes in Large Technical Systems: Market Liberalization as a Driver for Radical Change? Res. Policy 2006, 35, 609–625. [Google Scholar] [CrossRef]
  187. Wyman, O. Auctions as a Potential Mechanism to Accelerate Green Mini-Grids in Africa; Oliver Wyman: New York, NY, USA, 2017. [Google Scholar]
  188. Tenenbaum, B.; Greacen, C.; Vaghela, D. Mini-Grids and Arrival of the Main Grid; World Bank: Washington, DC, USA, 2018. [Google Scholar]
  189. Milis, K.; Peremans, H.; Van Passel, S. The Impact of Policy on Microgrid Economics: A Review. Renew. Sustain. Energy Rev. 2018, 81, 3111–3119. [Google Scholar] [CrossRef] [Green Version]
  190. Sen, S.; Ganguly, S. Opportunities, Barriers and Issues with Renewable Energy Development–A Discussion. Renew. Sustain. Energy Rev. 2017, 69, 1170–1181. [Google Scholar] [CrossRef]
  191. Mustapa, S.I.; Peng, L.Y.; Hashim, A.H. Issues and Challenges of Renewable Energy Development: A Malaysian Experience. In Proceedings of the International Conference on Energy and Sustainable Development: Issues and Strategies (ESD 2010), Chiang Mai, Thailand, 2–4 June 2010; pp. 1–6. [Google Scholar]
  192. Baurzhan, S.; Jenkins, G.P. Off-Grid Solar PV: Is It an Affordable or Appropriate Solution for Rural Electrification in Sub-Saharan African Countries? Renew. Sustain. Energy Rev. 2016, 60, 1405–1418. [Google Scholar] [CrossRef]
  193. Ansari, M.F.; Kharb, R.K.; Luthra, S.; Shimmi, S.L.; Chatterji, S. Analysis of Barriers to Implement Solar Power Installations in India Using Interpretive Structural Modeling Technique. Renew. Sustain. Energy Rev. 2013, 27, 163–174. [Google Scholar] [CrossRef]
  194. Luthra, S.; Kumar, S.; Garg, D.; Haleem, A. Barriers to Renewable/Sustainable Energy Technologies Adoption: Indian Perspective. Renew. Sustain. Energy Rev. 2015, 41, 762–776. [Google Scholar] [CrossRef]
  195. Hynes, S.; Hanley, N. Preservation versus Development on Irish Rivers: Whitewater Kayaking and Hydro-Power in Ireland. Land Use Policy 2006, 23, 170–180. [Google Scholar] [CrossRef]
  196. Ghimire, L.P.; Kim, Y. An Analysis on Barriers to Renewable Energy Development in the Context of Nepal Using AHP. Renew. Energy 2018, 129, 446–456. [Google Scholar] [CrossRef]
Sustainability 14 16814 g001 550
Figure 1. HRES Power Capacity for the years 2000–2021.
Figure 1. HRES Power Capacity for the years 2000–2021.
Sustainability 14 16814 g001
Sustainability 14 16814 g002 550
Figure 2. Hybrid Energy Power Supply (HEPS).
Figure 2. Hybrid Energy Power Supply (HEPS).
Sustainability 14 16814 g002
Sustainability 14 16814 g003 550

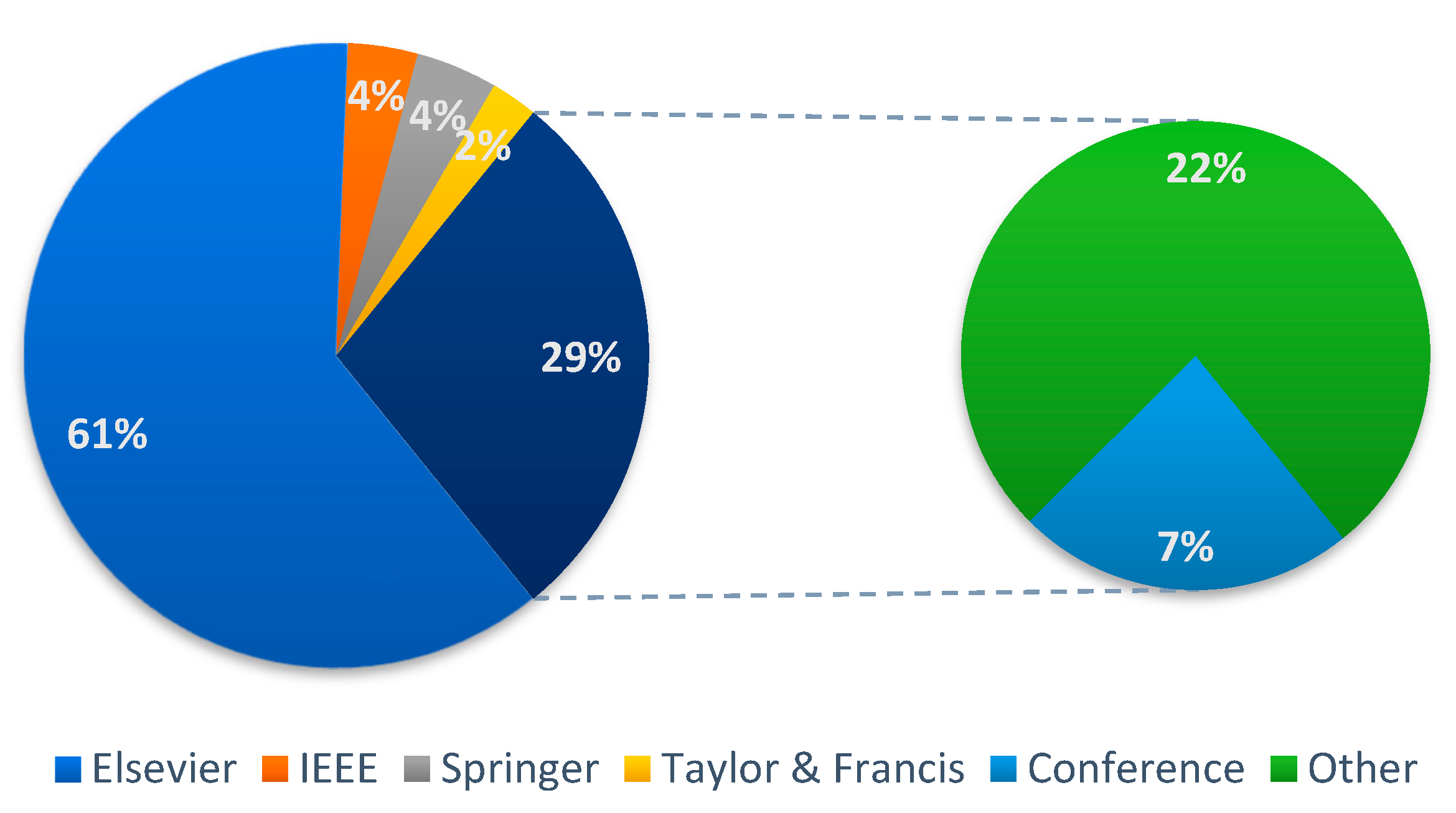

Figure 3. The number of papers, based on the publisher, in terms of percentage.
Figure 3. The number of papers, based on the publisher, in terms of percentage.
Sustainability 14 16814 g003
Sustainability 14 16814 g004 550
Figure 4. Hybrid system sizing techniques/methods.
Figure 4. Hybrid system sizing techniques/methods.
Sustainability 14 16814 g004
Sustainability 14 16814 g005 550
Figure 5. Hybrid system optimization methods.
Figure 5. Hybrid system optimization methods.
Sustainability 14 16814 g005
Sustainability 14 16814 g006 550
Figure 6. HRES with different sources.
Figure 6. HRES with different sources.
Sustainability 14 16814 g006
Sustainability 14 16814 g007 550
Figure 7. Pie chart for optimization techniques/software used in HES (PV_Wind_Other energy sources) in 2021 and 2022.
Figure 7. Pie chart for optimization techniques/software used in HES (PV_Wind_Other energy sources) in 2021 and 2022.
Sustainability 14 16814 g007
Sustainability 14 16814 g008 550
Figure 8. Pie chart for optimization techniques/software used in HES (PV_Other energy sources) in 2021 and 2022.
Figure 8. Pie chart for optimization techniques/software used in HES (PV_Other energy sources) in 2021 and 2022.
Sustainability 14 16814 g008
Sustainability 14 16814 g009 550
Figure 9. Pie chart for optimization techniques/software for HES (Wind_Other energy sources) in 2021 and 2022.
Figure 9. Pie chart for optimization techniques/software for HES (Wind_Other energy sources) in 2021 and 2022.
Sustainability 14 16814 g009
Sustainability 14 16814 g010 550
Figure 10. Hybrid system control techniques.
Figure 10. Hybrid system control techniques.
Sustainability 14 16814 g010
Sustainability 14 16814 g011 550
Figure 11. Comparison of the various control techniques.
Figure 11. Comparison of the various control techniques.
Sustainability 14 16814 g011
Sustainability 14 16814 g012 550
Figure 12. Intelligent energy flow management.
Figure 12. Intelligent energy flow management.
Sustainability 14 16814 g012
Sustainability 14 16814 g013 550
Figure 13. Hybrid system management methods.
Figure 13. Hybrid system management methods.
Sustainability 14 16814 g013
Sustainability 14 16814 g014 550
Figure 14. Energy Management Approaches used in HRES.
Figure 14. Energy Management Approaches used in HRES.
Sustainability 14 16814 g014
Sustainability 14 16814 g015 550
Figure 15. Benefits of EMS.
Figure 15. Benefits of EMS.
Sustainability 14 16814 g015
Sustainability 14 16814 g016 550
Figure 16. Barriers/Challenges in adopting HRES.
Figure 16. Barriers/Challenges in adopting HRES.
Sustainability 14 16814 g016
Table
Table 1. Sizing software for input data.
Table 1. Sizing software for input data.
S. No.Name of the SoftwareInput Data
Load RequirementDetails of SuppliesDetails of ComponentConstraintsSystem ControlData of EmissionEconomic DetailsFinancial DetailsProduct DatabaseProject Database
1.HOMER✓✓✓✓✓✓----
2.iHOGA-✓✓✓--✓---
3.Hybrid2✓✓✓----✓--
4.RETScreen-✓------✓✓
5.TRNSYS-✓--------
6.PV SOL-✓✓✓---✓--
7.PVSyst-✓-✓--✓--✓
8.INSEL-✓--------
9.iGRHYSO-✓----✓-✓-
10.Hybrid✓----✓----
11.RAPSIM✓✓--------
12.SOMES✓✓--------
13.SOLSTOR--✓-------
14.Hysim✓---------
15.Hybsim✓✓----✓---
16.IPSYS✓---------
17.Hysys✓---------
18.Solar GIS-✓✓-------
19.Dymola/Modelica✓-----✓✓--
20.ARES✓---------
21.SOLsim-✓----✓---
22.Hybrid Designer-✓--------
‘✓’ represents input data for sizing software.
Table
Table 2. Sizing software for output data.
Table 2. Sizing software for output data.
S. No.Name of the SoftwareOutput Data
Optimal SizingEvaluation of Technological AspectsEnvironmental ReviewFinancial AssessmentMulti-Objective OptimizationLife Span DischargeProbabilistic EvaluationSensitive Assay with Risk EvaluationElectrical as Well as Thermal Power System Dynamical Modeling Behavior
1.HOMER✓✓✓✓-----
2.iHOGA✓--✓✓✓✓--
3.Hybrid2✓✓✓✓-----
4.RETScreen-✓✓✓---✓-
5.TRNSYS--------✓
6.PV SOL---✓-----
7.PVSyst✓--✓----✓
8.INSEL--✓-----✓
9.iGRHYSO-✓------✓
10.Hybrid-✓✓------
11.RAPSIM-✓-------
12.SOMES-✓-✓-----
13.SOLSTOR---✓-----
14.Hysim---✓-----
15.Hybsim---✓-----
16.IPSYS--------✓
17.Hysys✓--------
18.Solar GIS--✓✓---✓-
19.Dymola/Modelica---✓-----
20.ARES-✓-------
21.SOLsim-✓-------
22.Hybrid Designer-✓-------
‘✓’ represents output data for sizing software.
Table
Table 3. Detailed overview of various optimization techniques used in HRESs (PV_Wind_Others).
Table 3. Detailed overview of various optimization techniques used in HRESs (PV_Wind_Others).
Ref.HRES (PV + Wind + Other)Optimization Technique/SoftwareObjective FunctionOptimization Constraints
[63]WT_PV_BA_Electrolyzers_FCPSO, GAACCNPV, NWT, NBA, NEL, NFC, LPSP
[64]PV_Wind_BAAEFACSLSENSP, NPV, NWT, NBA, SOC
[65]PV_WT_BAIGOATNPCLOEP, IR
[66]PV_WT_ESSICOACOESOC, cost of power
[67]Solar_Wind_FCHOMERqxLCOE, GHG emissionProject lifespan, actual yearly discount rate, inflation rate, liters of diesel fuel cost
[68]PV_Wind_FCTSALOLE, EENS, LOLP, ACLL, FOR-
[69]Solar Thermal_Wind_Wave_BESS SystemHF-PSOPollutant EmissionEquations of balanced power, maximum actual power production, and reactive power of the generator
[70]Oxy-fuel_PV_Wind_BAMATLAB/Simulink, Aspen PlusLCOECut-in, rated, cut-out speed of wind, SOC
[71]PV_Wind_BANSGA-IILCOE, LPSP-
[72]PV_WTs_ BAHOMERCOE, NPC, SV, IRR, ROI, Simple Payback, TAC, Emissions Reduction-
[73]PV/(WT)_DG_lead-acid BA-based Energy StorageHybrid two-stage PSO-DELCOE, RF, LPSP, HDI, JC, EMCInstantaneous output power, Power generated by wind, Generator electrical output, Load demand, Power losses, Dump energy
[74]PV_Wind_generatorsHOMERNPC, LCOE, IRR-
[75]Solar_Wind_Pumped storageSSRLCOESCRF, system power reserve
[76]PV_WT_ BA storage_ split Stirling enginesNSGA-IILCOE, LPSP, Dumped powerNPV, NWT, type of WTs, the capacity of the Stirling Engine (ST) + Organic Rankine Cycle (ORC) back-up, NBA and type of BA
[77]Solar PV_ WTs_ Lithium-ion (Li-ion) batteries_ DGsIsland System LCOEmin Algorithm (ISLA)NPC-
[78]WT_ FC_ PV_Plug-in Hybrid Electric Vehicles (PHEVs)_Liquid Air Energy Storage (LAES) combined with high-temperature Thermal Energy Storage (HTES)DMRFOOC, EmissionsSystem power balance, Power generation constraints
[79]Solar air collector_ solar chimney_thermoelectric generators_ Savonius WTGATotal electrical powerNPV
[80]Wind_PVs_ FC_ hybrid ESS including BA and supercapacitorFuzzy-based MPPT algorithmChattering observed in conventional Sliding Mode Control (SMC)SOC
[81]PV_BA_Wind_CSPElectric System Cascade Extended Analysis MethodLPSP, LCC, LCOE-
[82]PV_Wind_BAMPSO, GATotal economic costSOC, LPSP
[83]PV_Wind_FC_DE_BA_hydrogen storage systemMO- Quantum PSOLPSP, the annual investment cost of equipment, lifetime of HESNWT, APV, NFC, NBA, stored energy of the energy storage unit
[84]Wind_PV_ Concentrated Solar Power (CSP) plant_ electric heater_BANSGA-IILPSP, LCOE-
[85]PV_WT_BA StorageRoulette algorithmTotal operation and environmental costsPower for the energy interface, ramp power for the energy interface
[86]PV_Wind_Diesel_BAPSOComponent sizes, COENPV, NDG, NWT, NBA, LPSP
[87]PV_Wind_BAMA-BFPSOLCOESOC, Reliability Index LIR, Component Sizing, Power Balance and Power Flow through BSS
[88]Wind_PVGA, TOPSISNPC-
[89]PV_Wind_BANSGA-IIACS, LPSP, TETLPSP and cost with Net Zero Energy (NZE) balance
[90]PV_Wind Generation _distributed
Electric Vehicles (EVs)		WHOISEScaling factors, Proportional gain, integral gain, Integral order of FOPI controller, Tilt gain, Fractional order of tilt integral gain, Derivative gain
[91]PV_Wind_BASolver, Minitab and StatisticaLCOE, diversified energy production density, NPV-
[92]PV_Wind_DGHOMERLCOE, NPC, COE-
[93]PV_Wind_DG_BA_GridHOMERNPC, LCOE-
[94]PV_Wind_DGHOMERNPC, LCOE-
[95]PV_Wind_BiomassGWO, GA, SALCOE, TNPCAPV, AWT, hourly power of BG, LPSP
[96]PV_Wind_BAHOMERCOECapacity shortage constraints, operating reserve constraints
[97]PV_Wind_ BAPSO, GALCC-
[98]PV_Wind_BAAdaptive-Local-Attractor-based Quantum-behaved PSOLCOE, LCA, LPSPCharging power and energy, Grid, minimum and maximum power and energy
[99]PV_WindPSOLCOECable rating, APV, and rotor diameter
[100]PV_Wind_Biomass_BAMOACSAnnual LCC, LPSPSOC, NWT, NPV, and NBG, grid power during the stated period, dump power
[101]PV_Wind_BAHOMERLCOE, CRF, NPC, IRR-
[102]PV_Wind_BANSGA-IILCOE, LPSP, Equivalent CO2 (CO2-eq) life cycle emissionLife Cycle Emission (LCE), the available energy in the BA, charging and discharging capacity of BA
[103]PV_Wind_Diesel_BAEOLCOE, NPCAPV, AWT, RF
[104]PV_Wind_CSP_BA_NSGA-IILCOE, LPSPCharging and discharging of BA.
[105]PV_Wind_BAGA and ABCLCOE, LPSP-
[106]Solar_Wind_BAHOMERNPC, LCOESOC
[107]PV_Wind_FCHFA/HSLCOELoad demand, hydrogen energy storage capacity, LPSP
[108]PV_Wind_Biomass_BAInvasive Weed Optimization Backtracking Search Algorithm ((IWO/BSA))LCOEAPV, AWT, LPSP, Availability index, Autonomy daily of the BA
[109]PV_Wind_EVPSO, ABCLCOE, LPSPSOC, charging rate, LPSP, NPV, NWT, grid purchase, sale capacities
[110]Hybrid Wind Bio BA_Solar PV System-COE, NPCBA bank energy, speed of the wind, LPSP
[111]PV_WTs_DGs, BESS_Li-ion, Absorbent Glass Mat (AGM) technologiesHOMER, NSGA-IIRF, Cost of potable water, CO2 emissions-
Table
Table 4. Detailed overview of various optimization techniques used in HRESs (PV_Others).
Table 4. Detailed overview of various optimization techniques used in HRESs (PV_Others).
Ref.HRES (PV+ Other)Optimization Technique/SoftwareObjective Function(s)Optimization Constraints
[112]Solar PV_Biogas_BAHOMERLCOEMaximum annual capacity shortage, operation reserve (surplus operating capacity)
[113]PV_BA_hydrogenNSGA-IIACS, LPSP, PEWPSOC, State of Health (SOH), Current hydrogen level, Charging or discharging power of the BESS, output power of FC, Input power of electrolyzer
[114]PV_energy storage_diesel_ reverse osmosis desalinationTSTNAC, LPS, LPSPSize of electric diesel power generator, NBA
[115]PV_Biomass_BA HOMERNPC, COE, OC, ICC, EG, RFBA charging and discharging, energy balance
[116]PV_BG_ Electrolyzer units_Hydrogen Tank units (HT)_ FC MOAEC, LPSP, Excess energyExcess energy
[117]PV_Biomass_Diesel_BAHOMER COE, NPCReturn of investment, IRR, payback period, and discounted payback
[118]PV_FC_BiomassHybrid Chaotic PSO and SMA (HC_PSO_SMA), HOMER Overall system costCost of the solar PV panel, BG, converter, electrolyzer, hydrogen tank, and FC
[119]PV_Biomass_Li-ion BAHOMER BA capacity, NPC, COE, CO2 emitted-
[120]PV_BA Energy Storage _ D-STATCOMMOAReal power lossBus voltage, branch current, active and reactive power balance, radial configuration
[121]PV_Diesel_BAPSOTNACLLSP
[122]PV_BG_BA systemRKACOE, LPSPNPV, NBA, NDG
[123]PV_FC_BARBA, DPOptimal energy management, cost of the system, long-term operation capacity of the systemSOC, output power of FC, and BA energy
[124]PV_Diesel_BAHOMERNPC, LCOE, CO2 reduction, RF enhancement, increase reliabilityPV capacity, DG Capacity, NBA, inverter capacity, SOC
[125]PV_FCDynamic Encoding AlgorithmOverall cost functionPower exchange between the solar cell and the FC
[126]PV_Air-to-Water Heat Pumps (AW-HPs) Water-to-Water HPs (WW-HPs) buffer tank_Borehole Thermal Energy Storage (BTES)GALCOE, and Heat Energy from District Heating, on-site energy productionAPV
[127]Grid_PV MATLAB, GALCOEPV modules, strings, component tilt angle, actual length of the southern side of the installation site
[128]PV_BA_HydroPSO, GALCOE-
[129]PV_Syngas_BAHOMERCOE, TNPC-
[130]PV generator_Pumped Storage System (PSS)_DGFPACOEPower drawn by the electric pump and turbine generated output power
[131]PV_FC_ Boiler units_ BA storageStochastic p-Robust Optimization (SPRO)Total costRelative regret
[132]PV_Biomass_ BAHOMER proTotal NPC-
[133]PV_Hydro_FC_Li-ionPolitical Optimizer (PO)LCOEActive and reactive power generated, Voltage magnitude
[134]PV_BA_GridPSOLCOESOC
[135]PV_FCAmended Water Strider Algorithm (AWSA)LCOE, TACLPSP, NPV, Electrolyzer efficiency
[136]PVHOMER ProLCOE-
[137]PV_BiogasWhale optimization algorithmLCOE-
Table
Table 5. Detailed overview of various optimization techniques used in HRESs (Wind_Others).
Table 5. Detailed overview of various optimization techniques used in HRESs (Wind_Others).
Ref.HRES (Wind_Other)Optimization Technique/SoftwareObjective Function(s)Optimization Constraints
[138]Wind integrated Hydrothermal System (WHTS)WCAFC Emission (FCE)Load balance, hydraulic continuity, generation limits, reservoir storage capacity, physical ramping capabilities
[139]Wind_Diesel_BA HOMERNPC, COE, Salvage Cost (SC)Power balance conditions
[140]Wind_OceanAIMMSLCOE, ACSWater produced, power demand by RO unit, Swept area of WT
[141]Wind_Hydro-thermal_power systemsPSOEnergy utilization, wind curtailment, coal costs, CO2 emissionsPower of the hydro unit, Total number of working hydro units, Number of hydro units used to replace thermal units
[142]Wind_ESS_Automatic Generation Control (AGC)PSOOverall revenue of the systemCharge and discharge power of ESS, SOC
[143]Wind_Wave Energy SystemOrca3D SoftwareLCOE-
[144]WT_Thermal units HCABCTotal Production Cost, EmissionsGeneration capacity, system loss, Ramp rate limits, and spinning reserve constraints
[145]Wind_HydrogenMCSLCOE-
[146]Geothermal_WindEnergPLAN simulation program with EES and MatlabLCOE, COE, energy and exergy efficiency-
[147]WindGALCOE, AEPWT rated power, WT rotor diameter and WT hub height
[148]WindWind Farmer software LCOE, NPV, IRR-
[149]WindGALCOENWT, WT cost, blade diameter, and capacity of the submarine cable
[150]WT_BAMPPT algorithmsLoad power demand, SOC-
[151]WindMOPSOLCOERadius of the rotor’s conductor, current densities in the field and stator windings
[152]Wind-LCOE-
[153]WTs_internal combustion engine_ adiabatic compressed air ESSBi-level optimization strategyTotal cost-
[154]Wind_BAButterfly PSO LCOE-
[155]WindHORIZON 2020 SHIPLYSLCOE-
[156]WindParallel updated PSOLCOELocal Buckling, Overall Stability, Load-Carrying Capacity, Geometry Constraint, and Maximum Top Displacement
[157]Wind_DG_FC_BA_ElectrolyzerHOMERGPC, LCOE-
Table
Table 6. Main characteristics of management methods.
Table 6. Main characteristics of management methods.
Management MethodsMain Characteristics
Design ConstraintsMain FeaturesAdvantage and Drawback
Technical objective strategyBA SOC, power balance, and storage system deteriorationBA short time, Flow chart algorithm, Algorithm to regulate power balanceIncreased longevity and performance with a medium level of complexity, running and servicing costs are not optimized.
Economic objective strategyThe cost function, BA SOC, and Power balancePower reference plus precedence, an algorithm to reduce costA complicated algorithm, higher operation and maintenance costs, and an un-optimized lifespan.
Techno-economic strategy objectiveThe cost function, BA SOC, and Power balancePower reference plus precedence, an algorithm to reduce costA complicated algorithm, higher operation and maintenance costs, and an un-optimized lifespan.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rathod, A.A.; Subramanian, B. Scrutiny of Hybrid Renewable Energy Systems for Control, Power Management, Optimization and Sizing: Challenges and Future Possibilities. Sustainability 2022, 14, 16814. https://doi.org/10.3390/su142416814

AMA Style

Rathod AA, Subramanian B. Scrutiny of Hybrid Renewable Energy Systems for Control, Power Management, Optimization and Sizing: Challenges and Future Possibilities. Sustainability. 2022; 14(24):16814. https://doi.org/10.3390/su142416814

Chicago/Turabian Style

Rathod, Asmita Ajay, and Balaji Subramanian. 2022. "Scrutiny of Hybrid Renewable Energy Systems for Control, Power Management, Optimization and Sizing: Challenges and Future Possibilities" Sustainability 14, no. 24: 16814. https://doi.org/10.3390/su142416814

APA Style

Rathod, A. A., & Subramanian, B. (2022). Scrutiny of Hybrid Renewable Energy Systems for Control, Power Management, Optimization and Sizing: Challenges and Future Possibilities. Sustainability, 14(24), 16814. https://doi.org/10.3390/su142416814

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
