# Slope Deformation Prediction Based on MT-InSAR and Fbprophet for Deep Excavation Section of South–North Water Transfer Project

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

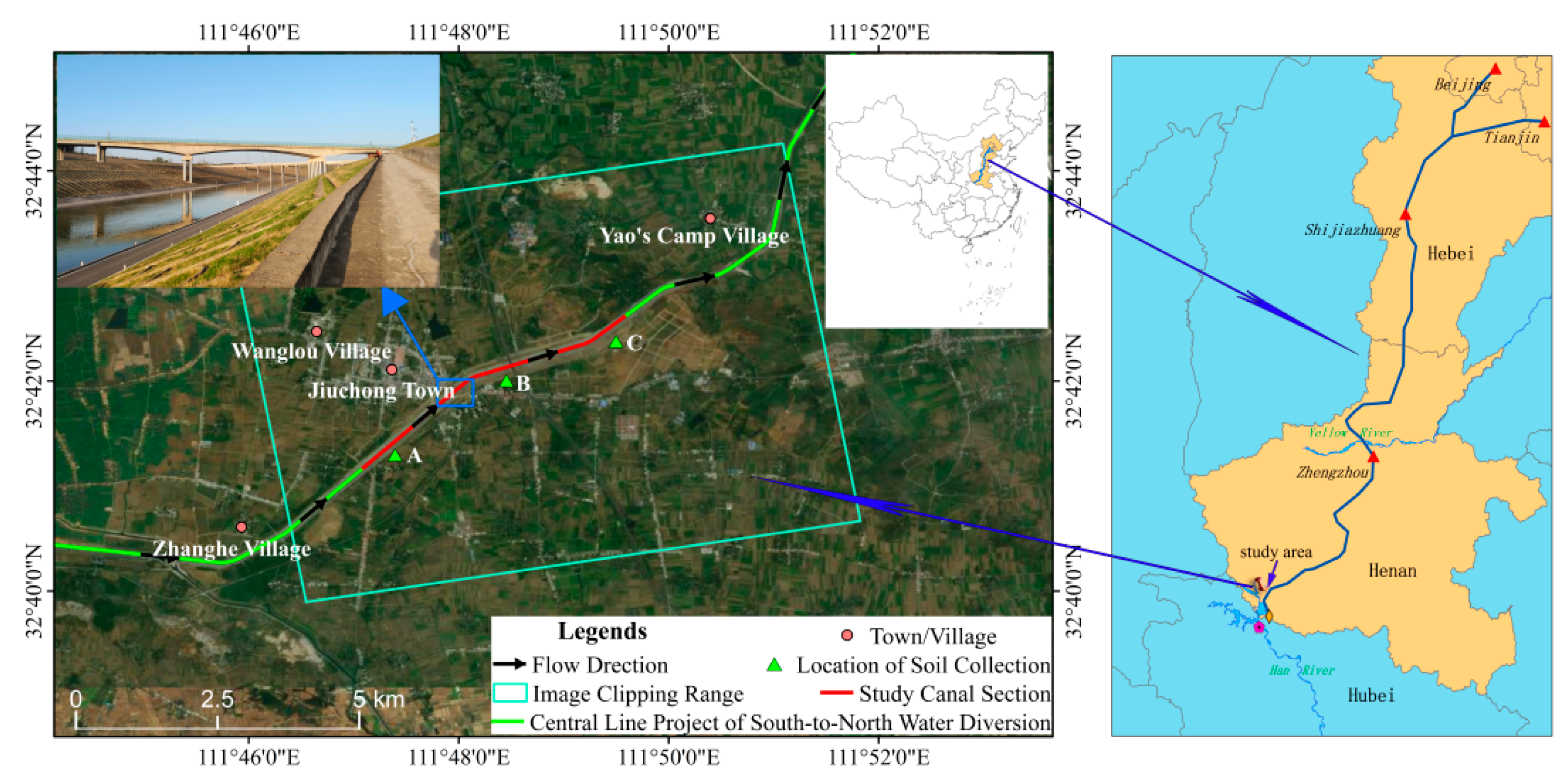

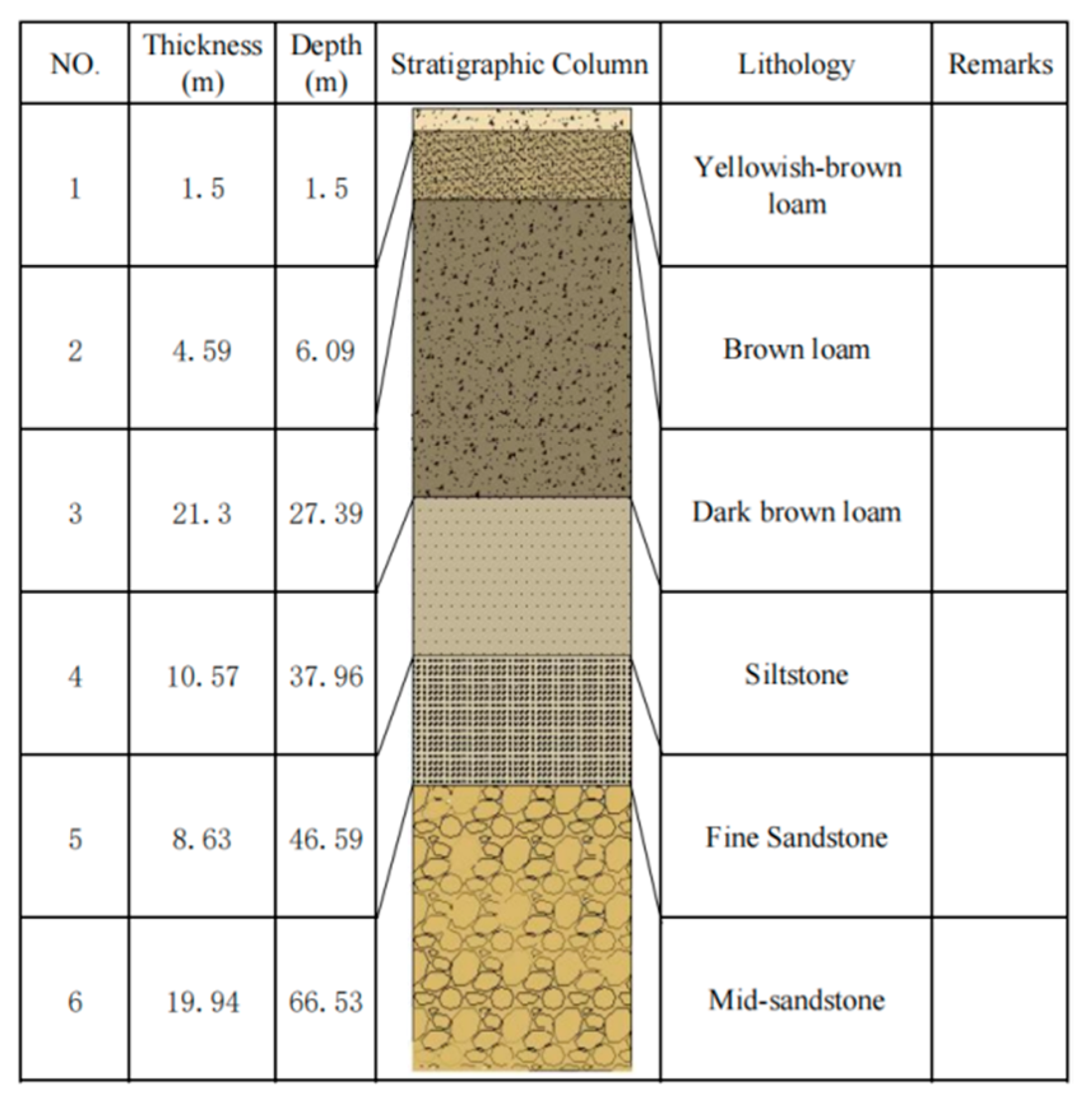

#### 2.1. Overview of the Study Area

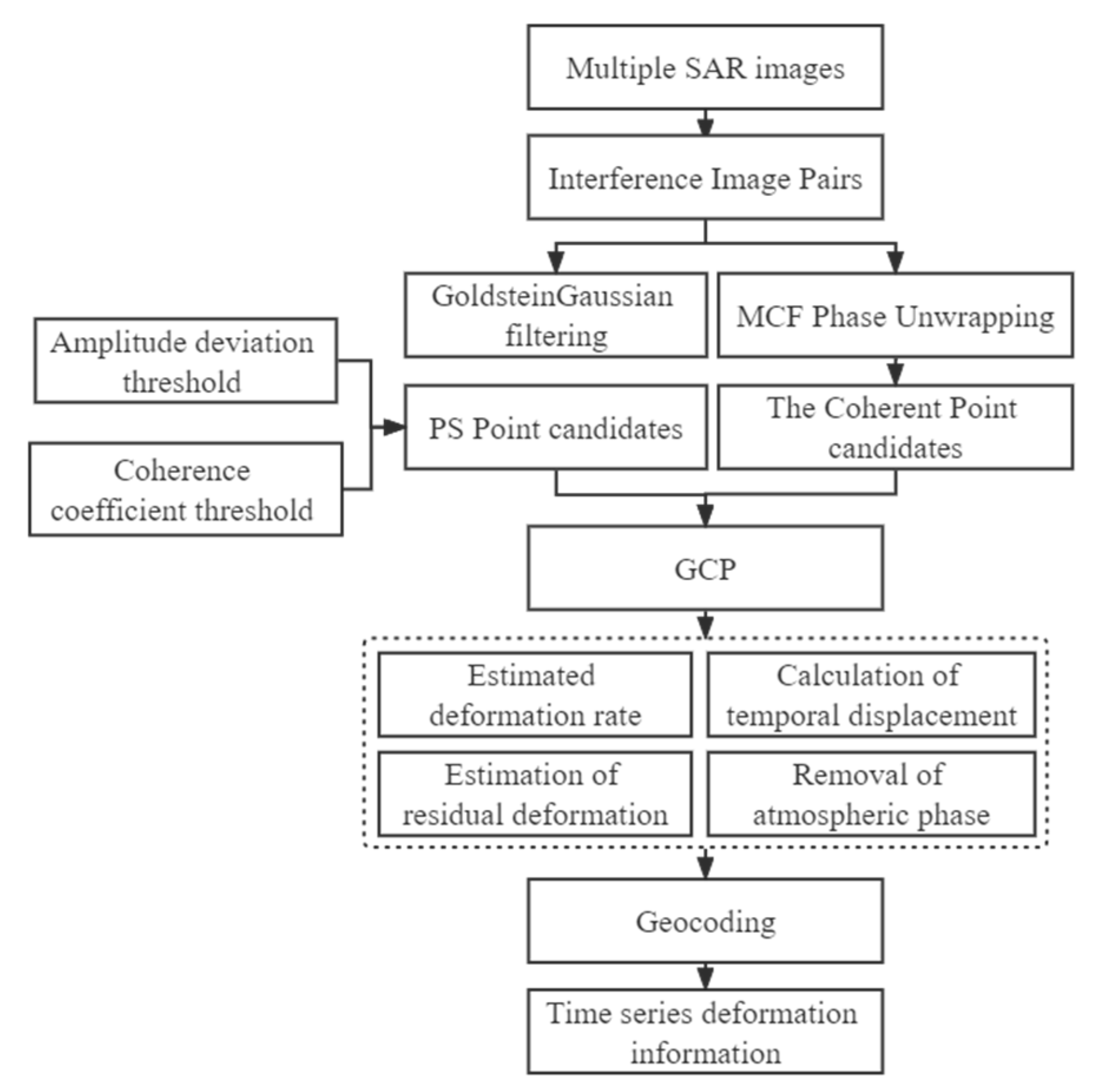

#### 2.2. Data Source

#### 2.3. Fbprophet Algorithm

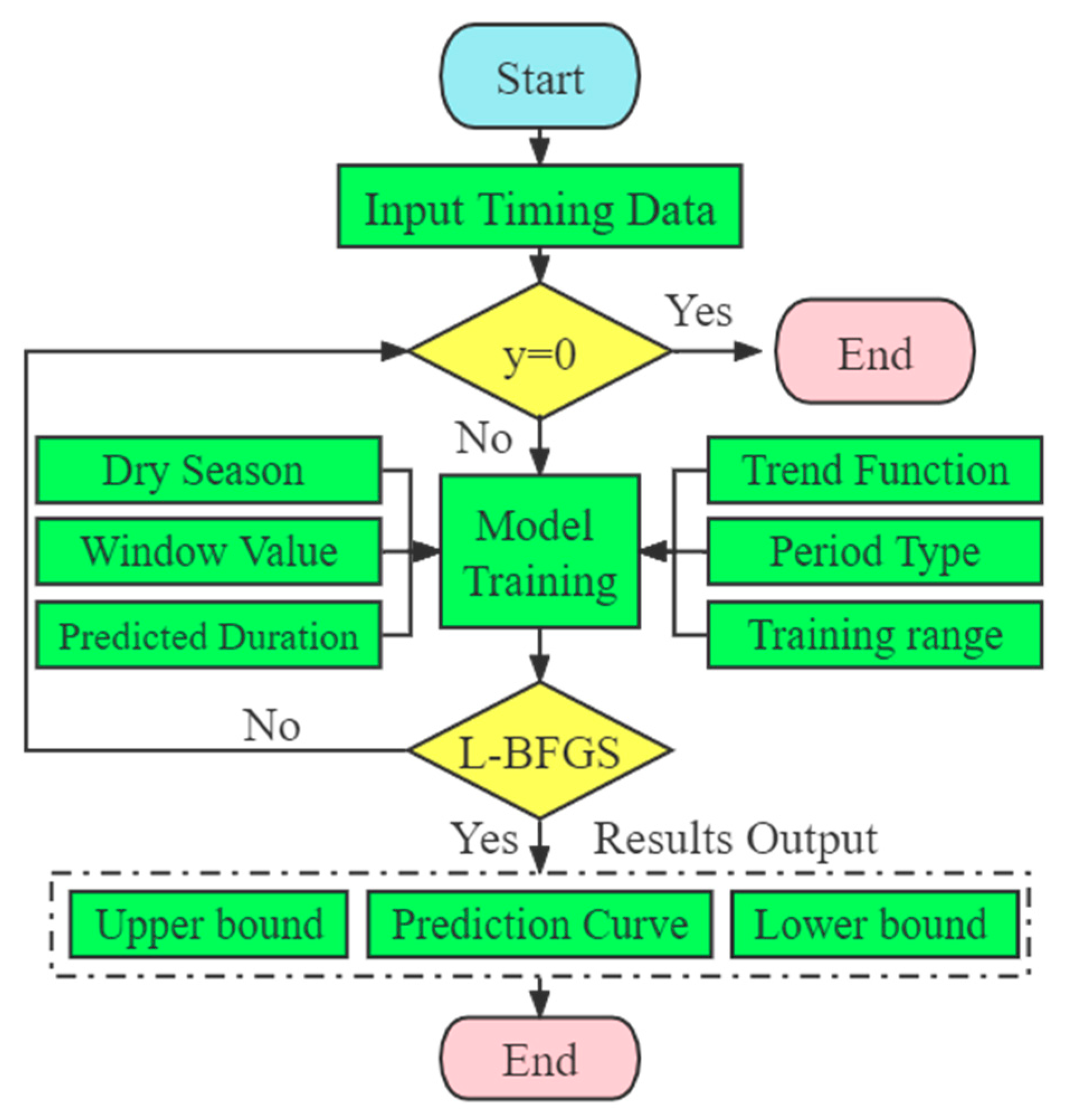

#### 2.4. Fbprophet Predicts Slope Deformation

## 3. Results

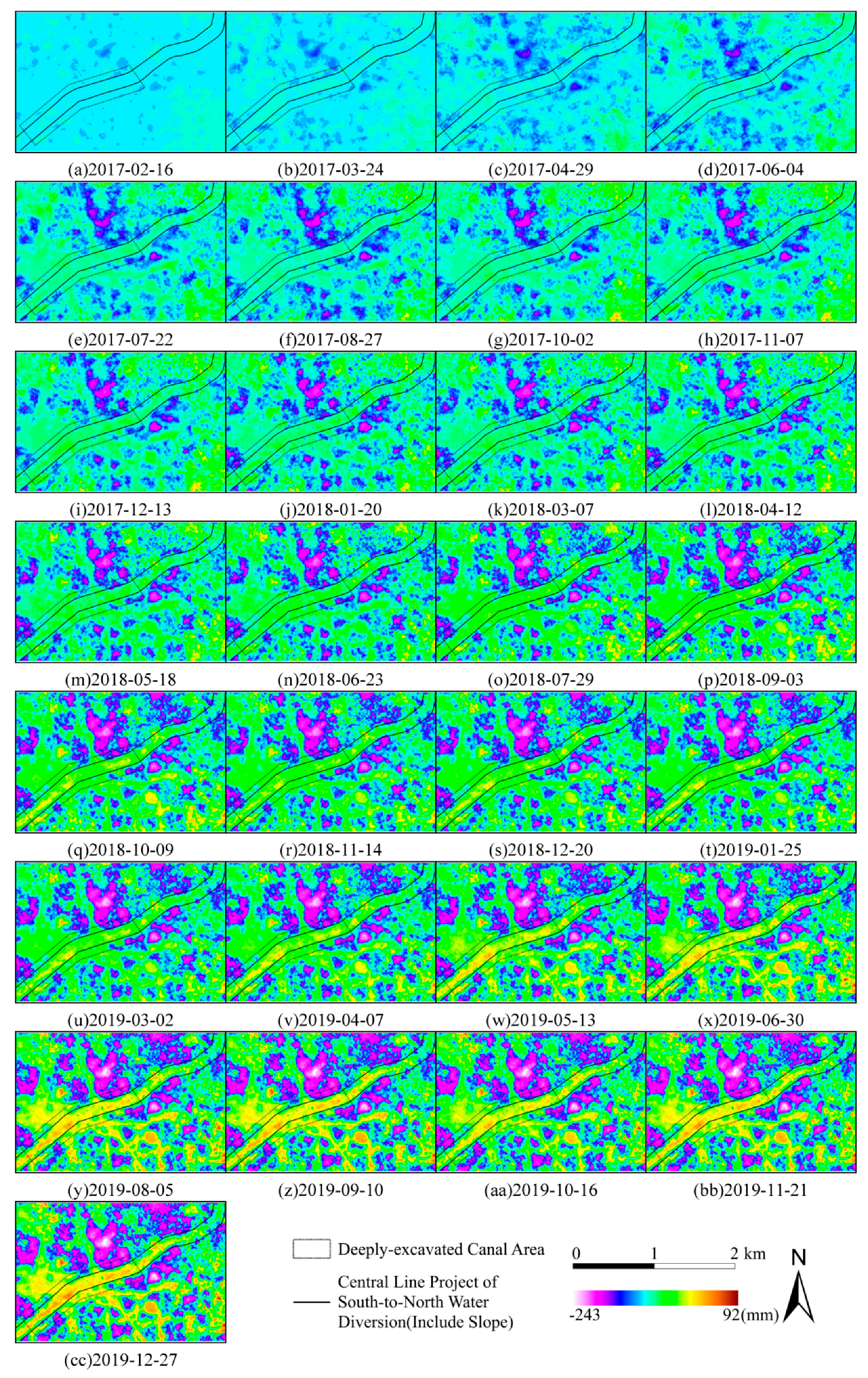

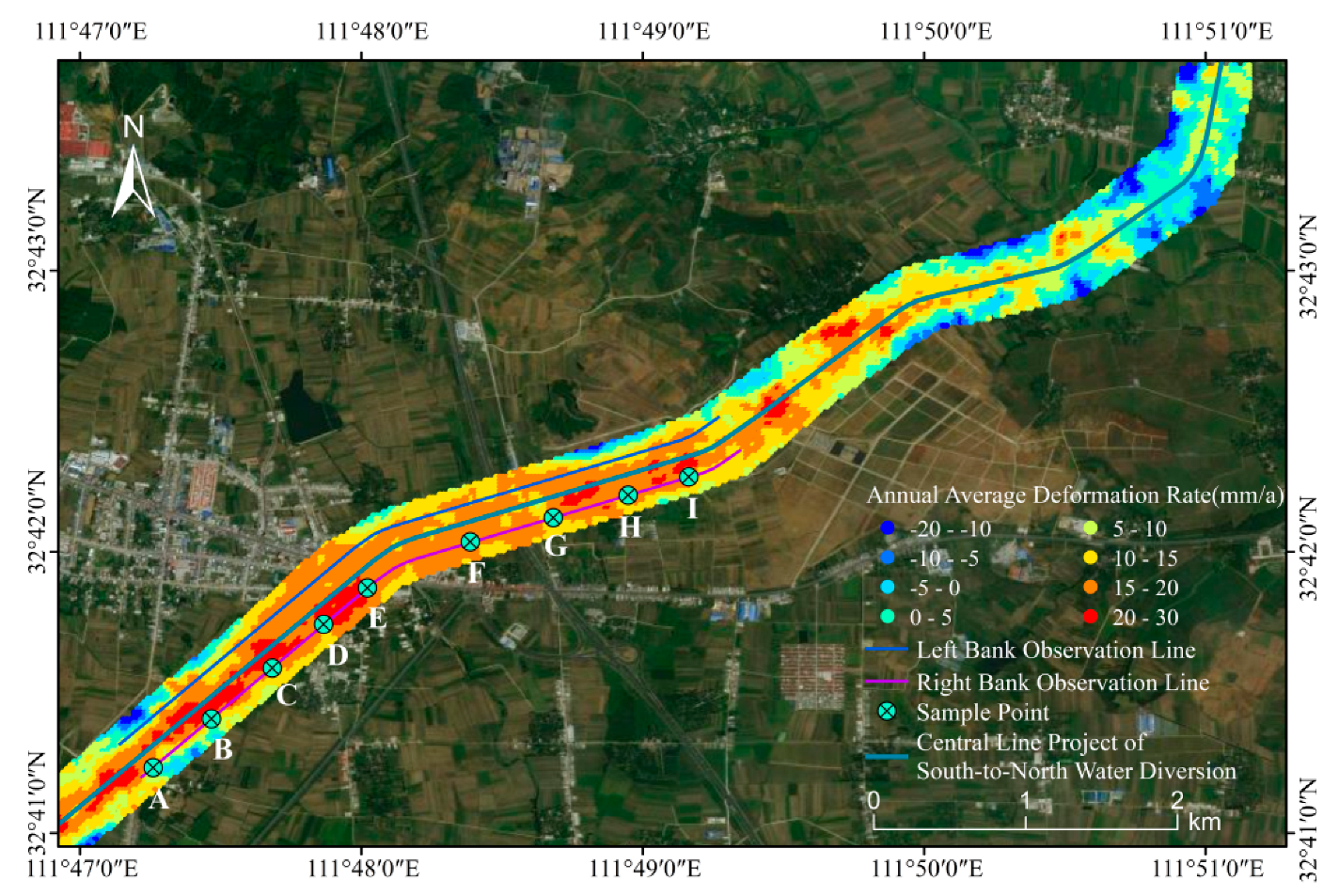

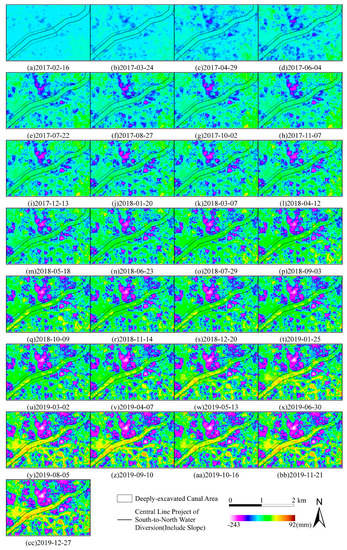

#### 3.1. Deformation Fields

- (1)
- The cross-sectional slope factor of the excavated slope is 2.5, and the soil on both sides produces extrusion pressure into the section under the action of gravity. When this force strikes on the slope surface, it splits into upward and horizontal directions, uplifting the slope of the channel.
- (2)
- Groundwater seepage and lateral penetration of rainfall recharge in the study area, swelling of the in situ soil beneath the canal structures after water absorption [25], also generating compressive forces into the cross-section, leading to the lifting of the channel slope.

#### 3.2. Predicted Results

- (1)
- The Figure 7a,d,g,i predicted values fluctuate widely, the predicted sudden change increment can reach about 10 mm in June–July 2020, and the probability of damage occurring at monitoring points of the A, D, G, and I drainage slopes are significantly higher than the monitoring points B, C, E, F, and G.
- (2)
- The deeper the excavation, the greater the slope uplift. Figure 7a,i show that near the end of the excavated section, the excavation depth at point A is 31.2 m, the accumulated monitoring value is 48 mm, and the predicted accumulated uplift is 56 mm; point I is 33.7 m deep, the accumulated monitoring value is 49 mm, and the predicted accumulated uplift is 62 mm. Figure 7b–h were excavated to a depth of about 45 m, and the monitoring accumulation and predicted values were all greater than those at points A and I. There was a strong correlation between the amount of slope uplift and the depth of excavation.
- (3)
- There are still seasonal fluctuations in the predicted results over the next year, but the overall growth trend remains the same. The maximum value of deformation is point C, with a predicted cumulative deformation of 73 mm, and the minimum value is point A, with a predicted cumulative deformation of 56 mm. Therefore, the deformation of the slope of the deep excavation section of the South–North Water Transfer Project shows an uneven phenomenon, and long-term deformation will damage the slope protection structure and pose a safety hazard.

## 4. Discussion

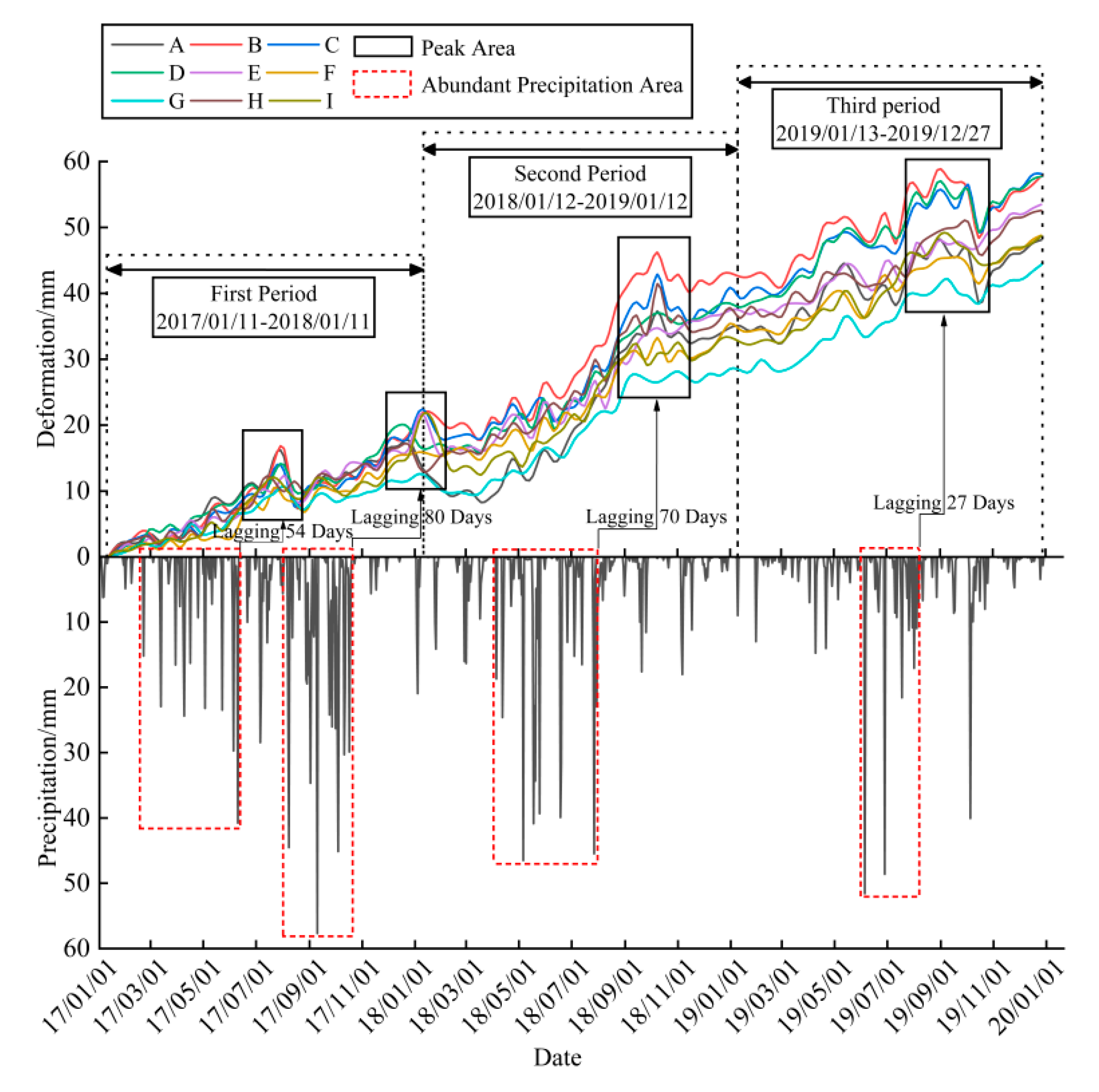

#### 4.1. Slope Deformation Characteristics

#### 4.2. Analysis of the Applicability of the Fbprophet

#### 4.3. Accuracy Evaluation

- (1)
- Reliability verification

- (2)
- Accuracy Assessment

#### 4.4. Comparison with Other Predictive Algorithms

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Webber, M.; Crow-Miller, B.; Rogers, S. The South-North water transfer project: Remaking the geography of China. Reg. Stud.
**2017**, 51, 370–382. [Google Scholar] [CrossRef] - Dai, Z.; Guo, J.; Luo, H.; Li, J.; Chen, S. Strength characteristics and slope stability analysis of expansive soil with filled fissures. Appl. Sci.
**2020**, 10, 4616. [Google Scholar] [CrossRef] - Dong, J.; Lai, S.; Wang, N.; Wang, Y.; Zhang, L.; Liao, M. Multi-scale deformation monitoring with sentinel-1 InSAR analyses along the middle route of the south-north water diversion project in China. Int. J. Appl. Earth Obs. Geoinf.
**2021**, 100, 102324. [Google Scholar] [CrossRef] - Yang, Z.; Lv, J.; Shi, W.; Zhang, Q.; Lu, Z.; Zhang, Y.; Ling, X. Model Test Study on Stability Factors of Expansive Soil Slopes with Different Initial Slope Ratios under Freeze-Thaw Conditions. Appl. Sci.
**2021**, 11, 8480. [Google Scholar] [CrossRef] - Ijaz, N.; Ye, W.; Rehman, Z.U.; Dai, F.; Ijaz, Z. Numerical study on stability of lignosulphonate-based stabilized surficial layer of unsaturated expansive soil slope considering hydro-mechanical effect. Transp. Geotech.
**2022**, 32, 100697. [Google Scholar] [CrossRef] - Ikeagwuani, C.C.; Nwonu, D.C. Influence of Dilatancy Behavior on the Numerical Modeling and Prediction of Slope Stability of Stabilized Expansive Soil Slope. Arab. J. Sci. Eng.
**2021**, 46, 11387–11413. [Google Scholar] [CrossRef] - Zhang, W.; Xiao, R.; Shi, B.; Zhu, H.-H.; Sun, Y.-J. Forecasting slope deformation field using correlated grey model updated with time correction factor and background value optimization. Eng. Geol.
**2019**, 260, 105215. [Google Scholar] [CrossRef] - Yang, D.; Gu, C.; Zhu, Y.; Dai, B.; Zhang, K.; Zhang, Z.; Li, B. A concrete dam deformation prediction method based on LSTM with attention mechanism. IEEE Access
**2020**, 8, 185177–185186. [Google Scholar] [CrossRef] - Liu, Z.-Q.; Guo, D.; Lacasse, S.; Li, J.-H.; Yang, B.-B.; Choi, J.-C. Algorithms for intelligent prediction of landslide displacements. J. Zhejiang Univ. Sci. A
**2020**, 21, 412–429. [Google Scholar] [CrossRef] - Zhang, D.; Xu, W.; Zhao, B. Time-series prediction of slope displacement based on COA-LSSVM model. Hydropower Energy Sci.
**2014**, 32, 105–108. (In Chinese) [Google Scholar] - Zhang, S.; Tan, Y. Deformation Prediction of Foundation Pit Based on Long Short-Term Memory Algorithm. Tunn. Constr.
**2022**, 42, 113–120. [Google Scholar] - Li, W.; Hao, X.; Bao, S.; Chen, Y.; Yunqing, T. A Multi-source Heterogeneous Data Fusion Method for Landslide Monitoring with Mutual Information and IPSO-LSTM Neural Network. Geomat. Inf. Sci. Wuhan Univ.
**2021**, 46, 1478–1488. [Google Scholar] [CrossRef] - Jiang, M.; Xu, L.; Zhang, K.; Ma, X. Recurrent Neural Network Prediction of Wind Speed Time Series Based on Seasonal Exponential Adjustment. Acta Energ. Sol. Sin.
**2022**, 43, 444–450. (In Chinese) [Google Scholar] [CrossRef] - Shi, Y.; Luan, Y.; Yu, S.; Guo, K. Prediction of Surface Subsidence Coefficient Based on PCA-GA-SVM Model. Min. Res. Dev.
**2022**, 42, 65–69. (In Chinese) [Google Scholar] [CrossRef] - Taylor, S.J.; Letham, B. Forecasting at scale. Am. Stat.
**2018**, 72, 37–45. [Google Scholar] [CrossRef] - Jha, B.K.; Pande, S. Time series forecasting model for supermarket sales using FB-prophet. In Proceedings of the 2021 5th International Conference on Computing Methodologies and Communication (ICCMC), Erode, India, 8–10 April 2021; pp. 547–554. [Google Scholar]
- Lim, J.Y.; Safer, U.; How, B.S.; Ifaei, P.; Yoo, C.K. Nationwide sustainable renewable energy and Power-to-X deployment planning in South Korea assisted with forecasting model. Appl. Energy
**2020**, 283, 116302. [Google Scholar] [CrossRef] - Li, Y.; Han, J.; Wang, Q.; Yang, M.; Zhao, J.; Li, X.; Li, X.L. Research on integrated energy supply priority scheduling based on Fbprophet load forecasting and customer satisfaction constraints. J. North China Electr. Power Univ.
**2021**, 48, 81–89. (In Chinese) [Google Scholar] [CrossRef] - Chikkakrishna, N.K.; Hardik, C.; Deepika, K.; Sparsha, N. Short-Term Traffic Prediction Using Sarima and FbPROPHET. In Proceedings of the 2019 IEEE 16th India Council International Conference (INDICON), Rajkot, India, 13–15 December 2019. [Google Scholar]
- Darapaneni, N.; Jain, P.; Khattar, R.; Chawla, M.; Vaish, R.; Paduri, A.R. Analysis and Prediction of COVID-19 Pandemic in India. In Proceedings of the 2020 2nd International Conference on Advances in Computing, Communication Control and Networking (ICACCCN), Greater Noida, India, 18–19 December 2020. [Google Scholar]
- Oo, Z.Z.; Sabai, P. Time Series Prediction Based on Facebook Prophet: A Case Study, Temperature Forecasting in Myintkyina. Int. J. Appl. Math. Electron. Comput.
**2020**, 8, 263–267. [Google Scholar] [CrossRef] - Guo, C.; Ge, Q.; Jiang, H.; Yao, G.; Hua, Q. Maximum power demand prediction using fbprophet with adaptive Kalman filtering. IEEE Access
**2020**, 8, 19236–19247. [Google Scholar] [CrossRef] - Liu, Y.; Feng, G.; Chin, K.-S.; Sun, S.; Wang, S. Daily tourism demand forecasting: The impact of complex seasonal patterns and holiday effects. Curr. Issues Tour.
**2022**, 1–20. [Google Scholar] [CrossRef] - Rankothge, W.H.; Gamage, N.D.U.; Dewwiman, H.G.H.; Gamage, T.C.T.; Uwanpriya, S.D.L.S.; Amarasinghe, D.A.H.M. Network Traffic Prediction for a Software Defined Network based Virtualized Network Functions Platform. In Proceedings of the 2021 6th IEEE International Conference on Recent Advances and Innovations in Engineering (ICRAIE), Vancouver, BC, Canada, 27–30 October 2021. [Google Scholar]
- Yao, H.; She, J.; Lu, Z.; Luo, X.; Xian, S.; Fang, R.; Chen, Z. Inhibition effect of swelling characteristics of expansive soil using cohesive non-swelling soil layer under unidirectional seepage. J. Rock Mech. Geotech. Eng.
**2020**, 12, 188–196. [Google Scholar] [CrossRef] - Quinlan, J.R. Simplifying decision trees. Int. J. Man-Mach. Stud.
**1987**, 27, 221–234. [Google Scholar] [CrossRef] [Green Version] - Hillmer, S.C.; Tiao, G.C. An ARIMA-model-based approach to seasonal adjustment. J. Am. Stat. Assoc.
**1982**, 77, 63–70. [Google Scholar] [CrossRef]

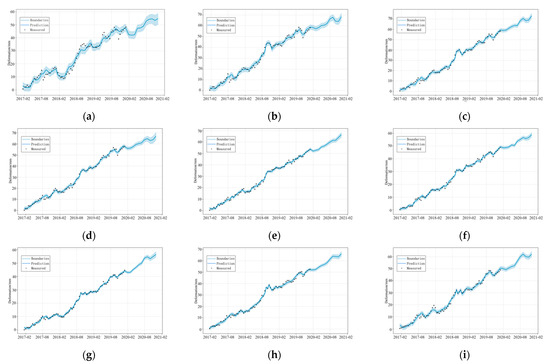

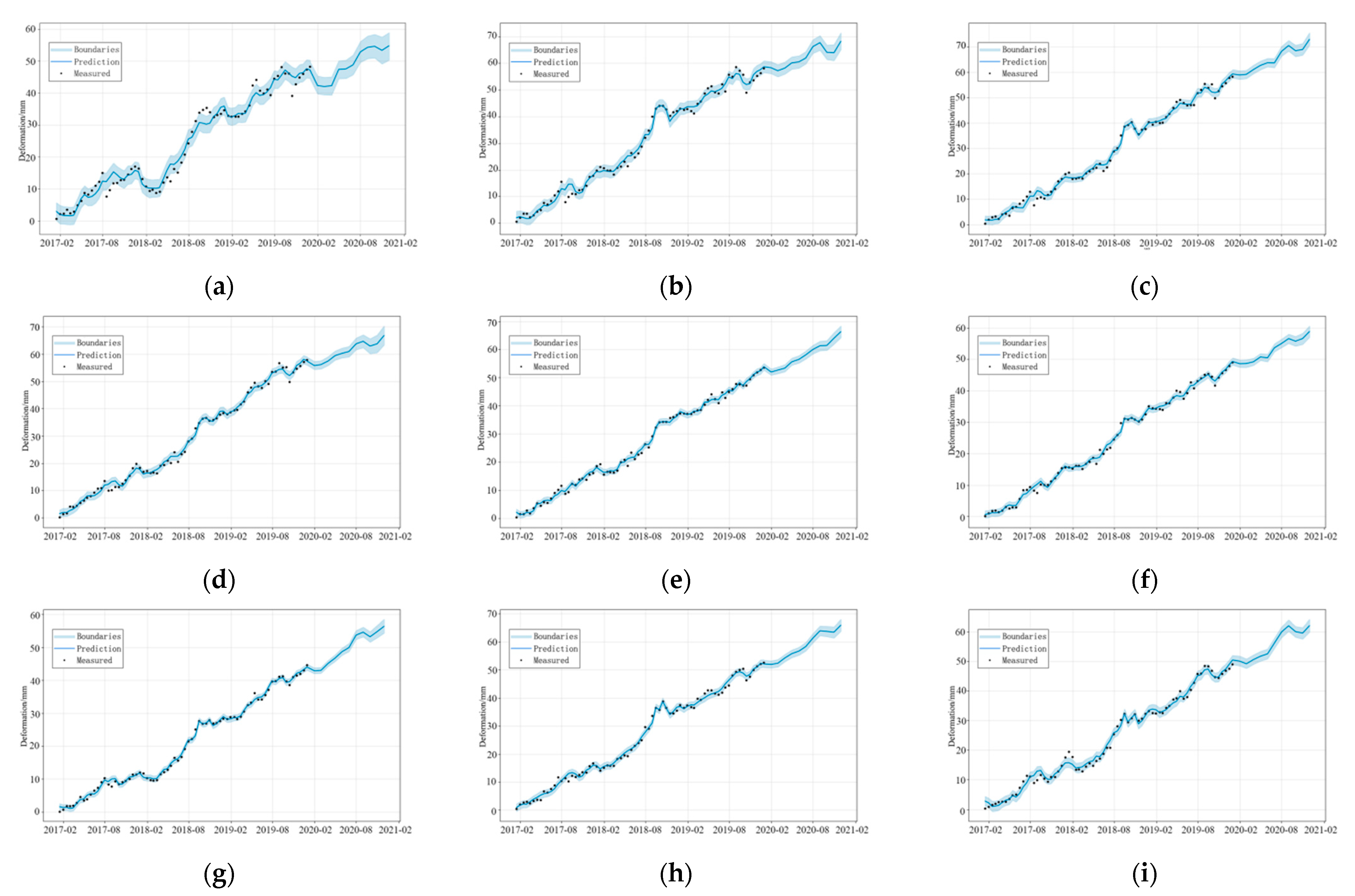

**Figure 7.**The predicted deformation results of each sample point. (

**a**) Prediction of point A; (

**b**) prediction of point B; (

**c**) prediction of point C; (

**d**) prediction of point D; (

**e**) prediction of point E; (

**f**) prediction of point F; (

**g**) prediction of point G; (

**h**) prediction of point H; (

**i**) prediction of point I.

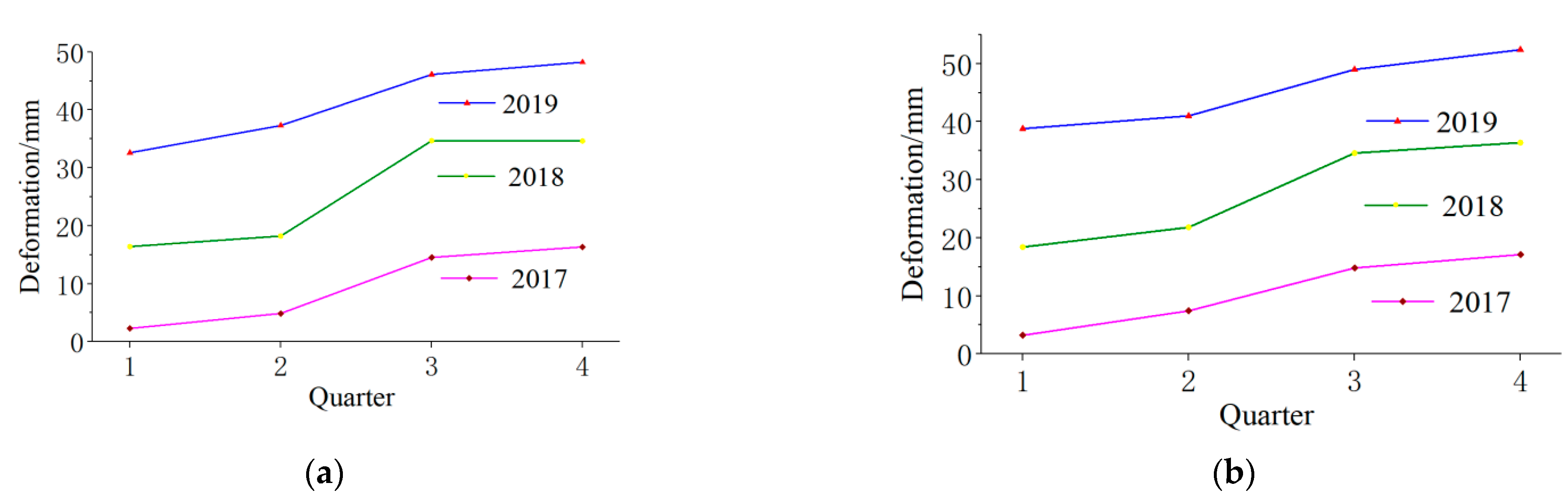

**Figure 9.**Annual folding time-series diagram. (

**a**) Point A annual folding time-series diagram; (

**b**) mean of 9 sample points annual folding time-series diagram.

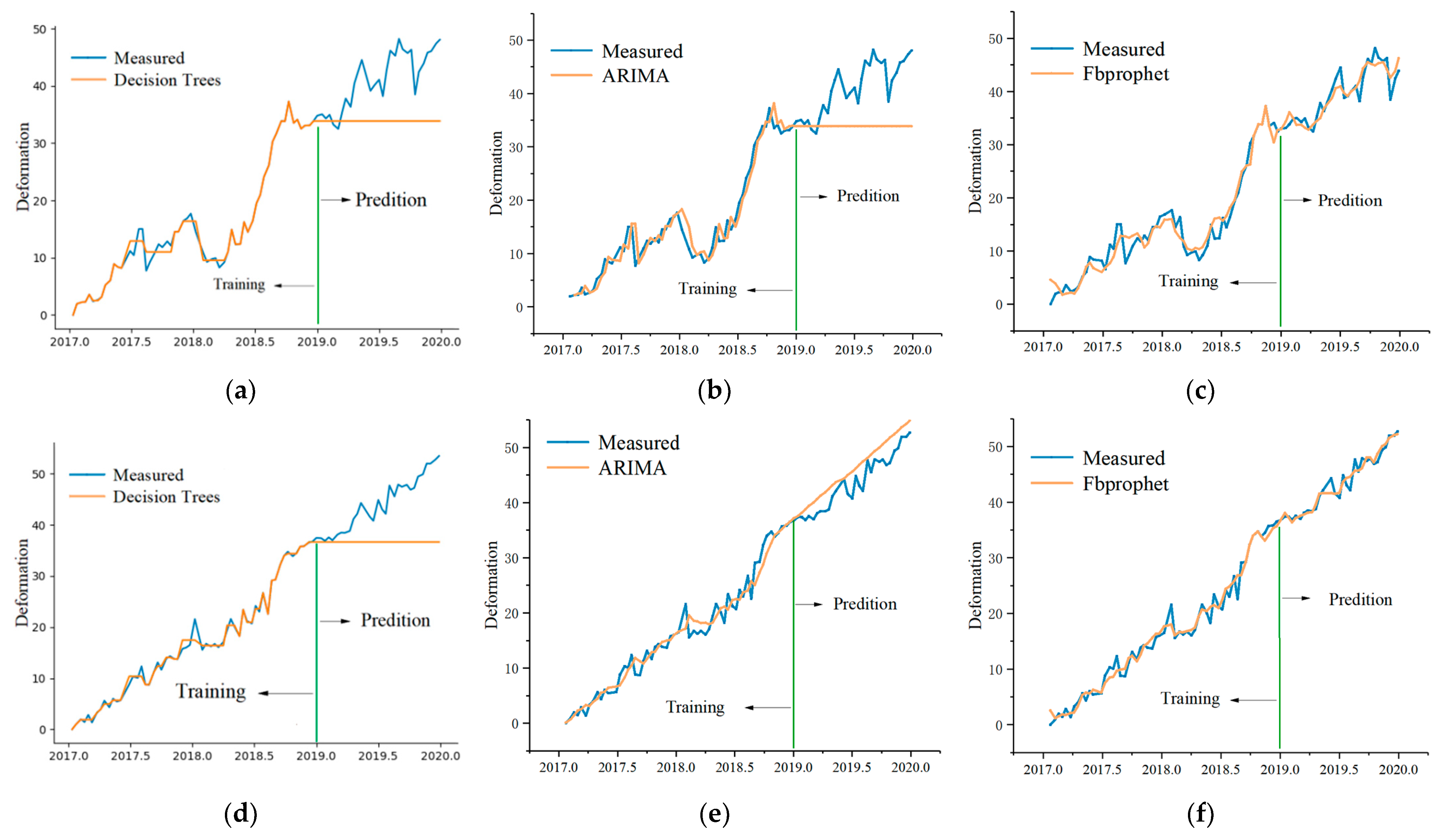

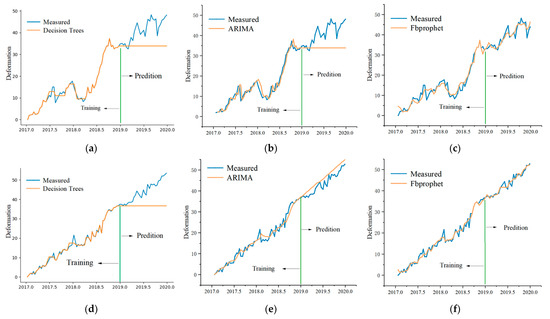

**Figure 10.**Comparison of prediction results of different algorithms: (
