# Location of Logistics Distribution Center Based on Improved Bald Eagle Algorithm

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

#### 2.1. Original Bald Eagle Search Algorithm

#### 2.1.1. Select the Search Space

#### 2.1.2. Search Space Prey

#### 2.1.3. Subduction Stage

#### 2.2. Location of Logistics Center

- (1)
- There is regard for the size of logistics centers and other economic issues;
- (2)
- The distribution centers must meet the requirements of all locations, i.e., the sum of the product of the distance between the center and each node and the volume of goods is the minimum;
- (3)
- There is no regard to other costs

## 3. Algorithm Improvements

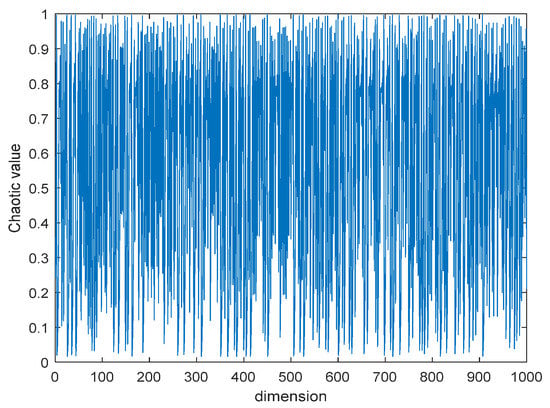

#### 3.1. Chaos Map Initialization

#### 3.2. Improvements to the Search Phase

## 4. Experiments and Analysis

#### 4.1. Test Algorithm Description

#### 4.2. Test Functions

#### 4.3. Test Environment Setting

## 5. Application in Location of Logistics Center

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Yuan, Q.; Zuo, Y. Selection of cold chain logistics distribution center location based on improved hybrid genetic algorithm. J. Shanghai Jiaotong Univ.
**2016**, 50, 1795–1800. [Google Scholar] - Friedrich, C.J.; Weber, A. Alfred Weber’s Theory of the Location of Industries; University of Chicago Press: Chicago, IL, USA, 1929. [Google Scholar]
- Opasanon, S.; Lertsanti, P. Impact analysis of logistics facility relocation using the analytic hierarchy process (AHP). Int. Trans. Oper. Res.
**2013**, 20, 325–339. [Google Scholar] [CrossRef] - Keeney, S.; Hasson, F.; Mckeima, H. Consulting the oracle: Ten lessons from using the Delphi technique in nursing research. J. Adv. Nurs.
**2006**, 53, 205–212. [Google Scholar] [CrossRef] - Yu, X.F.; Zhang, X.W.; Mu, L.L. A Fuzzy Decision Making Model to Select the Location of the Distribution Center in Logistics. In Proceedings of the 2009 IEEE International Conference on Automation and Logistics, Shenyang, China, 5–7 August 2009; pp. 1144–1147. [Google Scholar]
- Kong, J.; Gu, N.; Sun, X.; Feng, A. Research on the location allocation of multi-nodal distribution center based on hierarchical clustering and gravity method. Logist. Technol.
**2010**, 5, 83–85. [Google Scholar] - Moseley, E.C.; Klett, C.J. An empirical comparison of factor scoring methods. Psychol. Rep.
**1964**, 14, 179–184. [Google Scholar] [CrossRef] - He, B.; Ye, X.X. Basing on the Lingo Language to Solve Logistic Distribution Center Site Selection Model. In Proceedings of the International Conference on Construction and Real Estate Management, Beijing, China, 5–6 November 2009; pp. 418–420. [Google Scholar]
- Meng, X.H.; Miao, X. Study on location method of single logistics center by integrating continuous and discrete methods. J. Harbin Inst. Technol.
**2006**, 38, 1055–1058. [Google Scholar] - An, Y.; Zeng, B.; Zhang, Y.; Zhao, L. Reliable p-median facility location problem: Two-stage robust models and algorithms. Transp. Res. Part B Methodol.
**2014**, 64, 54–72. [Google Scholar] [CrossRef] - Shi, Z. Advanced Artificial Intelligence; World Scientific: London, UK, 2019. [Google Scholar]
- Zhao, H.; Zhang, C. An online-learning-based evolutionary many-objective algorithm. Inf. Sci.
**2020**, 509, 1–21. [Google Scholar] [CrossRef] - Pasha, J.; Dulebenets, M.A.; Fathollahi-Fard, A.M.; Tian, G.; Lau, Y.Y.; Singh, P.; Liang, B. An integrated optimization method for tactical-level planning in liner shipping with heterogeneous ship fleet and environmental considerations. Adv. Eng. Inform.
**2021**, 48, 101299. [Google Scholar] [CrossRef] - Dulebenets, M.A. An Adaptive Polyploid Memetic Algorithm for scheduling trucks at a cross-docking terminal. Inf. Sci.
**2021**, 565, 390–421. [Google Scholar] [CrossRef] - Theophilus, O.; Dulebenets, M.A.; Pasha, J.; Lau, Y.Y.; Fathollahi-Fard, A.M.; Mazaheri, A. Truck scheduling optimization at a cold-chain cross-docking terminal with product perishability considerations. Comput. Ind. Eng.
**2021**, 156, 107240. [Google Scholar] [CrossRef] - Rabbani, M.; Oladzad-Abbasabady, N.; Akbarian-Saravi, N. Ambulance routing in disaster response considering variable patient condition: NSGA-II and MOPSO algorithms. J. Ind. Manag. Optim.
**2022**, 18, 1035. [Google Scholar] [CrossRef] - Dulebenets, M.A.; Moses, R.; Ozguven, E.E.; Vanli, A. Minimizing carbon dioxide emissions due to container handling at marine container terminals via hybrid evolutionary algorithms. IEEE Access
**2017**, 5, 8131–8147. [Google Scholar] [CrossRef] - Kratica, J.; Tošic, D.; Filipović, V.; Ljubić, I. Solving the simple plant location problem by genetic algorithm. RAIRO-Oper. Res.
**2001**, 35, 127–142. [Google Scholar] [CrossRef] [Green Version] - Ravi, K.; Rajaram, M. Optimal location of FACTS devices using improved particle swarm optimization. Int. J. Electr. Power Energy Syst.
**2013**, 49, 333–338. [Google Scholar] [CrossRef] - Hu, W. An improved flower pollination algorithm for optimization of intelligent logistics distribution center. Adv. Prod. Eng. Manag.
**2019**, 14, 177–188. [Google Scholar] [CrossRef] - Dou, S.; Liu, G.; Yang, Y. A new hybrid algorithm for cold chain logistics distribution center location problem. IEEE Access
**2020**, 8, 88769–88776. [Google Scholar] [CrossRef] - Prakash, D.B.; Lakshminarayana, C. Optimal siting of capacitors in radial distribution network using whale optimization algorithm. Alex. Eng. J.
**2017**, 56, 499–509. [Google Scholar] [CrossRef] [Green Version] - Hassan-Pour, H.A.; Mosadegh-Khah, M.; Tavakkoli-Moghaddam, R. Solving a multi-objective multi-depot stochastic location-routing problem by a hybrid simulated annealing algorithm. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf.
**2009**, 223, 1045–1054. [Google Scholar] [CrossRef] - Teng, F.; Xinxin, W.; Jiajia, B.; Peng, W. Research on Ant Colony Algorithm for Location Planning of Distribution Center. In Journal of Physics: Conference Series; IOP Publishing: Bristol, UK, 2021; Volume 1920, p. 012099. [Google Scholar]
- Alsattar, H.A.; Zaidan, A.A.; Zaidan, B.B. Novel meta-heuristic bald eagle search optimization algorithm. Artif. Intell. Rev.
**2020**, 53, 2237–2264. [Google Scholar] [CrossRef] - Lin, C.C.; Yang, J.W. Cost-efficient deployment of fog computing systems at logistics centers in industry 4.0. IEEE Trans. Ind. Inform.
**2018**, 14, 4603–4611. [Google Scholar] [CrossRef] - Zhou, A.L. A Research about Multi-objective evaluation method of factory location based on the triangular fuzzy number. In Proceedings of the 2009 Fifth International Conference on Natural Computation, Tianjian, China, 14–16 August 2009; Volume 6, pp. 14–16. [Google Scholar]
- Wang, S.H.; An, X.F. The Logistics Storage location model of commodity logistics based on fuzzy comprehensive evaluation method. J. Comput. Theor. Nanosci.
**2016**, 13, 9664–9668. [Google Scholar] [CrossRef] - Niroomand, S.; Bazyar, A.; Alborzi, M.; Mahmoodirad, A. A hybrid approach for multi-criteria emergency center location problem considering existing emergency centers with interval type data: A case study. J. Ambient Intell. Humaniz. Comput.
**2018**, 9, 1999–2008. [Google Scholar] [CrossRef] - Zhang, W.; Jiang, J.C. Research on the location of fire station based on GIS and GA. Appl. Mech. Mater.
**2011**, 130, 377–380. [Google Scholar] [CrossRef] - Tao, S.Y. Evaluation Method for location of railway container logistics center based on safety influence factors. Railw. Transp. Econ.
**2007**, 29, 67–69. [Google Scholar] - Zhuan, Y. Improvement of Spider Monkey Algorithm and Its Application in Logistics Center Location Problem; Xi’an University of Technology: Xi’an, China, 2020. [Google Scholar] [CrossRef]
- Kanso, A.; Smaoui, N. Logistic chaotic maps for binary numbers generations. Chaos Solitons Fractals
**2009**, 40, 2557–2568. [Google Scholar] [CrossRef] - Mirjalili, S. SCA: A sine cosine algorithm for solving optimization problems. Knowl. Based Syst.
**2016**, 96, 120–133. [Google Scholar] [CrossRef]

Serial Number | Function | Dimension | Search Range | Minimum |
---|---|---|---|---|

1 | ${f}_{1}\left(x\right)={\displaystyle \sum _{i=1}^{n}}{x}_{i}^{2}$ | 50 | [−100, 100] | 0 |

2 | ${f}_{2}\left(x\right)={\displaystyle \sum _{i=1}^{n}}\left|{x}_{i}\right|+{\displaystyle \prod _{i=1}^{n}}\left|{x}_{i}\right|$ | 50 | [−10, 10] | 0 |

3 | ${f}_{3}\left(x\right)={\displaystyle \sum _{i=1}^{30}}({\displaystyle \sum _{j=1}^{i}}{x}_{i}{)}^{2}$ | 50 | [−100, 100] | 0 |

4 | ${f}_{4}\left(x\right)=\underset{i}{\mathrm{max}}\left\{\left|{x}_{i}\right|,1\le i\le 30\right\}$ | 50 | [−100, 100] | 0 |

5 | ${f}_{5}\left(x\right)={\displaystyle \sum _{i=1}^{n-1}}[100{\left({x}_{i+1}-{x}_{i}^{2}\right)}^{2}+{\left({x}_{i}-1\right)}^{2}]$ | 50 | [−30, 30] | 0 |

6 | ${f}_{6}\left(x\right)={\displaystyle \sum _{i=1}^{n}}{\left(\left|{x}_{i}+0.5\right|\right)}^{2}$ | 50 | [−100, 100] | 0 |

7 | ${f}_{7}\left(x\right)={\displaystyle \sum _{i=1}^{n}}i{x}_{i}^{4}+random\left[0,1\right)$ | 50 | [−1.28, 1.28] | 0 |

8 | ${f}_{8}\left(x\right)={\displaystyle \sum _{i=1}^{n}}\left(-{x}_{i}\mathrm{sin}\left(\sqrt{\left|{x}_{i}\right|}\right)\right)$ | 50 | [−500, 500] | −12,659.5 |

9 | ${f}_{9}\left(x\right)={\displaystyle \sum _{i=1}^{n}}{\left[{x}_{i}^{2}-10\mathrm{cos}\left(2\pi {x}_{i}\right)+10\right]}^{2}$ | 50 | [−5.12, 5.12] | 0 |

10 | ${f}_{10}\left(x\right)=-20\mathrm{exp}(-0.2\sqrt{\frac{1}{n}{\displaystyle \sum _{i=1}^{n}}{x}_{i}^{2}}-\mathrm{exp}(\frac{1}{n}{\displaystyle \sum _{i=1}^{n}}\mathrm{cos}\left(2\pi {x}_{i}\right))+e+20$ | 50 | [−32, 32] | 0 |

Test Function | Index | PSO | WCA | WOA | BES | LSCBES |
---|---|---|---|---|---|---|

f_{1} | Average Value | 1.78 × 10^{1} | 7.65 × 10^{−11} | 3.46 × 10^{−14} | 2.35 × 10^{−36} | 0 |

Standard Deviation | 3.26 × 10^{0} | 4.37 × 10^{−11} | 2.15 × 10^{−14} | 1.27 × 10^{−36} | 0 | |

f_{2} | Average Value | 2.33 × 10^{1} | 6.38 × 10^{−7} | 9.26 × 10^{−13} | 4.96 × 10^{−183} | 0 |

Standard Deviation | 4.37 × 10^{0} | 4.96 × 10^{−7} | 4.13 × 10^{−12} | 1.49 × 10^{−185} | 0 | |

f_{3} | Average Value | 1.16 × 10^{2} | 2.87 × 10^{1} | 7.31 × 10^{−10} | 3.67 × 10^{−223} | 0 |

Standard Deviation | 4.46 × 10^{0} | 1.74 × 10^{0} | 2.33 × 10^{−10} | 0 | 0 | |

f_{4} | Average Value | 2.45 × 10^{0} | 5.43 × 10^{−1} | 8.39 × 10^{−13} | 3.21 × 10^{−226} | 0 |

Standard Deviation | 7.46 × 10^{1} | 2.76 × 10^{−1} | 2.91 × 10^{−13} | 1.23 × 10^{−227} | 0 | |

f_{5} | Average Value | 7.29 × 10^{3} | 7.77 × 10^{2} | 2.15 × 10^{1} | 3.45 × 10^{−6} | 1.43 × 10^{−6} |

Standard Deviation | 3.18 × 10^{3} | 6.45 × 10^{2} | 1.46 × 10^{1} | 2.94 × 10^{−6} | 4.36 × 10^{−6} | |

f_{6} | Average Value | 2.44 × 10^{1} | 8.14 × 10^{−10} | 6.45 × 10^{−9} | 3.77 × 10^{−6} | 7.92 × 10^{−22} |

Standard Deviation | 5.73 × 10^{0} | 5.37 × 10^{−10} | 2.78 × 10^{−9} | 8.73 × 10^{−7} | 6.45 × 10^{−22} | |

f_{7} | Average Value | 6.26 × 10^{1} | 9.46 × 10^{−3} | 7.26 × 10^{−3} | 2.33 × 10^{−5} | 3.92 × 10^{−6} |

Standard Deviation | 2.91 × 10^{1} | 3.42 × 10^{−2} | 5.42 × 10^{−3} | 4.26 × 10^{−5} | 2.35 × 10^{−6} | |

f_{8} | Average Value | −7.65 × 10^{3} | −5.64 × 10^{3} | −2.15 × 10^{3} | −2.13 × 10^{3} | −7.94 × 10^{2} |

Standard Deviation | 2.45 × 10^{3} | 4.94 × 10^{2} | 8.92 × 10^{1} | 7.96 × 10^{−3} | 4.32 × 10^{2} | |

f_{9} | Average Value | 1.66 × 10^{2} | 7.86 × 10^{−6} | 5.45 × 10^{−16} | 6.57 × 10^{−98} | 2.15 × 10^{−199} |

Standard Deviation | 2.74 × 10^{1} | 3.82 × 10^{−6} | 4.37 × 10^{−16} | 5.42 × 10^{−99} | 4.37 × 10^{−199} | |

f_{10} | Average Value | 1.08 × 10^{1} | 7.12 × 10^{−7} | 6.64 × 10^{−12} | 8.42 × 10^{−16} | 2.41 × 10^{−19} |

Standard Deviation | 2.32 × 10^{0} | 2.34 × 10^{−8} | 4.33 × 10^{−12} | 2.11 × 10^{−18} | 0 |

Serial Number | Coordinate | Cargo Volume | Serial Number | Coordinate | Cargo Volume |
---|---|---|---|---|---|

1 | (1625, 2413) | 20 | 17 | (4027, 2106) | 90 |

2 | (3710, 924) | 90 | 18 | (4135, 2419) | 70 |

3 | (4213, 2256) | 90 | 19 | (3864, 2217) | 100 |

4 | (3694, 1403) | 60 | 20 | (3655, 2543) | 50 |

5 | (3476, 1537) | 70 | 21 | (4122, 2795) | 50 |

6 | (3319, 1558) | 70 | 22 | (4257, 2931) | 50 |

7 | (3238, 1231) | 40 | 23 | (3429, 1908) | 80 |

8 | (2793, 1546) | 90 | 24 | (3507, 2376) | 70 |

9 | (2894, 1793) | 90 | 25 | (3451, 2712) | 80 |

10 | (3154, 1425) | 70 | 26 | (3275, 3014) | 40 |

11 | (2857, 2236) | 60 | 27 | (3167, 3455) | 40 |

12 | (2346, 1498) | 40 | 28 | (3345, 3716) | 60 |

13 | (2476, 1154) | 40 | 29 | (2296, 2437) | 70 |

14 | (1819, 1479) | 40 | 30 | (3004, 3152) | 50 |

15 | (1684, 829) | 20 | 31 | (2754, 3666) | 30 |

16 | (3729, 1683) | 80 |

Algorithm | Site Selection Plan | Distance ∗ Cargo Volume | Number of Iterations |
---|---|---|---|

LSCBES | (5, 9, 12, 18, 25, 27) | 6.1069 × 10^{5} | 33 |

BES | (3, 5, 9, 12, 20, 27) | 6.1934 × 10^{5} | 28 |

WOA | (5, 11, 14, 18, 25, 27) | 6.3114 × 10^{5} | 30 |

WCA | (5, 8, 14, 18, 20, 27) | 6.2412 × 10^{5} | 52 |

PSO | (4, 6, 12, 18, 25, 27) | 6.4463 × 10^{5} | 42 |

LSCBES | BES | WOA | WCA | PSO | |||||
---|---|---|---|---|---|---|---|---|---|

Distribution Centera | Distribution Range | Distribution Centera | Distribution Range | Distribution Centera | Distribution Range | Distribution Centera | Distribution Range | Distribution Centera | Distribution Range |

5 | 2, 4, 6, 7, 10, 16, 23 | 3 | 17, 18, 21, 22 | 5 | 2, 4, 6, 7, 10, 16, 23 | 5 | 2, 4, 6, 7, 10, 16, 23 | 4 | 2, 16 |

9 | 8, 11, 29 | 5 | 2, 4, 6, 7, 16, 23 | 11 | 8, 9, 29 | 8 | 9, 11, 12, 13 | 6 | 5, 7, 8, 9, 11, 23 |

12 | 1, 13, 14, 15 | 9 | 8, 10, 11 | 14 | 1, 12, 13, 15 | 14 | 1, 15, 29 | 12 | 1, 13, 14, 15, 29 |

18 | 3, 17, 19, 21, 22 | 12 | 1, 13, 14, 15, 29 | 18 | 3, 17, 19, 21, 22 | 18 | 3, 17, 21, 22 | 18 | 3, 17, 19, 21, 22 |

25 | 20, 24, 26 | 20 | 19, 24, 25 | 25 | 20, 24, 26 | 20 | 19, 24, 25 | 25 | 20, 24, 26 |

27 | 28, 30, 31 | 27 | 26, 30, 31, 28 | 27 | 28, 30, 31 | 27 | 26, 28, 30, 31 | 27 | 28, 30, 31 |
