Solving the Green Open Vehicle Routing Problem Using a MembraneInspired Hybrid Algorithm
Abstract
:1. Introduction
 (1)
 A novel threelevel nested membrane structure is designed with respective algorithms. To be specific, the skin membrane acts as the first level, where a genetic algorithm is mainly exploited to search for solutions to the routing problems. Six adjacent inner membranes act as the second level, where different tabu search algorithms are exploited to find tentative solutions. The elementary membrane in each level2 membrane acts as the third level, where neighbourhood search operations are exploited to facilitate adjusting the search direction of the corresponding level2 membrane.
 (2)
 Communication channels between the level2 membranes and their inner membranes are designed to exchange solutions to favourably find better solutions. Communication channels also exist between the skin membrane and the level2 membranes, where the crossover operator in the genetic operators is leveraged to retain satisfactory gene segments. In addition, the tabu search with different attractors is adopted to help the genetic algorithm escape from the local optimum. The convergence curve cliffs after each communication justify the effectiveness of the communication channels.
 (3)
 Experiments are carried out on largescale realworld problem instances, i.e., a Beijing 100nodes set and a Jingdong 1000nodes instance. The results demonstrate that our method significantly outperformed the hybrid tabu search [17], tabu search, and genetic algorithm, respectively. In particular, the computation time observed when comparing the performance on the Jingdong 1000nodes instances and the Beijing 100nodes instances further demonstrates the superiority of our algorithm in solving largescale problems.
2. Related Work
2.1. Algorithms for the OVRP
2.2. Membrane Algorithms
3. Problem Formulation
4. The Proposed Method
Algorithm 1 Pseudocode of MIHA
Require: maximum number of iterations ${I}_{max}$, iteration number before MCA ${I}_{MCA}$
Ensure:${x}_{best}$.

4.1. Initialisation
Algorithm 2 Pseudocode of initialisation
Require: Operators: Random, NNH, mNNH, ${I}_{1}$, EDF, SWTF
Ensure: Implement the initialisation of MIHA

 (1)
 Random heuristic: It randomly chooses routes that satisfy constraints (5)–(17).
 (2)
 Nearest neighbourhood heuristic (NNH): It generates a set of routes according to the distance from the current node. The nearest customer to the depot is chosen as the start node ${x}_{0}$ of the first route. Then it chooses an unassigned customer ${x}_{1}$, who is nearest to ${x}_{0}$. It repeats the same procedure until no feasible candidate nodes for the current route can be found. This also means that the current route is completed. Then, it allocates a new vehicle for the next route and constructs the route in a similar way until all customer nodes are assigned.
 (3)
 Modified nearest neighbourhood heuristic (mNNH): It generates a set of routes according to both the demand of the next customer and the distance from the current node. During the shipping process, a vehicle can offload ${q}_{i}$ payload after servicing customer i. The unit distance payload of customer j on arc $(i,j)$ is defined as $\overline{\Delta {f}_{ij}}={q}_{j}/{d}_{ij}$. The mNNH creates a number of routes sequentially by considering the $\overline{\Delta {f}_{ij}}$ as an objective. First, it chooses the customer c that satisfies $c=argma{x}_{c\in {N}_{ucs}}\left\{\right\overline{\Delta {f}_{0c}}\left\right\}$, where ${N}_{ucs}$ represents the unassigned customer set, which includes the initial current node of the first route. Next, the feasible customer $nc$ that satisfies $nc=argma{x}_{nc\in {N}_{ucs}}\left\{\right\overline{\Delta {f}_{c,nc}}\left\right\}$ is selected as the next node c and added to the current route. Then, it repeats choosing the next node and appending it to the current route. If no more feasible nodes can be added, the current route is completed, and another route will be constructed in a similar way until all customers have been assigned.
 (4)
 Insert ${I}_{1}$ heuristic: As first proposed by Solomon [47], the customer ${u}^{*}$ is chosen based on the Equations (19) and (20) and then inserted to the route according to the insert ${I}_{1}$ heuristics. Moreover, the feasible and desired position of the selected ${u}^{*}$ in the route is decided by Equations (21) and (22) as follows, where ${y}_{{j}_{u}}$ is the new time for service to begin at customer j, given that u is on the route. The main idea is to use several criteria to insert a new customer into the current partial route at every iteration.$${c}_{2}({i}^{*},{u}^{*},{j}^{*})=maximum\left[{c}_{2}(i,u,j)\right],$$$${c}_{2}(i,u,j)=\lambda {d}_{0u}{c}_{1}(i,u,j),\phantom{\rule{4pt}{0ex}}\lambda \ge 0$$$${c}_{1}({i}^{*},u,{j}^{*})=min\left[{c}_{1}(i,u,j)\right],$$$${c}_{1}(i,u,j)={\alpha}_{1}({d}_{iu}+{d}_{uj}\mu {d}_{ij})+{\alpha}_{2}({y}_{{j}_{u}}{y}_{j}),\phantom{\rule{4pt}{0ex}}\mu ,{\alpha}_{1},{\alpha}_{2}\ge 0,\phantom{\rule{4pt}{0ex}}{\alpha}_{1}+{\alpha}_{2}=1.$$
 (5)
 Earliest deadline first heuristic: It selects the customer with the earliest (or tightest) deadline for service at each step.
 (6)
 Shortest waiting time first heuristic: It selects the customer with the shortest waiting time.
4.2. GA in Skin Membrane
4.2.1. Crossover Operator
4.2.2. Mutation Operator
 (1)
 Random: This operation randomly removes a customer node from a given route and inserts it into another feasible position of the origin route.
 (2)
 Splitlongest: This operation searches for the route with the highest total cost and breaks the route into two parts at a random point.
 (3)
 Mergeshortest: This operation searches for the two routes of the chromosome with the smallest total cost and appends one to the other.
4.3. Tabu Search in Level2 Membranes

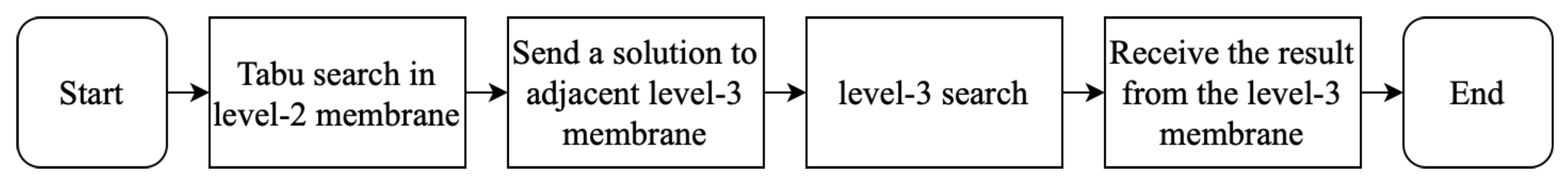

Algorithm 3 Level2 Membrane Search Algorithm

 (1)
 Random operator: It randomly exchanges the position of two nodes of a given solution, provided that no constraint is violated.
 (2)
 Highcostnode operator: It removes a highcost customer node defined as ${u}^{*}=argma{x}_{u\in N}\{{d}_{iu}+{d}_{uj}\}$, where i is the preceding customer and j is the succeeding customer, and inserts the node into another position.
 (3)
 Longwaittime operator: It relocates the customer with a long wait time node defined as ${u}^{*}=argma{x}_{u\in N}\{{a}_{u}{e}_{u}\}$, where ${e}_{u}$ is the arrival time of customer u.
4.4. Neighbourhood Search in Level3 Membranes

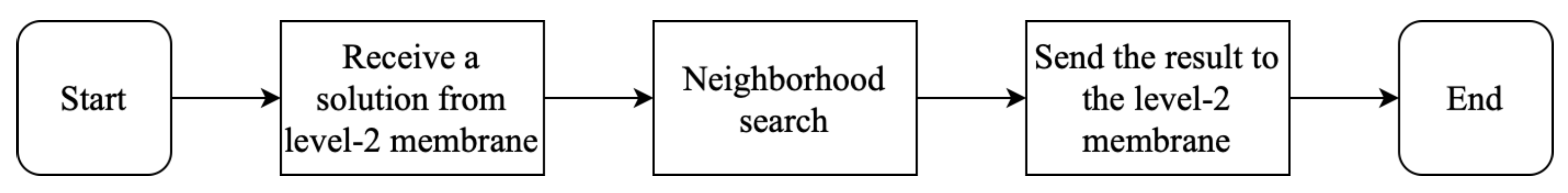

Algorithm 4 Level3 Membrane Search Algorithm

4.5. Communications between the Level2 Membrane and Skin Membrane
Algorithm 5 Membrane Communication Algorithm

4.6. Speed Optimisation
Algorithm 6 Speed and Departuretime Optimisation Algorithm (SDTOA)

5. Computational Results
5.1. Parameter Analysis
5.1.1. ${p}_{level3}$
5.1.2. ${I}_{MCA}$
5.2. Effectiveness of Search in Level3 Membranes
5.3. Effectiveness of Tabu Search
5.4. Effectiveness of GA in Skin Membrane
5.5. Effectiveness of the Membrane Structure

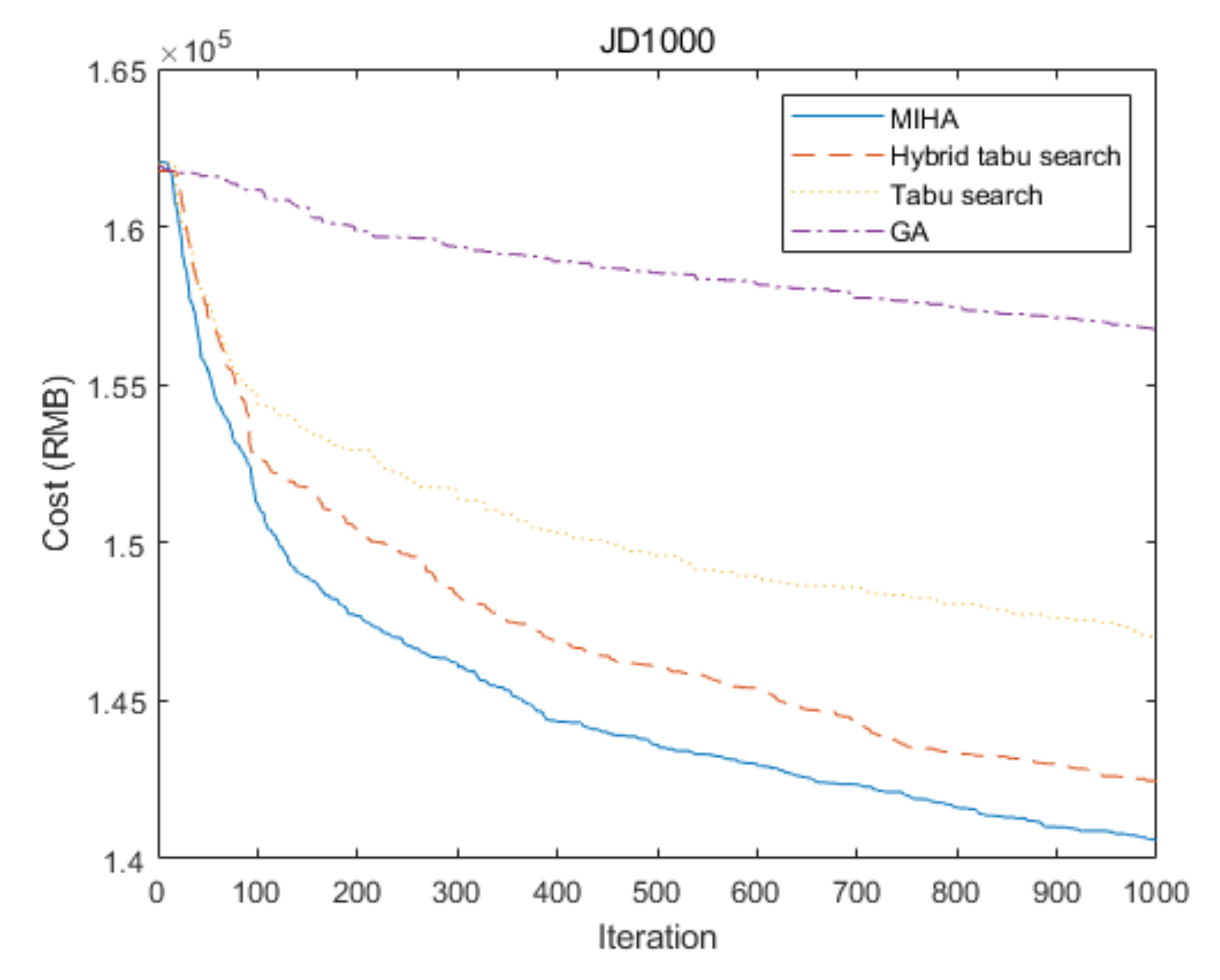

5.6. Computational Result of LargerScale Problems

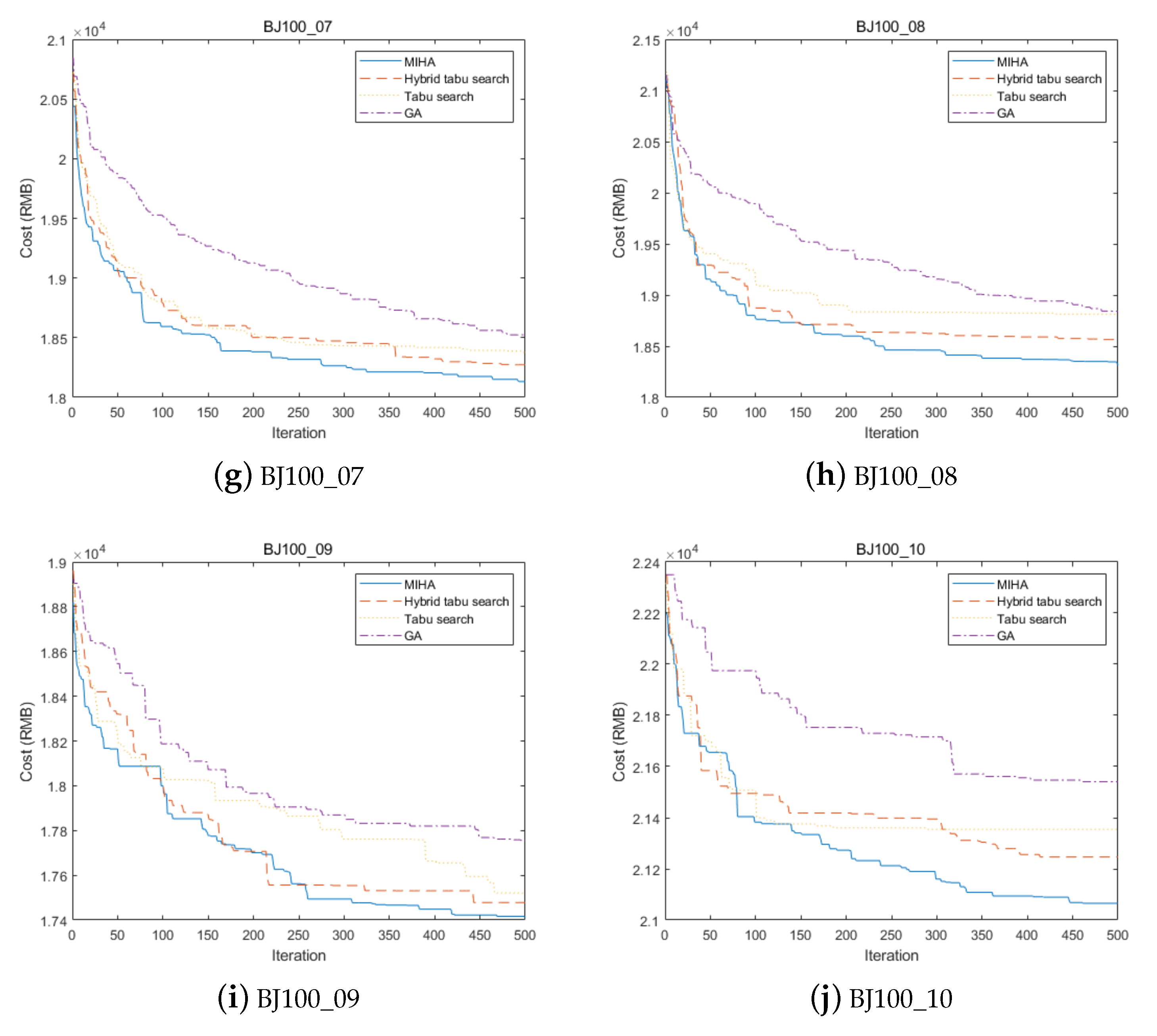

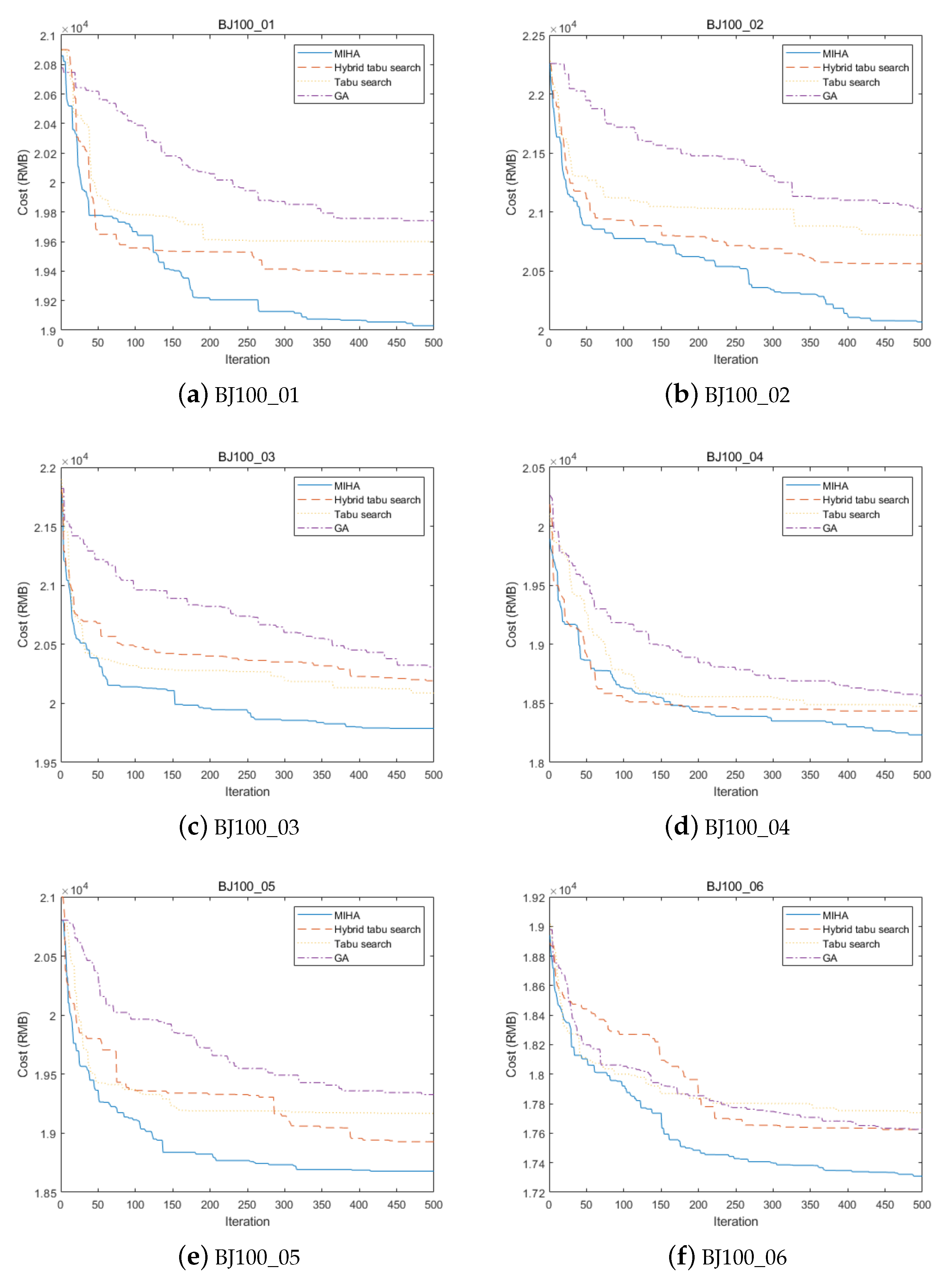

5.7. Comparison with Other Algorithms
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Notations
G  Complete directed graph
N  Node set
${N}_{0}$  Customer set
A  Arc set
Q  Vehicle capacity
w  The weight of a vehicle
${q}_{i}$  The demand of customer i
${s}_{i}$  The time cost of the route ending with i
${y}_{i}$  The actual starting time for serving node i
${d}_{ij}$  The length of arc $(i,j)$
${f}_{ij}$  The amount of freight flow on arc $(i,j)$
${x}_{ij}$  Binary flag variable 1
${z}_{ij}^{r}$  Binary flag variable 2
${v}_{ij}^{r}$  The travel speed of vehicle r on arc $(i,j)$
$[{a}_{i},{b}_{i}]$  The time window of customer i
References
 Dantzig, G.B.; Ramser, R.H. The truck dispatching problem. Manag. Sci. 1959, 6, 80–91. [Google Scholar] [CrossRef]
 Long, J.; Sun, Z.; Pardalos, P.M.; Hong, Y.; Zhang, S.; Li, C. A hybrid multiobjective genetic local search algorithm for the prizecollecting vehicle routing problem. Inf. Sci. 2019, 478, 40–61. [Google Scholar] [CrossRef]
 Zhang, D.; Cai, S.; Ye, F.; Si, Y.; Nguyen, T.T. A hybrid algorithm for a vehicle routing problem with realistic constraints. Inf. Sci. 2017, 394, 167–182. [Google Scholar] [CrossRef]
 Toth, P.; Vigo, D. The Vehicle Routing Problem; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 2002; p. 9. [Google Scholar]
 Repoussis, P.P.; Tarantilis, C.D.; Ioannou, G. The open vehicle routing problem with time windows. J. Oper. Res. 2007, 58, 355–367. [Google Scholar] [CrossRef]
 Moghdani, R.; Salimifard, K.; Demir, E.; Benyettou, A. The green vehicle routing problem: A systematic literature review. J. Clean. Prod. 2021, 279, 123691. [Google Scholar] [CrossRef]
 Bodin, L.; Golden, B.; Assad, A.; Ball, M. Routing and scheduling of vehicles and crews: The state of the art. Comput. Oper. Res. 1983, 10, 63–211. [Google Scholar]
 Brandao, J. A tabu search heuristic algorithm for open vehicle routing problem. Eur. J. Oper. Res. 2004, 157, 552–564. [Google Scholar] [CrossRef]
 Fleszar, K.; Osman, I.H.; Hindi, K.S. A variable neighbourhood search algorithm for the open vehicle routing problem. Eur. J. Oper. Res. 2009, 195, 803–809. [Google Scholar] [CrossRef]
 Tarantilis, C.D.; Ioannou, G.; Kiranoudis, C.T.; Prastacos, G.P. Solving the open vehicle routing problem via a single parameter metaheuristic algorithm. J. Oper. Res. 2005, 56, 588–596. [Google Scholar] [CrossRef]
 MirHassani, S.; Abolghasemi, N. A particle swarm optimization algorithm for open vehicle routing problem. Expert Syst. Appl. 2011, 38, 11547–11551. [Google Scholar] [CrossRef]
 Li, X.; Tian, P.; Leung, S. An ant colony optimization metaheuristic hybridized with tabu search for the open vehicle routing problem. J. Oper. Res. Soc. 2009, 60, 1012–1025. [Google Scholar] [CrossRef]
 Repoussis, P.P.; Tarantilis, C.D.; Braysy, O.; Ioannou, G. A hybrid evolution strategy for the open vehicle routing problem. Comput. Oper. Res. 2010, 37, 443–455. [Google Scholar] [CrossRef]
 Ashtineh, H.; Pishvaee, M. Alternative Fuel VehicleRouting Problem: A life cycle analysis of transportation fuels. J. Clean. Prod. 2019, 219, 166–182. [Google Scholar] [CrossRef]
 Yu, Y.; Wang, S.; Wang, J.; Huang, M. A branchandprice algorithm for the heterogeneous fleet green vehicle routing problem with time windows. Transp. Res. Part B Methodol. 2019, 122, 511–527. [Google Scholar] [CrossRef]
 Wang, L.; Lu, J. A memetic algorithm with competition for the capacitated green vehicle routing problem. IEEE/CAA J. Autom. Sin. 2019, 6, 516–526. [Google Scholar] [CrossRef]
 Niu, Y.; Yang, Z.; Chen, P.; Xiao, J. Optimizing the green open vehicle routing problem with time windows by minimizing comprehensive routing cost. J. Clean Prod. 2018, 171, 962–971. [Google Scholar] [CrossRef]
 Pan, L.; Păun, G.; PérezJimxexnez, M.J. Spiking neural P systems with neuron division and budding. Sci. China Inf. Sci. 2011, 54, 1596–1607. [Google Scholar] [CrossRef] [Green Version]
 Păun, G. Computing with membranes. J. Comput. Syst. Sci. 2000, 61, 108–143. [Google Scholar] [CrossRef] [Green Version]
 Sosík, P. P systems attacking hard problems beyond NP: A survey. J. Membr. Comput. 2019, 1, 198–208. [Google Scholar] [CrossRef] [Green Version]
 Applications of Membrane Computing; Ciobanu, G.; PérezJimxexnez, M.J.; Păun, G. (Eds.) Springer: Berlin/Heidelberg, Germany, 2006; Volume 287, pp. 73–100. [Google Scholar]
 Derigs, U.; Reuter, K. A simple and efficient tabu search heuristic for solving the open vehicle routing problem. J. Oper. Res. Soc. 2009, 60, 1658–1669. [Google Scholar] [CrossRef]
 Fu, Z.; Eglese, R.; Li, L. Corrigendum to the paper: A new tabu search heuristic for the open vehicle routing problem. J. Oper. Res. Soc. 2006, 57, 1017–1018. [Google Scholar] [CrossRef] [Green Version]
 Russell, R.; Chiang, W.; Zepeda, D. Integrating multiproduct production and distribution in newspaper logistics. Comput. Oper. Res. 2008, 35, 1576–1588. [Google Scholar] [CrossRef]
 Pisinger, D.; Ropke, S. A general heuristic for vehicle routing problems. Comput. Oper. Res. 2007, 34, 2403–2435. [Google Scholar] [CrossRef]
 Salari, M.; Toth, P.; Tramontani, A. An ILP improvement procedure for the open vehicle routing problem. Comput. Oper. Res. 2010, 37, 2106–2120. [Google Scholar] [CrossRef] [Green Version]
 Zachariadis, E.; Kiranoudis, T. An open vehicle routing problem metaheuristic for examining wide solution neighbourhoods. Comput. Oper. Res. 2010, 37, 712–723. [Google Scholar] [CrossRef] [Green Version]
 Tarantilis, C.D.; Ioannou, G.; Kiranoudis, C.T.; Prastacos, G.P. A threshold accepting approach to the open vehicle routing problem. RAIRO Oper. Res. 2004, 38, 345–360. [Google Scholar] [CrossRef] [Green Version]
 Wang, W.; Wu, B.; Zhao, Y.; Feng, D. Particle swarm optimization for open vehicle routing problem. In International Conference on Intelligent Computing: Part II; Huang, D.S., Li, K., Irwin, G.W., Eds.; Springer: Berlin/Heidelberg, Germany, 2006; pp. 999–1007. [Google Scholar]
 Zhen, T.; Zhu, Y.; Zhang, Q. A particle swarm optimization algorithm for the open vehicle routing problem. In Proceedings of the 2009 International Conference on Environmental Science and Information Application Technology, Wuhan, China, 4–5 July 2009; pp. 560–563. [Google Scholar]
 Li, X.; Tian, P. An ant colony system for the open vehicle routing problem. In Lecture Notes in Computer Science (ANTS 2006); Dorigo, M., Ed.; Springer: Berlin/Heidelberg, Germany, 2006; Volume 4150, pp. 356–363. [Google Scholar]
 Pan, L.; Fu, Z. A clonal selection algorithm for open vehicle routing problem. In Proceedings of the 2009 Third International Conference on Genetic and Evolutionary Computing, Guilin, China, 14–17 October 2009; pp. 786–790. [Google Scholar]
 Yu, S.; Ding, C.; Zhu, K. A hybrid GATS algorithm for open routing optimization of coal mines material. Expert Syst. Appl. 2011, 38, 10568–10573. [Google Scholar] [CrossRef]
 Barbuti, R.; Bove, P.; Milazzo, P.; Pardini, G. Minimal probabilistic P systems for modelling ecological systems. Theor. Comput. Sci. 2015, 608, 36–56. [Google Scholar] [CrossRef]
 Lucie, C.; Erzsĕbet, C.; Ludxexk, C.; Petr, S. P colonies. J. Membr. Comput. 2019, 1, 178–197. [Google Scholar]
 Niu, Y.; Zhang, Y.; Zhang, J. Running cells with decisionmaking mechanism: Intelligence decision P System for evacuation simulation. Int. J. Comput. Commun. 2018, 13, 865–880. [Google Scholar] [CrossRef]
 Sakellariou, I.; Stamatopoulou, I.; Kefalas, P. Using membranes to model a multiagent system towards underground metro station crowd behaviour simulation. In Proceedings of the ECAI 2012 Workshop, Montpellier, France, 28 August 2012; pp. 5–10. [Google Scholar]
 Nishida, T.Y. Membrane algorithms: Approximate algorithms for NPcomplete optimization problems. In Applications of Membrane Computing; Springer: Berlin/Heidelberg, Germany, 2006; pp. 303–314. [Google Scholar]
 Zhang, G.; Liu, C.; Rong, H. Analyzing radar emitter signals with membrane algorithms. Math. Comput. Model. 2010, 52, 1997–2010. [Google Scholar] [CrossRef]
 Zhang, G.; Rong, H.; Neri, F.; PérezJimxexnez, M.J. An optimization spiking neural P system for approximately solving combinatorial optimization problems. Int. J. Neural. Syst. 2014, 24, 1440006. [Google Scholar] [CrossRef] [PubMed]
 Zhang, G.; Rong, H.; Cheng, J.; Qin, Y. A populationmembranesysteminspired evolutionary algorithm for distribution network reconfiguration. J. Electron. 2014, 23, 437–441. [Google Scholar]
 Barth, M.; Boriboonsomsin, K. Energy and emissions impacts of a freewaybased dynamic ecodriving system. Transp. Res. Part D 2009, 14, 400–410. [Google Scholar] [CrossRef]
 Barth, M.; Younglove, T.; Scora, G. Development of a HeavyDuty Diesel Modal Emissions and Fuel Consumption Model; Technical Report; UCBITSPRR20051, California PATH Program; Institute of Transportation Studies, University of California at Berkeley: Berkeley, CA, USA, 2005. [Google Scholar]
 Scora, M.; Barth, G. Comprehensive Modal Emission Model (CMEM), Version 3.01, User Guide. Technical Report. 2006. Available online: http://www.cert.ucr.edu/cmem/docs/CMEM_User_Guide_v3.01d.pdf (accessed on 17 February 2014).
 Koç, Ç.; Bektaş, T.; Jabali, O.; Laporte, G. The fleet size and mix pollutionrouting problem. Transp. Res. Part B Methodol. 2014, 70, 239–254. [Google Scholar] [CrossRef]
 Tan, K.C.; Cheong, C.K.; Goh, C.K. Solving multiobjective vehicle routing problem with stochastic demand via evolutionary computation. Eur. J. Oper. Res. 2007, 177, 813–839. [Google Scholar] [CrossRef]
 Solomon, M.M. Algorithms for the vehicle routing and scheduling problems with time window constraints. Oper. Res. 1987, 35, 254–265. [Google Scholar] [CrossRef] [Green Version]
 Kramer, M.; Maculan, N.; Subramanian, A.; Vidal, T. A speed and departure time optimization algorithm for the pollutionrouting problem. Eur. J. Oper. Res. 2015, 247, 782–787. [Google Scholar] [CrossRef] [Green Version]
 Li, J.; Xin, L.; Cao, Z.; Lim, A.; Song, W.; Zhang, J. Heterogeneous Attentions for Solving Pickup and Delivery Problem via Deep Reinforcement Learning. IEEE Trans. Intell. Transp. Syst. 2021, 23, 2306–2315. [Google Scholar] [CrossRef]
 Wu, Y.; Song, W.; Cao, Z.; Zhang, J.; Lim, A. Learning Improvement Heuristics for Solving Routing Problems. IEEE Trans. Neural Netw. Learn. Syst. 2021, 1–13. [Google Scholar] [CrossRef]
 Xin, L.; Song, W.; Cao, Z.; Zhang, J. Stepwise deep learning models for solving routing problems. IEEE Trans. Ind. Inform. 2020, 17, 4861–4871. [Google Scholar] [CrossRef]
 Shi, C.; Zhang, Z.; Ji, C.; Li, X.; Di, L.; Wu, Z. Potential improvement in combustion and pollutant emissions of a hydrogenenriched rotary engine by using novel recess configuration. Chemosphere 2022, 299, 134491. [Google Scholar] [CrossRef]
 Shi, C.; Ji, C.; Ge, Y.; Wang, S.; Wang, H.; Yang, J. Parametric analysis of hydrogen twostage directinjection on combustion characteristics, knock propensity, and emissions formation in a rotary engine. Fuel 2021, 287, 119418. [Google Scholar] [CrossRef]
 Menaga, D.; Revathi, S. Least lion optimisation algorithm (LLOA) based secret key generation for privacy preserving association rule hiding. IET Inf. Secur. 2018, 12, 332–340. [Google Scholar] [CrossRef]
 FathollahiFard, A.M.; HajiaghaeiKeshteli, M.; TavakkoliMoghaddam, R. Red deer algorithm (RDA): A new natureinspired metaheuristic. Soft Comput. 2020, 24, 14637–14665. [Google Scholar] [CrossRef]
Notation  Description  Typical Value

$\eta $  Diesel engine efficiency  0.45
${C}_{r}$  Rolling resistance coefficient  0.01
$\rho $  Density of air (kg/m${}^{3}$)  1.2041
$\psi $  Conversion factor (g/s to litre/s)  737
$\kappa $  Heating value of the typical diesel fuel (kilojoule/g)  44
g  Constant of gravitation (m/s${}^{2}$)  9.81
${n}_{tf}$  Vehicle drive train efficiency  0.45
$\xi $  Fueltoair mass ratio  1
$\tau $  Acceleration (m/s${}^{2}$)  0
$\theta $  Angle of the road  0
${v}^{u}$  Highest speed (m/s)  27.8 (or 100 km/h)
${v}^{l}$  Lowest speed (m/s)  5.5 (or 20 km/h)
${f}_{c}$  Cost of fuel and CO${}_{2}$ emissions (GBP/litre)  1.4
${f}_{d}$  Cost of driver wage (GBP/s)  0.0022
Q  Vehicle capacity (kg)  4000
w  Vehicle curb weight (kg)  3500
f  Vehicle fixed cost (GBP/day)  0
V  Engine displacement (litre)  4.5
k  Engine friction factor (kilojoule/rev/litre)  0.25
${N}_{e}$  Engine speed (rev/s)  38.34
A  Area of frontal surface (m${}^{2}$)  7.0
${C}_{d}$  Aerodynamics drag coefficient  0.6
Notation  B  Typical Values

${I}_{MCA}$  Iterations between MCAs  150
${I}_{max}$  Maximum iteration number  500
${p}_{level3}$  Probability of level3 search  0.8
$Ar$  Archive size  100
$Ns$  Neighbourhood size  100
L  Tabulist size  30
P  Population size  100
${p}_{mutation}$  Rate of mutation  0.8
${p}_{crossover}$  Rate of crossover  0.2
$({\alpha}_{1},{\alpha}_{2},\mu ,\lambda )$  ${I}_{1}$ parameters  $(0.5,0.5,1,1)$
${\mathit{p}}_{\mathit{l}\mathit{e}\mathit{v}\mathit{e}\mathit{l}3}$  Best Solution  Mean Solution  Worst Solution  SD  ET

0  10,875.6553  10,928.4416  10,957.5933  22.3405  98.4386
0.1  10,882.5664  10,935.8356  10,978.9560  25.6220  99.7357
0.2  10,897.0627  10,922.4866  10,946.9486  14.2856  106.7122
0.3  10,894.6855  10,935.1849  10,981.7598  22.6840  114.1316
0.4  10,893.8999  10,927.5347  10,960.1311  20.8581  132.3853
0.5  10,870.5658  10,927.1250  10,965.2899  28.0809  139.0837
0.6  10,893.7139  10,922.8795  10,946.2359  19.7116  153.5391
0.7  10,859.4377  10,918.7540  10,956.2807  23.5941  158.2609
0.8  10,849.7328  10,907.9905  10,959.0818  28.7783  172.7458
0.9  10,885.8673  10,922.2359  10,945.8091  16.2176  172.7154
1  10,864.7334  10,914.4491  10,939.8273  21.2864  179.3093
${\mathit{I}}_{\mathit{MCA}}$  Best Solution  Mean Solution  Worst Solution  SD  ET

15  10,887.9339  10,915.9258  10,933.9978  12.4846  180.9297
25  10,887.3386  10,907.1512  10,946.9533  17.9590  179.3292
50  10,864.7334  10,914.4491  10,939.8273  21.2864  179.3093
75  10,887.7475  10,914.0151  10,947.0650  18.9695  175.5044
100  10,899.9133  10,917.2956  10,930.3250  9.1312  174.3383
125  10,881.1171  10,913.0205  10,956.5405  19.0231  180.1102
150  10,847.0901  10,900.6532  10,947.3101  26.0596  150.6687
175  10,866.3854  10,908.5777  10,944.5708  23.6946  158.3528
200  10,878.1705  10,911.7143  10,945.2829  18.0546  184.6337
Instance  Best Solution  Mean Solution  Worst Solution  SD  ET

MIHA  BJ60_01  10,864.7334  10,914.4491  10,939.8273  21.2864  179.3093
BJ60_02  10,217.4691  10,310.1949  10,395.6818  54.3404  167.1625
BJ60_03  11,321.6848  11,423.8391  11,489.1644  53.3224  168.3861
BJ60_04  11,800.7563  11,847.7284  11,915.0534  31.7880  179.6456
BJ60_05  10,890.8377  10,909.8830  10,947.0117  14.5797  190.0507
BJ60_06  11,875.3018  11,916.5380  11,942.8835  21.5401  157.5884
BJ60_07  12,528.3080  12,634.5020  12,685.8953  54.0499  138.2126
BJ60_08  11,783.3490  11,867.4716  11,932.7904  45.1478  162.5045
BJ60_09  11,573.5410  11,705.3953  11,908.5312  107.6724  173.2149
BJ60_10  12,939.9900  13,196.1938  13,269.0754  90.2917  161.0214
Average  11,579.5971  11,672.6195  11,742.5914  49.4019  167.7096
MIHA${}_{level3}$  BJ60_01  10,876.9472  10,929.2492  10,959.7533  23.8597  99.9533
BJ60_02  10,354.6481  10,439.4020  10,529.0454  47.3483  98.3095
BJ60_03  11,417.6826  11,510.4497  11,651.4713  77.5482  99.3993
BJ60_04  11,810.6944  11,850.3646  11,947.2880  36.0053  104.0135
BJ60_05  10,900.3834  10,930.1086  10,996.6298  29.6276  115.6167
BJ60_06  11,884.6734  11,934.8017  11,994.1760  37.2390  100.8201
BJ60_07  12,570.4124  12,737.4635  12,916.3772  116.3777  88.5942
BJ60_08  11,816.6496  11,865.4873  11,937.1039  42.1579  94.7336
BJ60_09  11,652.5596  11,744.5783  11,860.8162  74.2931  92.3574
BJ60_10  13168.2194  13,240.3696  13,322.1267  43.8999  85.6219
Average  11,645.2870  11,718.2275  11,811.4788  52.8356  97.9418
Instance  Best Solution  Mean Solution  Worst Solution  SD  ET

MIHA  BJ60_01  10,864.7334  10,914.4491  10,939.8273  21.2864  179.3093
BJ60_02  10,217.4691  10,310.1949  10,395.6818  54.3404  167.1625
BJ60_03  11,321.6848  11,423.8391  11,489.1644  53.3224  168.3861
BJ60_04  11,800.7563  11,847.7284  11,915.0534  31.7880  179.6456
BJ60_05  10,890.8377  10,909.8830  10,947.0117  14.5797  190.0507
BJ60_06  11,875.3018  11,916.5380  11,942.8835  21.5401  157.5884
BJ60_07  12,528.3080  12,634.5020  12,685.8953  54.0499  138.2126
BJ60_08  11,783.3490  11,867.4716  11,932.7904  45.1478  162.5045
BJ60_09  11,573.5410  11,705.3953  11,908.5312  107.6724  173.2149
BJ60_10  12,939.9900  13,196.1938  13,269.0754  90.2917  161.0214
Average  11,579.5971  11,672.6195  11,742.5914  49.4019  167.7096
MIHA${}_{TS}$  BJ60_01  10,887.9165  10,928.7764  10,958.6152  22.1538  179.1811
BJ60_02  10,350.4335  10,433.3471  10,569.4033  66.3863  165.9635
BJ60_03  11,410.8506  11,546.6879  11,693.6700  83.6334  183.0199
BJ60_04  11,808.0504  11,876.0743  12,002.3412  60.3121  190.7105
BJ60_05  10,893.5351  10,908.2957  10,941.6042  15.4682  213.1253
BJ60_06  11,930.4763  11,993.7405  12,040.6174  29.2162  162.8483
BJ60_07  12,790.4131  12,945.8023  13,093.2836  95.8863  150.9155
BJ60_08  11,840.7762  11,980.0637  12,070.6884  64.6119  170.2074
BJ60_09  11,700.6390  12,040.8509  12,195.6716  140.5182  169.8237
BJ60_10  13,352.3191  13,452.7316  13,528.2388  54.9095  152.6279
Average  11,696.5410  11,810.6370  11,909.4134  63.3096  173.8423
Instance  Best Solution  Mean Solution  Worst Solution  SD  ET

MIHA  BJ60_01  10,864.7334  10,914.4491  10,939.8273  21.2864  179.3093
BJ60_02  10,217.4691  10,310.1949  10,395.6818  54.3404  167.1625
BJ60_03  11,321.6848  11,423.8391  11,489.1644  53.3224  168.3861
BJ60_04  11,800.7563  11,847.7284  11,915.0534  31.7880  179.6456
BJ60_05  10,890.8377  10,909.8830  10,947.0117  14.5797  190.0507
BJ60_06  11,875.3018  11,916.5380  11,942.8835  21.5401  157.5884
BJ60_07  12,528.3080  12,634.5020  12,685.8953  54.0499  138.2126
BJ60_08  11,783.3490  11,867.4716  11,932.7904  45.1478  162.5045
BJ60_09  11,573.5410  11,705.3953  11,908.5312  107.6724  173.2149
BJ60_10  12,939.9900  13,196.1938  13,269.0754  90.2917  161.0214
Average  11,579.5971  11,672.6195  11,742.5914  49.4019  167.7096
MIHA${}_{GA}$  BJ60_01  10,889.6733  10,920.5130  10,947.4318  20.3041  162.6233
BJ60_02  10,267.1195  10,333.7142  10,415.6234  49.4848  149.6058
BJ60_03  11,349.3097  11,473.1526  11,595.0291  77.7908  149.0490
BJ60_04  11,804.8311  11,843.4759  11,937.9748  39.7545  150.1856
BJ60_05  10,898.5533  10,917.0069  10,942.3023  14.3160  168.1142
BJ60_06  11,882.7327  11,939.8357  11,973.6663  30.1972  170.9655
BJ60_07  12,534.6436  12,658.8725  12,849.5941  85.0550  129.9516
BJ60_08  11,806.8383  11,876.4740  11,934.8815  39.6358  138.7723
BJ60_09  11,630.3241  11,687.7664  11,850.7900  63.9084  140.8432
BJ60_10  13,120.3543  13,262.1483  13,355.0285  75.4520  128.9989
Average  11,618.4380  11,691.2960  11,780.2322  49.5899  148.9109
Instance  Best Solution  Mean Solution  Worst Solution  SD  ET

MIHA  BJ60_01  10,864.7334  10,914.4491  10,939.8273  21.2864  179.3093
BJ60_02  10,217.4691  10,310.1949  10,395.6818  54.3404  167.1625
BJ60_03  11,321.6848  11,423.8391  11,489.1644  53.3224  168.3861
BJ60_04  11,800.7563  11,847.7284  11,915.0534  31.7880  179.6456
BJ60_05  10,890.8377  10,909.8830  10,947.0117  14.5797  190.0507
BJ60_06  11,875.3018  11,916.5380  11,942.8835  21.5401  157.5884
BJ60_07  12,528.3080  12,634.5020  12,685.8953  54.0499  138.2126
BJ60_08  11,783.3490  11,867.4716  11,932.7904  45.1478  162.5045
BJ60_09  11,573.5410  11,705.3953  11,908.5312  107.6724  173.2149
BJ60_10  12,939.9900  13,196.1938  13,269.0754  90.2917  161.0214
Average  11,579.5971  11,672.6195  11,742.5914  49.4019  167.7096
MIHA${}_{MS}$  BJ60_01  11,328.7061  11,450.7661  11,645.5626  102.4337  16.3996
BJ60_02  10,706.7220  10,825.8266  10,952.4319  77.1375  16.0414
BJ60_03  12,036.9001  12,135.7632  12,194.5568  54.3717  15.1175
BJ60_04  12,367.3172  12,561.4857  12,854.7533  147.9147  17.2651
BJ60_05  11,232.0918  11,294.0261  11,371.0893  52.7390  16.8575
BJ60_06  12,288.4131  12,446.6655  12,589.8602  89.2907  16.7956
BJ60_07  13,243.3081  13,393.8310  13,479.3281  84.1279  13.8604
BJ60_08  12,172.4397  12,363.8495  12,507.0350  110.1176  13.1230
BJ60_09  12,293.5838  12,422.8764  12,574.3870  75.6798  14.9571
BJ60_10  13,356.4703  13,585.7384  13,783.8378  130.1142  13.2258
Average  12,102.5952  12,248.0829  12,395.2842  92.3927  15.3643
Instance  Best Solution  Mean Solution  Worst Solution  SD  ET

BJ100_01  19,067.0291  19,198.1247  19,286.2464  77.2545  177.5238
BJ100_02  20,054.6213  20,212.3116  20,335.2703  79.4795  177.5122
BJ100_03  19,611.4194  19,739.1057  19,807.4854  69.5798  187.4094
BJ100_04  18,185.2382  18,288.2393  18,365.8098  66.8545  183.9430
BJ100_05  18,450.2424  18,650.0880  18,721.6565  78.3719  177.8560
BJ100_06  17,185.9916  17,292.5207  17,429.9383  100.3186  191.1868
BJ100_07  18,018.7958  18,130.9018  18,231.9109  58.4036  203.7468
BJ100_08  18,077.4404  18,245.1333  18,386.8610  102.6939  190.7556
BJ100_09  17,317.3479  17,414.3330  17,513.4761  57.2721  181.7808
BJ100_10  20,888.4245  20,996.4199  21,191.1938  87.1091  165.4292
Average  18,685.6551  18,816.7178  18,926.9849  77.7338  183.7144
Algorithm  Best Solution  Mean Solution  Worst Solution  SD  ET

MIHA  140,577.0284  141,085.6778  141,823.7589  365.4070  2331.9363
Instance  BJ60  BJ100  JD1000

ET  150.6687  183.7144  2331.9363
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Niu, Y.; Yang, Z.; Wen, R.; Xiao, J.; Zhang, S. Solving the Green Open Vehicle Routing Problem Using a MembraneInspired Hybrid Algorithm. Sustainability 2022, 14, 8661. https://doi.org/10.3390/su14148661
Niu Y, Yang Z, Wen R, Xiao J, Zhang S. Solving the Green Open Vehicle Routing Problem Using a MembraneInspired Hybrid Algorithm. Sustainability. 2022; 14(14):8661. https://doi.org/10.3390/su14148661
Chicago/Turabian StyleNiu, Yunyun, Zehua Yang, Rong Wen, Jianhua Xiao, and Shuai Zhang. 2022. "Solving the Green Open Vehicle Routing Problem Using a MembraneInspired Hybrid Algorithm" Sustainability 14, no. 14: 8661. https://doi.org/10.3390/su14148661
