Assessing Landslide Susceptibility by Coupling Spatial Data Analysis and Logistic Model
Abstract
:1. Introduction
2. Materials and Methods

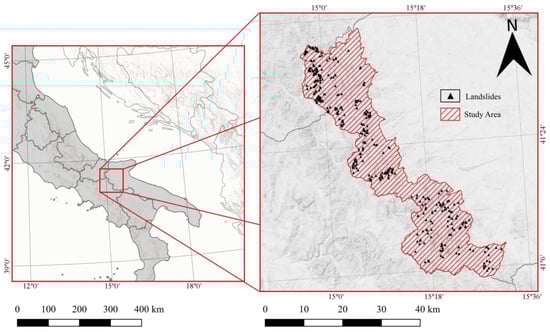

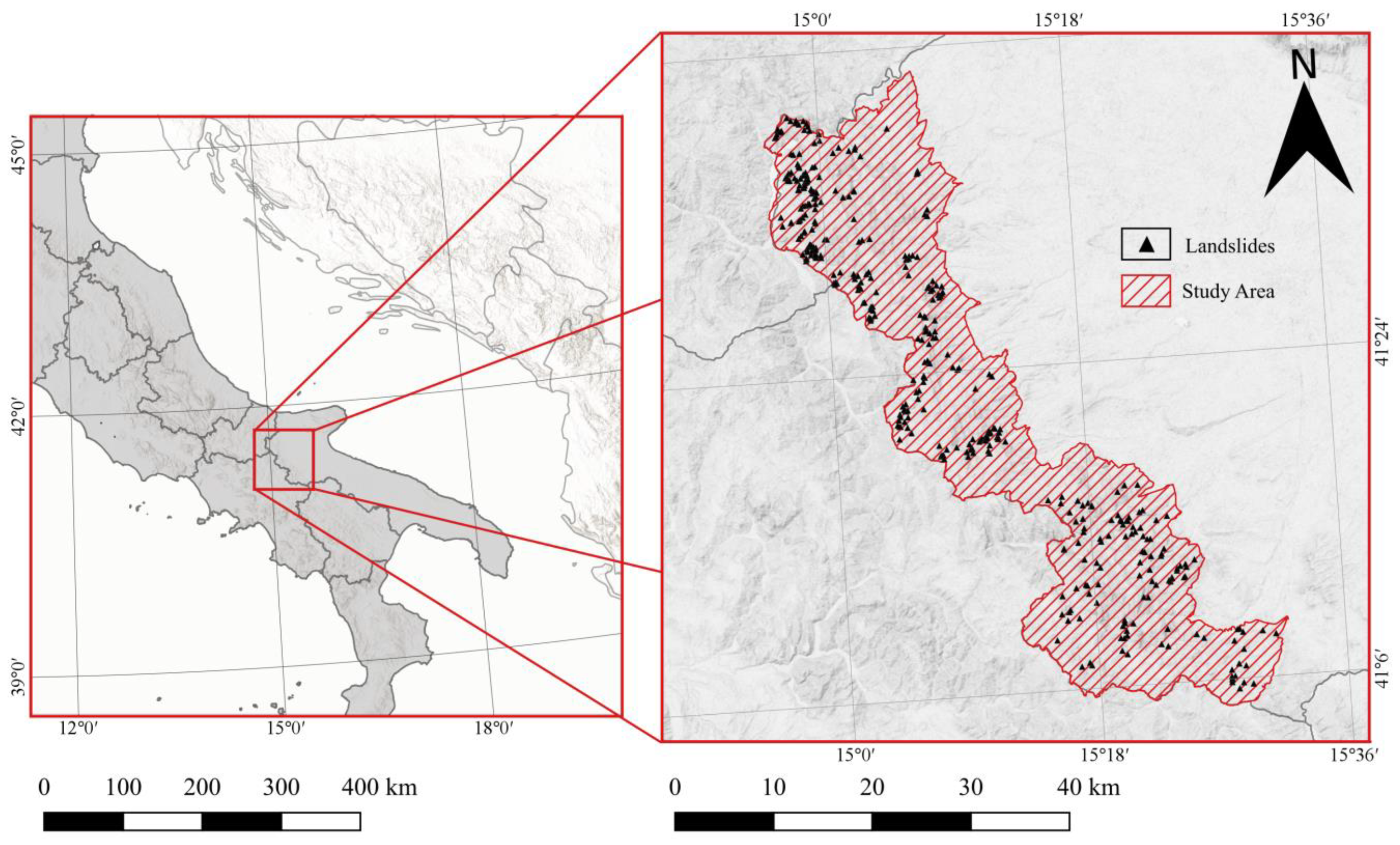

2.1. Study Area
2.2. Data Collection
2.3. Causative Factor Selection
- -
- Morphology. The landform is one of the most important factors influencing landslide occurrence [25]. The slope angle is considered one of the main triggering factors for landslides [26,27]. The aspect is decisive for triggering landslide processes. It is strictly connected to climatic conditions [28] and the factor impacting slope stability [29]. The topographical indices are useful for describing and quantifying the intensity and characteristics of hydrological processes [25]. The main topographical indices are reported in Table S1.
- -
- The topographic factors were calculated starting with a high-resolution digital terrain model (DTM) with 8-m resolution.
- -
- -
- Pedology (texture). Soil texture is one of the soil’s main physical features. Previous work has shown how soils of different textures can have different levels of susceptibility to the triggering of landslides [24]. Hamza et al. (2017) indicated that limestone has more probability of landslide occurrence, thus providing a hazard index value of 1.10 (Table 2). In contrast, the probability of occurrence of landslide for gypsum and sandstone is comparatively lower, with a hazard index ranging from 0.80 to 0.77.
- -
- Distance from river. This parameter has a strong link to the erosion process in hilly regions [9]. Rivers and streams play an important role in landscape modification by modeling the landforms and shaping the lithological substrate [32]. The distance from the river is calculated as the Euclidean distance by the river stream extracted from a high resolution (1:10000) land use map.
- -
- Seismic factor. The dynamics of triggering landslides following an earthquake are well documented [33,34,35]. Earthquake-induced landslides are one of the worst natural hazards [36]. Specifically, there is a strong relationship between distance from faults and epicenters [37]. Furthermore, the factors triggering earthquake-induced landslides are also related to earthquake characteristics, such as ground acceleration [11].
- -
- Climate. The climate affects landslides both directly and indirectly. For instance, intense rainfall is the most common triggering agent of landslides [38].
- -
- Land cover/land use. It influences the ability to eventually prevent and/or limit the extent and distribution of landslides. Forested and natural systems usually showed a statistically lower landslide occurrence, and they have an important role in preventing it. This is especially true when located in areas with critical topographical and lithological conditions [39].
- -
- Distance from road. Roads are an important susceptibility factor to the triggering of landslides as their construction could modify the land topography and shape. As a matter of fact, roads represent an important driver of the soil profile and hillslope alteration [2].
Variable Selection

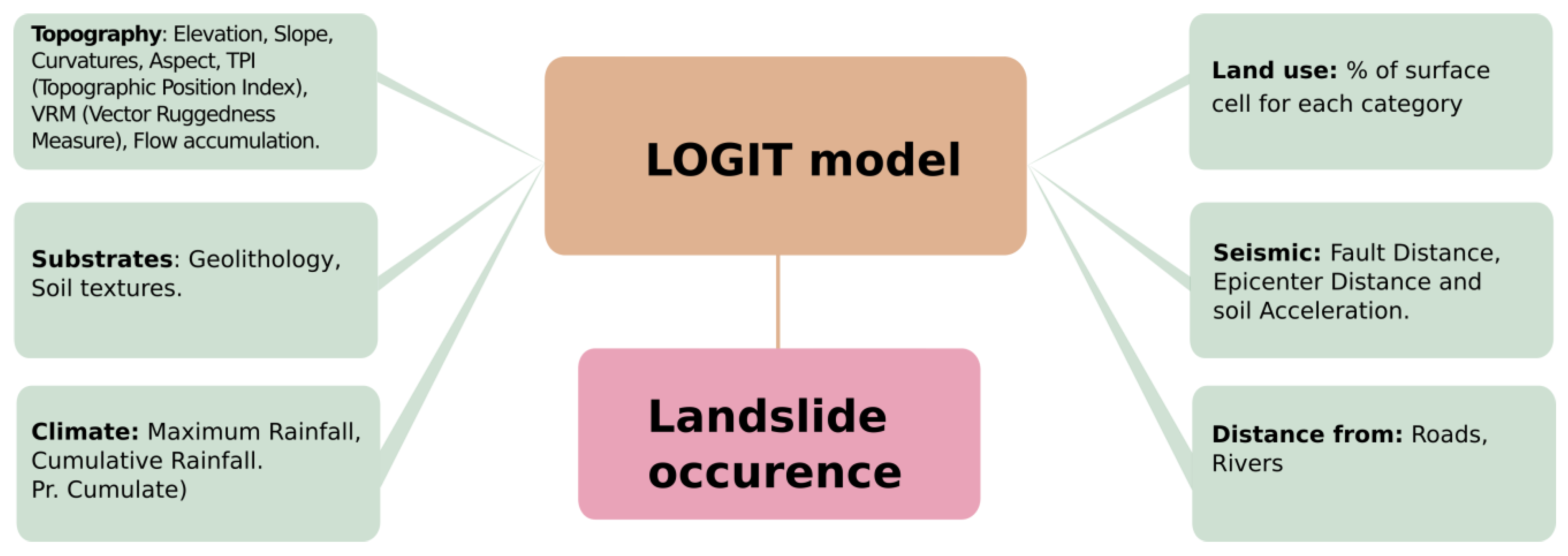

2.4. Logistic Regression
3. Results
3.1. Main Factors Affecting Slope Stability
3.2. Model Performance

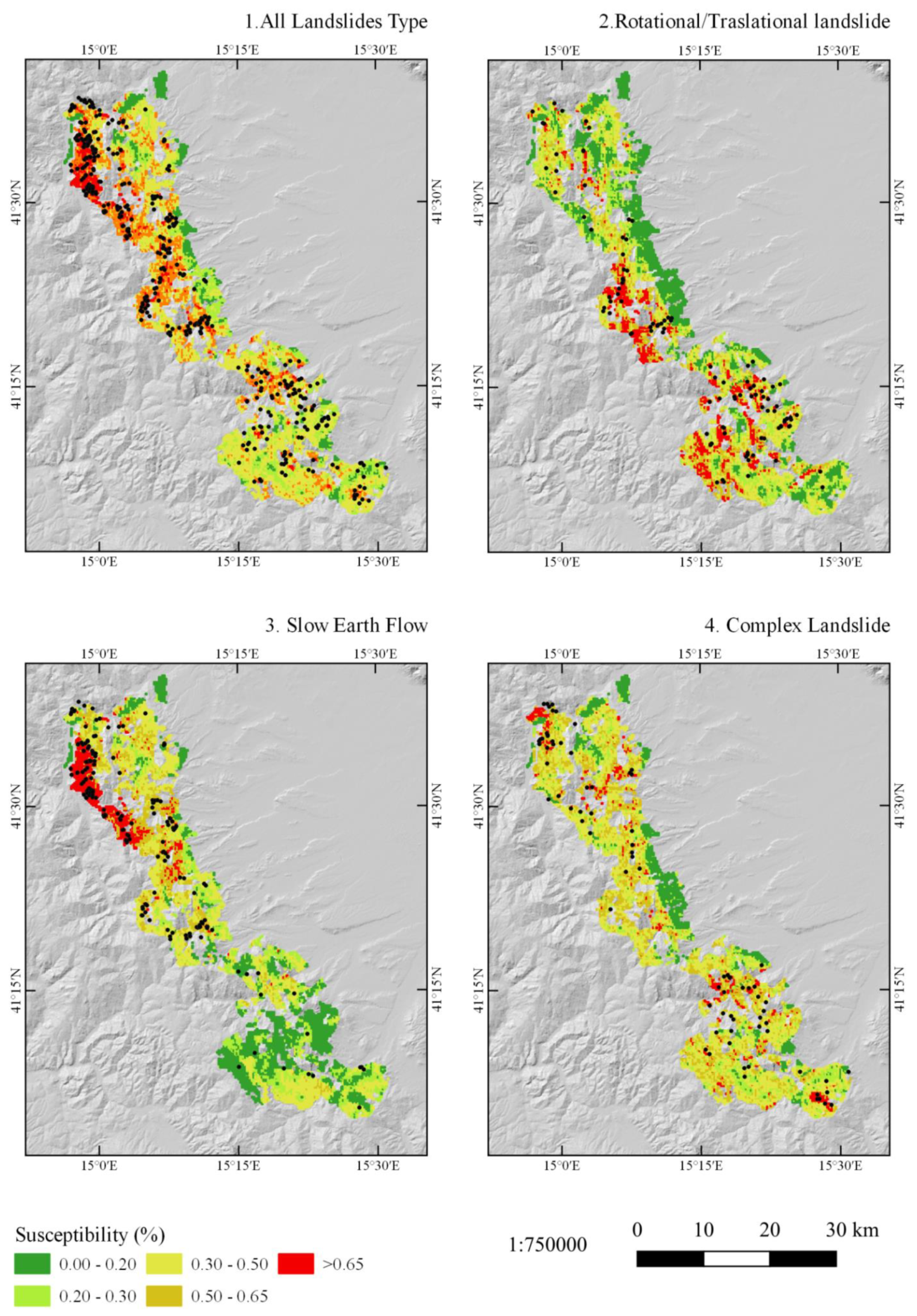

3.3. Susceptibility Mapping
4. Discussion
4.1. Logistic Regression Metrics
4.2. Correlation Analysis
4.3. Perspectives
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
References
- Chen, W.; Sun, Z.; Han, J. Landslide Susceptibility Modeling Using Integrated Ensemble Weights of Evidence with Logistic Regression and Random Forest Models. Appl. Sci. Switz. 2019, 9, 171. [Google Scholar] [CrossRef] [Green Version]
- Nsengiyumva, J.B.; Luo, G.; Amanambu, A.C.; Mind’je, R.; Habiyaremye, G.; Karamage, F.; Ochege, F.U.; Mupenzi, C. Comparing Probabilistic and Statistical Methods in Landslide Susceptibility Modeling in Rwanda/Centre-Eastern Africa. Sci. Total Environ. 2019, 659, 1457–1472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Haque, U.; Blum, P.; da Silva, P.F.; Andersen, P.; Pilz, J.; Chalov, S.R.; Malet, J.-P.; Auflič, M.J.; Andres, N.; Poyiadji, E.; et al. Fatal Landslides in Europe. Landslides 2016, 13, 1545–1554. [Google Scholar] [CrossRef]
- Trigila, A.; Iadanza, C.; Bussettin, M.; Lastoria, B. Dissesto Idrogeologico in Italia: Pericolosità e Indicatori di Rischio; Rapporto_Dissesto_Idrogeologico_ISPRA_287_2018_Web.Pdf; ISPRA: Milan, Italy, 2018.
- Guzzetti, F.; Reichenbach, P.; Cardinali, M.; Galli, M.; Ardizzone, F. Probabilistic Landslide Hazard Assessment at the Basin Scale. Geomorphology 2005, 72, 272–299. [Google Scholar] [CrossRef]
- Nepal, N.; Chen, J.; Chen, H.; Wang, X.; Pangali Sharma, T.P. Assessment of Landslide Susceptibility along the Araniko Highway in Poiqu/Bhote Koshi/Sun Koshi Watershed, Nepal Himalaya. Prog. Disaster Sci. 2019, 3, 100037. [Google Scholar] [CrossRef]
- Lafortezza, R.; Tanentzap, A.J.; Elia, M.; John, R.; Sanesi, G.; Chen, J. Prioritizing fuel management in urban interfaces threatened by wildfires. Ecol. Indic. 2015, 48, 342–347. [Google Scholar] [CrossRef]
- Elia, M.; D’Este, M.; Ascoli, D.; Giannico, V.; Spano, G.; Ganga, A.; Colangelo, G.; Lafortezza, R.; Sanesi, G. Estimating the Probability of Wildfire Occurrence in Mediterranean Landscapes Using Artificial Neural Networks. Environ. Impact Assess. Rev. 2020, 85, 106474. [Google Scholar] [CrossRef]
- Soma, A.S.; Kubota, T.; Mizuno, H. Optimization of Causative Factors Using Logistic Regression and Artificial Neural Network Models for Landslide Susceptibility Assessment in Ujung Loe Watershed, South Sulawesi Indonesia. J. Mt. Sci. 2019, 16, 383–401. [Google Scholar] [CrossRef]
- Meinhardt, M.; Fink, M.; Tünschel, H. Landslide Susceptibility Analysis in Central Vietnam Based on an Incomplete Landslide Inventory: Comparison of a New Method to Calculate Weighting Factors by Means of Bivariate Statistics. Geomorphology 2015, 234, 80–97. [Google Scholar] [CrossRef]
- Dou, J.; Bui, D.T.; Yunus, A.P.; Jia, K.; Song, X.; Revhaug, I.; Xia, H.; Zhu, Z. Optimization of Causative Factors for Landslide Susceptibility Evaluation Using Remote Sensing and GIS Data in Parts of Niigata, Japan. PLoS ONE 2015, 10, e0133262. [Google Scholar] [CrossRef] [Green Version]
- Elia, M.; Giannico, V.; Spano, G.; Lafortezza, R.; Sanesi, G. Likelihood and frequency of recurrent fire ignitions in highly urbanised Mediterranean landscapes. Int. J. Wildland Fire 2020, 29, 120. [Google Scholar] [CrossRef]
- Merlini, S.; Mostardini, F. Appennino Centro-Meridionale: Sezioni Geologiche e Proposta Di Modello Strutturale. In Proceedings of the Geologia dell’Italia Centrale, Congresso Nazionale, Rome, Italy, 30 September–4 October 1986; Volume 73, pp. 147–149. [Google Scholar]
- Patacca, E.; Scandone, P. Geology of the Southern Apennines. Boll. Soc. Geol. Ital. 2007, 7, 75–112. [Google Scholar]
- Dazzaro, L.; Di Nocera, S.; Pescatore, T.; Rapisardi, L.; Romeo, M.; Russo, B.; Senatore, M.; Torre, M. Geologia Del Margine Della Catena Appenninica Tra Il F. Fortore e Il T. Calaggio (Appennino Meridionale). Mem. Della Soc. Geol. Ital. 1988, 41, 411–422. [Google Scholar]
- Dazzaro, L.; Rapisardi, L. Integration of persistent scatterer interferometry and ground data for landslide monitoring: The Pianello landslide (Bovino, Southern Italy). Mem. Soc. Geol. It. 1996, 16, 143–147. [Google Scholar]
- Rovida, A.; Locati, M.; Camassi, R.; Lolli, B.; Gasperini, P.; Antonucci, A. Italian Parametric Earthquake Catalogue (CPTI15), Version 3.0. Istituto Nazionale Di Geofisica e Vulcanologia (INGV). Available online: https://emidius.mi.ingv.it/CPTI15-DBMI15_v3.0/ (accessed on 1 June 2022).
- Rovida, A.; Locati, M.; Camassi, R.; Lolli, B.; Gasperini, P. The Italian Earthquake Catalogue CPTI15. Bull. Earthq. Eng. 2020, 18, 2953–2984. [Google Scholar] [CrossRef]
- Valensise, G.; Pantosti, D.; Basili, R. Seismology and Tectonic Setting of the 2002 Molise, Italy, Earthquake. Earthq. Spectra 2004, 20, 23–37. [Google Scholar] [CrossRef]
- Miccolis, S.; Filippucci, M.; de Lorenzo, S.; Frepoli, A.; Pierri, P.; Tallarico, A. Seismogenic Structure Orientation and Stress Field of the Gargano Promontory (Southern Italy) From Microseismicity Analysis. Front. Earth Sci. 2021, 9, 179. [Google Scholar] [CrossRef]
- Malagnini, L.; Scognamiglio, L.; Mercuri, A.; Akinci, A.; Mayeda, K. Strong Evidence for Non-Similar Earthquake Source Scaling in Central Italy. Geophys. Res. Lett. 2008, 35, 17. [Google Scholar] [CrossRef]
- Soil Survey Staff. Keys to Soil Taxonomy, 12th ed.; USDA—Natural Resources Conservation Service: Washington, DC, USA, 2014.
- Santini, M.; Grimaldi, S.; Nardi, F.; Petroselli, A.; Rulli, M.C. Pre-Processing Algorithms and Landslide Modelling on Remotely Sensed DEMs. Geomorphology 2009, 113, 110–125. [Google Scholar] [CrossRef]
- Hamza, T.; Raghuvanshi, T.K. GIS Based Landslide Hazard Evaluation and Zonation – A Case from Jeldu District, Central Ethiopia. J. King Saud Univ. Sci. 2017, 29, 151–165. [Google Scholar] [CrossRef] [Green Version]
- Kadavi, P.R.; Lee, C.-W.; Lee, S. Landslide-Susceptibility Mapping in Gangwon-Do, South Korea, Using Logistic Regression and Decision Tree Models. Environ. Earth Sci. 2019, 78, 116. [Google Scholar] [CrossRef]
- Myronidis, D.; Papageorgiou, C.; Theophanous, S. Landslide Susceptibility Mapping Based on Landslide History and Analytic Hierarchy Process (AHP). Nat. Hazards 2016, 81, 245–263. [Google Scholar] [CrossRef]
- Rozos, D.; Bathrellos, G.D.; Skillodimou, H.D. Comparison of the Implementation of Rock Engineering System and Analytic Hierarchy Process Methods, upon Landslide Susceptibility Mapping, Using GIS: A Case Study from the Eastern Achaia County of Peloponnesus, Greece. Environ. Earth Sci. 2011, 63, 49–63. [Google Scholar] [CrossRef]
- Bednarik, M.; Magulová, B.; Matys, M.; Marschalko, M. Landslide Susceptibility Assessment of the Kraľovany–Liptovský Mikuláš Railway Case Study. Phys. Chem. Earth Parts ABC 2010, 35, 162–171. [Google Scholar] [CrossRef]
- Youssef, A.M.; Al-Kathery, M.; Pradhan, B. Landslide Susceptibility Mapping at Al-Hasher Area, Jizan (Saudi Arabia) Using GIS-Based Frequency Ratio and Index of Entropy Models. Geosci. J. 2015, 19, 113–134. [Google Scholar] [CrossRef]
- Kanungo, D.P.; Arora, M.K.; Sarkar, S.; Gupta, R.P. A Comparative Study of Conventional, ANN Black Box, Fuzzy and Combined Neural and Fuzzy Weighting Procedures for Landslide Susceptibility Zonation in Darjeeling Himalayas. Eng. Geol. 2006, 85, 347–366. [Google Scholar] [CrossRef]
- Rasyid, A.R.; Bhandary, N.P.; Yatabe, R. Performance of frequency ratio and logistic regression model in creating GIS based landslides susceptibility map at Lompobattang Mountain, Indonesia. GeoEnviron. Disasters 2016, 3, 19. [Google Scholar] [CrossRef] [Green Version]
- Meten, M.; PrakashBhandary, N.; Yatabe, R. Effect of Landslide Factor Combinations on the Prediction Accuracy of Landslide Susceptibility Maps in the Blue Nile Gorge of Central Ethiopia. Geoenviron. Disasters 2015, 2, 9. [Google Scholar] [CrossRef] [Green Version]
- Rollo, F.; Rampello, S. Probabilistic assessment of seismic-induced slope displacements: An application in Italy. Bull. Earthq. Eng. 2021, 19, 4261–4288. [Google Scholar] [CrossRef]
- Cao, J.; Zhang, Z.; Wang, C.; Liu, J.; Zhang, L. Susceptibility Assessment of Landslides Triggered by Earthquakes in the Western Sichuan Plateau. Catena 2019, 175, 63–76. [Google Scholar] [CrossRef]
- Su, L.; Hu, K.; Zhang, W.; Wang, J.; Lei, Y.; Zhang, C.; Cui, P.; Pasuto, A.; Zheng, Q. Characteristics and Triggering Mechanism of Xinmo Landslide on 24 June 2017 in Sichuan, China. J. Mt. Sci. 2017, 14, 1689–1700. [Google Scholar] [CrossRef]
- Tian, Y.; Xu, C.; Hong, H.; Zhou, Q.; Wang, D. Mapping Earthquake-Triggered Landslide Susceptibility by Use of Artificial Neural Network (ANN) Models: An Example of the 2013 Minxian (China) Mw 5.9 Event. Geomat. Nat. Hazards Risk 2019, 10, 1–25. [Google Scholar] [CrossRef] [Green Version]
- Chen, X.L.; Yu, L.; Wang, M.M.; Li, J.Y. Brief Communication: Landslides Triggered by the Ms= 7.0 Lushan Earthquake, China. Nat. Hazards Earth Syst. Sci. 2014, 14, 1257–1267. [Google Scholar] [CrossRef] [Green Version]
- Sidle, R.C. Using Weather and Climate Information for Landslide Prevention and Mitigation. In Climate and Land Degradation; Sivakumar, M.V.K., Ndiang’ui, N., Eds.; Environmental Science and Engineering; Springer: Berlin/Heidelberg, Germany, 2007; pp. 285–307. ISBN 978-3-540-72438-4. [Google Scholar]
- Persichillo, M.G.; Bordoni, M.; Meisina, C. The Role of Land Use Changes in the Distribution of Shallow Landslides. Sci. Total Environ. 2017, 574, 924–937. [Google Scholar] [CrossRef]
- Zellner, D.; Keller, F.; Zellner, G.E. Variable Selection in Logistic Regression Models. Commun. Stat. Simul. Comput. 2004, 33, 787–805. [Google Scholar] [CrossRef]
- D’Ambrosio, E.; De Girolamo, A.M.; Barca, E.; Ielpo, P.; Rulli, M.C. Characterising the Hydrological Regime of an Ungauged Temporary River System: A Case Study. Environ. Sci. Pollut. Res. 2017, 24, 13950–13966. [Google Scholar] [CrossRef]
- Elia, M.; Giannico, V.; Lafortezza, R.; Sanesi, G. Modeling Fire Ignition Patterns in Mediterranean Urban Interfaces. Stoch. Environ. Res. Risk Assess. 2019, 33, 169–181. [Google Scholar] [CrossRef]
- Park, H.-A. An Introduction to Logistic Regression: From Basic Concepts to Interpretation with Particular Attention to Nursing Domain. J. Korean Acad. Nurs. 2013, 43, 154. [Google Scholar] [CrossRef] [Green Version]
- Smith, T.J.; McKenna, C.M. A Comparison of Logistic Regression Pseudo R2 Indices. Mult. Linear Regres. Viewp. 2013, 39, 10. [Google Scholar]
- Aditian, A.; Kubota, T.; Shinohara, Y. Comparison of GIS-Based Landslide Susceptibility Models Using Frequency Ratio, Logistic Regression, and Artificial Neural Network in a Tertiary Region of Ambon, Indonesia. Geomorphology 2018, 318, 101–111. [Google Scholar] [CrossRef]
- Chen, W.; Yan, X.; Zhao, Z.; Hong, H.; Bui, D.T.; Pradhan, B. Spatial Prediction of Landslide Susceptibility Using Data Mining-Based Kernel Logistic Regression, Naive Bayes and RBFNetwork Models for the Long County Area (China). Bull. Eng. Geol. Environ. 2019, 78, 247–266. [Google Scholar] [CrossRef]
- Murillo-García, F.G.; Steger, S.; Alcántara-Ayala, I. Landslide Susceptibility: A Statistically-Based Assessment on a Depositional Pyroclastic Ramp. J. Mt. Sci. 2019, 16, 561–580. [Google Scholar] [CrossRef]
- Yang, X.; Yang, X. Digital Mapping of RUSLE Slope Length and Steepness Factor across New South Wales, Australia. Soil Res. 2015, 53, 216–225. [Google Scholar] [CrossRef]
- Chen, W.; Pourghasemi, H.R.; Kornejady, A.; Zhang, N. Landslide Spatial Modeling: Introducing New Ensembles of ANN, MaxEnt, and SVM Machine Learning Techniques. Geoderma 2017, 305, 314–327. [Google Scholar] [CrossRef]
- Çellek, S. Effect of the Slope Angle and Its Classification on Landslide. Nat. Hazards Earth Syst. Sci. Discuss. 2020, 1–23. [Google Scholar] [CrossRef]
- Akinci, H.; Zeybek, M.; Dogan, S. Evaluation of Landslide Susceptibility of Şavşat District of Artvin Province (Turkey) Using Machine Learning Techniques; IntechOpen: London, UK, 2021; ISBN 978-1-83969-024-2. [Google Scholar]
- Hudson, N.W. Soil and Water Conservation (Second Edition). By F. R. Troeh, J. A. Hobbs and R. L. Donahue. Hemel Hempstead, Herts, UK: Prentice Hall, (1991), Pp. 530, £55.65, ISBN 13-832324-X. Exp. Agric. 1992, 28, 127. [Google Scholar] [CrossRef]
- Troeh, F.R.; Hobbs, J.A.; Donahue, R.L.; Troeh, F.R. Soil and Water Conservation, 2nd ed.; Prentice Hall: Hoboken, NJ, USA, 1991. [Google Scholar]
- Huangfu, W.; Wu, W.; Zhou, X.; Lin, Z.; Zhang, G.; Chen, R.; Song, Y.; Lang, T.; Qin, Y.; Ou, P.; et al. Landslide Geo-Hazard Risk Mapping Using Logistic Regression Modeling in Guixi, Jiangxi, China. Sustainability 2021, 13, 4830. [Google Scholar] [CrossRef]
- Park, H.J.; Jang, J.Y.; Lee, J.H. Assessment of Rainfall-Induced Landslide Susceptibility at the Regional Scale Using a Physically Based Model and Fuzzy-Based Monte Carlo Simulation. Landslides 2019, 16, 695–713. [Google Scholar] [CrossRef]
- Nseka, D.; Kakembo, V.; Bamutaze, Y.; Mugagga, F. Analysis of Topographic Parameters Underpinning Landslide Occurrence in Kigezi Highlands of Southwestern Uganda. Nat. Hazards 2019, 99, 973–989. [Google Scholar] [CrossRef]
- Tağıl, Ş.; Jenness, J.; Tagil, S.; Jenness, J. GIS-Based Automated Landform Classification and Topographic, Landcover and Geologic Attributes of Landforms Around the Yazoren Polje, Turkey. J. Appl. Sci. 2008, 8, 910–921. [Google Scholar] [CrossRef] [Green Version]
- Zêzere, J.L. Landslide Susceptibility Assessment Considering Landslide Typology. A Case Study in the Area North of Lisbon (Portugal). Nat. Hazards Earth Syst. Sci. 2002, 2, 73–82. [Google Scholar] [CrossRef]
- Molnar, P.; Anderson, R.S.; Anderson, S.P. Tectonics, Fracturing of Rock, and Erosion. J. Geophys. Res. Earth Surf. 2007, 112. [Google Scholar] [CrossRef]
- Clarke, B.A.; Burbank, D.W. Bedrock Fracturing, Threshold Hillslopes, and Limits to the Magnitude of Bedrock Landslides. Earth Planet. Sci. Lett. 2010, 297, 577–586. [Google Scholar] [CrossRef] [Green Version]
- Scheingross, J.S.; Minchew, B.M.; Mackey, B.H.; Simons, M.; Lamb, M.P.; Hensley, S. Fault-Zone Controls on the Spatial Distribution of Slow-Moving Landslides. GSA Bull. 2013, 125, 473–489. [Google Scholar] [CrossRef] [Green Version]
- Brenning, A.; Schwinn, M.; Ruiz-Páez, A.P.; Muenchow, J. Landslide Susceptibility near Highways Is Increased by 1 Order of Magnitude in the Andes of Southern Ecuador, Loja Province. Nat. Hazards Earth Syst. Sci. 2015, 15, 45–57. [Google Scholar] [CrossRef] [Green Version]
- Pasang, S.; Kubíček, P. Landslide Susceptibility Mapping Using Statistical Methods along the Asian Highway, Bhutan. Geosciences 2020, 10, 430. [Google Scholar] [CrossRef]
- Zhou, C.; Cao, Y.; Yin, K.; Wang, Y.; Shi, X.; Catani, F.; Ahmed, B. Landslide Characterization Applying Sentinel-1 Images and InSAR Technique: The Muyubao Landslide in the Three Gorges Reservoir Area, China. Remote Sens. 2020, 12, 3385. [Google Scholar] [CrossRef]
- Ou, P.; Wu, W.; Qin, Y.; Zhou, X.; Huangfu, W.; Zhang, Y.; Xie, L.; Huang, X.; Fu, X.; Li, J.; et al. Assessment of Landslide Hazard in Jiangxi Using Geo-Information. Front. Earth Sci. China 2021, 9, 648342. [Google Scholar] [CrossRef]
- Bathrellos, G.D.; Kalivas, D.P.; Skilodimou, H.D. GIS-Based Landslide Susceptibility Mapping Models Applied to Natural and Urban Planning in Trikala, Central Greece. Estud. Geológicos 2009, 65, 49–65. [Google Scholar] [CrossRef] [Green Version]
- Guzzetti, F.; Carrara, A.; Cardinali, M.; Reichenbach, P. Landslide Hazard Evaluation: A Review of Current Techniques and Their Application in a Multi-Scale Study, Central Italy. Geomorphology 1999, 31, 181–216. [Google Scholar] [CrossRef]
- Wu, X.; Chen, X.; Zhan, F.B.; Hong, S. Global Research Trends in Landslides during 1991–2014: A Bibliometric Analysis. Landslides 2015, 12, 1215–1226. [Google Scholar] [CrossRef]
- Lima, P.; Steger, S.; Glade, T.; Tilch, N.; Schwarz, L.; Kociu, A. Landslide Susceptibility Mapping at National Scale: A First Attempt for Austria. In Advancing Culture of Living with Landslides; Mikos, M., Tiwari, B., Yin, Y., Sassa, K., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 943–951. [Google Scholar]
Landslide Type | N. |
---|---|
Slow earthflow | 228 |
Rotational/traslational landslide | 143 |
Complex landslide | 96 |
Rapid debris flow | 18 |
Fall/topple | 11 |
Area affected by numerous shallow landslide | 11 |
Unclassified landslide | 7 |
Sinkhole | 1 |
Total number | 515 |
Class of Factors | Factors Selected |
---|---|
Topography | Elevation; Flow accumulation; Planform curvature; Profile curvature; Standard curvature; Slope; Aspect; Topographic indexes (Slope roughness, Terrain roughness, Topographic wetness index, Vector Ruggedness Measure, Topographic Position Index, Topographic factor). |
Seismic Factors | Peak ground acceleration; Distance to active fault; Distance to earthquake epicenter. |
Geolithology | Percentage of cover area of Terrace alluvium; Sandstones and clays; Clays and marls; Clays; Debris; Alluvium and river-lake deposits; Beaches; Lakes and glaciers; Sands and conglomerates; Sandy and sand-marly units; Clayey and clayey-limestone units; Marly limestone units. |
Pedology | Percentage of cover area of clay; Percentage of sand; Percentage of silt. |
Land Cover | Percentage of cover area of Urban area; Agricultural area; Grassland; Forest; Natural area, Rivers and lakes. |
Morphology | Distance to rivers; Distance to roads. |
Climate | Mean annual maximum rainfall observed in 1 day; Mean annual rainfall. |
Total landslide (TL) | Rotational/Traslational Landslide (RTL) | Slow Earth Flow (SEF) | Complex Landslide (CL) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Factor | Coeff. | SE | p | Coeff. | SE | p | Coeff. | SE | p | Coeff. | SE | p |
−0.381 | 0.030 | *** | −0.704 | 0.037 | *** | −0.694 | 0.036 | *** | −0.388 | 0.031 | *** | |
T_TWI | −0.099 | 0.025 | *** | / | / | / | / | / | / | −0.207 | 0.023 | *** |
T_VRM | 0.086 | 0.023 | *** | 0.076 | 0.027 | * | / | / | / | 0.050 | 0.026 | . |
T_DTM | / | / | / | 0.112 | 0.026 | *** | −0.081 | 0.027 | ** | −0.040 | 0.026 | . |
T_F_acc | −0.042 | 0.025 | . | −0.244 | 0.042 | *** | / | / | / | −0.223 | 0.040 | *** |
T_Curv_pl | −0.053 | 0.022 | ** | 0.100 | 0.025 | *** | −0.039 | 0.025 | . | −0.064 | 0.023 | ** |
T_Curv_st | 0.106 | 0.022 | *** | 0.146 | 0.024 | *** | −0.043 | 0.026 | . | −0.037 | 0.020 | . |
T_N | / | / | / | 0.054 | 0.025 | * | / | / | / | −0.112 | 0.024 | ** |
T_NE | / | / | / | −0.196 | 0.030 | *** | / | / | / | / | / | / |
T_E | / | / | / | −0.172 | 0.029 | *** | / | / | / | / | / | / |
T_SE | / | / | / | −0.040 | 0.025 | . | / | / | / | / | / | / |
T_S | 0.117 | 0.021 | *** | / | / | / | 0.061 | 0.025 | . | / | / | / |
T_SW | / | / | / | 0.038 | 0.023 | . | −0.052 | 0.025 | . | 0.060 | 0.021 | ** |
T_W | −0.038 | 0.023 | . | 0.141 | 0.027 | *** | −0.088 | 0.025 | *** | −0.043 | 0.024 | . |
T_NW | 0.067 | 0.022 | ** | / | / | / | / | / | / | 0.089 | 0.021 | . |
T_FLAT | −0.060 | 0.035 | . | −0.235 | 0.041 | *** | −0.089 | 0.034 | ** | / | / | / |
T_Ls | 0.182 | 0.024 | *** | 0.115 | 0.029 | *** | 0.175 | 0.027 | *** | 0.132 | 0.022 | *** |
T_TPI | 0.112 | 0.022 | *** | 0.060 | 0.022 | ** | 0.253 | 0.022 | *** | −0.036 | 0.021 | . |
S_Epic | 0.056 | 0.027 | * | −0.252 | 0.028 | *** | 0.286 | 0.031 | *** | −0.112 | 0.024 | * |
G_TA | −0.071 | 0.043 | . | −0.098 | 0.046 | * | −0.081 | 0.039 | * | −0.141 | 0.041 | *** |
G_SSC | 0.137 | 0.018 | *** | −0.113 | 0.024 | *** | 0.206 | 0.017 | *** | 0.030 | 0.020 | . |
G_CM | −0.042 | 0.022 | . | −0.132 | 0.025 | *** | −0.224 | 0.039 | *** | 0.034 | 0.019 | . |
G_C | −0.236 | 0.031 | *** | −0.333 | 0.040 | *** | −0.260 | 0.031 | *** | −0.319 | 0.035 | *** |
G_DDB | −0.262 | 0.037 | *** | −0.140 | 0.043 | *** | −0.244 | 0.038 | *** | −0.262 | 0.035 | *** |
G_LG | /0.134 | 0.044 | ** | −0.077 | 0.038 | * | −0.069 | 0.037 | . | −0.068 | 0.037 | . |
G_SC | 0.042 | 0.023 | . | 0.061 | 0.023 | ** | −0.280 | 0.033 | *** | / | / | / |
G_SSM | 0.045 | 0.019 | * | −0.136 | 0.034 | ** | −0.119 | 0.036 | ** | 0.101 | 0.010 | *** |
G_CCL | 0.099 | 0.022 | *** | −0.092 | 0.028 | ** | 0.083 | 0.023 | *** | 0.103 | 0.022 | * |
G_ML | / | / | / | 0.157 | 0.027 | ** | / | / | / | −0.077 | 0.024 | ** |
P_sand | −0.110 | 0.026 | *** | 0.095 | 0.028 | *** | −0.241 | 0.030 | *** | / | / | / |
P_silt | −0.169 | 0.023 | *** | −0.311 | 0.029 | *** | −0.161 | 0.024 | *** | 0.106 | 0.028 | *** |
LU_urb | 0.068 | 0.013 | *** | 0.130 | 0.011 | *** | −0.160 | 0.042 | *** | 0.066 | 0.013 | ** |
LU_grs | −0.072 | 0.024 | ** | −0.073 | 0.022 | *** | −0.257 | 0.037 | *** | −0.137 | 0.030 | ** |
LU_for | / | / | / | 0.079 | 0.023 | *** | −0.089 | 0.026 | *** | 0.148 | 0.021 | *** |
LU_nat | 0.149 | 0.016 | *** | 0.111 | 0.018 | *** | 0.064 | 0.017 | *** | / | / | / |
D_riv | −0.159 | 0.024 | *** | −0.041 | 0.022 | . | −0.213 | 0.031 | *** | 0.073 | 0.025 | ** |
D_road | −0.338 | 0.026 | ** | −0.389 | 0.028 | *** | −0.303 | 0.027 | *** | −0.380 | 0.028 | *** |
C_p_max | −0.039 | 0.023 | . | / | / | / | −0.164 | 0.025 | *** | 0.168 | 0.025 | *** |
Landslide | AIC * | AUC ** | Accuracy | McFadden’s Pseudo R2 |
---|---|---|---|---|
All | 8004.13 | 0.76 | 0.71 | 0.12 |
Rotational/Translational | 7407.88 | 0.68 | 0.73 | 0.19 |
Slow Earth Flow | 7200.94 | 0.80 | 0.77 | 0.21 |
Complex Landslide | 7828.44 | 0.69 | 0.70 | 0.13 |
