Human Factor Index Measurement Using an ISM-SEM-Fuzzy Approach

Abstract

In recent years, there has been a trend toward automation and data exchange in manufacturing processes through industrial cognitive computing, the Internet of Things (IoT), and artificial intelligence. However, the human–machine interface plays a role in establishing a smart manufacturing system in any industry. It is necessary to develop a comprehensive model to identify the risk factors that contribute to the loss of human performance and productivity and evaluate the workplace for its compliance and agility toward safe human–machine systems. In this study, a model is proposed that can be used as a measurement tool to design ergonomic workplaces in the automotive industry. Several criteria have been classified under four enablers: physiological factors, psychological factors, environmental factors, and safety factors. These were identified through a literature review. The proposed model integrates the applications of structural equation modeling (SEM), interpretive structural modeling (ISM), and the multigrade fuzzy approach. ISM was employed to demonstrate the applicability of the model to depict various ergonomic enablers considered in the ergonomic measurement. SEM was used to validate the ergonomic measurement model statistically. Physiological factors were found to be highly correlated with ergonomic practices. Physiological and psychological factors were also highly correlated. The use of the multigrade fuzzy approach was demonstrated to determine the human factor index for an automotive component manufacturing industry. The proposed model can enable management to evaluate the various risk factors that hamper the ergonomic level of a company and thereby allow the company to harness the benefits of ergonomics to enhance safety and productivity.

1. Introduction

A manufacturing organization is a convoluted human–machine–environment organization system [1] Although the primary objective of such systems is to provide continuous improvements in quality and productivity, thereby increasing profits, meeting this objective largely depends on the wellness of employees and their willingness to actively engage in production activity [2]. Worker fatigue and work-related musculoskeletal Disorders (WMSDs) can lead to losses in overall productivity and efficiency [3]. WMSDs also accounted for 4.1 million early deaths in 2015, an increase of 46% since 2000 [4]. WMSDs have contributed to almost 400,000 injuries, costing industries over USD 20 billion per year. In 2019, 9440 cases of work-related musculoskeletal disorders (WMSDs) were reported in Korea, representing an increase of 2725 cases (40.6%) from the 6715 cases reported in the previous year. The cases accounted for approximately two thirds (67.3%) of all occupational diseases in that year [5]. The study of ergonomics plays a pivotal role in the design and development of conducive working environments that optimize the wellbeing of operators, thus increasing productivity safely [6]. Recently, Indian manufacturing industries have undertaken initiatives to redesign their workplaces to overcome various occupational injuries and musculoskeletal disorders (MSD) [7].

Recent studies have explored the applications of ergonomic tools such as the Strain Index (SI), the National Aeronautics and Space Administration Task Load Index (NASA TLX), the Occupational Repetitive Actions Index (OCRA), the Rapid Upper Limb Assessment (RULA), the Ovako Working posture Analysis System (OWAS) checklist, and the Rapid Entire Body Assessment (REBA) to improve occupational health and safety in the areas of machine design, task design, the working environment, and facility design. These tools and techniques to derive benefits based on the theory of ergonomics require considerable time and energy to implement. Present methods of evaluating postural risk are based on observational techniques that requires an ergonomic analyst to observe the work in real-time or from recorded video to manually segment the relevant body parts and evaluate the risk associated with the posture [8]. Due to human error, however, these techniques produce results with low consistency and repeatability, both of which can be reduced or eliminated by using advanced technologies [9]. All the risk assessment methodologies are used to evaluate the physiological level of risk that was associated with performance of the job.

This study aims to develop a human factor index measurement tool that includes physiological, psychological, environmental, and safety risk considerations based on how these risks are interrelated. Moreover, the use of several indicators in a study requires that these indicators themselves be understood and are easily measurable. However, these limitations have not been addressed in many studies. The remainder of this paper is organized as follows: Section 2 presents the research background in the areas of ergonomic risk evaluation and assessment. The proposed methodology for workplace ergonomic assessment is described in Section 3. The conceptual framework and analysis are presented in Section 4. Finally, the results of this study are reported in Section 5.

2. Research Background

Ergonomic risks in manufacturing sectors can cause serious injuries and impact the health and quality of life of workers [10]. This can contribute to losses of quality and productivity. Different self-reporting methods such as rating scales, questionnaires, checklists, and interviews have been used in the past to study ergonomic risks [11]. An effective rapid-screening instrument was developed by Keyserling et al. [12] to identify the exposure of workers to risky postures in cyclical jobs. Shikdar et al. [1] developed the “ErgoTech” self-assessment software package to evaluate the ergonomic improvement potential of production systems in the manufacturing industry. The application of this tool enabled production managers to recognize ergonomic improvements in the workplace successfully. David [11] reported the use of several tools to assess the exposure to risk based on self-reports, observational methods, and direct measurements. Laring et al. [13] proposed the Ergo SAM tool, which can be used to optimize the workplace in terms of the production time and physical load on the operator. This tool facilitates the detection of high musculoskeletal loads early in the planning process.

The most widely used methods for ergonomic assessment are the Occupational Safety and Health Administration (OSHA) checklist and the standard Nordic MSD questionnaire. The standard Nordic MSD questionnaire has been used in applications such as furniture manufacturing [14] and LCD manufacturing [15]. The OSHA checklist has been used for the analysis of semiconductor manufacturing [16]. The main weakness of these self-reporting approaches is that the results are not always reliable, which can lead to biased interpretations.

Observational methods such as the OWAS and the Strain Index (SI) involve direct observation of the worker and the consequent tasks. Sonne et al. [17] devised an office risk assessment tool, Rapid Office Strain Assessment (ROSA), to measure risks related to computer work. This tool provides a report to the user detailing the need for modification of discomfort associated with office work. Poochada and Chaiklieng [18] demonstrated the use of the ROSA to evaluate the presence of risk elements for job-related MSD in a call center office. The RULA method has been used to assess the risk of work-related upper limb disorders [19,20]. The OCRA method has been used to evaluate upper limb disorders; the risk factors considered are repetition, strength, incorrect postures, and lack of rest intervals [21]. REBA has been effectively used to analyze the exposure related to the upper and lower limbs [22]. Chander and Cavatorta [23] proposed the postural ergonomic risk assessment (PERA) method to assess the postural ergonomic risk of short cyclic assembly jobs. The drawbacks of these observational methods are high intra- and inter-observer inconsistency due to the data collection, which is generally performed through subjective opinion or simple judgment from videos/pictures, and a lack of accuracy. To overcome these limitations, Maman et al. [24] and Plantard et al. [25] recommended the use of sensors attached to the worker’s body to collect data directly; however, this is difficult to implement in real-world situations. Li et al. [26] proposed an improved physical demand analysis (PDA) by integrating risk assessment tools such as REBA, RULA, and NIOSH; the proposed method enables ergonomic risk identification and evaluation and proactively mitigates the risk to workers by providing modified work. The four main ergonomic risks identified in the case study were static whole-body posture, heavy material handling, sensory risks, and awkward body postures. Bortolini et al. [27] developed a motion analysis system (MAS) for the ergonomic analysis of operators during assembly tasks based on Motion Capture (MOCAP) technology with ad hoc software. The applicability of the MAS was discussed through a case study of a water pump assembly workstation. Using a deep learning algorithm to predict RULA scores, Nayak et al. [5] created an automated, RULA-based posture evaluation system. This will help to reduce the amount of time necessary for postural evaluation while also producing highly reliable RULA scores that are similar to the results obtained using the manual method.

In this study, an exhaustive literature review was conducted based on the factors considered for ergonomic evaluation and the area of study, and the results are summarized in

Table 1. Summary of the literature review.

	Factors Considered in the Ergonomic Evaluation						Area of Study
Authors	Physiological Factors	Psychological Factors	Environmental Factors	Safety Factors	Technological and Organizational Factors	Other Factors	Process/Technology	Workplace	Equipment
Keyserling et al. (1992) [12]	✓	✕	✕	✕	✕	✕	✕	✓	✕
Parsons (2000) [28]	✕	✕	✓	✕	✕	✕	✕	✕	✕
Sen and Das (2000) [30]	✕	✓	✕	✕	✕	✕	✕	✕	✓
Grzybowski (2001) [31]	✓	✓	✓	✕	✓	✕	✕	✓	✕
Shikdar et al. (2002) [1]	✕	✕	✓	✓	✕	✓	✕	✓	✕
Laring et al. (2005) [13]	✓	✕	✕	✕	✕	✕	✕	✓	✕
Sonne et al. (2012) [17]	✓	✕	✕	✕	✕	✕	✕	✓	✕
Maldonado et al. (2015) [32]	✓	✕	✓	✕	✓	✓	✓	✕	✓
Borah (2015) [33]	✓	✕	✕	✕	✕	✕	✓	✕	✕
Matos and Arezes (2015) [34]	✓	✕	✕	✕	✕	✕	✕	✓	✕
Poochada and Chaiklieng (2015) [18]	✓	✕	✕	✕	✕	✕	✕	✓	✕
Chander and Cavatorta (2017) [23]	✓	✓	✕	✕	✕	✓	✕	✓	✕
Li et al. (2019) [26]	✓	✕	✓	✓	✕	✕	✕	✓	✕
Bortolini et al. (2020) [27]	✓	✕	✕	✕	✕	✕	✕	✓	✕
Model presented in this study	✓	✓	✓	✓	✕	✕	✕	✓	✕

. The literature review indicated that research on ergonomic assessments has often considered physiological and/or psychological factors. Parsons, K.C. [28] discussed the great deal of work on the effects of light, noise, vibration, and thermal environments on the health, comfort, and working efficiency. Health, safety, and environment (HSE) at the operational level will strive to eliminate injuries, adverse health effects, and damage to the environment; enhance worker productivity, provide improved worker safety (physical and mental), and job satisfaction [29]. However, significant factors such as environmental and safety factors that could influence “the ergonomic conducive level” of the industry have been neglected in most previous studies. Moreover, there appears to be a lack of amalgamation of ergonomic assessment tools for better prediction of ergonomic levels in any manufacturing industry. Hence, there is a need to develop a comprehensive evaluation model for workplace ergonomic assessments. This study proposes a conceptual model that facilitates the determination of a human factor index for workplace ergonomic measurements. The application of the model is demonstrated using analytical tools such as interpretive structural modeling (ISM), structural equation modeling (SEM), and a multigrade fuzzy approach to determine the ergonomic performance in the Indian automotive industry. ISM methodology typically helps to create a well-defined visible model from poorly articulated unclear mental model of experts. Since the factors cannot be directly measured, the structural equation modelling (SEM) methodology is typically used to analyze the structural relationship between factors for establishing either a theoretical or a predictive relationship.

3. Methodology

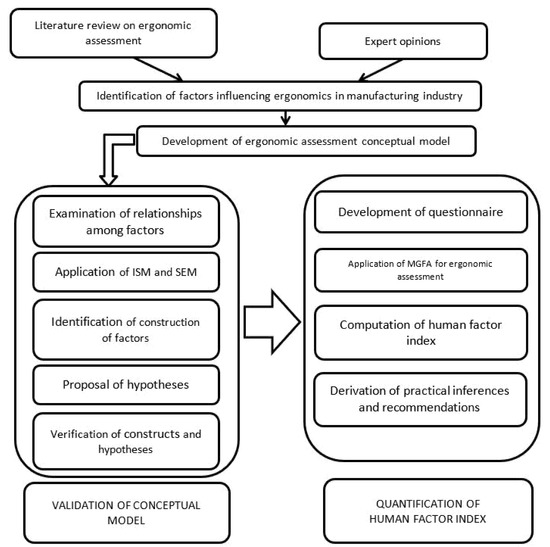

This study aims to determine a human factor index for ergonomic workplace assessment in automotive industries, as shown in Figure 1.

A total of 379 documents were obtained from the core collection database on 30 March 2020. Of the 379 articles, 365 were journal articles, and 14 were review articles. A literature review of workplace ergonomic assessments and expert opinions obtained from the automotive industry enabled us to identify the list of factors to be considered in this study. The factors, criteria, and variables to be included in the ergonomic measurement model were carefully selected. ISM was used to identify and describe the relationships among the factors. The comprehensive model constructed from ISM was verified using partial least squares (PLS)-based SEM. SEM-based statistical analyses do not allow for a comprehensive inference of the interconnectivity relationship. Therefore, to determine the direction of the relationships among factors, ISM was used. In this study, SEM was applied to a first-order four-factor structure for fifteen performance variables. After the theoretical model was verified using SEM, an ergonomic quantification tool was developed using the multigrade fuzzy approach. A demonstration of the proposed model in a workplace ergonomic measurement study was carried out in the Indian automotive industry. The computation of the human factor index facilitates evaluation of the “ergonomic conducive level” of the industry.

4. Ergonomic Assessment Model

The conceptual framework for the design of the ergonomic measurement tool is presented in

Table 2. Conceptual framework for ergonomic assessment.

Factors	Criteria	Variables	Sources
Physiological factors (PHY)	Biomechanical aspects (phy1)	Access to machine and clearance	Maldonado et al. (2013) [32]
		Horizontal/vertical reach	Maldonado et al. (2013) [32]
		Adjustability of design	Maldonado et al. (2013) [32]
		Postural comfort of design	Maldonado et al. (2013) [32]
		Physical work/endurance and design	Maldonado et al. (2013) [32]
	Usability (phy2)	Compatibility of design and control	Maldonado et al. (2013) [32]
		Physical distribution of controls	Maldonado et al. (2013) [32]
		Visual workplace design	Maldonado et al. (2013) [32]
		Error tolerance	Maldonado et al. (2013) [32]
		human–machine function allocation of design	Maldonado et al. (2013) [32]
	Energy expenditure (phy3)	Worker movement	Borah (2015) [33]
		Material handling	Saleem et al. (2003) [36]
		Basal metabolic rate	Vianna and quaresma (2013) [37]
Psychological factors (PSY)	Work–rest schedule (psy1)	Body heat	Keyserling et al. (1992) [12]
		Heart rate	Keyserling et al. (1992) [12]
		Work and rest periods	Keyserling et al. (1992) [12]
	Human skills and training capability (psy2)	Skill level compatibility	Maldonado et al. (2013) [32]
		Training level compatibility	Maldonado et al. (2013) [32]
	Human error (psy3)	Training	Sanders and mccormick (1993) [38]
		Design of equipment	Sanders and mccormick (1993) [38]
		Worker selection	Sanders and mccormick (1993) [38]
	Communication (psy4)	Information flow	Sanders and mccormick (1993) [38]
		Speech intelligibility	Sanders and mccormick (1993) [38]
Environmental factors (ENV)	Temperature/climate (env1)	Acclimatization	Åstrand et al. (1986) [9]; parsons (2000) [28]
		Limits of tolerance	Åstrand et al. (1986) [9]; parsons (2000) [28]
	Noise (env2)	Sound intensity	Parsons (2000) [28]
		Sound categories	Parsons (2000) [28]
	Housekeeping (env3)	Maintenance	Parsons (2000) [28]
		Level of cleanliness	Parsons (2000) [28]
	Illumination (env4)	Nature of light	Parsons (2000) [28]
		Light distribution	Parsons (2000) [28]
	Motion (vibration) (env5)	Interference with activities	parsons (2000) [28]
		Motion sickness	Parsons (2000) [28]
Safety factors (SAF)	Personal safety (saf1)	Personal protective equipment	Botti et al. (2017) [39]
		Safety training	Karwowski (2007) [40]
	Organizational safety (saf2)	Hazards	Botti et al. (2017) [39]
		Regulations and norms	Siemieniuch and sinclair (2014) [41]
	Risk management (saf3)	Risk assessment	Sonne et al. (2012) [17]

. The ergonomic assessment model is divided into three stages. The first stage comprises 4 factors, the second stage contains 15 ergonomic criteria, and the third stage entails 40 ergonomic variables [35].

4.1. Identifying Relationships among Factors: ISM Approach

This study aimed to explore the use of ISM to recognize the associations among the factors that affect the ergonomic assessment of an industry.

ISM is used as a tool in decision making, in which a group of factors affecting the application of a system are identified in an organized manner. ISM utilizes the practical experience of professionals currently working in the area to develop a multilevel organizational model that emphasizes the key aspects involved in the application of a specific system [42]. These features make this a more suitable tool for the present study.

The working mechanism of the ISM technique is as follows [42].

A circumstantial relationship between the factors and the structural self-interaction matrix (SSIM) of factors is developed. This matrix indicates the pairwise association among the factors analyzed, as presented in

Table 3. Structural self-interaction matrix (SSIM).

	PHY	PSY	ENV	SAF
PHY	1	V	A	A
PSY		1	A	A
ENV			1	X
SAF				1

. To indicate the direction of the association between two factors (i and j), the following symbols are defined:

• V denotes that factor i affects factor j;
• A denotes that factor j impacts factor I;
• X denotes that factors i and j affect each other;
• X denotes that factors i and j are unrelated.

The SSIM is developed using expert opinions and is improved to create a reachability matrix by changing each entry in the SSIM into binary digits 1 and 0.

The initial reachability matrix is derived from the SSIM matrix. After checking the transitivity, the final reachability matrix is obtained, and the final reachability matrix is partitioned into different levels by listing the factors in the antecedent set, intersection set, reachability set, and partition level, as presented in

Table 4. Level partitions for ergonomic contributory factors.

Factors	Reachability Set	Antecedent Set	Intersection Set	Level
PHY	PHY, PSY	PHY, ENV, SAF	PHY	I
PSY	PSY	PHY, PSY, ENV, SAF	PSY
ENV	PHY, PSY, ENV, SAF	ENV, SAF	ENV, SAF
SAF	PHY, PSY, ENV, SAF	ENV, SAF	ENV, SAF
PHY	PHY	PHY, ENV, SAF	PHY	II
ENV	PHY, ENV, SAF	ENV, SAF	ENV, SAF
SAF	PHY, ENV, SAF	ENV, SAF	ENV, SAF
ENV	ENV, SAF	ENV, SAF	ENV, SAF	III
SAF	ENV, SAF	ENV, SAF	ENV, SAF

.

A directed graph of the interactions listed in Table 4 is then drawn. The ISM model thus constructed is shown in Figure 2.

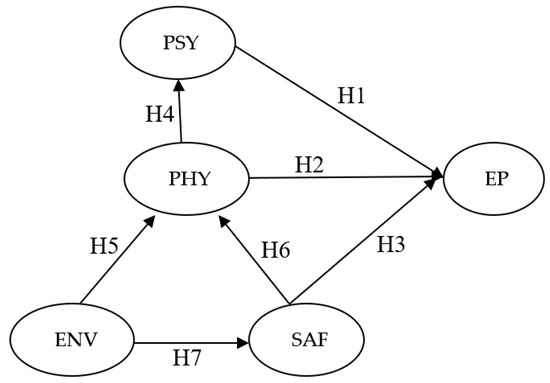

The model shown in Figure 2 is subsequently used for SEM analysis.

4.2. SEM Validation of the Relationships among Factors

SEM analyzes the hypotheses for unmeasurable variables by considering independent and dependent variables using statistical analysis [42]. The theoretical model obtained from the ISM was validated using PLS-SEM. After a careful literature review, a questionnaire was used in discussions with experts working in the automotive industry. The questionnaire was administered via email to 150 experts from different firms. At the end of the survey, 101 complete and usable responses were received from 40 automotive manufacturing firms. This represents a response rate of 67.30%, which is sufficient for this empirical study [43]. This sample size is adequate for evaluating the hypotheses developed in this study [43]. Our respondents consisted of an ergonomics engineer, head supply chain managers, maintenance engineers, operations managers, and risk assessment specialists. Of the respondents, 67% were between 27 and 50 years of age, and only 12% were over 50 years of age. The model representation of the factors, along with the tests of the hypotheses considered in this study, are shown in Figure 3.

The hypotheses tested in this study are described below:

Hypothesis 1 (H1).

Psychological factors and the ergonomic assessment are correlated.

Hypothesis 2 (H2).

The ergonomic assessment and physiological factors are correlated.

Hypothesis 3 (H3).

The ergonomic assessment and safety factors are correlated.

Hypothesis 4 (H4).

Psychological factors and physiological factors are correlated.

Hypothesis 5 (H5).

Environmental factors and physiological factors are correlated.

Hypothesis 6 (H6).

Safety factors and physiological factors are correlated.

Hypothesis 7 (H7).

Environmental factors and safety factors are correlated.

The convergent validity was evaluated by assessing Cronbach’s α, the average variance extracted (AVE), and the composite reliability, which is used to analyze the level of correlation/convergence of different variables of the same construct. The composite reliability is greater than the acceptable limit of 0.7 for all constructs, and the convergent validity [44] of the constructs is confirmed if the AVE is greater than or equal to 0.50. Moreover, the Cronbach’s α value for the ergonomic factors is above 0.5, and hence, the factors are found to be reliable, as indicated in

Table 5. Construct validity.

Construct	Composite Reliability	AVE	Cronbach’s α
Ergonomic Practice	0.887	0.728	0.827
Physiological Factors	0.886	0.723	0.805
Psychological Factors	0.805	0.500	0.727
Environmental Factors	0.846	0.500	0.798
Safety Factors	0.767	0.687	0.767

.

In this study, discriminant validity measures were evaluated using a confirmatory factor analysis. It can be found that correlation values of factors such as physiological, psychological, environmental, and safety were less than the square root of the AVE [45]. Hence, it was found that the factors considered in this model have discriminant validity, as indicated in

Table 6. Discriminant validity.

Construct	Ergonomic Practice	Physiological Factors	Psychological Factors	Environmental Factors	Safety Factors
Ergonomic Practice	0.853
Physiological Factors	0.151	0.850
Psychological Factors	0.192	0.457	0.707
Environmental Factors	0.771	0.480	0.457	0.701
Safety Factors	0.135	0.647	0.629	0.471	0.829

.

The bootstrapping test (

Table 7. Bootstrapping results.

Construct	Indicator	Original Sample	Sample Mean	Standard Deviation	t-Statistic
Ergonomic Practice	EP1	0.968	0.887	0.205	4.713
	EP2	0.897	0.812	0.242	3.701
	EP3	0.666	0.608	0.273	2.44
Physiological Factors	PHY1	0.742	0.739	0.041	17.985
	PHY2	0.907	0.907	0.014	66.47
	PHY3	0.892	0.893	0.021	43.195
Psychological Factors	PSY1	0.291	0.283	0.171	1.705
	PSY2	0.782	0.783	0.038	20.652
	PSY3	0.652	0.638	0.082	7.917
	PSY4	0.928	0.924	0.018	51.241
	PSY5	0.721	0.717	0.059	12.143
Environmental Factors	ENV1	0.399	0.423	0.169	2.36
	ENV2	0.772	0.725	0.16	4.81
	ENV3	0.723	0.674	0.166	4.352
	ENV4	0.81	0.788	0.095	8.548
	ENV5	0.845	0.815	0.09	9.431
	ENV6	0.551	0.518	0.125	4.392
Safety Factors	SF1	0.923	0.923	0.012	77.955
	SF2	0.889	0.89	0.02	44.844
	SF3	0.647	0.634	0.076	8.509

) was performed using the PLS-SEM to determine the t-test values. Based on the bootstrapping results presented in the Table 7. Materials and the hypothesis testing, all of the hypotheses were supported by the survey results (p < 0.05).

The standard errors and t-test values are listed in

Table 8. Ergonomic measurement model t-test results.

Hypothesis Number	Hypothesis	Entire Sample Estimate	Mean of Subsamples	Standard Error	t-Statistic
H1	PSY-EP	0.455	0.481	0.042	10.87
H2	PHY-EP	0.879	0.878	0.018	49.652
H3	SAF-EP	0.11	0.131	0.012	9.167
H4	PHY-PSY	0.948	0.948	0.009	107.55
H5	ENV-PHY	0.48	0.507	0.043	11.128
H6	SAF-PHY	0.927	0.926	0.016	58.634
H7	ENV-SAF	0.471	0.5	0.044	10.781

.

Based on the “t” statistic, it can be inferred that there is a significant correlation between each of the verified factors and the ergonomic practices. Among these, the physiological factors have very high correlation with the ergonomic practices in the manufacturing industry, with a “t-stat” result of 49.652. It is also observed that there is a significant correlation between psychological and physiological factors, with a “t-stat” value of 107.55.

4.3. Determination of Human Factor Index Measurement

The ergonomic factors and their relationships, which were validated using the ISM-SEM approach, are considered to measure the human factor index using a multigrade fuzzy approach. The multigrade fuzzy approach overcomes the drawbacks associated with conventional crisp approaches. The major advantage of using the multigrade fuzzy method is that the average weights are multiplied by the responses given by experts for each variable. This method avoids fluctuations in the values, and extreme responses and their biases are neutralized as constant weights in the calculation. Fuzzy approaches provide a useful tool to deal with problems in which attribute phenomena are imprecise and vague. Most ergonomic measurements are characterized by ambiguity and multiple possibilities. The scoring of existing techniques is always criticized because the scales used to score ergonomics have limitations. In this context, a multigrade fuzzy approach was used to evaluate ergonomics in the automotive industry.

The application of the multigrade fuzzy approach was validated through a case study. The case study was conducted in an original equipment manufacturer (Sarang Auto Parts Pvt. Ltd., Chennai, India) located in Chennai, India. This organization produces a shaft lower link, nut-driving pinion, bearing lock, rod hydraulic lift connection, and support reverse cluster. They manufacture the following parts under the broad category of automotive components: electrical parts, drive transmission and steering parts, nut-driving pinion, bearing locks, rod hydraulic lift connections, shaft power take-off (PTO) drives, shaft lower links, support reverse clusters, and shaft front PTOs.

The human factor index (HFI) of a workplace is represented by the multiplication of the weight (W) and assessment factor (F).

HFI = W × F

The assessment has been divided into five scales because every ergonomic factor involves the fuzzy determination I = (10, 8, 6, 4, 2). “Excellent”, “good”, “fair”, “poor”, and “very poor” ergonomic levels correspond to scores of 8–10, 6–8, 4–6, 2–4, and 0–2, respectively. Four experts (L₁, L₂, L₃, L₄) were involved in the ergonomic evaluation discussion. The weightages assigned for each enabler is 0.4 for physiological factors (HFI₁), 0.2 for psychological factors (HFI₂), 0.2 for environmental factors (HFI₃), and 0.2 for safety factors (HFI₄). The physiological factors include the following criteria, including biomechanical aspects (HFI₁₁)_, usability (HFI₁₂), and energy expenditure (HFI₁₃). The weightages assigned for each criterion are 0.5, 0.25, and 0.25, respectively. Similarly, the distribution of fuzzy weighting to the ergonomic attributes, criteria, and enablers is summarized in

Table 9. Fuzzy index.

Enabler	Criteria	Attributes	L1	L2	L3	L4	Wjk	Wij	Wi
HFI1	HFI11	HFI111	7	9	8	7	0.2	0.5	0.4
		HFI112	8	8	8	7	0.2
		HFI113	8	8	8	8	0.2
		HFI114	6	9	8	7	0.2
		HFI115	9	8	9	8	0.2
	HFI12	HFI121	9	8	9	9	0.2	0.25
		HFI122	9	9	9	8	0.2
		HFI123	7	5	6	6	0.2
		HFI124	8	9	9	8	0.2
		HFI125	9	9	9	8	0.2
	HFI13	HFI131	6	5	6	5	0.25	0.25
		HFI132	6	5	6	7	0.25
		HFI133	8	9	6	9	0.5
HFI2	HFI21	HFI211	8	6	7	7	0.25	0.25	0.2
		HFI212	8	7	8	8	0.25
		HFI213	9	8	9	9	0.5
	HFI22	HFI221	9	9	9	9	0.5	0.25
		HFI222	8	9	9	9	0.5
	HFI23	HFI231	8	9	9	8	0.25	0.25
		HFI232	9	7	8	8	0.5
		HFI233	7	5	6	7	0.25
	HFI24	HFI241	10	8	9	9	0.5	0.25
		HFI242	8	9	9	7	0.5
HFI3	HFI31	HFI311	8	8	8	7	0.5	0.15	0.2
		HFI312	7	8	8	6	0.5
	HFI32	HFI321	8	8	8	8	0.5	0.15
		HFI322	7	8	8	7	0.5
	HFI33	HFI331	6	7	7	6	0.5	0.4
		HFI332	6	5	6	5	0.5
	HFI34	HFI341	8	8	8	8	0.5	0.15
		HFI342	8	7	8	7	0.5
	HFI35	HFI351	9	8	9	8	0.5	0.15
		HFI352	9	8	9	8	0.5
HFI4	HFI41	HFI411	7	7	3	4	0.5	0.33	0.2
		HFI412	8	9	9	7	0.5
	HFI42	HFI421	9	8	9	8	0.25	0.33
		HFI422	9	8	9	8	0.25
		HFI423	9	8	9	8	0.5
	HFI43	HFI431	8	8	8	9	0.5	0.34
		HFI432	9	8	9	8	0.5

.

4.3.1. Primary Assessment Calculation

The calculations pertaining to biomechanical aspects are shown below.

$$\begin{array}{l}{\mathrm{W}}_{11}=\left[\begin{array}{ccccc}0.2& 0.2& 0.2& 0.2& 0.2\end{array}\right]\\ \end{array}$$

$${\mathrm{F}}_{11}=\left[\begin{array}{cccc}7& 9& 8& 7\\ 8& 8& 8& 7\\ 8& 8& 8& 8\\ 6& 9& 8& 7\\ 9& 8& 9& 8\end{array}\right]$$

The index pertaining to biomechanical aspects is given by HFI₁₁ = W₁₁ × F₁.

HFI₁₁ = (7.6, 8.2, 8.4, 7.4)

Similarly, the index for each criterion is calculated and listed below.

HFI₁₂ = (8.4, 8, 8.4, 7.8)

HFI₁₃ = (7, 7, 6, 6.5)

HFI₂₁ = (8.5, 7.25, 8.25, 8.25)

HFI₂₂ = (8.5, 9, 9, 9)

HFI₂₃ = (8.25, 7, 7.75, 7.75)

HFI₂₄ = (9, 8.5, 9, 8)

HFI₃₁ = (7.5, 8, 8, 6.5)

HFI₃₂ = (7.5, 8, 8, 7.5)

HFI₃₃ = (6, 6, 6.5, 5.5)

HFI₃₄ = (8, 7.5, 8, 7.5)

HFI₃₅ = (9, 8, 9, 8)

HFI₄₁ = (7.5, 8, 6, 5.5)

HFI₄₂ = (9, 8, 9, 8)

HFI₄₃ = (8.5, 8, 8.5, 8.5)

4.3.2. Secondary Assessment Calculation

The index pertaining to physiological factors is calculated as shown below.

HFI₁ = W₁ × F₁

W₁ = [0.5,0.25,0.25]

$${\mathrm{HF}}_1=\left[\begin{array}{cccc}7.6& 8.4& 8.2& 7.4\\ 8.4& 8& 8.4& 7.8\\ 7& 7& 6& 7.5\end{array}\right].$$

$${\mathrm{HFI}}_1=\left[\begin{array}{cccc}7.65& 7.95& 7.69& 7.92\end{array}\right]$$

Similarly, the indexes for other enablers are calculated below.

HFI₂ = (8.56, 7.93, 8.5, 8.25)

HFI₃ = (7.2, 7.125, 7.55, 6.625)

HFI₄ = (8.335, 8, 7.88, 7.345)

4.3.3. Tertiary Assessment Calculation

Finally, the total HFI is calculated as shown below.

$$\begin{gathered} \mathrm{W}=\left[\begin{array}{ccc}0.4& 0.2& \begin{array}{cc}0.2& 0.2\end{array}\end{array}\right] \\ \mathrm{F}=\left[\begin{array}{ccc}7.65& 7.95& \begin{array}{cc}7.69& 7.92\end{array}\\ 8.56& 7.93& \begin{array}{cc}8.5& 8.25\end{array}\\ \begin{array}{c}7.2\\ 8.335\end{array}& \begin{array}{c}7.125\\ 8\end{array}& \begin{array}{cc}\begin{array}{c}7.55\\ 7.88\end{array}& \begin{array}{c}6.625\\ 7.345\end{array}\end{array}\end{array}\right] \end{gathered}$$

HFI = W × F

$$\mathrm{HFI}=\left[\begin{array}{ccc}7.879& 7.791& \begin{array}{cc}7.862& 7.612\end{array}\end{array}\right]$$

The HFI is the average of (7.879, 7.791, 7.862, 7.612), which is equal to 7.786.

HUMAN FACTOR INDEX = 7.786 ϵ (6, 8)

A human factor index of 7.86 was determined using a multigrade fuzzy approach, which means that the organization is ERGONOMIC.

5. Results and Discussion

The observations made in this study are presented below.

A cross-impact matrix multiplication applied to classification (MICMAC) analysis was used to study the dependence power and driving power of the variables considered in the study [46]. The results indicate that two independent performance variables, namely, the safety factors and environmental factors, show a strong driving power and weaker dependence power. Hence, these were identified as the “key factors” in this ergonomic assessment study. In addition, it was found that the dependent variables, i.e., the physiological and psychological factors, are weak trainers and depend strongly on one another. The results of the MICMAC analysis are shown in Figure 4.

The fit indices for the current case were determined as follows: a value of 0.91 is found for the goodness of fit, indicating that the model is a good fit [47]. The normed-fit index value was 0.70. A value as low as 0.80 is recommended for this index [47]. The relative/normed χ² ratio (χ²/df) value was 10.45. The Cronbach’s ∝ for the ergonomic performance variables was acceptable and indicates that the variables are reliable.

The ergonomic assessment was performed using the multigrade fuzzy approach. A human factor index of less than 5 indicates that the organization cannot be considered a good candidate to implement an ergonomic work environment that would contribute to better quality and maximum productivity [3]. The human factor index of 7.786 determined for the automotive industry case in this study reveals that the industry is a suitable candidate for operating in a good ergonomic environment. However, it was found that there is scope for improving the work environment of the organization.

It was found that a major gap is perceived for the criterion “biomechanical aspects”. This is followed by “housekeeping”, “temperature/climate”, and “energy expenditure”. Management can take measures to improve the ergonomic conditions, such as the use of material handling equipment to prevent the manual movement of materials, equipment designs that would allow for comfortable reaches and posture, the use of personal protective equipment while working, application of the 5S (sort, set in order, shine, standardize, sustain) scheme to improve the housekeeping facilities, and providing proper a work–rest schedule for workers to sustain a normal heart rate and basal metabolic rate.

6. Conclusions

Ergonomic risks and bad work postures can lead to various types of MSDs and worker fatigue, which hamper the efficiency of manufacturing organizations and lead to a loss in productivity. This study aims to provide insight into the modeling and analysis of ergonomic risk factors in the Indian automotive industry. A combined ISM, SEM, and multigrade fuzzy approach was proposed to determine the human factor index for ergonomic evaluation of industries. The ISM model reveals the driving and dependence among the ergonomic factors, which enables managers to understand the interrelation among ergonomic factors in the automotive component sector. Moreover, management should also consider the dependence among factors in the ISM. Therefore, survey data were analyzed using VPLS software. The SEM-PLS technique was used to verify the seven hypotheses. Furthermore, evaluating the various ergonomic performance factors using the multigrade fuzzy approach facilitated an understanding of the contribution of these factors to safety and productivity improvement. A case study demonstrated the practicability of implementing these approaches in an industrial situation. Manual computation using a multigrade fuzzy approach is time-consuming and error-prone, and a computerized decision-support system (DSS) can be developed. The application of an integrated model for ergonomic assessment is not limited to the manufacturing industry and can be extend to evaluation in industries such as the software and healthcare. In addition to that, several other forms of ergonomic risks factors such as technological factors and process factors can be added to the measurement model to obtain more robust results.
