The Impact of Fly Ashes from Thermal Conversion of Sewage Sludge on Properties of Natural Building Materials on the Example of Clay
Abstract
:1. Introduction and Literature Review
2. Materials and Methods

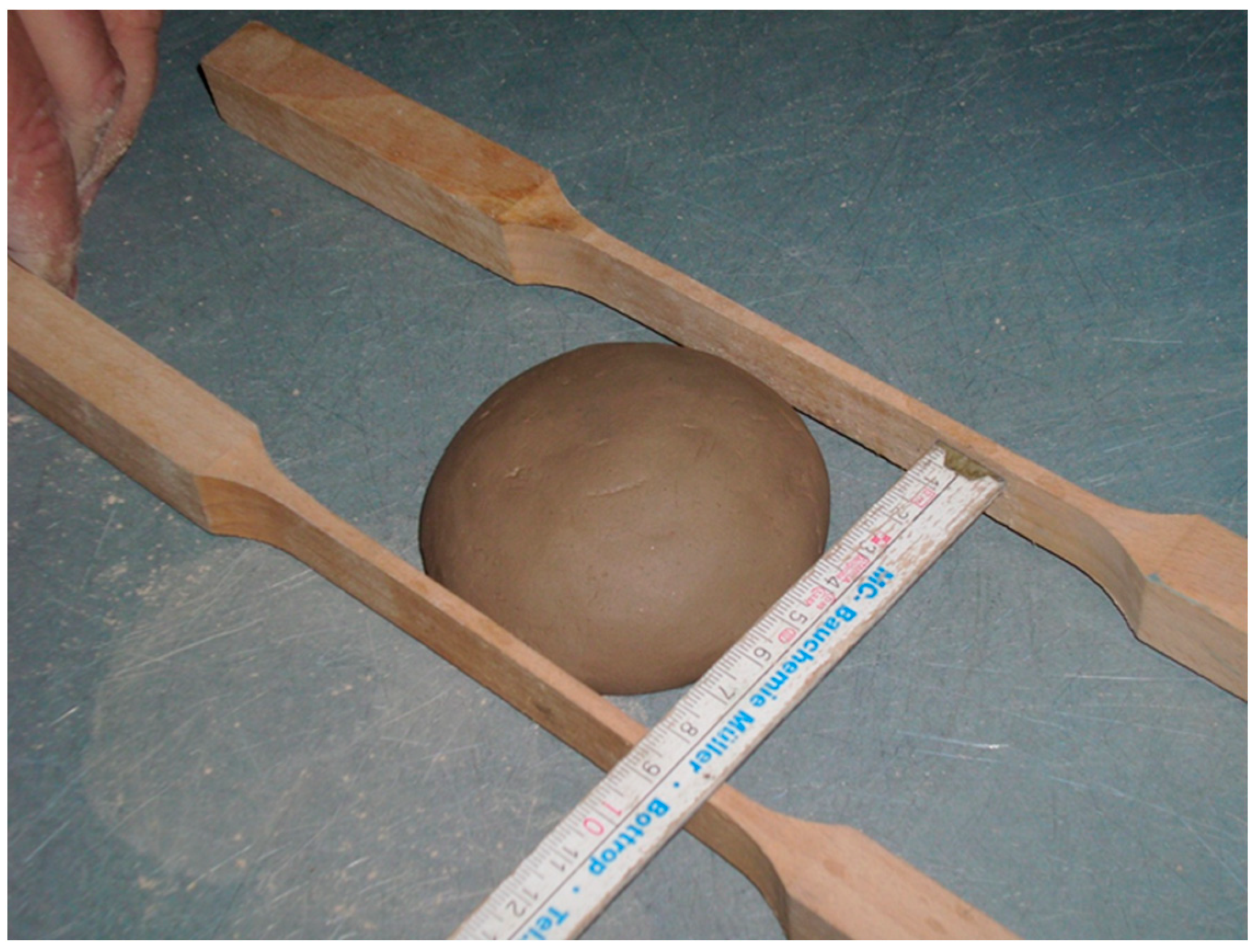

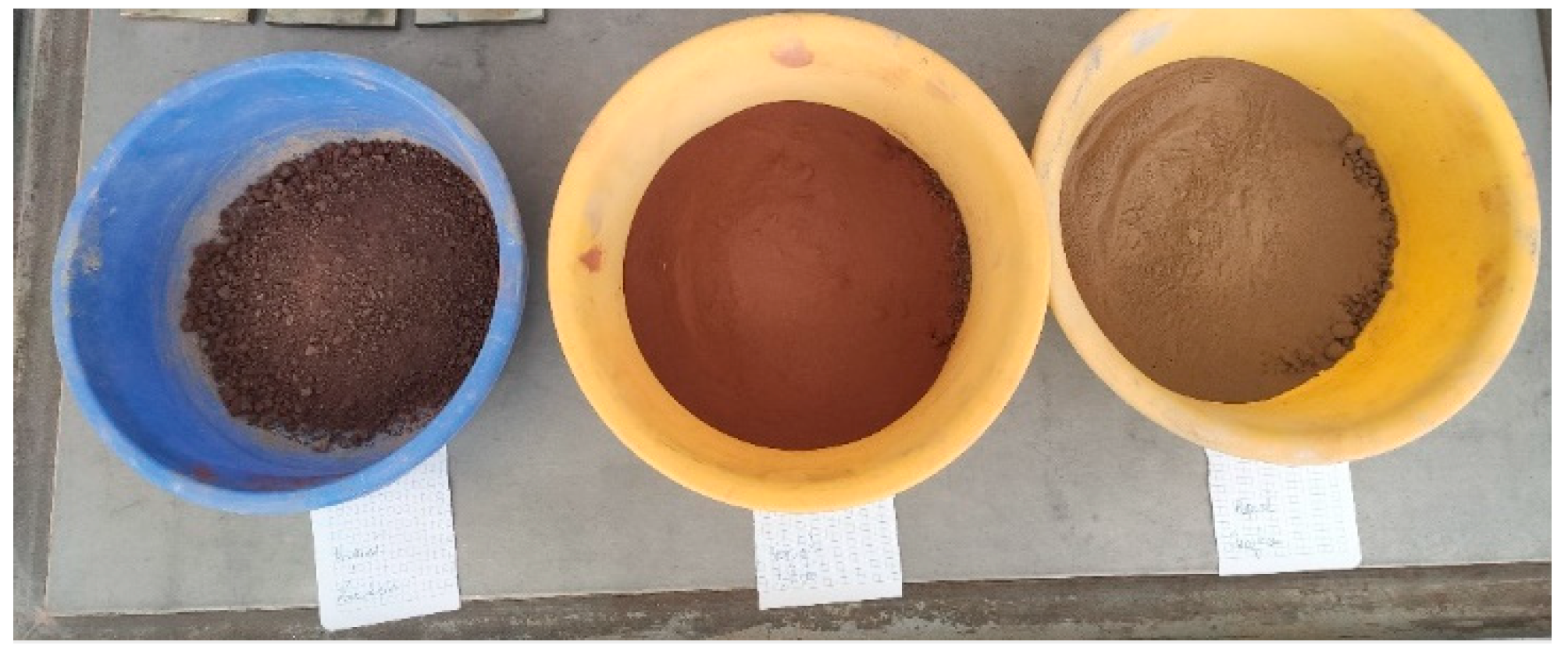

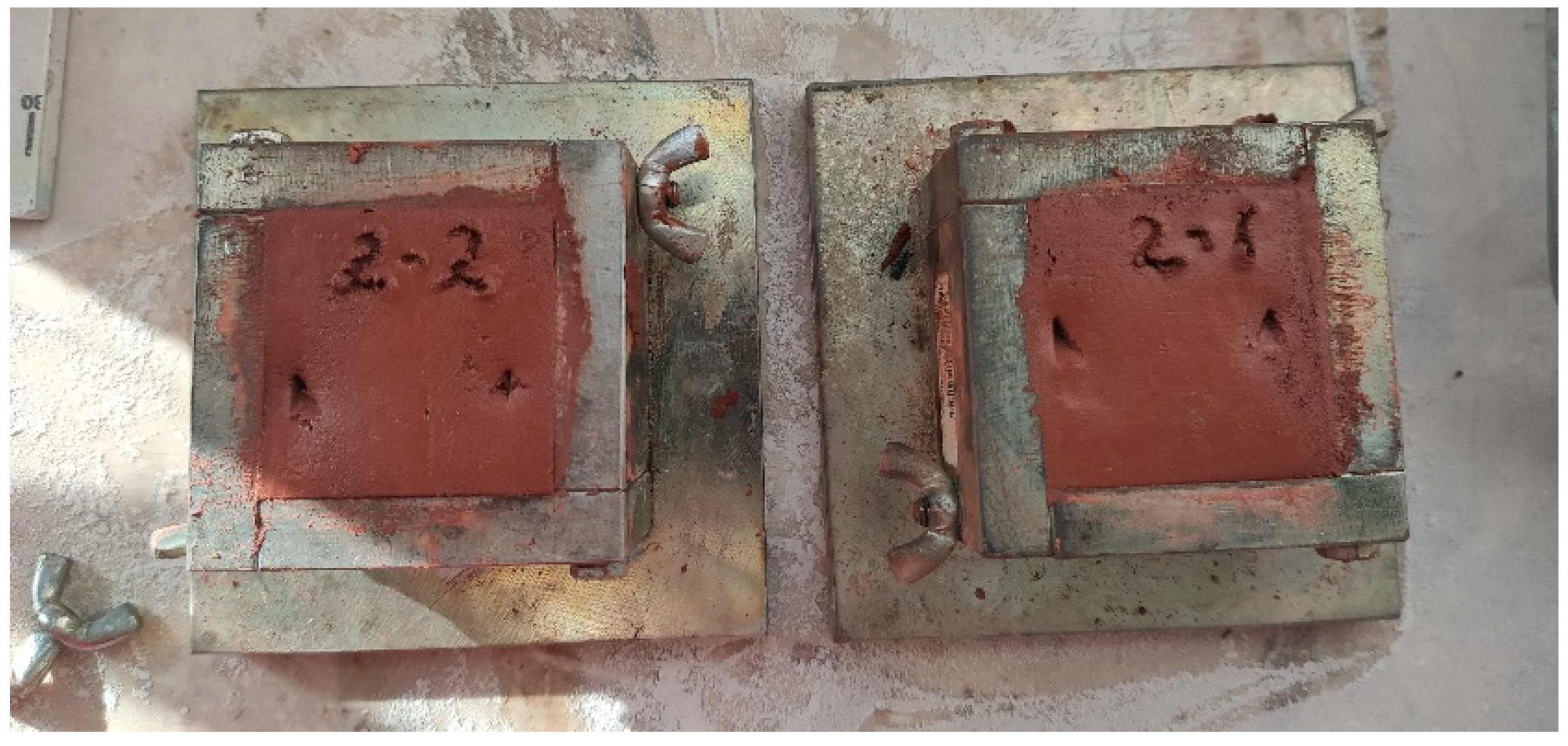

2.1. Materials and Preparation of Samples
- 0-i—without additives (pure clay),
- 1-i—with addition of the fly ash from the combustion of sewage sludge from Łodz,
- 2-i—with addition of the fly ash from the combustion of sewage sludge from Cracow,
- 3-i—with addition of the fly ash from the combustion of sewage sludge from Warsaw,
2.2. Research Methods
2.3. Characteristics of the Clay Used in the Research
- -
- silica indicator:
- -
- alumina indicator:
3. Results and Discussion

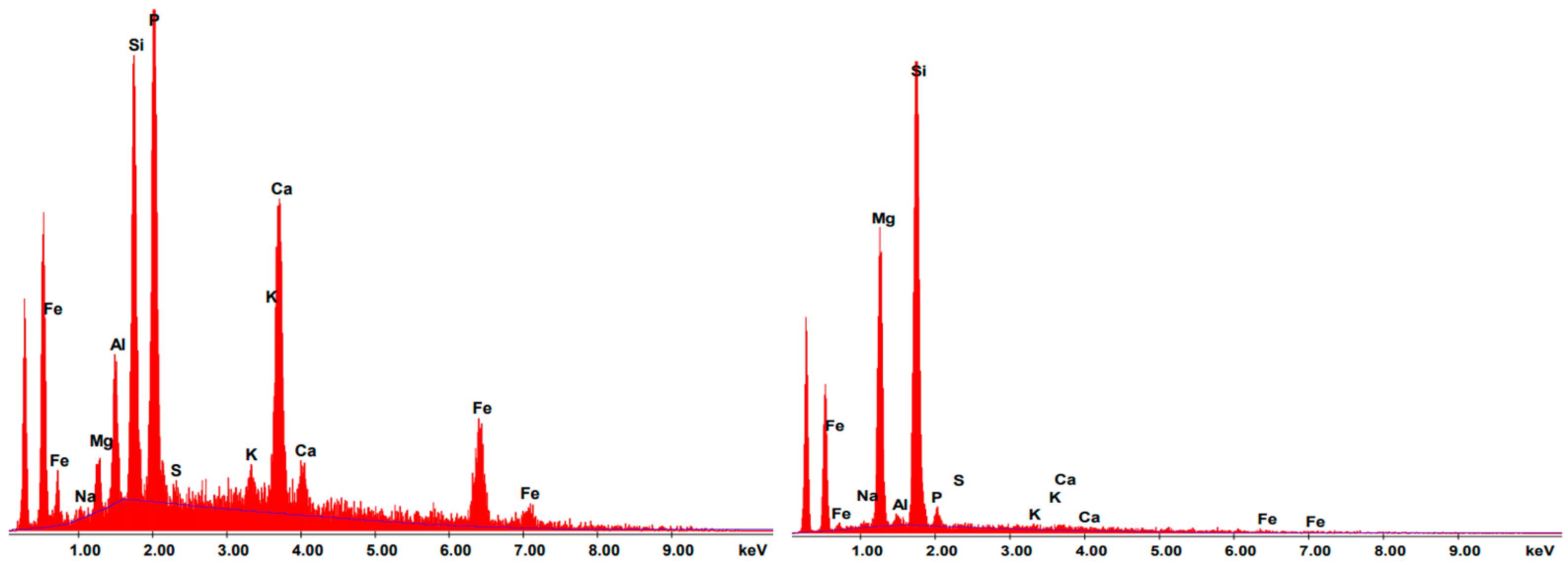

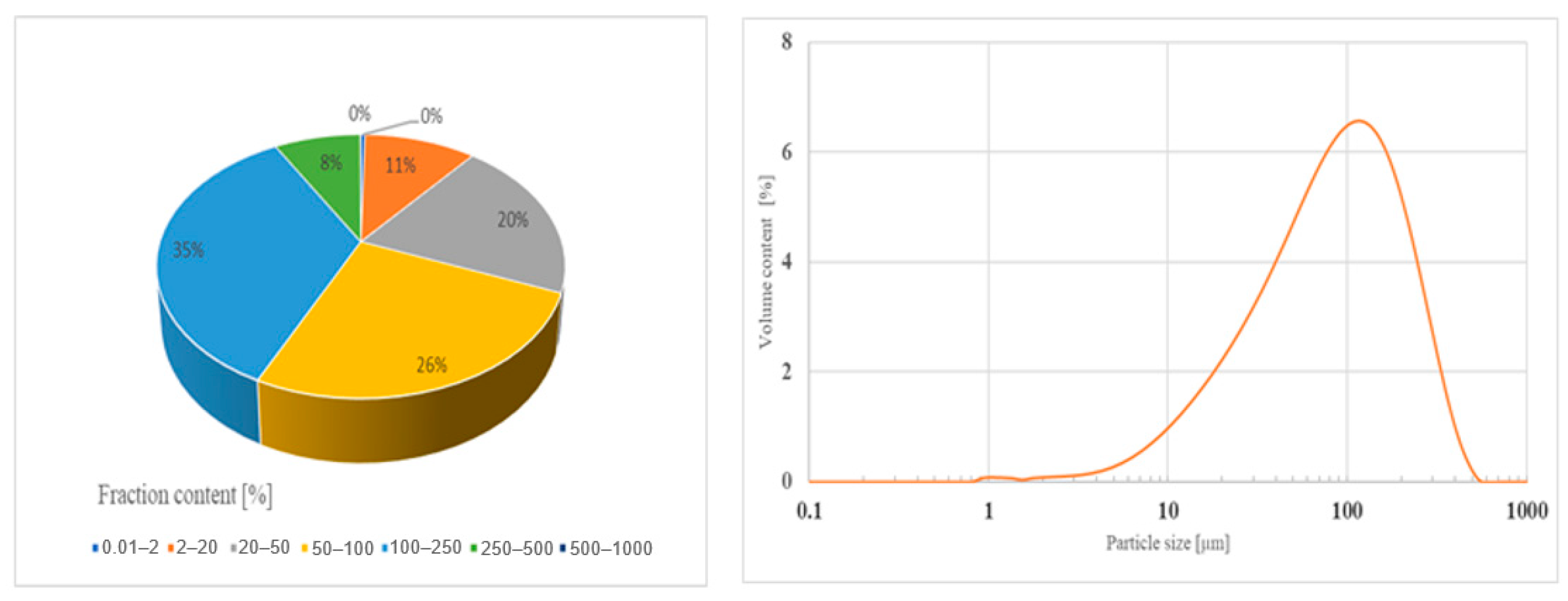

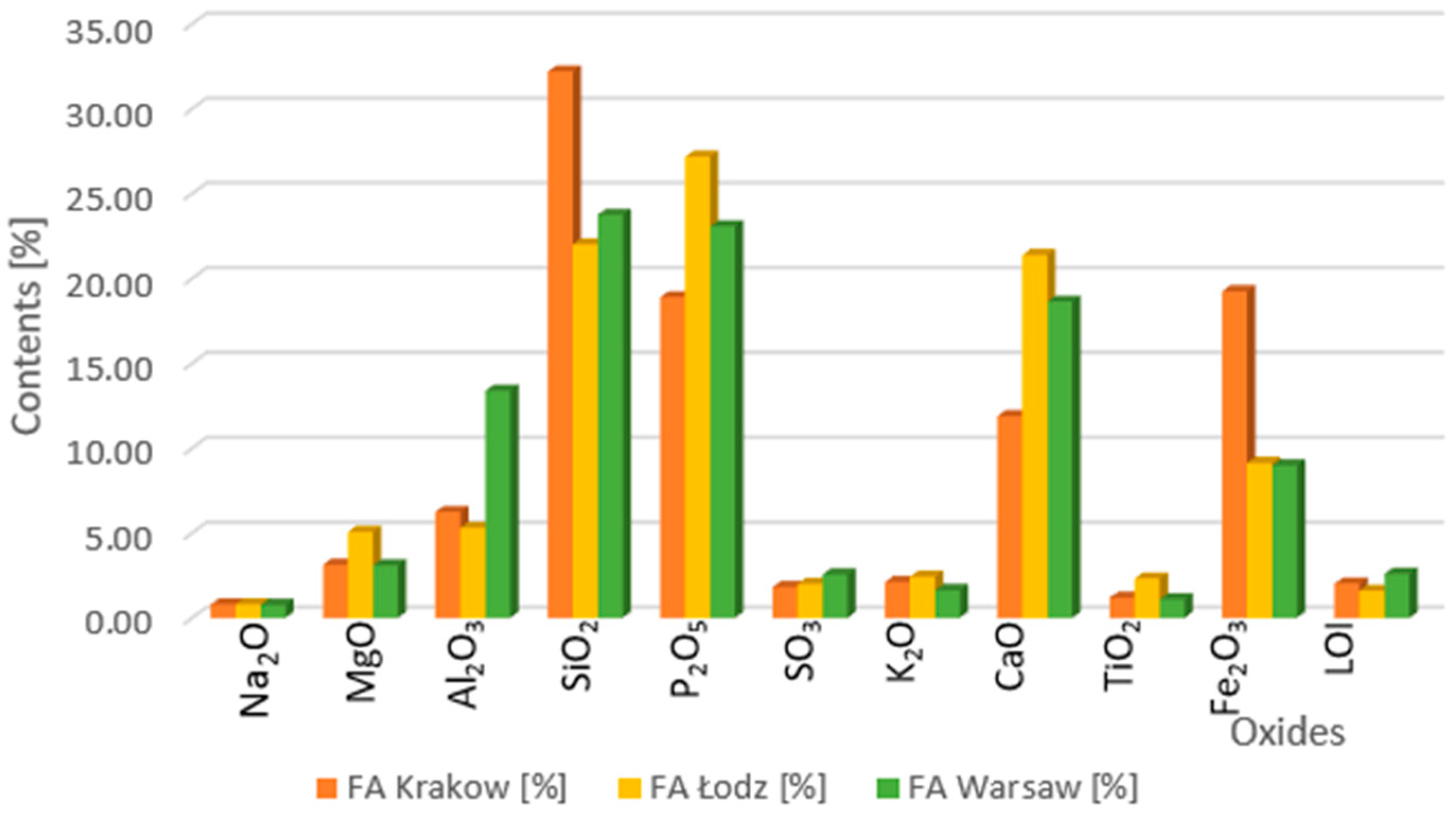

3.1. Physical and Chemical Properties of Fly Ashes from Thermal Conversion of Sewage Sludge

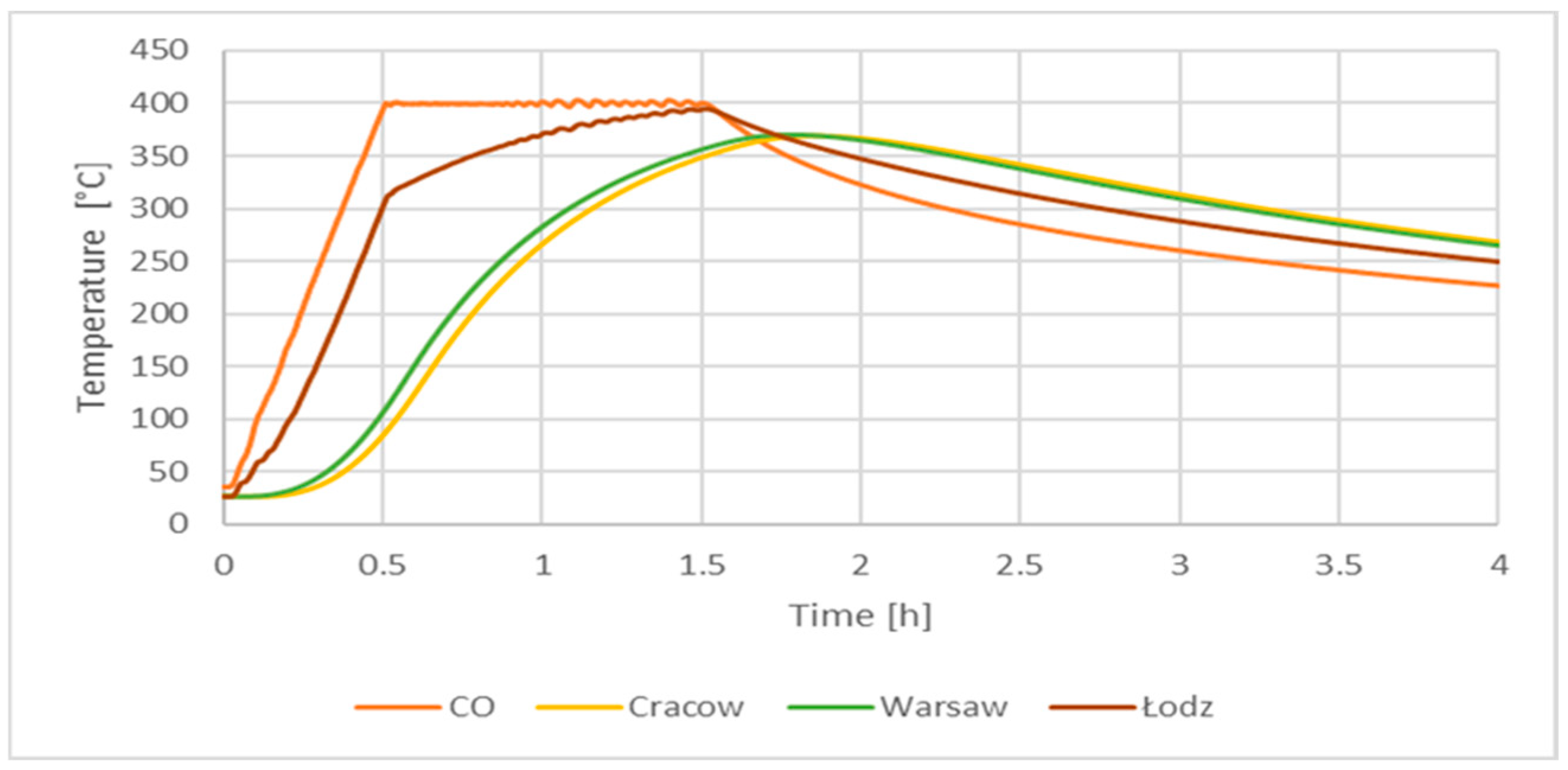

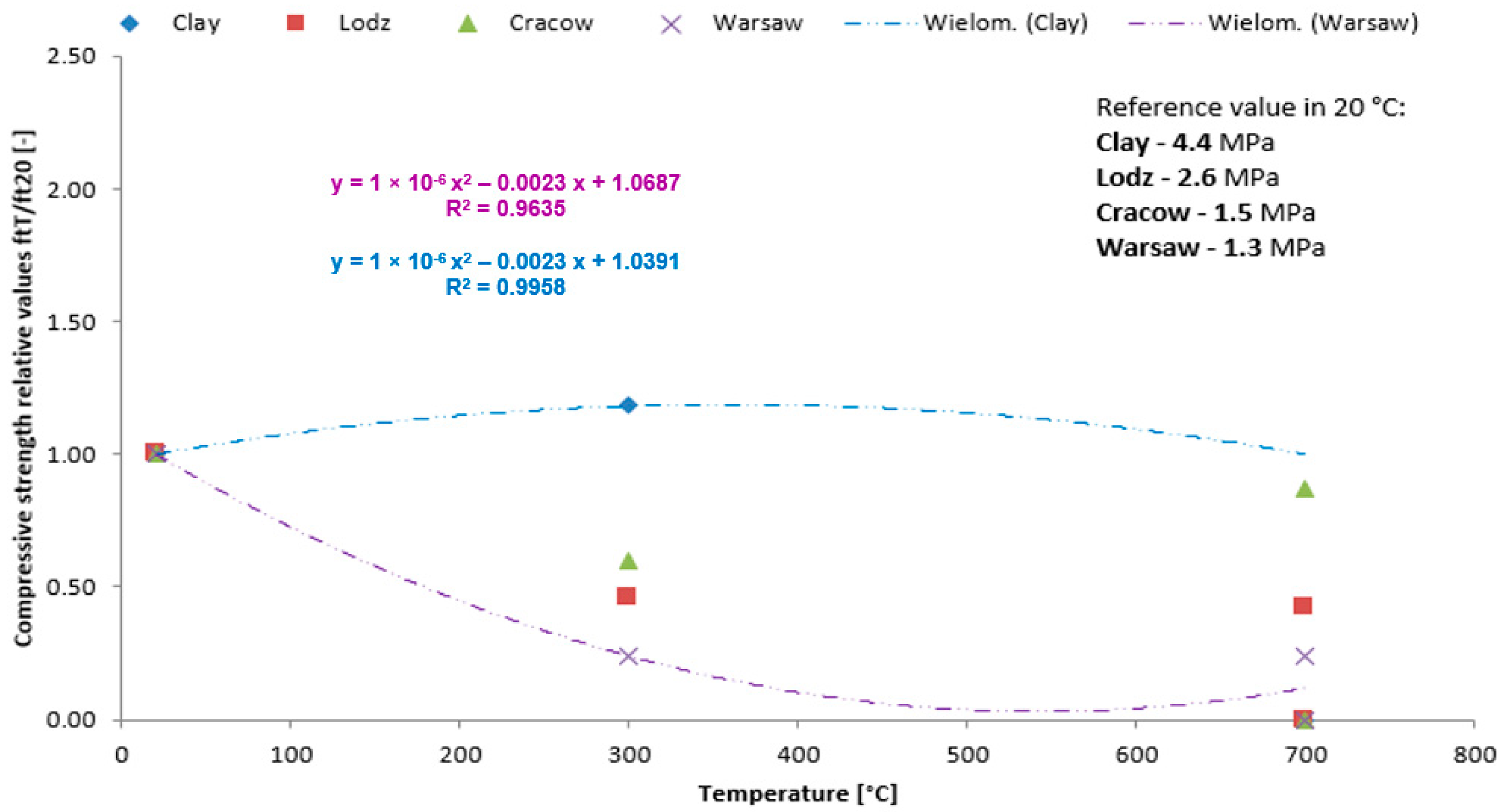

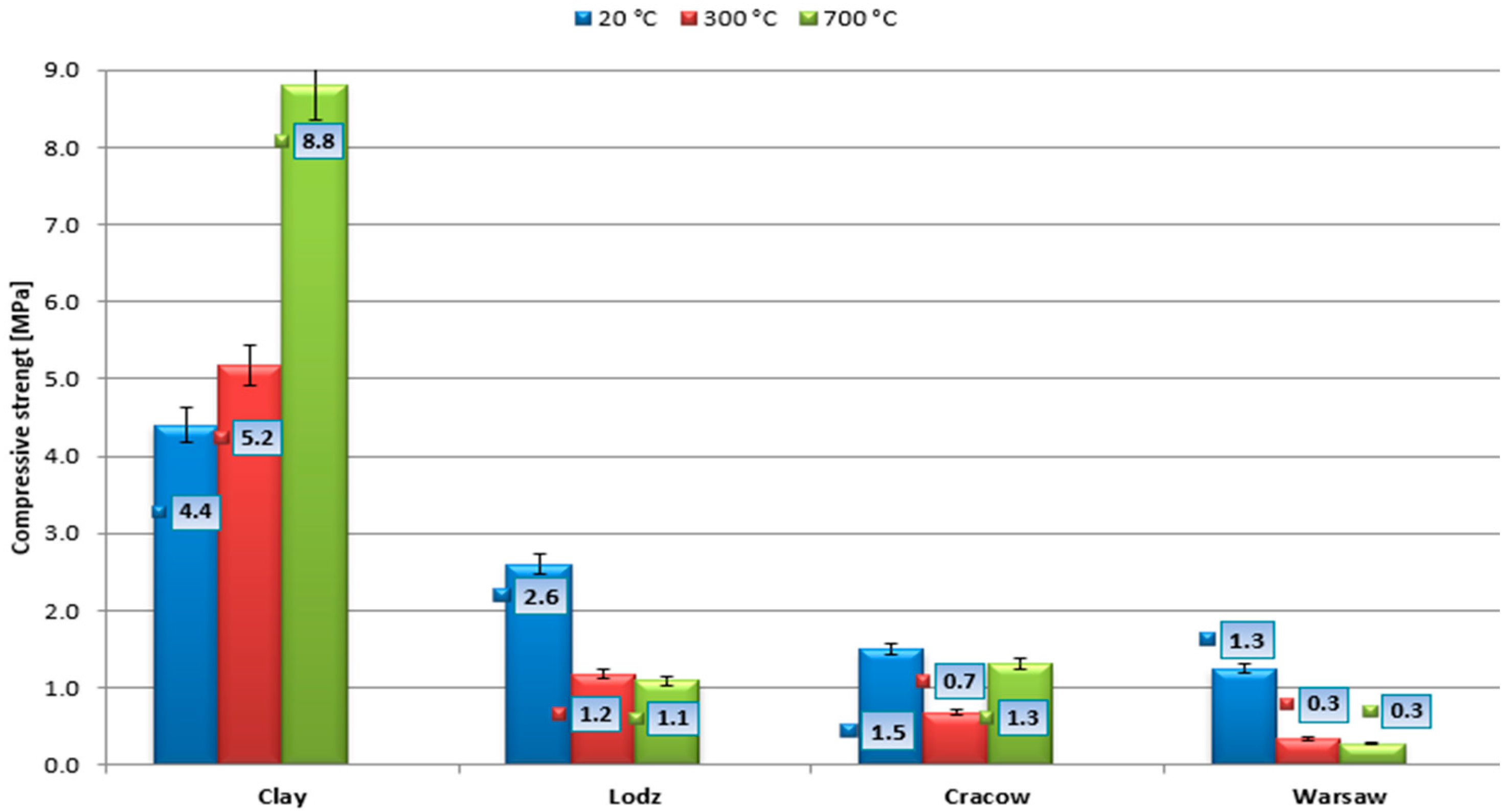

3.2. Properties of the Clay-Ash Composite with Addition of the Fly Ash
3.3. Statistical Analysis
- df = 6 and α = 0.05 => critical value: t = 2.446912
- df = 5 and α = 0.05 => critical value: t = 2.570582
- df = 4 and α = 0.05 => critical value: t = 2.776445.
4. Conclusions
- -
- The collected results of the investigations enabled a comparison of the properties of clay samples produced with the fly ash from three wastewater treatment plants.
- -
- The obtained test results confirm the possibility of manufacturing clay-ash composites using the fly ash from thermal conversion of sewage sludge.
- -
- The main objective of the investigations is the utilization of wastes coming from the thermal conversion of sewage sludge, and the determination of the possibility of its use in clay-ash composites.
- -
- With large amounts of fly ash addition (above 20%), the firing temperature plays a significant role in achieving the appropriate compressive strength.
- -
- It is proposed to reduce the ash quantity (5, 10, 15, 20%) in the samples, and to re-fire in the temperature of 300 and 700 °C to check an effect of this reduction (positive or negative) on the strength. Such a test should be performed in a temperature of 850–1050 degrees.
- -
- In the next stage, the tests should be repeated with the previously assumed proportions between ash and clay, but with the samples fired at higher temperatures, in the range 950–1050 degrees.
- -
- The assumption of a higher firing temperature for the clay-ash composite samples is justified by the results of the statistical analysis (t-Student test) which showed that the temperature significantly affects the mechanical and physical parameters of the clay-ash composite samples.
Author Contributions
Funding
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- MHURD. Ministry of Housing and Urban-rural Development of the People’s Republic of China. Available online: http://www.mohurd.gov.cn/zcfg/jsbwj_0/jsbwjcsjs/201502/t20150217_220335.html (accessed on 6 March 2020).
- Zhang, Z.; Zhang, L.; Yin, Y.; Liang, X.; Li, A. The Recycling of Incinerated Sewage Sludge Ash as a Raw Material for CaO-Al2O3-SiO2-P2O5 Glass-Ceramic Production. Environ. Technol. 2017, 36, 1098–1103. [Google Scholar] [CrossRef] [PubMed]
- Mininni, G.; Blanch, A.; Lucena, F.; Berselli, S. EU Policy on Sewage Sludge Utilization and Perspectives on New Approaches of Sludge Management. Environ. Sci. Pollut. Res. 2015, 22, 7361–7374. [Google Scholar] [CrossRef] [PubMed]
- Yang, G.; Zhang, G.; Wang, H. Current State of Sludge Production, Management, Treatment and Disposal in China. Water Res. 2015, 78, 60–73. [Google Scholar] [CrossRef] [PubMed]
- Umar, T. Making future floating cities sustainable: A way forward. Proc. Inst. Civ. Eng. Urban Des. Plan. 2020, 173, 214–237. [Google Scholar] [CrossRef]
- The Council of the European Communities. Council Directive 86/278/EEC of 12 June 1986 on the Protection of the Environment, and in Particular of the Soil, When Sewage Sludge is Used in Agriculture; Official Journal of the European Union: Luxembourg, 1986. (In Polish) [Google Scholar]
- The Council of the European Communities. 91/271/EEC Council Directive of 21 May 1991 r. on the Urban Waste-Water Treatment; Official Journal of the European Union: Brussels, Belgium, 1991. (In Polish) [Google Scholar]
- The Council of the European Communities. 2018/851 European Parliament and Council Directive (EC) of 30 May 2018 r. Amending Directive 2008/98/EC on Wastes; Official Journal of the European Union: Strasbourg, Germany, 2018. (In Polish) [Google Scholar]
- The Council of the European Communities. 2018/850 European Parliament and Council Directive (EC) of 30 May 2018 r. Amending Directive 1999/31/WE on the Landfill of Wastes; Official Journal of the European Union: Strasbourg, Germany, 2018. (In Polish) [Google Scholar]
- Office of the Federal Register (United States). Code of Federal Regulations. Protection of Environment. Chapter I—Environmental Protection Agency (Continued), Sub-Chapter O—Sewage Sludge, Part 503—Standards for The Use Or Disposal Of Sewage Sludge, Subpart B—Land Application, Section 503.13—Pollutant L; Office of the Federal Register: Washington, DC, USA, 2010. [Google Scholar]
- Ministry of Environmental Protection of the People’s Republic of China. Discharge Standard of Pollutants for Municipal Wastewater Treatment Plant; Ministry of Environmental Protection of the People’s Republic of China: Beijing, China, 2002.
- Wrc. Guidelines for the Utilisation and Disposal of Wastewater Sludge: Volume 4 Requirements for the Beneficial Use of Sludge at High Loading Rates; Water Research Commission: Pretoria, South Africa, 2009; Volume 4. [Google Scholar]
- Ministry of Environment. Strategy for Dealing with Municipal Sewage Sludge for 2019–2022; Ministry of Environment: Warsaw, Poland, 2018. (In Polish) [Google Scholar]
- Wichowski, P.; Rutkowska, G.; Nowak, P. Elution of selected heavy metals from concretes containing fly ashes from thermal conversion of sewage sludge (in Polish: Wymywanie wybranych metali ciężkich z betonów zawierających popiół lotny z termicznego przekształcania osadów ściekowych). Acta Sci. Pol. Archit. 2017, 16, 43–51. [Google Scholar] [CrossRef]
- Uliasz-Bocheńczyk, A.; Mazurkiewicz, M.; Mokrzycki, E. Fly Ash from Energy Production—A Waste, by Product and Raw Material. Gospod. Surowcami Miner. 2015, 31, 139–150. [Google Scholar] [CrossRef] [Green Version]
- Kepys, W.; Piotrowski, Z.; Wisła-Walsh, E. Investigation of impact of agglomerated fly ashes from combustion of municipal wastes on properties of water-ash suspensions (in Polish: Badanie wpływu zbrylowanych popiołów ze spalania odpadów komunalnych na właściwości zawiesin popiołowo-wodnych). Górnictwo I Geoinzynieria 2005, 29, 63–72. [Google Scholar]
- Piotrowski, Z.; Uliasz-Bocheńczyk, A. Possibilities of commercial use of wastes from fluidal boilers (in Polish: Możliwości gospodarczego wykorzystania odpadów z kotłów fluidalnych). Gospod. Surowcami Miner. 2008, 24, 73–85. [Google Scholar]
- European Commission. Directive 2010/75/EU of the European Parliament and of the Council of 24 November 2010 on Industrial Emissions (Integrated Pollution Prevention and Control). Off. J. Eur. Communities 2005, L269, 1–15. [Google Scholar]
- Wzorek, Z. Recovery of phosphorus compounds from thermally processed wastes and their application as a substitute of natural phosphorus compound (in Polish: Odzysk związków fosforu z termicznie przetworzonych odpadów i ich zastosowanie jako substytutu naturalnych surowców fosforowych). Inżynieria i Technol. Chem. 2008, 1, 7–28. [Google Scholar]
- Xu, H.; He, P.; Gu, W.; Wang, G.; Shao, L. Recovery of Phosphorus as Struvite from Sewage Sludge Ash. J. Environ. Sci. 2012, 24, 1533–1538. [Google Scholar] [CrossRef]
- Donatello, S.; Cheeseman, C.R. Recycling and Recovery Routes for Incinerated Sewage Sludge Ash (ISSA): A Review. Waste Manag. 2013, 33, 2328–2340. [Google Scholar] [CrossRef] [PubMed]
- Weigand, H.; Bertau, M.; Hübner, W.; Bohndick, F.; Bruckert, A. RecoPhos: Full-Scale Fertilizer Production from Sewage Sludge Ash. Waste Manag. 2013, 33, 540–544. [Google Scholar] [CrossRef] [PubMed]
- Wainwright, P.J.; Cresswell, D.J. Synthetic Aggregates from Combustion Ashes Using an Innovative Rotary Kiln. Waste Manag. 2001, 21, 241–246. [Google Scholar] [CrossRef]
- Borowski, G. Evaluation of applicability of glazing of sewage sludge to its management (in Polish: Ocena przydatności zeszkliwienia osadów ściekowych do ich zagospodarowania). Ochr. Środowiska i Zasobów Nat. 2012, 51, 78–84. [Google Scholar]
- Cyr, M.; Coutand, M.; Clastres, P. Technological and Environmental Behavior of Sewage Sludge Ash (SSA) in Cement-Based Materials. Cem. Concr. Res. 2007, 37, 1278–1289. [Google Scholar] [CrossRef]
- Monzó, J.; Payá, J.; Borrachero, M.V.; Girbés, I. Reuse of Sewage Sludge Ashes (SSA) in Cement Mixtures: The Effect of SSA on the Workability of Cement Mortars. Waste Manag. 2003, 23, 373–381. [Google Scholar] [CrossRef]
- Pietrzyk, J. The role of thermal processes in the disposal of sewage sludge—Rola procesów termicznych w zagospodarowaniu komunalnych osadów ściekowych. In VII Krakowska Konferencja Młodych Uczonych, Proceedings of the Cracow Conference of Young Scientists 2012, Cracow, Poland, 27–29 September 2012; Fundacja dla AGH: Kraków, Poland, 2012. [Google Scholar]
- Kępys, W.; Pomykała, R.; Pietrzyk, J. Study of The Properties of the Ash-Water Suspension of the Incinerated Sewage Sludge Ash (Issa) (in Polish: Badania właściwości zawiesin popiołowo—wodnych z popiołów ze spalania komunalnych osadów ściekowych). Miner. Eng. 2014, 15, 205–212. Available online: https://www.researchgate.net/publication/292105547_Study_of_the_properties_of_the_ash-Water_suspension_of_the_incinerated_sewage_sludge_ash_Issa (accessed on 15 October 2021).
- Wisniewski, K.; Ziolkowska, M. Impact of addition of fly ashes on properties of clay-ash composites (in Polish: Wpływ dodatku popiołu lotnego na właściwości kompozytu glinowo-popiołowego). Acta Sci. Pol. Archit. 2014, 13, 81–89. [Google Scholar]
- Potrzebowski, H. A Brickyard Worker Guide (In Polish: Poradnik Pracownika Cegielni); Arkady: Warsaw, Poland, 1978. [Google Scholar]
- Kałwa, M.; Ropska, H. Energy industry wastes as a potential raw material base for the ceramic industry (in Polish: Odpady energetyczne potencjalną bazą surowcową dla przemysłu ceramicznego. prace komisji nauk ceramicznych). Ceramika 1986, 35, 59–79. [Google Scholar]
- Ferreira, C.; Ribeiro, A.; Ottosen, L. Possible Applications for Municipal Solid Waste Fly Ash. J. Hazard. Mater. 2003, 96, 201–216. [Google Scholar] [CrossRef]
- Weng, C.-H.; Lin, D.-F.; Chiang, P.-C. Utilization of Sludge as Brick Materials. Adv. Environ. Res. 2003, 7, 679–685. [Google Scholar] [CrossRef]
- Lin, C.-F.; Wu, C.-H.; Ho, H.-M. Recovery of Municipal Waste Incineration Bottom Ash and Water Treatment Sludge to Water Permeable Pavement Materials. Waste Manag. 2006, 26, 970–978. [Google Scholar] [CrossRef] [PubMed]
- Kosior-Kazberuk, M.; Karwowska, J. Selected problems of management of ashes from combustion of sewage sludge in cement technology (in Polish: Wybrane problemy zagospodarowania popiołów pochodzących ze spalania osadów ściekowych w technologii materiałów cementowych). Inżynieria Ekol. 2011, 25, 110–123. [Google Scholar]
- Lin, K.-L.; Chen, B.-Y.; Chiou, C.-S.; Cheng, A. Waste Brick’s Potential for Use as a Pozzolan in Blended Portland Cement. Waste Manag. Res. 2010, 28, 647–652. [Google Scholar] [CrossRef] [PubMed]
- ITB. BN-62/6738-02: 1981 Clay Construction. Clay Masses (in Polish: Budownictwo z gliny. Masy Gliniane); Instytut Techniki Budowlanej: Warsaw, Poland, 1981. [Google Scholar]
- IEC 60584-1:2013 Thermocouples. Part 1: EMF Specifications and Tolerances; International Electrotechnical Committee: Geneva, Switzerland, 2013.
- PKN. PN-EN 450-1:2012 Popiół Lotny Do Betonu—Część 1: Definicje, Specyfikacje i Kryteria Zgodności; Polski Komitet Normalizacyjny: Warsaw, Poland, 2012. [Google Scholar]
- ASTM C379-65T; Specification for Fly Ash for Use as a Pozzolanic Material with Lime; ASTM Stand: West Conshohocken, PA, USA, 1965.
- PKN. PN-EN 451-2:2017-06 Fly Ash Testing Method—Part 2: Determination of Fineness by Wet Sieving (In Polish: Metoda Badania Popiołu Lotnego—Część 2: Oznaczanie Miałkości Przez Przesiewanie na Mokro); Polski Komitet Normalizacyjny: Warsaw, Poland, 2017. [Google Scholar]
- PKN. PN-EN 1097-07:2008 Determination of a Filler Density (in Polish: Oznaczenie Gęstości Wypełniacza); Polski Komitet Normalizacyjny: Warsaw, Poland, 2008. [Google Scholar]
- Rutkowska, G.; Wichowski, P.; Świgoń, K.; Sobieski, P. Testing the properties of concretes with the addition of fly ash from thermal treatment of sewage sludge. Cem. Lime Concr. 2017, 2, 113–119. [Google Scholar]
- Rutkowska, G.; Chalecki, M.; Żółtowski, M. Fly Ash from Thermal Conversion of Sludge as a Cement Substitute in Concrete Manufacturing. Sustainability 2021, 13, 4182. [Google Scholar] [CrossRef]
- Szponder-Kołakowska, D.K.; Trybalski, K. Modern Methods and Measuring Devices in the Study of the Properties of Raw Materials and Mineral Waste; Wydawnictwa AGH: Kraków, Poland, 2014. [Google Scholar]
- Wdowin, M.; Franus, M. Analysis of fly ashes in terms of acquisition of rare earth elements (in Polish: Analiza popiołów lotnych pod kątem uzyskania z nich pierwiastków ziem rzadkich). Polityka Energy 2014, 17, 369–380. [Google Scholar]
- Umar, T. Developing Toolkits and Guidelines to Improve Safety Performance in the Construction Industry in Oman. Ph.D. Thesis, London South Bank University, London, UK, 2020. [Google Scholar] [CrossRef]
Chemical Composition | % of Mass |
---|---|
SiO2 | 45–80 |
Al2O3 | 8–28 |
Fe2O3 | 2–15 |
FeO | 2–15 |
CaO | 0.5–20 |
MgO | 0.0–4 |
K2O | 0.0–5 |
Na2O | 0.0–5 |
Loss on ignition | 3–16 |
Pure Clay | Clay with Ash From | ||||||
---|---|---|---|---|---|---|---|
Łodz | Cracow | Warsaw | |||||
No. | Mass [g] | No. | Mass [g] | No. | Mass [g] | No. | Mass [g] |
0-1 | 136.0 | 1-1 | 114.0 | 2-1 | 120.0 | 3-1 | 120.0 |
0-2 | 138.0 | 1-2 | 119.0 | 2-2 | 118.0 | 3-2 | 119.0 |
0-3 | 134.0 | 1-3 | 114.0 | 2-3 | 117.0 | 3-3 | 114.0 |
0-4 | 135.0 | 1-4 | 119.0 | 2-4 | 120.0 | 3-4 | 116.0 |
0-5 | 132.0 | 1-5 | 120.0 | 2-5 | 118.0 | 3-5 | 116.0 |
Chemical Composition | Content [%] |
---|---|
SiO2 | 55.00–67.40 |
Al2O3 | 13.60–17.30 |
TiO2 | 0.70–0.85 |
Fe2O3 | 6.20–7.90 |
MnO | 0.06–0.17 |
MgO | 1.65–2.70 |
CaO | 0.25–0.75 |
Na2O | 0.05–0.30 |
K2O | 2.35–3.40 |
P2O | 0.05–0.15 |
Mineral Composition | Content [%] |
---|---|
Quartz | 17–23 |
Kaolinite | 3–10 |
Illit | 3–10 |
Hematite | 3–5 |
Plagioclase | <3 |
Potassium feldspar | <3 |
Goethite | <2 |
Anataz | 3–5 |
Packaged minerals (vermiculite/chlorite, smectite/illite) | 47–68 |
amorphous phase | - |
T-Test for Independent Samples (Spreadsheet24) Note: Variable Were Treated as Independent Samples | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Group 1 vs. Group 2 | Mean Group 1 | Mean Group 2 | t-Value | df | p | Valid N Group 1 | Valid N Group 2 | Std. Dev. Group 1 | Std. Dev. Group 2 | F-Ratio Variances | p Variances |
Cracow vs. Temp. | 1.207273 | 340 | −3.84769 | 21 | 0.000935 | 11 | 12 | 0.358834 | 291.4540 | 659,710.0 | 0 |
Warsaw vs. Temp. | 0.608417 | 340 | −4.03386 | 22 | 0.000555 | 12 | 12 | 0.521950 | 291.4540 | 311,804.4 | 0 |
Clay vs. Temp. | 5.695917 | 340 | −3.97323 | 22 | 0.000644 | 12 | 12 | 2.675164 | 291.4540 | 11,869.7 | 0 |
Lodz vs. Temp. | 1.525917 | 340 | −4.02294 | 22 | 0.000570 | 12 | 12 | 0.863062 | 291.4540 | 114,039.7 | 0 |
