Experimental Study on the Effects of Aspect Ratio on the Wind Pressure Coefficient of Piloti Buildings
Abstract
:1. Introduction
2. Materials and Methods
2.1. Wind Pressure Coefficient Distribution

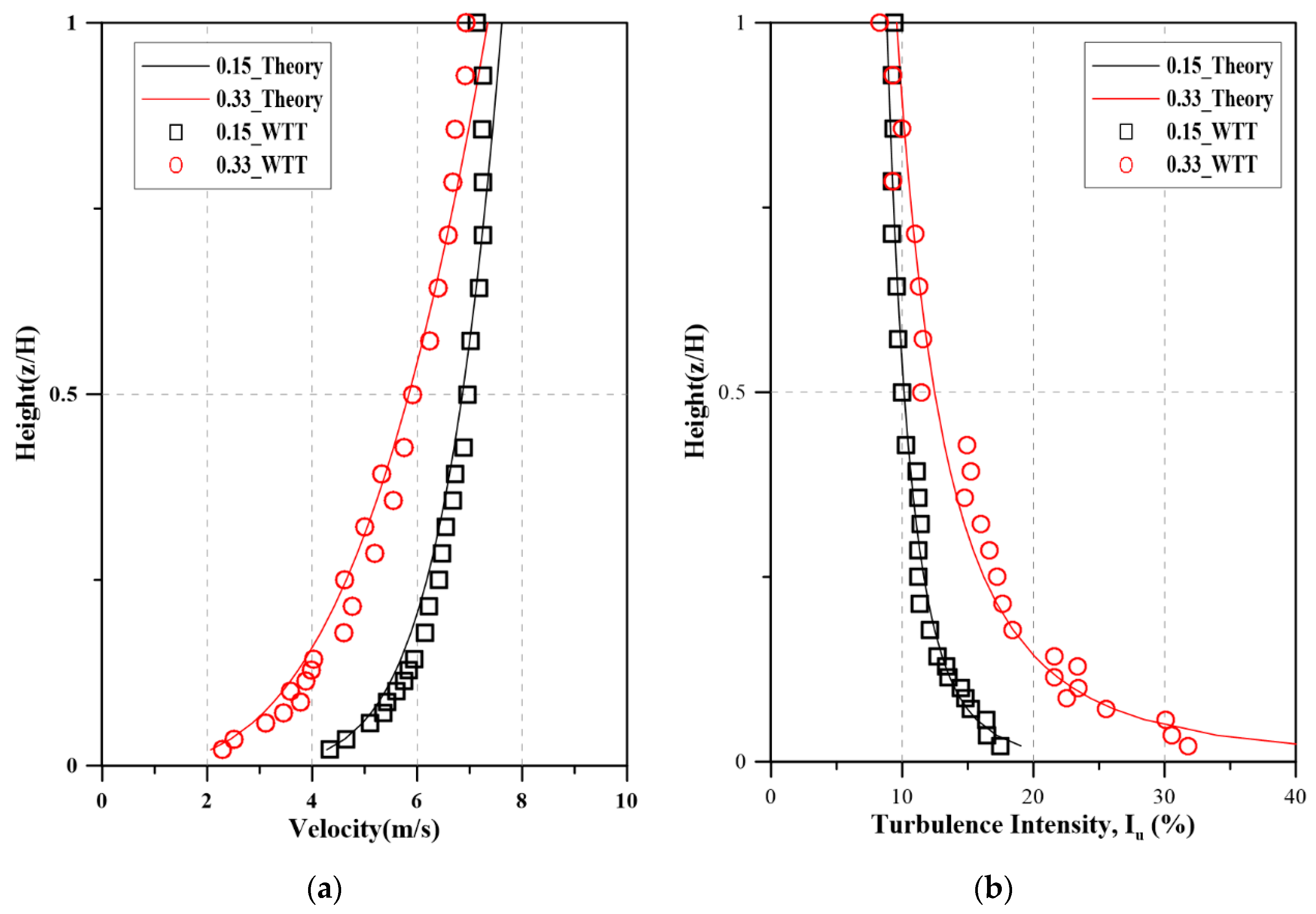

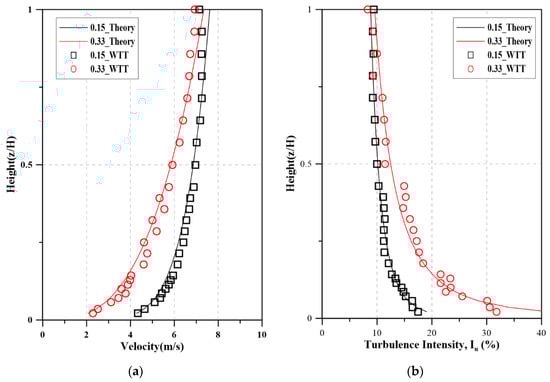

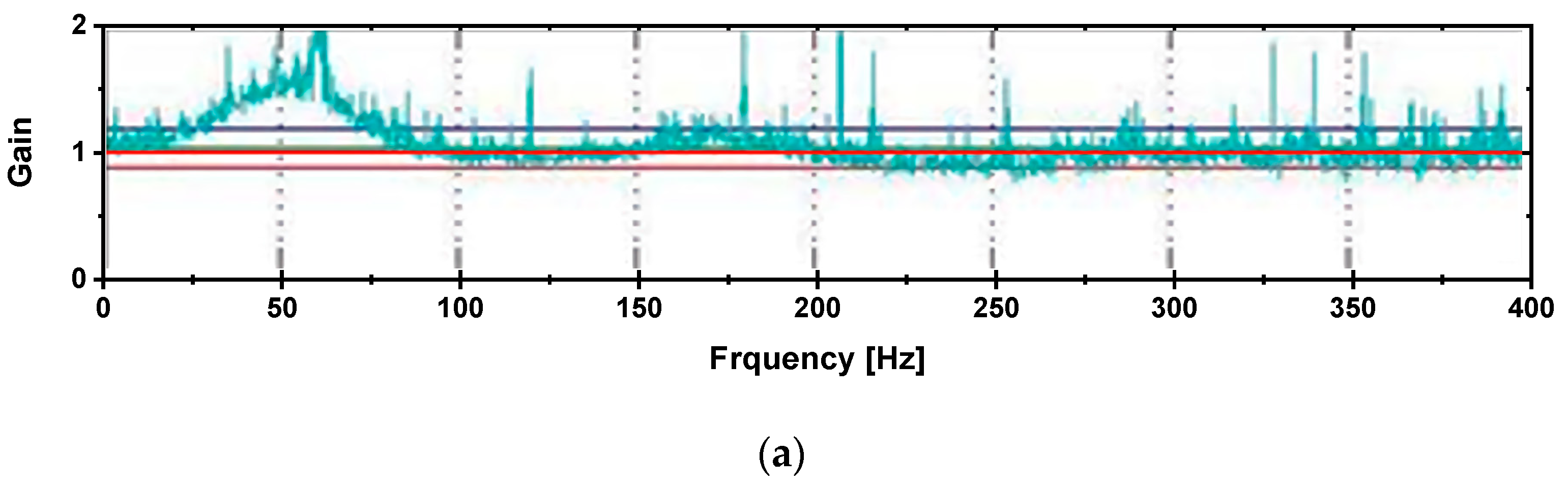

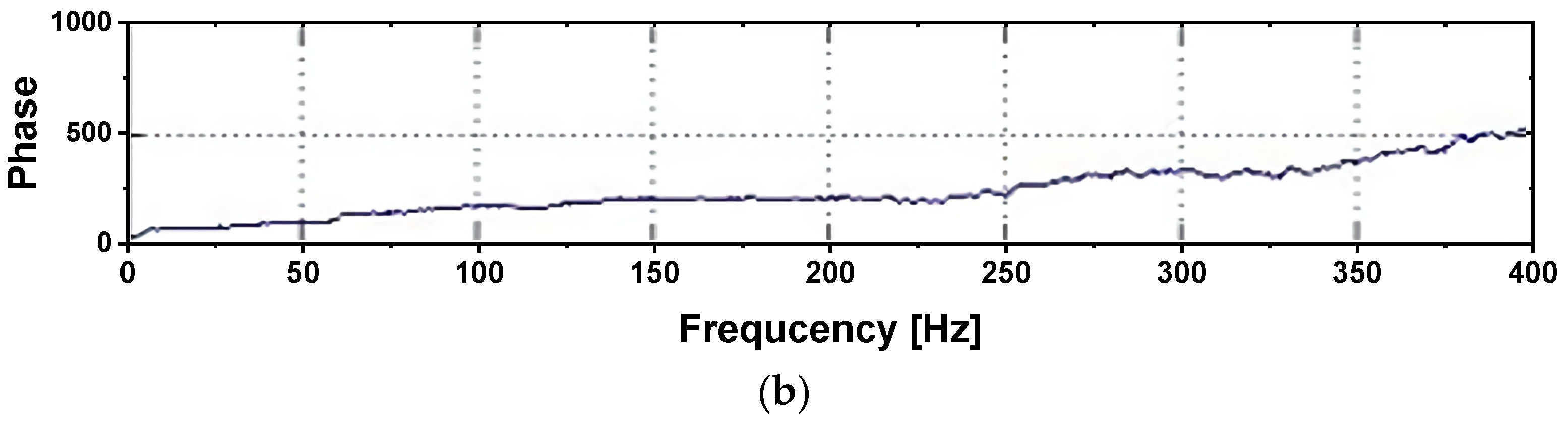

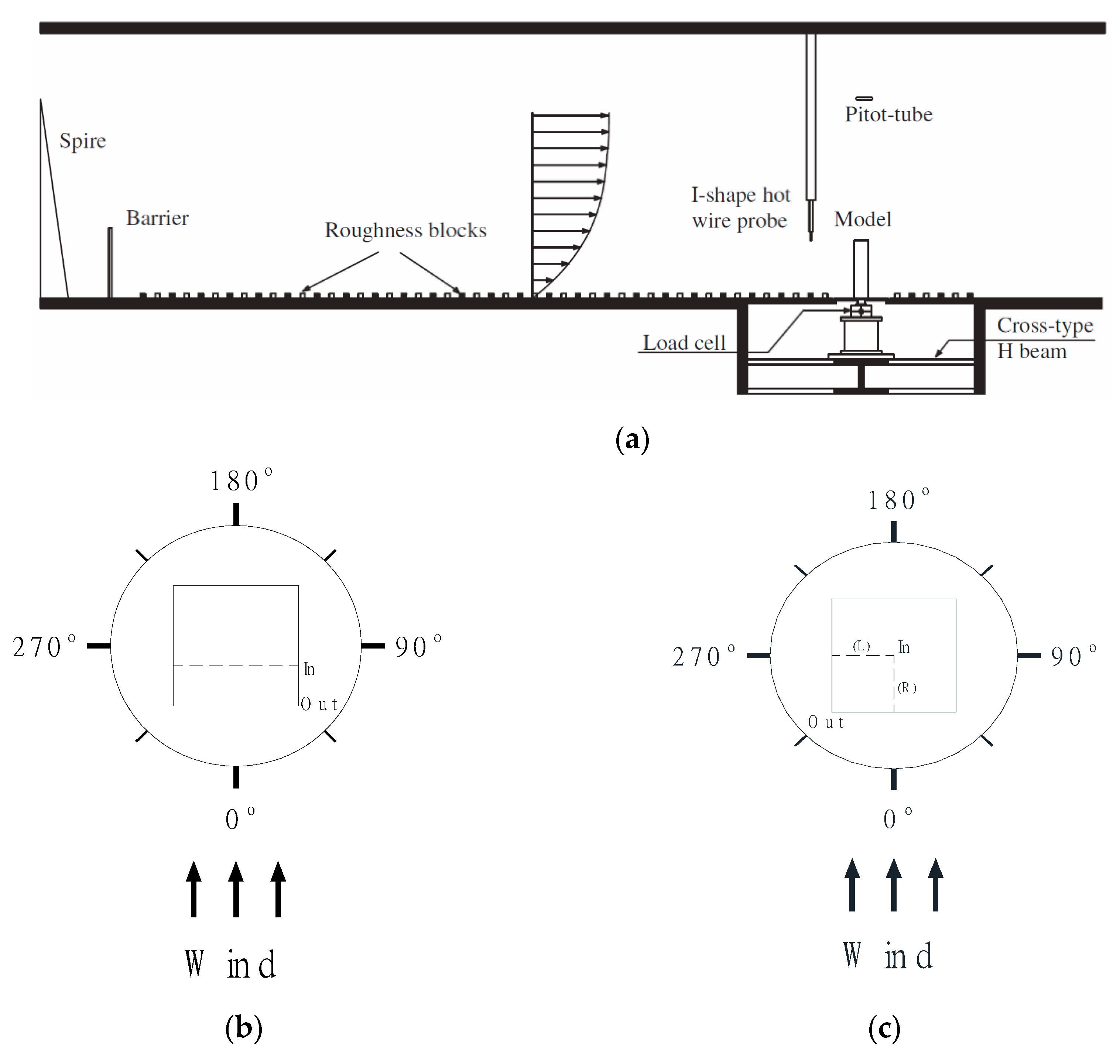

2.2. Experimental Equipment and Wind Field Model

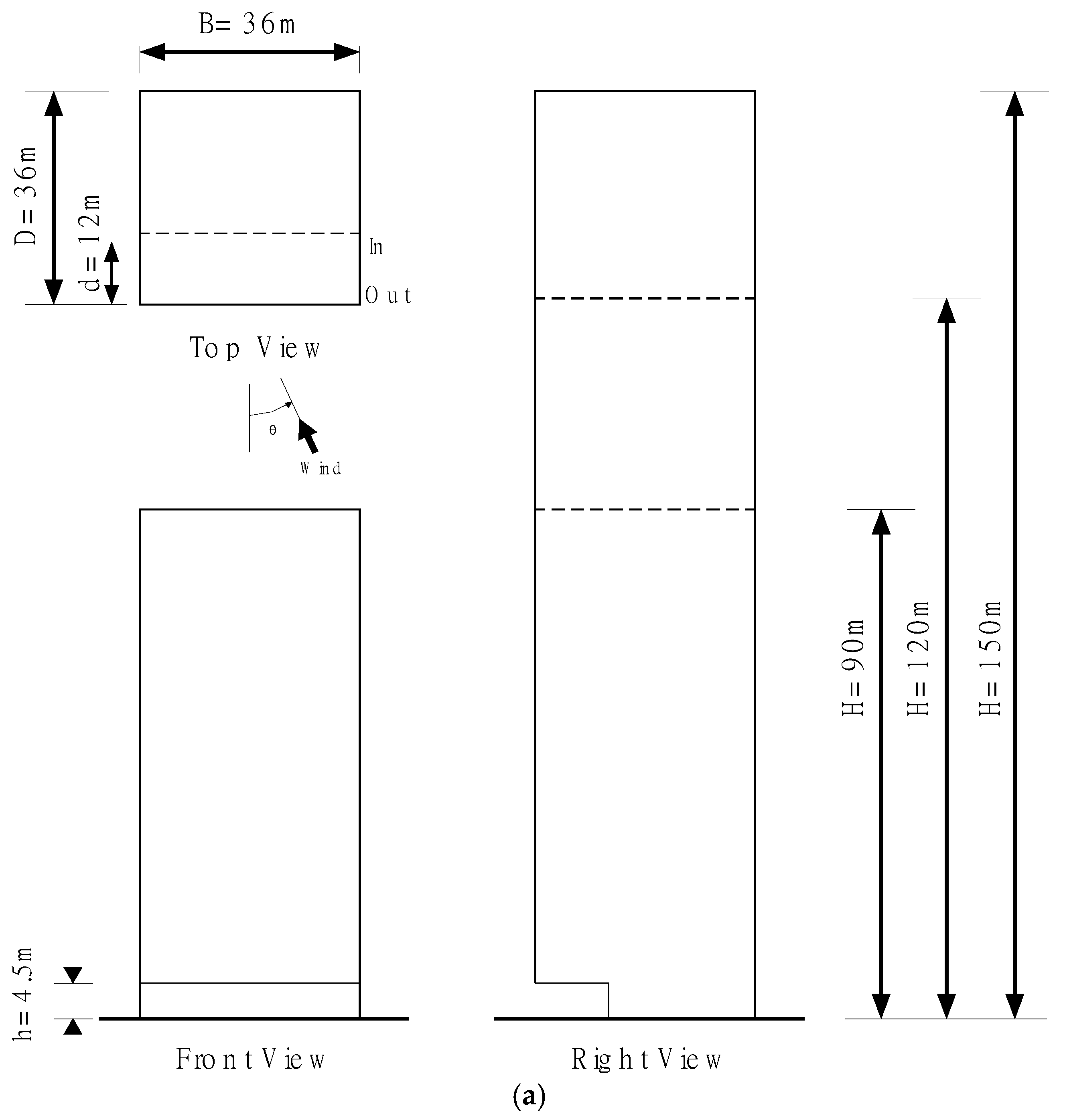

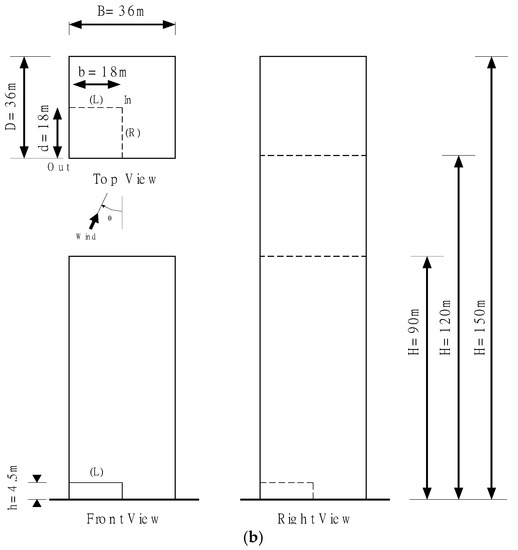

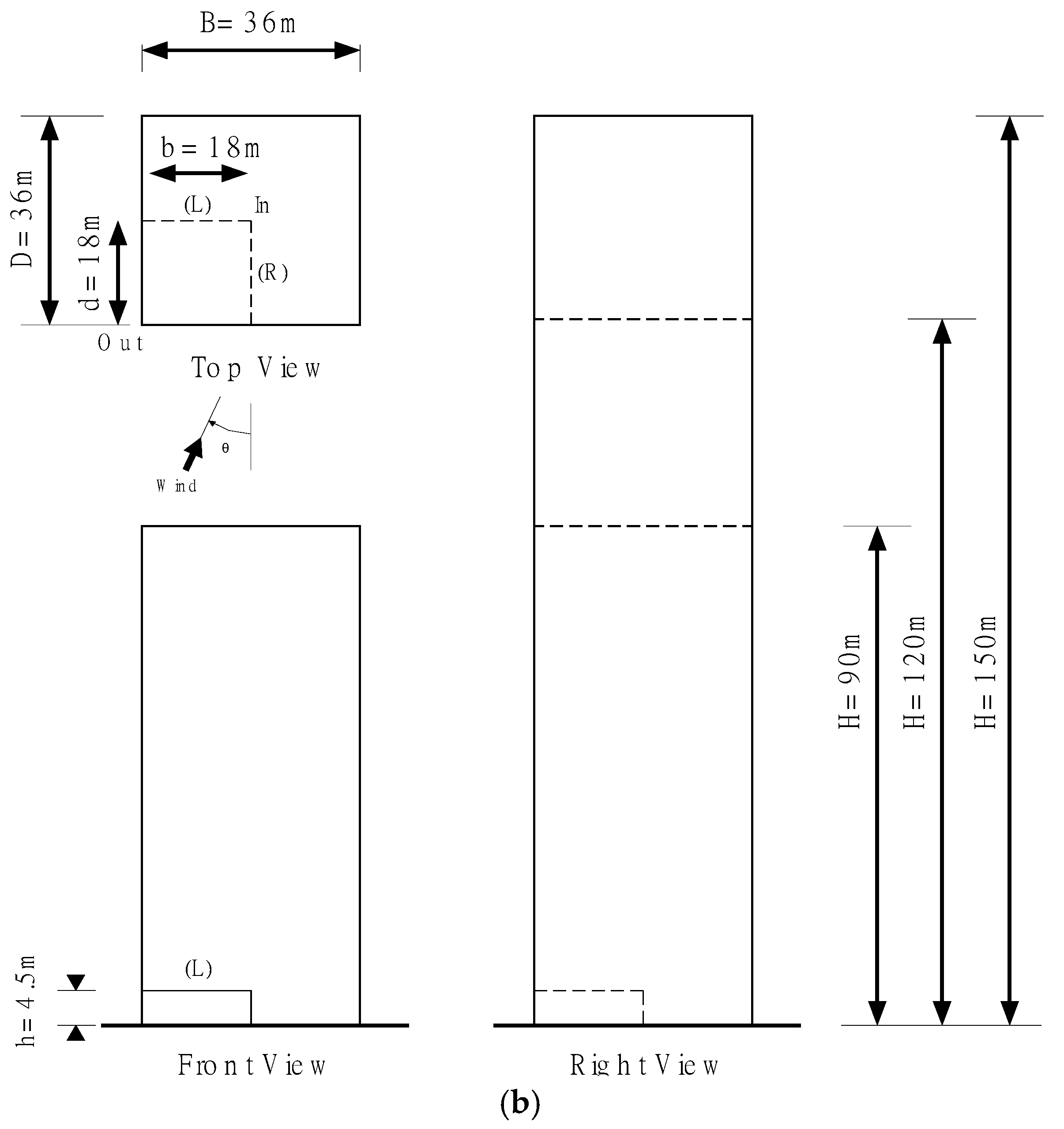

2.3. Configuration of Building Model
3. Results and Discussion

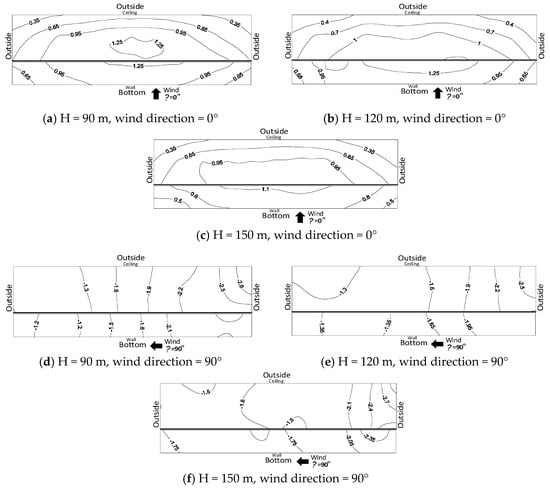

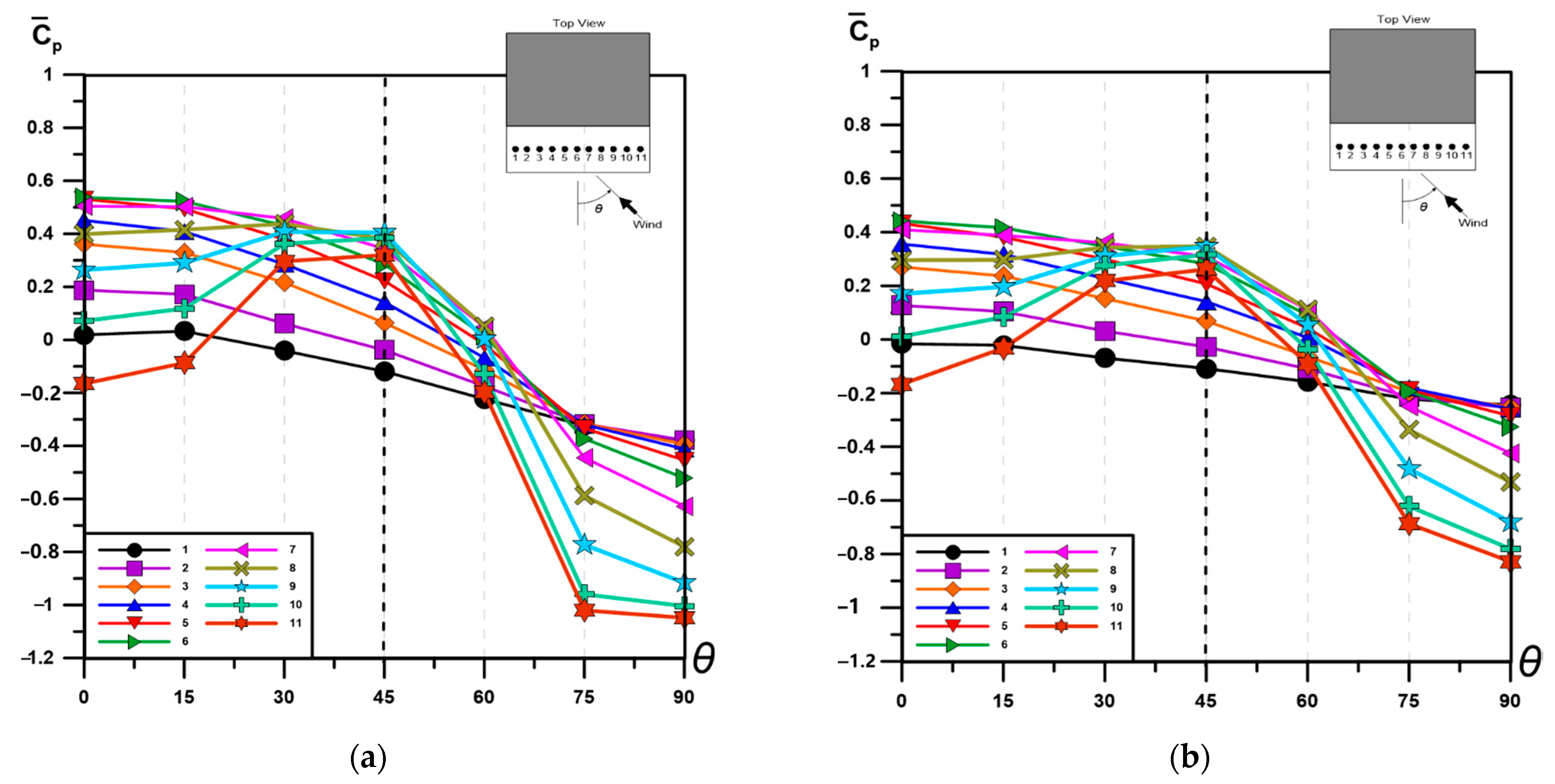

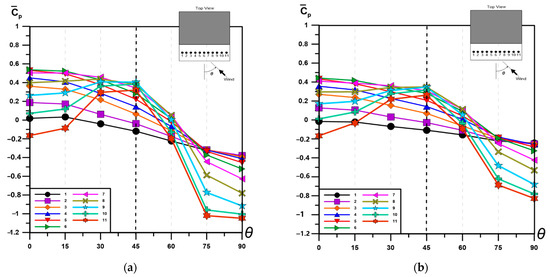

3.1. Average Wind Pressure Coefficient Distribution of End-Type Piloti

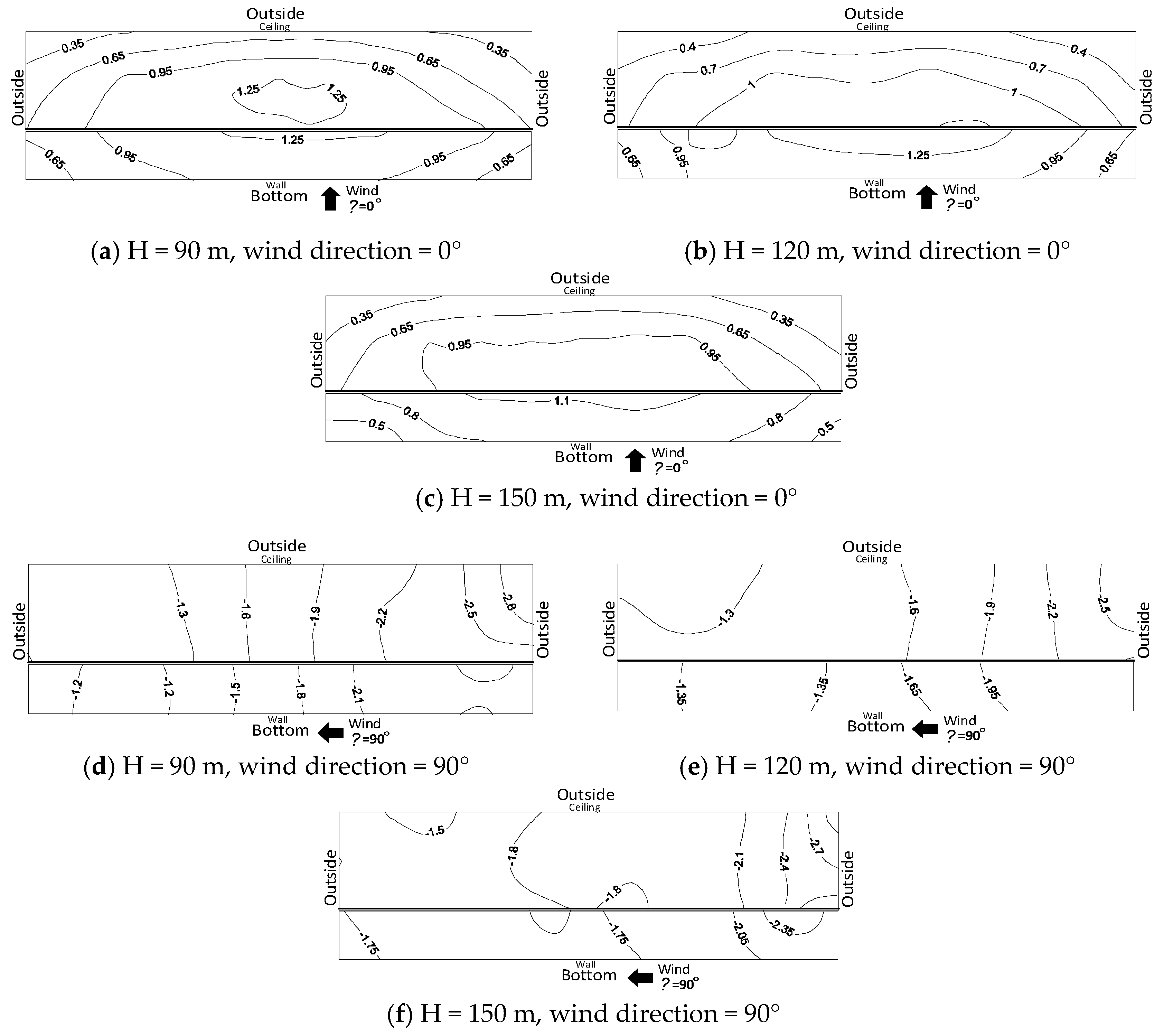

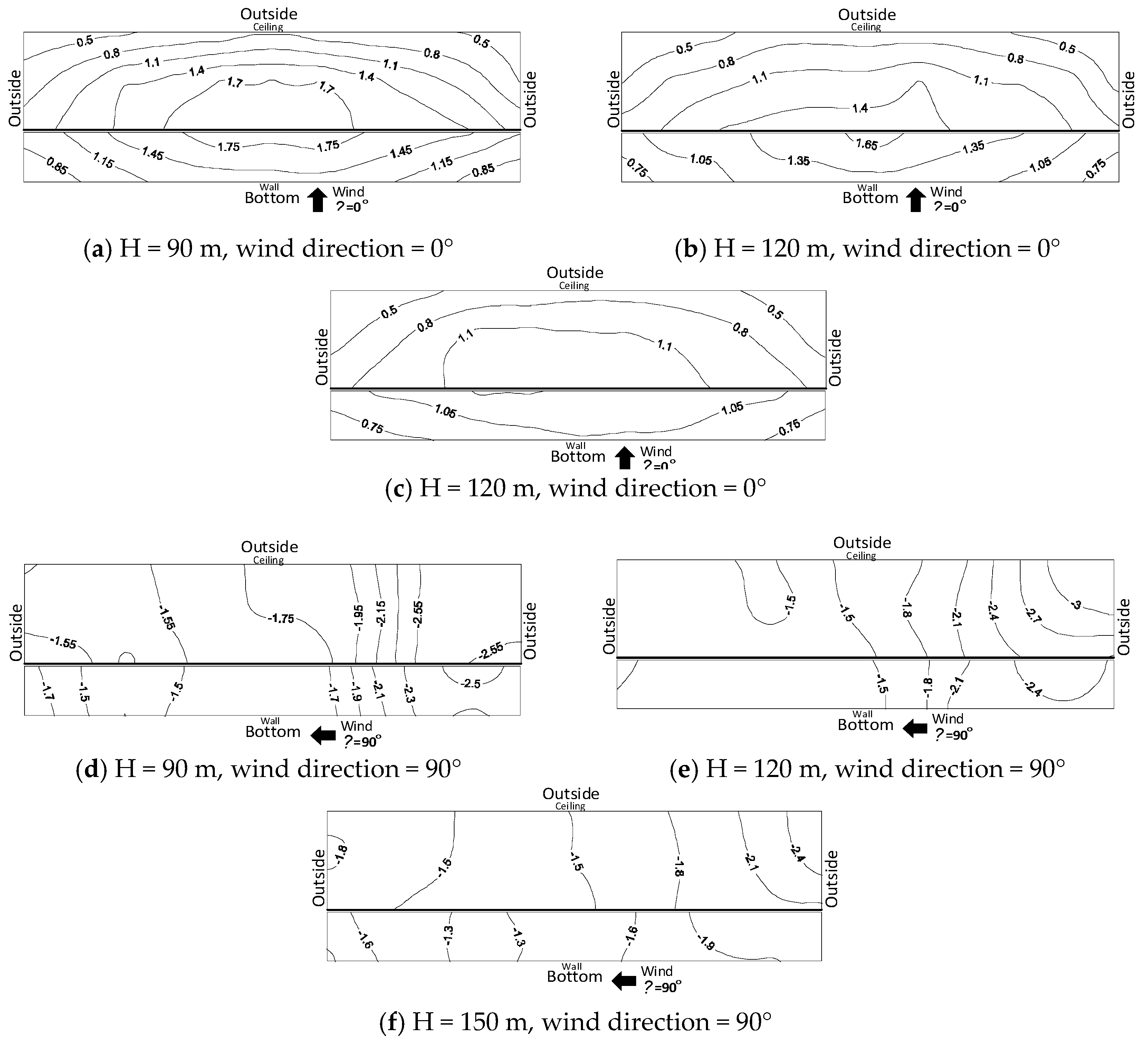

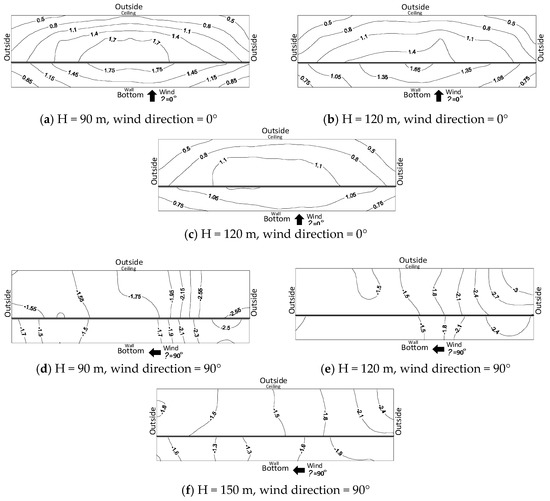

3.2. Peak Wind Pressure Coefficient Distribution of End-Type Piloti

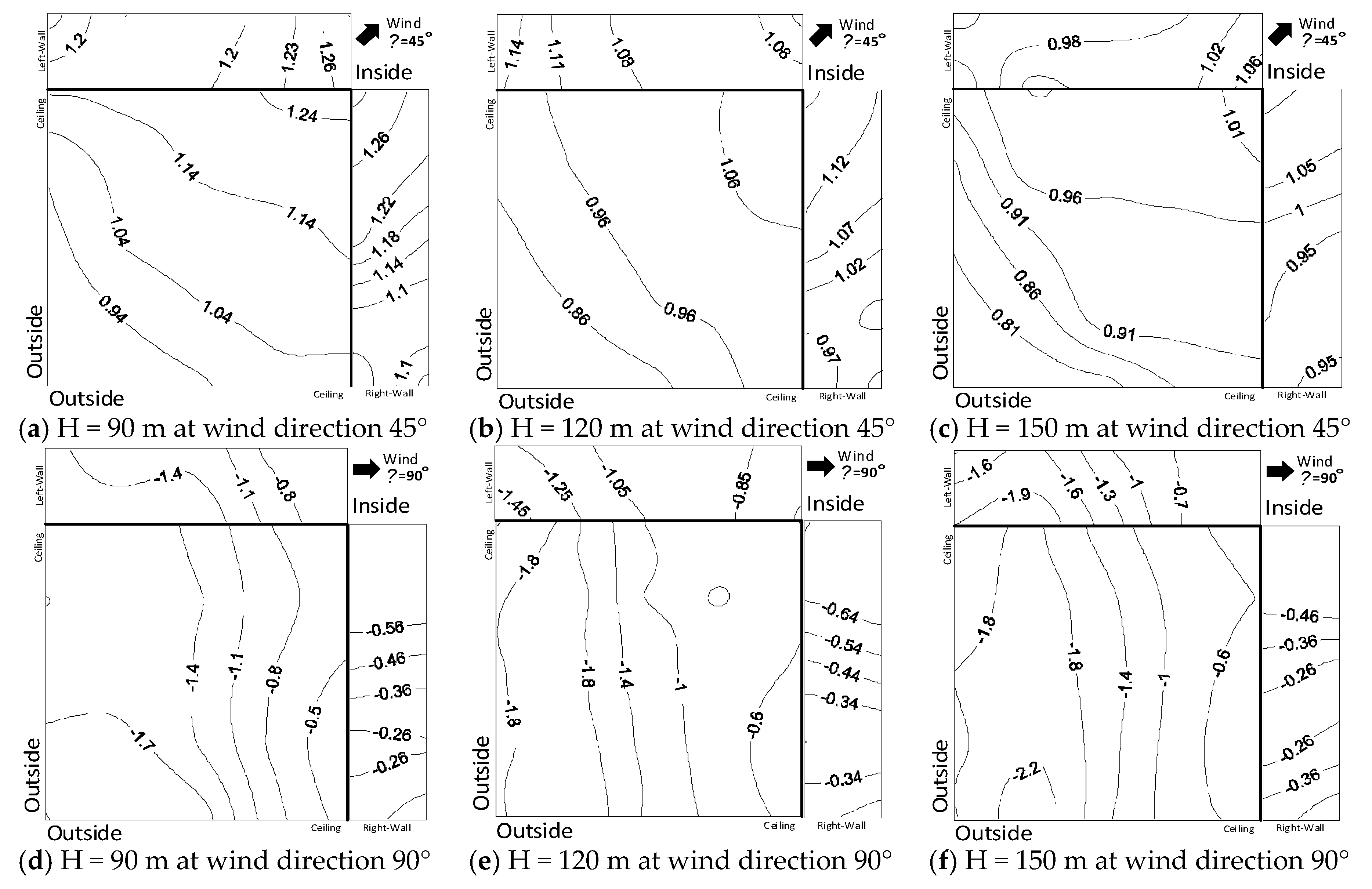

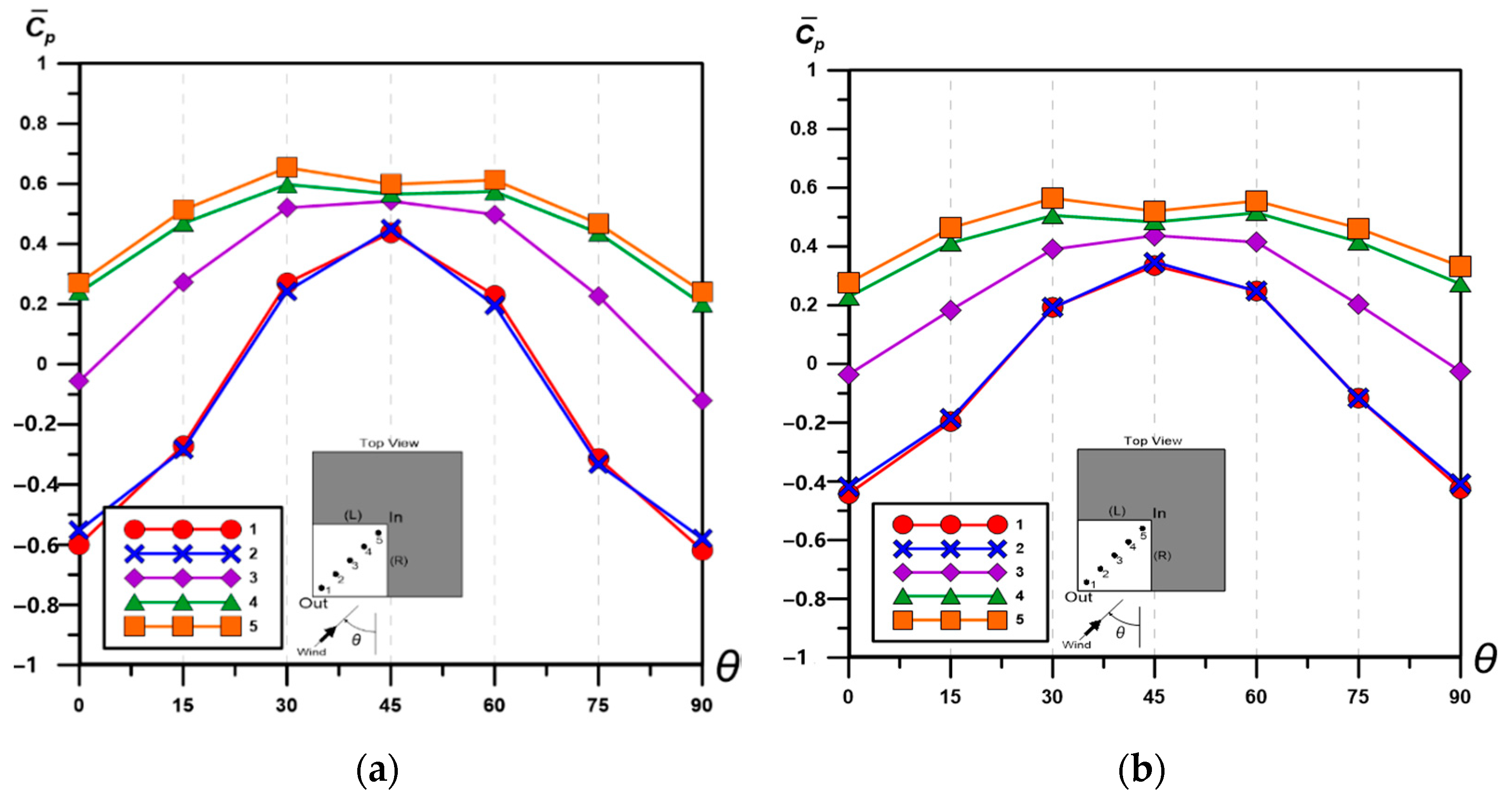

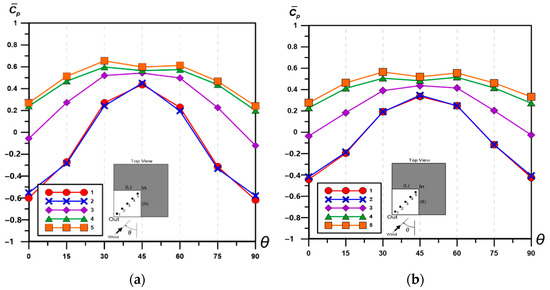

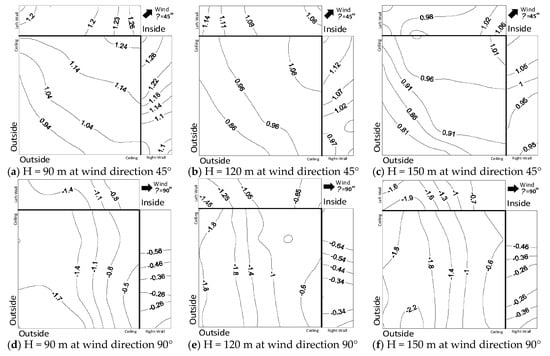

3.3. Average Wind Pressure Coefficient Distribution of Corner-Type Piloti

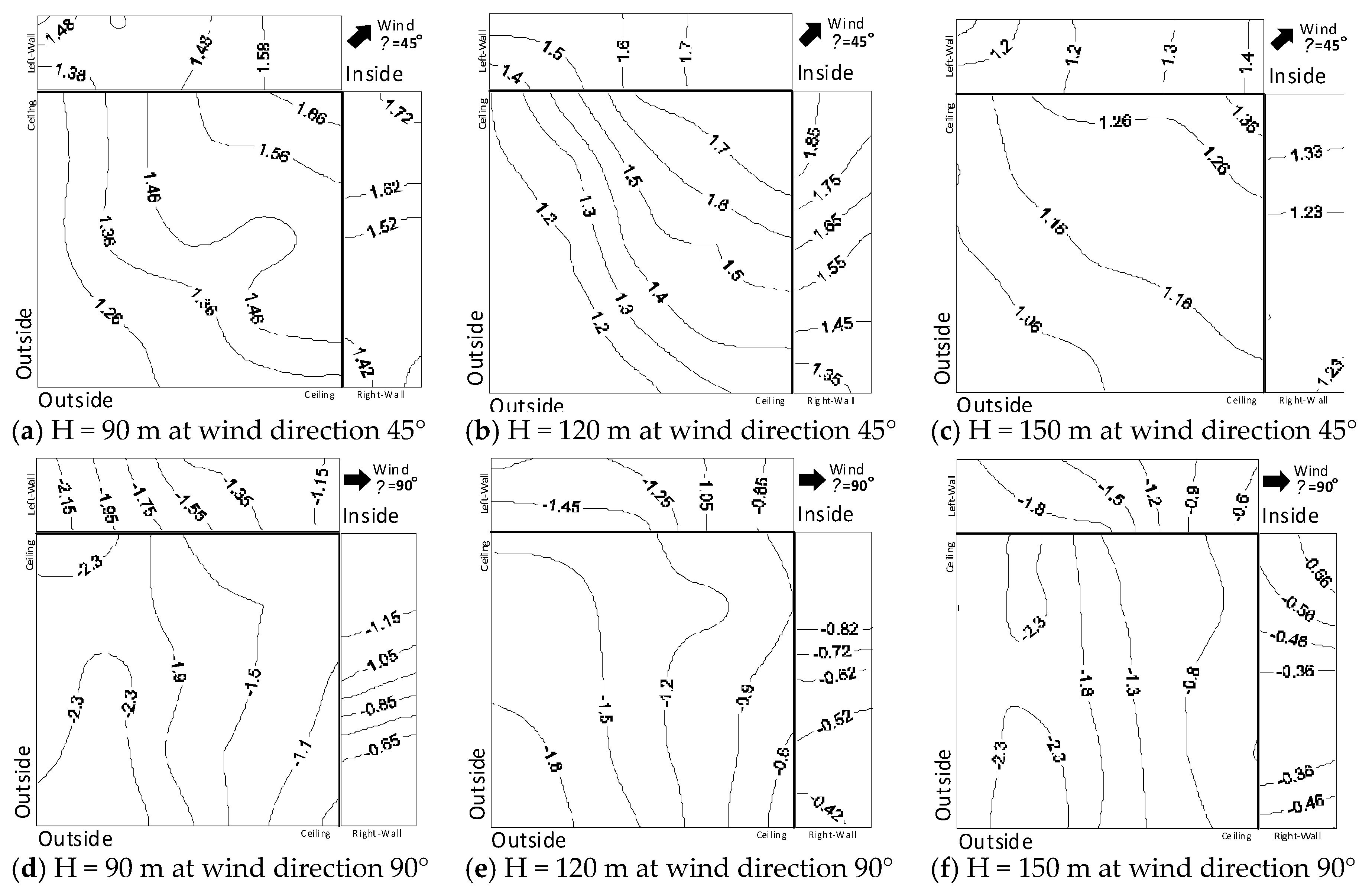

3.4. Peak Wind Pressure Coefficient Distribution of Corner-Type Piloti
4. Conclusions
- (1)
- For the end-type piloti, the peak wind pressure coefficient of the ceiling was high. Regardless of the height of the building, the maximum peak wind pressure coefficient was noted at the center, and the minimum peak wind pressure coefficient was noted at the corner of the inlet. The maximum wind pressure coefficient at the city center was 1.4–1.7 times larger than that in the suburbs. This difference was attributed to the effects of surface roughness.
- (2)
- For the end-type piloti, flow velocity increased as the interior of the piloti became narrower, and the internal wind pressure coefficient exhibited a similar trend. For the through-type piloti, the internal wind pressure coefficient was affected by the shape of the piloti rather than the height of the building.
- (3)
- The maximum wind pressure coefficient for the corner-type piloti was noted at the inside of the corner, whereas the minimum peak wind pressure coefficient was noted at the outer edge of the ceiling. The maximum peak wind pressure coefficient for urban areas was approximately 1.2–1.5 times larger than that in the suburbs. This is attributed to the influence of the velocity and turbulence intensity depending on the surface roughness.
- (4)
- For the corner-type piloti, as the height of the building increases, the wind flows through the high-rise portion of the building. Therefore, the influence of wind at the lower portion of the building decreases; this leads to a decrease in the wind speed. The structure of the corner-type piloti affected the wind flow inside the piloti as the height of the building increased. For the corner- and end-type pilotis, as the aspect ratio increases, the peak pressure decreases, regardless of the wind direction (θ = 45° or 90°).
