# Digital Plan of Brickwork Layout for Robotic Bricklaying Technology

^{*}

## Abstract

**:**

## 1. Introduction

_{2}emissions [10,11].

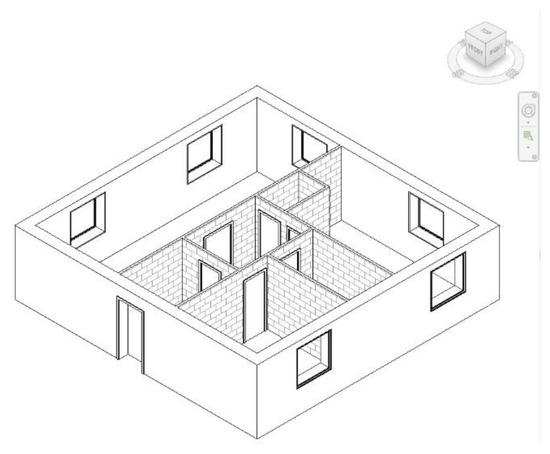

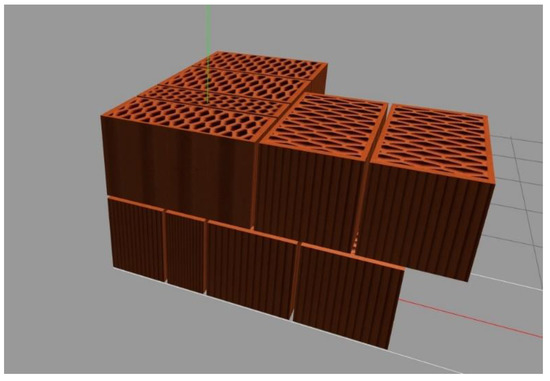

## 2. Methodology

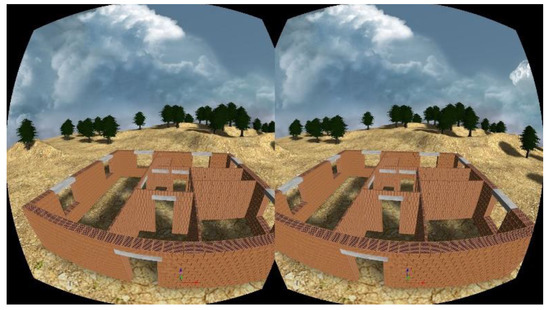

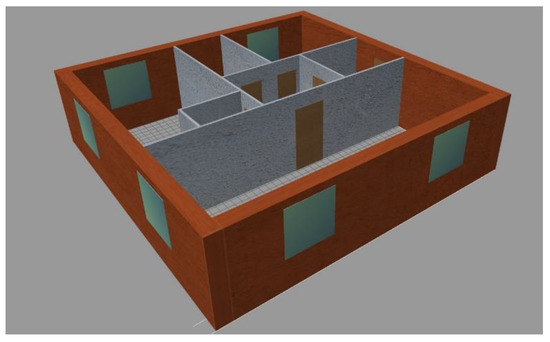

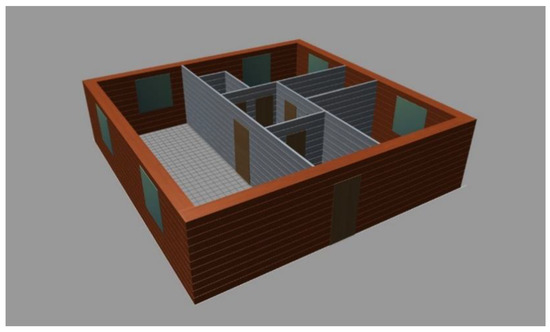

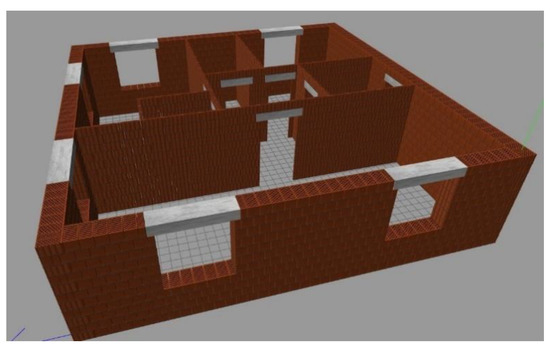

## 3. Algorithm of the Converter from IFC Format

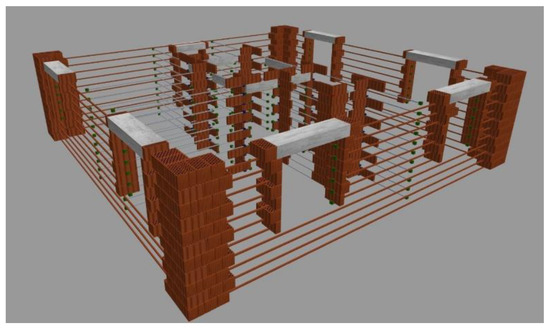

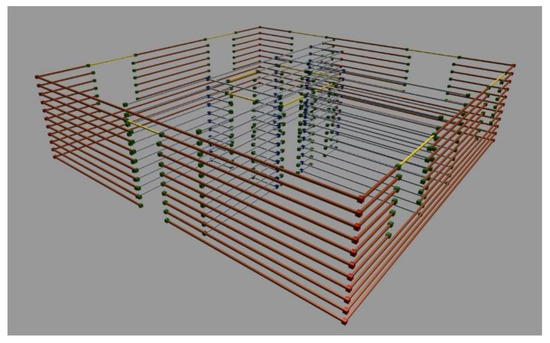

## 4. Mathematical Method of Connecting Discontinuous Axes of Objects Walls with an Orthogonal Layout

- Find the directional vector $\overrightarrow{b}$ for each axis:$$\overrightarrow{b}=\left[{b}_{1};{b}_{2}\right]={P}_{2i}-{P}_{1i}=\left[{x}_{2}-{x}_{1};{y}_{2}-{y}_{1}\right].$$
- Find the initial point, $S$, for each axis $a$:$$S\left[{x}_{0};{y}_{0}\right]={P}_{1i}\left[x;y\right].$$
- Write the axes in parametric form, as a system of equations [45]:$$\{\begin{array}{c}x={x}_{0}+{b}_{1}\xb7t\\ y={y}_{0}+{b}_{2}\xb7t\end{array}$$
- Write the axes $a$ in matrix form [45]:$${a}_{i}=\left(\begin{array}{cc}{x}_{0}& {b}_{1}\\ {y}_{0}& {b}_{2}\end{array}\right),$$

- Both parameters ${t}_{i}$ and ${t}_{j}$ lie in the interval $\langle 0,1\rangle $ and the intersection of the axes is found between the end points of the axes, which does not comply with the conditions for drawing objects; hence, ${c}_{i,j}=\varnothing $.
- Neither ${t}_{i}$ nor ${t}_{j}$ lies in the interval $\langle 0,1\rangle $ and the intersection of the axes is found outside the axis area delimited by the end points of the axes, which does not comply with the conditions for drawing objects; hence, ${c}_{i,j}=\varnothing $.
- Only one of ${t}_{i}$ or ${t}_{j}$ lies in the interval $\langle 0,1\rangle $ and the intersection of the axes is found between the end points on one axis and outside the area delimited by the end points on the second axis, which complies with the conditions for drawing objects. Hence, the co-ordinates of the intersection of the axes are calculated using the formulae below; that is, ${c}_{i,j}=\left[{x}_{ijc};{y}_{ijc}\right]$, where$$\{\begin{array}{c}{x}_{ijc}={P}_{1ix}+{t}_{i}\xb7\left({P}_{2ix}-{P}_{1ix}\right)\\ {y}_{ijc}={P}_{1iy}+{t}_{i}\xb7\left({P}_{2iy}-{P}_{1iy}\right)\end{array}$$$$\{\begin{array}{c}{x}_{ijc}={P}_{1jx}+{t}_{j}\xb7\left({P}_{2jx}-{P}_{1jx}\right)\\ {y}_{ijc}={P}_{1jy}+{t}_{j}\xb7\left({P}_{2jy}-{P}_{1jy}\right)\end{array}.$$

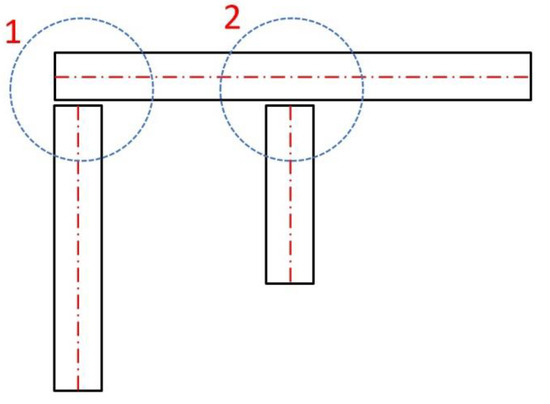

- Corner connection of the axes (see Figure 11, State 1), under the condition:$$\left\{\left|{d}_{1i,j}\right|\vee \left|{d}_{2i,j}\right|\right\}=\left\{\left|{d}_{3i,j}\right|\vee \left|{d}_{4i,j}\right|\right\}=\frac{w}{2}$$
- T-connection of the axes (see Figure 11, State 2) under the condition:$$\left\{\left|{d}_{1i,j}\right|\vee \left|{d}_{2i,j}\right|\vee \left|{d}_{3i,j}\right|\vee \left|{d}_{4i,j}\right|\right\}=\frac{w}{2}$$

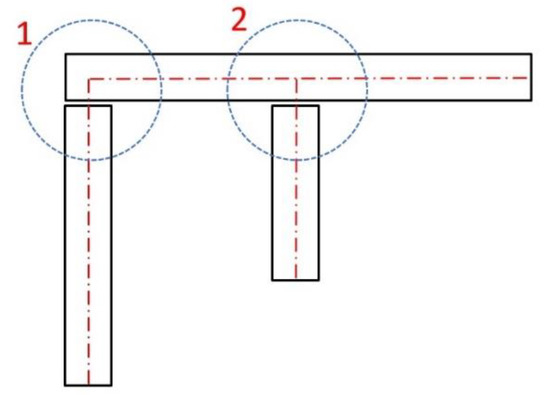

- For the corner connection of axes (see Figure 12, State 1):$$\{\begin{array}{c}\left\{{P}_{1i}\left[x;y\right]\vee {P}_{2i}\left[x;y\right]\right\}=\left[{x}_{c};{y}_{c}\right]\\ \left\{{P}_{3i}\left[x;y\right]\vee {P}_{4i}\left[x;y\right]\right\}=\left[{x}_{c};{y}_{c}\right]\end{array}.$$
- For the T-connection (see Figure 12, State 2):$$\left\{{P}_{1i}\left[x;y\right]\vee {P}_{2i}\left[x;y\right]\right\}\vee \left\{{P}_{3i}\left[x;y\right]\vee {P}_{4i}\left[x;y\right]\right\}=\left[{x}_{c};{y}_{c}\right]$$

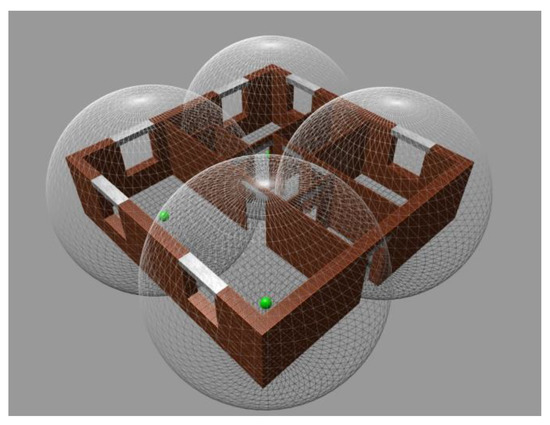

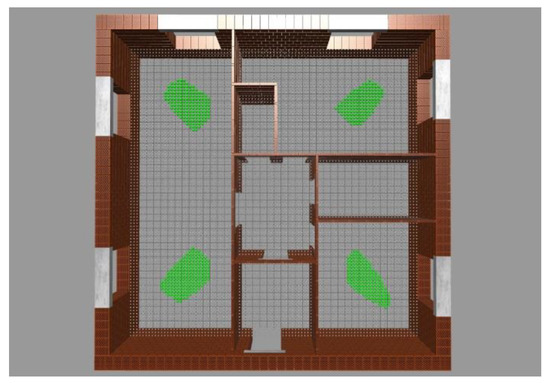

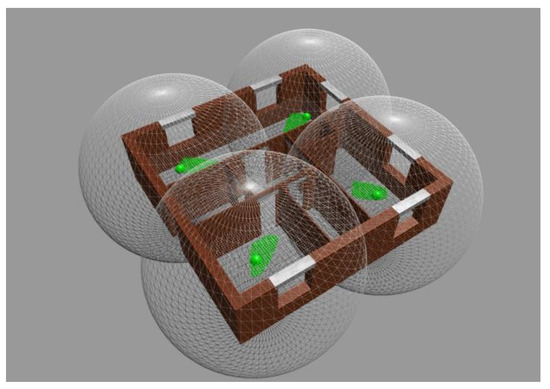

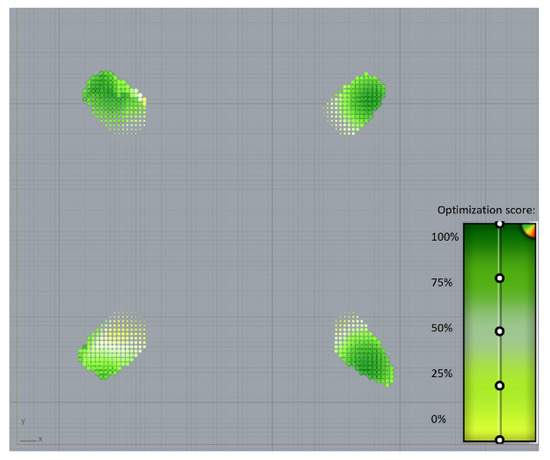

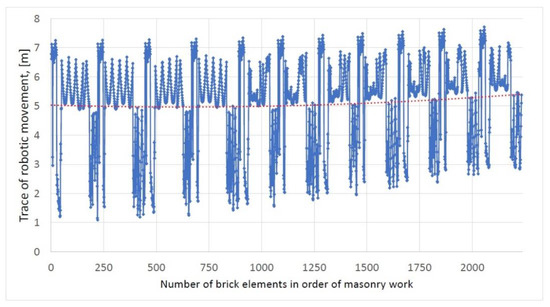

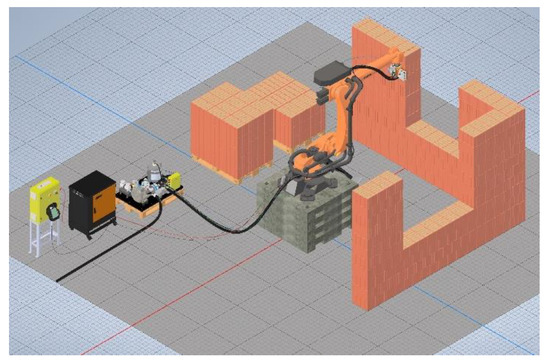

## 5. Experimental Verification and Practical Demonstration of Research

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

BIM | Building Information Modeling |

BREP | Boundary Representation |

IFC | Industry Foundation Classes |

KRL | Kuka Robotic Language |

KUKA | a German-based manufacturer of industrial robots |

PHP | Hypertext Preprocessor (or Personal HomePage a popular general-purpose scripting language) |

TCP | Tool Centre Point |

## References

- KUKA Robots KR Quantec Ultra K. Assembly Instructions v. 14; KUKA: Augsburg, Germany, 2020. [Google Scholar]
- KUKA Controller KR C4; KR C4 CK. Operating Instructions v. 19; KUKA: Augsburg, Germany, 2019. [Google Scholar]
- European Patent Office. Espacenet. Available online: https://worldwide.espacenet.com/ (accessed on 16 March 2021).
- Aguair, M.; Behdinan, K. Design, Prototyping, and Programming of a Bricklaying Robot. J. Stud. Sci. Technol.
**2015**, 8. [Google Scholar] [CrossRef] [Green Version] - SW Autodesk Revit v.2020. Available online: http://www.autodesk.com/revit/ (accessed on 22 March 2021).
- SW Graphisoft Archicad v.23. Available online: https://www.graphisoft.com/archicad/ (accessed on 22 March 2021).
- Eastman, C.; Tiecholz, P.; Sacks, R.; Liston, K. BIM Handbook: A Guide to Building Information Modeling for Owners, Managers, Designers, Engineers and Contractors, 3rd ed.; John Wiley: Hoboken, NJ, USA, 2018; ISBN 978-1-119-28753-7. [Google Scholar]
- O’Brien, S.J.; Johnson, W.E. Big cat genomics. Annu. Rev. Genom. Hum. Genet.
**2005**, 6, 407–429. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Karbegović, I.; Banjanovic-Mehmedovic, L. Industrial Robots: Design, Applications and Technology; Academy of Sciences and Arts of Bosnia and Herzegovina, University of Bihac: Bihac, Bosnia and Herzegovina, 2020; ISBN 978-1-53617-779-4. [Google Scholar]
- Malakhov, A.; Shutin, D.; Popov, S. Bricklaying robot moving algorithms at a construction site. In IOP Conference Series: Materials Science and Engineering; IOP Publishing Ltd.: Bristol, UK, 2020. [Google Scholar] [CrossRef]
- Bogue, R. What are the prospects for robots in the construction industry? Ind. Robot.
**2018**, 45, 1–6. [Google Scholar] [CrossRef] - Antoulas, A.C.; Beattie, C.A.; Gugercin, S. Interpolatory model reduction of large-scale dynamical systems. In Efficient Modeling and Control of Large-Scale Systems; Mohammadpour, J., Grigoriadis, K., Eds.; Springer: Boston, MA, USA, 2010; pp. 3–58. [Google Scholar] [CrossRef]
- Bystrova, A.; Dembovskii, N.; Sorokina, S.; Dedyaev, D.; Vakurov, A. Hadrian X—Autonomous Robotic System for Bricklaying. Bull. Sci. Pract.
**2019**, 5, 254–258. [Google Scholar] [CrossRef] - Příručka pro Provádění Zdiva; Heluz: Prague, Czech Republic, 2015; Available online: http://www.heluz.cz/files/Prirucka-pro-provadeni (accessed on 22 March 2021).
- Sklar, J. Robots Lay Three Times as Many Bricks as Construction Workers. MIT Technology Review. 2015. Available online: https://www.technologyreview.com/s/540916/robots-lay-three-times-as-many-bricks-as-construction-workers/ (accessed on 22 March 2021).
- Brosy, N. BIM, Bim; Wiley Online Library, Wiley-VCH Verlag: Weinheim, Germany, 2020. [Google Scholar] [CrossRef]
- Malakhov, A.; Shutin, D. The analysis of factors influencing on efficiency of applying mobile bricklaying robots and tools for such analysis. J. Phys.
**2019**. Conf. Ser. 1399. [Google Scholar] [CrossRef] - Ding, L.; Zhou, Y.; Akinci, B. Building Information Modeling (BIM) application framework: The process of expanding from 3D to computable nD. Autom. Constr.
**2014**, 46, 82–93. [Google Scholar] [CrossRef] - SW Allplan v.2020. Available online: https://www.allplan.com (accessed on 22 March 2021).
- Ding, L.; Jiang, W.; Zhou, Y.; Zhou, C.; Liu, S. BIM-based task-level planning for robotic brick assembly through image-based 3D modeling. Adv. Eng. Inform.
**2020**, 43. [Google Scholar] [CrossRef] - IFC 4.0 Standard: Industry Foundation Classes. Available online: https://standards.buildingsmart.org/IFC/RELEASE/IFC4/FINAL/HTML/ (accessed on 21 March 2021).
- Barzegar, M.; Rajabifard, A.; Kalantari, M.; Atazadeh, B. An IFC-based database schema for mapping BIM data into a 3D spatially enabled land administration database. Int. J. Digit. Earth
**2020**, 14, 1–30. [Google Scholar] [CrossRef] - Noardo, F.; Krijnen, T.; Arroyo Ohori, K. Reference study of IFC software support: The GeoBIM benchmark 2019. Trans. GIS
**2021**. [Google Scholar] [CrossRef] - Ermolov, I. Industrial Robotics Review. In Robotics: Industry 4.0 Issues & New Intelligent Control. Paradigms, Studies in Systems, Decision and Control; Book Series; Springer: Cham, Switzerland, 2020; Volume 272, pp. 195–204. [Google Scholar] [CrossRef]
- Wu, K. Experimental Analysis of the Dynamic Stiffness in Industrial Robots. Appl. Sci.
**2020**, 10, 8332. [Google Scholar] [CrossRef] - Gharbia, M.; Chang-Richards, A.; Lu, Y.; Zhong, R.Y. Robotic technologies for on-site building construction: A systematic review. J. Build. Eng.
**2020**, 32. [Google Scholar] [CrossRef] - Medvedev, P.; Pugach, E.; Gaidukov, P. Technological Application Features of Brickwork Bonding Types. In IOP Conference Series: Materials Science and Engineering; IOP: Orlando, FL, USA, 2019; p. 471. ISSN 1757-899X. [Google Scholar] [CrossRef]
- Seaberg, R.; Dover, R.; Corey, A. Fibonacci Numbers and Bricklaying: Counting Geometrically. National Council of Teachers of Mathematics: Math. Teach.
**2011**, 104, 452–458. Available online: http://www.jstor.org/stable/20876913 (accessed on 22 March 2021). - Svítek, M.; Borka, J.; Vlček, M. Modelování Systémů a Procesů; ČVUT: Prague, Czech Republic, 2001; ISBN 80-01-02361-3. [Google Scholar]
- Bajjou, M.S.; Chafi, A. Application of Simulation Modelling for Waste Assessment: A Case Study of Bricklaying Process. Int. J. Eng. Res. Afr.
**2021**, 52, 40–48. [Google Scholar] [CrossRef] - Zandavali, B.A.; García, M.J. Automated Brick Pattern Generator for Robotic Assembly using Machine Learning and Images. In Ecaade Sigradi 2019: Architecture in the Age of the 4th Industrial Revolution; University of Porto: Porto, Portugal, 2019; Volume 3. [Google Scholar] [CrossRef]
- SW WebVR Experience Helper. Available online: https://doc.babylonjs.com/divingDeeper/cameras/webVRHelper (accessed on 22 March 2021).
- SW Babylon.js 4.0: WebGL-Based Graphics Engines. Available online: https://www.babylonjs.com/ (accessed on 22 March 2021).
- Nicoletti, B. Procurement 4.0 and the Fourth Industrial Revolotuion; Palgrave Macmillan: London, UK, 2020; ISBN 978-3-030-35978-2. [Google Scholar]
- Dimitrov, A.; Golparvar-Fard, M. Vision-based material recognition for automated monitoring of construction progress and generating building information modeling from unordered site image collections. Adv. Eng. Inform.
**2014**, 28, 37–49. [Google Scholar] [CrossRef] - Codecasa, L.; d’ Alessandro, V.; Magnani, A.; Rinaldi, N. Calibration of detailed thermal models by parametric dynamic compact thermal models. In Proceedings of the 22nd International Workshop on Thermal Investigations of ICs and Systems (THERMINIC), Budapest, Hungary, 21–23 September 2016; pp. 69–75. [Google Scholar] [CrossRef]
- Klvaňa, J. Modelování 20: Operační Výzkum, 3rd ed.; ČVUT: Prague, Czech Republic, 2005; p. 246. ISBN 80-01-03263-9. [Google Scholar]
- Wolfartsberger, J. Analyzing the potential of Virtual Reality for engineering design review. Autom. Constr.
**2019**, 104, 27–37. [Google Scholar] [CrossRef] - Silvio, T. Animation: The New Performance? J. Linguist. Anthropol.
**2010**, 20, 422–438. [Google Scholar] [CrossRef] - Sokolowski, J.A.; Banks, C.M. Modeling and Simulation Fundamentals; John Wiley & Sons: Hoboken, NJ, USA, 2010; ISBN 978-0-470-48674-0. [Google Scholar]
- Noskievič, P. Modelování a Identifikace Systémů; Montanex A.S: Ostrava, Czech Republic, 1999; ISBN 80-7225-030-2. [Google Scholar]
- Pan, Z.; Polden, J.; Larkin, N.; Van Duin, S.; Norrish, J. Recent progress on programming methods for industrial robots. Robot. Comput.Integr. Manuf.
**2012**, 28, 87–94. [Google Scholar] [CrossRef] [Green Version] - Bodansky, E.; Gribov, A. Closing Gaps of Discontinuous Lines: A New Criterion for Choosing the Best Prolongation. In Document Analysis Systems V; Springer: Princeton, NJ, USA, 2002; pp. 119–122. [Google Scholar] [CrossRef] [Green Version]
- Chicurel-Uziel, E. Discontinuous functions represented by exact, closed, continuous parametric equations. In Recent Advances in Applied Mathematics; WSEAS Press: Cambridge, MA, USA, 2010; ISSN 1790-2769173. ISBN 978-960-474-150-2. [Google Scholar]
- Rektorys, K. Přehled Užité Matematiky; Prometheus: Prague, Czech Republic, 1995; p. 6, Reworked 2004; ISBN 80-85849-92-5. [Google Scholar]
- Tsarouchi, P.; Makris, S.; Chryssolouris, G. Human—Robot interaction review and challenges on task planning and programming. Int. J. Comput. Integr. Manuf.
**2016**, 29, 916–931. [Google Scholar] [CrossRef] - Werfel, J.; Peterson, K.; Nagpal, R. Designing Collective Behavior in a Termite-Inspired Robot Construction Team. Science
**2014**, 343, 754–758. [Google Scholar] [CrossRef] [PubMed] - PHP v. 5.4.16: A General-Purpose Scripting Language. Available online: https://www.php.net/ (accessed on 22 March 2021).
- KRL—Kuka Robotic Language. Reference Guide. Release 4.1; KUKA Roboter GmbH: Augsburg, Germany, 2020; p. 135. [Google Scholar]
- Pritschow, G.; Dalacker, M.; Kurz, J.; Gaenssle, J. Technological aspects in the development of a mobile bricklaying robot. Autom. Constr.
**1996**, 5, 3–13. [Google Scholar] [CrossRef]

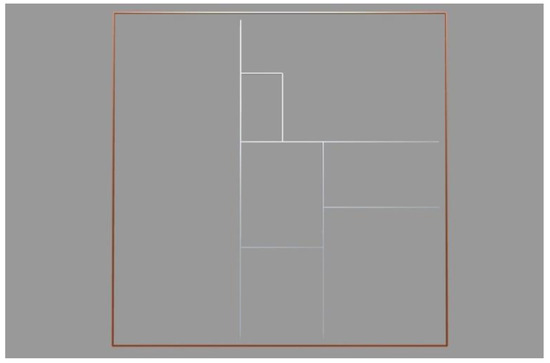

**Figure 8.**Connection of axes with the method of connecting discontinuous axes with an orthogonal layout.

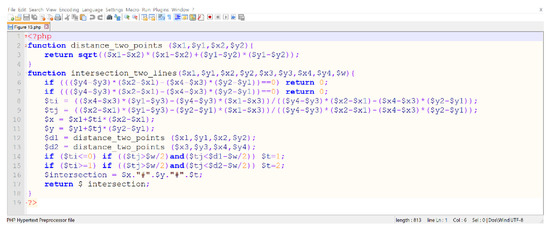

**Figure 15.**Sample of PHP code for searching the intersections of the axes, viewed in the Notepad++ editor.
