Article

Evaluation of Environmental and Economic Sustainability for the Building Envelope of Low-Carbon Schools

Department of Civil and Environmental Engineering, University of Florence, 50139 Florence, Italy
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(4), 1702; https://doi.org/10.3390/su13041702
Submission received: 23 December 2020 / Revised: 1 February 2021 / Accepted: 2 February 2021 / Published: 4 February 2021
(This article belongs to the Special Issue New Horizons for Sustainable Architecture)

Abstract

:
To achieve a carbon-free economy by 2050, the construction of low-carbon schools in Italy must select the proper structural and technological solutions for the building envelope while ensuring a low economic cost. The aim of this study was to analyze and compare several technological solutions for the building envelope and the related structural solutions in terms of thermo-dynamic properties, energy performance, environmental sustainability parameters, and economic evaluations, to obtain one or more alternatives. After a general study, the binomial load-bearing structure–external wall was investigated given its strong influence on both the environment and the total cost. The solutions were used in a new typological model for the kindergarten. All the solutions are comparable from an energy and environmental point of view, obtaining a primary energy demand of <25 kWh/(m2year) and an environmental impact of <20 kWh/(m2year). However, considering the economic factor and analyzing the binomial load-bearing structure–external wall, the advisable solutions are those that use wooden structures with insulation layer in wood fiber as they have a significantly lower environmental impact, along with the same good energy performance and have an acceptable cost compared to other analyzed solutions.

1. Introduction

Given the several aspects of sustainability, including social, environmental, and economical, schools are buildings that play a triple role: Educational, social, and cultural. At the educational level, schools as institutions provide instruction on topics and extracurricular activities and teach students and their families to respect and protect the natural environment and save energy, from the earliest years of school. The environmental certifications specifically reference the teaching of subjects relevant to sustainability. For instance, the Leadership in Energy and Environmental Design (LEED) protocol under the Innovation in Design category refers to “the school as a teaching tool” and awards one point of the certification to schools introducing the theme of sustainability into the curriculum activities and workshops. Pietrapertosa et al. [1] described the results obtained through a learning by doing project (Schools4energy) conducted between 2018 and 2019, which involved students between 3 and 14 years old and aimed to create a competition between different schools to reduce energy consumption through the correct behavior of users (particularly students).
Socially, schools as institutions have become civic centers, acting as places of reference not only for teachers, students, and families, but for the whole local community. Hence, several functional units are used during extracurricular hours for various activities. They are a multicultural place, open to everyone, hosting children of all ethnic groups, including those from disadvantaged backgrounds, promoting social inclusion and fighting inequality. In addition, education has been a right for every child since 20 November 1959, with the Declaration on the Rights of Child proclaimed in New York by the United Nations, and later with the Convention of the Rights of Child in 1989. The first document states that primary education must be free and compulsory for every child, without distinction.
Culturally, the school buildings provide an example of sustainable architecture, a real 3D textbook [2] from which both children, actively participating in the management of the building, and the neighborhood can learn about respect for the environment and the principles of sustainability and acquiring increased awareness. Tucker et al. [3] showed that students in a school built according to sustainability have a better attitude toward environmental protection and are more prone to saving energy. The sustainable school building can provide a starting point for the regeneration and redevelopment of entire neighborhoods, particularly in the suburbs. Both public and private institutions have a common interest in building environmentally friendly and low-carbon buildings for the European Union’s goal of achieving a carbon-free economy by 2050.
The need for the construction of new school buildings or the redevelopment of existing schools with sustainable cost-effective measures is clear to satisfy the educational needs of compulsory schooling and ensure an adequate education for all children from widely different social backgrounds. The local administrations state that new constructions are required mainly for kindergarten and elementary school buildings. The need of schools for children 0–6 age in both Europe and Italy was outlined in Barcelona European Council in 2002 [4,5]. The Council established that the standards to meet are 33% for children 0–3 age and 99% for those 3–6 age. According to a report by Istat (Istituto Nazionale di Statistica—National Statistical Institute) [6] in Italy the 33% for children 0–3 age has not yet been reached. In fact, for the academic year 2018/2019 this percentage is equal to about 25%.
Moreover, the Italian school heritage, which is mostly old and obsolete, is characterized by limited energy efficiency and low environmental performance. Of schools in Italy, 75% were designed before 1976 [7]. In this year, the first law concerning the energy consumption of buildings at national level was enacted. In Italy in 2018, only 1% of school buildings were categorized as energy efficiency class A (global energy performance index for non-renewables EPgl,nren > 0.8 EPgl,nren,rif,standard (2019/21) reference building global energy performance index for non-renewable) according to Legambiente’s report on the quality of school buildings [7], while 45.3% were energy efficiency class G (EPgl,nren > 3.50 EPgl,nren,rif,standard (2019/21)) [8]. In Italy, there are many financial plans for schools that could be used for the redevelopment of school buildings asset with respect to architecture, structure, and energy/environmental point of view. In 2012, the “Fondo unico edilizia scolastica” (“School Buildings fund”) [9] by the Italian Government was established. It outlined that this fund must be dedicated to all resources and funds for schools. There are many initiatives in the past deal with schools, the main are the following ones: “Scuole sicure” (“Safe schools”) [10] in 2013 that funded many improvement measures and the 60% was concluded, “Scuole belle” (“Good-looking schools”) [11] and “Scuole antisismiche” (“Anti-seismic schools”) [12] in 2015, a three-year financial plan in 2019. The last financial plan for schools for 0–6 age is the fund “Asili nido e scuole dell’infaniza” (“Kindergartens and childhood schools”) [9] settled in 2020 to improve existing buildings and to build new schools where needed in the range of time 2024–2034. In the past, one of the most important initiative for kindergartens is the fund “Poli per l’infanzia” (“Childhood care center”) [13] dedicated precisely to the construction of new schools for children 0–6 age.
According to the Paris Agreement in 2015 concerning the reduction in greenhouse gas emissions into the atmosphere to 80% compared to the levels of the Kyoto Protocol, tackling climate change and, as required by the international standard 2030 Climate and Energy Package [14] and the Italian Ministerial Decree (DM) No. 162 of 26 June 2015 [8], dealing with the energy performance of buildings, new buildings must be constructed following the nearly zero-energy buildings (nZEB) standards and low-carbon construction. Consequently, to construct new carbon-zero school buildings in Italy, all possible energy and environmental strategies must be used that reduce the primary energy demand of the building and consequently its environmental impact.
In Italy, the current legislation deals with schools design and sizing dates to 1975 [15] and design manuals are completely outdated. Briefly, they are inappropriate because they propose typological models that do not comply with modern teaching methods needs. For the design of new school buildings, there are no specific reference or standards that simultaneously consider the new pedagogical methods that need new internal distribution with different types of areas or the current Italian and European legislation in terms of energy and emissions requirements.
The proper design of the building envelope can be considered a passive energy strategy that regulates the energy flow between the inside and outside [16,17]. Considering the huge surface area and weight and their composition with materials of different natures, the building envelope is the set of technical elements that most influences on the calculation of CO2 emissions for the construction of a building.
The main goal of this research was to propose several technological solutions both for the structure and external envelope for the construction of low-cost and environmental-friendly kindergarten schools in Italy. Our aim is to encourage and ensure a sustainable school architecture for every child, with education their fundamental right, regardless of the social context. Therefore, in addition to proposing an accessible school that is better from a distributive and functional point of view [18], cost-effective technological and structural solutions are proposed; they reduce the environmental impact and safeguard the health of the children that grow up inside the schools.
The main objective of this work was achieved by analyzing different technological solutions for the building envelope combined with different solutions for a technologically compatible load-bearing structure (five different technological solutions for the external walls (EWs) and four for the roof) and comparing them with the current structural and technological solutions used for the construction of Italian school buildings (Table 1, Table 2, S1). For each EW component and its load-bearing structural solution, we compared the different technological solutions in terms of thermo-dynamic properties, environmental sustainability indexes, and economic evaluations. Applying the technological solutions to a typological model of a school building for kindergarten, which was previously outlined and taken as a reference, we compared the technological solutions in terms of annual energy demand for heating and cooling, internal surface temperature for the EW exposed to the south (related to inner thermo-hygrometric comfort), annual primary energy demand, and environmental impact (CO2 emissions into the atmosphere in kgCO2/(m2year) for the product stage, the end-of-life stage, the benefits and loads beyond the system boundary, and the servicing). The comparison between different types of building envelope was necessary because the choice of the most appropriate technological solution by the designer during the preliminary phase of the design process depends on the energy consumption of the building and its environmental impact, as well as on other issues such as cost, construction time, constructability, flexibility in deciding the arrangement and size of the openings in the façade, the availability of materials, and the construction traditions in the area. This study is part of a broader research work addressing the definition of a new building type for the construction of low-carbon kindergartens in Italy, outlined through the environmental and technological system and completed with the quantification of energy and environmental impacts [18].
The importance of this study and its practical implication is being first to address the designer during the early stage of the design process when choosing the most appropriate structural and technical solution to build a school to ensure an appropriate compromise between environmental, technological, and economical sustainability. Secondly, we suggest a method of evaluation that can be applied in different climate conditions by updating the climate characteristics and the legislation requirements for the considered site.
Most of the studies about school building envelopes in Italy have concerned the energy refurbishment of existing school buildings. Often, studies of existing schools have started with the monitoring of the buildings. Studies have many dealt with improving the energy performance of the building envelope (for instance, increasing the overall thermal transmittance or replacing windows) and understanding which are the most advisable improvements for existing school buildings to save energy and reduce the environmental impact at a reasonable cost [19,20,21,22]. For instance, de Santoli et al. [23] examined 1296 existing schools, classifying them in terms of general information, energy label, and building consumption, then analyzing the energy performance of the building envelope and the thermal system. They proposed some interventions to improve the envelope performance while complying with historical and architectural features and considering the costs of the different solutions. Ascione et al. [24] examined building envelopes, applying multi-objective optimization to improve the energy performance of an office building considering different climate zones in Italy. The optimization aimed at minimizing the energy consumption, the global cost, and the thermal discomfort.
In the paper, firstly the state of the art, mainly concerned with the current situation of school buildings asset in Italy and studies on external envelope, will be shown; secondly, the methodology used for the research will be outlined and the input data for the study will be detailed, then the main results of the performed analyses will be shown and discussed, and finally some conclusions for the study will be delineated.

2. State of the Art

According to the Annual Report on Energy Efficiency 2020 by the National Agency for Energy Efficiency (ENEA), the primary energy demand in Italy in 2018 is about 57 Mtoe, of which only 19% is met through energy produced from renewables [25]. According to Eurostat statistics, a high percentage (43%) of energy is consumed in Italy for civilian uses [25]. Considering the national school sector in 2012, the energy consumption was estimated to be about 1 Mtoe/year, of which 77% was thermal energy requirements and the remaining 23% was electrical energy [26]. For instance, in accordance with a study performed during the European project COMMONCENSE in 2009, the thermal energy consumption for schools was estimated as 24–32 kWh/(m2year) for Rome and 73–85 kWh/(m2year) for Milan [27]. From the ENEA’s analysis for 2009 concerning the thermal energy needs, the highest consumption was found for kindergartens (about 32% of school buildings in Italy), with an average ranging between 80 and 100 kWh/(m2year) [28]. Regarding the total energy consumption for the school sector in Italy, kindergartens require about 16% of the total. According to the Paris Agreement, for achieving a carbon-free economy by 2050, a reduction of 40% in greenhouse gas emissions into the atmosphere and the improvement in energy efficiency to a share of 32.5% in the construction of a new building are required; from the preliminary stage of the design process, all the energy and environmental strategies will be necessary to reduce the annual primary energy demand and its environmental impact.
In the three-year period before 2017, 500 new school buildings were built in Italy. By analyzing the available data regarding energy consumption (mainly related to climate zones E and D), the energy requirement, on average, was about 26.6 kWh/(m2year), while the environmental impact for consumption during operational phase, on average, was about 13.2 kgCO2/(m2year). However, for school buildings, most of the studies on their environmental impact in terms of CO2 emissions refer to existing buildings needing an energy upgrade. These studies mainly compared possible energy and environmental efficiency strategies to be adopted in schools to improve their energy performance and decrease their environmental impact [29,30,31].
The energy performance of a building, whatever its intended use, is related to three main topics: first, the physical behavior of the building, regulated precisely by the external envelope; secondly, the micro-climate of the different environments; and thirdly, by the internal hygro-thermal well-being required for the particular intended use [32]. The external envelope significantly influences the energy balance because it helps control the energy flow between the internal and external environments [33], essentially due to the difference in temperature that is created to ensure the thermo-hygrometric well-being of the occupants. The external envelope therefore affects the energy balance mainly in relation to its contribution to dispersion and the number of solar gains. Especially in a school building, when considering the different technological solutions to be adopted, natural materials should be used that respect the minimum environmental criteria (Criteri Ambientali Minimi (CAM)) [34] and that are not harmful to the health of children and teachers, who spend most of their time inside the school. CAM are a serious of requirements for 17 categories of product and services that must be satisfied when choose the best one in terms of life cycle assessment (LCA) among those available on market, with the aim of promoting environmentally friendly products and services in the context of obtaining a carbon-free economy by 2050. In the literature, the studies on the performance of the building envelope have compared several solutions with respect to thermal transmittance, the intrinsic properties of the different materials used, the material and thickness of the thermal insulation layer, and the surface mass [35]. These parameters influence the annual primary energy demand and the indoor comfort conditions, especially in terms of air temperature, during both winter and summer seasons. These studies mainly referred to residential buildings and existing buildings, including schools, which need upgrading from an energy point of view [36,37]. For instance, Alshamarani et al. [36], regarding the school building type, performed a LCA and calculated the energy consumed for heating and cooling by the possible technological solutions to be adopted for the EW of an existing building considering seven different EW solutions combined with four different load-bearing structures and three different insulation solutions (uninsulated case, minimum insulation, and recommended insulation). In a subsequent study, Alshamarani et al. [38] compared 14 different structural solutions combined with different types of envelope using an algorithm developed to assess cost (construction, operation, maintenance, and renovation) and environmental impact (LEED categories). They found that the optimal technological solution to build school buildings in USA and North America is based on precast concrete elements for both the structure and the EWs.
Concerning different types of buildings, other authors used a LCA to study the environmental impact of different types of insulation materials. For instance, Llantoy et al. [39] investigated three different types of insulation material (polyurethane, extruded polystyrene, and mineral wool) to assess the environmental impact and the reduction in energy demand for heating in the Mediterranean climate. According to their studies, the mineral wool has the lowest environmental impact (with an environmental payback period of seven years), providing the same thermal performance. In addition, considering the Mediterranean climate conditions, Stazi et al. [40] analyzed a super-insulated envelope in a residential building with wooden structure to propose some strategies to avoid the overheating problem in the warmest period identified through monitoring. They performed a parametric analysis of the external envelope considering different internal areal capacities but the same thermal transmittance. They considered the cost and the LCA of the different solutions. They concluded that the use of an inner massive layer (solid brick, 12 cm thick) for the external vertical wall can improve the internal comfort of the occupants. Carretero-Ayuso et al. [41] analyzed different types of external envelopes used in the design of healthcare buildings in Spain to evaluate the issues related to the technological solutions and technical construction aspects that can lead to problems during the service life of the building. Ferrara et al. [42] analyzed and proposed different refurbishment strategies for the external envelope of a residential building to reduce the energy costs for heating and cooling. As design parameters to improve the external envelope performance, they considered: Thermal resistance of the insulation panel and solar absorption coefficient. Finally, Ascione at al. [43] compared different passive strategies related to the design of the external envelope for designing nZEB residential buildings in the Mediterranean area. They defined some guidelines to improve performance both in summer and winter.
Many authors considered the optimization of the insulation thickness of the external envelope considering three different aspects: environmental, energy and, economic [44]. The performance of the buildings was compared in terms of the energy demand for heating and cooling respectively (kWh/(m2year) and MWh/year), net cost for energy for heating and cooling ($/m2) [45,46,47], the global warming potential (GWP) for the evaluation of CO2 emissions into the atmosphere, the total cost including energy and environmental cost [48,49], and the payback period [50,51]. For instance, D’Agostino et al. [46], through a cost-optimal analysis for the optimization of the insulation layer in an office building, showed that excessive insulation in a Mediterranean climate does not always lead to an advantage in terms of energy savings, mainly due to the increased energy requirements for cooling during the summer season.

3. Methods

The 5 different solutions proposed in this paper were chosen in a previous phase of the research, starting with an analysis of the environmental and technological system of many school buildings built between 2003 and 2015 that received awards for their energy performance or their innovative internal distribution [52]. These solutions were the recurrent ones. Secondly, we analyzed the technological and structural solutions suitable for school buildings in Italy.
Five different technological solutions (Table 1) for the EW were analyzed in terms of thermal transmittance and thermodynamic properties (surface mass Ms, periodic thermal transmittance YIE, time shift φ, and attenuation fD) to verify that they met the requirements of the current energy regulations [8]. The thermodynamic properties of the EWs were calculated according to Italian national Agency of Unification European Committee for Standardization International Organization for Standardization (UNI EN ISO) 13786: (i) The surface mass measured in kg/m2 depends on the density of the materials composing the considered wall stratigraphy and their thickness, (ii) the periodic thermal transmittance allows evaluation of the capacity of the materials to attenuate and shift the thermal wave, (iii) the attenuation factor is the ratio between the periodic thermal transmittance and the thermal transmittance calculated in steady state, and (iv) the time shift indicating the time range in hours between the maximum peak outside air temperature and that inside, and depends on the density of the materials and their specific heat.
Then, the 5 different technological solutions for the EW and the roof stratigraphy were applied to the typological model, which has a compact shape and internal courtyard (model I1, Figure 1) [18]. A dynamic energy simulation with hourly time steps was performed using Energy Plus software [53], using Design Builder [54] as the graphical interface, to evaluate the energy performance of the building for each solution. The analysis was performed considering the energy requirements for heating and cooling and the annual primary energy demand as reference parameters due to the contribution of heating, cooling, artificial lighting, auxiliary energy, equipment, and domestic hot water (DHW). Since the electrical energy required for the needs of the building is provided on-site by photovoltaic panels on the roof, the conversion factor for the calculation of primary energy demand is equal to 1 [8]. At this stage, the hourly variation in the internal surface temperature of the technological solution for the EW of the south-facing classrooms on the designed day for the summer season (15 July) was also determined to enable comparison with the trend in the outdoor air temperature.
The analysis was carried out considering Florence as a representative site in climate zone D [55]. However, the methodology used and the type of analysis could be extended to climatic zones that have the same climatic characteristics as zone D in terms, for instance, of heating and cooling degree days. The methodology proposed for this type of study could be used for other sites with different climate characteristics firstly by checking if the technological solutions proposed are proper for the considered climate, then updating the minimum requirements for the thermal properties of the technological solutions for the external envelope, according to the current legislation in chosen site, and finally updating the climate characteristics in the software used for the energy simulation in dynamic regime.
Then, the CO2 emissions produced during both the construction and operational phases of the building were calculated according to the surface area of the building (kgCO2/(m2year)). In this phase, the useful life of the building was considered as 50 years, with 30 years for the photovoltaic system that produces electricity on-site. The service life of some materials is must be considered lower than 50 years (lifespan of the building for LCA) because of their durability. For instance, for the bituminous waterproofing sheet and glazing panes for windows the service life was considered equal to 30 years. For those materials, the end-of-life (C3–C4) was considered.
The atmospheric emissions due to the construction phase of the building were calculated using eLCA software [56]. To calculate the environmental impact with eLCA, the product stage, the end-of-life stage, the benefits and loads beyond the system boundary, and the servicing were considered (construction phase). To calculate the environmental impact with eLCA, the product stage (A1–A3), the end-of-life stage (C3–C4), only for those materials with different service life with respect to the building lifespan (50 years), the benefits and loads beyond the system boundary (D1–D4), and the servicing were considered (construction phase). In this paper what happens at the end-of-life (C1–C4) and so after 50 years of lifespan of the school is not considered and calculated. This due to the lack of data about these stages in the available database for LCA [57]. Moreover, it is very difficult to know what happens after the service life of a building during the preliminary stage of the design process [58]. For instance, in Italy for a school building after 50 years of service life the designer could suppose the demolition and reconstruction of the building because the Italian Technical Standard for Construction required extraordinary maintenance of structure during the service life of the building (for lifespan higher than 50 years), but at the preliminary stage of the design process, the designer cannot know if this maintenance will be done or not. So, the choice of a probable demolition and reconstruction at the end-of-life could be the better choice in terms of safety. Moreover, some authors affirm that the C1 (demolition of end-of-life stage) has irrelevant environmental impact and C2-C4 is lower than 6% [59]. Finally, the environmental gain of the end-of-life stage can be considered only between 0.2–2.6% [60]. The conversion factor for the calculation of CO2 emissions due to the construction of the photovoltaic system was set to 50 gCO2/kWh [61]. The conversion factor for emissions due to consumption for the operating phase (B) was assumed to be 0 kgCO2/m2kWh because most of the electricity needs were produced on-site through renewables.
Once each stratigraphy for the building envelope and the related structural solution were established, we assessed the energy, environmental, and economic sustainability of the EW–structural solution binomial. This was necessary since this combination significantly influences both the environmental impact and the total cost of the construction [38]. For instance, regarding environmental impact, the GWP of the EW–load-bearing structure binomial (which is the sum of GWP for the EW and load-bearing structure) ranged between 20% (structural solution = wood) and 55% of the total. To estimate the environmental sustainability of the different solutions, 3 indices of the LCA were considered: (1) GWP in kgCO2/m2, (2) acidification potential (AP) in kgSO2/m2, and (3) total use of non-renewable primary energy resources (PENRT) in MJ. Some authors in the literature used these indices to evaluate the environmental impact of construction materials or buildings. For instance, Lizana et al. [29] considered for the energy rating the CO2 emissions in kgCO2/(m2year) and the Non-Renewable Primary energy consumption in kWh/(m2year). Estokova et al. [62] calculated the environmental assessment of 20 residential masonry houses considering the embodied energy (Potential environmental impact PEI in GJ), GWP in tCO2eq, and AP in tSO2eq. Moreover, Hollber et al. [63] outlined a wider review on visualizing method for LCA results and they include GWP and PENRT. Finally, Žegarac et al. [57] analyzed the LCA of cross-laminated timber buildings and they considered as indices GWP, AP, and PENRT.
We finished the study with cost analysis of the different alternatives proposed, since the construction of a new school and, in general, of a public building, is closely related to the financial means of the public administration that constructs the building. For a kindergarten, the economic incidence (which is the cost of the technological solution with respect to the total cost of the building) of the technological solution on the total cost of construction is about 8% [64]. The economic incidence of the structural solution (i.e., a wooden structure) is about 30% [65]. The cost of each solution was based on the Regional Price List of Public Works of the Lombardy Region and other nationally trusted price lists (DEI price list).
Lastly, to enable comparison and establish the best EW–load-bearing structure combination in terms of sustainability for a kindergarten in Italy, a normalization was carried out comparing all solutions to the recurrent one used to build schools in Italy until today (Table 1, solution 1) considering GWP, primary energy demand, and cost.
The 3 indices considered for this evaluation will be combined in this way:
n S i , i = 2 5 =   G W P S i G W P S 1 + c o s t S i c o s t S 1 +   p r i m a r y   e n e r g y S i p r i m a r y   e n e r g y S 1 ,
where the values of GWP and cost are calculated considering the sum of the single value for each element of both EW and structure for each technological solution. Specifically, the value of GWP is estimated by the sum of the impact of each element of the EW technological solutions and the structure solutions with respect to the GWP of the entire building. The value of the primary energy demand is calculated through energy simulation (Table A2). As shown by the equation the normalization was done with respect to solution 1 (Table 1, S1).

3.1. Input Data

As mentioned above, the study was conducting considering Florence as a representative city of the Mediterranean climate, characterized by 1415 heating degree days and belonging to climate zone D.

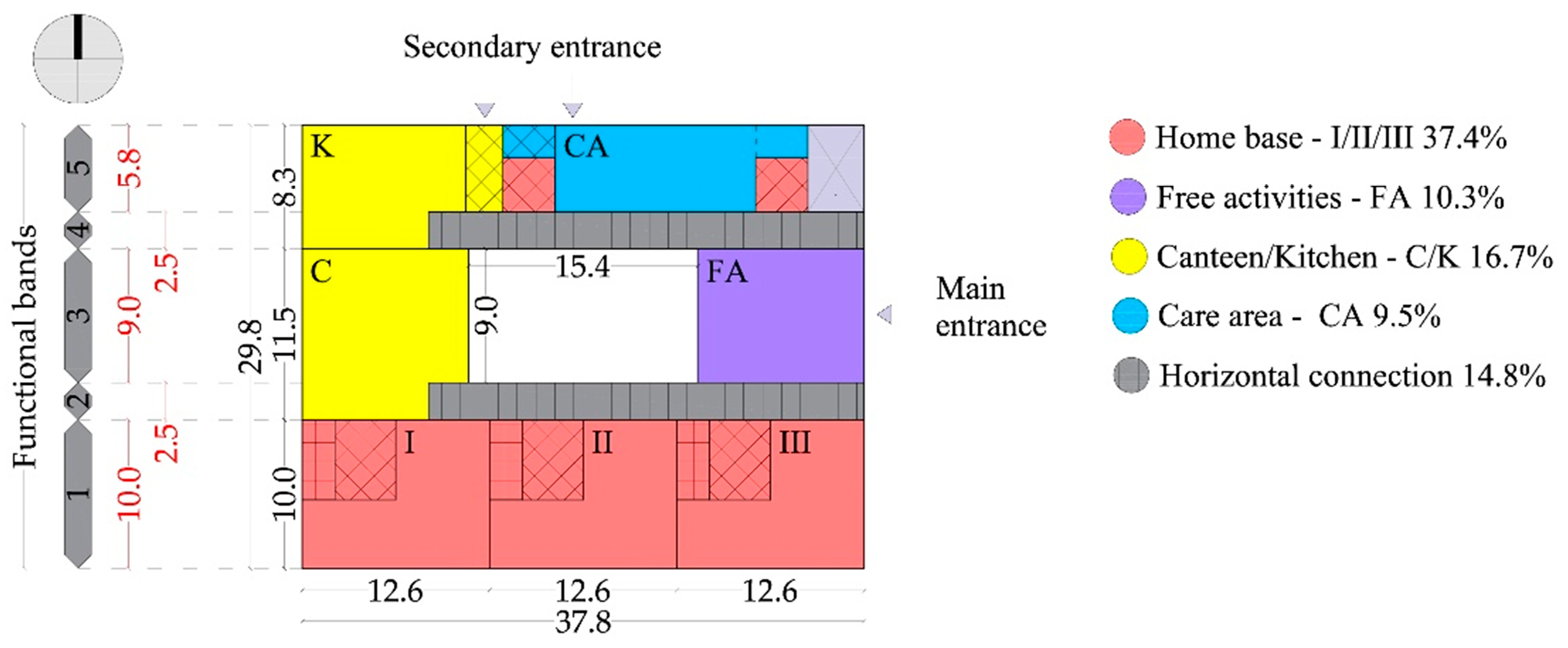

For the analysis, the typological model for the kindergarten, characterized by a compact shape with internal courtyard and 3 classes (Figure 1), was considered. The building was developed on a single ground floor, without a prevailing geometric orientation and arranged according to 5 horizontal functional bands of different sizes. The functional band of the home base [66] is south-facing (functional band number 1 in Figure 1). Model I1 has an area of about 1050 m2, a volume of about 6000 m3, and is characterized by an aspect ratio (ratio surface to volume (S/V) = the surfaces through which the dispersions of the building occur (m2) and the heated volume m3) [8] of 0.53 m−1.
The construction system considered as a reference for comparison with other possible technological solutions for building a low-carbon school is characterized by a reinforced concrete frame structure with an EW consisting of lightweight bricks (0.30 m), an external wood fiber insulation 0.08 m thick, an internal false-wall 0.10 m thick composed of a double plasterboard panel (0.07 m air cavity and two 0.015 m thick panel), and rock wool insulation (0.04 m) to ensure proper acoustic insulation of the façade (Table 1, S1). The roof was built with a reinforced concrete slab (0.32 m), completed with a slope screed (0.05 m), a vapor barrier with polypropylene protection felt and polyethylene–copolymer film (0.00045 m), wood fiber insulation with a thickness of 0.24 m, a bituminous waterproofing sheet with double reinforcement (0.005 m), and a gravel layer (0.05 m) (Table 2, S1). Wood fiber insulation was chosen for the stratigraphy of both the EW and the roof because it is commonly used for the construction of new school buildings in Italy. Wood fiber is a natural material with low CO2 emissions in the construction of the building. The technological solutions proposed as an alternative both related to the EW (Table 1, S2–S5) and to the roof (Table 2, S2–S5) are described in detail below (Figure 2 and Figure 3).
  • In solution 2, the building has a steel frame structure, an EW (dry solution) made of external cement board (0.0125 m), a waterproof and windproof sheet (0.0018 m) that is permeable to vapor, an insulation layer, a plasterboard panel (0.015 m), and an internal false wall, as in solution 1. The roof is composed of a corrugated steel sheet slab (0.0015 m thick and 0.053 m high) with collaborating slab (0.045 m), slope screed (minimum 0.05 m), a vapor barrier with polypropylene protection felt and polyethylene-copolymer film (0.00045 m), wood fiber insulation, bituminous waterproofing sheet with double reinforcement (0.005 m), and a gravel layer (0.05 m).
  • For solution 3, the building has a steel frame structure, an EW with autoclaved aerated concrete blocks (0.30 m), and an internal false wall, as in solution 1. The insulation layer is not present because the low thermal conductivity of the autoclaved aerated concrete blocks allows the required transmittance to be obtained without insulation. The technological solution is the same as that used for the roof in solution 2.
  • For solution 4, the building has a wooden structure with a platform frame with 0.08 × 0.16 m columns organized 0.60 m apart and 0.06 × 0.12 m beams, an EW composed of a single oriented strand board (OSB, 0.02 m), an insulation layer with a waterproof and windproof sheet (0.0018 m) that is permeable to vapor, a single OSB panel (0.02 m), and an internal false wall, as in solution 1. The roof consists of a platform frame structure with a single OSB panel (0.02 m), a vapor barrier with polypropylene protection felt and polyethylene–copolymer film (0.00045 m), wood fiber insulation, a wood cement panel (0.022 m), a bituminous waterproofing sheet with double reinforcement (0.005 m), and a gravel layer (0.05 m).
  • For solution 5, the building has a wooden structure with 0.13 m thick 5-layer cross-laminated timber (XLAM) panels, an EW with external insulation applied directly on the XLAM panel, and an internal false wall, as in solution 1. The roof has a wooden structure with a XLAM panel (0.13 m), a vapor barrier with polypropylene protection felt and polyethylene–copolymer film (0.00045 m), wood fiber insulation (low density, 0.04 m), wood fiber insulation (high density), a wood cement panel (0.022 m), a bituminous waterproofing sheet with double reinforcement (0.005 m), and a gravel layer (0.05 m).

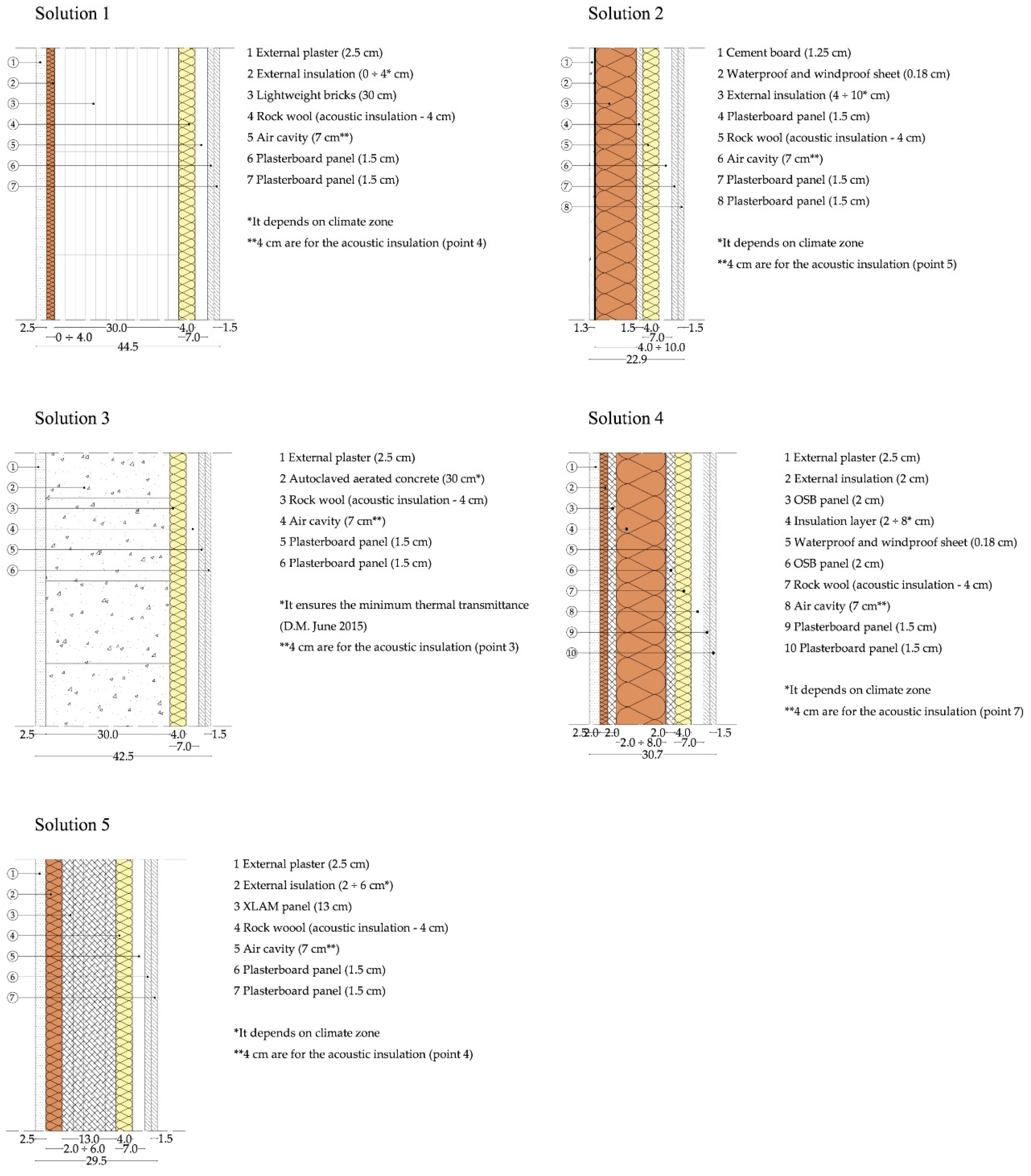

The technological solutions proposed for the stratigraphy of both external wall and roof are combined in such way because, at least in Italy, dry technological solutions for the external walls are usually combined with dry structural solutions for load bearing structure because of their construction approach based on prefabrication. The same thing happens for wet technological/structural solutions. These choices do not lead to any issues during the construction phase because the main possible criticalities have already been solved in the construction tradition.
Table 1 and Table 2 shows the stratigraphy of the different technological solutions analyzed for the EW and roof (S1–S5), respectively, in terms of the material (m), thickness (t, in m), and thermal transmittance (U, in W/m2K) of the whole stratigraphy. The insulation thickness obtains half the thermal transmittance required by the current regulations for the reference building [8]. The thermal transmittance among the different technological solutions was kept similar facilitate comparison in terms of energy performance.
All the analyzed technological solutions ensure a value of D2m,nT,w (standardized façade sound insulation) higher than the requirement of the Italian standard [67] for schools. Moreover, the fire reaction is implicitly satisfied because of materials nature or treatment that are complying with the current Italian fire prevention regulation [68,69].
For the ground floor layers, the plastic formwork for the underfloor ventilation was used for all solutions, with a system screed 0.08 m thick, an expanded polystyrene (EPS) insulation layer 0.04 m thick completed with a radiant floor system of the same material (0.05 m), a lightweight screed 0.04 m thick for flooring, and an internal wooden floor (0.015 m). Concerning windows, an aluminum thermal break frame was adopted (Thermal transmittance Uf = 1.7 W/m2K) with double glazing, characterized by: (i) Thermal transmittance Ug = 1.2 W/m2K, (ii) solar factor g = 50%, and (iii) solar transmittance TL = 74%.
The minimum value of the window-to-wall ratio (WWR) was defined according to the current health and hygiene regulations in Italy for the east, west, and north orientations, while it was assumed to be 50% for the south façade [70]. In the model, a fixed solar shading system with an overhang of 2.00 m and an automated internal solar shading (internal blinds) with control on the external temperature (>24 °C) for each south-facing functional unit [71] was used. For the energy simulation, the following design parameters for each single functional unit (thermal zone) were considered: (i) Occupancy (persons/m2) according to Appendix A of UNI 10339 [72] (UNI Italian National Agency of Unification), (ii) minimum air flow rate according to the same legislation in Table III, (iii) heating setpoint of 20 °C during activity periods and 10 °C during the rest of the day in accordance with UNI/TS 11300-1, (iv) cooling setpoint temperature of 26 °C during activity periods and 36 °C at other times in accordance with UNI/TS 11300-1, and (v) internal gains according to UNI/Technical Specification (TS) 11300-1 [73]. The system was considered with a heat pump for both heating (coefficient of performance ((COP) = 3.6) and cooling (energy efficiency ratio (EER) = 3.2), and a mechanically controlled ventilation system with a heat recovery efficiency of >65%. On the roof, a photovoltaic system (0.15 kWp/m2) with east/west orientation and a tilt angle of 10° was considered [74]. The photovoltaic system is on-grid, so electrical energy can be used from the public grid when the solar radiation is unavailable. However, electrical energy storage for the building is provided.

4. Results and Discussion

According to the solutions described in Section 3.1, Table 3 lists thermodynamic properties of the technological solutions assumed for the EW.
As shown in Table 3, the technological solution considered as a reference for the study, characterized by a reinforced concrete frame structure, with the load-bearing element of the EW consisting of lightweight bricks, and external insulation with wood fiber (Table 1, S1), has the largest surface mass mainly due to the density of lightweight bricks (800 kg/m3). This also guarantees the highest number of hours in terms of time shift (>20 h). The most noticeable and significant difference occurs with solution 2 with respect to all analyzed thermo-dynamic properties. For instance, the S1 Ms value is about four times higher than that of S2, or the time shift is more than double. This is particularly important in the summer season when the time shift is essential to avoid the maximum internal temperature during the day.
For the other technological solutions, although they do not have a surface mass of 230 kg/m2 [8], they are all characterized by a periodic thermal transmittance lower than 0.1 W/m2K and a time shift greater than 8 h. Consequently, considering the thermodynamic properties, all solutions comply with the current legislation [8] and they can be used as alternatives to the recurrent solution for the construction of school buildings in Italy (Table 1, S1). The wooden solutions (S4 and S5) show the main differences in terms of the periodic thermal transmittance and attenuation. The solution with the XLAM structure (S5) performs better as it characterized by a lower value for both parameters due to its higher surface mass. The dry solution with a cement board panel (Table 1, S2) has the lowest thermodynamic property values in terms of surface mass and time shift as it is mainly composed of materials characterized by low density and reduced thickness. However, in comparison to the others, it has the advantage of being a dry solution, thereby having shorter installation times and greater flexibility over time.

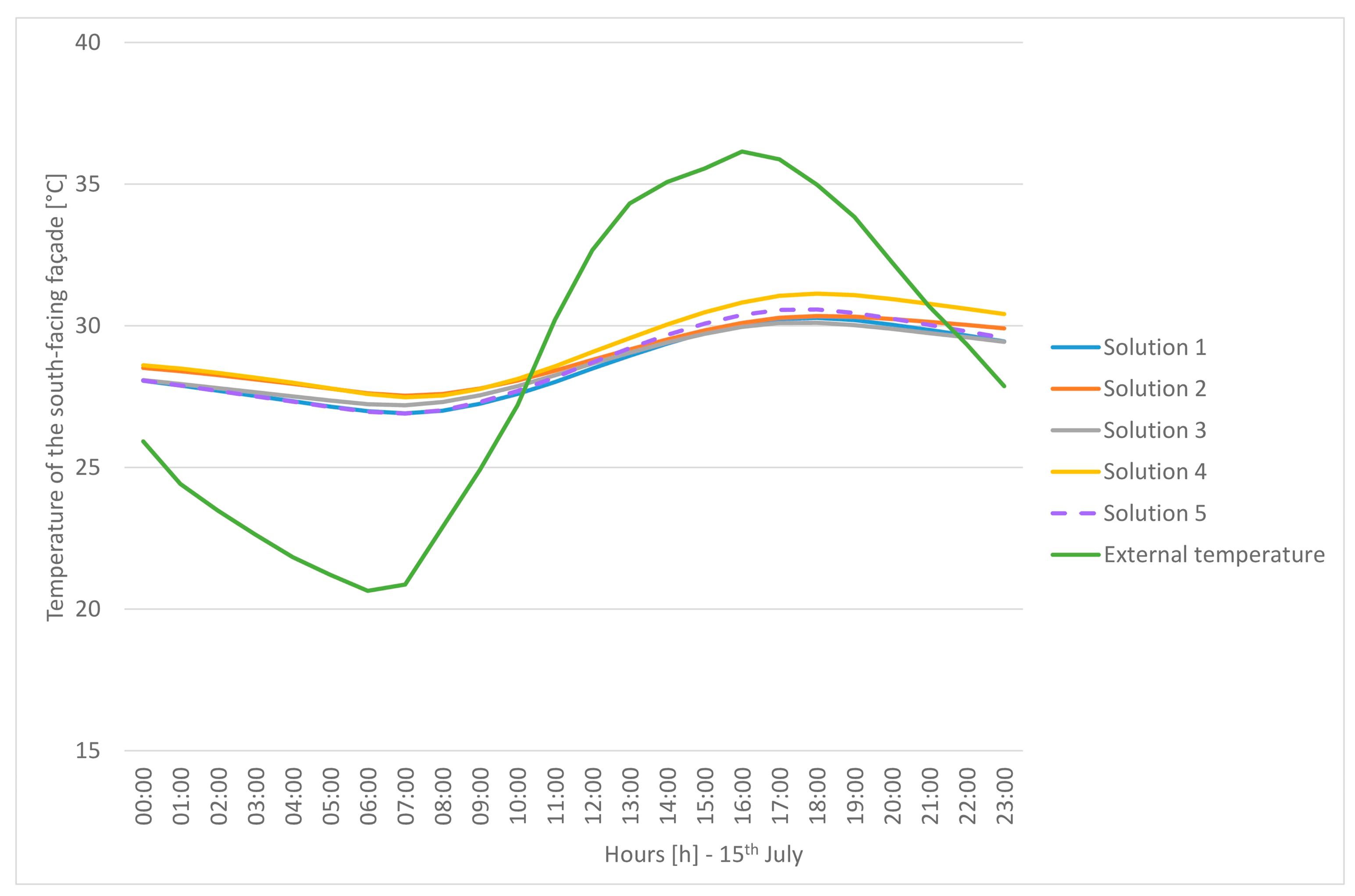

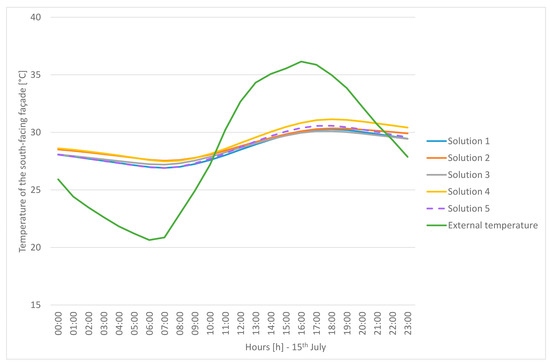

Figure 4 shows a graph of the hourly variation in the internal surface temperature of the south-facing EW (thermal zone: Class) compared to the external temperature on the designed day for the summer season (15 July).
Figure 4 shows that the different technological solutions for the EW, considering the variation in the internal surface temperature, which can negatively affect the internal thermal comfort conditions, are characterized by the same trend, exhibiting a maximum variation of about 3 °C. The solution with platform frame load-bearing structure and double OSB panel with external insulation in wood fiber (Table 1 and Table 2, S4) has the highest internal surface temperature at 6:00 p.m. with a maximum peak of 31 °C. The lowest internal surface temperature (~27 °C) is attained by S1 and S5 because of the higher surface mass. It is fundamental to control this variation to ensure thermal comfort for the occupants within classrooms during summer season as well.

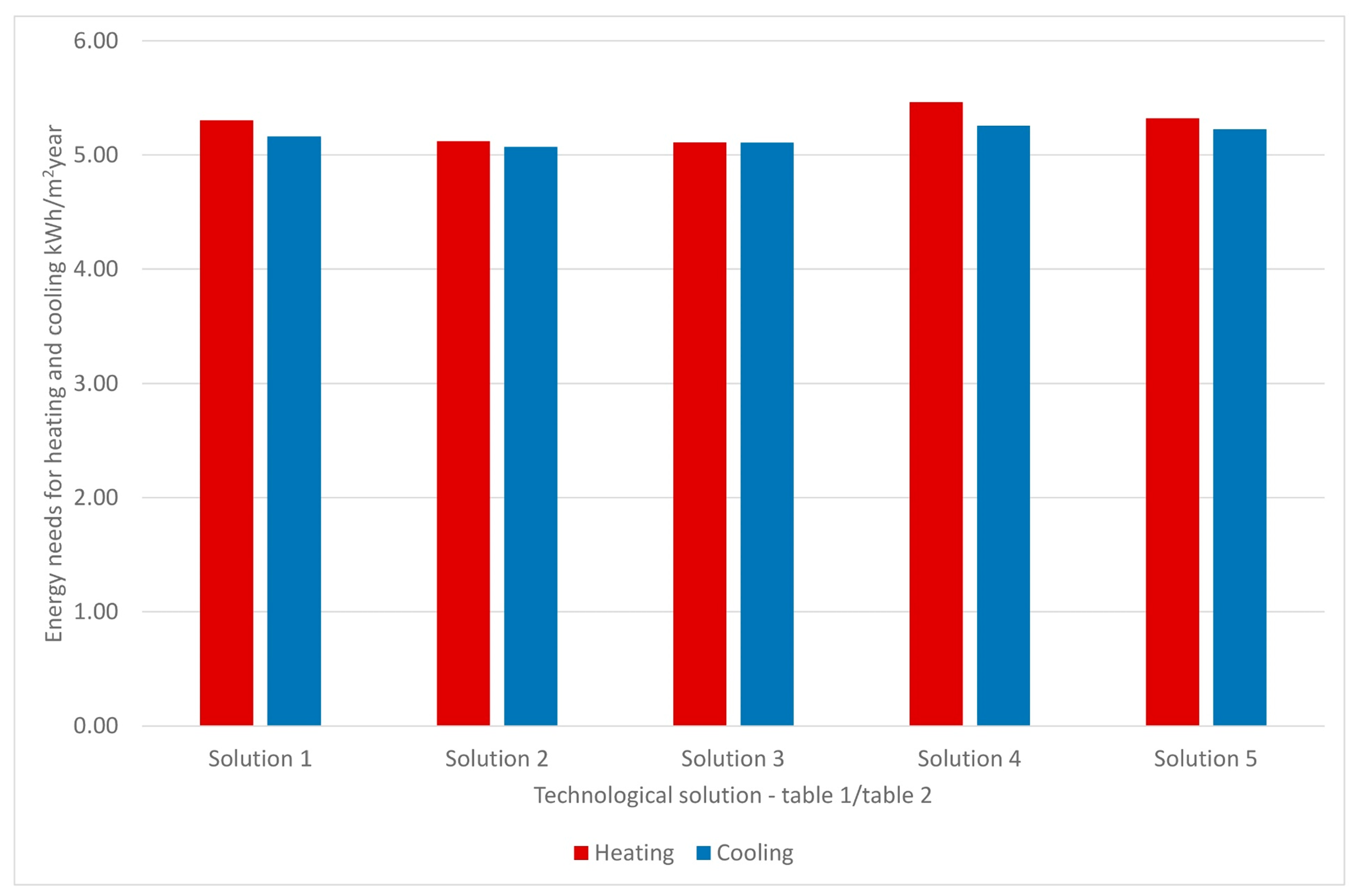

Figure 5 shows the graph of energy needs for heating and cooling for the reference model considering the different structural and technological solutions (Table 1 and Table 2).
Regarding energy demand for heating and cooling, the analyzed technological solutions showed similar behavior, with no significant difference between them (Figure 5). This is mainly because, for an appropriate comparison, all the technological solutions have the same thermal transmittance equal to half of that required by the current energy legislation for the reference building. The energy needs for both heating and cooling are about 5 kWh/(m2year). The solution with platform frame structure, double OSB panel, and external insulation in wood fiber (Table 1, S4) has a slightly higher energy demand.

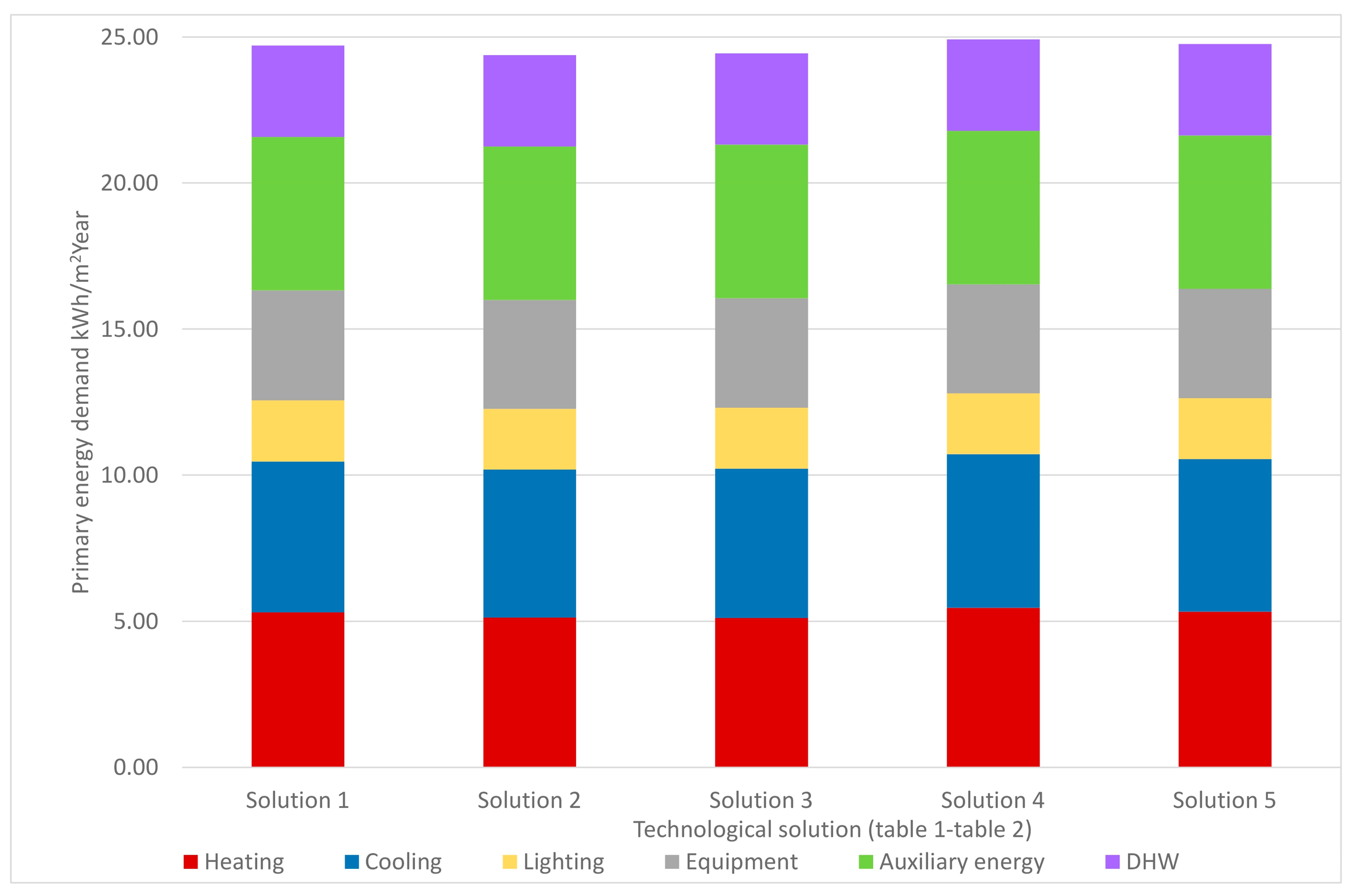

Figure 6 indicates the annual primary energy demand for the I1 model, located in the city of Florence, considering the different technological solutions analyzed.
Figure 6 reports that the annual primary energy demand of the typological model is about 25 kWh/(m2year) for each proposed technological solution. The graph also shows that artificial lighting and the use of internal equipment (such as computers, interactive whiteboard, printers, etc.) requires less electricity (lower primary energy demand) than all other parameters. This is closely related to the intended use of these buildings. We conclude that the energy performance of the building in terms of annual primary energy demand is the same considering all five solutions.
The electricity needs of the building are mainly satisfied by a photovoltaic system (0.15 kWp/m2, on grid) installed on the roof in an east/west orientation, tilt angle of 10°, and distance between the rows of photovoltaic panels of 0.70 m. In this configuration, the system produces 120 kWh/(m2year) (calculated with respect to the floor area of the building) with about 300 m2 of photovoltaic panels [74].

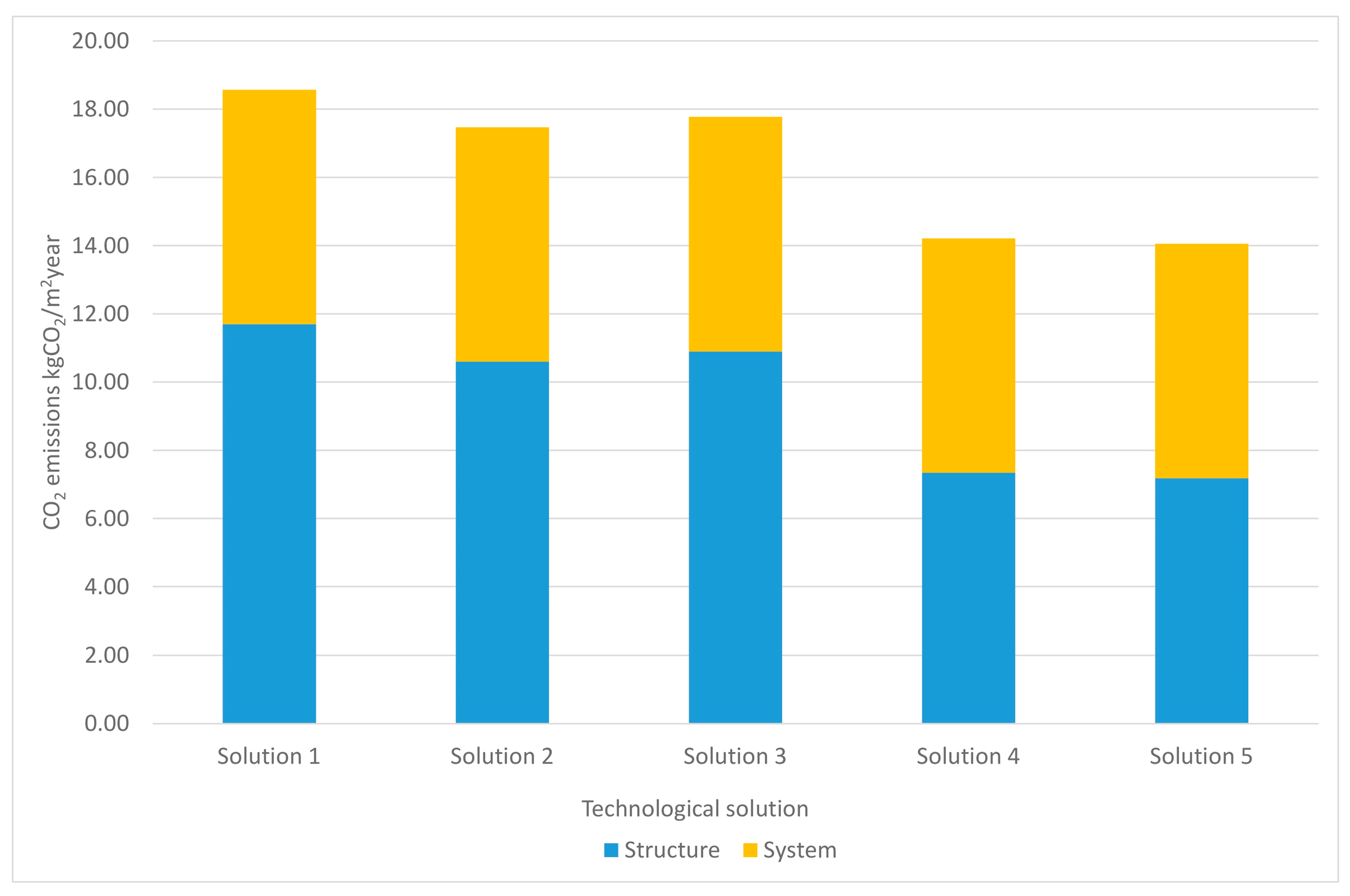

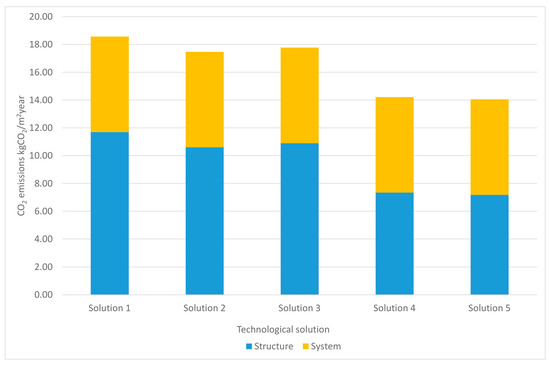

Figure 7 shows the CO2 emissions of the typological model taken as reference, located in Florence, considering the emissions due to the construction of the building, the construction of the photovoltaic system on the roof, and the consumption during the operational phase (heating, cooling, artificial lighting, auxiliary energy, equipment, and domestic hot water).
Figure 7 shows that the solution with reinforced concrete structure and lightweight bricks with external insulation in wood fiber (Table 1, S1) is characterized by the highest CO2 emissions produced to the atmosphere during the construction phase of the building: About 12 kgCO2/(m2year). Conversely, the solutions with a steel structure have an environmental impact related to the construction phase of about 11 kgCO2/(m2year). The other solutions with a wooden structure (Table 1, S4 and S5) are comparable, emitting about 7 kgCO2/(m2year) into the atmosphere for the same phase.
The emissions due to the construction of the photovoltaic panels installed on the roof to meet the electricity needs of the building are the same for each solution analyzed about 6 kgCO2/(m2year). However, all the solutions are characterized by low emissions because natural materials were chosen, such as the wood fiber for the thermal insulation layer. The use of wooden materials reduces the CO2 emissions and thereby the GWP because of the decrease in the carbon dioxide due to the process of photosynthesis during its life cycle being considered during the calculation.
Figure 7 shows that the CO2 emissions produced into the atmosphere during the building’s operational phase are zero as the electricity needs are powered and mainly satisfied by the photovoltaic system installed on the roof. Regarding CO2 emissions, all the technological solutions for the EWs can be used for the construction of carbon-zero kindergartens in Italy, having a GWP of <20 kgCO2/(m2year) for the construction phase and 0 kgCO2/(m2year) for the operational phase.
Lastly, to determine the best solution in terms of energy, environmental, and economic sustainability, the EW–load-bearing structure binomial was considered since it has strong influences on both the environmental impact and the cost of construction. Considering energy sustainability, we verified that the solutions are comparable and equally adoptable.

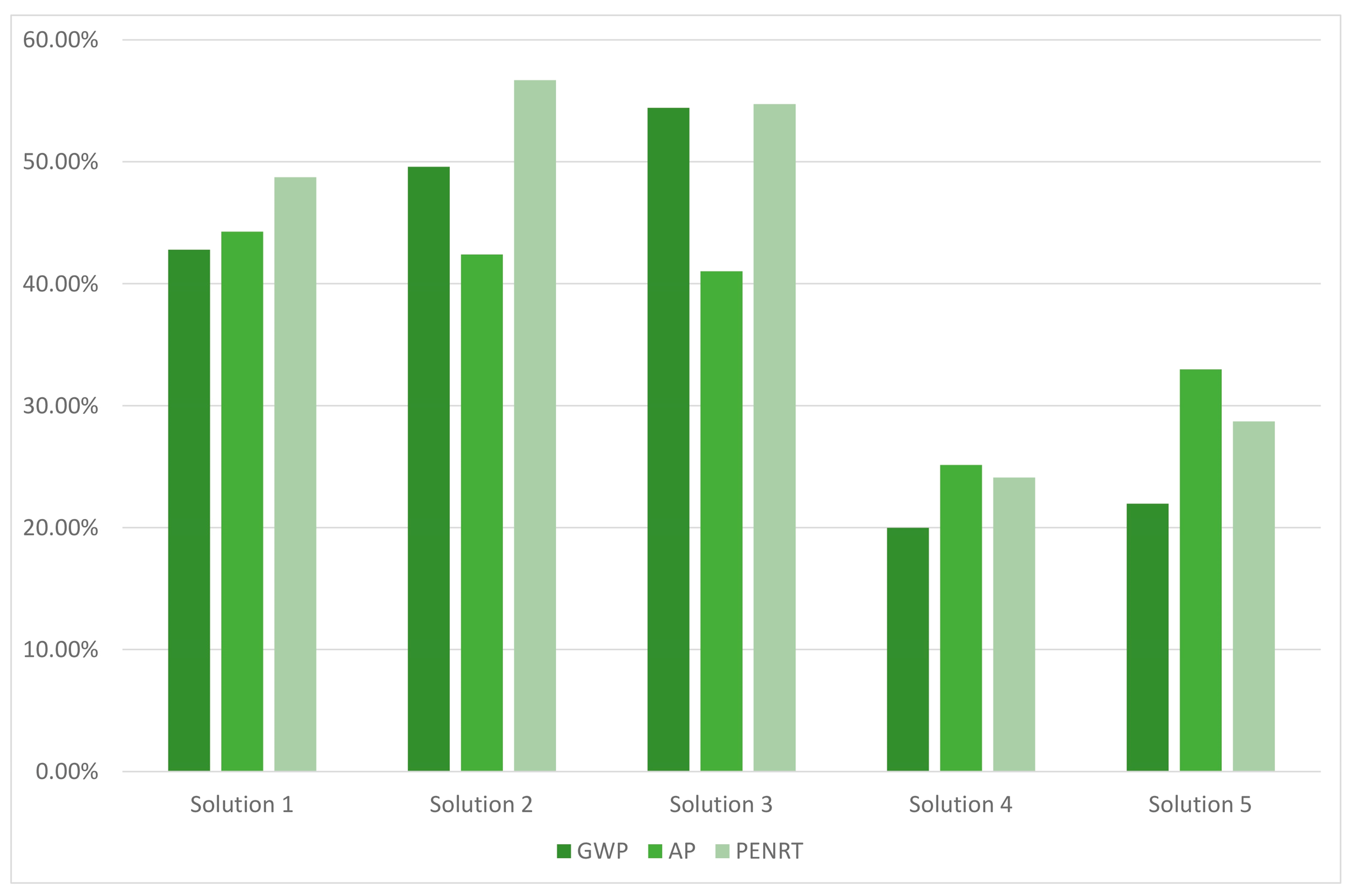

Firstly, regarding environmental impact, Figure 8 shows the incidence in percentage, referring to the total for all construction, of the three indices for the environmental evaluation in this phase (GWP, AP, and PENRT) for both the EW and the relative structural solution.
Considering the three indices, we found that the wooden structural solutions, one with a platform frame and the other with XLAM (Table 1, S1 and S5), have values considerably lower than the other solutions calculated with respect to the whole construction. with a difference of about 20% compared to the other proposed solutions. This is mainly because the wooden structural solutions have an overall negative value if we consider the product stage (A1–A3), the end-of-life stage (C3–C4), and the benefit and loads beyond the system boundary (D1–D4). For the other analyzed solutions, those adopting a steel structure are characterized by a higher PENRT, mainly due to the incidence of structural elements such as pillars (~14.5% of total) and steel main beams (~18.5% of total). Solution 3 is characterized by a worse environmental impact value due not only to the steel structure but also to the EW composed of autoclaved aerated concrete blocks that have a GWP of 69.35 kgCO2/m2, an acidification potential of 0.11 kgSO2/m2, and a PENRT of 514.11 MJ referring to the total surface of the external wall. These high values are connected to the absence of a wood fiber insulating layer, which provides an advantage in the overall balance.

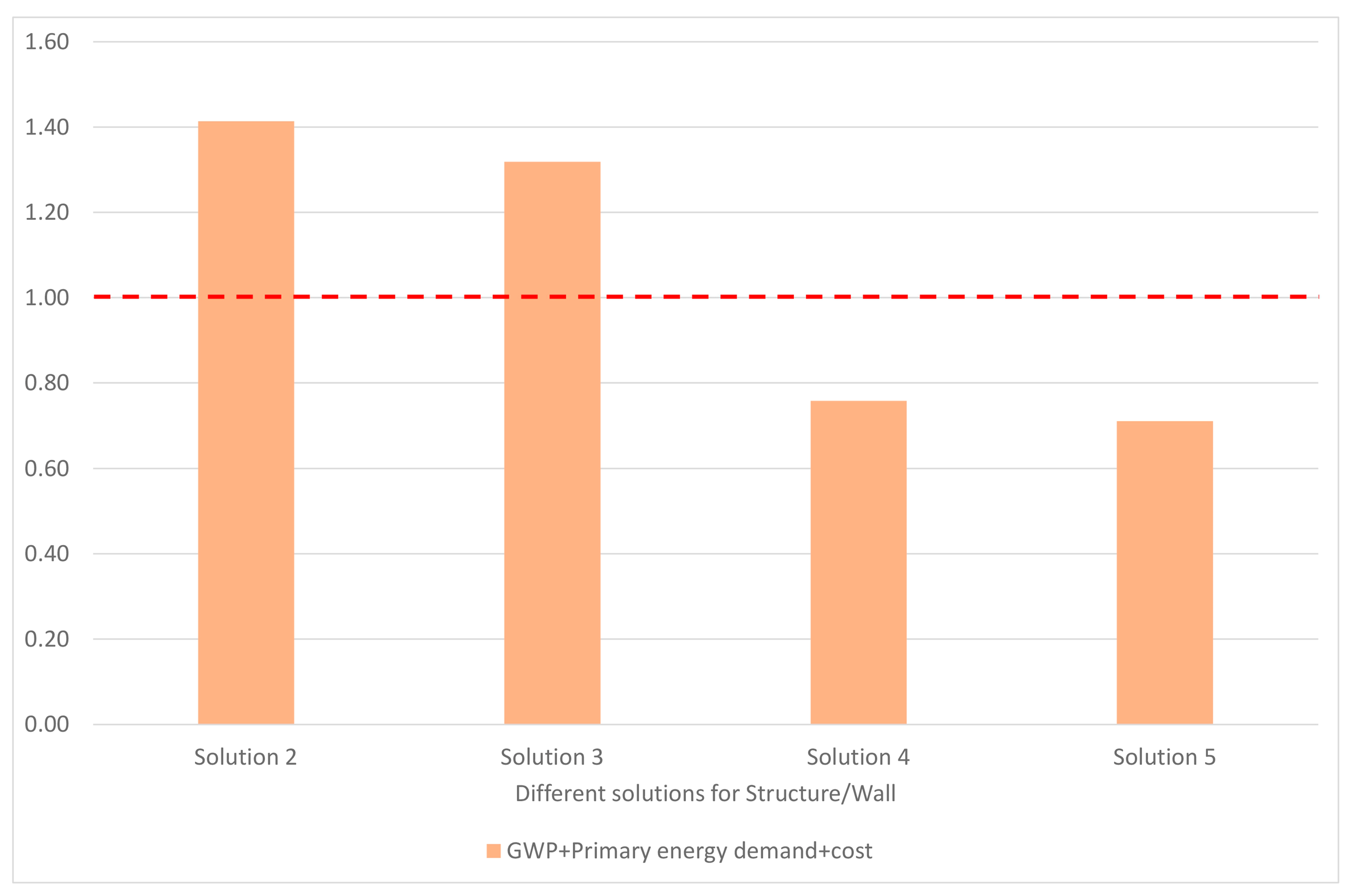

Figure 9 shows the results in terms of the normalized indexes (GWP, primary energy demand, and cost) with respect to the reference solution (Table 1, S1) for the different EW–structure combinations. All indexes were evaluated with respect to the area of the reference model (Figure 1). Figure 10 illustrates the overall assessment of the environmental, energy, and economic sustainability (sum of the three normalized aspects) of the different technological solutions for the EW and the related structural solution for the construction of a low-carbon school in Italy or in areas characterized by the same climatic conditions.
Solutions 2 and 4 in Figure 9, which adopt a steel structure combined with a dry EW and aerated autoclaved concrete blocks, respectively, have a higher cost per meter square of area of the building, about 749 and 605 €/m2, respectively. Considering the primary energy demand, the result previously shown was confirmed again. Considering the environmental impact in terms of GWP, the same trend was found: The highest value is attained by solution 3, with an increase of about 20% with respect to the reference solution. Figure 10 shows that considering the environmental, energy, and economic sustainability for the construction of the structure and an EW for a kindergarten, wooden solutions are preferable, providing an initial investment comparable with the reference solution (Table 1, S1) and ensuring the same energy performance with the lowest environmental impact.

5. Conclusions

In conclusion, from our analysis on the different types of building envelope, we conclude that all of them can be used for the construction of zero-emissions kindergartens in Italy.
All the proposed technological solutions for the external wall satisfy the requirements of current energy legislation in terms of surface mass and/or periodic thermal transmittance. In addition, a time shift greater than eight hours is ensured by all the analyzed solutions. From an energy performance point of view, the technological solutions behave similarly in terms of the annual primary energy demand of the building; among them, the difference is lower than 1%. All solutions have a low annual primary energy demand of about 25 kWh/(m2year).
All the solutions proposed for the building envelope emit less than 20 kgCO2/(m2year) into the atmosphere However, solutions 1, 2, and 3 have a higher environmental impact considering the CO2 emissions during the construction phase. During the operational phase, the emissions are zero as the electricity is produced through renewables.
In the construction of a school building, it is necessary to consider the total cost of construction, corresponding to the total initial investment, because it plays an important role. Thus, two elements (EW and structure) that considerably affect cost were deeply analyzed and discussed considering their environmental impact, energy performance, and cost. The wooden solutions (Table 1, S1 and S5) are the most sustainable, as they provide the best compromise between these three fundamental aspects for the construction of a low-carbon school in the Mediterranean area.
Currently, schools are representative buildings both on social and cultural levels; at it is also important to ensure an education to all children in a healthy and environmental-friendly place, supporting their environmental education. To configure solutions that are sustainable both from energy-environmental and economic viewpoints, designers must integrate and address the aspects with an interdisciplinary approach from the earliest stages of the design process of a school building.
We proposed a method here to define the building envelope and the load-bearing structure by correlating the energy, environmental, and economic aspects. So, this considering at the same time an index for the evaluation of the environmental impact (GWP), the cost of the solution with respect to the price list of the considered location and finally an energy rating to evaluate the performance of the building during service life with the use of the proposed solutions (for instance primary energy demand). What has been applied here to the city of Florence can be used in any social and climatic context (for instance North Europe) firstly by checking the more suitable technological solutions for the considered climate, updating the minimum requirements for the thermal properties according to the current legislation in chosen site and finally updating the climate characteristics for the energy simulation. Moreover, by performing an economic evaluation of different technological solutions according to the construction price list of the considered locations. This could be done to evaluate the sustainability of a school building in a preliminary stage of the design process and the proposed methodology could be considered as a strategic result for this reason. The application in Florence is only a way to show in a better and concise way the results and the related discussion. One of the future developments of the research could be applying the same method to different building type located in different climate conditions, obviously taking into account the most proper technological solutions or structural solutions for the considered intended use.

Author Contributions

Conceptualization, F.B., V.D.N. and C.C.; methodology, F.B., V.D.N. and C.C.; software, C.C.; validation, C.C. and V.D.N.; formal analysis, C.C. and V.D.N.; data curation, C.C. and V.D.N.; writing—original draft preparation, C.C.; writing—review and editing, C.C., V.D.N. and F.B.; visualization, C.C. and V.D.N.; supervision, F.B.; project administration F.B. and V.D.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. GWP, cost and primary energy value for the calculation of the normalized values.
Table A1. GWP, cost and primary energy value for the calculation of the normalized values.
SolutionGWP 1,2Cost 2Primary Energy Demand
(Impact %)(€/m2)(kWh/m2year)
S15.015339.7224.70
S25.933749.5624.38
S35.257605.6724.44
S41.483329.1624.91
S51.5784277.5024.75
1 The GWP is estimate by the sum of the impact of each element (for instance insulation layer, pillar, frame, slab, etc.) of the external wall technological solutions and the structure solutions with respect to the GWP of the entire building (impact %). 2 The values are the sum of the single value for each element of both EW and structure.
Table A2. Normalized values of each parameters with respect to the solution 1 (S1).
Table A2. Normalized values of each parameters with respect to the solution 1 (S1).
SolutionGWPCostPrimary Energy DemandSum 1
S1Reference solutionReference solutionReference solution1
S21.182.210.991.41
S31.051.780.991.32
S40.290.971.010.76
S50.310.821.010.71
1 To obtain this value the sum of GWP, Cost and Primary energy demand normalized values is evaluated with respect 1 that represent the solution S1 (reference solution for the normalization).
