Evaluating the Feasibility of Water Sharing as a Drought Risk Management Tool for Irrigated Agriculture

by
Rishma Chengot
,
Jerry W. Knox
* and
Ian P. Holman
Cranfield Water Science Institute, Cranfield University, Bedford MK43 0AL, UK
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(3), 1456; https://doi.org/10.3390/su13031456
Submission received: 22 December 2020 / Revised: 25 January 2021 / Accepted: 26 January 2021 / Published: 30 January 2021
(This article belongs to the Special Issue Agricultural Water Management and Irrigation Systems Assessment)
Browse Figures
Review Reports Versions Notes

Abstract

:
Droughts can exert significant pressure on regional water resources resulting in abstraction constraints for irrigated agriculture with consequences for productivity and revenue. While water trading can support more efficient water allocation, high transactional costs and delays in approvals often restrict its wider uptake among users. Collaborative water sharing is an alternative approach to formal water trading that has received much less regulatory and industry attention. This study assessed how the potential benefits of water sharing to reduce water resources risks in agriculture are affected by both drought severity and the spatial scale of water-sharing agreements. The research focused on an intensively farmed lowland catchment in Eastern England, a known hot-spot for irrigation intensity and recurrent abstraction pressures. The benefits of water sharing were modelled at four spatial scales: (i) individual licence (with no water sharing), (ii) tributary water sharing among small farmer groups (iii) sub-catchment and (iv) catchment scale. The benefits of water sharing were evaluated based on the modelled reductions in the probability of an irrigation deficit occurring (reducing drought risks) and reduced licensed ‘headroom’ (spare capacity redeployed for more equitable allocation). The potential benefits of water sharing were found to increase with scale, but its impact was limited at high levels of drought severity due to regulatory drought management controls. The broader implications for water sharing to mitigate drought impacts, the barriers to wider uptake and the environmental consequences are discussed.

1. Introduction

Droughts occur in most regions of the world and have affected more people globally than any other natural hazard over the last 40 years [1]. The IPCC’s Fifth Assessment report [2] had low confidence in a global-scale observed trend in drought or dryness (lack of rainfall) since the mid-20th century, although it considered it likely that there have been changes in drought frequency and intensity in some regions. However, the challenges of drought and water scarcity are expected to become more severe in many regions over the coming decades [3], due to increasing sectoral competition between water supply, environment and agriculture for water resources [4,5] and increasing climate variability and climate change [6,7,8].
The agricultural sector is the largest global user of freshwater, mostly for irrigation, and is particularly exposed and vulnerable to both increases in drought and water scarcity [9]. In order to limit environmental impacts, such as the depletion of aquifers, low flows in rivers and degradation of aquatic habitats [10,11] associated with uncontrolled and inefficient abstraction, many countries have abstraction regimes with licences or permitting systems [12,13,14,15,16,17,18,19,20]. These usually specify a fixed annual allocation of water but tend to be awarded on a ‘first come—first served’ basis leading to a sub-optimal and over-allocation of water. This is increasingly leading to pressure for more efficient water allocation that moves agricultural irrigation allocations to uses with higher economic value, in particular cities [5,21].
However, agricultural irrigation is not confined to arid and semi-arid regions, but is also increasingly important in humid temperate regions such as the UK [22,23,24,25], where supplementary irrigation supports the production of high quality and high-value fruit and vegetables [26,27] and generates high net financial benefits, particularly in drought years [28]. However, agricultural irrigation is often given the lowest use priority under drought conditions, in order to protect drinking water supplies and reduce the risks of environmental degradation, which can lead to widespread regional economic damage [28] (e.g., Anglian Water, University of Cambridge [29]) and along the value chain (e.g., Newton et al. [30]).
Such existing sub-optimal water allocation regimes typically lack the flexibility to address emerging challenges such as drought, which has led to attempts to improve their performance through the use of economic instruments. Water trading, allowing those with a greater allocation than their need to trade water (either permanently or seasonally) to other agricultural or non-agricultural water users [31], is one such approach [32,33]. However, there are concerns over water trading, ranging from its high transactional costs, delays in approvals and water allocations being permanently traded out and lost from agriculture [33,34] that have restricted its use and uptake.
There is thus increasing interest in collaborative water sharing or co-management approaches to water allocations [35,36,37,38,39] to address some of these shortcomings. Collaborative water sharing can be implemented either informally or through water abstractor groups but has received much less regulatory and industry attention to date. The desire for water sharing is likely to be greatest when irrigation demands are high, water availability is low and the risk of drought-related abstraction restrictions [18,40] is high. Consequently, the actual benefits of water sharing in reducing on-farm drought risk and improving short-term water allocation are unclear.
The aim of this paper was to evaluate how the benefits of water sharing for drought risk management are affected by the likelihood of abstraction restrictions and the spatial scale of water-sharing agreements. These effects have been analysed using a novel probabilistic or risk-based approach to the calculation of irrigation deficit and unused licensed ‘headroom’ for individual businesses or water-sharing groups that integrate irrigation needs, water availability and environmental protection. It uses a case study in Eastern England where 60% of the UK’s total irrigated area is concentrated [25] and where most catchments have been classified as either over-abstracted and/or over-licensed [41,42]. Increasing water scarcity is likely to compound the drought challenges faced by irrigated agriculture in this region [43]. This research focused on the River Lark catchment, an intensively farmed lowland rural catchment that is an irrigation hotspot with recurrent abstraction pressures, but with a highly engaged water abstractor group. The methodology and approaches developed are transferable to other regions internationally where similar water pressures exist.

2. Materials and Methods

2.1. Case Study Description

The River Lark catchment in Eastern England (Figure 1a) covers approximatively 460 km2 of low-lying intensively farmed land with an elevation range of 7–125 m.a.s.l [44]. Eastern England is the driest region of the UK, with an annual average rainfall (1900–2014) in the Lark catchment of 618 mm/year [45]. Drought, as indicated by a Standardised Precipitation Index (SPI) of below −1.5 is a regular feature of the regional climate, with notable droughts in 1976/77, 1990, 1996, 2011 and 2018 (Figure 1c). Daily river flows are measured by the water regulatory authority (Environment Agency, EA) at three gauging stations along the main channel, at the outlet at Isleham (local station number 33004) and upstream at Temple (33014) and Fornham St Martin (33070). There are four main tributaries: Tuddenham Stream, River Linnet, Cavenham stream and Culford stream. The mean daily flow at the catchment outlet is 1.803 m3/s, and the river has a relatively high base flow index of 0.64 due to groundwater inflows from the underlying major chalk aquifer [46].
Land use in the catchment (Figure 1b) is dominated by arable (62.4%) and grassland (18.0%) with minor areas of woodland (12.8%) and urban (6.42%). Due to the catchment’s freely draining sandy and loamy soils [48], horticultural crops are commonly grown within the arable rotations—in particular maincrop potatoes, carrots, onions and parsnips. To achieve required crop quality standards, irrigation is used to supplement rainfall with Figure 2 showing that the main period of irrigation in most years is between May and July.
All water abstractors are required to have an abstraction licence or permit, issued by the EA, which imposes annual and daily volumetric abstraction limits. These licences can also be subject to restrictions during extended dry periods or droughts, due to either stipulated river flow thresholds (termed hands-off flows or HOFs) below which surface water abstraction must cease or mandatory drought management restrictions under Section 57 (S57) of the Water Resources Act (1991) to protect the public water supply and the environment [40]. Consequently, some farming businesses cannot fully meet their irrigation water needs in dry years due to a combination of their business’ volumetric licence limits and/or low river flows triggering HOF or S57 restrictions. The Lark catchment is part of the larger Cam and Ely Ouse catchment, which has been designated as a ‘Priority Catchment’ for developing and testing innovative solutions to achieve greater access to water and address unsustainable abstraction [49].

2.2. Methodology

Nine farm businesses belonging to the Lark Abstractors Group (LAG) and with surface water abstraction points and who had previously expressed an interest in water sharing and other forms of collaborative water management were the focus of this study. The businesses each have single or multiple abstraction licences for one or more surface and/or groundwater abstraction points in the catchment. Irrigation abstraction licences are specified for either ‘direct’ abstraction (typically limited to between April and September) where the abstracted water is directly applied to the crop or for ‘storage’ (typically limited to between October and March) where the abstracted water is stored in an on-farm reservoir for later use. To preserve business confidentiality, an anonymised overview of the selected businesses is given in Table 1. Each farm’s typical irrigated cropping is a complex function of each crop’s design-dry year irrigation need (crop types, areas and soil types); volumetric licence limits; available on-farm reservoir storage; and the expected abstraction reliability considering the licence-specific HOF and catchment-wide S57 mandatory abstraction restrictions.
The methodology had two discrete stages:
  • Analysis of each farm business’s actual abstraction in a recent drought year;
  • Probabilistic analysis of drought risk associated with different scales of water sharing using the modified D-Risk webtool to evaluate the benefits of water sharing.

2.2.1. Analysis of Actual Abstraction in a Recent Drought Year

Monthly abstraction records for each licence were collated from the businesses to understand their actual water use in the recent drought year of 2018 [51] and to highlight which licenses and businesses might have spare water available for water sharing, and, conversely, those who would be keen to secure additional water. The total abstracted volumes between January and December 2018 were used for direct licences; whereas the total abstracted volumes from April 2018 to March 2019 were used for storage licences to include the on-farm reservoir re-filling period.

2.2.2. Probabilistic Analysis of Drought Risk Using the Modified D-Risk Webtool

The analysis of the benefits of water sharing at different spatial scales was completed using a modified version of the D-Risk webtool that is available at www.d-risk.eu. The development of D-Risk is given in Haro-Monteagudo et al. [52] but briefly described below.
The D-Risk webtool uses a gridded weather time series dataset called the “MaRIUS event set” [53,54] to derive a probabilistic assessment for any irrigated enterprise of their likelihood of having an irrigation deficit and unused licence allocation (headroom), to support drought risk planning at the individual (business) level [52]. This gridded weather dataset is composed of 100 member ensembles of 30-year time-series of daily rainfall and potential evapotranspiration [53,54]. For each ensemble member, D-Risk uses a daily water balance between the rainfall and potential evapotranspiration to calculate the annual maximum potential soil moisture deficit (PSMDmax). Using the irrigated cropping and soils data for each business or water-sharing group and the annual PSMDmax time series, the D-Risk tool was used to calculate the theoretical annual irrigation needs (depths applied, mm) for each crop-soil combination using previously derived regression equations [55] that are used by the EA in setting irrigation licence volumetric limits [56]. The irrigation needs were then combined with the irrigated areas (ha) for each business or water-sharing group to estimate total volumetric annual irrigation demand (m3).
A monthly time-step water balance model was then used to calculate whether the irrigation demands could be met, considering the daily and annual licensed abstraction limits and the specified start and end months of each licence and any available on-farm storage. It was assumed that licenses dependent on surface water are used before licensed groundwater sources due to their greater vulnerability to abstraction restrictions and that direct abstraction was preferred before storage.
From the water balance modelling, the annual irrigation deficit representing the proportion of annual irrigation demand that was not met and the licensed abstraction ‘headroom’ defined as the proportion of the total licensed volume that is not abstracted in a given year were calculated.
However, the current D-Risk webtool does not incorporate local river flow conditions and associated HOF and S57 abstraction constraints, assuming that abstraction is unconstrained on all days within a given month, which may not fully reflect reality during a drought. It may, therefore, under-estimate the volume of any unused licence during a drought and attendant drought risks. Hence, in this study, the HOF and S57 abstraction restriction rules applied to daily river flows were incorporated into the D-Risk algorithms to reflect more typical local river management practices under drought conditions.
The daily river flows were simulated using the DECIPHeR hydrologic model [57]. DECIPHeR is a flexible hydrological modelling framework that can simulate flows across multiple catchments with different hydrological characteristics. It has previously been applied to 1366 gauges across Great Britain and shown to perform well for four different evaluation metrics across a wide range of catchments [57]. Daily 1 km2 gridded rainfall and potential evapotranspiration data for 1961–2015 were obtained from the UKCEH ‘Gridded Estimates of Areal Rainfall’ dataset (CEH-GEAR) [45,58] and climate hydrology and ecology research support system potential evapotranspiration dataset for Great Britain (CHESS-PE) [59]. The model was calibrated and validated against observed daily streamflow data for the Lark at Temple gauging station obtained from the National River Flow Archive (www.nrfa.ceh.ac.uk). Once calibrated and validated using observed data, DECIPHeR was used to simulated daily river flows using the precipitation and potential evapotranspiration data of the MaRIUS event set ensembles. For each surface water licence, the equivalent number of days each month in which abstraction was constrained due to simulated river flows being below the licence-specific HOF or in which abstraction was under different levels of mandatory S57 restrictions (i.e., Level 1 = 50% reduction; Level 2 = 75% reduction; Level 3 = 100% reduction) according to Salmoral et al. [40] were calculated. From this, the potential number of days per month in which surface water abstraction was allowed were incorporated into the D-Risk monthly time-step water balance model.
The modified D-Risk algorithms were then applied to derive aggregate irrigation deficit and headroom profiles for the following:
  • Licence groups (9): in which all businesses operate independently with no water sharing between businesses;
  • Tributary groups (5): businesses with licences with water abstraction points along the same tributary or main channel reach;
  • Sub-catchment groups (3): businesses with licences with abstraction points within common sub-catchments determined by the gauging station;
  • Catchment group (1): representing all licences and businesses.
The abstraction points for each business and their grouping at different spatial scales of water-sharing groups are summarised in Figure 3. D-Risk was run for each sharing group separately, representing a total of 18 simulations. For each simulation, the relevant input data were extracted from Table 1. Where a business’s abstraction licences spanned more than one water-sharing group, the business’ irrigated crop areas were split and subdivided according to the proportion of the licence’s total abstraction volume of each business. For licences which had HOF conditions at ungauged locations, these were converted to an equivalent HOF condition at the Temple gauging station based on the proportional catchment area.
The individual D-Risk drought risk profiles for each water-sharing group at a given spatial scale were converted to aggregated profiles to evaluate the potential benefits of water sharing, especially during drought years. The 80th percentile values of the profiles (corresponding to 20% probability of exceedance for irrigation deficit and 80% probability of exceedance for headroom) represents the scenario for a drought year. In addition, gridded matrices of the estimated irrigation deficits (expressed as a proportion of the licence volume) and headroom for each business within the different scales of water sharing were also generated based on results for the typical ‘design’ dry year (80th percentile probability of non-exceedance). Finally, the total volume of water abstracted with each scale of water sharing was calculated to understand any potential increased risk of abstraction-induced ecological impacts due to water sharing.

3. Results

3.1. Comparison of Total Licenced Volume and Actual Abstraction for a Drought Year

The annual licensed volume and reported actual abstractions for 2018 for each farm business ranked by their total licensed volume (Figure 4) showed that most (though not all) of the businesses had significant unused allocation. This unused licensed volume, which reflects the difference between the annual licensed volume and actual abstraction in a given year, and defined as ‘headroom’ arises through a combination of (1) being unable to abstract water because of HOF restrictions during and after the drought (recognising that S57 restrictions were not imposed in 2018); (2) a mismatch between the magnitude of peak irrigation demand and daily abstraction limits (3) modifications to their irrigation plans (e.g., irrigating their full area to a reduced irrigation schedule or irrigating a reduced area to their full irrigation schedule—[25]) to avoid running out of water during the drought due to the uncertainty in the drought duration; and (4) reduced irrigated cropped areas in 2018 due to rotational restrictions. This ‘unused’ water in 2018 shows the potential for water sharing to improve the efficiency of water allocation and thus increase the quality and quantity of crop production locally.

3.2. Benefits of Water Sharing within the Catchment

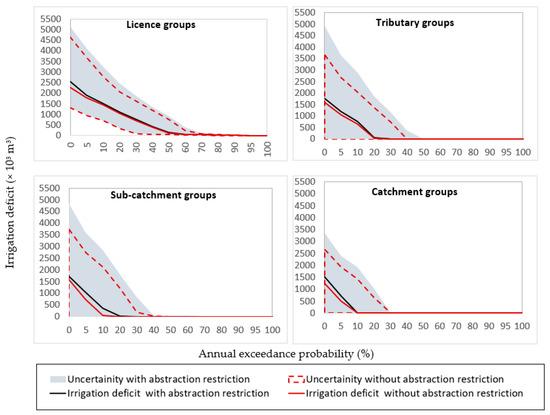

Figure 5 shows the derived profiles of annual exceedance probabilities of the aggregate irrigation deficits for each different scale of water sharing. With no water sharing, the nine businesses have a combined annual irrigation deficit of around 1,000,000 m3 in a design dry year (20th percentile probability of exceedance across the 100 × 30 simulated years), although this ranges between 350–200,000 m3 across individual ensemble members (shaded uncertainty zone in Figure 5). Around 65,000 m3 of this deficit is caused by the simulated river flow-based restrictions on surface water abstraction. This aggregate risk profile derives from three distinct typologies of risk profile of individual businesses: those that have zero irrigation deficit and significant headroom (e.g., business 8 in Figure S1a,b) and those that have a significant irrigation deficit despite abstracting their annual volumetric limit (e.g., business 2 and 3 in Figure S1a,b). For this latter group, the irrigation deficit mainly arises because their daily licensed volumetric limit is insufficient to meet their peak daily irrigation demand, although their annual volumetric licence limit meets the annual irrigation demand.
The benefits of water sharing in decreasing the annual probability or risk of an aggregate irrigation deficit (and uncertainty range) increase with an increasing spatial scale (Figure 5). Water sharing within tributary groups reduces the irrigation deficit with a 20th annual probability of exceedance from around 1,000,000 m3 to only 47,000 m3, although all of this deficit occurs in the River Lark main channel group (Figure S2a) who have zero headroom (Figure S2b). Water sharing at the sub-catchment and catchment scales further reduces the annual risk of a significant annual deficit to 10% or less, with irrigation deficits of 100–250,000 m3 in both the Isleham and Temple sub-catchments (Figure S3). Similarly, as the scale of water sharing increases, the flow-based abstraction restrictions generally become less important due to the increasing ability to conjunctively utilise both surface water licences with different flow-based restrictions (Table 1) and groundwater licences that are not subject to drought restrictions according to river flow levels. Consequently, at the catchment-scale, the abstraction restrictions only affect the overall irrigation deficit in extreme drought years.
The gridded matrix in Table 2 showing the relationship between the annual volumetric irrigation deficit (expressed as a percentage of annual licensed volume) and headroom for each business in the design dry-year clearly demonstrates the risk reduction benefits to businesses associated with water sharing. Risk levels are highlighted using the colours ranging from red with the highest risk to green with the lowest risk. As the scale of water-sharing increases, fewer businesses are expected to experience an irrigation deficit while the heterogeneity in licensed headroom reduces, showing a more even utilisation of licensed water.

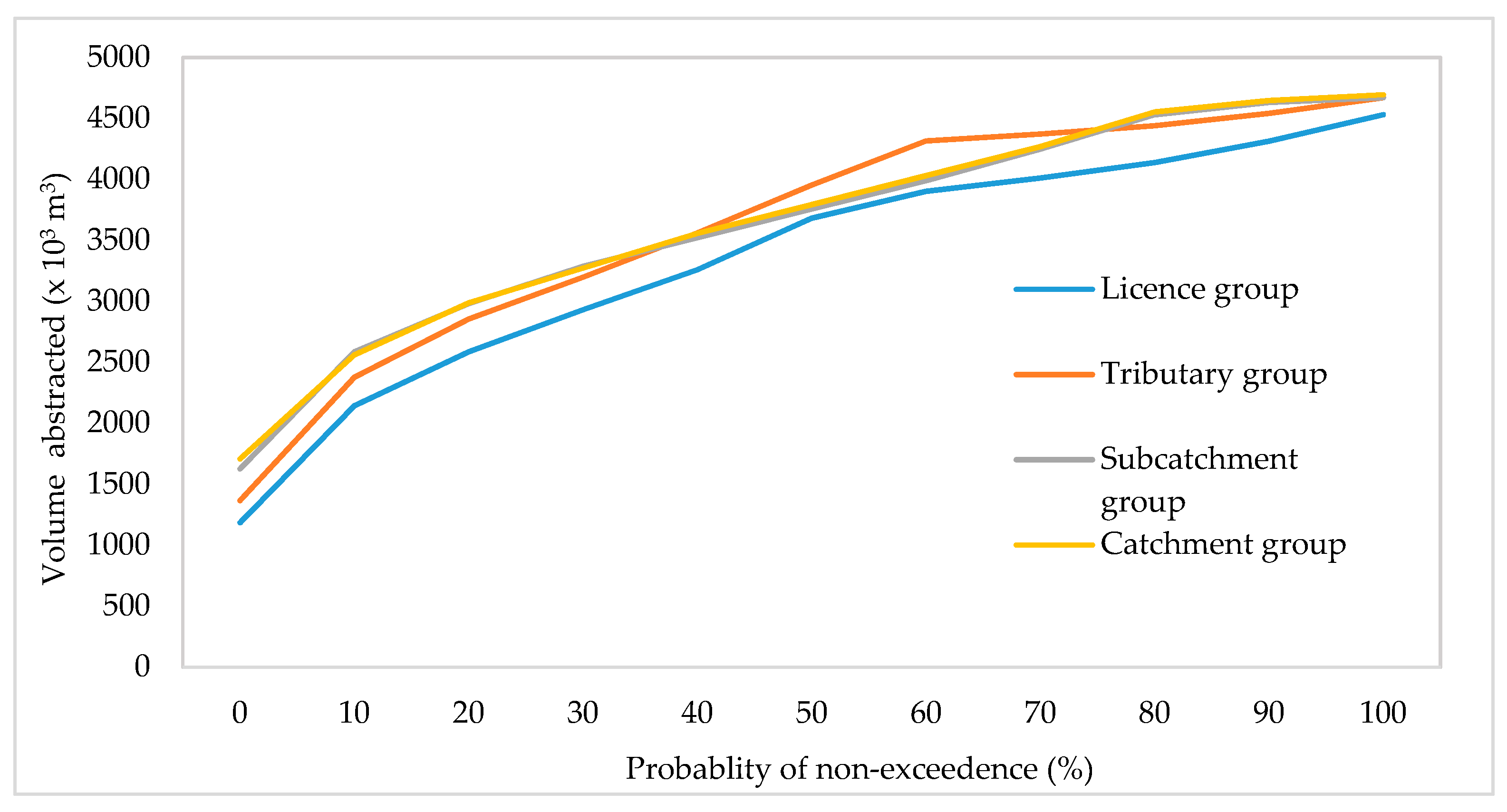

Finally, to assess the potential effect that water sharing might have on the environment, Figure 6 shows the annual exceedance probability for total annual abstraction across the nine businesses for each scale of water sharing. As expected, the total annual volume abstracted increases with an increasing scale of water sharing as the efficiency of utilisation of the licensed water increases. However, the increased annual abstraction enabled by water sharing is generally less than 400,000 m3 or 10% of the total licensed volume.

4. Discussion

The allocation of water for agricultural irrigation in many regions or countries is accepted as economically sub-optimal. In many cases, a lack of regulatory flexibility to overcome the limitations in the original allocation process (for example, first come, first served basis) means that allocated water remains unused, even in drought years. Economic or market-based instruments, including water trading, have been introduced successfully in other countries and river basins, such as the Murray–Darling in Australia [60,61]. However, in humid countries with high climatic variability, water trading has not been popular due to the bureaucratic assessment procedures, high transactional costs and time lags, which mean that trades cannot be approved sufficiently quickly to meet the short-term need during drought years. Although contract options [62,63] that provide the licence holder with the right (but not obligation) to buy or sell water at a point in the future help to overcomes some of these drawbacks, the usual payment of the option premium for the future right to purchase the water [62] entails a financial cost that will not be justified in most (non-drought) years. This study aimed to assess whether the benefits of informal water sharing between local agricultural abstractors to address the desire to increase the efficiency of water allocation and, therefore, the economic benefit and associated increased productivity could be realised given existing regulatory constraints to prevent environmental harm.
Our analysis showed that water sharing at any scale tends to reduce the exposure of businesses to the risk of an irrigation deficit, especially in drought years. Furthermore, the potential benefits of water sharing increase with scale. This potential drought risk–benefit is, however, associated with a generally increased aggregate annual abstraction, thereby posing a potential threat to the condition of the aquatic ecology [64].
River flow reductions can affect the drift behaviour of stream invertebrates [65] and macrophyte communities [64]. The analysis by Poff and Zimmerman [66] supported the inference that flow alteration is associated with ecological change and that the risk of ecological change increases with an increasing magnitude of flow alteration. However, most studies have focused on the impacts of long-term changes in river flow (e.g., [66,67,68]) rather than the consequences of short-term (seasonal) increases in abstraction. In their systematic review of fish and invertebrate responses to droughts in Europe, research [69] reported statistical evidence for a decrease of invertebrate richness/abundance and fish density immediately following drought, but no significant effect of event severity. Furthermore, this research did not consider recovery [70] to assess the longer-term implications of short-term stress, although this can take from a year (higher plants: Wright et al. [71]; macroinvertebrates: Wood and Petts [72]) to 5+ years (fish: Elliott [73]).
By taking into account the current regulatory and drought management restrictions on irrigation abstraction, our analysis showed that water sharing does not completely remove drought risk due to the combination of water resources management constraints that are embedded in the volumetric licence limits to ensure sustainable abstraction and drought management protections such as abstraction restrictions at low river flows (e.g., licence-specific HOF and Sec 57). Nevertheless, there remains considerable uncertainty regarding the optimum scale of water sharing to maximise the economic benefits of more efficient water allocation while maintaining appropriate environmental protection. While water sharing at larger scales provides the greatest flexibility and the potential to avoid concentrated periods of abstraction, significant up-river shifts in the distribution of abstraction towards small sub-catchments and headwater tributaries could cause significant impacts on flow and ecology. Similarly, water sharing at too small a scale may also lead to detrimental local increases in abstraction. This complexity suggests that the successful adoption of informal water sharing requires clearly articulated, managed and regulated allocation rules and temporary reallocation procedures during drought conditions [39] must provide clarity, trust and environmental protection. Such requirements will require the continued role of the regulator [38] and the co-ordination of a collective water user body, whether this be a legal entity (e.g., Rouillard, J.; Rinaudo [39]) or water abstractor group [74]. Water sharing that combines careful abstraction management and adequate allocation safeguards has the potential to provide wider benefits to the socio-economic-environmental integrity of a region, but further work is required between the regulator and the farming communities to understand how best to operationalise the approach.

5. Conclusions

This research explored the benefits of water sharing between irrigators to reduce drought risks in a humid climate. Although the study focused on an intensively farmed lowland catchment in the UK with its particular irrigated agriculture and water governance; it has wider relevance to agricultural abstraction management in other regions where consideration of water sharing within a risk-based approach to irrigation management that takes account of water resource availability and environmental protection may deliver improved outcomes, especially in dry years. The study showed that the water sharing benefits from a socio-economic perspective increase with the spatial scale of water-sharing agreements, but also lead to higher levels of abstraction. The importance of regulatory and drought management restrictions on irrigation abstraction in preventing increased environmental harm is demonstrated by the water sharing not completely removing drought risk despite unused water allocations during drought years. Nevertheless, understanding how to operationalise water sharing to deliver the economic benefits of improved agricultural water allocation while maintaining ecological quality requires an ongoing dialogue between the regulator and the farming communities.

Supplementary Materials

The following are available online at https://www.mdpi.com/2071-1050/13/3/1456/s1, Figure S1: Probability of (a) Irrigation deficit and (b) Headroom as percentage of licence for individual licence groups; Figure S2: Probability of (a) Irrigation deficit and (b) Headroom as percentage of licence for tributary groups; Figure S3: Probability of (a) Irrigation deficit and (b) Headroom as percentage of licence for sub catchment groups.

Author Contributions

Conceptualization, R.C., J.W.K. and I.P.H.; methodology, R.C., J.W.K. and I.P.H.; software, R.C.; validation, R.C., J.W.K. and I.P.H.; formal analysis, R.C.; data curation, J.W.K.; writing—original draft preparation, R.C.; writing—review and editing, J.W.K. and I.P.H.; supervision, J.W.K. and I.P.H.; project administration, J.W.K. and I.P.H.; funding acquisition, J.W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the CaBA Water Resources working group and River Lark Catchment Partnership (RLCP). It was also supported by the EA Defra catchment based abstraction reform team and the Topsoil project under the Interreg North Sea Region VB programme funded by the European Regional Development Fund. The study was also co-funded by NERC grant number NE/S013997/1.

Institutional Review Board Statement

This study was approved by the Cranfield University Research Ethics System (reference CURES/9732/2020, 20/03/2020).

Informed Consent Statement

Informed consent was obtained from all businesses involved in the study.

Data Availability Statement

All input data supporting this study and required to run the d-risk.eu webtool are provided in the Methods section of this paper.

Acknowledgments

The authors acknowledge the support from the individual farming businesses in the Lark catchment, Jim Stephens (RLCP), Paul Hammett (NFU), Lindsay Hargreaves (LAG), Andrew Chapman, Sam Westwood and Ukwuori Fadayiro (EA). The authors acknowledge the EA for provision of abstraction licensing data for the catchment. The authors are also grateful to George Cojocaru (TIAMASG) for developing the modified web version of the D-Risk tool and Gemma Coxon (University of Bristol) for providing simulated daily river flows using the DECIPHeR hydrologic model. The authors are grateful to Di Liu, Pauline Lokidor, Katherine Rushen, Jessica Sanchez Hernandez and Raphael Zylberman for their assistance in farm data collection.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Food and Agriculture Organization of the United Nations (FAO). Drought and Agriculture. 2017. Available online: http://www.fao.org/3/a-i7378e.pdf (accessed on 9 December 2020).
  2. Hartmann, D.L.; Klein Tank, A.M.G.; Rusticucci, M.; Alexander, L.V.; Brönnimann, S.; Charabi, Y.; Dentener, F.J.; Dugokencky, E.J.; Easterling, D.R.; Kaplan, A.; et al. Observations: Atmosphere and Surface. In Climate Change 2013: The Physical Science Basis; Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Stocker, T.F., Qin, D., Plattner, G.-K., Tignor, M., Allen, S.K., Boschung, J., Nauels, A., Xia, Y., Bex, V., Midgley, P.M., Eds.; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013. [Google Scholar]
  3. Dai, A. Increasing drought under global warming in observations and models. Nat. Clim. Change 2013, 3, 52–58. [Google Scholar] [CrossRef]
  4. Garrote, L. Managing Water Resources to Adapt to Climate Change: Facing Uncertainty and Scarcity in a Changing Context. Water Resour. Manag. 2017, 31, 2951–2963. [Google Scholar] [CrossRef]
  5. Garrick, D.; Stefano, L.D.; Yu, W.; Jorgensen, I.; O’Donnell, E.; Turley, L.; Aguilar-Barajas, I.; Dai, X.; de Souza Leão, R.; Punjabi, B.; et al. Rural water for thirsty cities: A systematic review of water reallocation from rural to urban regions. Environ. Res. Lett. 2019, 14, 043003. [Google Scholar] [CrossRef]
  6. Food and Agriculture Organization of the United Nations (FAO). World Agriculture: Towards 2015/2030 Summary Report. 2002. Available online: http://www.fao.org/3/a-y3557e.pdf (accessed on 15 December 2020).
  7. Gerten, D.; Heinke, J.; Hoff, H.; Biemans, H.; Fader, M.; Waha, K. Global water availability and requirements for future food production. J. Hydrometeorol. 2011, 12, 885–899. [Google Scholar] [CrossRef]
  8. Lehner, F.; Coats, S.; Stocker, T.F.; Pendergrass, A.G.; Sanderson, B.M.; Raible, C.C.; Smerdon, J.E. Projected drought risk in 1.5 °C and 2 °C warmer climates. Geophys. Res. Lett. 2017, 44, 7419–7428. [Google Scholar] [CrossRef]
  9. Iglesias, A.; Garrote, L. Adaptation strategies for agricultural water management under climate change in Europe. Agric. Water Manag. 2015, 155, 113–124. [Google Scholar] [CrossRef] [Green Version]
  10. Food and Agriculture Organization of the United Nations (FAO). Coping with Water Scarcity in Agriculture a Global Framework for Action in a Changing Climate. 2016. Available online: http://www.fao.org/3/a-i6459e.pdf (accessed on 15 December 2020).
  11. Deb, P.; Kiem, A.S.; Willgoose, G. A linked surface water-groundwater modelling approach to more realistically simulate rainfall-runoff non-stationarity in semi-arid regions. J. Hydrol. 2019, 575, 273–291. [Google Scholar] [CrossRef]
  12. Kemper, K.E. Groundwater—From development to management. Hydrogeol. J. 2004, 12, 3–5. [Google Scholar] [CrossRef]
  13. Henriques, C.; Holman, I.P.; Audsley, E.; Pearn, K. An interactive multi-scale integrated assessment of future regional water availability for agricultural irrigation in East Anglia and North West England. Clim. Change 2008, 90, 89–111. [Google Scholar] [CrossRef] [Green Version]
  14. Weatherhead, E.K.; Howden, N.J.K. The relationship between land use and surface water resources in the UK. Land Use Policy 2009, 26, 243–250. [Google Scholar] [CrossRef]
  15. Mills, J.; Dwyer, J. EU Environmental Regulations in Agriculture; Final Report to the Environment Agency; Countryside and Community Research Institute: Gloucestershire, UK, 2009. [Google Scholar]
  16. Environment Agency (EA). Managing Water Abstraction; 2013. Available online: https://www.gov.uk/government/publications/managing-water-abstraction (accessed on 15 December 2020).
  17. Shen, D. Groundwater management in China. Water Policy 2015, 17, 61–82. [Google Scholar] [CrossRef]
  18. Rio, M.; Rey, D.; Prudhomme, C.; Holman, I.P. Evaluation of changing surface water abstraction reliability for supplemental irrigation under climate change. Agric. Water Manag. 2018, 206, 200–2018. [Google Scholar] [CrossRef] [Green Version]
  19. Ananda, J.; Aheeyar, M. An evaluation of groundwater institutions in India: A property rights perspective. Environ. Dev. Sustain. 2019, 22, 5731–5749. [Google Scholar] [CrossRef]
  20. Zhao, Y.; Wang, L.; Li, H.; Zhu, Y.; Wang, Q.; Jiang, S.; Zhai, J.; Hu, P. Evaluation of Groundwater Overdraft Governance Measures in Hengshui City, China. Sustainability 2020, 12, 3564. [Google Scholar] [CrossRef]
  21. Molle, F.; Berkoff, J. Cities vs. agriculture: A review of intersectoral water re-allocation. Nat. Resour. Forum 2009, 33, 6–18. [Google Scholar] [CrossRef]
  22. Knox, J.W.; Morris, J.; Hess, T.M. Identifying future risks to UK agricultural crop production—Putting climate change in context. Outlook Agric. 2010, 39, 249–256. [Google Scholar] [CrossRef] [Green Version]
  23. Knox, J.W.; Rodriguez-Diaz, J.A.; Weatherhead, E.K.; Kay, M.G. Development of a water strategy for horticulture in England and Wales. J Hortic Sci Biotech. 2010, 85, 89–93. [Google Scholar] [CrossRef]
  24. Knox, J.; Daccache, A.; Weatherhead, K.; Groves, S.; Hulin, A. Assessing Climate and Land Use Impacts on Water Demand for Agriculture and Opportunities for Adaptation. Phase I Final Report; FFG1129; 2013. Available online: http://randd.defra.gov.uk/Document.aspx?Document=11705_DefraFFG1129_Cranfield_PhaseIFinal_05.12.13.pdf (accessed on 15 December 2020).
  25. Rey, D.; Holman, I.P.; Knox, J.W. Developing drought resilience in irrigated agriculture in the face of increasing water scarcity. Reg. Environ. Chang. 2017, 17, 1527–1540. [Google Scholar] [CrossRef] [Green Version]
  26. Knox, J.W.; Morris, J.; Weatherhead, E.K.; Turner, A.P. Mapping the financial benefits of sprinkler irrigation and potential financial impact of restrictions on abstraction. J. Environ. Manage. 2000, 58, 45–59. [Google Scholar] [CrossRef]
  27. Morris, J.; Ahodo, K.; Weatherhead, E.K.; Daccache, A.; Patel, A.; Knox, J.W. Economics of Rainfed and Irrigated Potato Production in a Humid Environment; Economics of Water Management in Agriculture, CRC Press: Boca Raton, FL, USA, 2014; pp. 71–97. [Google Scholar]
  28. Rey, D.; Holman, I.P.; Daccache, A.; Morris, J.; Weatherhead, E.K.; Knox, J.W. Modelling and mapping the economic value of supplemental irrigation in a humid climate. Agric. Water Manag. 2016, 173, 13–22. [Google Scholar] [CrossRef] [Green Version]
  29. Anglian Water, University of Cambridge. Water, Water Everywhere? Encouraging Collaborating and Building Partnerships. Institute for Sustainable Leadership, University of Cambridge, 2013. Available online: https://www.cisl.cam.ac.uk/business-action/business-nature/natural-capital-impact-group/pdfs/water-water-everywhere-scroll.pdf (accessed on 4 November 2020).
  30. Newton, A.C.; Flavell, A.J.; George, T.S.; Leat, P.; Mullholland, B.; Ramsay, L.; Revoredo-Giha, C.; Russell, J.; Steffenson, B.J.; Swanston, J.S.; et al. Crops that feed the world 4. Barley: A resilient crop? Strengths and weaknesses in the context of food security. Food Sec. 2011, 3, 141–178. [Google Scholar] [CrossRef]
  31. Wheeler, S.A.; Loch, A.; Crase, L.; Young, M.; Grafton, R.Q. Developing a water market readiness assessment framework. J. Hydrol. 2017, 552, 807–820. [Google Scholar] [CrossRef] [Green Version]
  32. Deloitte LLP. Water Trading–Scope, Benefits and Options; 2015. Available online: https://www.ofwat.gov.uk/wp-content/uploads/2015/12/rpt_com201512deloittewatertrading.pdf (accessed on 15 December 2020).
  33. Rey, D.; Pérez-Blanco, C.D.; Escriva-Bou, A.; Girard, C.; Veldkamp, T.I.E. Role of economic instruments in water allocation reform: Lessons from Europe. Int. J. Water Resour. Dev. 2019, 35, 206–239. [Google Scholar] [CrossRef] [Green Version]
  34. Deng, X.; Song, X.; Xu, Z. Transaction Costs, Modes, and Scales from Agricultural to Industrial Water Rights Trading in an Inland River Basin, Northwest China. Water 2018, 10, 1598. [Google Scholar] [CrossRef] [Green Version]
  35. Whaley, L.; Weatherhead, E.K. Competition, conflict, and compromise: Three discourses used by irrigators in England and their implications for the co-management of water resources. Water Altern. 2014, 8, 800–819. [Google Scholar]
  36. Plummer, R.; Armitage, D. A resilience-based framework for evaluating adaptive co-management: Linking ecology, economics and society in a complex world. Ecol Econ 2017, 61, 62–74. [Google Scholar] [CrossRef]
  37. Huynh, C.V.; van Scheltinga, C.T.; Pham, T.H.; Duong, N.Q.; Tran, P.T.; Nguyen, L.H.K.; Pham, T.G.; Nguyen, N.B.; Timmerman, J. Drought and conflicts at the local level: Establishing a water sharing mechanism for the summer-autumn rice production in Central Vietnam. Int. Soil Water Conserv. Res. 2019, 7, 362–375. [Google Scholar] [CrossRef]
  38. Molle, F.; Closas, A. Co-management of groundwater: A review. WIREs Water 2019, 7, e1394. [Google Scholar]
  39. Rouillard, J.; Rinaudo, J.D. From State to user-based water allocations: An empirical analysis of institutions developed by agricultural user associations in France. Agric. Water Manag. 2020, 239, 0378–3774. [Google Scholar] [CrossRef]
  40. Salmoral, G.; Rey, D.; Rudd, A.; de Margon, P.; Holman, I. A probabilistic risk assessment of the national economic impacts of regulatory drought management on irrigated agriculture. Earths Future 2019, 7, 178–196. [Google Scholar] [CrossRef] [Green Version]
  41. Hess, T.M.; Knox, J.W.; Kay, M.G.; Weatherhead, E.K. Managing the Water Footprint of Irrigated Food Production in England and Wales. In Issues in Environmental Science and Technology 31: Sustainable Water; Hester, R.E., Harrison, R.M., Eds.; The Royal Society of Chemistry: London, UK, 2010; p. 185. ISBN 9781849730198. [Google Scholar]
  42. Hess, T.; Knox, J.W.; Kay, M.; Weatherhead, E.K. Managing the water footprint of irrigated food production in England and Wales. Issues Environ. Sci. Technol. 2011, 31, 78–92. [Google Scholar]
  43. Weatherhead, E.K.; Knox, J.W.; Hess, T.M.; Daccache, A. Exploring irrigation futures—Developments in demand forecasting. Outlook Agr. 2015, 44, 119–126. [Google Scholar] [CrossRef]
  44. National River Flow Archive (NRFA). 2020. Available online: https://nrfa.ceh.ac.uk/data/station/spatial/33004. (accessed on 16 December 2020).
  45. Tanguy, M.; Dixon, H.; Prosdocimi, I.; Morris, D.G.; Keller, V.D.J. Gridded Estimates of Daily and Monthly Areal Rainfall for the United Kingdom (1890–2015) [CEH-GEAR]; NERC Environmental Information Data Centre, 2016; Available online: https://catalogue.ceh.ac.uk/documents/33604ea0-c238-4488-813d-0ad9ab7c51ca (accessed on 1 November 2020).
  46. Allen, D.J.; Brewerton, L.J.; Coleby, L.M.; Gibbs, B.R.; Lewis, M.A.; MacDonald, A.M.; Wagstaff, S.J.; Williams, A.T. The Physical Properties of Major Aquifers in England and Wales; British Geological Survey Technical Report WD/97/34; Environment Agency R&D Publication 8, 1997; p. 312. Available online: http://nora.nerc.ac.uk/id/eprint/13137/1/WD97034.pdf (accessed on 1 November 2020).
  47. Rowland, C.S.; Morton, R.D.; Carrasco, L.; McShane, G.; O’Neil, A.W.; Wood, C.M. Land Cover Map 2015 (25m Raster, GB); NERC Environmental Information Data Centre, 2017. Available online: https://doi.org/10.5285/bb15e200-9349-403c-bda9-b430093807c7 (accessed on 10 October 2020).
  48. Soil survey of England and Wales (SSEW). Soils and Their Use in Midland and Western England; Lawes Agricultural Trust: Harpenden, UK, 1984. [Google Scholar]
  49. Environment Agency (EA). Water Resources Priority Catchments; 2020. Available online: https://consult.environment-agency.gov.uk/water-resources/water-resources-priority-catchments/ (accessed on 30 March 2020).
  50. Morris, J.; Weatherhead, E.K.; Mills, J.; Dunderdale, J.A.L.; Hess, T.M.; Gowing, D.J.G.; Sanders, C.; Knox, J.W. Spray Irrigation Cost Benefit Study; Final Report; Cranfield University: Bedford, UK, 1997. [Google Scholar]
  51. Kendon, M.; McCarthy, M.; Jevrejeva, S.; Matthews, A.; Legg, T. State of the UK climate 2018. Int. J. Climatol. 2019, 39, 1–55. [Google Scholar] [CrossRef] [Green Version]
  52. Haro-Monteagudo, D.; Knox, J.W.; Holman, I.P. D-Risk: A decision-support webtool for improving drought risk management in irrigated agriculture. Comput. Electron. Agric. 2019, 162, 855–858. [Google Scholar] [CrossRef]
  53. Guillod, B.P.; Jones, R.G.; Bowery, A.; Haustein, K.; Massey, N.R.; Mitchell, D.M.; Otto, F.E.L.; SparrowiD, S.; Uhe, P.; Wallom, D.C.H.; et al. weather@home 2: Validation of an improved global–regional climate modelling system. Geosci. Model Dev. 2017, 10, 1849–1872. [Google Scholar] [CrossRef] [Green Version]
  54. Guillod, B.P.; Jones, R.G.; Dadson, S.; Coxon, G.; Bussi, G.; Freer, J.; Kay, A.; Massey, N.R.; SparrowiD, S.; Wallom, D.C.H.; et al. A large set of potential past, present and future hydro-meteorological time series for the UK. Hydrol. Earth Syst. Sci. 2018, 22, 1–39. [Google Scholar] [CrossRef] [Green Version]
  55. Knox, J.W.; Weatherhead, E.K.; Bradley, R.I. Mapping the total volumetric irrigation water requirements in England and Wales. Agric. Water Manag. 1997, 33, 1–19. [Google Scholar] [CrossRef]
  56. Rees, B.; Cessford, F.; Connelly, R.; Cowan, J.; Bowell, R.; Weatherhead, E.K.; Knox, J.W.; Twite, C.L.; Morris, J. Optimum Use of Water for Industry and Agriculture: Phase 3–Best Practice Manual; Environment Agency: Bristol, UK, 2003. [Google Scholar]
  57. Coxon, G.; Freer, J.; Lane, R.; Dunne, T.; Knoben, W.J.M.; Howden, N.J.K.; Woods, R. DECIPHeR v1: Dynamic fluxEs and ConnectIvity for Predictions of HydRology. Geosci. Model Dev. 2019, 12, 2285–2306. [Google Scholar] [CrossRef] [Green Version]
  58. Keller, V.D.J.; Tanguy, M.; Prosdocimi, I.; Terry, J.A.; Hitt, O.; Cole, S.J.; Fry, M.; Morris, D.G.; Dixon, H. CEH-GEAR: 1 km resolution daily and monthly areal rainfall estimates for the UK for hydrological and other applications. Earth Syst. Sci. Data 2015, 7, 143–155. [Google Scholar] [CrossRef] [Green Version]
  59. Robinson, E.L.; Blyth, E.; Clark, D.B.; Comyn-Platt, E.; Finch, J.; Rudd, A.C. Climate Hydrology and Ecology Research Support System Potential Evapotranspiration Dataset for Great Britain (1961–2015) [CHESS-PE]; NERC Environmental Information Data Centre: Lancaster, UK, 2016. [Google Scholar] [CrossRef]
  60. Grafton, R.Q. Policy review of water reform in the Murray–Darling Basin, Australia: The “do’s” and“do’nots”. Aust. J. Agric. Econ. 2019, 63, 16–141. [Google Scholar] [CrossRef]
  61. Kiem, A.S. Drought and water policy in Australia: Challenges for the future illustrated by the issues associated with water trading and climate change adaptation in the Murray–Darling Basin. Glob. Environ. Chang. 2013, 23, 1615–1626. [Google Scholar] [CrossRef] [Green Version]
  62. Rey, D. Water option contracts for reducing water supply risks. Outlook Agric 2015, 44, 5–9. [Google Scholar] [CrossRef] [Green Version]
  63. Rey, D.; Garrido, A.; Calatrava, J. Comparison of different water supply risk management tools for irrigators: Option contracts and insurance. Environ. Resour. Econ. 2015, 65, 415–439. [Google Scholar] [CrossRef] [Green Version]
  64. Westwood, C.G.; Teeuw, R.M.; Wade, P.M.; Holmes, N.T.H.; Guyard, P. Influences of environmental conditions on macrophyte communities in drought-affected headwater streams. River Res. Applic. 2006, 22, 703–726. [Google Scholar] [CrossRef]
  65. James, A.B.W.; Dewson, Z.S.; Death, R.G. The effect of experimental flow reductions on macroinvertebrate drift in natural and streamside channels. River. Res. Applic. 2007, 24, 22–35. [Google Scholar] [CrossRef]
  66. Poff, N.L.; Zimmerman, J.K.H. Ecological responses to altered flow regimes: A literature review to inform the science and management of environmental flows. Freshw. Biol. 2010, 55, 194–205. [Google Scholar] [CrossRef]
  67. Webb, J.A.; Miller, K.A.; King, E.L.; Little, S.C.; Stewardson, M.J.; Zimmerman, J.K.H.; Poff, N.L. Squeezing the most out of existing literature: A systematic re-analysis of published evidence on ecological responses to altered flows. Freshw. Biol. 2013, 58, 2439–2451. [Google Scholar] [CrossRef]
  68. Sabater, S.; Bregoli, F.; Acuña, V.; Barceló, D.; Elosegi, A.; Ginebreda, A.; Marcé, R.; Muñoz, I.; Sabater-Liesa, L.; Ferreira, V. Effects of human-driven water stress on river ecosystems: A meta-analysis. Sci. Rep. 2018, 8, 1–11. [Google Scholar] [CrossRef]
  69. Piniewski, M.; Prudhomme, C.; Acreman, M.C.; Tylec, L.; Oglęcki, P.; Okruszko, T. Responses of fish and invertebrates to floods and droughts in Europe. Ecohydrol. 2016, 10, e1793. [Google Scholar] [CrossRef] [Green Version]
  70. Lake, P.S. Drought and Aquatic Ecosystems: Effects and Responses; Wiley-Blackwell: Oxford, UK, 2011; p. 400. [Google Scholar]
  71. Wright, J.F.; Gunn, R.J.M.; Winder, J.M.; Wiggers, R.; Vowles, K.; Clarke, R.T.; Harris, I. A comparison of the macrophyte cover and macroinvertebrate fauna at three sites on the River Kennet in the mid 1970s and late 1990s. Sci. Total. Environ. 2002, 283, 121–142. [Google Scholar] [CrossRef]
  72. Wood, P.J.; Petts, G.E. The influence of drought on chalk stream macroinvertebrates. Hydrol. Process. 1999, 13, 387–399. [Google Scholar] [CrossRef]
  73. Elliott, J.M.; Hurley, M.; Elliott, J.A. Variable Effects of Droughts on the Density of a Sea-Trout Salmo trutta Population Over 30 Years. J. Appl. Ecol. 1997, 34, 1229–1238. [Google Scholar] [CrossRef]
  74. Leathes, W.; Knox, J.W.; Kay, M.G.; Trawick, P.; Rodriguez-Diaz, J.A. Developing UK farmers’ institutional capacity to defend their water rights and effectively manage limited water resources. Irrig. Drain. 2008, 57, 322–331. [Google Scholar] [CrossRef]
Sustainability 13 01456 g001 550

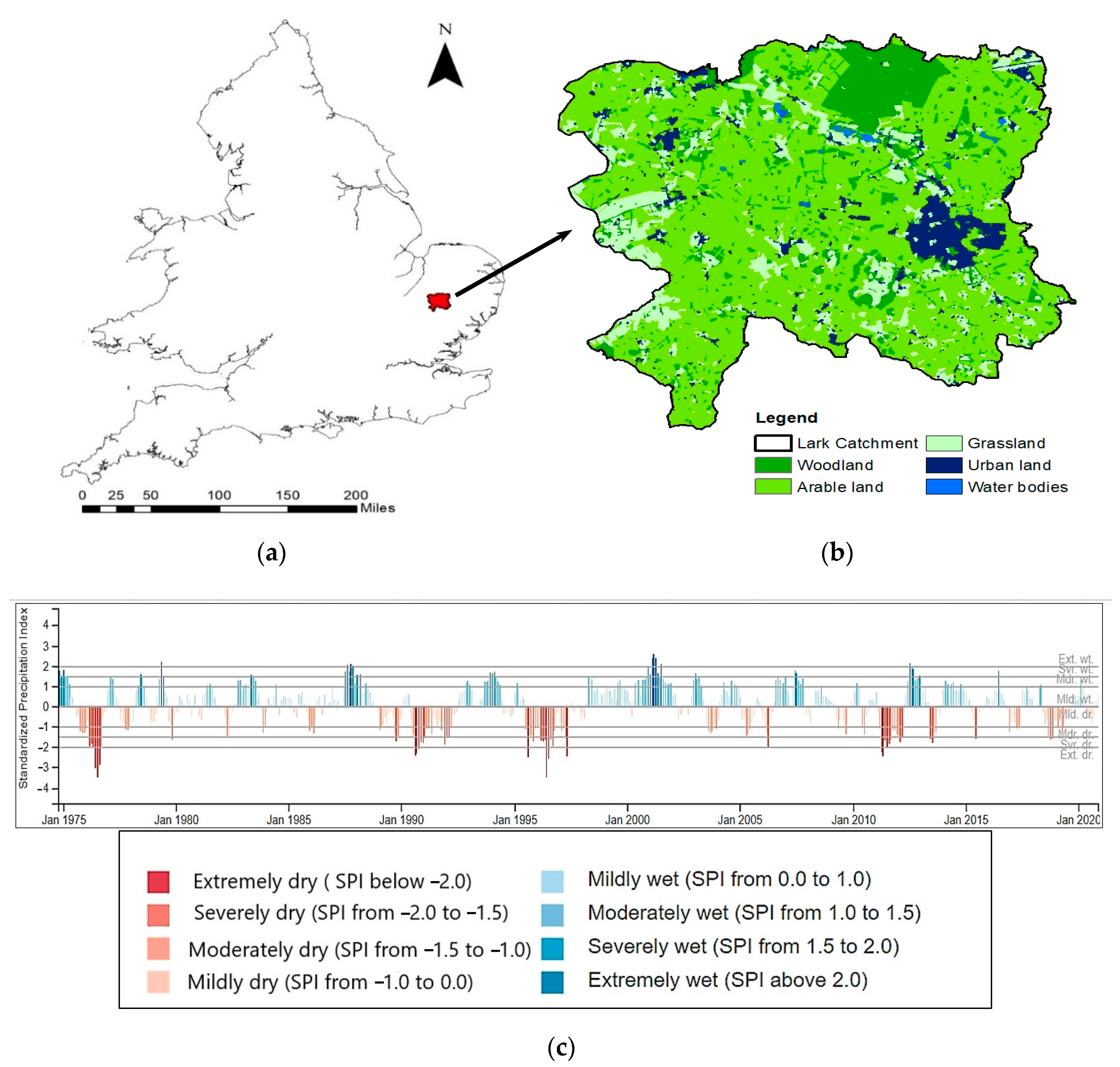

Figure 1. General overview of the study area including national location (a), land cover map of Lark catchment for 2015 [47] (b) and Standardised Precipitation Index (SPI) period of 6 months from the UK Drought Portal (c).
Figure 1. General overview of the study area including national location (a), land cover map of Lark catchment for 2015 [47] (b) and Standardised Precipitation Index (SPI) period of 6 months from the UK Drought Portal (c).
Sustainability 13 01456 g001
Sustainability 13 01456 g002 550

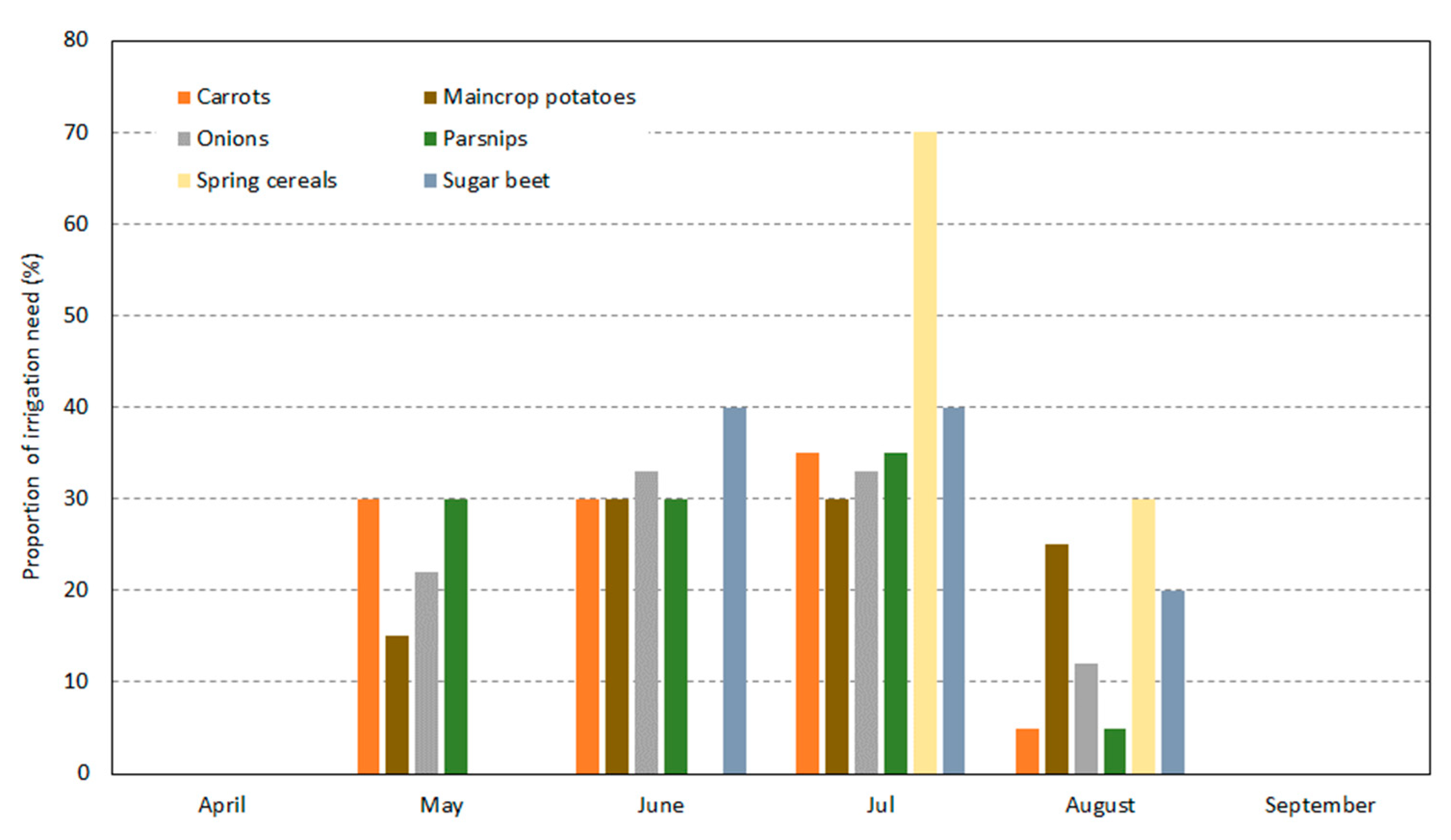

Figure 2. Typical monthly distribution of annual supplemental irrigation need (%) of major irrigated crops in the study area (based on Morris et al. [50]).
Figure 2. Typical monthly distribution of annual supplemental irrigation need (%) of major irrigated crops in the study area (based on Morris et al. [50]).
Sustainability 13 01456 g002
Sustainability 13 01456 g003 550

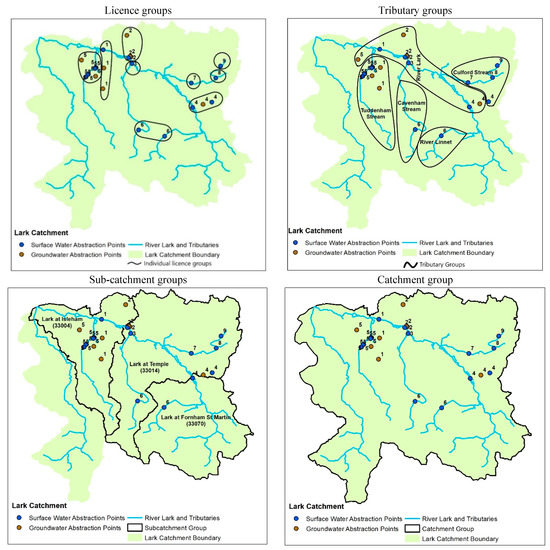

Figure 3. Water-sharing groups at different spatial scales with abstraction locations for each business.
Figure 3. Water-sharing groups at different spatial scales with abstraction locations for each business.
Sustainability 13 01456 g003
Sustainability 13 01456 g004 550

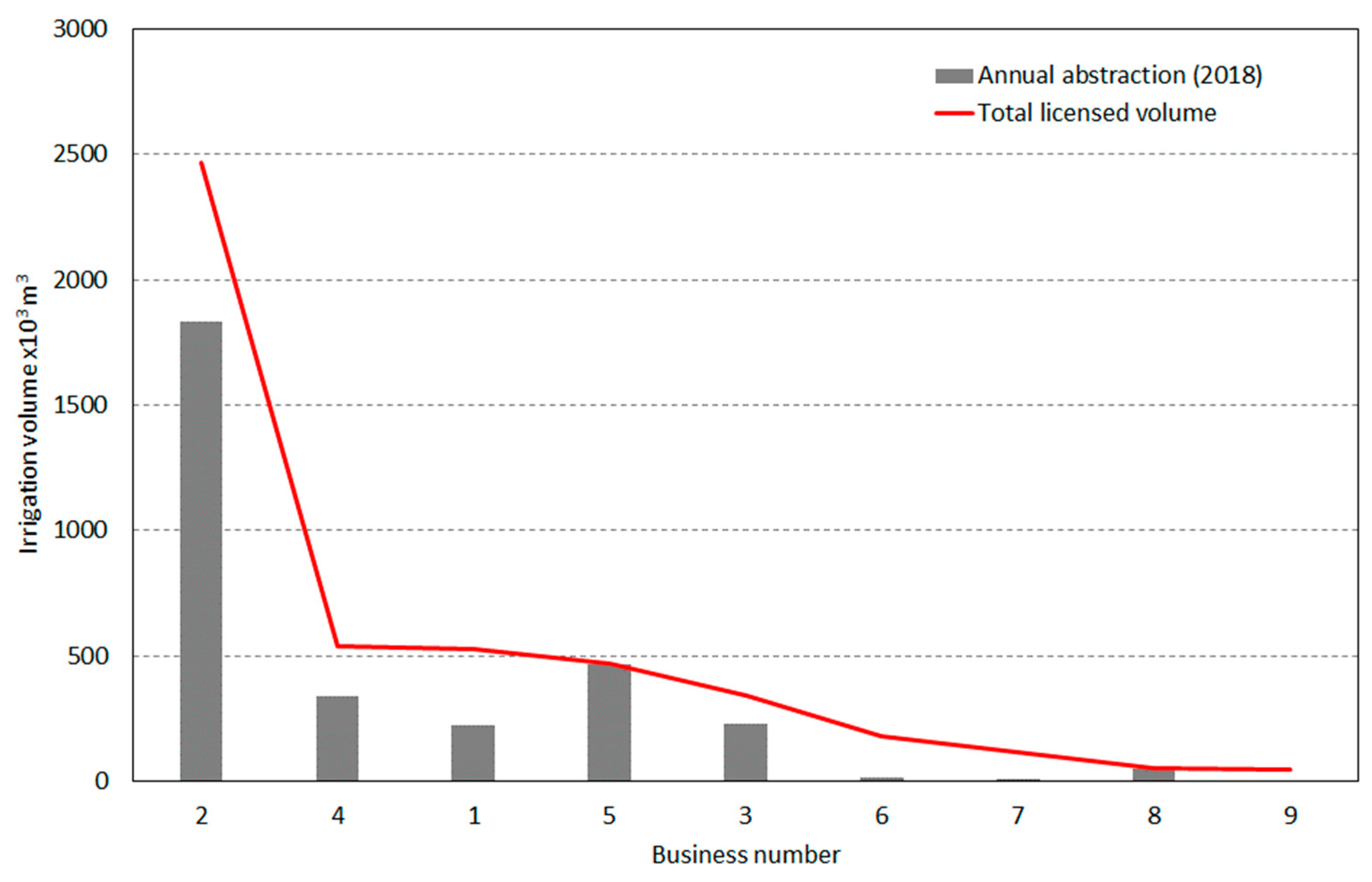

Figure 4. Ranked licensed annual abstraction volume (×103 m3) compared to actual 2018 abstraction across the nine farm businesses in the Lark catchment.
Figure 4. Ranked licensed annual abstraction volume (×103 m3) compared to actual 2018 abstraction across the nine farm businesses in the Lark catchment.
Sustainability 13 01456 g004
Sustainability 13 01456 g005 550
Figure 5. Annual probability distribution of aggregated irrigation deficits ‘with’ and ‘without’ simulated river-flow based abstraction restrictions for different scale of water-sharing groups within the Lark catchment.
Figure 5. Annual probability distribution of aggregated irrigation deficits ‘with’ and ‘without’ simulated river-flow based abstraction restrictions for different scale of water-sharing groups within the Lark catchment.
Sustainability 13 01456 g005
Sustainability 13 01456 g006 550
Figure 6. Variations in the volume of abstraction for different water-sharing groups.
Figure 6. Variations in the volume of abstraction for different water-sharing groups.
Sustainability 13 01456 g006
Table
Table 1. Data collected and used to run drought impact simulations for different water-sharing groups.
Table 1. Data collected and used to run drought impact simulations for different water-sharing groups.
Business No.Irrigated Crop TypeSoil AWC *Planting MonthIrrigated Area (ha)Licence No.Tributary GroupSub-Catchment GroupSource/Purpose **Annual Licensed Volume (m3)Daily Limit (m3)Abstraction PeriodEq. HOF (L/Sec)Reservoir Storage (×103 m3)
1Maincrop
potatoes		LowApril68L1
L2		River Lark
Tuddenham		Isleham
Isleham		SW-S
GW-D		231,285
295,545		2569
6818		1/11–31/3
1/3–31/10		510
-		350
OnionsLowMarch50
ParsnipsLowFeb68
2Maincrop
potatoes		LowMarch364L1
L2
L3		River Lark
River Lark
River Lark		Temple
Temple
Isleham		SW-D
GW-S
GW-S		90,922
945,600
1,432,000		1592
872
622,616		1/4–31/8
1/4–31/3
1/4–31/3		-
-
-		740
Maincrop
potatoes		MedMarch156
OnionsLowMarch516
CarrotsLowMay252
ParsnipsMedApril149
3OnionsLowMarch72L1River LarkTempleSW-S340,95028511/11–31/3490330
ParsnipsLowApril78
Maincrop
potatoes		LowMarch54
4Maincrop
potatoes		MedMarch80L1
L2
L3		Culford
River Lark
River Lark		Temple Fornham TempleSW-S
SW-S
GW-D		154,54
6154,54
6230,000		4000
2592
3637		1/11–31/3
1/11–31/03
1/04–31/03		-
120
-		150
OnionsMedMarch45
Sugar beetMedApril15
5Spring
cereals		MedMarch38L1
L2
L3
L4		Tuddenham
Tuddenham
Tuddenham
Tuddenham		Isleham
Isleham
Isleham
Isleham		SW-S
SW-S
GW-D
GW-D		230,000
127,200
80,000
33,000		3264
3437
1137
941		1/11–31/3
1/4–31/10
1/4–31/10
1/4–31/10		821
1917
-
-		409.15
Spring
cereals		MedSept92
Sugar beetMedMarch78
OnionsMedApril21
CarrotsMedApril72
Maincrop
potatoes		LowApril92
6Sugar beetMedMarch26L1
L2		Cavenham
River Linnet		Temple FornhamSW-S
SW-S		90,909
90,909		1300
1300		1/11–31/3
1/11–31/3		404
-		91
Maincrop
potatoes		MedApril24
Maincrop
potatoes		LowApril10
7Maincrop
potatoes		LowApril23L1CulfordTempleSW-S113,6368801/11–31/3151093
Sugar beetLowMarch81
8Maincrop
potatoes		LowMarch9L1CulfordTempleSW-D55,5989821/4–30/9-0
9Maincrop
potatoes		LowMarch62L1CulfordTempleSW-D45,5009551/5–30/9 0
* Available Water Capacity ** SW-D: Surface water direct, SW-S: Surface water storage, GW-D: Groundwater: direct, GW-S: Groundwater storage.
Table
Table 2. Gridded matrix of the relationship between the irrigation deficit and headroom for individual businesses in a ‘design’ dry year and for different scales of water sharing. Colour of the cells indicates the risk levels from highest (dark red) to lowest (dark green) risk.
Table 2. Gridded matrix of the relationship between the irrigation deficit and headroom for individual businesses in a ‘design’ dry year and for different scales of water sharing. Colour of the cells indicates the risk levels from highest (dark red) to lowest (dark green) risk.
Water Sharing CategoryZero DeficitLow Deficit (0–25%)Medium Deficit (25–50%)High Deficit (>50%)
Licence groups
High headroom (50–100%)8
Medium headroom (25–50%)4627
Low headroom (0–25%)1,5 3,9
Tributary groups
High headroom (50–100%)
Medium headroom (25–50%) 6
Low headroom (0–25%)1,2,3,4,57,8,9
Sub-catchment groups
High headroom (50–100%)
Medium headroom (25–50%) 4,6
Low headroom (0–25%)1,2,3,5,7,8,9
Catchment groups
High headroom (50–100%)
Medium headroom (25–50%)
Low headroom (0–25%)1,2,3,4,5,6,7,8,9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chengot, R.; Knox, J.W.; Holman, I.P. Evaluating the Feasibility of Water Sharing as a Drought Risk Management Tool for Irrigated Agriculture. Sustainability 2021, 13, 1456. https://doi.org/10.3390/su13031456

AMA Style

Chengot R, Knox JW, Holman IP. Evaluating the Feasibility of Water Sharing as a Drought Risk Management Tool for Irrigated Agriculture. Sustainability. 2021; 13(3):1456. https://doi.org/10.3390/su13031456

Chicago/Turabian Style

Chengot, Rishma, Jerry W. Knox, and Ian P. Holman. 2021. "Evaluating the Feasibility of Water Sharing as a Drought Risk Management Tool for Irrigated Agriculture" Sustainability 13, no. 3: 1456. https://doi.org/10.3390/su13031456

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
