Assessing the Performance of Environmentally Friendly-Produced Zerovalent Iron Nanoparticles to Remove Pharmaceuticals from Water

by
Iliana Panagou
1,*,
Constantinos Noutsopoulos
1,
Christiana Mystrioti
2,
Evridiki Barka
1,
Elena Koumaki
1,
Maria Kalli
1,
Simos Malamis
1,
Nymphodora Papassiopi
2 and
Daniel Mamais
1
1
Sanitary Engineering Laboratory, Department of Water Resources and Environmental Engineering, School of Civil Engineering, National Technical University of Athens, 15780 Athens, Greece
2
School of Mining and Metallurgical Engineering, National Technical University of Athens, 15780 Athens, Greece
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(22), 12708; https://doi.org/10.3390/su132212708
Submission received: 15 October 2021 / Revised: 12 November 2021 / Accepted: 15 November 2021 / Published: 17 November 2021
(This article belongs to the Special Issue Sustainable Reuse of Municipal Wastewater: Innovations and Challenges)
Browse Figures
Review Reports Versions Notes

Abstract

:
Nano zerovalent iron (nZVI), produced from green tea extracts, was incorporated in a cation exchange resin (R-nFe) to investigate its performance regarding the removal of four non-steroidal anti-inflammatory drugs (NSAIDs): ibuprofen (IBU), naproxen (NPX), ketoprofen (KTP) and diclofenac (DCF). The effect of contact time, NaCl pretreatment, pH, R-nFe dose, the role of the supporting material, the initial concentration of pollutants, and the combined effect of nZVI with oxidative reagents was assessed through a series of batch experiments. According to the results, the best removal efficiencies obtained for DCF and KTP were 86% and 73%, respectively, at 48 h of contact time with NaCl pretreated R-nFe at a dose of 15 g L−1 and a pH of 4. The maximum removal efficiency for NPX was 90% for a contact time of 60 min with PS 1 mM and a pH of 3, which was quite similar to the experiment with a greater contact time of 48 h without PS addition. The maximum IBU removal was 70%; this was reached at pH 3, with a contact time of 30 min and R-nFe 15 g L−1. To the authors’ best knowledge, this is the first study investigating the utilization of nZVI, produced from leaf extracts and incorporated into a cationic exchange resin, to remove NSAIDs from water.

1. Introduction

The occurrence of recalcitrant and persistent micropollutants in the environment is nowadays of major concern for the preservation of the quality of natural resources and the protection of biodiversity and human health. These micropollutants are usually referred to in the literature as “emerging contaminants” (ECs), “emerging pollutants” (EPs) or “contaminants of emerging concern” (CECs); they include a wide range of chemicals that are contained in everyday products, such as pharmaceuticals and personal care products (PPCPs), pesticides, plasticizers, illicit drugs, and others [1,2]. The main reasons for the rising concern around these substances are their increasing detection globally in receiving waters [3,4], the uncertainty about the mechanisms they can interact with, and their fate in the environment [5], along with the fact that many of these substances have been proven to have adverse effects on aquatic life and human health, even when present at trace concentration levels (ng L−1–μg L−1) [6]. It has been reported that they may affect the reproductive system of aquatic organisms and cause kidney alterations and carcinogenesis; they are also suspected of causing genetic modifications in humans [7,8,9,10]. Among the CECs, non-steroidal anti-inflammatory drugs (NSAIDs) are a vast category of chemical compounds that are used worldwide to treat inflammation, fever, and pain [11,12,13]. NSAIDs enter the environment from discrete and dispersed sources, but their entrance into water bodies occurs primarily via the discharge points of wastewater treatment plants (WWTPs) treating the municipal, hospital or pharmaceutical industry’s wastewater [6,7,14]. Their extensive consumption, along with the limited capacity of conventional WWTPs to effectively remove these emerging contaminants from wastewater [1,15,16], results in their frequent occurrence in the aquatic environment. Moreover, the expected increase in population in the coming decades creates additional pressure to find adequate, cost-effective treatment technologies for the production of reclaimed water that is free of chemicals.
During the last few decades, several methods have been investigated for removing NSAIDs from water, including adsorption techniques like activated carbon [14], electrocoagulation [17], advanced oxidation processes [18,19], ozonation [20], sonolysis [21] and other methods [22,23]. Nano zerovalent iron (nZVI) has been recently employed for the removal of a wide range of complex chemical compounds, such as trichloroethylenes (TCEs) [24,25], biphenyls [26], heavy metals [1,2,27], pesticides [3], dyes [28] and other pollutants. Its unique structure enables nZVI to react through various mechanisms (including adsorption, oxidation, precipitation and reduction) with the targeted pollutants to enable their elimination [29,30]. nZVI particles consist of a Fe0 core that is surrounded by a layer of iron oxides/hydroxides [31,32,33]. The thickness of the surrounding layer increases as the core is oxidized [28,31]. Recently, nZVI performance has also been investigated in lab experiments for the removal of various CECs, including endocrine-disrupting chemicals [34,35] and antibiotics [36,37,38], since nZVI can be employed as a source of Fe+3/Fe+2 for initiating Fenton and Fenton-like reactions in the presence of oxidative reagents.
The main advantages of nZVI are that nanoparticles have a small particle size and large specific area that maximize the available sites for reacting with target pollutants, with which they are highly reactive, thus promoting mass transfer [39,40]. Furthermore, nZVI can be synthesized via an environmentally friendly method utilizing leaf and tree extracts. Leaf extracts contain polyphenols that are capable of reducing the trivalent iron Fe+3 to Fe0 [41]. The majority of previous studies [35,42,43,44,45,46] evaluated the performance of nZVI when synthesized by the chemical reduction of iron ions using NaBH4 as a reducing agent, a costly reagent that also generates unsafe byproducts (e.g., hydrogen gas). Instead, the application of a green synthesis route for the production of nZVI particles may offer a more cost-efficient and environmentally friendly option for water treatment. Garden waste and various tree leaves can be valorized and used as polyphenol sources for the synthesis of nZVI particles. Machado et al. [47] used extracts from natural products, such as black tea leaves, grape marc, and vine leaves, in order to substitute sodium borohydride for the reduction of ferric iron to elemental iron. The extraction of polyphenols from agricultural waste is a sustainable method that can lead to high-value products, such as (i) individual pharmaceutical-grade polyphenols isolated from the complex extract by applying novel separation techniques [48], or (ii) nanomaterials synthesized by exploiting the antioxidant potential of extracted polyphenols [47,49]. The recycling and transformation of agricultural waste into added-value materials can significantly reduce the carbon footprint and environmental factors, and promote economic sustainability [48,50].
However, nanoparticles have a tendency to agglomerate [51,52], thus decreasing the beneficial effects of their size and reducing the active sites for reactions. Another problem related to the use of nZVI is the ultimate fate of those nanoparticles in the case of accidental release into the natural environment [53]. There is growing concern that nanomaterials may have serious toxic effects on several species of the aquatic and terrestrial biota. Ecotoxic effects have been reported for a wide range of engineered nanoparticles, including Ag, ZnO, TiO2 nanoparticles, carbon nanotubes, etc. [54]. Research about the ecotoxicity of iron nanoparticles is not yet conclusive [55]; however, concerns still remain and, for this reason, the direct injection of nZVI suspensions in contaminated aquifers, which appeared as a highly promising remediation technology in the early 2000s, had few large-scale applications during the last few years.
An alternative option for taking advantage of the high reactivity of nZVI and avoiding the spread of nanoparticles in the natural environment is the incorporation and fixation of nZVI in a porous matrix. Porous materials which have been used as host matrices for nZVI fixation include biochar [56], carbon nanotubes [57], zeolites [58], ion exchange resins [59], etc. In addition, supporting materials may also increase active sites for reactions with the targeted pollutants, thus having a binary beneficial effect.
In view of the above, a novel, environmentally friendly method has been employed in the present study in order to assess the performance of nZVI in terms of the removal of targeted pharmaceutical compounds from water. More specifically, nZVI produced with green tea (GT) extracts have been incorporated in a cationic exchange resin to investigate its removal efficiency regarding four NSAIDs, these being ibuprofen (IBU), diclofenac (DCF), ketoprofen (KTP) and naproxen (NPX) in batch tests.
The properties and chemical structure of the selected NSAIDs are presented in Table 1. The effect of contact time, NaCl pretreatment, pH, supporting material, the target compound’s initial concentration, the dose of the resin incorporating nZVI made with green tea extracts (denoted hereafter as R-nFe), and the addition of oxidative reagents were investigated.

2. Materials and Methods

2.1. Materials

IBU, NPX, KTP and DCF of a high purity grade (≥93%) were purchased from Sigma Aldrich (Steinheim, Germany). MCF (Meclofenamic acid sodium salt), was also purchased from Sigma Aldrich (Steinheim, Germany). Methanol (MeOH) and ethyl acetate (ETH) of high-performance liquid chromatography (HPLC) grade were purchased from Merck, and from Fluka, Neu-Ulm, Germany, respectively. Pyridine and bis(trimethylsilyl)trifluoroacetamide (BSTFA) +1% trimethylchlorosilane (TMCS) for silylation were purchased from Sigma Aldrich (Steinheim, Germany). Stock solutions of a high concentration (1000 ppm) were prepared for each targeted NSAID. The solutions were stored at −18 °C, as found in [64]. Cartridges of C18 6 mL for solid-phase extraction (SPE) were purchased from Isolute, Biotage. Ultrapure water was prepared in the laboratory using a MilliQ/Milli-RO Millipore system (Millipore, Billerica, MA, USA). Ultra-pure HCl (32%) was used for acidification of the samples (Sigma Aldrich, Steinheim, Germany). Sodium carbonate (Na2CO3) was purchased from Merck, Darmstadt, Germany, and sodium chloride (NaCl), iron chloride hexahydrate (FeCl36H2O) was purchased from Fluka, Ronkonkoma, NY, USA. The resin, Amberlyst 15 hydrogen form (H+) wet, was purchased from Sigma Aldrich (Steinheim, Germany). For the green tea extracts, a commercial product was used from Twinings of London. Hydrogen peroxide solution (H2O2), 30% (w/w) and sodium persulfate (Na2S2O8) of high reagent grade (>98%) were purchased from Honeywell and Sigma Aldrich (Steinheim, Germany).

2.2. Analytical Methods

To quantify the substances, the analytical method developed by Samaras et al. [65] was followed. This method includes pre-concentration of the acidified liquid samples (pH 2.5) to ETH solutions of 6 mL through SPE, the evaporation to dryness of the ETH solutions by nitrogen purge, and the addition of 50 μL BSTFA + 1% TMCS, along with 10 μL of pyridine, for derivatization of the targeted compounds in a bath device at 70 °C for 20 min. The analyses were performed via an Agilent gas chromatograph (7890A) connected with an Agilent mass selective detector (MSD) (5975C). MCF was used as a surrogate for the selected NSAIDs. Water characteristics were determined according to standard methods [66].

2.3. R-nFe Synthesis

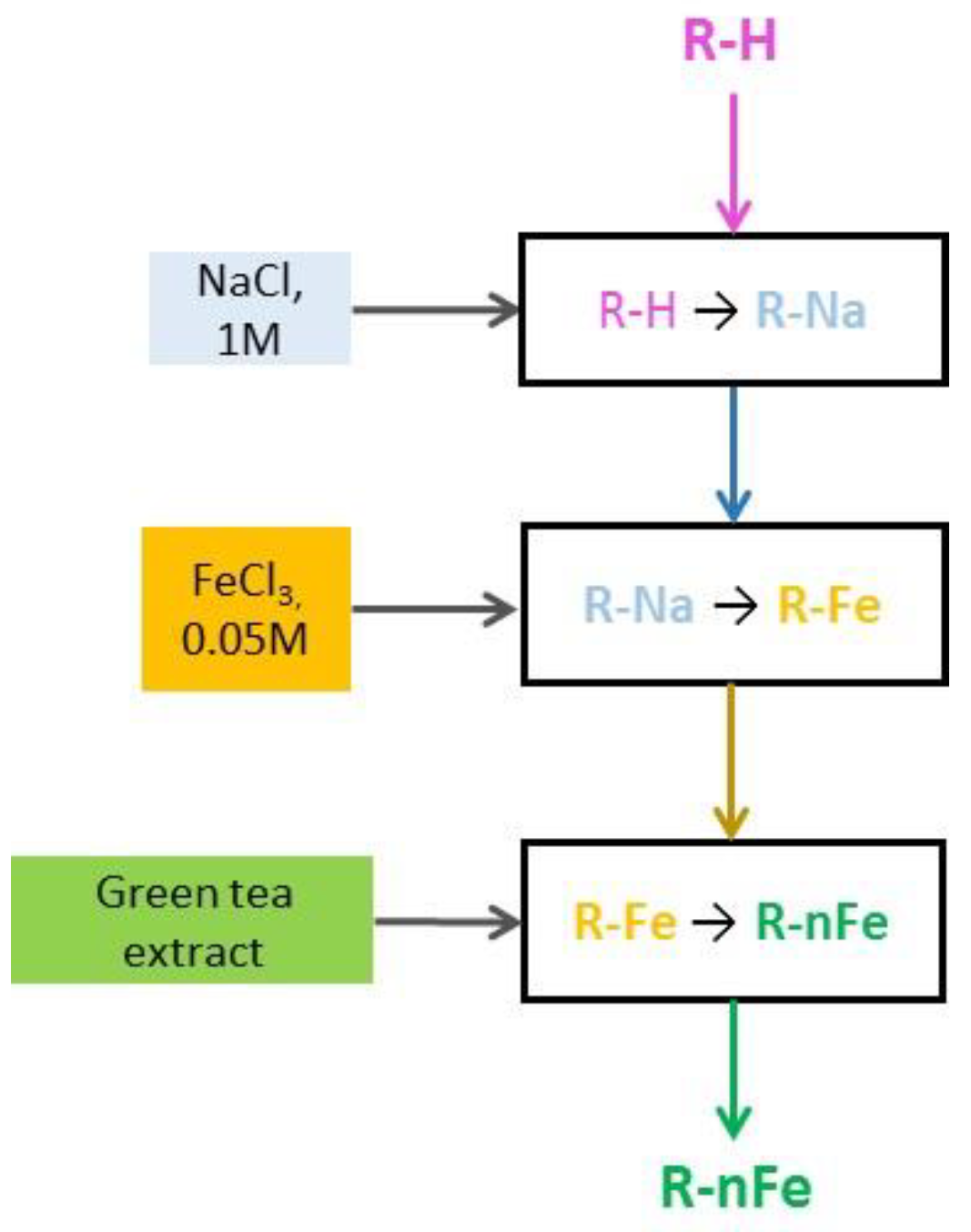

The methodology proposed by Toli et al. [49] for the synthesis of nZVI resin was followed. The main steps of the synthesis procedure are presented in Figure 1. Synoptically, the beads of the resin were treated for 2 h with NaCl 1 M solution at 200 rpm (denoted hereafter as R-Na). Then, the R-Na was agitated at 200 rpm for 4 h with FeCl3 6H2O solution at 0.05 M concentration, to allow the sodium ions (Na+) to be replaced by trivalent iron cations (Fe+3). Finally, the R-Fe was agitated for 20 h with the green tea extracts, to allow the contained polyphenols to reduce the adsorbed Fe+3 to nZVI. Then, the resin containing the nZVI (denoted hereafter as R-nFe) was ready for use.
With the applied synthesis procedure, the total amount of incorporated iron per gram of R-nFe was equal to 0.49 ± 0.01 mmol/g. Previous studies had indicated that the embedded Fe was amorphous [49,67]. To be specific, the X-ray patterns of similar R-nFe products did not contain either the characteristic peaks of elemental iron, Fe0, or any detectable peaks of Fe+3 or Fe+2 oxides. For this reason, and in order to estimate the valence state and the content of reduced Fe inside the resin beads after treatment with GT polyphenols, the following procedure was applied. The R-nFe beads were mixed with an aqueous solution containing a stoichiometric excess of Cr+6 with respect to the Fe in the resin, i.e., the molar ratio of Cr+6/nFe in the mixture was equal to 3. The mixture was agitated for 24 h at room temperature, then filtrated, and the aqueous phase was analyzed for residual Cr+6. Similar experiments were carried out as control tests, mixing samples of R-Fe (prior to GT treatment) and R-Na resin with the same Cr+6 solution. The morphology of resin beads was studied using a scanning electron microscope (SEM), JEOL6380LV. The elemental microanalysis of observed surfaces was carried out via an energy-dispersive system (EDS). The resin samples were prepared by incorporating them in a cylindrical epoxy matrix that was cut and abraded to obtain a cut section of the incorporated resin beads. Additional images of R-nFe at the nanoscale were also obtained by transmission electron microscopy (TEM) using a JEOL 2100 HR machine. The R-nFe samples, which had been incorporated in the epoxy matrix, were micro-sectioned using a Leica EM UCT ultramicrotome equipped with a diamond knife. Finally, the resulting fine slices were placed on a grid and were observed at 200 kV.

2.4. Batch Experiments

All experiments were performed in triplicate using 1 L conical glass flasks, where the targeted compounds were spiked into ultrapure water at an initial concentration of 1 μg L−1. The initial concentrations used were selected as indicative values, being in the range of concentrations reported for NSAIDs worldwide in treated wastewater (<0.001–4239 μg L−1) [7,68,69]. Ultrapure water was agitated with a mixture comprising the targeted compounds in the flask for 15 min to ensure the homogeneity of the solution. After this step, the batch experiments were performed in 1 L glass bottles, adding the desired R-nFe dose. During the experiments, the bottles were protected against sunlight, and they were placed in an agitation plate adjusted to 200 rpm. Liquid samples were collected from the supernatant at regular intervals and the pH, T, and DO were measured. The samples were then analyzed according to the aforementioned analytical protocol used by Samaras et al. [65].
To investigate the effect of NaCl pre-treatment, the R-nFe was added to the NaCl 1 M solution for 1 day at an agitation speed of 200 rpm, before being utilized in the experiments. In addition, in order to evaluate the pH effect, the following procedure was applied: (i) acidic conditions (pH = 3) were achieved by adding drops of HCl 1N solution, whereas (ii) neutral conditions (pH = 7) were established by the addition of NaHCO3. More specifically, the initial pH adjustment was implemented through the addition of NaHCO3 to the solution at a concentration of 1.5 g L−1, to increase the pH value (the resin, the nZVI, and the green tea extracts utilized for their production have a slightly acidic nature). In the experiments examining the role of the resin, the synthesis methodology for incorporating nZVI was not followed; instead, the resin was used alone, adopting only pre-treatment with NaCl, for comparison with pre-treated R-nFe. Finally, for the experiments investigating the synergistic effect of oxidative agents with nZVI, H2O2 or PS were added at the beginning of the experiments, along with the R-nFe.
Prior to the above experiments, control experiments were also performed to ensure that the targeted compounds remained stable without the addition of R-nFe. In addition, background tests with R-nFe and ultrapure water were conducted without spiking the compounds. The results indicated that the resin with incorporated nZVI did not have a negative effect on the efficiency of the removal of NPX, DCF, IBU, and KTP.

3. Results

3.1. Characterization of nZVI Material

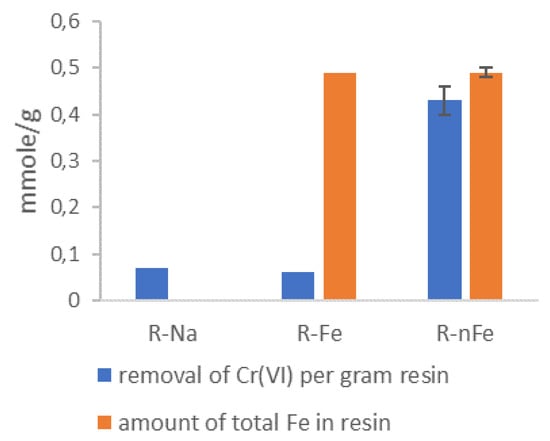

To investigate the valence state of the Fe inside the resin beads, following treatment with the GT polyphenols, representative samples of the resin corresponding to the 3 steps of the synthesis procedure, i.e., R-Na, R-Fe and R-nFe samples, were mixed with an aqueous solution containing a molar excess of Cr+3. The results are presented in Figure 2. Based on these, the amount of Cr+6 removed from the aqueous solution was close to 0.07 mmole per gram of resin, when the solution was mixed with the resin products after the first and second steps of the synthesis procedure, namely, with the sodium-form of the resin (R-Na) and the resin after the adsorption of trivalent iron (R-Fe). It is noted that the resins, R-Fe and R-Na, cannot adsorb or reduce Cr+6. The only possible removal mechanism is via simple diffusion of the chromate anion inside the pores of the resin. When the Cr+6 solution is in contact with the R-nFe resin (after treatment with GT), the amount of removed Cr+6 is equal to 0.43 mmole per gram of R-nFe. The most probable removal mechanism with R-nFe is the reduction of Cr+6 into Cr+3 by the encapsulated iron. Taking into consideration the electron donor capacity of Fe species, it is evident that zerovalent iron, Fe0, is able to reduce one mole of Cr+6 per mole of Fe0, divalent iron is able to reduce 1/3 of Cr+6 per mole of Fe+2, while Fe+3 is not able to affect the valence state of Cr+6. On the other hand, if the embedded Fe occurs in the form of Fe+3-oxides, the adsorption of Cr+6 per mole of Fe is significantly lower (in the order of 0.01 mole/mole) [70]. As seen in Figure 2, the amount of removed Cr+6 in contact with R-nFe was almost equimolar to the amount of the total Fe inside the resin. It was thus deduced that during the 3rd step of the synthesis procedure, the green tea polyphenols were able to reduce the adsorbed Fe to the elemental state at a percentage of at least 73%.

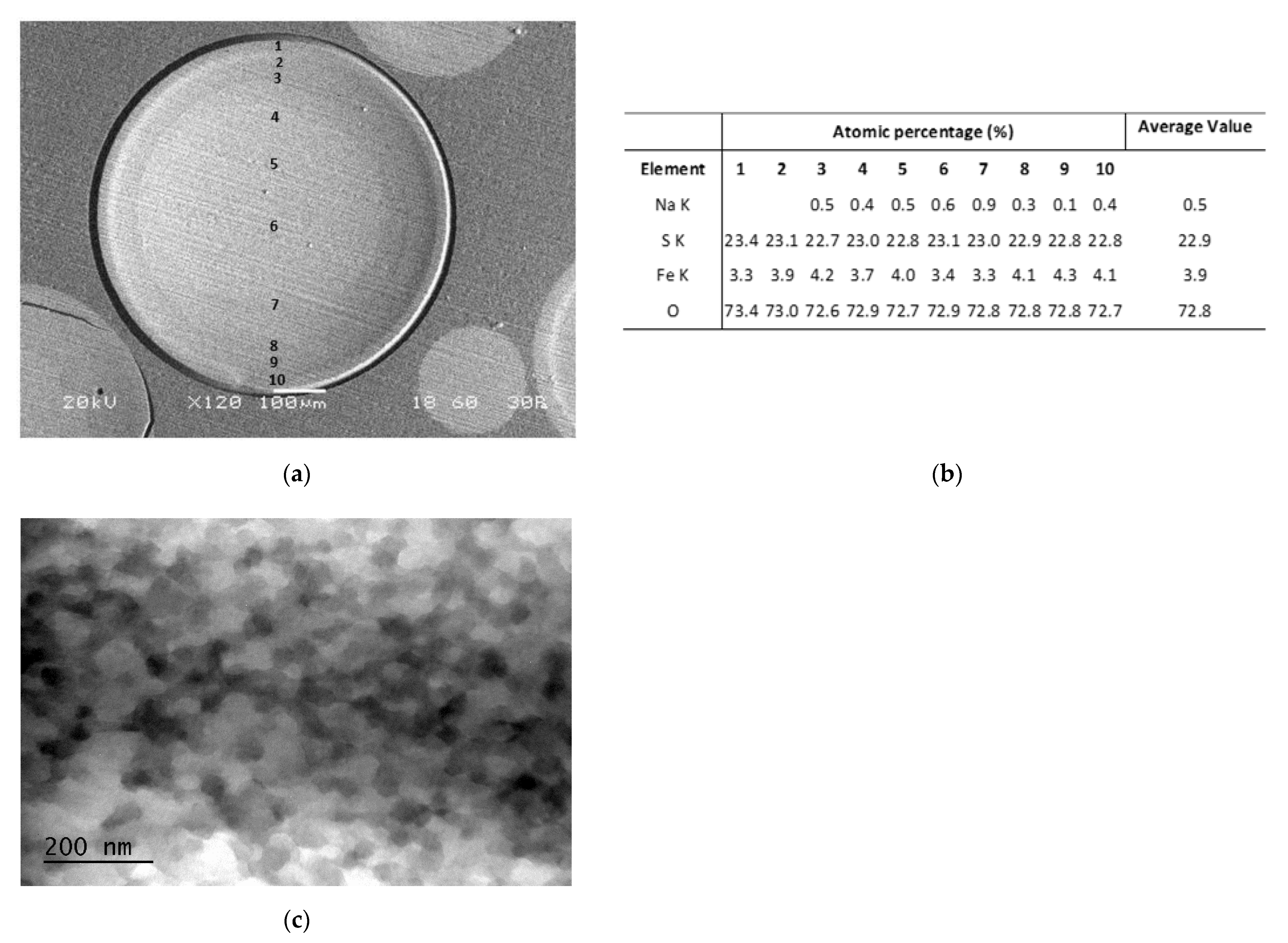

A cut section of an R-nFe bead, as observed under the SEM, is shown in Figure 3a. Iron content was uniformly distributed in the whole section, which is an indication that nano iron remains dispersed in the interior of the resin beads after the step concerning reduction with the GT extract. The EDS analyses along the diameter are given in Figure 3b. A TEM microphotograph of a micro-sectioned R-nFe bead is shown in Figure 3c. The iron nanoparticles can be observed in the dark regions, while the white and gray regions represent the support resin. Iron nanoparticles have a spherical shape and size in the order of 20–40 nm.

3.2. Effect of Contact Time

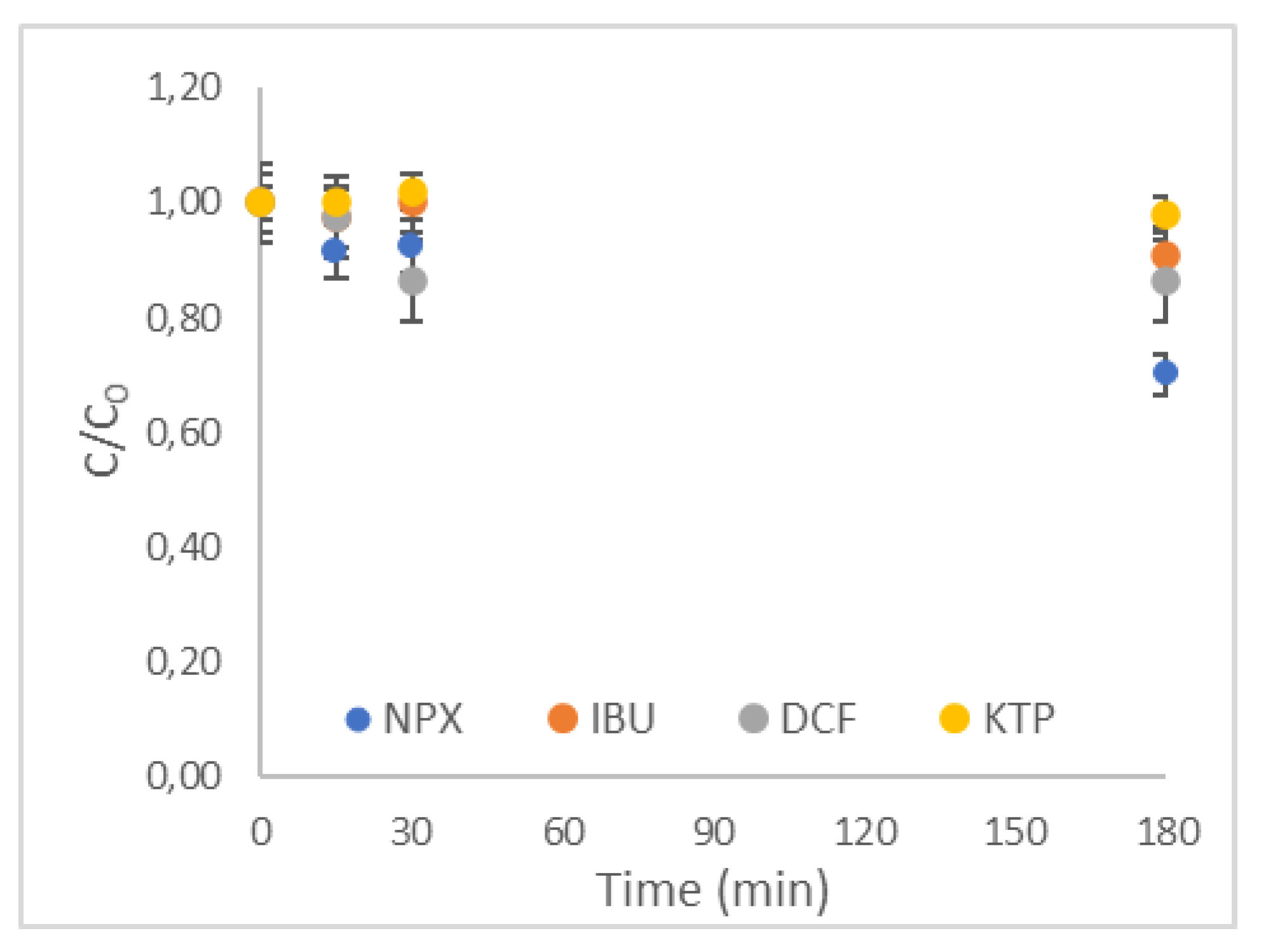

To investigate the effect of contact time, batch experiments were performed up to 180 min, spiking the targeted NSAIDs at an initial concentration of 1 μg L−1 and utilizing an R-nFe dose of 15 g L−1. Similar to other studies [71,72,73,74,75] investigating the removal of these compounds from water, a contact time of 180 min was initially selected as maximum. The results are presented in Figure 4. The error bars represent the standard error, which is equal to the standard deviation, divided by the square root of the number of samples. Generally, low removal efficiencies were obtained for the R-nFe dose of 15 g L−1 at a contact time of 180 min for all targeted compounds. More specifically, the ratios of the residual concentration at a given contact time (C) to the initial concentration of the pollutant (C0), denoted hereafter as C/C0 ratios, were equal to 70%, 87%, and 91% for NPX, DCF and IBU, respectively, whereas practically no removal was achieved for KTP. This low removal level of KTP could partially be explained by its low affinity to adsorption compared to the other target compounds, as reported in other studies [75]. However, the concentration of most targeted compounds continued to decrease in the solution after 180 min, indicating that equilibrium was not reached. Therefore, the experiments were conducted again and continued for 2 days. The results for the larger contact time are illustrated in Figure 5a–d, noted as non-pre-treated R-nFe. The maximum removal efficiencies for all compounds were observed at the contact time of 2 days, and were equal to 75% for NPX, 71% for DCF, 32% for IBU and 5% for KTP. In both short and long contact times, the removal efficiencies of targeted compounds were in a decreasing order of NPX > DCF > IBU > KTP.

3.3. Effect of NaCl Pretreatment

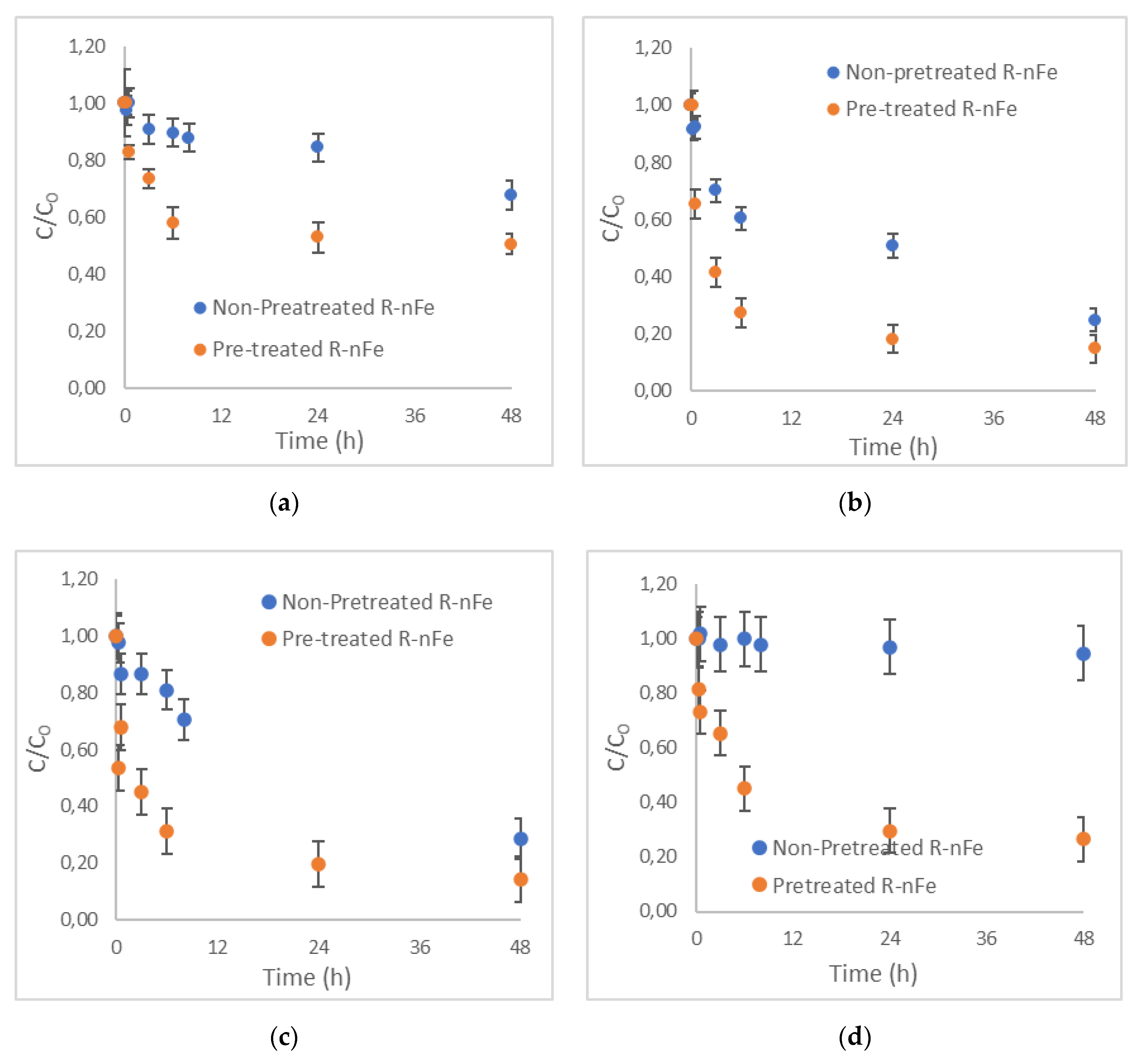

The effect of NaCl addition on the removal of the selected NSAIDs was evaluated as a pre-treatment step of R-nFe production. As illustrated in Figure 5, pretreatment with NaCl is beneficial for obtaining higher removal efficiencies for all selected NSAIDs at a given contact time. More specifically, higher removal efficiencies were observed for the longest contact time of 48 h in all cases; these were equal to 50%, 85%, 86% and 73% for IBU, NPX, DCF and KTP, respectively.
It seems that the removal rate of all selected NSAIDs during the first 15 min of the experiments was limited. Between 15 min and 6 h of contact time, a significant removal rate increase occurred; thereafter, between 6 and 48 h, only a marginal improvement is obtained. The results indicate that equilibrium can almost be reached at 24 h of contact time for most compounds, while this is not the case for the non-pre-treated R-nFe. While the target compounds’ removal during the first 15 min could be primarily attributed to adsorption mechanisms, it is anticipated that, beyond this time, other mechanisms might be important as well (e.g., oxidation). At a contact time of 6 h, the samples pretreated with NaCl R-nFe exhibited moderate removal efficiency for IBU and KTP (42% and 55%, respectively) but high removal efficiency for NPX and DCF (73% and 69%, respectively). Therefore, it appears that a contact time of 6 h would be optimal with respect to the removal of target compounds in the case of adopting NaCl pretreatment. However, from the engineering point of view, this contact time is quite high and is practically unattainable; hence, the effect of other parameters (3.4–3.8 paragraphs) was evaluated, conducting experiments with shorter contact time (30–60 min) and employing pretreatment with NaCl.

3.4. Effect of pH

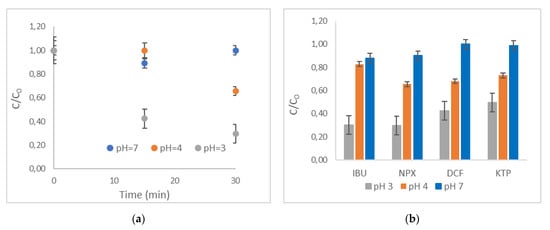

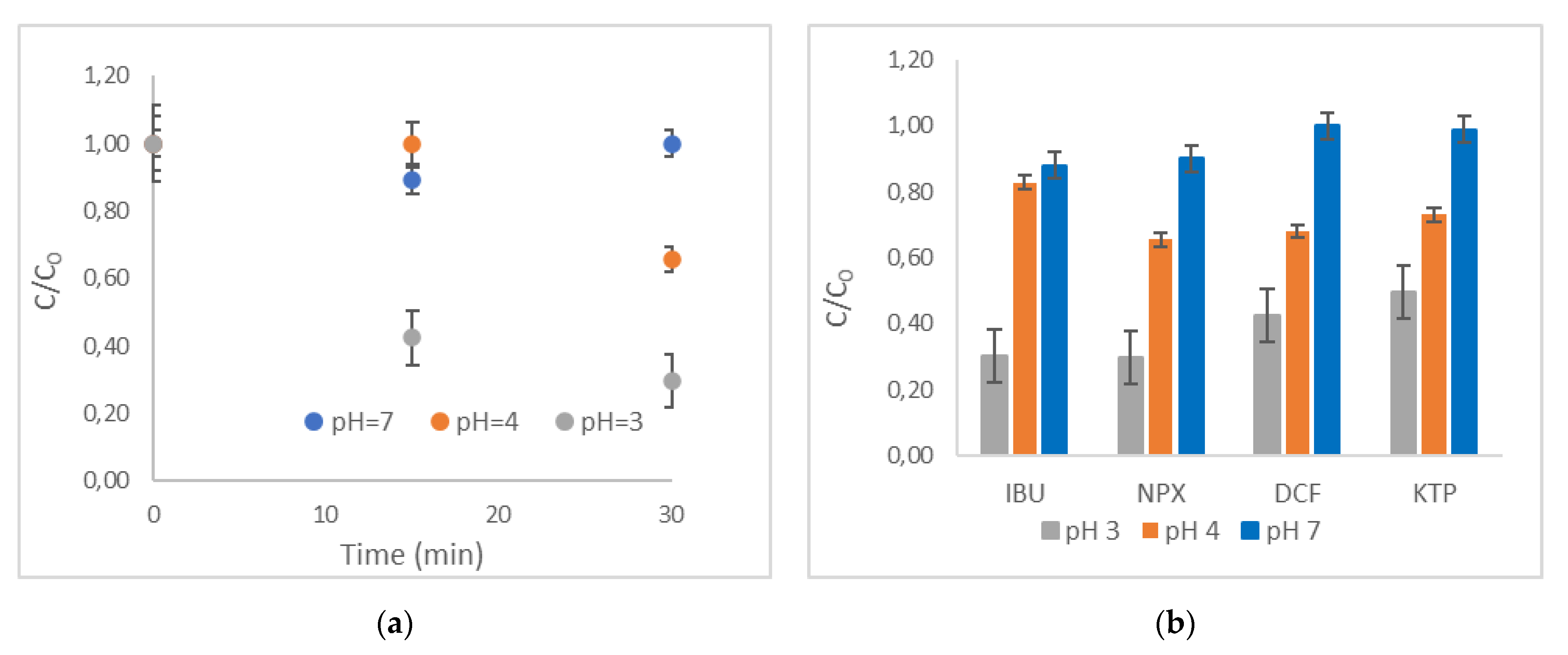

The effect of pH was investigated regarding the R-nFe dose of 15 g L−1 for the selected NSAIDs, for a contact time of 30 min. Figure 6a presents the effect of pH on NPX removal, whereas Figure 6b illustrates the ratio of C/C0 after 30 min of contact time for all targeted compounds. As illustrated in Figure 6a, the removal efficiency for NPX was maximized for the lower pH value (pH = 3), achieving a high value (70%) after 30 min, whereas in neutral conditions (pH = 7), practically no removal was observed. At the intermediate level (pH = 4), NPX was moderately efficiently removed from the liquid solution (35%). Similar results were obtained for all targeted NSAIDs (Figure 6b). The highest removal efficiencies were observed for IBU and NPX, while the removal of DCF and KTP was lower, with remaining concentrations of 42% and 50%, respectively. In neutral conditions (pH = 7), all targeted compounds were poorly removed by R-nFe.

3.5. Effect of the R-nFe Dose

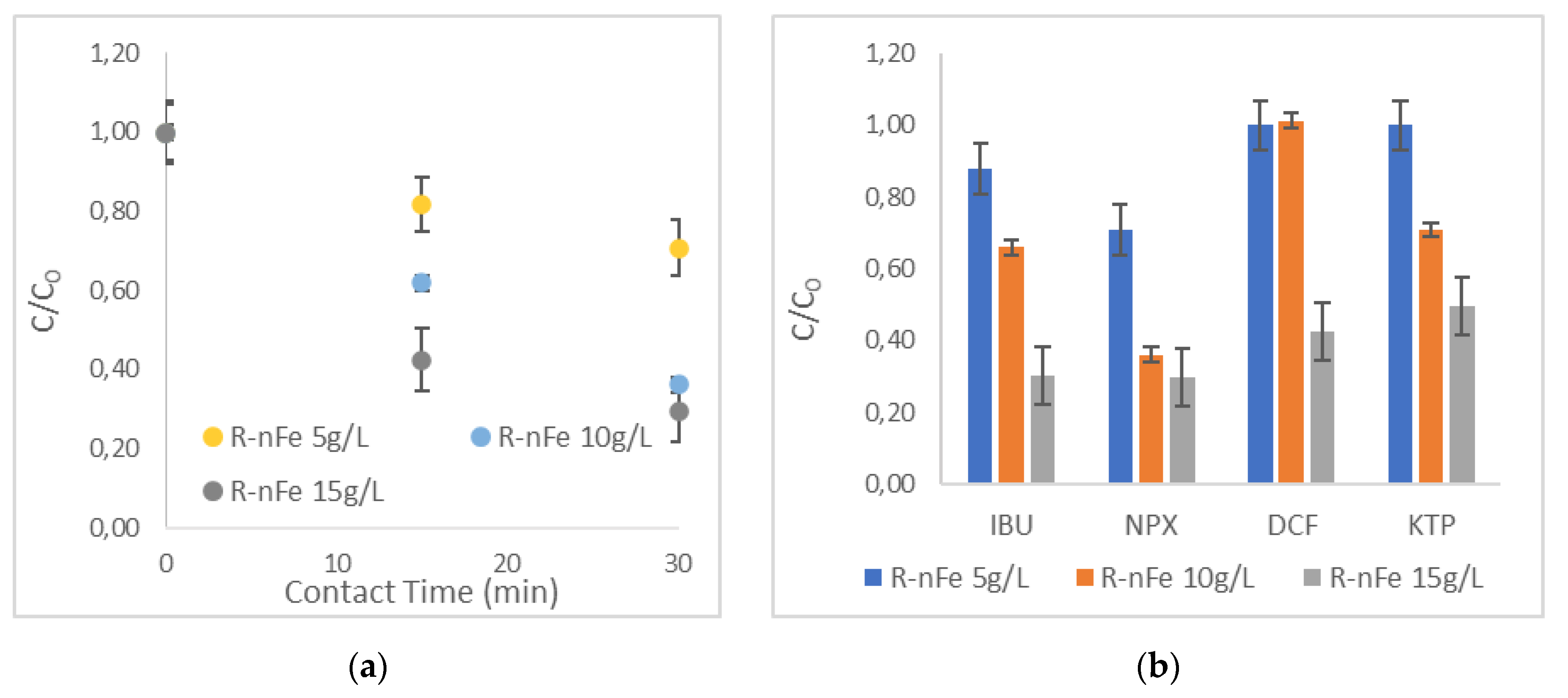

The effect of R-nFe dose was evaluated for three alternative values (5, 10 and 15 g L−1) with a pH = 3. In Figure 7a, the effect of the R-nFe dose is presented for NPX, whereas Figure 7b illustrates the ratio of C/C0, with a contact time of 30 min, for all targeted compounds at pH = 3. Based on the results, the increase in the R-nFe dose leads to improved performance, as more active sites are available for adsorption and reaction. However, in the case of NPX, the R-nFe dosing at 10 g L−1 was comparable to 15 g L−1. Evidently, no significant difference in NPX removal was obtained within 30 min, with values being very similar and around 70%. In general, for all selected NSAIDs at an initial concentration of 1 μg L−1, the R-nFe dose of 5 g L−1, was incapable of removing the compounds efficiently (<30% in all cases) within 30 min, whereas with the highest dose (R-nFe 15 g L−1), appreciable removal efficiencies were achieved. The intermediate dose displayed moderate results in all cases, even though, in the case of DCF, the performance was closer to the one with the lower dose, achieving a rather low removal efficiency, while in the case of NPX, the performance was similar to the one with the highest dose.
The mass of each pollutant that was removed per utilized mass of R-nFe used (μg g−1) varied among the selected NSAIDs. More specifically, for IBU, 0.02–0.05 μg were removed per g of R-nFe; lesser removal occurred for the lower utilized R-nFe mass (5 g), and greater removal for the higher one (R-nFe 15 g). The mass of NPX that was removed per g R-nFe was equal to 0.06 μg for both experiments, with R-nFe doses of 5 g and 10 g, respectively, whereas it was slightly lower (0.05 μg g−1) for the experiment with the R-nFe dose of 15 g. Interestingly, the removal of DCF was practically zero when the R-nFe mass was 5–10 g, and increased to 0.04 μg g−1 in the case of the R-nFe dose of 15 g. Finally, 0.03 μg of KTP was removed per g R-nFe, for doses between 10 and 15 g, while KTP could not be removed at an R-nFe dose of 5 g. All in all, the total mass of all NSAIDs removed per g of R-nFe used was 0.08 μg g−1 for an R-nFe mass equal to 5 g and increased to 0.17 μg g−1 with an increase in the mass of sorbent to 15 g. Based on these findings, the following experiments (Section 3.6, Section 3.7 and Section 3.8) were performed, adopting an R-nFe dose of 15 g L−1.

3.6. The Effect of the Resin (R-Na)

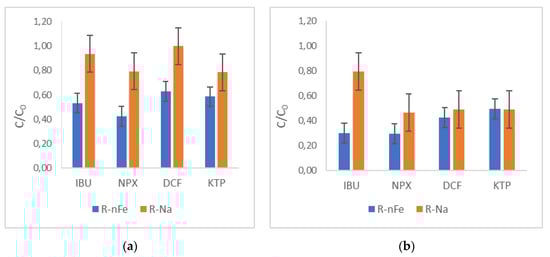

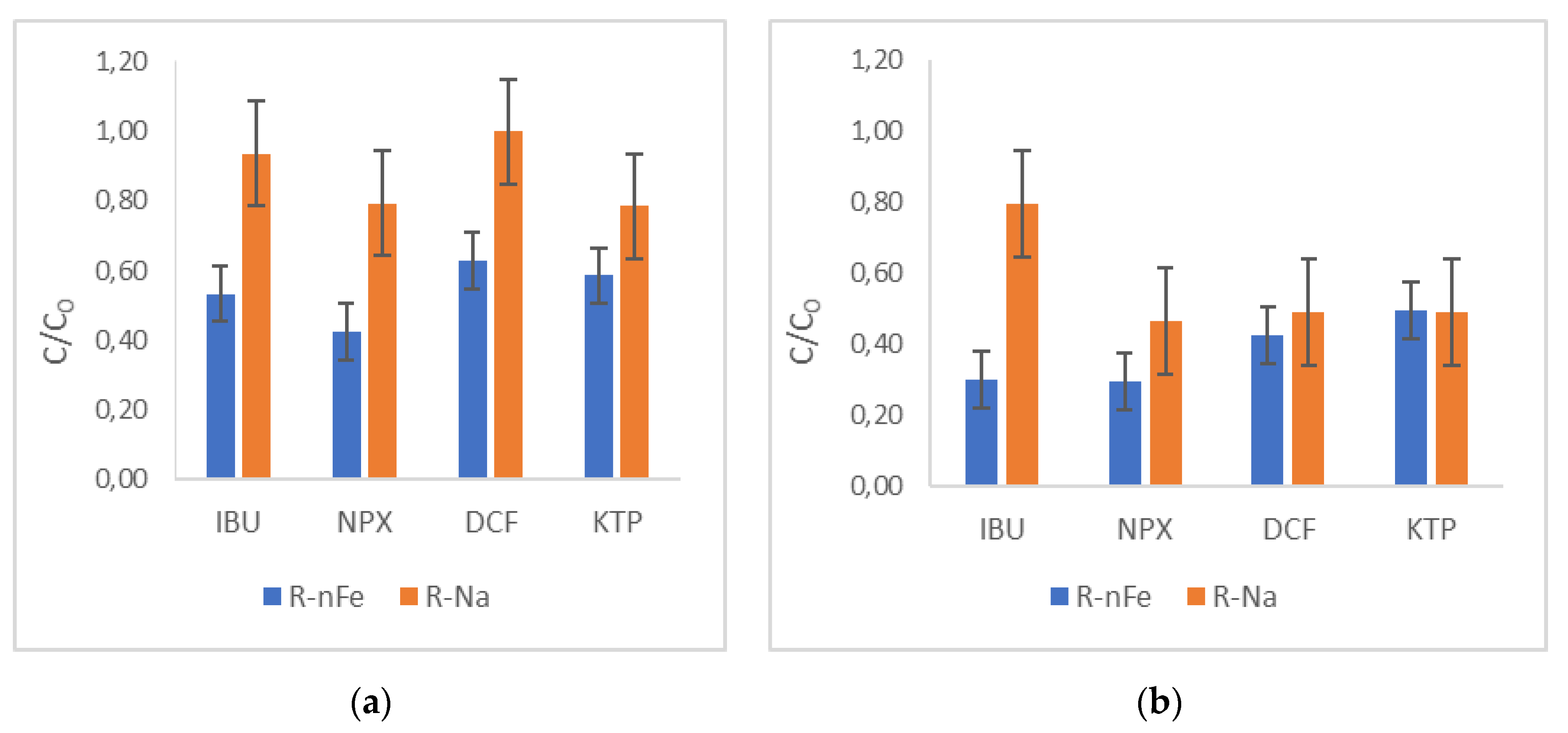

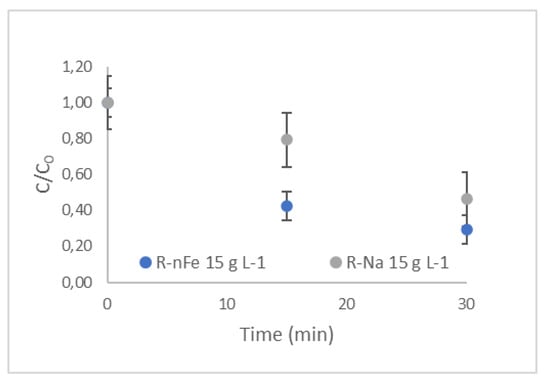

The effect of the supporting material was investigated for all selected NSAIDs without the addition of nZVI. As illustrated in Figure 8 for NPX, the resin plays an important role in the removal of this compound, achieving approximately 50% within 30 min of contact time. This effect is rather significant, as the NPX removal obtained for R-nFe is only slightly higher (70%). At the shorter contact time of 15 min, the beneficial effect of nZVI incorporation into the resin was more profound (the difference in removal efficiency of NPX using R-nFe and R-Na was approximately 37%). For the other target compounds (Figure 9a), the removal efficiencies achieved with R-nFe after 15 min were 47% for IBU, 37% for DCF, and 41% for KTP. At the higher contact time of 30 min, R-nFe displayed better results for NPX and IBU, while this was not the case for DCF and KTP (Figure 9b), where practically similar results were obtained (moderate removal efficiencies for R-nFe and R-Na, equal to 58% and 51% in the case of DCF, and 50% and 51% in the case of KTP, respectively). Furthermore, as illustrated in Figure 9a,b, the retention time exerted a significant effect on R-Na removal efficiency, as the NSAID removal obtained within 15 min ranged between 10 and 25%, whereas those obtained after 30 min were almost doubled.

3.7. Effect of Initial Concentration

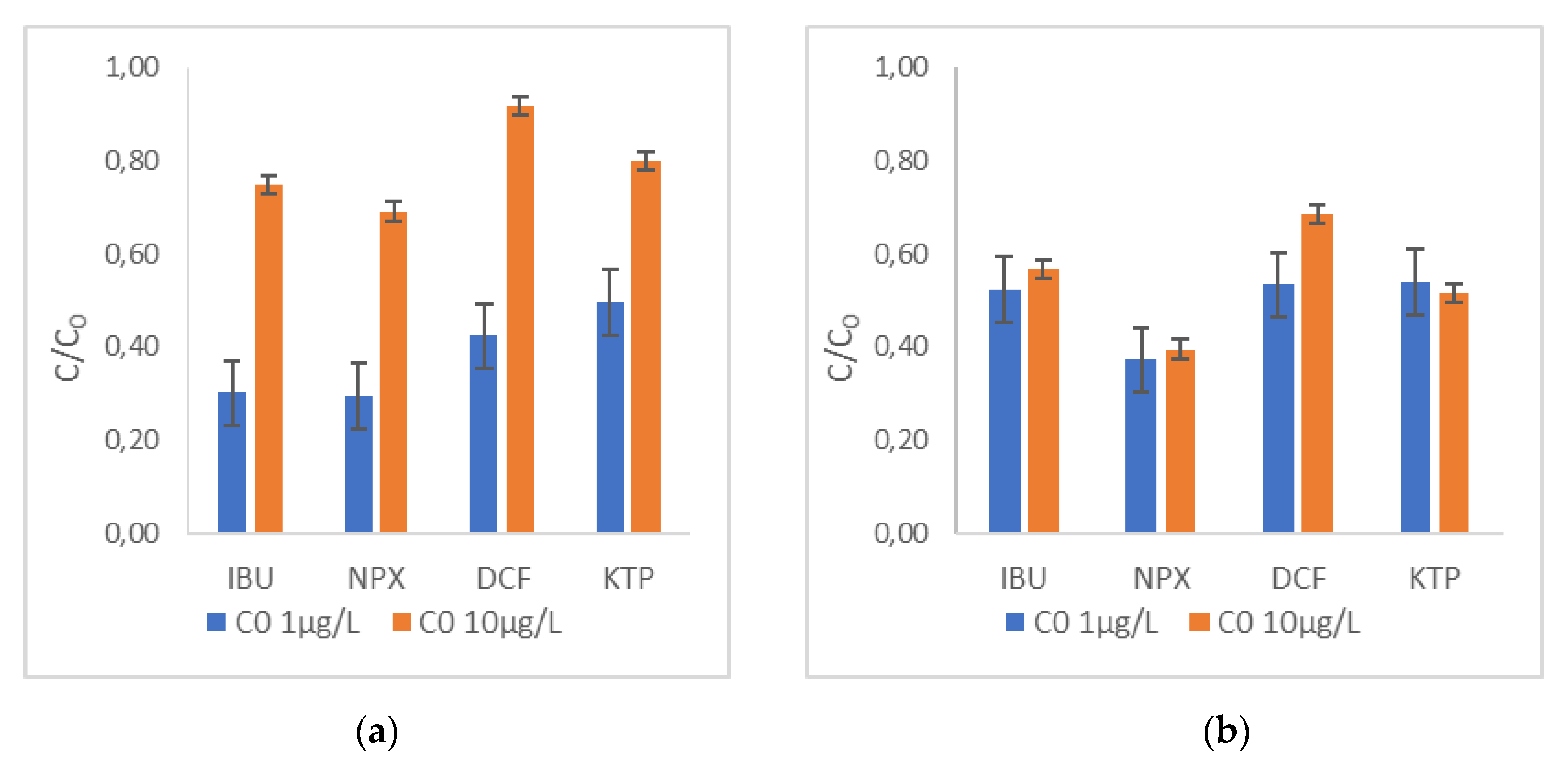

The effect of the initial concentration of the target compounds was evaluated using the mixture of NSAIDs at a concentration of 1 μg and 10 μg L−1 each. The results are presented in Figure 10 and Figure 11. More specifically, in Figure 10, the evolution of NPX concentration over the 60-min experiments is illustrated, while Figure 11a,b presents the removal of the target compounds at the different initial concentrations, tested after contact times of 30 min and 60 min, respectively. Under the same conditions, the increase in the initial concentration of target compounds leads to a lower removal rate and, as a result, to significantly lower removal efficiencies up to 30 min. This was consistent for all selected NSAIDs, as depicted in Figure 11a. In addition, it seems that the R-nFe dose of 15 g L−1 does not support significant removal, obtaining low removal efficiencies (< 30%) in all experiments conducted with an initial target concentration of 10 μg L−1. On the other hand, regarding the lower initial concentration (C0 1 μg L−1), high removal efficiencies were achieved (> 70%) for IBU and NPX within the span of 30 min, while rather moderate removal efficiencies were recorded for DCF (58%) and KTP (50%). However, differences in the removal efficiencies for all studied NSAIDs were not profound after 60 min between the two experiments. Practically similar C/C0 ratios were observed after 30 min and 60 min for the lower initial concentration (C0 1 μg L−1), while this was not the case for the larger initial concentration of pollutants (C0 10 μg L−1) (Figure 11b).

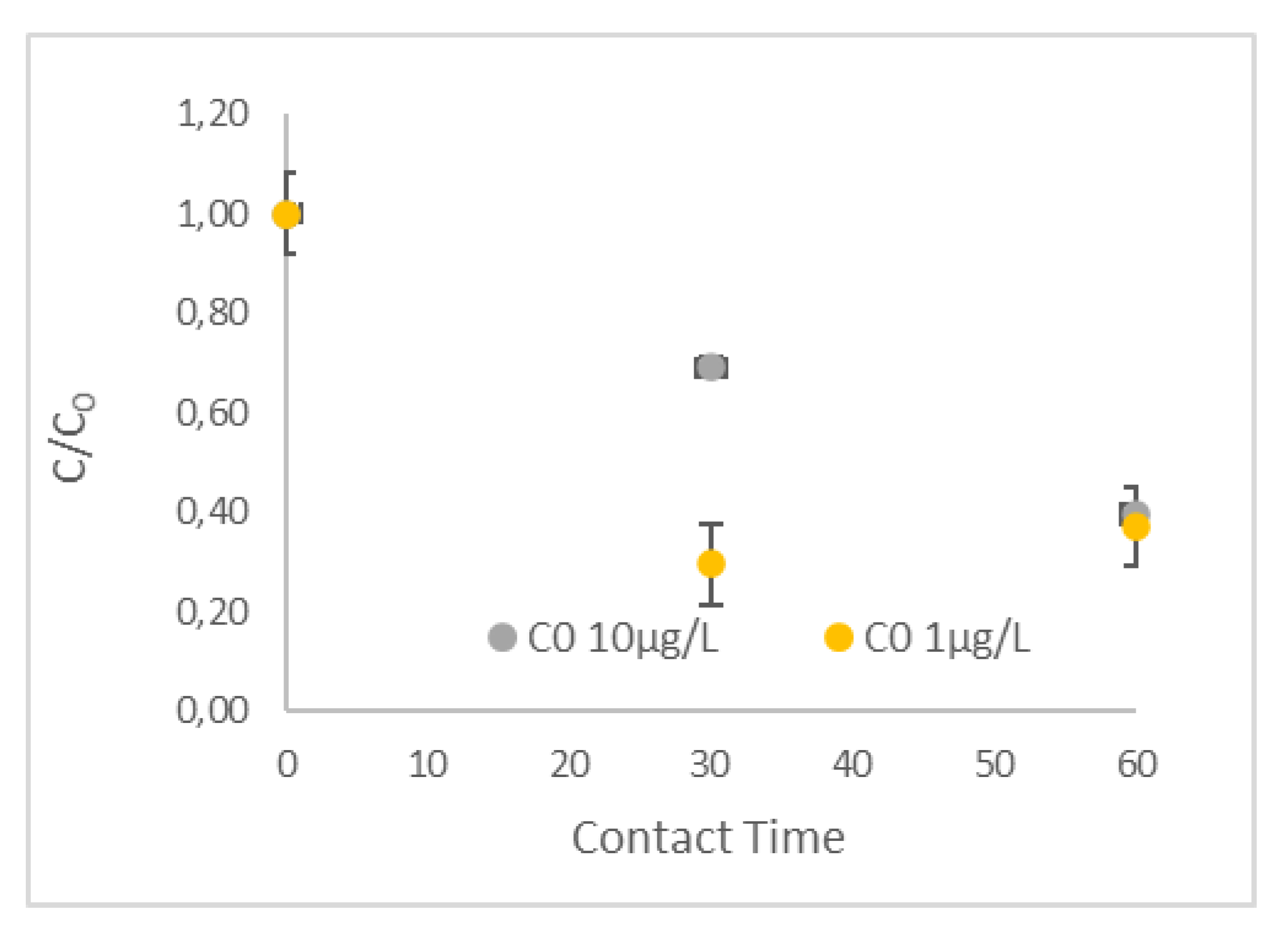

Furthermore, in the experiment using a lower initial concentration of pollutants, the specific removal capacity of R-nFe was 0.03 μg g−1 for IBU, DCF and KTP, and 0.04 μg g−1 for NPX, after 60 min. The total mass removed per g of sorbent was 0.14 μg g−1 after 60 min in the case of the lowest initial concentration of pollutants, and corresponds to a moderate overall removal of 51% of the total initial mass of the pollutants (4 μg). In contrast, the specific removal capacity of R-nFe in the case of the higher initial concentration of pollutants was approximately 7–10 times higher, ranging from 0.21 to 0.40 μg g−1 for IBU, NPX, DCF and KTP after 60 min. The total mass removed per g of sorbent was 1.22 μg g−1 after 60 min and also corresponds to a moderate overall removal of 46% of the initial mass of the pollutants (40 μg).

3.8. Effect of Oxidative Reagents Addition

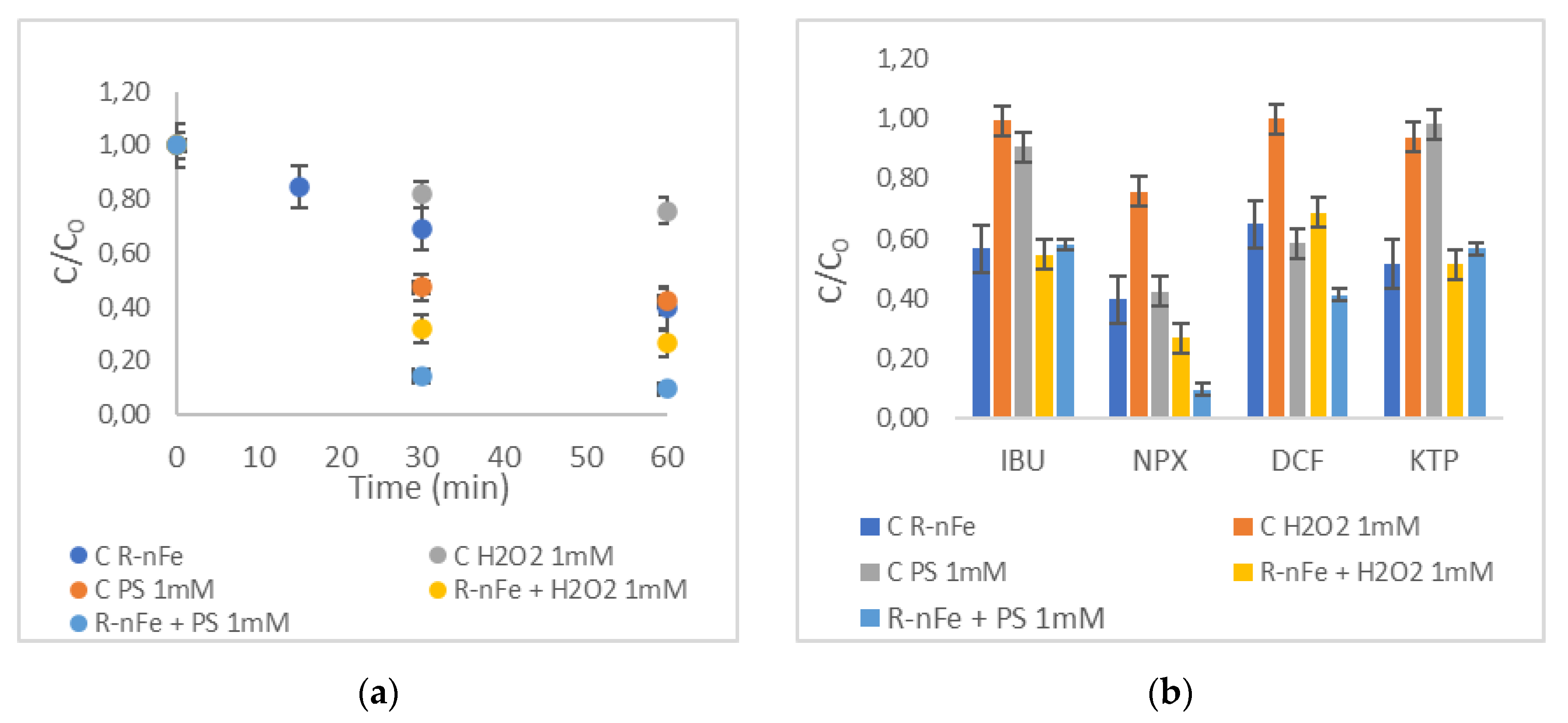

The combined utilization of nZVI with strong oxidative agents, namely, hydrogen peroxide (H2O2) and sodium persulfate (PS), was investigated in order to establish the effect of the Fenton reaction on targeted compound removal. The experiments were performed at a contact time of 60 min and with an initial concentration of pollutants at 10 μg L−1, in order to obtain removal kinetics before the substances are completely removed. Initially, control experiments were performed with the addition of 1 mM H2O2 and PS in the absence of R-nFe (denoted in the following figures as “C”). Figure 12a presents the effect of the addition of the oxidative reagents, H2O2 and PS, at 1 mM concentration with and without the addition of R-nFe 15 g L−1 for NPX. Figure 12b illustrates the ratio of C/C0 after 60 min of contact time for all targeted compounds. Data on NPX (Figure 12a) indicate that at a contact time of 60 min, the dose of 1 mM H2O2 is practically insufficient to obtain high NPX removal efficiencies at a pH = 3, with the C/C0 ratio being around 75%. The addition of 1 mM of PS resulted in moderate NPX removal, similar to that obtained with R-nFe alone without the addition of oxidative agents. However, improved removal efficiencies were obtained when R-nFe was combined with an oxidative agent. The optimum results were obtained in the case of R-nFe and PS (1 mM), with removal efficiencies of the order of 90% for NPX. This was also the case for DCF, but the removal efficiency was lower (49%). For IBU and KTP, the removal efficiencies achieved for both combinations were moderate but were better than those observed with R-nFe, H2O2 and PS alone. IBU and KTP removal efficiency in the R-nFe/H2O2 systems was 44%, and IBU and KTP removals in R-nFe/PS systems were 41% and 37%, respectively.

4. Discussion

In this study, the performance of nZVI produced via an environmentally friendly method and incorporated into a cationic resin was assessed for removing selected NSAIDs by conducting batch experiments.
More specifically, the present work was carried out using GT extract as a source of polyphenols for the reduction of iron. GT is a commercial product with well-known antioxidant properties, related to its high polyphenol content. Machado et al. [47] have demonstrated that several other plant extracts originating from agricultural or garden wastes, e.g., tree leaves, vine leaves, grape marc, etc., can also be valorized and used as polyphenol sources for the synthesis of nZVI particles. The recycling and transformation of agricultural waste to produce high added-value materials can significantly reduce the carbon footprint and increase the environmental and economic sustainability of the processes involved [48].
Regarding the effect of contact duration, the contact time of 180 min was not sufficient for obtaining significant removal efficiencies for all targeted compounds (Figure 4) when utilizing R-nFe without pretreatment. Similar findings have been reported by other studies as well. Evidently, Dong et al. [76] found that ZVI without the addition of oxidative reagent achieved negligible NPX removal after a contact time of 30 min. Zhou et al. [77] tested commercial mZVI and lab-synthesized ZVI-graphite and found the IBU removal to be negligible after 20 h. However, higher removal efficiencies were recorded with the increase in contact time to 2d (Figure 5). As the experiments were conducted under aerobic conditions, and it is likely that nZVI in the presence of oxygen may initiate Fenton reactions [46,78] even without the addition of oxidative reagents, the observed removal efficiencies could be attributed to both adsorption and oxidation mechanisms.
Based on the results, NaCl pre-treatment of R-nFe appears to significantly improve the removal of targeted compounds (Figure 5). NaCl is considered to enhance nZVI corrosion, thus increasing its reactivity with the target pollutants. This result is in accordance with the findings of Ghauch et al. [36], who studied the performance of nZVI material for the removal of two common antibiotics and reported that low concentrations of NaCl led to high removal efficiencies. On the other hand, Mo et al. [79] found that increasing Cl− anion concentrations from 0 to 1 M decreased the removal of DCF and KTP through adsorption in metal–organic frameworks, because the dissociation of Cl− from NaCl addition inhibits the reactions between DCF and KTP with the adsorbents. Zhang et al. [80], who studied anionic resins, found that an increase in NaCl concentration leads to a decrease in IBU adsorption into the active sites of the resin, due to competition for ion chlorides with the anions of IBU; Van Tran et al. [72], who studied IBU adsorption in hollow mesoporous carbon, found that NaCl has a negative effect because IBU is in a cationic state in pH < pKa and an increase in Na+ leads to an antagonistic environment. However, in the experiments performed in this work, the pH was close to the pKa values of the NSAIDs, showing that the compounds were in neutral form, and thus NaCl could not have affected adsorption. Therefore, NaCl pre-treatment may have balanced the external and internal pressures, enhancing the diffusion of the polluting compounds from the medium into the pores of the resin.
Regarding the effect of pH, acidic conditions favor the removal of targeted NSAIDs with R-nFe (Figure 6). The dominant role of pH on the degradation of NSAIDs has been reported in several studies; usually, it affects NSAID removal through adsorption [80,81,82,83]. For example, Al Othman et al. [84] showed that the maximum adsorption of DCF was achieved at a pH = 5 (85%) due to the carboxylic group in its molecule, resulting in the anionic form of the compound. Furthermore, they reported that even if the surface charge of the adsorbent becomes neutral, π-π interactions retained the adsorbed DCF in the adsorbent, as DCF can act as a π-electron acceptor and π-π interactions can be created with the benzene structure of the adsorbent. However, when utilizing nZVI in the presence of oxygen, other mechanisms apart from adsorption may be activated for degrading the pollutants. Zhou et al. [77] utilized nZVI for DCF removal and found that acidic conditions favor NSAID removal under aerobic conditions; they proposed that the oxidation of DCF takes place through radicals generated from Fenton-like reactions at pH values < 4, whereas at a pH range of between 4 and 7, oxidation and adsorption are the main mechanisms. pH values > 7 enable the physical adsorption of DCF, which takes place in the FeOOH− shell of the nZVI. Another study performed by Zhang et al. [80] reports maximum IBU adsorption into the adsorbent at pH values close to its pKa value (4.17), whereas in the case of pH values < pKa, IBU removal decreased because the molecular form of IBU did not support electrostatic mechanism reactions taking place. All in all, the removal of all targeted compounds in our study was maximized at the lower pH value investigated (pH = 3), which may be attributed to adsorption via electrostatic interactions. The reason is that the pKa of all targeted NSAIDs ranges between 4.14 and 4.59; thus, at lower pH values, those compounds that are characterized as weak acids are neutrally charged and, at higher pH values, they exist in the anionic form [82], whereas resin and nZVI has a positive surface charge at pH values < 7 [85,86]. Other mechanisms of adsorption, such as hydrophobic interactions, π-cation interaction, and hydrogen bonding in combination with Fenton reactions in the presence of oxygen and nZVI may be also responsible for the removal rates obtained. For DCF in particular, which has a chlorinated ring, reductive dichlorination can take place via the transfer of electrons from the nZVI surface [87].
Moreover, adopting a higher R-nFe dose resulted in higher removal capacity for all targeted NSAIDs (Figure 7). The increase in the R-nFe dose increases the availability of active sites where adsorption and interaction can take place between nZVI and NSAIDs. Ali et al. [88] reported increased removal efficiencies of IBU with an increase in the adsorbent’s dose but this was only up to a maximum point, after which additional material could not lead to higher removal efficiencies. The same conclusion was reached by Soares et al. [82] regarding DCF, KTP and NPX, using a chitosan-based magnetic nano adsorbent. In this study, the use of R-nFe at 15 g L−1 was the maximum dose investigated and the effect was positive, meaning that the full extent of the material’s capacity regarding these compounds was not reached. In parallel, it should also be noted that in many studies, experiments are performed to obtain the removal efficiency of a single NSAID and do not refer to multiple-NSAID matrixes, as presented in this study. Accordingly, the removal efficiency obtained in the literature for a specific NSAID may vary, depending on the concentrations of other pollutants, even if the same experimental conditions are applied; this should be considered when comparing the results of different treatment methods with nZVI. For example, Liu et al. [89] observed that when multiple NSAIDs exist in a solution, the removal efficiencies are decreased compared to single-NSAID systems by approximately 10%. The same study reports that the existence of hydrophobic substances and oils decreases the removal efficiency of NSAIDs with electrocoagulation–flotation. As these drugs are quite similar regarding their physicochemical characteristics, they may compete for vacant sites in the active porous areas of the resin.
The maximum specific removal capacity of R-nFe achieved in our work was 0.17 μg g−1 for the total mass of the pollutants. In comparison with the aforementioned studies [82,88], which utilized other types of iron nano adsorbents, this capacity does not seem to be substantial, suggesting that larger doses of R-nFe should be investigated and that the employment of R-nFe in Fenton processes could be more cost-effective than utilizing R-nFe as a stand-alone process.
Furthermore, the increase in initial pollutants concentration leads to a decrease in the removal efficiencies of the targeted compounds under the same experimental conditions (Figure 10 and Figure 11). The active sites in the pores of the resin, and the reactivity of nZVI are diminishing, as the initial concentration of pollutants increases and the rate of removal decreases. Dong et al. [76] also observed that when increasing the initial concentration of NPX from 5–25 μΜ, the rate of removal decreases in the ZVI/PS system. This was attributed to the increased ratio of NPX to oxidative radicals. On the other hand, Ali et al. [88], who studied the removal of IBU from water using an iron nano adsorbent, found that the removal efficiency of DCF increased with the increase in the initial concentration until a maximum concentration point, where adsorption could not be further enhanced. Al Othman et al. [84] also reached the same conclusion. The maximum removal capacity of R-nFe achieved in this study was 1.22 μg g−1 for the total mass of the pollutants in the experiment at a higher initial concentration (C0 10 μg L−1). Al-Rimawi et al. [90], who investigated the removal of NSAIDs, among other pharmaceuticals, using zeolite, reached the same conclusion and attributed this trend to the increased driving force helping to overcome mass transfer limitations and enhance adsorption onto the sorbent’s surface.
The effect of the supporting material seems to be important for NSAID removal (Figure 8 and Figure 9). Although the resin used was capable of exchanging cations, it could also abet the adsorption of the targeted compounds, promoting other interactions and bonding mechanisms, along with nZVI. Having an anionic resin may promote targeted compound removal because it further enhances the occurrence of electrostatic interactions as well. For example, Mo et al. [79] attributed DCF and KTP adsorption to electrostatic forces between the highly positive charge of the ionic covalent organic frameworks (iCOFs) that led to the attraction of anions to its surface; however, the feasibility of incorporating nZVI in anionic resin should be investigated. It should be noted that only a relatively small number of studies consider the effect of nZVI’s supporting material or its modification—especially when nZVI is used as a nanocomposite—on the removal of pollutants, even though this effect can be significant.
Finally, the combination of nZVI with advanced oxidation methods seems optimal for the removal of NSAIDs (Figure 12). R-nFe exhibited better performance when utilized in nZVI/H2O2 and nZVI/PS systems. This was in agreement with other studies [76,91]. For example, Wu et al. [44], who investigated the performance of both H2O2 and PS combined with nZVI, suggested this as a more economically sustainable method to remove pharmaceuticals from water. Furthermore, Liang et al. [87] demonstrated the improved removal efficiency of DCF when nZVI was combined with H2O2. Therefore, this practice may offer a promising method for treating recalcitrant pharmaceutical compounds at trace-level concentrations.
In view of all the aforementioned studies, and to the best of our knowledge, this is the first time that nZVI, produced with the utilization of leaf extracts and incorporated into a cationic resin, has been used to remove pharmaceuticals from water. The cationic resin serving as the supporting material is capable of adsorbing iron cations (Fe+2/Fe+3), recirculating iron into the treatment system and promoting further reactions with the target pollutants. Thus, the proposed method is not expected to release nanoparticles that may affect living microorganisms in soil and water. Another advantage of the method is that nZVI is produced utilizing herbal extracts, instead of the common synthesis method with NaBH4, offering a more sustainable method for removing micropollutants.
However, it should be mentioned that possible limitations of the method should be further investigated to explore its overall sustainability. A matter of concern refers to the possible limitations presented by the complex wastewater matrix, which might possibly result in a higher contact time and/or nZVI dose.
Furthermore, the possibility of regenerating and reusing R-nFe, after the exhaustion of its remedial capacity, is a crucial aspect of the final evaluation of the sustainability of this technology. The exhaustion of nZVI particles is characterized by the gradual oxidation of elemental iron, Fe0, into Fe+3 species. Depending on the operating pH, the oxidized iron remains inside the pores of the resin beads, as soluble cations are retained by electrostatic forces via the sulfonate functional groups of the resin, or as solid iron oxyhydroxide precipitates. Regeneration of the R-nFe composite material can be carried out by applying a four- or a two-step treatment. The four-step regeneration treatment was tested in a similar R-nFe product that was used for Cr+6 removal from contaminated water [67]. It involved an initial treatment of the exhausted resin beads with a strongly acidic solution, 2N HCl, to wash out all Fe+3 species, including the reduced Cr+3 species. The bare resin beads were then treated with all the steps of the synthesis procedure, as described in Figure 1. In that study, regeneration was conducted 3 times, and Cr+6 removal remained very high, with a slight decrease of effectiveness from 96% in the fresh R-nFe to 87% after the third regeneration cycle. When R-nFe is used for the removal of organic contaminants, regeneration can be carried out by applying only a two-step treatment. The exhausted R-nFe can be treated with a less acidic solution, e.g., 0.1 M HCl, in order to dissolve the Fe+3 precipitates and remove the adsorbed species. It is anticipated that the main part of the Fe+3 cations will remain inside the resin beads, electrostatically attracted by the sulfonate functional groups. The second step will be the treatment of R-Fe with plant polyphenols in order to reduce the trivalent cation Fe+3 into its elemental state, Fe0.

5. Conclusions

To summarize, the proposed method, employing nZVI made of green tea extracts and incorporated in a cationic resin, seems to be a promising method for removing NSAIDs from water. An increase in contact time, NaCl pretreatment and R-nFe dose were beneficial for process performance, whereas the increase of pH from acidic to neutral values and the increase of the initial concentration of the pollutants had negative effects on removal efficiency. In addition, the supporting material played a significant role in the removal of almost all targeted NSAIDs.
The best removal efficiencies obtained for DCF and KTP were 86% and 73%, respectively, after 48 h of contact time, with NaCl-pretreated R-nFe at a dose of 15 g L−1 and pH = 4. The removal efficiency for NPX was 86% under the same conditions, quite similar to that obtained for the experiment with the PS addition. The maximum IBU removal value was 70% and was reached at pH 3, with a contact time of 30 min and R-nFe 15 g L−1. However, the process performance of R-nFe was enhanced with the addition of oxidative reagent; in particular, PS addition resulted in a significantly shorter contact time for an increased initial concentration of pollutants. The maximum removal efficiencies recorded in combined systems were 44% for IBU and KTP in the nZVI/H2O2 system, and 90% and 49% for NPX and DCF, respectively, in the nZVI/PS system with a contact time of 60 min, a pH of 3, and C0 at 10 μg L−1.
Therefore, future research should focus on systems combining nZVI synthesized from herbal extracts with oxidative reagents for the removal of NSAIDs. However, potential limitations and drawbacks of the proposed method should be addressed. For example, the synthesis procedure at full scale may be challenging; in addition, the effectiveness of the R-nFe material after multiple cycles of operation, its reusability and regeneration should be further investigated. In addition, more complex matrices should be tested to evaluate the performance of the method using real wastewater, in order that this treatment method may be implemented on a larger scale.
