Farmers’ Awareness in the Context of Climate Change: An Underutilized Way for Ensuring Sustainable Farmland Adaptation and Surface Water Quality

Abstract

Simulations using the Crop Water and Irrigation Requirements model (CROPWAT), show that the projected climatic changes over the period from 2026 to 2050 in the Yanyun irrigation district, Yangzhou, China, will cause the paddy lands there to lose about 12.4% to 37.4%, and 1.6% to 45.6%, of their future seasonal rainwater in runoff under the Representative Concentration Pathways (RCP45 and RCP85), respectively. This may increase future irrigation requirements (IRs), alongside threatening the quality of adjacent water bodies. The CROPWAT simulations were re-run after increasing the Surface Storage Capacity (SSC) of the land by 50% and 100% of its baseline value. The results state that future rainwater runoff will be reduced by up to 76% and 100%, and 53% and 100% when the SSC is increased by 50% and 100%, under RCP45 and RCP85, respectively. This mitigates the future increase in IRs (e.g., under RCP45, up to about 11% and 16% of future IRs will be saved when increasing the SSC by 50% and 100%, respectively), thus saving the adjacent water bodies from the contaminated runoff from these lands. Adjusting the SSC of farmlands is an easy physical approach that can be practiced by farmers, and therefore educating them on how to follow up the rainfall forecast and then adjust the level of their farmlands’ boundaries according to these forecasts may help in the self-adaptation of vast areas of farmlands to climate change. These findings will help water users conserve agricultural water resources (by mitigating the future increase in IRs) alongside ensuring better quality for adjacent water bodies (by decreasing future runoff from these farmlands). Increasing farmers’ awareness, an underutilized approach, is a potential tool for ensuring improved agricultural circumstances amid projected climate changes and preserving the available water resources.

1. Introduction

Recently, in the year 2021, several disasters have occurred in many parts of the world, such as Germany, China, Greece and Turkey. These global disasters are potentially caused by climate change (Figure 1). The fear is that these climatic changes tend to be more severe and frequent than those predicted by specialists. The last IPCC report [1] was described as “a code red for humanity” because of the unprecedented and sometimes irreversible ways in which the global climate changes. Unfortunately, this report indicated that we will still overshoot the global warming limit of 1.5 °C by 2030, regardless of the relevant mitigation efforts and emissions reductions [1].

Climate change affects many aspects of life. The agricultural sector is majorly affected while farmlands, in particular, are always exposed to more severe hazards due to such climatic changes. Many studies including those by Karimi et al. [2], Chandio et al. [3], and Malhi et al. [4] have reported the adverse impacts of climate change on agricultural practices and production. Generally, most of climate change’s adverse impacts on farmlands are related to a “water story” in which climatic changes result in undesirable water distribution patterns in these lands, which in turn would adversely impact agricultural productivity, water resources, and the surrounding environment. An example of this is found on the lower reaches of the Yangtze River basin, where many studies, such as that by Su et al. [5], have projected a warmer climate and more frequent extreme storm events. These events tend to increase runoff, and Yin et al. [6] reported that these extreme storm runoffs caused by climate change increase globally at high rates even higher than what was suggested by Clausius Clapeyron scaling [7]. Such a phenomenon deprives the soil of large amount of rainwater, which is lost in the runoff. This represents a great challenge as regards making use of such water volumes in the light of limited water resources. In addition, such runoff carries many contaminants (e.g., nutrients, sediments, etc.) into adjacent water bodies [8,9], resulting in the severe deterioration of their quality [10,11] (Figure 2). Agricultural non-point source pollution has recently been identified as the leading threat to water quality in rivers and lakes, and many researchers have reported it to significantly contribute to water environment pollution in many countries [12,13,14].

Based on the above-mentioned, the adverse impacts of climate change on farmlands are not limited to the field scale, but rather extend to many other environmental resources. As such, mitigating such adverse impacts in farmlands will help to ensure high agricultural productivity and provide better conditions for the surrounding environment, thus easing the complexities of climate change adaptation policies.

Therefore, the present study aims to assess whether farmers in the lower reaches of the Yangtze River basin can self-manage their farmlands in a way that mitigates the projected adverse impacts of climate change (represented in the future higher runoff rates) on these lands to ensure better agricultural and environmental conditions. The adopted methodology will reduce the challenges and responsibilities of climate change adaptation authorities, as every farmer will be able to self-adapt their farm while also preventing it from exporting any risks to the surrounding environment. Despite the fact that farmers are the controller of agricultural activities and management practices in farmlands, there is a lack of studies that report on farmers’ roles in climate change adaptation policies. Only very few studies, such as that by Arbuckle et al. [15], have considered and studied how farmers’ awareness, concerns, and attitudes towards climate change affect the adaptation policies and outcomes. Therefore the present study aims to exploit the dominance and control of farmers over their farmlands to educate them on how to manage these lands and ensure the mitigation of climate change’s adverse impacts, thus maximizing the underutilized role of farmers in climate change adaptation policies.

The methodology to help farmers achieve such adaptation is regarded as a tool by which the farmland water balance can be adjusted to is the level desired. In addition, such a tool should be easily and physically adjustable, with no complexities, in order to allow non-skilled farmers to achieve such adaptation.

As a rule, the land surface is the first receiver of water from precipitation or surface irrigation. Since the surface is not perfectly flat or smooth, irrigation or rainwater are collected in surface depressions, forming sinks and ponds. The maximum amount of water held per unit area is called the Surface Storage Capacity (SSC) [16]. Excess water accumulates in surface depressions under extreme precipitation events, where the rainfall exceeds the soil’s infiltrability. When the ponding volume exceeds the SSC, water on the land surface starts to overflow from these puddles and runoff begins. So, SSC acts as the limit between the best utilization of irrigation or rainwater (when it is retained and infiltrates into the soil) and its loss (when it runs off). The higher the SSC, the better the utilization of water in farmlands due to the low runoff, and vice versa. Several studies have reported the efficiency of increasing SSC in farmlands, at large scales, as an approach that helps to retain water, thus mitigating runoff from these lands and conserving agricultural water [17,18,19].

Therefore, the present study aims to:

• Assess the role of SSC (as a simple physical approach that is easily managed and adjusted by farmers) in mitigating the projected climate change’s adverse impacts on paddy lands’ water balance at the lower reaches of the Yangtze River basin;
• Assess how such adaptation affects the future irrigation requirements in the study area.

The specific objectives of the study are to:

• Project future (2026–2045) climate changes in the study area;
• Estimate future rainwater losses and irrigation requirements corresponding to the projected climate changes by applying the CROPWAT model;
• Re-run CROPWAT simulations under higher SSC conditions (50% and 100% higher than the baseline value) to assess the influence of SSC changes on future runoff losses and irrigation requirements.

The CROPWAT model was developed by the Food and Agriculture Organization (FAO) [20], and became a well-known tool that has been used by many researchers (e.g., Gabr et al. [21], Lalic et al. [22], Bhat et al. [23], etc.) to assess the potential impacts of changes in field conditions, weather patterns, agricultural practices, etc., on irrigation requirements and crop yield.

The findings of this study will make it easy to report the degree of efficiency of adjusting SSC, as a physical adaptation approach that farmers can use (due to its simplicity), in saving farmlands alongside the surrounding environment from the projected climate change’s adverse impacts, thus indicating farmers’ potential role in easing the challenges of climate change adaptation policies.

2. Materials and Methods

2.1. Study Area

The lower reaches of the Yangtze River basin are rich in paddy lands. A 1-hectare area was selected as the study area in these reaches, located at the Yangzhou Irrigation and Drainage Experimental Station, Yanyun irrigation district, Yangzhou City, China (Figure 3).

The area is characterized by a flat topography; the elevations here range from 5 to 8 m + MSL (mean sea level). The annual precipitation is about 1000 mm while the annual mean values of maximum and minimum temperatures are 21 °C and 12.3 °C, respectively [24].

Rice grows in the study area from late June to early November. Despite the ample rainfall in the study area, irrigation is practiced during the rice-growing season to ensure the satisfaction of the high rice water requirements. Irrigation water is sourced from a nearby canal adjacent to the study area (Figure 3).

2.2. CROPWAT Model

The CROPWAT is an empirical process-based model developed by the Food and Agriculture Organization (FAO) to propose proper irrigation strategies that result in better crop management, and thus high agricultural productivity [20]. The model integrates several modules that are necessary to predict irrigation water requirements and their scheduling.

As shown in Figure 4, the model requires a set of data related to weather, crop, and field conditions in order to produce several outputs that help to better manage the agricultural process. Because of the weather input module, which comprises several weather parameters, CROPWAT has been reported and applied at a wide scale as a good tool that predicts the potential impacts of climate change on the future irrigation requirements of several crops, such as rice [25], soybean [26], peaches [27], potato [28], wheat and maize [29], etc. Therefore, the model was applied in the present study to assess future variations in irrigation requirements in the study area under the projected climate changes (2026–2045). The simulation period was divided into four periods: 2026 to 2030, 2031 to 2035, 2036 to 2040, and 2041 to 2045.

CROPWAT simulations for future irrigation requirements were run multiple under different values of Surface Storage Capacity to assess its role in mitigating the adverse impacts of climate change on future farmlands’ water balance and irrigation requirements.

Surface Storage Capacity in the CROPWAT Model

The soil input module in the CROPWAT model comprises the input of “Maximum water depth (Figure 5)”, which refers to the maximum water level over the inundated rice fields and depends on the height of field boundaries and the quality of field leveling. This item fits the definition of surface storage capacity and therefore was considered to simulate the impact of different surface storage capacities on future irrigation requirements in the study area.

Based on field observations, the surface storage capacity in the study area was about 5 cm. Two other scenarios were considered related to the future Surface Storage Capacity in CROPWAT simulations;

• 50% higher future surface storage capacity than the current one
• 100% higher future surface storage capacity than the current one

2.3. Collection of Data Required to Set up and Run the CROPWAT Model

2.3.1. Weather Data

In the present study, weather data are divided into two groups;

• Baseline weather data: These data were used, alongside the other historical weather data, as a reference for comparing to future weather projections to assess the projected climate changes in the study area.
• Future weather data: These data were used as input in the CROPWAT model to estimate the future irrigation requirements of the rice-growing season in the study area.

For baseline weather data, an automated meteorological station of the type “Campbell scientific (Figure 6)” was installed in the study area to collect the daily weather data in terms of maximum and minimum temperatures, precipitation, humidity, wind speed and solar radiation, alongside many other parameters.

For future weather data, Awad et al. [30] used the Regional Climate Downscaling Experiment (CORDEX) to project future climate changes (2021:2050) in the study area. CORDEX was established in 2013 to provide an internationally coordinated framework that improves regional climate scenarios for numerous regional domains, alongside providing new statistical methods for downscaling [31]. In the present study, we used the results reported by Awad et al. [27] to assess the future climatic changes in the study area.

2.3.2. Soil and Crop Data

The study area is characterized by a loamy to silt-loam soil.

Table 1. Soil properties considered in CROPWAT simulations.

Soil Property	Value
Total available soil moisture (FC-WP)	140 mm/m
Initial soil moisture depletion	50%
Drainable porosity (SAT-FC)	6%
Water availability at planting	1 mm WD
Maximum rain infiltration rate	30 mm/day

FC: field capacity. WP: wilting point. SAT: saturation. WD: water depth.

lists the soil data considered in CROPWAT simulations. Crop data were determined based on FAO recommendations alongside the reported literature [32].

3. Results and Discussion

3.1. Future Climate Pattern in the Study Area

3.1.1. Daily Maximum and Minimum Temperatures

Projections of future climate in the study area show that, under both scenarios RCP45 and RCP85, there will be remarkable increases in the daily values of maximum and minimum temperatures. Many researchers, including Gu et al. [33], have reported the same trend, stating that mostareas in the Yangtze River basin stand out as “hotspots” of climate change in China, with a high possibility of significant future increases in annual temperature. Figure 7 shows the future variation in the daily average values of maximum and minimum temperatures in the study area.

It is clear from Figure 7 that the daily values of maximum and minimum temperatures tend to be higher under RCP85, which is consistent with the reported literature, such as that in Cubasch et al. [34].

Abtew and Melesse [35] reported that global warming could directly affect evapotranspiration through many means, such as temperature increases. Thus, the projected increases in daily maximum and minimum temperatures are persumed to have a great effect on increasing the future evapotranspiration rates. Since the future highest temperature values in the study area are projected to be stationary in the months May to August, which is the rice-growing season, it is necessary to assess how such projected increases in daily temperature values will impact future evapotranspiration, and thus rice irrigation requirements.

3.1.2. Precipitation

Based on climate change projections, the study area will suffer from more intense precipitation events under scenarios RCP45 and RCP85. Figure 8 shows the daily contribution of rainwater as a percentage of the total seasonal rainfall.

3.2. CROPWAT Simulations

3.2.1. CROPWAT Estimates for Future Daily Evapotranspiration

Figure 9 shows CROPWAT estimates for the future daily evapotranspiration under RCP45 and RCP85. The figure shows that days in the months May to August are projected to have higher daily evapotranspiration values than the rest of the simulation period. This may increase the irrigation requirements on these days if there are no proper precipitation events that can provide as much soil water to compensate for these high evapotranspiration values.

3.2.2. CROPWAT Estimates for Future Irrigation Requirements

The CROPWAT model considers four approaches to empirically determine the rainwater losses, and thus the “effective rainfall” values that can compensate for the soil-water shortage resulting from the evapotranspiration process. In a case wherein the effective rainfall cannot entirely compensate for the soil moisture depletion, the model estimates the required irrigation that can compensate for the rest of the soil moisture depletion. This present study adopted the “USDA SCS” method to account for rainwater losses, and thus effective rainfall.

The CROPWAT model estimates show that there will be an increase in irrigation requirements in the study area for most future periods, compared to the 2018 growing season (Figure 10). The current study’s findings are consistent with the reported literature; for example, Ding et al. [36] reported that future climatic changes would increase irrigation requirements in most regions of the mid and lower reaches of the Yangtze River.

As shown in the figure, remarkable increases in future irrigation requirements are projected to occur under the RCP85 scenario. This may be due to the high evapotranspiration values, alongside the existence of many rainfall events after the end of the growing season (Figure 8), based on the here-adopted growing dates in the study area, which deprives the soil of large amounts of rainwater during the growing season.

3.2.3. Surface Storage Capacity: A Potential Tool to Cope with Climate Changes by Mitigating Future Rainwater Losses, Thus the Future Increase in Irrigation Requirements. CROPWAT Simulations under Different Scenarios of Surface Storage Capacities

This section aims to provide a better understanding of how to employ the Surface Storage Capacity to better utilize future rainwater, thereby mitigating the future increase in irrigation requirements caused by the projected climatic changes.

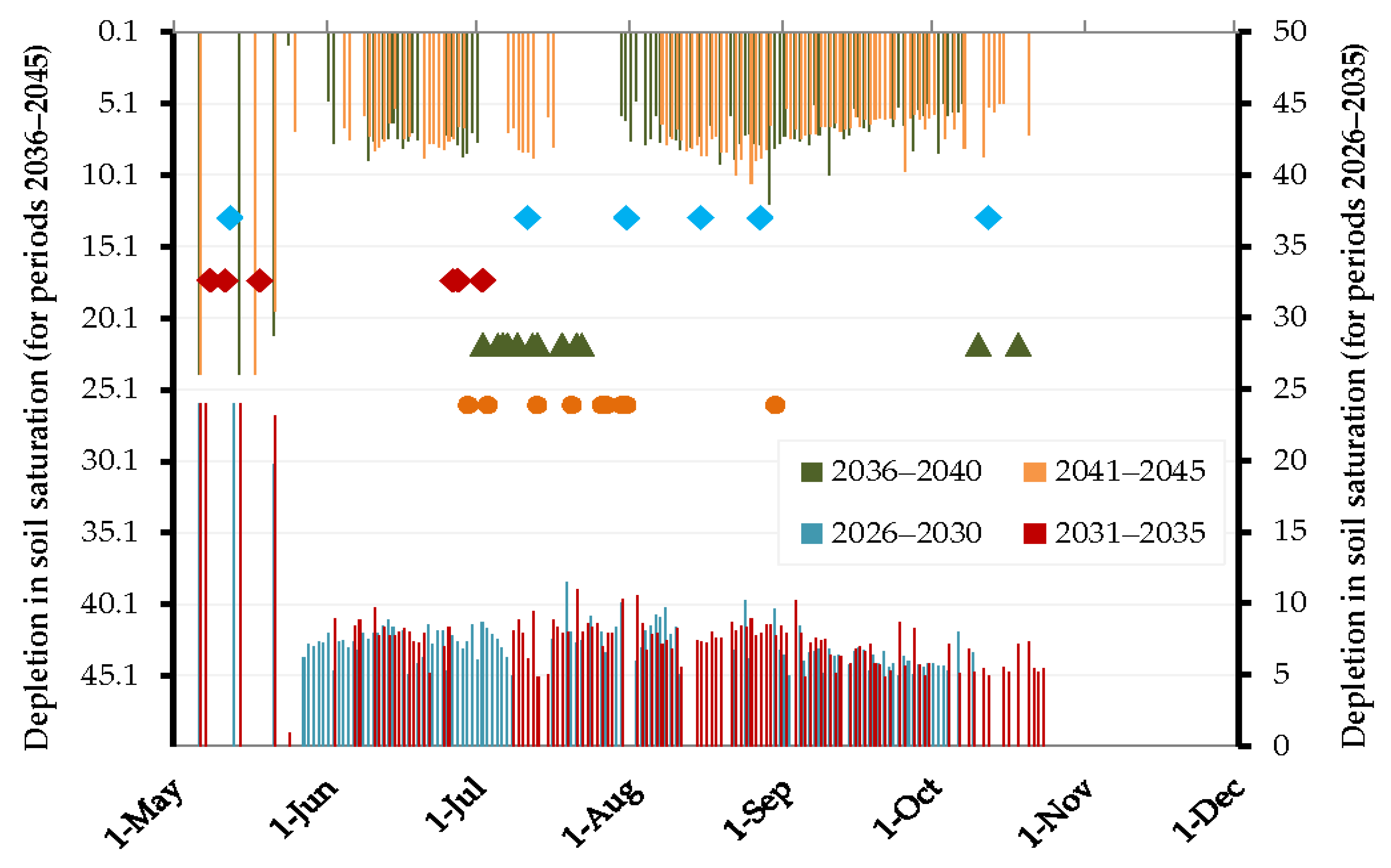

Figure 11 shows the frequency of future peak precipitation events in the study area, under RCP45, alongside the daily depletion in soil saturation as predicted by the CROPWAT model.

Furthermore, Figure 11 clarifies that rainfall events, especially the peak ones, help to increase soil moisture, and thus decrease the depletion in soil saturation, which in turn results in decreasing irrigation requirements. The rainfall pattern and future irrigation requirements have a strong relationship. As a result, many researchers have reported some techniques to most effectively utilize rainwater in order to mitigate future increases in irrigation requirements. For example, Yoon and Choi [37] found that shifting the future growing season dates to the days with more precipitation events has a great effect on decreasing future irrigation requirements, due to the better utilization of rainwater.

However, if several peak rainfall events happen consecutively and the soil is already saturated or partially saturated, there is a great possibility of losing a large portion of rainwater in the runoff if the field cannot trap the rainwater in its surface depression zones. This, in turn, will deprive the soil of this lost portion of rainwater that could (if not lost) compensate for the soil moisture depletion, and thus reduce the need for irrigation. This clarifies why it is better, regarding the irrigation requirements, to mitigate future rainwater losses through runoff.

Figure 12 shows CROPWAT estimates for future seasonal rainwater losses in the runoff (as % of the total seasonal rainfall) under RCP45. To overcome and mitigate such future rainwater losses in the runoff, the CROPWAT model was rerun after increasing the Surface Storage Capacity in the study area by 50% and 100% of its baseline value (5 cm). In addition, Figure 12 shows that increasing the surface storage capacity will help to significantly mitigate future rainwater losses in the runoff. During some future periods, increasing the Surface Storage Capacity by 50% of its baseline value resulted in a decrease (up to more than 50%) in future rainwater losses through runoff, compared to those at the baseline Surface Storage Capacity.

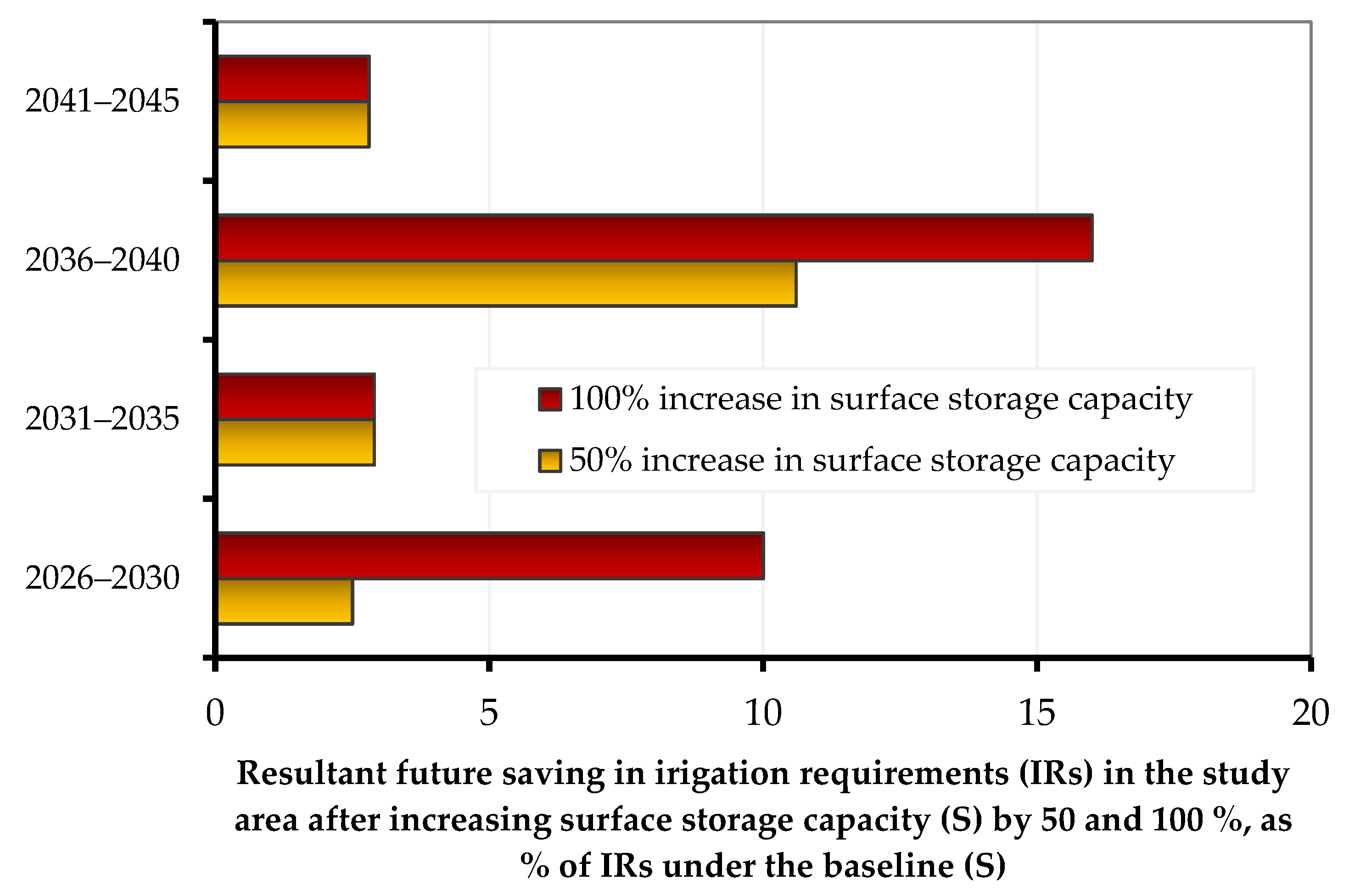

The future mitigation of rainwater losses via increasing the Surface Storage Capacity is supposed to result in more available rainwater in the land. This rainwater would compensate for the depletion in soil moisture during some periods, and thus decrease the irrigation requirements. The CROPWAT simulations confirm these suppositions. Figure 13 shows the resultant saving in future irrigation requirements after increasing the Surface Storage Capacity. The results from the present study are consistent with several studies, such as Stern et al. [38], in which it was reported that soil surface treatments could help in decreasing runoff, thus in the better utilization of irrigation water and increasing the crop yield.

The same trend was observed under RCP85, where peak precipitation events contributed much in compensating for the soil moisture deficit (Figure 14). Additionally, increasing the surface storage capacity under RCP85 significantly mitigated future rainwater losses in the study area (Figure 15). During some future periods, the increase in surface storage capacity will result in “ZERO” future rainwater losses in the runoff, reflecting the best utilization of rainwater, thus decreasing future irrigation requirements.

4. Conclusions

The projected climatic changes at the lower reaches of the Yangtze River basin will increase future irrigation requirements (by up to 15% and 65%, compared to the 2018 season, under RCP45 and RCP85, respectively), with the possibility of threatening the quality of adjacent water bodies due to the rainwater runoff from these lands. The present study aims to assess whether farmers can self-adapt their farmlands to climate changes through simple practices, thereby mitigating climate change’s adverse impacts on these farmlands while also protecting the quality of adjacent water bodies.

CROPWAT simulations show that increasing Surface Storage Capacity (SSC) (by 50% and 100% of its baseline value), which is a simple act for farmers in the study area, will reduce future rainwater runoff by up to 76% and 100% (for a 50% increase in SSC) and 53% and 100% (for a 100% increase in SSC) under RCP45 and RCP85, respectively. CROPWAT simulations also revealed that the resultant mitigation in future rainwater runoff will mitigate the future increase in irrigation requirements; e.g., up to about 11% and 16% of future irrigation requirements will be saved under RCP45 when increasing the SSC by 50% and 100% of its baseline value, respectively.

Therefore, educating farmers on how to adjust the level of their farmland’s boundaries according to the weather forecast can significantly help to mitigate future rainwater runoff, thus decreasing irrigation requirements and preserving the quality of adjacent water bodies.

The present study’s results confirm the potential role of increasing farmers’ awareness, an underutilized approach, in reducing the aggravation of climate change’s adverse impacts in farmlands and the surrounding environment, thus also easing adaptation policies.
