Sustainable Urban Drainage Systems in Spain: Analysis of the Research on SUDS Based on Climatology

by
Ana Isabel Abellán García
1,*,
Noelia Cruz Pérez
2 and
Juan C. Santamarta
2
1
Escuela Técnica Superior de Ingeniería de Montes, Forestal y del Medio Natural, Universidad Politécnica de Madrid (UPM), 28040 Madrid, Spain
2
Departamento de Ingeniería Agraria, Náutica, Civil y Marítima, Universidad de La Laguna (ULL), 38206 Tenerife, Spain
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(13), 7258; https://doi.org/10.3390/su13137258
Submission received: 29 April 2021 / Revised: 23 June 2021 / Accepted: 25 June 2021 / Published: 29 June 2021
(This article belongs to the Special Issue New Approaches in Social, Environmental Management and Policy to Address SDGs)
Browse Figures
Versions Notes

Abstract

:
Sustainable urban drainage systems (SUDS), or urban green infrastructure for stormwater control, emerged for more sustainable management of runoff in cities and provide other benefits such as urban mitigation and adaptation to climate change. Research in Spain began a little over twenty years ago, which was later than in other European countries, and it began in a heterogeneous way, both in the SUDS typology and spatially within the peninsular geography. The main objective of this work has been to know through bibliographic review the state of the art of scientific research of these systems and their relationship with the different types of climates in the country. These structures have a complex and sensitive dependence on the climate, which in the Iberian Peninsula is mostly type B and C (according to the Köppen classification). This means little water availability for the vegetation of some SUDS, which can affect the performance of the technique. To date, for this work, research has focused mainly on green roofs, their capabilities as a sustainable construction tool, and the performance of different plant species used in these systems in arid climates. The next technique with the most real cases analyzed is permeable pavements in temperate climates, proving to be effective in reducing flows and runoff volumes. Other specific investigations have focused on the economic feasibility of installing rainwater harvesting systems for the laundry and the hydraulic performance of retention systems located specifically in the northeast of the Iberian Peninsula. On the contrary, few scientific articles have appeared that describe other SUDS with vegetation such as bioretention systems or green ditches, which are characteristic of sustainable cities, on which the weather can be a very limiting factor for their development.

1. Introduction

A new approach to urban stormwater management emerged in the 1980s and 1990s, introducing a holistic and environmentalist approach to urban hydrology, and which is increasingly spreading around all cities of the world [1]. This methodology reproduces, as faithfully as possible, the natural hydrological cycle to minimize the impact of urban development. It aims to reduce the negative impacts in terms of quantity and quality of runoff, as well as maximize the landscape integration and the social and environmental value of the elements involved in urban stormwater management [2]. This new way of treating urban stormwater took different names around the world. A very widespread one is Sustainable Urban Drainage Systems (SUDS), those elements of the infrastructure (urban–hydraulic–landscaping) whose mission is capture, filter, retain, transport, store, and infiltrate the urban runoff, trying to reproduce as close as possible the natural water cycle [3]. This definition is similar to green infrastructures in the United States: an approach to hydrological cycle that uses soils and vegetation to enhance and/or mimic the natural hydrologic cycle processes of infiltration, evapotranspiration, and reuse [4]. On the other hand, in Europe, the concept of green infrastructure is broader, encompassing all those elements that provide connectivity to ecosystems, provide ecosystem services, and contribute to the mitigation and adaptation to climate change; these are classified in different scales: the local level, municipal level, and regional or state level [5]. Therefore, the SUDS would be urban green infrastructures to be implemented at the local–municipal level. In addition, since some SUDS are characterized by the use of vegetation (for example: green roofs, bioswale, artificial wetlands, bioretention areas…), they can also be included within the so-called Nature-based Solutions (NbS), which include those elements in Nature that inspire facing new social challenges efficiently and responsibly with the environment [6].
SUDS cover a wide variety of elements or techniques such as [7] rainwater harvesting systems, green roofs, permeable surfaces, bioretention systems, vegetated swales, filter strips, infiltration systems, and detention–retention systems.
In Spain, SUDS appeared later than in other countries such as the UK or USA and were not as widely distributed or studied [8]. Thus, the objective of this article is to determine the state of the art in Spain and identify possible deficiencies in the research and/or experiences (if there are any of them); more specifically, it is to identify which techniques are the most analyzed and if they depend on the climate of the area or not.

Study Area

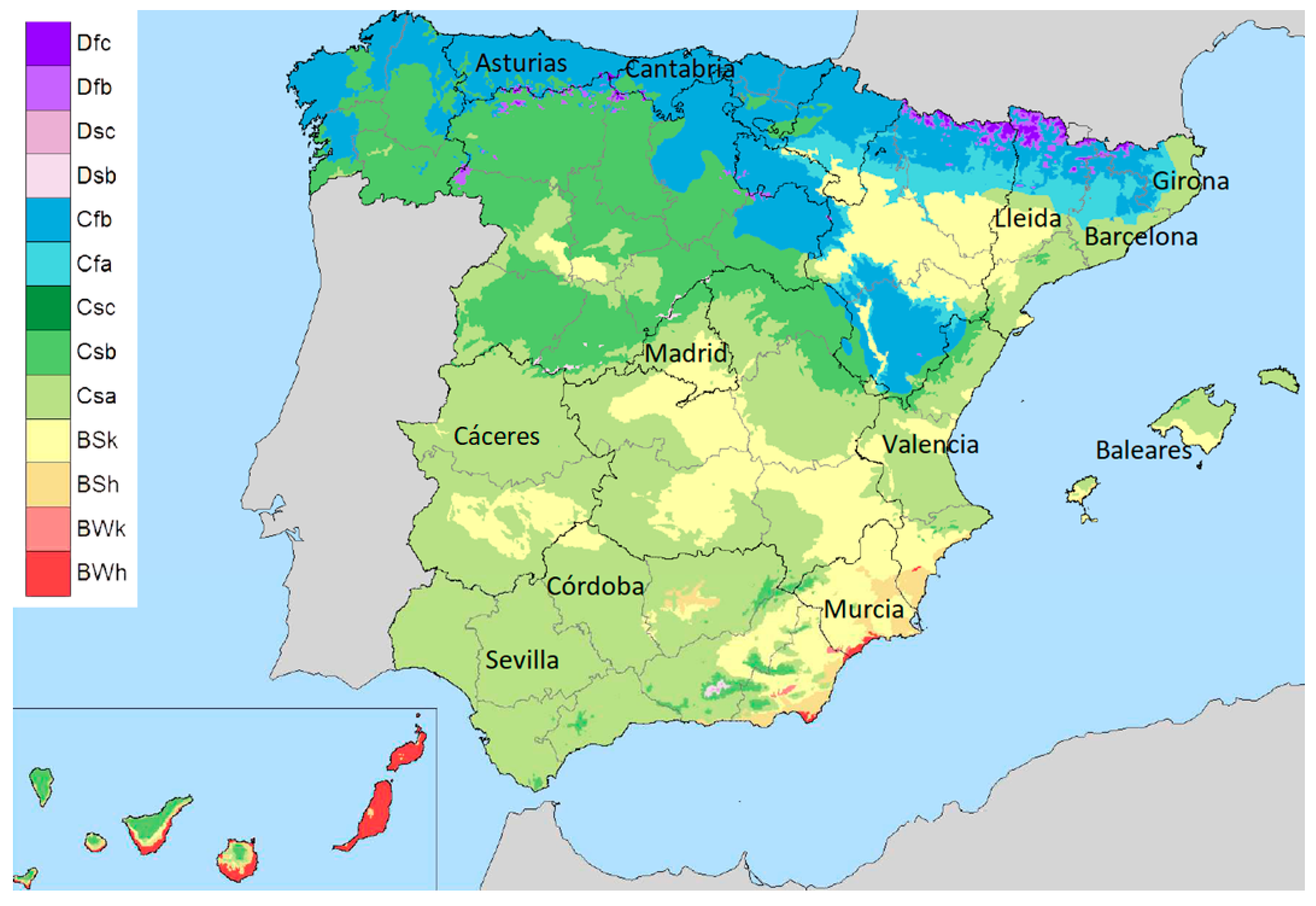

According to the Spanish State Agency of Meteorology (AEMET), in the Iberian Peninsula, there are mainly three types of climates in agreement with the Köppen classification [9]: (i) Dry climates (type B): BWh (warm desert) and BWk (cold desert), corresponding to the provinces of Almería, Murcia, and Alicante, where minimal rainfall occurs, and BSh (warm steppe) and BSk (cold steppe) for Extremadura and the Balearic Islands; (ii) Temperate climates (type C): Csa (temperate with dry and hot summer, known as Mediterranean climate) is found in approximately 40% of the surface of the Iberian Peninsula and the Balearic Islands, being the most common climate, it extends over almost all the southern half and much of the Mediterranean shoreline, Csb (temperate with hot and dry summer) in most of the northwest of the Peninsula and inland mountainous areas, Cfa (temperate without dry season with hot summer) in the northeast of the peninsula and in a strip of medium altitude in the Pyrenees, Cfb (temperate without dry season with mild summer) in the Cantabrian region; (iii) Cold climates (type D): Dsb (cold with dry and temperate summer) and Dsc (cold with dry and cool summer), Dfb (cold without dry season and mild summer) and Dfc (cold with dry summer and cool summer) in high mountain areas of the Pyrenees, the Cantabrian Mountains, and the Iberian System. Figure 1 shows the spatial distribution of the different climatic classes in Spain.
The weather in most of the country is characterized by temperate temperatures and rainfall regimes divided into two periods: one maximum in autumn and the other secondary in spring (except for the west and south of the peninsula, where the rainiest periods are autumn. and winter) [11]. This irregularity in the distribution can affect the development of plants [12] (many SUDS, such as bioretention areas or green roofs, have vegetation) and the performance of drainage elements as well [13]. So, the climate is a key element to consider in SUDS operation. Another characteristic of the rainfall in the Mediterranean and dry areas is the high intensity of rainfall events that are expected to increase in the future because of climate change [14].
SUDS are solutions for climate change adaptation and mitigation [15], and for this, they appeared as recommendations in publications for urban sustainability [16]. However, as we know the importance of the weather, doubts arise about the performance of these solutions in regions with different weather conditions, and therefore, there are concerns as to whether they are translatable. For this reason, this analysis intends not only to elucidate the state of the art of research on these techniques in Spain (if it is homogeneous throughout the national territory or not, if all the techniques arouse equal interest, what are the parameters, characteristics, or functionalities most analyzed) but also to find out the operation of the different sustainable drainage technologies under different climatic conditions.
So, although the main question to answer in this article was about the state of the art in scientific research on sustainable drainage systems in Spain, there have also been attempts to answer other questions in this regard, such as: Is there any relationship between climatology and the techniques studied? Since they are multifaceted structures, does the research focus on hydrological–hydraulic performance, or are other potential benefits evaluated?

2. Materials and Methods

The scientific publications compiled in SCOPUS on the sustainable treatment of urban runoff in Spain were the starting point for this analysis. SCOPUS was selected because it was a search engine that includes a greater number of journals compared to others such as Web of Science, and its citation analysis was faster [17]. Previously, we verified that the journals where researchers of specialized university centers (such as GITECO (https://www.giteco.unican.es/SUDSlab/inicio.shtml (accessed on 22 February 2021)) or IIAMA (https://www.iiama.upv.es/iiama/es/ (accessed on 22 February 2021)) published could be found indexed to SCOPUS.
In this bibliographic review, those publications made in scientific journals with DOI (and indexed in JCR or SJR) have been considered, looking for scientific evidence that shows the performance of these techniques in their different facets under the climatological characteristics of Spain [9].
The development of the methodology followed has had the corresponding steps: (i) Bibliographic search in SCOPUS, to find any paper about SUDS in Spain; (ii) Selection of the bibliography found, which was focused on obtaining the necessary data to answer the research question in this article (What is the state of scientific research on SUDS in Spain?); and (iii) Obtaining information from the selected documents focused mainly on knowing the temporal evolution of research in this field in Spain, if there were more theoretical studies than empirical cases, what techniques were most analyzed according to the different climates of the country or if there was some type of stormwater green infrastructure that has not been studied or monitored. Each of these points is detailed below.

2.1. Bibliographic Search in Scopus

The search in the SCOOPUS database included publications of any nature, without a time limit and geographically affiliated with Spain that contain the following key concepts (Table 1), since one of the main objectives of this article was to know the status of the scientific research on sustainable urban drainage, the years of experience in this area, and the amount of research carried out.

2.2. Selection of Bibliography

The initial search provided a total of 424 records, including articles, book chapters, lectures, and reviews. However, several articles with different keywords appeared with different search criteria, so there were some duplicate items. The screening process consisted in the elimination of duplicates, exclusion of publications without DOI, and we reviewed and read the papers to ensure that the practical cases were located within the Spanish geography (without include the work of Spanish researchers or Spanish entities in foreign locations). Thus, the number of documents to be analyzed became 137, of which 116 were articles, 5 were reviews, 9 were books or book chapters, and 7 were conference papers. This analysis considered the information contained in articles reviews and conferences. Most of the papers consulted belong to journals indexed in prestigious scientific databases, such as Journal Report Citation (JCR), SJR, and SCOPUS.

2.3. Extraction of Information

To answer the questions related to the state of SUDS research in Spain, which is one of the objectives of this study (Which techniques are the most analyzed? What are the most studied parameters and the main characteristics or functionalities? Is the study distributed evenly throughout the country? Does the study of these techniques arouse interest over time?), the minimum information collected included the following:
  • Exposed drainage technique or techniques, according to a typical classification [3,7]: green roofs, rainwater harvesting, permeable pavement, detention systems, green channels, infiltration systems, retention systems, artificial wetlands, permeable pavements. The generalities have been included in a group called Sustainable Urban Drainage (SUDS in Figures).
  • Year of publication.
  • Type of study carried out: analysis of real cases (study of both structural and non-structural SUDS projects), laboratory tests (testing of a technique or any of its components in the laboratory), bibliographic review (studies of previous publications on the subject or comparisons of existing cases from other studies data) and application of models (use of hydrological, hydraulic, economic, or environmental models to simulate the operation of SUDS projected in a location but that do not exist in reality).
  • Parameters analyzed in the articles: hydrological (in relation to flows and runoff volumes), structural (to evaluate the structure or typical structural components of each technique), ecological (to consider the biota involved in the performance of the techniques), energy (refer to the ability of SUDS to serve as an insulator or improve urban thermal comfort), economic (cost–benefit studies and life cycle analysis of systems), social (citizens’ perceptions about urban drainage and related urban policies), and planning (proposals for the inclusion of SUDS at the urban level, urban drainage design and management methodologies).
The information to delve into the analysis of the SUDS based on the weather included the following:
  • The location of the study cases (included only those studies of SUDS or its components operating outdoors under the normal climatic conditions) to determine the climatology.
  • Within the real cases of study were differentiated: testing new technologies (TNT), checking the performance of an alternative component or a novel structure; comparative (C), comparison of results between the performance of SUDS between variants or with gray infrastructures; data collection (DC), SUDS results monitored over time; model application (MA), creation of a model with previously obtained results; and survey (S), interviews on various aspects of SUDS.
  • For the analysis of the case studies, the subject matter specified were: C, Component, or system layer (the article deals with one or more specific components of a SUDS); EP, Energy performance (the object of the research is to evaluate the potential energy benefits of a technique); EE, Economic study; ES, Ecosystem services (research to evaluate the potential ecosystem services of one or more techniques); HP, Hydrological performance (hydrological performance of SUDS or any of its components); HHP, Hydrological–hydraulic performance (hydrological performance and hydraulic operation of SUDS or any of its components); LCA, Life Cycle Analysis (economic–environmental analysis tool to analyze the suitability of a long-term technique); UP, Urban policies (article showing different policies and ways of managing urban water); RQ, Runoff quality (research focuses on runoff water quality and the ability of SUDS to manage it); SP, Social perception (how citizens perceive some of the sustainable drainage techniques); V, Vegetation (study focused on the plants that make up some of the SUDS).

3. Results

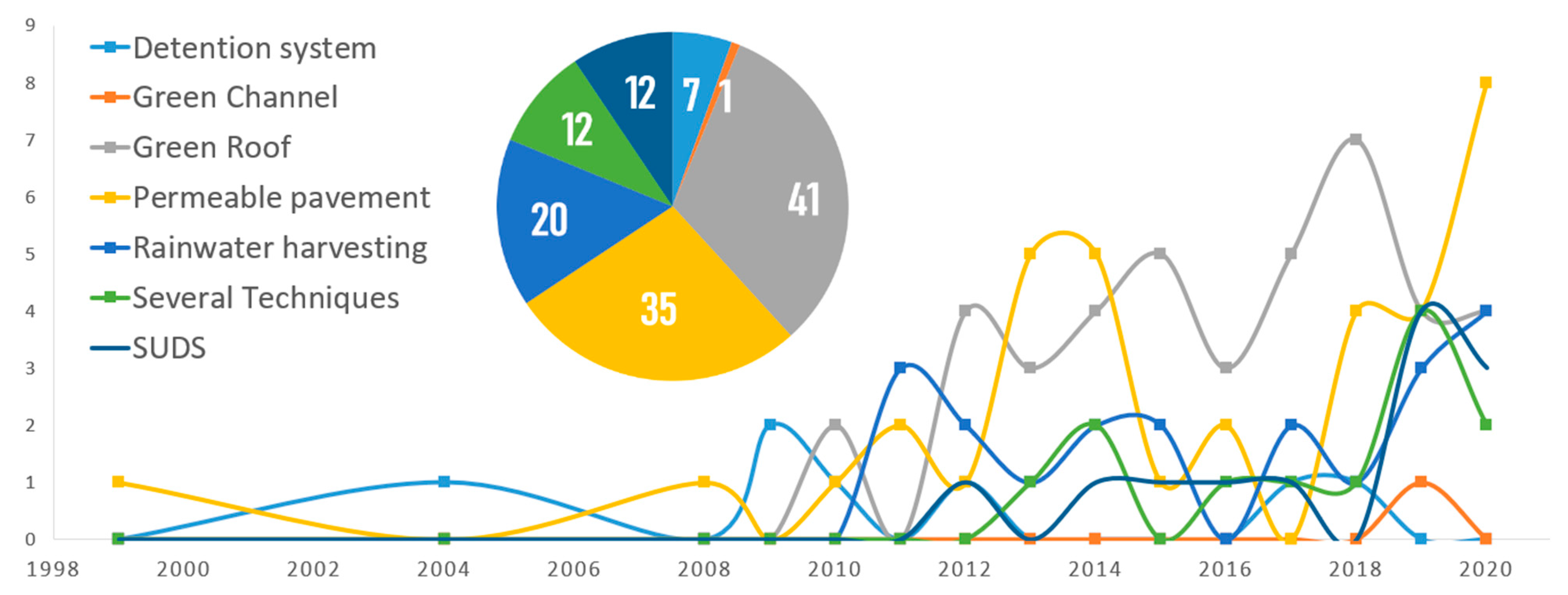

A total of 128 publications met the selection requirements. Figure 2 shows the total number of articles according to the technique analyzed and the evolution in the number of publications since the first explicit reference to the SUDS in the 1990s [18]. Under the title of several techniques are the articles that deal with projects that contemplated the operation (hydrological and quality of runoff) of several techniques simultaneously. With SUDS, we refer to those articles that deal with the sustainable management of urban runoff in a general way and not always using that term, also, green infrastructures.
Table 2 shows in a more concrete way the classification of the articles according to type of technique, type of study, and main subject studied in each case. The numbers indicate the number of publications found in this regard and in the last column of the table, the references of the classified articles.

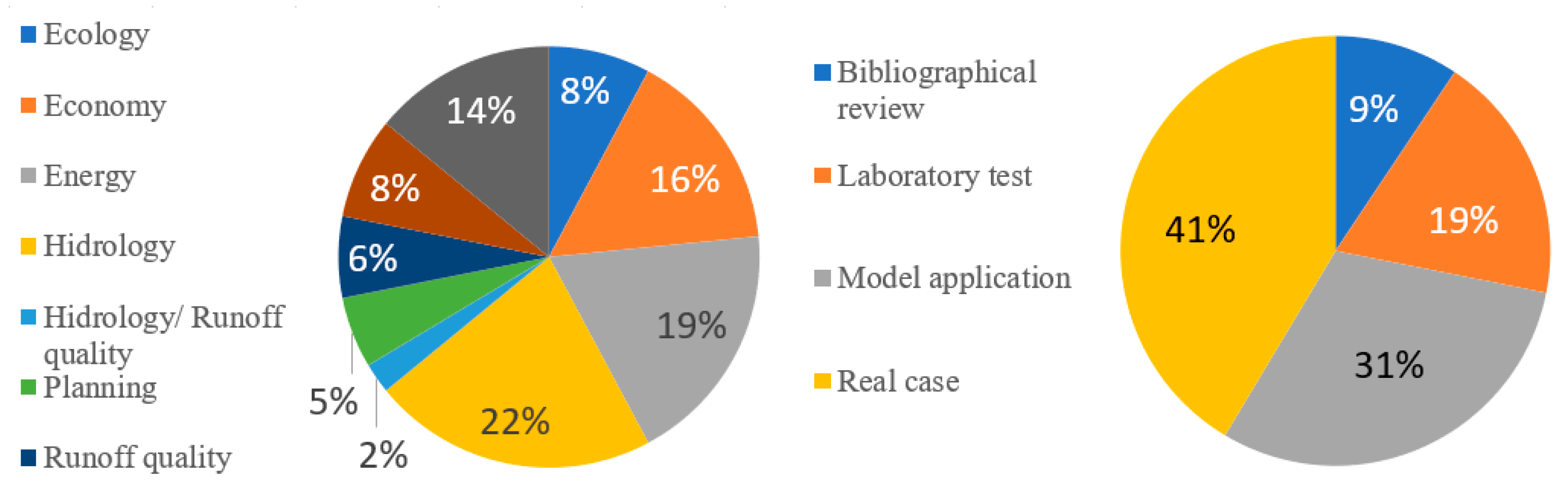

Figure 3 schematically shows the articles grouped and counted according to the analyzed study parameters and also to the type of study (see Section 2.3).

3.1. Sustainable Urban Drainage

This classification includes those articles that talk about sustainable drainage and green infrastructures in a global way, how they should be implemented, projects executed, and the benefits that these systems provide.
It also includes a recent bibliographic review of the SUDS in Spain from 2019: “The potential of sustainable urban drainage systems (SUDS) as an adaptive strategy to climate change in the Spanish Mediterranean” [136]. This paper is a compilation of some of the techniques implemented in Spain, particularly in Alicante.
Since these were not real case studies that could be affected by the weather, we did not delve further into the content of this classification.

3.2. Projects With Several SUDS

In addition to real cases of independent SUDS, publications that contemplated the simultaneous operation of different SUDS also appeared in the search: a pair referring to the AQUAVAL project [129,130,131] in Valencia province (Csa climate) and out in the north of the country (Cfb climate), whose conclusions appear in Table 3.
In addition to the real cases, there were also investigations that propose models to evaluate the suitability of the use of these techniques in flood control (giving positive results) [124,125,126,127,128], improving adaptation to change climate [122,125], and providing another environmental benefits [123].

3.3. Green Roofing

Green roofs, with 41 publications, were the most analyzed techniques, and 24 of these articles showed the results of monitored roofs. Table 4 summarizes the main conclusions obtained in investigations of real cases in Spain in a semi-arid climate (type B) and in a Mediterranean climate (type Csa).
Given the importance of climate in the development and maintenance of vegetation and that the climate of much of the national territory is characterized by long periods of drought, an important part of the research carried out has focused on the functioning of species such as Brachypodium phoenicoides, Crithmum maritimum, Limonium virgatum, Sedum sediforme, Sporobolus pungens, [46,47] and Asteriscus maritimus [47], which were studied in the Balearic Islands; Sedums such as lbum, sexangulare, and spurium [48], which were observed in Lleida; and Silene vulgaris, Silene secundiflora, Crithmum maritimum, Lagurus ovatus, Asteriscus maritimus, and Lotus creticus in Murcia [42].

3.4. Permeable Pavements

Permeable pavements were the second technique with the most publications, with a total of 35 papers. Nine of them reflected the results of experimental installations, and 20 were laboratory tests. Table 5 shows the most representative conclusions of the study cases in locations with a temperate mesothermal climate (type Cfb) and in places with a Mediterranean climate (Csa).
Regarding the use of this technique for adaptation to climate change, the Life CERSUDS project [91] has investigated the capacity of these forms of permeable surfaces made from ceramic elements systems to mitigate the expected effects.

3.5. Rainwater Harvesting

There were also several studies of rainwater harvesting and potential uses (Table 6), which were all located in places with Mediterranean climatology (Barcelona and Girona).
A large portion of the articles are economic analyses on the use of rainwater among this type of analysis, including the creation of a software, Plugrisost [105], to evaluate the profitability and environmental impact of rainwater tanks, which has been used to estimate water prices (for different uses) from which it is economically profitable to install a rainwater harvesting system [106] and to carry out an environmental and economic analysis of rainwater storage systems that supply water for laundry [109].

3.6. Green Channel

There was hardly exhaustive research on green channels, although it is necessary to mention a laboratory investigation [26] focused on the temperature variations in the different layers of a green channel.
The hydrological behavior of green channels was effective from the hydrological point of view [129,130,131] and improving the runoff quality [131,132].

3.7. Detention Systems

The studies of detention systems observed were mainly hydrological–hydraulic models applied in Barcelona [24], Granada [19,20], and Valencia [21,22,25], cities with a Csa climate, and Cantabria [21] with a Cfb climate.

3.8. Research by Climate

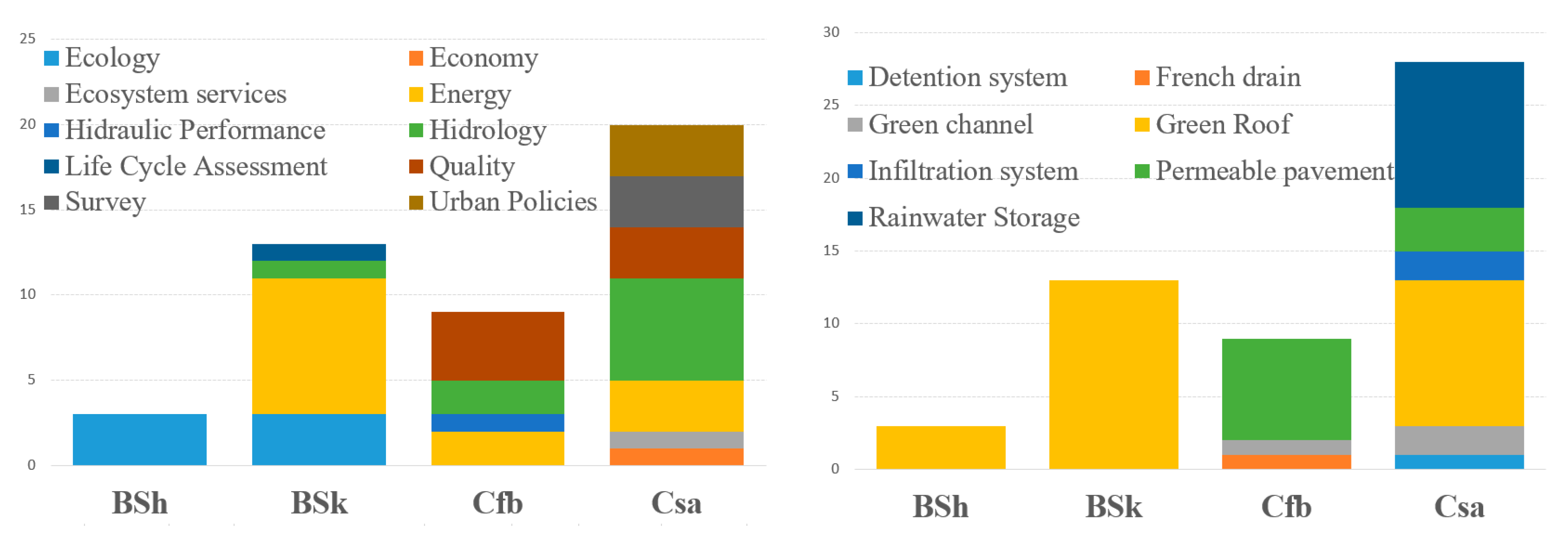

The studies found from the end of the 1990s to the end of the year 2020, although they were not homogeneously distributed throughout the Spanish geography, they cover a large part of the national territory based on the climate. In more arid climates (type B), it seems that research (there are 16 articles of empirical studies carried out in arid climate) has focused more on energy performance (eight papers of 16) and optimizing vegetation selection (six papers of 16), while in temperate climates (type C), it has focused more on hydrology (eight papers of 29 based on C climate). Figure 4 graphically shows the amounts of articles dedicated, on the one hand, to each subject of study and on the other to each type of specific technique.

4. Discussion

A difference between the recent bibliographic review [136] (that compares the implementation of SUDS in other countries with respect to Spain) and the recent publication Sustainable Urban Drainage Systems in Spain: A Diagnosis [145] (an exhaustive compilation of implemented techniques) is that this paper only considers those cases in which a scientific investigation process had been carried out.
The usefulness of SUDS as effective and sustainable management of urban runoff in different climatic regions of Spain is widely demonstrated in several papers [64,96,129,130,131] analyzed in this review, as well as their potential in other fields such as mitigation of climate change in cities [136,139], but the success rates of local–regional SUDS in Spanish different climatology are still not validated.
By far, the most studied techniques are green roofs and permeable surfaces (Figure 2), followed by rainwater harvesting and detention systems. In contrast, typical green street techniques [146] such as bioswales, bioretention areas, or filtering strips providers of several ecosystem services [147] have hardly been analyzed.
The study of SUDS is unequally distributed throughout the Spanish geography; Catalonia and Cantabria are the regions with the greatest number of studies of these techniques, their components, and their operation. In Cantabria, the GITECO research group has carried out a large number of investigations [8], but these have almost entirely focused on permeable surfaces and their hydraulic–hydrological performance. In Catalonia, research centers with different objects of study, such as ICTA (https://www.uab.cat/web/icta-1345819904158.html (accessed on 8 February 2021)) or CREAF (http://www.creaf.cat/es (accessed on 9 February 2021)) have investigated mainly green roofs and rainwater harvesting systems from different points of view (not only dealing with the hydrological and hydraulic performance, but energy, biological, and economic).
The establishment of vegetation is essential for the correct long-term operation of a green infrastructure [148], and it depends directly on the weather. Since some areas of Spain are predominantly dry [9], one of the main concerns could be the selection of species that can withstand water scarcity. Perhaps this is the reason why the regions where vegetative growth and development have been most investigated are the Balearic Islands, Lleida, and Murcia, which are characterized by their low rainfall [9]. The deductions that can be drawn after observing Table 4 is that for the prevailing dry climate in the country, it is advisable to use a mixture of perennial and annual plants with porous and light substrates [42]; the presence of vegetation is decisive for the functions of thermal insulation [56] and water retention with the characteristic rainfall regime of dry areas [45]. However, not all vegetation is equally effective [48]; species such as Sedum sediforme [60] give better results than others [47,48,60]. Regarding the hydrological operation, the effectiveness of green roofs has been demonstrated, but the results of improving the quality of runoff are not satisfactory [130], so further tests in real facilities are recommended, since the results differ from those obtained in the laboratory.
However, more interest seems to focus on the condition of insulation against the heat of these techniques due to the number of publications in this regard (see Table 2).
Permeable pavements work well hydrologically regardless of the climate in which they have been analyzed (see Table 5); although their performance in quality management depends largely on the composition [77,78,79], there are no records of its operation in arid climates.
Although bioretention systems and green channels or bioswales are some of the green infrastructure solutions recommended at the urban level due to their multifunctionality [149], there are not plentiful investigations, as occurs with other techniques. Its multifunctional performance depends largely on the biota [150], which derives from factors such as location and climate (predominantly dry and with little precipitation in Spain [9]); plant selection and plant conditioning factors can be a limiting factor [151]. Therefore, it would be advisable to investigate further which plant elements and components are the ones that would work best under long-term peninsular climatic conditions, since ecosystem services will depend on plants, such as urban biodiversity or CO2 reduction, and maintenance costs, among others [152].

5. Conclusions

The SUDS study includes different disciplines, hydrology, edaphology, ecology, economics, etc. [7]. However, in Spain, the study is highly polarized; that is, the papers with various techniques and those about permeable surfaces deal with the hydrology, while green roofs papers are focused on the improvement of the energy efficiency of buildings, and rainwater harvesting investigations show their economic performance. This can be associated with the fact that the studies are carried out by specialists who tend to prioritize their own fields without considering the important impacts of other fields [153].
There are many more types of SUDS than those found in this research, such as filter strings, trenches or infiltration wells, artificial wetlands, etc. However, although there is evidence that they have been implemented in the Spanish geography, there are no studies that evaluate its operation: neither the hydrological–hydraulic performance nor its potential components or possible secondary benefits.
It is interesting to mention that the most analyzed techniques in Spain are “in situ” control. That means there is too much to investigate about local and regional control SUDS—in other words, techniques that manage runoff from streets, municipalities, or large areas. This may be because it is easy to install a green roof or a permeable pavement in a university building or research centers, but it is more complicated to follow and monitor techniques located in the public space. In this case, it is necessary to have a collaboration between the researchers, the public administration, and citizens.
It would be advisable to carry out more interdisciplinary studies or a holistic analysis of these techniques in their operation in urban areas. Especially SUDS such as bioswales or bioretention systems that develop populations of living beings are limited in their growth by the rainfall regimes of the country.

Author Contributions

Conceptualization, J.C.S.; methodology, A.I.A.G.; formal analysis, N.C.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Some or all data, models, or code that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

To all the scientists and researchers whose contribution to research into a new approach to runoff management has made this article possible.

Conflicts of Interest

The authors declare no conflict of interest.
