Patterns for Resilient Value Creation: Perspective of the German Electrical Industry during the COVID-19 Pandemic

Abstract

The COVID-19 pandemic represents a massive, often unanticipated, external disruption for many companies. As a concept for responding to such disruption, organizational resilience has recently received great attention. In the organizational context, the overriding question is how companies can become more resilient. This study aims to contribute to answering this question by identifying, categorizing, and providing specific business model patterns for achieving resilience on the corporate level. For this purpose, a review of publications by major consulting firms was conducted. Patterns were extracted from publications until a convergence criterion indicated that no new pattern could be identified considering further publications. The 110 extracted unique patterns were clustered into 13 objectives, and additionally categorized according to resilience phases, as well as business model elements, to support the application in practice. The final catalog of patterns was validated through expert interviews and thus provides organizations, such as those in the electrical industry, with an overview and specific approaches on how to tackle industrial resilience through the adaption of their business model.

1. Introduction

1.1. Motivation

Against the backdrop of increasing volatility in business environments, organizational resilience is receiving significant attention from research and practice. The current pandemic is accompanied by changing consumer patterns and behavior, disrupted supply chains and the need for effective health measures, among other factors. This underscores the importance of being able to anticipate potential threats, cope effectively with adverse events and adapt to changing conditions.

The concept addressing this ability is resilience. Existing literature covers the concept [1,2,3] of resilience and, based on literature reviews [1,3,4,5,6,7] or case studies [2,8,9], general principles and attributes of resilient organizations, or parts of organizations like supply chains [10], are discussed. To help companies cope with volatility in the short term and achieve resilience in the long run, it is essential to provide them with practical and effective tools [9]. For example, Mallak [11] provides principles and suggests how to apply them. Fiksel et al. [12] also provide a practitioner-focused description; however, their analysis is on supply chains. Although a variety of general and sustainability-oriented business model pattern collections exist (e.g., [13]), as well as approaches for developing resilient business models (e.g., [14]), no pattern collection focusing on resilience is yet available. Therefore, this study aims at closing this research gap by developing such a pattern collection against the background of the COVID-19 pandemic. The German electrical industry was chosen for validation as they faced several impacts of the pandemic situation.

For this purpose, it is first pointed out how resilience fits into the concept of systems engineering and sustainability. Afterward, using the example of the German electrical industry, the results of a current survey illustrate the impact of the pandemic at various levels. Subsequently, the concept of resilience and the concept of the business model are outlined and brought together to guide the following developments. Based on a review of contributions on resilience by the main players in the consulting industry, measures or so-called business model patterns are identified, classified, and validated through expert interviews. The insights gained are used to provide recommendations for practice and research. In conclusion, the results of the paper are summarized and an outlook for further research and development is given.

1.2. Academic Relevance: Contributions to Systems Engineering and Sustainable Development

The logic of how companies create value is a key element of value creation systems. Understanding value and considering customers, users, other beneficiaries, and suppliers is an essential activity of model-based systems engineering [15]. Business models provide a common, conceptual modeling framework for describing this logic, by defining key elements and their relationships. Developing or innovating business models is thus an important aspect supporting the engineering of complex industrial systems. For example, it supplements the hardware and software of technical innovations [16]. Resilient business model patterns can serve as principles and recommendations as well as best-practice examples for designing complex value creation systems, and thus contribute to research in systems engineering, specifically with relevance to business engineering and to designing innovation systems.

The Sustainable Development Goals (SDGs) of the United Nation aim to enable transformation to move toward a global state of sustainability. This state can change dynamically over time, and is described by a current global consensus, i.e., the SDGs [17]. Sustainable transformation can be divided into two main components: mitigation and adaptation [18]. Mitigation aims at eliminating the underlying negative causes for global trends and their connected risks, whereas adapting aims at building up resilience against global risks by increasing the capability to appropriately react to shocks. Thus, resilience is a possible answer for organizations to adjust to climate change, for instance, with its uncertain consequences or other unknown disturbances. This directly contributes to SDG targets 13.1 and 13.3 [19]. In the literature, it is argued that there is a relationship between the different areas of resilience, e.g., that resilient organizations can lead to resilient communities [9]. Therefore, resilience also facilitates SDG targets 9.1 and 11.b [20,21]. Furthermore, it is shown that social and environmental practices have a positive effect on long-term metrics, and researchers have argued that they therefore support resilience [22]. Hence, this paper intends to contribute directly to research approaches supporting sustainability and the SDGs. It provides a holistic view on how to achieve a higher state of resilience in value creation systems, helping industrial stakeholders to adapt to global sustainability risks.

1.3. Industrial Relevance: Impacts of the COVID-19 Crisis on the Electrical Industry

The electrical industry in Germany is represented by ZVEI, the German Electrical and Electronic Manufacturers’ Association. ZVEI has more than 1600 member companies, which account for approximately 90% of the employees of the electrical industry in Germany. Its member structure comprises global players as well as medium-sized and family-owned companies. ZVEI’s members employ 867,500 people in Germany, and an additional 790,000 people globally. The sector generated a turnover of approximately 181.9 billion Euros in 2020. The electrical industry accounts for 10% of industrial turnover, 14% of total employees, as well as 3% of the gross domestic product of Germany in 2020 [23]. Its companies employ 26% of all employees in the area of research and development, are responsible for 23% of innovation expenditures of the manufacturing industry, and realize one-third of their turnover with product innovations.

The electrical industry is an essential supplier for the health, building and mobility industry as well as for the energy sector. Typical products are automation components and systems, batteries, consumer electronics, home appliances, microelectronic components and systems, electric power tools, medical systems, and electrical installation systems, as well as electric traction systems and vehicles, among others [24]. Consequently, most of the business models of the electrical industry are B2B-oriented, with comparatively little B2C orientation addressing electrical consumer products such as home appliances. Value creation of the electrical industry is characterized by highly interconnected global networks [25].

In April, during the first wave of the COVID-19 pandemic, ZVEI conducted two surveys on the impact of the crisis on the electrical industry in Germany. 128 member companies participated in the survey at the beginning of April (4–7 April 2020). The participants comprised 24% (45 billion Euros) of the sector’s turnover. 114 member companies participated in the second survey at the end of April (23–27 April 2020). The participants of this second survey comprised 41% (78 billion Euros) of the sector’s turnover. Comparisons of selected results from both surveys are presented in Figure 1 and Figure 2.

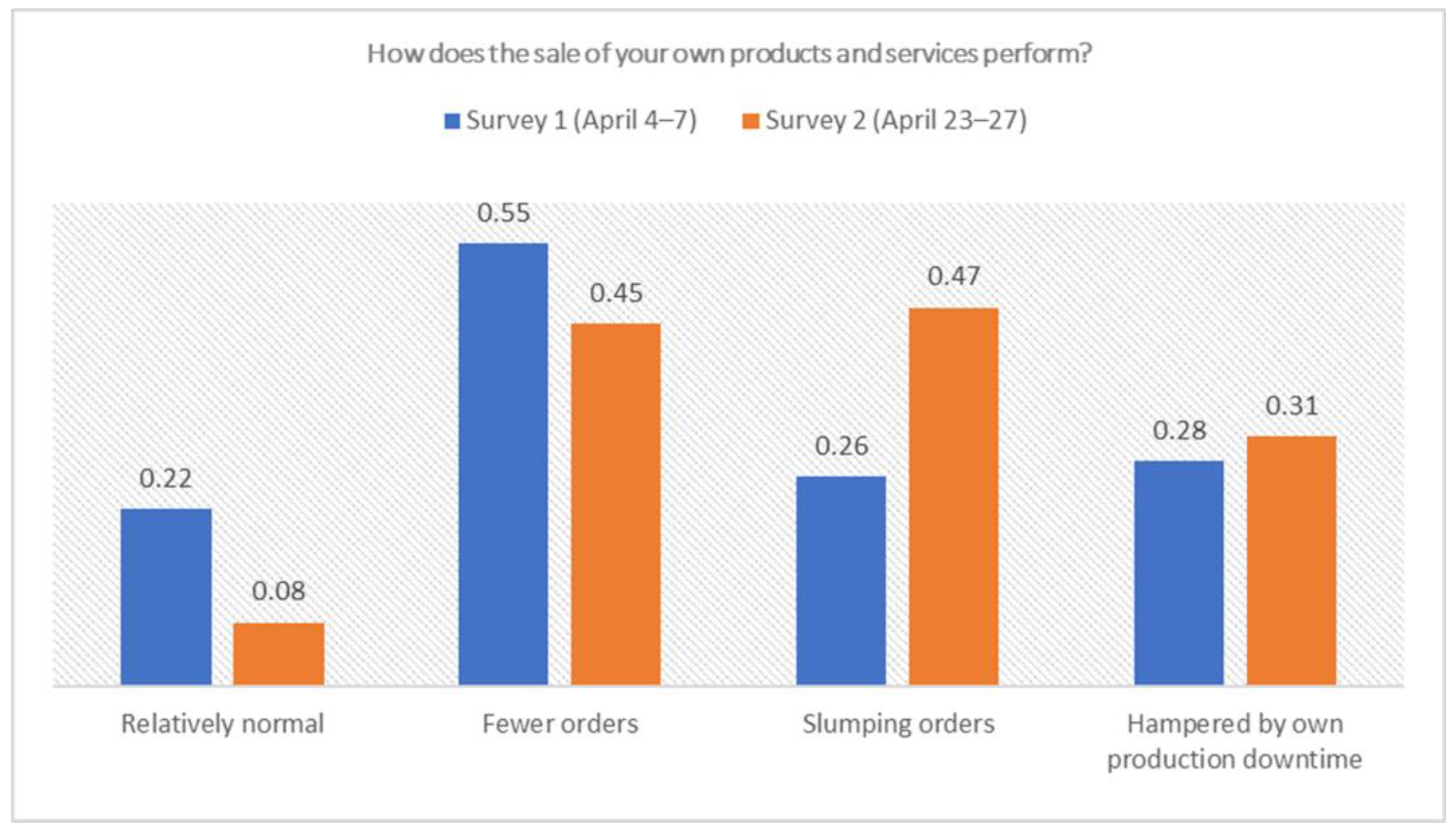

In the first ZVEI survey, more than half of the participating companies (55%) had already received fewer orders than before the crisis. 26% reported a slump in orders (see Figure 1). In the same survey, the companies expected sales to fall by an average of 14%. Only 3% considered it realistic to completely make up for these losses within the near future. The rest expected to recover only half of them or even less in the foreseeable future [26]. In the second survey, 12% expected to make up for the loss [27].

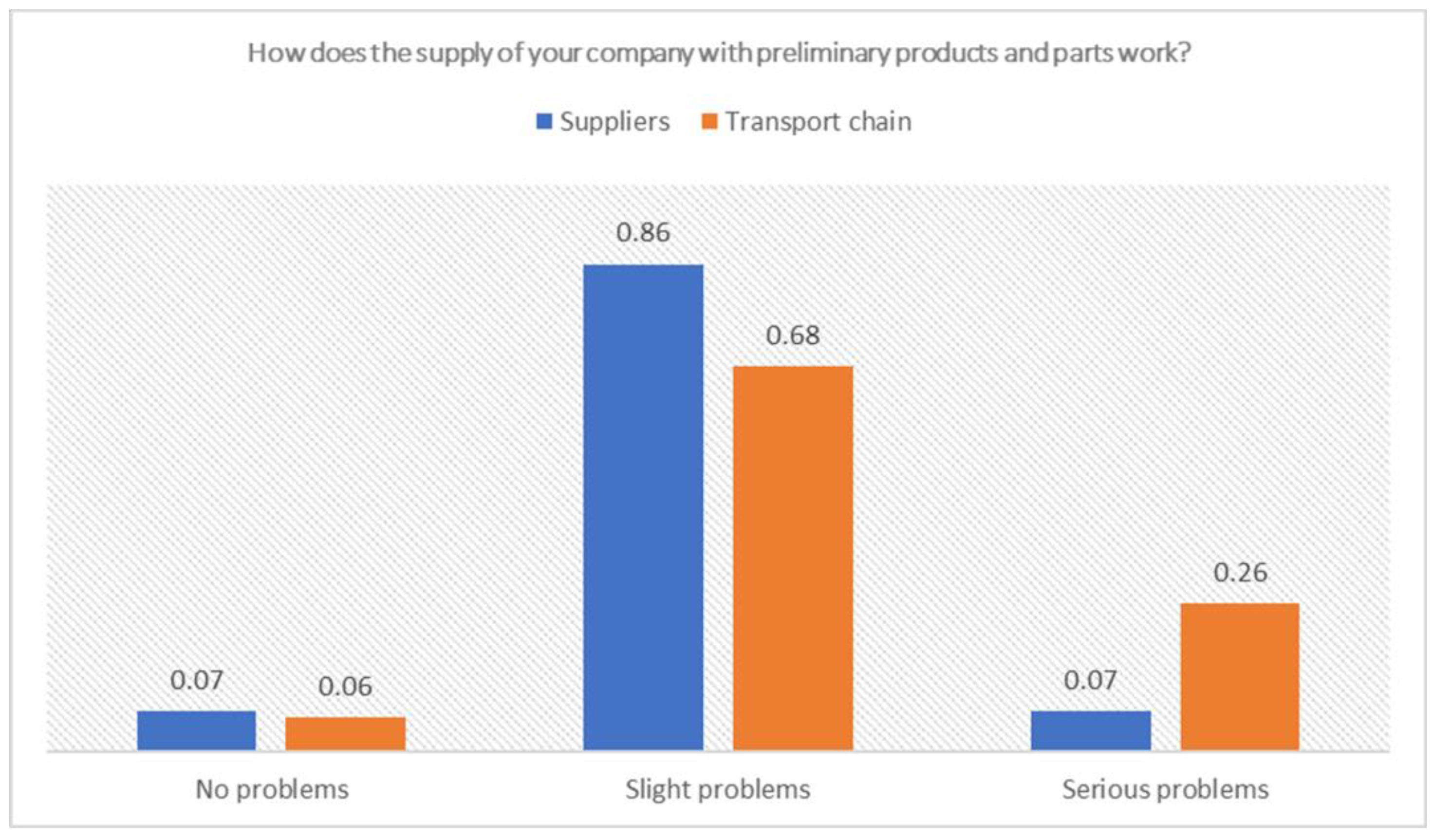

In the second survey, 86% of the companies continued to report slight problems with their suppliers. For 7%, the problems had taken on a serious level (see Figure 2). As far as the supply chain was concerned, 68% of companies were experiencing slight difficulties, and 26%, serious difficulties. For around 90% of companies, sales of their own products and services had been impaired. In half of the cases, orders had collapsed. In just under a third of the companies, sales had also been disrupted due to their own production stoppages (see Figure 1) [27].

At the beginning of April 2020, the COVID-19 crisis had already hit the companies of Germany’s electrical industry quite hard. In particular, a decrease in orders, as well as production downtime and limited supply chain functionality, hindered the production systems of the electrical industry. The impact of the crisis further increased over April, and the production conditions for the companies continued to deteriorate.

This snapshot of the situation in April is also evident when looking into the economic development of the electrical industry from January to October 2020. According to the ZVEI economic barometer in January 2021, orders were down 6.9% compared to the same period in the previous year. In the first ten months of 2020, production was 8.1% lower than in the first ten months of 2019. In those ten months, the aggregate sector turnover amounted to 146.8 billion Euros, 7.2% short of the previous year’s figure. In November 2020, 26% of the sector’s companies rated their current economic situation as good, 49% as stable, and 25% as poor. As far as expectations for the coming six months were concerned, 24% of the companies expected business to pick up, 61% expected it to remain stable, and 15% to slow down [28].

The COVID-19 crisis showed the vulnerability of global value creation networks, and led to negative impacts for the electrical industry in Germany with its complex, globally connected manufacturing systems. Resilient value creation approaches can enable industrial stakeholders to cope with future crises in a more efficient and effective manner. Resilient value creation is expected to reduce the negative impacts of internal and external shocks and contribute to the competitiveness of companies in a future that is increasingly shaped by the direct effect of climate change. In conclusion, the identification of specific patterns for resilient value creation, as intended by this paper, can be of substantial industrial relevance.

2. Literature Review

The aforementioned results exemplify the effect of an unexpected crisis on companies. This is where resilient value creation comes into play as an answer to the posed challenges. The concept of value creation, laid out in the following text, is based on a manufacturing-oriented perspective as described by Stock et al. [29], and Stock and Seliger [30]. Companies create value by linking value creation modules of different aggregation levels, e.g., factories, production lines or assembly workspaces, in horizontally and vertically integrated global networks. Individual business models define and frame the activities of stakeholders involved throughout the value creation network, and lead to cooperation and competition among them.

2.1. Resilient Value Creation

Organizations must continuously prove themselves against adverse events that can have a negative impact on them. Enterprise risk management and business continuity management are established approaches that support businesses in acting proactively and reactively. These approaches are based on risk identification, which is difficult because they depend on knowledge about the nature of the adverse events, as well as their occurrence probability and impact [12]. Additionally, these methods usually assume the independence of risks, which in today’s complex systems and networks is questionable [31]. Furthermore, Fiksel et al. [12] argue that the process of risk management is too simplified, and learning opportunities are not considered, as risk management always assumes a return to its initial state. They conclude that, while building resilience might not be a substitute for other risk management approaches, it is an approach that continuously adapts to changing circumstances and can give a competitive advantage by building capabilities [12].

The term “technological sovereignty” is strongly related to the topic of resilience. It is defined as “the ability of governing bodies to choose and take political, economic, and scientific measures of their own within the operational framework of their international commitments. The aim is to protect well-defined system-critical infrastructures, including the competence to control risks associated with the use of certain technologies” [32] (p. 3). The COVID-19 crisis, especially at the beginning of the pandemic when global supply chains were massively disrupted, demonstrated the dependency of European society on products imported from non-European countries, leading to increasing global competition and tensions in international trade [32]. The capability to provide key technologies without relying on third countries is now an ongoing political discussion. Technological sovereignty thus describes the actions of a government on a macroeconomic level to ensure independence in clearly defined core areas of great social-economic relevance, whereas resilience covers the actions of individual companies on a microeconomic level for increasing the ability to cope with shocks of different sorts.

The overview of the development of the term, “resilience”, by Linnenluecke [33] identifies the origins of the concept in publications as early as 1981. The term is used in several contexts such as psychology, ecosystems, infrastructure, etc. Bhamra et al. [1] see the common definition across all fields of resilience as the “capability and ability of an element to return to a stable state after disruption” [1] (p. 5376), although the context might change from an ecological, individual or organizational perspective. McManus et al. [9] point out that there is a connection between the different fields and perspectives of resilience, as resilient organizations can lead to resilient communities.

Previous research on the topic of resilience has shown that there are different definitions of the term [3], and the research itself is divided into several research streams, one of them being the “adaptability of business models” [33]. Duchek [3] identifies three scholarly groups. The first one views resilience as the ability to resist and recover, and the second one focuses on the development “of organizational processes and capabilities”, while the last group also brings anticipation into its scope.

Collections of definitions of resilience in the organizational context (and others) can be found, for instance, in Bhamra et al. [1], Kamalahmadi and Parast [5], Linnenluecke [33] and Duchek [3]. So far, there is a lack of consistent conceptualization [3,33].

The measurement of resilience is an ongoing research topic; however most studies measure resilience after specific events, predictive factors are missing [33]. Ruiz-Martin et al. [6] suggest the four levels of fragile, robust, resilient, and antifragile to classify the resilience level, and note that these can change over time. The measurement itself is not the topic of this article. However, it is assumed that achieving higher states of resilience is possible.

To conceptualize resilience, and for ease of understanding the concept, Thoma [34] suggests a resilience cycle consisting of five phases—prepare, prevent, protect, respond and recover—based on approaches from classical disaster management. Duchek [3] uses a three-phase approach that includes anticipation, coping and adaptation. During the first phase, which Duchek [3] defines as an offensive one, the organization should observe its environment and prepare for unexpected events. This is followed by the coping phase, where actions are conducted as a response to the event and adaptation after the event, where the organization should transform and adapt based on learning from the crisis it has undergone [3]. Following this approach, in this study, three phases are applied for ease of usage and increased practical applicability. However, within the first phase, we also include resistance to an unexpected event as a possible reaction and not only adaptation.

Based on the existing definitions from Ruiz-Martin et al. [6], and Vogus and Sutcliffe [7], for the purpose of the paper we define resilient value creation as follows: the ability, capacity or capability of value creation systems, including its stakeholders, to return to a competitive state (which can be based on a different business model than before) by preparing for, responding to, and recovering from internal or external and known or unknown disturbances.

Thus, measures of resilient value creation can be characterized by combining different business model activities throughout the phases of anticipation, coping and adaptation of the resilience cycle.

2.2. Business Models and Business Model Patterns

As mentioned before, “working constructs that are practical and effective in the short and long term” [9] are essential for achieving corporate resilience. Business models can be understood as such constructs as they allow, depicting and thereby capturing organizations with all their elements and respective characteristics in their entirety [35,36,37]. Furthermore, they allow the adequate analysis and design of organizations [38,39]. In this context, generating value for the organization and its stakeholders represents the overall goal [35,36,37,40], through which competitive advantage can be realized and organizations’ survival can be secured [35,37,41].

In the context of this paper, resilience can thus also be understood as an organization’s capability to always have an adequate business model at hand for both short-term and long-term competitiveness, and thereby, survive. For the generation of business models, a variety of approaches exist [36,42].

A particularly promising, efficient and effective approach is the application of so-called business model patterns [13,43,44]. In the relevant literature, business model patterns are generally understood as design options for the configurations of a business model which has proven successful in practice, and represents solutions for recurring problems [44,45,46]. In addition to the term “business model pattern”, different terminologies are used: business model analogies [47]; atomic business models [48]; operating business models [49]; profit models [50]; business models [51]; business model configurations [52]; and business model archetypes [53].

Business model patterns can refer to both a business model as a whole and to individual elements of a business model [47,54]. A business model can thus represent a combination of different patterns. According to Gassmann et al. [46], business model patterns are of particular importance, because their analysis of disruptive business models over the last 50 years shows that more than 90% of all business model innovations are merely recombinations of known ideas, concepts, and elements of business models from other industries. Against this backdrop, leveraging business model patterns that have proven successful in other industries and companies offer an efficient approach for generating business models and for decision support [13,44,55]. To date, a variety of business model pattern collections with different focuses have been created [13,42,43,56,57]. In this context, the focus has been put on different industries and businesses such as banking [58], car-sharing [56], destination management [59], e-business [38,60,61,62], e-mobility [63], open data [64], the internet of things [65], insurance [66], social business [67,68] and utility computing [69], as well as industry-independent generic patterns [43,52,57,70]. In addition, a variety of pattern collections have been dedicated to the field of sustainability [13,71,72,73,74,75], focusing on the areas of economic, environmental and social dimensions in the frame of business models and their development. Regardless of the respective focus, the development of pattern collections is carried out both by means of literature analyses, taking into account scientific and non-scientific articles (e.g., [43]), and based on empirical research (e.g., [46]), as well as by means of conceptual work (e.g., [62]), and combinations of the different approaches (e.g., [58]).

To the best of the authors’ knowledge, so far, no specific collection that focuses on business model patterns with regard to resilience is yet available. Complementary to existing general and sustainability-focused pattern collections, as well as further approaches for designing resilient and sustainable business models (e.g., [14,76]), a generic pattern collection dedicated to resilience seems promising, and thus illustrates a promising approach for supporting organizations in becoming and remaining resilient.

3. Methodology

To investigate which business model patterns are relevant for resilient value creation during COVID-19, and what can be learned for future crises, this research focused on the recommendations and findings of globally operating business consultancies. At the beginning of the pandemic, only a few academic publications on resilience during the COVID-19 crisis were available. In contrast, consultancies were able to publish their experiences ad hoc without the need of going through academic review procedures. Therefore, this study’s methodology focuses on the consultancies’ insights in order to gain practical-oriented knowledge with high relevance for the industry. Thus, the research results provide an overview of the resilience experiences from global consultancies during the beginning of the COVID-19 crisis.

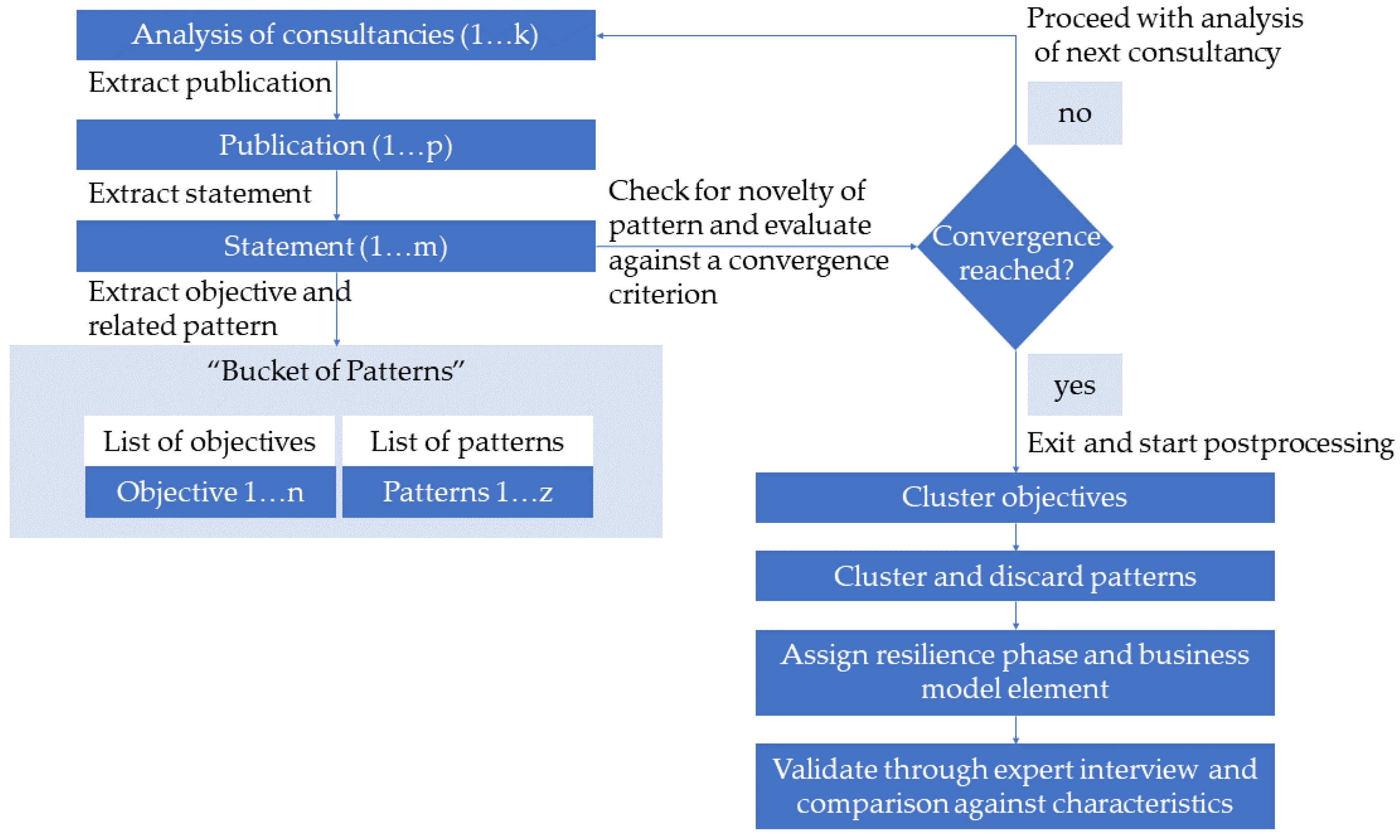

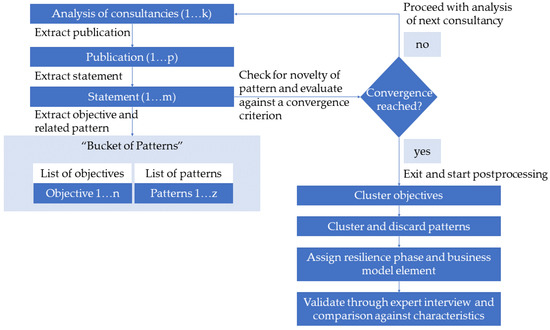

The research methodology followed the algorithm shown in Figure 3. To support the procedure, Microsoft Excel was used. First, relevant sources were identified by analyzing resilience-related open-access publications of established business consultancies, sourced from their websites. For starting the algorithm, a consultancy was randomly selected from a list of the top 10 consultants by revenue [77], and searched for resilience-related content on their websites. For the respective consultancy under consideration, the relevant content, i.e., individual sources, was then extracted. Subsequently, in each of these publications, relevant statements were identified. A statement represents a self-contained approach for resilient value creation. From each single statement, specific objectives and patterns were condensed and transferred into one list. In the next step, the novelty of the identified patterns was checked by comparing them all before capturing anonymized patterns. After processing each publication, it was evaluated regarding a pre-defined convergence criterion. The convergence criterion was defined as the number of new patterns of a publication divided by all patterns of that publication. For the threshold, 10% was determined. This allowed monitoring of the knowledge gain during the research process. In the case that newly sourced statements repeatedly did not contribute new knowledge in terms of unique patterns, and convergence was reached, the review was stopped. Eventually, four different consultancies (BCG, McKinsey, Deloitte, EY; k = 4) and 10 related publications (p = 10) were analyzed, leading to 171 statements (m = 171). From these statements, 226 objectives (n = 226) and 245 patterns (z = 245) were derived. The convergence criterion for the final source equaled 0.077, meaning that only 8% (or 1 out of 13) of the patterns derived from this source could be classified as novel. The two previous iterations reached 15% (8 out of 54) and 25% (4 out of 16) regarding the convergence criterion. By reaching a value below 0.1 in the final iteration, the algorithm was exited.

Subsequently, the list of objectives and patterns, i.e., the “Bucket of Patterns”, was processed. This step included a further clustering of the objectives and patterns in terms of similarity. This resulted in 13 objectives. Under each objective, similar patterns were then grouped together and reformulated as an actionable measure. At the same time, patterns that were too broad or general, or articulate an objective itself, were omitted. In total, this resulted in 110 unique patterns. In the next step, each of the remaining patterns was assigned to one or more resilience phases according to Duchek [3], based on its content. Furthermore, each pattern was assigned to one or more elements of the business model according to Osterwalder and Pigneur [36]. In the case where patterns affected the business model as a whole, they were assigned to an overarching business model level.

As a result of this procedure, the pattern catalog comprised 13 objectives and 110 patterns, and was subsequently validated through semi-structured interviews with 3 experts from the electrical industry. The identified patterns were also compared with the aforementioned characteristics of the German electrical industry. In conclusion, the main result of this research is a qualitative meta-study of validated patterns for industrial resilience, based on the practical experiences of well-established business consultancies. The results of this approach are presented in the following section.

4. Results and Validation

This section takes a closer look at the objectives, the patterns and their assignment to resilience phases and business model elements, before describing how the patterns were validated.

4.1. Results

The provided structure aimed at enabling practitioners to choose suitable patterns from the catalog according to their individual needs. All patterns are listed in Supplementary Table S1, which shows the 13 objectives, a short explanation and the number of patterns within each objective. As shown in

Table 1. Identified objectives of resilient value creation and number of patterns per objective.

Objective	Brief Explanation	Number of Patterns
Adapt and align leadership	All changes which are necessary in the leadership style of the organization and the strategic orientation.	10
Anticipate change in customer demand	Identify at an early stage how customer needs and distribution channels are changing, e.g., towards digital sales.	10
Anticipate moment of rebound	Identify early on when the disturbance is over, and then prepare accordingly to ensure a smooth and fast ramping-up of operations.	6
Create awareness on different scenarios and risks	Facilitate better understanding about the occurrence and effects of possible adverse events, as well as feasible countermeasures.	12
Design a flexible system	Create a system and its components, be it individual organizations, supply chain or technical systems, to be easily modified.	10
Empower people and create culture	Build competencies and motivation to create a higher individual resilience, as well as facilitate a cultural framework in which people can act resiliently.	5
Enable agile actions	Facilitate quick and easy response to any changes when necessary.	8
Ensure employees’ safety (in a health crisis)	Guarantee the physical and emotional wellbeing of the employees, especially in a health crisis.	8
Ensure liquidity	Stay on top of finances to have sufficient cash available or be able to convert assets quickly into cash.	15
Identify revenue opportunities	Question product and service listing and reorganize if necessary.	6
Increase robustness	Create stability and reduce vulnerability to severe impacts by increasing redundancy and diversity.	6
Increase transparency of the value creation system	Share information with suppliers and collect information, e.g., by “control towers”, and create visibility of material stocks.	5
Use digital processes and work tools	Digitalize the complete system from E2E, and use digital tools to support employees. The basis is IT security, which is a top priority.	9
Total		110

, most patterns were assigned to the objective “ensure liquidity” while a few are assigned to “empower people and create culture” and “increase transparency of the value creation system”. However, the number of patterns per objective does not allow any conclusions about importance. For a discussion of the objectives against the literature and their relevance, see Section 5.

With regard to the distribution of patterns in relation to phases and objectives, different insights can be gained. As shown in

Table 2. Objectives in the respective phases of resilience. Dark shades highlight the highest number of patterns in the respective objective cluster.

Objective	Resilience Phases
	Number of Patterns in Anticipation Phase	Number of Patterns in Coping Phase	Number of Patterns in Adaption Phase
Increase transparency of the value creation system	3	3	2
Increase robustness	6	2	-
Create awareness on different scenarios and risks	10	4	4
Design a flexible system	6	4	5
Empower people and create culture	2	4	4
Enable agile actions	4	6	1
Ensure employees’ safety (in a health crisis)	-	7	1
Ensure liquidity	2	12	6
Adapt and align leadership	4	7	3
Anticipate change in customer demand	2	9	3
Use digital processes and work tools	7	4	9
Identify revenue opportunities	-	3	4
Anticipate moment of rebound	-	-	6
Total	47	65	48

, most patterns are assigned to the coping phase (65). This is followed by 48 patterns assigned to the adaptation phase, and 47 to the anticipation phase, as shown in Table 2. A possible explanation for this distribution among the phases might be the time frame of the study. It was conducted when most companies had to deal with the consequences of COVID-19, and consultancies tried to offer related solutions. Regarding the relationship between objectives and resilience phases, the data show that nearly all objectives are represented in more than one phase, except “anticipate moment of rebound”. This objective is only present during adaptation. Contrary to the general focus on coping and adaptation, there is a clear relationship between the “creation of awareness” and the anticipation phase, which seems logical as it is most important before the disturbance affects organizations. In this way, organizations can react early and quickly. The objective “ensure liquidity” has a high relevance during the coping phase, as it is most crucial for organizations to stay on top of their finances during this phase. The objective “ensure employees’ safety” was not represented during the anticipation phase, but it shows high representation during the coping phase. Building a robust operation needs a clear focus on anticipation, with no patterns assigned to adaptation. The advancement in digital processes shows little relevance during the adaptation phase. When discussing this topic, it is important to consider that the process of becoming resilient is regarded as a cycle. Therefore, each adaptation phase is followed by an anticipation phase. However, if a company is well prepared, it might require fewer or no activities during the crisis itself.

The distribution of patterns according to the business model elements is illustrated in

Table 3. Distribution of identified patterns across business model elements.

Business Model Element	Number of Patterns
Meta	16
Key Partners	23
Key Activities	28
Key Resources	52
Value Proposition	9
Customer Relationships	5
Channels	9
Customer Segments	8
Cost Structure	17
Revenue Streams	12

. By far the most frequent patterns are those assigned to key resources (52), followed by key activities (28). The explanation of this concentration relates to the high prevalence of patterns in the coping phase. When companies were forced to cope with the initial effects of the pandemic, existing resources and processes were the obvious starting point. A significant, yet only approximately half as large, number was assigned to key partners (23), which might be explained through supply chain difficulties arising. Sixteen patterns showed a relationship to the business model as a whole (row: “meta”) signaling the need for broader measures to deal with the pandemic. In general, it shows that, across all patterns, the internal view of the business model (cost structure, key activities, key resource) is more in the foreground than is the external view (revenue stream, customer segments, channels, customer relationships, key partners).

4.2. Validation

The validation of the identified business model patterns, and the related classification according to resilience phases, objectives and business model elements, was based on a joint workshop with three company representatives from the electrical industry, as well as two representatives of ZVEI.

In the beginning, a short questionnaire for assessing the current and future relevance of industrial resilience for Germany’s electrical industry was used. All participants agreed that issues related to industrial resilience gained importance during the COVID-19 pandemic and will become an even more important topic in the future.

Afterward, a qualitative discussion of the overall research approach, as well as of individual objectives and patterns related to the electrical industry, was conducted. Most of the patterns were assessed as very important or important by the participants. Some patterns assigned to the objectives “ensure revenue opportunities” and “ensure liquidity” were neither assessed as important nor as unimportant, as the representatives felt more confident about discussing patterns related to manufacturing and supply chain management due to their specific backgrounds. During the discussion, it was stated that the catalog of patterns is an important means for improving industrial resilience in the value creation of companies. However, it was pointed out that many patterns are rather generic and are applicable to any industry. Thus, it was noted that specific challenges of the electrical industry were not being sufficiently addressed. A core statement of the participants was that dual/second sourcing strategies often cannot be effectively realized, since only a few suppliers are globally capable of manufacturing complex electrical or electronic parts and products. This fact is currently also highlighted in the media, as a shortage of microelectronics and chips is hindering the manufacturing process of many companies. The shortage shows that manufacturing capacities of sufficient quality cannot be scaled up quickly, due to the high complexity of the required processes and produced products. Thus, the implementation of redundancies by emphasizing dual-sourcing strategies in value creation networks seems not to be a favorable approach for the electrical industry.

Since the identified objectives and patterns are non-industry-specific for the time being, it is necessary to interpret them against the background of the challenges faced by the electrical industry as described in Section 1. The electrical industry as a whole shows a very high degree of connectivity with other sectors, and therefore covers a very diverse spectrum of products and services. This ranges from end-customer business for building automation and digital services in the healthcare sector, to highly specialized plant technology in industrial production. With this in mind, a collection of generic patterns (see Supplementary Table S1) is generally necessary to cover the wide range of potential challenges faced by individual companies. Nevertheless, several characteristics of the electrical industry must be considered to align the pattern catalog accordingly (see

Table 4. Characteristics of the electrical industry in Germany and the resulting focus for the resilience patterns.

Characteristic of Electrical Industry and Relevance for Resilience	Related Resilience Objectives	Related Business Model Elements	Resulting Focus for Resilience Patterns (Reference for Pattern ID in Supplementary Table S1)
Mainly B2B-oriented: long-term and more rational business relationships but limited overview of quickly changing end-user markets	Anticipate change in customer demand Anticipate moment of rebound	Customer relationship Customer segment Channels	Consider long-term effects of prioritization and pricing on relationship with key customers (2.5; 2.10) Monitor behavior of end-customers of customers to anticipate demand changes early and dampen bullwhip effect (2.4; 3.3; 3.5)
High share of turnover with capital goods: higher susceptibility to delayed investments by customers	Anticipate change in customer demand Design flexible systems	Value proposition Revenue streams	Expand products with supporting services to generate continuous revenue (2.1; 2.9; 5.1) Utilize product-service systems to provide functionality instead of ownership, to accommodate flexible demand and reduce dependency regarding financial investment barriers (2.2; 2.3; 2.4; 5.1)
High portion of digital products and services: ability to support customers’ increased transparency and flexibility needs to address crises	Identify revenue opportunities Use digital processes and work tools Increase transparency of value creation system	Key activities Value proposition Channels	Leverage and advance the technology portfolio to serve upcoming digitization demands created by the crisis (10.2; 10.3; 10.4) Accelerate internal digitization projects to ensure effective working capabilities (13.1; 13.7; 13.8; 13.9) In own products, enhance data generation and usage to as basis for transparency needs (12.2; 12.4)
High degree of innovation: ability to realize new technologies and applications for changing needs	Identify revenue opportunities	Value proposition Key activities	Create new features and services quickly, concentrating on essential features (10.2; 10.3) Transfer changes into new long-term business models (10.1; 10.2; 10.4)
High number of SME: faster reaction capability but limited financial and personnel redundancies	Adapt and align leadership Empower people and create culture Ensure liquidity	Key resources	Utilize closer management proximity from owner/CEO to employees to make and implement decisions, considering the strategic perspective as well as current operative problems (1.3; 1.5; 6.4) Secure availability and skills of key personnel to reduce dependency on individuals (1.2; 6.2) Utilize better process overview and autonomy of employees (1.4; 6.1) Focus on ensuring liquidity with internal measures, as bank loans are less accessible (9.1; 9.3; 9.10)
Highly globally connected supply chains with limited supply alternatives: higher susceptibility to impairments, even locally.	Create awareness on different scenarios and risks Design flexible systems Increase robustness	Key partners Key resources	Monitor events and risks on global (political) landscape (4.6; 4.7) When redundancies and alternatives cannot be achieved by dual-sourcing, adapt inventory allocation and prioritize customers (5.1; 5.8; 5.10; 11.3)

).

Most business models in the electrical industry are B2B-oriented, which simplifies communication, as customer contacts are mostly well defined and requirements are more explicit compared to the B2C market. However, when prioritizing individual customers in the event of shortages, greater attention must be paid to the long-term effects on the supplier–customer partnership. As the electrical industry is a driver for digitization and innovations, with digital products and services being elements of many business models, existing capabilities and activities can be leveraged to serve external demands quicker and translate new features into long-term post-crisis business models. At the same time, this provides opportunities to advance internal digitization roadmaps. Small and medium-sized companies (SMEs) make up the majority of the electrical industry. As SMEs have a limited access to external loans from the financial market for investments, in any case, patterns to ensure liquidity without relying on external sources need to be focused. On the other hand, the closer relationship between management and employees can be utilized to establish clear communication and decision making in a quicker and more credible manner. The high level of connectivity in global supply chains represents a major risk for electronics companies, as multiple regions have to be continuously monitored both from a demand and a supply perspective. At the same time, the global networks often cannot be used to create supply alternatives via dual-sourcing, as the necessary resources and components are often only available through very few suppliers. To compensate for this, companies need to resort more often to adapted inventory strategies and the prioritization of customers.

5. Discussion and Future Recommendations

The catalog is based on found statements in consulting publications, and therefore provides a picture of how to achieve resilience from a practical point of view, giving managerial recommendations. At the same time, it provides the basis for comparison with scientific literature. Practitioners can use the catalog in different ways. First, it gives a holistic overview of objectives and assigned patterns for reaching a state of higher resilience. Second, by combining resilience phases and patterns, it helps to shift the focus to what time each objective should be pursued. Third, by combining business model elements and patterns, the catalog on the one side helps to identify patterns that are suited to making single business model elements more resilient, and on the other side, the categorization simplifies the allocation of patterns within the organization. At the same time, this still is a general catalog; the suitability of each pattern for the specific question still needs to be checked every time. A company-specific solution also needs to be worked out by the practitioners. The interrelationship of the patterns was not investigated. It was assumed that each pattern in itself increases resilience.

There are, however, limitations to this study. First, only a few well-known consultancies were considered. Second, the approach concluded the search when a convergence criterion was reached. Continuing might deliver more insights; however, the number is expected to be very small. Third, in the course of this study, validation took place in a qualitative way in a single workshop, with experts from different companies from the German electrical industry. While it is unlikely, as the experts came from multinational organizations, it is possible that in other countries there will be a different result. Thus, applying the catalog to companies to gain insights on its applicability and usability constitutes a logical next step. Lastly, some patterns are certainly a reaction to the type of crisis. As COVID-19 was a health crisis, some patterns and objectives might be less relevant during other types of crisis, especially the cluster of ensuring employees’ health and safety, which might be less relevant during non-health-related crises. The cluster regarding a change in customer demand might also be less oriented toward a digital channel during other crises.

Comparing the objectives against existing literature can give more insight into whether the proposed patterns extracted from consultancies improve resilience. As the objectives fit with resilience in the literature, and the patterns fit with the objectives, this can be seen as confirmation of the patterns.

The ability to come to a good decision quickly, among other factors, is influenced by leadership, decision-making structures and knowledge management, and the flexibility of an organization [9]. This confirms the general relevance of the objectives “adapt and align leadership” and “empower people and create culture”. Defining a long-term vision (1.9) is seen as a positive factor for resilience [4]. According to the literature, including other opinions into the decision-making process, as well as decentralizing control [4], supports resilience. This confirms patterns 1.4 and 1.7. However, it contradicts pattern 1.3. A possible explanation is that, according to the analyzed literature, at different times, different leadership styles should be utilized. The focus on finding solutions quickly, rather than finding the perfect solution (1.6), is found in the literature as the term “bricolage” [78], which is seen as an important aspect of resilience [11]. Creating a culture where disruptions are seen as an opportunity, and which is supporting creativity [4,11], is a driver of resilience, yet this is not explicitly mentioned in the patterns. Having enough available personnel (6.2) and ensuring that they are motivated and aligned (6.4), e.g., by ensuring their wellbeing (6.5), can also be found in the literature [4].

The clusters “anticipate change in customer demand” and “anticipate moment of rebound” are not found in the literature with this particular focus. However, the implications of this focus on manufacturing and on fulfilling customer demands (2.8, 2.9, 3.2, 3.4, 3.5) are important topics when addressing supply chain resilience [12].

The objective “create awareness on different scenarios and risks” can be found in many sources. Existing literature addresses the awareness of the environment in which the organization is operating, e.g., by building scenarios [9], and at the same time addresses managing potential negative impacts on the organization [9]. Organizations need to be able to observe the environment, identify possible threats, and prepare accordingly [3]. In this context, it is also important to recognize the problem [3]. Most of the patterns in this cluster are placed into the anticipation phase (see Table 2). This is in line with Duchek [3], where “observation and identification” [3] is placed in the anticipation phase. This capability in turn is closely related to the objective “increase transparency of the value creation system”, as it is also related to the information within the system. Patterns can therefore be seen as relevant. The patterns related to the supply chain (12.2, 12.4, 12.5) can also be found as visibility [12] in previous literature.

The objective “ensure liquidity” is focused on financial resource availability, as that was a particular focus within the analyzed publications. While that factor can also be found in the scientific literature [3,4,6], there it is not only understood in terms of financial resources but also as the availability of other resource types.

The cluster “design a flexible system” can be found in the literature regarding supply chains [12]. Patterns within the objective “enable agile actions” are focused more on the ability of individuals to perform agile actions [4,9,11], which has been covered above.

Redundancies to build robustness are mentioned especially in the literature [3,4,6,12], and are therefore seen as relevant. Furthermore, the literature mentions the importance of networks and collaborations [4,6], which is also represented by the pattern “preserve supplier networks on which you depend” in the objective of robustness.

The cluster “ensure health” is not mentioned explicitly in the literature. Nevertheless, the well-being of staff is mentioned in the literature [4,12]. The frequent mention in the analyzed sources of this objective is certainly a consequence of the COVID-19 pandemic being a health crisis. Therefore, it might be less relevant in other types of crisis; however, as it is also generalized in the literature it seems to be relevant to a certain point.

The patterns of “identify revenue opportunities” are not prevalent in the scientific literature. In contrast, liquidity and revenue generation are frequently mentioned in the grey literature of consultancies. This can be seen as too narrow a focus on short-term and reactive measures in the field of resilience management. On the other hand, it can also indicate a research gap regarding the criticality of available cash as a basis to survive a crisis.

The objective of “digital processes and work tools” is not directly represented in the scientific literature. The aspect of cybersecurity (13.4, 13.5) is, however, mentioned [12]. The analyzed literature stems mainly from the context of the COVID-19 pandemic, during which capabilities for remote working by utilizing digital tools were highly relevant. It can be assumed that digitization is not an unlimited measure for improving resilience and may also have negative effects in specific crisis situations.

An aspect that is highlighted by the literature is learning from the previous crisis and changing accordingly afterward [3]. This aspect was not present in the analyzed consulting literature; pattern 4.4 only partly includes it.

Further insights can be gained by comparing the results of this study with existing pattern collections from the business model domain. When matching the patterns with collections focusing on sustainability, the main differences persist with regard to the content of patterns and the structure or classification of patterns. In collections such as those by Lüdeke-Freund et al. [13] and by Lüdeke-Freund et al. [72], and Bocken et al. [73], content-wise focus is predominantly put on the environmental as well as the social dimension of business models. This aims to improve regular business performance with regard to these dimensions, while economic performance is also considered. When being applied to specific industries, as for example in the case of the banking industry, the patterns are adapted to that industry’s characteristics [58]. Regarding the results of this study, this would entail adapting the pattern catalog to the electronic industry, which has not been realized at present. Crises in terms of single events that are needed to be dealt with are not explicitly focused on or taken into consideration in the mentioned collections.

The predominant focus on sustainability dimensions is also reflected in the structuring or classification of patterns in these collections. Patterns are clustered in topics related to the environmental and social dimension, e.g., creating value from waste, substituting with renewables and natural processes, and encouraging sufficiency [58], or are assigned to the three dimensions of sustainability or subdimensions of the sustainability triangle [13]. On the other hand, a similarity with regard to the current study persists in the fact that business model elements and underlying elements are partly applied to structuring or classifying patterns [72].

The comparison of the pattern catalog of this study to generic pattern collections draws a different picture. In contrast to the aforementioned pattern collections with a focus on sustainability, the economic performance seems to be in the foreground. Patterns that are related to social or environmental aspects are partly considered, but seemingly play a subordinate role here. Crises, on the other hand, are also not explicitly considered [56,57]. In relation to this study, it shows that although patterns of similar content are included in the generic pattern collections, especially those related to increasing revenue and decreasing costs, they are also related to sourcing and other aspects [43]. A further similarity with this study is the structuring or classification of patterns, which also takes into account business model elements and an overarching business model perspective [43]. Regarding the structuring of patterns, the contribution by Remane et al. [56] provides some insights on how structuring can be conducted in the case of specific industries. Here, the patterns are assigned to specific characteristics of the car-sharing business, which is in general a promising option for structuring existing collections according to specific industries.

Against the backdrop of the preceding explanations, it can be concluded that resilience has until now not been taken thoroughly into consideration in the context of business model patterns, although overlaps between the content of this study’s catalog and existing collections exist. Thus, bringing the different collections together and structuring them according to the respective focus of business model development, e.g., improving resilience, seems promising. In this context, the structuring of patterns plays a very important role, as it determines the access to and the usability of collections.

Besides the differences and commonalities between the different collections, their application requires a structured approach for target-oriented business model development. Therefore, the focus should be put on synergies between existing collections and further pattern-independent approaches. In the context of resilience, bringing this study’s collection and, for example, the approaches by Carayannis et al. [14] and Biloslavo et al. [76] together, is a promising next step towards a systematic business model development for resilience.

6. Conclusions and Outlook

This study made a first attempt to fill the research gap related to the lack of pattern collections, with a focus on resilience. Based on publications by large consultancies, 110 unique patterns were identified and compiled in a catalog. For structuring the catalog and thereby enabling target-oriented access to the patterns, these were assigned to 13 objectives related to resilience, developed through clustering, and assigned to the three phases of resilience as well as to business model elements. The structured, yet generic, catalog was validated based on interviews with representatives of the German electrical industry. Additionally, the pattern catalog was analyzed and interpreted with regard to the characteristics of the German electrical industry. This resulted in the selection of patterns that are of high relevance for the industry, with industry-specific interpretations. These steps showed the catalog’s general relevance, as well as its usefulness in the context of the electrical industry.

With regard to practice, the catalog thus provides companies with an overview and specific starting points for becoming more resilient, which can be selected according to company-specific needs. The assignment to the resilience phases and business model elements supports this selection. By improving the resilience capabilities of the value-creation system through the identified patterns, companies can continue to contribute social and economic value, especially to local communities, while maintaining economic, ecological, and social resources. In this context, practitioners could be further assisted by catalogs that combine different targets like sustainability and resilience.

Furthermore, the structured catalog was analyzed with regard to relevant scientific literature, and differences as well as commonalities were identified, providing a variety of starting points for further research and development. In this regard, it showed that not all of the 13 objectives are represented in scientific literature, but that a general consistency exists. The analyzed publications showed a stronger focus on health concerns, revenue opportunities and digital processes, while the aspect of learning was less prevalent. The timing of the analysis, as well as the nature of the current crisis, might be causal for these circumstances, and future research should analyze the underlying reasons in more detail. In addition, subsequent research should repeat the approach chosen in this study after the pandemic, and see whether the identified patterns change.

Another starting point for further research persists in the analysis of existing pattern collections from the literature with a focus on patterns that are potentially relevant for resilience, to extend the structured catalog of this study. In addition, applying the catalog to specific industries and extending it by industry-specific patterns through case studies and literature analysis represents a promising opportunity to increase its relevance and usefulness for specific organizations. Further research could also consist in reviewing scientific and further literature independently of the current pandemic. In doing so, the catalog could be supplemented by scientific findings, as well as by experiences from other crises, such as the financial crisis and the ongoing disruptions between China and the USA. In addition to the pattern-based approach outlined in this article, further pattern-independent approaches exist that also support companies in becoming more resilient, and that can be combined with this study’s results to unlock synergy potential. Apart from the focus on resilience, merging existing pattern collections independent of their focus, e.g., sustainability, creating industry-specific or general collections, and developing classifications or taxonomies that enable demand-oriented or occasion-related access on this basis, represent great research and development potential.

Following up on the approach of the literature review as chosen in this contribution, the next logical step consists in the practical application of the catalog, e.g., in a case study approach to validate its effectiveness either within the electrical industry or outside. In the long run, this could result in the development and deployment of a maturity model that helps companies to follow a predefined path to resilience, based on their current status quo.
