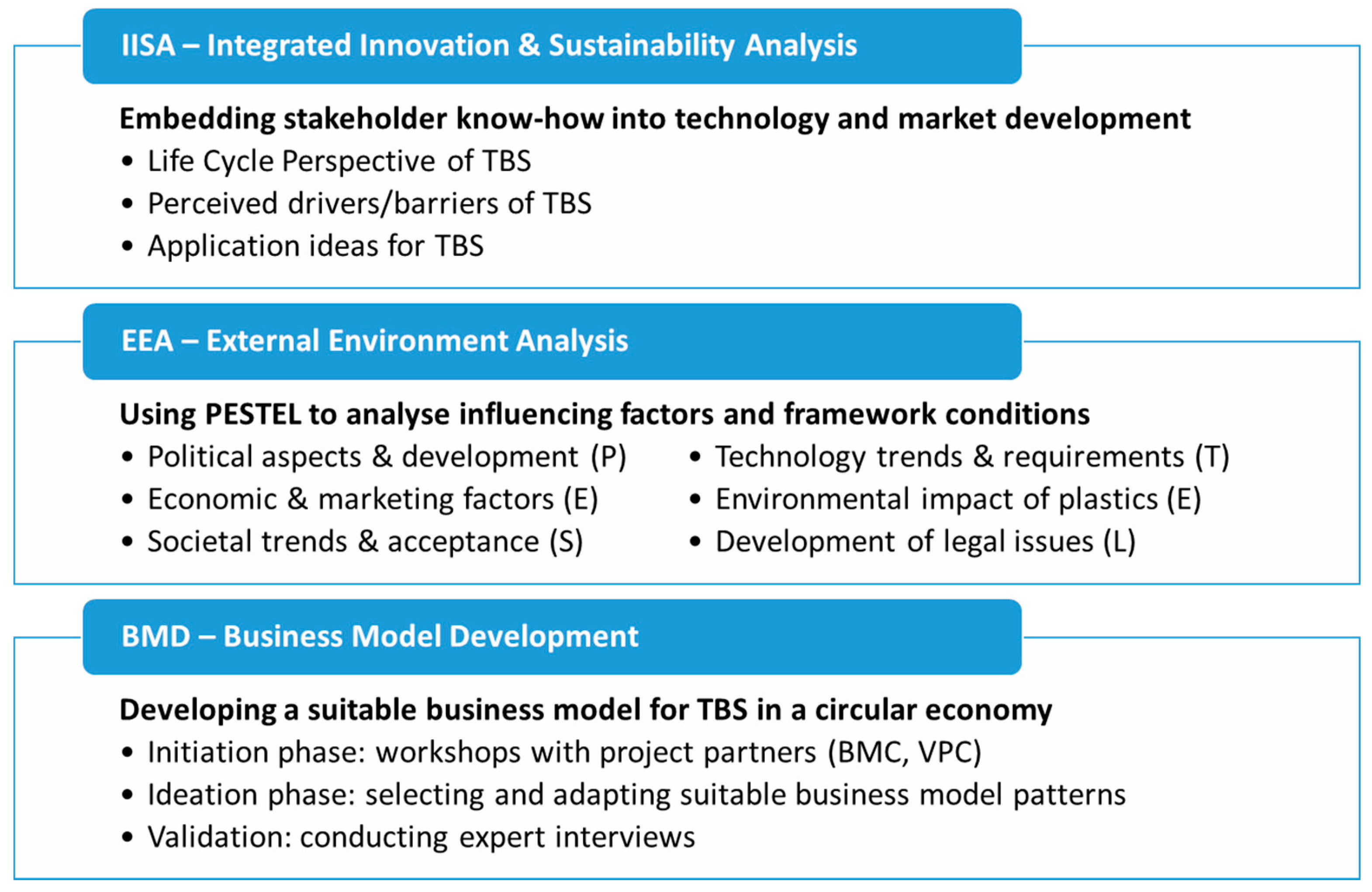

2. Materials and Methods
2.1. Integrated Innovation and Sustainability Analysis for New Technologies (IISA)
- Life cycle perspective of TBS: A holistic view on the life cycle of plastic packaging was provided based on a stakeholder analysis: Stakeholders were identified and the potential impact on them by the new technology was assessed—a stakeholder with a high potential impact and/or affectedness was then rated as “relevant”.
- Perceived drivers/barriers of TBS: Workshops were chosen as the appropriate means to gain insights on perceived drivers and barriers of TBS from the viewpoint of stakeholders. Two stakeholder workshops on the TBS were organized, one in September 2018 and another one in September 2019. Both workshops had the same organizational procedure (technology introduction and explanation, technology demonstration, working groups) and similar participation in terms of stakeholder categories. In the first workshop, participants wrote down perceived drivers and barriers of TBS and clustered them into different categories. Each participant then rated the most important driver and barrier category. In the second workshop, driver and barrier categories collected during the first workshop were presented to the new participants, who then again rated the importance of these categories.
- Application ideas for TBS: The second stakeholder workshop was also used to include stakeholder know-how into initial application ideas for TBS. First, the approximately 40 external participants, some of them international guests, had the opportunity to view the prototype of the TBS packaging waste sorting machine. They were briefly informed about the MaReK project and the TBS technology. Subsequently, participants were divided into four moderated groups, each with 8–10 participants. Each group was given the title of an application idea to work with. In a 90-min session, each group discussed (i) ideas for practical implementation, (ii) relevant actors, structures, and measures for implementation, and (iii) specific drivers and barriers for the TBS application idea. After a short break, the results were shown to all participants, who then rated the potential for each TBS application idea in a portfolio by assessing its feasibility and attractiveness.
2.2. External Environment Analysis (EEA)
2.3. Business Model Development (BMD)
- Initiation phase: First business models were developed in a workshop with project partners using value proposition and business model canvases taking basic circular economy principles into account.
- Ideation phase: suitable business model patterns from the literature were selected and adapted.
- Validation: value proposition and selected business model patterns were validated by conducting 8 expert interviews (five brand-owner companies and three waste management companies)
3.1. Results of Applying the IISA Approach

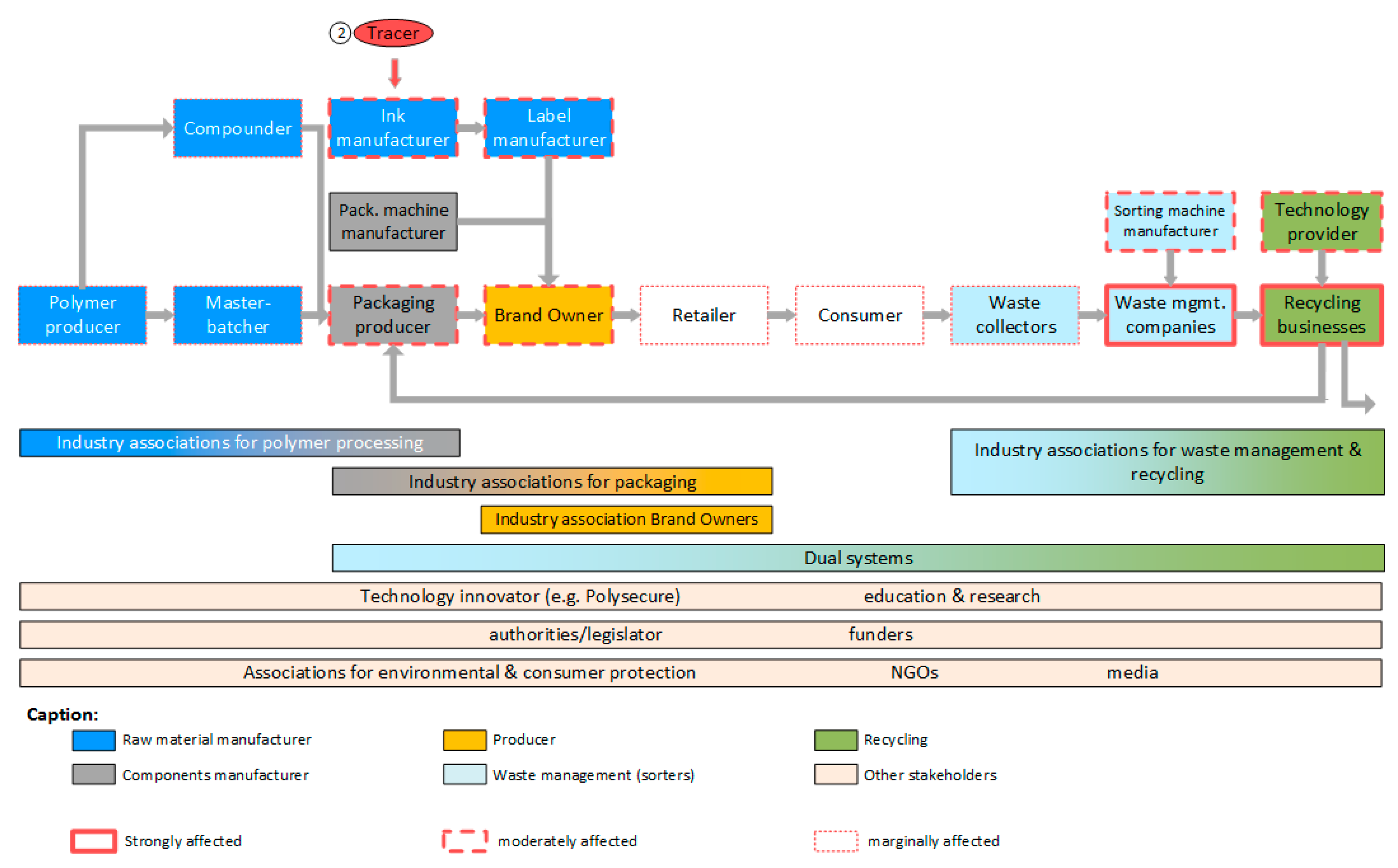

3.1.1. Stakeholders in a Life Cycle Perspective
3.1.2. Innovation Drivers and Barriers of TBS
3.1.3. Evaluating the Potential of Four TBS Application Ideas
- TBS for separating food and non-food packaging material flows
- Either food grade or non-food grade material receives a TBS tracer.
- This enables specific food grade recycling routes for PP, PE or PET.
- TBS for separating brand- or manufacturer-specific packaging
- Getting well-known high-quality recyclates back, marketing aspects (“closing the loop”)
- Percentage of mass is a critical issue, doubts of profitability for sorters/recyclers in small waste systems.
- Involving brands, recyclers, packaging associations, whereas government provides framework.
- TBS to provide high-purity recyclates (“marking for special recycling”)
- Marking packaging with special recycling routes (black polymers, separable multilayer, washable inks, etc.).
- Compatible with existing sorting and recycling processes in advanced waste management systems (i.e., in Germany).
- Structures like collaborative initiatives of relevant companies and associations are important (CEFLEX—a European consortium of companies on flexible packaging, see https://ceflex.eu/), roundtable of the German Federal Ministry for the Environment).
- TBS to provide high-purity recyclates (“bottle-2-bottle recycling”)
- Enhancing and improving bottle-2-bottle recycling.
- Separating specifically according to bottle contents (water, non-water, carbonated soft drinks).
3.2. Results of External Environment Analysis (EEA)
- Improvement of collection, sorting and recycling infrastructures
- Establishing (new) markets for recycled plastics and providing incentives
- Incentives for smart design, e.g., design for recycling
- Strategies to help reduce environmental pollution caused by plastic littering
- A common EU target to recycle 70% of packaging waste by 2030; including additional recycling targets for specific packaging materials (e.g., plastics 55%)
- Economic incentives for producers to offer greener products and support recovery and recycling schemes: Minimum requirements are established for extended producer responsibility schemes to improve their governance and cost efficiency .
3.3. Results of Business Model Development (BMD) Activities
- Focus on brand owner/distributor: The benefit of using TBS is the possible production of high-quality and attractive products and packaging, provided that the legal requirements are observed. It is important here that the use of recycled material is also recognizable to the customer of the brand owner and that the price of recycled material is lower than that of primary raw materials.
- Focus on waste management companies: For waste management companies, the sorting and disposal of increasingly complex plastic packaging is becoming an ever greater challenge. If a waste management company is entitled to market the sorted products itself (and does not only offer sorting services to plastic waste owners) it could achieve higher prices by producing high-quality recycled material. This could be enabled by TBS which could replace existing technology to achieve a better sorting accuracy.
- “TBS-complete”: TBS replaces the main sorting processes of a common packaging sorting system after the first magnetic separation, and leaves earlier sorting steps unchanged. TBS-complete is intended to achieve sub-fractions of the previous fractions of the plastics PET, PP and PE, or even additional fractions with new specifications at the end of the sorting process and a higher quality of the sorted products in terms of sorting purity.
- “TBS-light”: The TBS machines are added to the existing sorting system at the end of the sorting processes for the plastic fractions PET, PP and PE. This means that post-sorting is carried out, for example to sort out multilayer packaging or packaging materials with certain material additives and properties such as oxygen barriers. This would leave the original sorting process unchanged and the TBS machines would be relatively easy integrated into complex systems.
4. Discussion and Conclusions
- The technological approach of TBS has to be compatible with existing sorting and recycling processes. (IISA) → Based on practical know-how and recent scientific findings, technical recommendations were made to adapt the existing technology concept for better integration into existing recycling processes. (IISA; EEA)
- Many industrial stakeholders show a low willingness use the new technology since it has not been fully proven in an industrial application (also due to the dominant design of the existing recycling processes). (IISA; EEA) → In a workshop with industry representatives, practical TBS application ideas were specified, tested and evaluated. The highest potential is seen in the application of TBS to separate food and non-food packaging. (IISA)
- The composition of the value chain in packaging recycling implies that different stakeholder groups (in particular brand owners, waste management companies and recyclers) must be involved simultaneously in the implementation of the TBS. (IISA; BMD) → The expected value chain of plastics recycling with TBS was derived as the basis for addressing possible changes for stakeholders and for developing an appropriate business model. (IISA)
- Necessary efforts and expected benefits can be unequally distributed along the value chain requiring a mechanism for compensation to be established. (IISA; BMD) → The intensive dialogue with stakeholders must be continued not only to analyze but also to demonstrate the feasibility and the benefits of TBS. Furthermore, regulators need to be involved to ensure that recycling rules are adapted to provide incentives for the practical adoption of innovative and sustainable approaches such as TBS. (IISA; EEA)
- It is assumed that the greatest economic and environmental benefits can be gained if TBS comes along with a radical change of the current plastics recycling system, i.e., the replacement of large portions of the current sorting techniques by a single TBS process (scenario “TBS-complete”). (IISA; BMD) → Business cases and business model options have to be specified, a detailed cost structure and customers’ willingness to pay for the offering of tracers and TBS detection units have to be determined. (BMD)
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
- WBCSD (World Business Council for Sustainable Development). Lisbon Declaration. WBCSD Global Network Partners Initiative for Biodiversity and Ecosystem Services. 2019. Available online: https://docs.wbcsd.org/2019/10/WBCSD_Lisbon_Declaration.pdf (accessed on 29 December 2020).
- Singh, N.; Hui, D.; Singh, R.; Ahuja, I.; Feo, L.; Fraternali, F. Recycling of plastic solid waste: A state of art review and future applications. Compos. Part B Eng. 2017, 115, 409–422. [Google Scholar] [CrossRef]
- Coelho, T.M.; Castro, R.; Gobbo, J.A. PET containers in Brazil: Opportunities and challenges of a logistics model for post-consumer waste recycling. Resour. Conserv. Recycl. 2011, 55, 291–299. [Google Scholar] [CrossRef]
- Jambeck, J.R.; Geyer, R.; Wilcox, C.; Siegler, T.R.; Perryman, M.; Andrady, A.; Narayan, R.; Law, K.L. Marine pollution. Plastic waste inputs from land into the ocean. Science 2015, 347, 768–771. [Google Scholar] [CrossRef]
- Report from the Commission to the European Parliament: The Council, The European Economic and Social Committee and the Committee of the Regions on the Implementation of the Circular Economy Action Plan. COM/2019/190 Final. 2019. Available online: https://ec.europa.eu/transparency/regdoc/rep/1/2019/EN/COM-2019-190-F1-EN-MAIN-PART-1.PDF (accessed on 29 December 2020).
- Communication from the Commission to the European Parliament: The Council, The European Economic and Social Committee and the Committee of the Regions—A European Strategy for Plastics in a Circular Economy. COM/2018/028 Final. 2018. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=COM%3A2018%3A28%3AFIN (accessed on 29 December 2020).
- PlasticsEurope. Plastics—The Facts 2018. An Analysis of European Plastics Production, Demand and Waste Data. 2018. Available online: https://www.plasticseurope.org/application/files/6315/4510/9658/Plastics_the_facts_2018_AF_web.pdf (accessed on 29 December 2020).
- Gesetz zur Fortentwicklung der Haushaltsnahen Getrennterfassung von Wertstoffhaltigen Abfällen. VerpackG (German Federal Act on the Further Development of the Household Separate Collection of Waste Containing Recyclable Materials). 2017.
- Gesetz zur Förderung der Kreislaufwirtschaft und Sicherung der Umweltverträglichen Bewirtschaftung von Abfällen. Kreislaufwirtschaftsgesetz—KrWG (German Federal Act on the Promotion of the Circular Economy and Ensuring the Environmentally Compatible Management of Waste). 2012.
- Dehoust, G.; Christiani, J. Analyse und Fortentwicklung der Verwertungsquoten für Wertstoffe. Sammel- und Verwertungsquoten für Verpackungen und Stoffgleiche Nichtverpackungen als Lenkungsinstrument zur Ressourcenschonung; Umweltbundesamt (German Federal Agency for the Protection of the Environment), Dessau. 2012. Available online: https://www.umweltbundesamt.de/sites/default/files/medien/461/publikationen/4342.pdf (accessed on 29 December 2020).
- Ragaert, K.; Delva, L.; van Geem, K. Mechanical and chemical recycling of solid plastic waste. Waste Manag. 2017, 69, 24–58. [Google Scholar] [CrossRef] [PubMed]
- Ahmad, S.R. A new technology for automatic identification and sorting of plastics for recycling. Environ. Technol. 2004, 25, 1143–1149. [Google Scholar] [CrossRef] [PubMed]
- Günther, S. Europas modernste LVP-Sortieranlage. Umweltmagazin 2018, 48, 20–23. [Google Scholar]
- Institut cyclos-HTP GmbH. Prüfung und Testierung der Recyclingfähigkeit. Anforderungs- und Bewertungskatalog; Institut cyclos-HTP GmbH: Aachen, Germany, 2019. [Google Scholar]
- Geyer, R.; Jambeck, J.R.; Law, K.L. Production, use, and fate of all plastics ever made. Sci. Adv. 2017, 3, e1700782. [Google Scholar] [CrossRef]
- Roosen, M.; Mys, N.; Kusenberg, M.; Billen, P.; Dumoulin, A.; Dewulf, J.; van Geem, K.M.; Ragaert, K.; de Meester, S. Detailed Analysis of the Composition of Selected Plastic Packaging Waste Products and Its Implications for Mechanical and Thermochemical Recycling. Environ. Sci. Technol. 2020, 54, 13282–13293. [Google Scholar] [CrossRef]
- Woidasky, J.; Heyde, M.; Sander, I.; Moesslein, J.; Fahr, M.; Richards, B.; Turshatov; Lang-Koetz, C. Hochwertiges Recycling durch Tracer-Nutzung: Mit dem “Tracer-Based-Sorting”-Ansatz sollen Verkaufsverpackungen zielgerichtet aus dem Abfallstrom abgetrennt werden. ReSource 2017, 30, 24–28. [Google Scholar]
- Woidasky, J.; Sander, I.; Schau, A.; Moesslein, J.; Wendler, P.; Wacker, D.; Gao, G.; Kirchenbauer, D.; Kumar, V.; Busko, D.; et al. Inorganic fluorescent marker materials for identification of post-consumer plastic packaging. Resour. Conserv. Recycl. 2020, 161, 104976. [Google Scholar] [CrossRef]
- Woidasky, J.; Moesslein, J.; Wendler, P.; Kirchenbauer, D.; Wacker, D.; Gao, G.; Lang-Koetz, C. Kunststoff-Identifikation und Sortierung in der „Circular Economy“ durch Fluoreszenzmarker. Chem. Ing. Tech. Cit. 2020, 92, 441–451. [Google Scholar] [CrossRef]
- Woidasky, J.; Schmidt, J.; Auer, M.; Sander, I.; Schau, A.; Moesslein, J.; Wendler, P.; Kirchenbauer, D.; Wacker, D.; Gao, G.; et al. Photoluminescent Tracer Effects on Thermoplastic Polymer Recycling. In Advances in Polymer Processing 2020; Hopmann, C., Dahlmann, R., Eds.; Springer: Berlin/Heidelberg, Germany, 2020. [Google Scholar]
- Danneels, E. Disruptive Technology Reconsidered: A Critique and Research Agenda. J. Prod. Innov. Manag. 2004, 21, 246–258. [Google Scholar] [CrossRef]
- Christensen, C.M. The Innovator’s Dilemma. When New Technologies Cause Great Firms to Fail; Harvard Business Review Press: Boston, MA, USA, 2016; ISBN 9781422196021. [Google Scholar]
- Christensen, C.M.; Raynor, M.E. The Innovator’s Solution. Creating and Sustaining Successful Growth, 14th ed.; Harvard Business School Press: Boston, MA, USA, 2010; ISBN 9781578518524. [Google Scholar]
- Lüdeke-Freund, F. Towards a Conceptual Framework of ‘Business Models for Sustainability’, Knowledge Collaboration & Learning for Sustainable Innovation“. In Proceedings of the 14th European Roundtable on Sustainable Consumption And Production (ERSCP) & 6th Environmental Management for Sustainable Universities (EMSU), Delft, The Netherlands, 25–29 October 2010. [Google Scholar]
- Bocken, N.; Short, S.W.; Rana, P.; Evans, S. A literature and practice review to develop sustainable business model archetypes. J. Clean. Prod. 2014, 65, 42–56. [Google Scholar] [CrossRef]
- Geissdoerfer, M.; Vladimirova, D.; Evans, S. Sustainable business model innovation: A review. J. Clean. Prod. 2018, 198, 401–416. [Google Scholar] [CrossRef]
- Ahrend, K.-M. Geschäftsmodell Nachhaltigkeit. Ökologische und Soziale Innovationen als Unternehmerische Chance; Springer: Berlin/Heidelberg, Germany, 2016; ISBN 9783662528792. [Google Scholar]
- Nußholz, J.L. A circular business model mapping tool for creating value from prolonged product lifetime and closed material loops. J. Clean. Prod. 2018, 197, 185–194. [Google Scholar] [CrossRef]
- Peters, M.; Robinson, V. The Origins and Status of Action Research. J. Appl. Behav. Sci. 1984, 20, 113–124. [Google Scholar] [CrossRef]
- Gasde, J.; Preiss, P.; Lang-Koetz, C. Integrated Innovation and Sustainability Analysis for New Technologies: An approach for collaborative R&D projects. Technol. Innov. Manag. Rev. 2020, 10, 37–50. [Google Scholar] [CrossRef]
- UNEP-SETAC Life Cycle Initiative. Towards a Life Cycle Sustainability Assessment. 2011. Available online: https://www.lifecycleinitiative.org/wp-content/uploads/2012/12/2011%20-%20Towards%20LCSA.pdf (accessed on 29 December 2020).
- Cucurachi, S.; van der Giesen, C.; Guinée, J. Ex-ante LCA of Emerging Technologies. Procedia CIRP 2018, 69, 463–468. [Google Scholar] [CrossRef]
- Benoît, C.; Mazijn, B. Guidelines for Social Life Cycle Assessment of Products; United Nations Environment Programme: Paris, France, 2009; ISBN 978-92-807-3021-0. [Google Scholar]
- Wheelen, T.L.; Hunger, J.D. Strategic Management and Business Policy. Toward Global Sustainability, 13th ed.; Pearson: Boston, MA, USA, 2012; ISBN 9780132153225. [Google Scholar]
- Gassmann, O.; Frankenberger, K.; Csik, M. Geschäftsmodelle entwickeln. In Geschäftsmodelle Entwickeln, 2nd ed.; Gassmann, O., Ed.; Carl Hanser Verlag GmbH & Co. KG: Munich, Germany, 2017. [Google Scholar]
- Gasde, J.; Klinke, C.; Woidasky, J.; Lang-Koetz, C. Integrierte Innovations- und Nachhaltigkeitsanalyse im Bereich Sortierung und Verwertung von LVP-Abfällen. In Proceedings of the Tagungsband des 9. Wissenschaftskongress Abfall- und Ressourcenwirtschaft, Amberg, Germany, 14–15 March 2019; Bockreis, A., Faulstich, M., Flamme, S., Kranert, M., Mocker, M., Nelles, M., Quicker, P., Rettenberger, G., Rotter, V.S., Eds.; Innsbruck University Press: Innsbruck, Austria, 2019; pp. 99–103. [Google Scholar]
- Regulation (EC) No 1907/2006 of the European Parliament and of the Council Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), Establishing a European Chemicals Agency, Amending Directive 1999/45/EC and Repealing Council Regulation (EEC) No 793/93 and Commission Regulation (EC) No 1488/94 as well as Council Directive 76/769/EEC and Commission Directives 91/155/EEC, 93/67/EEC, 93/105/EC and 2000/21/EC. 2006. Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2007:136:0003:0280:en:PDF (accessed on 29 December 2020).
- Domenech, T.; Bahn-Walkowiak, B. Transition Towards a Resource Efficient Circular Economy in Europe: Policy Lessons from the EU and the Member States. Ecol. Econ. 2019, 155, 7–19. [Google Scholar] [CrossRef]
- Wilts, H.; Lah, O.; Galinski, L. The Evolution of Industry 4.0 and its Impact on the Knowledge base for the Circular Economy; Industry 4.0: Empowering ASEAN for the Circular Economy; Anbumozhi, V., Kimura, F., Eds.; ERIA: Jakarta, India, 2019; pp. 106–126. Available online: https://epub.wupperinst.org/frontdoor/deliver/index/docId/7207/file/7207_Wilts.pdf (accessed on 29 December 2020).
- Brooks, A.L.; Wang, S.; Jambeck, J.R. The Chinese import ban and its impact on global plastic waste trade. Sci. Adv. 2018, 4, eaat0131. [Google Scholar] [CrossRef]
- Locock, K.E.S.; Deane, J.; Kosior, E.; Prabaharan, H.; Skidmore, M.; Hutt, O.E. The Recycled Plastics Market: Global Analysis and Trends; CSIRO: Canberra, Australia, 2017. [Google Scholar]
- Kurtz, P. BDE. Kunststoffstrategie Müll Abfall 2019, 6. [Google Scholar] [CrossRef]
- IK Industrievereinigung Kunststoffe e. V. Nachhaltigkeitsbericht. 2018. Available online: http://kunststoffverpackungen.de/wp-content/uploads/2019/09/Sustainability-Report-2018 (accessed on 29 December 2020).
- PlasticsEurope. The Circular Economy for plastics. A European Overview. 2018. Available online: file:///C:/Users/claus.lang-koetz/AppData/Local/Temp/CircularEconomy_study_FINAL_061219_SINGLE.pdf (accessed on 29 December 2020).
- Ten Brink, P.; Schweitzer, J.-P.; Watkins, E.; Howe, M. Plastics Marine Litter and the Circular Economy. A Briefing by IEEP for the MAVA Foundation. 2016. Available online: https://ieep.eu/uploads/articles/attachments/15301621-5286-43e3-88bd-bd9a3f4b849a/IEEP_ACES_Plastics_Marine_Litter_Circular_Economy_briefing_final_April_2017.pdf?v=63664509972 (accessed on 29 December 2020).
- Watkins, E.; Gionfra, S.; Schweitzer, J.-P.; Pantzar, M.; Janssens, C.; ten Brink, P. EPR in the EU Plastics Strategy and the Circular Economy: A Focus on Plastic Packaging. 2017. Available online: https://ieep.eu/uploads/articles/attachments/95369718-a733-473b-aa6b-153c1341f581/EPR%20and%20plastics%20report%20IEEP%209%20Nov%202017%20final.pdf?v=63677462324 (accessed on 29 December 2020).
- Bovensiepen, G.; Fink, H.; Schnück, P.; Rumpff, S.; Raimund, S. Verpackungen im Fokus. Die Rolle von Circular Economy auf dem Weg zu mehr Nachhaltigkeit. 2018. Available online: https://www.pwc.de/de/handel-und-konsumguter/pwc-studie-verpackungen-im-fokus-februar-2018-final.pdf (accessed on 29 December 2020).
- Prognos AG; INFA GmbH. Statusbericht 2018 der Deutschen Kreislaufwirtschaft. Einblicke und Aussichten. 2018. Available online: https://www.prognos.com/uploads/tx_atwpubdb/Prognos_Statusbericht_2018.pdf (accessed on 29 December 2020).
- Guillard, V.; Gaucel, S.; Fornaciari, C.; Angellier-Coussy, H.; Buche, P.; Gontard, N. The Next Generation of Sustainable Food Packaging to Preserve Our Environment in a Circular Economy Context. Front. Nutr. 2018. [Google Scholar] [CrossRef] [PubMed]
- Recycling Magazine. EU Plastic Tax: A danger for EU Single Market & Recovery. Available online: https://www.recycling-magazine.com/2020/07/27/eu-plastic-tax-a-danger-for-eu-single-market-recovery/ (accessed on 6 August 2020).
- Deutsche Umwelthilfe e. V. EU-Staaten Einigen sich auf Plastiksteuer—Deutsche Umwelthilfe begrüßt Entscheidung, Fordert aber Nachbesserungen. Pressemitteilung vom 21.07.2020. 2020. Available online: https://www.duh.de/presse/pressemitteilungen/pressemitteilung/eu-staaten-einigen-sich-auf-plastiksteuer-deutsche-umwelthilfe-begruesst-entscheidung-fordert-aber/ (accessed on 29 December 2020).
- RecyclingPortal. Trend:Research: Kunststoffrecycling Gewinnt an Bedeutung. Available online: https://recyclingportal.eu/Archive/40930 (accessed on 21 November 2019).
- Procter & Gamble. P&G Continues Support of HolyGrail with AIM Test Market. Available online: https://us.pg.com/blogs/HolyGrail/ (accessed on 11 November 2020).
- Digimarc. The Barcode of Everything. Available online: https://www.digimarc.com/ (accessed on 11 November 2020).
- Völlinger, L. Geschäftsmodellentwicklung in der Kreislaufwirtschaft für Markerbasierte Sortier- und Recyclingsysteme für Kunststoffverpackungen. Bachelor’s Thesis, Pforzheim University, Pforzheim, Germany, 2019. [Google Scholar]
|PESTEL Category||Research Subject|
|POLITICAL||Flanking political aspects regarding trends in Circular Economy, plastics recycling and packaging.|
|ECONOMIC||General market conditions and economic factors in waste management, plastics recycling, and packaging, business model trends.|
|SOCIO-CULTURAL||Social framework conditions and questions of acceptance by citizens and other actors.|
|TECHNOLOGICAL||Technology trends and needs in plastics recycling and packaging, development of new and/or competing technologies.|
|ENVIRONMENTAL||Interaction with the environment or environmental impact related to plastic packaging, plastic waste and recycling.|
|LEGAL||Development of legal issues (federal, state, EU) related to plastic packaging, recycling and circular economy.|
|Business Model Pattern||Application to TBS|
|Cross selling||In addition to the tracer, packaging with recycled material is offered.|
|Fractional ownership||Joint procurement and use of a sorting plant (cooperation between brand owners and waste management companies).|
|Push to Pull||Focus on customer needs by adding flexibility to own processes.|
|Leverage Customer Data||Waste management companies collect data on material flows make them available to brand owners.|
|Pay per use||The effective consumption of the tracer will be charged.|
|Subscription||A form of subscription to tracers.|
