Carbon Emission Calculation Method and Low-Carbon Technology for Use in Expressway Construction

Abstract

There is a need for a quantitative calculation method for carbon emissions during asphalt pavement construction. In this study, the carbon sources were detected and carbon emission during pavement construction was divided into two parts—the emission resulting from energy consumption and that arising from the volatilization of asphalt mixtures itself. The carbon emission calculation model of energy consumption is presented based on the energy consumption list and calorific value method proposed by the Intergovernmental Panel on Climate Change. The model of the carbon emission from volatilization of asphalt mixtures was introduced based on a combination of on-site inspection data and the greenhouse gas diffusion rate and calculated volume. Finally, high-carbon emission processes and total carbon emissions were obtained, and the corresponding low-carbon technologies were proposed for different types of carbon emissions. The results show that the ratio of carbon emission generated by energy consumption and the volatilization of asphalt mixtures is 3:2; aggregate and asphalt heating are high-carbon emission processes of energy consumption, while asphalt mixture rolling and mixing are the high-carbon emission processes of asphalt mixture. Furthermore, the use of natural gas can control carbon emission in energy consumption; low-carbon asphalt mixtures and warm mixing technology can effectively reduce carbon emission from the volatilization of asphalt mixtures. This study lays a theoretical foundation for green pavement construction.

1. Introduction

With the increase in greenhouse gas emissions, the world is witnessing the continuous melting of polar ice circles and frequently occurring extreme weather events due to global warming. These effects of global warming have seriously threatened the production and life of humans; thus, the control and reduction of greenhouse gas emissions have become an urgent problem [1,2,3]. The road traffic industry is one of the main sources of carbon emissions locally as well as internationally, especially during the construction process of expressway asphalt pavements (i.e., roads that have no stop signs or signals, with traffic travelling in one direction separated from the traffic travelling in the opposite direction). Reducing the carbon emissions generated during construction is therefore an important research field to address global warming [4,5,6].

Many researchers have conducted related researches on the calculation methods of carbon emissions during asphalt pavement construction [7,8,9,10]. The conventional method employs the life-cycle assessment (LCA) theory to conduct stage division and calculate carbon emissions. Cass et al. collected data on the production, transportation, construction machinery, and other materials involved in highway overhaul engineering and established the life-cycle analysis model of carbon emission arising from energy consumption [11]. Wang et al. described a pavement life-cycle assessment model developed to evaluate energy use and greenhouse gas emissions from pavement rehabilitation strategies [12]. Wang et al. focused on quantifying the environmental impact of asphalt pavement preservation at the construction and use stages using the life-cycle assessment approach [13]. White et al. considered the carbon emission of different pavement types during road material production and construction and established a carbon emission calculation model by considering road width, material characteristics, road thickness, and service life as calculation parameters [14]. Kleine et al. investigated the limitations of life-cycle analyses and proposed a calculation method based on road construction quota [15]. Aurangzeb et al. used the hybrid life-cycle analysis to analyze the environmental footprint of using a reclaimed asphalt pavement (RAP) content in asphalt binder mixtures [16]. However, a certain lag occurs in the data when the calculation is based on construction quota, and thus, the data fails to reflect the actual carbon emission from energy consumption. In these studies, carbon emission from the volatilization of asphalt mixtures itself due to the decrease of mixture temperature was ignored. Furthermore, these calculation methods seriously affect the total carbon emission value attributed to the asphalt pavement construction industry and fail to provide effective guidance for low-carbon emission technology for asphalt pavements. In addition, Giunta et al. and Praticò et al. dealt with the life-cycle assessment of different classes of pavement technologies, based on the use of bituminous mixes (hot mix asphalt and warm mix asphalt) with recycled materials (reclaimed asphalt pavements, crumb rubber, and waste plastics), in the pursuit of assessing energy and environmental impacts [17,18]. Sara et al. compared the different alternative bituminous sub-ballast mixtures containing recycled materials, namely crumb rubber (CR) and reclaimed asphalt pavements (RAP) by means of the results of a life-cycle assessment [19]. The main purpose of this study is to put forward a more accurate quantitative calculation model of carbon emission from the asphalt pavement of expressway construction, and on this basis, according to different carbon emission sources, put forward a targeted emission reduction technology. The carbon emission of expressway construction contains material preparation, transportation and on-site construction. Due to the inaccurate statistics of total carbon emission during construction, it is impossible to accurately assess the impact of greenhouse gases on the environment. In this study, carbon emission during the asphalt pavement of expressway construction was classified based on the carbon sources detected; using this classification and considering the construction processes, calculation models were established for different types of carbon emissions. Finally, the total carbon emissions of 12 expressways in China and the effect of emission reduction technologies were calculated in case studies. In these case studies, model reliability was demonstrated, and carbon emissions were reduced. The research results will provide powerful support for further environmental protection policies and construction.

2. Establishing a Calculation Method for the Carbon Emission of Asphalt Pavements

The existing research methods mainly calculate carbon emissions based on the construction quota. There is a lack of research on the carbon emissions from the volatilization of asphalt mixtures itself. Hence, in this study, two types of carbon emission calculation models were developed based on carbon sources. Carbon emission surveys of various construction processes were conducted to build the models. The models visually compare the carbon emissions of various processes and facilitate the identification of their high-carbon emission processes to implement the targeted carbon emission reduction technology.

2.1. Carbon and Energy Consumption Sources

The existing studies have indicated that the greenhouse effect is caused by various gases. Among these gases, CO₂, CH₄, and N₂O are the main gases that considerably affect human activities and have significant greenhouse effects [20,21,22,23]. CO₂ is the greatest contributor, accounting for 86% of the greenhouse gases. Therefore, in this study, carbon emission is regarded as a general term for greenhouse gases [24,25,26]. Dividing the construction processes is necessary to calculate the carbon emission in asphalt pavement construction accurately and conveniently. Although the specific construction techniques of individual expressways are different, the overall construction sequence is approximately the same and is mainly divided into the following eight processes: yard stacking, aggregate feeding, aggregate heating, asphalt heating, mixing, transportation, paving, and rolling. On-site investigation was conducted, and carbon sources were detected; carbon emission during asphalt pavement construction was classified into two categories. The first category is the carbon emission generated by the energy consumption of vehicles, machinery, and equipment—this category is called the carbon emission in energy consumption [27,28]. The second category is the greenhouse gas emitted from the volatilization of asphalt mixtures itself—this category is referred to as the carbon emission from the volatilization of the asphalt mixture.

The current research was supported by the carbon emission investigation and detection data of 12 expressways in North China, Central China, Northwest China, and Southwest China. In the eight construction processes, pavement structure, equipment model, production capacity, energy type, energy consumption, asphalt mixture type, asphalt–aggregate ratio, paving width, pavement core drilling sampling density, and other factors cause different sources of greenhouse gases. Besides, different geographical locations and climate environments lead to different actual operations of the same construction process. Therefore, it is necessary to investigate and test the types and amount of carbon emissions generated in multiple regions and different construction processes. The carbon sources of all of the processes are listed in

Table 1. Carbon sources of each process in asphalt pavement construction.

Carbon Source	Energy Consumption	The Volatilization of the Asphalt Mixtures Itself
Yard stacking	Loader/Diesel	/
Aggregate feeding	Loader/Diesel	/
Aggregate heating	Drying drum/Heavy oil	/
Asphalt heating	Heating equipment with heat transfer oil as carrier/Coal	/
Mixing	Batch asphalt mixing equipment/Electric	Volatilization
Transporting	Truck/Diesel	Volatilization
Paving	Spreading machine/Diesel	Volatilization
Rolling	Roller/Diesel	Volatilization

Note: field investigations and statistical statements were adopted for detecting carbon emission from energy consumption; on-site inspections were used for detecting carbon emission from volatilization of asphalt mixture.

.

Letters A to L are used to represent the 12 expressways and M represents the energy consumption. The energy consumption generated by yard stacking (M₁), aggregate feeding (M₂), aggregate heating (M₃), and mixing (M₅) were obtained through field investigation. Asphalt heating (M₄) is calculated as M₄ = a × m/1 + a, where a is the asphalt–aggregate ratio and m is the energy consumption when heating 1 ton of asphalt. M₆ is the energy consumption of transporting 1 ton of asphalt mixture for 1 km; M₇ is the energy consumption of paving 1 ton of asphalt mixture; and M₈ is the energy consumption after the application of initial compaction, recompaction, and final compaction to 1 ton of asphalt mixture. The investigation and detection data were calculated by taking the average as the representative value based on standard deviation and variability analysis. The energy consumptions of all of the processes are listed in

Table 2. Energy consumption of each process in asphalt pavement construction.

Process/Mi	M1	M2	M3	M4	M5	M6	M7	M8
Energy/ (unit)	Diesel/ (L·t−1)	Diesel/ (L·t−1)	Heavy Oil/ (kg·t−1)	Coal/ (kg·t−1)	Electric/ (kw·h)	Diesel/ (L·t−1)	Diesel/ (L·t−1)	Diesel/ (L·t−1)
A	0.152	0.173	6.310	1.223	3.214	0.058	0.182	0.373
B	0.120	0.166	6.482	1.745	3.215	0.031	0.232	0.329
C	0.137	0.216	6.524	1.832	3.206	0.036	0.232	0.329
D	0.113	0.162	5.609	2.604	2.850	0.052	0.160	0.275
E	0.135	0.152	7.013	1.536	3.072	0.047	0.172	0.386
F	0.122	0.148	6.429	2.563	4.357	0.061	0.257	0.403
G	0.112	0.160	6.635	2.353	3.152	0.038	0.144	0.337
H	0.125	0.159	7.106	1.983	3.441	0.047	0.182	0.260
I	0.136	0.148	6.620	1.703	3.739	0.042	0.165	0.273
G	0.121	0.152	5.857	1.308	3.478	0.063	0.155	0.213
K	0.119	0.145	7.318	2.651	2.330	0.035	0.133	0.267
L	0.126	0.223	6.501	1.432	2.247	0.025	0.163	0.393

Note: A: Jingqin Expressway; B: Jishan Expressway; C: Huangyan Expressway; D: Sancha Expressway; E: Xixian Expressway; F: Pengteng Expressway; G: Liaoyu Expressway; H: G3014; I: G310; J: Yanyan Expressway; K: West Copper Expressway; and L: Binhai Expressway.

.

2.2. Carbon Emission Arising from Energy Consumption

Carbon source analysis showed that carbon emission from energy consumption is mainly caused by the burning of various fossil fuels. Therefore, this type of emission is quantified based on the energy consumption (Table 2) and then considered in the calorific value method to calculate carbon emission in energy consumption during asphalt pavement construction.

For the quantitative standard and calculation parameters of carbon emission in energy consumption, the details are as follows:

Before establishing calculation models for carbon emission from energy consumption, appropriate technical indicators and calculation parameters should be selected for the unification and standardization of the calculation.

(1) Quantitative standard

Considering the differences in heavy traffic and regions that produce different bituminous structures, these functional units result in the inaccurate quantification of carbon emission from energy consumption. In this study, the production or construction of 1 ton of the asphalt mixture was used as the quantitative calculation standard to reduce the influence of the above factors.

(2) Calculation parameters

Q is used as the energy calorific value for various energy sources provided by the National Bureau of Statistics [29]. The energy carbon emission factor (EF) provided by the IPCC (Intergovernmental Panel on Climate Change) was used to characterize the capability of energy consumption to generate greenhouse gases [30,31]. The calorific value of energy and energy carbon EF are listed in

Table 3. Calorific value of energy and Energy carbon emission factor (EF).

Energy Type		Coal	Heavy Oil	Diesel	Natural Gas
Q/(MJ/kg)		20.908	41.816	42.652	38.931
EF/(mg/MJ)	CO2	94,600	77,400	74,100	56,100
	CH4	1	3	3	1
	N2O	1.5	0.6	0.6	0.1

. The global warming potential (GWP) proposed by the IPCC in the Comprehensive Report on Climate Change 2014 was used to characterize the ratio of different greenhouse gases to equivalent carbon dioxide, and accordingly, the GWP of CO₂ was found to be 1; that of CH₄, 25; and that of N₂O, 298 [32].

For calculation models for carbon emission from energy consumption, the details are as follows.

Based on the calorific value equation, combined with the type of carbon emission provided by the IPCC [30] and the unit conversion method, the calculation method for carbon emission from energy consumption is as follows:

$$E_e=M\cdot Q\cdot EF$$

(1)

where E_e is the carbon emission from energy consumption (kg/t); M is the energy consumption of solid and liquid (kg), or gas (m³); Q is the energy calorific value (MJ/kg); and EF is the energy carbon emission factor (mg/MJ).

Considering that Equation (1) can be used only to calculate the CO₂ emissions, it is necessary to convert the values for CH₄ and N₂O into CO₂-equivalent values combined with the GWP. Moreover, it is necessary to develop different carbon emission calculation models for specific construction processes of asphalt pavements because of the different energy types and measurement units involved in each construction process. The calculation models of various processes and different greenhouse gases were determined by combining the proposed quantitative standard and energy combustion characteristics as follows.

① Calculation model for the carbon emission of diesel:

$$E_{ei}=V_i·{\rho }_i·{\eta }_i·Q_i{\displaystyle \sum _{j=1}^{3}GW{P}_j·E{F}_j}$$

(2)

② Calculation model for the carbon emission of coal or heavy oil:

$$E_{ei}=m_i·{\eta }_i·Q_i{\displaystyle \sum _{j=1}^{3}GW{P}_j·E{F}_j}$$

(3)

③ Calculation model for the total carbon emission from energy consumption:

$$E_e={\displaystyle \sum _{i=1}^8{E}_{ei}}(i\ne 5)$$

(4)

where i represents the construction process; i = 1–8 represent yard stacking, aggregate feeding, aggregate heating, asphalt heating, asphalt mixture mixing, transporting, paving, and rolling, respectively; j represents the type of greenhouse gas, and j = 1, 2, and 3 represent CO₂, CH₄, and N₂O, respectively. E_ei is the carbon emission of energy consumption (kg/t); V_i is the volume of diesel consumption (L/t); ρ_i is the density of diesel (g/cm³); η_i is the oxidation rate of energy combustion (%); m_i, is the mass of coal or heavy oil consumption (kg/t); GWP_j is the global warming potential; and E_e is the total carbon emission of energy consumption (kg/t). When i = 5, the carbon emission of energy consumption during mixing is not considered because electric energy is used for mixing, and hence this process does not directly generate carbon emissions.

2.3. Carbon Emission from Volatilization of Asphalt Mixture

The carbon emission from the volatilization of asphalt mixtures itself mainly occurs in the following four construction processes: asphalt mixture mixing, transportation, paving, and rolling. Concentration of the greenhouse gases from the volatilization of asphalt mixtures itself adopted the on-site inspections method. The detection instrument was the ZR-3100 multigas detector, which consists of a gas collection device, a dust filter device, a cooling device, a host, a printer, and other parts. Different gases are identified by different sensors. Each sensor can only identify one gas. The thermometers and gas detectors used in the study are shown in Figure 1.

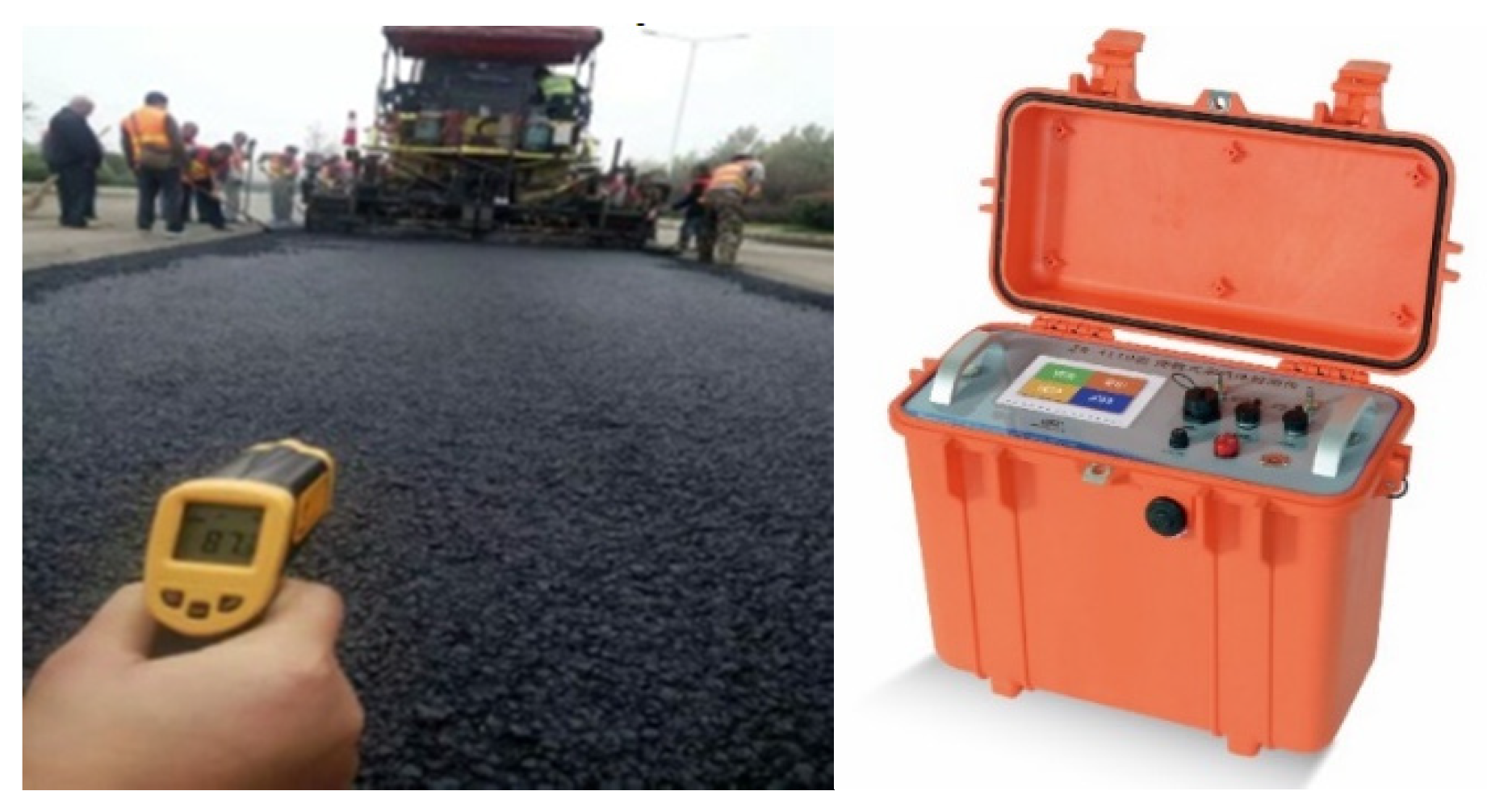

First, the ZR-3100 multigas detector can be used to measure the volume concentration or percentage concentration of the greenhouse gases. Then, the mass concentration can be calculated according to the conversion models and combined with the relevant parameters of the detected greenhouse gas. Finally, the calculation models for carbon emission from the volatilization of the asphalt mixture can be established.

For calculation parameters for the carbon emission from the volatilization of asphalt mixtures, the details are as follows:

(1) Determining the mass concentration

The detected greenhouse gases comprise CO₂, CH₄, and N₂O. The calculation models are based on mass concentration, while the detected CO₂ and N₂O are presented in terms of their volume concentration and the combustible gas CH₄, in terms of its percentage concentration. Hence, the percentage concentration of CH₄ must be converted to volume concentration to facilitate a unified calculation, and then the volume concentrations of the three greenhouse gases should be converted into mass concentration. The relative molecular masses of CO₂, CH₄, and N₂O are 44, 16, and 44, respectively, and their conversion models are shown in Equations (5) and (6).

① Conversion model for the volume concentration of combustible gas CH₄:

$$C_v=\%LEL\times LEL(VOL\%)\times 100$$

(5)

② Three mass concentration conversion models of the three greenhouse gases:

$${\rho }_{ij}=\frac{M}{22.4}\times C_v\times \left[\raisebox{1ex}{$\frac{273}{273+T}$}\!\left/ \!\raisebox{-1ex}{$\frac{Ba}{101325}$}\right.\right]$$

(6)

where C_v is the volume concentration; %LEL is the volume percentage concentration; LEL (VOL%) is the lower limit of the corresponding explosion range of combustible gas (the lower limit of explosion is 5%VOL); ρ_ij is the mass concentration (mg/m³); M is the relative molecular mass; T is the atmospheric temperature (°C); and B_a is the atmospheric pressure (P_a).

(2) Calculating the volume

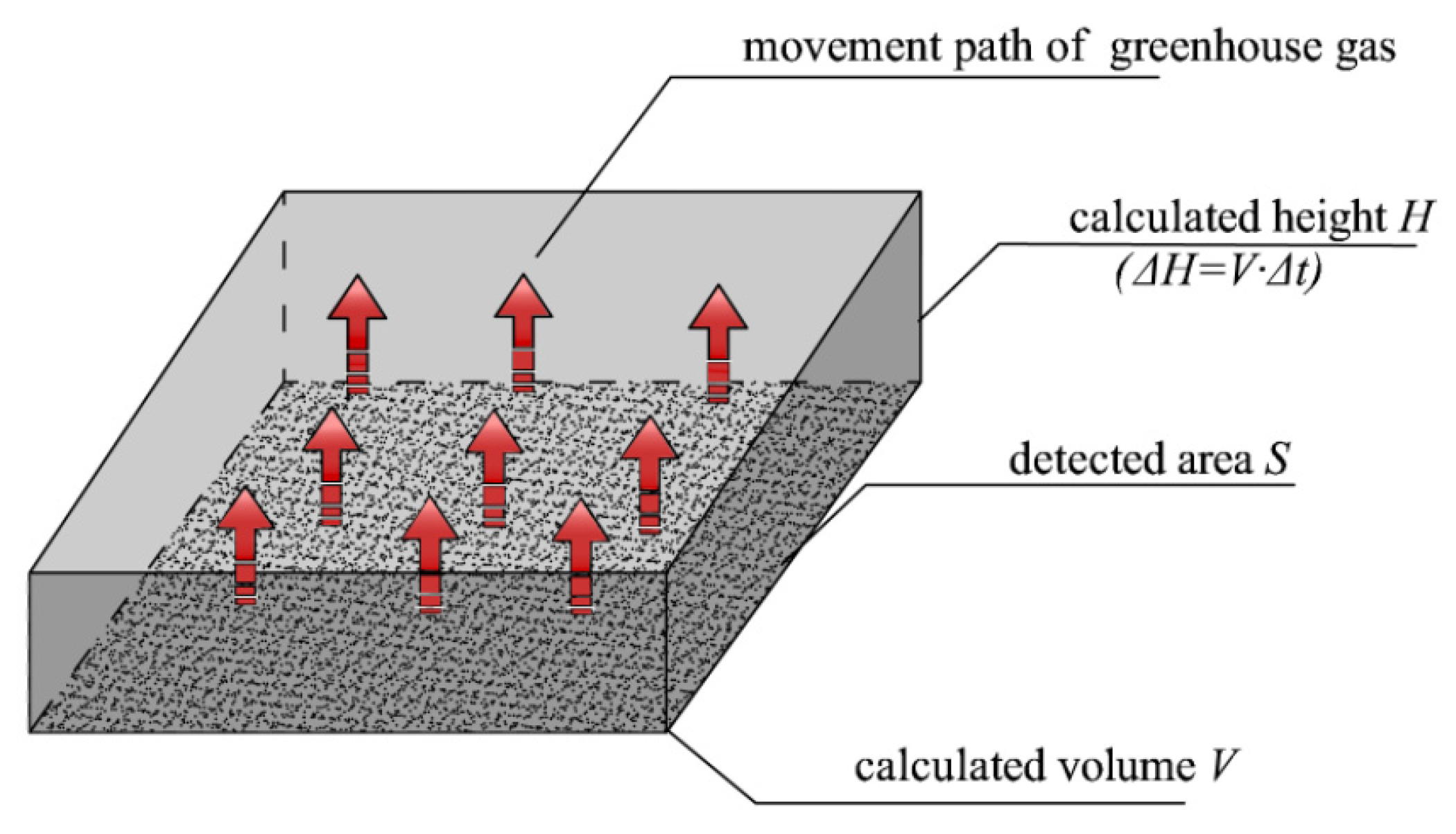

The calculation diagram for carbon emission from the volatilization of asphalt mixtures based on the characteristics and modes of greenhouse gas movement is shown in Figure 2.

In Figure 2, detected area S is the contact surface of the asphalt mixture with atmosphere. This surface is mainly determined by the detection scheme in the carbon emission of the asphalt mixture. Calculated height H refers to the diffusion height of the carbon emission from volatilization of asphalt mixtures itself at Δt time, and calculated volume V is the product of calculated surface area S and height H.

(3) Determining the diffusion rate of greenhouse gases

The method is to connect the outlet of the mixing process with a thick conduit and seal it all around, and then use the gas mass concentration detector to start timing from the moment when the hose contacts the mixture until the measured gas mass concentration reaches a certain initial value. Finally, the diffusion rate of greenhouse gases is calculated according to the measured length and time of the conduit. Besides, the diffusion rate of a greenhouse gasses is closely related to the temperature of the asphalt mixture. The relationship between the gas diffusion rate and mixture temperature was fitted through testing as shown in Figure 3.

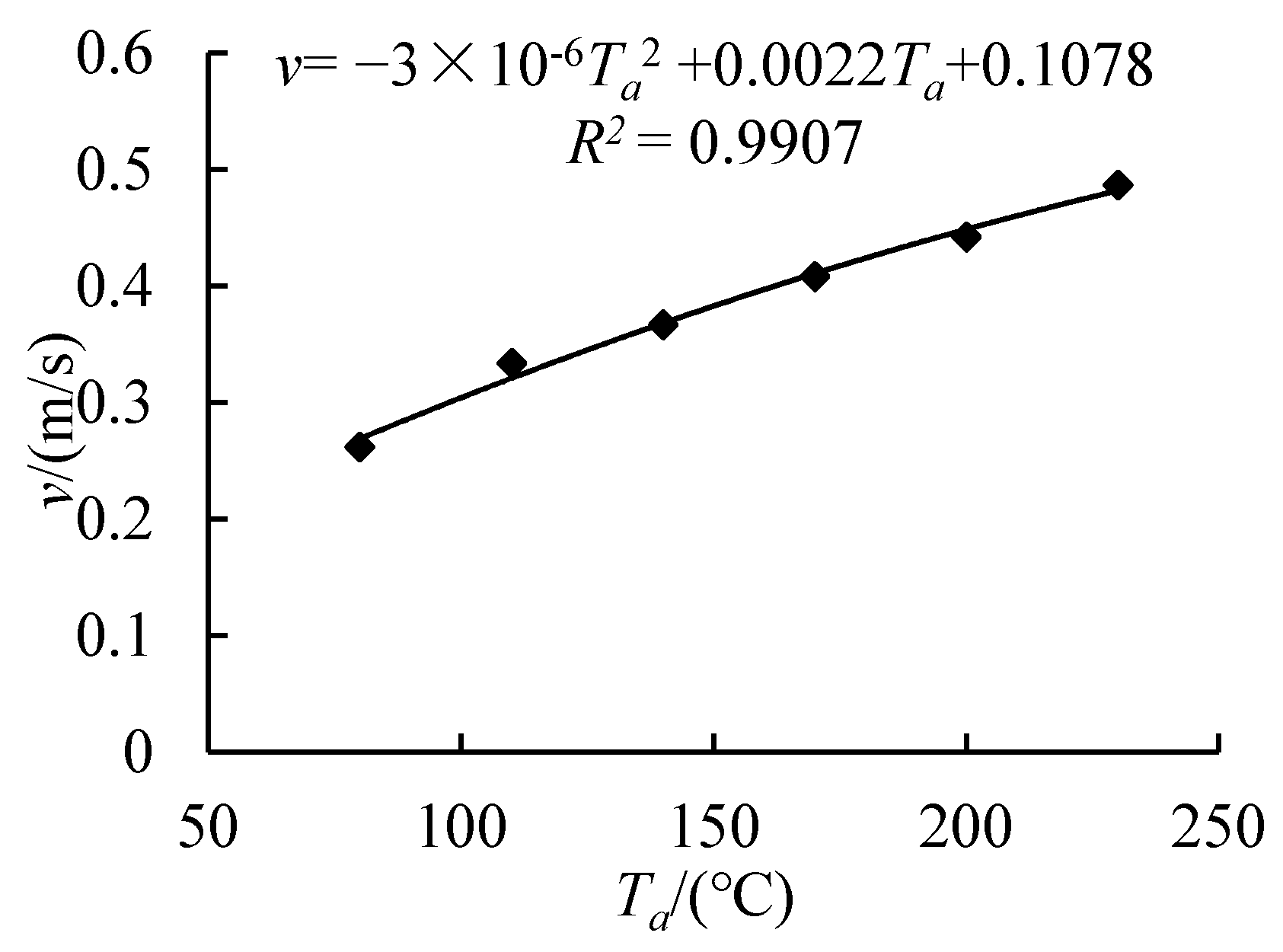

Figure 3 shows that the gas diffusion rate increases with the asphalt mixture temperature. The diffusion rates at different temperatures can be determined based on this relationship, thereby providing a foundation for determining the calculated height H of carbon emission of the asphalt mixture. Thus, the calculation model of carbon emission from the volatilization of asphalt mixtures was established based on the conversion models for volume and mass concentrations and the calculated volume and gas diffusion rate.

For the carbon emission calculation model of asphalt mixture volatilization, the details are as follows:

Carbon emission calculation models were developed based on proposed calculation parameters and on-site detection data and actual construction conditions:

$$\{\begin{array}{l}{E}_c=\frac{V\cdot {\displaystyle \sum _{j=1}^2\left({\rho }_{ij}\cdot GW{P}_j\right)}}{{10}^{6}G}\\ V=S\cdot H\end{array}$$

(7)

where E_c is the carbon emission from the volatilization of the asphalt mixture (kg/t); V is the calculated volume (m³); ρ is the mass concentration of the greenhouse gas (mg/m³); G is the mass of the tested (t) mixture; S is the detected area (m²); and H is the calculated height of the greenhouse gas (m).

Although the calculation concept of asphalt mixtures in each process of construction is similar, the methods to determine the calculated area, height, and mass vary because of the differences in the characteristics and detection methods for different construction processes. Therefore, it is necessary to revise Equation (7) and establish an equation suitable for each process to obtain a practical, scientific, and effective calculation.

① Carbon emission calculation model of asphalt mixtures during mixing

In the mixing process, the type of mixing plant used was “NBD320ABZ” (the building that mixes the asphalt, crushed stone, ore powder, etc., in a certain proportion, and then heats and stirs then to produce the asphalt mixture), the detection point was located above the outlet of the mixing plant, and 15 samples were taken from each detection point. Based on the investigation, mass G₁ of the asphalt mixture in the mixing stage was determined. The discharging time is short, and the mixture temperature changes slightly, as shown in the relationship between the gas diffusion rate and temperature (Figure 3). The variation in the gas diffusion rate is small, and the height $H={\displaystyle {\int }_0^{t}v\cdot dt=vt}$ is calculated. The cross section of the discharge opening of the mixing building was selected as detected area S₁, and thus calculated volume V₁ can be obtained. The calculation model of mixing is thus obtained as shown in Equation (8):

$$\{\begin{array}{l}{E}_{c5}=\frac{V_1\cdot {\displaystyle \sum _{j=1}^3({\rho }_{5j}\cdot GW{P}_j})}{{10}^6{G}_1}\\ V_1=S_1\cdot v_1\cdot t_1\end{array}$$

(8)

where E_c5 is the carbon emission of the asphalt mixture during mixing (kg/t); v₁ is the diffusion rate of the greenhouse gas from the outlet of the mixing building (m/s); t₁ is the discharging time of the asphalt mixture (s); S₁ is the detected area of the mixing building (m²); ρ_5j is the greenhouse gas mass concentration (mg/m³); and G₁ is the amount of mixture discharged from the mixing building (t).

② Carbon emission calculation model of asphalt mixtures during transportation

Asphalt mixtures have a high temperature after discharging and carbon emission occurs during their transportation. The ZR-3100 multigas detector was used to detect on the top of the trucks, the side of the mixture that was not in contact with the truck was the inspection side, and the 15 sampling points were distributed around the top of the vehicle. Detected area S₂ is considered the contact surface between the asphalt mixture and the air inside the vehicle and is determined from the length and width of the vehicle. Generally, mixing stations are located close to the construction site. In addition, thermal insulation measures are usually adopted during the transportation of the asphalt mixture. Hence, the changes in temperature and gas diffusion rate are small. Thus, the calculated height of transportation is similar to that of mixing. Furthermore, the carbon emission for a transportation distance of 1 km is uniformly used for comparison to avoid the impact of different transportation distances. The established calculation model is shown in Equation (9):

$$\{\begin{array}{l}{E}_{c6}=\frac{V_2\cdot {\displaystyle \sum _{j=1}^3({\rho }_{6j}\cdot GW{P}_j})}{{10}^6{G}_2}\\ V_2=S_2\cdot v_2\cdot t_2\end{array}$$

(9)

where E_c6 is the carbon emission of the asphalt mixture during transportation (kg/t); v₂ is the diffusion rate of the greenhouse gas during transportation (m/s); t₂ is the time taken for the transport vehicle to travel 1 km (s); S₂ is the carriage area of the transport vehicle (m²); ρ_6j is the greenhouse gas mass concentration during transportation (mg/m³); and G₂ is the carrying capacity of the transport vehicle (t).

③ Carbon emission calculation model of asphalt mixtures during paving

For developing this model, five detection points were evenly distributed on the auger to avoid the uneven dispersion of the asphalt mixture on the screw distributor, as such uneven dispersion can affect the test results. A total of 15 samples were taken from each detection point, and the relationship between the gas emission concentration and paving width was as shown in Figure 4.

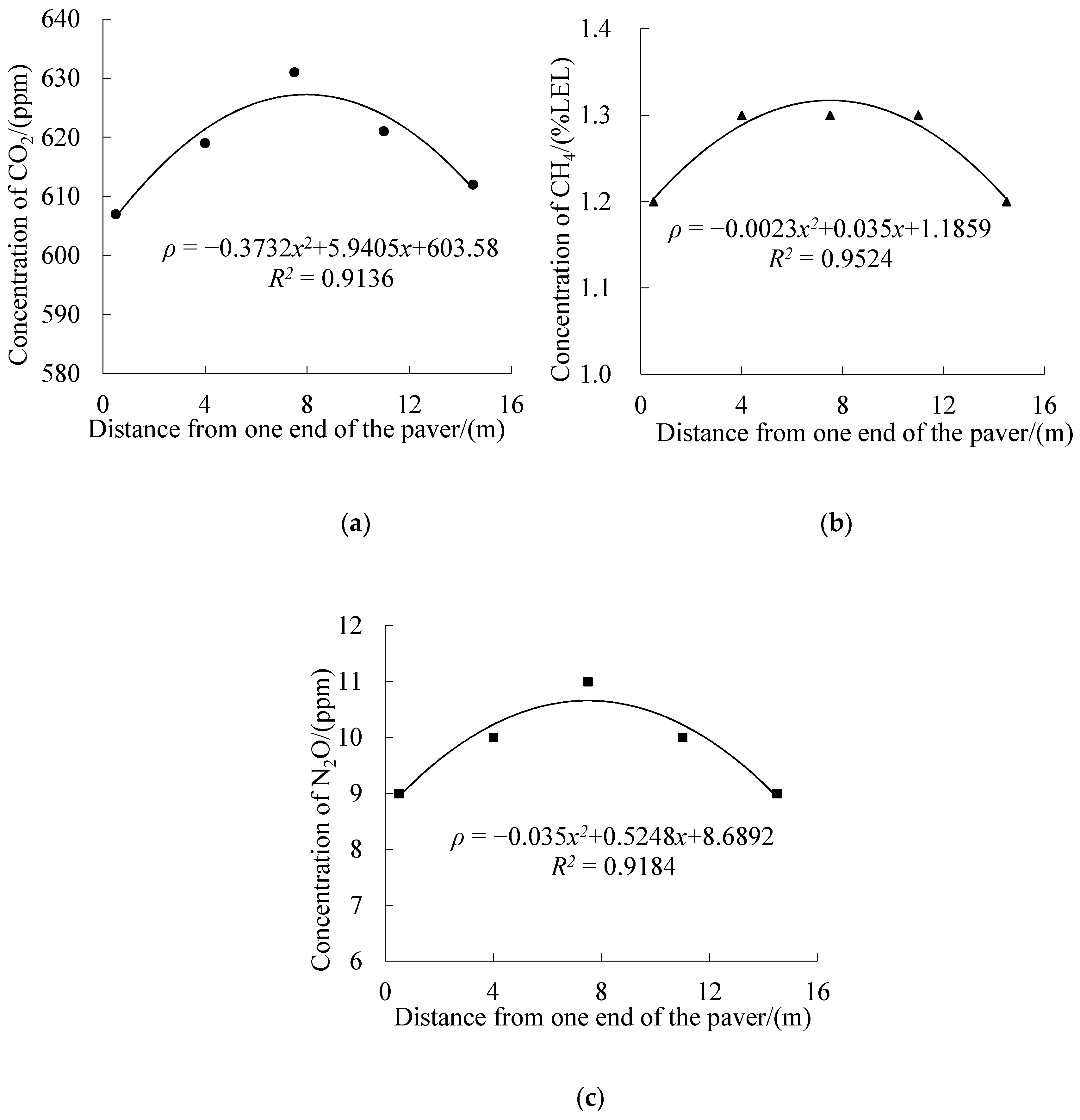

The volume and mass concentration of each point of the spiral distributor can be determined based on the relationship between the detection point and gas volume concentration, as shown in Figure 4. The gas diffusion rate v₃ of paving can be obtained based on the paving temperature and the relationship between the gas diffusion rate and the temperature (Figure 3). A ton of asphalt mixture is considered, and it discharges small amounts of greenhouse gases, resulting in large errors. Thus, the time required for paving 1 m is set as the calculation time. The calculated mass G₃ is determined in terms of density, pavement width, and pavement thickness. The calculation model of paving is finally obtained as shown in Equation (10):

$$\{\begin{array}{l}{E}_{c7}=\frac{v_3\cdot t_3\cdot y_1{\displaystyle {\int }_0^{x_1}{\displaystyle \sum _{j=1}^3{\rho }_{7j}(x)\cdot GW{P}_j}}dx}{{10}^6{G}_3}\\ G_3={\rho }_s\cdot h\cdot x_1\cdot y_1\end{array}$$

(10)

where E_c7 is the carbon emission from the volatilization of the asphalt mixture during paving (kg/t); v₃ is the gas diffusion rate during paving (m/s); t₃ is the time required for paving 1 m (s); x₁ is the paving width (m); y₁ is the paving length (m); ρ_7j is the mass concentration of gas (mg/m³); G₃ is the mass of the asphalt mixture for paving 1 m (t); ρ_s is the density of the mixture (g/cm³); and h is the thickness of the surface layer (m).

④ Carbon emission calculation model of asphalt mixtures during rolling

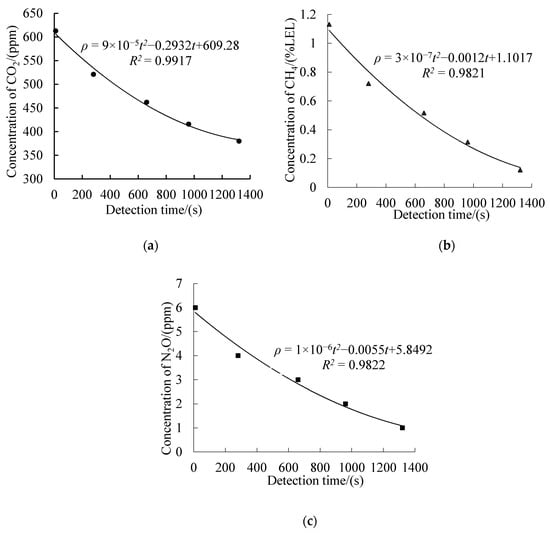

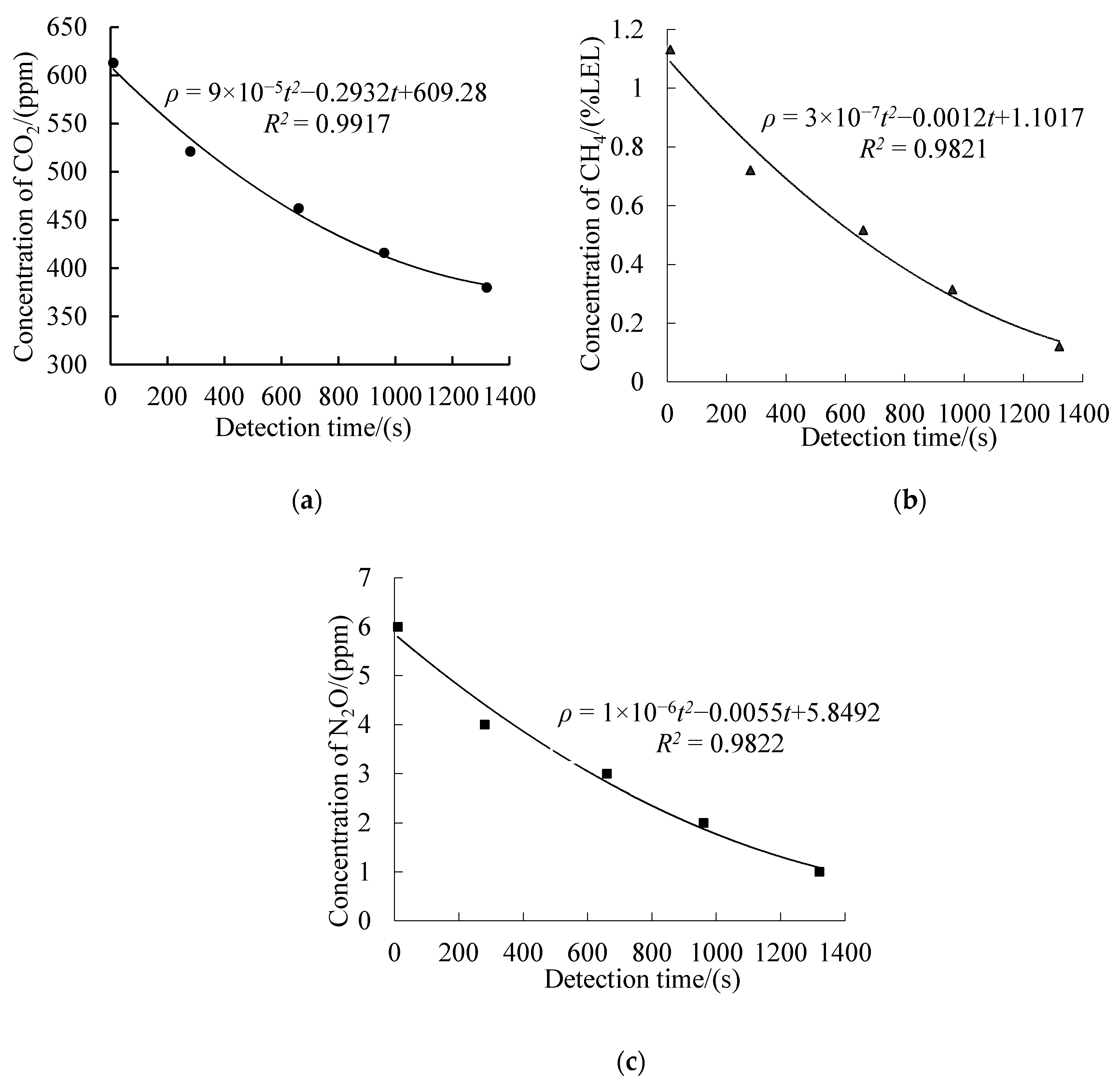

During the rolling process, greenhouse gas detection takes place from the beginning of the initial compaction to the moment when the emission concentration is close to the atmospheric concentration. The relationship between the gas concentration and detection time of rolling is shown in Figure 5.

According to Figure 3, the gas diffusion rate of v₄ can be acquired; the greenhouse gas concentration of ρ_8j can be determined from Figure 5. The width and mileage parameters should be consistent during the paving process because paving and rolling are conducted on the same road section. Therefore, for paving, the rolling length of 1 m is set as the longitudinal parameter. The calculated quality is the same as that for paving. The calculation model for rolling is shown in Equation (11):

$$\{\begin{array}{l}{E}_{c8}=\frac{v_4\cdot x_1\cdot y_1{\displaystyle {\int }_0^{t_4}{\displaystyle \sum _{j=1}^3{\rho }_{8j}}}(t)\cdot GW{P}_{j}dt}{{10}^6{G}_3}\\ G_3={\rho }_s\cdot x_1\cdot y_1\cdot h\end{array}$$

(11)

where E_C8 is the carbon emission from the volatilization of the asphalt mixture during rolling (kg/t); v₄ is the gas diffusion rate during rolling (m/s); t₄ is the time required for greenhouse gas emission concentration to approach the atmospheric concentration during rolling (s); and ρ_8j is the gas mass concentration during rolling (mg/m³).

⑤ Calculation model of total carbon emission from the volatilization of asphalt mixtures

The total calculation model is obtained based on the carbon emission calculation models of the asphalt mixture during mixing, transportation, paving, and rolling, as shown in Equation (12):

$$E_c={\displaystyle \sum _{i=5}^8{E}_{ci}}$$

(12)

where E_c is the total carbon emission from the volatilization of the asphalt mixture (kg/t) and E_ci is the carbon emission from the volatilization of asphalt the mixture in i process (kg/t).

3. Low-Carbon Technology in the Construction of Asphalt Pavements

Today, there is considerable focus on the concept of “environmental protection and energy conservation”, and low-carbon technology for asphalt pavement construction is gaining attention [33,34,35,36,37,38,39]. Therefore, low-carbon technologies are proposed based on the two types of carbon emissions, and mainly involve carbon emission reduction in terms of energy consumption and asphalt mixtures. The study of carbon emission reduction considering energy consumption mainly focuses on natural gas. In this approach, the aim is to decrease carbon emission by reducing consumption and improving energy utilization. This study also proposes the use of low-carbon asphalt mixtures and the adoption of warm mixing technology to reduce the carbon emission from the volatilization of asphalt mixtures.

3.1. Low-Carbon Asphalt Mixture

An additional low-carbon agent in the mixing of asphalt or asphalt mixtures can be used to reduce the mixing temperature of the asphalt mixture (the mixing temperature of low-carbon asphalt mixtures is generally 110–140 °C). The low-carbon agent is a substance capable of reducing the viscosity of the asphalt and aggregate. Therefore, a lubricating structure is formed, and the friction between the binder and aggregate of the asphalt mixture during mixing is reduced, thereby reducing the mixing temperature. This phenomenon reduces the carbon emission from the volatilization of asphalt mixtures itself.

3.2. Warm Mixing Technology

In warm mixing technology, a viscosity reducer is added to reduce the viscosity of asphalt mixtures at a low mixing temperature (the mixing temperature in the warm mixing technology is 130–150 °C). Under the requirements of good construction and long-term road performance of asphalt pavements, the warm mixing technology reduces the overall temperature of the mixture, saving a large amount of the heating energy. This reduction minimizes harmful gas emissions and reduces energy consumption.

4. Case Studies with Results and Discussion

4.1. Case Study: Calculation of Carbon Emission

For carbon emission from energy consumption, the details are as follows:

Huangyan Expressway was selected for a case study for quantitative calculation to verify the reliability and practicality of the carbon emission models of energy consumption. Results show that the oxidation rate and density of diesel are 0.98 and 0.835 g/cm³, respectively, and the combustion rates of coal and heavy oil are 0.9 and 0.98, respectively. The energy consumption and calculation parameters for Huangyan Expressway were used in Equations (2)–(4), and the carbon emissions from energy consumption were obtained. The results are listed in

Table 4. Carbon emission in the energy consumption of Huangyan Expressway.

Process	Yard Stacking	Aggregate Feeding	Aggregate Heating	Asphalt Heating	Transportation	Paving	Rolling	Total
Ee/(kg·t−1)	0.355	0.561	20.684	3.802	0.088	0.465	0.586	26.54

.

Table 4 shows that the process with the highest carbon emission with regards to energy consumption is aggregate heating, followed by asphalt heating; the carbon emission of other processes is small. In all, calculations were performed for 12 expressways in different regions of China to eliminate the contingency of the data results of a single road segment. The carbon emissions from the energy consumption of 12 expressways were obtained, and the calculation method was the same as the example of the Huangyan expressway, the main difference being the energy consumption (see Table 2). These results are shown in Figure 6.

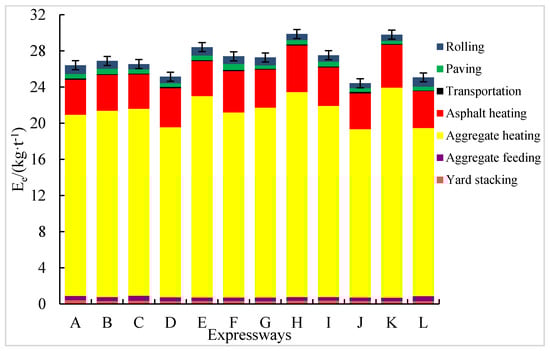

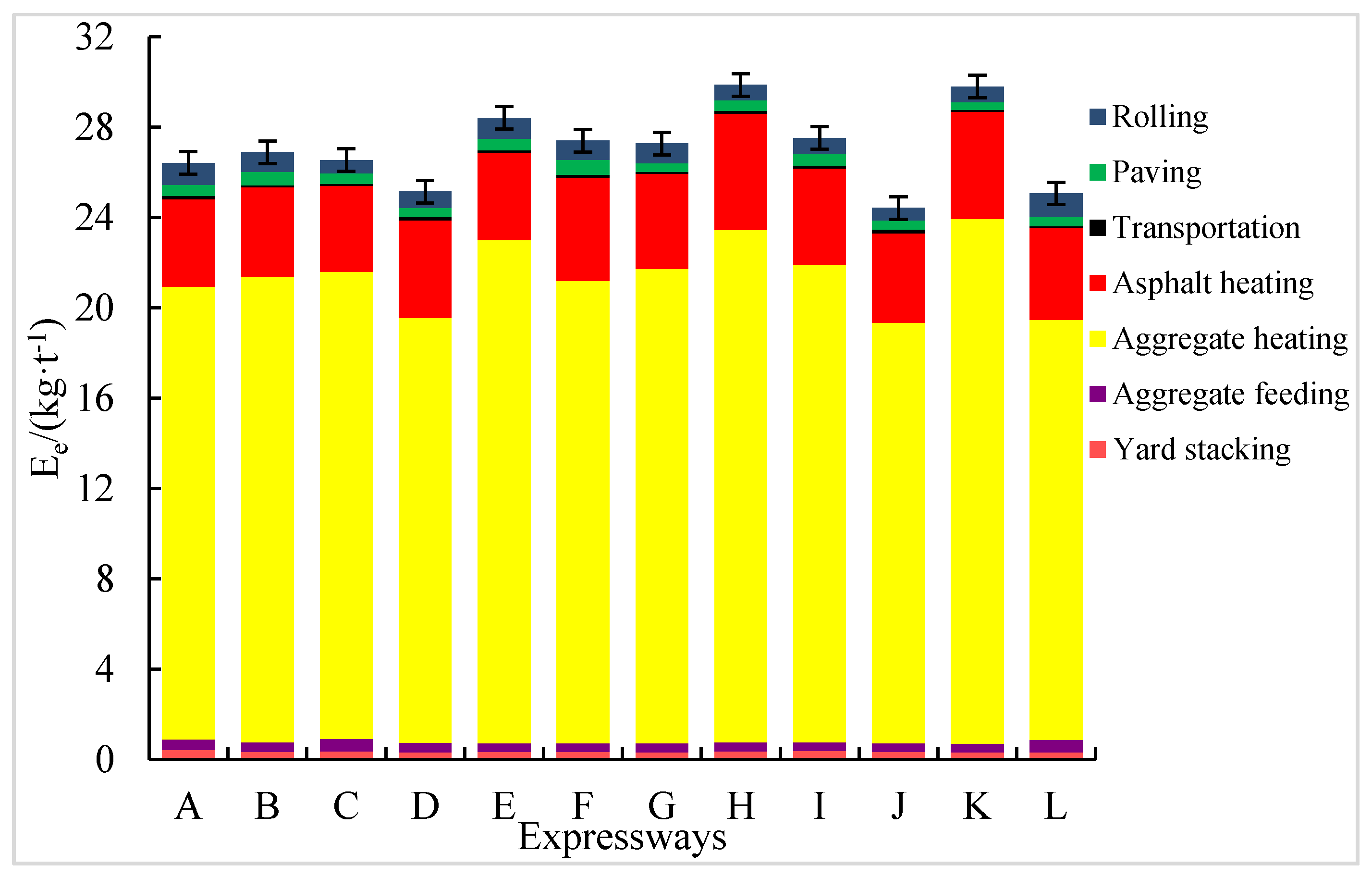

In Figure 6, the average carbon emission from energy consumption of 12 expressways is regarded as the representative value; the figure shows that carbon emission during aggregate heating is the highest, reaching 76.41% of the total carbon emission, followed by asphalt heating, which accounts for 15.67%. Thus, aggregate heating and asphalt heating are the main sources that account for 92.08% of the total carbon emission from energy consumption because the fuel used is mainly heavy oil. Therefore, carbon emission can be reduced by changing the fuel type or promoting the use of clean energy.

For carbon emission from volatilization of asphalt mixture, the details are as follows:

Huangyan Expressway was also selected for quantitative calculations to verify the reliability and practicability of models for carbon emission from the volatilization of asphalt mixtures. The multigas detector used in gas detection had a cooling device that maintained its temperature close to the atmospheric temperature. Hence, the atmospheric temperature of 35 °C on the day of project inspection was used as the temperature parameter. The instrument was also in contact with the atmosphere; therefore, the atmospheric pressure of 101,325 Pa was taken as the parameter. Field investigation results showed that the asphalt–aggregate ratio was 4.3%; the volume of the asphalt storage tank was 5.6 × 10⁻³ m³; and the mass of the asphalt sample was 1.1 kg. The calculation parameters of mixing, transportation, paving, and rolling are listed in

Table 5. Calculation parameters of mixing and transportation for the Huangyan Expressway.

Parameter	v1/(m·s−1)	v2/(m·s−1)	t1/(s)	t2/(s)	S1/(m2)	S2/(m2)	G1/(t)	G2/(t)
Value	0.32	0.31	12	144	1.44	14.35	4	45

and

Table 6. Calculation parameters of paving and rolling for the Huangyan Expressway.

Parameter	x1/(m)	y1/(m)	v3/(m·s−1)	v4/(m·s−1)	t3/(s)	t4/(s)	h/(m)	ρs/(g·cm−3)
Value	15.1	1	0.5	0.2	20	1320	0.06	2.46

. The concentrations of greenhouse gases are listed in

Table 7. Mean values of detection samples of the Huangyan Expressway.

Detection Samples	Mixing	Transportation	Paving	Rolling
CO2/(ppm)	605	642.8	620	478.4
CH4/(%LEL)	1.2	1.3	1.28	0.56
N2O/(ppm)	10.2	11.2	9.7	3.2

.

The relative molecular mass of greenhouse gases, the temperature of 35 °C, the pressure of 101,325 Pa, and the calculation parameters in Table 5, Table 6 and Table 7 were substituted into Equations (5)–(12). The carbon emission of the asphalt mixture in Huangyan Expressway was then obtained; the results are presented in

Table 8. Carbon emission from volatilization of the asphalt mixture in Huangyan Expressway.

Process	Mixing	Transportation	Paving	Rolling	Total
Ec/(kg·t−1)	0.022	0.245	1.120	15.935	17.358

.

The data in Table 8 show that the carbon emissions from the volatilization of the asphalt mixture in the various processes are different. Among the processes, rolling caused the highest emission, followed by paving, while the emissions of other processes were small (especially in mixing, less than 0.1 kg·t⁻¹, so the E_c of mixing can be neglected). The calculation method of carbon emission from the volatilization of 12 expressways is the same as the Huangyan expressway, and these carbon emissions were obtained by substituting the calculation parameters into the equations. The results are shown in Figure 7.

Figure 7 shows that the total carbon emission from the volatilization of the asphalt mixture of the 12 expressways, which is lower than the carbon emission arising from energy consumption of the same expressways. Among them, the carbon emissions of seven expressways are much higher, more than 16 kg·t^-1; the expressways D, F, G, K, and L have lower emissions, but still more than 5 kg·t^-1. The average carbon emission of each process was considered as the representative value; a comparison of these values showed that carbon emission during rolling was the highest, accounting for 91.50% of the total carbon emission of the asphalt mixture, followed by paving, which accounted for 7.03%. These two processes together accounted for 98.53% of the emissions, and thus, they are the main sources in terms of carbon emission from the volatilization of asphalt mixtures. This finding is attributed to the characteristics of the paved asphalt mixture, which takes a long time to reduce greenhouse gas concentrations from a high value to the atmospheric concentration. Moreover, the emission time is generally 20–30 min, thereby causing high-carbon emission during paving and rolling processes.

4.2. Discussion of the Case Study: Calculation of Total Carbon Emission

The total carbon emissions in the construction of the asphalt pavements of the 12 expressways were analyzed and discussed to evaluate and determine the overall carbon emission of asphalt pavements based on the two aforementioned case studies. The equation is shown in Equation (13).

$$E={\displaystyle \sum _{i=1}^8{E}_{ei}(i\ne 5)+{\displaystyle \sum _{i=5}^8{E}_{ci}}}$$

(13)

According to Table 1, Table 2 and Table 3 and Equations (2)–(4), carbon emission from energy consumption (E_e) of each expressway was obtained; According to Table 5, Table 6, Table 7 and Table 8 and Equations (5)–(12), carbon emission from the volatilization of asphalt mixtures (E_c) of each expressway was obtained. The calculation results show that E_e is 342.42 kg·t^-1; the total carbon emission from the volatilization of asphalt mixtures E_c is 182 kg·t^-1; and the total carbon emission E is 506.52 kg·t^-1. Therefore, the carbon emission ratio of energy consumption and asphalt mixture is 3:2, and the proportion of carbon emission generated by the asphalt mixture itself is high. This observation should be considered in the construction of asphalt pavements.

To summarize, although the total carbon emissions of different projects vary, the overall trend is consistent. Processes causing carbon emissions, in decreasing order, are aggregate heating, rolling, asphalt heating, mixing, and paving; the contributions of yard stacking, aggregate feeding, and transportation processes are relatively small. Among the four high emission processes, aggregate heating, asphalt heating, and mixing mainly generated emissions via energy consumption; rolling mainly generated emissions from the asphalt mixture itself.

4.3. Case Study: Calculation of Carbon Emission Reduction

For the reduction of carbon emission from energy consumption, the details are as follows:

Natural gas was considered to conduct carbon emission reduction research for two high-carbon emission processes (aggregate and asphalt heating), calculated considering carbon emission from energy consumption. Taking Huangyan Expressway as the case study and using the data in Table 2 and Equations (2)–(4), the carbon emission reduction effects on using natural gas were obtained. The results are shown in

Table 9. Carbon emission reduction regarding energy consumption.

Construction Process	Energy Type	Ee/(kg·t−1)	Reduction Rate (%)
Aggregate heating	Heavy oil (before)	6.524	/
	Natural gas (after)	4.718	27.68
Asphalt heating	Coal (before)	1.823	/
	Natural gas (after)	1.077	40.92

Note: reduction rate (aggregate heating) = |E_e (heavy oil) − E_e (natural gas)|/E_e (heavy oil) × 100%; reduction rate (asphalt heating) = |E_e (coal) − E_e (natural gas)|/E_e (coal) × 100%.

.

A comparative analysis of the carbon emission reduction effects of energy showed that natural gas can effectively reduce carbon emission by 27.68% compared with heavy oil during aggregate heating. In asphalt heating, natural gas can reduce carbon emission by 40.92% compared with coal. Thus, changing the fuel type can clearly help reduce carbon emissions attributed to energy consumption and reduction rate.

For the reduction of carbon emission from the volatilization of asphalt mixtures, the details are as follows:

Low-carbon asphalt mixtures and warm mixing technology are compared in terms of carbon emission reduction. Taking Huangyan Expressway as the case study and based on an indoor simulation test, styrene-butadiene-styrene block copolymer (SBS) was added to modify asphalt (grade I-D); the asphalt concrete was medium grained (AC-16); it was used for the middle surface layer; and the thickness was 6 cm; the asphalt used corresponded to Huangyan Expressway; a 3% sasobit warm mixing agent was used as the optimum mix amount, and a 3% low carbon agent was selected as the comparative study. The carbon emission reduction results are presented in

Table 10. Carbon emission reduction regarding carbon emission from the volatilization of asphalt mixtures.

Mixture Type		Mixing Temperature (°C)	Ec/(kg·t−1)	Reduction Rate (%)
Hot mix asphalt mixture		150–180 °C	0.022	/
Warm asphalt mixture	Sasobit	130–150 °C	0.016	27.3
	Low-carbon agent	110–140 °C	0.0107	48.6

.

The data in Table 10 show that carbon emission during mixing reduced by 27.3% when warm mixing technology was used. The application of low-carbon asphalt mixture technology reduced carbon emission by 48.6%. Therefore, warm mixing and low-carbon asphalt mixture technologies have evident emission reduction effects and can be applied for asphalt mixtures.

4.4. Discussion of Case Studies: Comparison of Carbon Emission Reduction

The data listed in Table 9 show that among the three heating energy sources, natural gas has more significant emission reduction effect. Therefore, the use of natural gas instead of heavy oil or coal can be considered as one of the low-carbon emission reduction technologies in construction, which should be preferred when economic.

The data shown in Table 10 indicate that the low-carbon asphalt mixture has an evident emission reduction effect, reducing the carbon emission from the volatilization of the asphalt mixture by approximately 50%; the low-carbon asphalt mixture is followed by warm mixing technology in terms of the effectiveness. In addition, compared with the hot mix asphalt mixture, the temperature of using the warm asphalt mixture decreased by about 20–30 °C, and the temperature of using the low-carbon asphalt mixture decreased by 40 °C. Thus, the heating temperature of aggregate and asphalt can be greatly controlled, thereby reducing the energy consumption.

The carbon emission calculation models for asphalt pavement construction presented in this paper not only define the type of carbon emission and accurately describe the emission of pollutants, but also provide reference values for the calculation of the emission reduction effect of low-carbon technologies such as natural gas, warm mixing technology, and low-carbon asphalt mixtures.

5. Conclusions

The proposed models provide effective calculations of the carbon emissions arising during the construction of expressways. Furthermore, the calculation models were demonstrated by comparing the carbon emission reduction of different low-carbon technologies. Some conclusions are as follows:

(1) For the calculation of carbon emission from energy consumption, the results showed that the carbon emission of aggregate heating is the highest, 76.41% of the total carbon emission, followed by asphalt heating, accounting for 15.67%. Therefore, aggregate heating and asphalt heating are the main carbon emission sources of energy consumption, accounting for 92.08% of the total carbon emission of energy consumption.

(2) For the calculation of carbon emission from the volatilization of the asphalt mixture, the results showed that carbon emission during rolling was the highest, accounting for 91.50% of the total carbon emission of the asphalt mixture, followed by paving, which accounted for 7.03%. These two processes together accounted for 98.53% of the emissions, and thus, they are the main carbon emission sources from the volatilization of the asphalt mixture.

(3) The results show that the carbon emission ratio between the carbon emissions from energy consumption and asphalt mixtures is close to 3:2. The energy consumption processes with high-carbon emission are aggregate heating and asphalt heating, which are attributed to the asphalt mixture in the rolling and paving of asphalt mixture.

(4) Carbon emissions in energy consumption in aggregate and asphalt heating were reduced by 27.68% and 40.92%, respectively, by using natural gas. Using warm mixing and low-carbon asphalt mixture technology can reduce carbon emissions of the asphalt mixture by 27.3% and 48.6%, respectively, and the effect on emission reduction is remarkable.

The proposed carbon emission calculation methods provide theoretical bases for sustainable expressway construction. However, there are still some limitations. First, owing to the limited time, there is a lack of consideration of carbon emissions during raw material production, road operation, maintenance, and demolition. Future studies will need to cover the entire life cycle. Second, the results of the empirical analysis depend on data sources in China. Determining whether these results are applicable to other countries requires further testing.
