Life Cycle Analysis of a Geothermal Power Plant: Comparison of the Environmental Performance with Other Renewable Energy Systems

1
RES Lab, Department of Biotechnology, Chemistry and Pharmacy, University of Siena, 53100 Siena, Italy
2
Center for Colloid and Surface Science, 50019 Firenze, Italy
3
Enel Green Power, 56122 Pisa, Italy
4
Department of Industrial Engineering, University of Florence, 50135 Florence, Italy
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(7), 2786; https://doi.org/10.3390/su12072786
Received: 25 February 2020 / Revised: 27 March 2020 / Accepted: 30 March 2020 / Published: 1 April 2020
(This article belongs to the Special Issue Sustainability of Geothermal Energy Conversion—Life Cycle Analysis)

Abstract

A life cycle analysis was performed for the assessment of the environmental performances of three existing Italian power plants of comparable nominal power operating with different sources of renewable energy: Geothermal, solar, and wind. Primary data were used for building the life cycle inventories. The results are characterized by employing a wide portfolio of environmental indicators employing the ReCiPe 2016 and the ILCD 2011 Midpoint+ methods; normalization and weighting are also applied using the ReCiPe 2016 method at the endpoint level. The midpoint results demonstrate a good eco-profile of the geothermal power plant compared to other renewable energy systems and a definite step forward over the performance of the national energy mix. The Eco-Point single score calculation showed that wind energy is the best technology with a value of 0.0012 Eco-points/kWh, a result in line with previously documented life cycle analysis studies. Nevertheless, the geothermal power plant achieved a value of 0.0177 Eco-points/kWh which is close to that calculated for the photovoltaic plant (0.0087 Eco-points/kWh) and much lower than the national energy mix one (0.1240 Eco-points/kWh). Also, a scenario analysis allowed for a critical discussion about potential improvements to the environmental performance of the geothermal power plant.
Keywords: geothermal energy; life cycle analysis; solar energy; photovoltaics; renewable energy power plant; wind energy geothermal energy; life cycle analysis; solar energy; photovoltaics; renewable energy power plant; wind energy

1. Introduction

Geothermal energy is an important energy resource, largely contributing to limiting the use of fossil fuels, for both electricity and direct uses (mainly heat for district heating). The world installed electrical capacity is over 12 × 103 MWe [1,2,3,4], with the provision of direct heat of the order of 165 × 103 GWh/yr [5]. The geothermal resource is well distributed around the world [6,7], and several locations are favored by the presence of hot fluid resources (hydrothermal systems). Recently, the feasibility of enhanced geothermal systems (EGS) has been demonstrated and this technology will allow even more widespread use of the earth’s inner heat [8,9]. Experience has demonstrated that geothermal energy can be considered renewable if the resource is correctly managed [10,11], if the sizing of the conversion/utilization plants is compatible with that of the hydrothermal reservoir, and if reinjection of the fluids is practiced.
Italy has a long tradition of geothermal energy utilization [12], with nearly 1 × 103 MWe installed in two areas of the Tuscany region (Larderello/Travale and Monte Amiata) operated by Enel Green Power. Specifically, the plants of the Larderello/Travale region (about 700 MWe) have been in industrial operation for more than 60 years, and this activity has considerably contributed to the local economic growth. An extensive grid exists for the management of fluids, including primary supply to local district heating as well as resource and reinjection fluid distribution. All power plants are equipped with effective emissions treatment equipment, which removes the greatest part of hydrogen sulfide (H2S) and mercury (Hg) though the application of proprietary technology (AMIS® process [13,14]). The geothermal power plants located in Tuscany have demonstrated high reliability, with equivalent operation time exceeding 7.5 × 103 hrs/yr and with a productivity of more than 6.2 × 103 GWh/yr [15].
Solar electricity is mainly produced by photovoltaic (PV) power plants. Over the world, the power installed exceeds 500 GWe [16]. Italy represents one of the main players in Europe with more than 20 GWe installed and productivity exceeding 24 × 103 GWh/yr [15]. Most of the PV plants in Italy are small (<50 kWe); however, a significant share of production is done by 6% of the power plants with size >50 kWe. The productivity data show that the utilization factor of solar PV is much smaller than for geothermal, with an equivalent full-load operability of about 1.2 × 103 hrs/yr. This is due to the periodic cycle of solar radiation (daily and seasonal).
Wind energy has experienced a strong increase with specific reference to Europe (180 GWe installed with a productivity of about 362 × 103 GWh/yr [16]). In Italy more than 10 GWe are installed (mainly in the south), with productivity exceeding 17 × 103 GWh/yr [15]. The equivalent full-load operability is typically 2000 hrs/yr, as the wind resource is highly stochastic.
The lower operability identifies solar PV and wind as variable renewable energy (VREs), raising strong challenges to the grid infrastructure (solar being today more predictable and favored in this sense). Higher market penetration of renewable energy sources (RES) will entail optimized strategies for production/load matching, and the development of extensive energy storage infrastructures supporting VREs. These latter will entail additional costs and environmental impacts, as well documented by the scientific literature about storage systems. Geothermal energy, which is typically employed as a baseload energy resource, is highly complementary to VREs and can represent very valuable support, both in countries with limited electric grid infrastructure and in developed countries committed to ever-higher market penetration of electricity compared to other energy vectors [17,18].
This work arises from the recognition that completely clean energy does not exist: The only clean energy is the one we do not need to use, namely that saved with efficiency actions. However, in an environmentally sustainable perspective RES are better than fossil fuels, but even in this case choices should be based on a rigorous comparison of the environmental advantages and drawbacks. The life cycle analysis (LCA) approach is an optimum tool to make this comparison.
The goal of this study is to compare the environmental performances of three power plants based respectively on geothermal, solar, and wind energy through the LCA methodology and grounding on robust and reliable primary data.

2. Materials and Method

2.1. Life Cycle Analysis (LCA)

LCA is a method to evaluate the environmental load associated with a product, process, or activity. LCA allows quantifying the used amount of energy and materials and of emissions and waste released in the environment, allowing for the evaluation of the associated potential impacts. The assessment is performed over the entire life cycle of the product, process, or activity covering extraction and processing of raw materials; manufacturing, transportation, and distribution; use, re-use, maintenance; recycling, and final disposal. The results of LCA can be expressed via a large number of environmental indicators and, generally, several impact categories are used to circumspectly detect the full range of ecological burdens associated with the investigated process or activity over the three environmental compartments (atmosphere, soil, and water), thus aiming at avoiding burden shifting. The LCA methodology is regulated according to the general guidelines described in the International Standard Organization (ISO) series 14040 [19,20] and consists of four phases:
  • Goal and scope definition: In this phase, the goal of the study, the system boundaries, the quality requisites of the data sources are described, and the functional unit of the analysis is specified.
  • Life cycle inventory analysis (LCI): The purpose of this phase is to collect the input/output data pertinent to the system studied; generally robust and reliable LCIs are built on primary data, that is to say specific data that highly characterize the system under study.
  • Life cycle impact assessment (LCIA): This phase evaluates the significant potential environmental impacts using the LCI results; the process involves associating inventory data with specific environmental impact categories and the calculation of indicator values using accepted characterization factors.
  • Life cycle interpretation: It is the final phase of an LCA study in which the results of the LCI and LCIA steps are presented and discussed; interpretation includes conclusions and recommendations adapted to the goal and scope of the study.
LCA was born as a detailed and quantitative approach for the evaluation of environmental sustainability [21]. The regulatory approach described in the ISO standards and the more completely elaborated ILCD Handbook guidelines [22] claims for the development of an LCA study until the characterization of the environmental impacts at a midpoint level. With this approach, the LCIA method looks at the impact earlier along the cause–effect chain of the environmental mechanism, and can refer to a relevant number of impact categories characterized by a low uncertainty but, on the other hand, is difficult to interpret. In principle, it represents a good approach for the characterization of the eco-profile of the product or activity under exam to use several wide-scope LCIA methods and check if findings are consistent in all of them. If so, it is possible to claim that findings appear robust. But when this is not the case, the LCA practitioner might have to delve into the particularities of the LCIA methods and find out why the results are dissimilar, which can be a good learning experience about the characteristics of the applied LCIA methods.
The environmental evaluation at the endpoint level is a non-mandatory part of LCA, which includes normalization and weighting steps that allow expressing the results referring to a limited number of damage categories, typically resources availability, human health, and ecosystem quality. Endpoint results provide insight on the environmental impact at the end of this cause–effect chain of the environmental mechanism, thus with larger uncertainty. If interpretation at this level provides a more limited amount of details, it is recognized that it is more suitable for the presentation of results to non-technical audiences. The various LCIA methods apply different impact category grouping, normalization, and weighting factors, thus it is necessarily recommended to refer to the same methodology when comparing different technologies dealing with the same product or process.
Energy conversion and utilization is one of the most famous and important fields of application of LCA calculations. LCA indeed offers a powerful approach to analyze systems overarching the complete life cycle of a system (from cradle to grave) which is necessary when considering the substitution of fossil fuels with renewables. When applying LCA to energy conversion systems, for fossil fuel-based technologies it is common to find high impacts connected to the use of fossil resources in the operational phase [23,24,25]; on the other hand, RES, which minimizes the use of consumables such as fossil fuel, entail a consistent use of materials because of the diffuse nature of renewable energy, some of which are rare, or whose extraction and/or production entails direct or indirect negative effects on the environment. In general, RES scores better environmental performance than fossil fuel systems in most impact categories. However, these outcomes should be evaluated, validated, and compared among different RES.
Several LCA studies are available on solar PV energy conversion systems [26,27,28,29,30,31,32,33,34,35]; in general, the results indicate that a significant impact is coming from the manufacture of the PV modules, with the current silicon technology performing better than cadmium telluride, notwithstanding substantial advantages for thin-film manufacturing [36]. A significant fraction contribution to the overall eco-profile (20–30%) comes from the structural materials and glazing. The environmental footprint is lower than the best fossil fuel-based technologies in most categories, with a weighted score typically 4–8 times smaller. The relatively standard production process has led to the development of accepted guidelines [37], which have determined an improved homogeneity in the results and better comparability of the studies. Wind energy has also attracted several LCA studies [38,39,40,41]: In comparison with fossil fuel-based systems, the environmental footprint is very limited, and only a restricted number of categories is usually involved (global warming potential, GWP; acidification potential, AP; eutrophication potential, EP; cumulative energy demand, CED). In the field of wind energy, no specific LCA guidelines are available; however, significant studies have been published by leading manufacturers such as Vestas [42]; the results have been cross-checked by researchers and substantial agreement is documented [43,44,45,46].
Geothermal power plants have raised the attention of local and national policymakers in terms of their environmental performances and sustainability, and the comparison with other RES has then become necessary. Several studies on the application of LCA to geothermal power systems are available in the literature [47,48,49,50,51,52,53,54,55,56,57,58]; however, most studies are only focused on GWP, and there is a considerable spread in the results.
Examples of comparison of RES options are documented in the technical literature [59,60,61,62]; however, they mostly rely on previously published LCA studies and, in most cases, on the use of literature data. There is a substantial lack of primary data (produced by the plant owner or operator), which stand as more reliable as the source of the information can be completely tracked. Utilities such as Enel Green Power have a good opportunity to access these primary data (often gathered with the purpose of economic analyses, or in case of the commitment of construction works or trusting of maintenance services), and to use them to document the environmental quality of their product (electricity). This represents a key passage in the environmental evaluation, both in terms of company, services, and products (possibly leading to an ECO-Label), and is also a motivation behind the present study.
The case studies described in the following section were analyzed using the OpenLCA 1.10 software package [63]; for secondary data, the Ecoinvent database 3.6 was adopted [64,65]. The system modeling approach employed is cradle to grave. The functional unit was set as 1 kWh of electricity delivered to the grid, assuming a lifetime of 30 years for all the power plant solutions investigated. The system boundaries were defined to include the whole life cycle of the system. Operation and maintenance (including replacement of major equipment) were modeled following the experience of Enel Green Power as power plant manager.
The assessment was performed comparing the ReCiPe 2016 [66] and the ILCD 2011 Midpoint+ [67] LCIA methods both employed for the characterization of potential impact at midpoint level. Normalization and weighting, applying an hierarchist (H) cultural perspective, were applied to the ReCiPe 2016 results to determine the systems eco-profiles at the endpoint level (with weighted results expressed in Eco-points).
All data gathered in the LCI are primary data provided by Enel Green Power resulting from checked information about materials employed for construction. Secondary data were used for common materials (e.g., steel, concrete, copper, plastics, etc.) and upstream processes (e.g., transport). The LCI also reports data for operation and maintenance, including replacement of equipment, consumables, etc.

2.2. Case Studies

The case studies here considered represent three Italian power plants of similar nominal capacity (about 20 MWe): The geothermal power plant Chiusdino 1, the wind farm in Pietragalla, and the solar photovoltaic power plant Serre Persano Difesa Servizi (DS).

2.2.1. Chiusdino Geothermal Power Plant

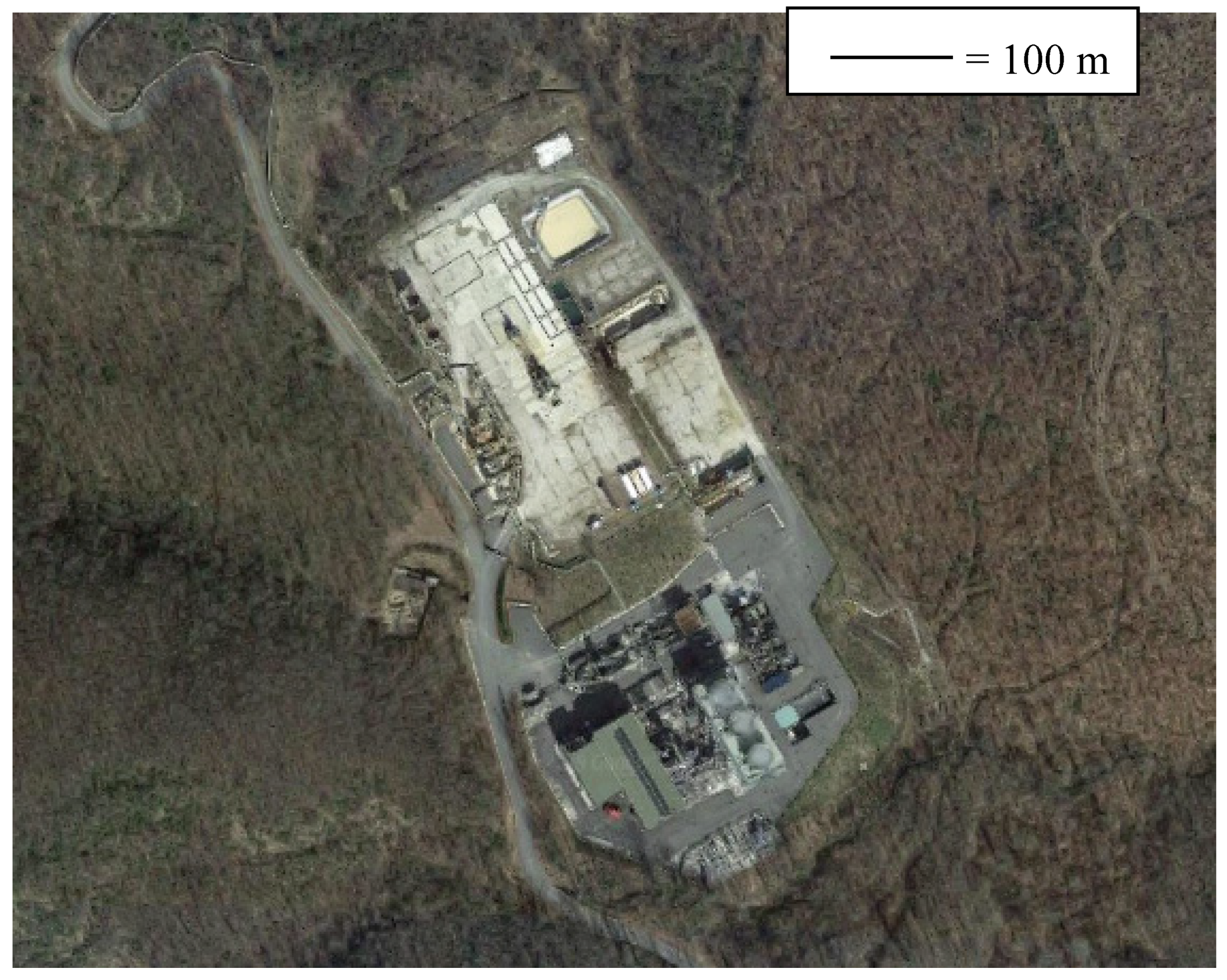

Chiusdino 1 is a standard Enel Green Power geothermal power plant, with a nominal capacity of 20 MWe (Figure 1). The live steam (130 t/h; 14,5 bar, 196 °C) is provided by five production wells located close to the power plant or in the neighborhood (Table 1). The plant was built in 2011 and has recently been connected to a district heating network, with a planned capacity of 7 MWth of heat.
The Chiusdino 1 power plant is equipped with an AMIS® emissions treatment system, which removes H2S and Hg with measured efficiencies of 99.8% and 82.2%, respectively. A soda solution is used for acid gas treatment. The whole liquid condensate of Chiusdino 1 is reinjected using a complex network of pipelines connecting to the Larderello reinjection sites, with an overall estimated length of about 20 km. Details on the pollutant streams emitted, according to measured values certified by the regional authority for environmental protection (ARPAT), are provided in Table 2.
For Chiusdino 1, three scenarios were examined to consider the effects of emissions treatment: (i) The real scenario “GEO,” featuring the AMIS® process; (ii) the hypothetical scenario “GEO_NA,” representing the power plant as if no AMIS® process were operating; and (iii) the “GEO_AS,” featuring the emissions treatment plus a 40% substitution of natural emissions (i.e., 40% of the power plant emissions would anyway reach the atmosphere as natural emissions).
The Chiusdino 1 power plant is operated at full load, with a demonstrated operability of 7560 hrs/yr. This leads to very high productivity of about 151,200 MWh/yr. Appendix A shows the LCI and technical details for the Chiusdino 1 power plant.

2.2.2. Pietragalla Wind Farm

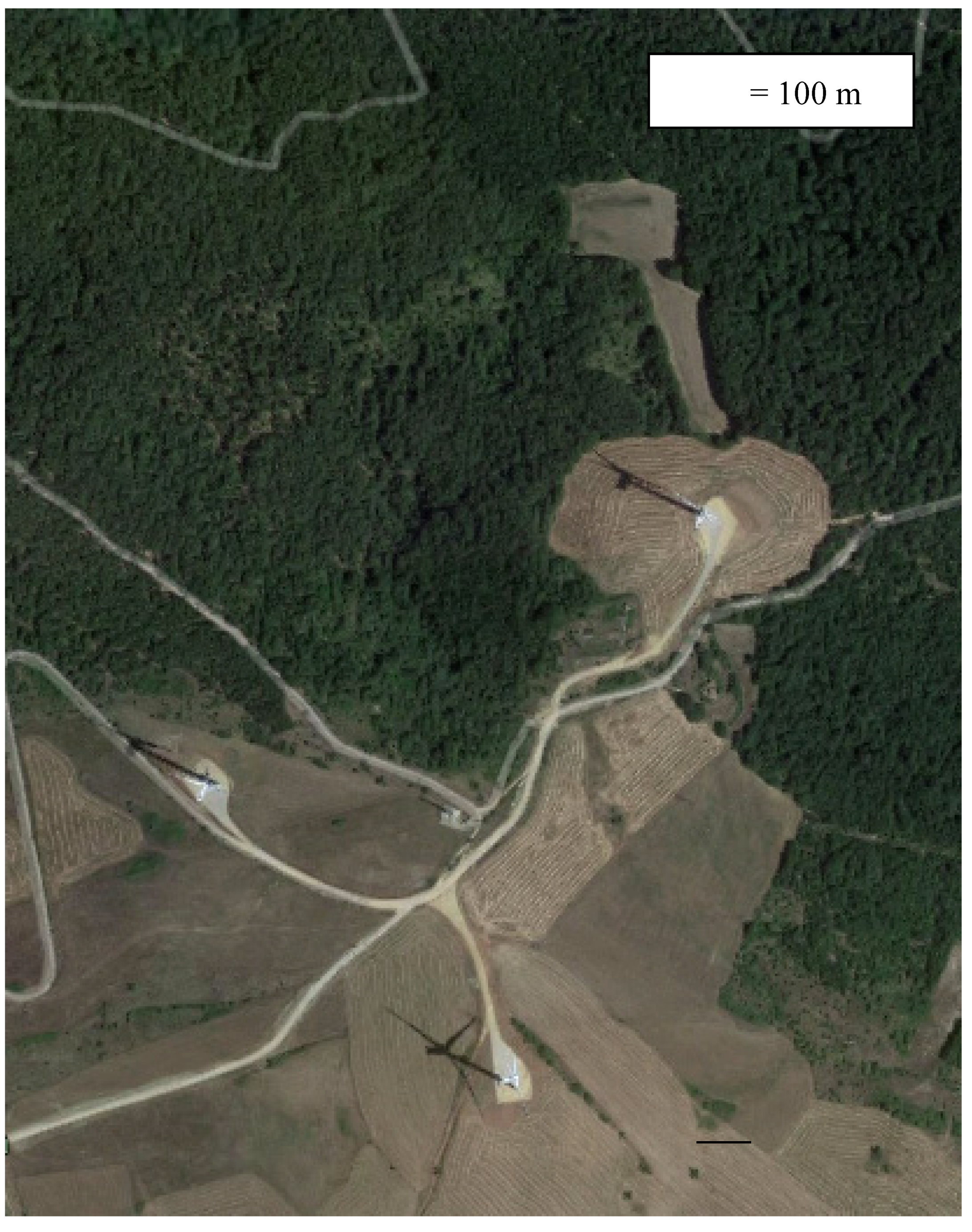

The Pietragalla wind farm is composed of nine horizontal axis Repower MM92 wind turbines, each having a nominal rating of 2 MWe (Figure 2). The wind farm has been operational since 2011. Every wind turbine has a rotor diameter of 92.5 m and is installed on top of a pre-assembled tower (three pieces) with an overall height of 100 m. The tower, nacelle, and rotor require substantial construction work for the foundations; moreover, the erection (and maintenance) of the machine requires the construction of a platform with suitable extension and load-supporting capability. The installation site required only minor works for viability. The operational data over the recent three years period (2016–2018) indicate productivity of 42,069 MWh/yr, equivalent to full-load operability of 2337 hrs/yr (a very high value for typical Italian wind energy installations). Appendix B shows the LCI and technical details for the Pietragalla wind farm.

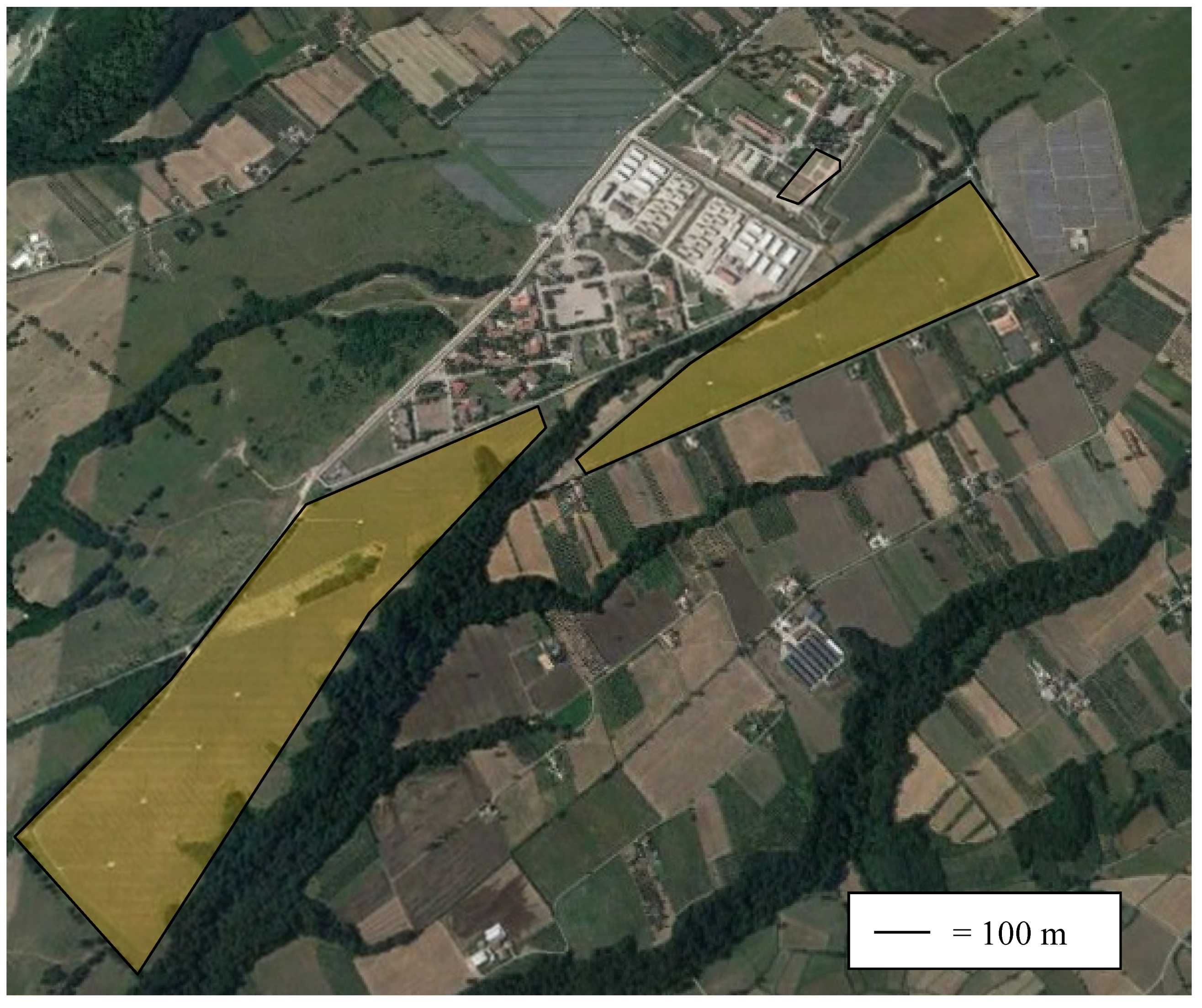

2.2.3. Serre Persano Difesa Servizi (DS) Photovoltaic Solar Plant

The Serre Persano DS PV solar plant, feature a peak power level of 21 MWe and was built by Enel Green Power in the period 2011–2013. The surface covered is 770,000 m2, with two fields connected to the same electrical works station (Figure 3). On the whole, the PV plant has 157,556 modules, arranged in 11,254 strings with 24 inverters. Table 3 resumes the features of the two PV fields.
Including the evaluation of the decay in productivity with aging, the average productivity of the Serre Persano DS solar PV plant was evaluated at 24,768 MWh/yr, with an equivalent full-load operability of about 1179 hrs/yr (a good performance for a plant built during 2011–2013 in Southern Italy). Appendix C shows the LCI and technical details for the Serre Persano DS solar PV plant.

3. Results and Discussion

3.1. Life Cycle Impact Assessment at Midpoint Level: ILCD 2011 Midpoint+ versus ReCiPe 2016

The purpose of this section is to show the results of the midpoint impact categories and to analyze them so that a consistent choice can be made about the impact assessment methodology (ILCD 2011 Midpoint+ or ReCiPe 2016). The results are shown for the three cases referred to as geothermal (GEO, GEO_AS, GEO_NA) and for the solar photovoltaic (PV) and wind (W) reference cases. Furthermore, the comparison with the national electricity mix (NEM) is performed referring to the ecoinvent process that models the Italian energy mix based on Eurostat data for the year 2014 (renewable energies: 43.1%; coal: 19.0%; natural gas: 28.9%; oil: 1.0%; nuclear-imported: 4.6%; other sources: 3.7%). The detailed results of the midpoint impact analysis are reported in Appendix D.

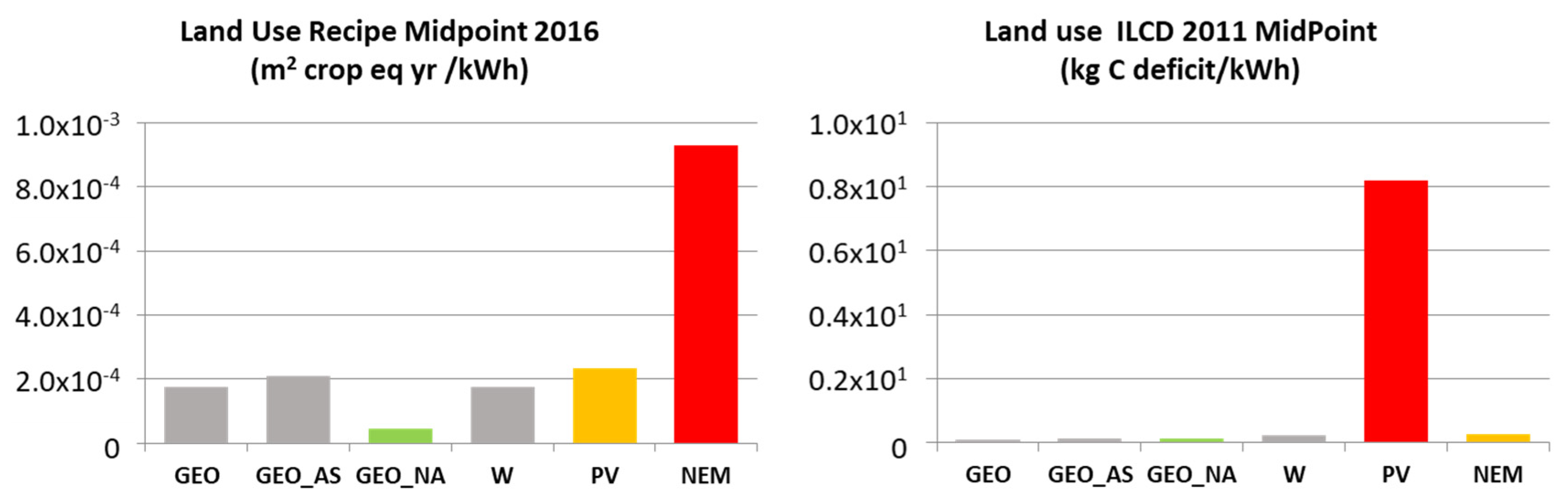

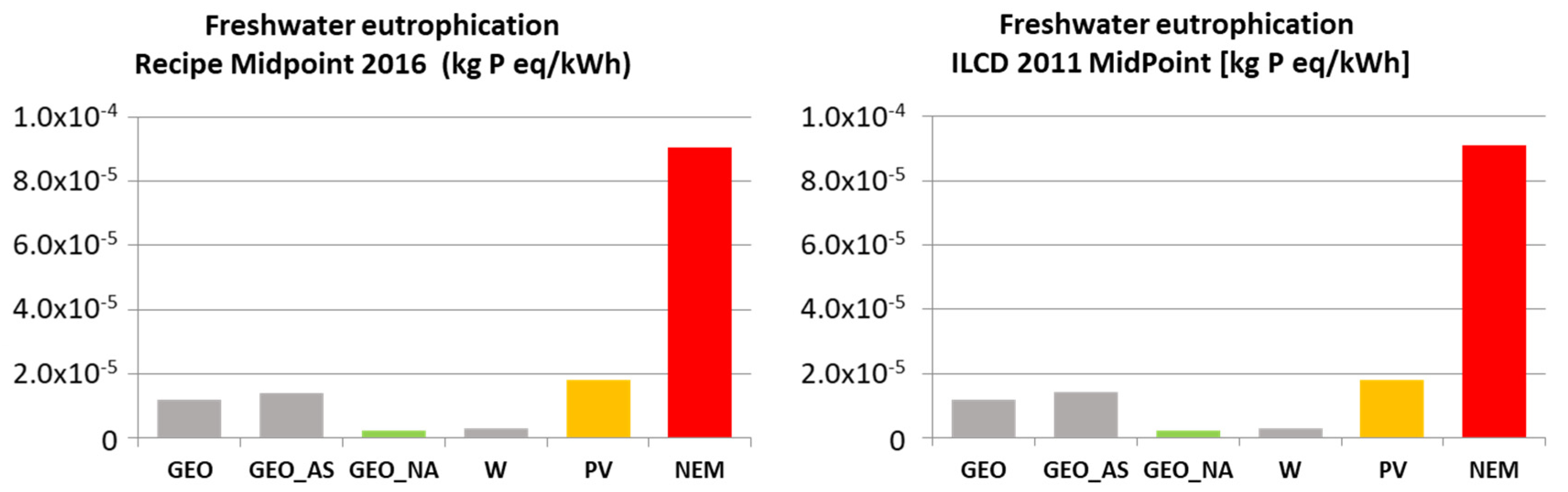

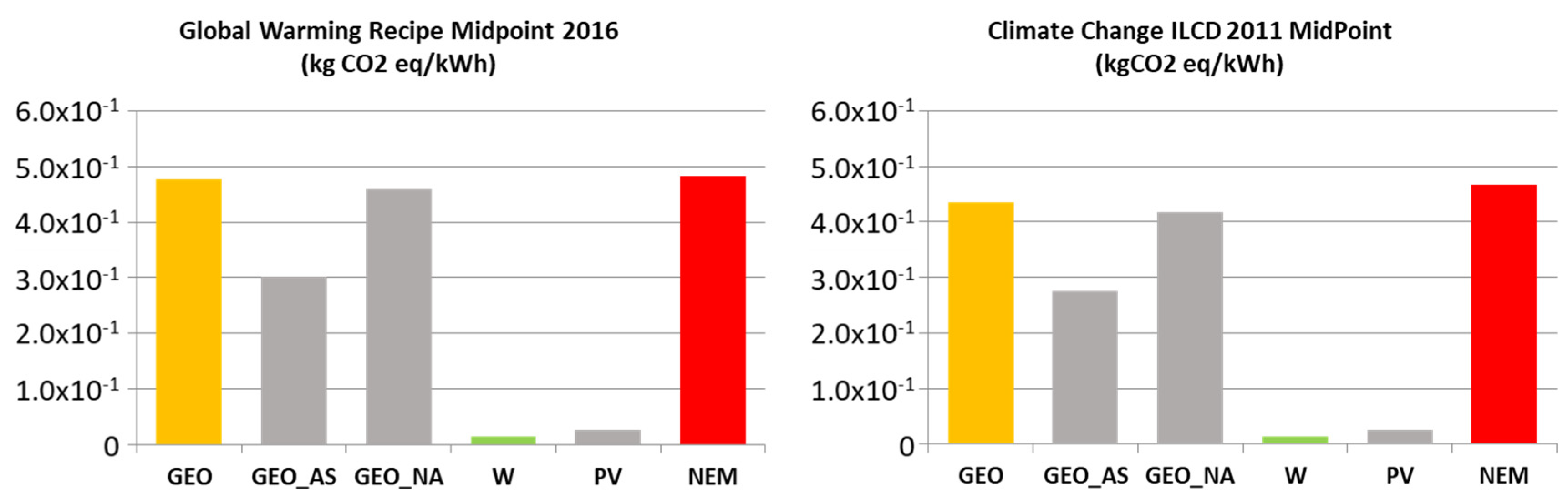

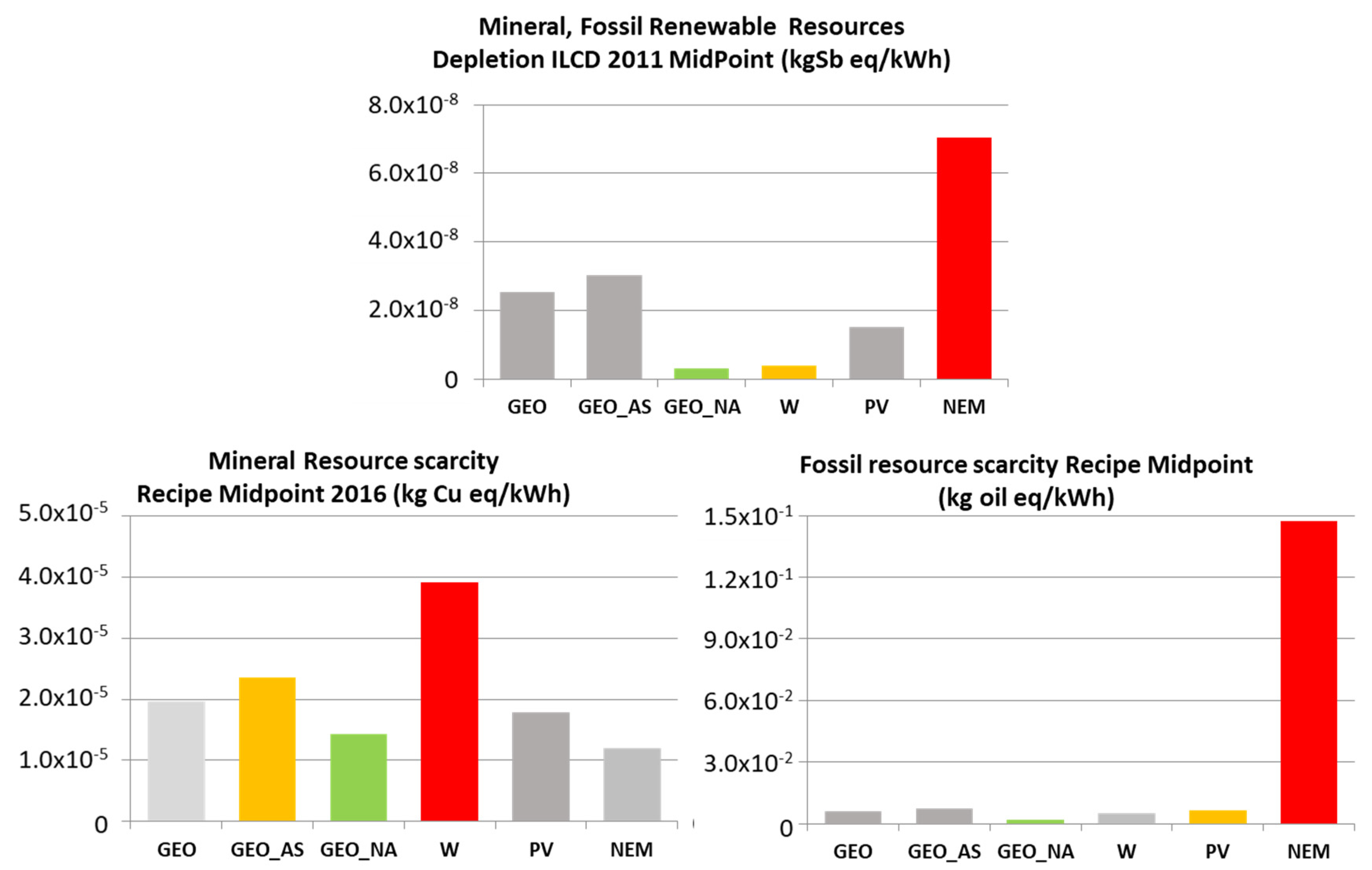

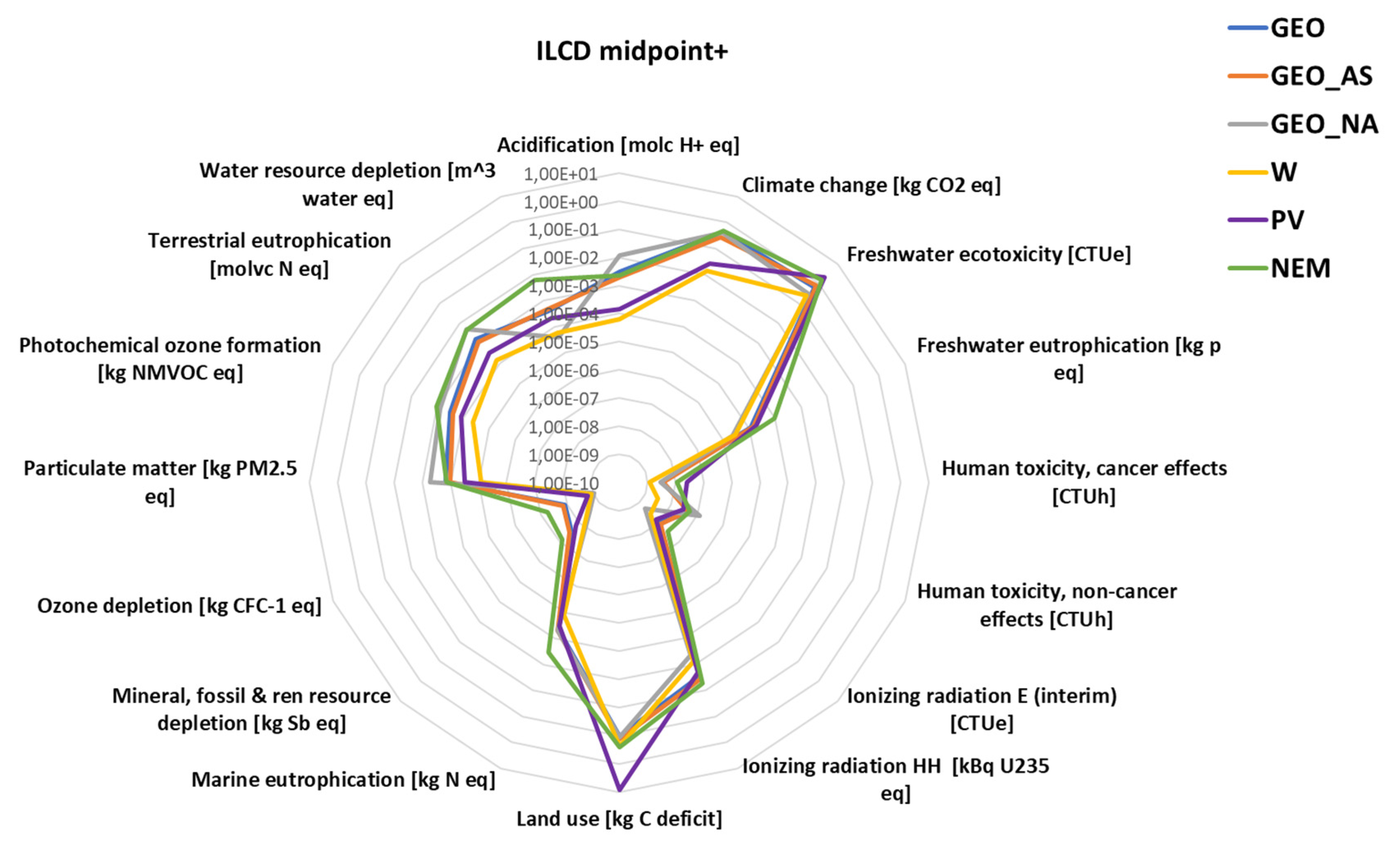

A graphical comparison among ILCD 2011 Midpoint+ and ReCiPe 2016 results calculated at midpoint level is shown in Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8 for the most relevant categories using color-coded bars: The best-performing category is shown with a green bar; a red or a yellow bar identifies the worst or the second-worst technology; grey bars represent intermediate results.
Although ILCD 2011 Midpoint+ and ReCiPe 2016 methods are based on different calculation methodologies for some environmental impact, the ranking between RES technologies is similar (the best and worst technology are, in general, correctly identified for the main categories). An exception is the land use category (Figure 8) for which the ILCD 2011 Midpoint+ method assigns a large impact in the case of PV because of relevant soil preparation and excavation operations. Another relevant case is the high score assigned to W in the mineral resource scarcity category for the ReCiPe 2016 method (Figure 6), which is motivated by the use of rare mineral resources (lanthanides) in the generator for wind turbines. ReCiPe 2016 is also more effective in the assessment of land use because it refers directly to equivalents of squared meters of crops subtracted per year; in this case, the score is largest for the NEM, followed by PV (Figure 8). The ILCD 2011 Midpoint+ (and its more recent development into the Environmental Footprint (EF) method [68,69]) is more sound scientifically and pays strong attention to eco-toxicity and human health, but ReCiPe 2016 seems, at present, more suitable for application to energy conversion (with specific reference to the urge for substituting fossil with renewable resources).

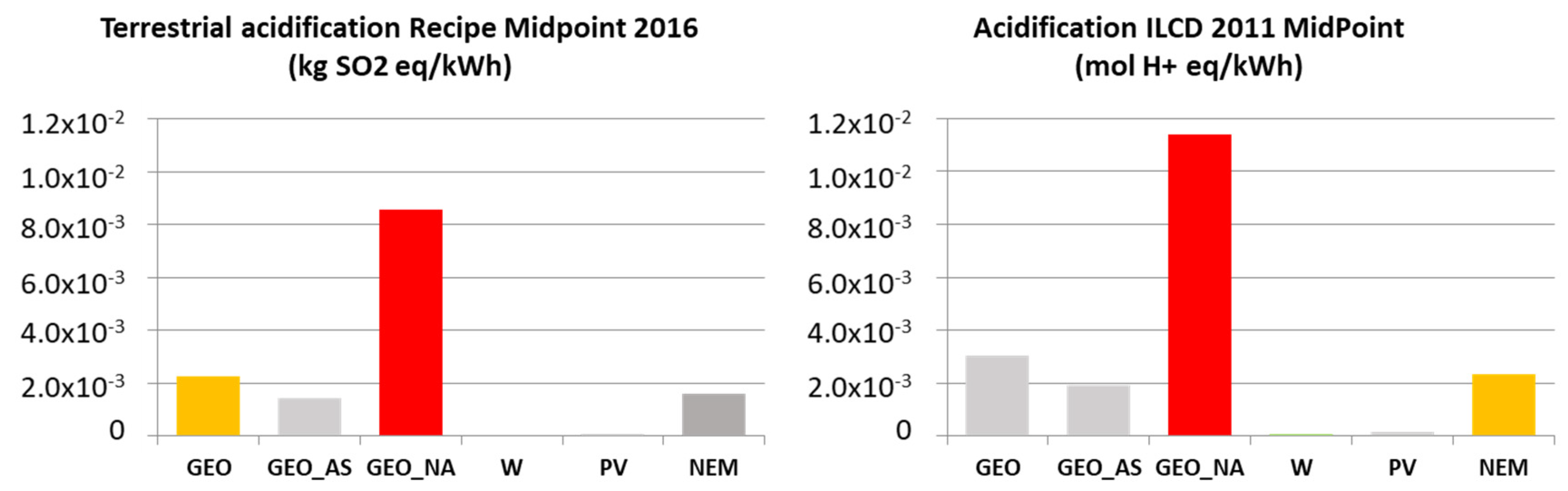

The results of the comparison are synthesized graphically (impact category indicators) in the spider-net diagrams (Figure 9 for ILCD Midpoint 2011+ and in Figure 10 for ReCiPe 2016).

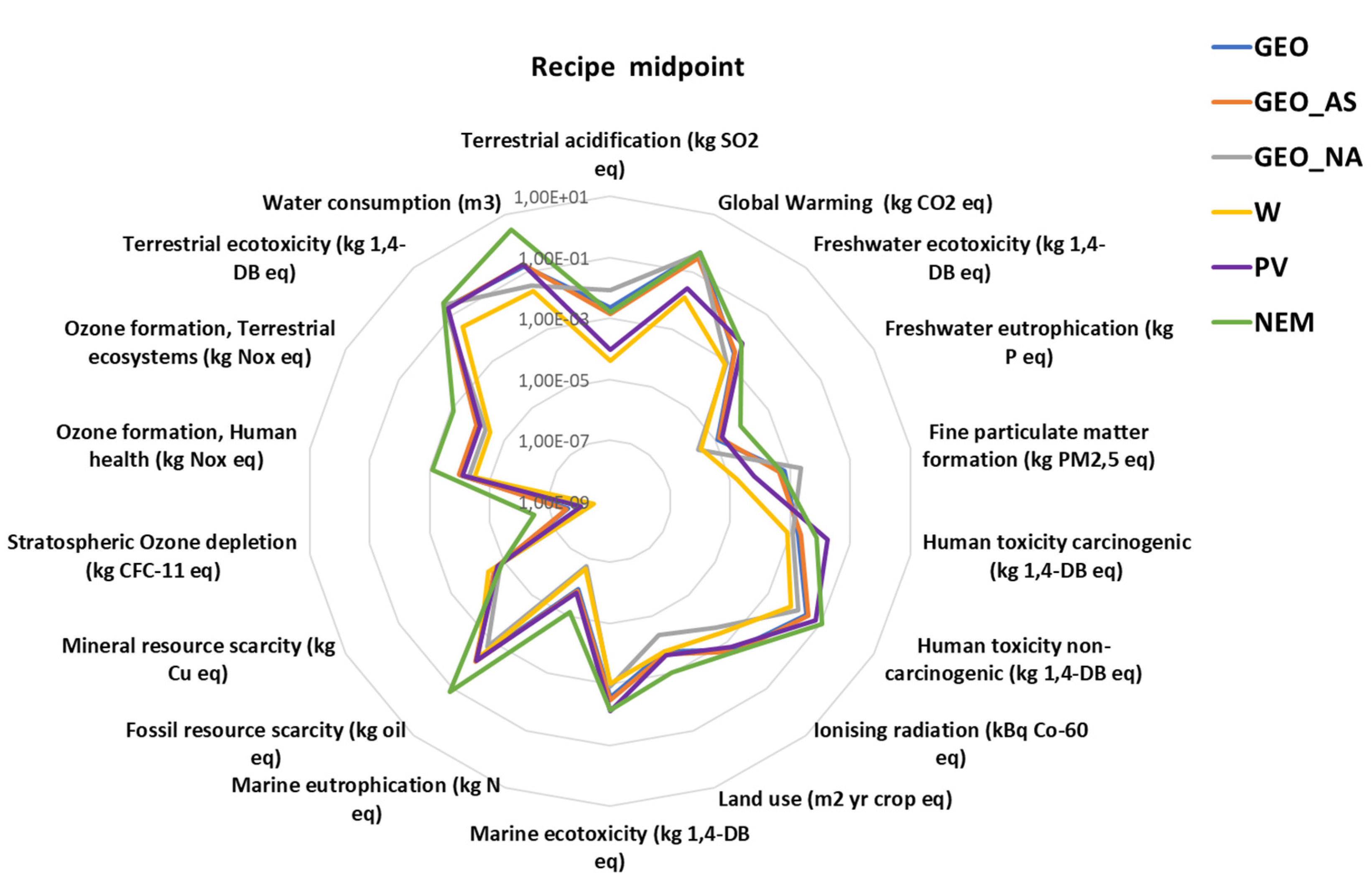

As it emerges from the synthetic representation shown in Figure 9 and Figure 10, the ILCD 2011 Midpoint+ and Recipe 2016 methods—apart from using different reference units for similar categories—are in qualitative agreement. On the whole, the ReCiPe 2016 method appears as a preferable approach for qualitative comparison of RES with the conventional energy mix, as it presents a more balanced representation of the impacts in different categories at the midpoint level. The ILCD 2011 Midpoint+ method pays special attention to toxicity, radiation, and human health effects while, for example, introduces some bias representing the land use impact category in terms of equivalent carbon deficit (which penalizes the PV technology in this analysis). Moreover, the ILCD 2011 Midpoint+ method clusters mineral, fossil, and renewable resources into one category, thereby hindering the direct comparison with conventional energy conversion systems which relies heavily on the operation phase on fossil resources. ReCiPe 2016 accounts separately mineral and fossil resource consumption, thereby allowing RES to emerge clearly in terms of environmental performances. For the matters above, the ReCiPe 2016 method appears to be a more suitable impact assessment methodology at the midpoint characterization level for the comparison of the environmental performances of RES.

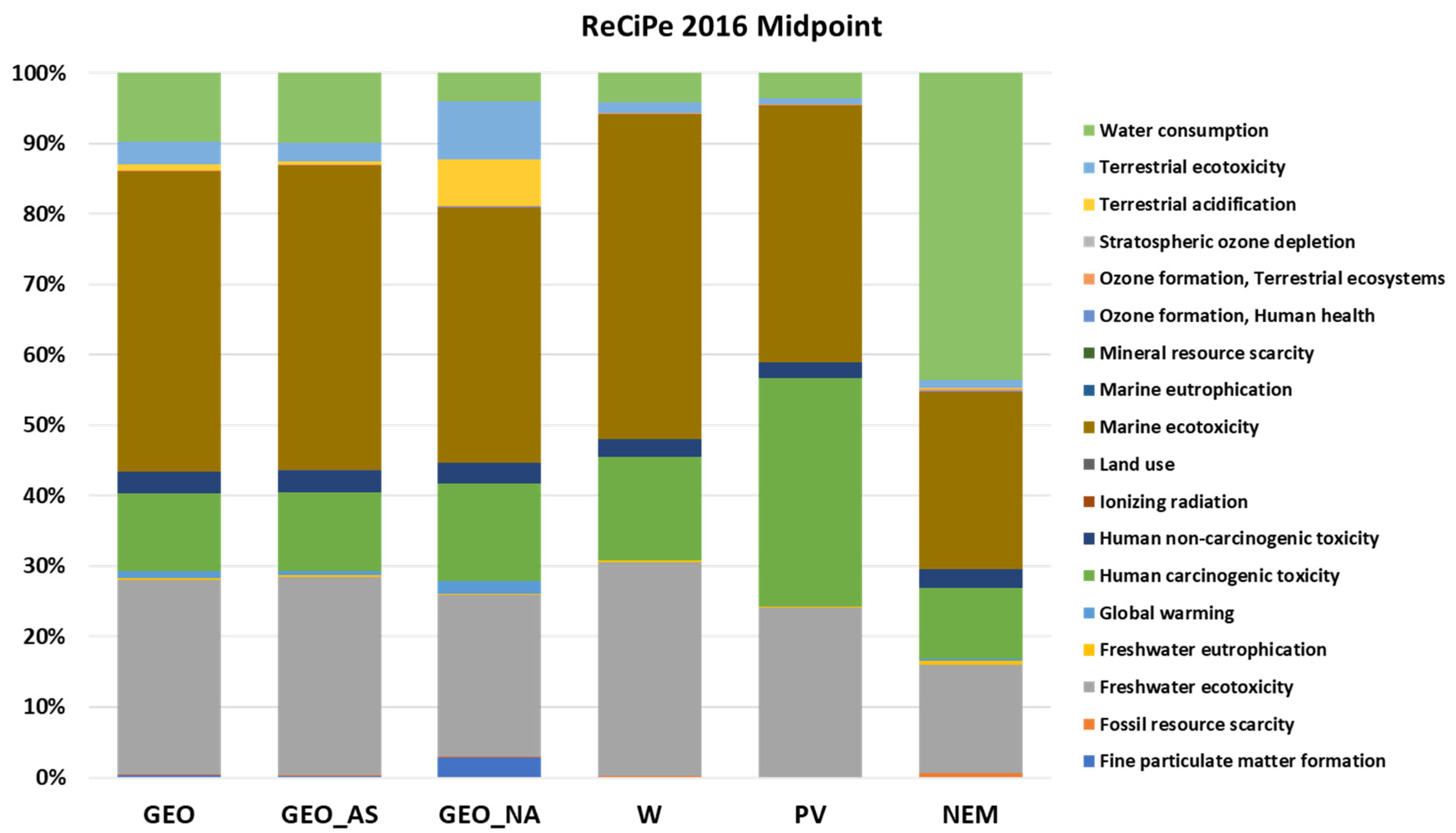

Finally, a contribution analysis of the midpoint impact categories for the ReCiPe 2016 method is presented in Figure 11. The contribution analysis shows that the relative impacts for each of the energy technologies considered take place in different categories: For example, for geothermal the dominant categories are terrestrial acidification and fine particulate matter formation (for the scenario of power plants not equipped with emissions treatment, GEO_NA), water consumption, marine and freshwater eco-toxicity. Wind and solar PV score high, in relative terms, for marine and terrestrial eco-toxicity. The NEM scenario produces large impacts for water consumption, for the marine and freshwater environments, for land use, and fossil resource scarcity.

3.2. Impact Assessment at the Endpoint Level: ReCiPe 2016 Normalized and Weighted Results

In this section results calculated at the endpoint level are presented. For the reasons outlined in Section 3, supported by the better suitability of the method in the field of energy conversion (with specific reference to a transition from fossil to renewable resources), ReCiPe 2016 is applied in the following for normalization and weighting calculations. These operations allow grouping the impact assessment in three areas of protection: Ecosystem quality, human health, and resources. Normalization for ReCiPe is done referring to the European population and leads to the calculation of results in function of (i) disability-adjusted life years (DALY) unit for human health, representing the years that are lost or that a person is disabled due to a disease or accident; (ii) species per year (species*yr) unit for ecosystem quality, representing the local species loss integrated over time; (iii) dollar unit (USD 2013) for resources scarcity, representing the extra costs involved for future mineral and fossil resource extraction. The overall results of the environmental impact evaluation at the endpoint level are summarized in Table 4; results are also illustrated graphically in Figure 12.
In Figure 13 the contribution analysis of the ReCiPe 2016 normalized results at the endpoint level is shown for all the case studies. According to the midpoint-to-endpoint values of the scaling factor implemented for the method [66], the human health damage category dominates the eco-profiles of all the scenarios with a detectable contribution of the resources damage category that increases going from PV to NEM and W.

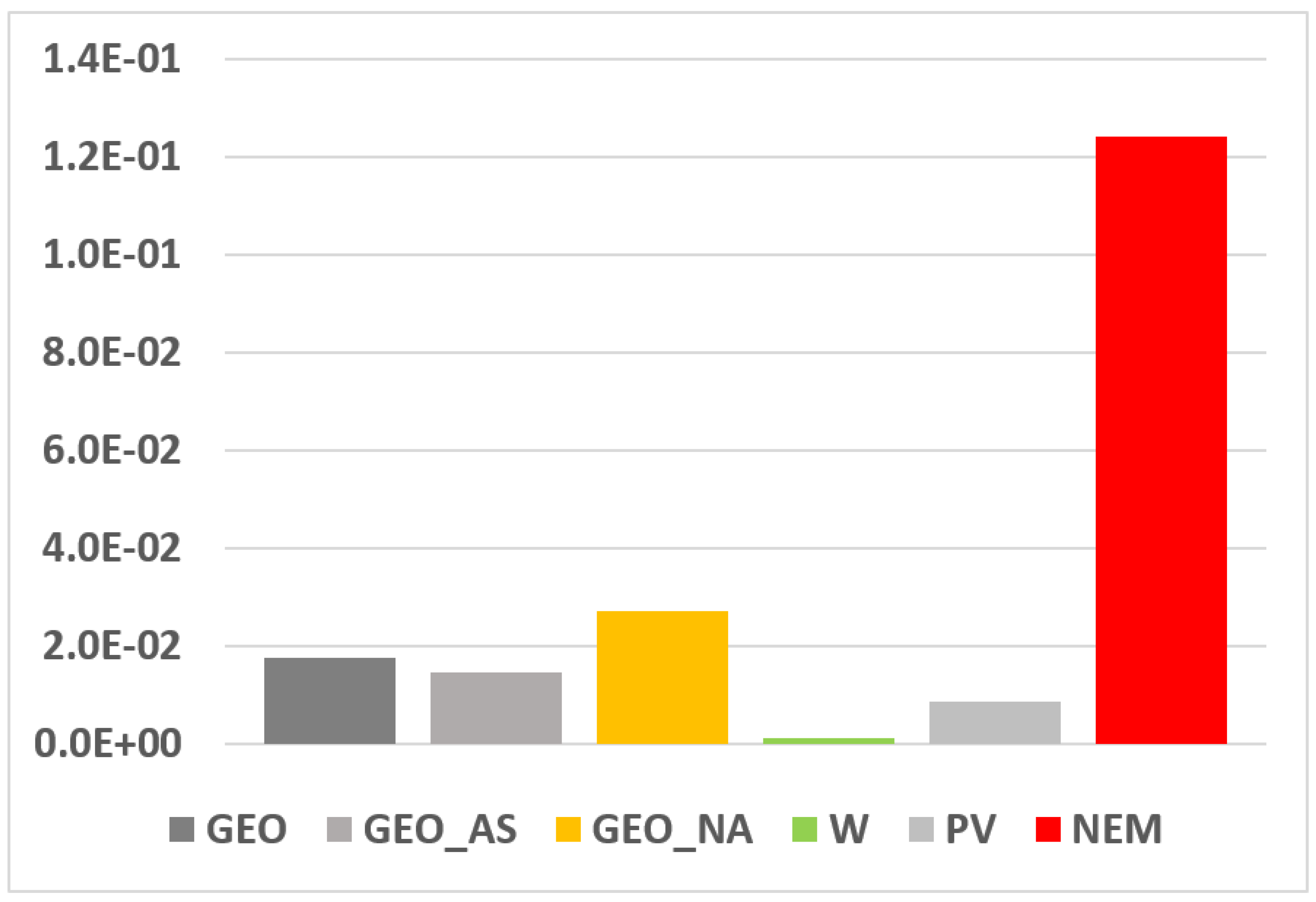

The weighting step in LCA allows calculating a synthetic indicator (expressed in Eco-points) and, thus, to calculate a global indicator of environmental performance, which can be used for overall comparison among the different technologies. In this study, the hierarchist (H) cultural perspective was assumed to weigh the normalized results of the ReCiPe 2016 method at the endpoint level; this involves weighting ecosystem damages by a factor 400, while human health and resource damages are weighted by a factor of 300. This perspective is a common assumption in the field of energy conversion systems. The ReCiPe 2016 weighted results are shown in Figure 14 in terms of Eco-points referred to the functional unit (1 kWh of electricity).

4. Conclusions

Geothermal energy conversion was benchmarked by LCA methodology in comparison with other RES and with the Italian national energy mix. Calculations were performed based on specific power plant info recovered from primary data, taking advantage of life cycle inventories available through the plant operator (Enel Green Power). Three options were considered for geothermal energy: The current power plant with AMIS® emissions treatment (GEO); the same system without emissions treatment (GEO_NA); and a hypothetical case where 40% of the emissions could be considered a substitute of the natural emissions (GEO_AS). The GEO cases were compared with a wind energy farm (W) and with a large solar PV power plant (PV) having a similar capacity.
Midpoint calculations were performed comparing the ILCD 2011 Midpoint+ and ReCiPe 2016 methods. The results were similar in terms of identifying the most impacting categories: Terrestrial acidification, human toxicity, marine and freshwater eco-toxicity for the geothermal power plant (with a notable improvement in the case of emissions treatment); marine and freshwater eco-toxicity for wind and solar PV. The ReCiPe midpoint contribution analysis (Figure 11) shows that several other categories (usually not accounted in the literature [33,34,35,38,39,40,41,42,55,56,59,60,61,62]) should be considered when evaluating RES through LCA (mainly: Human toxicity, marine and freshwater eco-toxicity). The national energy mix impacts mainly on water consumption and fossil fuel depletion. In absolute terms, wind energy emerged as the least impacting technology in most categories. It was evident already for the impact evaluation at midpoint level that the ReCiPe 2016 method can provide a higher degree of detail, accounting for relevant issues when comparing RES and fossil fuels (for example, mineral and fossil resources depletion).
The impact evaluation at the endpoint level was performed with the ReCiPe 2016 method allowing to cluster the results in three significant damage categories (ecosystem quality, human health, and resources). All RES technologies scored better than the national energy mix, as the latter includes the use of a considerable amount of fossil fuel resources (mostly gas and coal). Geothermal scenarios even with emissions treatment (GEO and GEO_AS) resulted to have lower performance compared with wind and solar PV for ecosystem quality and human health damage categories; however, it represents a definite step forward to the NEM and it compares well to other RES for the resources damage category. This result is a direct consequence of the high productivity of geothermal power plants (over 7500 hrs/yr operation at nominal load, compared to 1300 for solar PV and 2300 for the wind farm). These results were confirmed by the contribution analysis performed on the ReCiPe 2016 normalized results at the endpoint level.
Finally, weighting allowed to calculate a final synthetic indicator that can be used to compare the environmental performances of the different electricity generation systems. To this end, a hierarchist cultural perspective was applied to the normalized ReCiPe 2016 results. Wind resulted to be the best technology with a value of 0.0012 Eco-points/kWh, a result in line with previously documented LCA studies. However, the geothermal power plants achieved values of about 0.0177 Eco-points/kWh which were close to solar PV (0.0087 Eco-points/kWh) and much lower than those of the national energy mix (0.1240 Eco-points/kWh).
The results obtained represent a multi-category LCA comparison of different RES technologies based on primary data for three relevant test cases, and are thus a valuable addition to the available literature which is mostly based on secondary data and/or reworking of published results, often obtained with superseded LCA methodologies. The values are within the ranges for the typical categories considered in the literature (typically: GWP, AP, EP; W: [38,39,40,41,42]; PV: [33,34,35]; GEO: [55,56]; RES: [59,60,61,62]), except for GWP which is substantially higher than average for the operating Italian power plants [50,54] because of the high content of non-condensable gases (NCGs) in the natural resource.
These results, which should be matched with the real local availability of the RES and to an analysis of economic profitability, confirm that geothermal energy conversion is a good option for sustainable development.

Author Contributions

D.F. was responsible for LCI building from primary data. The LCI data was collected using primary data by F.S. and D.F., R.B. (Roberto Bonciani) provided expertise on power plant and emissions treatment processes. G.M., R.B. (Riccardo Basosi), and M.L.P. organized the validation and presentation of the results. All authors contributed to writing and interpreting the results. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no direct funding through research projects, in which the authors are however involved.

Acknowledgments

The Authors applied for LCI data gathering prospects developed within the GEOENVI H2020 project (Grant agreement no. 818242). R. Basosi and M.L. Parisi acknowledge MIUR Grant—Department of Excellence 2018–2022.

Conflicts of Interest

The authors declare no conflict of interest.

Symbols/Acronyms

APAcidification Potential
CEDCumulative Energy Demand
EGSEngineered Geothermal System
EPEutrophication Potential
GEOGeothermal with AMIS® process
GEO_ASGeothermal with AMIS® process treatment plus a 40% substitution of natural emissions
GEO_NAGeothermal without AMIS® process
GWh/yrGiga Watt-hour per year
HHierarchist Cultural Perspective (Endpoint)
GWPGreenhouse Warming Potential
Hrs/yrHours per year
LCALife Cycle Analysis
LCILife-Cycle Inventory
LCIALife Cycle Impact Assessment
MWeMegaWatt electric
MWthMegaWatt thermal
NCGNon-Condensable Gases
PVPhotovoltaic
RESRenewable Energy Source
VREVariable Renewable Energy
WWind

Appendix A. Life Cycle Inventory Data for the Chiusdino 1 Power Plant

Table A1. Description.
Table A1. Description.
NameChiusdino 1
Location43°09’37.0” N 11°03’49.9” E
Construction start dateDec-2010
Expected life30yrs
Geothermal reservoirMetamorphic
Reservoir depth3–4.5km
Land occupation11,000m2
Type of geothermal resourceSteam
Production technologyNatural draft
Electrical generation technologyFlash and condensation
Cooling systemEvaporative towers
End-use of energyElectricity
Installed capacity
Electrical20MWe
Operating capacity
Electrical18MWe
Expected annual decay rate0% per year
Net annual production
Electricity delivered to the grid151.2GWh
Capacity factor8400h
Out of order18h/yr
Average pressure at the wellhead15.74bar
Average temperature at the wellhead199.61°C
Overall flow rate36.1kg/s
Condenser temperature25°C
Reinjection
Temperature25°C
PressureAtmospheric
Liquid phase, % of the total from the wells30%
Gas phase0%
Composition of the geothermal fluid
Dissolved gasses (NCG) mass fraction4.00%
CO25100kg/h
CO0.4kg/h
CH479kg/h
H2S90kg/h
NH311.6kg/h
Hg5.6g/h
Trace elements
As0.042mg/L
B-mg/L
Sb-mg/L
Se-mg/L
Rn-Bq/m3
NCG emissions treatment system (AMIS)
H2S removal efficiency99.8%
Hg removal efficiency82.2%
NH3 removal efficiency87%
CO2 removal efficiency0%
B removal efficiency99%
As removal efficiency99%
Table A2. Construction.
Table A2. Construction.
Drilling
Production wells5
Average depth3818m
Reinjection wells (equivalent)2
Average depth3000m
Drilling time146days per well
Diesel fuel consumption for generator set (total)1,970,950l
Diesel fuel consumption—construction works, per well309,734l
Wells casing and cementing
Production wells
Steel1,458,476kg
Portland cement1,737,190kg
Bentonite832,324kg
Silica sand503,976kg
Lignosulfonates11,454kg
Perlite38,180kg
NaOH1,282,848kg
HCl328,348l
Oli and lubricants91,632kg
Excavations1925m3
Drilling mud2,103,718kg
Reinjection wells (equivalent)
Steel228,971kg
Portland cement272,972kg
Bentonite130,600kg
Silica sand79,047kg
Lignosulfonates0kg
Perlite5814kg
NaOH188,426kg
HCl13,358l
Oli and lubricants14,457kg
Excavations2,931,364,589m3
Drilling mud320,351kg
Drilling Platform
Occupied surface10,000m2
Portland cement1,230,000kg
Aluminum9000kg
Steel43,000kg
Sand1,937,000kg
Plastic1250kg
Excavation1790m3
Fills2150m3
Steam adduction pipeline
Total length2758m
Steel for supports and foundations163,736
Steel for piping313,398kg
Portland cement493.680m3
Aluminum12,962.6kg
Rock wool insulation130,177.6kg
Excavations468.86m3
Fills468.86m3
Condensate Pipeline
Total length5,000m
Plastics36,565kg
Powerhouse Equipment
Turbine and Alternator
Number of turbines1
Rated Power20MWe
TypeAnsaldo TUVA 20 MW 2nd generation
Expected Life *25years
Number of alternators1
Rated Power23MWA
TypeAnsaldo
Expected Life *>25years
Cast iron13,400kg
Copper4000kg
Iron-nickel-chromium alloy1000kg
Rock wool4400kg
Chromium steel 18/89800kg
Steel, low-alloyed600kg
Steel, unalloyed76,400kg
Compressors
Number of compressors1
Capacity5t/h
TypeModified F. Tosi centrifugal unit
Expected Life *25yrs
Aluminum5680kg
Cast iron12,120kg
Steel, unalloyed8080kg
Copper16,200kg
Condenser
Number of condensers1
Rated Power20MW
TypeAnsaldo/ENEL
Expected Life30yrs
Chromium steel 18/868,250kg
Intercooler
Chromium steel 18/818,000kg
Cooling towers
Number of cells3
TypeHamon cooling tower
Main materialPSRV
Expected Life25yrs
Steel piping8190kg
Plastic piping81,900kg
Fiberglass90,220kg
Copper150kg
Cast iron450kg
Gas treatment system
TypeAMIS 1 unit
Main materialStainless steel 316L
Capacity (max flow rate)5000kg/h
Expected Life30years
Sorbent (Selenium for Hg)4000kg
Catalyst (Titanium for H2S)9000kg
Aluminum500kg
Chromium steel 18/811,500kg
Building
Portland cement637,500kg
Diesel fuel for construction works195,500l
Excavations8,500m3
Plastic pipes637,500kg
Fills17,944,960kg
Aluminum810kg
Steel, low-alloyed170,000kg
Accessories
Copper30,000kg
Plastic pipes15,000kg
Chromium steel 18/8150,000kg
Steel, low-alloyed220,000kg
* Major maintenance and refitting every 4 years.
Table A3. Operation and Maintenance.
Table A3. Operation and Maintenance.
Emissions-to-Air
CO25100kg/h
CO0.4kg/h
H2S18.4kg/h
CH479.3kg/h
NH31.5kg/h
Hg1.1g/h
As2.8mg/h
Se0.4g/h
Machinery maintenance
Lubricants25,000kg
Waste mineral oil25,000kg
Iron-nickel-chromium alloy5375kg
Chromium steel 18/83500kg
Waste steel8875kg
Fluid treatment
NaOH2,500,000kg/yr
Table A4. End of Life.
Table A4. End of Life.
Wells Abandonment (per well)
Expected time10days
Diesel fuel consumption25,000l
Portland cement25,000kg
Inert5000kg
Steel0kg
Water0l

Appendix B. Life Cycle Inventory Data for the Pietragalla Wind Farm

Table A5. Description.
Table A5. Description.
NamePotenza Pietragalla
Location40.776954, 15.837555
Construction start date2005
Expected life30years
Land occupation1,500,000m2
Production technologyHAWT Repower MM92
Electrical generation technologyGenerator at the summit
MV at ground
HV at substation
End-use of energyElectricity
Installed capacity
Electrical18MWe
Operating capacity
Electrical18MWe
Expected annual decay rate for the electrical power0% per yr
Net annual production
Electricity delivered to the grid25.2GWh
Capacity factor (at 18 MWe)1400h
Out of order (per year)50h
Resource characteristics
Mean power density (at 100 m)1041W/m2
Maximum average wind speed (at 100 m)9.32m/s
Table A6. Construction.
Table A6. Construction.
Pitches and Logistic Surfaces
Excavations75,000m3
Fills11,250m3
Steel430,272kg
Cement3339m3
Occupied surface20,305m2
Wood324m2
Diesel fuel for excavations37,500l
Cable-Ducts
Total length15,000m
Aluminum19,660kg
Copper6560kg
Optical fiber15,000m
Excavations7015m3
Fills1960m3
Diesel fuel for excavations3510l
Occupied surface7500m2
Horizontal Axis Wind Turbine (HWAT)
Number of HAWT9
Rated power2MW
DescriptionRepower MM92
Expected life30years
Diesel fuel for construction works14,400l
Tower
Steel146,500kg
Copper6480kg
Rotor Blades
Steel1620kg
Fiberglass6480kg
Nacelle
Steel56,520kg
Copper5600kg
Fiberglass2780kg
Hub
Steel17,000kg
Viability (Road Constructions)
Excavations24,784m3
Fills700,800kg
Asphalt8190m3
Diesel fuel for construction works13,000l
Substation
Steel36,800kg
Fills1220m3
PEAD tubing1260kg
Cement970m3
Pre-cast concrete16.4m3
Copper5000kg
Aluminum1500kg
Diesel1000l
Occupied surface2620m2
Table A7. Operation and Maintenance.
Table A7. Operation and Maintenance.
Lubricating oil202,500kg
Waste mineral oils202,500kg
Steel, chromium 18/8999,000kg
Steel, low alloyed540,000kg
Iron Scrap1,539,000kg
Diesel for O&M54,000l
Table A8. End of Life.
Table A8. End of Life.
Machinery disassemblement
Time (per HAWT—estimate)10days
Diesel for O&M (per HAWT—estimate)25,000l
Steel (per HAWT—95% recycled)221,640kg
Copper (per HAWT—95% recycled)12,080kg
Fiberglass (per HAWT—100% recycled)22,220kg
Cement (per HAWT—left on site)371m3
Iron for foundation works (per HAWT—95% recycled)47,808kg

Appendix C. Life Cycle Inventory data for the Serre Persano DS Photovoltaic Power Plant

Table A9. Description.
Table A9. Description.
NameSerre Persano DS
Location40°34’08.5” N 15°06’10.5” E
Construction start date2013
Expected life30yrs
Land occupation770,000m2
Electrical generation technologyPhotovoltaic generator,
inverter for subfield,
elevation downstream substation
Module NA F130 G553,760
Module NA F135 G6103,796
Inverter Santerno SUNWAY TG760 1000V TE24
End-use of energyElectricity
Installed capacity
Electrical21.0MWe
Operating capacity
Electrical19.53MWe
Expected annual decay rate0.07% per year
Net annual production
Electricity delivered to the grid29.50GWh
Capacity factor1281h
Out of order (per year)0h
Resource characteristics
Global annual radiation on the normal surface2131kWh/m2
Table A10. Construction.
Table A10. Construction.
Pitches and Logistic Surfaces
Excavations54,000m3
Fills1080m3
Occupied surface770,000m2
Diesel for excavations30,000l
Metal Carpentry
Steel10,023,790kg
Aluminum2,594,686kg
Diesel for construction18,135l
Photovoltaic Modules
Module NA F130 G553,760
Module NA F135 G6103,796
Electrical Connections
Copper63,125kg
Aluminum1516kg
Excavations2954m3
Sand29,546kg
Cement1181kg
Plastic18,381kg
Diesel for construction1477l
Inverter
Inverter Santerno SUNWAY TG760 1000V TE24
Delivery Cabin
Precast concrete41,000kg
Portland cement272,176kg
Diesel for construction1176l
Plastic pipes1470kg
Fills581,760kg
Steel43,052kg
Aluminum1743kg
Copper5880kg
Table A11. Operation & Maintenance.
Table A11. Operation & Maintenance.
Diesel for cleaning machine56,270l
Decarbonised water16,881,000kg
Table A12. End of Life.
Table A12. End of Life.
Diesel for disassembly341l
Electricity, medium voltage159,716kWh
Used cable29,935kg
Aluminum scrap for melting511,899kg
Inert material and fill2,451,729kg

Appendix D. Synthesis tables of ILCD and ReCiPe Impact Analysis

Table A13. ILCD MidPoint 2011+ method results.
Table A13. ILCD MidPoint 2011+ method results.
GEOGEO_ASGEO_NAWPVNEM
Acidification (molc H+ eq)3,04E-031,92E-031,14E-026,30E-051,50E-042,34E-03
Climate change (kg CO2 eq)4,77E-013,01E-014,59E-011,34E-022,66E-024,84E-01
Freshwater ecotoxicity (CTUe)2,09E-032,50E-038,96E-047,41E-045,85E-035,14E-03
Freshwater eutrophication (kg P eq)1,18E-051,41E-052,30E-062,88E-061,81E-059,04E-05
Human toxicity, cancer effects (CTUh)6,58E-044,31E-042,38E-031,72E-056,49E-055,09E-04
Human toxicity, non-cancer effects (CTUh)1,89E-032,26E-031,21E-038,09E-041,78E-027,62E-03
Ionizing radiation E (interim) (CTUe)2,80E-023,26E-021,35E-027,33E-036,22E-021,05E-01
Ionizing radiation HH (kBq U235 eq)2,31E-032,77E-032,53E-044,28E-041,64E-032,71E-03
Land use (kg C deficit)1,74E-042,08E-044,60E-051,76E-042,33E-049,31E-04
Marine eutrophication (kg N eq)2,71E-033,24E-031,19E-039,41E-047,45E-037,05E-03
Mineral, fossil & ren resource depletion (kg Sb eq)1,13E-061,36E-061,85E-072,27E-071,50E-067,19E-06
Ozone depletion (kg CFC-11 e)6,15E-037,37E-031,68E-035,17E-036,53E-031,47E-01
Particulate matter (kg PM2.5 eq)1,97E-052,36E-051,42E-053,90E-051,79E-051,21E-05
Photochemical ozone formation (kg NMVOC eq)2,41E-082,89E-084,00E-093,36E-098,91E-093,37E-07
Terrestrial eutrophication (molvc N eq)9,10E-051,09E-044,92E-053,29E-058,03E-058,33E-04
Water resource depletion (m3 water eq)9,22E-051,11E-045,00E-053,39E-058,41E-058,48E-04
Table A14. ReCiPe 2016 method results at the midpoint level.
Table A14. ReCiPe 2016 method results at the midpoint level.
GEOGEO_ASGEO_NAWPVNEM
Terrestrial acidification (kg SO2 eq)2,27E-031,42E-038,58E-034,15E-059,68E-051,58E-03
Global Warming (kg CO2 eq)4,77E-013,01E-014,59E-011,34E-022,66E-024,84E-01
Freshwater ecotoxicity (kg 1,4-DB eq)2,09E-032,50E-038,96E-047,41E-045,85E-035,14E-03
Freshwater eutrophication (kg P eq)1,18E-051,41E-052,30E-062,88E-061,81E-059,04E-05
Fine particulate matter formation (kg PM2,5 eq)6,58E-044,31E-042,38E-031,72E-056,49E-055,09E-04
Human toxicity carcinogenic (kg 1,4-DB eq)1,89E-032,26E-031,21E-038,09E-041,78E-027,62E-03
Human toxicity non-carcinogenic (kg 1,4-DB eq)2,80E-023,26E-021,35E-027,33E-036,22E-021,05E-01
Ionising radiation (kBq Co-60 eq)2,31E-032,77E-032,53E-044,28E-041,64E-032,71E-03
Land use (m2 yr crop eq)1,74E-042,08E-044,60E-051,76E-042,33E-049,31E-04
Marine ecotoxicity (kg 1,4-DB eq)2,71E-033,24E-031,19E-039,41E-047,45E-037,05E-03
Marine eutrophication (kg N eq)1,13E-061,36E-061,85E-072,27E-071,50E-067,19E-06
Fossil resource scarcity (kg oil eq)6,15E-037,37E-031,68E-035,17E-036,53E-031,47E-01
Mineral resource scarcity (kg Cu eq)1,97E-052,36E-051,42E-053,90E-051,79E-051,21E-05
Stratospheric Ozone depletion (kg CFC-11 eq)2,41E-082,89E-084,00E-093,36E-098,91E-093,37E-07
Ozone formation, Human health (kg NOx eq)9,10E-051,09E-044,92E-053,29E-058,03E-058,33E-04
Ozone formation, Terrestrial ecosystems (kg NOx eq)9,22E-051,11E-045,00E-053,39E-058,41E-058,48E-04
Terrestrial ecotoxicity (kg 1,4-DB eq)2,10E-011,98E-012,67E-013,09E-021,82E-013,18E-01
Water consumption (m3)1,60E-011,92E-013,38E-022,18E-021,90E-013,15E+00

References

  1. Uihlein, A. JRC Geothermal Power Plant Dataset—Documentation, EUR 29446 EN; JRC Technical Report; Publications Office of the European Union: Luxembourg, 2018. [Google Scholar]
  2. Di Pippo, R. (Ed.) Geothermal Power Generation; Elsevier Ltd.: Amsterdam, The Netherlands, 2016; ISBN 9780081003442. [Google Scholar]
  3. Anderson, A.; Rezaie, B. Geothermal technology: Trends and potential role in a sustainable future. Appl. Energy 2019, 248, 18–34. [Google Scholar] [CrossRef]
  4. Bertani, R. Geothermal power generation in the world 2010–2014 update report. Geothermics 2016, 60, 31–43. [Google Scholar] [CrossRef]
  5. Lund, J.W.; Boyd, T.L. Direct utilization of geothermal energy 2015 worldwide review. Geothermics 2016, 60, 66–93. [Google Scholar] [CrossRef]
  6. Trumpy, E.; Bertani, R.; Manzella, A.; Sander, M. The web-oriented framework of the world geothermal production database: A business intelligence platform for wide data distribution and analysis. Renew. Energy 2015, 74, 379–389. [Google Scholar] [CrossRef]
  7. Barbier, E. Geothermal energy technology and current status: An overview. Renew. Sustain. Energy Rev. 2002, 6, 3–65. [Google Scholar] [CrossRef]
  8. Lu, S.M. A global review of enhanced geothermal system (EGS). Renew. Sustain. Energy Rev. 2018, 81, 2902–2921. [Google Scholar] [CrossRef]
  9. Laboratory, I.N. The Future of Geothermal Energy The Future of Geothermal Energy; Massachusetts Institute of Technology All: Idaho Falls, ID, USA, 2006; ISBN 0615134386. [Google Scholar]
  10. Shortall, R.; Davidsdottir, B.; Axelsson, G. A sustainability assessment framework for geothermal energy projects: Development in Iceland, New Zealand and Kenya. Renew. Sustain. Energy Rev. 2015, 50, 372–407. [Google Scholar] [CrossRef]
  11. Ciriaco, A.E.; Zarrouq, S.J.; Sakeri, G. Geothermal resource and reserve assessment methodology: Overview, analysis and future directions. Renew. Sustain. Energy Rev. 2020, 119, 109515. [Google Scholar] [CrossRef]
  12. Sanner, B. Summary of EGC 2019 country update reports on geothermal energy in europe. In Proceedings of the European Geothermal Congress 2019, the Hague, the Netherlands, 11–14 June 2019; p. 18. [Google Scholar]
  13. Baldacci, A.; Mannari, M.; Sansone, F. Greening of geothermal power: An innovative technology for abatement of hydrogen sulphide and mercury emission. In Proceedings of the World Geothermal Congress 2005, Antalya, Turkey, 24–29 April 2005. [Google Scholar]
  14. Manzella, A.; Bonciani, R.; Allansdottir, A.; Botteghi, S.; Donato, A.; Giamberini, S.; Lenzi, A.; Paci, M.; Pellizzone, A.; Scrocca, D. Environmental and social aspects of geothermal energy in Italy. Geothermics 2018, 72, 232–248. [Google Scholar] [CrossRef]
  15. Gestore Servizi Energetici Rapporto Statistico 2017; Gestore Servizi Energetici: Rome, Italy, 2018.
  16. International Energy Agency. World Energy Outlook; International Energy Agency: Paris, France, 2018. [Google Scholar]
  17. Shortall, R.; Uihlein, A. Geothermal Energy Technology Development Report 2018, EUR 29917 EN; Publications Office of the European Union: Luxembourg, 2019. [Google Scholar]
  18. Shortall, R.; Uihlein, A.; Carrara, S. Geothermal Energy Technology Market Report 2018, EUR 29933 EN; Publications Office of the European Union: Luxembourg, 2019. [Google Scholar]
  19. International Organization for Standardization. ISO 14040:2006—Environmental Management—Life Cycle Assessment—Principles and Framework; ISO: Geneva, Switzerland, 2006. [Google Scholar]
  20. International Organization for Standardization. For ISO 14044:2006 Environmental Management—Life Cycle Assessment—Requirements and Guidelines; ISO: Geneva, Switzerland, 2006. [Google Scholar]
  21. Klopffer, W. Life cycle assessment—From the beginning to the current state. Environ. Sci. Pollut. Res. 1997, 4, 223–228. [Google Scholar] [CrossRef]
  22. European Commission. International Reference Life Cycle Data System (ILCD) Handbook: Framework and Requirements for Life Cycle Impact Assessment Models and Indicators; European Commission: Brussels, Belgium, 2010; ISBN 9789279175398. [Google Scholar]
  23. Spath, P.L.; Mann, M.K.; Kerr, D.R. Life Cycle Assessment of Coal-fired Power Production; National Renewable Energy Lab.: Golden, CO, USA, 1999.
  24. Spath, P.L.; Mann, M.K. Life Cycle Assessment of a Natural Gas Combined-Cycle Power Generation System—National Renewable Energy Laboratory—NREL/TP-570-27715; National Renewable Energy Lab.: Golden, CO, USA, 2000.
  25. Kannan, R.; Leong, K.C.; Osman, R.; Ho, H.K.; Tso, C.P. Gas fired combined cycle plant in Singapore: Energy use, GWP and cost-a life cycle approach. Energy Convers. Manag. 2005, 46, 2145–2157. [Google Scholar] [CrossRef]
  26. Kim, H.C.; Fthenakis, V.; Choi, J.K.; Turney, D.E. Life cycle greenhouse gas emissions of thin-film photovoltaic electricity generation: Systematic review and harmonization. J. Ind. Ecol. 2012, 16, S110–S121. [Google Scholar] [CrossRef]
  27. Gerbinet, S.; Belboom, S.; Léonard, A. Life Cycle Analysis (LCA) of photovoltaic panels: A review. Renew. Sustain. Energy Rev. 2014, 38, 747–753. [Google Scholar] [CrossRef]
  28. Stoppato, A. Life cycle assessment of photovoltaic electricity generation. Energy 2008, 33, 224–232. [Google Scholar] [CrossRef]
  29. Sherwani, A.F.; Usmani, J.A. Varun Life cycle assessment of solar PV based electricity generation systems: A review. Renew. Sustain. Energy Rev. 2010, 14, 540–544. [Google Scholar] [CrossRef]
  30. Jungbluth, N. Life cycle assessment of crystalline photovoltaics in the Swiss ecoinvent database. Prog. Photovolt. Res. Appl. 2005, 13, 429–446. [Google Scholar] [CrossRef]
  31. Koroneos, C.; Stylos, N.; Moussiopoulos, N. LCA of multicrystalline silicon photovoltaic systems. Part 1: Present situation and future perspectives. Int. J. Life Cycle Assess. 2006, 11, 129–136. [Google Scholar] [CrossRef]
  32. Koroneos, C.; Stylos, N.; Moussiopoulos, N. LCA of multicrystalline silicon photovoltaic systems: Part 2: Application on an island economy. Int. J. Life Cycle Assess. 2006, 11, 183–188. [Google Scholar] [CrossRef]
  33. Peng, J.; Lu, L.; Yang, H. Review on life cycle assessment of energy payback and greenhouse gas emission of solar photovoltaic systems. Renew. Sustain. Energy Rev. 2013, 19, 255–274. [Google Scholar] [CrossRef]
  34. Maranghi, S.; Parisi, M.L.; Basosi, R.; Sinicropi, A. Environmental profile of the manufacturing process of perovskite photovoltaics: Harmonization of life cycle assessment studies. Energies 2019, 12, 3746. [Google Scholar] [CrossRef]
  35. Muteri, V.; Cellura, M.; Curto, D.; Franzitta, V.; Longo, S.; Mistretta, M.; Parisi, M.L. Review on life cycle assessment of solar photovoltaic panels. Energies 2020, 13, 252. [Google Scholar] [CrossRef]
  36. Raugei, M.; Bargigli, S.; Ulgiati, S. Life cycle assessment and energy pay-back time of advanced photovoltaic modules: CdTe and CIS compared to poly-Si. Energy 2007, 32, 1310–1318. [Google Scholar] [CrossRef]
  37. Fthenakis, V.M.; Frischknecht, R.; Raugei, M.; Kim, H.C.; Alsema, E.; Held, M.; de Wild Scholten, M. Methodology Guidelines on Life Cycle Assessment of Photovoltaic Electricity; Vol. IEA PVPS T; National Renewable Energy Lab.: Golden, CO, USA, 2016; ISBN 978-3-906042-38-1.
  38. Raadal, H.L.; Gagnon, L.; Modahl, I.S.; Hanssen, O.J. Life cycle greenhouse gas (GHG) emissions from the generation of wind and hydro power. Renew. Sustain. Energy Rev. 2011, 15, 3417–3422. [Google Scholar] [CrossRef]
  39. Dolan, S.L.; Heath, G.A. Life cycle greenhouse gas emissions of utility-scale wind power: Systematic review and harmonization. J. Ind. Ecol. 2012, 16, 136–154. [Google Scholar] [CrossRef]
  40. Mendecka, B.; Lombardi, L. Life cycle environmental impacts of wind energy technologies: A review of simplified models and harmonization of the results. Renew. Sustain. Energy Rev. 2019, 111, 462–480. [Google Scholar] [CrossRef]
  41. Arvesen, A.; Hertwich, E.G. Assessing the life cycle environmental impacts of wind power: A review of present knowledge and research needs. Renew. Sustain. Energy Rev. 2012, 16, 5994–6006. [Google Scholar] [CrossRef]
  42. Garrett, P.; Rønde, K. Life cycle assessment of wind power: Comprehensive results from a state-of-the-art approach. Int. J. Life Cycle Assess. 2013, 18, 37–48. [Google Scholar] [CrossRef]
  43. Ardente, F.; Beccali, M.; Cellura, M.; Lo Brano, V. Energy performances and life cycle assessment of an Italian wind farm. Renew. Sustain. Energy Rev. 2008, 12, 200–217. [Google Scholar] [CrossRef]
  44. Tremeac, B.; Meunier, F. Life cycle analysis of 4.5 MW and 250 W wind turbines. Renew. Sustain. Energy Rev. 2009, 13, 2104–2110. [Google Scholar] [CrossRef]
  45. Weinzettel, J.; Reenaas, M.; Solli, C.; Hertwich, E.G. Life cycle assessment of a floating offshore wind turbine. Renew. Energy 2009, 34, 742–747. [Google Scholar] [CrossRef]
  46. Guezuraga, B.; Zauner, R.; Pölz, W. Life cycle assessment of two different 2 MW class wind turbines. Renew. Energy 2012, 37, 37–44. [Google Scholar] [CrossRef]
  47. Lacirignola, M.; Blanc, I. Environmental analysis of practical design options for enhanced geothermal systems (EGS) through life-cycle assessment. Renew. Energy 2013, 50, 901–914. [Google Scholar] [CrossRef]
  48. Sullivan, J.L.; Clark, C.E.; Han, J.; Wang, M. Life-Cycle Analysis Results of Geothermal Systems in Comparison to Other Power Systems; Argonne National Lab.: Argonne, IL, USA, 2010.
  49. Yu, T.; Looijen, J.M.; van der Meer, F.D.; Willemsen, N. A life cycle assessment based comparison of large & small scale geo-thermal electricity production systems. In Proceedings of the 5th Indonesia International Geothermal Convention & Exhibition, Jacarta, Indonesia, 2–4 August 2017; pp. 2–4. [Google Scholar]
  50. Bravi, M.; Basosi, R. Environmental impact of electricity from selected geothermal power plants in Italy. J. Clean. Prod. 2014, 66, 301–308. [Google Scholar] [CrossRef]
  51. Frick, S.; Kaltschmitt, M.; Schröder, G. Life cycle assessment of geothermal binary power plants using enhanced low-temperature reservoirs. Energy 2010, 35, 2281–2294. [Google Scholar] [CrossRef]
  52. Bayer, P.; Rybach, L.; Blum, P.; Brauchler, R. Review on life cycle environmental effects of geothermal power generation. Renew. Sustain. Energy Rev. 2013, 26, 446–463. [Google Scholar] [CrossRef]
  53. Ruzzenenti, F.; Bravi, M.; Tempesti, D.; Salvatici, E.; Manfrida, G.; Basosi, R. Evaluation of the environmental sustainability of a micro CHP system fueled by low-temperature geothermal and solar energy. Energy Convers. Manag. 2014, 78, 611–616. [Google Scholar] [CrossRef]
  54. Parisi, M.L.; Ferrara, N.; Torsello, L.; Basosi, R. Life cycle assessment of atmospheric emission profiles of the Italian geothermal power plants. J. Clean. Prod. 2019, 234, 881–894. [Google Scholar] [CrossRef]
  55. Eberle, A.; Heath, G.A.; Carpenter Petri, A.C.; Nicholson, S.R. Systematic Review of Life Cycle Greenhouse Gas Emissions from Geothermal Electricity; National Renewable Energy Lab.: Golden, CO, USA, 2017.
  56. Tomasini-Montenegro, C.; Santoyo-Castelazo, E.; Gujba, H.; Romero, R.J.; Santoyo, E. Life cycle assessment of geothermal power generation technologies: An updated review. Appl. Therm. Eng. 2017, 114, 1119–1136. [Google Scholar] [CrossRef]
  57. Atilgan, B.; Azapagic, A. Renewable electricity in Turkey: Life cycle environmental impacts. Renew. Energy 2016, 89, 649–657. [Google Scholar] [CrossRef]
  58. Marchand, M.; Blanc, I.; Marquand, A.; Beylot, A.; Bezelgues-Courtade, S.; Traineau, H. Life cycle assessment of high temperature geothermal energy systems. Proc. World Geotherm. Congr. 2015, 19–25. [Google Scholar]
  59. Asdrubali, F.; Baldinelli, G.; D’Alessandro, F.; Scrucca, F. Life cycle assessment of electricity production from renewable energies: Review and results harmonization. Renew. Sustain. Energy Rev. 2015, 42, 1113–1122. [Google Scholar] [CrossRef]
  60. Amponsah, N.Y.; Troldborg, M.; Kington, B.; Aalders, I.; Hough, R.L. Greenhouse gas emissions from renewable energy sources: A review of lifecycle considerations. Renew. Sustain. Energy Rev. 2014, 39, 461–475. [Google Scholar] [CrossRef]
  61. Pehnt, M. Dynamic life cycle assessment (LCA) of renewable energy technologies. Renew. Energy 2006, 31, 55–71. [Google Scholar] [CrossRef]
  62. Turconi, R.; Boldrin, A.; Astrup, T. Life cycle assessment (LCA) of electricity generation technologies: Overview, comparability and limitations. Renew. Sustain. Energy Rev. 2013, 28, 555–565. [Google Scholar] [CrossRef]
  63. Greendelta openLCA. Available online: https://www.greendelta.com/ (accessed on 5 February 2020).
  64. Ecoinvent. Available online: https://www.ecoinvent.org/ (accessed on 5 February 2020).
  65. Wernet, G.; Bauer, C.; Steubing, B.; Reinhard, J.; Moreno-Ruiz, E.; Weidema, B. The Ecoinvent Database version 3 (part I): Overview and Methodology. Int. J. Life Cycle Assess. 2016, 21, 1218–1230. [Google Scholar] [CrossRef]
  66. Huijbregts, M.; Steinmann, Z.J.N.; Elshout, P.M.F.M.; Stam, G.; Verones, F.; Vieira, M.D.M.; Zijp, M.; van Zelm, R. ReCiPe 2016—A harmonized life cycle impact assessment method at midpoint and endpoint level. Int. J. Life Cycle Assess. 2016, 22, 138–147. [Google Scholar] [CrossRef]
  67. European Commission. Characterisation Factors of the ILCD Recommended Life Cycle Impact Assessment Methods: Database and Supporting Information; European Commission: Brussels, Belgium, 2012; ISBN 9789279227271. [Google Scholar]
  68. Sala, S.; Benini, L.; Castellani, V.; Vidal Legaz, B.; De Laurentiis, V.; Pant, R. Suggestions for the Update of the Environmental Footprint Life Cycle Impact Assessment: Impacts Due to Resource Use, Water Use, land Use, and Particulate Matter; Publications Office of the European Union: Luxembourg, 2019; ISBN 9789279693359. [Google Scholar]
  69. Sala, S.; Cerutti, A.K.; Pant, R. Development of a weighting approach for the Environmental Footprint; Publications Office of the European Union: Luxembourg, 2018. [Google Scholar]
Figure 1. Google Earth aerial view of Chiusdino power Plant (location: 43°09’37.0” N; 11°03’49.9” E); bottom: Power plant; upper: Travale wellhead platform.
Figure 1. Google Earth aerial view of Chiusdino power Plant (location: 43°09’37.0” N; 11°03’49.9” E); bottom: Power plant; upper: Travale wellhead platform.
Sustainability 12 02786 g001
Figure 2. Google Earth aerial view of Pietragalla wind power plant; three of the nine turbines are visualized (location: 40°43′31.63” N; 15°49′41.85” E).
Figure 2. Google Earth aerial view of Pietragalla wind power plant; three of the nine turbines are visualized (location: 40°43′31.63” N; 15°49′41.85” E).
Sustainability 12 02786 g002
Figure 3. Google Earth aerial view of Serre Persano DS Photovoltaic (PV) plant; shaded areas highlight the PV installations (location: 40°34’08.5” N 15°06’10.5” E).
Figure 3. Google Earth aerial view of Serre Persano DS Photovoltaic (PV) plant; shaded areas highlight the PV installations (location: 40°34’08.5” N 15°06’10.5” E).
Sustainability 12 02786 g003
Figure 4. Bar diagrams of ILCD 2011 Midpoint+ and Recipe 2016 impact assessment at midpoint level: Acidification.
Figure 4. Bar diagrams of ILCD 2011 Midpoint+ and Recipe 2016 impact assessment at midpoint level: Acidification.
Sustainability 12 02786 g004
Figure 5. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Climate change.
Figure 5. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Climate change.
Sustainability 12 02786 g005
Figure 6. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Resource depletion.
Figure 6. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Resource depletion.
Sustainability 12 02786 g006
Figure 7. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Freshwater eutrophication.
Figure 7. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Freshwater eutrophication.
Sustainability 12 02786 g007
Figure 8. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Land use.
Figure 8. Bar diagrams of ILCD 2011 Midpoint+ and ReCiPe 2016 impact assessment at midpoint level: Land use.
Sustainability 12 02786 g008
Figure 9. Spider net diagram of ILCD 2011 Midpoint+ impact assessment results (log scales).
Figure 9. Spider net diagram of ILCD 2011 Midpoint+ impact assessment results (log scales).
Sustainability 12 02786 g009
Figure 10. Spider net diagram of ReCiPe 2016 Midpoint+ impact assessment results (log scales).
Figure 10. Spider net diagram of ReCiPe 2016 Midpoint+ impact assessment results (log scales).
Sustainability 12 02786 g010
Figure 11. Contribution analysis of the ReCiPe 2016 method at midpoint level.
Figure 11. Contribution analysis of the ReCiPe 2016 method at midpoint level.
Sustainability 12 02786 g011
Figure 12. Normalized results of the ReCiPe 2016 (H) method at the endpoint level.
Figure 12. Normalized results of the ReCiPe 2016 (H) method at the endpoint level.
Sustainability 12 02786 g012
Figure 13. Contribution analysis of ReCiPe 2016 (H) normalized results at the endpoint level.
Figure 13. Contribution analysis of ReCiPe 2016 (H) normalized results at the endpoint level.
Sustainability 12 02786 g013
Figure 14. Weighted results calculated with the ReCiPe 2016 method (Eco-points/kWh).
Figure 14. Weighted results calculated with the ReCiPe 2016 method (Eco-points/kWh).
Sustainability 12 02786 g014
Table 1. Details of production wells, Chiusdino 1 Power plant.
Table 1. Details of production wells, Chiusdino 1 Power plant.
NameDistance 1, mDepth, mFlow Rate, t/hT, °Cp, barNCG 3, %
Montieri 5 22630344778.8200.816.26.0
Montieri 5A 22630413722.4200.916.14.2
TravaleSud 1B172336126.4198.615.56.1
TravaleSud 1C172371325.2198.915.44.5
TravaleSud 1D172443224.5198.815.44.5
1 Distances are calculated from the two platforms (Montieri and Travale). 2 Only 53,5% of the flow rate from Montieri is used by the Chiusdino power plant. 3 Non-condensable gases (NCG) are commonly found in the geothermal fluid and are mainly composed of carbon dioxide (CO2), hydrogen sulfide (H2S), hydrogen (H2), nitrogen (N2), methane (CH4), and ammonia (NH3).
Table 2. Emissions of the Chiusdino 1 Power plant.
Table 2. Emissions of the Chiusdino 1 Power plant.
Emission 1Flow Rate, kg/hSpecific Emission, kg/kWh
CO251002.6 × 10−1
CO0.42.0 × 10−5
H2S18.49.2 × 10−4
CH479.34.0 × 10−3
NH31.57.5 × 10−5
Hg1.1 × 10−35.5 × 10−8
As2.8 × 10−61.4 × 10−10
Se4.0 × 10−42.0 × 10−8
1 Carbon dioxide (CO2), carbon monoxide (CO), hydrogen sulfide (H2S), methane (CH4), ammonia (NH3), mercury (Hg), arsenic (As), selenium (Se).
Table 3. Summary specifications of the Serre Persano DS Photovoltaic (PV) fields.
Table 3. Summary specifications of the Serre Persano DS Photovoltaic (PV) fields.
Field NameModules
NAF 130 G5
Modules
NAF 135 G5
Strings
NAF 130 G5
Strings
NAF 135 G5
Number of Inverters
Spineto26,88051,9121920370812
Borgo San Lazzaro26,88051,8841920370612
Table 4. ReCiPe 2016 (H) normalized results at the endpoint level.
Table 4. ReCiPe 2016 (H) normalized results at the endpoint level.
GEOGEO_ASGEO_NAWindPVNEM
Ecosystems, total species*yr5.58 × 1065.25 × 1064.99 × 1064.88 × 1073.76·× 1066.20 × 105
Human health, total DALY5.15 × 1054.17 × 1058.44 × 1053.20 × 1062.36 × 1053.29 × 104
Resources total USD 20135.08 × 1086.09 × 1082.02 × 1083.60 × 1084.83 × 1081.56 × 108
species per year (species*yr); disability-adjusted life years unit (DALY).
Back to TopTop
