Application of Specific Mathematical Methods in the Context of Revitalization of Defunct Intermodal Transport Terminal: A Case Study

Abstract

The article deals with a specific research study discussing the possibility to revitalize a specific non-functional intermodal transport terminal. The structure of the manuscript consists of five sections. The first part is focused on the analysis of the subject being investigated in important scientific publications. The second part of the article presents a brief analysis of the current situation concerning intermodal transport in the Czech Republic and emphasizes the need to build an intermodal transport terminal in the South Bohemia region. The third section describes the contemporary state of the Nemanice transshipment station, provides a calculation of the terminal transport potential, which is thereafter used in the next paper section in order to design individual terminal elements. The objective of this study is to propose an approach methodology regarding the terminal connection to railway and road infrastructure, necessary quantification of the transport potential, which subsequently defines the operational need for handling equipment, and other parameters of the terminal fundamental elements. This methodological guideline is based on variant recommendations to equip the terminal with various handling devices, which are then evaluated, applying the exact decision making methods. Such an evaluation is included in the fourth part of the article. Here, the authors try to find out which terminal equipment is the most appropriate in terms of overall terminal efficiency. The last part of the manuscript is devoted to the final discussion of the key findings and conclusion containing an insight into potential future projects or studies to be addressed.

1. Introduction

In today’s globalized market, rapid delivery and transport efficiency play an important role. As the volume of goods transported over long distances has increased over the years, the reliability of the transport system is emphasized. Thereby, the need to regulate freight transport and modal split among individual modes of transport arises [1]. Thus, the high energy consumption of road transport and the social responsibility towards the environment provide the opportunity to develop intermodal transport [2].

Intermodal transport is such multimodal transport (i.e., uses at least two modes of transport) in which goods are loaded into an intermodal transport unit (container, swap body, semi-trailer, or articulated vehicle) while not handling the very goods during the transport mode shift, but the whole intermodal transport unit is transshipped. In order to maximize the efficiency of intermodal transport and facilitate transshipment handling among individual transport modes, it is necessary to cover the territory with sufficient and high-quality infrastructure, which can include the transport network and especially the intermodal transport terminals [3].

Intermodal transport terminals are places/sites where the mode of transport changes. They are one of the most important elements of logistics chains. The efficiency of the transport–logistics chain depends on the efficiency of every single element of the chain. Therefore, the equipment, layout, and technology of the terminal are to be designed in order not to create a bottleneck. According to the authors in [4], the default parameters of a terminal are as follows:

• requirements for performance and service;
• the size of the transshipment area including the depositing areas;
• the number, length, and layout of railway tracks (including handling tracks);
• the connection to the transport network (roads, railways, waterways);
• the number, type, and technical parameters of reloading (handling) mechanisms.

The specific parameters of each terminal are determined by its operator, however, it essentially depends on the volume of planned services provided and its location [5]. Although no legislation stipulates the technical parameters of transshipment facilities [6], they should comply with the operational requirements of the European Agreement on Important International Combined Transport Lines and Related Installations (hereinafter referred to as AGTC) [7].

The subject of intermodal transport terminal designs has been addressed by a series of distinguished authors in this field of research. A detailed overview of some of the most relevant publications can be found in the following Section 2. Based on the analysis conducted, it can be stated that most of the studies are focused on the topic of seeking a suitable terminal location, or similar logistics objects in a certain territory. These publications discuss different methodologies for locating the terminal when taking into account various defined factors and criteria. This subject is, nevertheless, tackled to a limited measure, which is considered to be a gap in the methodologies published in professional and scientific journals.

Therefore, we focus on outlining possible procedures (design of the specific methodological guideline), according to which, it is possible to proceed when designing the construction of a terminal in a certain location. As far as the very methodology is concerned, the authors search for an answer to the question of what type of handling equipment is the most advantageous for the given terminal in terms of overall efficiency.

Certainly, the authors realize that this represents only one of the numerous possible insights into the examined topic and do not avoid discussing other potential scenarios in the future. The methodology is virtually applied to the locality of the South Bohemia region (in the Czech Republic). At present, this location is highly topical in the Czech Republic in terms of intermodal transport development. The first working meeting was held in the city of České Budějovice (center of the South Bohemia region) in 2015 regarding the possible revitalization of the transshipment station in the Nemanice industrial site. The working meeting was attended by representatives of the operators of intermodal transport, Railway Administration of the Czech Republic, national railway carrier ČD Cargo, Česmad Bohemia company, the South Bohemia region, as well as universities specialized in transport fields of study. The authors of this manuscript were members of this working group, and all the data used in this research study are based on the documents of the meeting, i.e., it was discussed and verified with other members.

The structure of the article consists of five parts. Its first section is devoted to the analysis of an examined topic in numerous relevant publications. The consequent section contains a brief analysis of the latest state of intermodal transport in the Czech Republic and demonstrates a need to build an intermodal transport terminal in the South Bohemia region, in particular, in the Nemanice locality. The following two parts of this research study compile the very methodology related to the design of terminal elements. The draft methodology is based on several scenarios proposing the particular terminal equipment with various handling elements, which are then evaluated using the exact decision making techniques. This evaluation is conducted in the fourth section of the article. The last part of the manuscript is devoted to the final discussion of the key findings and conclusion containing an insight into potential future projects or studies to be addressed.

In the manuscript, we show that it is possible to address the problems of designing or revitalizing transport terminals by using optimization-mathematical methods. The outcome of the investigation itself is to design the most suitable type of handling system in terms of efficient operation. The authors’ view of efficiency is focused on equipment operating costs so that the terminal’s economic operation is as viable as possible, thus ensuring the sustainability and competitiveness of the operated premises. To this end, we chose primarily economic aspects while multi-criteria decision making process.

The designed methodology provides a reasonable view of the choice of terminal elements from determining the required number of handling devices to specifying the most appropriate type of such equipment, while taking into consideration overall economic efficiency. The terminal will thus be sufficiently equipped in terms of performance and, simultaneously, its operation will be cost-effective and sustainable. The sustainability of intermodal transport infrastructure positively affects the sustainability of the entire transport system. An efficiently operated transport hub (where an intermodal transport terminal can be included) is an essential prerequisite for ensuring the sustainability of the transport system in a certain territory, and therefore, the proposed methodology for addressing the modernization of defunct intermodal transport terminals is closely related to the sustainability of freight transport per se, above all, in terms of the sustainable development of freight transport performance in a globalized world.

2. Literature Review

The basic document addressing the issue of intermodal transport in Europe is the AGTC agreement [7]. In Annex II., it contains a list of objects (terminals) in the territory of individual states participating in the agreement. The list of terminals within the Czech Republic is based on a historical principle (in compliance with the construction of original container transshipment stations of the Czechoslovak Railways). In Annex IV., the agreement also stipulates technical-technological requirements for terminals, including business neutrality. This means the non-discriminatory access to individual customers by the terminal operator.

To a greater or lesser extent, several authors have addressed the issue of building intermodal transport terminals, for example, [8,9,10,11,12,13,14,15,16,17,18].

The article [14] deals with a container terminal in the Bangkok port. Based on the analysis of container flows through the terminal within a time period of 16 years, the authors try to predict the development of transported containers’ volume until 2041. The analysis results are thereafter utilized as a fundament for planning the further container terminal development in this particular port. Last but not least, the authors state that the forecast regarding the future number of containers in the port is imperative in order to model efficient terminal development. Such a methodology is based primarily on the thorough and precise prediction of transshipped container volumes.

The subject of classification of seaports is discussed in the publication [15]. Specifically, the authors are focused the situation in the classification of ports (as part of the global logistics chain) in Malaysia, wherein the paper objective is to modify a current classification framework concerning the Malaysian ports in view of global measure via improving the port/terminal coordination system at a national scale. Applying the descriptive analysis qualitative approach, the fundamental of such an improved system was to emphasize segregation of different port/terminal classes. This study also suggests a sustainable guideline when decision making on the enlargement of port/terminal competitiveness via port activities’ reclassification.

Other authors are aimed at the issue of energy efficiency and sustainability of ports and transport terminals [16]. These days, many such objects strive to improve their energy efficiency since prices for energy have been increasing rapidly for some time and, for the logistics sector, environmental changes have been crucial targets to be coped with. In line with the above, the manuscript provides a comprehensive literature review to summarize various strategies, renewable energy sources, alternative fuel options, as well as environmental management systems to help move towards the port/terminal energy efficiency and sustainability.

In the research study [17], an interesting view of the terminal design in a particular territory is described. Specifically, this article presents identification of the terminal location to be the most suitable for a variety of stakeholders. These parties often have counterproductive intentions and ideas, hence, numerous attributes for the overall evaluation process need to be defined. The authors outline a new hybrid multi-criteria decision making (hereinafter referred to as MCDM) model combining existing Delphi fuzzy techniques in order to help when decision making. This model was designed to tide over vagueness and various incoherent situations that may occur during the evaluation process. The model was applied to the terminal location in the city of Belgrade. This approach, however, does not tackle the comprehensive design of the terminal elements and their arrangement (compared to our research study), it only determines the specific terminal location in a certain region.

The methodology for locating and designing intermodal transport terminals in Croatia is elaborated in literature [12]. The authors rely on the selection of relevant intermodal terminal qualitative criteria (indicators), such as: Flexibility, safety, reliability, time, and spatial availability, etc. Following these criteria, as well as in accordance with the European transport policy, specific localization criteria set was defined and then assessed when implementing the Analytic Hierarchy Process (hereinafter referred to as AHP). The article outcomes emphasize the fact that the commodity flows’ aspect reaches the most substantial effect on the terminal place choice.

On the contrary, Lin et al. [10] point to a mathematical solution of locational problems. It presents and evaluates multiple mathematical models, investigated by others, such as [8,9,11,13], where their significant complexity and time-consuming character in terms of intermodal transport terminals’ location selection are described. The purpose of the article is to create a new approach model enabling rapid results’ retrieval. This study, nonetheless, does not take into account the inputs into the proposed model; it only addresses the desired attributes’ quantification process itself.

The design of intermodal transport terminal elements, especially certain handling equipment, is addressed in the case study [18]. The authors state that, due to the significant amount of input data, it is necessary to use the specific multi-criteria decision making methods. In their paper, a novel hybrid model that combines the fuzzy stepwise weight assessment ratio analysis, as well as the fuzzy best-worst method, is developed. The model defined is applied to tackle a case study of selecting adequate handling equipment for the planned intermodal transport terminal in Belgrade. The reach stacker is selected to be the most fitting handling equipment, since it suits best the planned terminal in existing conditions and in relation to the predefined criteria. By presenting this study, the authors demonstrated justification for using chosen MCDM tools to deal with these sorts of problems, as well as applicability of the suggested model.

The previous procedure can be regarded as an alternative to the methodology designed in the article presented by us.

The topic of suggesting intermodal transport terminal elements and stipulating the appropriate type of handling equipment in logistics sites has not been sufficiently explored and analyzed. Even the last described manuscript is relatively new. This proves and highlights the topicality of the investigated subject and the fact that there is still space for further research in this field.

Unlike the aforementioned publications, the presented manuscript analyzes a specific location in which the need to operate the particular intermodal transport terminal has emerged due to the interest of particular customers, and points to options of applying the mathematical methods when building or revitalizing a defined transport-logistics node (intermodal transport terminal Nemanice). A new approach to the examined subject lies in the design of special handling devices in the intermodal transport terminal with respect to its operational-economic efficiency. The authors are aware of the importance and sustainability of such an operation, which is to be ensured only by the permanent competitiveness of the terminal. In other words, the terminal needs to provide its services at attractive prices, which are adjusted with regard to the terminal’s operating costs. Hence, it is the specific types of mathematical methods that are used to choose the appropriate variant of handling equipment. The authors have not identified this view of the intermodal transport terminal design in any of the analyzed literature.

3. Description of the Existing State of Intermodal Transport in the Czech Republic

The development of unaccompanied intermodal transport (road-railway), carried out in the Czech Republic, has been very favorable for a long time. Growing importance of intermodal transport can be documented by its ever-increasing share not only in total freight transport (i.e., road, railway, inland waterway, air, and pipeline) but mainly in railway freight transport. According to the data [19], the share of intermodal transport in total freight transport (depending on transported tons) reached 2.45 percent, and in railway freight transport, it was almost up to 14.5 percent. In intermodal transport, containers are mainly used, wherein the number of full containers being transported has been continuously increasing. Nevertheless, it is not possible to unambiguously distinguish the maritime (ISO 1) and inland containers according to the statistical data, nor whether it is marine (intercontinental) or inland (continental) navigation [20]. In 2017, containers accounted for 93.4 percent, swap bodies for 1.8 percent, and road semi-trailers for 4.8 percent out of the total number of full intermodal transport units. The decisive share of full containers is represented by their carriage from/to seaports (so-called marine navigation) with previous or subsequent marine navigation [21,22,23].

The quantity of intermodal road semi-trailers has also been gradually increasing, with 40.8 thousand road trailers being transported in 2017. In contrast to the previous, the number of carried swap bodies is relatively insignificant and varies to a great extent in each year—only 15.6 thousand in 2017, of which approximately half are in transit [22,24].

According to the data from the Ministry of Transport of the Czech Republic [25], of 15 publicly accessible transport terminals were in operation in 2019. List of these objects, in which intermodal transport is currently carried out, their operators and the annual transshipment volume are summarized in

Table 1. Intermodal Transport Terminals in the Czech Republic (November 2019).

Location	Operator	Volume of Transshipment/Year
Brno	Terminal Brno	15,000 TEU
Česká Třebová	Metrans	850,000 TEU
Lovosice	ČD Duss Terminal	53,000 TEU
Mělník	České přístavy	150,000 TEU
Nýřany	Metrans	70,000 TEU
Paskov	AWT	54,000 TEU
Praha–Uhříněves	Metrans	1,013,200 TEU
Přerov	RCO–CSKD	18,000 TEU
Šenov	Metrans	90,000 TEU
Ústí nad Labem	Metrans	12,500 TEU
Zlín	Metrans	250,000 TEU

Source: Authors, based on [25]. Explanatory notes: TEU: Twenty-foot equivalent unit.

. Nowadays, the Metrans company is being the fastest growing operator of intermodal transport, which operates its terminals even in Slovakia, Hungary, as well as in Austria, and in 2017, it expanded to the Polish market as well [26,27,28,29,30,31].

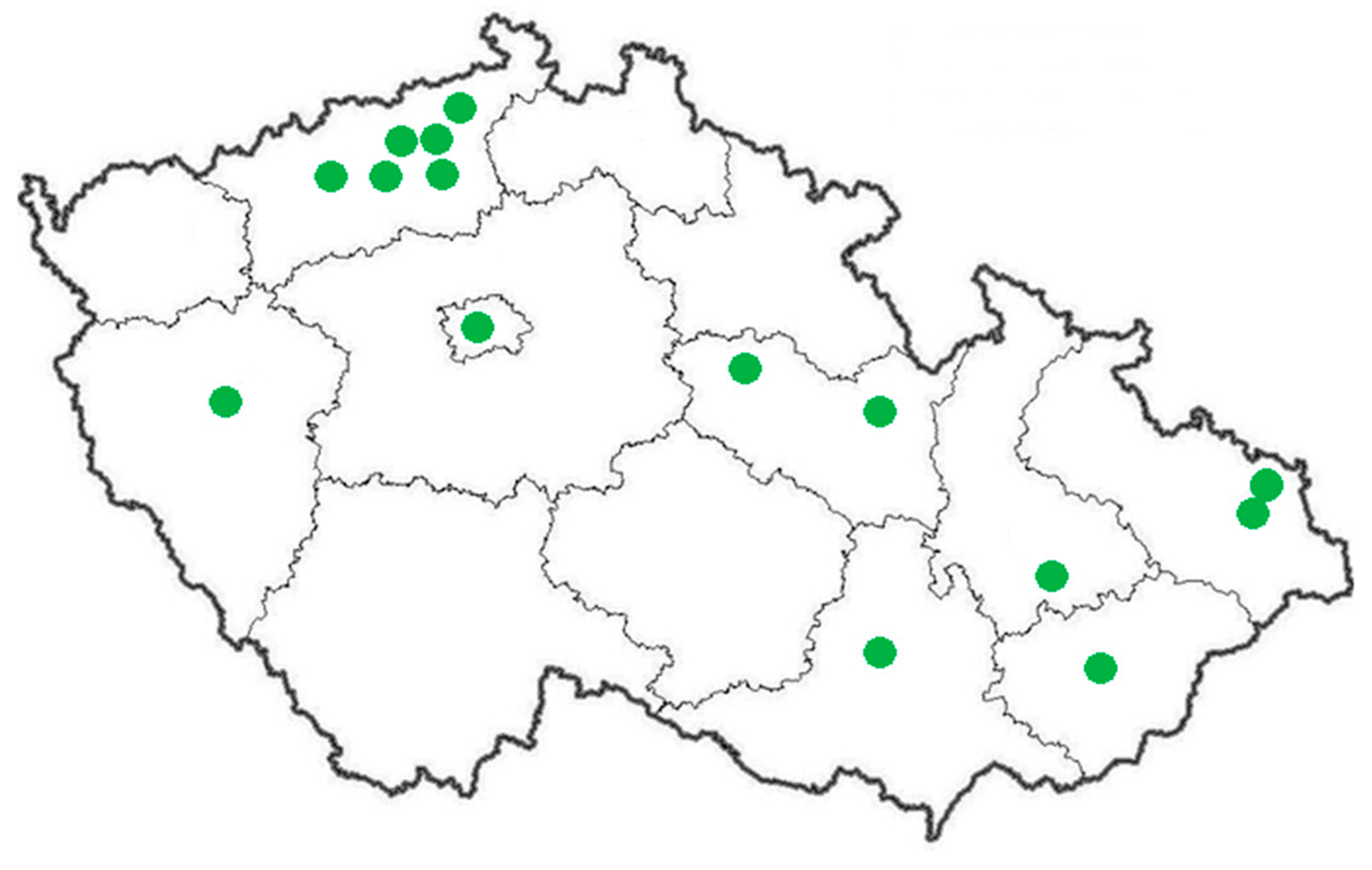

Figure 1 depicts the geographical distribution of all transport terminals in the Czech Republic, including those focusing on transshipment within other transport modes rather than intermodal transport, where an uneven coverage on the network is evident. The highest concentration of these objects is found in the Ústí nad Labem region, in which up to six terminals are currently in operation. Conversely, the South Bohemian region and the Vysočina region do not dispose of any of such transshipment station.

As for the investigated city of České Budějovice, the closest terminals are located in Prague–Uhříněves (approx. 140 km) and Plzeň–Nýřany (approx. 150 km). In terms of coverage of the South Bohemia region being examined, the intention to renew operation of the currently defunct transshipment station Nemanice nearby the county city of České Budějovice is, thereby, logical and reasonable [32].

4. A Case Study: Intermodal Transport Terminal Nemanice

Container transshipment facility located in Nemanice (part of the city of České Budějovice) has a relatively long history, however, like other transshipment stations in the country, with fluctuating success. For the first time, this facility was put into operation in 1979, when the activities of the back then national container transport operator ČSKD INTRANS were moved to this object from a temporary station in České Budějovice. In 1991, the first stage of the Nemanice facility complex rebuilding process was carried out, and next year, the second construction stage followed. During the reconstruction, the areas of the transshipment station were modified, and several rubber-tyred gantry cranes were replaced with a single rail mounted gantry crane. Czech Railways company was the owner of this terminal and the ČSKD INTRANS company was its tenant back then. In addition to containers’ transshipment, ČSKD INTRANS started to operate the Ro-La transport line to Villach in 1993. This system of carriage of road freight vehicles and vehicle combinations with crews was terminated in 1999 due to the lack of interest. Thereby, the transshipment hub Nemanice operation was dampened, and in March 2000, its operation was completely terminated [33,34].

Revitalization of the Nemanice terminal is basically a new project without previous experience. Since the termination of the original industrial site in 2000, intermodal transport conditions have changed radically. No past data can be relied upon, inasmuch as potential customers’ structure has changed in the region. Terminal elements, whose parameters depend on planned performance, are dealt with on a heuristic principle, for example, in [35].

As far as the volume of transportation flows is concerned, an expert estimate of the Metrans company is taken into account. Based on the knowledge of the intermodal transport market and the industrial coverage of individual regions, the company estimated the future transport potential of the intermodal transport terminal Nemanice in the amount of 60%–70% of the handling operations compared to the intermodal transport terminal Nýřany (Metrans company has already expressed an interest in revitalizing and reopening the Nemanice transshipment station). This terminal reported performance of 70,734 TEUs in 2016. Thereby, according to the company’s estimate, the Nemanice terminal transport potential could be up to 42,000–49,000 TEU/year (an average of 46,000 TEU/year).

Amount of handling operations, nevertheless, depends on the used intermodal transport unit (hereinafter referred to as ITU). Transport units being considered are represented by the most utilized types of ITUs, large containers ISO 1C (20-foot maritime container with a length of 6,058 mm), ISO 1A (40-foot maritime container with a length of 12,192 mm), ISO 1E (45-foot maritime container with a length of 13,716 mm), swap bodies (detachable superstructure of a lorry loading area, most often with a length of 7,150 mm, C series) as well as intermodal road semi-trailers. To converse the total performance volume in TEUs to ITUs, the individual ITUs’ size data in TEUs, listed in the following

Table 2. Size of used intermodal transport units (ITUs) in TEUs and their shares in the total number of ITUs.

Intermodal Transport Unit	TEU	Share in the ITUs
ISO 1C	1	2/6
ISO 1A, or ISO 1E	2	2/6
Intermodal road semi-trailer	2	1/6
Swap body of the C series	1.5	1/6

Source: Authors.

, and the estimated shares in the total number of ITUs handled in the terminal per year are used.

Ergo, the sum of volumes of each ITU converted to TEU should be of 46,000 TEU (see Equation (1)).

$$1TEU\ast \frac{2x}{6}+2TEU\ast \frac{2x}{6}+2TEU\ast \frac{x}{6}+1.5TEU\ast \frac{x}{6}=46,000TEU$$

(1)

$$2x+4x+2x+1.5x=276,000TEU$$

$$x=29,052ITU/year$$

According to the estimated shares of individual types of ITUs in the total volume (based on the calculation above), the reloading rate of 29,052 ITUs per year is expected.

Table 3. Estimated annual volume of the transport performance in TEU.

Intermodal Transport Unit	pcs/Year	TEU/Year
ISO 1C	9684	9684
ISO 1A, or ISO 1E	9684	19,368
Intermodal road semi-trailer	4842	9684
Swap body of the C series	4842	7263

Source: Authors, Explanatory notes: pcs, pieces.

shows the estimated amount of individual reloaded ITU types in TEU per year.

Apparently, the number of handled ISO 1A or ISO 1E is by far the highest, i.e., 19,368 per year, and the quantity of reloaded swap body of the C series is the lowest.

The technical quality level of the Nemanice transshipment station elements, their current state and spatial disposition are far from the required standards for the intermodal transport terminals at the European scale. The primary impetus to address the revitalization project of the Nemanice terminal is to support the continuous growth of intermodal transport volumes in the Czech Republic (especially the demand of intermodal transport operators) as well as the absence of an operational terminal in the South Bohemian region.

The specific intermodal transport terminal elements being demanded are suggested in the following Section 4.1, Section 4.2, Section 4.3 and Section 4.4.

4.1. Connection to the Transport Network

Railway line no. 704 (České Budějovice–Benešov u Prahy) is regarded as a part of IV. corridor of the TEN-T network (stands for Trans-European Transport Network) and is included in the network of railways important for international intermodal transport of the AGTC agreement. The city of České Budějovice, part of which is the urban part of Nemanice, is listed in the AGTC agreement as a terminal site being of great importance for international intermodal transport. Proposal for connecting the intermodal transport terminal Nemanice to the transport network has been elaborated based on the current state analysis of road and railway networks, or their future development. Connection of the Nemanice terminal to the railway network is given by the proximity of the railway track switch Nemanice.

To this end, part of the proposal lies in a change of a way of the terminal handling tracks’ connection as well as a change in Nemanice II railway track switch. The proposal to change the railway switch is to abolish the handling tracks, which are currently unused. The acquired area would be incorporated into the terminal site. The connection of the terminal handling tracks to the railway network itself is designed in the opposite direction, compared to the present one, from the station Hluboká nad Vltavou through the new track no. 203a. This change in connection is designed in order to facilitate the terminal operation while loading and unloading without significant limitation of other transport operations on railway line 709 České Budějovice–Plzeň main station and operation on the nearby frequented road no. III/10578.

Connection of the Nemanice transshipment station to the network of public roads is now complicated due to the absence of traffic bypasses of the northern edge of České Budějovice. The priority solution to connect the terminal is solved by downhills from the planned bypass of the Northern Tangent, which means the interconnection of the road no. I/20 with the D3 motorway. Since this planned construction has not assigned the final decision regarding the environmental impact assessment (EIA), according to the Directorate of Roads and Motorways (Czech Republic), its implementation is still a matter of at least seven years. The second solution is to connect the terminal premises to the prepared bypass of the North Connection, which is scheduled to be put into operation due 2022. These days, negotiations have been taken place to modify the original bypass project, which did not take into account the Nemanice transshipment station connection [36,37].

4.2. Handling Equipment

The choice of types and the quantity of handling devices depends on the ability of the terminal to promptly, efficiently, and without unnecessary handling operations to handle road carriers and load ITUs on wagons. Requirements for handling times are defined by the AGTC agreement, the maximum duration of road vehicle downtime in an intermodal transport terminal is specified to 20 minutes, and the marginal time from taking over the shipment up to the train departure should not exceed one hour.

In principle, intermodal transport terminal can be equipped in three ways:

• reach stackers;
• gantry cranes on rails or tires;
• a combination of both.

Common requirements for stackers and gantry cranes include a loading capacity (payload) of 42 tons and a spreader with collets for handling all ITUs being considered. The desired number of handling mechanisms depends on the quantity of handling operations executed per day, and the actual working cycle time-period. Handling time also depends on the size of the handling areas and the length of the handling equipment crossings. The overall need for handling equipment can be determined according to the general equation (see Equations (2) and (3)) to quantify the operational need for cyclically-working handling devices as follows [38]:

$$n_c^{ITT}=\frac{N_{ITU}\ast t_{ITU}}{3600\ast \left(T_p-T_{pp}\right)\ast G_d\ast {\alpha }_{pv}}\ast \left(1+\frac{r}{100}\right),\left[pcs\right]$$

(2)

$$N_{ITU}=Q\ast k_d\ast k_{vo},\left[pcs\right]$$

(3)

where n_c^ITT is operational need for handling equipment [pcs], N_ITU is the number of intermodal transport units [pcs], Q is daily handling need [ITU/day], k_d is coefficient of double handling = 1.4, k_vo is coefficient of ancillary handling = 1.2, t_ITU is the average time of one operation with ITU [s], T_p is working time-period [h] (morning + afternoon shift: 2 × 8 hours), T_pp is breaks at work [h] (2 × 30 min), preparatory and weaning works (15 + 15 min), G_d is the average amount of batch per one working cycle [pcs], α_pv is coefficient of operational utilization = 0.3, r is operational reserve 10%.

4.3. Handling Tracks

The number and length of terminal railway handling tracks depend on the expected transport performance. However, a certain reserve is to be taken into account in case of performance increases. The total useful length of the handling track required to handle the daily load is calculated at 1066.5 meters for Sggmrss wagons intended to be deployed within intermodal transport (based on the formula specified in [5,39]). AGTC agreement requires a minimum length of such tracks at 750 m for the newly constructed terminals. In the intermodal transport terminal Nemanice, two reloading tracks are suggested to be built, each with a useful length of 750 m.

4.4. Spatial Layout of the Terminal

To handle a given amount of load, it is necessary to properly dimension the terminal spatial elements, such as the number and length of handling tracks, the size of storage and depositing areas, both in relation to the determined terminal operation technology by railway and road vehicles. The stationary method was selected in terms of operation technology in the terminal by railway transport. As for the operation technology by road vehicles, for a terminal of a similar size, a single-circuit transport system is appropriate, with transport units being loaded and unloaded from vehicles directly on the transshipment area [40].

The size of storage and depositing areas of the transshipment station depends on the planned transportation volume of the ITUs being handled, their type, and stackability. ISO containers are estimated to be 2/3 of the transportation volume, but due to stackability, they need a depositing area comparable to road semi-trailers. For short-term storage of ISO containers, an area of at least 717 m² is needed (according to the formula specified in [4]). For short-term parking of road semi-trailers, an area of at least 743 m² has to be reserved, and an area of at least 557 m² for swap bodies’ storage. The design also includes the areas necessary for the terminal operation itself, area intended to store transport units during dangerous goods transportation, repair, and maintenance area, as well as parking area. The total area of the terminal is of 45,000 m².

5. Solution and Results

As mentioned, the revitalization proposal consists of a variant solution of equipage and subsequent alignment of the terminal elements. The terminal’s equipment and layout will have a consequent effect on the overall work technology and the terminal’s operational and economic indicators. Numerous exact mathematical methods can be applied to select the most appropriate variant of the terminal layout. These methods operate with multiple factors (criteria) affecting the final selection.

The proposed equipment options for the terminal differ in the amount of investments required as well. As far as the economic comparison is concerned, the cost items varying in each scenario will be taken into account. To build the paved surfaces for heavy freight transport, the charge of 60 €/m² is calculated.

5.1. Scenario No. 1—Reach Stackers

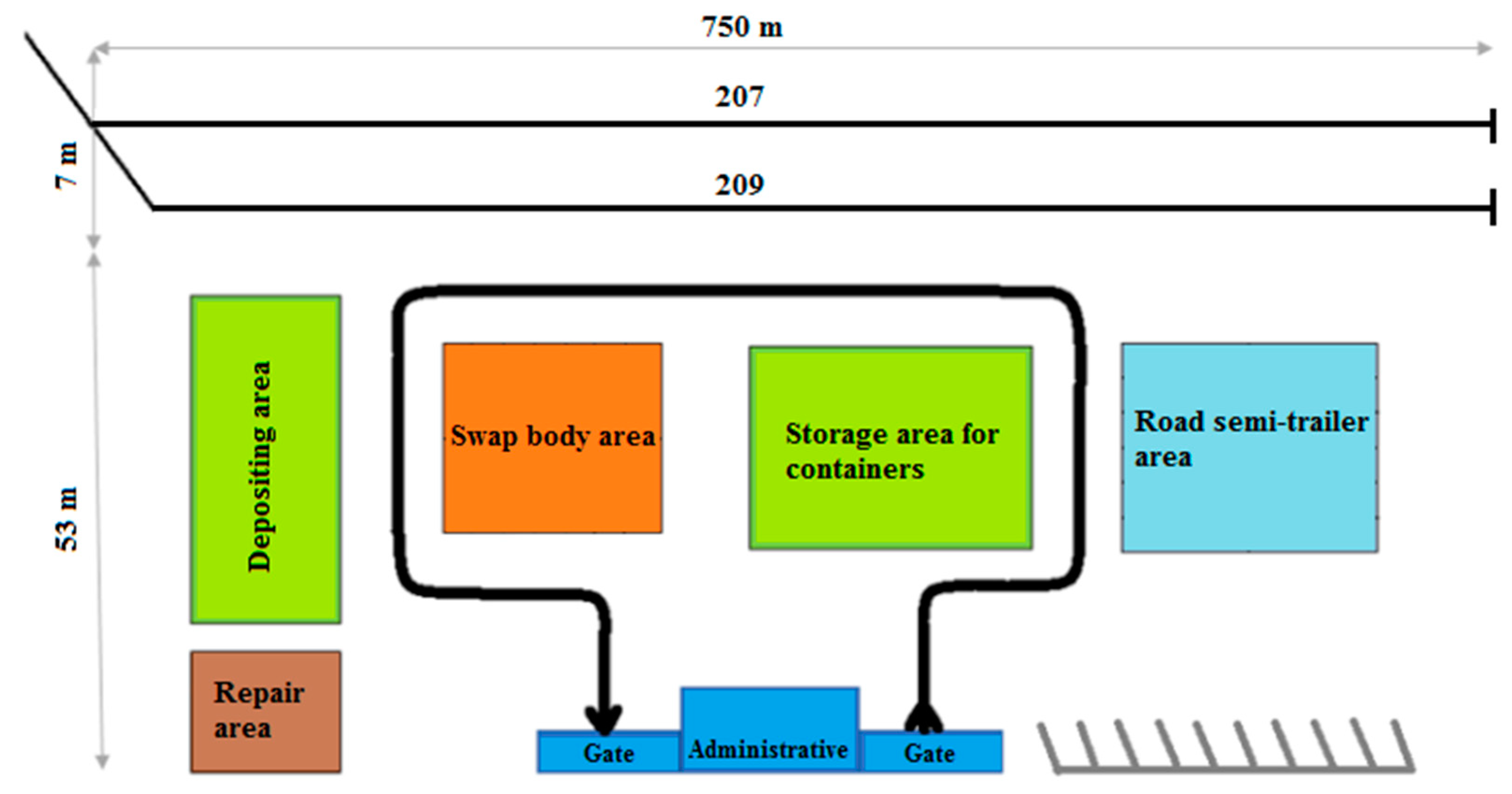

The spatial disposition of the terminal in this scenario is illustrated in Figure 2. All areas are paved and adapted for the movement of stackers. Such a paved surface has dimensions of 750 × 55 meters.

Acquisition cost regarding scenario no. 1 is shown in

Table 4. Acquisition cost for scenario no. 1.

Cost Item	Unit Price	Terminal Demand	Cost per Item in €
Reach stacker	450,000 €	4 pcs	1,800,000
Paved surface	60 €/m2	39,750 m2	2,385,000
		Total:	4,185,000

Source: Authors.

.

The overall need for handling equipment in the terminal is covered by four reach stackers in two eight-hour shifts. Personal need for one reach stacker and one shift is ensured by two employees. The operational cost per one hour is of €13. Maintenance cost has been recalculated to 1000 hours from the data as follows: Replacement of rear tires (2 pcs) each of 2500 hours, replacement of front tires (4 pcs) each of 5,000 hours. The cost of one tire is €3600. Price and cost data were provided by the intermodal transport handling equipment manufacturer.

The following

Table 5. Criteria and their values for scenario no. 1.

Criterion	Reach Stacker	Terminal in Total
C1: Acquisition cost (€)	450,000	4,185,000
C2: Operational cost (€/h)	13	52
C3: Maintenance cost (€/1000 h)	5760	23,040
C4: Average working cycle time (s)	225	225
C5: Personal demand per 2 shifts (pcs)	4	16

Source: Authors.

summarizes all the data related to scenario no. 1.

The data (criteria and their values) listed in Table 5 is needed for further calculations regarding scenario no. 1 when using the particular multi-criteria decision analysis methods [16,41].

5.2. Scenario No. 2—Rail Mounted Gantry Cranes

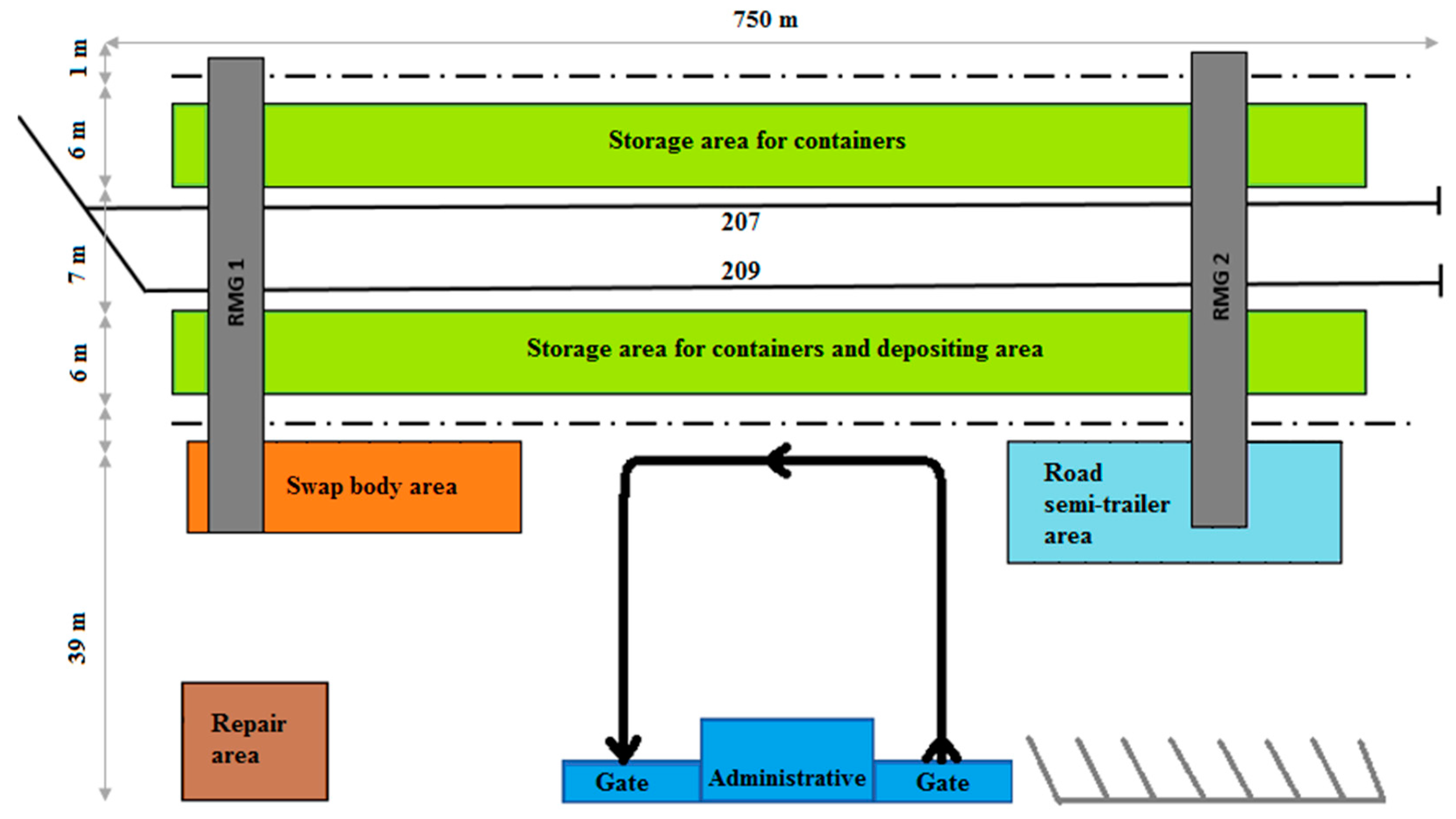

The terminal spatial layout proposal of scenario no. 2 is depicted in Figure 3. In this variant, most of the storage areas are within reach of the rail-mounted gantry cranes (RMG), the rest of the area is formed by the paved surface for the movement of the reach stacker and road vehicles. The paved surface has dimensions of 750 × 40 meters.

Acquisition cost regarding scenario no. 2 is presented in

Table 6. Acquisition cost for scenario no. 2.

Cost Item	Unit Price	Terminal Demand	Cost per Item in €
RMG crane	3,500,000 €	2 pcs	7,000,000
Reach stacker	450,000 €	1 pcs	450,000
Rail track	2,855,000 €/1 km	700 m	2,000,000
Paved surface	60 €/m2	29,250 m2	2,385,000
		Total:	11,205,000

Source: Authors.

.

In the event of equipping the terminal with RMG cranes, as the main handling devices, another additional handling mechanism must be available in the site [42]. As for the intermodal transport terminal Nemanice, one ancillary reach stacker is taken into consideration. In regard to the personal demand for two RMG cranes and one stacker, four employees per shift are necessary. Operational cost is €12 per hour of operation, maintenance cost is €7700/1,000 hours of operation. The acquisition cost of cranes still needs to take into account the cost of the crane rail track, which is of €2,000,000 for 700 m long track.

Table 7. Criteria and their values for scenario no. 2.

Criterion	RMG Crane	Terminal in Total
C1: Acquisition cost (€)	3,500,000	11,205,000
C2: Operational cost (€/h)	12	37
C3: Maintenance cost (€/1000 h)	7700	26,920
C4: Average working cycle time (s)	131	131
C5: Personal demand per 2 shifts (pcs)	2	8

Source: Authors.

summarizes all the data related to the proposed scenario no. 2.

All this data is also needed for further calculations concerning this variant when using the specific mathematical methods.

5.3. Scenario No. 3—Rubber-Tyred Gantry Cranes

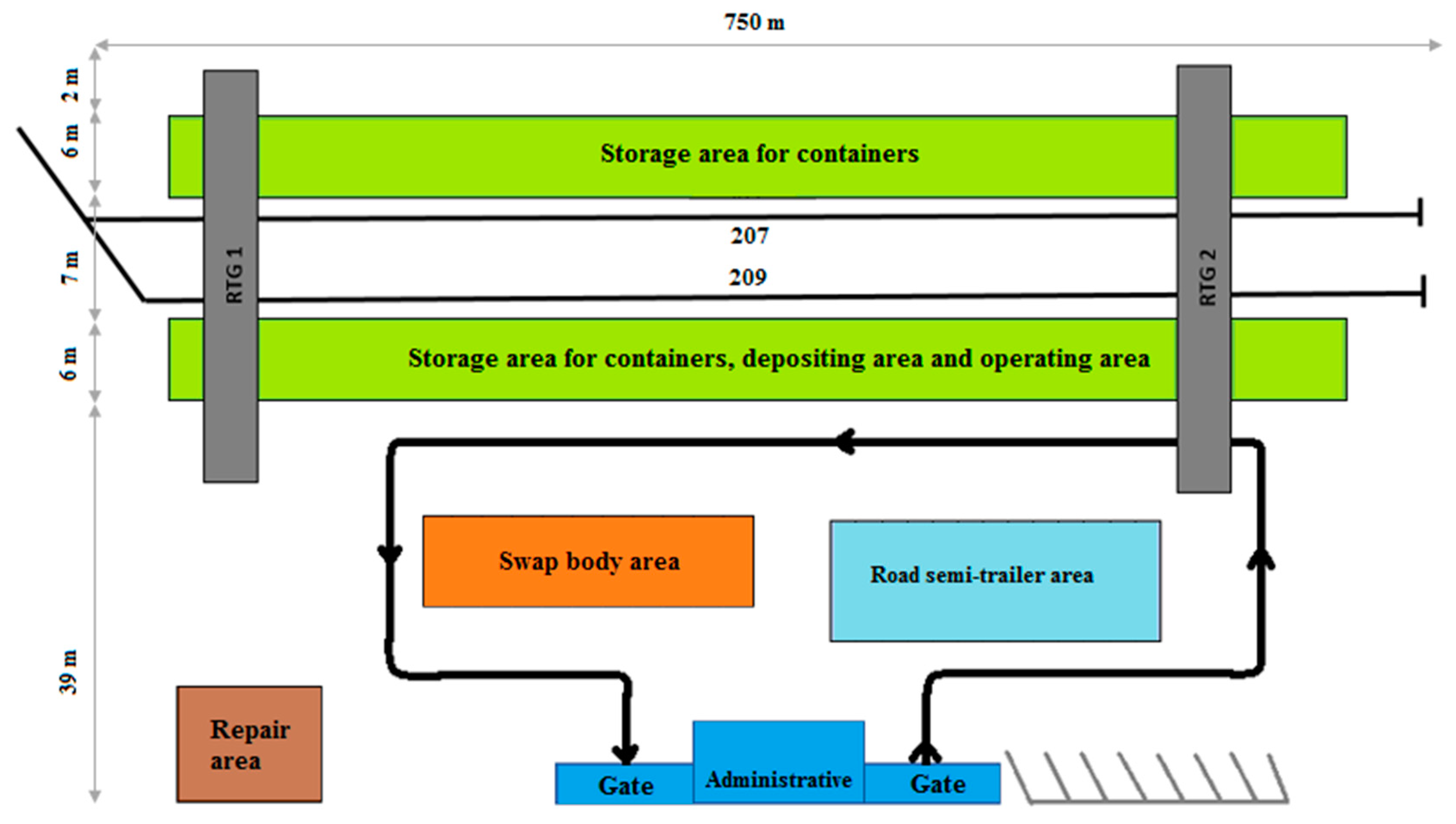

The design of the terminal scenario no. 3 is shown in Figure 4. Unlike scenario no. 2, this variant has more paved surfaces due to the rail track surfaces for the movement of cranes on tires.

Acquisition cost regarding scenario no. 3 is summarized in

Table 8. Acquisition cost for scenario no. 3.

Cost Item	Unit Price	Terminal Demand	Cost per Item in €
RTG crane	2,000,000 €	2 pcs	4,000,000
Reach stacker	450,000 €	2 pcs	900,000
Paved surface	60 €/m2	30,750 m2	1,845,000
		Total:	6,745,000

Source: Authors.

.

Two rubber-tyred gantry cranes are needed to cover the handling needs of the terminal. As for the additional handling device, two reach stackers are taken into account for the operation. Operational costs are €16 per hour of operation. Maintenance cost has been recalculated to 1000 hours from the data as follows: Replacement of eight tires of each RTG crane after 25,000 hours. The cost of purchasing one tyre is €7000 [43]. In this case, a personal need for two staff to operate the cranes and four staff to operate the stackers in one shift is necessary.

The following

Table 9. Criteria and their values for scenario no. 3.

Criterion	RTG Crane	Terminal in Total
C1: Acquisition cost (€)	2,000,000	6,745,000
C2: Operational cost (€/h)	14	54
C3: Maintenance cost (€/1000 h)	8300	28,120
C4: Average working cycle time (s)	172	172
C5: Personal demand per 2 shifts (pcs)	2	12

Source: Authors.

summarizes all the data regarding scenario no. 3.

And again, the information (criteria and their values) listed in Table 9 is necessary for further calculations regarding scenario no. 3 when using the particular multi-criteria decision analysis methods.

5.4. Determination of the Weights of Criteria

Determining the weights of criteria is generally a subjective process. Nonetheless, it can be objectivized by using multi-criteria decision analysis methods.

In our case, the Saaty method was applied to determine the criteria weights [41,44]. This method was chosen given the fact that no information is available for the ordinal alignment of criteria from the most important. However, it is possible to conduct a quantitative pairwise comparison of criteria based on cardinal information. In contrast to a simple pairwise comparison, the Saaty method uses quantification of such a comparison. The Saaty method has also defined the scale of values in terms of pairwise comparison [17].

To this end, the Saaty matrix is compiled in the following

Table 10. Saaty matrix.

	C1	C2	C3	C4	C5	bi	vi
C1	1	1/3	1	1/3	1/3	0.52	0.09
C2	3	1	5	1	1	1.72	0.29
C3	1	1/5	1	1/3	1/3	0.47	0.08
C4	3	1	3	1	1	1.55	0.27
C5	3	1	3	1	1	1.55	0.27
Σ						5.81	1.00

Source: Authors. Where: b_i, line geometric mean; v_i, weight of criterion, while $v_i=\frac{b_i}{{{\displaystyle \sum }}_1^n{b}_i}$.

.

In our case, the process of determination of the weights of criteria was carried out as follows [16,41]:

(1) First of all, the relation among each criterion pair being compared needs to be defined, wherein the degree of preference is quantified within a point scope of 1–9. All input values related to the criteria weights can be acquired by conducting a survey, interviewing (experts’ opinion), etc. Undeniably, identification of a proper set of decision making criteria in association with an intermodal transport terminal operation is considered to be a strongly specific process. That is why multiple experts who intensively deal with intermodal transport issues were requested to express their opinions (i.e., input preference values among each criterion pair being compared) in our study. To provide for as high objectivity as possible, ten experts focused on the investigated field of research were requested to lay down preference values among each criterion pair. Namely, they were assigned by members of the working group, organized in the city of České Budějovice in 2015, where the topics on the potential revitalization of the Nemanice transshipment station were discussed.

The following

Table 11. The list of experts participating in the investigation.

Name of the Organization	Scope of Business	Date of Investigation
Metrans	Intermodal transport operator	February 2, 2015
Česmad Bohemia	Road carriers’ association	February 2, 2015
Bohemiakombi	Intermodal transport operator	February 2, 2015
ČD Cargo	National railway carrier	February 2, 2015
Railway Administration	Railway Infrastructure Manager, Czechia	April 25, 2015
ČD DUSS	Terminal operator	March 18, 2015
Czech Logistics Association	Logistics non-profit organization	February 2, 2015

Source: Authors.

gives a brief description of the expert representatives who participated in the task related to identifying the criteria set as well as rating their weights.

(2) As far as the Saaty matrix items are concerned, individual preference values assigned by all the decision-makers were specified, and thereafter, arithmetic mean out of all values of each partial matrix was quantified.

(3) Subsequently, Saaty matrix items were utilized for the following calculations (i.e., to quantify line geometric means, to quantify the final vector of criterion weights, see Table 10).

5.5. Application of the TOPSIS Method to Define the Final Variant Ranking

The Technique for Order Preference by Similarity to Ideal Solution (referred to as TOPSIS method) is based on the selection of the variant closest to the ideal variant and furthest from the basal variant. It requires cardinal information about the criteria preferences that is given by the Saaty method [45].

The maximization nature is preferred, and therefore all the minimization criteria must be converted into the maximization nature. The first step of the TOPSIS method comes from the values listed in

Table 12. Initial criteria matrix, Technique for Order Preference by Similarity to Ideal Solution (TOPSIS) method.

	C1	C2	C3	C4	C5
V1	7020	7	3880	0	0
V2	0	22	0	94	8
V3	4460	0	10,920	53	4

Source: Authors.

(values already converted into the maximization criteria), while maintaining the weights determined by the Saaty method. A maximization process to convert all the values into maximization nature is performed based on the Equation (4):

$$y_{ijmax}=h_{jmin}-y_{ijmin}$$

(4)

where y_ijmax is the defined value of i-th variant by j-th criterion with a maximization nature, h_jmin represents the highest value of the j-th criterion with a minimization nature, y_ijmin is the value of i-th variant by j-th criterion with a minimization nature.

The next step is to compile the normalized criteria matrix R = (r_ij) (see

Table 13. Normalized criteria matrix, TOPSIS method.

	C1	C2	C3	C4	C5
V1	0.84	0.29	0.33	0	0
V2	0	0.95	0	0.87	0.89
V3	0.54	0	0.94	0.49	0.45
vij	0.09	0.29	0.08	0.27	0.27

Source: Authors.

). The matrix R is compiled according to the Equation (5) [45]:

$$r_{ij}=\frac{y_{ij}}{\sqrt{{{\displaystyle \sum }}_{i=1}^m{y}_{ij}^2}};\mathrm{i}=1,2,\dots ,m;j=1,2,\dots ,n$$

(5)

where r_ij is the normalized value of the particular variant by each criterion, y_ij is the defined value of i-th variant by j-th criterion.

In regard to the next step, the weighted normalized criteria matrix Z = (z_ij) needs to be compiled by multiplying the normalized variant value by each criterion and the normalized weight of the relevant criterion (see Equation (6)), wherein the ideal variant H and basal variant D can be determined subsequently (see

Table 14. Weighted normalized criteria matrix, TOPSIS method.

	C1	C2	C3	C4	C5
V1	0.08	0.09	0.03	0	0
V2	0	0.29	0	0.23	0.24
V3	0.05	0	0.08	0.13	0.12
D	0	0	0	0	0
H	0.08	0.29	0.08	0.23	0.24

Source: Authors.

) [46,47].

$$z_{ij}=v_j{r}_{ij},[-]$$

(6)

where v_j is relevant normalized weight of criterion, r_ij is the normalized value of the particular variant by each criterion.

The next step is to calculate the deviation of each Z matrix value from the ideal d_i⁺ variant (see Equation (7)) [48].

$$d_i^{+}=\sqrt{{{\displaystyle \sum }}_{j=1}^n{\left(z_{ij}-h_j\right)}^2};\mathrm{i}=1,2,\dots ,m;j=1,2,\dots ,n,[-]$$

(7)

where z_ij is the individual values of normalized criteria matrix Z, h_j is the best (highest) value of the j-th criterion (ideal variant).

Analogously, the deviation of each Z matrix value from the basal variant d_i⁻ needs to be determined (see Equation (8)) [45].

$$d_i^{-}=\sqrt{{{\displaystyle \sum }}_{j=1}^n{\left(z_{ij}-d_j\right)}^2;}\mathrm{i}=1,2,\dots ,m;j=1,2,\dots ,n,[-]$$

(8)

where d_j is the worst value of the j-th criterion (basal variant).

All the variants are then ordered depending on the values of the relative indicator c_i and the variant ranking can be specified (see

Table 15. Final variant ranking, TOPSIS method.

	d+	d−	cij	Ranking
V1	0.39	0.12	0.23	3.
V2	0.11	0.44	0.80	1.
V3	0.33	0.20	0.38	2.

Source: Authors.

). This indicator is calculated as follows (see Equation (9)) [48]:

$$c_i=\frac{d_i^{-}}{d_i^{+}+d_i^{-}};\mathrm{i}=1,2,\dots ,m,[-]$$

(9)

5.6. Application of the WSA Method to Define the Final Variant Ranking

The Weighted Sum Approach (hereinafter referred to as WSA) is a method based on the evaluation of utility maximization that uses cardinal information on variants depending on each criterion [49,50]. The initial criteria matrix by the WSA method is the same as by the TOPSIS method (see Table 12). Moreover, the same values as previously are used to determine the weight of criteria (according to the Saaty method).

The next step of the WSA technique lies in specifying the best marginal values, i.e., the ideal H variant as follows {7,020; 22; 10,920; 94; 8} and the worst marginal values, i.e., the basal D variant as follows {0; 0; 0; 0; 0}. Afterward, the matrix for each variant can be compiled, and also the partial utility function can be calculated. The partial utility of the y_ij criterion is specified by Equation (10) [2,51].

$$u_{ij}=\frac{y_{ij}-d_j}{h_j-d_j};\mathrm{i}=1,2,\dots ,m;j=1,2,\dots ,n$$

(10)

where u_ij is the partial utility function of the value y_ij, y_ij is the determined value of i-th variant by j-th criterion.

Modified criteria matrix by the WSA method, i.e., partial utility function u_ij for all the variants is compiled in the following

Table 16. Modified criteria matrix, Weighted Sum Approach (WSA) method.

	C1	C2	C3	C4	C5
V1	1	0.32	0.36	0	0
V2	0	1	0	1	1
V3	0.64	0	1	0.56	0.5
vij	0.09	0.29	0.08	0.27	0.27

Source: Authors.

, even with indicating the weights of criteria v_ij [52].

The final step of the WSA method is to calculate the aggregate utility function for each variant u(V_i). The partial utility functions for all the variants must be, thus, multiplied by the relevant normalized weight of criterion (v_j) by Equation (11), and eventually, the aggregate utility function for each variant can be calculated, and thereby the final variant ranking by the WSA technique is specified (see

Table 17. Final variant ranking, WSA method.

	Aggregate Utility Function	Ranking
V1	0.21	3.
V2	0.84	1.
V3	0.42	2.

Source: Authors.

) [17,53].

$$u\left(V_i\right)={{\displaystyle \sum }}_{j=1}^n{v}_j{u}_{ij};\mathrm{i}=1,2,\dots ,m;j=1,2,\dots ,n,[-]$$

(11)

The final comparison of individual multi-criteria decision analysis methods is performed in

Table 18. The final comparison and determination of the best variant.

	TOPSIS Method	WSA Method	∑	Final Variant Ranking
V1	3.	3.	6	3.
V2	1.	1.	2	1.
V3	2.	2.	4	2.

Source: Authors.

as follows.

In this particular comparison, methods applied represent the criteria being compared, and the ranking value of the method refers to the critical values. The final outcome (i.e., the most suitable scenario for the revitalization of the defunct intermodal transport terminal Nemanice) is determined based on the lowest value acquired by the sum of all the variant ranking values [54].

6. Discussion

The above specified scenarios can be compared based on various perspectives. Comparison by each criterion separately generates a different variant ranking, since each variant has its advantages and disadvantages. None of the given scenarios has a decisive disadvantage, in all the worst-case criteria, which would knock it out of comparison immediately [55].

The TOPSIS method was utilized to calculate the relative distance of variants from the basal, i.e., the least suitable theoretical option. Based on this analysis, the solution containing rail mounted gantry cranes was evaluated to be the most advantageous, closest to the ideal variant H and the furthest from the basal variant D. As the second-best option, the scenario including the implementation of rubber-tyred gantry cranes was identified, and as the third in order, and thereby the least suitable option, the variant with stackers was assigned.

To compare findings with the TOPSIS method, multi-criteria analysis was also conducted by using the WSA method, in particular, to specify the option with the greatest utility function depending on the determined criteria [56,57]. This utility maximization method evaluated the usefulness of individual variants in the same order as the previous method:

• scenario no. 2 as the most appropriate solution;
• scenario no. 3 as the second-best option in order;
• scenario no. 1 would bring the smallest utility depending on the given criteria.

Hence, to revitalize the Nemanice transshipment station, based on the defined criteria and their preferences, the option consisting of an introduction of two rail-mounted gantry cranes and one reach stacker appears to be the most suitable [58].

The compiled procedure of designing the intermodal transport terminal elements and specifying the appropriate type of handling equipment is deemed by the authors to be an insight into possible scenarios. Compared to the methodology suggested in [18], it is different and the crucial distinction lies in the system modeling methods applied, scenarios of recommended modifications for handling equipment, as well as the procedure to identify the individual criteria and their weights. The methodology designed in [18] focuses on the criteria affecting the technological operation of the equipment, which has an impact on the overall flow of shipments through the terminal. These include, for example, handling device lift speed, its turning radii, acceleration, etc. On the contrary, the methodology drafted in this research study was consulted with leading practitioners directly involved in the operation of intermodal transport, as operators, carriers or transport infrastructure managers. The guideline proposed in this article is based to a greater extent on the economic criteria that are more preferred in real traffic. Furthermore, the presented methodology comprehensively addresses the topic of handling equipment and is based on determining the transport potential, from which the operational need of the equipment is quantified, and afterwards, in the third step, the very proposal of the types of equipment and variant comparison using specific exact methods are approached. The methodology suggested in [18] deals only with the last part, namely the design of a suitable type of equipment. From this point of view, our proposed methodology may be regarded as the benefit for further scientific-research knowledge, which can be further scientifically processed and extended. Of course, the authors take into account the fact that this is only one of the optional scenarios and do not avoid the discussion or opposition in association with other possible alternatives in the future.

The draft procedure can be implemented in practice under any circumstances, but it is inevitable to correctly and precisely define the inputs, above all the weights of criteria depending on the preferences of entities being participated. The methodology was consulted with practitioners and will be used to revitalize the intermodal transport terminal Nemanice.

The construction of an intermodal transport terminal is imperative from both the political and economic points of view. On the one hand, the state’s transport policy, as well as the European Union’s transport policy, clearly declares support for environmental modes of transport, which contribute to reducing the negative environmental impact of transport. On the other hand, for functional ecological intermodal transport, the territory must be equipped with the relevant transport infrastructure, in particular, with intermodal transport terminals and their proper connection to the transport network. Nevertheless, only a reasonably constructed terminal can provide desired performance at an adequate cost since especially the terminal’s operating cost greatly affects the pricing of services provided by the terminal. Moreover, these costs have a major impact on intermodal transport competitiveness compared to direct road freight transport. Terminal fees must be attractive for customers (shippers, operators, road carriers, etc.), otherwise, the construction of an intermodal transport terminal would be inefficient, and thereby the shifting of freight transport into intermodal transport cannot be expected [16].

From an economic perspective, the intermodal transport terminal construction is substantial mainly with regard to generating new job possibilities, attracting new production plants, helping towards increasing industrial production in the certain territory, improving the transport situation in the area, and possibly enhancing transport performance without burdening the road transport infrastructure and the environment.

The draft methodology provides a reasonable insight into searching for proper terminal elements, from determining the required number of handling devices to specifying the most appropriate type of device, when taking into account the overall economic efficiency. The designed intermodal transport terminal Nemanice will thus be sufficiently equipped in terms of performance and, at the same time, its operation will be economically viable.

7. Conclusions

Intermodal transport terminal is regarded the essential element of transport-logistics chains. To ensure the proper and efficient functionality of these chains, it is necessary to build up or modernize these transport hubs so that they do not create bottlenecks in terms of global cargo flows. The design of individual elements of intermodal transport terminal, their layout, and coherence must be based on strict technical and technological requirements. However, it is advisable to utilize multiple exact decision making methods, which can be applied to select the most suitable alternative out of a series of possible solutions. The goal of this manuscript was to assess several variants in terms of revitalization of the Nemanice terminal and identify the most appropriate one by applying different mathematical methods of multi-criteria decision analysis.

To this end, the TOPSIS method as well as the WSA method were used and the final variant ranking is as follows:

• scenario no. 2 as the most suitable option;
• scenario no. 3 as the second-best option;
• scenario no. 1 as the third-best option.

Eventually, following the previous calculations and investigations, it can be stated that the handling equipment scenario containing two rail-mounted gantry cranes and one reach stacker was determined to be the most matching alternative. In the Nemanice terminal, reach stacker will be operated as an additional mechanism. Its capacity of up to 8–13 tons is sufficient and will be intended to handle empty containers (loading an empty container on the articulated vehicle and its consequent carriage to the customer, or unloading an empty container from the articulated vehicle after the carriage termination and its placing on the depositing area).

The compiled procedure of designing the terminal elements and choosing the appropriate type of handling equipment may be considered as one of the insights into alternative solutions.

Building a network of intermodal transport terminals is a matter of social importance as well. A built-up high-quality intermodal transport infrastructure is being a precondition for an increase in the share of intermodal transport in total transport, no matter whether it is a concern of import, export, or transit. This will help to mitigate the adverse effects of road freight transport, reduce emissions, exhalation, accidents, minimize the number of congestions on international corridors, etc. Consequently, building a high-quality network of intermodal transport terminals is also important from the point of view of ensuring and maintaining a sustainable global transport system.

The issue of intermodal transport terminal renewals has not been based on any unified and comprehensive methodology yet. In the Czech Republic, for instance, this subject followed a variety of examples from Italy, China, or Germany, where, however, different criteria and aspects influencing the final outcome substantially have been taken into account. Some methodologies to propose the procedure of functionalizing various industrial objects are summarized in Section 2 of this research study. Nevertheless, none of them is based on the aspects, mathematical methods used, and criteria being suggested in this manuscript. The fundamental idea of our manuscript was to revitalize the existing defund intermodal object in the most appropriate way in order to serve as many customers as possible in the context of picking-up and distributing the shipments within the terminal attraction circuit to a maximum extent. An efficiently operated transport hub (where an intermodal transport terminal can be included) is an essential prerequisite for ensuring the sustainability of the transport system in the certain territory, and therefore, the proposed methodology for dealing with the modernization of defunct intermodal transport terminals is closely related to the sustainability of freight transport itself, above all, in terms of the sustainable development of freight transport performance in a globalized world.

In view of the aforementioned, it can be declared that such a methodological procedure has not been published yet and may, thus, be deemed as a dissimilar look on options of intermodal transport terminal revitalization.

The possible future subjects to be addressed may include, for example, the detailed financial assessments regarding the revitalization of such intermodal objects as well as the environmental assessment of such issues, possibly, the combination of both cases. The revitalization works could be funded, for instance, by various subsidy programs within the European Union.
