All models are wrong, but some are useful.
Urban freight transport is vital for cities while being responsible of many externalities. In the last few years, we have been experiencing huge changes, which are also having impacts on the way freight is distributed. In particular, the role that both large and small e-commerce platforms are playing and the social changes taking place in society (e.g., urbanisation, aging population, income polarisation, epidemic risks) are substantial in creating a relevant demand for instant deliveries. This is also due to specific market supply strategies. Nevertheless, the phenomenon poses serious problems from an environmental sustainability perspective as well as from economic and social ones (e.g., labour, social inclusion, income distribution effects, resilience).
Poor logistic efficiency, due to lower load factors caused by higher fragmentation, will have relevant negative consequences for cities in terms of pollution and congestion. Thus, one has to describe and predict possible outcomes in a timely and reliable fashion to define and deploy appropriate intervention policies aimed at mitigating and, possibly, solving the problems these changes will cause.
Independent sources confirm the supporting motivations justifying the focus on the upcoming problems last mile deliveries will face. In fact, a while ago, McKinsey investigated last mile delivery from an industry perspective [2
]. The main results pointed to the following interconnected issues: (1) high and rising customer expectations with respect to the improved service quality coupled with lower costs; (2) promising potential for automation; (3) rapid change in competition dynamics. In 2018, McKinsey published a second document suggesting that the pace of change in practice had by far exceeded expectations. Notwithstanding these considerations, the overall market potential of this segment is substantial due to the progressive digitalisation tacking place and the wide margins for improvement [3
]. Models are widely used to analyse and predict the impact of possible future scenarios. However, policy-making and planning still need the support that tools, relying on sound data regarding the present situation and capable of accurately simulating the future, can produce.
This paper aims at filling this gap by discussing the Digital Twin (DT) concept as an innovative and suitable modelling tool that local planners and policy-makers might use for reducing the undesirable effects produced by last mile deliveries. It contributes to the urban freight distribution literature by adopting an exploratory and critical approach in illustrating the role DTs might play and, more importantly, clarifying how to properly conceive and use them with respect to urban freight transport policy-making and planning. This paper discusses the use of DTs in urban freight planning and brings forward a new perspective on how realism and accuracy can be shaped within a planning context that includes multiple stakeholders. As far as we know, such a perspective, in which we link central premises of the DT model with conditions for urban freight planning, has not been published before.
To this end, the paper unfolds in different sections: Section 2
describes the role played by policy-makers and the most appropriate tools they have to deal with the challenges they are facing, pointing out the relevance of DTs and how they innovate with respect to the current methods; Section 3
illustrates (i) the various definition of a DT, (ii) its structure and use in different fields and (iii) its modelling characteristics; Section 4
provides a detailed discussion on the opportunities and constraints of DT applicability to urban freight policy-making and planning; Section 5
concludes pointing to fruitful future research paths. This exploratory research is both new and needed to understand how DTs might influence and progressively change the way decisions are made in the field of urban freight transport.
2. How Can Planners and Policy-Makers Cope with Changes?
In this rapidly changing environment, city planners and policy-makers need to equip themselves with appropriate tools to perform reliable, comprehensive and timely analyses of upcoming: (a) technological change, (b) business models evolutions/innovations and (c) the spatial-temporal changes these innovations will produce.
The fundamental decision revolves around the ambition cities have with respect to managing (or at least trying to influence) this process or to simply be satisfied in accommodating it. To attempt influencing the process and pursue specific societal aims it is preferable to manage the process rather than passively second it. This can take place in different ways. One solution is to promote incremental changes linked to the adoption of new business models capable of ensuring and fostering public–private cooperation [4
]. Some cities around the world (e.g., Gothenburg, London, Rome) are taking this path. They are developing logistics Living Labs, to co-produce efficient and shared solutions in disconnection with previously adopted decision-making approaches and paradigms that simply rely on the “predict and provide” approach [5
]. The core of most of the logistic solutions innovative cities are looking into rests upon shared, connected and low-emission logistics concepts [6
]. All this, given the complex and interactive environment within which solutions are deployed, needs to be supported by appropriate simulation instruments and planning tools.
The DT concept can be effectively used within a Living Lab approach to planning. In fact, allowing a closed data/information loop between the model and reality, DTs would be useful to achieve jointly acceptable solutions given they can provide reliable descriptions of likely scenarios illustrating now the implications that current choices might have in the future for each of the various stakeholders.
It is important to underline that planning is a function that recursively interlinks with piloting, deployment and evaluation. This remark is fundamental and suggests/clarifies how a Living Lab approach can integrate with a cutting-edge method such as DT when planning for urban freight transport. A Living Lab approach to urban freight (please see CITYLAB—City Logistics in Living Laboratories project, http://www.citylab-project.eu/
) is the most up-to-date planning strategy inherently relying on data-driven models [7
]. A reliable model for planning should not only be capable of mimicking real-life experiments, so to reproduce past events, but also be able to predict the future, assuming different scenarios have different probabilities of actually materialising. Besides, models typically used for freight transport simulations relate to different levels of decisions, i.e., strategic, tactical and operational [8
] and it is difficult to combine all the levels in a comprehensive model. Some recent attempts go in this direction, by using multi-scale multi-agent models [9
]. Under this respect, disaggregated modelling techniques, like agent-based models, have been progressively used in the last years. This allows for not only illustrating to the stakeholders involved in the planning process the implications that present policy choices might have in the future, but also for making them aware of their active role within the overall urban freight system [11
]. This, in turn, provides stakeholders with reliable information concerning the future implications of present decisions that are valuable in either confirming or modifying their current choices. This approach, however, is not fully dynamic since it does not foresee continuous updating based on a closed model-reality loop. One can bridge this gap by adopting a DT approach. While this innovation is very promising and worth investigations in the field of last mile logistics, the paper also clarifies how to properly conceive DTs for policy-making and planning and discusses some caveats one should have clearly in mind when using them. This, we believe, constitutes a relevant value added to the current status of knowledge while also representing a valuable contribution to policy-making and planning. Under this respect, while DTs have been explored with respect to freight transport problems [12
], their potential for policy-making and planning has not been explored so far.
4. Digital Twins for Urban Freight Policy-Making and Planning
Meersman and Van de Vorde [32
] underline that transport policy after WWII primarily revolved around stimulating mobility to foster economic growth. This influenced the type of modelling approach researchers developed. The models in this period focused on estimating and forecasting transport demand with a great attention paid to passenger and much less to freight. The same authors suggest that the in the period 1970–2000, when the increase in transport demand kept rising due to the progressive extension of supply chains linked to a steadfast globalisation process, the modelling focus veered towards a short-term planning. In this case the aim was promoting both productivity and efficiency growth within the transportation system. The overall economic situation was such that a steady and growing interest developed in freight transport modelling, planning and management of logistics chains. The intensive use of transportation services to achieve economies of scale in production, the interest in sourcing intermediate goods from remote areas where comparatively lower salaries warranted lower labour costs, the importance of reaching far away markets at relatively low transport prices have spurred policy-makers’ attention towards the negative external costs transport is producing. The geographical focus of this latter issue revolves around cities given these are the loci where end consumers are located and where most of the products flow into. In fact, freight transport produces approximately 30% of greenhouse gases (GHG) emissions due to the increase in road freight transport representing around 90% of all city incoming freight movements. Independently of the substantial improvements in technology (e.g., improved Euro-standards for cars), curbing freight transport-related GHG emissions in cities is simply not taking place (see Figure 1
The outlook seems unfavourable given the likely negative effects growing e-commerce-related deliveries will have. The technological changes and the strong attention towards global warming and GHG emissions may call for predictions of effects that may follow from more radical changes in technology and policy. These are likely to be far stronger than the more conventional incremental changes that most current freight models are designed for. The main motivations for a more scenario-oriented type of modelling approach are primarily due to the limited ability to include larger structural, organisational and behavioural change issues in the current freight models. The complexity of urban networks combined with prospective needs for policy changes raise important challenges connected to the handling of uncertainty, heterogeneity, correlation among agents’ preferences, substantial time lags elapsing form the time when a decision is taken/a policy implemented and the measurement/comparison of the effects/results provoked, et cetera. The implications that time lags and uncertainty have in measuring behaviour change substantially depend on the amount of time stakeholders need to understand the implications the policy enacted might have and the time needed to detect the implicit behaviour changes that they need to implement. This process might have, in turn, implications on stakeholders’ preferences for the policy under discussion and, in a participatory planning process, ultimately, modify their choices. The specific modelling approach in this context is fundamental. In fact, it could provide all the stakeholders involved in the planning process a timely, reliable and, possibly, correct forecast of the consequences, a given policy under discussion, might have in the future. The mere availability of such information might have strong implications with respect to their position and preferences expressed during the participatory planning process. Structural changes and uncertainty should be deeply embedded in the modelling process developed [36
]. Urban freight modelling has substantially evolved from a non-structural, aggregated engineering approach [37
]. Changes in empirical methods and higher data availability at shipment level have allowed for more detailed, disaggregated and behavioural intuitions [38
]. The overarching needs for e.g., GHG emission reductions is likely to affect the transport sector severely. Rapid and/or radical changes in the transport sector may give rise to such profound changes as to make the existing modelling approach hardly usable and less reliable. One can no longer realistically assume a stable context thus the traditional mechanistic model approach is unserviceable. One needs to evaluate possible alternatives capable of adequately deal with current challenges that include heterogeneity, correlation both in preferences and in the decision-making process/architecture.
All this said, one important question emerges: what are the practical implications when using DTs for urban freight policy-making and planning?
Firstly, one would have to abandon the idea that a DT it is a “perfect twin” of reality. Provocatively one could argue that a DT is a heterozygotes rather than a homozygotes twin of reality.
One could hence argue that a DT is de facto a conventional model that abstracts in a limited number of variables and processes from reality, but still abstracts. This distinction between a DT model and reality is what finally allows using a DT for policy-making and planning when employing it in a human-based context. DT models thus should be incomplete mirrors or twins of reality if they are going to be of any use in making sense of the world. We should conceive the DT as a metaphor expressing the desire of modellers to build models that are progressively closer to reality. Tomko and Winter [40
] suggest a more realistic and appropriate characterisation of a DT as a cyber–physical–social system
with sensing, agency and immune system properties. Following Tomko and Winter [40
], one can qualify these characterising properties as follows: (1) sensing—
the modelling approach is capable of sensing the environment and update its counterpart accordingly; (2) agency—
the model can change (both the physical and digital) the environment on the base of instructions deriving from the counterpart; (3) immune system—
the resilient model can moderate the system attempts to preserve its operational state. One can assimilate a cyber–physical–social system
to an organism with a brain where the digital counterpart interacts with reality via sensors, actuators and communication lines thus enabling agency. In this functional exemplification, the digital representation can interact with the real system thus enabling the realistic simulation of alternative physical systems.
Secondly, one has to be particularly careful when using DT modelling approach for policy-making and planning purposes since one cannot realistically assume a stable long-term relationship between exogenous and endogenous variables. Zheng et al. [41
] define a DT as “an integrated system that can simulate, monitor, calculate, regulate, and control the system status and process”. While this might well be easily understood and accepted when involving a physical production process, where the relation between causes and effects can reasonably be considered stable, the same cannot realistically be assumed when the policies implemented are specifically targeted at changing stakeholders’ behaviour. For urban logistics planning purposes, these seemingly intrinsically unrealistic assumptions about DTs properties in our case will: (1) determine the robustness of the results the modelling approach can produce; (2) depend on the scope and breadth of the policy implemented; (3) hinge on the rapidity of its deployment; (4) be subject to the interconnections the policy has along the supply chain; (5) be contingent on the number/power of stakeholders it aims to influence. In fact, the relationship between causes and effects in urban freight is not a mere physical law as those governing gravity or electromagnetism, but is rather based on stakeholders’ preferences and utilities which, is reasonable to assume, are much less stable and predictable. Thus, having only raw data available, without knowing the underlying motivations that generated those observable data, is not of great use if one intends to control the process. This is especially so when dealing with a given policy deployed with the specific aim of changing the underlying relationship between causes and effects. In other words, whereas one can safely use DTs for short-term predictions, when one can assume a stable relationship between causes and effects, the same does not apply when using DTs for planning and long-term decisions
such as those characterising Sustainable Urban Mobility Plans. Furthermore, even in a short-term scenario, one should test rather than assume stability in the explained behavioural relations.
Thirdly, DTs can play a fundamental role when adopting a Living Lab approach in order to assist policy-making and planning. In fact, a Living Lab is usually organised around four basic and useful principles: (1) practical “real life” setting with implementation in the field; (2) multiple stakeholders; (3) co-creation of innovative solutions and end-user involvement; (4) iterative learning and development. All this is in line with the underlying logic of a DT approach. In fact, the basic idea behind a Living Lab approach is the recursive involvement of the stakeholders in the co-creation process which is also at the base of the DT functioning where the “real” and “digital” reality iteratively interact. Furthermore, the development of a DT would allow an “on-the-fly” check of the correspondence between the functions that are assumed to govern agents’ behaviour (estimated utility functions based on stated preference data) and those that actually drive their behaviour (real-life data collection after the policy is implemented). This would be useful for the recurrent planning process for two reasons. The first, and most obvious, is the development of a dynamic model of reality. The second has to do with the joint use of a DT and Living Lab approach to deeply involve all the interested stakeholders in the planning process. This could benefit also from the use of virtual reality tools to illustrate the future implications of current choices. DTs might help clarifying to the stakeholders participating in the planning process the likely implications a given choice taken now might have with respect to the whole system in the future thus potentially altering their current preferences and choices. In fact, being capable of realistically predicting the potential implications of a given policy, in a participatory policy-planning context centred on a Living Lab approach, is valuable, especially when operating within a complex system characterised by difficult-to-predict emerging phenomena. However, it is important to underline the high data updating frequency characterizing a DT model and compare this with a regular model, which typically needs a much lower data update frequency. This distinction is crucial to allow enough time for the DT to acquire some inputs from the real system so to provide the former with some diagnostic function thanks to latency. These considerations clarify the role DTs can play in increasing awareness, shortening understating lag time and modifying perceptions of not-yet-implemented policies.
The fourth point, linked to the third one, relates to the contribution of DTs to improved impact visualization and realism to aid urban freight transport planning and decision-making. DTs can be used to visualise complex and perhaps abstract causes and effect relationships
, e.g., to what extent urban design principles from theory (cityscapes, building design, transport systems etc.) applied on the urban case in question are met by the proposed plan or project through a visual comparison. Another example could be the location of a micro-hub in the middle of a residential area, where a DT through visualization could enhance the understanding of the changes in the number of in-/outbound cargo movements, with what type of vehicles, and how the hub in various physical shapes could actually look like. One could also simulate and visualise how other structures like a new shopping mall will affect its surroundings and the various flows. On a more macro-oriented level, a DT could also help to visualise flows and impacts of changes in the urban freight network, based on some underlying model(s). Visualisation tools, such as DTs, provide a way of transferring the complex ideas underpinning design and planning into more intuitive thus accessible visual forms. One can use DTs to foster and possibly shape a common understanding of problems and solutions [42
]. Visualisations have also been criticised, when presented in a way that aims to persuade the public of a projects value or steer the public towards a specific direction [43
]. For this reason, it is important that plans and visualisation tools are accurate and realistic when presenting scenarios while should always adopt a multiple stakeholder perspective [42
]. DTs represent a valid and useful complement to the currently used paper-based drawings, sketches and maps [46
To summarise, today, data exist in such an unprecedented dimensionality and granularity, in most of the research contexts we are working in, even if for complex systems such as urban freight, we often do not have the quality nor the quantity of the data we would like to have. We live in a progressively more complex world in which the behaviour of different stakeholders aggregates to produce novel and unexpected phenomena. Nevertheless, it is not possible to make sense of what happens in the real world without a sound theory and knowledge with respect to the relationships linking contextual reality and choice/behaviour that one might call deep causality
. Data are an instrument not a goal, and they do not speak for themselves. One should simply acknowledge what was clearly stated by the Nobel Prize winner political-economist Elinor Ostrom [49
] (p. 430) when she said: “It is not possible yet to point to a single theory of human behaviour that has been successfully formulated and tested in a variety of settings”. In other words, a model of human behaviour should in principle be capable of describing and predicting how people cooperate, vote, start protests, get married, divorce, chose to wear a fashionable pair of trousers, invest in stocks or even become addicted to alcohol or drugs. To account both for coherence and allow for variety, one can either consider people acting as rule-based or rational actors. Rules can be, of course, fixed or adaptive since a rational actor would adapt his/her rule-based decision-making process on the evidence produced by his/her choice given the rule adopted to take it. This distinction, while clear in principle, can become totally blurred in practice. One should simply acknowledge that the modelling approach adopted much depends both on the context as well as on the goals pursued.

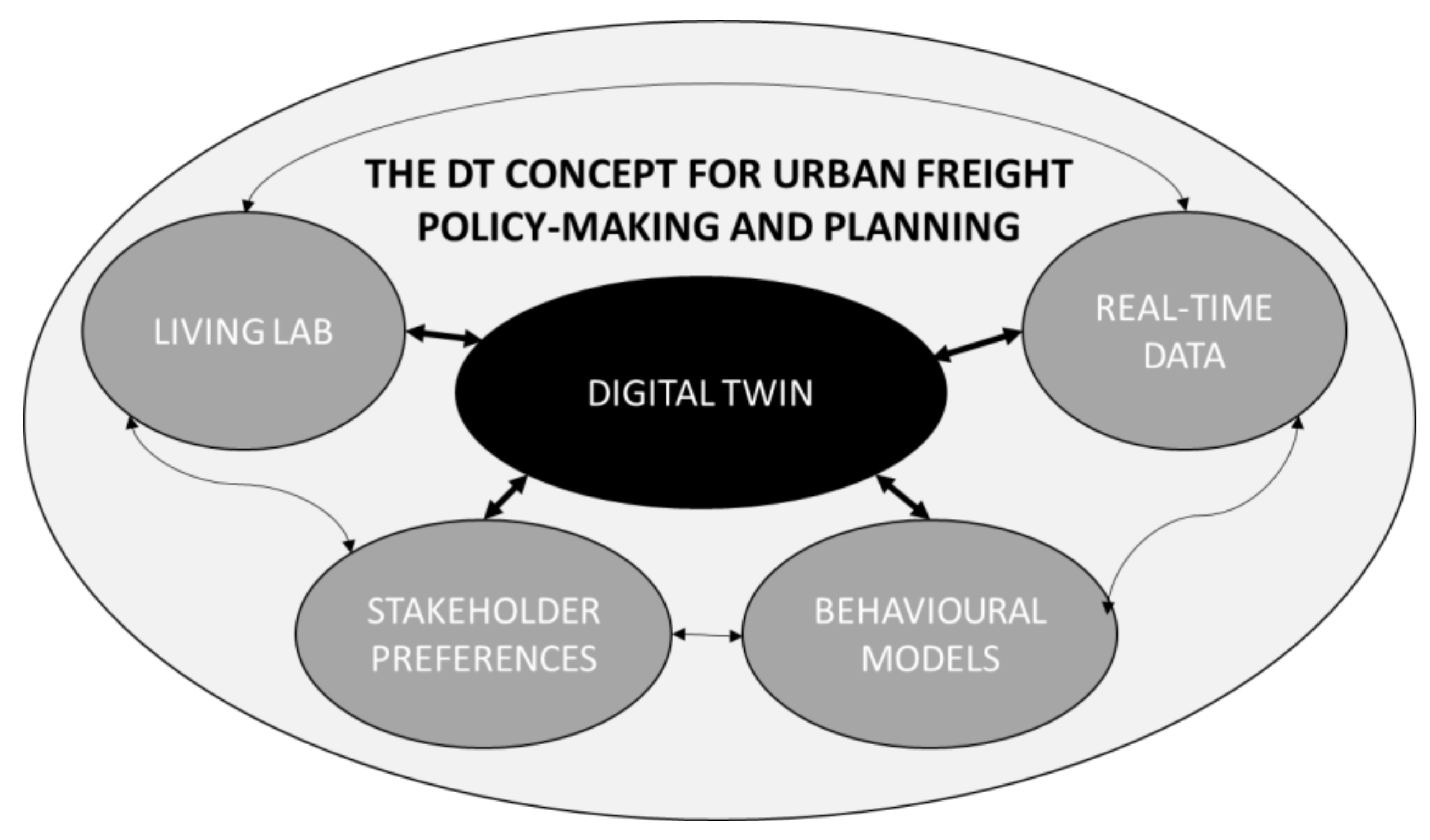

summarises the DT concept applied to urban freight transport policy-making and planning. A good DT model of the urban freight transport ecosystem is fundamentally based on real-time data, which can also stem from a Living Lab approach with the co-creation and implementation of policies, but it also strongly relies on stakeholder preferences and their dynamic choices and behaviours. These are in turns intertwined with the Living Lab approach, which accounts for stakeholder involvement in the planning process, and on behavioural models capable of predicting the impact of different scenarios on stakeholder behaviours and choices. Only by looking at the overall picture it will be possible to use the DT approach as a suitable support-tool for policy-making and planning in urban freight transport. Practical implications of the approach proposed refer to the: (1) greater robustness of the predictions; (2) higher reliability in defining the most appropriate intervention policies and (3) more effectiveness of the solutions identified.
5. Conclusions and Future Research
This paper discusses theoretically grounded issues that one should explicitly consider when using a DT-based modelling approach within a planning-intense context given the implications that might derive from its adoption. In particular, we considered the urban freight transport planning and policy-making environment, which has some peculiarities that make it different from other (transport) planning contexts. Under this respect, a general lack of knowledge and data, heterogeneity of stakeholders and need of policy packaging to address different objectives are main aspects to consider when dealing with this important, yet sometimes overlooked, component of city planning [50
Three main conclusions can be derived from the analysis presented.
I. A DT system cannot be fully representative of the reality of urban freight transport. This is due to the often cited and widely recognised deep complexity of an urban freight distribution system, on one side, the lack of readily available data to continuously feed the model on the other and, most importantly, the instability of the relationships describing agents’ behaviour. In fact, DTs are using data recursively from reality as inputs for the model, which are, in turn, used to forecast policy’s impact on reality assuming a stable underlying behavioural relationship between causes and effects. This approach, though reasonable in developing a product or predicting necessary maintenance, cannot be simply assumed as realistic and valid when the purpose of the intervention is exactly modifying how stakeholders react to “reality”. This seems even more problematic when jointly considering heterogeneity, non-linearity and correlation among stakeholders’ utility functions, which one needs to consider in an urban freight context when trying to provide realistic explanations of behaviours. The use of DTs has to undergo a scrupulous scrutiny in terms of internal validity and appropriateness for policy-making, since one cannot exclude that by choosing appropriate starting values and taking specific behavioural assumptions/relationships one can, in principle, substantially steer and manoeuvre the decision-making process. Furthermore, one should use this methodological approach with caution especially for long-term predictions when the stability assumption of the behavioural relationships between exogenous and endogenous variables is even less defensible.
II. DTs can play a very important role in supporting experimentation/piloting in urban logistics planning and policy-making, in general, and for its on-demand component, in particular. Using DTs to inform stakeholders about the future implications of a given policy in order to structure and reinforce their information set could allow for a more informed decision process. This is particularly important in a participatory planning environment. The recognition lag of the consequences, in fact, largely depends on the capability of the modelling approach to promote stakeholders’ awareness on the implications the about-to-be-implemented policy might have on them. This is extremely relevant since, in this complex and articulated system, stakeholders’ primary reactions might have non-negligible impacts on secondary reactions. This might well support participatory planning processes as well as affecting the final equilibrium conditions and preferences.
Paradoxically, the intrinsically daunting characteristics of an urban freight distribution system are exactly those that make it appropriate to use in a joint DT and Living Lab approach assuming the modeller and the decision-makers are well aware of the operating characteristics and limitations the specific context poses on the planning procedures adopted. If correctly conceived and deployed this process should be capable of producing knowledge and reliable simulations of the impacts potential policy deployment might have on the system itself.
III. Behavioural and simulation models are the two elements to use jointly when modelling urban freight transport.
Whereas the former proceed from stakeholders’ random utility functions to calculate the most probable choice behaviour, the latter dynamically replicate reality. In fact, this is not only useful to stimulate an effective, well-informed and participated planning process but also to forecast both behaviour and reactions to structural changes and policy measures implementations. This is reinforced when considering the public-private urban context this phenomenon is taking place. This approach is also beneficial when adopting a Physical Internet perspective to urban freight distribution, which represents one of the most innovative and forward-looking vision to ensure an increase in efficiency coupled with the achievement of an environmental economic and social sustainability goal. The European Technology Platform ALICE (Alliance for Logistics Innovation through Collaboration in Europe, http://www.etp-logistics.eu/
) acknowledges the need for an all-encompassing strategy on logistics, supply chain planning and control in which shippers and logistics service providers cooperate aiming for efficient operations. This perspective allows for both virtuous competitions and relevant cooperation.
The focus of future urban freight modelling research will revolve around: (1) microeconomic explanations of stakeholders’ choices; (2) structural policy impact assessment/evaluation; (3) real time data modelling integration. When considering the three main urban freight modelling pillars one should always have clear in mind that the pace of technological innovation (i.e., digitalisation and automation) is deeply and rapidly transforming the logistic industry with logistic chains responding to new opportunities by developing digital services and new business models that imply profound reorganisations and new labour structures. Stakeholders’ preferences might undergo swift and deep changes in the future. One of the main changes revolves around business “servitization” that is now attracting substantial research interests as the special issue on “Product-service innovation systems: Opening-up servitization-based innovation to the manufacturing industry” in the Journal “International Journal of Operations & Production Management” testifies (see also Tukker [51
Furthermore, the convergence process in an opinion dynamic modelling framework will be recursive in nature, especially considering the manifestation of possible peer effects influencing the planning process [52
]. There can be some advantages when using statistical science-based surrogate modelling with preference-based assessment procedures to recursively build, update and validate predictive models as it has been demonstrated in the case of manufacturing design preferences [53
]. It is, in fact, appropriate to investigate, as research in neurosciences has made clear, how preferences emerge, why they might change and how they can be influenced.
An illuminating article by Tavasszy [54
] discusses the effects of logistic innovations on freight systems. The paper argues that qualitative understanding of logistic innovations is a prerequisite to develop quantitative analysis and correct transport policy predictions. The article convincingly discusses three fundamental tenets that should characterise a modelling approach capable of dealing under these circumstances. In particular, it argues that there is a need for model improvements with respect to: (1) structural elements of the system that is modelled; (2) functional relations among those elements; (3) dynamic properties. Innovation, modelling, policy planning and implementation are not only intertwined, but one should also treat them jointly so to avoid inconsistent/unreliable modelling/forecasting outputs.
In this respect, we suggest working more, both theoretically as well as empirically, with DTs in urban freight planning and policy-making since the two elements are not only conceptually linked but are also needed to foster improvements. Providing an application of the proposed approach to a real case will show its practical feasibility and usefulness, as well as the improvements, compared to alternative approaches. At the same time, one should properly address dynamics and uncertainty in models and data, while also clearly stating both the limitations and the possible intrinsic shortcomings of the approach used.
