Artificial Intelligence-Enabled Traffic Monitoring System

Department of Civil and Environmental Engineering, University of Missouri-Columbia, E2509 Lafferre Hall, Columbia, MO 65211, USA
WSP USA, 211 N Broadway Suite 2800, St. Louis, MO 63102, USA
Author to whom correspondence should be addressed.
Sustainability 2020, 12(21), 9177;
Submission received: 29 September 2020 / Revised: 29 October 2020 / Accepted: 29 October 2020 / Published: 4 November 2020


Manual traffic surveillance can be a daunting task as Traffic Management Centers operate a myriad of cameras installed over a network. Injecting some level of automation could help lighten the workload of human operators performing manual surveillance and facilitate making proactive decisions which would reduce the impact of incidents and recurring congestion on roadways. This article presents a novel approach to automatically monitor real time traffic footage using deep convolutional neural networks and a stand-alone graphical user interface. The authors describe the results of research received in the process of developing models that serve as an integrated framework for an artificial intelligence enabled traffic monitoring system. The proposed system deploys several state-of-the-art deep learning algorithms to automate different traffic monitoring needs. Taking advantage of a large database of annotated video surveillance data, deep learning-based models are trained to detect queues, track stationary vehicles, and tabulate vehicle counts. A pixel-level segmentation approach is applied to detect traffic queues and predict severity. Real-time object detection algorithms coupled with different tracking systems are deployed to automatically detect stranded vehicles as well as perform vehicular counts. At each stage of development, interesting experimental results are presented to demonstrate the effectiveness of the proposed system. Overall, the results demonstrate that the proposed framework performs satisfactorily under varied conditions without being immensely impacted by environmental hazards such as blurry camera views, low illumination, rain, or snow.

1. Introduction

Monitoring traffic effectively has long been one of the most important efforts in transportation engineering. Till date, most traffic monitoring centers rely on human operators to track the nature of traffic flows and oversee any incident happening on the roads. The processes involved in manual traffic condition monitoring can be challenging and time-consuming. As humans are prone to inaccuracies and subject to fatigue, the results often involve certain discrepancies. It is, therefore, in best interests to develop automated traffic monitoring tools to diminishing the workload of human operators and increase the efficiency of output. Hence, it is not surprising that automatic traffic monitoring systems have been one of the most important research endeavors in intelligent transportation systems. It is worthwhile to note that most present-day traffic monitoring activity happens at the Traffic Management Centers (TMCs) through vision-based camera systems. However, most existing vision-based systems are monitored by humans which makes it difficult to accurately keep track of congestion, detect stationary vehicles whilst concurrently keeping accurate track of the vehicle count. Therefore, TMCs have been laying efforts on bringing in some levels of automation in traffic management. Automated traffic surveillance systems using Artificial Intelligence (AI) have the capability to not only manage traffic well but also monitor and access current situations that can reduce the number of road accidents. Similarly, an AI-enabled system can identify each vehicle and additionally track its movement pattern characteristic to identify any dangerous driving behavior, such as erratic lane changing behavior. Another important aspect of an AI-enabled traffic monitoring system is to correctly detect any stationary vehicles on the road. Oftentimes, there are stationary vehicles which are left behind and that impedes the flow of preceding vehicles and causes vehicles to stack up. This results in congestion that hampers the free mobility of vehicles. Intelligent traffic monitoring systems are thus an integral component of systems needed to quickly detect and alleviate the effects of traffic congestion and human factors.
In the last few years, there has been extensive research on machine and deep learning-based traffic monitoring systems. Certain activities such as vehicle count, and traffic density estimation are limited by the process of engaging human operators and requires some artificial intelligence intervention. Traffic count studies for example require human operators to be out in the field during specific hours, or in the case of using video data, human operators are required to watch man hours of pre-recorded footage to get an accurate estimation of volume counts. This can be both cumbersome and time-consuming. Similarly, when it comes to seeing traffic videos from multiple CCTV cameras, it becomes extremely difficult to analyze each traffic situation in real time. Therefore, most TMCs seek out deploying automated systems that can, in fact, alleviate the workload of human operators and lead to effective traffic management system. At the same time, the associated costs are comparatively lower due to savings associated with not needing to store multiple hours of large video data. In this study, we deployed several state-of-the-art deep learning algorithms based on the nature of certain required traffic operations. Traditional algorithms [1,2,3] often record lower accuracies and fail at capturing complex patterns in a traffic scene; hence, we tested and deployed deep learning-based models trained on thousands of annotated traffic images. Thus, the proposed system as shown in Figure 1 can perform the following:
  • Monitoring traffic congestion
  • Traffic accidents, stationary or stranded vehicle detection
  • Vehicle detection and count
  • Managing traffic using a stand-alone Graphical User Interface (GUI)
  • Scaling traffic monitoring to multiple traffic cameras.

2. Literature Review

In the past few years, several vision-based systems have been studied to automatically monitor traffic. We broadly discuss some of the related articles focused on congestion prediction, traffic count and anomaly detection.

2.1. Deep Learning Frameworks for Object Detection and Classification

There are two main ways through which video-based congestion monitoring systems function. The first instance is the method based on “three-step inference” and the other one is the “one-step-classification” approach. Willis et al. in [5] studied traffic queues classification using deep neural networks on traffic images. The researchers trained a two-phase network using GoogLeNet and a bespoke deep subnet, and applied that in the process of detecting traffic network congestion. Chakraborty et al. in [6] used traffic imagery and applied both deep convolutional neural networks (DCNN) and You Only Look Once (YOLO) algorithms in different environmental set-ups. Similarly, for inference-based approaches, Morris et al. proposed a portable system for extracting traffic queue parameters at signalized intersections from video feeds [7]. For that, they applied image processing techniques such as clustering, background subtraction, and segmentation, to identify vehicles and finally tabulated queue lengths for calibrated cameras at different intersections. Fouladgar et al. in [8] proposed a decentralized deep learning-built system, wherein every node precisely predicted each of its congestion states based on their adjacent stations in real-time conditions. Their approach was scalable and could be completely decentralized to predict the nature of traffic flows. Likewise, Ma et al. in [9] proposed an entirely automated deep neural network-based model for analyzing spatiotemporal traffic data. Their model first uses convolutional neural network to learn the spatio-temporal features. Later, a recurrent neural network is trained by utilizing the output of their first-step model that helps categorize the complete sequence. The model could be feasibly applied at studying traffic flows and predicting congestion. Similarly, Wang et al. in [10] introduced a deep learning model that uses an RCNN structure to continuously predict traffic speeds. Using their model and integrating the spatio-temporal traffic information, they could identify the sources of congestion on city ring-roads. Carli et al. in [11] proposed an automatic traffic congestion analysis in urban streets. They used GPS-generated data to generalize traffic characteristics. Likewise, in this paper, the authors have demonstrated the usage of a video-based congestion monitoring system which might not be as accurate as the GPS-based technique but are sturdy and yield lower operating costs. Furthermore, as congestion occurs frequently on urban roadways, identifying different indicators for effectively planning transportation systems would be beneficial [12].
Popular object detection frameworks such as Mask R-CNN [13], YOLO [14], Faster R-CNN [15], etc. have been utilized far and beyond in the field of intelligent transportation systems (ITS). However, another state-of-the-art object detector called CenterNet [16] has not had enough exposure in ITS. So far, object detection using CenterNet has been successfully applied in the fields of robotics [17,18], medicine [19,20,21], phonemes [22], etc. Its faster inference speed and shorter training time have made it popular for real-time object detection [23]. In this study, the authors deploy several state-of-the-art object detectors including CenterNet. The use of CenterNet in the of context of ITS for studying counting problems, as applied in this study, is a novel idea worth looking into, which could also further serve as literature for future studies in this area.

2.2. Vision-Based Traffic Analysis Systems

Most existing counting methods could be generally categorized as detection instance counter [24,25] or density estimator [25,26]. Detection instance counters localize every car exclusively and then count the localization. However, this could hold a problem since the process requires scrutinizing the whole image pixel by pixel to generate localization. Similarly, occlusions could create another obstacle as detectors might merge overlapping objects. In contrast, density estimators work in an instinctive manner of trying to create an approximation of density for countable vehicles and then assimilating them over that dense area. Density estimators usually do not require large quantities of training data samples, but are generally constrained in application to the same scene where the training data are collected. Chiu et al. in [27] presented an automatic traffic monitoring system that implements an object segmentation algorithm capable of vehicle recognition, tracking and detection from traffic imagery. Their approach separated mobile vehicles from stationary ones using a moving object segmentation technique that uses geometric features of vehicles to classify vehicle type. Likewise, Zhuang et al. in [28] proposed a statistical method that performs a correlation-based estimation to count city vehicles using traffic cameras. For this, they introduced two techniques, the first one using a statistical machine learning approach that is based on Gaussian models, and the second one using the analytical deviation approach based on the origin–destination matrix pair. Mundhenk et al. in [29] created a dataset of overhead cars and deployed a deep neural network to classify, detect and count the number of cars. To detect and classify vehicles, they used a neural network called ResCeption. This network integrates residual learning with Inception-style layers that can detect and count the number of cars in a single look. Their approach is superior in getting accurate vehicle counts in comparison to the counts performed with localization or density estimation.
Apart from congestion detection and vehicle counts, various articles have been reviewed to study anomaly detection systems. Kamijo et al. in [30] developed a vehicle tracking algorithm based on spatio-temporal Markov random fields to detect traffic accidents at intersections. The model presented in their study was capable of robustly tracking individual vehicles without their accuracies being greatly affected by occlusion and clutter effects, two very common characteristics at most busy intersections which pose a problem for most models. Although traditionally, spot sensors were used primarily for incident detection [31], the scope of their use proved to be rather trivial for anomaly detection systems. Vision-based approaches have therefore been utilized far and beyond mostly due to their superior event recognition capability. Information such as traffic jams, traffic violations, accidents, etc. could be easily extracted from vision-based systems. Rojas et al. in [32] and Zeng et al. in [33] proposed techniques to detect vehicles on a highway using a static CCTV camera, while, Ai et al. in [34] proposed a method to detect traffic violation at intersections. The latter’s approach was put into practice on the streets of Hong Kong to detect red light runners. Thajchayapong et al. proposed an anomaly detection algorithm that could be implemented in a distributed fashion to predict and classify traffic abnormalities in different traffic scenes [35]. Similarly, Ikeda et al. in [36] used image-processing techniques to automatically detect abnormal traffic incidents. Their method could detect four different types of traffic anomalies such as detecting stopped vehicles, slow-speed vehicles, dropped objects and the vehicles that endeavored to change lanes consecutively.

3. Proposed Methodology

The methodology adopted for implementing an automatic traffic monitoring system is shown in Figure 2. The main components consist of, first, a GPU-enabled backend (on premise) which is designed to ensure that very deep models can be trained quickly and implemented on a wide array of cameras in near real time. At the heart of the proposed AI-enabled traffic monitoring system is the development and training of several deep convolutional neural network models that are capable of detecting and classifying different objects or segmenting a traffic scene into its constituent objects. Manually annotated traffic images served as the main source of dataset used for training these models. To enable the system to be situationally aware, different object tracking algorithms are implemented to generate trajectories for each detected object on the traffic scene at all times. The preceding steps are then combined to extract different traffic flow variables (e.g., traffic volume and occupancy) and monitor different traffic conditions such as queueing, crashes and other traffic scene anomalies. The AI-enabled traffic monitoring system is capable of tracking different classes of vehicles, tabulating their count, spotting and detecting congestion and tracking stationary vehicles in real time.
Some of the deep learning algorithms used in the study are explained in detail as follows:

3.1. Faster R-CNN

Faster R-CNN is a two-stage target detection algorithm [15]. In Faster-RCNN, a Region Proposal Network (RPN) shares complete-image convolutional features along with a detection network that enables cost-free region proposals. Here, the RPN simultaneously predicts object bounds and their equivalent score values at each position. End-to-end training of RPN provides high-class region proposals which is used by Faster R-CNN to achieve object predictions. Compared to Fast R-CNN, Faster R-CNN produces high-quality object detection by substituting selective search method with RPN. The algorithm splits every image into multiple sections of compact areas and then passes every area over an arrangement of convolutional filters to extract high-quality feature descriptors which is then passed through a classifier. After that, the classifier produces the probability of objects in each section of an image. To achieve higher prediction accuracies on traffic camera feeds, the model is trained for five classes viz. pedestrian, cyclist, bus, truck and car. Training took approximately 8 h on NVIDIA GTX 1080Ti GPU. The model processed video feeds at 5 frames per second.

3.2. Mask R-CNN

Mask R-CNN, abbreviated from Mask-region based Convolutional Neural Network, is an extension to Faster R-CNN [13]. In addition to accomplishing tasks equivalent to Faster R-CNN, Mask R-CNN supplements it by adding superior masks, and sections the region of interest pixel-by-pixel. The model used in this study is based on Feature Pyramid Network (FPN) and is executed with resnet101 backbone. In this, ResNet101 served as the feature extractor for the model. While using FPN, there was an improvement in the standard feature extraction pyramid by the introduction of another pyramid that took higher level features from the first pyramid and consequently passed them over to subordinate layers. This enabled features at each level to obtain admission at both higher and lower-level characters. In this study, the minimum detection confidence rate was set at 90% and run at 50 validation steps. An image-centric training approach was followed in which every image was cut to the square’s shape.
The images were converted from 1024 × 1024px × 3 (RGB) to a feature map of shape 32 × 32 × 2048 on passing through the backbone network. Each of our batch had a single image per GPU and every image had altogether 200 trained Region of Interests (ROIs). Using a learning rate of 0.001 and a batch size of 1, the model was trained on NVIDIA GTX 1080Ti GPU. A constant learning rate was used during the iteration. Likewise, a weight decay of 0.0001 and a learning momentum of 0.9 were used. The total training time for the model training on a sample dataset was approximately 3 h. The framework for Mask-RCNN is shown in Figure 3.

3.3. YOLO

You Only Look Once (YOLO) is the state-of-the-art object detection algorithm [14]. Unlike traditional object detection systems, YOLO investigates the image only once and detects if there are any objects in it. In this study, YOLOv4 was used to perform vehicle detection, counts, and compare results for traffic queues generation. Most contemporary object detection algorithms repurpose CNN classifiers with an aim of performing detections. For instance, to perform object detection, these algorithms use a classifier for that object and test it at varied locations and scales in the test image. However, YOLO reframes object detection, i.e., instead of looking at a single image thousand times to perform detection, it just looks at the image once and performs accurate object predictions. A singe CNN concurrently predicts multiple bounding boxes and class probabilities for those generated boxes. To build YOLO models, the typical time was roughly 20–30 h. YOLO used the same hardware resources for training as Mask R-CNN.

3.4. CenterNet

CenterNet [16] discovers visual patterns within each section of a cropped image at lower computational costs. Instead of detecting objects as a pair of key points, CenterNet detects them as a triplet thereby, increasing both precision and recall values. The framework builds up on the drawbacks encountered by CornerNet [37] which uses a pair of corner keypoints to perform object detection. However, CornerNet fails at constructing a more global outlook of an object, which CenterNet does by having an additional keypoint to obtain a more central information of an image. CenterNet functions on the intuition that if a detected bounding box has a higher Intersection over Union (IOU) with the ground-truth box, then the likelihoods of that central keypoint being in its central region and being labelled in the same class are high. Hence, the knowledge of having a triplet instead of a pair increases CenterNet’s superiority over CornerNet or any other anchor-based detection approaches. Despite using a triplet, CenterNet is still a single-stage detector but it partly receives the functionalities of RoI pooling. Figure 4 shows the architecture of CenterNet where it uses a CNN backbone that performs cascade corner pooling and center pooling to yield two corner and a center keypoint heatmap. Here, cascade corner pooling enables the original corner pooling module to receive internal information whereas center pooling helps center keypoints to attain further identifiable visual pattern within objects that would enable it to perceive the central part of the region. Likewise, analogous to CornerNet, a pair of detected corners and familiar embeddings are used to predict a bounding box. Then, the final bounding boxes are determined using the detected center keypoints.
The following sections give out a brief description of several traffic operations that could be seamlessly automated.

3.5. Monitoring Traffic Queues

The methodology adopted for an automatic queue monitoring system is shown in Figure 5. The first step of performing annotation was achieved using a VGG Image Annotator [38]. In the follow up, annotated images were used to train both Mask R-CNN and YOLO models. The training times for Mask R-CNN and YOLO were approximately 3.5 and 22 h, respectively. After training was done, these models were run on real-time traffic videos to evaluate their performance. The main reason for using Mask R-CNN was due to its ability to obtain pixel-level segmentation masks that made queue detections precise. Since YOLO uses a bounding box to perform detection, it covers areas that are both congested and non-congested. Therefore, Mask-RCNN has an advantage over YOLO when it comes to precisely predicting classified regions of interest.

3.6. Detecting Stationary Vehicles

Figure 6 shows the proposed methodology for detecting stationary or stranded vehicles. To begin the process, a YOLO model is trained to perform vehicle detection. Then, detections are tracked using an Intersection over Union (IOU) process and each vehicle trajectory is plotted from traffic scenes. Tracking results are then used to sketch certain travel directions (east, west, north or south), the kind of road being analyzed (i.e., either intersection or freeway), and the predicted speed of tracked vehicles. The results of tracking are later used to state discrete travel directions, road type and estimated vehicular speed. For certain types of roadway, if the vehicular speed falls under a specific threshold for a certain amount of time, then the model is able to detect that the vehicle is stationary.

4. Data Description

Traffic camera images served as the primary source of the dataset used in this study. The images were obtained from Iowa 511, New York State DOT, RITIS, Iowa DOT Open Data and Louisiana Department of Transportation and Development. Altogether, 18,509 images were used for training and validation purposes. The datasets consisted of images taken at different times of the day in varied environmental conditions. Intersection, freeway and work-zone images were included in both training and testing samples. These images were used to train and validate deep learning models meant to carry out the processes of congestion detection, stationary vehicle tracking, and vehicle counting. For anomaly detection, traffic videos from NVIDIA AI City Challenge were used to test the effectiveness of the proposed model. Eventually, the model was assessed on 100 CCTV video feeds with different kinds of anomalies on irregular traffic and weather patterns [39].

5. Results

In this section, we evaluate the performance of Traffic queues, Anomaly detection system and Automatic vehicle counts.

5.1. Traffic Queues Detection

The performance of Mask R-CNN was tested on 1000 traffic camera images (500 congested and 500 uncongested) and a comparative analysis is carried out with a classical YOLO framework. Standard performance metrics of precision, recall and accuracy, as shown in Equations (1), (2) and (3), respectively, were used to test the models. Then, the results of a real-time implementation of Mask R-CNN are shown at an intersection.
P r e c i s i o n = T P T P   +   F P
R e c a l l = T P T P   +   F N
A c c u r a c y = T P T P   +   F P +   T N   +   F N
In the Figure above, Figure 7a,b are presented as being actual predictors of congestion and are predicted as true positives (TP). Figure 7a,b shows the detections made by YOLO and Mask-RCNN, respectively. Mask R-CNN predicts congestion using a pixel-wise segmentation method while YOLO predicts congestion through a bounding box approach. Similarly, Figure 7c,d were the misclassifications and thus, classified as false positives (FP). In Figure 7d, Mask R-CNN incorrectly predicted an uncongested image as congested due to the presence of a distant platoon of vehicles present in the image. The existence of an overhead bridge might have caused YOLO to make a mistake in Figure 7c. Example of false negatives (FN) are shown in Figure 7e,f where both Mask R-CNN and YOLO were unsuccessful at detecting queues. The reason could be that the platoon of vehicles was far away from the camera (Figure 7e) and glaring issues (Figure 7f). Figure 7g,h correctly predicted uncongested images as true negatives (TN). Table 1 shows the Precision, Recall and Accuracy values obtained for Mask R-CNN and YOLO models in correctly predicting traffic queues.

A Case Study for Studying Traffic Queues

A case study was conducted in which the Mask R-CNN model was implemented in real time for monitoring queues at an intersection. It is imperative to note that the alterations in video camera perspective often made it challenging to extract traffic queue parameters from frame scenes. A typical course around this was to adjust the camera to a specific height, observing angle, zoom level, etc. Although this might be effective, it is not scalable. Another alternative to this approach could be to directly use image pixel values to characterize queue parameters. While using this method, queue information from one spot could not be compared to a different location since the camera geometric features could possibly differ. In the steps described below, we develop a simple, standardized calibration-free approach for extracting queue length parameters from traffic video feeds. This approach is scalable and is useful in comparing queuing levels at different locations.
  • Step 1: Extract queue regions from traffic video feeds with Mask RCNN.
  • Step 2: Calculate the pixel length of each detected queue mask.
  • Step 3: Accumulate length over time (minimum duration is 1 week).
  • Step 4: Use adaptive thresholding (Figure 8) to bin queue lengths into different severity levels: low, medium and high.
  • Step 5: Generate heat map of queuing levels and finally, compare.
The Mask R-CNN framework was used to quantify queuing levels at an intersection. The heat map shown in Figure 9 clearly captures the onset and dissipation of queues. The heat map for the intersection could detect both AM and PM peak hours.

5.2. Stationary Vehicle Detection

Faster R-CNN and YOLO algorithms were deployed to study stationary vehicles. To comprehend and compare the test results for both Faster R-CNN and YOLO frameworks, confusion matrices and F-1 scores were used. The confusion matrix represents accuracy levels for different sections of image classification. Overall, 25 test results are shown in a 5 × 5 table that is referred to as a confusion matrix. Here, each row shows the actual number of predictions and total number of each row implies the number of targets predicted for that class. Likewise, every column signifies the true number of targets while the total number of each column represents the actual number of targets for that class. Similarly, the F-1 score shown in Equation (4) is used to compare the performance of both Faster R-CNN and YOLO models. The results obtained for confusion matrix and F-1 scores are shown in Table 2 and Table 3.
F 1 = 2   ×   P r e c i s i o n   ×   R e c a l l P r e c i s i o n + R e c a l l
As seen from Table 2, the performance of both Faster R-CNN and YOLO models were similar. Faster R-CNN was relatively inferior in detecting cyclists and buses but was better at detecting trucks when compared to the performance of YOLO. Both models predicted cars and pedestrians with a 99% level of accuracy. From Table 3, it is understood that the cumulative F-1 score of YOLO was lower than that of Faster R-CNN. Additionally, the recall value for YOLO was lower, which implies that YOLO detects fewer objects on a traffic scene compared to Faster R-CNN. After comparing results in Table 3, it appears that Faster-RCNN was slightly better but comparable to YOLO. Therefore, any one of them could be used as an object detector.
Similarly, after the object detector spots any vehicle’s position on a traffic scene, the tracker is brought in to track the state of vehicles from a sequence of traffic video frames. Intersection over Union (IOU) and feature-based tracking systems have been deployed and further explained as follows:

Tracking Detection by IOU and Feature Tracker

Anomaly detection systems not only require a detector to correctly detect vehicles in the frames, but also need a tracker to distinguish the state and motion of each vehicle. After the detector predicts the position of vehicle in each frame, the tracker is liable for tracing vehicle trajectory based on a series of consecutive frames within a video file. After calculating the spatial overlap of object detection boxes in each consecutive video frame, an IOU allocates detections. Erik et al.’s IOU was implemented in this study [40]. As IOU trackers have lower computational cost, obtaining trajectories of vehicles is easy to attain and integrate to other higher-level trackers without affecting the computational speed. Frame rates even as high as 50,000 fps can be achieved with IOU. It is imperative to note that the IOU tracker is heavily reliant on how accurately predictions are done by object detection models. Road type is categorized based on the number of street directions detected. For more than two detected directions, the road type is categorized as either an intersection or an interchange. Likewise, for exactly two detected directions, the road is categorized as a freeway or, simply, a two-lane street. In Figure 10, the first image is classified as a freeway while the second image is an intersection.
In Feature-based object tracking, appearance information is used to track objects in a traffic scene. This method is useful in tracking vehicles in an environment where occlusion frequently occurs. The system extracts object features from one frame and then matches appearance information with succeeding frames based on the level of similarity. The minimum value of cosine distance is suitable for calculating any resemblance between some of the characteristic features which is convenient for vehicle tracking. Besides, the results are compared between IOU and Feature Tracker based on the average switch rate for different environmental and video quality conditions. The switch rate measures how often a vehicle is assigned a new track number when it crosses a traffic scene. In simple terms, it is the ratio of vehicle switch to the actual number of vehicles.
In this study, an anomaly is defined as an event whereby any vehicle stops for 15 s or more, typically in a non-congested environment. To detect anomalies, the speed of every tracked vehicle is calculated over time. Based on that, any vehicle beyond the speed of 0.5 pixels per second over a 15 s time interval is characterized as a probable anomaly. Likewise, the direction of travel and the type of road are used to decide the possibility of anomaly in post-processing steps. The impact of ID switches from the IOU tracker is fairly apparent in the second column of Figure 11. The detected traffic anomalies are shown in Figure 12. These anomalies are shown both prior to and after post-processing of the required steps. ID switches causes several anomalies to be detected at the same spot. In the post-processing step, an ID suppressing technique is used to decrease the number of anomalies. In order to achieve this, the first step is to detect multiple anomalies that remain close to one another which are then combined to one. After that, all the anomalies are merged based on the direction of roadway. The assumption made here is that only one anomaly exists on one side of the road within a 15-min time interval. Finally, traffic anomalies are plotted in case the roadway is either a freeway or a two-lane street and if the road is assessed as an intersection, then the anomaly is rejected and considered a false case.
The proposed traffic anomaly detection system was assessed on 100 traffic video feeds with varying traffic and weather patterns. The presence of frozen frames and pixelation effects in the assessment video dataset presented a major challenge in detecting anomalies. The IOU tracker used in the study conceived a single vehicle or a platoon of vehicles a possible anomaly even if the traffic stop sign dictated them to stop. Although this condition could not be classified as an anomaly, the IOU labelled them as such. Therefore, to overhaul this issue, it is important to determine whether a roadway is an intersection or a freeway. Based on the road type, any vehicle remaining stationary for over 30 s on a freeway was considered an anomaly and for an intersection, the time limit was set to 60 s. Similarly, IOU tracker’s competence was further challenged by video files that remained stuck for certain time periods. The videos often remained stuck for over a minute. In such cases, the IOU tracker detected the vehicle as a probable anomaly each time the video was frozen for longer time periods. This could, however, be classified as a false anomaly. While conducting the experiment, it was identified that although the video remained frozen for longer time periods, the speed of each vehicle in the frozen video remained 0, as it is the same video-frame scene. Since any vehicle’s speed in an accident is approximately 0, although not exactly zero, the rectangle surrounding it is in a somewhat swaying state. Therefore, all anomalies with a speed value of zero were categorized as false detections. To determine the performance of the proposed anomaly detection model, standard performance metrics of F1, Root Mean Square Error (RMSE) and S3 values were used. The equation used to compute the value of the S3 score is shown in Equation (5).
S 3 = F 1     ( 1   N R M S E )
As shown in Equation (5), NRMSE is the Normalized Root Mean Square Error. To compute the F-1 score, the value for the true positive is required. A true positive is defined as the one in which the detection of an anomaly is under the 10 s time frame from the actual. An anomaly can only be considered a true positive for a single anomaly. In other words, the same anomaly could not be counted twice. False positive cases are defined as ones that do not resemble true positives for certain occurrences. Similarly, false negatives are the type of anomalies that are true anomalies in nature but are missed by the model. Figure 13 shows some of the examples of true positive, false positive and false negative.
Errors in anomaly detection are represented by the root mean square error (RMSE). The RMSE value is calculated for the ground truth anomaly times and predicted anomaly times for any true positive’s detection. The S3 value is computed using the RMSE, which is normalized by NRMSE as seen from Equation (5). Normalization is carried out using a min–max normalization technique with the largest and lowest values set at 300 and 0, respectively. From Table 4, the F1 score is calculated to be 0.8333, meaning that the detector predicts nearly 83.3% of the total anomalies. However, due to the shortcomings in the dataset, specifically for vehicles situated distant from the camera, the model failed to spot anomalies in those situations.
The importance of anomaly detection algorithms extends the use-case beyond not only detecting traffic incidents in real-time, but also being able to properly and accurately measure and calculate their durations and secondary effects of such incidents, be it queue formations or the possibility of secondary downstream incidents of the formed queue. It is no surprise that traffic incidents account for a quarter of all roadway congestion in the United States [41]. Average clearance time for incidents reported through the HELP [42] program ranged between 42 min and 50 min. The usual approach to measuring the impact of traffic incidents utilizes deterministic queuing diagrams, coupled with an examination of the change of network capacity [43]. A challenge in achieving effective incident management is posed by the lack of accurate data that quantifies the impact of incidents, taking into account both their unique spatial and temporal attributes [44]. Traffic incident management response can benefit from the valuable insights extrapolated from the data derivable from detected incident situations, as well as the effects of the applied countermeasures, in order to improve on secondary responder deployment and coordination to the benefit and improvement of future situation management.

5.3. Vehicle Counts

With the advent of ITS, vehicle counts are often automated using either loop detectors or vision-based systems. Although inductive loops give out accurate traffic counts, they often have trouble distinguishing the type of vehicles (i.e., cars, trucks, buses, etc.) Not to forget that these detectors are intrusive. On the contrary, vision-based systems’ non-intrusive nature enables counts by different vehicle class types with high confidence scores [45,46]. Since accurate vehicle count enables TMCs and other transportation agencies to apply them in their day-to-day application areas, the significance of accurate vehicle counts cannot be ignored. Studies such as daily volume counts, travel times calculation, and traffic forecasts are all precursors of an accurate vehicle counting system. These parameters serve as important tools for optimizing traffic at different roadways. Similarly, counting information also enables engineers to obtain future traffic forecasts which in turn helps identify what routes are utilized extensively to lay out affirmative planning decisions.
In this study, we aim at developing a single look vehicle counting system that could automatically detect and tabulate the number of vehicles passing through the road. To accurately perform vehicular count, the vehicles are detected using object detectors and then traced through trackers. To obtain vehicle counts, the trackers are set an IOU threshold of 0.5 as shown in Equation (6) which helps correctly track vehicles and avoids multiple counts.
I O U = I n t e r s e c t i o n U n i o n
To assess the performance of the proposed models, the number of vehicles passing through the north and southbound directions were manually counted and compared against the automatic counts obtained from the combination of two different object detectors and trackers. CenterNet and YOLOv4 were the two different object detectors used in combination with IOU and Feature Tracker. For comparison, these frameworks were tested on a total of 546 video clips, each 1 min in length, comprising over 9 h of total video length.
Table 5 demonstrates the performance comparison of CenterNet and YOLOv4 models in different conditions. The performance of these detector–tracker frameworks is assessed by dividing the values obtained from them with the manually counted ground truths expressed in per hundredth or percentage. As seen from Table 5, the combination of YOLOv4 and Feature tracker obtained a reasonable counting performance for all the three different environmental conditions specified. For model combinations where a count percentage of over one hundred was achieved, there was clearly some fault in both detector and tracker. The reasoning behind the detector–tracker combination achieving over 100 percent accuracy is largely to do with the object detector generating multiple bounding boxes for the same vehicle. This resulted in overcounting of vehicles. Similarly, IOU at times did not do very well at predicting vehicle trajectories and identified them as disparate vehicles.
To study the performance of object detectors, heat maps showing false negatives (FN), false positives (FP) and true positives (TP) from left to right, are shown in Figure 14 for CenterNet and YOLOv4 models. YOLOv4 did well at detecting FN, however, CenterNet detected multiple vehicles as seen from the generated heat maps in its southbound direction. This was largely due to the insufficient number of traffic images used for training. Another possibility is that the model experienced heavy congestion at these locations due to the presence of heavy gross-weighted vehicles such as buses and trucks. The FP for object detectors are generally clean for both the object detectors which is ideal for this situation. Some instances of FP could be seen from YOLOv4 which could have resulted from the lower visibility or night-time conditions. For TP, both CenterNet and YOLOv4 models generated accurate predictions with an exclusion of a specific situation where the vehicles were too distant from the camera.

6. Front-End Graphical User Interface

React, [47] a JavaScript library, was used to build a front-end Graphical User Interface (GUI). The deep learning algorithms are made to run in the background on live-traffic video feeds. These algorithms record the state of traffic flows such as congestion, environmental conditions (i.e., rain, snow), etc., and display CCTVs for roadways on their front-end GUI with their constituent levels of traffic severity just by writing certain keywords. For example, a traffic operator at the TMC wants to know what camera locations spot congestion or estimate the number of vehicles on that section of the roadway. The operator can just do that by merely typing a bunch of keywords on the GUI’s input panel and the system would display the list of cameras that record congestion. Similarly, additional information such as vehicle counts on the camera locations helps operators extrapolate traffic density information at certain times of the day at that location. Factors such as weather information also hold great importance for studying traffic behavior. Out of many other functionalities, the proposed system also enables the operator to identify what camera locations observe different weather patterns such as if there is rain or snow in that particular moment in time. For instance, how would the traffic need to be managed in situations where recurring congestion occurs due to weather impacts such as heavy rainfall or snow storms. All this information serves as a useful tool in discerning appropriate traffic monitoring needs by quickly running over hundreds of cameras and enabling operators ease and accessibility in traffic surveillance. For further detail, please refer to [4] to see a quick demonstration of the developed GUI. Figure 15 shows the front-end GUI of the proposed system.

7. Conclusions

The rapid progression in the field of deep learning and high-performance computing has highly augmented the scope of video-based traffic monitoring systems. In this study, an automatic traffic monitoring system is developed that builds on robust deep learning models and facilitates traffic monitoring using a graphical user interface. Deep learning algorithms, such as Mask R-CNN, Faster R-CNN, YOLO and CenterNet, were implemented alongside two different object tracking systems viz. IOU and Feature Tracker. Mask R-CNN was used to detect traffic queues from real-time traffic CCTVs whereas YOLO and Faster R-CNN were deployed to predict objects which later coupled with object trackers were used to detect stationary vehicles. Mask R-CNN predicted traffic queues with 90.5% accuracy while the highest accuracy attained by YOLO was 93.7%. The discrepancy in correctly detecting queues was mainly due to the poor image quality, queues being distant from the camera and glaring effects. These issues significantly affected the accuracies of the proposed models. Similarly, the F1, RMSE and S3 scores for detecting stationary vehicles were 0.8333, 154.7741 and 0.4034, respectively. It was observed that the model correctly detected stranded vehicles which remained closer to the camera but faced difficulties while detecting distant stationary vehicles. Part of the problem for lower S3 scores was also due to issues such as video pixelation, and the presence of traffic intersections. Regardless, procedures such as anomaly suppression and video pixelation corrections were useful at improving the efficacy of the proposed model. It is worth noting that these corrections led to an effective stationary vehicle prediction system. Lastly, the performance of the vehicle counting framework was satisfactory for both CenterNet and YOLO combinations with Feature Tracker. However, the vehicle-counting framework could be further explored and the existing models be further fine-tuned to generate a near to perfect counting framework. This could in fact be ideal for most transportation agencies as they rely heavily on turning movement counts to optimize traffic signals at intersections.
In conclusion, the proposed models which form an integrated AI-enabled traffic monitoring system obtained superior results and could be useful at attaining some level of automation at Traffic Management Centers. It is worth mentioning that since most software suites sold by transportation vendor companies cost over hundreds of thousands of dollars, their functionalities are limited and they offer just a few more traffic surveillance capabilities than our proposed framework. In that case, the system proposed in this paper could be a cheaper and reliable alternative to bringing in some level of traffic automation by supplementing it with some additional low-cost back-up software suites.

Author Contributions

Conceptualization, Y.A.-G.; Data curation, V.M. and P.J.; Formal analysis, V.M. and Y.A.-G.; Investigation, V.M., P.J. and Y.A.-G.; Methodology, V.M. and P.J.; Project administration, Y.A.-G.; Software, V.M., Y.A.-G.; Supervision, Y.A.-G.; Validation, A.R.M.; Writing—original draft, V.M.; Writing—review & editing, A.R.M., P.J. and Y.A.-G. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Land, E.H. An alternative technique for the computation of the designator in the retinex theory of color vision. Proc. Natl. Acad. Sci. USA 1986, 83, 3078–3080. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Rahman, Z.-u.; Jobson, D.J.; Woodell, G.A. Multi-scale retinex for color image enhancement. In Proceedings of the 3rd IEEE International Conference on Image Processing, Lausanne, Switzerland, 19 September 1996; IEEE: Piscataway, NJ, USA; pp. 1003–1006. [Google Scholar]
  3. He, K.; Sun, J.; Tang, X. Single image haze removal using dark channel prior. IEEE Trans. pattern Anal. Mach. Intell. 2010, 33, 2341–2353. [Google Scholar] [PubMed]
  4. GitHub. Video Demonstration of a GUI based AI Enabled Traffic Monitoring System. Available online: (accessed on 30 September 2020).
  5. Willis, C.; Harborne, D.; Tomsett, R.; Alzantot, M. A Deep Convolutional Network for Traffic Congestion Classification. Available online: (accessed on 4 October 2020).
  6. Chakraborty, P.; Adu-Gyamfi, Y.O.; Poddar, S.; Ahsani, V.; Sharma, A.; Sarkar, S. Traffic congestion detection from camera images using deep convolution neural networks. Transp. Res. Rec. 2018, 2672, 222–231. [Google Scholar] [CrossRef] [Green Version]
  7. Morris, T.; Schwach, J.A.; Michalopoulos, P.G. Low-Cost Portable Video-Based Queue Detection for Work-Zone Safety; Technical Report No. 1129; Department of Civil Engineering, University of Minnesota: Minneapolis, MN, USA, 2011. [Google Scholar]
  8. Fouladgar, M.; Parchami, M.; Elmasri, R.; Ghaderi, A. Scalable deep traffic flow neural networks for urban traffic congestion prediction. In Proceedings of the 2017 International Joint Conference on Neural Networks (IJCNN), Anchorage, AK, USA, 14–19 May 2017; IEEE: Piscataway, NJ, USA; pp. 2251–2258. [Google Scholar]
  9. Ma, X.; Yu, H.; Wang, Y.; Wang, Y. Large-scale transportation network congestion evolution prediction using deep learning theory. PLoS ONE 2015, 10, e0119044. [Google Scholar] [CrossRef] [PubMed]
  10. Wang, J.; Gu, Q.; Wu, J.; Liu, G.; Xiong, Z. Traffic speed prediction and congestion source exploration: A deep learning method. In Proceedings of the 2016 IEEE 16th International Conference on Data Mining (ICDM), Barcelona, Spain, 12–15 December 2016; IEEE: Piscataway, NJ, USA; pp. 499–508. [Google Scholar]
  11. Carli, R.; Dotoli, M.; Epicoco, N.; Angelico, B.; Vinciullo, A. Automated evaluation of urban traffic congestion using bus as a probe. In Proceedings of the 2015 IEEE International Conference on Automation Science and Engineering (CASE), Gothenburg, Sweden, 24–28 August 2015; IEEE: Piscataway, NJ, USA; pp. 967–972. [Google Scholar]
  12. Litman, T. Developing indicators for comprehensive and sustainable transport planning. Transp. Res. Rec. 2007, 2017, 10–15. [Google Scholar] [CrossRef] [Green Version]
  13. He, K.; Gkioxari, G.; Dollár, P.; Girshick, R. Mask r-cnn. In Proceedings of the IEEE International conference on computer vision, Venice, Italy, 22–29 October 2017; pp. 2961–2969. [Google Scholar]
  14. Bochkovskiy, A.; Wang, C.-Y.; Liao, H.-Y.M. YOLOv4: Optimal Speed and Accuracy of Object Detection. Available online: (accessed on 4 October 2020).
  15. Ren, S.; He, K.; Girshick, R.; Sun, J. Faster r-cnn: Towards Real-Time Object Detection with Region Proposal Networks. Available online: (accessed on 4 October 2020).
  16. Duan, K.; Bai, S.; Xie, L.; Qi, H.; Huang, Q.; Tian, Q. Centernet: Keypoint triplets for object detection. In Proceedings of the IEEE International Conference on Computer Vision, Seoul, Korea, 27 October–2 November 2019; pp. 6569–6578. [Google Scholar]
  17. Rakhimkul, S.; Kim, A.; Pazylbekov, A.; Shintemirov, A. Autonomous object detection and grasping using deep learning for design of an intelligent assistive robot manipulation system. In Proceedings of the 2019 IEEE International Conference on Systems, Man and Cybernetics (SMC), Bari, Italy, 6–9 October 2019; IEEE: Piscataway, NJ, USA; pp. 3962–3968. [Google Scholar]
  18. Cui, X.; Lu, C.; Wang, J. 3D semantic map construction using improved ORB-SLAM2 for mobile robot in edge computing environment. IEEE Access 2020, 8, 67179–67191. [Google Scholar] [CrossRef]
  19. Liu, Y.; Zhao, Z.; Chang, F.; Hu, S. An anchor-free convolutional neural network for real-time surgical tool detection in robot-assisted surgery. IEEE Access 2020, 8, 78193–78201. [Google Scholar] [CrossRef]
  20. Wang, D.; Zhang, N.; Sun, X.; Zhang, P.; Zhang, C.; Cao, Y.; Liu, B. AFP-Net: Realtime anchor-free polyp detection in colonoscopy. In Proceedings of the 2019 IEEE 31st International Conference on Tools with Artificial Intelligence (ICTAI), Portland, OR, USA, 4–6 November 2019; pp. 636–643. [Google Scholar]
  21. Chung, M.; Lee, J.; Park, S.; Lee, M.; Lee, C.E.; Lee, J.; Shin, Y.-G. Individual tooth detection and identification from dental panoramic x-ray images via point-wise localization and distance regularization. Available online: (accessed on 4 October 2020).
  22. Algabri, M.; Mathkour, H.; Bencherif, M.A.; Alsulaiman, M.; Mekhtiche, M.A. Towards deep object detection techniques for phoneme recognition. IEEE Access 2020, 8, 54663–54680. [Google Scholar] [CrossRef]
  23. Liu, Z.; Zheng, T.; Xu, G.; Yang, Z.; Liu, H.; Cai, D. Training-Time-Friendly Network for Real-Time Object Detection; AAAI: Menlo Park, CA, USA, 2020; pp. 11685–11692. [Google Scholar]
  24. Moranduzzo, T.; Melgani, F. Automatic car counting method for unmanned aerial vehicle images. IEEE Trans. Geosci. Remote Sens. 2013, 52, 1635–1647. [Google Scholar] [CrossRef]
  25. Kamenetsky, D.; Sherrah, J. Aerial car detection and urban understanding. In Proceedings of the 2015 International Conference on Digital Image Computing: Techniques and Applications (DICTA), Adelaide, SA, Australia, 23–25 November 2015; IEEE: Piscataway, NJ, USA; pp. 1–8. [Google Scholar]
  26. Arteta, C.; Lempitsky, V.; Noble, J.A.; Zisserman, A. Interactive object counting. In Proceedings of the European Conference on Computer Vision, Zurich, Switzerland, 6–12 September 2020; Springer: Berlin, Germany; pp. 504–518. [Google Scholar]
  27. Chiu, C.-C.; Ku, M.-Y.; Wang, C.-Y. Automatic Traffic Surveillance System for Vision-Based Vehicle Recognition and Tracking. J. Inf. Sci. Eng. 2010, 26, 611–629. [Google Scholar]
  28. Zhuang, P.; Shang, Y.; Hua, B. Statistical methods to estimate vehicle count using traffic cameras. Multidimens. Syst. Signal. Process. 2009, 20, 121–133. [Google Scholar] [CrossRef]
  29. Mundhenk, T.N.; Konjevod, G.; Sakla, W.A.; Boakye, K. A large contextual dataset for classification, detection and counting of cars with deep learning. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands, 11–14 October 2016; Springer: Berlin, Germany; pp. 785–800. [Google Scholar]
  30. Kamijo, S.; Matsushita, Y.; Ikeuchi, K.; Sakauchi, M. Traffic monitoring and accident detection at intersections. IEEE Trans. Intell. Transp. Syst. 2000, 1, 108–118. [Google Scholar] [CrossRef] [Green Version]
  31. Gangisetty, R. Advanced traffic management system on I-476 in Pennsylvania. In Proceedings of the Conference on Intelligent Transportation Systems, Boston, MA, USA, 12 November 1997; IEEE: Piscataway, NJ, USA; pp. 373–378. [Google Scholar]
  32. Rojas, J.C.; Crisman, J.D. Vehicle detection in color images. In Proceedings of the Conference on Intelligent Transportation Systems, Boston, MA, USA, 12 November 1997; IEEE: Piscataway, NJ, USA; pp. 403–408. [Google Scholar]
  33. Zeng, N.; Crisman, J.D. Vehicle matching using color. In Proceedings of the Conference on Intelligent Transportation Systems, Boston, MA, USA, 12 November 1997; IEEE: Piscataway, NJ, USA; pp. 206–211. [Google Scholar]
  34. Ai, A.H.; Yungf, N.H. A video-based system methodology for detecting red light runners. In Proceedings of the IAPR Workshop on Machine Vision Applications, Makuhari, Chiba, Japan, 17–19 November 1998. [Google Scholar]
  35. Thajchayapong, S.; Garcia-Trevino, E.S.; Barria, J.A. Distributed classification of traffic anomalies using microscopic traffic variables. IEEE Trans. Intell. Transp. Syst. 2012, 14, 448–458. [Google Scholar] [CrossRef] [Green Version]
  36. Ikeda, H.; Kaneko, Y.; Matsuo, T.; Tsuji, K. Abnormal incident detection system employing image processing technology. In Proceedings of the 199 IEEE/IEEJ/JSAI International Conference on Intelligent Transportation Systems (Cat. No. 99TH8383), Tokyo, Japan, 5–8 October 1999; pp. 748–752. [Google Scholar]
  37. Law, H.; Deng, J. Cornernet: Detecting objects as paired keypoints. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 734–750. [Google Scholar]
  38. Dutta, A.; Zisserman, A. The VIA annotation software for images, audio and video. In Proceedings of the 27th ACM International Conference on Multimedia, Nice, France, 25 November 2019; pp. 2276–2279. [Google Scholar]
  39. The AI City Challenge. Available online: (accessed on 28 September 2020).
  40. Bochinski, E.; Eiselein, V.; Sikora, T. High-speed tracking-by-detection without using image information. In Proceedings of the 2017 14th IEEE International Conference on Advanced Video and Signal Based Surveillance (AVSS), Lecce, Italy, 29 August–1 September 2017; IEEE: Piscataway, NJ, USA; pp. 1–6. [Google Scholar]
  41. NTIMC. Benefits of Traffic Incident Management; National Traffic Incident Management Coalition: Amsterdam, The Netherlands, 2006. [Google Scholar]
  42. Haghani, I.; Hamedi, Y. Methodology for Quantifying the Cost Effectiveness of Freeway Service Patrol Programs—Case Study: H.E.L.P: Program; Final Report; University of Maryland: College Park, MD, USA, 2006. [Google Scholar]
  43. Baykal-Gürsoy, M.; Xiao, W.; Ozbay, K. Modeling traffic flow interrupted by incidents. Eur. J. Oper. Res. 2009, 195, 127–138. [Google Scholar] [CrossRef]
  44. Yang, H.; Ozbay, K.; Xie, K.; Ma, Y. Development of an automated approach for quantifying spatiotemporal impact of traffic incidents. In Proceedings of the Transportation Research Board 95th Annual Meeting, Washington, DC, USA, 1–14 January 2016; pp. 10–14. [Google Scholar]
  45. Mandal, V.; Adu-Gyamfi, Y. Object Detection and Tracking Algorithms for Vehicle Counting: A Comparative Analysis. Available online: (accessed on 4 October 2020).
  46. Mandal, V. Artificial Intelligence Enabled Automatic Traffic Monitoring System. Master’s Thesis, University of Missouri--Columbia, Columbia, MO, USA, December 2019. [Google Scholar]
  47. React. Available online: (accessed on 8 October 2020).

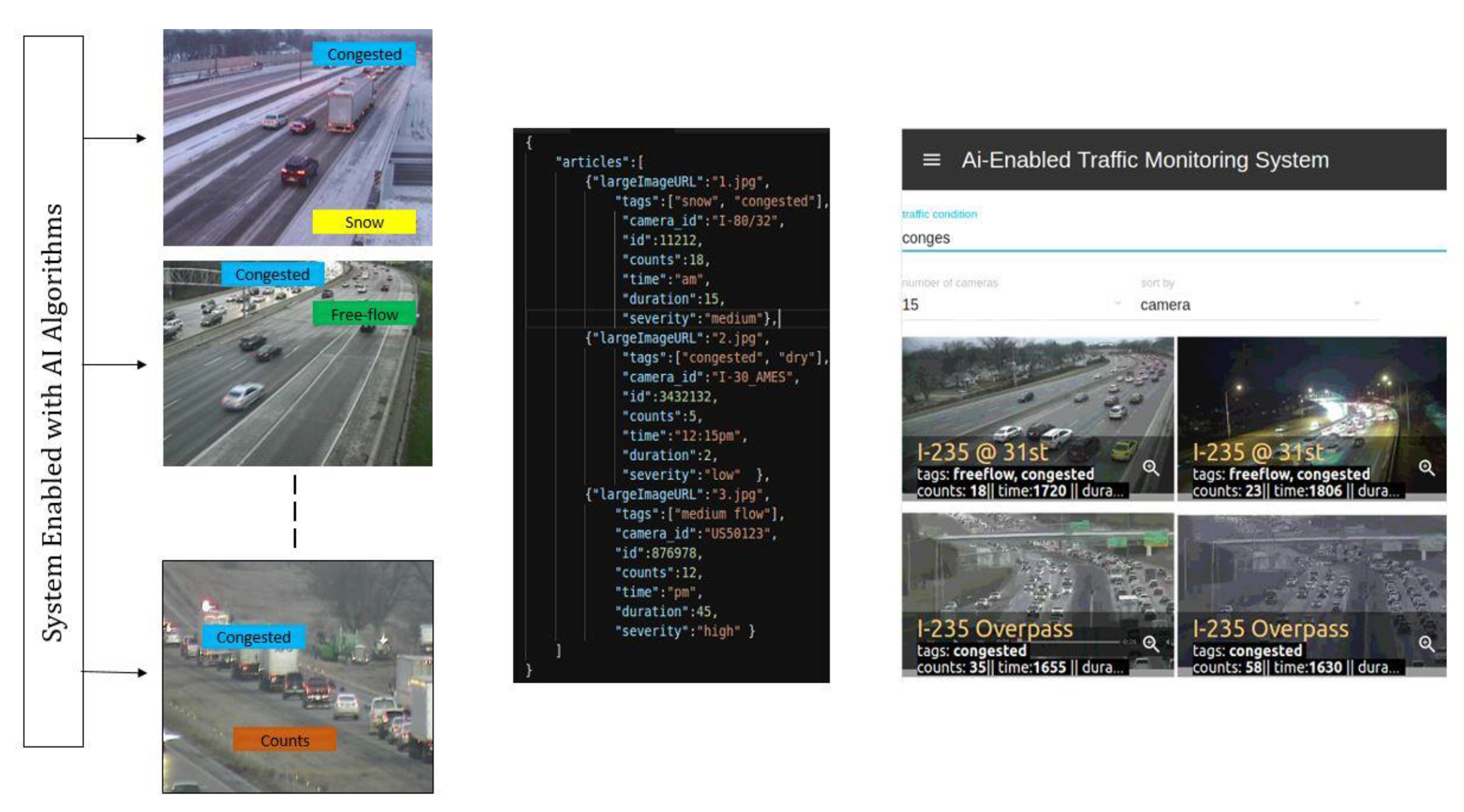

Figure 1. Proposed front-end GUI-based system with algorithms and traffic database processed in the back end. To visualize the demonstration of the proposed GUI based platform, refer to [4].
Figure 1. Proposed front-end GUI-based system with algorithms and traffic database processed in the back end. To visualize the demonstration of the proposed GUI based platform, refer to [4].
Sustainability 12 09177 g001

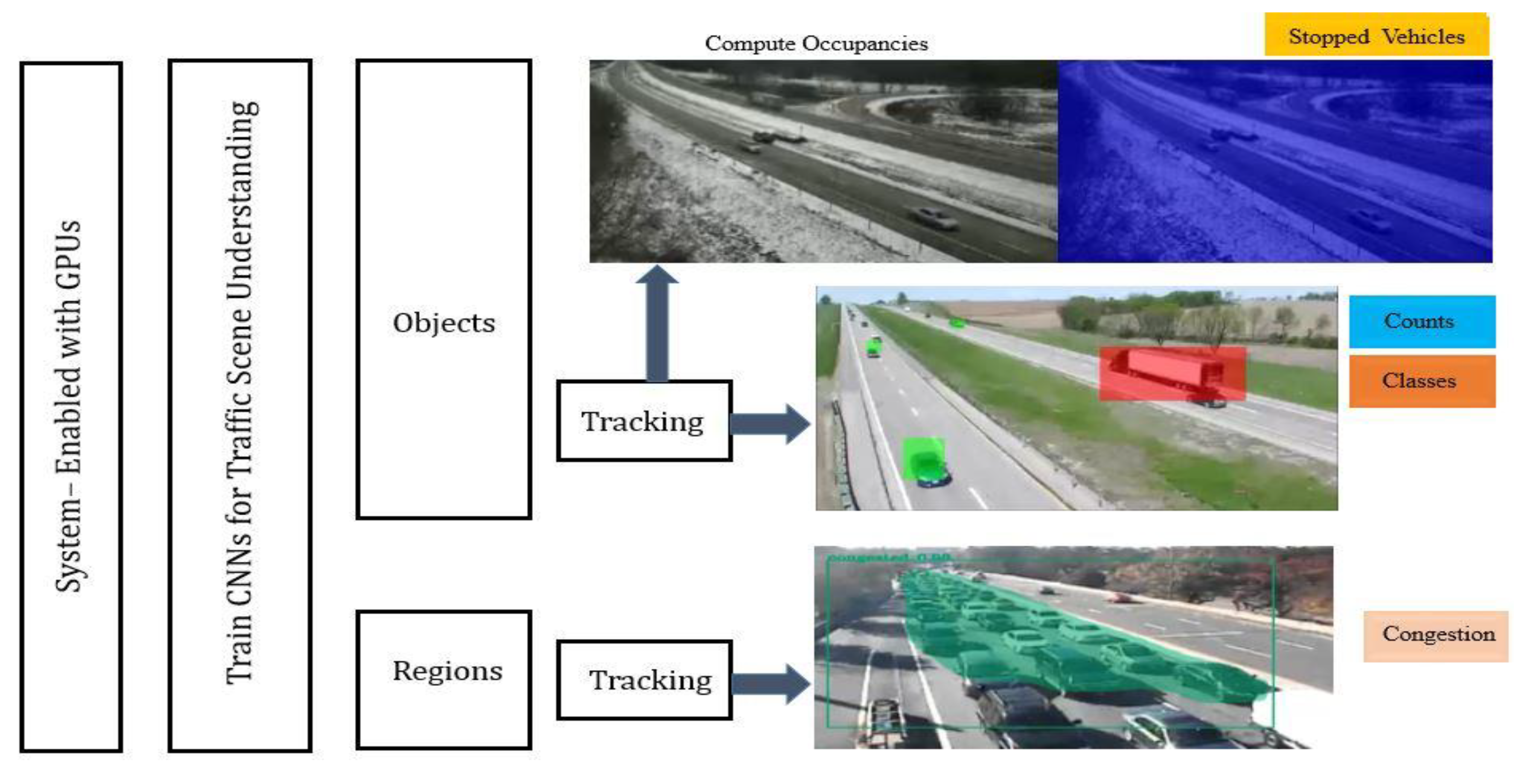

Figure 2. Visual representation of the proposed AI-enabled system.
Figure 2. Visual representation of the proposed AI-enabled system.
Sustainability 12 09177 g002

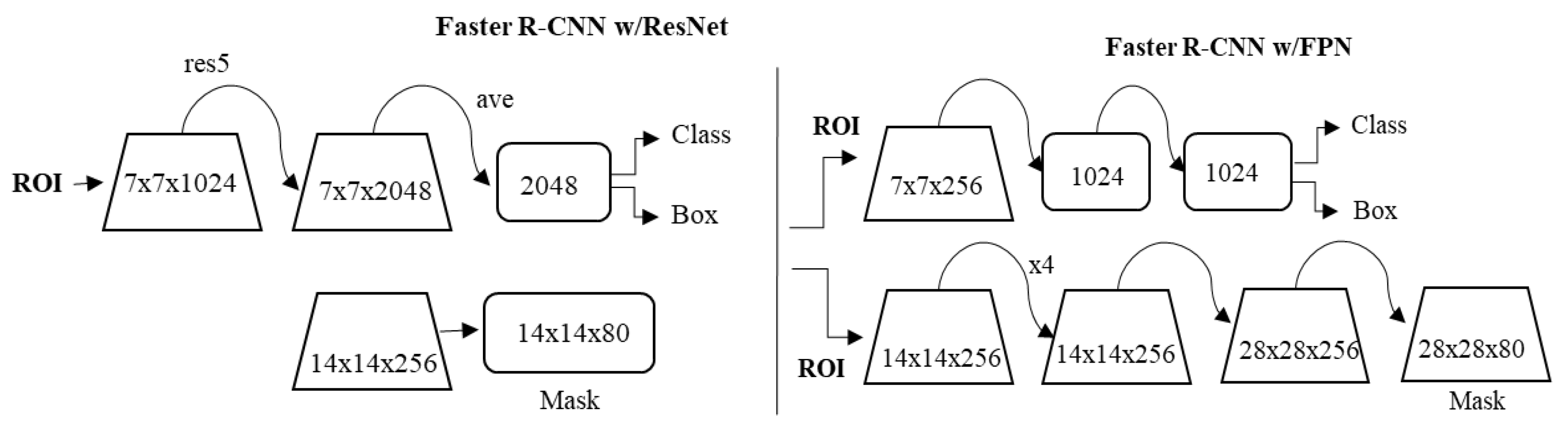

Figure 3. Mask-region based Convolutional Neural Network (Mask R-CNN) framework.
Figure 3. Mask-region based Convolutional Neural Network (Mask R-CNN) framework.
Sustainability 12 09177 g003

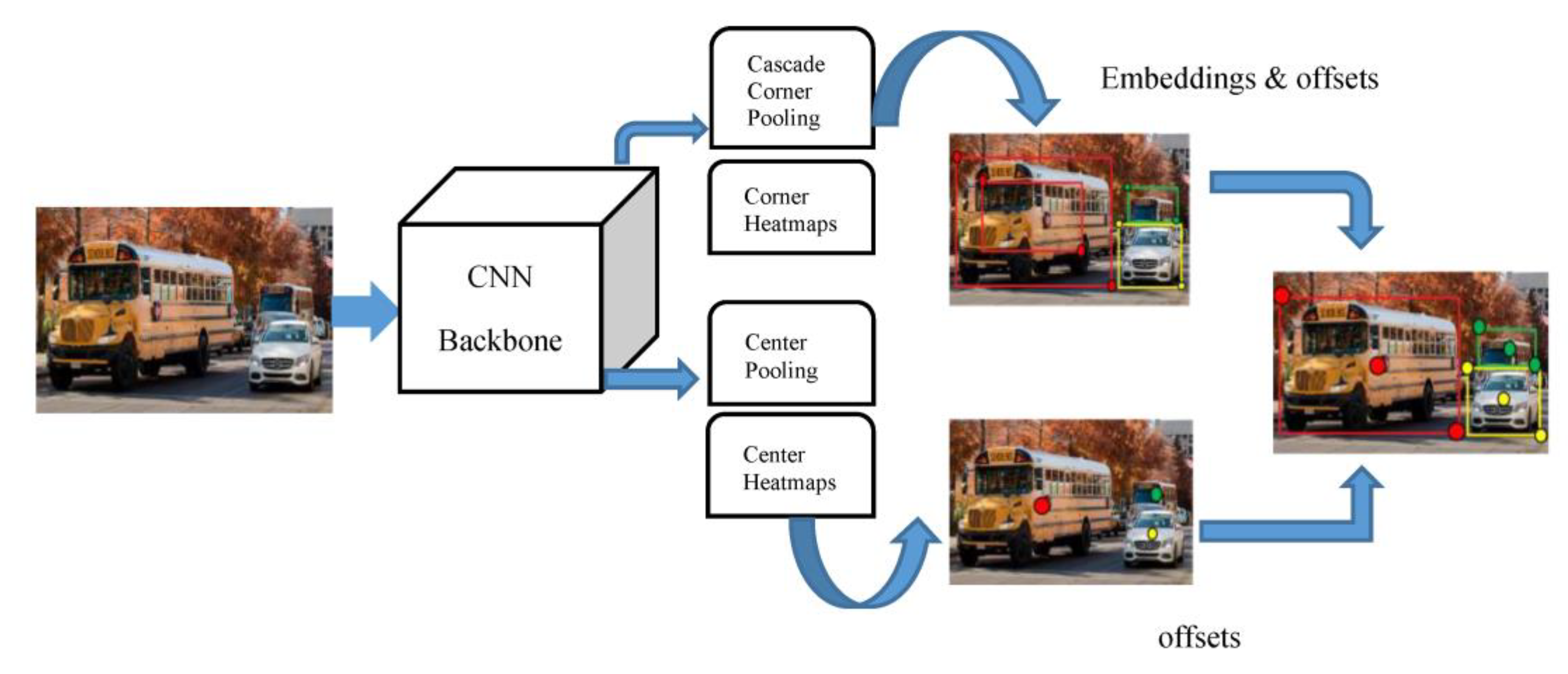

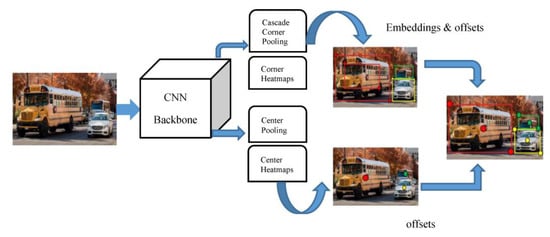

Figure 4. Architecture of CenterNet.
Figure 4. Architecture of CenterNet.
Sustainability 12 09177 g004

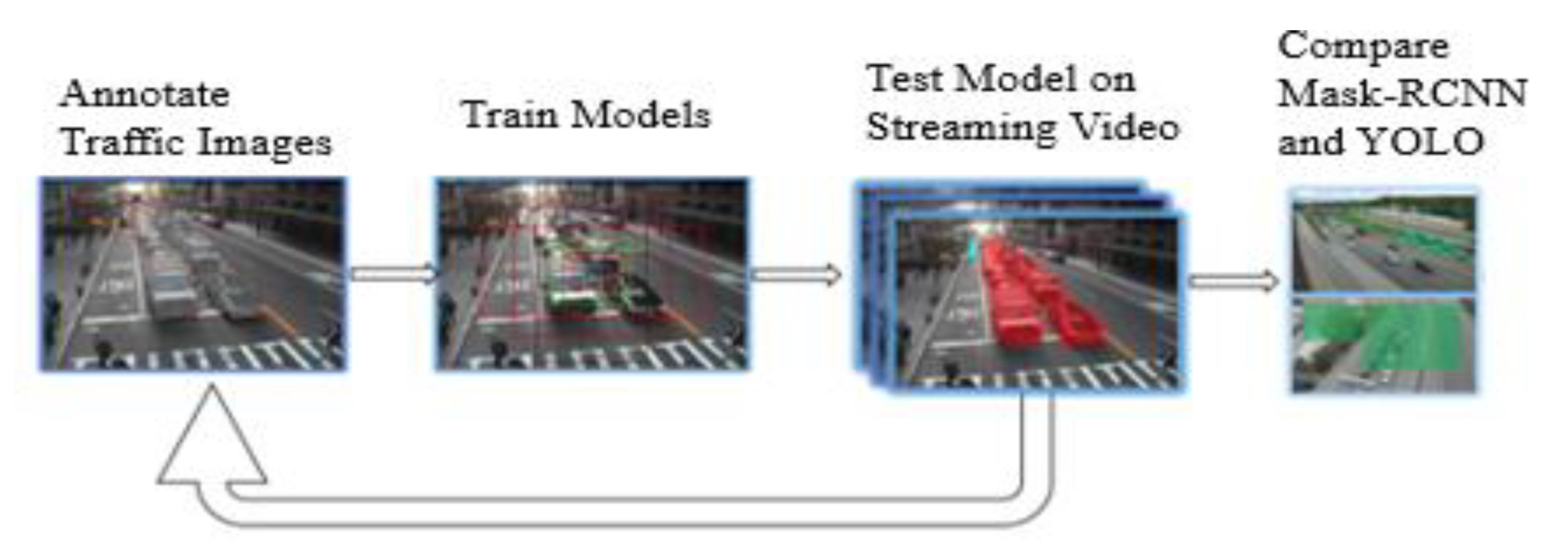

Figure 5. Flowchart of stepwise operations.
Figure 5. Flowchart of stepwise operations.
Sustainability 12 09177 g005

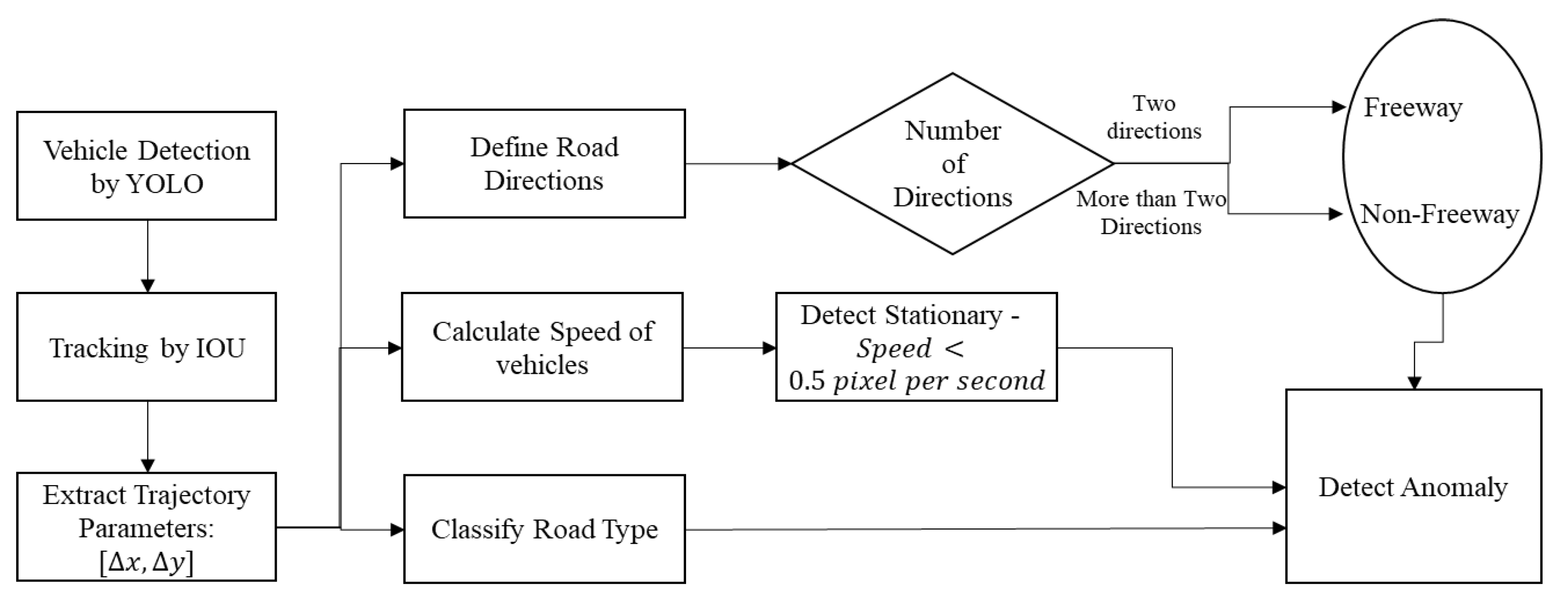

Figure 6. Flowchart for traffic anomaly detection.
Figure 6. Flowchart for traffic anomaly detection.
Sustainability 12 09177 g006

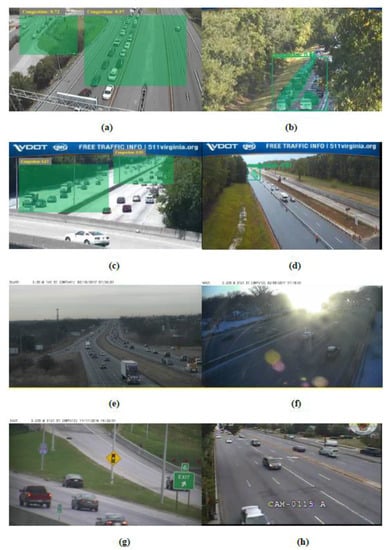

Figure 7. Classification of predicted queues: True positive—(a,b), false positive—(c,d), false negative—(e,f), true negative—(g,h) by You Only Look Once (YOLO) and Mask R-CNN.
Figure 7. Classification of predicted queues: True positive—(a,b), false positive—(c,d), false negative—(e,f), true negative—(g,h) by You Only Look Once (YOLO) and Mask R-CNN.
Sustainability 12 09177 g007

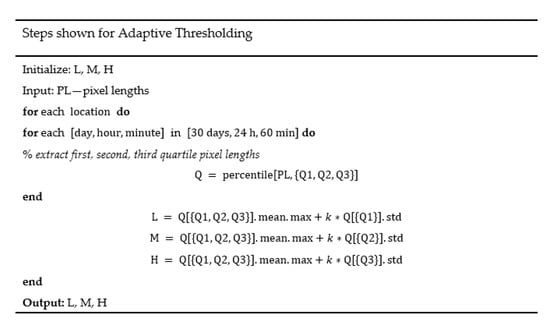

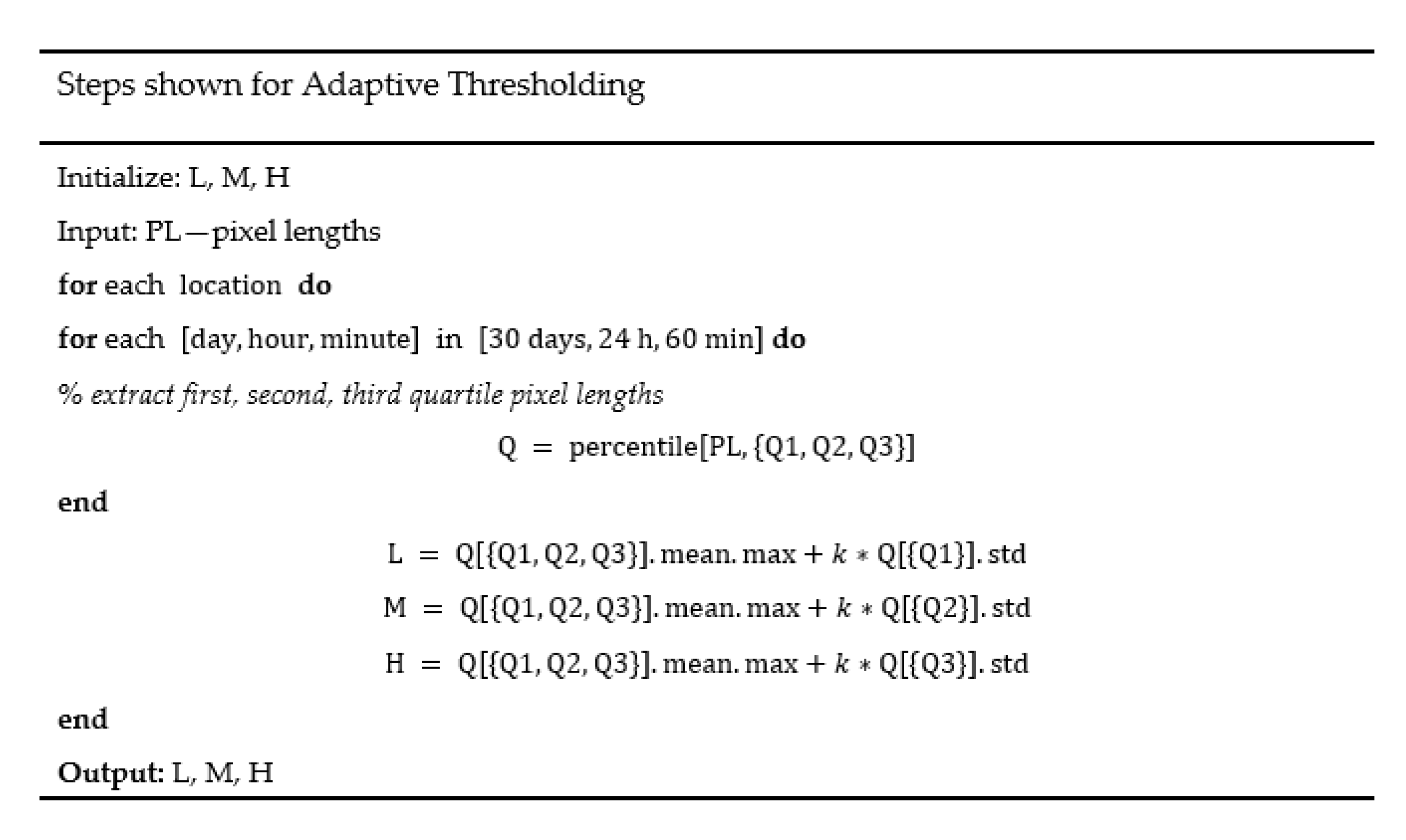

Figure 8. Adaptive thresholding steps.
Figure 8. Adaptive thresholding steps.
Sustainability 12 09177 g008

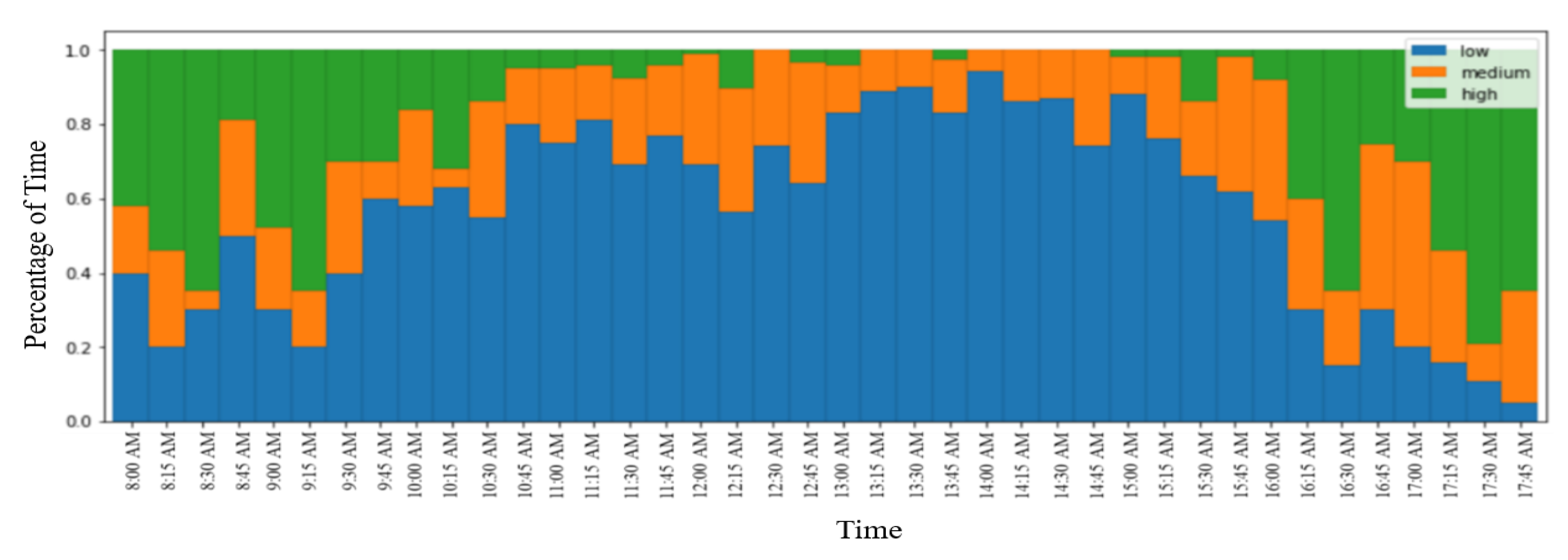

Figure 9. Heat map of traffic queue severity at an intersection.
Figure 9. Heat map of traffic queue severity at an intersection.
Sustainability 12 09177 g009
Figure 10. Vehicle tracking and road type classification.
Figure 10. Vehicle tracking and road type classification.
Sustainability 12 09177 g010

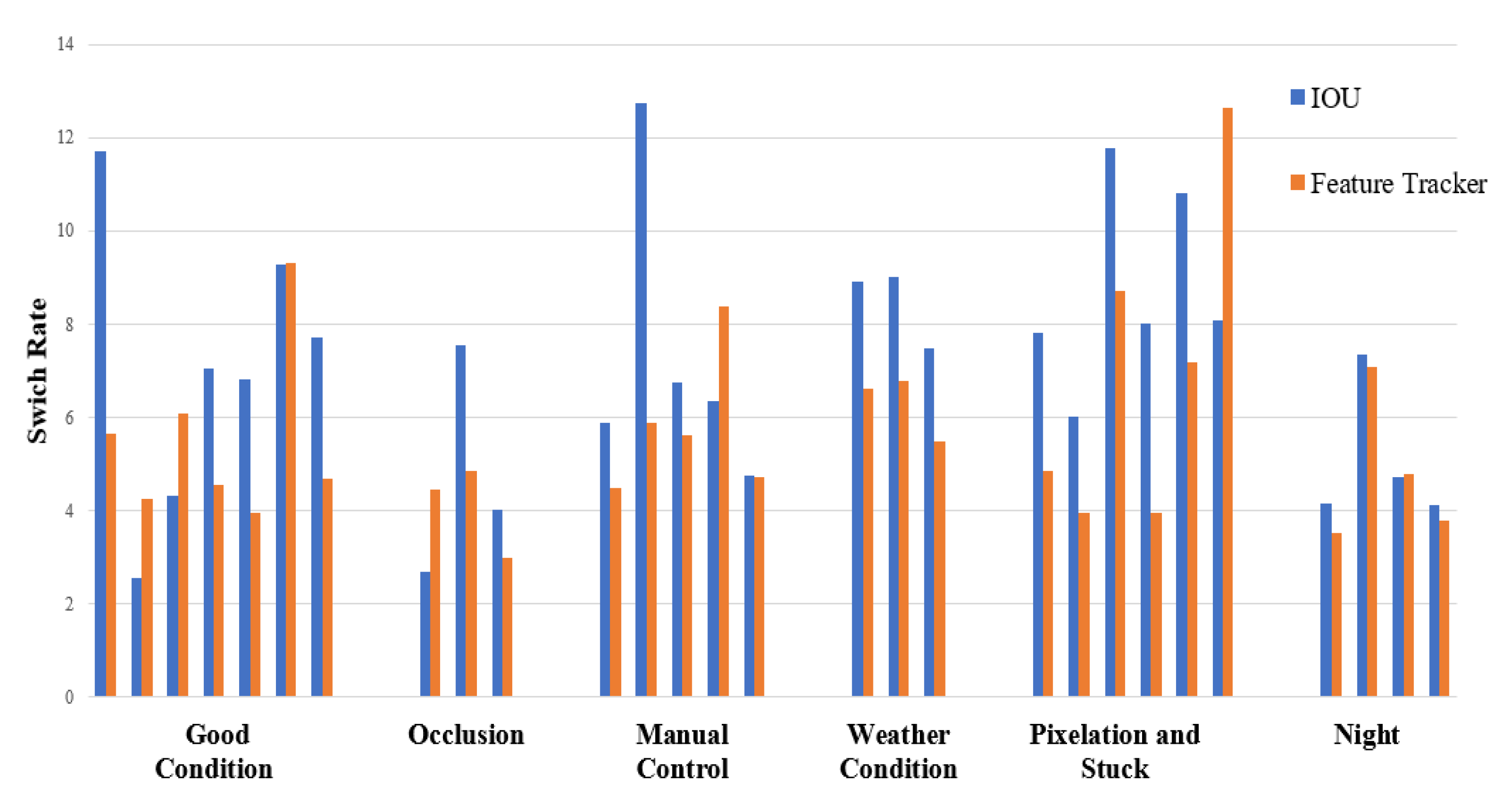

Figure 11. Comparison of clustered charts for IOU and Feature Tracker.
Figure 11. Comparison of clustered charts for IOU and Feature Tracker.
Sustainability 12 09177 g011

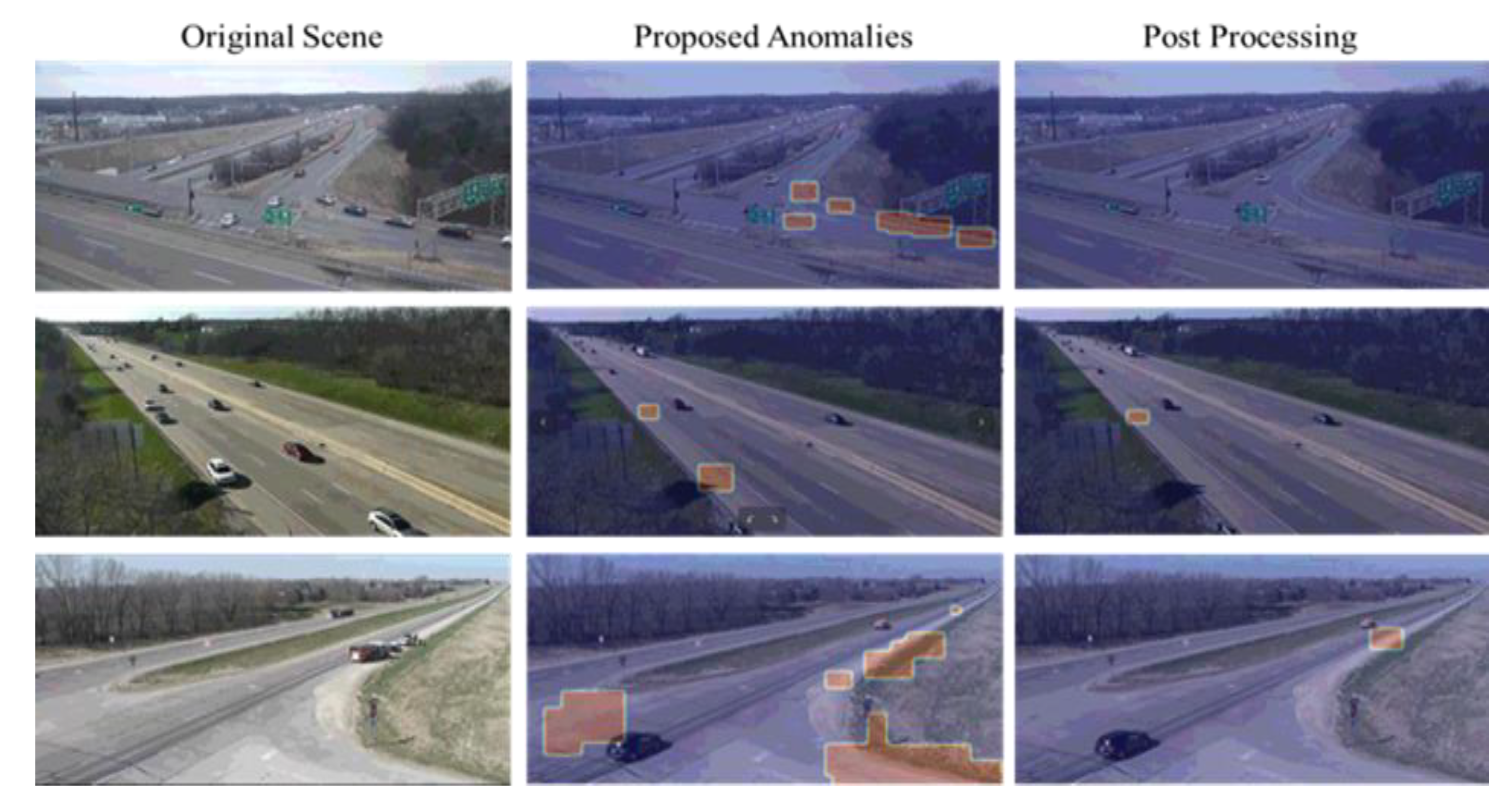

Figure 12. Traffic anomalies.
Figure 12. Traffic anomalies.
Sustainability 12 09177 g012

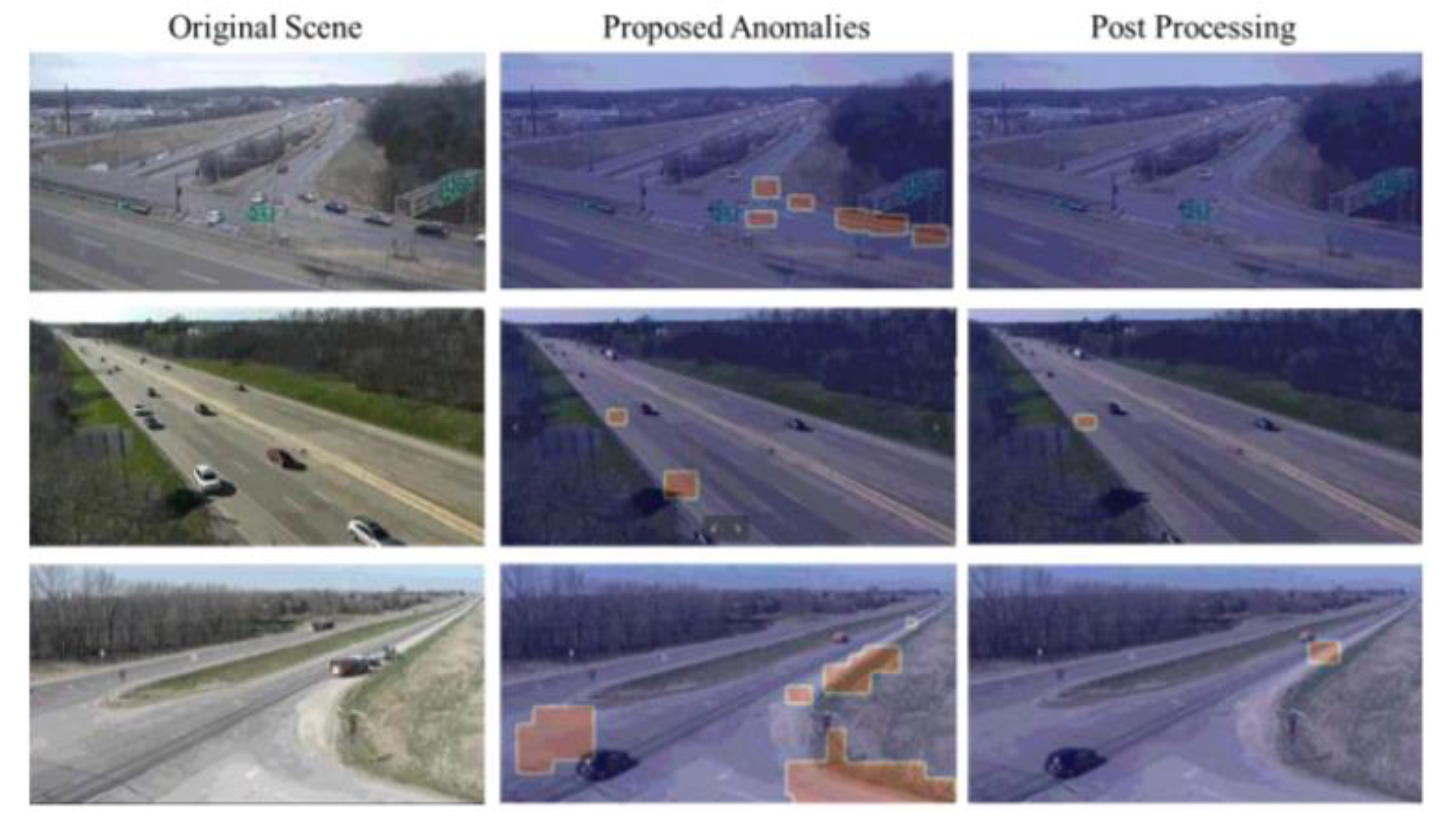

Figure 13. Classification of predicted anomalies - First row, (a): true positives. Second row, (b): false negatives—anomalies indicated with red circles. Third row, (c): false positives.
Figure 13. Classification of predicted anomalies - First row, (a): true positives. Second row, (b): false negatives—anomalies indicated with red circles. Third row, (c): false positives.
Sustainability 12 09177 g013

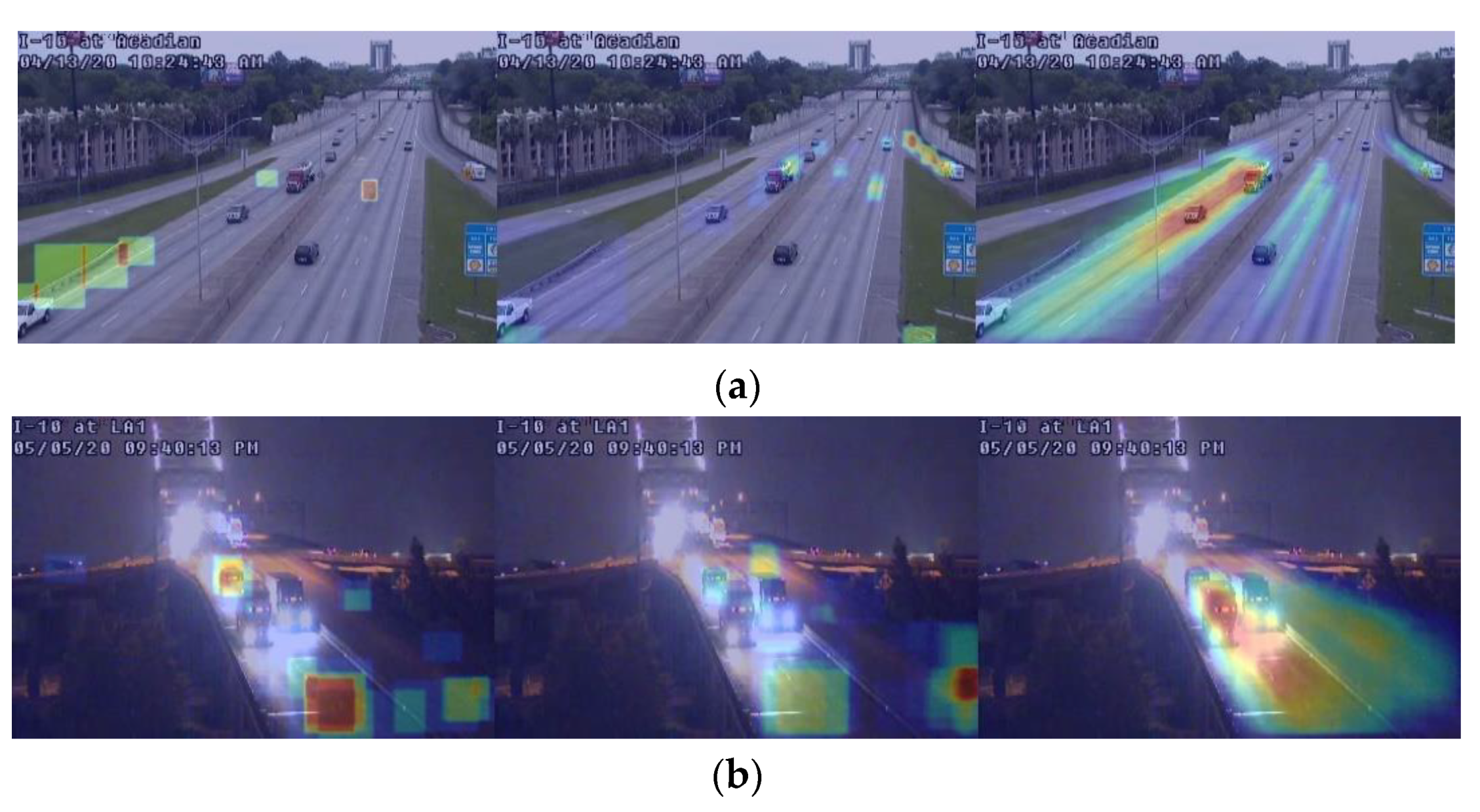

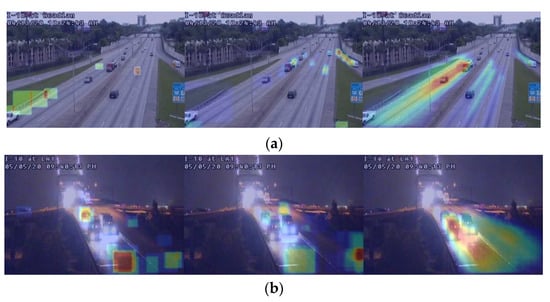

Figure 14. Heat maps generated for vehicle counts using (a) CenterNet and (b) YOLOv4.
Figure 14. Heat maps generated for vehicle counts using (a) CenterNet and (b) YOLOv4.
Sustainability 12 09177 g014

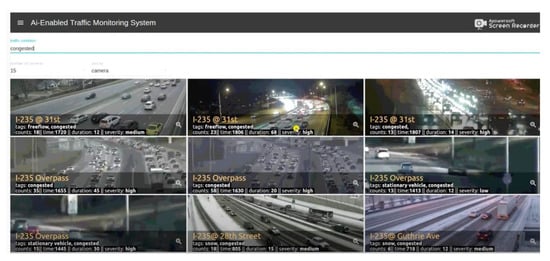

Figure 15. Screenshot of AI-enabled traffic monitoring system GUI.
Figure 15. Screenshot of AI-enabled traffic monitoring system GUI.
Sustainability 12 09177 g015
Table 1. Performance of Mask R-CNN versus YOLO at detecting queues.
Table 1. Performance of Mask R-CNN versus YOLO at detecting queues.
Mask R-CNN92.895.690.5
Table 2. Confusion Matrix of YOLO and Faster R-CNN.
Table 2. Confusion Matrix of YOLO and Faster R-CNN.
Faster R-CNN
Table 3. F-1 Scores of YOLO and Faster R-CNN.
Table 3. F-1 Scores of YOLO and Faster R-CNN.
ClassPrecisionRecallF-1 Score
Faster R-CNN
Table 4. F1, RMSE and S3 Final values.
Table 4. F1, RMSE and S3 Final values.
Model M1 0.8333154.77410.4034
Table 5. Vehicle Count Performance.
Table 5. Vehicle Count Performance.
Time of DayDetector/Tracker CombinationNorthbound Count PercentageSouthbound Count Percentage
DayCenterNet and IOU137.04144.06
CenterNet and Feature Tracker75.02105.66
YOLOv4 and IOU144.38155.27
YOLOv4 and Feature Tracker70.8189.70
NightCenterNet and IOU144.75161.38
CenterNet and Feature Tracker74.74112.41
YOLOv4 and IOU145.91166.23
YOLOv4 and Feature Tracker72.9987.12
RainCenterNet and IOU169.74150.31
CenterNet and Feature Tracker119.1499.47
YOLOv4 and IOU145.91153.76
YOLOv4 and Feature Tracker82.0674.89
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mandal, V.; Mussah, A.R.; Jin, P.; Adu-Gyamfi, Y. Artificial Intelligence-Enabled Traffic Monitoring System. Sustainability 2020, 12, 9177.

AMA Style

Mandal V, Mussah AR, Jin P, Adu-Gyamfi Y. Artificial Intelligence-Enabled Traffic Monitoring System. Sustainability. 2020; 12(21):9177.

Chicago/Turabian Style

Mandal, Vishal, Abdul Rashid Mussah, Peng Jin, and Yaw Adu-Gyamfi. 2020. "Artificial Intelligence-Enabled Traffic Monitoring System" Sustainability 12, no. 21: 9177.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
