Ecosystem Service Multifunctionality: Decline and Recovery Pathways in the Amazon and Chocó Lowland Rainforests

Abstract

The balance between the supply of multiple ecosystem services (ES) and the fulfillment of society demands is a challenge, especially in the tropics where different land use transition phases emerge. These phases are characterized by either a decline (from intact old-growth to logged forests) or a recovery of ES (successional forests, plantations, and agroforestry systems). This highlights the importance of ecosystem service multifunctionality (M) assessments across these land use transition phases as a basis for forest management and conservation. We analyzed synergies and trade-offs of ES to identify potential umbrella ES. We also evaluated the impact of logging activities in the decline of ES and M, and the influence of three recovery phases in the supply of ES and M. We installed 156 inventory plots (1600 m²) in the Ecuadorian Central Amazon and the Chocó. We estimated indicators for provisioning, regulating, supporting services and biodiversity. M indicator was estimated using the multifunctional average approach. Our results show that above-ground carbon stocks can be considered as an umbrella service as it presented high synergetic relations with M and various ES. We observed that logging activities caused a decline of 16–18% on M, with high impacts for timber volume and above-ground carbon stocks, calling for more sustainable practices with stricter post-harvesting control to avoid a higher depletion of ES and M. From the recovery phases it is evident that, successional forests offer the highest level of M, evidencing high potential to recover multiple ES after human disturbance.

1. Introduction

Tropical forests cover 45% of the global forest area [1,2] and are characterized by an outstanding biodiversity [3]. They exhibit a great potential to supply several ecosystem services (ES) such as provisioning, regulating, supporting, and cultural services which are important for people’s well-being at a global and local scale [4,5]. Locally, forests can provide timber and non-timber forest products, maintain soil fertility, help with biological connectivity in fragmented areas, and sustain different levels of biodiversity [6,7,8,9,10]. Globally, forests have attracted attention in the climate change mitigation agenda due to their capacity for carbon sequestration and the reduction of greenhouse emissions [11,12,13]. Despite the importance of tropical forests, it is estimated that only 20% of the remaining forests are undisturbed [14], with anthropogenic activities as the main threats of an ecosystem’s capacity to provide multiple ES [8]. These negative influences on tropical forest have been particularly observed in the Amazon Basin and the Chocó region, which are two important biodiversity hotspots in the world [15,16,17]. The principal drivers of deforestation and forest degradation (Forest degradation refers to changes or decline in ecosystem services due to anthropogenic disturbances [8,18,19,20]) in these areas are related to forest conversion to agricultural lands, road opening, population growth, and timber extraction [18,21,22,23,24]. Deforestation and degradation processes result in land use transition phases which in turn are associated with changes in ES [6,25,26]. These phases can be represented by natural forests (old-growth forest, logged forest and successional forest), planted forests, and agroforestry systems [19,26]. On the one hand, the transition from undisturbed old-growth forests to logged forests is frequently accompanied by a decline in ES and ecosystem service multifunctionality (M) [8,20,27,28]. On the other hand, successional forests (restoration), plantations (reforestation), and agroforestry systems, can emerge as an effort to recover the ecosystem’s integrity and functionality [7,29].

ES are defined as the benefits that people obtain directly or indirectly from ecosystems [8]. The capacity of an ecosystem to co-supply multiple ES is understood as the ecosystem service multifunctionality and translates into various environmental and economic benefits for the society [30,31,32]. Given that ES are influenced by human activities, ecosystem service multifunctionality is not necessarily provided at the same level. Moreover, international forest policy initiatives and their monitoring systems are rather focused on individual services (timber or carbon), but there is still a lack of knowledge and tools to evaluate the ecosystem service multifunctionality. This is particularly important for REDD+ safeguards or forest landscape restoration initiatives both aiming to preserve forests and biodiversity, combat deforestation and ecosystem degradation, and promote ecosystem restoration. As there is an increasing awareness that forest landscapes have to fulfill multiple functions and services, a deeper understanding of synergies and trade-offs between ES and ecosystem service multifunctionality is required to satisfy the multiple demands of society, for example, food, livelihood opportunities, climate regulation, and conservation of biodiversity [33,34,35].

Even though ES assessments have gained momentum in the last decades, studies have focused on evaluating selected services such as timber provision, water supply, climate regulation, erosion regulation, or cultural services without considering interactions with other services [36,37,38,39,40,41,42,43,44,45,46]. Other studies have assessed ES either only in mature forest, logged forest, successional forest, or plantations [47,48,49,50,51,52,53], showing that more empirical studies integrating different land use transition phases are needed to understand the potential decline and recovery of ES supply. Moreover, little attention has been devoted to the study of ecosystem service multifunctionality. For the Amazon and Chocó lowland rainforests there is still a lack of assessments that comprehensively evaluate synergies and trade-offs on ES supply and ecosystem service multifunctionality throughout different land use transition phases. On the one hand, it is important to understand whether timber extraction impacts different ES and ecosystem service multifunctionality to the same extent. On the other hand, given the accelerated loss of ES, it is necessary to quantify the recovery potential of ES and ecosystem service multifunctionality within successional forests, plantations, and agroforestry systems. Detailed quantitative information on the interactions, decline, and recovery of ES and ecosystem service multifunctionality in ecological systems is needed to efficiently monitor and preserve the remaining forest areas while building on the sustainable use of bundles of ES [33].

Our study contributes to closing this research gap by integrating the analysis of various ES (provisioning, regulating, and supporting) and biodiversity indicators. We include natural forests (old-growth forest, logged forest, and successional forest), planted forest, and agroforestry systems [19,54], which altogether represent the land use transitions phases [25,26] observed in two biodiversity hotspots, the Amazon and the Chocó. We address the fact that ES are interrelated and produce complex dynamics within an ecosystem, which need to be disentangled to make better management decisions. Additionally, we acknowledge that the selected phases supply ES at different levels that need to be quantified with in situ information to identify which one can have a greater potential to sustain ecosystem service multifunctionality (M). In this context, our study aims to: (1) understand which synergies and trade-offs occur between ES and M across different land use transition phases, and to assess whether a single ES could be identified as a potential “umbrella ES”; (2) assess the influence of logging activities on the decline of ES and M; and (3) to identify the potential of successional forests, plantations, and agroforestry systems for the recovery of ES and M. For this purpose a total of 156 inventory plots of 40 m × 40 m were installed among old-growth forests, logged forests, successional forests, plantations, and agroforestry systems in the study areas. Seven indicators were considered for provisioning, regulating, and supporting services [8]. Two indicators related to plant diversity were also included due to the positive link of biodiversity to support ES [55,56,57]. Finally, with the selected indicators, we estimated M based on the multifunctional average approach [58,59].

2. Materials and Methods

2.1. Study Area

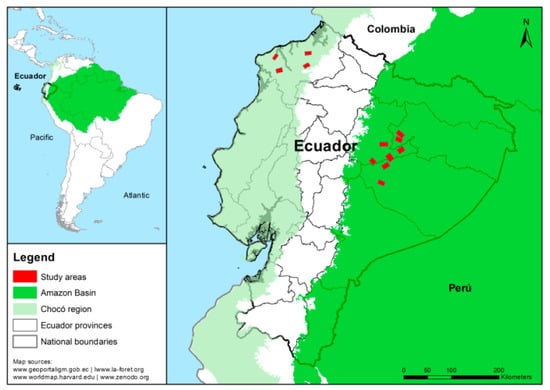

Our study was carried out in the Central Amazon and Chocó lowland rainforests of Ecuador (Figure 1). The Central Amazon is characterized by low fertility and acid soils with a pH of 4.5 and high contents of iron (Fe). The annual precipitation in this region is between 2800 and 4000 mm, with an annual temperature of 22 and 27 °C. In the Chocó soils are more fertile and less acidic with a pH of 5.5; the annual precipitation in the Chocó ranges from 728 to 3681 mm, with an annual temperature of 22 and 27 °C [60,61]. These regions represent 54% of the remnant forest in the country and are strategic areas for biodiversity conservation and for the provision of timber and non-timber forest products [62,63]. We randomly selected 12 landscapes (eight in the Central Amazon and four in the Chocó) of approximately 10 km × 10 km each, covering a total area of 163,000 ha. Although our landscapes are in the lowland rainforests, they are influenced by different climatic conditions that could affect the ES and M supply and the synergies and trade-offs observed between them. Hence, we conducted a cluster analysis as the preliminary analysis step to identify whether a grouping pattern of plots due to climatic influence could be detected. First, we executed a principal component analysis (PCA) with 15 climatic variables obtained from WorldClim [64] for each plot. The first two components of the PCA explained 96.6% of the variability and were used for the cluster analysis considering Ward’s methods and Bray–Curtis distance. Cluster analysis showed two large groups, “Central Amazon and Chocó”, which were statistically different according to the MANOVA test (Figure A1, Figure A2, and

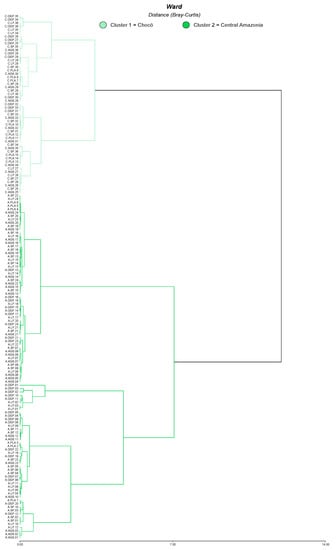

Table A1. MANOVA for the two main groups identified from cluster analysis.

Cluster	PC 1	PC 2	n
Cluster 1 = Chocó	4.16	−0.97	54	A
Cluster 2 = Central Amazon	–2.2	0.51	102	B
Wilks: p-value ≤ 0.0001
Pillai: p-value ≤ 0.0001
Lawley–Hotelling: p-value ≤ 0.0001
Roy: p-value ≤ 0.0001
Different letters (A and B) indicate significant difference from each other

in Appendix A) [65,66].

2.2. Sampling Design

Based on available land cover maps, field visits, and participatory mapping exercises performed in 12 community workshops (one per landscape), we obtained a zoning map with the different land use transition phases [6,25,26] (Figure 2). Mapping exercises were conducted with local stakeholders using printouts of high-resolution satellite images obtained from Google Earth. Consequently, we distinguished: (i) Old-growth forests: mature forest with unknown human disturbance [7,19,67]. (ii) Logged forests: forests where timber extraction interventions have been carried out in the last two to five years. In the Central Amazon, logged forests were under simplified harvesting programs (PAFSI, for its Spanish acronym). PAFSIs are small-scale non-mechanized drag programs with a five-year cutting cycle. In the Chocó, logged areas are under the so-called sustainable harvesting programs (PAFSU, for its Spanish acronym). PAFSUs are medium to large scale programs with a fifteen-year cutting cycle, characterized by mechanized hauling. Both, PAFSI and PAFSU, are selective logging systems [68,69]. In one landscape in the Chocó, landholders did not report formal harvesting programs; nevertheless, the owners declared forest intervention in the last two to five years. (iii) Successional forests: second-growth forest resulted from abandoning previously cleared forest [7,70]; random selection resulted in forests ranging between 11 and 28 years of succession. (iv) Agroforestry systems: They are a mixed production system with trees and crops [71]. The most common tree species found in these systems are Cordia alliodora, Inga edulis, and Cedrela odorata mixed with fruit tress like Citrus reticulata, Citrus sinensis, Citrus limon, or Mangifera indica. Among the most frequent crops we can cite Theobroma cacao, Musa paradisiaca, and Manihot esculenta. In the Central Amazon, agroforestry systems are called Chakras and correspond to traditional agroforestry systems of diversified production [71]). (v) Plantations: in the Central Amazon these correspond to two to three-years old balsa (Ochroma pyramidale) and in the Chocó to four to 18-years old teak (Tectona grandis). Balsa usually has a six-year cutting cycle, it grows between 0 and 1000 m a.s.l., with annual precipitation of 1500–3000 mm and temperatures between 22 and 27 °C; balsa reaches a height of 30 m and diameter of 70 cm at breast height. Teak has an 18-year cutting cycle, it grows between 0 and 800 m a.s.l., with an annual precipitation of 1000–2200 mm and temperatures from 22 to 28 °C; teak reaches a height of 30 m and a diameter at breast height of 80 cm.

Building on this information, we randomly selected three plots of 40 m × 40 m (1600 m²) for the old-growth forest, logged forest, successional forest, plantations, and agroforestry systems within each landscape. A total of 156 plots were established across the two study areas (

Table 1. Number of plots installed for the Central Amazon and Chocó.

	Central Amazon (# Plots)	Chocó (# Plots)
Old-growth forest	24 1	12 2
Logged forest	24	9
Successional forest	24	12
Agroforestry systems	24	12
Plantation	6	9
Total	156 plots

¹ Central Amazon old-growth forest plots: 12 plots in areas under the Socio Bosque Program and 12 plots in old-growth forest without the program and with unknown human disturbance. ² Chocó old-growth forest plots: 3 plots in the Mache Chindul Ecological Reserve, 3 plots in the El Pambilar Wildlife Refuge, and 6 plots in old-growth forest without any kind of formal protection and with unknown human disturbance.

). For logged forests in the Chocó, we established only nine plots since it was not possible to obtain authorization to conduct the forest inventory in other sites under logging interventions. Meanwhile, for plantations, we only established six plots in the Central Amazon and nine plots in the Chocó since there were no plantations in all the sites.

2.3. Ecosystem Services Quantification

ES are the result of complex ecological processes and functions performed within forests. Seven indicators were used as proxies for provisioning, regulating, and supporting services, and two for biodiversity [8,72,73,74,75] (

Table 2. Selected ecosystem services and the indicators used for the assessment.

Ecosystem Service	Indicator
Provisioning services	Timber volume potential (TVP, m3 ha−1) Non-timber forest products (NTFP, # of species per plot)
Regulating services	Above-ground carbon stocks (AGC, Mg ha−1) Soil carbon stocks (SOC, Mg ha−1)
Supporting services	Nitrogen in soil (N, %) Phosphorus in soil (P, mg kg−1) Potassium in soil (K, meq/100 mL)
Biodiversity	Tree and palm diversity (D, per plot) Endemism (E, % per plot)

). These indicators were chosen based on the Millennium Ecosystem Assessment [8] and their importance in the local and global contexts. The relations observed between indicators provide insights of synergies and trade-offs among ES and reflect the influence of natural resources management and land cover change [73,76]. Ecosystem service multifunctionality (M) estimation was based on the multifunctional average approach [58,59], described in more detail in Section 2.4.

2.3.1. Provisioning Services

Provisioning services refer to products obtained from ecosystems (e.g., food, timber) which are mainly important for human well-being at the local level [8]. We selected timber volume potential (TVP) and non-timber forest products (NTFP) as provisioning services indicators. In the Ecuadorian Amazon and the Chocó, timber provision plays a key role since both areas are important timber suppliers within the country [77]. These areas contain 68% of the national harvestable high-value timber [63]. TVP accounts for the total tree volume of timber species that can be harvested according to the respective species minimum cutting diameter specified in the Ecuadorian forest regulations [69,78]. For TVP, we used diameter at breast height (DBH), total tree height, and a form factor of 0.7 for native species [63]. In the case of Tectona grandis plantations, the form factor was 0.55, and 0.73 for the Ochroma pyramidale [79,80,81]. Tree heights were estimated based on four specific equations considering the total height of 1132 trees measured in the Central Amazon and the Chocó. These equations were generated based on own data. Tree height equation for Amazonian trees (Equation (1)) was estimated using 668 trees (p < 0.0001; R² = 0.69). Tree height equation for balsa (Equation (2)) used 110 trees (p < 0.0001; R² = 0.81). Tree height equation for Chocó trees (Equation (3)) was based on 298 trees (p < 0.0001; R² = 0.69). Tree height equation for teak (Equation (4)) was estimated with 56 trees (p < 0.0001; R² = 0.70).

$$\mathrm{lnHt}=0.786+0.5956\left(\ln DBH\right)$$

(1)

where Ht is the total height of the tree and DBH is the diameter at breast height.

$$\mathrm{Ht}=-4.0692+5.1391\left(\ln DBH\right)$$

(2)

where Ht is the total height of the tree and DBH is the diameter at breast height.

$$\mathrm{Ht}=-11.6292+8.9439\left(\ln DBH\right)$$

(3)

where Ht is the total height of the tree and DBH is the diameter at breast height.

$$\mathrm{Ht}=-3.9687+5.9616\left(\ln DBH\right)$$

(4)

where Ht is the total height of the tree and DBH is the diameter at breast height.

NTFPs are paramount for Ecuadorian local communities. According to de la Torre et al. [82], of the 5172 species analyzed in their study in Ecuador, food use corresponds to 30%, medicine 60%, and materials 55%. NTFP represent the number of species per plot with potential use for medicine, food, and materials. Species-use identification was based on secondary information available for the country [82,83,84] and household surveys from the studied landscapes.

2.3.2. Regulating Services

Regulating services are benefits related to the regulation of ecosystem processes (e.g., air regulation, climate regulation) [8]. Forest ecosystems play an important role in the global carbon cycle [11,12,13,85]. It is estimated that 652 Gt C (above-ground biomass, below-ground biomass, necromass, and soil) are stored in the world’s forests [86]. Our analysis considers the above-ground carbon (AGC) and soil carbon (SOC), both contribute up to 90% of the total carbon pool within tropical forests [12]. We estimated AGC as the sum of above-ground carbon in trees (AGC_tree) and above-ground carbon in palms (AGC_palm). For AGC_tree, we used Chave, et al. [87] equation (Equation (5)), considering DBH greater than 10 cm and species wood density. Tree species wood density was obtained from the Global Wood Density Database [88,89], MAE [90], and Aguirre, et al. [91]. For tree species not included in any of these databases, we used the genus, family, or plot average depending on the case. AGC_palm was calculated based on the Goodman, et al. [92] equation (Equation (6)).

$${\mathrm{AGB}}_{\mathrm{tree}}=\exp \left[\begin{array}{c}-1.803-0.976E+0.976\ln \left(\rho \right)\\ +2.673\ln \left(DBH\right)-0.0299{\left(\ln DBH\right)}^2\end{array}\right]$$

(5)

where DBH is the diameter at breast height, ρ is the tree species wood density and E is the environmental stress variable.

$${\mathrm{AGB}}_{\mathrm{palm}}=\exp (-3.3488+(2.7483\times \ln DBH)$$

(6)

where DBH is the diameter at breast height.

In the case of agroforestry systems, we used specific equations for Manihot esculenta (Equation (7) [93]), Theobroma cacao (Equation (8) [94]), Coffea arabica (Equation (9) [94]), Coffea robusta (Equation (9) [94]) and Musa paradisiaca (Equation (11) [95]).

$${\mathrm{AGB}}_{Manihot esculenta}=-0.67+0.44\times d_{30}$$

(7)

where d is the diameter.

$${\mathrm{AGB}}_{Theobroma cacao}=1.040\times {\exp }^{0.0736\times d}$$

(8)

where d is the diameter.

$${\mathrm{AGB}}_{coffea arabica}=93.424\times {\exp }^{0.208\times d}$$

(9)

where d is the diameter.

$${\mathrm{AGB}}_{coffea robusta}=242.6\times {\exp }^{0.1264\times d}$$

(10)

where d is the diameter.

$${\mathrm{AGB}}_{Musa paradisiaca}=185.1209+(881.9471\times \ln H/H^2)$$

(11)

where H is the height.

For Ochroma pyramidale and Tectona grandis we used the equations of Douterlungne et al. [96] (Equation (12)) and Perez-Cordero et al. [97] (Equation (13)) respectively. A conversion factor of 0.47 was used to convert above-ground biomass (AGB) to carbon [85].

$${\mathrm{AGB}}_{Ochroma pyramidale}=\exp \left(-2.45+2.30\times \ln DBH\right)$$

(12)

where DBH is the diameter at breast height.

$${\log }_{10}{\mathrm{AGB}}_{Tectona grandis}=-0.815+2.382\times {\log }_{10}DBH$$

(13)

where DBH is the diameter at breast height.

SOC was estimated from bulk density, organic carbon content concentration (%), and soil depth (0–30 cm). Bulk density was calculated using the oven-dried weight of soil from a known volume of sampled material at 105 °C until reaching a constant weight; two samples were taken from each plot for this purpose. For the concentration of organic carbon content (0–30 cm horizon), two mixed samples per plot were taken to the laboratory and the wet digestion method of Walkley and Black was used [12,98].

$$\mathrm{SOC}=BD\times \%CO\times D$$

(14)

where BD is the bulk density, %CO is the percentage of organic carbon content and D is the depth.

2.3.3. Supporting Services

Supporting services are related to basic ecosystem processes such as soil formation or primary productivity, contributing indirectly to human well-being, and helping to maintain processes and functions for provisioning, regulating, and cultural services [8,99]. In our study, we considered soil quality indicators related to the ecosystem’s health. We selected phosphorus (P), total nitrogen (N), and potassium (K) because of their wide application for soil quality assessments [100]. These indicators are crucial in several of the ecosystem’s processes as they intervene in biomass development which directly influences plant growth and net primary productivity, and therefore in the supply of other ES [100,101,102]. In each plot, two mixed soil samples per plot (0–30 cm horizon) were taken to the laboratory. Total nitrogen (N%) was determined by the Kjeldahl method whereas potassium (K meq/100 mL) and the content of phosphorus (P mg kg⁻¹) were estimated with Olsen’s methodology [103,104].

2.3.4. Biodiversity

Biodiversity underpins ES provision since it has an important role in the ecosystem´s processes and functions [55,56,57,105,106,107]. Quantifying biodiversity is a complex task as it is a multifaceted concept that can be measured or documented in different ways [108]. For this reason, researchers usually focus on certain components of biodiversity. In this regard, plant diversity is a fundamental component of biodiversity [108,109] as it is closely linked with other components of biological diversity, for example, soil fauna, birds, or arthropods [108,110,111,112,113]. Besides, plant diversity has a positive effect on ES supply [57,107,114,115] and the interactions occurring among plant species play an important role in the ecosystem functioning. Thus, plant diversity is an important indicator for conservation purposes. Moreover, Ecuador is an important hotspot of biodiversity [15,16,17] and one of the countries in the tropics with more tree species [116,117]; therefore, for this study, we used plant diversity (D) as a biodiversity indicator. D was estimated with the Shannon index (H) and considers trees and palms (Equation (15)) [108]. We additionally used endemism (E), as a proxy to evaluate the capacity of an ecosystem to offer habitat for species with limited distribution [118]. The regions included in this study are important areas of endemism; of the 4500 endemic species registered for the country, around 78% are threatened to some degree of extinction [119]. E is expressed as the percentage of species per plot whose distributional range is restricted to Ecuador. Estimations of E were based on the red book of endemic plants for Ecuador [119].

$$H={{\displaystyle \sum }}^{}{\rho }_i \times Ln {\rho }_i$$

(15)

where ${\mathsf{\rho }}_{\mathrm{i}}$ is the species’ relative proportion.

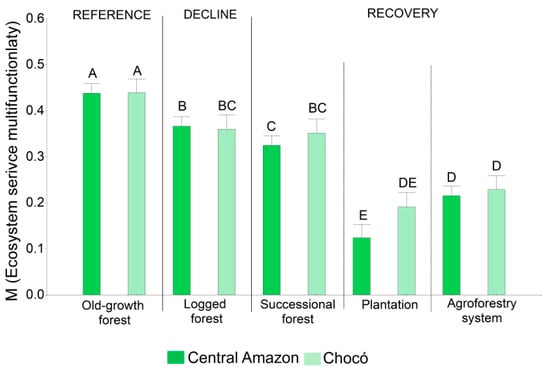

2.4. Ecosystem Service Multifunctionality (M)

Ecosystem service multifunctionality (M) is defined as the capacity of an ecosystem to simultaneously provide multiple ES to society [31]. Human activities have a direct influence on ecosystem service multifunctionality and can reduce or increase the supply of several benefits from forests. M estimations were based on the multifunctional average approach [58,59]. The approach has been applied in various studies to analyze bundles of ecosystem services, functions, biodiversity, functional trait diversity, and landscape multifunctionality (e.g., [58,59,120,121,122,123,124,125,126,127]). The multifunctional average approach is based on the mean of the standardized values of each ES. For the standardization, minimum and maximum values for the land use transition phases were used. Given that ES could be correlated to each other, we tested for multicollinearity among the selected indicators using the variance inflation factor (VIF) [128,129,130]; which resulted in a VIF value of 3.21. VIF values between 5 and 10 correspond to moderate collinearity, and greater than 10 suggest the presence of high collinearity [128,129,130].

2.5. Statistical Analysis

Synergies and trade-offs among the land use transition phases (old-growth forest, logged forest, successional forest, agroforestry systems, and plantations), M, selected ES and biodiversity indicators (TVP, NTFP, AGC, SOC, N, P, K, D, and E) were evaluated with a principal component analysis (PCA) for each study region. Furthermore, we performed an analysis of variance (ANOVA) using general mixed models to evaluate the potential decline and recovery of ES and M. Land use transition phases within the Central Amazon and the Chocó were considered as fixed factors and landscapes as a random factor. Outliers’ identification was based on the standardized Pearson residual. Normality and homoscedasticity were evaluated through the Shapiro and Levene tests. TVP, AGC, P, and K were natural log-transformed to meet ANOVA assumptions, and in the case of E, a non-parametric analysis (Kruskal–Wallis test) was performed. For NTFP, D, and E ANOVA, we excluded plantations as they did not have values for these indicators.

3. Results

3.1. Ecosystem Services Synergies and Trade-Offs

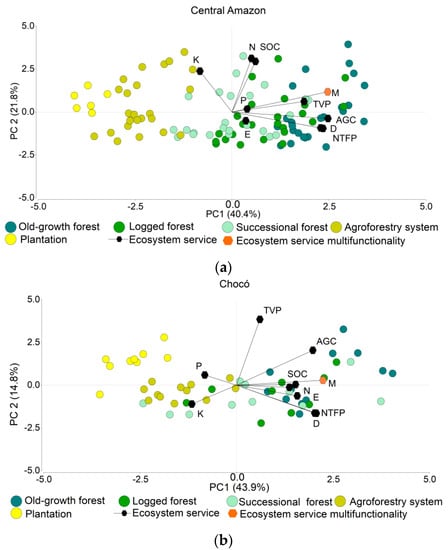

The first two components of the PCA explained 62.2% of the variance for the Central Amazon and 58.7% for the Chocó. The first component in both regions showed a grouping pattern that exhibits the change in ES and M across different land use transition phases from old-growth forest to logged forest and then to more transformed systems such as successional forests, agroforestry systems, and plantations. M was closely related to the first component indicating that it explains between 40% and 44% of the variability. As expected, old-growth forests offer higher values of M, demonstrating a good capacity to provide multiple ES. Interestingly, soil parameters showed different patterns between both study areas, while AGC, TVP, NTFP, D, E, and M behaved in a relatively similar way (Figure 3).

We observed that a bundle of ES related to regulating and provisioning services, and biodiversity, are interacting in a synergetic way in both regions. We identified positive correlations between AGC, TVP, NTFP, D, E, and M with higher values in old-growth forest and lower values in agroforestry systems and plantations. Other positive relations were found among SOC and N, and between AGC and TVP, the latter one with a higher correlation in the Central Amazon than in the Chocó. In contrast, negative correlations, which indicate trade-offs, were also detected for both regions between supporting services indicators (K for Central Amazon; P and K for Chocó) with regulating and provisioning services indicators, and biodiversity. Besides, the PCA showed lower AGC, TVP, NTFP, and D values for agroforestry systems and plantations, but revealed an increase of K (Figure 3).

3.2. The Provision of Ecosystem Services and Ecosystem Service Multifunctionality across the Land Use Transition Phases

Analysis of variance showed that ES and M provision varies significantly across land use transition phases (

Table 3. Analysis of variance of ecosystem services and ecosystem service multifunctionality.

Ecosystem Services Indicator	p-Value	R2	n
Ecosystem service multifunctionality—M	<0.0001	0.82	152
Timber volume potential—ln TVP (m3 ha−1)	<0.0001	0.33	140
Non-timber forest product—NTFP (# sp. per plot)	<0.0001	0.86	141
Above-ground carbon stocks—ln AGC (Mg ha−1)	<0.0001	0.81	153
Soil carbon stocks—SOC (Mg ha−1)	0.0187	0.52	156
Nitrogen—N (%)	0.2686	0.82	148
Phosphorus—ln P (mg kg−1)	0.0093	0.61	156
Potassium—ln K (meq/100 mL)	<0.0001	0.68	153
Diversity—D (Shannon index)	<0.0001	0.78	141
Endemism—E (% sp. per plot)	<0.0001	-	141

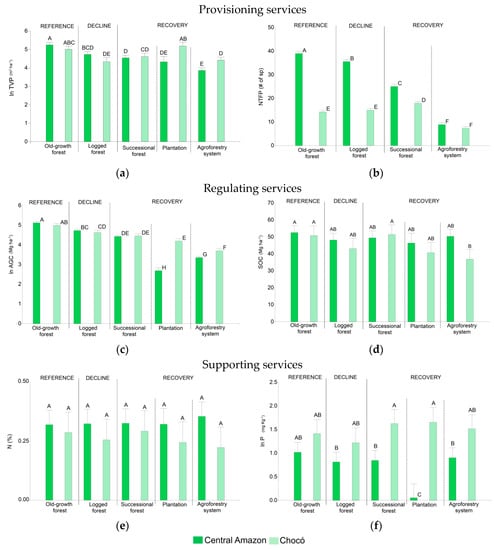

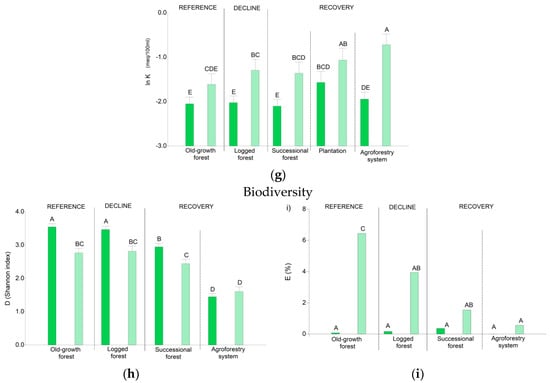

, Figure 4 and Figure 5), except for N which did not show significant differences (p: 0.2686). TVP, AGC, SOC, N, K, P, and M for old-growth forests in both the Central Amazon vs. Chocó were statistically similar. Nonetheless, NTFP, and E showed statistical differences between the old-growth forests in both regions. E was higher in the Chocó’s old-growth forest where 6.4% of species were endemic (

Table A2. Descriptive statistics for the selected ecosystem services.

	Region	TVP (m3 ha−1)	NTFP (# sp. plot−1)	AGC (Mg ha−1)	SOC (Mg ha−1)	N (%)	P (mg kg−1)	K (meq/100 mL)	D (index)	E (%)	M (index)
Old-growth forest	Central Amazon	190.57	38.98	167.34	52.57	0.32	2.77	0.13	3.54	0.07	0.44
	Chocó	149.90	14.26	146.94	50.79	0.29	4.10	0.20	2.76	6.44	0.44
Logged forest	Central Amazon	113.30	35.55	113.30	48.19	0.32	2.25	0.13	3.46	0.16	0.37
	Chocó	75.94	15.01	102.51	43.13	0.26	3.39	0.27	2.81	3.94	0.36
Successional forest	Central Amazon	93.69	25.03	83.93	49.45	0.33	2.34	0.12	2.94	0.36	0.32
	Chocó	101.49	17.94	86.49	51.42	0.29	5.10	0.26	2.44	1.54	0.35
Plantations	Central Amazon	75.94	-	14.73	46.39	0.32	1.06	0.21	-	-	0.12
	Chocó	179.47	-	66.02	40.68	0.24	5.21	0.34	-	-	0.19
Agroforestry systems	Central Amazon	47.47	8.87	28.50	50.34	0.35	2.46	0.14	1.45	0.00	0.22
	Chocó	83.10	7.34	40.45	36.88	0.22	4.57	0.49	1.60	0.56	0.23

TVP: timber volume potential. NTFP: Non-timber forest products. AGC: above-ground carbon stocks. SOC: soil carbon stocks. N: nitrogen. P: phosphorus. K: potassium, D: Shannon index. E: endemism. M: ecosystem service multifunctionality.

in Appendix A). In the Chocó region, endemic species were also found in the logged forest, successional forest, and agroforestry systems. In contrast, endemic species in the Central Amazon were circumscribed in a lower percentage to the old-growth, logged, and successional forest only.

The decline in the provision of ES and M as a result of logging interventions was assessed by comparing old-growth and logged forests. We observed a clear reduction in M (Figure 4) by 16% in the Central Amazon and 18% in the Chocó due to timber extraction. Likewise, a decline in specific ES was evidenced (Figure 5). TVP values in the old-growth forest were 190.5 m³ ha⁻¹ in the Central Amazon and 149.9 m³ ha⁻¹ in the Chocó. Compared with old-growth forests, logged forests showed low values for TVP; we estimated 113.3 m³ ha⁻¹ for the Central Amazon and 75.9 m³ ha⁻¹ for the Chocó (Table A2 in Appendix A). We also observed significant differences for AGC (Figure 5). Old-growth forests accounted for 167.3 Mg ha⁻¹ in the Central Amazon and 146.9 Mg ha⁻¹ in the Chocó; in contrast, logged forests had 113.3 Mg ha⁻¹ for the Central Amazon and 102.5 Mg ha⁻¹ for the Chocó (Table A2 in Appendix A). The level of SOC, N, and P also decreased due to logging interventions, although no statistical differences were found for these services (Figure 5). Logging activities caused a significant reduction of NTFP species only in the Central Amazon, with 39 species per plot in the old-growth forest in comparison to 35 species per plot in the logged forest. A significant decline in the percentage of endemic species was observed for the Chocó; in the old-growth forest we found 6.4% of E; meanwhile, in the logged forest this value decreased to 3.9%. Regarding D, similar levels were found among the logged and old-growth forest.

The recovery of ES supply and M was evaluated for successional forests, agroforestry systems, and plantations. Our results show an important potential of these recovery phases to recuperate the M (Figure 4) and particular ES (Figure 5). Indicators regarding soil-related services (N, P, K, and SOC) presented similar values than the reference old-growth forest. For example, N values in soil ranged from 0.22% to 0.33% across the three recovery phases and were statistically similar to the old-growth forest with values from 0.29% to 0.33% in both regions. As expected, the M, provisioning (TVP and NTFP) and regulating (AGC) services, and biodiversity (D and E) did not reach similar levels than the old-growth forest. Nonetheless, we observed that successional forests had similar values of ES than logged forests in both study areas. M reached values of 0.32 and 0.35 (Figure 4), TVP ranged between 93.6 and 101.4 m³ ha⁻¹, AGC was between 83.9 and 86.4 Mg ha⁻¹, and D was between 2.9 and 2.4 in the Central Amazon and the Chocó, respectively (Figure 5 and Table A2 in Appendix A). These results indicate the high capacity of successional forest to recover ES bundles. Plantations and agroforestry systems had low M; though, teak plantations had high values of TVP (179.4 m³ ha⁻¹) similar to the old-growth forest.

4. Discussion

4.1. Ecosystem Services Synergies and Trade-Offs

The first component of the PCA showed a strong and positive correlation of M and how anthropogenic activities influence the ecosystems’ integrity and their capacity to provide multiple ES simultaneously. In the Central Amazon and the Chocó, M, AGC, TVP, NTFP, D, and E have a synergetic relation; whereas SOC, N, P, and K have rather diverging patterns. Interestingly, AGC showed positive relations with various ES similar to those observed for M, which indicates that AGC could be key for ecosystem service multifunctionality. Despite this, between both study areas M and AGC did not show similar patterns of correlations with soil-ES indicators (P and K), which can be the result of specific edaphoclimatic conditions, such as pH and precipitation intensities that influence soil indicators [131,132,133]. In our study areas, the average annual precipitation is 1812 mm in the Chocó and 4118 mm in the Central Amazon; whereas the pH is 5.5 in the Chocó and 4.5 for the Central Amazon. The information on average annual precipitation for these two regions was extracted from WorldClim data [62] for each plot installed for this study; likewise, the pH information is based on measurements in each of those plots. In consequence, the lower levels of P and K found in the Central Amazon could be explained by acid soils and leaching effects produced due to higher annual precipitation [61,131].

The observed interrelations between ES indicate that any human activity oriented to modify an ecosystem will have a positive or negative influence in various ES. For example, AGC and TVP had strong synergy in the Central Amazon and a moderate one in the Chocó, meaning that timber yields maximization most likely influence carbon pools directly, especially if the number of timber species and related harvestable timber volumes increase. In this context, the implementation of sustainable forest management practices considering less damage to remaining trees and the harvest of lower timber volumes will help to maintain AGC [134,135]. Additionally, we observed high to moderate positive correlations in the Central Amazon and Chocó between AGC and D. In this respect, Bunker, et al. [136] suggest that selective logging of species with big diameter and high wood density will contribute to a reduction of carbon stocks. There are also strong correlations between D and NTFP which means that a greater diversity of trees and palms holds a higher potential for forests to supply provisioning services, other than timber, which at the same time can promote alternative forest uses. On the other hand, we observed trade-offs mainly in AGC, TVP, D, NTFP, and M primarily for agroforestry systems and plantations. Despite this reduction, the values observed in soil indicators are still high, especially for K and P. Trees within agroforestry systems and plantations can influence soil properties and nutrient cycling [137]. Therefore, specific species can either cause a decrease or will help to enhance soil-related services [53,138].

Since monitoring ES and biodiversity is time-consuming and expensive, the implementation of policies aimed at the conservation of key services will generate simultaneous benefits to other ES. In this context, the umbrella species approach could provide the background for the identification of potential “umbrella ES”. This approach aims to conserve important species that require large areas or particular habitats to maintain their population. Therefore, the protection of umbrella species simultaneously contributes to the conservation of other species [139,140,141]. Based on this approach, conservation policies could target specific umbrella ES considering their capacity to generate multiple synergies with other ES. Umbrella ES should be easily measurable and sensitive to forest degradation and land use change. In this regard, our results showed that AGC can be considered as an umbrella ES since it is a sensitive indicator of forest integrity and it had strong to moderate synergies with M and several ES; however, AGC may not be a good proxy for soil indicators since it showed variable patterns. Thus, our findings support the feasibility of strategies such as REDD+ as it confirms synergies between carbon pools, provisioning services, and biodiversity [142], but also shows some limitations concerning soil ES.

4.2. Assessing the Decline of Ecosystem Services and Ecosystem Service Multifunctionality

The intensity of timber extraction, tree damage during forest intervention, and unplanned logging activities result in temporal or permanent decline of ES and therefore a potential forest degradation [37]. Based on the selected ES, the Central Amazon and the Chocó had a reduction of 16%–18% of M values respectively. AGC was highly affected by a reduction of 30%–32% for both regions, whereas TVP depleted 40% in the Central Amazon and 49% in the Chocó. This reduction occurred even though forest interventions in our study areas followed the technical guidelines from the Ministry of Environment of Ecuador, with cutting cycles between 5 years for PAFSI and 15 years for PAFSU. According to Roopsind, et al. [143], after 32 years the recovery probability of carbon and timber stocks with harvest intensities of 15–23 m³ ha⁻¹ ranges between 45% and 80%. Other studies suggest that a logged forest will need between 12 to 43 years to recover after an AGC reduction of 10%–26% [144,145,146]. Based on these studies and our estimations, there is evidence that suggests that the logged areas included in our study may not completely reach their initial or reference levels as undisturbed forest if the current cutting cycles are maintained. If logging activities in these areas increase, it will lead to a permanently degraded forest where timber yields could be lower for the second or third cut [147].

Our findings highlight the importance of implementing sustainable forest management practices, such as reduced impact logging (RIL). RIL techniques will allow an adequate recovery of timber and carbon stocks, reducing C emission and supporting climate change mitigation. If RIL is implemented adequately, the damage to the remaining trees can be reduced [135]. In this regard, West, et al. [145] and Vidal, et al. [148] found that after the application of RIL techniques, with a reduction of 17% of AGB and 21% of commercial timber volume, AGB and commercial volume (merchantable species) can be recovered within 16–20 years, respectively.

Regarding NTFP, a decrease was only found in the Central Amazon which suggests a potential loss of species important for local use due to a change in forest structure and composition. The decrease in NTFP species can have implications on livelihood strategies since some species can be important for both timber and NTFP, creating a conflict of use for local people [149]. The logging effect on E was only observed in the Chocó, in this particular environment, continuous timber extraction interventions could lead to a high risk of endemic species extinction due to their restricted habitat distribution. The non-statistical differences of D between old-growth and logged forest in the Central Amazon and Chocó could be explained by the intermediate disturbance hypothesis, wherein the diversity of species can be maximized by the presence of disturbances [150,151,152]. In our case, probably the timber extraction (disturbance) stimulated new pioneer species contributing to species diversity [153,154]. Nevertheless, high intensity and frequency of disturbances could deplete tree diversity due to the decline of shade-tolerant species [150,151].

Logging intensities, size gap, and frequency influence nutrient cycling through the loss of nutrient pools and the reduction of litter inputs [155,156]. In our study areas, soil-related ES presented a reduction in the logged forest for SOC, N, and P, but with non-statistical differences to the old-growth forest in both study areas, suggesting a low effect of timber extraction. Our results are in line with Olander, et al. [157], who did not find an influence of logging gaps on SOC, N, and P. These authors observed a reduction of these indicators particularly in roads and decks during logging which can be mainly attributed to litter movement. Concomitantly, McNabb, et al. [158], found a reduction in C, N, P, and, K primarily in skid trails, and argued that soil impacts were a combination of logging effects and indirect influence of pioneer species such as Cecropia sp. during secondary succession. The removal of litter and nutrient pools from big trees in the above-ground biomass as a result of high logging intensities affect nutrient cycles [155] and therefore soil-related ES. Our results suggest relatively low evidence for degradation effects in soil-related services. However, these results should be interpreted with caution as we did not evaluate the effects of logging interventions on roads or decks.

Timber extraction is an important driver of degradation in the Amazon and Chocó [18]. In our study areas, logging mainly affected TVP and AGC, and to a lower level, the soil-related services, leading to a decrease of M. Since our study regions account for 68% of Ecuador´s harvestable timber with high commercial value [63], our results imply that to maintain ecosystem service multifunctionality and forest integrity, it is essential to implement sustainable use strategies that involve RIL techniques. It is also required to adjust the logging cycles and logging intensities considering the forest recovery potential. Moreover, the establishment of a permanent plot-network for the long-term monitoring of logged forests should be part of the national forestry inventory efforts.

4.3. Identifying the Potential Recovery of Ecosystem Services and Ecosystem Service Multifunctionality

Among the three analyzed recovery phases, the successional forest was the most effective in recovering single ES and M. These results show the importance of the successional forest to recover carbon pools, to provide timber and non-timber products, and to sustain plant diversity. However, successional forests have different species composition than undisturbed forests and are mainly characterized by fast-growing trees and a low abundance of slow-growing trees [159,160]. High values of AGC and TVP in the successional forest are explained by the high rates of biomass during the young and mid-stages of natural succession [48]. Overall, plantations and agroforestry systems had low levels of M. For example, balsa plantations in the Central Amazon had the lowest M values, low stocks of TVP and AGC, which is also expected due to their age structure (two to three-year of age; cutting cycle: 6 years) in contrast to older teak plantations in the Chocó (four to eighteen years; cutting cycle: 18 years). A relevant result was that agroforestry systems in the Chocó provide habitat shelter for endemic plant species (0.55% plot-average) and maintain an important agro-diversity that contributes to the livelihoods and income of local communities. On the other hand, plantations are an important source for timber provision. If smartly allocated, they could alleviate anthropogenic pressures in old-growth forests and contribute to AGC accumulation in the short and mid-term.

Land use change affects soil-related ES indicators by increasing soil erosion and by reducing the nutrient pools in above-ground biomass and litter. A study on soil attributes comparing pastures and forest in the Napo River valley, found that forest clearing caused a soil fertility loss for C (up to −68%), N (up to −50%), and K (up to −50%). This can be explained by a reduction in organic matter and high precipitation associated with nutrient leaching [161]. Other studies suggest that land use conversion from the forest into agricultural land can reduce SOC stocks by 25–75% [76,162,163]. The evaluated recovery phases offer promising values of soil indicators (SOC, N, P, and K). Plantations and agroforestry systems can influence soil properties positively or negatively depending on the species incorporated. Plantations of fast-growing species like Jacaranda copaia and Vochysia guatemalensis can deplete soil K and P [138], while teak plantations can maintain soil K and P [53]. In this case, the process is linked to leaf litter decomposition as older teak plantations are often more efficient in nutrient up taking from deeper soil horizons [164]. On the other hand, our agroforestry systems contain species such as Inga edulis, Myroxylon balsamum, and Erytrina poeppigiana which facilitate nitrogen fixation and foliar biomass, contributing to soil organic material and recovery of soil nutrients [165,166]. Plantations and agroforestry systems can help to recover soil-related services. However, it is important to highlight that a decline in nutrient pools can occur by a reduction of above-ground biomass after forest clearing or through timber extraction during several rotations cycles for the case of plantations. In the long-term this would lead to a permanent loss of soil fertility [167,168].

The recovery of the ecosystem’s integrity in deforested and degraded lands received more attention after the 20 × 20 Initiative, the Bonn Challenge, the FLR initiative, and REDD+. In this sense, our assessment provides empirical evidence of the effect of three common recovery phases on ecosystem service multifunctionality. Our study shows how natural systems that were almost completely modified have the potential to recover M values and reverse anthropogenic degradation. Agroforestry systems and plantations presented the lowest M, but they are important elements at the landscape level as they represent productive activities that help to improve local welfare and reduce pressures on the old-growth forest. This is especially important in our study areas, where 50–60% of household income depends on natural resources [169] and for indigenous communities who culturally rely on traditional agroforestry systems (chakras) to develop their livelihoods, harmonizing ES (mainly provision and regulation) for their well-being and biodiversity preservation.

From the three recovery phases, successional forests reach the highest levels of M. Although the successional forests evaluated here are not fully comparable to old-growth or even logged forests, the levels of M achieved so far were between 73% for the Central Amazon and 80% for the Chocó compared to the old-growth forest and had similar values to the logged forest, but with a different structure and composition. This underpins the importance of successional forests for recovery of ES with a low associated cost; considering these forests in strategies like payment for ecosystem services or sustainable forest management may generate economic benefits to their owners while supporting conservation and avoid a new clearing of these successional forests. Agroforestry systems and plantations might not reach high M values as old-growth forest, but they are of crucial importance for food and timber provision. If both strategies are combined with successional forest they can improve ES provision at the landscape level.

5. Conclusions

We present new evidence on the capacity of different land use transition phases to simultaneously provide bundles of ES as a result of complex interactions. The interrelations among the selected ES show that human-induced alterations on ecological systems have a profound effect on ES bundles. Since AGC was positively correlated with M and presented synergies with multiple ES (e.g., TVP, NTFP, D, and E), we consider that AGC could serve as an umbrella ES as it confirms a synergetic relation with provisioning services and biodiversity indicators. Actions focused to improve or conserve the carbon pools can benefit other ES in parallel. However, for soil-related services, the conservation of AGC may not be entirely effective.

Our result shows that logging activities provoke a decline in ES and M, reaching critical thresholds. M and particular ES such as TVP and AGC are highly affected, whereas soil-related services showed lower impacts due to timber extraction. More intense and frequent logging interventions can lead to long-term degradation or even trigger a drastic forest cover change with high negative effects on the ecosystem service multifunctionality. Sustainable management practices are required to reduce tree damage. It is also necessary to harmonize cutting cycles considering the forest recovery potential, accompanied by strict monitoring and post-harvesting control measures. These actions will help to avoid forest conversion into alternative land uses, maintaining ecosystem service multifunctionality, especially in landscapes under high deforestation pressure, such as the Amazon and the Chocó.

Our results highlight how successional forest, plantations, and agroforestry systems have the potential to recover ecosystem service multifunctionality and reverse human disturbance after forest clearing. From the evaluated recovery phases, the successional forest achieves the highest levels of M values and is the best option for recovering an ecosystem´s integrity. Nevertheless, as more human-modified landscapes emerge and the need for provisioning services increases (e.g., food, medicine, timber), it is also important to envisage options towards agroforestry systems and plantations. The incorporation of different alternatives to recover ES and M will help to reduce the gap between conservation and economic activities in local communities.

This study evidences that there is an urgent need for a broad range of interventions to integrally tackle environmental problems in tropical landscapes. On the one hand, actions that conserve the standing intact forests and reduce the ongoing deforestation are required; on the other hand, better forest management practices aimed at reducing ES depletion have to be implemented. This shows that there is no unique strategy and calls for integrated landscape approaches and initiatives aiming to harmonize climate change mitigation with other forest functions, such as REDD+.
