Ophiolite Chromite Deposits as a New Source for the Production of Refractory Chromite Sands

Abstract

Chromite foundry sands, mixed with binding resins, are employed in the industry to form molds for high demanding casting of metals and steel. As there is no substitute, these sands highly contribute to placing chromium at the top value of the economic importance parameter in the EU classification of critical raw materials. Finding new sources to produce these sands can contribute to lowering its criticality. Chromite foundry sands must meet strict quality parameters, referred to as Cr₂O₃ content, Fineness Index, SiO₂ content, and Acid Demand. The foundry chromite market is dominated by South Africa production deriving from layered intrusion chromite deposits. Chromite sands from ophiolite chromite deposits, normally used for the metallurgical-grade chromite market, were tested as an alternative starting raw material to produce chromite foundry sands. The study of the silicate impurities assemblage showed that its mineralogy strongly affects the result of the most crucial parameter, the Acid Demand. Ophiolite chromite with serpentine impurities should be depurated to a hardly affordable 0.31% SiO₂ content to meet Acid Demand quality threshold, due to high reactivity of this silicate with the acid environment of the test. Those with olivine impurities require to be depurated to a much more easily affordable 2.11% SiO₂ content. As a result, ophiolite chromite with an olivine dominated silicate assemblage can be used as an alternative source of chromite foundry sands.

1. Introduction

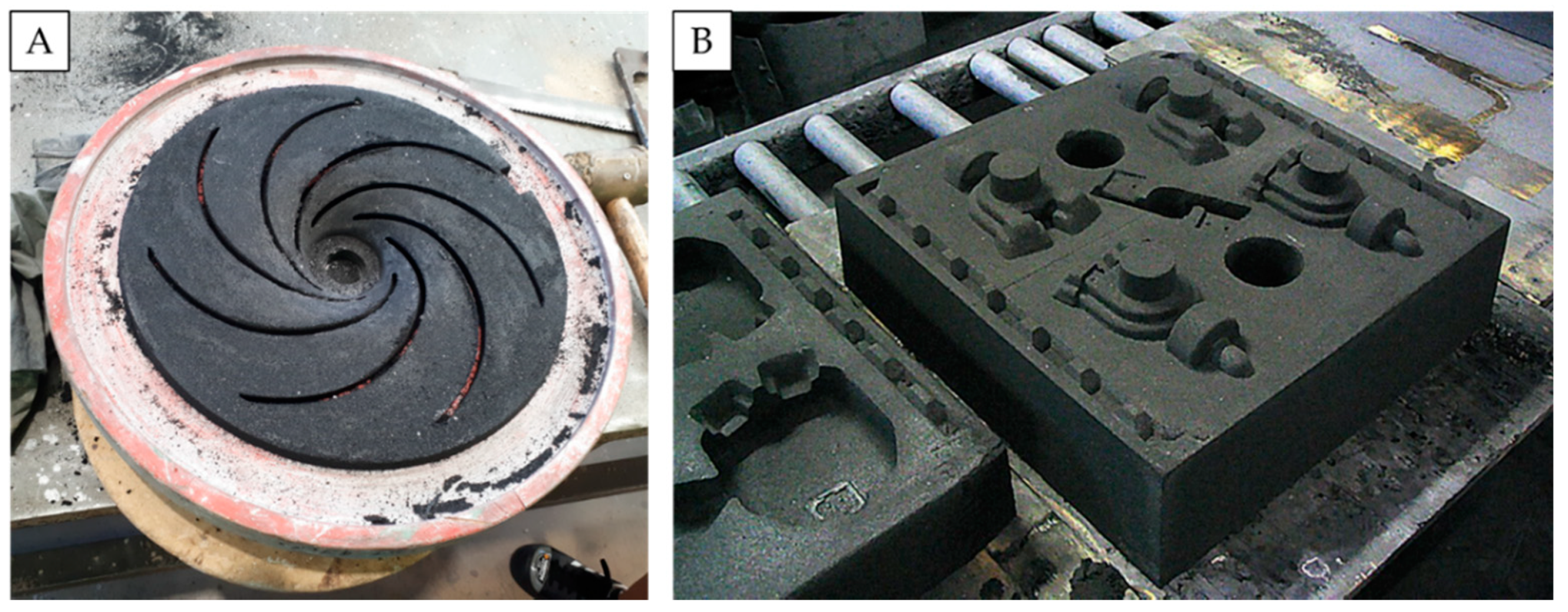

Chromite foundry sands, bonded with resins, are employed in the industry to form molds for casting metal and steel when high performance of sand is required (Figure 1A,B) [1]. They have special properties, such as high melting point (2090 °C), low thermal expansion and neutral chemical behavior that make chromite sands the best solution for high demanding casting [2] and are also the main reason why chromium has been included in the Critical Raw Material list [3].

Chromite foundry sands are generally mixed with binding resins and hardeners to produce molds. They substitute silica sands to cast metals with high density and high melting point and are much cheaper when compared to zircon sand [4]. They have to meet strict quality parameters in order to ensure a good final product [5]. The most important ones are Cr₂O₃ content (higher than 44%), Fineness Index (between 40 and 75), SiO₂ content (below 2.5%), and Acid Demand (below 10, 8, and 6 at pH = 3, 4, and 5, respectively). The Fineness Index (FI) is a measure of the grain size distribution of the sand and it must be neither too high (preventing degassing during casting processes) nor too low (resulting in an uneven surface of the final product). Low silica content is required in order to avoid chemical reactions between silicate impurities within the sand and the binding resins, which could result in a decrease of the sand performance. As the reactivity of sand with resins is the most crucial parameter during casting, in addition to SiO₂ content, a specific test (Acid Demand Test, ADT) has been developed as a proxy of this process.

Foundry chromite production, a niche product in the chromite market but with a high added value, is almost completely dominated by South African companies, which provide the largest share of supply and the best foundry grade quality [6,7]. These chromites derive from layered intrusion-type deposits. Some chrome ore companies, however, started producing foundry sands from metallurgical-grade materials, coming from ophiolite-type deposits, widespread all over the world. While metallurgical-grade chromite is cheap and abundant, foundry sand grade is more expensive, as its high-quality parameters are much harder to attain. Thus, it is profitable for such companies to further enrich metallurgical-grade ore to reach foundry grade quality [8]. As of April 2020, foundry chromite prices were between 380 and 540 $/ton. Expanding the chromite foundry sand market to other producers can widely contribute to lowering the criticality of this commodity, and triggering local production.

The present work aims to provide new insights into the production of foundry chromite grade from metallurgical-grade chromite coming from ophiolite-type deposits. For this purpose, two chromite concentrates from ophiolite deposits in Iran and Greece have been tested and compared with South African chromite sands. The first one is a sand used in the Iranian foundry market, the second one is a metallurgical-grade chromite concentrate. These sands were selected as potential candidates to replace South Africa chromite sands in the European foundry market. As the most critical difference between layered intrusions and ophiolite-type deposits for the production of foundry sands is the different mineralogy of silicate impurities within the sand concentrate, we then focused on the different effects that these impurities have on ADT values. This would provide an important tool in the production of chromite foundry sands from metallurgical-grade ophiolite-type chromite deposits.

2. Materials and Methods

Analyzed samples include one commercial South African chromite sand provided by Laviosa Chimica Mineraria S.p.A, two chromite concentrates from chromite enrichment plants and four rock samples (orthopyroxenite, dunite, serpentinized dunite, and chloritized dunite) representative of different silicate impurities that are common in chromite sands: orthopyroxene, olivine, serpentine, and chlorite. Moreover, two partially serpentinized dunites from the Aetoraches and Rizo mines have been selected and analyzed. These last two samples represent mixed serpentine-olivine assemblages that can be found within some ophiolite chromitites (

Table 1. List of samples and their location.

Sample	Locality	Sample	Major silicates
SA	South Africa	Quality Proxy sand	Orthopyroxene
AE	Aetoraches (GR)	Chromite sand	Olivine + Serpentine
NE	Neyriz (IRN)	Chromite sand	Serpentine
CHL	Abdasht (IRN)	Chloritized sample	Chlorite
SRP	Neyriz (IRN)	Serpentinized sample	Serpentine
OLV	Finero (IT)	Dunite sample	Olivine
OPX	Ivrea Verbano (IT)	Orthopyroxenite sample	Orthopyroxene
RI-2	Aetoraches (GR)	Serpentinized dunite sample	Olivine + Serpentine
AE-2	Rizo (GR)	Serpentinized dunite sample	Olivine + Serpentine

). Concentrates were sampled directly from the separation plant at the mines in Aetoraches, Northern Greece, and Neyriz, Southern Iran. These mines exploit massive and disseminated chromitite bodies hosted in partially serpentinized peridotites of ophiolites [9,10,11,12]. Olivine and serpentine are the most common impurities in ophiolite chromite deposits and they often occur together in different proportions [13,14,15].

2.1. Grain Size Distribution

An important quality parameter of chromite sands is the Fineness Index, which is derived from grain size distribution analysis. Fineness Index values accepted for chromite foundry sands are comprised between 40 and 75 [16]. Grain size distribution is estimated using a sieve column, and Fineness Index is calculated through Equation (1):

$$FI=\frac{p_1{a}_1+p_2{a}_2+p_3{a}_3+\dots }{p_1+p_2+p_3+\dots }$$

(1)

where:

FI = Fineness Index;

p = percentage of material collected by a specific sieve;

a = sieve parameter (

Table 2. Sieve parameters used to calculate FI [16].

Standard Column (µm) 1	Sieve Parameter (a)
3150	3
1600	5
800	11
630	18
400	31
315	38
200	52
160	66
100	102
80	130
50	210
bottom	300

¹ Standard column DIM4188.

).

Grain size distribution was performed on chromite sands SA and NE. For crushed samples (CHL, SRP, OLV, OPX, RI-2, and AE-2) and for Aetoraches chromite sand (AE), a fixed FI (between 40 and 50) was assembled in order to have a comparison with samples SA and NE.

2.2. XRD Powder Diffraction

XRD analyses were performed on silicate samples using a high-resolution X-ray powder diffractometer Panalytical X’pert Pro at the department of Earth Sciences of the University of Milan. This powder diffractometer is equipped with an incident beam monochromator, which separates the Kα₁1 and the Kα₂ and can work with the Bragg Brentano geometry (divergent beam) as well as with a parallel beam geometry.

2.3. X-ray Fluorescence

Chromite foundry sands were analyzed at the University of Milan Bicocca using energy-dispersive X-ray fluorescence (EDXRF, Panalytical Epsilon 3). Data were collected using the Omnian methodology, a standardless method which utilizes internal machine standards for the construction of a calibration curve. Calibration curves have been then corrected using five external standards, SARM8, SARM9, CHR-BHG, CHR-Pt, GR-55, and VV-4.

2.4. Acid Demand Test

The Acid Demand Test (ADT) is a titration method used as a proxy for sand-resin reaction potential. The Acid Demand value takes into account the amount of acid consumed at three different pH levels. The procedure, implemented by Laviosa Chimica Mineraria S.p.A. [5], is here reported:

Materials

• 50 g of foundry sand
• 50 mL HCl (0.1M)
• 50 mL NaOH (0.1M)
• Purified H₂O

Procedure

• Mix 50 g of chromite sand with 50 mL of HCl, stir for 5 min and let the solution rest for 1 h.
• Filter the solution adding H₂O until the solution reaches 250 mL.
• Measure the pH value of the solution.
• Add NaOH until the solution reaches pH 3, 4, and 5, taking note of the volume of NaOH consumed after each step.

Acid Demand Value

ADT values for the three pH levels can be obtained through Equation (2):

$$AD{T}_{pHn}=50-An\ast f$$

(2)

where:

n = 3, 4, 5;

An = volumes of NaOH consumed to reach pH 3, 4, 5;

f = correction factor for HCl and NaOH, determined through blank tests.

The accepted limits for the ADT parameter are 10 at pH = 3, 8 at pH = 4, and 6 at pH = 5. In order to limit the grain size effect on the acid demand results, for the evaluation of the silicate gangue, a narrow range of Fineness Index (between 40 and 50) was chosen. Moreover, for the evaluation of silicate mineralogy effect on the ADT, pure silicate sands were used, and tests were performed at fixed SiO₂ values of 2.5 wt % in 50 g of sand, that is 1.25 g of SiO₂. The amount of starting material was recalculated based on the SiO₂ content of each silicate mineral. The choice of the silicate samples was based on the most common silicate minerals of chromite deposits, which are pyroxene, olivine, serpentine, chlorite, or a mix of those.

3. Results

3.1. Fineness Index

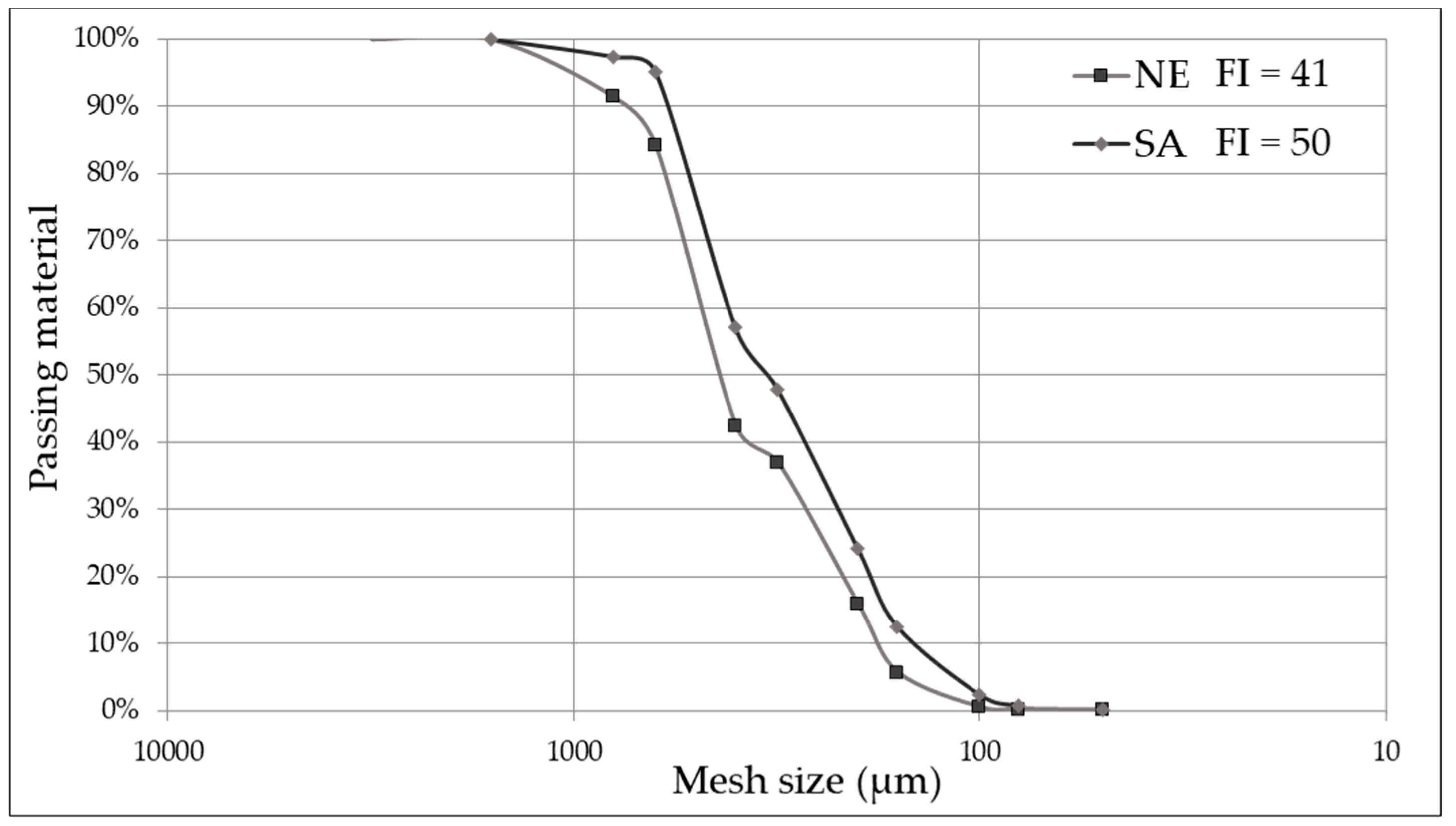

Grain size distribution analysis was performed on standard South African sand (SA) and on chromite sands produced in the Neyriz enrichment plant (NE) (Figure 2). The resulting FI are 50 and 41, respectively. For Aetoraches, as the metallurgical-grade final concentrate has a FI that does not meet foundry sand limits, a chromite sand with a FI of ~44 was assembled.

3.2. Mineralogy of Silicates

Silicate content in chromite concentrates was too low to be detected through x-ray diffraction and, for these samples, silicate minerals were recognized optically and through EDS spectroscopy. South Africa foundry sand mineralogy is dominated by orthopyroxene with minor amounts of plagioclase and olivine, which is the typical silicate assemblage interstitial to chromite grains in layered intrusion chromite deposits [17,18] (Figure 3A). Ophiolite chromitites, on the other hand, typically have a silicate matrix consisting of olivine [19,20]. Occasionally, diopside and pargasite can also be present in minor amounts [19,21]. These deposits are often subject to hydrothermal alteration, which causes primary silicates to be replaced by secondary ones, mainly serpentine and chlorite [19]. Carbonates within ophiolite chromitites are rare, and they are usually indicative of late hydrothermal processes [22,23].

Massive chromitites from the Vourinos complex, in which the Aetoraches deposit is included, are all partially serpentinized [24]. Within Aetoraches and the nearby Rizo deposit, the degree of serpentinization varies between 10 and 70%, and the silicate matrix is composed of serpentine and olivine in different proportions [25].

Massive chromitites from Neyriz deposit are composed of coarse-grained chromite with interstitial olivine, serpentine, and minor chlorite [12]. Disseminated ores show a silicate assemblage constituted by olivine and serpentine. Neyriz deposits show high degrees of serpentinization, up to 90% [12].

Both the Neyriz and Aetoraches samples show the typical silicate assemblage of ophiolite chromite deposits, dominated by olivine that can be totally (NE) or partially (AE) replaced by serpentine (Figure 3B,C) during retrograde metamorphism [26].

XRD analyses were performed on all the silicate samples, and qualitative results are reported in Figure 4. Samples show mineralogical assemblages dominated by serpentine varieties, chlorite, orthopyroxene, and olivine, respectively. Minor impurities are brucite, chromite, and pargasite in such low amounts that cannot affect the results of ADT. Aetoraches and Rizo serpentinized dunites (AE-2 and RI-2) also show an assemblage dominated by olivine and serpentine with minor chromite and clinochlore chlorite.

3.3. XRF

XRF analyses have been performed on the chromite concentrates. The results (

Table 3. X-ray fluorescence results of chromite sands (wt%). Total Fe assumed as Fe₂O₃.

Sample	Cr2O3	SiO2	Al2O3	CaO	Fe2O3	MgO	MnO	TiO2
SA	44.66	0.70	14.52	0.14	29.07	9.88	0.19	0.68
NE	56.27	2.01	12.08	0.18	15.68	13.08	0.20	0.09
AE	48.90	7.72	7.17	0.33	19.46	14.74	0.24	0.12

) show that all three samples respect the Cr₂O₃ content threshold, with NE showing the highest Cr₂O₃ content of 56.27 wt%. Sample SA has the lowest SiO₂ content (0.70 wt%), followed by sample NE with a SiO₂ content of 2.01 wt%, both below the 2.5 wt% threshold. The only sample that exceeds the threshold is AE, with a SiO₂ content of 7.72 wt%, making this sand not suitable for foundry use.

3.4. Acid Demand

During beneficiation, silica impurities are mostly separated from chromite, and reported to the tailing material. To have a foundry quality, chromite sands need to have Acid Demand values at pH = 3, 4, and 5 not higher than 10, 8, and 6, respectively.

Acid Demand tests have been performed on chromite sands SA and NE, and on assembled chromite sand AE. In order to assess the behavior of different silicate impurities during Acid Demand, samples CHL, SRP, OLV, OPX, AE-2 and RI-2 have also been analyzed. Considering a SiO₂ limit of 2.5% in chromite foundry sands, the test was performed on the amount that would correspond to 2.5% SiO₂ within 50 g of a chromite sand, based on the silicate mineral chemistry (Equation (3)) (

Table 4. Acid demand test results of chromite sands and silicate samples.

Sample	Sand (g)	SiO2 (%)	Initial pH	ADT pH3	ADT pH4	ADT pH5
SA	50	0.70	1.52	8.9	6.6	6.0
NE	50	2.01	1.42	21.7	20.2	19.6
AE	50	7.7	2.62	40.7	33.3	32.3
CHL	4.12	2.5	1.93	23.5	20.8	20.2
OPX	2.09	2.5	1.78	3.6	1.1	0.4
OLV	3.19	2.5	1.70	10.6	8.6	7.9
SRP	2.88	2.5	2.20	39.2	36.4	36.03
AE-2	50	2.5	1.83	19.0	15.6	15.0
RI-2	50	2.5	1.87	16.7	13.4	12.8

).

$$100(\%):Y(\%)=x\left(g\right):1.25\left(g\right)$$

(3)

where:

100(%) = total of the sand

Y (%) = % SiO₂ within the silicate mineral

X (g) = grams of sand to use for acid demand test

1.25(g) = grams of SiO₂ allowed within 50 g of foundry sand (2.5%)

4. Discussion

Chromite sands for foundry use have to meet all four quality parameters (FI, Cr₂O₃, SiO₂ and ADT). South Africa (SA) sand, as expected, being the reference material for foundry market, meets all the required parameters. Neyriz (NE) chromite sand has a very high Cr₂O₃ content, a suitable grain size distribution and silica content lower than 2.5%. However, the acid demand values exceed the limits for all three pH (Figure 5). Aetoraches (AE) sand meets only the Cr₂O₃ and FI parameters. Silica content is much higher than the threshold and the ADT is around four times the threshold for all pH.

The results on Aetoraches sand show that a typical metallurgical-grade chromite sand, with a Cr₂O₃ content around 48 wt % derived from ophiolite chromite deposits, is very far from meeting quality parameters for foundry use. The Neyriz sand, a substitute of unavailable South African sand in Iran, underwent a much deeper separation process in order to decrease SiO₂ content till meeting foundry sand quality. Our results show that the most demanding parameter is Acid Demand that is not met by NE sample in spite of its low SiO₂ content. This makes such sand unsuitable for the very demanding world of foundry market.

If the high acid demand for Aetoraches sand is to be expected due to its high silica content, Neyriz acid demand values are more puzzling. The low difference in silica content between NE and SA cannot explain the high difference in Acid Demand values between the sands.

The lack of linear correlation between SiO₂ content and acid demand values can be explained by the different reactivity of silicate minerals in the acid environment of the test. All the three chromite sands have been enriched through gravity methods, and their silica content ranges from 0.70 wt% (SA) to 7.7 wt% (AE). Acid Demand tests on pure silicate samples of chlorite, serpentine, olivine, pyroxene (Table 4) at a fixed silica content of 2.5% show a very different reactivity of the minerals (Figure 6). For all pH values, the orthopyroxene gangue respects ADT limits, classifying as the least reactive mineral and, therefore, the best one (Figure 6). This explains why South African sand is the most performing one, as its gangue is mostly composed of orthopyroxenes. Olivine performs worse than orthopyroxene, but exceeds the ADT limits at pH 3, 4, and 5 by a tiny amount. The worst performing silicate sands are chlorite (CHL) and serpentine (SRP), which are high above the ADT limits.

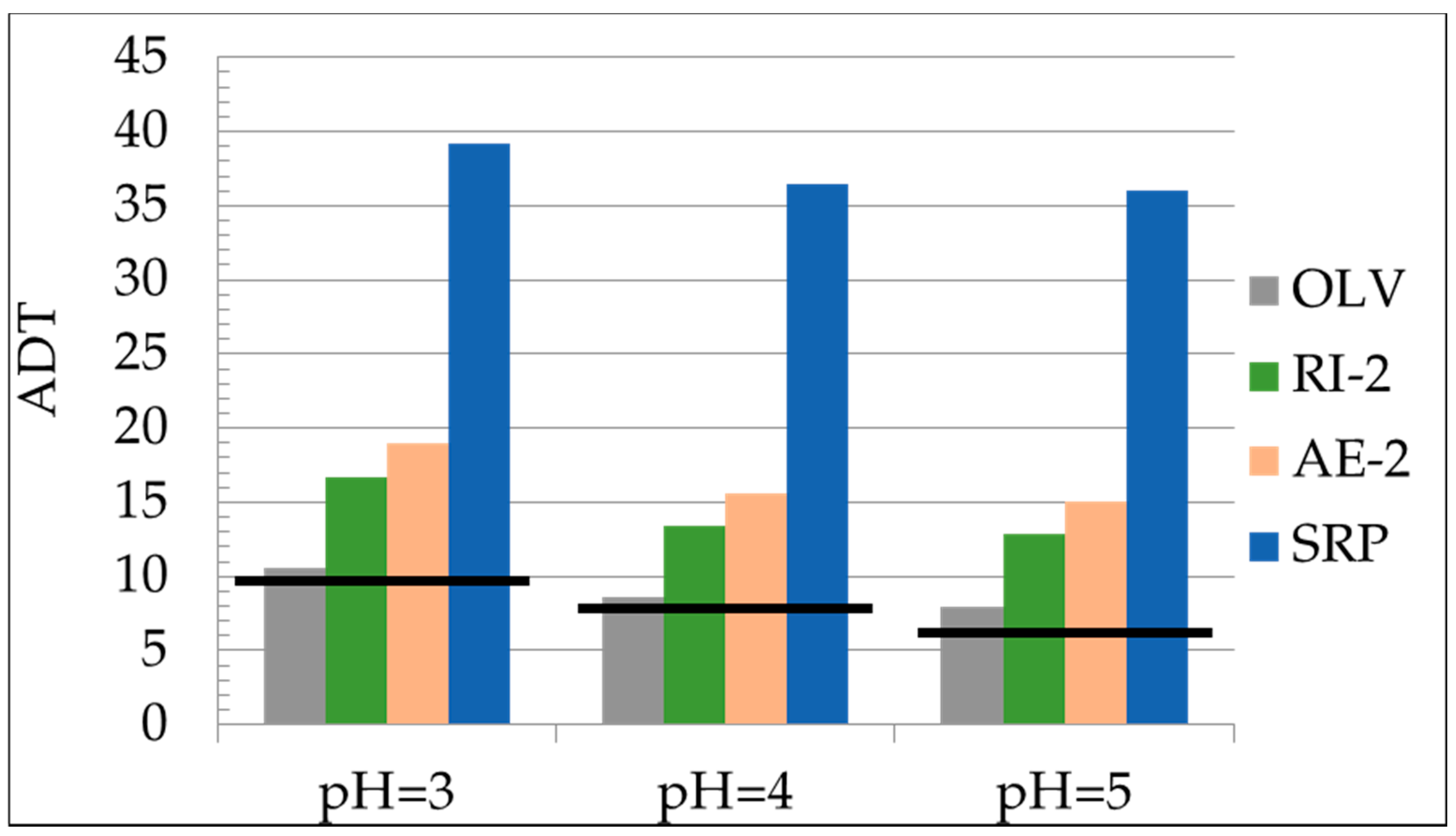

Acid demand tests performed on two mixed serpentine-olivine samples at 2.5% SiO₂ content (Table 4, Figure 7), show ADT values comprised between those of pure olivine and pure serpentine. Sample RI-2 performs slightly better than sample AE-2, due to a lower degree of serpentinization. Both samples exceed the ADT limits for all three pH, however, they show values more similar to pure olivine than to pure serpentine. This means that the degree of serpentinization in the two samples is very low, and that a better constrain of the behavior of serpentine and olivine sands during Acid Demand tests could be pivotal for the production of chromite foundry sands from ophiolite chromitites.

The study of silicate mineralogy has a direct impact on the beneficiation processes of chromite sands. To produce chromite sand of foundry quality, enrichment plants must set machinery based on the mineralogy of the silicate assemblage. Orthopyroxene, a common silicate within layered intrusion chromite deposits, always respects the ADT limit for silica contents lower than 2.5%, so that when the sand meeting the SiO₂ quality parameter is produced, it will always meet also the ADT limits.

The results show that ophiolite chromites dominated by a chlorite or serpentine silicate assemblage cannot be enriched till meeting the foundry sand quality parameters. Hence, the possibility to produce foundry sand from these chromite deposits is limited to those with an olivine or mixed olivine-serpentine silicate assemblage that is quite common. In the following section, we focus on the impact of olivine and serpentine contents on the ADT value, in order to assess the maximum serpentine content of olivine-serpentine chromite sands that can be successfully enriched till foundry sand quality. For this purpose, two additional tests were performed (

Table 5. Acid demand test results of mixed olivine-serpentine sands at fixed silica content and pure olivine and pure serpentine sands at different silica contents.

Sample	SERP (g)	OLV (g)	SiO2%	Initial pH	ADT pH3	ADT pH4	ADT pH5
25–75 SRP-OLV	0.76	2.28	2.50	2.03	30.5	27.2	26.6
50–50 SRP-OLV	1.52	1.52	2.50	2.11	33.5	30.7	30.2
75–25 SRP-OLV	2.22	0.74	2.50	2.15	36.2	33.3	32.6
25-SRP	0.72	0	0.63	1.65	24.4	22.2	21.6
50-SRP	1.44	0	1.25	1.83	32.1	29.7	29.0
75-SRP	2.16	0	1.88	1.88	36.9	34.7	34.3
25-OLV	0	0.80	0.63	1.45	5.9	4.3	4.0
50-OLV	0	1.60	1.25	1.48	7.8	6.1	5.8
75-OLV	0	2.40	1.88	1.46	8.7	6.9	6.4

):

(i)

Olivine and serpentine sand mixes at different proportions (25%, 50%, and 75% of serpentine) maintaining a fixed 2.5% of SiO₂, in order to simulate the behavior of partially serpentinized sands.

(ii)

Pure olivine and pure serpentine sands at SiO₂ contents lower than 2.5% (1.875%, 1.25%, and 0.625%).

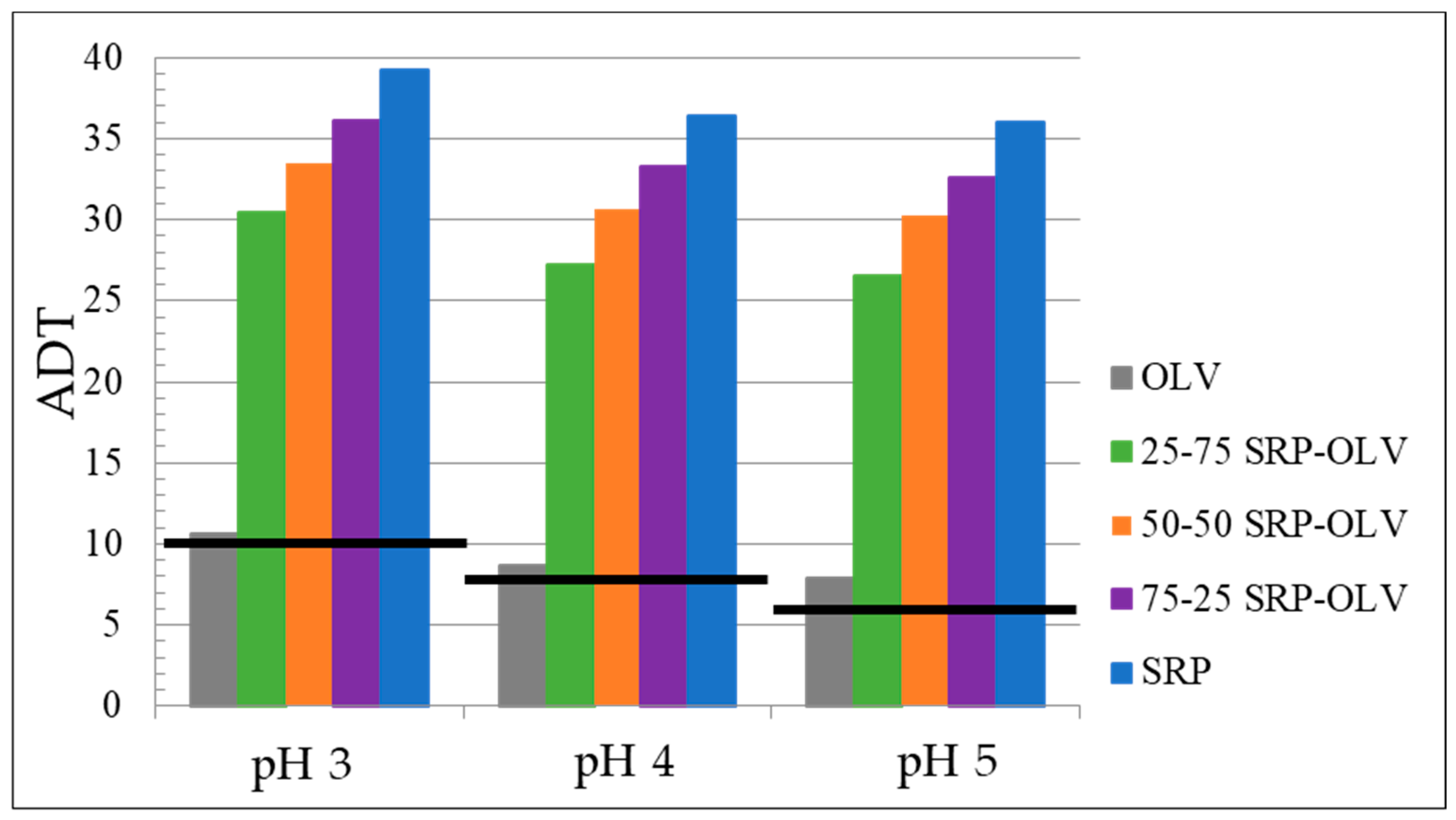

Mixed olivine-serpentine samples show ADT values (Figure 8) comprised between the two pure end-members.

For mixed olivine-serpentine, an average between antigorite and forsterite SiO₂ contents has been calculated.

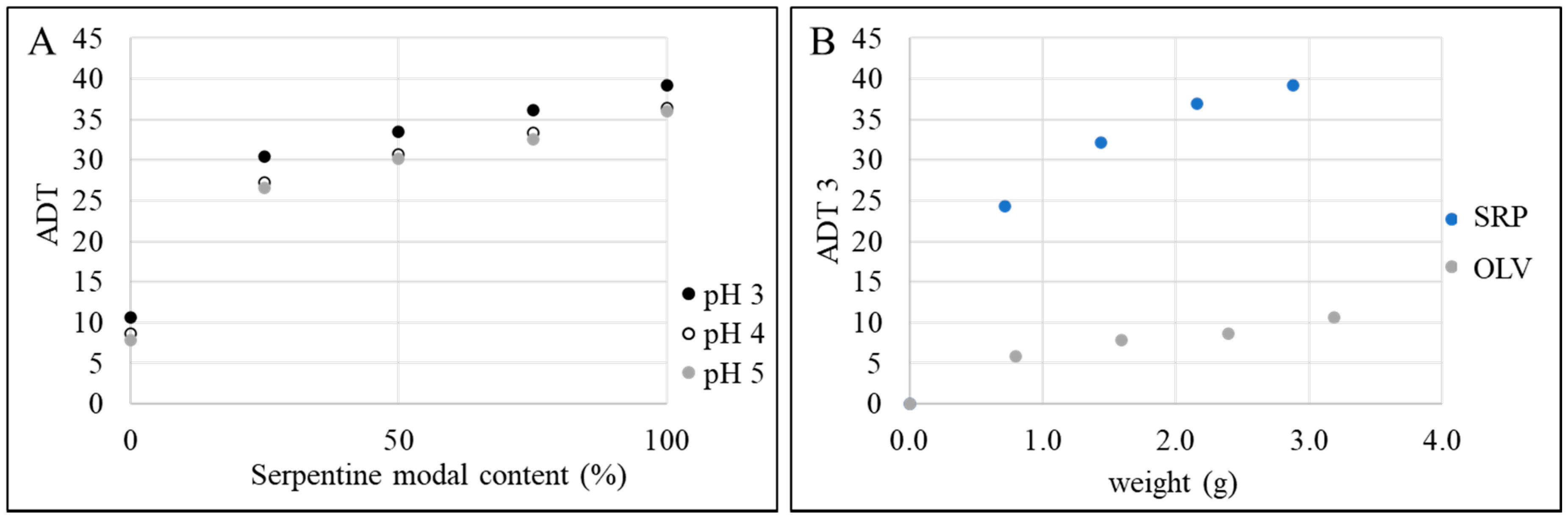

ADT and serpentine modal contents (Figure 9A) are not in a linear correlation, and even a small amount of serpentine leads to high ADT values, so that the mix serpentine-olivine at 25% serpentine fraction has ADT values more similar to the ones of pure serpentine than of pure olivine. The highest SiO₂ contents that can result in a sand meeting the Acid Demand quality parameter can be calculated separately for olivine and serpentine from the results shown in Figure 9B.

The ADT parameter depends on the initial pH of the sand. As serpentine and olivine behave as bases, the initial pH is calculated from the equation of base dissociation constant (Equation (4)):

$$p{H}_i=14+\frac{1}{2}({\log }_{10}Kb+{\log }_{10}Cb)$$

(4)

where:

pH_i = initial pH of the sand

Kb = base dissociation constant

Cb = concentration of the base in the solution

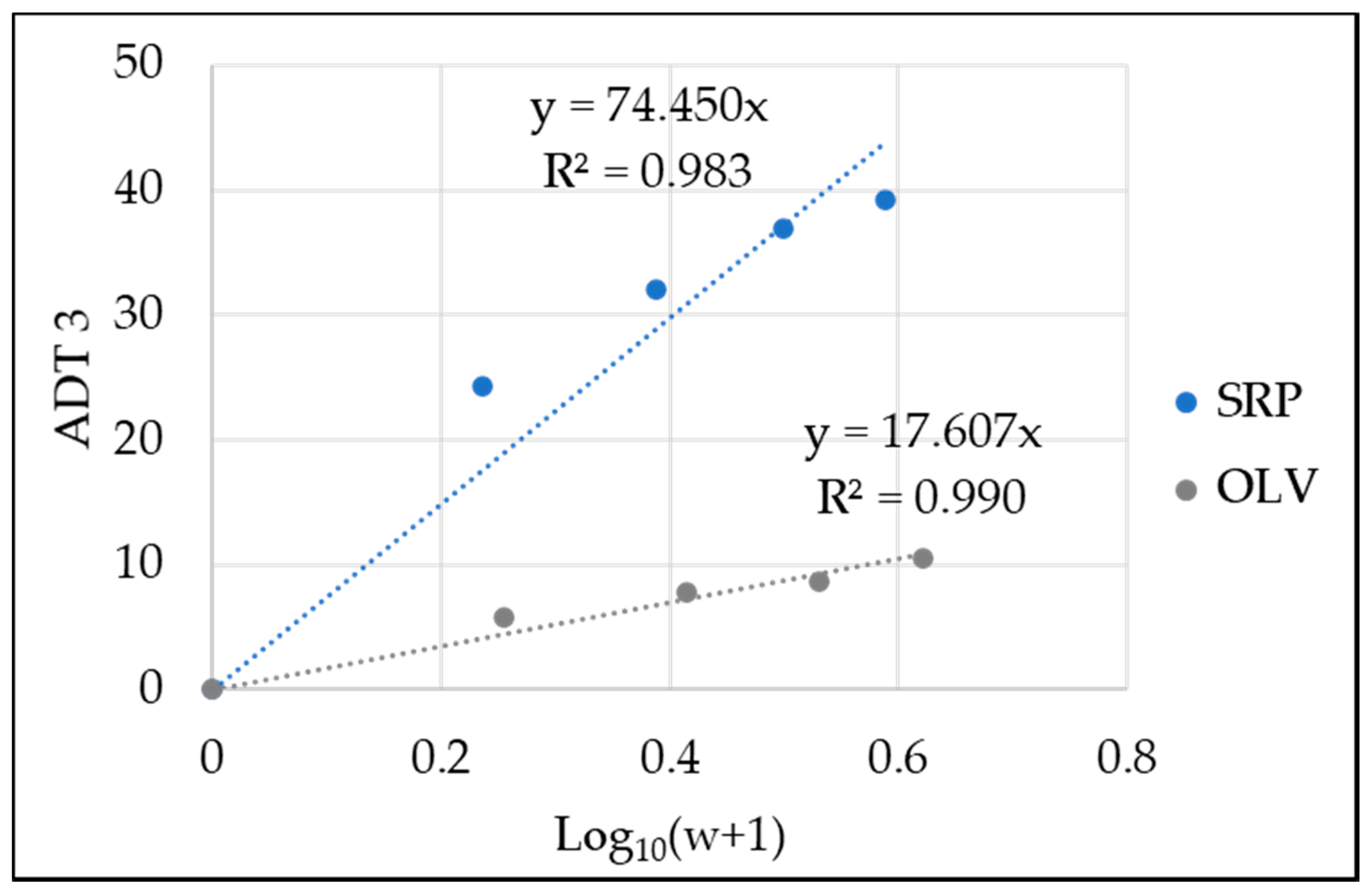

As a consequence, ADT must be correlated by a base10 logarithmic function to the amount of silicate added during acid demand test. Due to the fact that in absence of silicates the ADT value is necessarily 0, the logarithmic curve was transposed by factor 1 on the x axis as a mathematical artifact necessary to get finite values. ADT and the base10 logarithm of w + 1, where w is the amount of silicate added (serpentine or olivine) have been then plotted (Figure 10) and show a linear correlation with high r² values. The ADT and the amount of silicate are correlated through the following relation (Equation (5)):

$$ADT=k\ast {\log }_{10}(w+1)$$

(5)

where:

k = coefficient of proportionality derived from the correlation;

w = amount of added silicate.

In order to estimate the amount of silicate that corresponds to the ADT3 threshold, we can substitute ADT = 10 in Equation (5). The results are 0.36 g of serpentine and 2.70 g of olivine. Finally, from the mass of silicate we can calculate, through the SiO₂ content of the mineral, the corresponding SiO₂ content of the chromite sand, that is 0.31% for serpentine and 2.11% for olivine.

These results mean that an ophiolite chromite with an only serpentine silicate assemblage should be purified to a final SiO₂ content as low as 0.31% to reach the ADT quality threshold, while an ophiolite chromite with an only olivine silicate assemblage should be purified to a much more easily affordable final SiO₂ content of 2.11% to reach the ADT quality threshold. For chromite sands with mixed olivine-serpentine assemblage, the serpentine works as a limiting factor as it is much more reactive than olivine, so it should anyway never exceed 0.36 g within the 50 g of chromite sand used in the test. That is less than 0.72% of serpentine in the sand, independently of the olivine content.

5. Conclusions

Chromite foundry sand is a crucial commodity, irreplaceable in high demanding casting of steel and metals. The identification of new possible sources for the production of such commodity can dramatically decrease the criticality of chromite raw material. Ophiolite chromite concentrates do not meet the required quality parameters, and also refractory sand produced in Iran from ophiolite chromites does not respect the most critical parameter, that is Acid Demand value. This is due to the different mineralogy of the silicate assemblage of these sands when compared to South African ones. The presence of serpentine, even in small amounts, due to its high reactivity with acid, precludes the possibility to get acid demand values respecting the quality threshold. On the other hand, olivine, the other most common silicate in ophiolite chromites shows a performance close to that of orthopyroxene, the best performing silicate, abundant in layered intrusion chromites, like those of South Africa.

The present work shows that the production of chromite foundry sands starting from ophiolite chromites is possible, but only for those where the silicate impurities assemblage is dominated by olivine, with very low or negligible amounts of serpentine. Two examples of ophiolite chromitites with a low degree of serpentinization are reported in the work. Both Aetoraches and Rizo exceed the Acid Demand thresholds by a low amount, and an affordable degree of purification could lower the ADT values and make them suitable for the foundry market.
