BIM-LCA Integration for the Environmental Impact Assessment of the Urbanization Process

Abstract

The construction sector is one of the most polluting industries, generating between 30% and 40% of the worldwide environmental burden in terms of raw materials, direct and indirect energy consumption, waste, and CO₂ emissions. Recent advances in computer science and data management have facilitated the evaluation of present and future impacts, thus improving the sustainability of architectural designs. Powerful software tools, such as Building Information Modelling (BIM), allow environmental indicators to be incorporated into the construction elements that make up the project to evaluate it during the design stage. In this work, the state of the art of ecological indicator application through BIM platforms is studied. Barriers and uncertainties are also identified. Subsequently, a model is proposed to evaluate the environmental impact of an urbanization process or a project through several ecological indicators (carbon footprint, water footprint, and embodied energy). To perform this analysis, the most important aspect is to determine the quantities of each construction element and their clear decomposition into subelements, since both aspects add certainty to the analysis. For this purpose, construction cost databases are a good instrument for introducing environmental awareness. The reliability of LCA data, which can be obtained from generic databases or ecolabels such as environmental product declarations, becomes crucial.

1. Introduction

Buildings represent between 30% and 40% of worldwide environmental impact, whether directly by their use or indirectly as part of the embodied impact of the construction materials consumed. This encourages architects and engineers to design more sustainable buildings, which implies lower energy and resource consumption [1]. Several tools and calculation models to determine the environmental impact of the construction sector are in place, whether using single issue indicators, such as the embodied energy (EE) or carbon footprint (CF) [2], or more complex ones such as emergy [3,4], the ecological footprint (EF) [5,6,7,8,9], CML, or the eco-indicator, also known as multivariable indicators.

Methods putting together data from the entire construction process are being developed, but the inclusion of environmental concerns during the design stage represents one of the greatest challenges for designers. For this reason, the European Committee for Standardization promotes, in the production phase of buildings, the integration of environmental concerns by defining the European Guidelines on Sustainability in Construction Works [10]. In addition, the European Directive 2014/24/EU on public procurement states that, for public works contracts and design competitions, Member States should use specific electronic tools, such as electronic modelling tools, in construction. Spain, the United Kingdom, Germany, and France are transposing these guidelines into their government regulations [11,12,13,14]. However, there are important barriers to be overcome, such as accessibility to environmental data, high expertise requirements, and the difficult identification of alternative components or materials [15].

Building Information Modelling (BIM) is increasingly used to offer comprehensive project planning, design, and management, mainly for new buildings [16]. BIM software adds information to building projects, so the designer now draws constructive elements and simultaneously defines their characteristics or parameters in the current life cycle stage of the project [17]. This type of software allows additional information to be included in the construction elements, such as life cycle assessment (LCA) data, which can improve decision-making during the design stage [18,19,20]. This environmental impact assessment usually includes the consumption of construction materials and energy, greenhouse gas (GHG) emissions, and construction and demolition waste (CDW) generation [21].

However, BIM software should meet more requirements for building designers [22]. One of the main barriers that designers face is working with different software, databases, and methodologies [23]. LCA integration with BIM requires programming skills, so the assessment is a multidisciplinary task in which environmentalists, architects, engineers, and programmers should work together [24]. Moreover, there is a growing tendency to integrate evaluation systems, databases, consultants, and suppliers [25]. Also, LCA and BIM integration has been addressed in recent studies [26], mainly focusing on the construction process as it is the most accessible phase of the building life cycle. However, the urbanization process has a significant impact and, although its environmental impact can also be assessed through the BIM project design, has had limited attention from researchers in this field.

In the present work, the state of the art is presented first, starting with the LCA application to the construction process, related normalization and legislation, products, and companies’ evaluation strategies and eco-labelling. Software and assessment tools combining the quantitative and qualitative environmental evaluation of projects are also reviewed, as well as different approaches to include LCA and BIM in the environmental impact assessment of architectural projects. Subsequently, a method is proposed for integrating an LCA-enabled construction cost database into a BIM environment to analyse the environmental impact of the urbanization phase of BIM projects. Finally, the case study of an urbanization project supports this proposal, which will allow environmental awareness to be included in this kind of project. In summary, the main objective of this research is to define a methodology to integrate traditional skills into the elaboration of the bill of quantities of construction projects, environmental impact assessments driven by construction cost databases, and project visualization in BIM environments in order to enable their application in urbanization projects.

2. State of the Art

2.1. Life Cycle Assessment (LCA)

LCA has been widely applied to assess the environmental performance of buildings and the EE and carbon emissions (CE) of their products, materials, and waste [27]. LCA assesses environmental loads throughout the life of a product or service. The International Standards Organization (ISO) created a subcommittee (SC 5) with the purpose of developing international standards to regulate the methodology for calculating universal environmental indicators. The study of the complete life cycle of buildings includes the extraction and processing of raw materials, production, transport and distribution, use, reuse and maintenance, recycling, and final disposal. LCA studies must comply with UNE-ISO 14040 [28] and UNE-ISO 14044 [29]. In Europe, the development of regulations in the field is concentrated on the “Green 7” countries (i.e., those with the highest implementation rates): Austria, Denmark, Finland, Germany, the Netherlands, Sweden, and the United Kingdom. Outside the EU, the most advanced countries in this matter are the USA, Canada, Japan, and Korea [30].

LCA tools, such as SimaPro, Umberto, or GaBi, need simplifications to be accessible to professionals in the AEC (Architecture, Engineering and Construction) industry, since they are not specialized in environmental impact assessment [31]. Similarly, the inclusion of primary materials as part of the same material or family constitutes a limitation of a detailed LCA [32], unless the life-cycle inventory includes aggregated materials. This problem is related to the difficulties in defining a framework of necessary parameters to carry out a correct LCA in BIM for the various stages of the life cycle of buildings [26,33].

2.2. Ecolabels

Another source of environmental information of construction materials is supplied by producers/manufacturers by means of ecolabels, which add the specific life-cycle data of products. The labels allow access to the positive environmental performance of a product as they are awarded to products with low environmental impact. There are three types: ecolabel type I [34], environmental self-declarations (type II) [35], and environmental product declarations or EPD (type III) [36]. Ecolabels type I are voluntary schemes that affirm the lowest environmental impact of a product. In ecolabels type II, the manufacturer performs the analysis with or without the certification of a competent authority, and ecolabels type III are always verified and define the environmental behaviour of the product. In general, ecolabels assess the extraction and selection of raw materials, production processes (power consumption, water usage and consumption, emissions in the atmosphere and water, etc.), waste management, and emission of hazardous substances.

Ecolabels type III or EPD are defined by UNE-EN ISO 14025 (Labelling Type III: Environmental Product Declarations) and follow a minimum set of ISO standards as well as specific Product Category Rules (PCR). European and many international EPDs also comply with EN 15804 [37]. They can be used as a basis for choosing among products, subject to some limitations. They provide detailed information about specific products, thus improving the accuracy of the LCA of building projects where they are employed. The Embodied Carbon Review Report [38] identified that, from more than 150 green building systems, almost 100 use EPD in their certifications.

EPDs are also related, among other documents, to the European Initiative of Single Market for Green Products [39], the Handbook on Green Public Procurement [30], and the Resolution 2014/2208 about the efficient use of resources [40], which proposes a main indicator and a set of subindicators about the efficient use of resources and ecosystem services. These harmonised indicators measure the consumption of resources, including imports and exports at the EU level, by Member States, and for the industry as a whole, and they consider the entire life cycle of products and services. They are based on the ecological footprint methodology and quantify at least the land, water, materials consumption, and CE.

The main international organizations emitting EPDs are EPD System [41], Product Environmental Footprint (PEF) [42], Sustainable Life [43], ECO-Platform [44], and Level(s) [45]. Specifically, EPD System is an international organization located in Sweden that produces EPDs and Product Category Rules (PCR) for all types of products. It is worth mentioning that EPDs are fully accessible and particular to each company in a specific country.

2.3. Assessment Tools

Several sustainability assessment systems and tools have been developed and applied to evaluate the environmental performance of buildings. These can be classified into qualitative and quantitative tools, with the former being easier to apply without specialized knowledge about sustainable construction. Within the former category, the Leadership in Energy and Environmental Design (LEED) and the Building Research Establishment Environmental Assessment Method (BREEAM) are the most relevant, and are continuously updated and revised to meet market demands [46]. Other LCA-based software/tools are Athena, Building Environment Assessment Tool (BEAT), EcoEffect Envest 2, Environmental Load Profile (ELP), Eco-Quantum, and Sustainable Building. Among the quantitative tools, SimaPro, GaBi, and Umberto allow the environmental impact of processes to be calculated from a life-cycle perspective [47]. Two important limitations are as follows: the purchase of costly licenses is required, and much specialized work is involved to perform an LCA.

Fortunately, there is always an economic control in construction projects, so all the elements involved are usually well defined in terms of their bill of quantities and budget. This is an opportunity for the introduction of environmental indicators as part of the cost assessment. The tools already in place for the cost control of projects can be adapted for sustainability considerations [8,9]. These tools use the cataloguing code employed by Spanish quantity surveyors to obtain the bill of quantities, which eases the implementation and understanding of environmental impact calculation models [48]. Subsequently, activities are broken down into three types of resources: machinery, manpower, and materials. The methodology developed previously by the authors calculates the embodied energy (EE) [49], the carbon footprint (CF) [50,51,52], and the water footprint (WF) [53,54] of the project, and is suitable for the construction sector thanks to its simplicity and to being introduced as part of the project’s budget. The EE, virtual water, and emissions of construction and demolition waste (CDW) management have also been assessed [8].

The previous methodology has been incorporated in two assessment tools: OERCO2 [52] and HEREVEA [55]. The OERCO2 software, which is a result of the OERCO2 Erasmus+ project, is an open-source online tool for the estimation of the CF of new construction residential buildings and is designed to be used by nonspecialized users. Similarly, the HEREVEA tool [55] bases its calculations on the data obtained from the project’s bill of quantities to assess the EF of building renovation projects. It also evaluates the economic and environmental feasibility of different proposals simultaneously. The resulting model is then integrated into a geographic information system (GIS), which allows georeferenced results to be obtained. The tool can be used for sustainable and resilient planning, policy-making at all government levels, and decision-making processes. Both types of software have been employed as teaching tools [56,57].

2.4. BIM and Environmental Assessment

A general overview of BIM-based tools for environmental impact assessment showed that most of them need to combine the BIM software with other applications to obtain the quantification of environmental indicators. Recently, the advance of BIM worldwide has forced researchers to work on its combination with LCA and LCC (life cycle cost assessment). Various approaches have been followed, which were classified by Santos et al. [26]: those using external individual and separate tools [58]; those connecting quantity take-off and an external LCA database with integrated tools in proprietary software [59]; and the one proposed by Santos et al., based on including LCA and LCC information in BIM models. The main advantage of this last approach is that it quickly updates the analysis results when the project under study is not modified, thus taking advantage of the full potential of BIM tools, while the others require re-exporting the information and re-linking it to the external databases, besides needing extra licenses for the external software involved. In this section, a review of the existing applications regarding these three categories is given to provide a better understanding of the advances in this matter.

2.4.1. Type 1: Exporting Data to External Tools

Regarding this first approach, Jalaei and Jrade [60] developed an integration between Autodesk Revit, Microsoft Excel, and Athena Impact Estimator to analyse the environmental impact and the EE of constructive solutions. Marzouk et al. [61] proposed a combination of several software tools (i.e., Autodesk Revit, Revit DB Link, Microsoft Access, and Athena Impact Estimator) for measuring direct and indirect CE in construction projects.

Chen and Pan [62] presented a multicriteria decision-making method for low-carbon construction measures by combining Revit, eQuest, and Promethee [63]. Ajayi et al. [64] explored a combination of Revit Architecture, Green Building Studio (GBS), and Athena complement for global warming potential (GWP) and health impact assessment. Crippa et al. [65] integrated data extracted from Simapro with Excel and ArchiCad to analyse the CF of wall systems in Brazil. A few external applications can import and work with data from BIM files. Some examples are Elodie, eTool LCA, GBAT, Impact Compliant Suite, and Lesosai.

2.4.2. Type 2: Connecting Quantity Take-Off to External LCA Databases through Integrated Tools

Examples of tools that apply the second approach (i.e., integration into BIM environments as plugins) are LCA Design, Ecotect, Green Building Studio, One Click LCA, and Tally for Autodesk Revit [31]. Specifically, the latter stands out for its intuitive workflow, technical support, and results presented in a useful format. For example, Najjar et al. [66] analysed a case study with the Tally plugin to evaluate the entire life cycle of buildings, aiming to provide recommendations. Schultz et al. [67] studied the differences in the results of LCA from Tally and Athena Impact Estimator, getting similar results but identifying significant differences in the impact categories.

In this line, Basbagill et al. [58] developed a BIM model using DProfiler linked to eQuest within a BIM environment. Subsequently, the results were manually loaded into SimaPro and Athena EcoCalculator to obtain the CF. BIM has also been combined with LEED and BREAM assessments. Azhar et al. [68] combined Revit with IES Virtual Environment to calculate CE and incorporated energy to convert them into LEED credits. Also, Ilhan and Yaman [24] developed a green building evaluation tool using Graphisoft ArchiCAD^® linked to the BREEAM material database.

2.4.3. Type 3: Including Environmental Data in the BIM Model

Other authors reviewed the existing research on BIM/LCA integration and its possibilities for simplification in terms of input–output data and LCA results [19], and pointed out that the best solution would be to remain within the BIM environment to facilitate the interaction between design and environmental performance assessment [69].

Other environmental evaluation tools and models were defined by Inyim et al. [70], who presented the Simulation of Environmental Impact of Construction (SimulEICon), a BIM extension designed to assist in the design stage of the decision-making process of a construction project. Gan et al. [71] developed a holistic approach to evaluate built-in and operational carbon in high-rise buildings using Revit and a parametric complement, Dynamo. These researchers also evaluated the reduction of the CF by replacing steel and cement with recycled materials [72]. Finally, Yang et al. [73] deployed a unidirectional workflow to calculate the operation and energy of materials and CO₂eq.

2.4.4. Weaknesses of Other Methods Combining BIM and LCA

In the three different approaches to combine BIM and LCA described in the state of the art, several weaknesses can be identified. In type 1, the main barrier is that the users’ objective is to obtain a certificate from an external tool that also requires additional training and knowledge from the designers. In type 2, the designer also needs to learn an additional tool for the environmental analysis. Finally, type 3 is the simpler strategy because everything happens inside BIM, but it is also the most time-consuming in the definition of each element’s impact, since LCA data are introduced directly into the BIM software. Thus, if the BIM model changes in any of its components, new LCA data need to be calculated and integrated.

2.5. Reliability

As stated in the previous sections, data processing depends on the quality and accessibility of LCA, which vary depending on the source, as presented in Figure 1. Accessibility is when manufacturers make their LCA public. This can be done by using ecolabels, such as EPD, or by less product-specific data, such as the generic data that can be obtained from LCA databases, thus losing reliability [74]. Its robustness depends on the reliability of the consulted sources, since each manufacturer defines the degree of confidence of data by choosing the ecolabel for their products.

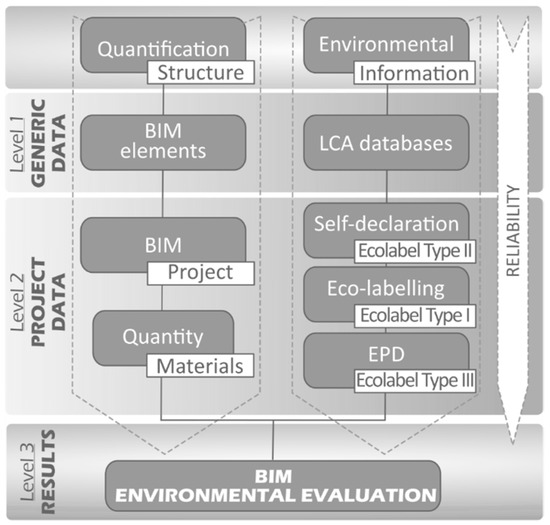

In Figure 1, the first level corresponds both to generic BIM elements for the representation of the project and to generic environmental information of products. In the second level, the previous data are adapted to an actual project by defining the geometry, descriptions, and components with BIM, based on the quantity take-off and using more transparent and product specific environmental data from ecolabels. In the third level, environmental indicators or footprints can be calculated and represented for each work unit previously defined in the project. In the last level, the information can be added to the BIM model by means of plugins, directly inserted in the BIM software or by sending the BIM information to environmental assessment tools.

Another important aspect is the type of information usually presented in construction projects. These projects employ construction cost databases both to generate and control project budgets and to define a structure and measurement criteria, which are contractually binding and agreed upon in the sector by contractors, designers, and suppliers. To define work units, construction work breakdown systems (WBS) are mainly used. The WBS divides the construction project into small parts that can be easily combined. The most representative are: Standard Method of Measurement of Civil Engineering [75], Uniformat [76], Uniclass [77], ISO 12006-2 [78], and MasterFormat [79].

This widespread tool is a suitable means to introduce environmental assessment in engineering and architecture. In Spain, highly specialized platforms, such as the BEDEC cost database, SOFIAS or E2CO2Cero tools, allow CO₂ emissions to be calculated in detail according to the project’s bill of quantities. BEDEC was developed by the Institute of Construction Technology of Catalonia [80] and uses environmental data of building materials from the Ecoinvent LCA database [81], one of the most complete databases at the European level [74], which is integrated in the Simapro LCA software [82]. As for the SOFIAS tool, environmental data are obtained from OpenDAP [83]. An intermediate approach is defined in E2CO2Cero by the Basque Country Government in Spain. This approach allows energy and carbon emissions to be calculated due to the materials and processes employed during the building construction [84].

Databases clearly define what should be measured and how it must be done with BIM objects. Therefore, providers must match their environmental information with the way products are traditionally measured and included in the project budgets. This method can be a reliable way of including environmental assessment in construction. The measurement criteria of cost databases can match the quantities obtained from BIM and, simultaneously, the criteria employed in the definition of construction or work units and products by the market, such as square metres of the floor area covered by tiles or cubic metres of concrete in a column.

Another interesting aspect of construction cost databases is the definition of all the subelements of each work unit. These databases come from a long tradition of cost control in the construction sector, since each element and its quantities are contractually binding. The accurate quantity take-off BIM provides an essential aspect of the environmental impact assessment of projects. Interoperability to determine the amount of material and a cost estimation can accelerate the design process, aid the comparison of alternative solutions, and produce better results [85]. This was already done by Abanda et al. [86], who developed a specific application to link BIM models with the New Measurement Rules (NMR) in the UK standard for public procurement [87] by using the Bath Inventory of Carbon and Energy (Bath ICE) [88]. Also, Mercader-Moyano et al. [89] applied an environmental impact assessment to a BIM environment by using a construction cost database for the quantity take-off.

3. Materials and Methods

In this section, a method for the calculation of the CF, WF, and EE of urbanization projects is presented. The CF indicator is widely used in the construction sector [90]. However, there are limitations on CF calculations that make the results difficult to compare because the methodologies do not follow a unified international standard [91]. Several examples of the application of the CF indicator to construction projects CF have been carried out using the projects’ bill of quantities [50,51,52]. In recent years, advances have been made in defining ranges for the CO₂ of construction elements to make the results comparable [92].

The other two indicators considered in this model, EE [49] and WF [53,54], are of interest to the construction sector due to the simplicity of their message. The EE represents the energy efficiency of the production of products and is independent from the emissions accounting. It is also a useful indicator in construction project assessment [49]. The WF is another interesting indicator to analyse because it determines the amount of this scarce resource employed in the production of goods, being an increasingly important impact in manufacturing. It was developed and standardised following the publication of The Standard Calculation Methodology [93] and The Water Footprint Assessment Manual [94], and is currently disseminated by the Water Footprint Network [95].

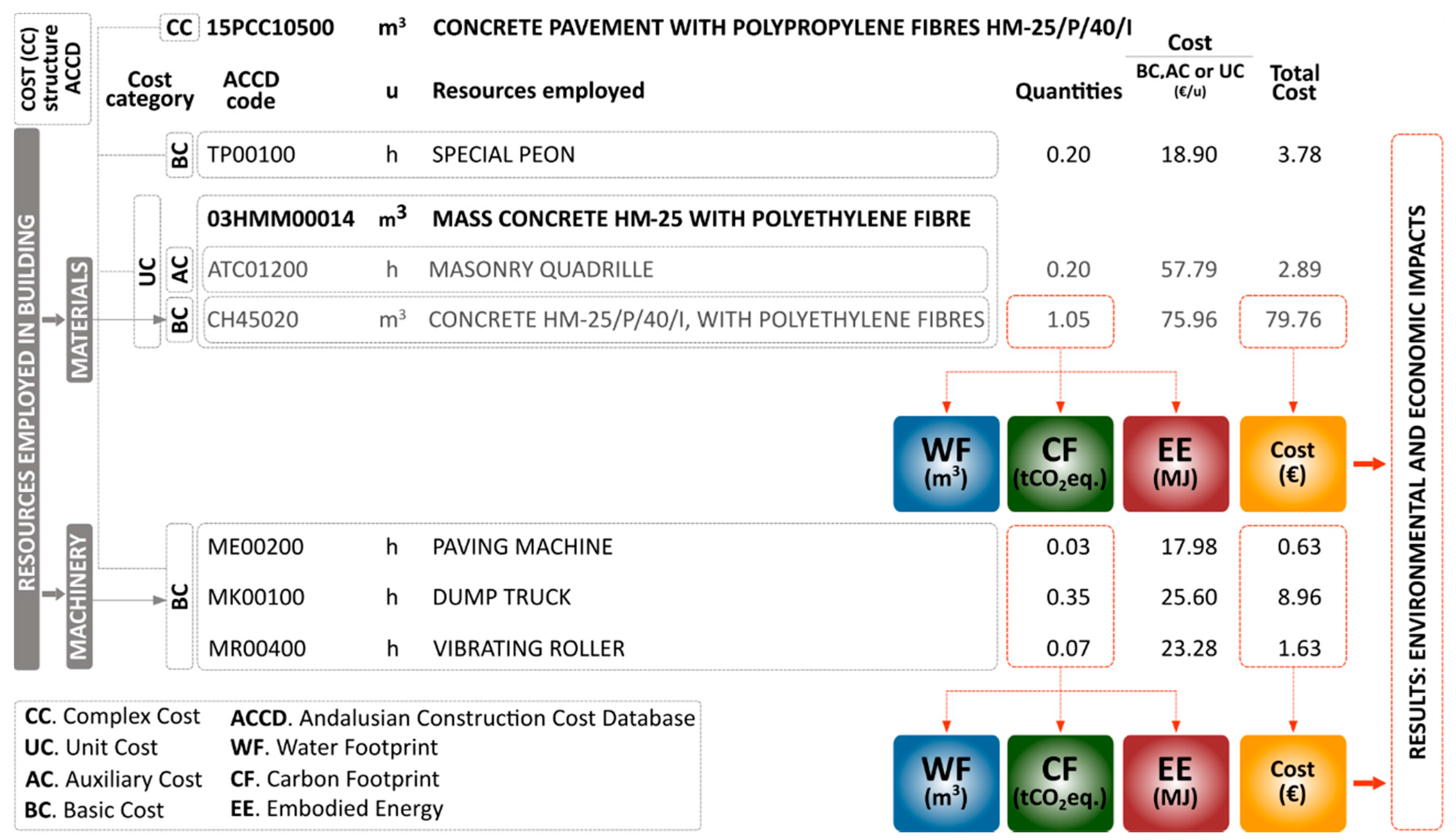

The proposed methodology starts with a comprehensive description of the construction project. All the elements in the project should be neatly defined to correctly determine the amount of resources to be consumed. To this end, the WBS of Andalusia Construction Cost Database (ACCD) [96] is used. The ACCD has a bottom-up organization, with the completed project being the highest level of the hierarchy [48]. Each work unit has an associated unit cost and all its components (materials, machinery, and manpower) are described and quantified. The description of these components by an alphanumeric code, which groups units by the material nature or type of common workforce, facilitates the calculation not only of their cost but also of their quantities for similar work units. The levels and examples are illustrated in Figure 2A. On the other hand, measurement criteria are included in each unit description and their subelements in Figure 2B. The set cost per work unit is reinforced by establishing a singular relationship between the measurement criteria established for a given work unit and its corresponding cost. As a result, if the criteria are modified, the cost must be changed. Common measurement units (cubic metre, square metre, thousand units, etc.) are used for similar work units.

Once all the elements necessary to the construction project are codified, information about the nature of each element can be gathered. For example, elements whose code starts with CH are all made of concrete of a certain type, so their impact is assigned from LCA databases. The weight of each material can be determined by their quantities, obtained through the geometry of BIM construction objects. Each step is explained in detail in the following paragraphs.

From each machine employed in the project, fuel consumption is considered its main environmental impact, which is linked to its engine power (fuel and electricity) and working hours [97]. The average fuel consumption of machines is from 0.15 to 0.20 for diesel engine, and from 0.30 to 0.40 L/h/kW for petrol [98].

The fuel consumed is obtained as specified in Equation (1):

V = P × Wh × R,

(1)

where V: Fuel consumption (L); P: Engine power (kW); Wh: Working hours (h); and R: Engine performance (L/kWh).

As for electrical machines, energy consumption is calculated as defined in Equation (2):

C = P × Wh × C_f,

(2)

where C: Consumption (GJ); P: Power (kW); Wh: Working hours (h); and Cf: Conversion factor (GJ/kWh).

WF for machines and trucks is 13.60–28.32 m³/h, respectively; EE is 1090.36–2271.36 MJ/h, and CF is 62.78–130.80 tCO₂eq/h [8]. To obtain the CO₂ emissions, water consumption, and EE of construction materials, their Life Cycle Inventory (LCI) is analysed by applying the IPCC 100a and Water Footprint and Cumulative Energy Demand methodologies provided with Simapro v8. The environmental information is extracted from the EcoInvent database through SimaPro, since this database covers the vast majority of materials usually employed in construction [6].

In the BIM project, the quantities of construction materials (Qi) are determined, e.g., the number of benches, the cubic metres of concrete in the road, or the square metres of tile area in a sidewalk. When the environmental impacts of each work unit are already included in the ACCD, see Figure 3, they can be multiplied to obtain the total impact of the element or unit cost, as shown in Equation (3):

I_i = Q_i × U_i,

(3)

where I_i is the impact (WF, EE or CF), and U_i is the total impact in the construction unit i.

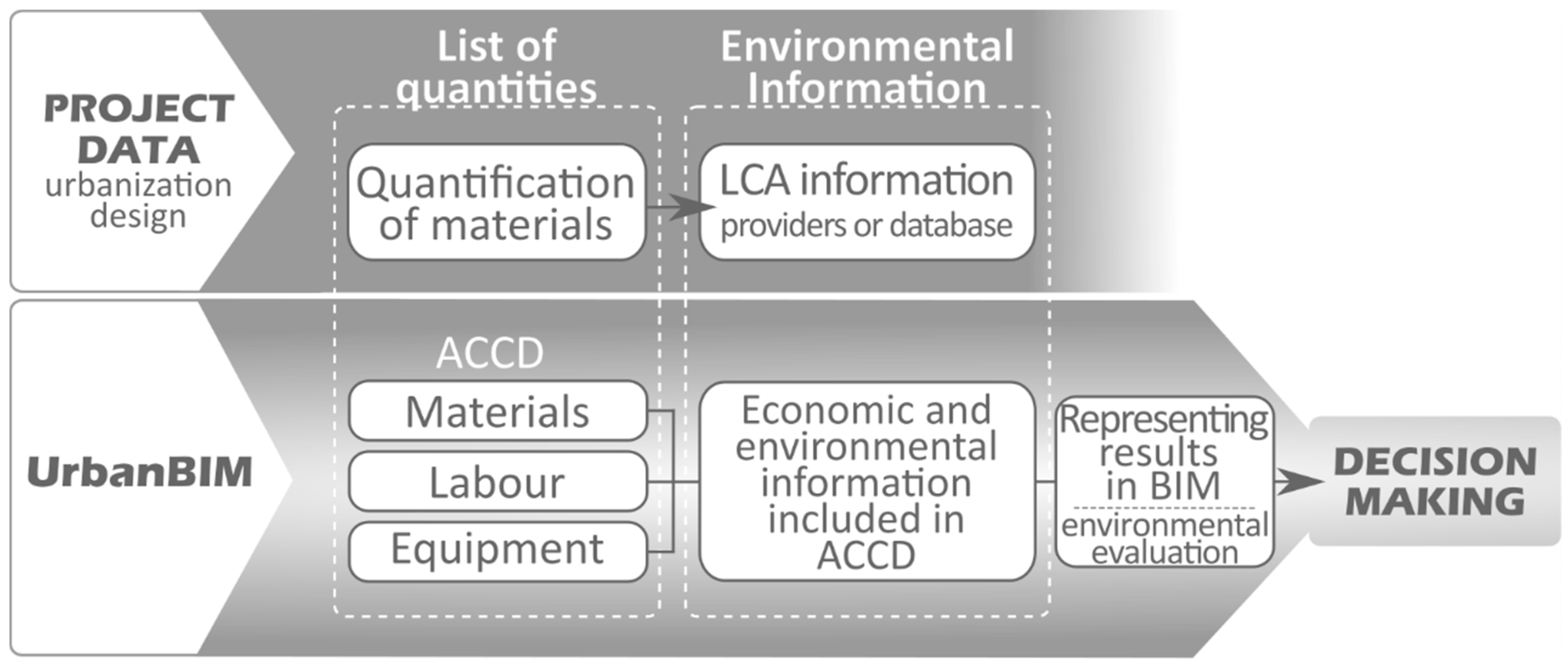

The proposed methodology is represented in Figure 4.

4. Results

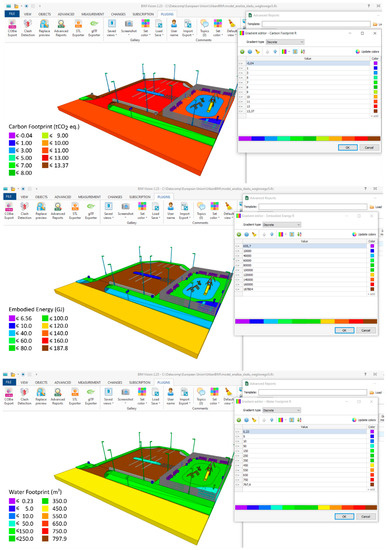

In public spaces, playgrounds and parking lots are useful for the introduction of environmental awareness to the urban planning of cities. For this, a small urbanization project is defined for the illustration of the proposed methodology. The project includes a playground (12 m × 22 m), a parking lot (20 m × 22 m), a section of road (40 m × 6 m), the corresponding sidewalk (40 m × 2 m), and a cycle path (40 m × 2 m). As expected for this type of construction site, concrete and asphalt are the main materials but others are also used, such as wood for benches and metal for the playground and street lighting.

As

Table 1. Unit cost and environmental impact of BIM elements in the urbanization project.

IFC Element	ACCD Code	Uniclass	Description	Street Element	U	Cost (EUR/U)	CF (tCO2eq/U)	WF (m3water/U)	EE (MJ/U)
IfcSlab	15PPP50120	EF_30_60	Pavement in parking area with paving blocks	Pavement	m2	54.37	0.078	1.2	492
	15PPP50250	EF_30_60	Pavement in children’s play area with artificial grass and absorbent base	Pavement	m2	41.21	0.025	1.6	372
	15PPP50110	EF_30_60	Sidewalk with concrete paving blocks	Sidewalk	m2	31.91	0.081	1.3	471
	15PPP50180	EF_30_60	Cycle paths	Cycle path	m2	33.22	0.098	2	670
	15PPP50110	EF_30_60	Bituminous concrete driveway	Driveway	m2	22.64	0.047	1.9	515
IfcTank	15ADD50005	Pr_60_50_96_15	Rainwater tank	Tanks	m3	552.57	1.207	66.6	9702
	15UR50050	Pr_40_50_07_22	Underground container, 4000 litres	Container	u	5950.12	6.719	584.8	34709
IfcUrbanFurniture	15EPP00105	Pr_70_70_48_73	Galvanized steel streetlight 6 m LEDS light	Streetlight	u	1023.07	3.425	71	56602
	15UPA0010	Pr_40_30_29	Bench, metallic support and Nordic pine seat	Bench	u	256.29	−0.041	0.2	656
	15URP00010	Pr_40_50_07_96	Metallic public bin	Bin	u	457.78	0.271	4.3	1979
	15UPA0005	Pr_40_30_29	White concrete bench	Bench	u	940.84	2.052	28.1	13532
	15UFF50010	Pr_40_20_87_24	Drinking fountain	Fountain	u	1379.35	0.066	107.3	6685
	15UFF50011	Pr_70_55_98_30	Street fountain	Fountain	u	45732.76	25.402	5457	363223
	15UPB00100	Pr_40_30_61_88	Children’s seesaw	Seesaw	u	1005.29	0.396	7.4	4848
	15CSS50120	Pr_70_75_70_14	Transfer traffic light, 6 m high	Traffic light	u	4589.57	2.24	78.9	25973
	15CRR10102	Pr_70_75_72_30	Vertical traffic sign	Sign	u	114.12	0.31	6.1	4513
IfcPipeSegment	15ACW50110	Pr_65_52	Ceramic pipe DN 600	Pipe	m	211.39	0.278	17.2	5300
IfcFooting	15ACV50140	Pr_65_52_07_89	Trench to draining pipe DN 200 up to 3 m deep	Trench	m	138.46	0.1464	26.1	3382
	15APP50145	Pr_65_52	Concrete well for DN 600	Well	u	1126.88	1.8605	101.4	15380

shows, it was possible to define classification equivalences between BIM (or IFC) elements, codes from Uniclass, and complex costs (CC) from the ACCD, thus calculating their environmental impact in terms of the three indicators considered in this study, i.e., EE, CF, and WF. A short description of each CC, along with their economic cost and environmental impact, is also shown in Table 1. The 19 CC defined for the case study comprised 68 unit costs (UC). For each, the unit impact was determined by adding the impact of their basic components (BC). The complete list of the elements included in these CC is presented in

Table A1. Cost and environmental impact per work subunit of the street urbanization, including the main construction units represented in bold characters.

ACCD Code	Description	U	Quantity	Cost (EUR/U)	CF (tCO2eq/U)	WF (m3water/U)	EE (MJ/U)
15ACW50110	Ceramic pipe DN 600	m		211.39	0.278	17.2	5300
15ACW91110	Vitrified ceramic pipe 600 mm	m	1	172.52	0.2437	10.1379	4750.6
15MMG90210	Trench-fill with granular material. Manual means	m3	0.95	16.61	0.0241	2.5613	330.4
15MMW90152	Trench-fill with sand. Mechanical means	m3	1.085	14.23	0.0155	0.2735	87.1
15MZZ90125	Mechanical trench excavation in urbanized area > 2.50 m	m3	2.378	4.20	−0.0079	4.2167	126.9
15MWW00210	Trench and manhole shoring	m2	3.886	3.83	0.0026	0.0106	5
15APP50145	Concrete manhole for DN 600	u		958	1.9337	24.4064	12,877.9
15MPP90125	Mechanical excavation in urbanized area > 2.50 m	m3	12.5	6.65	−0.0125	6.6261	199.4
15APP00145	Prefabricated circular manhole diam. 1.20 m, depth > 2.50 m	u	1	931.94	1.9271	17.3828	12,583.4
15MMW90160	Manhole-fill with sand. Mechanical means	m3	2.262	15.58	0.0165	0.3869	90.1
15MWW00210	Trench and manhole shoring	m2	20	3.83	0.0026	0.0106	5
15ADD50005	Rainwater tank	m3		552.57	1.2065	66.5697	9702.4
15MPP90115	Manual excavation in urbanized area > 2.50 m	m3	1.088	32.83	−0.0606	30.1147	906.4
15MPP90125	Mechanical excavation in urbanized area > 2.50 m	m3	2.538	6.65	−0.0125	6.6261	199.4
15MTW00005	Internal transport of material from excavation. Manual means	m3	1.088	5.86	0	0	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	2.538	0.17	0.0004	0.0004	0
15MWW90160	Manhole-fill with sand. Mechanical means	m3	1.088	15.58	0.0165	0.3869	90.1
15MWW00210	Trench and manhole shoring	m2	1.845	3.83	0.0026	0.0106	5
03HMM00012	Blinding concrete HM-20/P/40/I	m3	0.051	70.55	0.2417	3.6014	1333.6
03HAL00715	Concrete HA-25/P/20/IIa in foundation	m3	0.254	74.7	0.2927	4.3723	1606.8
03HAM00750	Concrete HA-25/B/20/IIa in walls	m3	0.414	73.3	0.2959	4.4155	1627.8
03HAL00765	Concrete HA-25/B/20/IIa in slabs	m3	0.152	77.74	0.2961	4.4173	1631.7
03ACC00811	B500S corrugated steel bars	kg	80.986	1.49	0.0016	0.0295	25.5
03ERM00011	Wooden formwork for foundation	m2	0.217	9.76	-0.0115	5.5177	166.1
03ERT00011	Metallic formwork for foundation	m2	1.379	26.31	-0.0067	4.6274	183.2
15ASW00100	Polyethylene manhole step	u	0.386	19.16	0.0067	0.1877	208.2
15ASW00170	Manhole cover, diam. 400mm	u	0.027	84.87	0.0972	0.9414	981.5
03EWW00025	Steel grating (tramex)	m2	0.207	49.77	0.0464	1.3208	737.1
15UR50050	Underground container, 4000 L.	u		4241.46	5.8402	164.4954	89,718.1
15MPP90115	Manual excavation in urbanized area > 2.50 m	m3	7.568	32.83	−0.0606	30.1147	906.4
15MPP90125	Mechanical excavation in urbanized area > 2.50 m	m3	17.658	6.65	−0.0125	6.6261	199.4
15MTW00005	Internal transport of material from excavation. Manual means	m3	7.568	5.86	0	0	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	17.658	0.17	0.0004	0.0004	0
15MMW90160	Manhole-fill with sand. Mechanical means	m3	14.014	15.58	0.0165	0.3869	90.1
15MGG00410	Polyethylene geomembrane on sub-base foundation	m2	9.009	0.99	0.0005	0.0208	17.7
03HMM00012	Blinding concrete HM-20/P/40/I	m3	1.802	70.55	0.2417	3.6014	1333.6
03HAL00715	Concrete HA-25/P/20/IIa in foundation	m3	1.952	74.7	0.2927	4.3723	1606.8
03HAM00750	Concrete HA-25/B/20/IIa in walls	m3	2.342	73.3	0.2959	4.4155	1627.8
03ACC00811	B500S corrugated steel bars	kg	328.236	1.49	0.0016	0.0295	25.5
03ERM00011	Wooden Formwork for Foundation	m2	4.004	9.76	−0.0115	5.5177	166.1
03ERT00011	Metallic formwork for foundation	m2	15.616	26.31	−0.0067	4.6274	183.2
15URC00050	Underground container, 4000 L	u	1.001	3923.27	5.0822	104.7827	83,561.5
15UFF50010	Drinking fountain	u		1032.95	0.0741	16.1298	2236
15MZZ90110	Manual trench excavation in urbanized area < 2.50 m	m3	7.999	14.18	−0.0235	12.0475	385
15MTW00005	Internal transport of material from excavation. Manual means	m3	7.999	5.86	0	0	0
15MMG90210	Trench-fill with granular material. Manual means	m3	2.75	16.61	0.0241	2.5613	330.4
15MMW90160	Manhole-fill with sand. Mechanical means	m3	5.199	15.58	0.0165	0.3869	90.1
15SCE01020	Polyethylene pipe PE100 diam. 40 mm PN-10	m	15.998	7.44	0.003	0.0467	53.2
15SVE01020	Manual ball valve diam. 40 mm PN-10	u	1	117.13	0.0084	0.1302	141.6
15UPF00010	Stainless steel drinking water fountain	u	1	856.15	0.0456	0.9572	1235.7
15UFF50011	Street fountain	u		7337.6	1.9022	132.917	20,479.6
15MAA90010	Excavation in urbanized area	m3	100.2	4.08	0.007	0.007	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	100.2	0.17	0.0004	0.0004	0
15MMW90160	Manhole-fill with sand. Mechanical means	m3	46.2	15.58	0.0165	0.3869	90.1
15MCC00101	Superficial compaction with mechanical means	m3	63	2.08	0.0005	0.068	1.8
15MMS00180	Rampart with selected soil. Mechanical means	m3	18	4.8	0.0212	0.4119	49.8
15MMG00110	Artificial graded aggregate	m3	1.2	11.66	0.0249	2.4833	328.3
03HMM00012	Blinding concrete HM-20/P/40/I	m3	0.6	70.55	0.2417	3.6014	1333.6
03HAL00715	Concrete HA-25/P/20/IIa in foundation	m3	16.05	74.7	0.2927	4.3723	1606.8
03HAM00750	Concrete HA-25/B/20/IIa in walls	m3	21.825	73.3	0.2959	4.4155	1627.8
03HAL00765	Concrete HA-25/B/20/IIa in slabs	u	1.5	77.74	0.2961	4.4173	1631.7
03ACC00811	B500S corrugated steel bars	m2	3396.412	1.49	0.0016	0.0295	25.5
03ERM00011	Wooden formwork for foundation	m2	36	9.76	−0.0115	5.5177	166.1
03ERT00011	Metallic formwork for foundation	m2	181.8	26.31	−0.0067	4.6274	183.2
15ASW00100	Polyethylene manhole step	u	10	19.16	0.0067	0.1877	208.2
10ACN00111	Grey granite, polished, 2 cm	m2	68.75	121.73	0.0507	29.7471	912
10ACN00112	Black granite, polished, 2 cm	m2	67.6	219	0.0507	29.7471	912
10SES00150	Surface water proofing treatment	m2	98.75	12.73	0.0034	0.0754	300
10ACW00112	Black granite polished piece, 60 × 40 cm max.	u	1	219	0.0507	29.7471	912
15ADW00110	Filling and depuration compact system for street fountain	u	1	5279.13	0.3412	8.0906	6272.3
15UPW00120	Compact recirculation system for fountain	m	1	1094.63	0.2185	4.9834	3918.4
15ACV50140	Trench to draining pipe DN 200 up to 3 m deep	m		4091.87	4.5653	402.8376	66,946.9
15MZZ90110	Manual trench excavation in urbanized area < 2.50 m	m3	0.488	14.18	−0.0235	12.0475	385
15MZZ90120	Mechanical trench excavation in urbanized area < 2.50 m	m3	1.138	3.01	-0.0056	3.0119	100.6
15MTW00005	Internal transport of material from excavation. Manual means	m3	0.488	5.86	0	0	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	1.138	0.17	0.0004	0.0004	0
15MGG00170	Geotextile sheet 125−160 gr/ m2	m2	7.202	2.1	0.0003	0.0107	9
15MGD00140	PVC drainage pipe, diam. 200 mm	m	1	12.79	0.0443	6.4776	1145.5
15MGG00810	HD polyethylene geomembrane, 1.5 mm	m2	4.001	4.36	0.0043	0.1798	152.9
15MMG00250	Trench-fill with draining material. Mechanical means	m3	0.25	12.23	0.023	2.3695	292.5
15MMG00350	Trench-fill with filter material. Mechanical means	m3	1.375	11.85	0.0194	2.3695	155.1
15ADD00100	Concrete drainage manhole 1.00 × 1.00 m, depth > 2.50 m	u	0.015	2265.75	1.8324	199.7122	25972.3
15ADD00110	Storm overflow manhole 1.00 × 1.00 m, depth > 2.00 m	u	0.015	1759.57	2.6703	176.6585	38734
15CSS50120	Transfer traffic light, 6 m high	u		1600.28	1.2664	15.058	9062.2
15CSE03160	2 PVC pipes, diam. 110 mm, for traffic light network	m	20	25.44	0.0247	2.426	315.2
15CSR00100	Highway manhole, 60 × 60 cm	u	1	157.04	0.1978	2.35	2300.9
03HMM00035	Earthing rods in traffic light	u	1	87.25	0.202	2.7037	1384.8
15CSW00120	Earthing rods in traffic light	u	1	61.28	0.0091	0.3647	163.1
15RCW00120	Displacement of 6-m-high traffic light	u	1	563.99	0.5984	1.9326	807
15CSCE02270	Copper circuit, 1 × 16 mm2 HO7-K(AS)	m	20	16.87	0.0003	0.0115	5.5
15RCW00500	Connection closet	u	1	205.74	0.2057	4.3462	3512.2
15RCW00600	Electronic regulator transfer	u	1	367.65	0.0021	0.0071	4.2
15CSW02010	Connection cabinet—traffic light regulator	m	20	115.02	0.0263	0.9162	569.3
15PPP50180	Cycle paths	m2		83.56	0.2579	6.1197	1827.9
15MAA90010	Excavation in urbanized area	m3	0.58	4.08	0.007	0.007	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	0.58	0.17	0.0004	0.0004	0
15MCC00101	Superficial compaction with mechanical means	m2	1	2.08	0.0005	0.068	1.8
15MMS00180	Rampart with selected soil. Mechanical means	m3	0.3	4.8	0.0212	0.4119	49.8
15MMG00110	Artificial graded aggregate	m3	0.2	11.66	0.0249	2.4833	328.3
15PBB01010	Prefabricated curb of photocatalytic concrete (R5) DE 30/40 × 70 cm	m	0.4	60.03	0.2035	3.1393	1437.9
15CPP00100	Road markings, 10 cm wide	m	1.2	0.74	0.0004	0.0098	10.1
15PPP50111	Bituminous Concrete Driveway	m2		214.17	0.4301	18.6928	6497.1
15MAA90010	Excavation in urbanized area	m3	0.58	4.08	0.007	0.007	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	0.58	0.17	0.0004	0.0004	0
15MCC00101	Superficial compaction with mechanical means	m2	1	2.08	0.0005	0.068	1.8
15MMS00180	Rampart with selected soil. Mechanical means	m3	0.5	4.8	0.0212	0.4119	49.8
15MMG00110	Artificial graded aggregate	m3	0.25	11.66	0.0249	2.4833	328.3
15PCC00110	Asphalt concrete AC 32 BASE B 50/70 G	m3	0.07	128.55	0.2329	9.0222	3917
15PCC00120	Asphalt concrete AC 22 BIN B 50/70 S	m3	0.06	62.83	0.1432	6.7	2200.2
15PPP50250	Pavement in children’s play area with artificial grass and absorbent base	m2		43.76	0.0297	1.5829	371.9
15MAA90010	Excavation in urbanized area	m3	0.4	4.08	0.007	0.007	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	0.4	0.17	0.0004	0.0004	0
15MCC00101	Superficial compaction with mechanical means	m2	1	2.08	0.0005	0.068	1.8
15PPP01250	Pavement in children’s play area of artificial grass and shock absorbent base	m2	1	37.43	0.0218	1.5075	370.1
15PPP50120	Pavement in parking area with paving blocks	m2		58.11	0.0923	1.4761	521.4
15MAA90010	Excavation in urbanized area	m3	0.8	4.08	0.007	0.007	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	0.8	0.17	0.0004	0.0004	0
15MCC00101	Superficial compaction with mechanical means	m2	1	2.08	0.0005	0.068	1.8
15MMS00180	Rampart with selected soil. Mechanical means	m3	0.4	4.8	0.0212	0.4119	49.8
15PPP01120	Interlocking concrete block pavement, 30 × 20 × 10 cm, photocatalytic	m2	1	46.98	0.0632	0.9888	469.8
15PPP50110	Sidewalk with concrete paving blocks	m2		37.19	0.0994	1.5906	506.3
15MAA90010	Excavation in urbanized area	m3	0.55	4.08	0.007	0.007	0
15MTW00010	Internal transport of material from excavation. Mechanical means	m3	0.55	0.17	0.0004	0.0004	0
15MCC00101	Superficial compaction with mechanical means	m2	1	2.08	0.0005	0.068	1.8
15MMS00180	Rampart with selected soil. Mechanical means	m3	0.3	4.8	0.0212	0.4119	49.8
15PSS00150	Concrete slab HM-20 DE 15 cm	m2	1	10.37	0.0361	0.5385	197.9
15PPP01110	Smooth concrete block pavement 40 × 20 × 6 cm, photocatalytic	m2	1	15.69	0.0342	0.5648	256.8
15EPP00105	Galvanized steel streetlight 6 m LEDS light	u	1	1023.07	3.425	70.992	56,601.6
15UPA0010	Bench with metallic support and Nordic pine seat	u	1	256.29	−0.041	0.227	655.7
15URP00010	Metallic waste bin	u	1	457.78	0.271	4.348	1979.1
15UPA0005	White concrete bench	u	1	940.84	2.052	28.071	13,531.7
15UPB00100	Children’s seewaw	u	1	1005.29	0.396	7.351	4847.6
15CRR10102	Vertical traffic sign	u	1	114.12	0.31	6.141	4513

of Appendix A, with the corresponding cost and environmental impact.

After connecting the CC to the BIM model of the urbanization project, those elements that should be first addressed to reduce the project’s WF, EE, or CF were visually identified (see Figure 5). BIMVision software by Datacomp was employed to represent the results. The software was combined with a plug-in specifically created to visualize the environmental impact of each element in the model, which was part of the deliverables of the UrbanBIM Erasmus+ project. As Figure 5 shows, in the specific case of the CF, the parking area and the sidewalk generated the greatest impacts, even though their unitary impacts were low (see Table 1). Similar results were obtained from the other two indicators (WF and EE); again, two big elements, the parking lot, as previously mentioned, and the driveway had the highest impact. The incorporation of bituminous materials (from petroleum) and tars (from coal) into the road pavement involved the incorporation of very significant amounts of EE, and, in the case of aggregates, high water consumption.

The smallest impact was based on each wooden bench, a small element in the project that was made of a low-impact material. However, the size was not the only defining aspect: for example, the cycle path and the sidewalk had similar sizes but the CF impacts were represented in different colours (green and brown, respectively). This indicated that the concrete tiles placed on the sidewalk had a greater impact than the poured concrete used in the cycle path. The tiles also had more impact than the biggest element in the project, the driveway. In the results obtained by Freire et al. [9], asphalt and concrete were also the highest-impact materials in the evaluation of urbanization projects.

The methodology could be extrapolated to a complete construction cost database to define the BIM model and its impact with a tool based on cost control. The biggest difficulty is the amount of information to be transformed. In the case of the ACCD, this needs to be done for over 7000 elements. The big advantage is that the indicators selected are easy to understand, and some degree of automation can be achieved.

5. Discussion

This study shows that it is possible to incorporate ecological indicators, such as WF, CF, and EE, into the classification system of construction cost databases through the methodology developed by the ArDiTec research group. When working on the sample urbanization project, the definition and use of new work units, complex and unit costs were required to integrate them into the ACCD classification system, specifically the urbanization chapter of the work breakdown system, which is focused on the elements related to the connections of buildings with urban networks.

The elaboration of a calculation matrix with the environmental data obtained from the LCA databases for each element, which was part of the various work units, became necessary, thus making it possible to carry out the assessment through the developed plugin for the employed BIM environment. The correct definition of the system boundaries and their components by means of the work units and their elements avoided the gaps andoverlaps that usually happen in construction cost assessment.

The design of the system was totally transparent, resulting in an easy and intuitive tool. A major challenge was to define the BIM elements properly to match the work units. Lützkendorf et al. [85] found that BIM could determine the amount of materials and cost estimation, which can be helpful for the environmental assessment. Mercader-Moyano et al. [89] applied a different strategy by combining costs with the environmental assessment using BIM to define the composition of work units in the case of a reinforced concrete structure. The amount and section of the reinforcement bars was then represented in the BIM elements, and their environmental assessment was calculated. Rock et al. have also studied how to combine BIM, a cost database in Switzerland, and its work classification system in the environmental assessment of building construction [99]. This also identified the importance of concrete in buildings.

The most important contribution of the present work, besides showing how the LCA can be graphically represented in urbanization projects, is that traditional construction cost databases are proven to be an instrument for the introduction of environmental assessment to the construction sector, since its use is widespread and agreed on by stakeholders in the sector, such as constructors, promoters, engineers, and architects. The way elements are traditionally measured in the market becomes the key to defining the LCA data associated with them. In urbanization projects, as well as in building construction, cost data can be employed both to define the BIM model and to obtain the bill of quantities.

There are also limitations to this study: in order to implement BIM and environmental assessment in urbanization projects, it is necessary to have a combined strategy for the standardization of work units, together with the breakdown systems for information classification. It is also necessary to have a clear definition of the system boundaries in order to compare different projects. For this, all construction units in the cost databases need a regularized methodology of environmental impact assessment.

6. Conclusions

Scattered urbanization projects are frequent in cities; the basic components are repeated in many of them, but because of small sizes, the introduction of an environmental assessment is difficult at the moment. Nevertheless, cost control always takes place in publicly funded projects. This helps to introduce the assessment by combining BIM representation with construction cost databases.

The databases, their internal cost structure, and a classification of works allow the resources employed in a project to be determined accurately. Classification equivalences make it possible to include the calculation of environmental indicators, i.e., EE, CF, and WF. Construction cost databases and environmental assessment could be combined by defining the equivalence between BIM elements and their corresponding unit costs.

Data processing depends on the quality and accessibility of LCA data, which vary depending on the source: eco-labelling, such as EPD, or less product-specific data, such as generic LCA databases. Moreover, the robustness depends on the reliability of the sources consulted, since each manufacturer, by choosing an eco-label for their products, defines the degree of confidence of the data provided. The previous data are adapted to a specific project by defining the geometry of BIM objects. Also, environmental indicators or footprints can be calculated and represented for each construction unit previously defined in the project. The information can then be added to the BIM model through plugins, directly inserted in the BIM software or sent to environmental assessment tools.

One of the biggest setbacks to the environmental evaluation of projects in BIM is the complexity of the information, as the LCA integration with BIM requires programming skills, thus making the assessment a multidisciplinary task necessitating that environmentalists, architects, engineers, and programmers work together. The construction cost databases traditionally used in the sector to generate and control the project budgets define a structure and measurement criteria for each work unit, which is contractually binding and agreed upon in the sector by constructors, designers, and suppliers. This becomes an opportunity for introducing environmental awareness and an economic control into the sector, supported by BIM visualization tools.

In forthcoming research studies, other type of projects could be assessed, from single housing to high-rise buildings, to analyse in detail the limitations and opportunities of combining BIM, cost, and environmental analysis. Also, the different stages of the building life cycle can be addressed using the proposed methodology by assessing construction or successive renovation or maintenance projects that take place during the life span and the corresponding budgets.
