Transit versus Nature. Depreciation of Environmental Values of the Road Alleys. Case Study: Gamerki-Jonkowo, Poland

1
Department of Landscape Architecture, Faculty of Horticulture, Biotechnology and Landscape Architecture, Warsaw University of Life Sciences—SGGW, Ul. Nowoursynowska 159, 02-776 Warsaw, Poland
2
Muzeum Zamkowe w Malborku, Dział Przyrody-Muzeum w Kwidzynie, Starościnska 1, 82-200 Malbork, Poland
3
Ad Natura Joanna Duriasz, Tęczowy Las 2A, 10-687 Bartąg, Poland
4
Department of Ecology, Faculty of Biology and Environmental Protection, University of Silesia, Bankowa 9, 40–007 Katowice, Poland
5
Fundacja Dzika Polska, Teremiski 12, Białowieża 17-230, Poland
6
Eko-trek, Jamnik 1, 55-140 Żmigród, Poland
*
Author to whom correspondence should be addressed.
Sustainability 2019, 11(6), 1816; https://doi.org/10.3390/su11061816
Received: 16 February 2019 / Revised: 19 March 2019 / Accepted: 22 March 2019 / Published: 26 March 2019
(This article belongs to the Section Sustainable Urban and Rural Development)

Abstract

:
Road alleys are multifunctional features in open landscapes that serve as ecological corridors connecting habitats, and play an important role in sustaining ecological stability. However, multiple road authorities claim that tree-lined routes pose a threat to traffic safety and should therefore be removed. This aspect of safety seems crucial to authorities, significantly overwhelming the benefits of road alleys. Problems with the vitality of the trees (which are mainly mature and aging) deliver arguments for cutting them down. The aim of this paper is to examine the environmental and natural value of road alleys based on a 14 km long section of the Gamerki—Jonkowo Road in the Province of Warmia (Northeast Poland). Further, we aim to verify the degree of hazard posed by trees to be felled for safety reasons. An examination framework with six components was developed for the research. This framework includes a tree risk assessment and vitality evaluation, pulling tests, an examination of the protected hermit beetle and lichen species, and an examination of bat fauna. The results revealed that no trees were in the resignation phase and confirmed that the alley is a unique natural habitat with protected species of lichen, a few bats, and valuable insect species, among others the hermit beetle (Osmoderma barnabita). Therefore, the alley cannot be perceived only as a component of the road infrastructure. The maintenance of the trees seems to be essential when taking into account the environmental stability of the region.

1. Introduction

An alley is defined as two rows of trees along both sides of a road, which provide benefits for both people and the environment [1,2]. Suburban development and the popularization of automobiles have caused significant growth in the importance of alleys [3]. Alleys serve as green infrastructure and enhance urban sustainability [1,4]. However, alleys are often a reason for public complaint. Road users are afraid of fallen trees, broken branches, and leaning tree trunks which puts pressure on local authorities to cut trees down along the roads and streets [5,6], although the benefits of trees outweigh the annoyances they pose on the whole [7].
Anthropogenic changes in landscape have a bilateral character and can lead to its impoverishment (homogenization) or enrichment (diversification) [8]. Alleys are a type of buffer strip which contribute to the aesthetic of roads [9], as well as increase safety and natural values (biological diversity) [10,11,12]. They increase ecological capacity and stability too, and further alleviate the climate, in addition to serving as a symbol of cultural identity for the region [13,14]. Moreover, trees increase the capacity of the soil to store water, and contribute to carbon sequestration, enhanced local air quality, the removal of PM (particulate matter), local climate regulation, noise interception when planted in dense strips, as well as improve aesthetic quality [1,15,16].
Alleys have a potential to enhance connectivity and ecosystem services, and as such can facilitate forming a network to aid the dispersal and movement of populations [17,18,19,20,21,22,23,24,25,26]. Habitat connectivity contributes to ecosystem function and resilience. The migration of many animal species is related to the existence of “connectors” covered by trees and shrubs. Alleys are used as dispersive trails by different animal species, such as insects [27] and birds [28]. They are ecological corridors for the migration of the protected saproxylic beetles and bats, which need them for flight navigation [29,30], as well as forest species, such as the rare and protected dormouse mammals [31].
Old trees are a habitat for endangered and protected lichens [32,33,34,35,36]. Lichens absorb raw materials directly from the air and moisture, which makes them very sensitive to air pollution as there is no way to excrete the pollutants. Therefore lichens have been recognized as indicators of air pollution throughout the world [37,38]. So far, many functional traits of lichens in ecosystems have been recognized, these include: consumption by vertebrates and invertebrates, invertebrates shelter (including gastropods, springtails, mites, beetles, moth larvae and woodlice) [39,40], capturing nutrients from the air (particularly atmospheric N2), nutrient concentration, stabilization of water balance and microclimatic conditions, decomposition, rainfall and nutrient interception, microbial abundance and activity, and use as a material for bird’s nests [41]. In the study area the most important foliose lichen’s functions include: the stabilization of microclimatic conditions, invertebrates feeding on—and shelter provided by—the interface between the lichen thallus and its substrate, and increasing the abundance of invertebrate prey for birds. Drivers of global climate change can potentially have important impacts on lichen communities. More specifically, increased temperature and N deposition are expected to have adverse effects on many lichen species, and induce large shifts in their functional composition [42]. The presence of large trees is a particularly crucial attribute influencing habitat quality [43,44]. Human activities, on the other hand, cause habitat loss. Urban development, including tree removal, produces some of the greatest local extinction rates, and frequently eliminates the large majority of native species, especially because green spaces have become increasingly fragmented, negatively impacting population abundance, genetic variation within species, and species richness [45,46].
Alleys are often an important “link with the past” [47] taking part in the social–ecological resilience of urban and rural areas [1,2,48]. They are an inseparable component of the culture in Polish agricultural landscape. In some cases (Warmia, Mazury and Powiśle), the road alleys are even considered as landmarks [49].
Valuing green infrastructure is not only an important requirement in planning for rapidly urbanizing city areas, but also in rural areas [50,51,52]. In the context of construction and the modernization of road systems, alleys are the component of the landscape most exposed to the effects of human actions. Frequently, management decisions concerning roadside trees are taken precipitately and come down to their felling [53]. Tree management could increase the maintenance costs of roads but potentially contribute to longer-term savings with the provision of a wide range of ecosystem services [54]. Diverse functions such as environmental protection, economic development, and social equity might be an integral part of alleyway management systems [1]. Despite the important contribution to ecosystem services and the general positive attitude towards trees by people (i.e., urban dwellers often declare their willingness to pay higher taxes for investment in green infrastructure [7,54]), trees are not always accepted due to safety considerations or proximity to road infrastructure [15,55].
Pressure to remove trees along the road has become a serious problem which could threaten their existence in the Polish landscape. Loose rules from the Nature Conservation Act of 2004 gave road managers a large amount of freedom in the decision-making process. As a result, tens of thousands of road trees in Poland were cut down in a “safety battle”, in which trees had been perceived as a traffic hazard [56,57]. During road modernization, the protection of trees is rarely implemented, which often causes their decay seeing many trees needing to be felled at a later date. Moreover, road alleys are destroyed, even along the roads that are no longer used, or in farmland (aggregation of agricultural plots related to the extra charge for farmers) where a threat of collision does not exist. Many trees are felled for reasons which lack environmental sense. Road supervisors, who should also take care of tree alleys, do not use a transparent methodology of evaluation or tree classification. The selection of trees to be cut is often inconsiderate and without the support of reliable health condition analysis or risk evaluation. The compromise between risk and biodiversity is a challenge for road managers, and forestry service markets do not fully support multifunctional aims [58]. Meanwhile, researchers point out that there is a possibility to avoid the cutting of old road alleys and ensure traffic safety at the same time [59,60,61]. Urban forests provide a habitat for wildlife such as bats, protected insects or cavity-nesting birds that colonize the dead and decayed stems and branches of trees. The same dead and decayed stems and branches are the most common defect and are perceived by road managers as having a greater likelihood of failure, which increases risk. But in a study of Kanea [62], the vast majority of trees with decayed stems and branches had moderate or low risk.
Tree safety management should balance the benefits of risk reduction with the associated costs, in terms of both lost tree value and financial costs. The concept of acceptable risk has been proposed by Paine [63], Helliwell [64], as well as Matheny and Clark [65]. Ellison [66] extended tree risk assessment by allocating quantifiable values to the probability of failure and the impact potential of trees, and to targets on which trees might fail. In our study we adopted the VTA method for tree risk assessment, built on a similar base, but considering bio-mechanics to provide risk diagnosis for the prevention of accidents [67]. Risk assessment methods are adopted in the form of standards, such as, for example, Baumkontrollrichtlinien in Germany, developed by FLL (Forschungsgesellschaft Landschaftsentwiclung Landschaftsbau e.V.), one of the professional associations [68,69].
The above mentioned methods assume an evaluation of the probability of failure by hazard rating and depend on the specific tree. Risk mitigation measures are performed, e.g., proper pruning, lowering speed of vehicle or educational actions. Proper roadside tree management could lead to a reduction of hazards through inspection and mitigation, maintaining the level of hazard at an acceptable level with the need to keep large, beautiful trees in situ [70]. The collision of vehicles with trees is the reason for 5.1% of road accidents, which is rather minor compared to other causes [71]. The main reason for accidents is drivers exceeding speed limits [72,73]. In fact, many researchers point out that trees alongside streets and roads contribute to an increase in the safety level [74,75,76,77]. Trees are responsible for causing “an immunization effect” and being a stress inhibitor for drivers [78,79]. They help drivers regain a balance after a stressful reaction to a situation stimulus and provide higher frustration tolerance, making road users drive slower and more carefully [80,81]. The above-mentioned facts and circumstances have contributed to research concerning the validity of removing road alleys. Verification of the degree of hazard posed by road trees designated for cutting due to safety concerns, and the assessment of their environmental values was set as the aim of the paper. It is assumed that it is possible to reconcile the safety requirements to nature protection by the application of objective methods for the management of road trees.

2. Case Study

2.1. Study Area

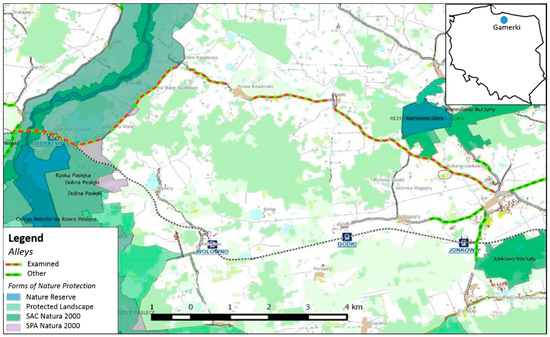

In this study a section of road planted with trees, which in the opinion of the road manager should be cut due to risk and lack of value, was examined. Analyses were developed in order to verify the necessity of the planned cutting of 28 trees that was unsubstantiated by a reduction of traffic threats. There was also a plan to remove the whole alley in the future in order to modernize the above-mentioned section of the road [82]. The survey was executed on the Gamerki-Jonkowo section, county road number 26124 (Jonkowo district, Warmińsko-Mazurskie Province, Northeast Poland). This fragment lies within and connects several areas of conservation. On the Gamerki-Kawkowo section of road it crosses OSOP Dolina Pasłęki PLB280002 and it runs nearby OOS Dolina Pasłęki PLH280006 where the beetle Osmoderma barnabita was indicated as a protected species. In Jonkowo Kolonia town the road is located just next to the OOS Buczyny Warmińskie PLH280033 and Kamienna Góra nature reserve. Within the reserve, there lies a natural beechwood old-growth forest [49] that became a potential habitat for Osmoderma barnabita. The investigated area crosses the ecological corridor of Dolina Pasłęki on the road section Gamerki-Kawkowo Nowe (Figure 1). Morover, the Gamerki-Jonkowo alley has been “a bone of contention” for Poviat Road Services (Powiatowa Służba Drogowa) who have “sentenced” the alley of trees to be cut down while local activists have attempted to protect them.
Discussed linear tree plantations are present in 7 segments with a total length of ca. 12.4 km along the road that counts ca. 14 km. At the same time this road trees segment account for ca. 25% of all alleys in the area of the whole Jonkowo district. The old-growth forest occurs in whole space in between a traffic lane and a ditch. The appearance of lichens on the counterscarp is the result of natural succession. The distance between trees in the segment is ca. 6–8 m. The tree alley is dense with gaps but there are some sections which have been thinned (Figure 2).
Modernization works on the area of interest have been planned in order to improve the standards of traffic safety (including surface modernization). The cutting of the 28 trees was planned because of the modernization. The road supervisor planned the removal of the whole alley (more than 1500 trees) in the future. In their opinion, trees threaten traffic safety and thus the value of the alley is low. However, such an attitude towards trees raises many doubts when taking into consideration actual knowledge concerning the potential benefits of alleys, and directly contributed to initiating this research.

2.2. Methods

Alleys serve as ecological corridors, and therefore their value must be estimated taking into account both “flora and fauna”. As linear objects, alleys are particularly important for two species: bats and hermit beetles [83,84,85]. They use alleys as places for living, breeding, feeding, resting, hiding, navigating etc. The continuity of the alleys is crucial for maintaining local populations of these species.
While developing methods of investigation, two aspects were taken into consideration: safety evaluation and environmental-ecological evaluation of the alley. An evaluation of the alley was made based on a “standard, but detailed” examination (risk assessment with pulling tests, and vitality examination). However, it is worth mentioning that the results of these investigations may not have an outcome with respect to the legal protection of the trees. In other words, “even vital trees may be felled, if the pressure for removal is high”. Therefore, factors determining the legal protection of trees (as habitats of valuable species) were taken into account in the environmental-ecological valuation. The evaluation was made for three species: lichens, bats, and hermit beetles. Other important functions and ecological criteria (such as e.g., micro-climatic function, air purification, biodiversity promotion) were not used as they are implemented as forms of protection in the Polish law.

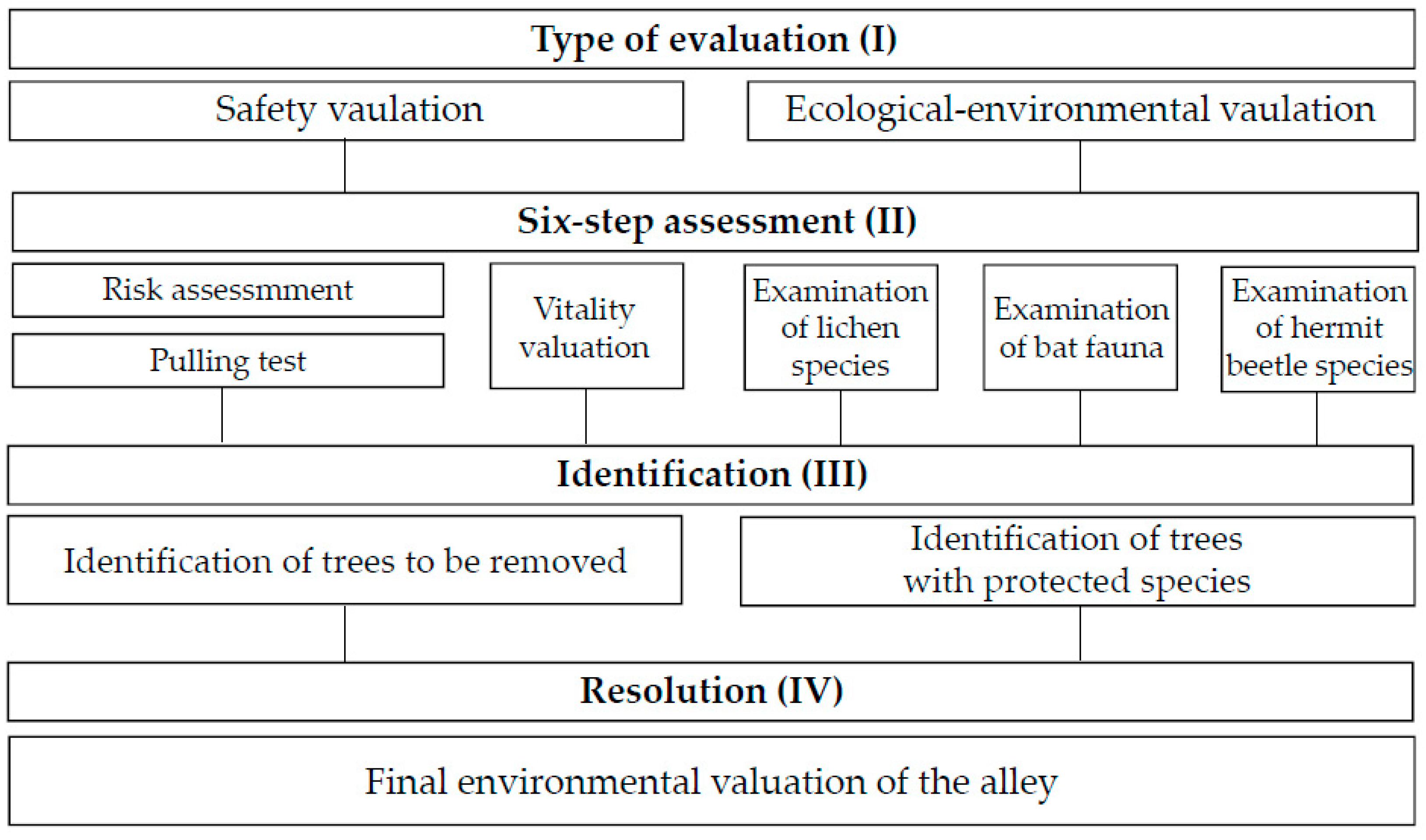

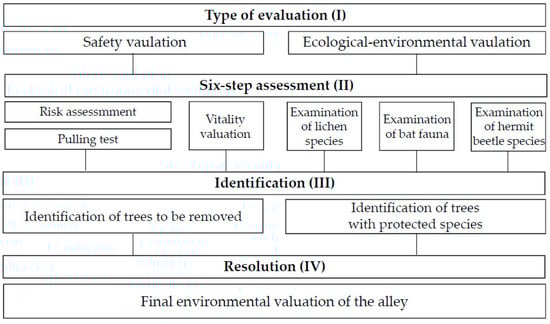

The six methods used in the research include: safety evaluation (VTA method and pulling tests), vitality evaluation, and an examination of lichen, bat fauna and hermit beetle as protected species (Figure 3).
Safety Evaluation
1. Risk assessment, verifying the statistics from the VTA method (Visual Tree Assessment) was used for 28 trees chosen for removal. Trees were examined by visual evaluation and segregated into different risk classes, according to the quantitative risk assessment typology formulated by ISA (International Society of Arboriculture). According to the ISA recommendation each tree should be categorized into one of the five classes indicating risk: insignificant (A), low (B), moderate (C), high (CD), extreme (D). In the case of every tree assessment, safety measures were recommended and performed according to the standard safety procedure, as a result of the VTA method investigation [86]. To evaluate trees for hazard, the VTA method takes into account such factors as occupancy, exposition to the wind, evaluation of the target, site consideration, damage to root system, assessment the extent of decay in trees and tree structural defects. On the basis of the assessment, safety measures are recommended, with an aim to reduce the tree risk to an acceptable level [67,87].
It’s worth underlining that an expert tree risk assessment can be influenced by risk perception, risk acceptance, and professional bias [53,88]. The decision for which level of risk a tree presents depends on the expert and his/her knowledge and experience. In case of doubts, additional instrumental investigation, e.g., Pulling test, is used.
2. Pulling tests of two trees from the group designated to be cut down were taken. These trees were designated as posing a risk, on the basis of the results of VTA method. The pulling test was conducted according to the TSE methodology (Tree Stability Evaluation) developed by the ITEG group (Independent Tree Expert Group). Among the other tests, there were also measurements of fracture resistance and an evaluation of root stability in the soil. The pulling test is a complementary method, used in practice as a source of additional information, needed as a verification in the decision making process in case of insufficient conclusions of the VTA method investigation [89].
3. Vitality evaluation was done for each tree according to Rollof’s classification that is based on distal crown parts liveliness. In total, 28 trees chosen for removal were segregated into four groups: 0 ‘exploration’ where the tree is in the phase of intensive offshoot growth; 1 ‘degeneration’ where the tree has slightly delayed offshoot growth; 2 ‘stagnation’ where the tree has visibly delayed offshoot growth; 3 ‘resignation’ where the tree is dying, without regeneration possibility nor able to return to the second class [90].
Ecological-environmental Valuation
4. The protected lichen species were examined on the 28 selected trees chosen for removal. The examination was conducted in the middle of November 2015 according to the vegetation inventory [91]. Lichen species protected strictly or partially were included in regulation by the Ministry of the Environment from 9 October 2014 when species of fungi were inventoried on a number of trees. Species were defined on the basis of morphological traits, and counted on every tree. Trees with a trunk surface and tree branch to the height of 5 m above the ground were chosen for investigation. In order to detect the lichen, a 3.5 m high ladder was used.
5. The bat fauna was examined along the whole tree alley section. The examination was conducted using an ultra sound detector between 25 August and 16 September 2015. The research took place along the whole alley from the bridge on the Pasłęka River, Gamerek Wlk. neighborhood, as far as the rail crossing at Wiliamów. The research was conducted during peak hours of bat activity in the evening, starting approximately 30 minutes after sunset and lasting around 4 hours. Recordings were made from within a car driving at ca. 4.5 km/h. Detection was carried out using Petersson D230 and Petersson D240 x detectors. The recorded material was analyzed by computer analysis (Bat sound program, Petersson Electronic Company). In addition to the evening reading, the bats sounds were also recorded during the morning on 25 August 2015. The alley was observed in order to determine the occurrence of breeding colonies. As within the alley, there were also recognized trees which are known to support bat habitats.
The alley was divided into a number of sections, depending on a unified landscape type and the presence of certain structures and bat habitats. The length of sections varied form 350 m to 1000 m (Figure S1). The bat activity index was calculated for every section according to the following formula:
Ix = Lx * 60/T
where:
  • Ix = activity index for a group of species “x”;
  • Lx = a number of all the recorded bat activities in sections
  • T = time of all the records (in minutes)
The index describes the number of bat fly-overs in every section within an hour. The following activity levels were assumed:
  • 0–20 signals per hour: low activity
  • 21–40 signals per hour: medium activity
  • 41–60 signals per hour: high activity
  • above 60 signals per hour: very high activity
6. We performed an inventory of the hermit beetle Osmoderma barnabita on the whole road section. The examination was conducted according to the standard methodology that is recommended for this species inventory [17] by performing the following:
  • a search for larval excrements and the remains of the hermit beetle imago’s shells within trees (hollow and surroundings): 19 August–13 November 2015;
  • observation of imago stage using pheromones traps: 19 August–30 August 2015;
  • observation of adult beetles in the tree cavities surroundings: 19 August–30 August 2015;
  • observation of imago in the tree hollow interior with usage of endoscopic camera connected to the computer: 19 August–20 August 2015.
Conclusions from the survey were used to estimate the environmental value of Gamerki-Jonkowo road section and the validity of tree removal.
A final environmental evaluation of the results constitutes a synthesis of the safety evaluation and the ecological-environmental evaluation.

3. Results

3.1. Characteristic of Investigated Alley Trees

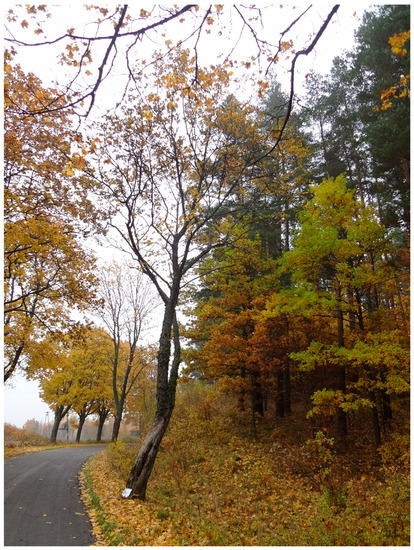

The tree alley is created by the following species: Norway Maple (Acer platanoides L.)—60%, Small-leaved Lime (Tilia cordata L.)—27%, Silver Birch (Betula pendula L.)—6%, Horse Chestnut (Aesculus hippocastanum L.)—3%, European Ash (Fraxinus excelsior L.)—3%, English Oak (Quercus robus)—1 % (Figure S1). Additional species were also found in the old-growth forest composition: Common Aspen (Populus tremula), Sycamore Maple (Acer pseudoplatanus) and the apple tree (Malus domestica). The avenue consists of ca. 1900 trees in total.
In addition, there are also seedlings of the aformentioned species and additionally: Scots Pine (Pinus silvestris), Goat Willow (Salix caprea L.), European Elder (Sambucus nigra), Common Hazel (Corylus avellana), Rowan (Sorbus aucuparia), Common Hornbeam (Carpinus betulus), Blackthorn (Prunus spinosa L.), Black Cherry (Prunus serotina), Single-seeded Hawthorn (Crataegus monogyna), Rose (Rosa sp.), Common Snowberry (Symphoricarpos albus), White Pine (Pinus strobus), Northern White Cedar (Thuja occidentalis), Staghorn Sumac (Rhus typhina), european Spindle (Euonymus europaeus), Scots Elm (Ulmus montana) and Common Lilac (Syringa vulgaris).
Trunk circumference was measured at a height of 1.3 m and results were in the range of 100–350 cm. The average trunk circumference is 190 cm. There are also specimens of Small-leaved Lime whose trunk circumferences met the criteria for being considered as a natural monument. According to the Polish Nature Protection Act, natural monuments refer to magnificent trees with a special natural, scientific, cultural, and historical or landscape value and possess individual features, distinguishing them among others.

3.2. Risk Assessment

In total, 28 trees were selected by road services to for removal because of the threats and weak vitality evaluated in the study. The trees are: 13 Norway Maples (Acer platanoides), 10 Small-leaved Limes (Tilia cordata) and five English oaks (Quercus robur). The evaluation indicated the occurrence of 25% trees in B class, 29% of trees in C class and 46% of trees in CD class. Some trees in C and CD class demanded risk minimization by tree crown stabilization (11 trees) and dry branch removal (8 trees) (Table 1).

3.3. Pulling Tests

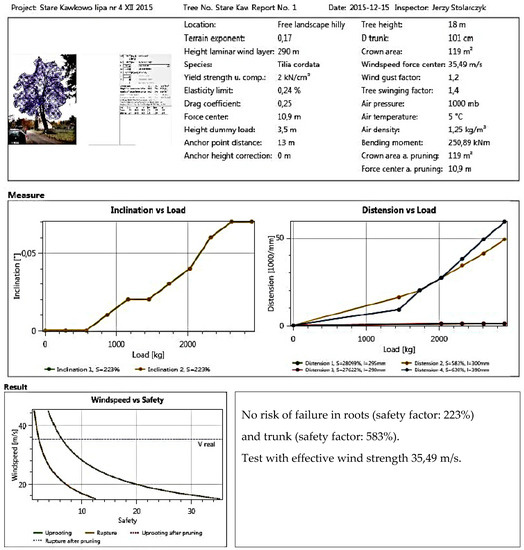

There were two trees which after preliminary testing appeared unsafe. These trees were verified by conducting a pulling test. Tree static examinations were conducted according to the loading method and trunk fraction resistance. The survey concerned a Small-leaved Linden (Tilia cordata Mill.), No. 4 (Figure 4), and the Small-leaved Linden (Tilia cordata Mill.) No. 5 (Figure 5).
The loading test was conducted on selected Small-leaved Lindens. It proved that the trees demonstrated over-regular stability in the ground. Inclinometers placed on the trunk describing tree stability showed the level of: Linden No. 4—223%, Linden No. 5—347% (safety level is considered as higher than 150%). Elastometer indicators were verified. On the weakest parts of the trunks (with the biggest defects) sensors indicated following results: Linden No. 4—583%, Linden No. 5—264%. This proves sufficient breaking resistance for the trees to remain in situ.

3.4. Vitality Evaluation

According to the Rollof’s classification, there were no trees in the resignation phase (3rd class) of the evaluated group. A total of 29% of the trees were qualified to the exploration phase (0 class). The percentage distribution of trees in others groups (degeneration and stagnation) amounted to 57% and 14 %, respectively, which demonstrates that 86% of examined trees were in good health (Table 1).

3.5. Examination of Lichen Species

A survey of lichen species under protection was taken on the sample of 28 trees. It demonstrated the occurrence of 2837 specimens of epiphytic lichens of 9 different species (Table 2 and Table 3).
The occurrence of species which are protected was confirmed on almost all of the examined trees (Figure 6). Registered species composition is typical for valuable tree alleys in the area of Northeast Poland [92] and distinctive to the species described in other parts of the region [33,34,35,36,93]. Many species of epiphytic lichens are sensitive to air contamination, which particularly indicates the need to preserve matured and senescent trees as valuable habitats for protected species across the entire country.
Research has shown that the colonization and dispersion of propagule of some macro lichens, such as Evernia prunastri and Ramalina farinacea, occurred over distances of 30 m [94]. Therefore this distance between trees and groups of trees should be preserved during tree removal, replacing removed trees in order to maintain the possibility of spreading the lichen population [36].

3.6. Examination of Bat Fauna

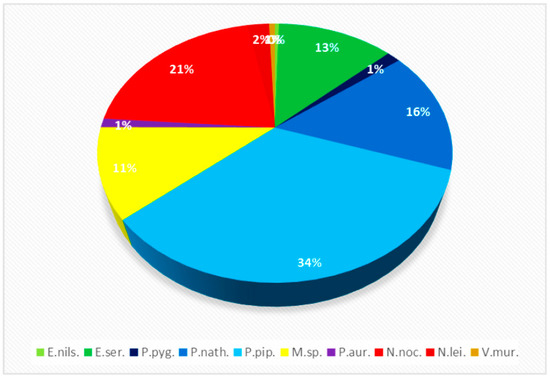

At least nine bat species out of the 26 existing in Poland were recorded on the road alley. Unidentified species were present in the study area as well. All of the detected identified species are under species protection, and three of them are on the red list of extinct and threatened animals in Poland [95] (Table 4). As a result of the survey, the occurrence of potential hiding places within most of the trees along the road alley on the section of Wilimowo-Gamerki Wielkie was verified. The survey indicates that the Gamerki Wielkie-Jonkowo section is an especially valuable place for the local bat population. Detectors along the alley confirmed the existence of nine species of bats. In the analyzed period, Pipistrellus sp. dominated the chiropterofauna of the alley and its surrundings, constituting almost 50% of all the recorded fly-overs. A significant number of fly-overs belonged also to Nyctalus noctula (21%), Eptesicus serotinus (13%), and other unidentified bat species (Myotis sp.) (Figure 7).
A number of feeding buzzes were recorded in 13 sections of the alley. Parts of the alley, in which the signals were recorded (Table 5), should therefore be valued as significant bat feeding places. Moreover, social sounds of Pipistrellus sp. were recorded in seven sections of the alley. The sounds are made by territorial males during breeding seasons. This proves that these sections of the alley are particularly important for bat reproduction.

3.7. Inventory of Hermit Beetle

There were confirmed habitats and specimens of the protected hermit beetle species Osmoderma barnabita. Within the cavities of the trees observed, the occurrence of the hermit beetle’s imago, along with a large amount of the species excrements were documented. Their habitat was also confirmed in two trees. There is a possibility of settlements in further trees in addition to the trees examined (Figure 8). The hermit beetle prefers hollow trees with trunk circumferences larger than 70 cm [96]. The existence of these trees within a 2000 m radius from each other is required to maintain the continuity of habitat in the trees.
Large trunk circumferences, many hollows, a small distance between trees and the occurrence of hermit beetle habitats within a few kilometers from each other proved the fact that the examined alley is an optimal habitat for the hermit beetle. The existence of active habitats of this species indicates good habitat preconditions [97]. Therefore, the hermit beetle is an indicator species on the list in attachment II of the “Habitats Directive”. The places of occurrence of this species are potential locations for Nature 2000 protection.

3.8. Final Evaluation of the Alley

The safety evaluation revealed that only one tree out of twenty eight must be removed for safety reasons. The vitality class of tree No. 17, according to Roloff scale, was rated as 3—the oak was not safe for road users. An intense deadwood was visible in the crown. At the crown collar, at a height of 5 m, the presence of a double-sided crack was found. The tree was qualified to the CD class (high risk of failure). It was possible to lower the risk level by pruning the tree crown (a reduction of 2 m), removing the dried branches, tying the codominant trunks and providing annual monitoring. Another solution was to leave the trunk cut at a height of 3 m to save the protected species of lichens. However, due to a poor prognosis negating a long and safe life, as well as limited funds for monitoring and safety measures, the tree was selected for removal (Table 1).
The ecological-environmental evaluation confirmed the presence of the following protected species: nine bat species (three of them placed on a red list), with 50% fly-overs from Pipistrellus sp. and 13% fly-overs from nearly threatened Eptericus serotinus; 2837 specimens of epiphytic lichens of nine different protected species (five species are placed on a red list of extinct or threatened lichens in Poland); the hermit beetle as an indicator species of the “Habitats Directive” (as it was written, presence of the species may be a reason for constitution of the form of nature protection (Natura 2000).
The final environmental valuation indicated that 27 trees are not a threat for traffic (unless treatment is implemented) and cannot be felled as being habitats for species protected by law.

4. Discussion

The results confirmed those achieved in the study by Kanea [62]: trees with decayed stems and branches pose a low or moderate risk of failure, and only some parts of them demand safety treatments.
Within the examined group, only one tree (No. 17) was found to be dangerous for road users’ safety and indicated for removal, partly because of the extended dead wood presence in a crown, but especially because of a double sided crack in the crown collar. The loss of only one tree allowed the habitat and landscape value of the avenue to be maintained. In the instances of other trees, there were proposed treatments to improve their stability and safety. The risk level was minimized by the implementation of treatments recommended by experts as a result of tree diagnostic investigation in our study. Dry branches were removed from the crowns of 11 trees. Eight trees were protected by elastic ties. Parts of trunks or branches which could cause traffic threats were marked by fluorescent bands. All the safety treatment effects were noticeable for dwellers and travelers. This in turn allowed for the spread of knowledge about safety improvement methods around the trees and tree benefit education for a public like improvement of safety on roads [61,97,98].
Trees, which were indicated for removal by the road supervisor, were checked and the risk was minimized to the accepted level. All the planned actions regarding the avenue were projected according to not worsen the actual condition of the protected species habitat. The basic assumption considers the number of trees, which are potential habitats for hermit beetle, should not be reduced. Moreover, in the case of the examined alley, it is necessary to plant new trees in the empty sections between mature trees in order to improve the future migration capacity between existing and potential habitats. Alleys are a key component able to enhance connectivity and facilitate the movement of organisms between green patches such as woodland, forest or urban green infrastructure [98]. Tree maintenance can consider the evaluation of tree condition and risk estimation; this in turn will enable the preservation of the landscape value and improve the whole natural system function. It should be emphasized that the typical approach, assuming that mature trees can be felled and replaced with seedlings of young trees, does not show the loss of biodiversity and ecosystems, which cannot be compared to the small contribution of recently created habitats connected with new plantings [99,100]. Ecosystem services provided by trees are dependent on tree size and biomass [101,102]. For example, trunk diameter is positively related to the presence of decay-cavities. Tree-cavities are generally an important ecological factor as a number of animals living in woody habitats are cavity users, and in the case of our study, that kind of tree has been selected for removal. What’s worth mentioning is that the decay-cavities occur as a result of the removal of large branches. Decay-cavities are featured more often in trees of low vitality and with woodpecker-cavities than in trees of high vitality or without woodpecker-cavities [102]. From another site, the presence of saproxylic beetles in the cavities is positively associated with tree height and the high degree of damage at the root collar, which could be a factor increasing the risk level, and negatively associated with the presence of hole-nesting birds [70]. In the case of necessity to eliminate a tree that creates a risk, constituting at the same time a habitat of protected species (especially lichens and beetles colonizing the cavities), a certain compromise may be cutting the tree at a height of several meters and leaving the bottom part of the trunk. Although it should be remembered that such a solution will not be fully effective due to the change of the temperature and humidity conditions within the trunk, which may be exposed to over drying and flooding.
The protection of rare species, e.g., lichens, provides ecosystem services and is strictly connected to the protection of mature and old trees, as studied. For example, microlichens which are particularly sensitive to air pollution, also from the genera Ramalina and Usnea [103], which were recognized in the study. The large presence of mentioned microlichens confirms that the study area is characterized by good air quality, which is uncommon in Poland—a country with high CO2 emissions.
Coniferous trees dominate forests in the Warmia and Mazury regions. Broad leaf trees in the forests rarely reach a large size due to forestry practices, thus many species do not have proper conditions in such modified forests. Therefore, alleys provide suitable habitats and are often the main habitat for epiphytic lichens, which is related to the large size of broad leaf trees preferred by most of the macro epiphytic protected lichens. This has also been confirmed by preliminary studies, which were conducted in some tree avenues in the regions of Warmia, Mazury and the Wysoczyzna Elbląska and revealed the presence of more than 120 lichen species, including 22 that were red listed [32,34,36]. The threat from global climate change on lichens and a lack of proper habitats in forests particularly indicates the need to preserve mature and senescent trees as valuable habitats of protected species across the entire country. A similar situation concerns the hermit bettle. Due to a lack of large, hollow, deciduous trees in managed forest in the Warmia region [104], a majority of the population occupies tress in alleys [91]. This species has very limited migratory possibilities [96,97,105], therefore the presence of a possibly dense alley network with mature, hollow trees is crucial to counteract the isolation of subpopulations of the hermit beetle, and to ensure connectivity between separated populations.
The rich diversity of bat species and numerous registered signs of their existence showed the immense significance of the examined alley for the local bat population. Due to the use of road trees by some of the bats as ecological corridors during migration [29], retaining the spatial continuity of road trees constitutes a significant criterion for alley management.
The survey results indicated the necessity of special protection for the old tree alley. The use of tree risk assessment methods prevents the unjustified felling of trees and maintains the legally required low level of risk. However, some studies show clearly that protected species are at risk of removal from the urban environment due to a clash of interests between biodiversity conservation and public safety assessed on the basis of Visual Tree Assessment Procedure (VTA) [106]. This indicates the necessity of implementation for risk management that takes into consideration both of the priorities. The alley has unique habitat and landscape values, and maintaining these values will support biodiversity and increase touristic potential and educational function. There are fewer and fewer rich ecosystems like this one, that function in the rural and urban areas. The existence of the alley is a big advantage for the region and its preservation will bring ecological and economical profits to the local government and inhabitants by touristic popularization. This indicates a justified need for reconstructing old alleys and creating new ones. This study has only partially revealed some of the multifunctional benefits of alleys within an area. Alleys and trees in general, allow a green ecosystem to exist within an urbanized area. These ecosystems in turn allow for the environmental protection that leads to economic development, as well as an increase in social health and equality. The correct management of road trees needs to be pushed to the forefront of planning to help promote sustainability targets [1,4,107].
Other research has confirmed the decreasing number of deciduous trees containing hollows, and points to the increasing consumer demand for forested wood products from trees over 100 years old as a cause. This increases the importance of protecting groups of deciduous trees, many of which occur along roadsides. Proactive management, appropriate planning, implementation and resourcing are key elements in ensuring that the benefits of green environments can be optimized. However, studies show that the majority of local municipalities are not managing the urban trees and green spaces systematically, owing to constraints such as insufficient funds, insufficient personnel, lack of equipment and the absence of political interest [108].
The results confirmed the necessity to evaluate alleys taking into consideration both “flora and fauna”. In Poland, it is still a common practice to examine trees only referring to their vitality. Such an approach seems to be insufficient, especially when a tree is a part of a bigger structure like an alley. Therefore, certain standards should be set for their evaluation, including accurate methods adjusted to the landscape and habitat type, as well as to their surroundings.

5. Conclusions

This study presents a novel approach to assessing the environmental value of road alleys, connecting safety with ecological and environmental aspects in order to ensure the sustainability of the region. The six-component examination framework for the research—dendrological examination with tree risk assessment and vitality evaluation, loading tests, examination of protected beetle species—hermit beetle, the lichens species, and examination of bat fauna—guided an approach with complementary measures that shows the environmental value of the examined road alley. The study demonstrates that the responsible assessment of the avenue requires a consideration of all these important factors. Therefore, alleys cannot be perceived only as a part of the road system, in which they cause threats for road users, especially since professional risk assessment has not confirmed the need for tree removal. In this case, it was possible to reduce the level of risk by providing safety recommendations. For these reasons, an expanded resource management plan should become a common practice. This approach has become increasingly important, as dendrologists continue to highlight the utilitarian relationship residents have with local alleys, described in some case even as a “mental space”, and the apprehensions they have about these spaces [1,7,28]. Further studies should be made in order to implement full procedures (risk and natural value assessment) into decision making processes concerning road management. Taking into account the wide range of urban alleyways’ value and meaning, our study indicates viable ways to direct management system creation based on two priorities: safety and biodiversity protection.

Supplementary Materials

The following are available online at https://www.mdpi.com/2071-1050/11/6/1816/s1, Figure S1: Main species of trees in the alley.

Author Contributions

Conceptualization, M.S.; methodology, M.S.; software, M.S. and M.B.; validation, M.S. and M.B.; formal analysis, M.S., A.J., J.D., A.B. and J.S.; resources, M.S., M.B., A.J., J.D., A.B. and J.S.; data curation, M.S. and M.B.; writing—original draft preparation, M.S. and M.B.; writing—review and editing, M.S. and M.B.; project administration, M.B.

Funding

This research was carried in cooperation with Stowarzyszenie Ekologiczno-Artystyczne “Ręką Dzieło” (representing Fundacja Ekologiczna Arka in the “DZIAŁAJ w ZIELONE—Program inicjatyw lokalnych” project) and was funded by Narodowy Fundusz ochrony Środowiska i Gospodarki Wodnej (ang. National Fund for Environmental Protection and Water Management).

Acknowledgments

We would like to thank Gabriela Maksymiuk, PhD, for her valuable comments and methodological support while preparing this paper.

Conflicts of Interest

The authors declare no conflict of interest.
