Sustainability 2019, 11(6), 1750; https://doi.org/10.3390/su11061750

Article
Evaluating the Efficacy of Zero-Emission Vehicle Deployment Strategies: The Maryland Case
1
School of Architecture and Art, Hebei University of Engineering, Handan 056038, China
2
National Center for Smart Growth Research and Education, University of Maryland, College Park, MD 20742, USA
*
Author to whom correspondence should be addressed.
Received: 28 February 2019 / Accepted: 18 March 2019 / Published: 22 March 2019

Abstract

:
This study aimed to develop a model to estimate the impacts of zero-emission vehicle (ZEV) adoption on CO2 emissions and to evaluate efficacy of ZEV deployment strategies in achieving greenhouse gas (GHG) emission reduction goals. We proposed a modeling scheme to represent ZEVs in four-step trip-based travel demand models. We then tested six ZEV scenarios that were a cross-combination of three ZEV ownership levels and two ZEV operating cost levels. The proposed modeling scheme and scenarios were implemented on the Maryland Statewide Transportation Model (MSTM) to analyze the impacts of different ZEV ownership and cost combinations on travel patterns and on CO2 emissions. The main findings were the following: (1) A high-ZEV ownership scenario (43.14% of households with ZEVs) could achieve about a 16% reduction in statewide carbon dioxide equivalent (CO2Eq) emissions from 2015 base year levels; and (2) CO2Eq emissions at a future year baseline (2030) (the Constrained Long-Range Plan) level dropped by approximately 11% in low-ZEV ownership scenarios, 17% in medium-ZEV ownership scenarios, and 32% in high-ZEV ownership scenarios. The high-ZEV ownership results also indicated a more balanced distribution of emissions per unit area or per vehicle mile traveled among different counties.
Keywords:
zero-emission vehicles; travel demand model; scenario analysis; GHG emission; mode choice

1. Introduction

As a result of greenhouse gas emissions (GHGs) (mainly CO2) emitted through human activities, global warming and anthropogenic climate change has drawn worldwide concern [1]. The transportation sector emitted about 20% of global CO2 emissions in 2012, and an even higher percentage in developed countries such as the United States, members of the E.U., Japan, and others [2]. The transport sector produces the second largest share of CO2 emissions among all sectors in the E.U., in which passenger cars are responsible for about 70% of total CO2 emissions [3]. Transportation represented 26% of total U.S. GHG emissions in 2014, and within the transportation sector, light-duty vehicles were by far the largest category, with 61% of GHG emissions [4]. Lopes Toledo and Lèbre La Rovere [5] have estimated that individual motorized transport accounts for 60% of total emissions from the urban transportation sector. Vierth et al. [6] have shown that road transportation contributes by far the most to emission costs in Sweden.
Electric vehicles (EVs) show promise for improving the environmental sustainability of the transport system since, as opposed to conventional vehicles, they have no tailpipe exhaust gas emissions [7]. Zero-emission vehicles (ZEVs) have been found to potentially reduce greenhouse gas emissions by up to 60% under ideal conditions [8]. However, different cities may have conditions that are characterized by diversity in landforms, congestion patterns, driving styles, etc., and policies that support the adoption of ZEVs would need to take these differences into account to effectively contribute to CO2 emissions reduction efforts [9]. A comprehensive analysis is needed to understand the extent of the benefits that the deployment of ZEVs could generate and how these benefits are spatially distributed for a given region or state. A number of practical tools have been developed for estimating CO2 emissions from transportation, including MOBILE6, COMMUTER, the Motor Vehicle Emissions Simulator (MOVES), and the Intelligent Transportation Systems Deployment Analysis System (IDAS) [10]. Some researchers have also built GHG emission models on the basis of car ownership, vehicle kilometers traveled (VKTs), and CO2 emissions factors [1,11,12,13,14]. While these models are capable of estimating CO2 emissions, they are not suitable for analyzing the effects of e.g. ZEV cost on mode choice, destination choice, travel path choice, and resulting travel patterns.
Travel behavior and the resulting GHG emissions are affected by factors such as fuel economy and the ZEV adoption rate, which consists of a high level of uncertainty. Schipper [15] has stated that fuel economy technology is not the only factor that can yield significant reductions in CO2 emissions and that it will be difficult for technology alone to lower CO2 emissions from the transport sector because of the increasing number of vehicles and vehicle kilometers traveled. Gerard et al. [16] found that people interested in hybrids are much “greener” than are diesel enthusiasts, and hybrid drivers log fewer annual miles and have a higher percentage of in-city driving. Akar and Guldmann [17] found that an SUV, a pickup truck, a van, or a hybrid are likely used and result in producing more vehicle miles traveled (VMTs). Yu et al. [18] examined the rebound effects when replacing current vehicles with a plug-in hybrid and electric vehicles in Japan and found that improvements in vehicle efficiency caused a rebound effect in the transport sector, such as increased vehicle kilometers traveled and frequency of car use, as well as in the consumption of domestic goods. Mishina and Muromachi [19] have concluded that the potential reductions in CO2 emissions offered by the higher tested fuel economy of hybrid electric vehicles (HEVs) have been offset markedly by the deterioration in test fuel economy and the direct rebound effects in real traffic over a certain period. Langbroek et al. [7] found that EV users make significantly more trips and choose driving for a significantly larger percentage of their total travel distance than conventional vehicle users. This research suggests a rebound effect, that is, EVs will still consume a considerable amount of energy and contribute to other external effects such as congestion. Thus, the benefits of EVs in reducing GHG emissions should be explored carefully, considering such rebound effects.
The Greenhouse Gas Emissions Reduction Act (GGRA), enacted by the State of Maryland in 2009 required the state to achieve a 25% reduction in statewide GHG emissions from 2006 levels by 2020, and the GGRA of 2016 set a new benchmark goal of a 40% reduction in emissions from 2006 levels by 2030 [20]. To what extent could ZEV deployment strategies achieve this ambitious GHG emission reduction goal? This paper aims to answer this question by quantifying the amount of CO2 emissions from road passenger transport by varying ZEV ownership and cost levels and analyzing whether ZEV deployment strategies could achieve the GHG emissions reduction goal in the state of Maryland by 2030. A modeling platform, the Mobile Emissions Model (MEM), developed by integrating the Maryland Statewide Transportation Model (MSTM) and the Environmental Protection Agency’s MOVES model, was used for this analysis. The MSTM is a multilayer model that works at regional, statewide, and urban levels, and uses a traditional four-step travel forecasting process with the addition of a time-of-day model. MOVES estimates emissions from mobile sources by using data such as climate, fuel economy, and other variables. The MEM estimates transportation emissions by applying emissions rates from the MOVES model to MSTM-generated traffic flows [21]. We utilized this modeling platform to conduct various ZEV adoption scenarios to gain insight into, e.g., travel behavior changes, VMTs, and carbon dioxide equivalents (CO2Eqs).
This paper is organized as follows: Section 2 gives the details of the methods we developed to incorporate ZEVs into the MSTM and MEM and describes a set of ZEV scenarios designed to estimate the impacts on CO2 emissions. Section 3 provides a detailed analysis of scenario results at various geographic scales. Section 4 discusses the practical and policy implications of the results and tries to answer the research question. The last section summarizes the main contributions, limitations, and future research directions.

2. Method

2.1. Modeling Platform

To analyze the impacts of ZEVs on emissions in Maryland, we used the MSTM to estimate travel patterns. The MSTM results were used as an input into the MEM in conjunction with the United States Environmental Protection Agency’s Motor Vehicle Emissions Simulator (MOVES) model to determine the emissions estimates. The MSTM is a multilayer model working at a regional, statewide, and urban level and is driven by economic and land use data. The MSTM uses a traditional four-step travel forecasting process with the addition of a time-of-day model, which divides trips into four time periods: a.m. peak, mid-day, p.m. peak, and night-time. Figure 1 contains a flow diagram of the MSTM and illustrates how the four steps are applied to each type of travel [22].
MEM [21,23] integrates the MOVES with the MSTM and calculates total emissions by applying emissions rates calculated by the MOVES model to MSTM-produced trip tables and loaded networks (VMTs and speeds for each network link). This model outputs both running and nonrunning emissions, and these emissions include oxides of nitrogen (NOx), volatile organic compounds (VOCs), and CO2Eqs (Figure 2). The link level estimates then can be summarized at multiple scales, including statewide, county, corridor, and individual lanes [24].

2.2. Demand Forecasting Model

ZEVs, as a new mode, were introduced into the MSTM by making necessary changes in the short-distance auto component of the MSTM (Figure 3). We divided the households into two groups: Households without ZEVs and with ZEVs, and modeled the following four steps (i.e., trip generation, trip distribution, mode choice, and time-of-day split) of the travel demand forecasting model separately for the two groups. The origin–destination [25] trip tables obtained as a result after the last step (time-of-day split) for households with ZEVs and without ZEVs were combined for the highway and transit assignment steps. This revised MSTM model output the assigned ZEV and non-ZEV volume, VMTs, and vehicle hours traveled (VHTs) for every link of the network, which were then used as inputs into the MEM for calculating CO2Eq emissions estimates.
Determining which households will own a ZEV in the future was a challenge we needed to address. The literature suggests that the early EV owners were wealthier, more educated, and had a stronger environmental attitude [26,27]. The Maryland Department of Transportation (MDOT) [28] has projected that as many as 100,000 EVs will be registered in the state of Maryland in 2020, and 1,472,084 EVs will be registered in 2040. We based our models and scenario design on these projections. We hypothesized that as household income increases, the possibility of possessing a ZEV increases as well. Thus, we designed three ZEV ownership scenarios based on income levels: Low ownership assumption, medium ownership assumption, and high ownership assumption in 2030. We first divided all households into two groups: Households without ZEVs and households with ZEVs. We assumed that the households without ZEVs were the households that do not choose ZEVs as a mode of travel for various reasons, e.g., cost and limited driving range, and that households with ZEVs were the ones that can choose ZEVs as a mode of travel. Figure 4 illustrates the percentage of households with ZEVs by five income groups for three scenarios. For all the scenarios, we assumed that every statewide modeling zone (SMZ) in Maryland had the same percentage of households with ZEVs for every income group. The percentage of households with ZEVs was 14.49% in low-ZEV ownership scenarios, 23.18% in medium-ZEV ownership scenarios, and 43.14% in high-ZEV ownership scenarios. These percentages were computed using the following formula:
P l o w z e v = ( i P l o w i P o p i ) / i P o p i ,
P m e d i u m z e v = ( i P m e d i u m i P o p i ) / i P o p i ,
P h i g h z e v = ( i P h i g h i P o p i ) / i P o p i ,
where P l o w z e v is the percentage of households with ZEVs in low-ZEV ownership scenarios; P m e d i u m z e v is the percentage of households with ZEVs in medium-ZEV ownership scenarios; P h i g h z e v is the percentage of households with ZEVs in high-ZEV ownership scenarios; i is the income group, i.e., the low income group, medium-low income group, medium income group, medium-high income group, and high income group; P l o w i is the percentage of income group i households with ZEVs in low-ZEV ownership scenarios; P m e d i u m i is the percentage of income group i households with ZEVs in medium-ZEV ownership scenarios; P h i g h i is the percentage of income group i households with ZEVs in high-ZEV ownership scenarios; and P o p i is the population of income group i households.
Equations (1)–(3) describe how the number of households with ZEVs in an SMZ was calculated, i.e., the original number of households in an SMZ was multiplied by the assumed percentage of the households with ZEVs. The trip generation step in the MSTM is modeled as a cross-classification model (by income and number of workers for work trips, and by income and household size for other trips) for the production and attraction of 19 types of trips. As in past studies [29,30], we assumed that the trip generation behavior of ZEV users would not be significantly different from the users of conventional internal combustion engine vehicles (ICEVs). Thus, we assumed that the parameters of this model were the same for the households without ZEVs and the households with ZEVs. However, we hypothesized that differences in some factors between ZEVs and ICEVs, such as vehicle operating costs, parking costs, and tolls, would likely influence the choice of trip destination and mode choice. For example, ZEVs reduce the cost of travel since the cost of electricity is less than the equivalent cost of gasoline. We investigated this hypothesis by applying cost differences in the corresponding choice models in the MSTM. The trip distribution model is a nested-logit destination choice model that distributes passenger trips by five travel purposes: home-based work (HBW), home-based other (HBO), non-home-based work (NHBW), non-home-based other (NHBO), and home-based shop (HBS). A gravity model is used for distributing the home-based school (HBSc) trips. The nested-logit mode choice model splits passenger trip matrices into 11 travel modes (3 automobile modes and 8 transit modes) [31]. The mode split for the households without ZEVs and the households with ZEVs are different because of the different generalized travel costs. Equation (4) presents the generalized cost function in the MSTM:
G C i n c , i j = t i j 0 + T o l l i j V O T i n c + α . d i j ,
where, G C i n c , i j is the generalized cost of traveling on link ij by auto and it varies by income group inc (in minutes); t i j 0 is the free-flow travel time for traversing link ij; Tollij is the value of the toll for using link ij if any toll is applied (in cents); VOTinc is the value of time of the traveler’s income group category; α is a factor that represents impedance for long-distance trips; and d i j is the distance between origin and destination (in miles).
Figure 5 illustrates the nested-logit model structure of the mode choice model in the MSTM as applied to the households with ZEVs. We assumed that these households abandoned conventional cars and that ZEVs replaced their conventional cars.

2.3. ZEV Scenarios

The average cost of the electricity used to fuel Pure Electric Vehicle (PEV) could be as high as $0.24–$0.34 per kilowatt-hour (kWh), equivalent to $2.70–$4.70 per gallon of gasoline, and paying off-peak rates of $0.10 per kWh is equivalent to paying around $1 per gallon of gasoline [32]. Since there is high uncertainty in future fuel cost estimates (year 2030 in this study), we tested two cost level scenarios, where we assumed that vehicle operating costs and parking costs were reduced to 20% or 80% of conventional cars in 2030. We assumed that ZEVs would not pay tolls. In combination with three aforementioned ZEV ownership scenarios (see Figure 4), six ZEV scenarios were constructed to illustrate the impacts of ZEVs on GHG emissions (Table 1). All scenarios were developed for a typical day in the year 2030, with sociodemographic data and network data developed from the Constrained Long-Range Plan (CLRP). Besides the six ZEV scenarios, a 2015 base year model and a 2030 CLRP baseline model without ZEV were used as benchmarks for results analysis.

3. Results

We summarize the scenario results, focusing on behavioral changes and CO2Eq emissions at various scales to understand the geospatial impacts of the scenarios.

3.1. Changes in Travel Distance and Mode Choice

We analyzed the travel distance changes for all households, households without ZEVs, and households with ZEVs by six travel purposes: HBW, HBO, NHBW, NHBO, HBS, and HBSc (Figure 6). We observed that the average travel distance in the 2030 baseline was shorter than that of the 2015 base year, likely because of increased congestion from growing total travel demand for all travel purposes. In the scenarios with ZEVs, all households’ average travel distance showed a minor increase compared to the 2030 baseline for all travel purposes. Moderate differences in average travel distances were found between different ZEV cost scenarios (20% and 80% of operational costs and parking costs), especially for the households with ZEVs. For the households with ZEVs under the same scenario, their average travel distance for four purposes (HBW, HBO, NHBW, and NHBO) was longer than that of the households without ZEVs. However, for the HBS and HBSc purposes, the average travel distance of households without ZEVs was longer than that of the households with ZEVs. The change in average travel distance remained small relative to the scenarios with the same cost percentage, such as for scenarios LZO20C, MZO20C, and HZO20C. In other words, ZEV ownership had a small impact on travel destination choice results for the scenarios with the same ZEV costs.
We observed that the transit share did not show a significant change (5% to 6%) for all 2030 scenarios, while ICEVs or ZEVs remained as the main travel mode, with about a 94% share. Table 2 summarizes the ICEV and ZEV mode choice results. For all ZEV scenarios, the mode choice results of the households without ZEVs (i.e., households with ICEVs) showed a minor difference from the 2030 baseline. Thus, for the scenarios with a 20% cost of ICEVs (LZO20C, MZO20C, and HZO20C), the drive alone(DA) mode for households with ZEVs, compared to households without ZEVs, increased by about 5%, shifting from shared ride with two persons (SR2) and shared ride with three or more persons (SR3+). For the scenarios with 80% cost of ICEVs (LZO20C, MZO20C, and HZO20C), the change in mode shift was only 2%. This showed that with lower operating costs, ZEVs would be preferred over carpooling, increasing the DA share. This behavior is consistent with the rebound effect in the literature.

3.2. Spatial Analysis: Regional Level

Table 3 compares the performance of different scenarios in the state of Maryland spatially. VMT increased by approximately 21.71% to 31.52% in 2030 from the 2015 base year level. Within 2030 scenarios, VMT increased by approximately 0.47% to 8.06% from the 2030 baseline level. The MZO20C scenario produced the largest change in VMT, with 31.52% and 8.06% from the 2015 base year and 2030 baseline level, respectively. While VMT increased with higher ownership levels, CO2Eq emissions declined. The change in CO2Eq emissions was between −16.35% and +23.94% from the 2015 base year level and between −32.50% and −10.92% from the 2030 baseline level. From the 2015 base year level, the results of the high-ZEV ownership scenarios, HZO20C and HZO80C, showed that the two scenarios (HZO20C and HZO80C) could achieve a 16.35% and 15.80% reduction in statewide CO2Eq emissions, respectively, while other scenarios did not lead to a reduction from the 2015 base year level. CO2Eq emissions dropped by approximately 11% in low-ZEV ownership scenarios, 17% in medium-ZEV ownership scenarios, and 32% in high-ZEV ownership scenarios from the 2030 baseline levels. An interesting result was that CO2Eq emissions did not change significantly (<1%) for two scenarios with the same ZEV ownership level, HZO20C and HZO80C, either from the 2015 base year level or the 2030 baseline level. This result indicates that the cost percentage assumption for the operational costs and parking costs has no significant effect on statewide CO2Eq emissions. These results are also consistent with the rebound effect, i.e., as more ZEVs travel, they travel longer distances and contribute to congestion and increase emissions indirectly.

3.3. Spatial Analysis: Local Level

Considering that cost had no significant effect on statewide CO2Eq emissions, we focused on comparisons of scenarios with 20% of ICEV costs between the 2015 base year and 2030 baseline. At the county level, the results are reported in Table 4 and Table 5. Table 4 presents the percent changes of CO2Eq emissions in each county from the 2015 base year level and 2030 baseline level. Although considerable CO2Eq emission reductions were observed at the statewide level, the amount of change differed from county to county. Compared to the 2015 base year level, the counties that showed the greatest change (increase or decrease) in CO2Eqs are highlighted in red and light red, e.g., Somerset, Montgomery, Dorchester, and Prince George’s. When the same county results were compared to the 2030 baseline level, they showed a small decrease in CO2Eq emissions compared to other counties under the same scenario, such as Allegany, Frederick, Garrett, and Washington. Compared to other counties, these counties (corresponding to cells with green and light green backgrounds) had massive CO2Eq emissions reductions. The yellow backgrounds represent the medium level.
Table 5 shows CO2Eq emissions per unit area and per VMT in each county. The results are divided into different classes with different color backgrounds. For one of two parts of the measures (emissions by area and VMT), the comparisons are among all four scenarios. The results showed that high CO2Eq emissions by area were mainly distributed in Baltimore City, Prince George’s, Montgomery, Howard, Baltimore, and Anne Arundel counties. Figure 7 depicts the distribution of CO2Eq emissions by area for the 2030 baseline and MZO20C scenario. Although some counties had high CO2Eq emissions by area, these counties had relatively low CO2Eq emissions by VMT, such as Baltimore City, Prince George’s, Montgomery, and Anne Arundel. On the contrary, some counties with low CO2Eq emissions by area had high CO2Eq emissions by VMT, such as Saint Mary’s, Somerset, Calvert, and Caroline. We found that the difference in CO2Eq emissions by VMT among all counties became insignificant with increasing ZEV ownership. For example, HZO20C had more harmonious CO2Eq emissions by VMT.

3.4. Spatial Analysis: Roadway Level

A further comparison was summarized by roadway facility type. Figure 8 shows the percent changes (from the 2015 base year) of CO2EQ emissions/mile by facility type under the four scenarios. We found that the percent changes in CO2Eq emissions/mile differed by facility type, but those changes showed a similar pattern. The facility types were ordered based on the change in CO2Eq emissions/mile, with an increasing order as follows: Minor arterials, freeways, collectors, major arterials, expressways, and interstates. In addition, gaps in percent changes gradually decreased with an increase in ZEV ownership. For example, the HZO20C scenario had a small interval change of 8% (between −17% and −25%), which was less than other scenarios (2015 baseline (27%), LZO20 (20%), and MZO20C (17%)).

4. Discussion and Conclusions

In this study, we showed that ZEVs could play a significant role in reducing CO2 emissions from road passenger transport at different levels.
The scenario results presented in this paper demonstrated that all ZEV ownership levels led to an increase in DA trips by ZEV users and moderately longer travel distances because of our reduced operating cost and parking cost assumptions. From the 2015 base year level, total VMT increased by approximately 21.71% to 31.52%, and only in two high-ZEV ownership scenarios did statewide CO2Eq emissions drop by 16.35% and 15.80%, respectively. From the 2030 baseline level, total VMT increased by approximately 0.47% to 8.06%, and the changes in CO2Eq emissions was between −32.50% and −10.92%. Compared to the percentage of households with ZEVs, 14.49% (low-ZEV ownership), 23.18% (medium-ZEV ownership), and 43.14% (high-ZEV ownership), the change in CO2Eq emissions was less than the corresponding increase in percentage of ZEV ownership. The main reason was that we did not consider the impact of truck trips and long-distance trips on CO2Eq emissions, and truck and long-distance trips also make up a large part of all MSTM trips. Thus, in order to achieve a pre-established goal of emissions reductions, more aggressive measures and policies should be implemented, such as encouraging ICEV users to choose ZEVs and using more clean freight vehicles.
In contrast with other research [1,11,13,25,33], we calculated the CO2Eq emissions per unit area and per VMT in each county and per mile by facility type. The estimated results showed that the high-ZEV ownership scenarios could reduce the CO2Eq emissions per VMT (shown in Table 5) among all counties and the gaps in CO2Eq emissions per mile among six road types (shown in Figure 8). In recent years, public transportation’s role in reducing GHG emissions has gained renewed attention [34], so convenient and competitive public transport options should be provided to attract more car users to transit, especially in dense metropolitan areas. In counties with high emissions per VMT values, which are rural and where typically more low-income households reside, subsidies can be provided to incentivize ZEV purchasing. The results by road type can guide policies to improve environmental quality and address environmental justice questions. For example, road types with high emissions per mile, such as minor arterials, freeways, and collectors, can be given priority when deploying ZEV charging infrastructure to support their use, and residents along them can be given incentives.
Increasing the use of ZEVs led to lower statewide and regional GHG emissions, and it shortened the gaps in emissions per unit area or per VMT among different counties. The operational costs and parking costs under a ZEV ownership scenario had no significant effect on statewide CO2Eq emissions, likely due to the rebound effect from congestion. To reduce CO2 emissions, priority should be given to encouraging more households to switch to ZEVs. Although our results showed that the operational costs and parking costs had no significant effect on emissions, the lower cost would attract more households to own ZEVs.
This research established a ZEV deployment policy testing model based on Maryland. Our analysis had some limitations. First, all results were concluded under suggested ZEV ownership assumptions: a ZEV ownership estimation model should be established in further work. Second, we used the same nested-logit mode choice model with different operational costs and parking costs for analyzing the behavioral changes of households with ZEVs. Little is known about potential behavioral changes that occur after adopting electric vehicles or behavioral differences between EV users and non-EV users [7]. Charging facility availability, driving range limitation, and other factors have impacts on ZEV adoption. As data becomes available, ZEVs, as a new mode, should be added to the mode choice model, and the model parameters should be recalibrated and revalidated. Third, there are certainly more variables that may have a significant impact on GHG distribution, such as the deployment of zero-emission trucks and autonomous vehicles. Further research is also needed to determine other variables and their effects on GHG emissions.

Author Contributions

Data curation, Z.W.; Methodology, Z.W.; Supervision, F.W.D.; Writing – original draft, Z.W.; Writing – review & editing, S.E.

Funding

The authors also appreciate the Hebei Natural Science and Technology Project (No. E2019402011), which provided the funding for this study.

Acknowledgments

The authors would like to express gratitude to the China Scholarship Council for offering the scholarship (No. 201508130135) to Zhenbao Wang to pursue studies at the University of Maryland, College Park. It was a great opportunity to conduct this research with an international perspective.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

ZEVZero-emission Vehicles
GHGGreenhouse Gas
MSTMMaryland Statewide Transportation Model
EVElectric Vehicles
HEVHybrid Electric Vehicles
MEMMobile Emissions Model
MOVESMotor Vehicle Emissions Simulator
NOxOxides of Nitrogen
VOCVolatile Organic Compounds
CO2EqCarbon Dioxide Equivalents
VHTVehicle Hours Traveled
VMTVehicle Miles Traveled
SMZStatewide Modeling Zone
ICEVInternal Combustion Engine Vehicles
HBWHome-Based Work
HBOHome-Based Other
NHBWNon-Home-Based Work
NHBONon-Home-Based Other
HBSHome-Based Shop
HBScHome-Based School
CLRPConstrained Long-Range Plan
LZO20CLow-ZEV ownership with a 20% cost level of ICEVs
LZO80CLow-ZEV ownership with an 80% cost level of ICEVs
MZO20CMedium-ZEV ownership with a 20% cost level of ICEVs
MZO80CMedium-ZEV ownership with an 80% cost level of ICEVs
HZO20CHigh-ZEV ownership with a 20% cost level of ICEVs
HZO80CHigh-ZEV ownership with an 80% cost level of ICEVs

References

  1. Wang, Z.; Chen, F.; Fujiyama, T. Carbon emission from urban passenger transportation in Beijing. Transp. Res. Part D Transp. Environ. 2015, 41, 217–227. [Google Scholar] [CrossRef]
  2. World Bank Open Data. 2015. Available online: https://data.worldbank.org/indicator/EN.CO2.TRAN.ZS?display=default&end=2014&start=1960 (accessed on 28 January 2019).
  3. European Union. EU Transport in Figures, Statistical Pocketbook; European Union: Luxembourg, 2014. [Google Scholar]
  4. EPA. US Transportation Sector Greenhouse Gas Emissions 1990–2014. Available online: https://nepis.epa.gov/Exe/ZyPDF.cgi?Dockey=P100ONBL.pdf (accessed on 22 December 2017).
  5. Lopes Toledo, A.L.; Lèbre La Rovere, E. Urban Mobility and Greenhouse Gas Emissions: Status, Public Policies, and Scenarios in a Developing Economy City, Natal, Brazil. Sustainability 2018, 10, 3995. [Google Scholar] [CrossRef]
  6. Vierth, I.; Lindgren, S.; Lindgren, H. Vehicle Weight, Modal Split, and Emissions—An Ex-Post Analysis for Sweden. Sustainability 2018, 10, 1731. [Google Scholar] [CrossRef]
  7. Langbroek, J.H.M.; Franklin, J.P.; Susilo, Y.O. Electric vehicle users and their travel patterns in Greater Stockholm. Transp. Res. Part D Transp. Environ. 2017, 52, 98–111. [Google Scholar] [CrossRef]
  8. NRDC. Environmental Assessment of Plug-In Hybrid Electric Vehicles, Volume 1: Nationwide Greenhouse Gas Emissions. 2007. Available online: https://www.energy.gov/sites/prod/files/oeprod/DocumentsandMedia/EPRI-NRDC_PHEV_GHG_report.pdf (accessed on 28 January 2019). [Google Scholar]
  9. Velázquez-Martínez, J.C.; Fransoo, J.C.; Blanco, E.E.; Valenzuela-Ocaña, K.B. A new statistical method of assigning vehicles to delivery areas for CO2 emissions reduction. Transp. Res. Part D Transp. Environ. 2016, 43, 133–144. [Google Scholar] [CrossRef]
  10. ICF Incorporated, L.L.C. Assessment of Greenhouse Gas Analysis Techniques for Transportation Projects 2006. Available online: http://apps.trb.org/cmsfeed/TRBNetProjectDisplay.asp?ProjectID=1549 (accessed on 28 January 2019).
  11. Li, P.; Jones, S. Vehicle Restrictions and CO2 Emissions in Beijing—A Simple Projection Using Available Data. Transp. Res. Part D Transp. Environ. 2015, 41, 467–476. [Google Scholar] [CrossRef]
  12. Liu, Y.; Cirillo, C. Evaluating Policies to Reduce Greenhouse Gas Emissions from Private Transportation. Transp. Res. Part D Transp. Environ. 2016, 44, 219–233. [Google Scholar] [CrossRef]
  13. Cen, X.; Lo, H.K.; Li, L. A Framework for Estimating Traffic Emissions: The Development of Passenger Car Emission Unit. Transp. Res. Part D Transp. Environ. 2016, 44, 78–92. [Google Scholar] [CrossRef]
  14. Tan, X.; Zeng, Y.; Gu, B.; Wang, Y.; Xu, B. Scenario Analysis of Urban Road Transportation Energy Demand and GHG Emissions in China—A Case Study for Chongqing. Sustainability 2018, 10, 2033. [Google Scholar] [CrossRef]
  15. Schipper, L. Automobile Use, Fuel Economy and CO2 Emissions in Industrialized Countries: Encouraging Trends Through 2008? Transp. Policy 2011, 18, 358–372. [Google Scholar] [CrossRef]
  16. Gerard, D.; Fischbeck, P.; Mathews, H. Diesel and Hybrids Don’t Mix: Perceptions of the Interested Public and Actual Driving Behavior of New Car Owners. Transp. Res. Rec. J. Transp. Res. Board 2007, 2017, 33–40. [Google Scholar] [CrossRef]
  17. Akar, G.; Guldmann, J.M. Another Look at Vehicle Miles Traveled. Transp. Res. Rec. J. Transp. Res. Board 2012, 2322, 110–118. [Google Scholar] [CrossRef]
  18. Yu, B.; Zhang, J.; Fujiwara, A. Rebound Effects Caused by The Improvement of Vehicle Energy Efficiency: An Analysis Based on a SP-off-RP Survey. Transp. Res. Part D Transp. Environ. 2013, 24, 62–68. [Google Scholar] [CrossRef]
  19. Mishina, Y.; Muromachi, Y. Are Potential Reductions in CO2 Emissions via Hybrid Electric Vehicles Actualized in Real Traffic? The Case of Japan. Transp. Res. Part D Transp. Environ. 2017, 50, 372–384. [Google Scholar] [CrossRef]
  20. 2016 Annual Report: Maryland Commission on Climate Change. 2016. Available online: https://mde.maryland.gov/programs/Air/ClimateChange/MCCC/Publications/MCCC2016Report.pdf (accessed on 28 January 2019).
  21. Welch, T.F. Climate Action Plans—Fact or Fiction? Evidence from Maryland. Ph.D. Thesis, University of Maryland, College Park, MD, USA, 2013. [Google Scholar]
  22. Donnelly, R.; Huntsinger, L.; Sarvepalli, A.; Ducca, F.; Moeckel, R.; Mishra, S.; Welch, T. The Maryland Statewide Transportation Model Documentation (version 1.0); Maryland Department of Transportation State Highway Administration: Baltimore, MD, USA, 2013.
  23. Mishra, S.; Welch, T. Joint Travel Demand and Environmental Model to Incorporate Emission Pricing for Large Transportation Networks. Transp. Res. Rec. J. Transp. Res. Board 2012, 2302, 29–41. [Google Scholar] [CrossRef]
  24. Erdogan, S.; Fan, W.; Ducca, F.W. Modeling Support for Local Jurisdictions and The Impact of Zero Emission Vehicles on Air Quality; The National Center for Smart Growth Research and Education at the University of Maryland: College Park, MD, USA, 2015. [Google Scholar]
  25. Waygood, E.O.D.; Sun, Y.; Susilo, Y.O. Transportation Carbon Dioxide Emissions by Built Environment and Family Lifecycle: Case Study of The Osaka Metropolitan Area. Transp. Res. Part D Transp. Environ. 2014, 31, 176–188. [Google Scholar] [CrossRef]
  26. Farkas, Z.A.; Shin, H.S.; Dadvar, S.; Molina, J. Electric Vehicle Ownership Factors, Preferred Safety Technologies and Commuting Behavior in the United States; Morgan State University: Baltimore, MD, USA, 2017. [Google Scholar]
  27. Lane, B.W.; Sherman, C.P.; Sperl, J.; Krause, R.M.; Carley, S.; Graham, J.D. Beyond Early Adopters of Plug-in Electric Vehicles? Evidence from Fleet and Household Users in Indianapolis. In Proceedings of the Transportation Research Board 93rd Annual Meeting, Washington, DC, USA, 12–16 January 2014. [Google Scholar]
  28. MDOT. Maryland’s Electric Vehicle Infrastructure Council Interim Report. 2017. Available online: http://evadc.org/2017/03/12/report-of-the-maryland-electric-vehicle-infrastructure-council/ (accessed on 28 January 2019). [Google Scholar]
  29. Pearre, N.S.; Kempton, W.; Guensler, R.L.; Elango, V.V. Electric Vehicles: How Much Range is Required for A Day’s Driving? Transp. Res. Part C Emerg. Technol. 2011, 19, 1171–1184. [Google Scholar] [CrossRef]
  30. Fan, W.; Erdogan, S.; Welch, T.F.; Ducca, F. Use of Statewide Models as a Decision Tool for Zero-Emission Vehicles Deployment. Transp. Res. Rec. J. Transp. Res. Board 2017, 2628, 78–86. [Google Scholar] [CrossRef]
  31. Ducca, F.W.; Erdogan, S.; Gallivan, P.; Knaap, G.J.; Mishra, S.; Petto, G.; Wang, Y.; Welch, T.F. Maryland Scenarios Project Draft Final Year 3 Report. Prepared for Maryland Dept. of Transportation, National Center for Smart Growth Research and Education (NSCG), Transportation Policy Research Group (TPRG) Report, August 2012. Available online: http://www.umdsmartgrowth.org/wp-content/uploads/2017/05/msp_final_app_b3_20120823.pdf (accessed on 28 January 2019).
  32. Zero-Emission Vehicles in California: Community Readiness Guidebook. 2013. Available online: http://opr.ca.gov/docs/ZEV_Guidebook.pdf (accessed on 28 January 2019).
  33. Wu, K.; Chen, Y.; Ma, J.; Bai, S.; Tang, X. Traffic and Emissions Impact of Congestion Charging in The Central Beijing Urban Area: A Simulation Analysis. Transp. Res. Part D Transp. Environ. 2017, 51, 203–215. [Google Scholar] [CrossRef]
  34. Cheng, H.; Madanat, S.; Horvath, A. Planning Hierarchical Urban Transit Systems for Reductions in Greenhouse Gas Emissions. Transp. Res. Part D Transp. Environ. 2016, 49, 44–58. [Google Scholar] [CrossRef]

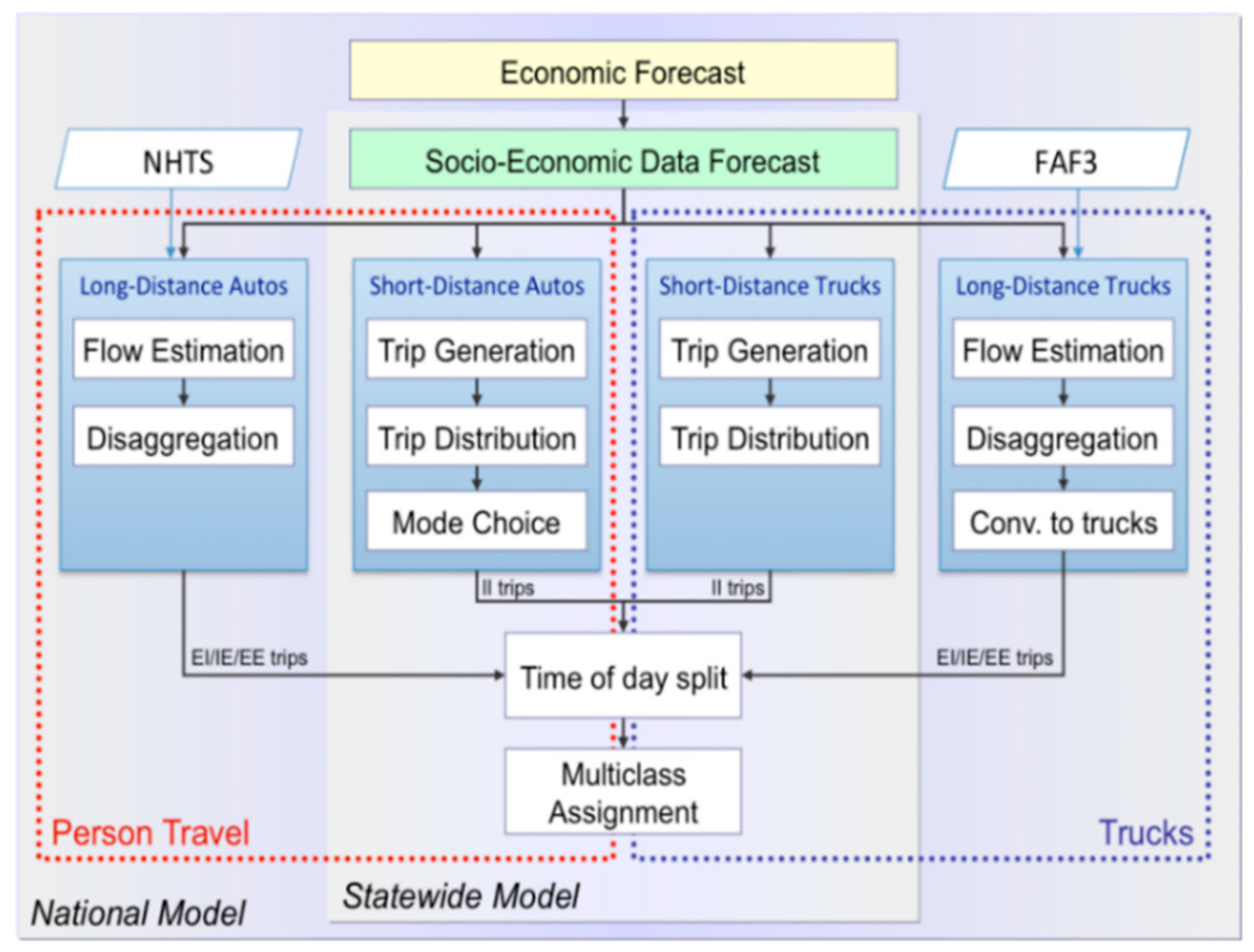

Figure 1. Overview of the Maryland Statewide Transportation Model (MTSM) components.
Figure 1. Overview of the Maryland Statewide Transportation Model (MTSM) components.
Sustainability 11 01750 g001

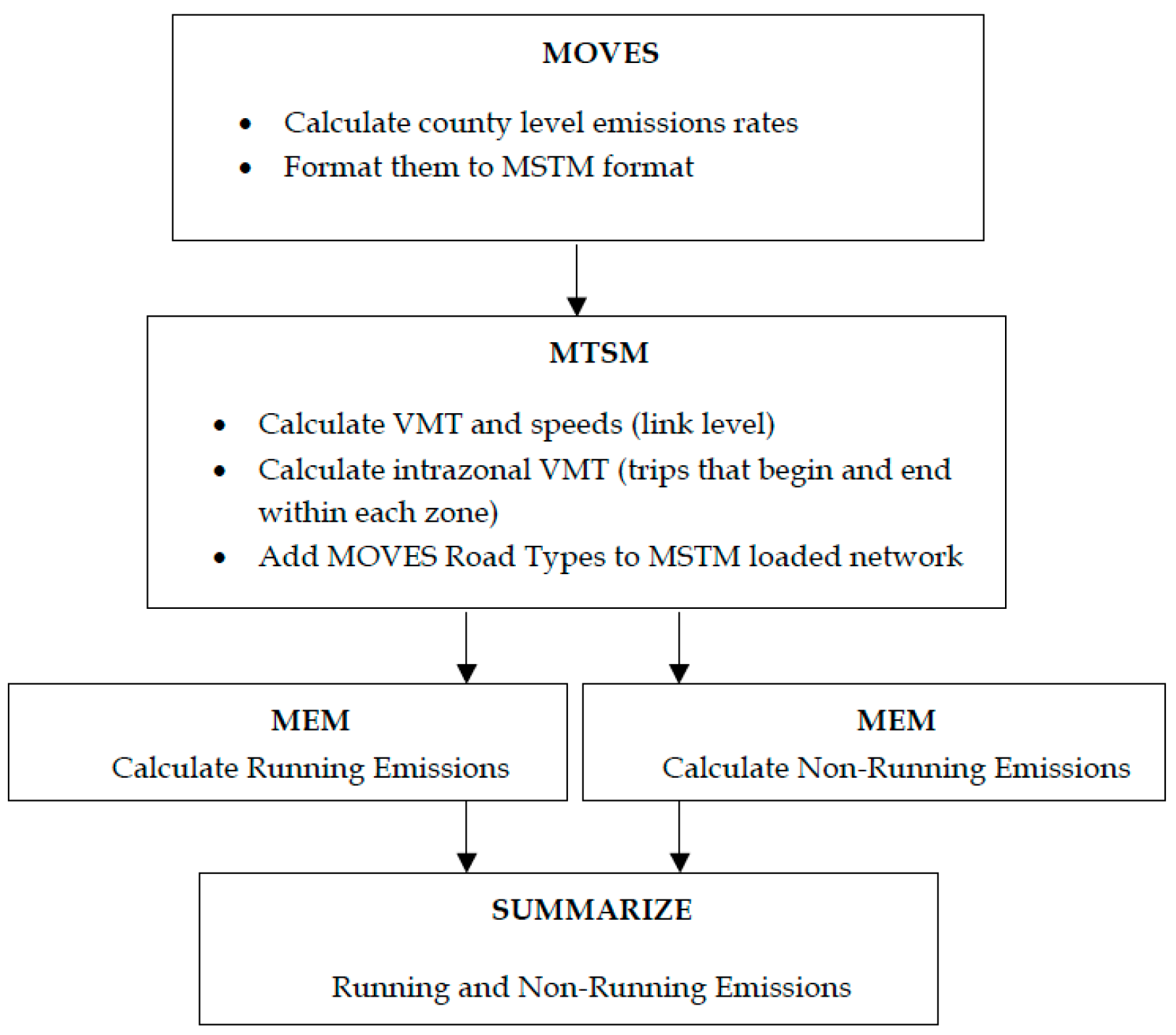

Figure 2. The combined modeling platform.
Figure 2. The combined modeling platform.
Sustainability 11 01750 g002

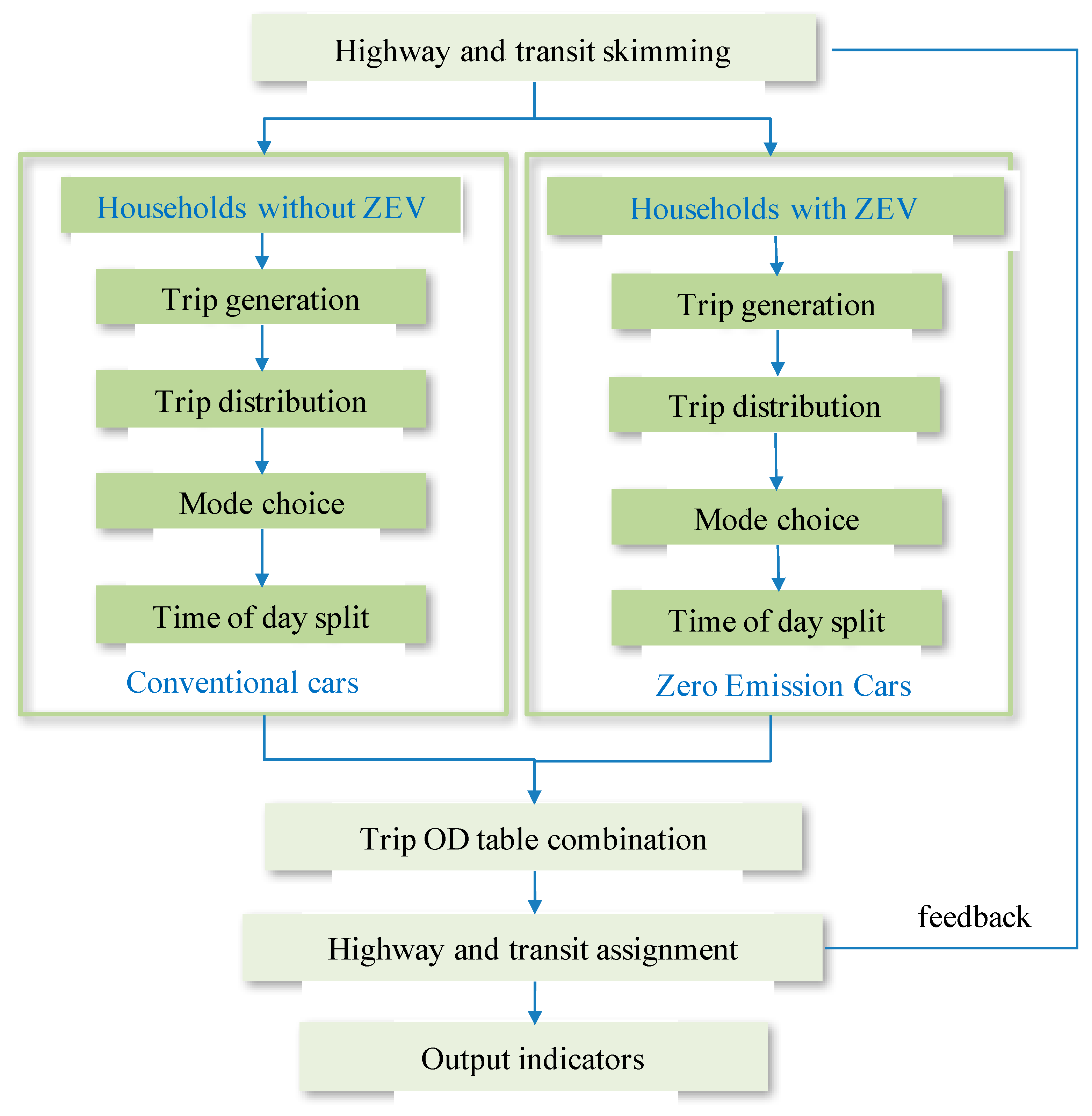

Figure 3. The revised model for short-distance autos of the MSTM.
Figure 3. The revised model for short-distance autos of the MSTM.
Sustainability 11 01750 g003

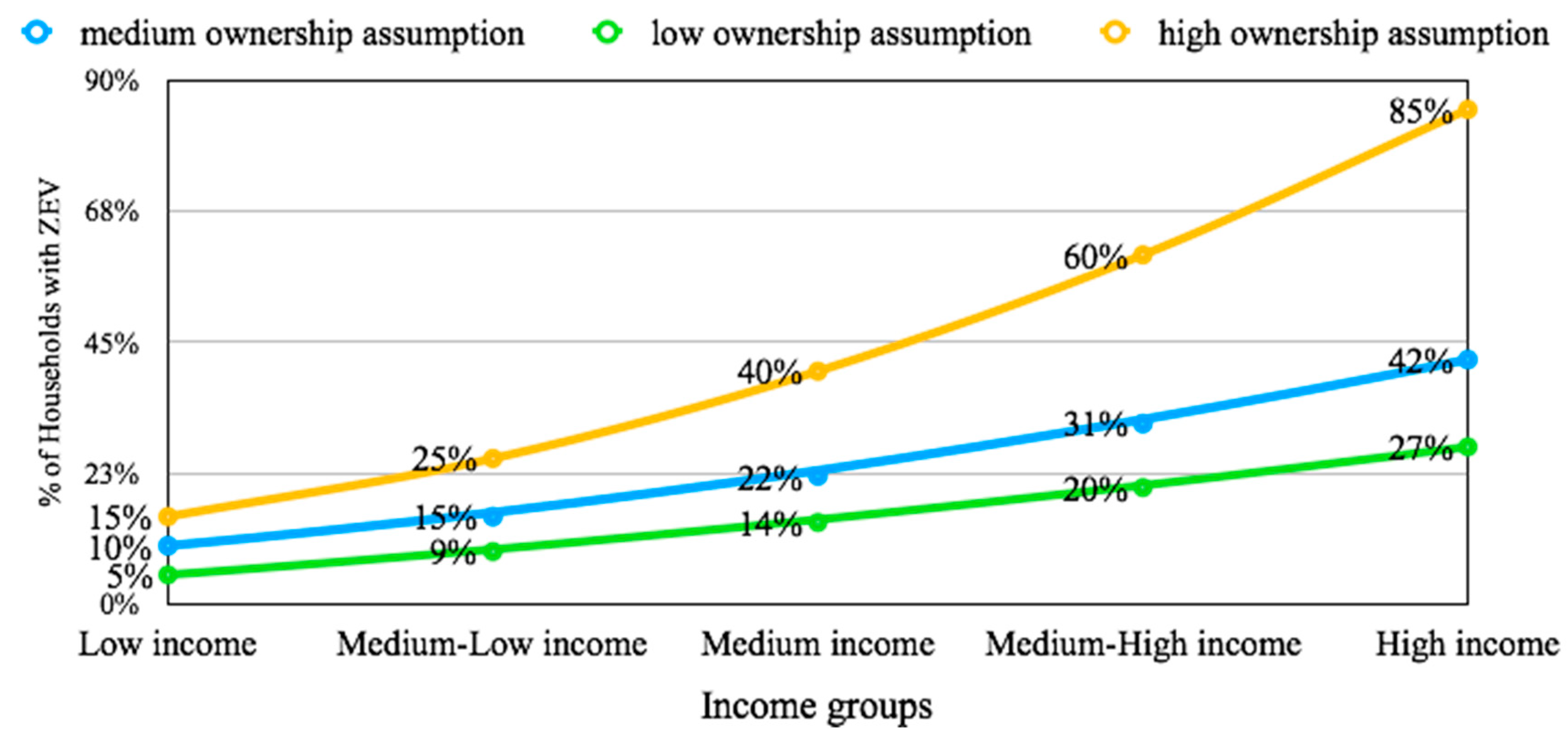

Figure 4. The percentage of households with ZEVs by income groups for three ZEV ownership scenarios in 2030.
Figure 4. The percentage of households with ZEVs by income groups for three ZEV ownership scenarios in 2030.
Sustainability 11 01750 g004
Figure 5. The nested logit model structure for households with ZEVs.
Figure 5. The nested logit model structure for households with ZEVs.
Sustainability 11 01750 g005

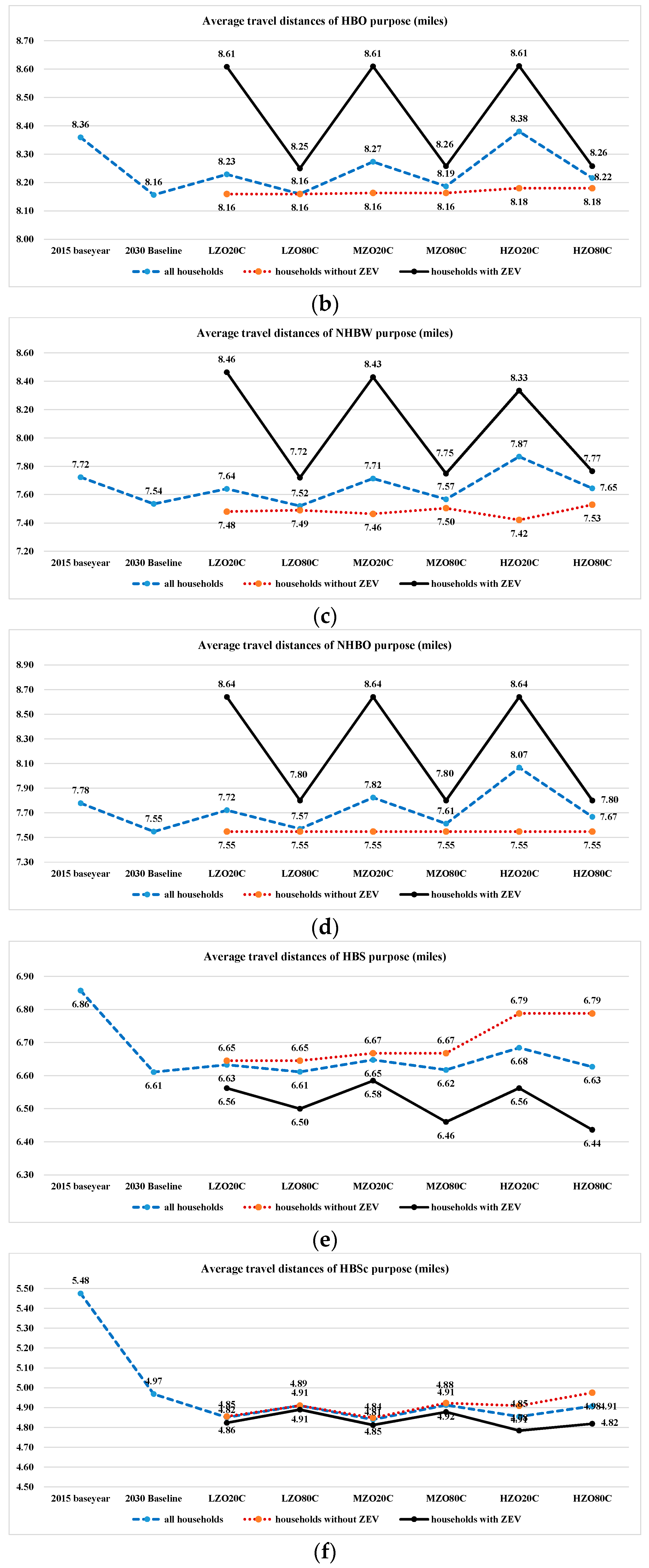

Figure 6. The average travel distance changes by travel purpose: (a) Home-based work (HBW); (b) Home-based other (HBO); (c) Non-home-based work (NHBW); (d) Non-home-based other (NHBO); (e) Home-based shop (HBS); (f) Home-based school (HBSc).
Figure 6. The average travel distance changes by travel purpose: (a) Home-based work (HBW); (b) Home-based other (HBO); (c) Non-home-based work (NHBW); (d) Non-home-based other (NHBO); (e) Home-based shop (HBS); (f) Home-based school (HBSc).
Sustainability 11 01750 g006aSustainability 11 01750 g006b

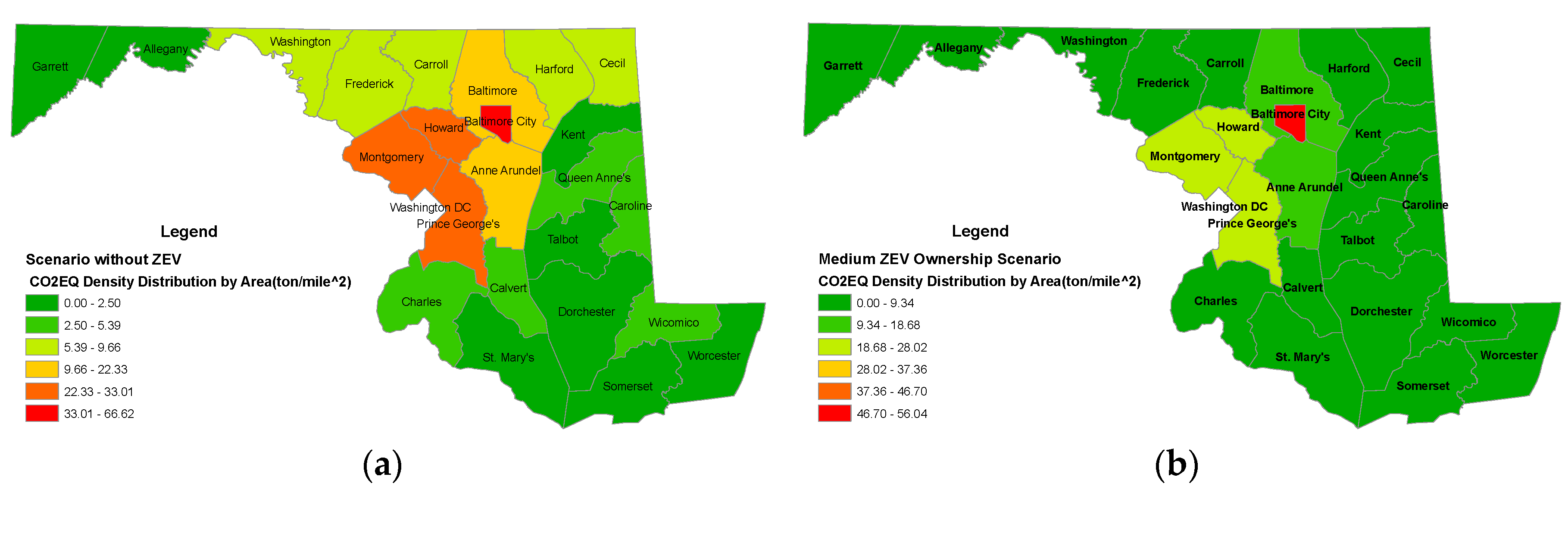

Figure 7. Distribution of CO2Eq emissions by area: (a) 2030 baseline; (b) MZO20C.
Figure 7. Distribution of CO2Eq emissions by area: (a) 2030 baseline; (b) MZO20C.
Sustainability 11 01750 g007

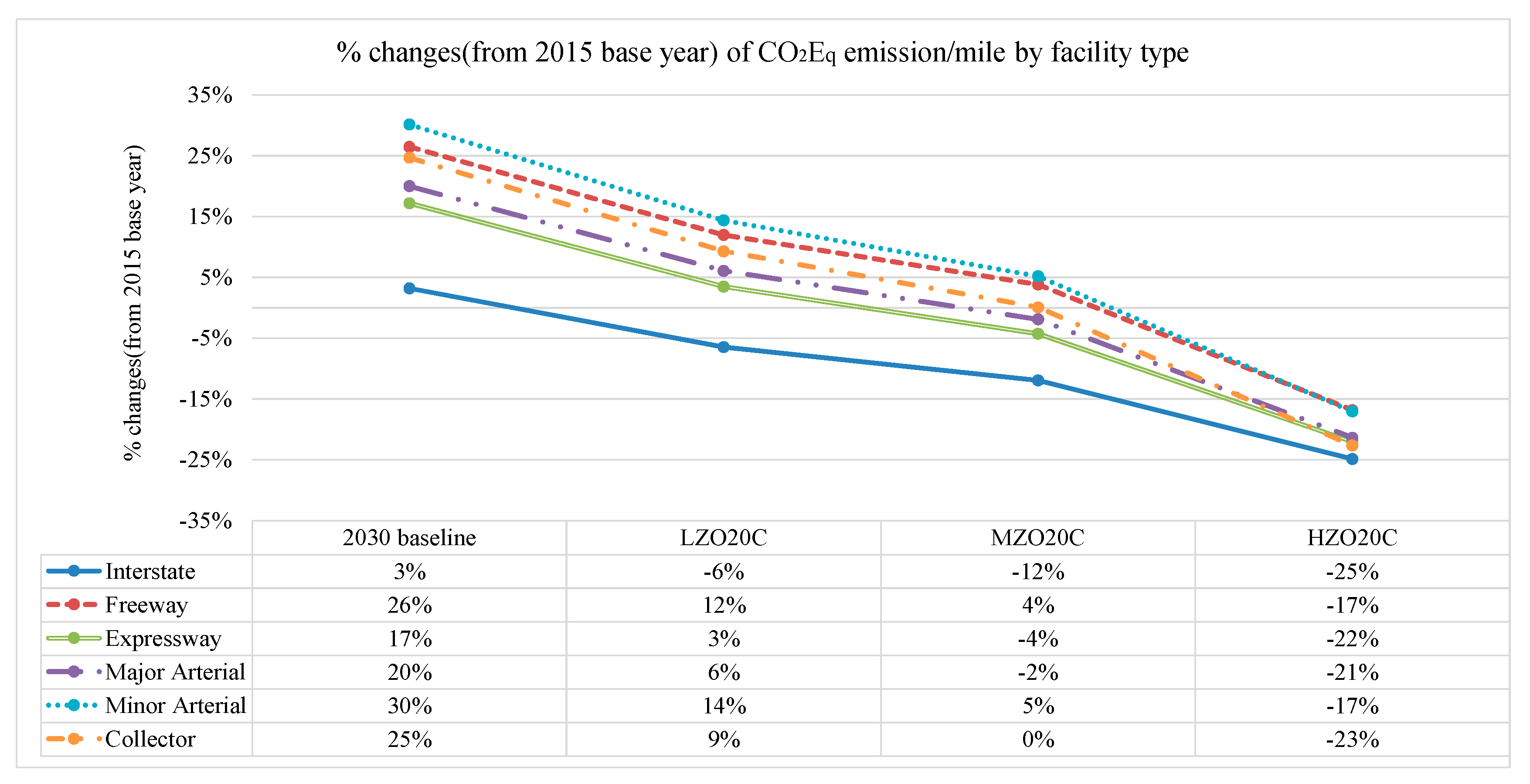

Figure 8. Percent changes (from 2015 base year) of CO2EQ emissions/mile by facility type.
Figure 8. Percent changes (from 2015 base year) of CO2EQ emissions/mile by facility type.
Sustainability 11 01750 g008
Table 1. ZEV scenarios with different costs.
Table 1. ZEV scenarios with different costs.
Number of ScenariosScenarios *ZEV Ownership LevelZEV Cost (Percentage of ICEV’ Cost)
(1)LZO20Clow20%
(2)LZO80Clow80%
(3)MZO20Cmedium20%
(4)MZO80Cmedium80%
(5)HZO20Chigh20%
(6)HZO80Chigh80%
* Scenario names represent ZEV ownership level (e.g., LZO stands for low-ZEV ownership, MZO for medium-ZEV ownership, and HZO for high-ZEV ownership; and 20 and 80 represents the cost level in the scenarios (e.g., 20C stands for 20% of internal combustion engine vehicles (ICEVs)).
Table 2. ZEV or ICEV mode choice results.
Table 2. ZEV or ICEV mode choice results.
ScenariosHouseholdsDASR2SR3+Total ZEV or ICEV Share
2015 base yearall households53.53%38.89%2.69%95.10%
2030 baselineall households53.87%37.53%2.61%94.01%
LZO20Chouseholds without ZEV53.74%37.66%2.61%94.01%
households with ZEV58.65%34.13%2.00%94.79%
LZO80Chouseholds without ZEV53.92%37.76%2.61%94.29%
households with ZEV55.35%36.85%2.35%94.56%
MZO20Chouseholds without ZEV53.67%37.74%2.62%94.02%
households with ZEV58.53%34.20%2.02%94.76%
MZO80Chouseholds without ZEV53.70%37.75%2.62%94.08%
households with ZEV55.39%36.29%2.36%94.04%
HZO20Chouseholds without ZEV53.30%38.18%2.65%94.13%
households with ZEV58.47%34.10%2.03%94.59%
HZO80Chouseholds without ZEV53.39%38.21%2.65%94.25%
households with ZEV55.41%36.17%2.37%93.95%
Table 3. Comparisons of scenario performances. VMT: Vehicle Miles Traveled; CO2Eq: Carbon Dioxide Equivalent.
Table 3. Comparisons of scenario performances. VMT: Vehicle Miles Traveled; CO2Eq: Carbon Dioxide Equivalent.
Measures2015 Base Year2030 BaselineLZO20CLZO80CMZO20CMZO80CHZO20CHZO80C
VMTs (millions)168.16204.66210.21205.63213.55206.85221.16208.92
VMT % changes from 2015 base year-21.7125.0022.2826.9923.0131.5224.24
VMT % changes from 2030 baseline--2.710.474.341.078.062.08
CO2Eqs (tons/day)85,889106,45094,76694,82688,05988,38471,85072,397
CO2Eq % changes from 2015 base year-23.94%10.3310.412.532.90−16.35−15.80
CO2Eq % changes from 2030 baseline---10.98−10.92−17.28−16.97−32.50−32.07
Table 4. CO2Eq emissions changes of counties.
Table 4. CO2Eq emissions changes of counties.
Counties% Changes (from 2015 Base Year)% Changes (from 2030 Baseline)
2030 BaselineLZO20CMZO20CHZO20CLZO20CMZO20CHZO20C
Allegany−10.02%−16.00%−19.55%−27.51%−6.64%−10.58%−19.43%
Anne Arundel16.87%3.10%−4.65%−24.20%−11.78%−18.41%−35.14%
Baltimore 10.63%−1.58%−8.55%−25.43%−11.04%−17.34%−32.60%
Calvert18.74%4.76%−3.35%−22.73%−11.77%−18.60%−34.92%
Caroline38.55%23.28%14.34%−6.38%−11.02%−17.48%−32.43%
Carroll8.16%−3.98%−10.83%−28.44%−11.22%−17.55%−33.84%
Cecil38.47%25.54%18.09%0.03%−9.34%−14.72%−27.76%
Charles3.29%−8.52%−15.53%−31.54%−11.43%−18.22%−33.73%
Dorchester43.20%27.03%17.39%−4.27%−11.29%−18.02%−33.15%
Frederick34.36%22.44%15.35%−1.53%−8.88%−14.15%−26.72%
Garrett−20.90%−26.95%−30.46%−38.32%−7.65%−12.08%−22.02%
Harford16.35%5.01%−1.46%−17.08%−9.74%−15.31%−28.73%
Howard25.84%11.69%3.41%−16.76%−11.24%−17.83%−33.85%
Kent26.73%10.67%2.10%−18.78%−12.67%−19.43%−35.91%
Montgomery38.83%22.35%12.97%−10.02%−11.87%−18.62%−35.19%
Prince George’s49.50%31.24%20.98%−4.09%−12.21%−19.08%−35.84%
Queen Anne’s32.52%19.36%12.84%−4.82%−9.93%−14.85%−28.18%
Saint Mary’s−38.62%−46.33%−50.82%−61.70%−12.56%−19.87%−37.59%
Somerset73.14%52.96%41.04%14.11%−11.65%−18.54%−34.09%
Talbot21.96%8.83%1.66%−16.45%−10.77%−16.65%−31.50%
Washington17.05%8.85%4.09%−7.02%−7.01%−11.08%−20.57%
Wicomico30.39%14.80%5.18%−15.23%−11.95%−19.33%−34.99%
Worcester22.96%8.88%0.11%−18.47%−11.45%−18.58%−33.70%
Baltimore City19.41%7.64%0.44%−15.85%−9.85%−15.88%−29.53%
Table 5. CO2Eq emissions by area and VMT changes of counties.
Table 5. CO2Eq emissions by area and VMT changes of counties.
CountiesCO2Eq Emissions by Area (Tons/Day/Square Miles)CO2Eq Emissions by VMT (g/VMT)
2030 BaselineLZO20CMZO20CHZO20C2030 BaselineLZO20CMZO20CHZO20C
Allegany2.392.232.141.930.490.450.430.38
Anne Arundel15.4313.6112.5910.010.440.380.350.26
Baltimore22.3319.8718.4615.050.530.460.420.33
Calvert3.923.463.192.550.640.550.500.38
Caroline3.413.042.822.310.620.540.490.39
Carroll7.356.526.064.860.550.470.430.33
Cecil8.527.737.276.160.470.420.390.32
Charles3.012.662.461.990.540.460.420.33
Dorchester0.990.880.810.660.590.510.460.36
Frederick9.078.277.796.650.530.470.440.36
Garrett1.040.960.910.810.460.420.390.34
Harford9.668.718.186.880.480.430.400.32
Howard28.2525.0723.2118.680.470.410.370.29
Kent1.441.261.160.920.560.480.430.33
Montgomery28.9225.4923.5318.740.550.470.430.33
Prince George’s33.0128.9826.7121.180.540.460.420.32
Queen Anne’s3.903.513.322.800.620.550.500.41
Saint Mary’s1.561.371.250.980.600.510.460.35
Somerset1.531.351.251.010.650.560.500.39
Talbot2.502.232.081.710.570.490.450.36
Washington6.646.185.915.280.470.440.410.36
Wicomico5.394.754.353.510.530.460.420.32
Worcester2.171.921.771.440.590.500.460.35
Baltimore City66.6260.0656.0446.950.500.440.410.33

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
