1. Introduction
Surface water is considered the main source of water in Egypt. The Nile River was and still is the main source of surface water that flows in the canal’s networks all over Egypt. The Nile River supplies the required quantities of water for different purposes, such as irrigation, domestic applications, industry, and navigation purposes. Egypt is a downstream country among the eleven countries of the Nile Basin, and its annual share of the River Nile water is about 55.5 BCM (billion cubic meters) according to the 1959 treaty. Egypt’s share did not change until recently, while the population has multiplied by nearly three times. Surface water is not enough in many areas, particularly during the periods of maximum demand in the summer. In many parts of the Nile Delta, the amounts of surface water are not sufficient, especially for agricultural and domestic requirements. Thus, users are forced to compensate for this shortage illegally, in most cases from a shallow aquifer by digging wells that penetrate the shallow aquifer at different depths according to the thickness of the upper clay layer in those regions. This withdrawal from the shallow aquifer is sustainable as a solution for the shortage of surface water, where the shallow aquifer is characterized as a renewable aquifer. The study in [
1] reported that the shallow aquifer in the Nile Delta is recharged by excess irrigation water, rainfall, and seepage from canals and drainage networks. The authors in [
2] estimated numerically the infiltrated surface water to groundwater in the western Nile Delta, Egypt by 28.1 million m
3/day.
The study in [
3] concluded that there is a strong relationship between groundwater levels (GWL) and surface water levels (SWL) by analyzing both measured and collected data. This means that the problem of surface water shortages due to the construction of the Grand Ethiopian Renaissance Dam (GERD) will affect both surface and groundwater. The authors in [
4] deduced that the Aswan High Dam (AHD) will reach its minimum operational level during four consecutive years, which in turn will affect the water supply to Egypt, as the preservation of the GERD occurs during dry years. The study in [
5] numerically assessed the effects of the GERD on Egyptian water resources and concluded that the maximum allowable reduction in Egypt’s water share should not be more than 5–15%. The authors in [
6] discussed the causes of the Egyptian rejection of the GERD using qualitative methods that depended on secondary data, such as articles, journals, e-news, e-books, and other literary sources. The results showed that Egypt’s share of the Nile water will be reduced, which in turn will affect Egypt’s stability.
The study in [
7] proved that reducing water levels in the canals would affect the GWL, but discharging from groundwater is more effective, depending on three scenarios, which were simulated by the MODFLOW software. The authors in [
8] recommended changing or modifying the policies applied by the Ministry of Water and Water Resources (MWRI) to overcome the negative impacts of the GERD on Egypt; otherwise, there will be many types of severe problems. The results were obtained by using a mathematical model to create different scenarios of operation. The study in [
9] stated that the GERD is causing a severe crisis between Ethiopia and Egypt, so alternative solutions were proposed, such as the efficient use of water by re-utilizing drainage and municipal water and wasting less surface water. The authors in [
10] reported that the expected amount of water saved using the proposed strategies adopting a stochastic method to estimate the risks of the GERD on Egypt exceeds the expected losses caused by the GERD, at 12.1 BMC.
The study in [
11] showed that filling the GERD reservoir in three and six years required reducing the groundwater extraction rates from the Nile Delta aquifer by 60% and 40%, respectively, to maintain the freshwater body in the Nile Delta aquifer; this study developed a numerical model using SEAWAT to simulate the groundwater flow and solute transport while operating the dam. Although the GERD is a great national project for the Ethiopians, it has negative side effects on downstream countries, especially Egypt. Therefore, these effects should be measured by evaluating their impact. When examining any side effects of an applied project, the estimates become adequate, such as the authors in [
12], who made an EIA for sub-surface drainage projects in Egypt by modifying the Food and Agriculture Organization (FAO) Check List to be suitable for measuring the resulting impacts; this project operated for a number of years.
The study in [
13] evaluated the effectiveness of an EIA in Slovakia by using a survey. A questionnaire was used to obtain data, which was then analyzed to obtain information about the current state of the EIA/SEA (Strategic Environmental Assessment), the EIA/SEA practice, and the EIA in the future as a step to improve the performance of the EIA in Slovakia. Based on previous studies, it can be predicted that any shortage in the supply of surface water could affect the recharging of the shallow water aquifer, which will subsequently affect the GWL.
In 2011, the Ethiopian Government announced it was starting a project to produce electricity through a hydroelectric dam called The Renaissance Dam, which has been constructed on the Blue Nile River, at a distance of 45 km from its eastern border with Sudan. The capacity of the upstream storage lake is 74 BCM. The GERD will produce 6000 Megawatts, (MW). Thus, the upstream countries will control the Nile flow to downstream countries. Consequently, the crisis of the dam filling is of great concern to downstream countries. The estimated storage time ranged from three to seven years. During this storage period, the Egyptian share of water could be exhausted. This will affect different sectors in Egypt, especially the agriculture sector, which consumes 84% of Egypt’s water resources that come (mainly) from the Nile River. This problem is exacerbated by the fact that Egypt applied decisive decisions to prevent reducing the potential impacts from the construction and operation of the GERD. The most serious decision was preventing voracious crops, mainly rice, from being cultivated in some regions and reducing the cultivated areas in other regions. This decision could reduce the amount of excess irrigation water that infiltrates into the shallow aquifer, which could affect the GWL and increase soil salinity.
This paper aims to estimate the potential impacts of the GERD on the Nile Delta, Egypt. Some of these impacts have been recognized, such as the decrease of the SWL in irrigation canals, which is remarkable based on the sectors involved in the SWL. Factors like shortages in the GWL related to shortages in the SWL should be carefully estimated, as the GWL in the shallow aquifer is a basic alternative to the shortage of SW in many regions in the study area. The other factor is the crop patterns. These crops include non-voracious crops, which means less water leading to less recharge of the groundwater aquifer, including deep and shallow aquifers. Non voracious crops go further and could damage the soil properties in the Delta, which is famous for its high quality, because less irrigation water means less soil leaching, which could increase the salinity of the soil that has accumulated over time, thereby creating undesirable amounts of salts that are not suitable for the cultivation process; this is considered an indicator for economic deterioration in the Egyptian agriculture sector. Therefore, an estimation was performed for the three main problems by evaluating and measuring the effects on GWL due to: (i) the expected shortage in surface water, (ii) changing the crop patterns, and (iii) evaluating the deterioration that could affect soil salinity.
2. Materials and Methods
The expected problems arise from the construction and operation of the GERD, the effect of SWL on GWL, and the effect of changing the crop patterns for both GWL and soil salinity, which should be measured by suitable tools to provide a realistic estimation of the GERD’s influence on Egypt, mainly the Egyptian Delta. Consequently, the materials and methods satisfy these goals.
2.1. Materials
The materials include the selection of the pilot area and all the required data owned and required to perform simulations of the aforementioned problems. These data include a study area description, the climate, the surface water system, the groundwater system, and the interaction between the surface and groundwater.
2.1.1. The Study Area
The study area is a part of the Nile Delta, which began to suffer from the negative impacts of the GERD. The selected area represents many areas in the Nile Delta which have the same conditions and are subject to the same problems in the north of Egypt. In the Eastern Nile Delta, many farmers suffer from a shortage of surface water. Groundwater is used as a unique alternative to meet the demands for water. A clear example of this is the area located in the Sharkia governorate (Abo Kabear city), which is 22 km from the capital of Sharkia Governorate (Zagazig City).
Figure 1 shows the location map of the selected area, which is about 84.000 acres. The longitude and latitude of the study area are 30°43′30′′ N and 31°40′17′′ E, respectively. The study area has been extremely affected by the shortage of surface water. This shortage has played a large role in reducing the recharge to the groundwater aquifer. This shortage has also had a fundamental role in the implementation of new policies in cultivation, such as reducing the cultivation of rice in the Delta.
2.1.2. The Climate
The study area is located in an arid region. In summer, the climate is hot, dry, and rainless. In winter, the climate is mild with little rain. The mean daily maximum temperature during the summer is 37 °C. This temperature falls to 12 °C in the winter. The annual rainfall is estimated to be 51 mm/year.
2.1.3. The Groundwater System in the Study Area

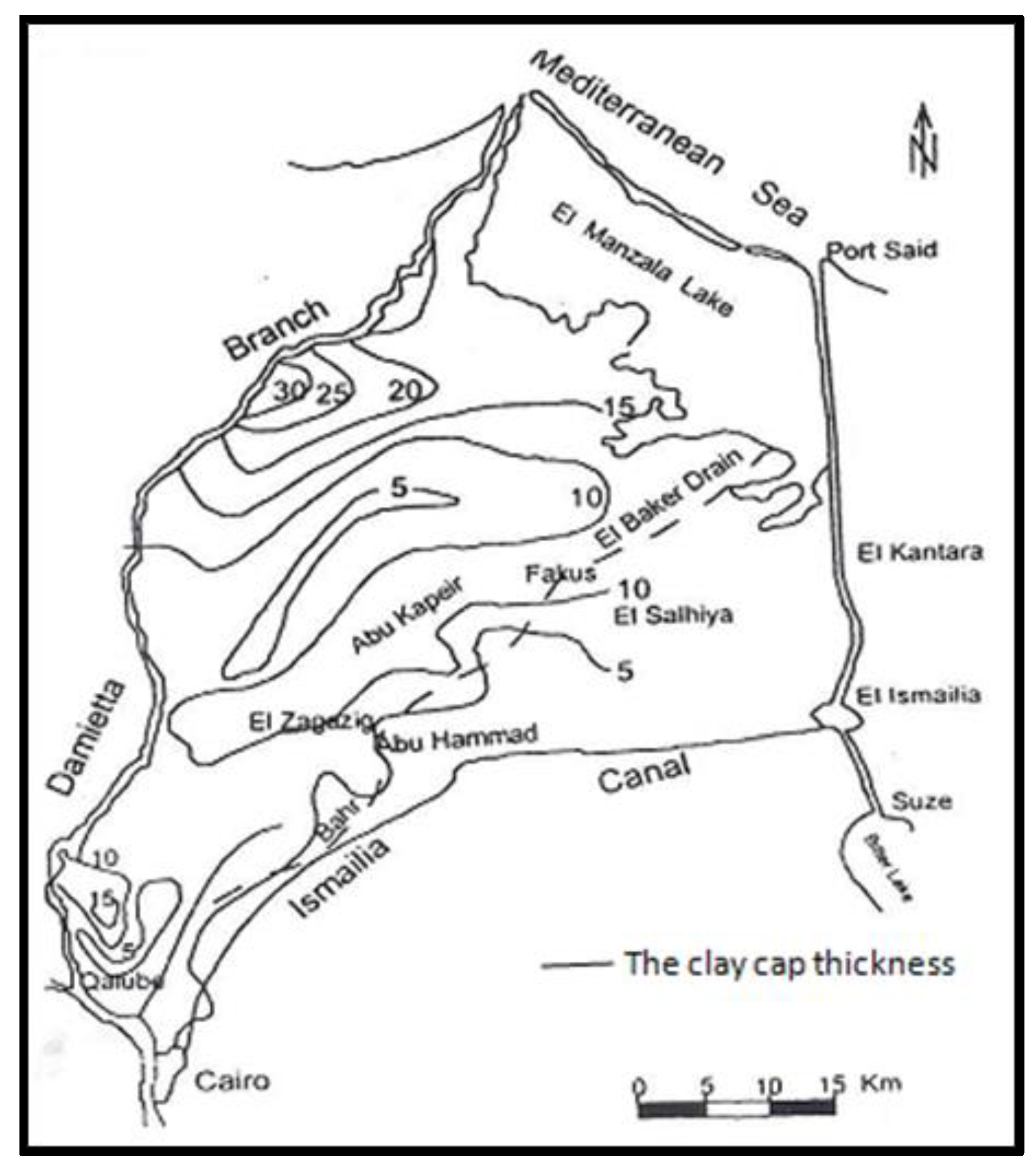

The Nile Delta aquifer system is generally a complex groundwater system which is leaky and has upper semi-permeable boundaries. The study area belongs to a semi-confined aquifer which is covered with Holocene silt and clay (semi-confined) with thicknesses varying from 0 to 20 m. The aquifer is underlain by Pliocene marine clay (lower impermeable boundary) and consists of three layers. The first layer is aquitard (clay cap) with a thickness of 10 m. This layer represents the layer of discharge for shallow wells. The second layer is the aquifer consisting of sand and gravel with clay lenses. Its thickness in the study area is 400 m. This layer is the source of groundwater for the deep wells. The third layer is the aquiclude (sticky clay). Its thickness in the study area is 390 m, as shown in
Figure 2 [
14].
2.1.4. The Surface Water System in the Study Area
Water in canals provides the main source of surface water in the selected area. Although the amount of annual rainfall is estimated to be 51 mm/year, which is very small, this quantity was taken into consideration in the simulation [
1], where the rain precipitates in either the land or canals. In canals, rain becomes a part of the surface water system. Egypt is characterized by its unique irrigation system because its irrigation system is a net system that starts from the canals with the highest position. The Nile River has the highest position in the irrigation network-A rayah (a type of canal in Egypt that has a higher position than the main canal) extends from the main canal to the branch canal and ends with a meska (a very small canal used in irrigation in farms). A meska is the only way to irrigate as it is forbidden to irrigate from other types of canals. A total of 52 canals comprise the irrigation network in the area, which is considered the only recharger to the groundwater aquifer, neglecting the small amount of precipitation. The Elsadey and Elmesalamia canals are the two main canals in the study area.
2.1.5. The Interaction between the Surface Water and Groundwater Systems
The interaction between the surface water system, including irrigation network plus rainfall, is represented by the leakage through the upper soil layer of the aquifer. This leakage provides the recharge to the aquifer in this area. In addition, the irrigation water exceeds the plant’s needs, through which the system disposes of the water via two methods. The first method occurs naturally through the soil, but the excess water in the root zone flows under gravity and capillary fringes to the shallow aquifer under the cultivated area. The second occurs artificially through the sub-surface and surface drainage system to lower the groundwater in the plants’ root zones to prevent the waterlogging of cultivated land. The discharged groundwater from the selected area assumes the form of random and illegal wells. These wells consist of wells for irrigation, domestic, and drinking purposes. The amounts of extracted groundwater were estimated through a questionnaire and field investigation. An inventory was made for domestic and irrigation wells in the study area in 2012, where the number of wells used to compensate for the shortage in irrigation water was 898 wells, with extraction equaling 10,800 m
3/day. On the other hand, the number of wells used to compensate for the shortage in water required for domestic purposes was 35,230 wells used by 49% of the city (the population in 2012 was 393,991 inhabitants) [
15].
2.2. Methodology
The methodology entails the selection of an appropriate numerical model. We chose MODFLOW, which is a good instrument for the simulation process. The numerical model input data require information such as canals’ cross-section areas, soil properties, aquifer characteristics, and soil salinity. The current methodology depends on the application of the appropriate numerical model (MODFLOW) to simulate the groundwater flow in the study area and to highlight the impact of the construction of the GERD on the selected study area. The methodology includes the application of the MODFLOW to assess three effects of the GERD:
The effect of reducing Egypt’s share from the Nile River’s water on the surface water levels in canals and its subsequent effect on groundwater levels in the shallow aquifer.
The effect of changing the crops from voracious crops to non-voracious crops on groundwater levels in the shallow aquifer
The effect of changing the crops from voracious crops to non-voracious crops on soil salinity.
2.2.1. Numerical Model (MODFLOW)
MODFLOW code was used to simulate the selected area and all its characteristics while taking into consideration the interaction between SW and GW. Each subsequent step in the simulation required a specified type of data, as follows.
The aquifer in the study area consists of three layers. The storage parameters for the three layers are shown in
Table 1. The storativity (m
−1) is presented in the second column, and the ratio of the drained volume of water to the total volume, which is called specific yield or Sy, is expressed in the third column. The fourth and fifth columns present the total porosity and the effective porosity, respectively, which are the volume ratios (dimensionless). The model input data include the model grid, wells, soil properties, and boundary conditions. The size of the grid was chosen to be almost square, so the domain is divided into 61 rows and 45 columns, to obtain a nearly squared cell. The cell size is 401.5 m × 401.5 m, and the depth is divided into three layers. The hydraulic conductivity taken in the x and y directions is 0.25 and 0.025 m/day in the third direction for the first layer of the aquifer (the clay cap).
The boundary conditions required for the irrigation canal network, which included SWL, bed level, bed width, and conductance, were assigned using the River package in MODFLOW. Additional pumping wells were also applied in the simulation, including domestic and irrigation wells as mentioned in the interaction between the surface and groundwater systems. The model calibration showed a high agreement between the GWL and the observed wells in the reference state, to which the next simulations are compared [
1]. The reference state was the year 2012, before the GERD had any effect on Egypt. The three factors examined in this study are described as follows.
2.2.2. Effect of Reducing the Surface Water Level on Groundwater

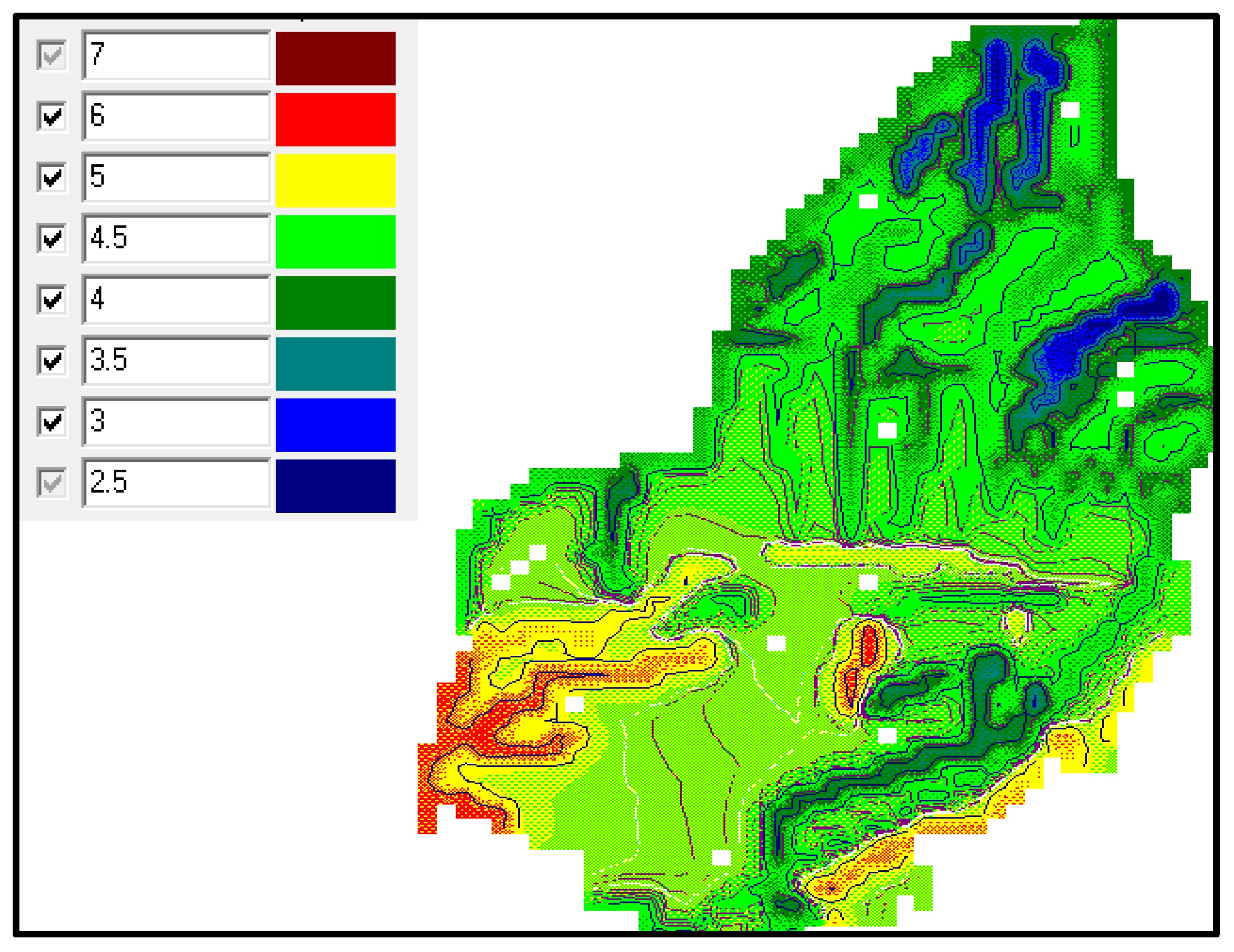

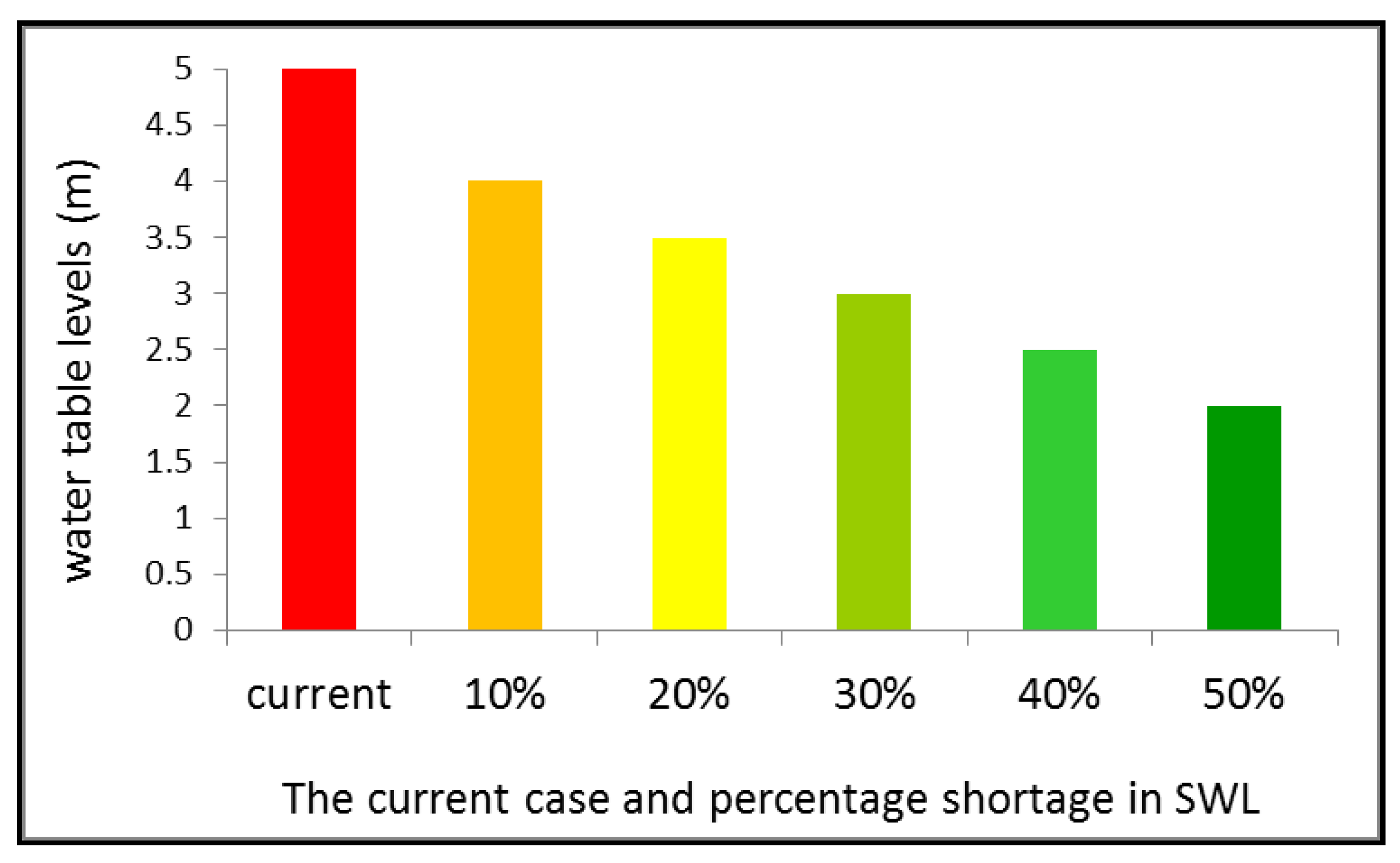

The first case was used to evaluate the changes that could happen to the GWL of the shallow aquifer due to a decrease in the SWL after operation of the GERD. This case was performed through different scenarios. The results of all scenarios were compared with the current case to assess the expected changes. This simulation includes the water levels in the canals in 2017 and all the study area characteristics that are required for MODFLOW to obtain the associated GWL, such as soil properties, aquifer characteristics, and SWL in irrigation canals. Five scenarios for reducing the surface water level and its impact on groundwater levels in the aquifers are considered in the study. These scenarios include a reduction in the surface water levels by 10%, 20%, 30%, 40%, and 50% based on previous studies according to the time of filling the reservoir. The performed scenarios adopted to assess the expected changes could, in reality, happen to the SWL in canals due to the operation of the GERD, which will, in turn, affect the GWL in the study area. The results are compared with the current case to highlight the effects of the GERD on the shallow aquifer and evaluate the acceptable changes according to the water needs in the study area.

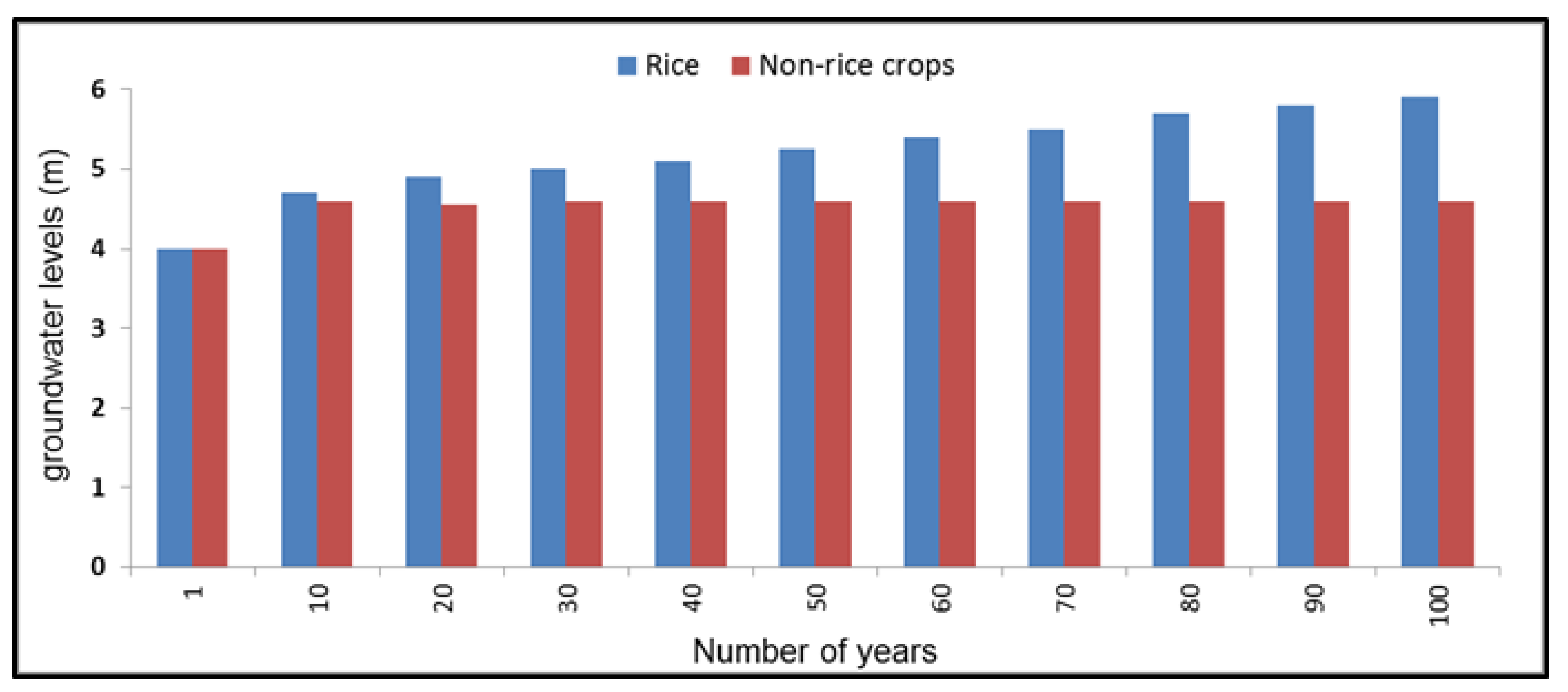

2.2.3. Effect of Changing the Crop Pattern on Groundwater
The crop patterns are changed due to new policies in such areas to reduce the amount of water required for the agricultural sector, which in turn reduces the infiltrated amount of irrigation water to the shallow aquifer that comes from excess irrigation water, where water that exceeds the plant’s needs infiltrates the aquifer. This is classified as the second aquifer recharger source after seepage from the irrigation canal network. One of the important goals of adopting a policy to use less water in irrigation is to reduce or prevent the cultivation of crops that consume large amounts of water, such as rice. Furthermore, the changes in the second recharger source of the shallow aquifer deserve to be evaluated. Replacing rice with other crops could reduce the infiltration rate, so a comparison between the previous crop patterns, which primarily include rice, and the latest crop patterns could illustrate the reduction amount when recharging the aquifer by changing the GWL. MODFLOW is used to simulate areas with crop patterns containing rice and the same areas without rice. This was done by changing the recharge. The recharge rate is not often measured at a site; rather, it is assumed to be a percentage of the precipitation. The average annual precipitation in Egypt is estimated to be 51 mm/year. The recharge is taken as a percentage of precipitation and typically ranges from 5% to 20%, depending on different factors, including land use and vegetation type, surface topography, and soil cover material. In this study, all these factors are constant except the vegetation [
16]. Thus, the results of the two cases were compared to show the difference in GWL due to changing the crop patterns in the study area.
2.2.4. Effect of Changing the Crop Pattern on Soil Salinity
Replacing crops that voraciously consume water with crops that consume less water is an obvious way to ameliorate the crisis of surface water shortage after the construction and operation of the GERD. However, changing crop patterns affects the soil’s properties, particularly salinity. Crops that consume large amounts of water not only have economic benefits but are also cultivated to improve soil properties. The large amounts of water consumed by these types leached into the soil, especially in areas near the Mediterranean Sea (North Egypt). Soil properties have a negative effect on reducing (or even preventing) the cultivation of these crops, as salinity could increase, leading to a deterioration in soil properties. This damaged soil productivity also has an extremely negative economic return. The authors in [

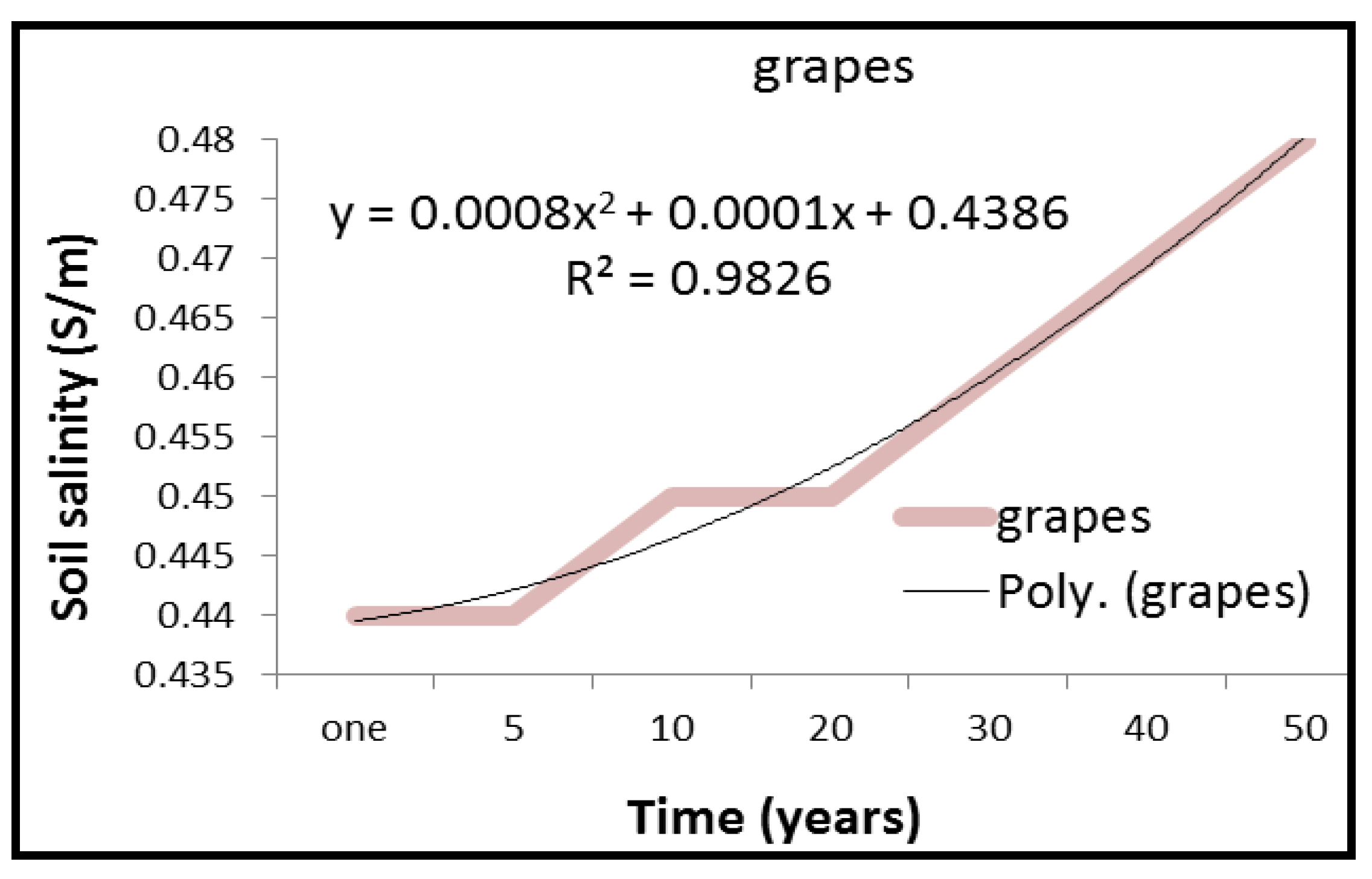

17] reported that land productivity is reduced if soil salinity surpasses the allowable limits for each crop. Hence, it was necessary to evaluate the cultivation of different types of crops on soil salinity. Five scenarios for grapes, squash, melons, maize, and rice were performed to obtain the soil salinity after cultivation. Each of the previous crops is an example of a category of plants. Each category has different daily water demands. Grapes have the least daily water consumption among the elected crops (4.55 mm/day), while rice is ranked first in daily water consumption (7.80 mm/day). The daily water consumption of squash, melons, and maize rests between grape and rice. MODFLOW is used in the simulations for these cases. The study in [
1] estimated the electric conductivity (EC) in the study area by 4.40 S/m, where EC is a good indicator of salinity [
18].
4. Discussion
The impact of the three scenarios is summarized in
Table 6. According to the results, the GERD could be helpful for Egyptian decision-makers to evaluate current and future situations. This model classifies the type of impact, including negative, neutral, and positive impacts. The score of a negative impact is −1; when there is no effect of the GERD on the factor, the score is considered 0 (no impact), but to improve the measured factor, the impact is estimated as a positive impact and scored by +1. The simulation of the effects of a shortage of surface water on GWL showed that there is a strong relationship between both surface water and groundwater. The reduction in surface water would affect the GWL; therefore, the score of the impact could be negative and is expressed in
Table 3 by the value of −1.
The impact of cultivating voracious crops on GWL showed that there is a strong relationship between both the consumed surface water and the GWL. Under the cultivation of voracious crops, the GWL increased by time. Thus, reducing the cultivation of voracious crops in the Nile Delta could affect GWL negatively. The score of this impact could also be −1 when replacing voracious crops with other crops when the correlation factor exceeds 0.9. The cultivation of non-voracious crops reduced the GWL. Although the impact was moderate, it still had a negative impact; therefore, the score is −1. The simulation of the effects of the shortage of surface water on soil salinity showed that there is a strong relationship between soil salinity and the water consumed by plants. For plants that consumed less water, salinity increased with time (such as with grapes), so the impact was also negative.
5. Conclusions
Some development projects in some countries may have a severe effect on other countries, such as the effects of dams on shared river basins. The Grand Ethiopian Renaissance Dam (GERD) on the River Nile could affect the surface water and groundwater in Egypt, as a number of previous studies reported. Therefore, assessing the potential impacts of the GERD on Egypt has become necessary. This study presents an assessment of the potential impact of constructing the GERD on the SWL, the GWL in the shallow aquifer, changing the crop pattern, and soil salinity. Several scenarios have been studied to assess this impact. The different scenarios studied by MODFLOW showed that the GERD will affect water resources in Egypt, where the GERD reduces GWL markedly and is considered the second source of water in many sectors in Egypt. There is a strong relationship between GWL and SWL by a correlation factor of up to 0.99. The GWL decreased from 5 m to 2 m by reducing SWL by 50% in some areas. However, the adopted policy applied by Egypt to reduce the consumption of surface water to overcome the effects of the GERD also reduced GWL when changing the crop patterns in such areas. Cultivation of rice increases the recharge, and GWL could increase with time, while the cultivation of non-rice crops decreased GWL to 4.60 m. The difference between GWL in these two cases increased with time to 0.10 m after 10 years and to 1.30 m after 100 years. Hence, the operation of the GERD will affect the second source of water in Egypt from an early stage, and the effects will increase with time. The policy of changing crop patterns not only affects GWL but also extends to changing soil properties. The simulations concluded that crops consuming less water (such as grapes) could increase their soil salinity over time, where soil salinity experiences a minor increase after ten years of cultivation, in contrast to the scenarios of other crops. Soil salinity increased from 0.44 S/m to 0.45 S/m and reached 0.45 S/m after 30 years of simulation. Thus, crop patterns are very important for preventing the degradation of soil quality in Egypt.
The GERD has a clear effect on downstream countries, such as Egypt, especially at the end of the irrigation network in the Egyptian Delta, where our case study is located. The GERD affects GWL by reducing SWL and changing the crop patterns through cultivating non-voracious crops. Not only the quantities of surface water and groundwater but also the soil quality will be damaged over time as a result of salt accumulation. On a large scale, these effects are classified as near economic crises in Egypt: A shortage of surface and groundwater, a decrease in soil quality, and reducing the area cultivated by economic crops-such as rice and maize-could affect the Egyptian economy.
