A Bibliometrics Review of Water Footprint Research in China: 2003–2018

by
Yongnan Zhu
1,*,
Shan Jiang
1,*,
Xinxueqi Han
2,
Xuerui Gao
2,
Guohua He
1,
Yong Zhao
1 and
Haihong Li
1
1
State Key Laboratory of Simulation and Regulation of Water cycle in River Basin, China Institute of Water Resources and Hydropower Research, Beijing 100038, China
2
Institute of Soil and Water Conservation, Northwest A&F University, Yangling, Shaanxi 712100, China
*
Authors to whom correspondence should be addressed.
Sustainability 2019, 11(18), 5082; https://doi.org/10.3390/su11185082
Submission received: 16 July 2019 / Revised: 11 September 2019 / Accepted: 12 September 2019 / Published: 17 September 2019
(This article belongs to the Special Issue Water Resources and Green Growth)
Browse Figures
Versions Notes

Abstract

:
As water security becomes an increasingly important issue, the analysis of the conflict between water supply and demand has gained significance in China. This paper details a bibliometric review of papers published between 2003 and 2018 on the water footprint in China, one of the global hotspots of water resource research. The tendencies and key points of water footprint research were systematically analyzed based on 1564 articles, comprising 1170 original publications in Chinese from the China National Knowledge Infrastructure database and 394 publications in English from the Web of Science database. The results show that the literature associated with water footprint research has expanded significantly. The number of papers published increased from 104 in 2003–2006 to 735 in 2015–2018. Water footprint research has been applied to agricultural, industrial, and regional water resource management to quantify the impact of human activities on water resources and the environment. Water footprint metrics were extracted for regional comparisons. There are obvious regional characteristics of the water footprint in China, but the uncertainty of results makes further investigation necessary. Further water footprint modeling and field experimental research is needed to explore the water–ecological environment under complex systems.

1. Introduction

Water resources are indispensable to socio-economic existence and development. Keeping pace with rapid economic and societal development, the global demand for water resources has been growing at an annual rate of 1% [1]. This leads to increasingly significant socio-economic constraints. In addition, as a result of climate change, environmental degradation, and mismanagement of water resources, identifying effective sustainability indicators has become essential for water resource management and governance [2].
China has a large population but scarce water supply [3]. Influenced by a continental monsoon climate, water resources are unevenly distributed in the north and south and vary greatly during the year. The natural water distribution does not match the social and economic distribution across the country [4]. The southwest and southeast areas account for 81% of China’s water resources, while the northern part accounts for only 19% of its national water resources but 60% of its cultivated land. In addition, industrial development and urbanization have made over-exploitation of water resources and water pollution increasingly serious problems [5]. The lack of a consistent water supply has become a bottleneck in ecological construction and societal development. Identifying water resources at risk and improving water management are key to the sustainable development of resources and the economy in China.
To evaluate how human production and consumption affect natural resources, water footprint analysis was developed to assess the use of water resources throughout the whole life cycle of a product—covering production, transportation, marketing, consumption, and reuse—from the perspective of the evaluation system boundary [6]. It provides an important scientific basis to measure water resource security and to improve regional water use efficiency. It is a key element in water resource management and environmental research [7]. The water footprint accounts for the use of water resources in products or services and evaluates water pollution in production or service processes. As a comprehensive index to calculate the real occupancy of water resources by human activities [8], water footprint closely correlates human consumption with water resource utilization. Water footprint research has expanded rapidly and has become one of the predominant topics in the international water resource management literature.
To promote and recognize water footprint theory, an international Water Footprint Network was established, and the Water Footprint Assessment Manual was published to introduce methods for water footprint accounting and impact assessment [9]. Concurrently, the International Organization for Standardization (ISO) proposed an international water footprint standard to complement the life cycle assessment [10]. Scholars in various countries have used the water footprint to quantify the water hidden in products [11], companies [12], and countries [13,14], as well as the water flows embodied in economic trade [15]. In addition, it is used to evaluate the regional water resource carrying capacity, external dependence, and environmental sustainability [16]. Through a literature review, Yang and Zehnder [17] concluded that virtual water research mainly focused on food and many studies only quantified the virtual water flow associated with food trade. Zhang et al. [14] carried out a bibliometric analysis of water footprint research from 2006 to 2015 by mapping research countries, institutions, journals, keywords, and hot issues. Paterson et al. [18] identified and discussed priorities for urban water footprint research in the future. Despite the growing use of water footprint in research, some scholars began to question its practicability [19]. This was due to a lack of comparisons of measured water footprint values in different studies and in different regions. In fact, research articles not only carry authors’ research ideas and results, but also have significance in terms of scientific and cultural knowledge accumulation. Through mathematical and statistical methods, bibliometrics provides quantitative analysis to assess the characteristics of publications [20]. It is a useful method for in-depth comparison and analysis of water footprint research.
China is one of the most active and productive countries in water footprint research. The number of articles on China’s water footprint published in the Web of Science database accounts for about one-fifth of the world’s total [14]. China’s water footprint research has developed sharply in recent years. However, most of the results are published in Chinese journals. Previous studies in English published in the Web of Science could not reflect all characteristics and implications of water footprint research in China. To quantitatively summarize and compare the development process of water footprint research in the country, this paper uses bibliometrics to analyze the characteristics and key points of Chinese water footprint research from 2003 to 2018. The earliest article that can be found was published in 2003, and thus, this is the beginning of our sample. All key information in Chinese research published in Chinese and English in either the China National Knowledge Infrastructure (CNKI) or Web of Science (WoS) database are collected. The research fields, research areas, methods, and tools are analyzed based on the articles’ titles, keywords, and abstracts. The water footprints measured are extracted from the main text of each article. This review shows the focus and trend of water footprint research in China and provides a useful reference for future research.

2. Data and Methodology

2.1. Data Sources

This study collected related Chinese and English articles from the CNKI and WoS for a literature analysis of water footprint research in China. The CNKI is an online academic library providing search, navigation, online reading, and downloading services for Chinese scientific articles. It consists of 7672 academic journals, which account for 99.6% of all academic journals in China, and is the most comprehensive gateway of knowledge in China. The WoS is an integrated digital scientific citation indexing service published by Thomson Reuters. It provides access to multiple databases of academic and scientific disciplines, especially in natural sciences, engineering, and biomedical research [21,22].
Two sets of keywords are used to search titles, abstracts, and keywords of published articles: “water footprint” and “China,” or “virtual water,” “footprint,” and “China.” Altogether, 1170 original publications in Chinese were downloaded from the CNKI and 394 English publications from the WoS. The downloaded information included article titles, publication years, keywords, abstracts, authors, institutions, and journal titles.

2.2. Data Analysis

The bibliometric analysis conducted in this article includes performance analysis and science mapping. The research methods are similar to those of other bibliometric studies [14,23,24]. The performance analysis was conducted using Microsoft Excel 2013 to evaluate the characteristics of publication outputs—such as research fields, regions, keywords, methods, and tools—to identify key research topics and trends of water footprint research in China.
Keywords and publication years were obtained directly from the downloaded information. Research fields, regions, methods and tools were extracted from article titles and abstracts. To compile an overview of the water footprint metrics in different studies and regions, the measured water footprint values were extracted from the papers and compared across regions and sectors. The results were analyzed using statistical tools in Excel. Frequency and co-occurrence analysis were conducted using BibExcel 1.0.0.0 (Olle Persson, Sweden) [25]. Science mapping was employed using Pajek 1.0.0.1 (Vladimir Batagelj and Andrej Mrvar, Slovenia) to display the structural changes and network diagram of co-occurring keywords [26].
The water footprint measures the water consumed by each good and service in daily life. It can be measured for a single process—such as an agricultural product—an industrial or domestic product, or an entire company, city, region, or country [9]. Considering the products consumed and services needed, the research fields are classified according to the research object of the water footprint. The agricultural field refers to the study of the water footprint of all kinds of agricultural products, including crop products, livestock products [27], as well as forestry [28]. The industrial field refers to raw material collection, production processing, and manufacturing. The service sector refers to businesses that provide services to the society, and it mainly includes hotel services and tourism [29]. Regional (or national) water footprints are obtained by combining the internal and external water footprint of the area studied [8]. Therefore, the research fields in this manuscript were classified into agricultural sector, industrial sector, service sector, and regional research. Review, methodology, and discussion articles are categorized as “methodology.” The reference keywords or highlights for water footprint research fields is presented in Appendix A (Table A1).

3. Analysis of Research Trends

3.1. Publication Trends

The results of the keyword search show that water footprint research in China began in 2003. Long and Xu [30] from the Cold and Arid Regions Environmental and Engineering Research Institute of the Chinese Academy of Sciences first applied the theory of water footprint and virtual water—the hidden flow of water in trade of goods from one place to another—to the northwest of China. Subsequently, Chinese scholars soon began to pay attention to the water footprint and used this method to analyze regional water consumption within a certain space-time range.
As stated before, 1564 articles on the water footprint in Chinese and English were retrieved from the CNKI and WoS from 2003 to 2018. To analyze the trend of water footprint research, the research period was divided into four equal intervals: 2003–2006, 2007–2010, 2011–2014, and 2015–2018. The number of articles published in CNKI and WoS as well as the research trends and research fields are shown in Figure 1.
As shown by Figure 1a, the research outcomes exemplify a significant increasing trend. At the very initial stage from 2003 to 2006, only 104 articles were published. From 2007 to 2010, 287 articles were published. Among them, 268 articles were published in Chinese journals in the CNKI. Only 19 articles were published in English journals in the WoS, accounting for only 6.6% of the total articles published in this period. Water footprint research was still in its infancy at this stage. In terms of the research field, 34.8% of the articles (100) discussed water footprint research methods, reviews, and comments, 32.1% (92) analyzed regional water footprints, and 32.1% (92) focused on agricultural water footprints.
Due to the public’s increasing awareness of water resources and environmental protection, water footprint research developed rapidly [14]. From 2011 to 2014, 437 articles were published in journals in the CNKI and WoS. This represented an increase of 52.3% from the previous period (2007–2010). The proportion of articles in the WoS database also increased to 17.4% (76 articles). According to the Journal Citation Reports (JCRs) provided by Thomson Reuters, 38 articles from the WoS were published in journals ranked in the top 50% at the time of writing. The analysis results show that the research field expanded slowly from the agricultural focus, with some researchers beginning to examine the water footprint in industrial and service sectors.
Over the past four years, water footprint research has developed steadily. The total number of articles published during 2015–2018 increased by 68.4% compared with 2011–2014. The number of articles published in Chinese remained stable, adding up to 443. However, the proportion of articles from WoS reached 39.8% (293) and has more than doubled compared with the previous period (2011–2014). Meanwhile, with maturity and innovation in research methods, articles published in high-level journals available in the WoS increased significantly. According to the JCRs, more than half of the English articles (154) were published in the top 50% of journals in this period. The water footprint research field has also expanded. As shown in Figure 1b, 37.5% of the articles (276) studied the agricultural water footprint, 37.4% (275) studied the regional water footprint, and 12.9% (95) studied the industrial water footprint; with articles on the service sector water footprint accounting for 1.2% (9). The proportion of articles on research methods, reviews, and commentary decreased significantly to 11.0% (81).

3.2. Research Regions

Water resources are unevenly distributed spatially and temporally in China [15]. The spatial distribution of water resources and the stage of socio-economic development affect the way water is used, thereby affecting the regional water footprint. The spatial scale of water footprint research comprises national, provincial, municipal, and county levels. A provincial-level statistical analysis was conducted to identify the spatial scale and regional characteristics of research. The research area information was obtained from the article title, keywords, and abstract. Here, research at county and municipal levels was converted and added to provincial-level research. Some studies focus on regions such as Northeast China or the North China Plain, and the study areas were counted for all the related provinces or provincial-level municipalities. Review and discussion articles that do not have a specific study area were excluded (388 articles). Eventually, a total of 1176 articles were used for the analysis of the research region.
The research results show that 36.7% of the articles (432) are on the national scale, including a direct study of national water footprint using national-level economic data and an upscaling study using provincial data. With economic development, the dependence on water is increasing and the conflict between water supply and demand is intensifying. More research examining the regional characteristics and objectives of water basin management has been conducted at regional and river basin scales, accounting for 15.1% of the articles (177). The north, northwest, northeast, Yellow River Basin, and Yangtze River Basin are the focal points for regional water footprint research.
There are 567 articles on water research at the provincial, city, and county levels, accounting for 48.2% of all papers. As some articles involve multiple provincial administrative areas, a total of 1003 research areas were included in this study. The analysis results show that research articles focusing on northern China are far more numerous than those on southern China (Figure 2).
The northern region is not only densely populated but is also a major grain-producing area, with obvious competition for water resources [5]. The northwest is the most studied area with Gansu Province being a key research area. The inland river basins in northwest China, such as the Heihe River Basin and Shiyang River Basin in Gansu, have little precipitation. Water resources are fundamental for regional socio-economic development and oasis and ecosystem maintenance. The scale and technology of water resource utilization may affect the survival of the region, and accordingly, has drawn significant academic attention—with 10.2% of total regional research on the water footprint on the Gansu Inland River Basin. The agricultural water footprints in Xinjiang and Inner Mongolia are also research hotspots.
Human activities have the greatest impact on the water cycle in cities [31]. As a result of accelerated urbanization, large cities in China have developed rapidly over the past two decades [32]. Important features of urbanization are not only the rapid increase in the number of large cities but also the emergence of supercities, megacities, and metropolitan areas. According to the United Nations Population Division [33], in 2011, there were only 30 megacities in the world with a population of more than 10 million, including six cities in China (Beijing, Chongqing, Wuhan, Shanghai, Shenzhen, and Guangzhou). By 2017, this number had increased to 13 [34]. With the increase in urban population and expansion of the economy, water pollution and ecological problems have become increasingly significant and have led to intense research on the water footprint in Beijing, Tianjin, Qingdao in Shandong Province, Zhengzhou in Henan Province, and Dalian in Liaoning {rovince.
Scarce water resources and their high-intensity usage in northern cities have created a series of problems including aquifer depletion, river dry-up, lake shrinkage, and land subsidence, all of which seriously threaten sustainable development in the region. Water problems in urban development have become a focus of international attention. There are more than 150 articles on the water footprint in Beijing and Tianjin alone. The water footprint in Beijing accounts for 10.5% (105) of the total articles, among which 61 are from the WoS.
Compared with the arid areas and cities of northern China (676 articles), fewer articles (327) have focused on the south, where the climate is mild and rainy [35,36]. Though the water resource crisis in the southern region may not be obvious, water pollution problems deserve more attention, especially in rural areas [37].

3.3. Water Footprint Comparisons

To compare the results of different water footprint studies, the measured water footprint values in all the articles are extracted. Based on the main focus of the sampled water footprint articles, principal crop products, livestock products, energy, and textile industries were selected as the key objects of analysis. To ensure the comparability of data, only the unit water footprint of the product was extracted. Per capita water footprint was also extracted and compared as an indicator of regional water footprint. To analyze the differences among regions, China was divided into five regions (Figure 2) based on geographical features—Northern, Northeast, Northwest, South, and Southwest. In total, 1159 values were extracted, and the results of the water footprint comparison are shown in Figure 3.
From all the articles, 947 data points of measured water footprint values for agriculture products were extracted. This accounts for 80% of all the extracted data. It shows that quantitative study of the agricultural water footprint was the main focus in the past 16 years. As can be seen from the national-level research results (Figure 3a), the water footprints of wheat, soybean, corn, rice, potato, and vegetables are relatively small, while that of meat, aquatic products, cotton, and oil are relatively large. The latter list reflects water-intensive agricultural products. The agricultural water footprint is a function of local water resources, climatic locations, and cultivation habits. The water footprint research results were biased towards high-productivity arid locations, which are in the Northern part of China. As shown by Figure 3, the average water footprints of corn (0.67 m3/kg), rice (0.83 m3/kg), wheat (0.86 m3/kg), and soybean (1.52 m3/kg) in the Northeast are much lower than in the South, where the average water footprints are 0.90 m3/kg, 1.21 m3/kg, 1.66 m3/kg, and 2.51 m3/kg, respectively. In addition, the range of measured water footprint values for livestock products varies significantly more than those for crop products. Heterogeneities exist in every step of livestock production [38]. The sources of livestock’s feed, their growth cycle, and production quality have a significant impact on the results of the water footprint measurement. Contrary to the results for grain, the water footprint for pork (4.82 m3/kg) and poultry (3.9 m3/kg) in the Northeast is slightly larger than in the South (3.11 m3/kg and 3.52 m3/kg, respectively).
Personal water footprint is the amount of water a person consumes in their daily life over a certain period. In this study, data on water footprints per capita was obtained from 184 articles. The results show that average water footprint per capita in the Northeast is 1127.2 m3/person/year, which is much higher than the national average (879.1 m3/person/year). Apart from indicting personal water use habits, personal water footprint also reflects people’s living habits and living standards [32]. The North is the region with the most intensive social activities and area with the highest level of water scarcity [5]. Thus, people’s water use efficiency is higher than in other areas. Compared with other regions, Northern China has the lowest water footprint per capita (696.7 m3/person/year).
Water footprint of thermal power generation and the textile industry have been selected for comparison because they are water-intensive industries [39,40]. In total, 16 and 14 blue water footprint data points were collected for thermal power generation and the textile industry. Due to huge differences in production methods and processes, the water footprint values are quite different. The blue water footprint of thermal power generation varies from 0.84 [41] to 10.15 m3/MWh [42]. The research boundary, method, and data source also affects the uncertainty of research results. The grey water footprint is widely used to evaluate the impact of the industry on the water environment. However, the pollutants considered in different studies may differ [43,44]. Therefore, the measured grey water footprint was not compared in this study.

3.4. Keyword Trends

Keywords express the main idea and thematic concept of an article. Keyword research of a large number of articles may summarize the overall content characteristics of the research, uncover the internal relationship between research contents, and reveal the general direction of academic research. Thus, the frequency of keywords in the 1170 Chinese articles and 394 English articles were examined. Among them, two Chinese articles and 30 English articles had no keywords, leaving a total of 2043 Chinese and 1125 English keywords listed by authors. Of these, 76.5% appeared only once, meaning there were 1504 Chinese and 920 English keywords reflecting the depth and breadth of the research. Of the keywords appearing more than 10 times, 61 were in Chinese and 14 were in English. The research focus and hotspots were derived based on the keywords. We translated the Chinese keywords into English and integrated the commonly used keywords and ranked them. Those used more than 15 times are shown in Table 1.
The most frequently used keywords are “virtual water” and “water footprint.” Authors of 487 and 435 articles chose “virtual water” and “water footprint” as keywords, respectively, which represent 31.8%. and 28.4% of all the articles in the keyword analysis, respectively. Besides “China” (88, 5.7%), which is the sixth most commonly used keyword, these keywords represent the main issues and areas of research. Figure 4 shows the internal relationships among the most commonly used keywords. To avoid redundancy and reflect more details and trends of water footprint research in China, the keywords “virtual water,” “water footprint,” and “China” are excluded from the figure. Of the remaining keywords, “water resources” (172, 11.2%), “virtual water trade” (119, 7.8%), and “virtual water strategy” (97, 6.3%) are the most frequently used.
As shown in Table 1, the research period is divided into four intervals: 2003–2006, 2007–2010, 2011–2014, and 2015–2018. “Virtual water,” “water footprint,” “water resources,” and “virtual water trade” are the most commonly used keywords for the study period. However, if the different research periods are considered, the ranking of “virtual water” and “virtual water trade” is declining. In fact, the proportion of use of these four keywords is also declining. Taking the most frequently occurring keyword as an example, among the articles with keywords published during the sample period, 61.5% (64 articles) used “virtual water” as a keyword in 2003–2007, but its use dropped to 35.7% in 2011–2014 and 19.1% in 2015–2018. The declining use of traditional keywords and the appearance of new ones indicates the gradual extension of the research scope.
The occurrence rate of “ecological footprint” was only 2.9% in 2003–2006, ranking 13th. In 2011–2014, the percentage increased to 4% and its ranking rose to 7th. Its ranking rose to 5th in 2015–2018, with an occurrence rate of 4.7%. “Agricultural,” “food security,” “food,” and “food trade” are commonly used keywords and their use has increased in recent years, indicating that water footprint research has gradually expanded to food security and the ecological environment.
In addition, “carrying capacity,” “sustainability,” and “carbon footprint” related issues have received increased attention in the past decades. It shows that rational and sustainable use of water resources and their management has become a key concern of sustainable development. The use of keywords indicating research methods and modeling tools is also rising. The keyword analysis shows that input-output analysis is the most commonly used research method, and its ranking rose from 16th in 2003–2006 to 7th in 2015–2018. Meanwhile, “life cycle assessment” first appeared as a keyword in water footprint research in 2013 [45,46] and has seen increasing use since then. This shows that new methods and tools in water footprint research are being developed, and they deserve in-depth investigation.

3.5. Research Methods and Tools

In terms of data processing and analysis, water footprint research approaches are classified into two types: bottom-up and top-down [47]. The top-down method is based on the consumption balance theory, and the results can reflect the dependence of the study area on external water resources. The bottom-up method mostly uses the production tree method to calculate the water footprint of each process in the production system. Both methods have stringent requirements regarding data and research methods. The details and data integrity of the research methods directly affect the accuracy and reliability of results.
The results of the keyword analysis show that research methods are often chosen as keywords. Therefore, an in-depth analysis was carried out to represent changes in water footprint research methodology and tools. Paterson et al. [18] highlighted the water footprint assessment, environmentally extended input-output, and life cycle assessment models as the three main methodologies for regional or urban water footprint studies. Referring to the results of the analysis in Section 3.4, this research focuses on the following five types of water footprint methods/tools: (1) statistical data-based analysis, (2) model simulation, (3) life cycle analysis, (4) field analysis, and (5) input-output analysis.

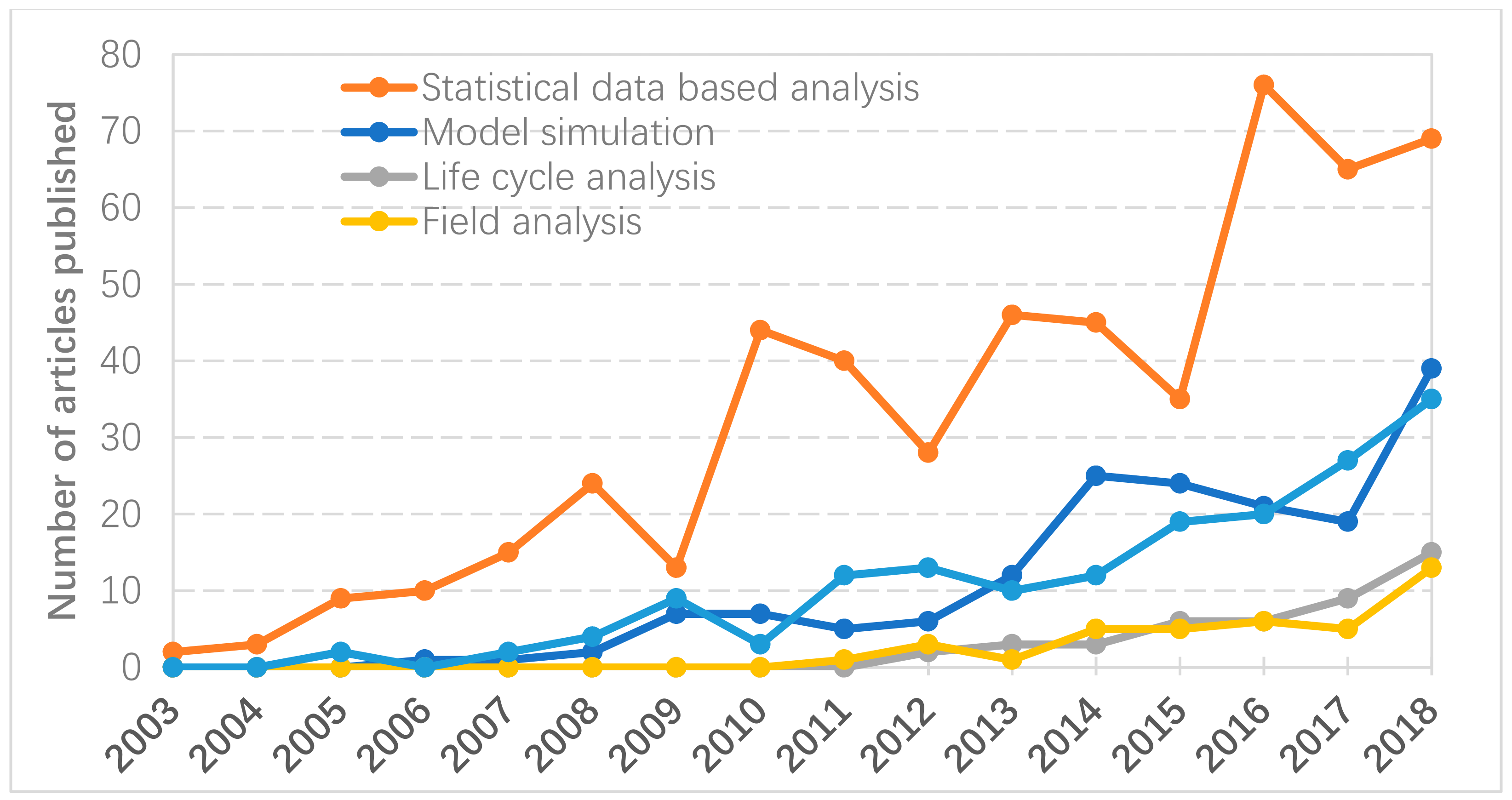

As shown in Figure 5, 524 articles (441 in Chinese and 83 in English), accounting for 33.5% of all articles, were based on statistics and trade data analysis, which is the most common research method. Input-output analysis has been widely used in research on the water footprint and virtual water trade. This method is based on the balanced relations of countries’ or regions’ economic and social development [48]. Using input-output tables, water resource utilization could be calculated based on final consumption to estimate direct and indirect water consumption in economic activities [49]. Input-output analysis accounted for only 1.9% (2) and 6.3% (18) of articles during 2003–2006 and 2007–2010, respectively. Its frequency of use has increased to 13.7% (101 articles) in 2015–2018. However, input-output data analysis has its shortcomings. Since economic input-output table data are often only published annually, it is impossible to study the water footprint of a specific product in a specific period or distinguish between the consumption of blue and green water.
To study the spatial virtual water flow for products, researchers are paying more attention to water footprint modeling. Only 5.9% of articles (17) during 2007–2010 focused on water footprint modeling, but the proportion rose to 11.0% (48 articles) during 2011–2014 and 14% (103 articles) during 2015–2018. The computer program for irrigation planning and management CROPWAT (FAO, Rome, Italy) [50] of the Food and Agriculture Organization; Stochastic Impact by Regression on Population, Affluence and Technology (STIRPAT) [51]; Logarithmic Mean Divisia Index (LMDI) decomposition model [11]; computable general equilibrium (CGE) model [52]; and ecological footprint model [53] are commonly used in water footprint research. Among them, the CROPWAT model calculates the reference evapotranspiration and crop water and irrigation requirements and distinguishes between the use of blue water and green water. The model is widely used in agricultural water footprint research [54,55].
Recently, some researchers have used survey data to investigate the industrial tourism and domestic water footprints. Gu et al. [56] carried out a study on the natural water environment in nine wastewater treatment plants in south China. Jiang et al. [31] investigated the influence of household habits on the water footprint using questionnaires. Simultaneously, researchers have carried out field experiments to obtain more accurate data on agricultural water footprints. Compared with 2017, the number of published articles on water footprint field analysis doubled in 2018. Through experiments, the effects of temperature, precipitation, and growth environment on crops can be studied in detail, and these factors play a major role in crop yields and the water footprint [57,58]. Survey data and field experiments can also be used to compare the variability of water footprints in different regions, and they will play a significant role in reducing the uncertainties of water footprint research results.

4. Bibliometric Review and Further Enlightenment

4.1. Future Research Hotspots and Trends

An analysis of research hotspots and trends can be undertaken based on research fields, themes, keywords, article titles, and abstracts. Based on our analysis of water footprint research from 2003 to 2018 in China, we find that research on water footprints in China is growing rapidly. Water footprint and virtual water play increasingly important roles in water resource management and environmental protection. New focus areas are emerging, and the research field is expanding.
In the early stage of research, the main concern was the agricultural water footprint. In recent times, the focus has shifted from natural resources to the complex combination of resources, society, and economy. Water footprint research has expanded into industry, economy, trade, virtual water strategy, and many other fields. Although agriculture will continue to use the largest proportion of water, industrial and domestic demand has increased much more rapidly than agricultural demand [1]. Moreover, water supply, food security, and energy have become the three major issues for sustainable development [59]. In our opinion, further research is needed on the food-energy-water nexus and to provide support for strategic management decisions.
Evaluation methods in water footprint research have also gradually diversified. Research methods have developed from traditional statistical analysis to modeling, field experiments, and surveys. Diversification of research methods and comparison between data from different studies may help reduce the uncertainty of water footprint assessments. The water footprint, as a method to quantify the water resources needed for the production and consumption of products, provides an important decision-making basis for resource management. Therefore, as the data and research methods have led to uncertainty in all aspects of water footprint research, it is important to quantitatively identify the mechanism and transmission path of uncertainty in the process of water footprint evaluation, thus improving the reliability and accuracy of water footprint accounting. The result of this bibliometric analysis indicates that small-scale studies such as field experiments and surveys are becoming the focus of research. This development will enhance the comparability of the results of water footprint studies in different regions and reduce the uncertainty of research results.

4.2. Research Limitation

A bibliometric analysis based on the quantitative literature statistics method can highlight the trends and focus of scientific research. This manuscript uses the bibliometric technique to analyze and discuss the past, present, and future of water footprint research in China, thereby revealing the progress in research and possible future research hotspots. In addition, to compare the results of different water footprint studies, the measured water footprint values are extracted from each article. The water footprint comparison shows that there are significant differences in the results of current water footprint studies. Consequently, there is still a need for in-depth systematic analyses. For example, how are systematic boundaries defined in water footprint research? What are the differences among regions and the reasons for those differences? In particular, it is necessary to strengthen the horizontal analysis of research methods. Therefore, the application of bibliometric statistics in combination with other technologies is needed for in-depth analyses. Nevertheless, bibliometric analysis objectively reflects the development process and research focus of water footprint research in China. It shows the current tendencies, hotspots, and weaknesses of the research area and can provide reference for researchers and decision makers alike.

5. Conclusions

Based on the bibliometric analysis of 1564 water footprint articles in the CNKI and WoS from 2003 to 2018, this article analyzes the measured water footprint values as well as the current trends and hotspots of water footprint research in China. The literature associated with water footprint research has grown significantly in the past decade. The research field has also gradually expanded from agricultural water footprint to integrated and industrial water footprints. The results indicate that the water footprint in Northern China draws twice as much attention as that in Southern China (676 articles and 327 articles, respectively). Additionally, more attention should be paid to environmental problems associated with the water footprint. The analysis of keywords, research tools, and methods indicates that the breadth and depth of research is expanding. The study shows that water footprint research has gradually expanded from a focus on shortages to emphasis on economic trade, food security, and the environment.
By comparing water footprint per capita and those for agricultural products, thermo power, and the textile industry in different regions, we find that the water footprint in China has obvious regional characteristics. Northeast China has the lowest grain water footprint of 0.67 m3/kg, 0.83 m3/kg, 0.86 m3/kg, and 1.52 m3/kg for corn, rice, wheat, and soybean, respectively. Northern China has the lowest water footprint per capita (696.7 m3/person/year). Nonetheless, the uncertainty of results needs to be discussed further. Future studies and field experiments on water footprint modeling are needed to explore the water-ecological environment under complex systems. Additionally, more studies on innovative technologies linking micro-level water use efficiency with water resource development should be undertaken.

Author Contributions

Y.Z. (Yongnan Zhu) and S.J. conceived and designed the analysis; X.H., X.G., and G.H. analyzed the data and generated the graphs; Y.Z. (Yong Zhao) and H.L. validated the result; Y.Z. (Yongnan Zhu) wrote the paper.

Funding

This work was jointly supported by the International Science and Technology Cooperation Program of China (Grant No. 2016YFE0102400), the National Key Research and Development Program of China (Grant No. 2016YFC0401304), and the China Institute of Water Resources and Hydropower Research (IWHR) Research & Development Support Program (WR0145B622017).

Acknowledgments

The authors are grateful to Marijana Demajo, R. Willem Vervoort, and two anonymous reviewers for their detailed comments, which have significantly improved the quality of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. The reference keywords or highlights for water footprint research fields.
Table A1. The reference keywords or highlights for water footprint research fields.
No.Agricultural SectorIndustrial SectorRegional StudiesService SectorMethodology
1Agricultural productHydropowerBasinGaming industryBibliometric
2AgricultureWoody forest productCityHotelOverview
3Animal productsBatteryRegionalTourismReview
4AquacultureBioenergyRiverTouristDiscussion
5CerealBioethanolRiver Basin Methodology
6CottonBuildingUrban
7CropCoal-fired power plantWatershed scale
8DairyCoking industry
9EggConstruction
10FarmingCopper
11FarmlandElectricity
12FoodEnergy supply
13FruitFuel
14GrainIndustry
15Hog farmIron and steel
16HusbandryManufacturing
17Irrigation DistrictPower generation
18LivestockPulp and papermaking
19MaizeRare Earth Products
20MeatShale
21Milk productionSolar power
22OilTextile industry
23PepperVehicles
24RiceWastewater Treatment
25SoybeanWind Power Plant
26WheatWoody products

References

  1. UN-Water. The United Nations World Water Development Report 2018: Nature-Based Solutions for Water; UN-Water: Geneva, Switzerland, 2018. [Google Scholar]
  2. Hanjra, M.A.; Qureshi, M.E. Global water crisis and future food security in an era of climate change. Food Policy 2010, 35, 365–377. [Google Scholar]
  3. Piao, S.; Ciais, P.; Huang, Y.; Shen, Z.; Peng, S.; Li, J.; Zhou, L.; Liu, H.; Ma, Y.; Ding, Y. The impacts of climate change on water resources and agriculture in China. Nature 2010, 467, 43–51. [Google Scholar]
  4. Varis, O.; Vakkilainen, P. China’s 8 challenges to water resources management in the first quarter of the 21st Century. Geomorphology 2001, 41, 93–104. [Google Scholar]
  5. Zhao, Y.; Zhu, Y.; Lin, Z.; Wang, J.; He, G.; Li, H.; Li, L.; Wang, H.; Jiang, S.; He, F.; et al. Energy Reduction Effect of the South-to-North Water Diversion Project in China. Sci. Rep. UK 2017, 7, 15956. [Google Scholar]
  6. Hoekstra, A.Y.; Hung, Q.P. Globalisation of water resources: International virtual water flows in relation to crop trade. Glob. Environ. Chang. 2004, 15, 45–56. [Google Scholar]
  7. Aivazidou, E.; Tsolakis, N.; Vlachos, D.; Iakovou, E. A water footprint management framework for supply chains under green market behaviour. J. Clean. Prod. 2018, 197, 592–606. [Google Scholar]
  8. Hoekstra, A.Y.; Chapagain, A.K. Water footprints of nations: Water use by people as a function of their consumption pattern. Water Resour. Manag. 2007, 21, 35–48. [Google Scholar]
  9. Hoekstra, A.Y.; Chapagain, A.K.; Aldaya, M.M.; Mekonnen, M.M. The Water Footprint Assessment Manual; Earthscan: London, UK, 2011. [Google Scholar]
  10. ISO. Environmental Management-Water Footprint-Principles, Requirements and Guidelines ISO14046:2014; International Organization for Standardization: Geneva, Switzerland, 2014. [Google Scholar]
  11. Xu, Y.; Kai, H.; Yu, Y.; Wang, X. Changes in water footprint of crop production in Beijing from 1978 to 2012: A logarithmic mean Divisia index decomposition analysis. J. Clean. Prod. 2015, 87, 180–187. [Google Scholar]
  12. Ruini, L.; Marino, M.; Pignatelli, S.; Laio, F.; Ridolfi, L. Water footprint of a large-sized food company: The case of Barilla pasta production. Water Resour. Ind. 2013, 1, 7–24. [Google Scholar]
  13. Ge, L.; Xie, G.; Zhang, C.; Li, S.; Yue, Q.; Cao, S.; He, T. An Evaluation of China’s Water Footprint. Water Resour. Manag. 2011, 25, 2633–2647. [Google Scholar]
  14. Zhang, Y.; Huang, K.; Yu, Y.; Yang, B. Mapping of water footprint research: A bibliometric analysis during 2006–2015. J. Clean. Prod. 2017, 149, 70–79. [Google Scholar]
  15. Jiang, S.; Wang, J.; Yong, Z.; Shang, Y.; Gao, X.; Li, H.; Wang, Q.; Zhu, Y. Sustainability of water resources for agriculture considering grain production, trade and consumption in China from 2004 to 2013. J. Clean. Prod. 2017, 149, 1210–1218. [Google Scholar] [Green Version]
  16. Pellicer-Martínez, F.; Martínez-Paz, J.M. The Water Footprint as an indicator of environmental sustainability in water use at the river basin level. Sci. Total Environ. 2016, 571, 561–574. [Google Scholar]
  17. Hong, Y.; Zehnder, A. “Virtual water”: An unfolding concept in integrated water resources management. Water Resour. Res. 2007, 43, W12301. [Google Scholar]
  18. Paterson, W.; Rushforth, R.; Ruddell, B.L.; Konar, M.; Ahams, I.C.; Gironás, J.; Mijic, A.; Mejia, A. Water Footprint of Cities: A Review and Suggestions for Future Research. Sustainability 2015, 7, 8461–8490. [Google Scholar] [Green Version]
  19. Chenoweth, J.; Hadjikakou, M.; Zoumides, C. Review article: Quantifying the human impact on water resources: A critical review of the water footprint concept. Hydrol. Earth Syst. Sci. 2014, 10, 2325–2342. [Google Scholar]
  20. Glänzel, W.; Schoepflin, U. Little scientometrics, big scientometrics…and beyond? Scientometrics 1994, 30, 375–384. [Google Scholar]
  21. Glänzel, W.; Schoepflin, U. A bibliometric study of reference literature in the sciences and social sciences 1. Inform. Process. Manag. 1999, 35, 31–44. [Google Scholar]
  22. Mongeon, P.; Paul-Hus, A. The journal coverage of Web of Science and Scopus: A comparative analysis. Scientometrics 2016, 106, 1–16. [Google Scholar]
  23. Fu, H.; Wang, M.; Ho, Y. Mapping of drinking water research: A bibliometric analysis of research output during 1992–2011. Sci. Total Environ. 2013, 443, 757–765. [Google Scholar]
  24. Hood, W.W.; Wilson, C.S. The Literature of Bibliometrics, Scientometrics, and Informetrics. Scientometrics 2001, 52, 291. [Google Scholar]
  25. Gan, C.; Wang, W. A Bibliometric Analysis of Social Media Research from the Perspective of Library and Information Science. Digital Services and Information Intelligence; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]
  26. Nooy, W.D. Networks of action and events over time. A multilevel discrete-time event history model for longitudinal network data. Soc. Netw. 2011, 33, 31–40. [Google Scholar] [Green Version]
  27. Zhao, C.; Chen, B. Driving force analysis of the agricultural water footprint in China based on the LMDI method. Environ. Sci. Technol. 2014, 48, 12723–12731. [Google Scholar]
  28. Wu, J.; Jia, Z.; Singh, J. Application of a simple model to estimate the footprint of CO2/H2O emission from tall forest. J. Forest Res. Jpn. 2015, 20, 222–229. [Google Scholar]
  29. Li, J. Scenario analysis of tourism’s water footprint for China’s Beijing–Tianjin–Hebei region in 2020: Implications for water policy. J. Sustain. Tour. 2017, 26, 127–145. [Google Scholar]
  30. Long, A.; Xu, Z. Estimate and Analysis of Water Footprint in Northwest China, 2000. J. Glaciol. Geocryol. 2003, 25, 692–700. (In Chinese) [Google Scholar]
  31. Jiang, S.; Wang, J.; Yong, Z.; Lu, S.; Shi, H.; Fan, H. Residential water and energy nexus for conservation and management: A case study of Tianjin. Int. J. Hydrogen Energy 2016, 41, 15919–15929. [Google Scholar]
  32. He, G.; Zhao, Y.; Wang, L.; Jiang, S.; Zhu, Y. China’s food security challenge: Effects of food habit changes on requirements for arable land and water. J. Clean. Prod. 2019. [Google Scholar] [CrossRef]
  33. United Nations. World Urbanization Prospects: The 2011 Revision; Department of Economic and Social Affairs of United Nations: New York, NY, USA, 2012. [Google Scholar]
  34. United Nations. World urbanization prospects: the 2017 revision; Department of Economic and Social Affairs of United Nations: New York, NY, USA, 2018. [Google Scholar]
  35. Wang, H.; He, J.; Ming, W.; Zhang, Z. Synthesis Analysis of One Severe Convection Precipitation Event in Jiangsu Using Ground-Based GPS Technology. Atmosphere (Basel) 2015, 6, 908–927. [Google Scholar] [Green Version]
  36. Zhu, Y.; Lin, Z.; Yong, Z.; Li, H.; Fan, H.; Zhai, J.; Wang, L.; Wang, Q. Flood Simulations and Uncertainty Analysis for the Pearl River Basin Using the Coupled Land Surface and Hydrological Model System. Water 2017, 9, 391. [Google Scholar] [Green Version]
  37. Wang, M.; Webber, M.; Finlayson, B.; Barnett, J. Rural industries and water pollution in China. J. Environ. Manag. 2008, 86, 648–659. [Google Scholar]
  38. Ridoutt, B.G.; Sanguansri, P.; Freer, M.; Harper, G.S. Water footprint of livestock: Comparison of six geographically defined beef production systems. Int. J. Life Cycle Assess. 2012, 17, 165–175. [Google Scholar]
  39. Shang, Y.; Hei, P.; Lu, S.; Ling, S.; Li, X.; Wei, Y.; Jia, D.; Jiang, D.; Ye, Y.; Gong, J.; et al. China’s energy-water nexus: Assessing water conservation synergies of the total coal consumption cap strategy until 2050. Appl. Energ. 2018, 210, 643–660. [Google Scholar]
  40. Joa, B.; Hottenroth, H.; Jungmichel, N.; Schmidt, M. Introduction of a feasible performance indicator for corporate water accounting—A case study on the cotton textile chain. J. Clean. Prod. 2014, 82, 143–153. [Google Scholar]
  41. Chao, Z.; Laura Diaz, A. Life cycle water use of energy production and its environmental impacts in China. Environ, Sci. Technol. 2013, 47, 14459–14467. [Google Scholar]
  42. Zhang, Y.; Chao, H.; Wu, X.; Ding, X. Water footprint factor of energy and materials in textile and garment industry. Dy. Finish. 2013, 39, 41–45. (In Chinese) [Google Scholar]
  43. Ma, X.; Yang, D.; Shen, X.; Zhai, Y.; Zhang, R.; Hong, J. How much water is required for coal power generation: An analysis of gray and blue water footprints. Sci. Total Environ. 2018, 636, 547–557. [Google Scholar]
  44. Ding, N.; Liu, J.; Yang, J.; Lu, B. Water footprints of energy sources in China: Exploring options to improve water efficiency. J. Clean. Prod. 2018, 174, 1021–1031. [Google Scholar]
  45. Xu, C.; Huang, J.; Ridoutt, B.; Liu, J.; Chen, F. LCA-based product water footprint and a sase study. J. Nat. Resour. 2013, 28, 873–880. (In Chinese) [Google Scholar]
  46. Huang, J.; Xu, C.; Ridoutt, B.; Liu, J.; Zhang, H.; Chen, F.; Li, Y. Water availability footprint of milk and milk products from large-scale dairy production systems in Northeast China. J. Clean. Prod. 2014, 79, 91–97. [Google Scholar]
  47. Hu, T.; Kai, H.; Yu, Y.; Zhang, X.; Xu, Y.; Wang, X. Measuring Water Footprint on a Lake Basin Scale: A Case Study of Lake Dianchi, China. CLEAN Soil, Air, Water 2016, 44, 1296–1305. [Google Scholar]
  48. Sun, C.; Zhao, L.; Wei, Z.; Zheng, D. Water resource utilization efficiency and spatial spillover effects in China. J. Geogr. Sci. 2014, 24, 771–788. [Google Scholar] [Green Version]
  49. Zhao, X.; Chen, B.; Yang, Z. National water footprint in an input–output framework—A case study of China 2002. Ecol. Model. 2009, 220, 245–253. [Google Scholar]
  50. Smith, M. CROPWAT: A Computer Program for Irrigation Planning and Management; Food & Agriculture Organization of the United Nations: Rome, Italy, 1992. [Google Scholar]
  51. Zhao, C.; Chen, B.; Hayat, T.; Alsaedi, A.; Ahmad, B. Driving force analysis of water footprint change based on extended STIRPAT model: Evidence from the Chinese agricultural sector. Ecol. Indic. 2014, 47, 43–49. [Google Scholar]
  52. Liu, J.; Hertel, T.W.; Taheripour, F.; Zhu, T.; Ringler, C. International trade buffers the impact of future irrigation shortfalls. Global Environ. Chang. 2014, 29, 22–31. [Google Scholar] [Green Version]
  53. Gu, Q.; Wang, H.; Zheng, Y.; Zhu, J.; Li, X. Ecological footprint analysis for urban agglomeration sustainability in the middle stream of the Yangtze River. Ecol. Model. 2015, 318, 86–99. [Google Scholar]
  54. Tian, G.; Wu, X.; Sun, X.; Tao, W.; Zheng, H. Quantitative Research of China Agricultural Virtual Water Trade based on CROPWAT Model. Adv. Mater. Res. 2013, 726, 3463–3468. [Google Scholar]
  55. Ma, X.; Ma, Y. The spatiotemporal variation analysis of virtual water for agriculture and livestock husbandry: A study for Jilin Province in China. Sci. Total Environ. 2017, 586, 1150. [Google Scholar]
  56. Gu, Y.; Dong, Y.; Wang, H.; Keller, A.; Jin, X.; Chiramba, T.; Li, F. Quantification of the water, energy and carbon footprints of wastewater treatment plants in China considering a water–energy nexus perspective. Ecol. Indic. 2016, 60, 402–409. [Google Scholar]
  57. Qin, L.; Jin, Y.; Duan, P.; He, H. Field-based Experimental Water Footprint Study of Sunflower Growth in a Semiarid Region of China. J. Sci. Food Agric. 2016, 96, 3266–3273. [Google Scholar]
  58. Cao, X.; Wu, M.; Shu, R.; Zhuo, L.; Chen, D.; Shao, G.; Guo, X.; Wang, W.; Tang, S. Water footprint assessment for crop production based on field measurements: A case study of irrigated paddy rice in East China. Sci. Total Environ. 2017, 610, 84–93. [Google Scholar]
  59. Giupponi, C.; Gain, A.K. Integrated spatial assessment of the water, energy and food dimensions of the Sustainable Development Goals. Reg. Environ. Chang. 2017, 17, 1881–1893. [Google Scholar]
Sustainability 11 05082 g001 550

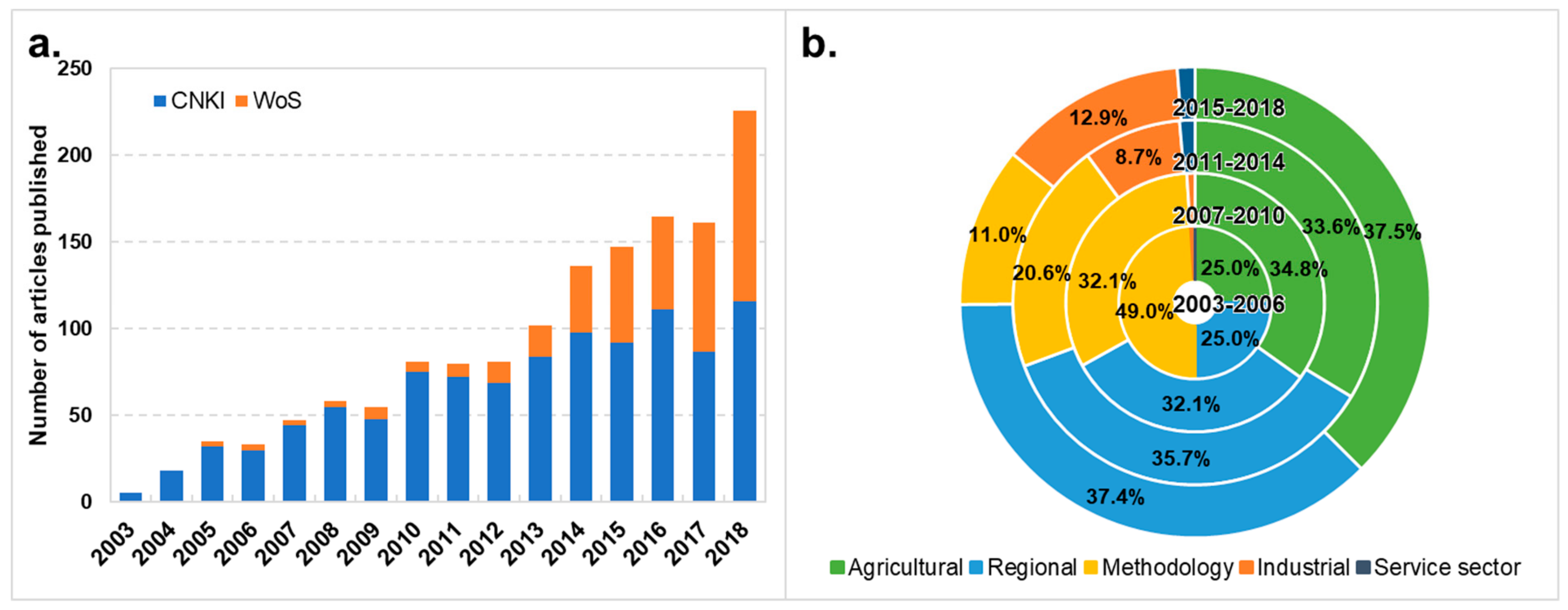

Figure 1. Comparisons of water footprint publications from 2003 to 2018: (a) the number of articles from the China National Knowledge Infrastructure (CNKI) and Web of Science (WoS) and (b) trends and research fields of water footprint publication.
Figure 1. Comparisons of water footprint publications from 2003 to 2018: (a) the number of articles from the China National Knowledge Infrastructure (CNKI) and Web of Science (WoS) and (b) trends and research fields of water footprint publication.
Sustainability 11 05082 g001
Sustainability 11 05082 g002 550
Figure 2. Statistics on provincial water footprints in China.
Figure 2. Statistics on provincial water footprints in China.
Sustainability 11 05082 g002
Sustainability 11 05082 g003 550

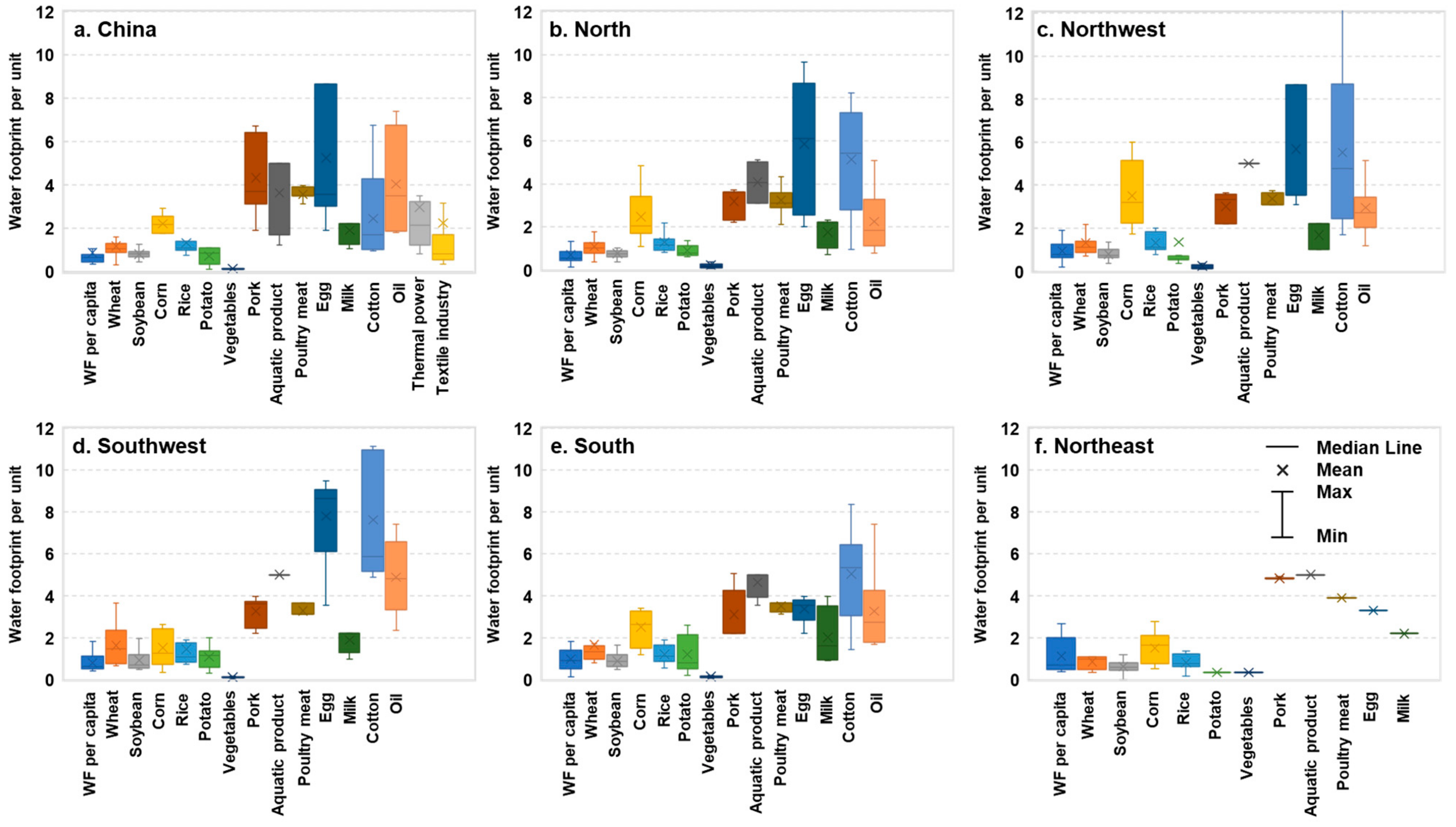

Figure 3. Water footprint per unit in different regions and for different products extracted for (a) National-level research, (b) North, (c) Northwest, (d) Southwest, (e) South, and (f) Northeast of China. The unit is 1000 m3/person/year for water footprint per capita, m3/kg for agricultural products, m3/MWh for thermal power generation and 10 m3/t for the textile industry.
Figure 3. Water footprint per unit in different regions and for different products extracted for (a) National-level research, (b) North, (c) Northwest, (d) Southwest, (e) South, and (f) Northeast of China. The unit is 1000 m3/person/year for water footprint per capita, m3/kg for agricultural products, m3/MWh for thermal power generation and 10 m3/t for the textile industry.
Sustainability 11 05082 g003
Sustainability 11 05082 g004 550

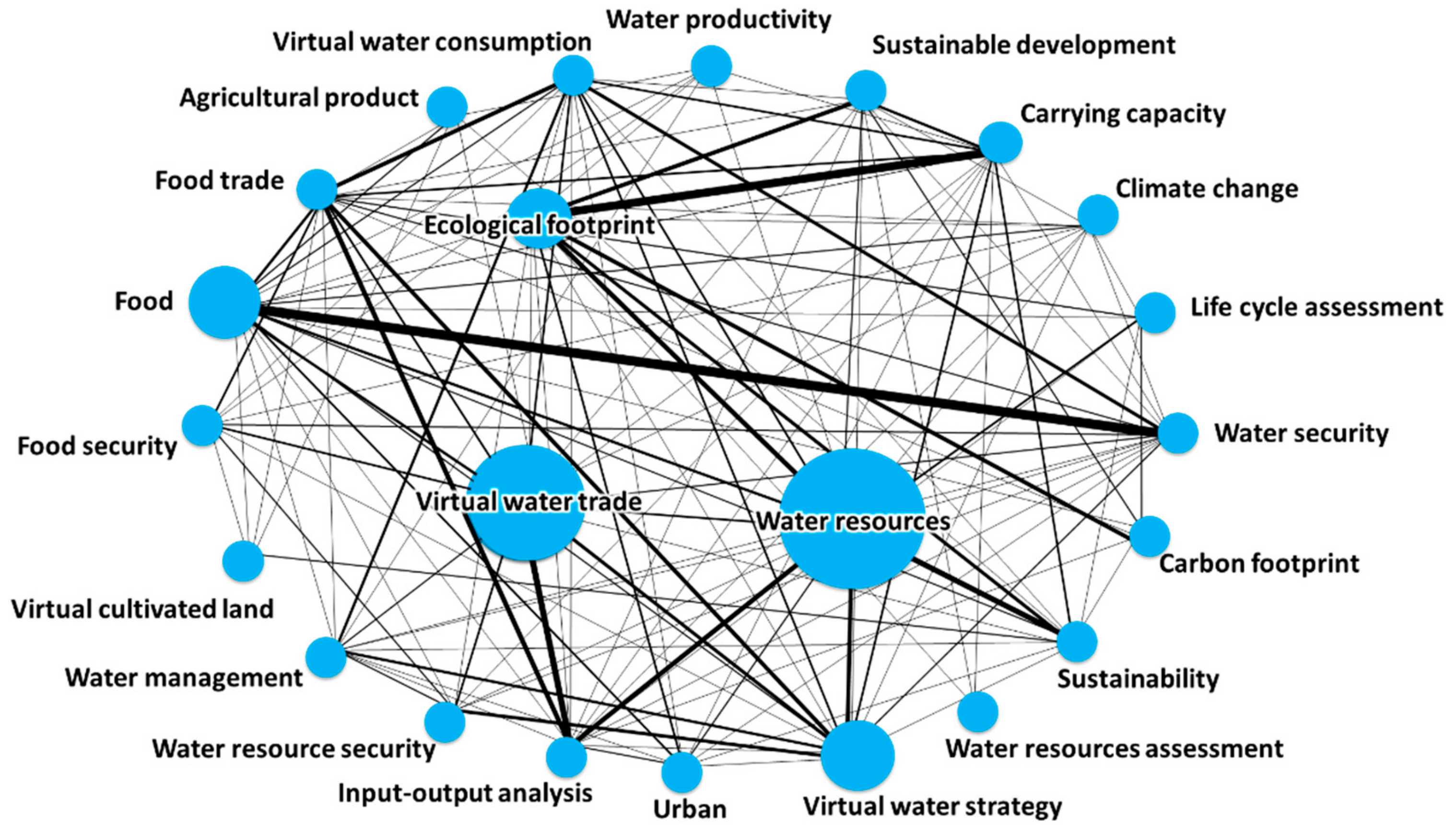

Figure 4. The network diagram of the most commonly used keyword.
Figure 4. The network diagram of the most commonly used keyword.
Sustainability 11 05082 g004
Sustainability 11 05082 g005 550
Figure 5. Statistics of frequently used research methods and tools in water footprint research.
Figure 5. Statistics of frequently used research methods and tools in water footprint research.
Sustainability 11 05082 g005
Table
Table 1. The trend in common keywords.
Table 1. The trend in common keywords.
Keywords2003–20062007–20102011–20142015–2018Total Use Frequency
Use FrequencyRankingUse FrequencyRankingUse FrequencyRankingUse FrequencyRanking
Virtual water641135115111372487
Water footprint13464214622121435
Water resources134434603563172
Virtual water trade163295414336119
Virtual water strategy222453168141297
China31310926549488
Ecological footprint31391117734563
Input-output analysis21610918630760
Agricultural product79126168171052
Food security511126716141238
Sustainability2164201310171036
Carrying capacity2168121011121632
Water management96812101142231
Carbon footprint021321101118931
Sustainable development11981291471825
Food31312632362024
Water security8881242142224
Water resource security9671651832524
Life cycle assessment02102632320823
Water resources assessment021321518131521
Virtual water consumption61061742142220
Virtual cultivated land02161781552119
Food trade41261751832518
Urban119223126141218
Water productivity021125323111715
Climate change02122361771815

Share and Cite

MDPI and ACS Style

Zhu, Y.; Jiang, S.; Han, X.; Gao, X.; He, G.; Zhao, Y.; Li, H. A Bibliometrics Review of Water Footprint Research in China: 2003–2018. Sustainability 2019, 11, 5082. https://doi.org/10.3390/su11185082

AMA Style

Zhu Y, Jiang S, Han X, Gao X, He G, Zhao Y, Li H. A Bibliometrics Review of Water Footprint Research in China: 2003–2018. Sustainability. 2019; 11(18):5082. https://doi.org/10.3390/su11185082

Chicago/Turabian Style

Zhu, Yongnan, Shan Jiang, Xinxueqi Han, Xuerui Gao, Guohua He, Yong Zhao, and Haihong Li. 2019. "A Bibliometrics Review of Water Footprint Research in China: 2003–2018" Sustainability 11, no. 18: 5082. https://doi.org/10.3390/su11185082

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
