Next Article in Journal
Determinants of Banks’ Net Interest Margin: Evidence from the Euro Area during the Crisis and Post-Crisis Period
Next Article in Special Issue
Etch Characteristics and Morphology of Al2O3/TiO2 Stacks for Silicon Surface Passivation
Previous Article in Journal
Sustainability and Firm Performance: A Review and Analysis Using Algorithmic Pathways in the Throughput Model
Previous Article in Special Issue
Restoring the Reactivity of Organic Acid Solution Used for Silver Recovery from Solar Cells by Fractional Distillation
Article Menu
Issue 14 (July-2) cover image

Export Article

Open AccessArticle

Surface Passivation of Boron Emitters on n-Type Silicon Solar Cells

1
Department of Materials Science and Engineering, Korea University, 145 Anam-ro, Seongbuk-gu, Seoul 02841, Korea
2
KU-KIST GREEN School (Graduate School of Energy and Environment), Korea University, 145 Anam-ro, Seongbuk-gu, Seoul 02841, Korea
*
Authors to whom correspondence should be addressed.
Sustainability 2019, 11(14), 3784; https://doi.org/10.3390/su11143784
Received: 30 May 2019 / Revised: 5 July 2019 / Accepted: 9 July 2019 / Published: 10 July 2019
  |
PDF [2218 KB, uploaded 12 July 2019]
  |     |

Abstract

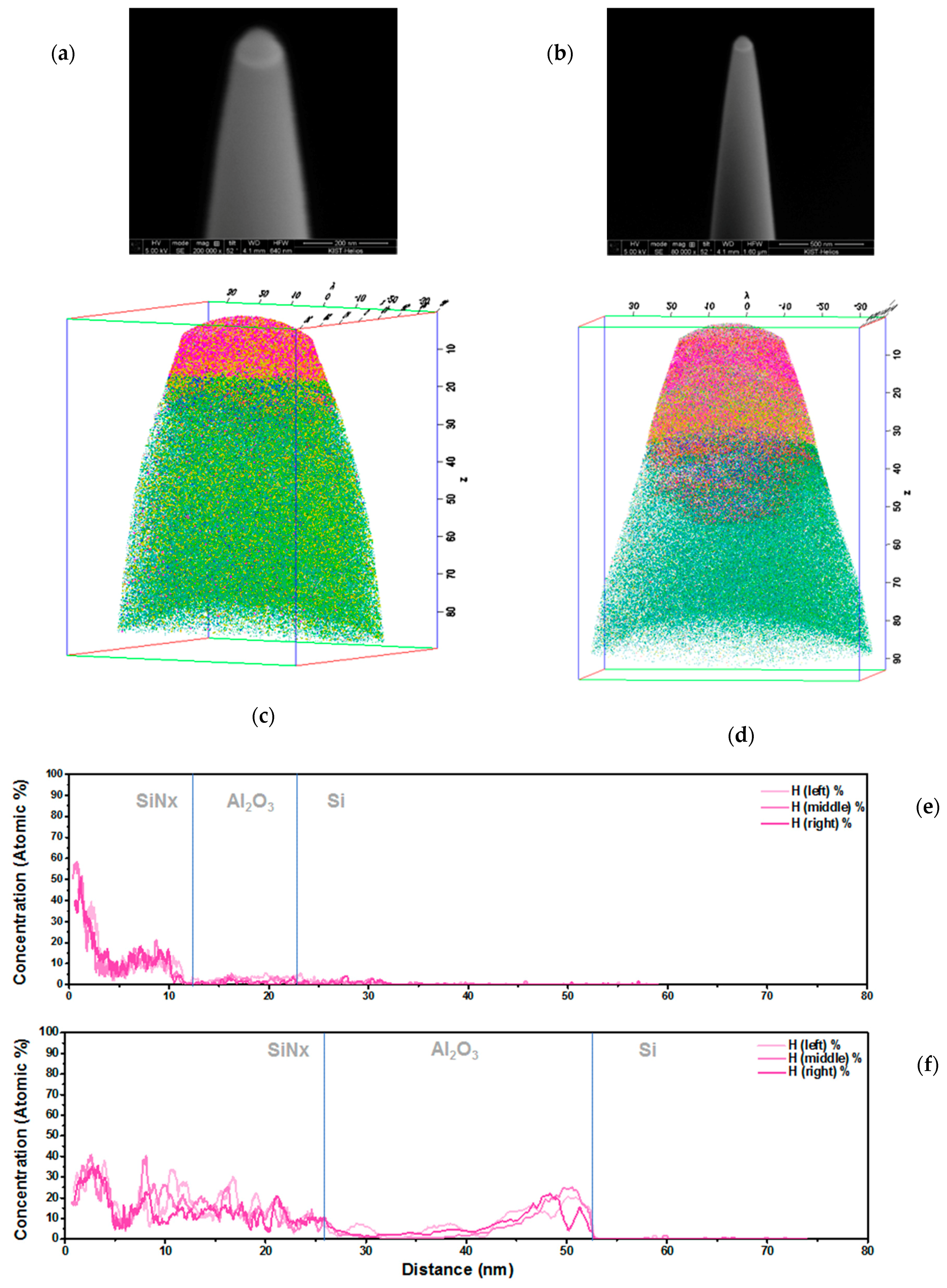

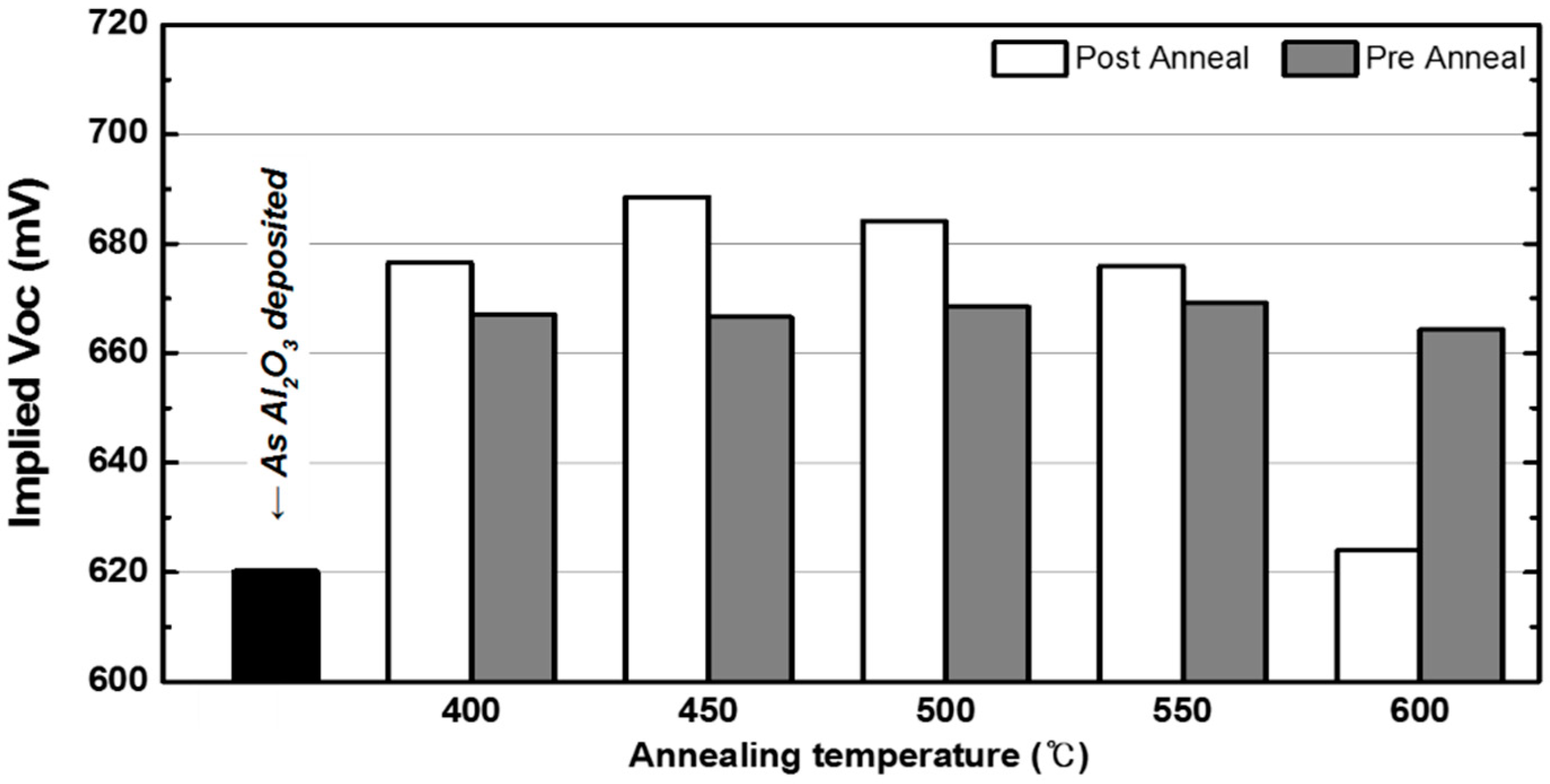

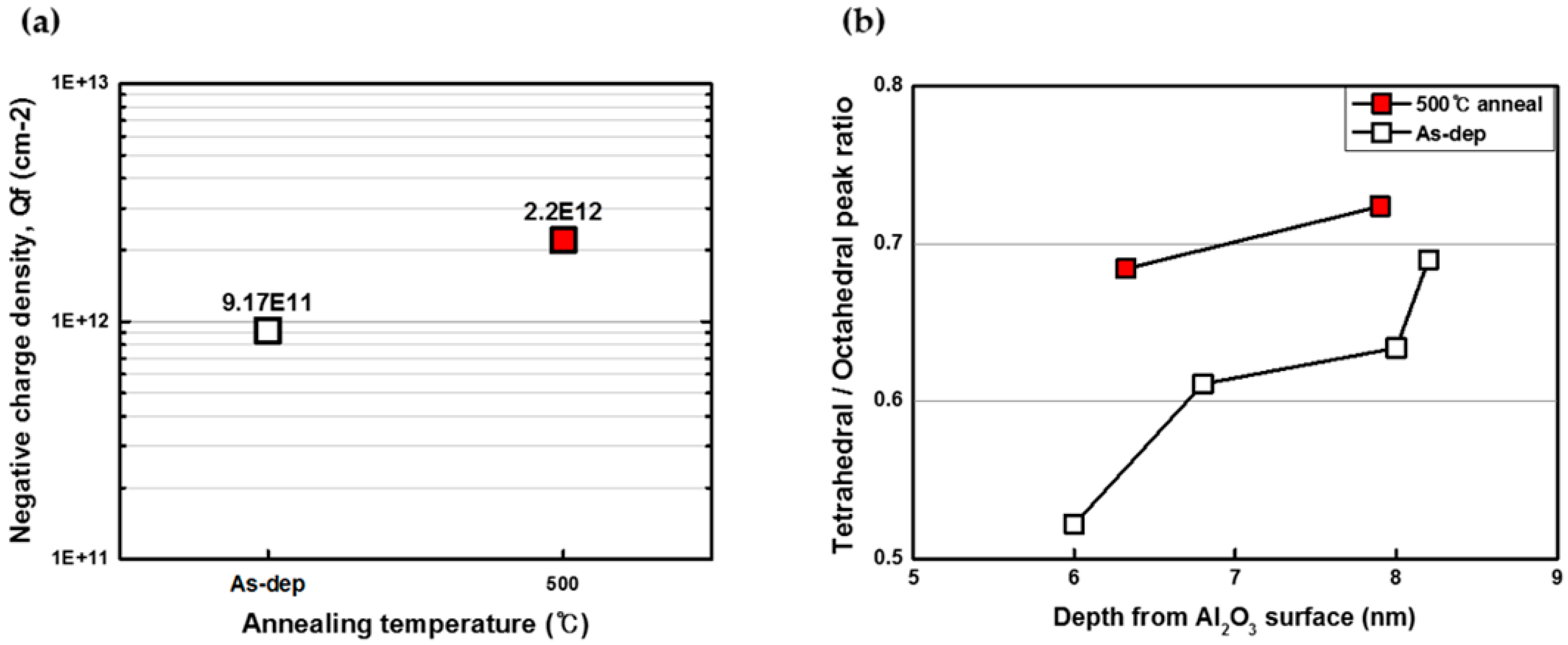

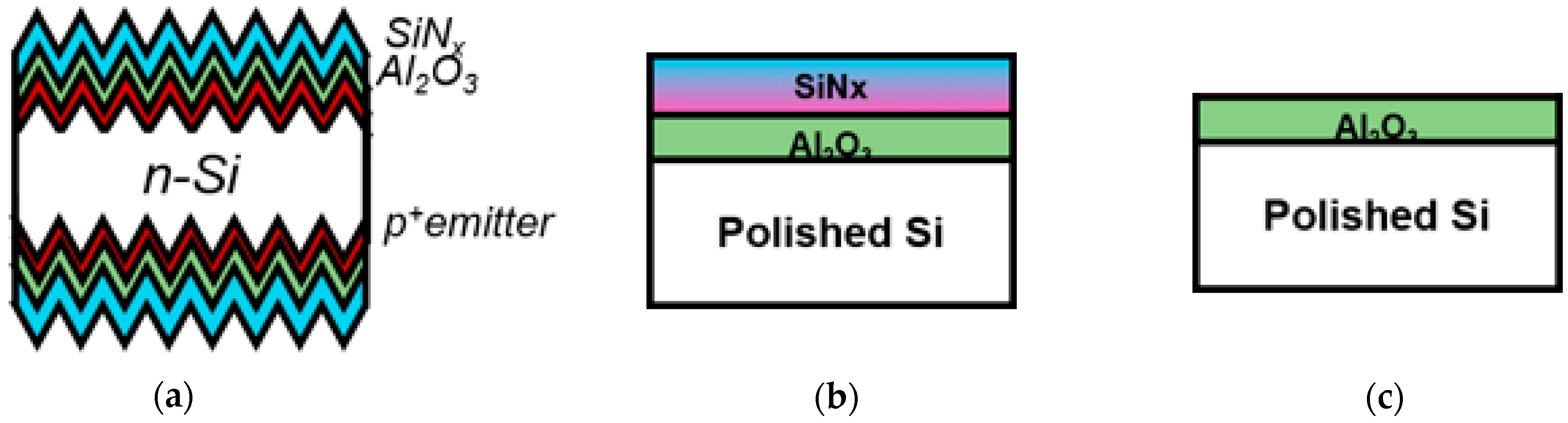

Al2O3/SiNx stack passivation layers are among the most popular layers used for commercial silicon solar cells. In particular, aluminum oxide has a high negative charge, while the SiNx film is known to supply hydrogen as well as impart antireflective properties. Although there are many experimental results that show that the passivation characteristics are lowered by using the stack passivation layer, the cause of the passivation is not yet understood. In this study, we investigated the passivation characteristics of Al2O3/SiNx stack layers. To identify the hydrogenation effect, we analyzed the hydrogen migration with atom probe tomography by comparing the pre-annealing and post-annealing treatments. For chemical passivation, capacitance-voltage measurements were used to confirm the negative fixed charge density due to heat treatment. Moreover, the field-effect passivation was understood by confirming changes in the Al2O3 structure using electron energy-loss spectroscopy. View Full-Text
Keywords: surface passivation; hydrogenation; silicon solar cells; aluminum oxide; field-effect passivation; chemical passivation surface passivation; hydrogenation; silicon solar cells; aluminum oxide; field-effect passivation; chemical passivation
Figures

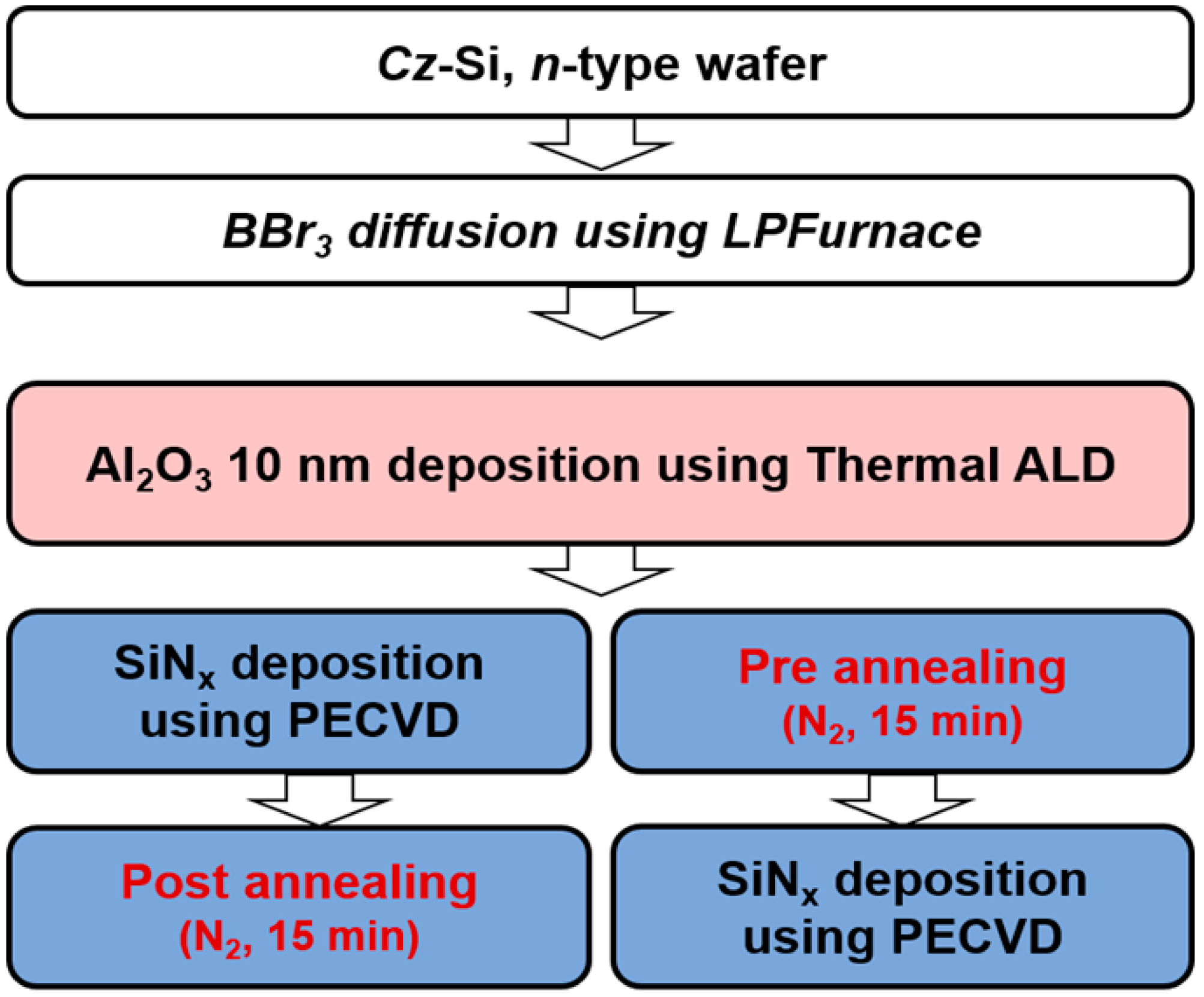

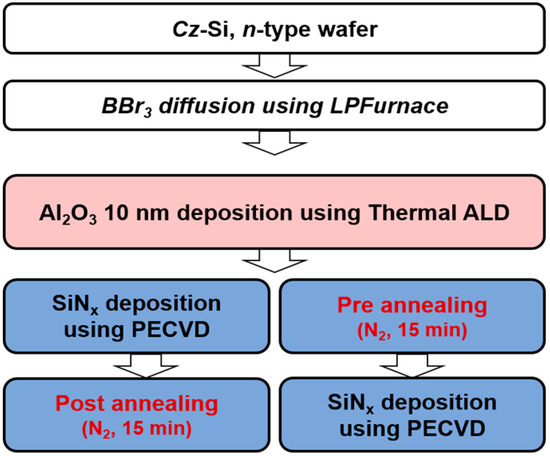

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Hyun, J.Y.; Bae, S.; Nam, Y.C.; Kang, D.; Lee, S.-W.; Kim, D.; Park, J.; Kang, Y.; Lee, H.-S. Surface Passivation of Boron Emitters on n-Type Silicon Solar Cells. Sustainability 2019, 11, 3784.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
